The document provides instructions for setting up Titanium Studio and the Titanium Mobile SDK to develop Android applications using Fastdev for live updates. It describes installing prerequisites, starting the Fastdev server, restarting the app to see changes, and supported Fastdev commands. Changes requiring a full rebuild are also outlined.

1. Studio

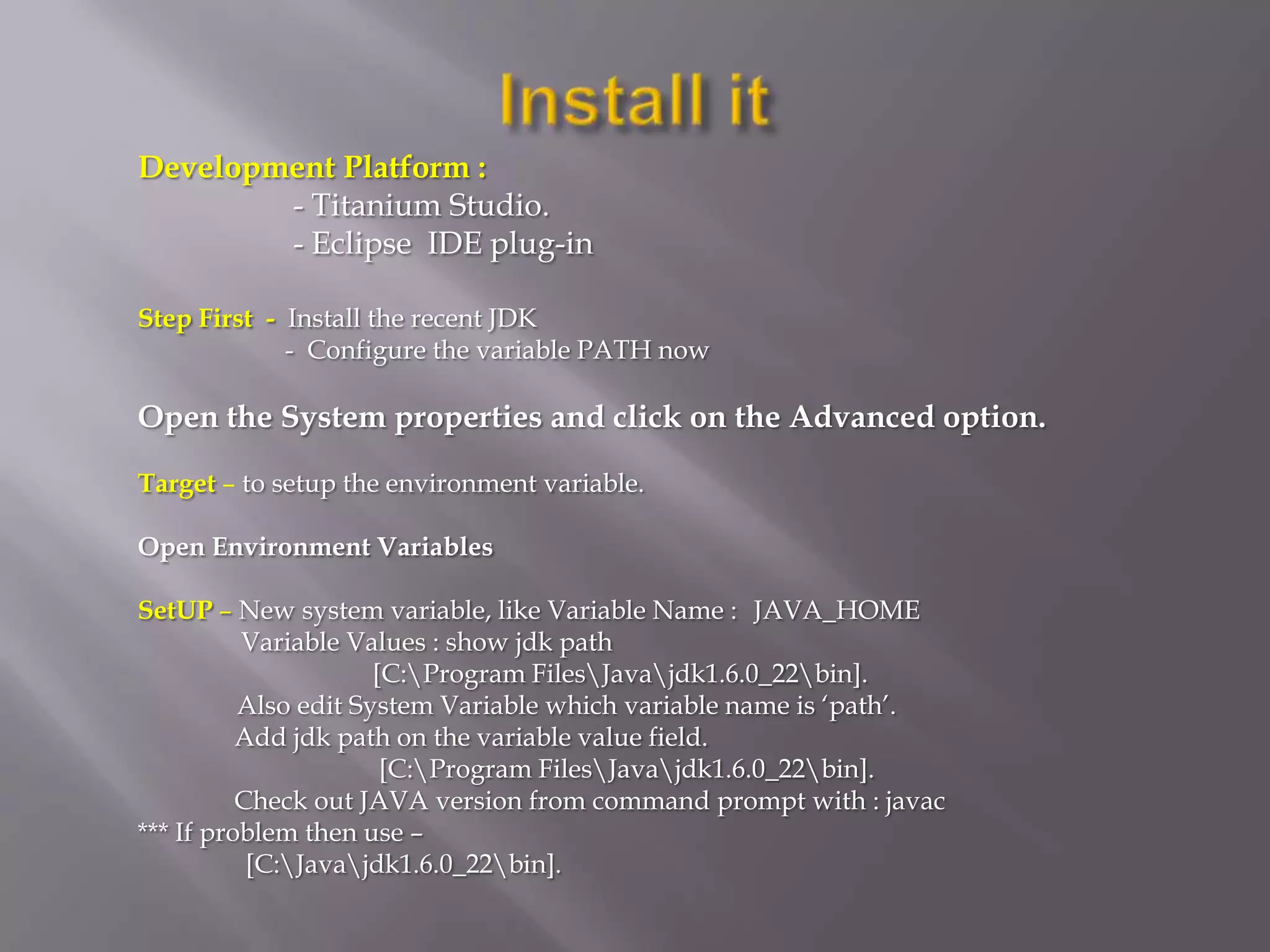

2. Development Platform :
- Titanium Studio.
- Eclipse IDE plug-in
Step First - Install the recent JDK
- Configure the variable PATH now
Open the System properties and click on the Advanced option.
Target – to setup the environment variable.
Open Environment Variables
SetUP – New system variable, like Variable Name : JAVA_HOME
Variable Values : show jdk path
[C:Program FilesJavajdk1.6.0_22bin].
Also edit System Variable which variable name is ‘path’.
Add jdk path on the variable value field.
[C:Program FilesJavajdk1.6.0_22bin].
Check out JAVA version from command prompt with : javac
*** If problem then use –
[C:Javajdk1.6.0_22bin].

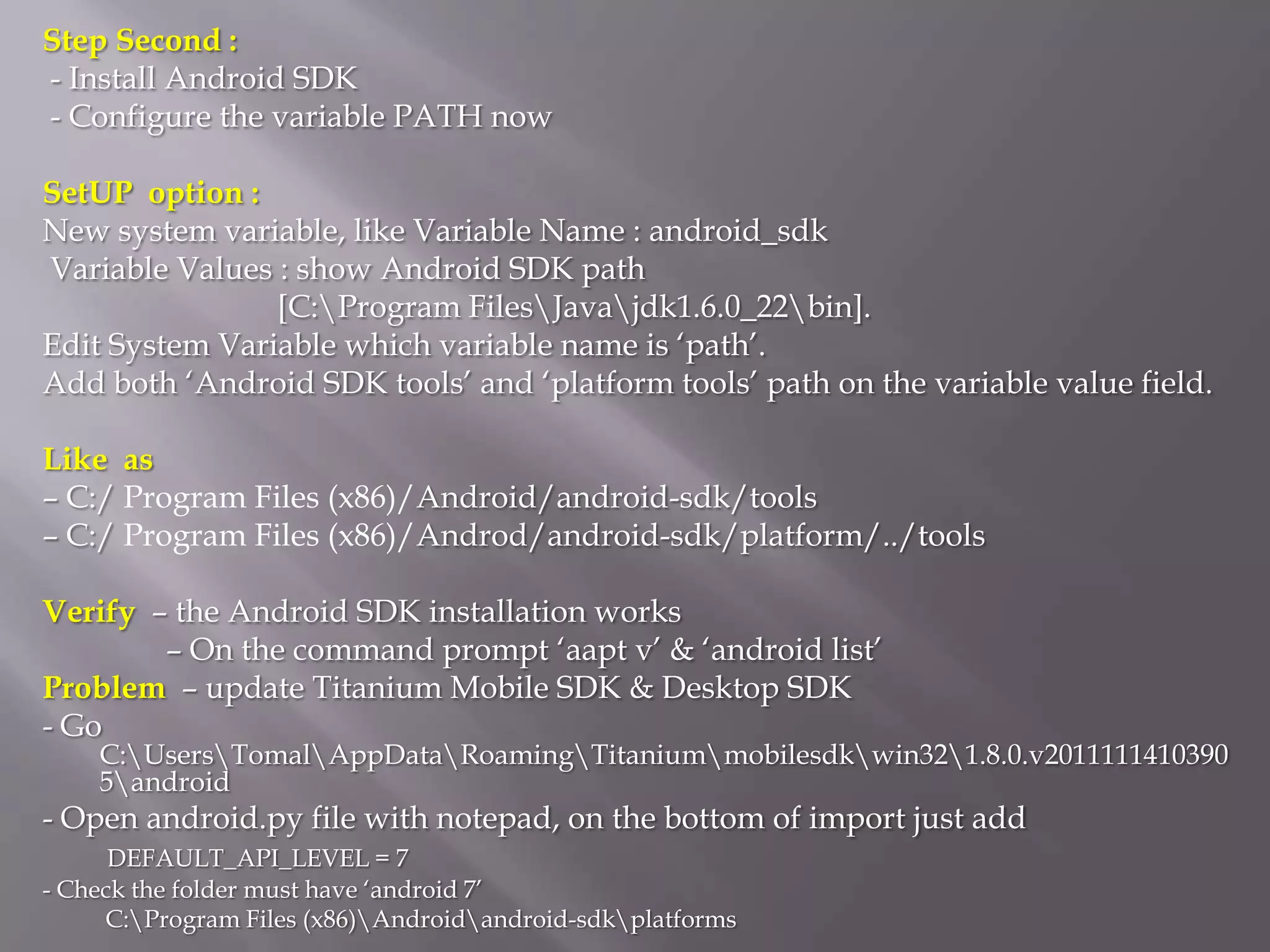

3. Step Second :
- Install Android SDK
- Configure the variable PATH now
SetUP option :
New system variable, like Variable Name : android_sdk
Variable Values : show Android SDK path
[C:Program FilesJavajdk1.6.0_22bin].
Edit System Variable which variable name is ‘path’.
Add both ‘Android SDK tools’ and ‘platform tools’ path on the variable value field.
Like as
– C:/ Program Files (x86)/Android/android-sdk/tools
– C:/ Program Files (x86)/Androd/android-sdk/platform/../tools
Verify – the Android SDK installation works
– On the command prompt ‘aapt v’ & ‘android list’
Problem – update Titanium Mobile SDK & Desktop SDK
- Go
C:UsersTomalAppDataRoamingTitaniummobilesdkwin321.8.0.v2011111410390
5android
- Open android.py file with notepad, on the bottom of import just add
DEFAULT_API_LEVEL = 7
- Check the folder must have ‘android 7’
C:Program Files (x86)Androidandroid-sdkplatforms

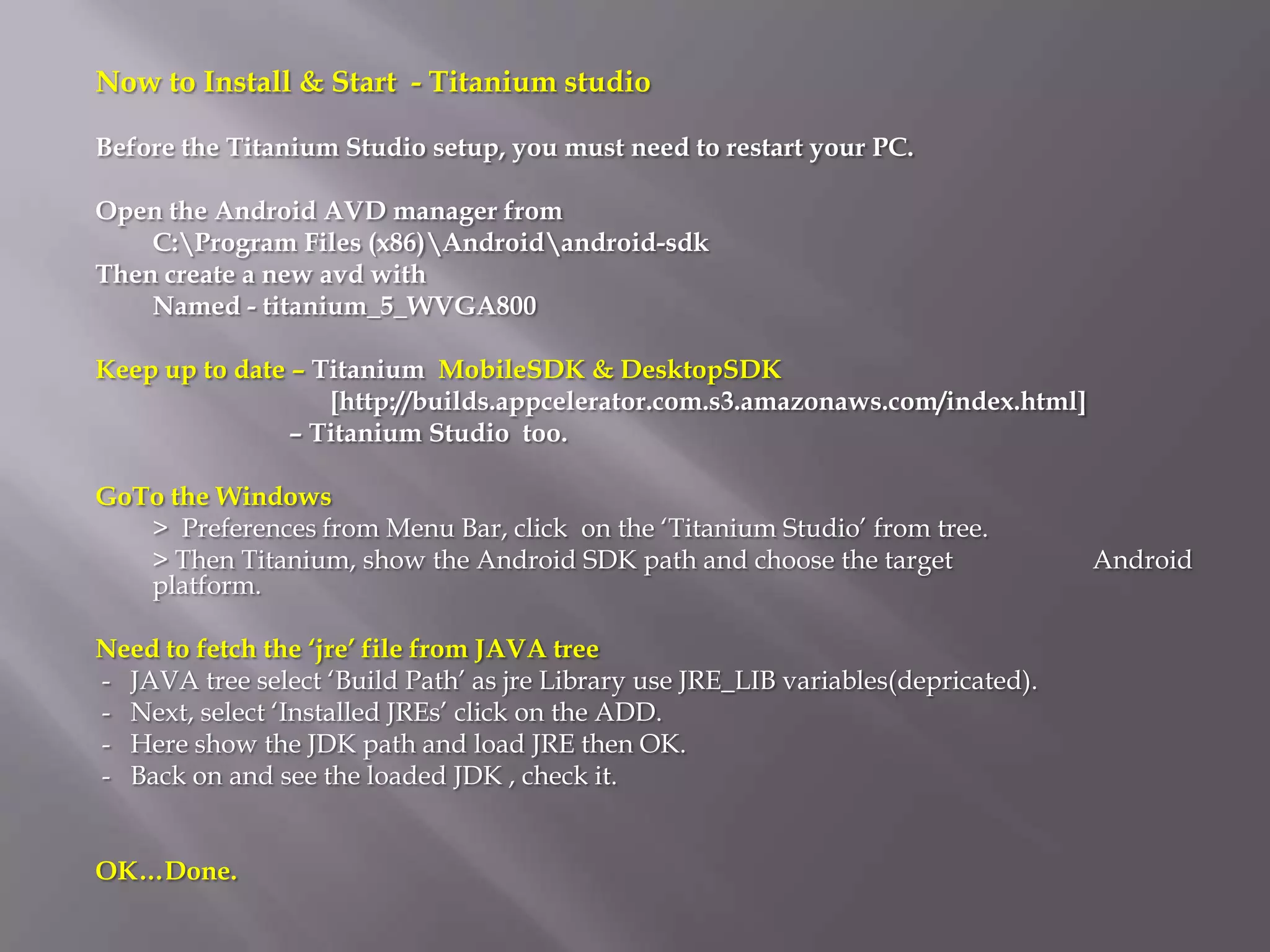

4. Now to Install & Start - Titanium studio
Before the Titanium Studio setup, you must need to restart your PC.
Open the Android AVD manager from
C:Program Files (x86)Androidandroid-sdk
Then create a new avd with
Named - titanium_5_WVGA800
Keep up to date – Titanium MobileSDK & DesktopSDK
[http://builds.appcelerator.com.s3.amazonaws.com/index.html]
– Titanium Studio too.
GoTo the Windows
> Preferences from Menu Bar, click on the ‘Titanium Studio’ from tree.
> Then Titanium, show the Android SDK path and choose the target Android
platform.
Need to fetch the ‘jre’ file from JAVA tree
- JAVA tree select ‘Build Path’ as jre Library use JRE_LIB variables(depricated).
- Next, select ‘Installed JREs’ click on the ADD.
- Here show the JDK path and load JRE then OK.
- Back on and see the loaded JDK , check it.
OK…Done.

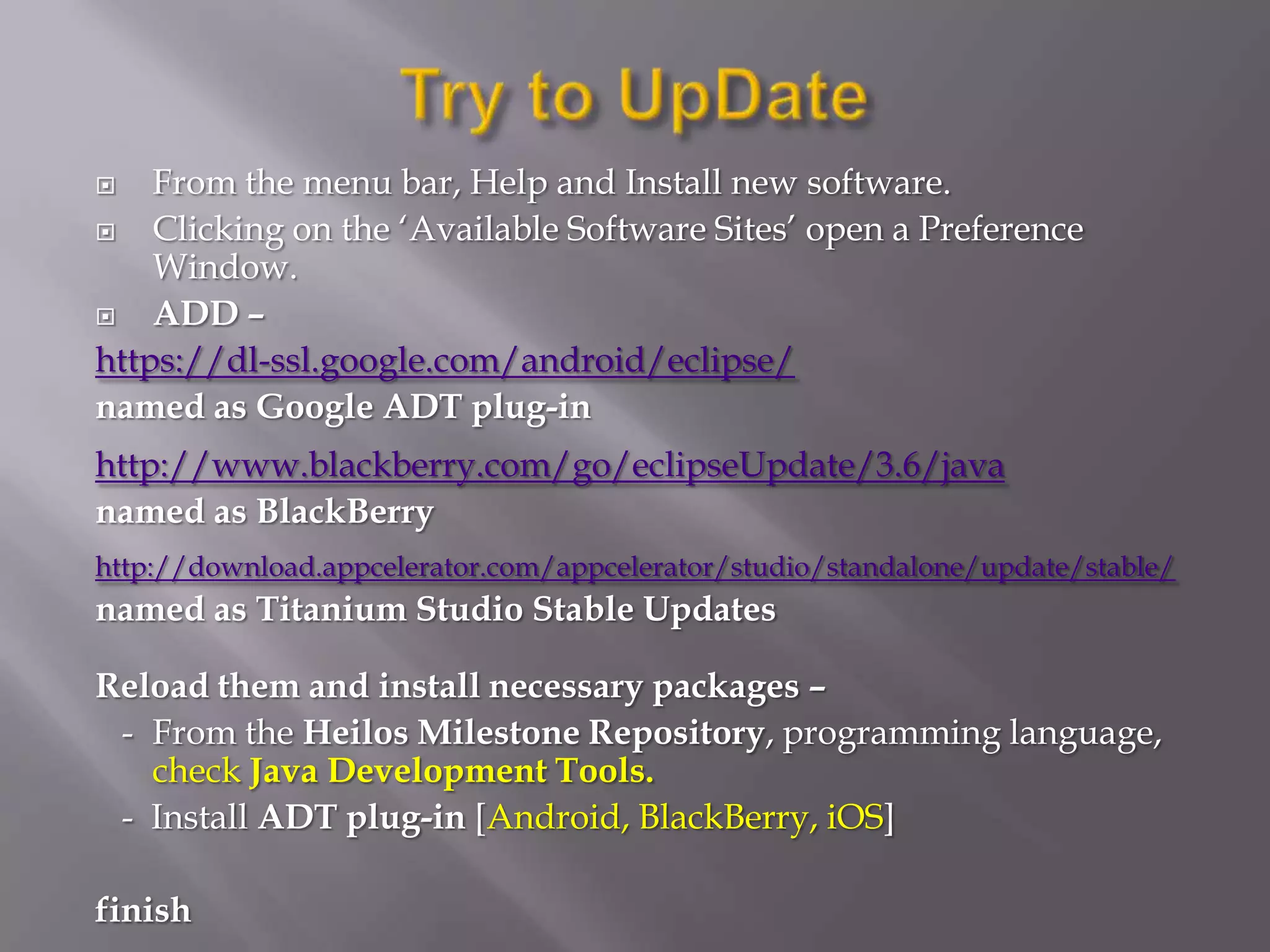

5.  From the menu bar, Help and Install new software.
 Clicking on the ‘Available Software Sites’ open a Preference
Window.
 ADD –
https://dl-ssl.google.com/android/eclipse/
named as Google ADT plug-in
http://www.blackberry.com/go/eclipseUpdate/3.6/java
named as BlackBerry
http://download.appcelerator.com/appcelerator/studio/standalone/update/stable/
named as Titanium Studio Stable Updates
Reload them and install necessary packages –
- From the Heilos Milestone Repository, programming language,
check Java Development Tools.
- Install ADT plug-in [Android, BlackBerry, iOS]
finish

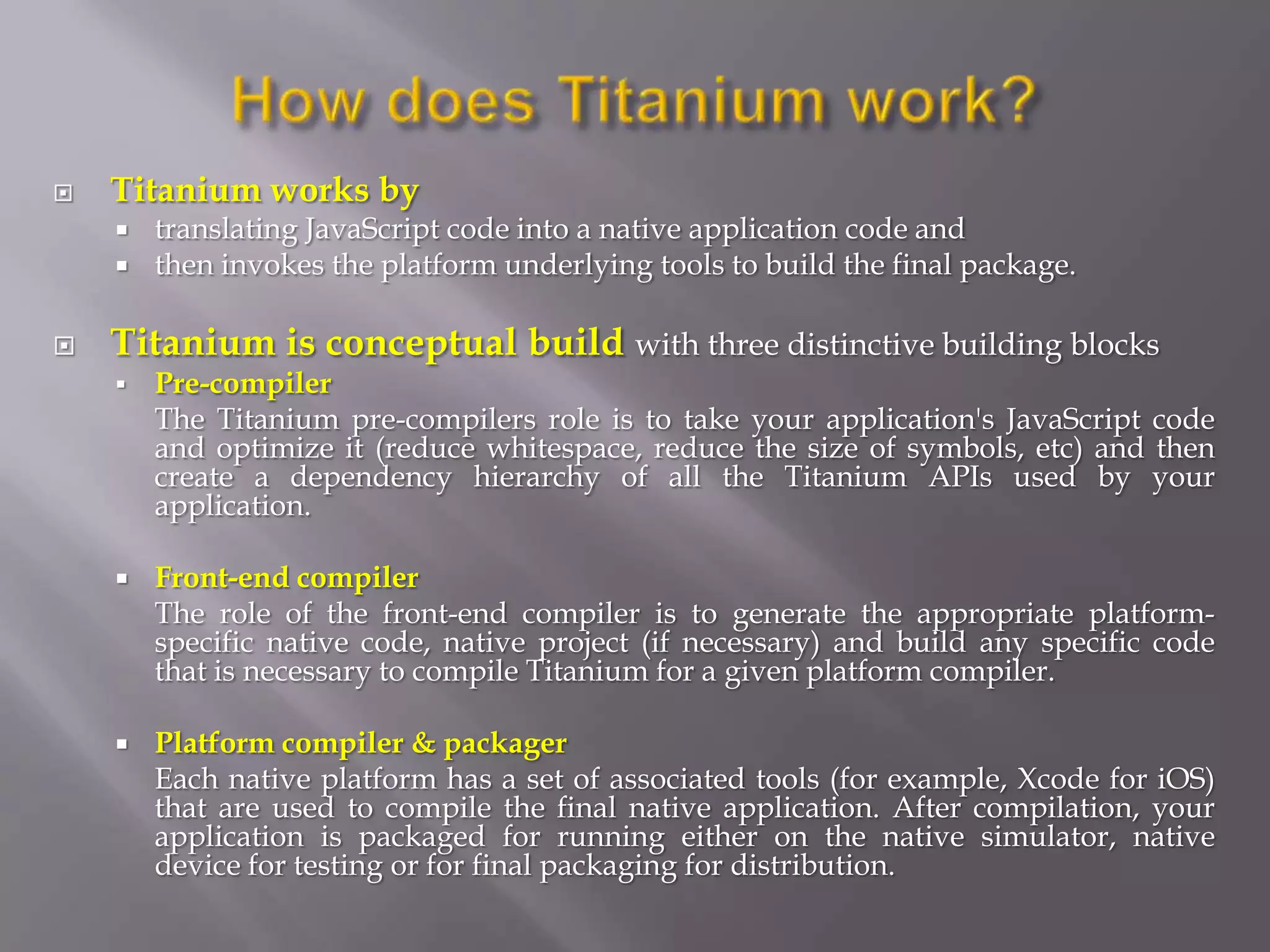

6.  Titanium works by
 translating JavaScript code into a native application code and
 then invokes the platform underlying tools to build the final package.
 Titanium is conceptual build with three distinctive building blocks
 Pre-compiler
The Titanium pre-compilers role is to take your application's JavaScript code
and optimize it (reduce whitespace, reduce the size of symbols, etc) and then
create a dependency hierarchy of all the Titanium APIs used by your
application.
 Front-end compiler
The role of the front-end compiler is to generate the appropriate platform-
specific native code, native project (if necessary) and build any specific code
that is necessary to compile Titanium for a given platform compiler.
 Platform compiler & packager
Each native platform has a set of associated tools (for example, Xcode for iOS)
that are used to compile the final native application. After compilation, your
application is packaged for running either on the native simulator, native
device for testing or for final packaging for distribution.

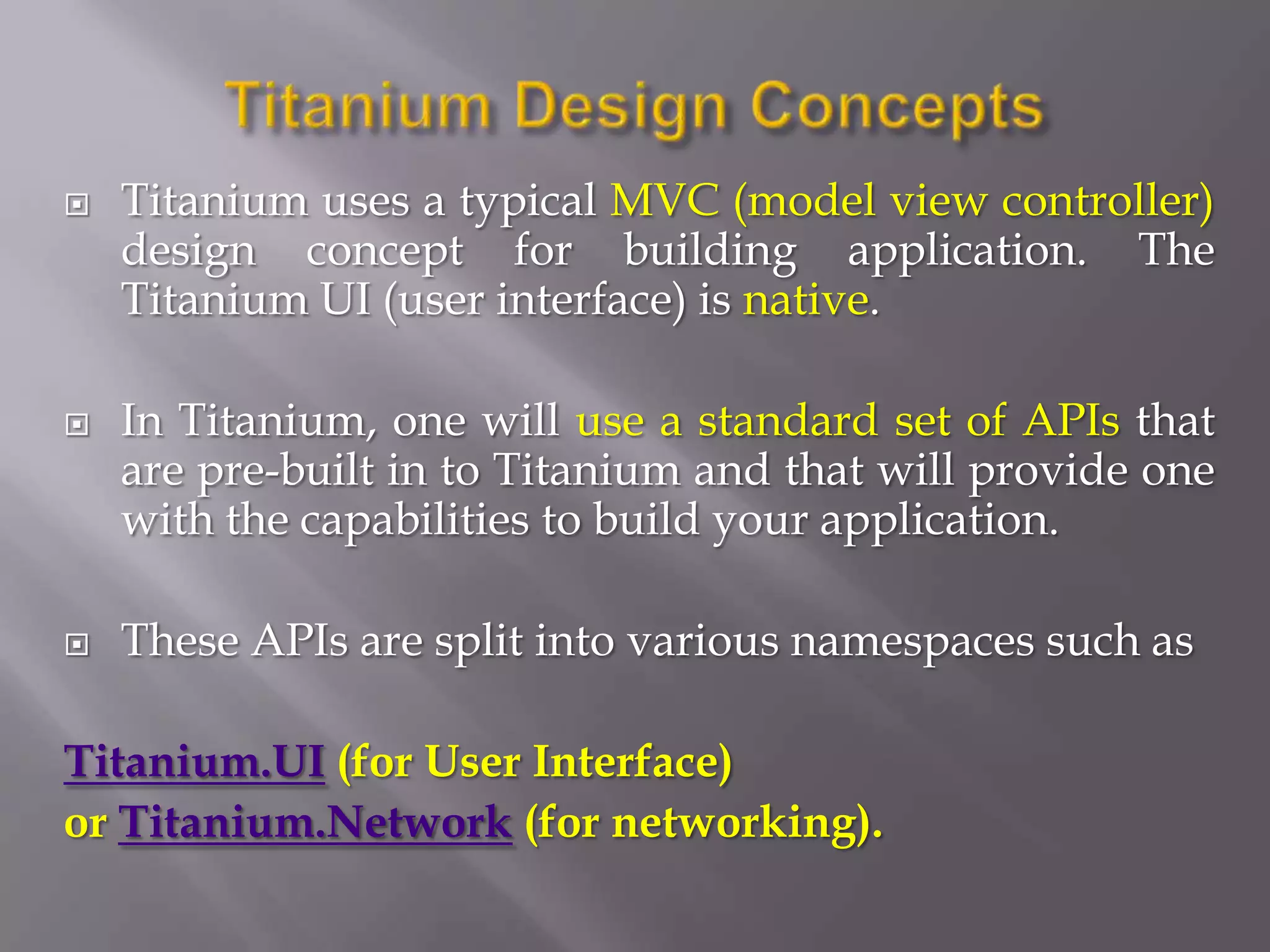

8.  Titanium uses a typical MVC (model view controller)
design concept for building application. The
Titanium UI (user interface) is native.
 In Titanium, one will use a standard set of APIs that
are pre-built in to Titanium and that will provide one
with the capabilities to build your application.
 These APIs are split into various namespaces such as
Titanium.UI (for User Interface)
or Titanium.Network (for networking).

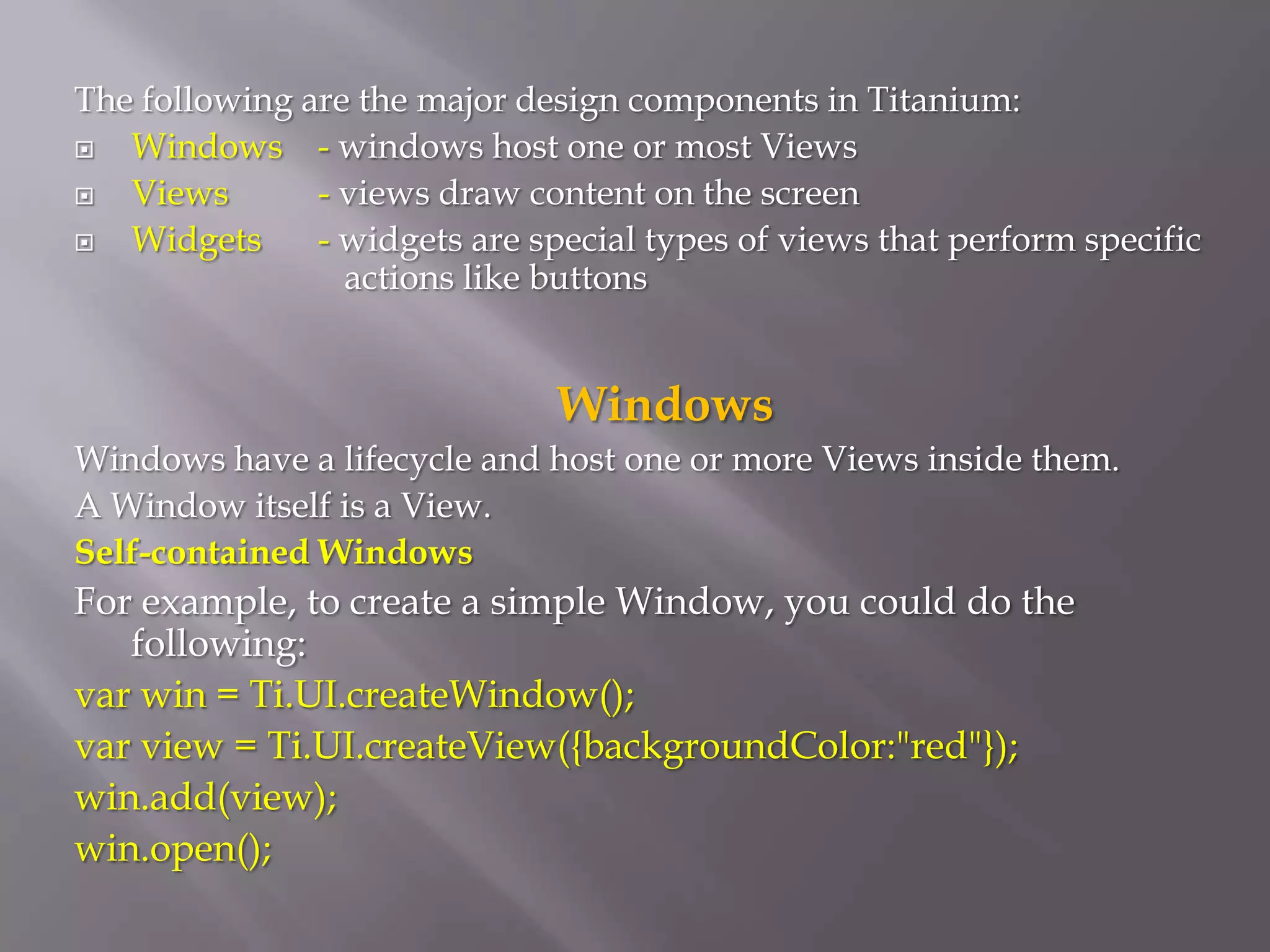

9. The following are the major design components in Titanium:
 Windows - windows host one or most Views
 Views - views draw content on the screen
 Widgets - widgets are special types of views that perform specific
actions like buttons
Windows
Windows have a lifecycle and host one or more Views inside them.
A Window itself is a View.
Self-contained Windows
For example, to create a simple Window, you could do the
following:
var win = Ti.UI.createWindow();
var view = Ti.UI.createView({backgroundColor:"red"});
win.add(view);
win.open();

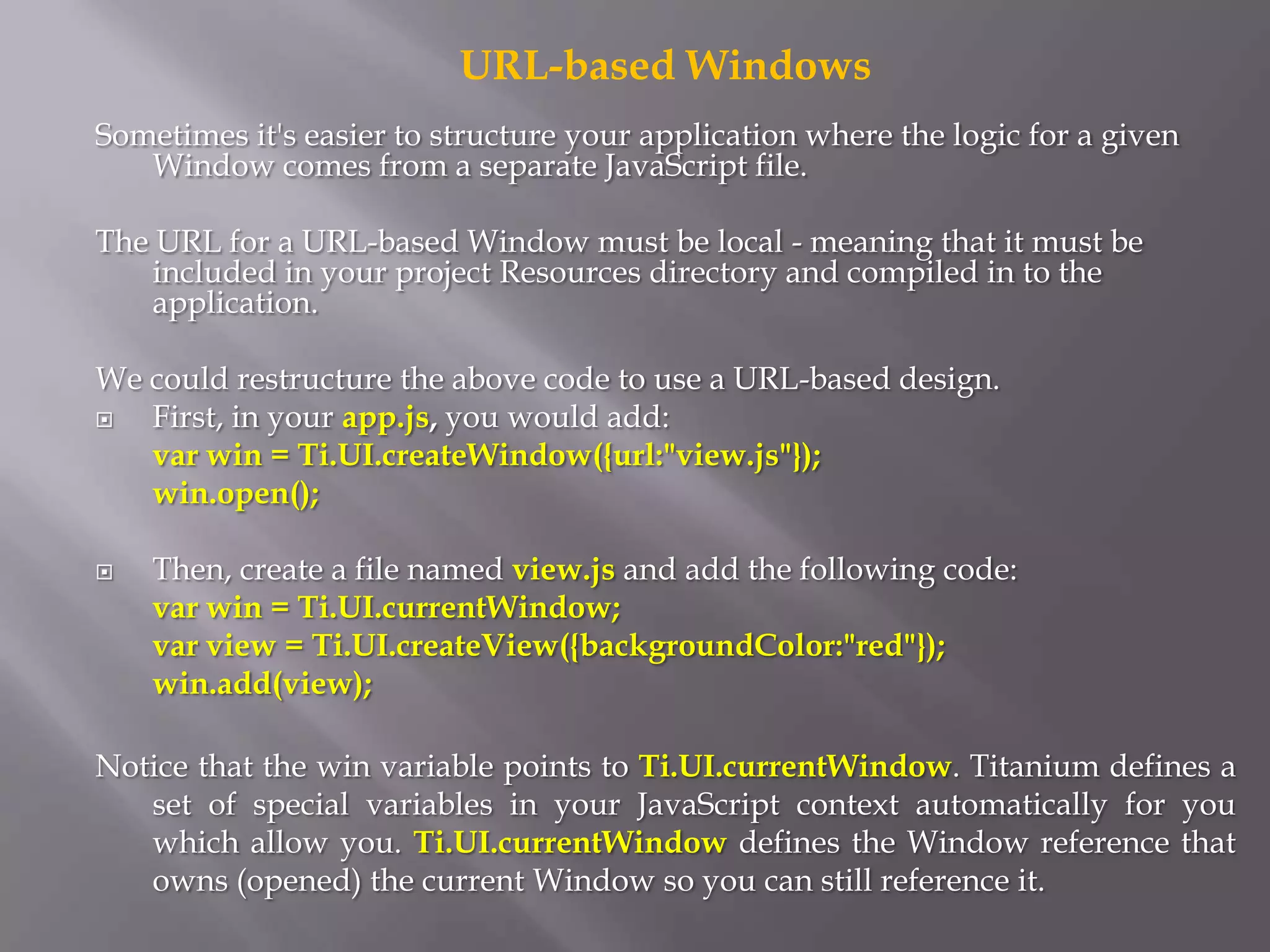

10. URL-based Windows
Sometimes it's easier to structure your application where the logic for a given
Window comes from a separate JavaScript file.
The URL for a URL-based Window must be local - meaning that it must be
included in your project Resources directory and compiled in to the
application.
We could restructure the above code to use a URL-based design.
 First, in your app.js, you would add:
var win = Ti.UI.createWindow({url:"view.js"});
win.open();
 Then, create a file named view.js and add the following code:
var win = Ti.UI.currentWindow;
var view = Ti.UI.createView({backgroundColor:"red"});
win.add(view);
Notice that the win variable points to Ti.UI.currentWindow. Titanium defines a
set of special variables in your JavaScript context automatically for you
which allow you. Ti.UI.currentWindow defines the Window reference that
owns (opened) the current Window so you can still reference it.

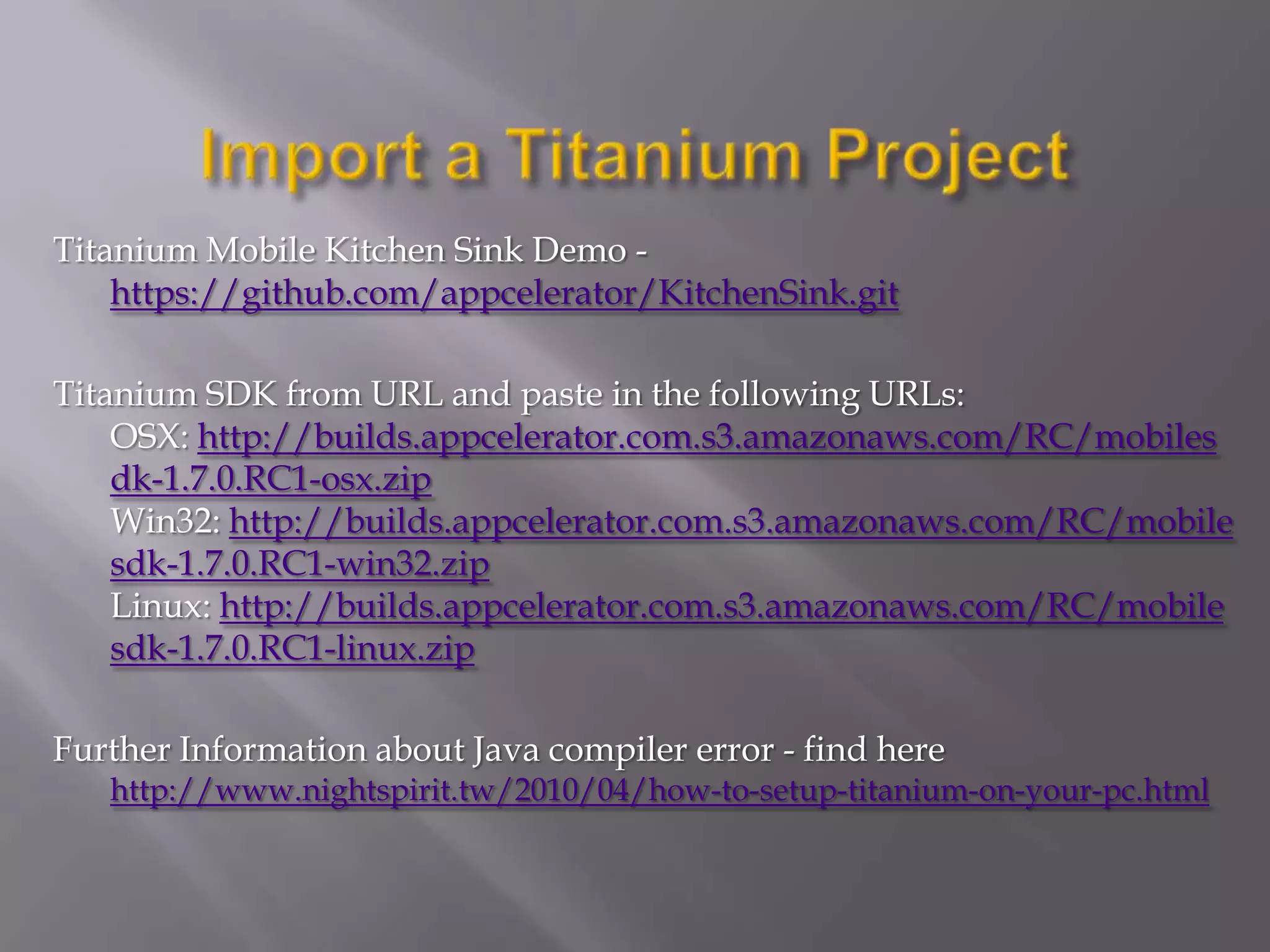

11. Titanium Mobile Kitchen Sink Demo -
https://github.com/appcele​rator/KitchenSink.git
Titanium SDK from URL and paste in the following URLs:
OSX: http://builds.appcelerator​.com.s3.amazonaws.com/RC/m​obiles
dk-1.7.0.RC1-osx.zip
Win32: http://builds.appcelerator​.com.s3.amazonaws.com/RC/m​obile
sdk-1.7.0.RC1-win32.z​ip
Linux: http://builds.appcelerator​.com.s3.amazonaws.com/RC/m​obile
sdk-1.7.0.RC1-linux.z​ip
Further Information about Java compiler error - find here
http://www.nightspirit.tw/​2010/04/how-to-setup-titan​ium-on-your-pc.html

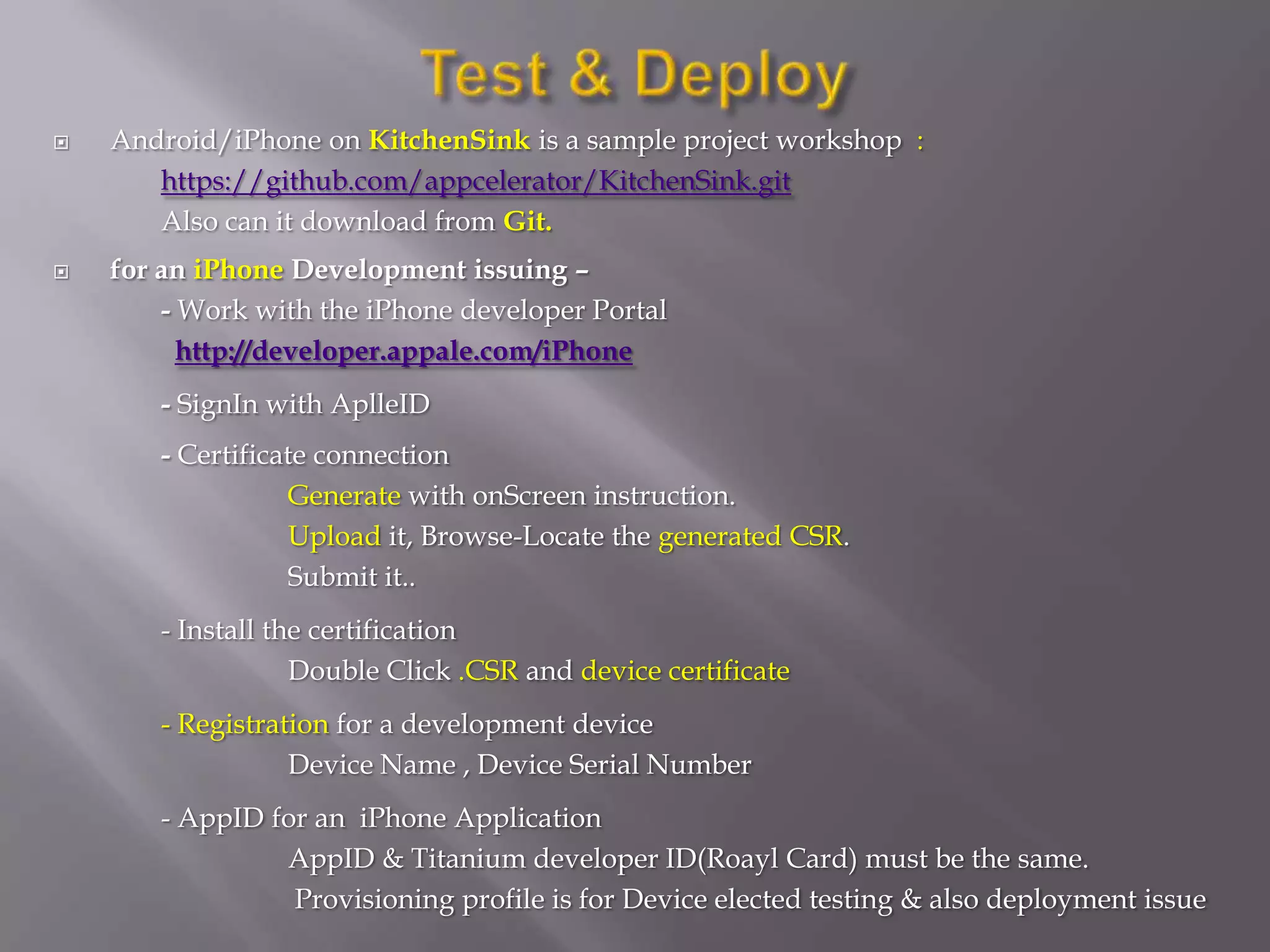

12.  Android/iPhone on KitchenSink is a sample project workshop :
https://github.com/appcelerator/KitchenSink.git
Also can it download from Git.
 for an iPhone Development issuing –
- Work with the iPhone developer Portal
http://developer.appale.com/iPhone
- SignIn with AplleID
- Certificate connection
Generate with onScreen instruction.
Upload it, Browse-Locate the generated CSR.
Submit it..
- Install the certification
Double Click .CSR and device certificate
- Registration for a development device
Device Name , Device Serial Number
- AppID for an iPhone Application
AppID & Titanium developer ID(Roayl Card) must be the same.
Provisioning profile is for Device elected testing & also deployment issue

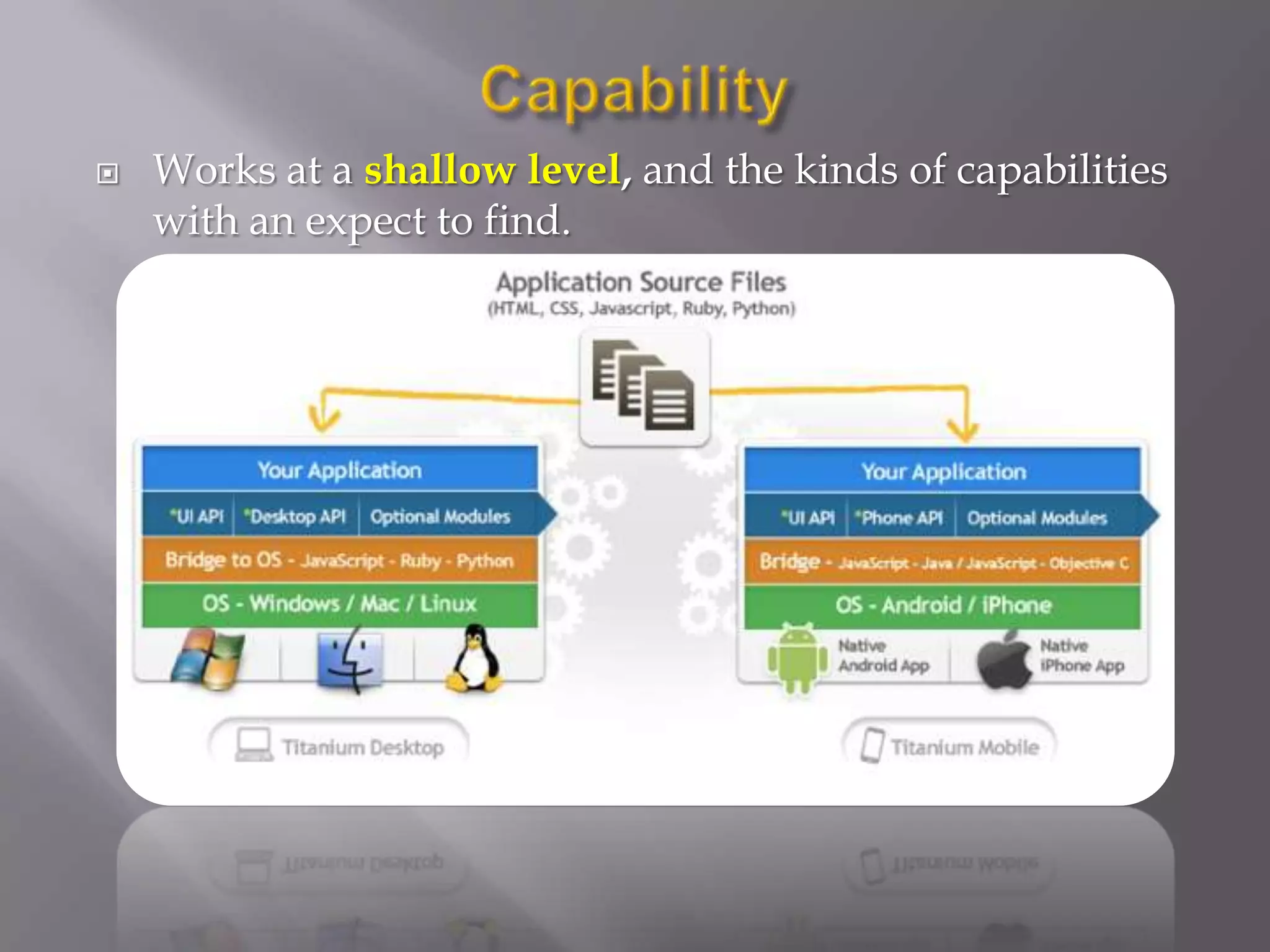

13.  Works at a shallow level, and the kinds of capabilities
with an expect to find.

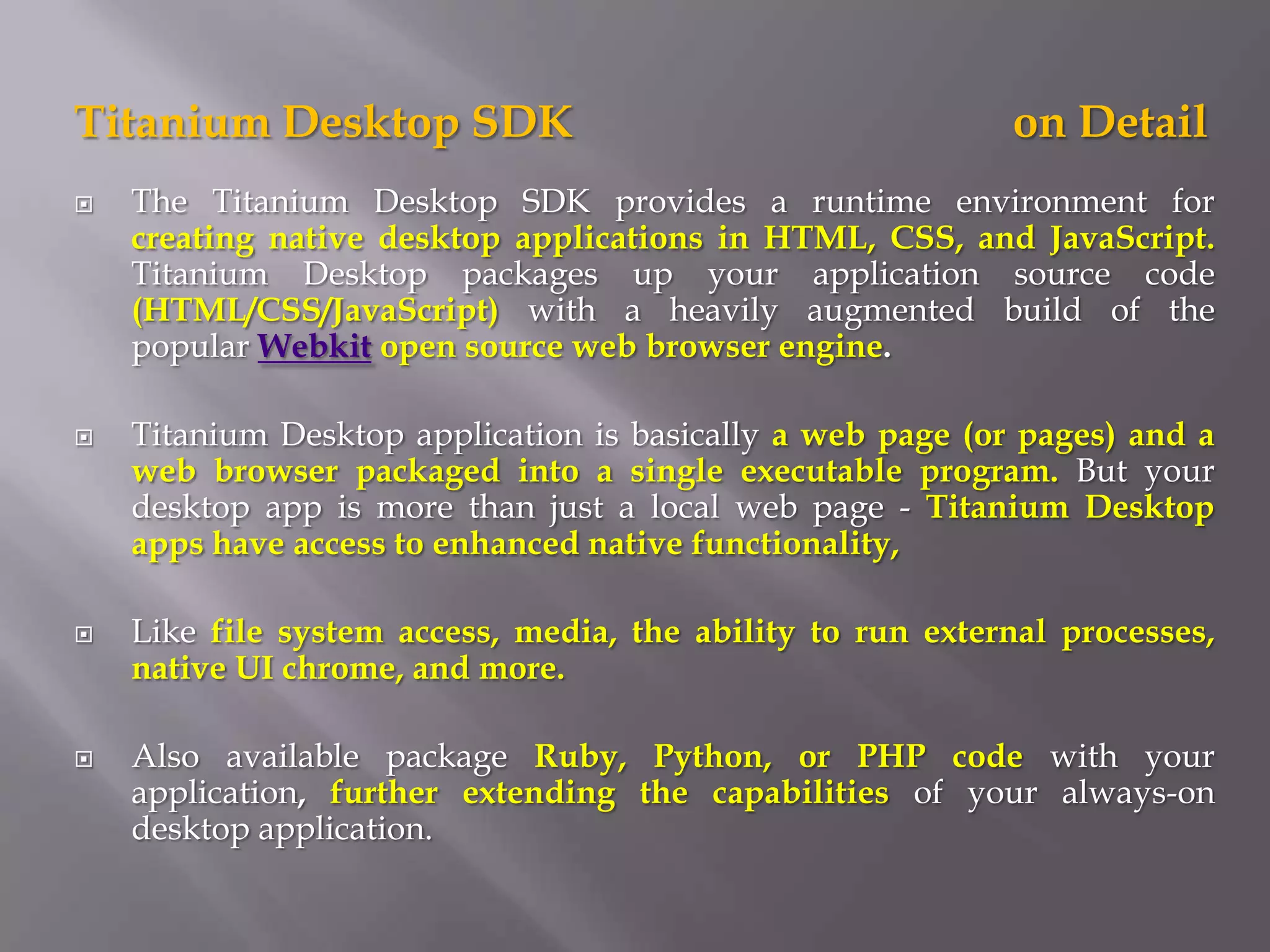

14. Titanium Desktop SDK on Detail
 The Titanium Desktop SDK provides a runtime environment for
creating native desktop applications in HTML, CSS, and JavaScript.
Titanium Desktop packages up your application source code
(HTML/CSS/JavaScript) with a heavily augmented build of the
popular Webkit open source web browser engine.
 Titanium Desktop application is basically a web page (or pages) and a
web browser packaged into a single executable program. But your
desktop app is more than just a local web page - Titanium Desktop
apps have access to enhanced native functionality,
 Like file system access, media, the ability to run external processes,
native UI chrome, and more.
 Also available package Ruby, Python, or PHP code with your
application, further extending the capabilities of your always-on
desktop application.

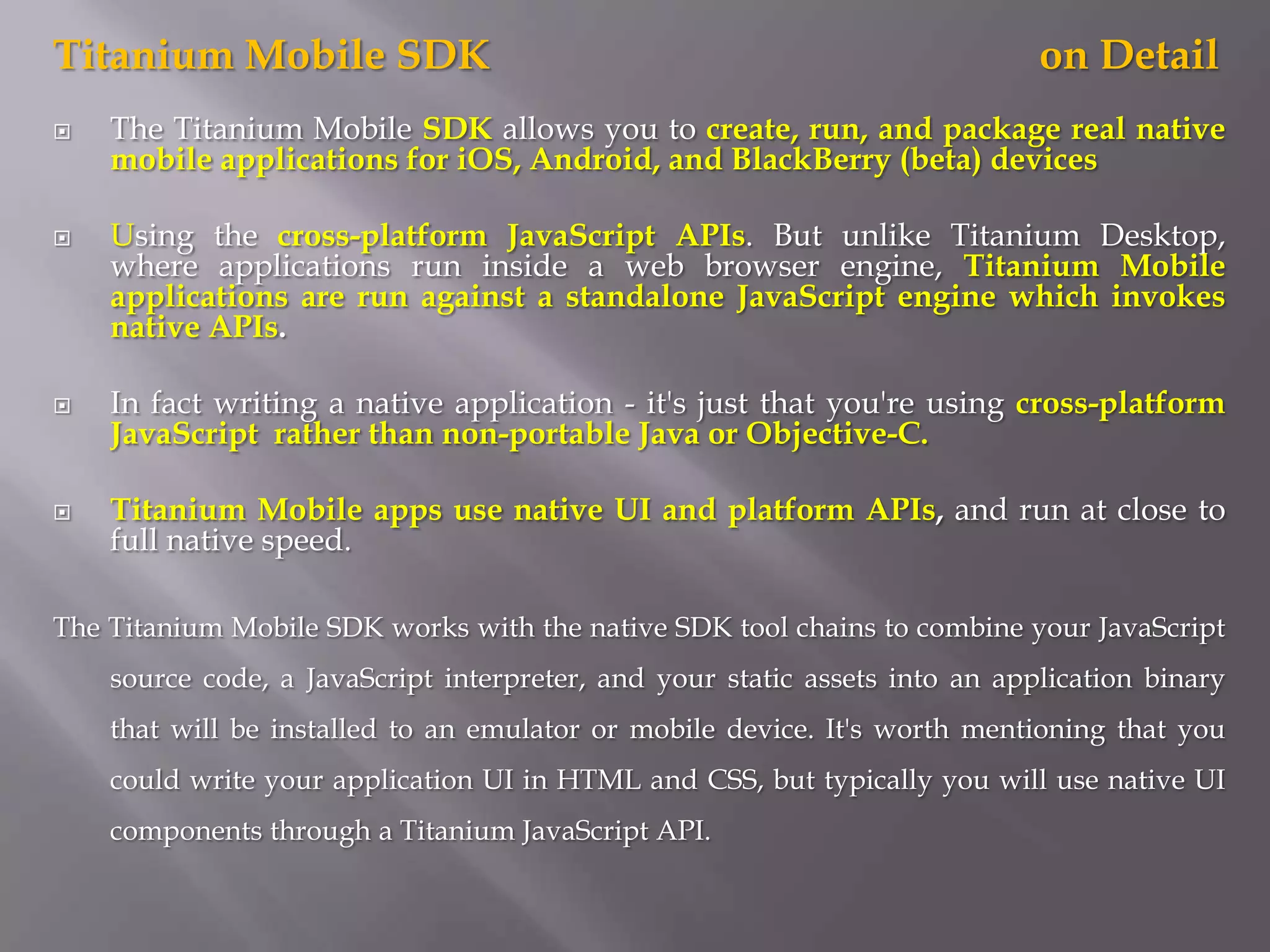

15. Titanium Mobile SDK on Detail
 The Titanium Mobile SDK allows you to create, run, and package real native
mobile applications for iOS, Android, and BlackBerry (beta) devices
 Using the cross-platform JavaScript APIs. But unlike Titanium Desktop,
where applications run inside a web browser engine, Titanium Mobile
applications are run against a standalone JavaScript engine which invokes
native APIs.
 In fact writing a native application - it's just that you're using cross-platform
JavaScript rather than non-portable Java or Objective-C.
 Titanium Mobile apps use native UI and platform APIs, and run at close to
full native speed.
The Titanium Mobile SDK works with the native SDK tool chains to combine your JavaScript
source code, a JavaScript interpreter, and your static assets into an application binary
that will be installed to an emulator or mobile device. It's worth mentioning that you
could write your application UI in HTML and CSS, but typically you will use native UI
components through a Titanium JavaScript API.

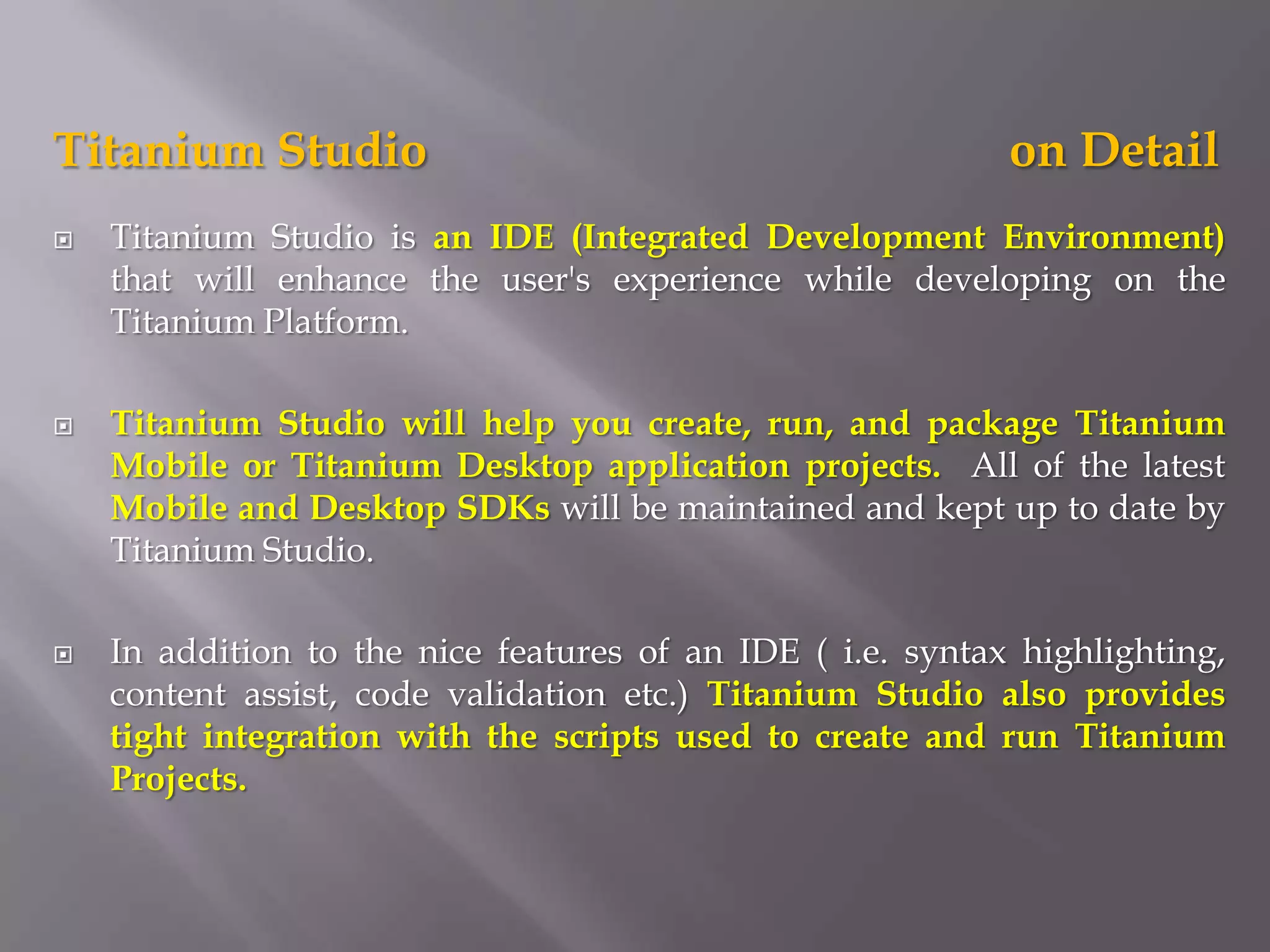

16. Titanium Studio on Detail
 Titanium Studio is an IDE (Integrated Development Environment)
that will enhance the user's experience while developing on the
Titanium Platform.
 Titanium Studio will help you create, run, and package Titanium
Mobile or Titanium Desktop application projects. All of the latest
Mobile and Desktop SDKs will be maintained and kept up to date by
Titanium Studio.
 In addition to the nice features of an IDE ( i.e. syntax highlighting,
content assist, code validation etc.) Titanium Studio also provides
tight integration with the scripts used to create and run Titanium
Projects.

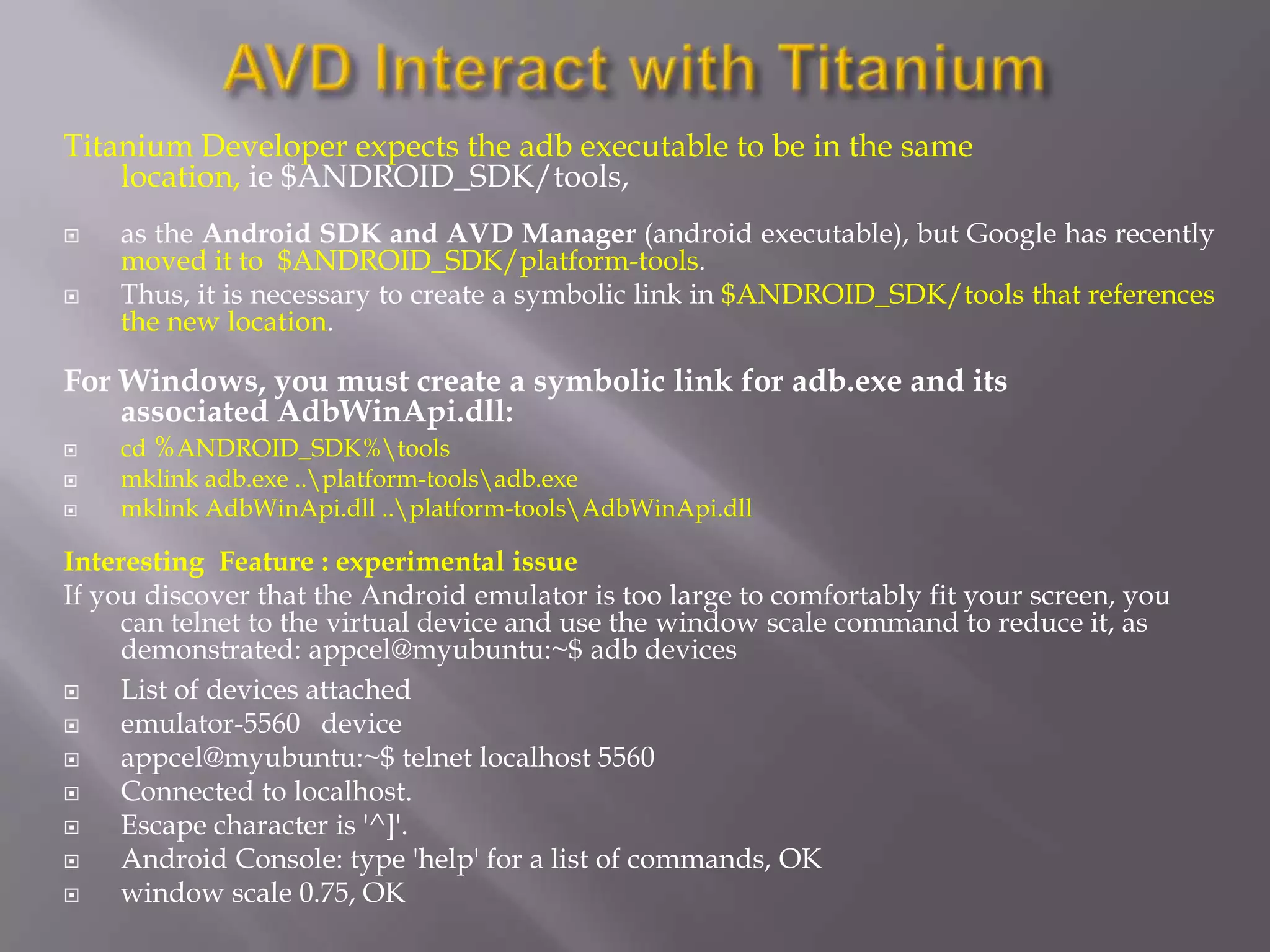

17. Titanium Developer expects the adb executable to be in the same
location, ie $ANDROID_SDK/tools,
 as the Android SDK and AVD Manager (android executable), but Google has recently
moved it to $ANDROID_SDK/platform-tools.
 Thus, it is necessary to create a symbolic link in $ANDROID_SDK/tools that references
the new location.
For Windows, you must create a symbolic link for adb.exe and its
associated AdbWinApi.dll:
 cd %ANDROID_SDK%tools
 mklink adb.exe ..platform-toolsadb.exe
 mklink AdbWinApi.dll ..platform-toolsAdbWinApi.dll
Interesting Feature : experimental issue
If you discover that the Android emulator is too large to comfortably fit your screen, you
can telnet to the virtual device and use the window scale command to reduce it, as
demonstrated: appcel@myubuntu:~$ adb devices
 List of devices attached
 emulator-5560 device
 appcel@myubuntu:~$ telnet localhost 5560
 Connected to localhost.
 Escape character is '^]'.
 Android Console: type 'help' for a list of commands, OK
 window scale 0.75, OK

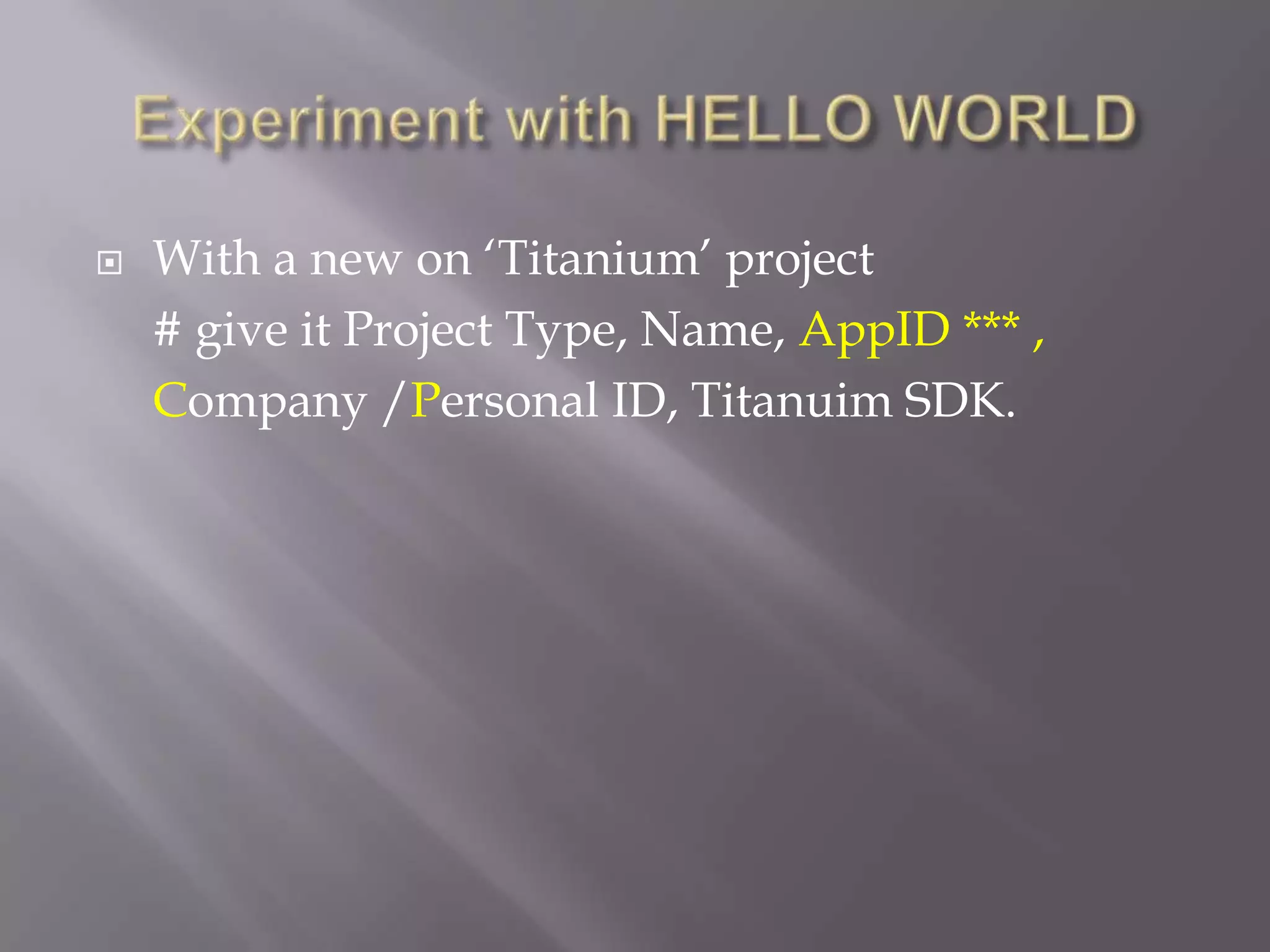

18.  With a new on ‘Titanium’ project
# give it Project Type, Name, AppID *** ,
Company /Personal ID, Titanuim SDK.

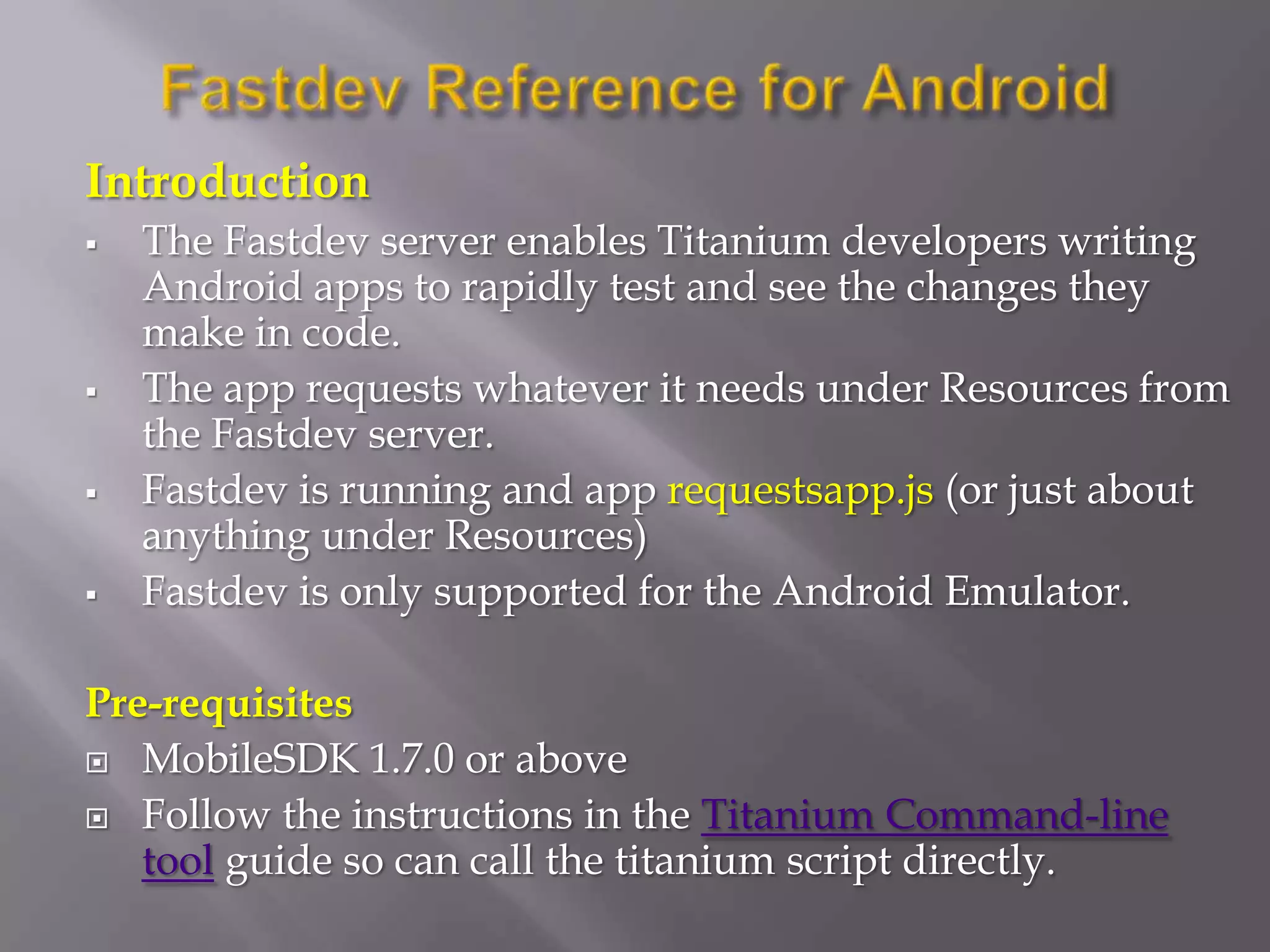

19. Introduction
 The Fastdev server enables Titanium developers writing
Android apps to rapidly test and see the changes they
make in code.
 The app requests whatever it needs under Resources from
the Fastdev server.
 Fastdev is running and app requestsapp.js (or just about
anything under Resources)
 Fastdev is only supported for the Android Emulator.
Pre-requisites
 MobileSDK 1.7.0 or above
 Follow the instructions in the Titanium Command-line
tool guide so can call the titanium script directly.

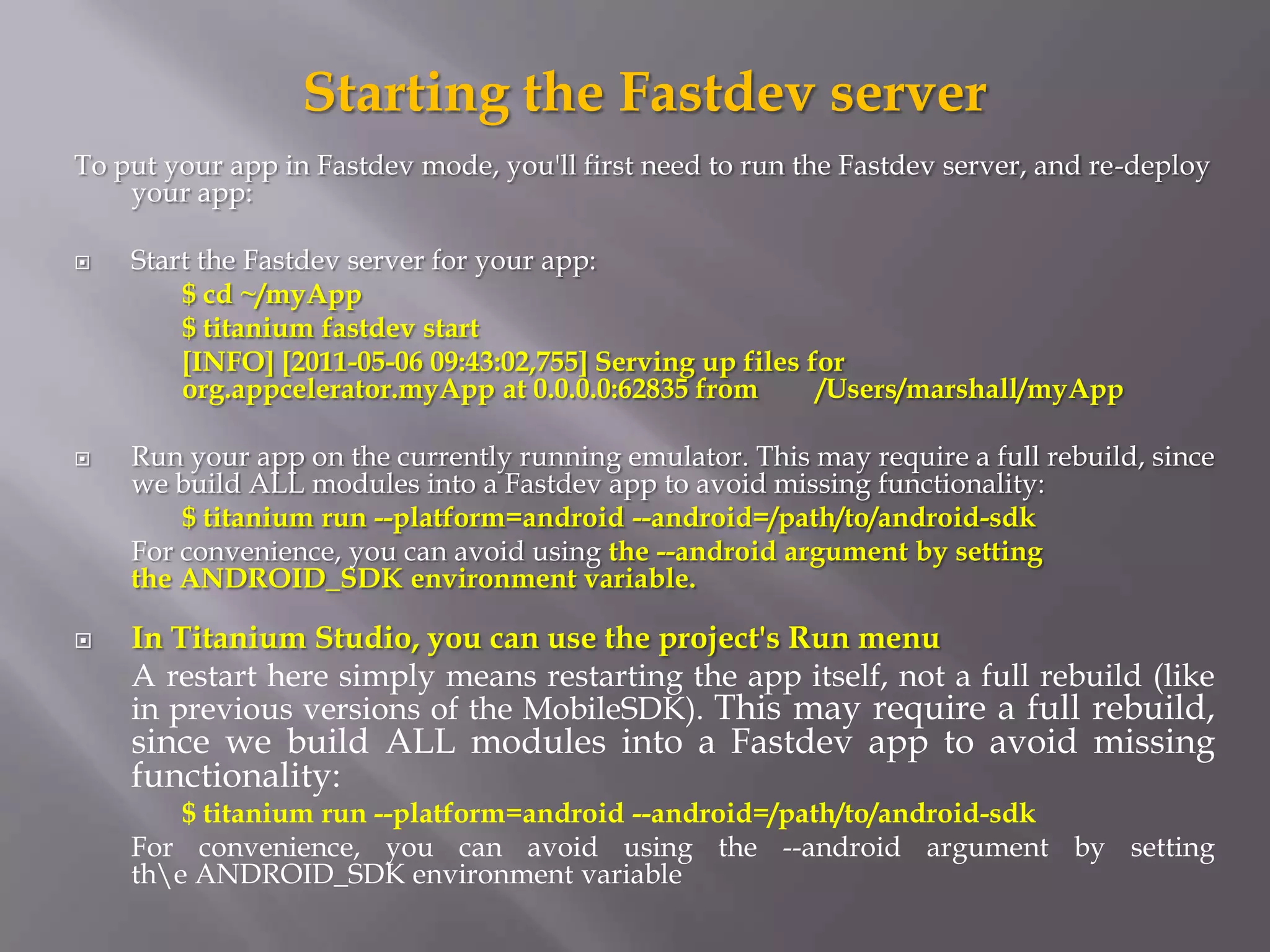

20. Starting the Fastdev server
To put your app in Fastdev mode, you'll first need to run the Fastdev server, and re-deploy
your app:
 Start the Fastdev server for your app:
$ cd ~/myApp
$ titanium fastdev start
[INFO] [2011-05-06 09:43:02,755] Serving up files for
org.appcelerator.myApp at 0.0.0.0:62835 from /Users/marshall/myApp
 Run your app on the currently running emulator. This may require a full rebuild, since
we build ALL modules into a Fastdev app to avoid missing functionality:
$ titanium run --platform=android --android=/path/to/android-sdk
For convenience, you can avoid using the --android argument by setting
the ANDROID_SDK environment variable.
 In Titanium Studio, you can use the project's Run menu
A restart here simply means restarting the app itself, not a full rebuild (like
in previous versions of the MobileSDK). This may require a full rebuild,
since we build ALL modules into a Fastdev app to avoid missing
functionality:
$ titanium run --platform=android --android=/path/to/android-sdk
For convenience, you can avoid using the --android argument by setting
the ANDROID_SDK environment variable

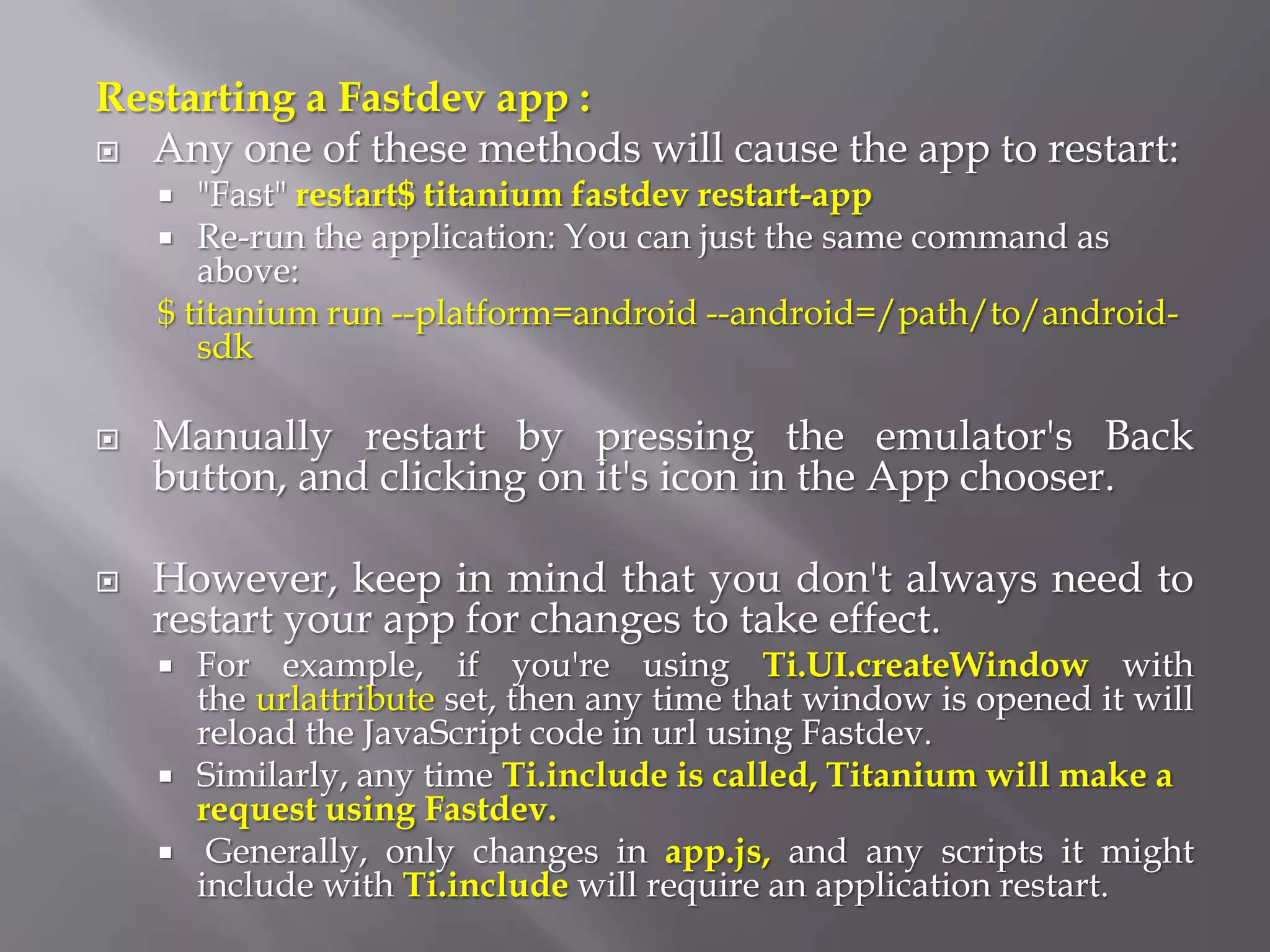

21. Restarting a Fastdev app :
 Any one of these methods will cause the app to restart:
 "Fast" restart$ titanium fastdev restart-app
 Re-run the application: You can just the same command as
above:
$ titanium run --platform=android --android=/path/to/android-
sdk
 Manually restart by pressing the emulator's Back
button, and clicking on it's icon in the App chooser.
 However, keep in mind that you don't always need to
restart your app for changes to take effect.
 For example, if you're using Ti.UI.createWindow with
the urlattribute set, then any time that window is opened it will
reload the JavaScript code in url using Fastdev.
 Similarly, any time Ti.include is called, Titanium will make a
request using Fastdev.
 Generally, only changes in app.js, and any scripts it might
include with Ti.include will require an application restart.

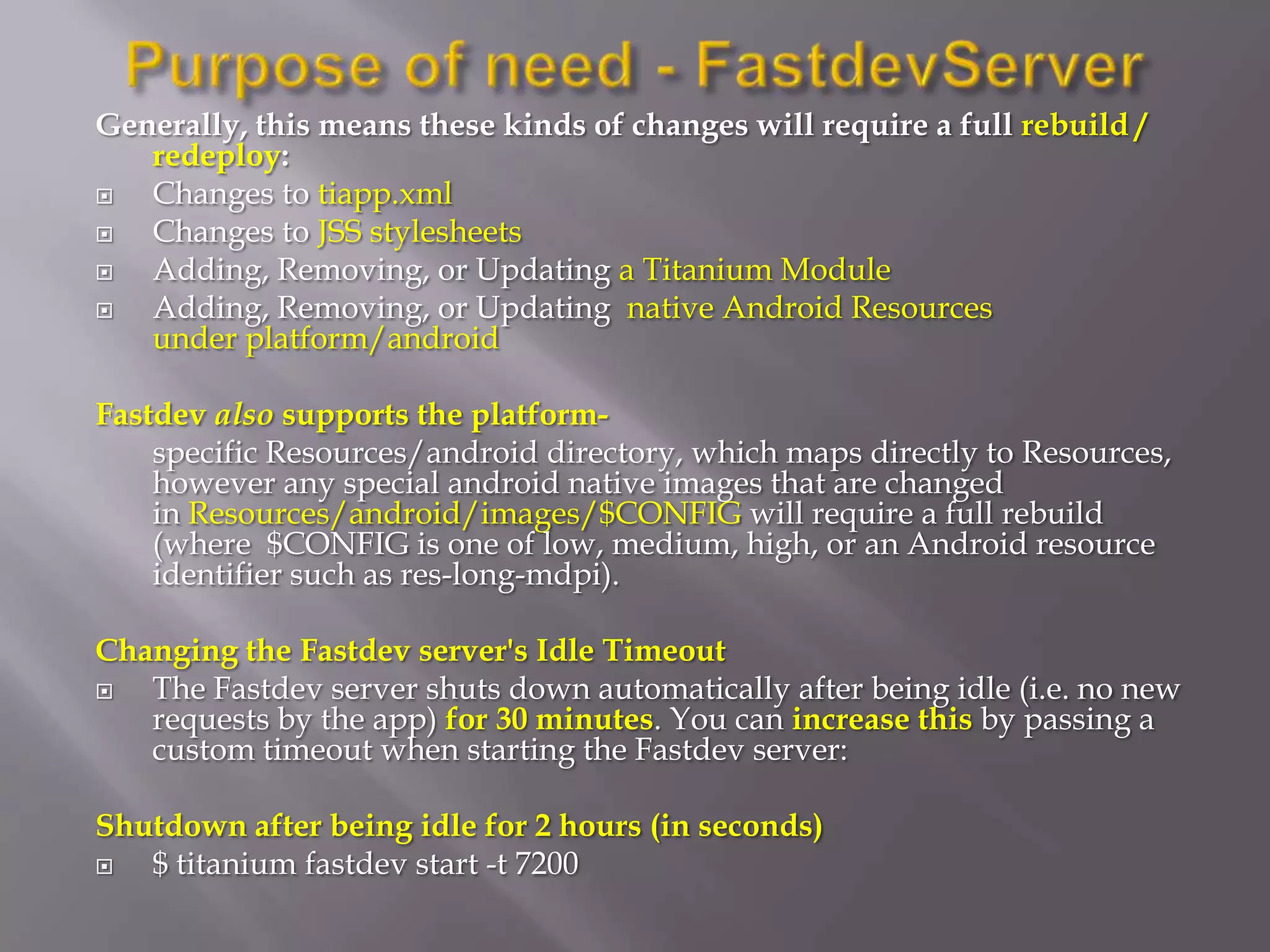

22. Generally, this means these kinds of changes will require a full rebuild /
redeploy:
 Changes to tiapp.xml
 Changes to JSS stylesheets
 Adding, Removing, or Updating a Titanium Module
 Adding, Removing, or Updating native Android Resources
under platform/android
Fastdev also supports the platform-
specific Resources/android directory, which maps directly to Resources,
however any special android native images that are changed
in Resources/android/images/$CONFIG will require a full rebuild
(where $CONFIG is one of low, medium, high, or an Android resource
identifier such as res-long-mdpi).
Changing the Fastdev server's Idle Timeout
 The Fastdev server shuts down automatically after being idle (i.e. no new
requests by the app) for 30 minutes. You can increase this by passing a
custom timeout when starting the Fastdev server:
Shutdown after being idle for 2 hours (in seconds)
 $ titanium fastdev start -t 7200

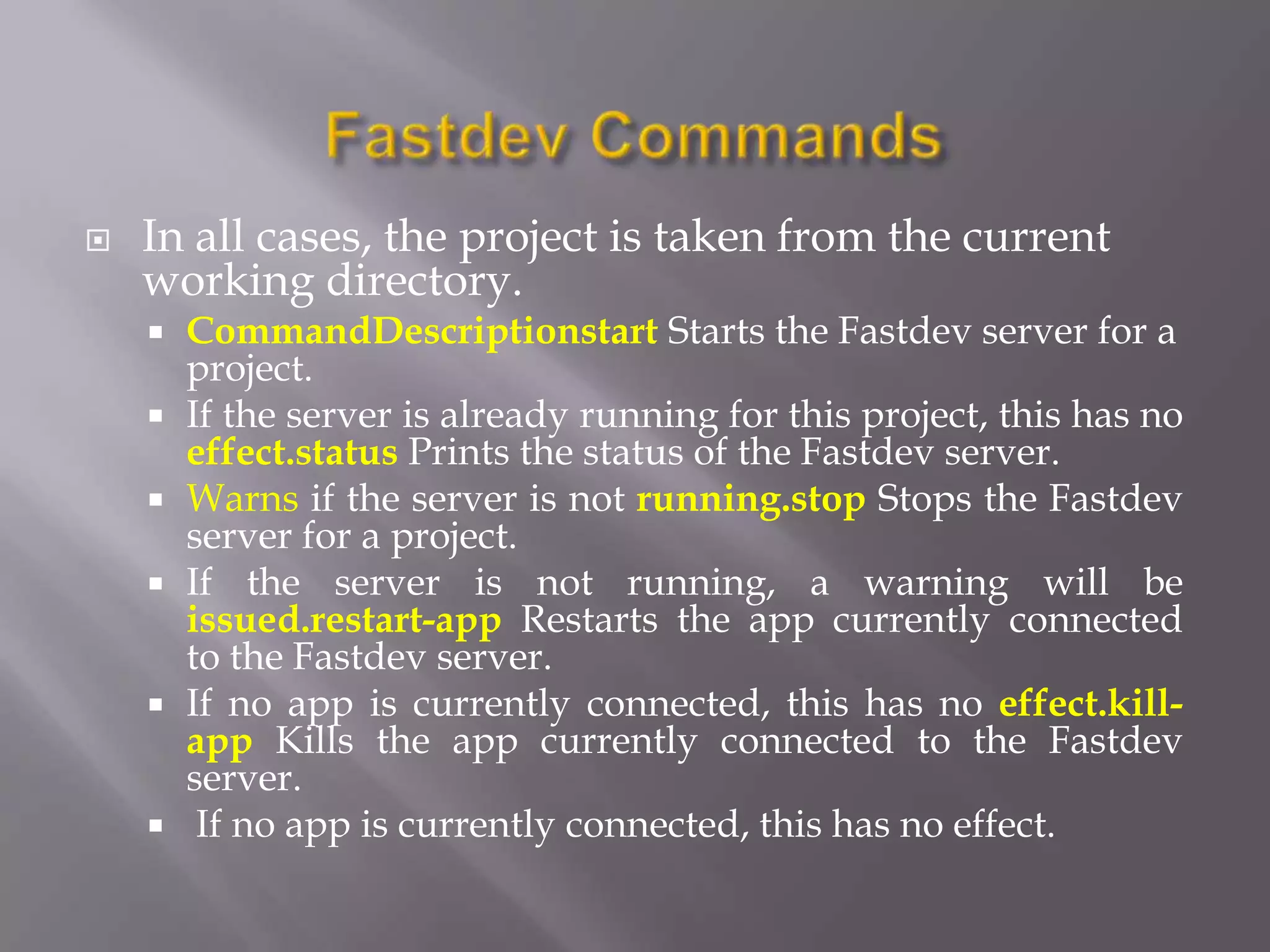

23.  In all cases, the project is taken from the current
working directory.
 CommandDescriptionstart Starts the Fastdev server for a
project.
 If the server is already running for this project, this has no
effect.status Prints the status of the Fastdev server.
 Warns if the server is not running.stop Stops the Fastdev
server for a project.
 If the server is not running, a warning will be
issued.restart-app Restarts the app currently connected
to the Fastdev server.
 If no app is currently connected, this has no effect.kill-
app Kills the app currently connected to the Fastdev
server.
 If no app is currently connected, this has no effect.

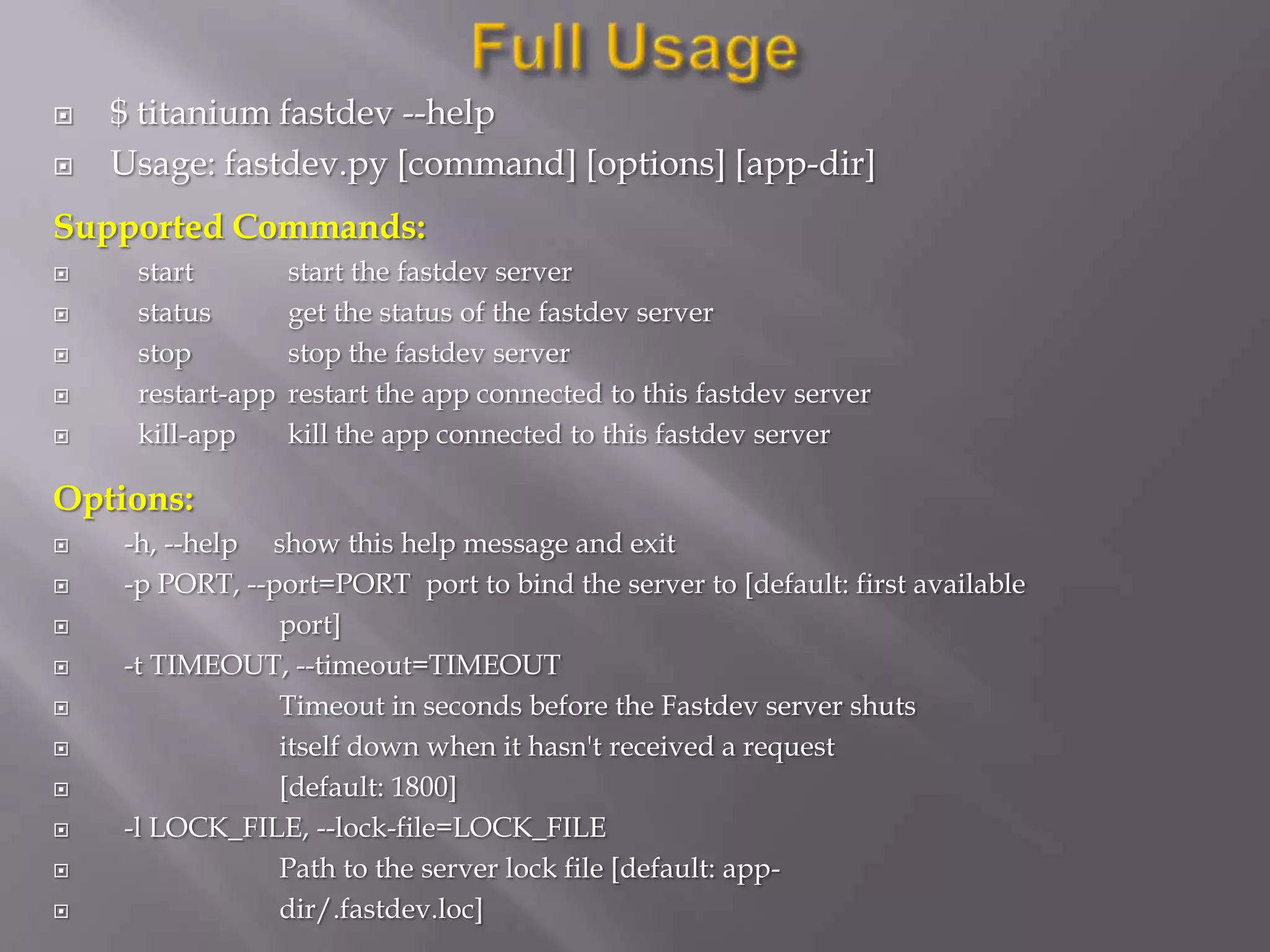

24.  $ titanium fastdev --help
 Usage: fastdev.py [command] [options] [app-dir]
Supported Commands:
 start start the fastdev server
 status get the status of the fastdev server
 stop stop the fastdev server
 restart-app restart the app connected to this fastdev server
 kill-app kill the app connected to this fastdev server
Options:
 -h, --help show this help message and exit
 -p PORT, --port=PORT port to bind the server to [default: first available
 port]
 -t TIMEOUT, --timeout=TIMEOUT
 Timeout in seconds before the Fastdev server shuts
 itself down when it hasn't received a request
 [default: 1800]
 -l LOCK_FILE, --lock-file=LOCK_FILE
 Path to the server lock file [default: app-
 dir/.fastdev.loc]

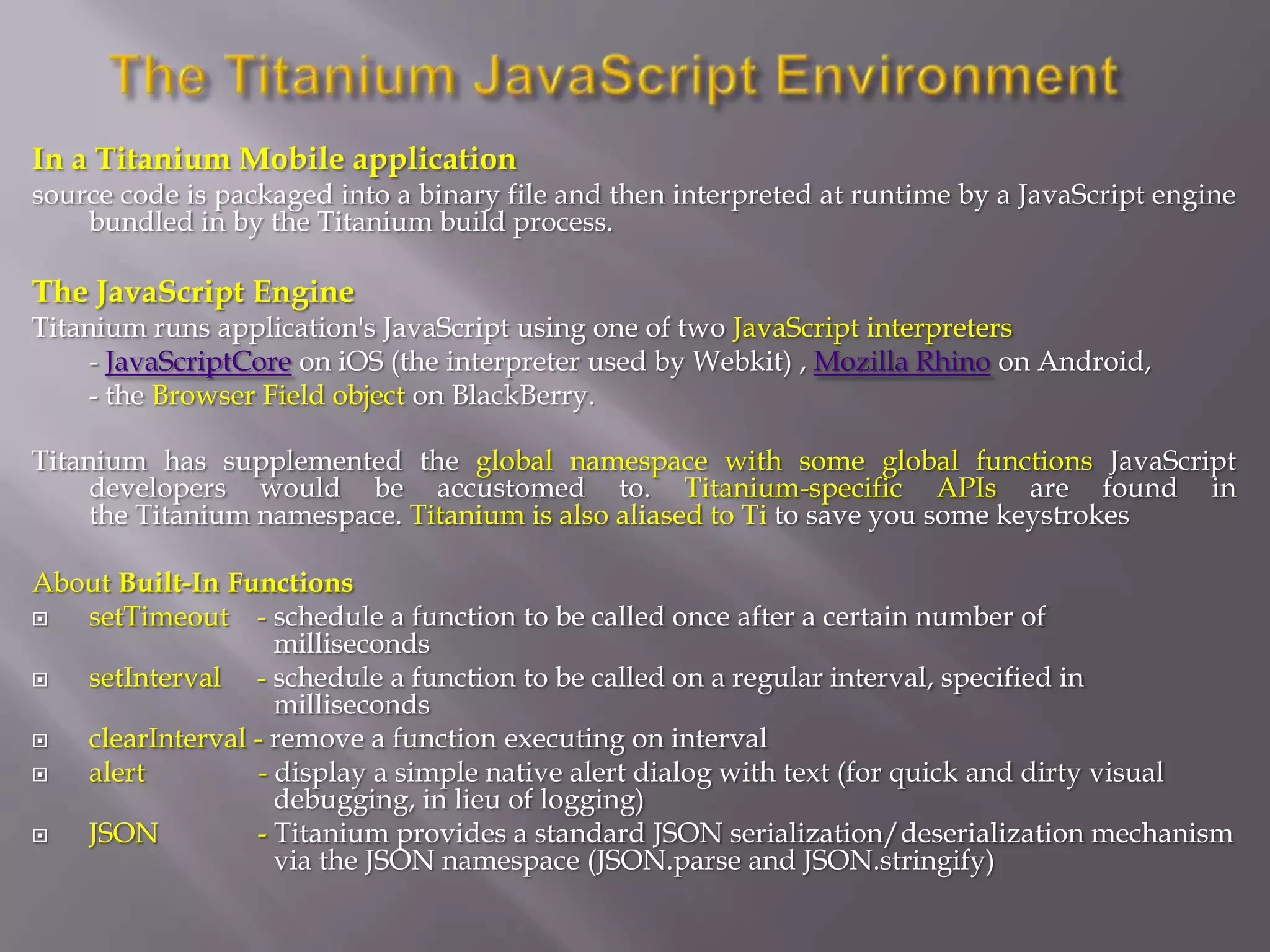

25. In a Titanium Mobile application
source code is packaged into a binary file and then interpreted at runtime by a JavaScript engine
bundled in by the Titanium build process.
The JavaScript Engine
Titanium runs application's JavaScript using one of two JavaScript interpreters
- JavaScriptCore on iOS (the interpreter used by Webkit) , Mozilla Rhino on Android,
- the Browser Field object on BlackBerry.
Titanium has supplemented the global namespace with some global functions JavaScript
developers would be accustomed to. Titanium-specific APIs are found in
the Titanium namespace. Titanium is also aliased to Ti to save you some keystrokes
About Built-In Functions
 setTimeout - schedule a function to be called once after a certain number of
milliseconds
 setInterval - schedule a function to be called on a regular interval, specified in
milliseconds
 clearInterval - remove a function executing on interval
 alert - display a simple native alert dialog with text (for quick and dirty visual
debugging, in lieu of logging)
 JSON - Titanium provides a standard JSON serialization/deserialization mechanism
via the JSON namespace (JSON.parse and JSON.stringify)

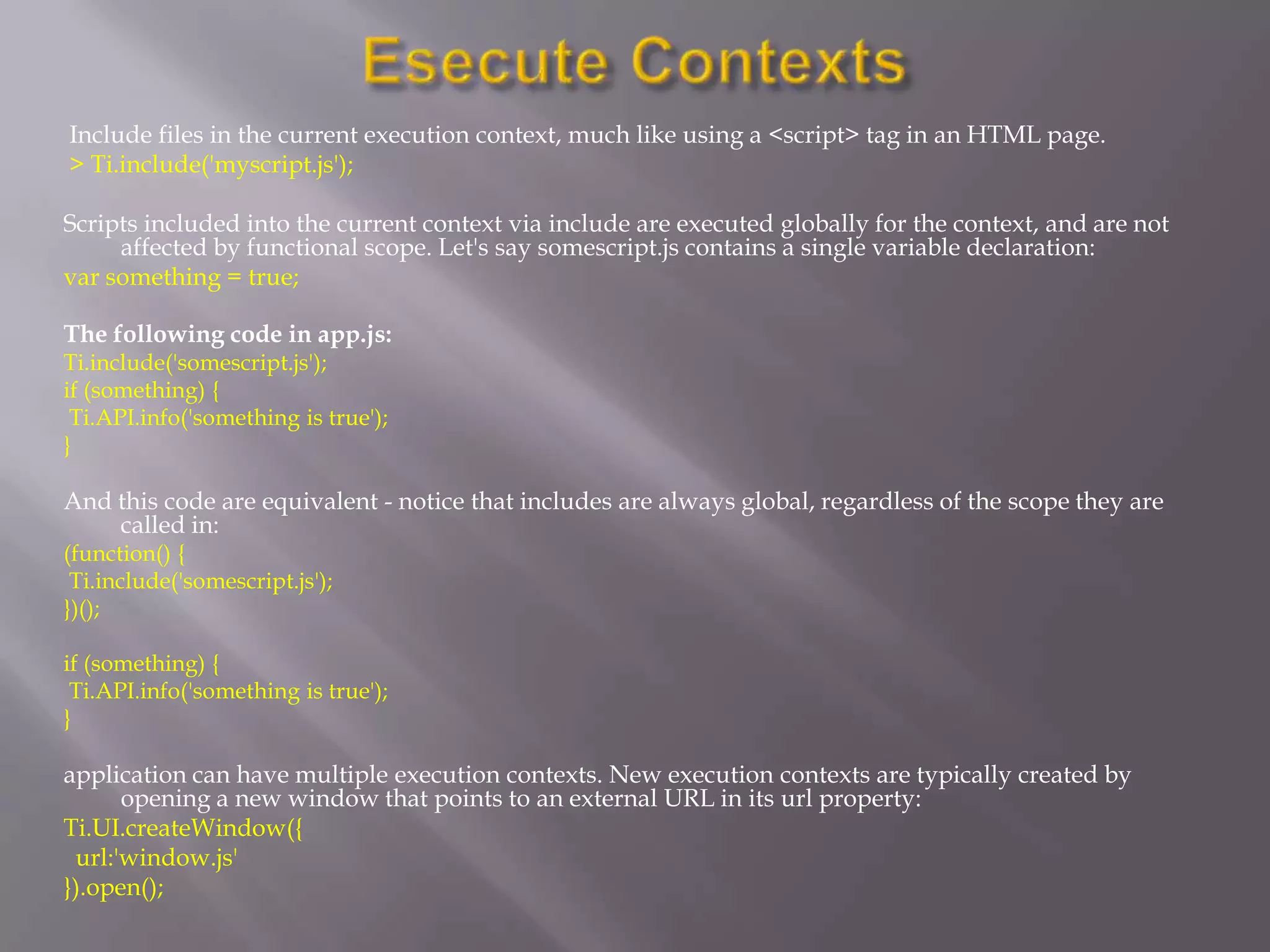

26. Include files in the current execution context, much like using a <script> tag in an HTML page.
> Ti.include('myscript.js');
Scripts included into the current context via include are executed globally for the context, and are not
affected by functional scope. Let's say somescript.js contains a single variable declaration:
var something = true;
The following code in app.js:
Ti.include('somescript.js');
if (something) {
Ti.API.info('something is true');
}
And this code are equivalent - notice that includes are always global, regardless of the scope they are
called in:
(function() {
Ti.include('somescript.js');
})();
if (something) {
Ti.API.info('something is true');
}
application can have multiple execution contexts. New execution contexts are typically created by
opening a new window that points to an external URL in its url property:
Ti.UI.createWindow({
url:'window.js'
}).open();

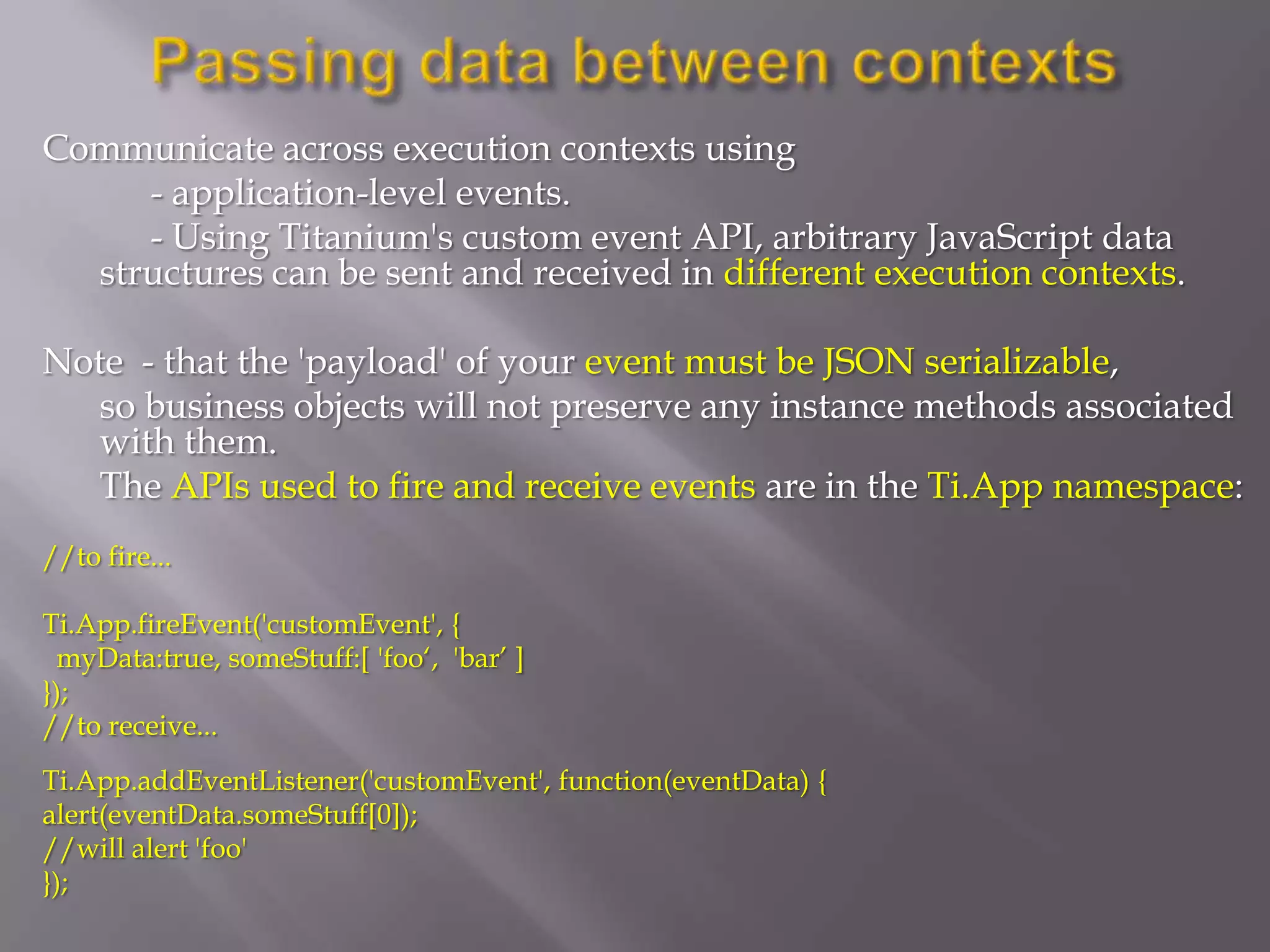

27. Communicate across execution contexts using
- application-level events.
- Using Titanium's custom event API, arbitrary JavaScript data
structures can be sent and received in different execution contexts.
Note - that the 'payload' of your event must be JSON serializable,
so business objects will not preserve any instance methods associated
with them.
The APIs used to fire and receive events are in the Ti.App namespace:
//to fire...
Ti.App.fireEvent('customEvent', {
myData:true, someStuff:[ 'foo‘, 'bar’ ]
});
//to receive...
Ti.App.addEventListener('customEvent', function(eventData) {
alert(eventData.someStuff[0]);
//will alert 'foo'
});

28. The case in software development, the answer is "that depends".
Most of the time, it is probably advisable to use a single execution context, for a couple of reasons:
- Can pass complex objects in custom events
- Include your libraries/dependencies only once, since there's only one context
Advice - Don't pollute the global scope!
Declaring a lot of global variables and functions in an execution context leaves your code at risk of
colliding with its self or other included libraries. To avoid this, use closures and self-calling
functions to encapsulate your code. A rational include file would look something like this:
var myAPI = {};
// This is a variable I intend to be global, since I want. people who inculde my file to have visibility to it
(function(){
// put my implementation inside a self-calling function, so I can go crazy with local functions and variables
function helper(){
//do stuff
}
var state_variable = true;
//then, create a controlled public API..
myAPI.doSomething = function() {
//do something
};
})();

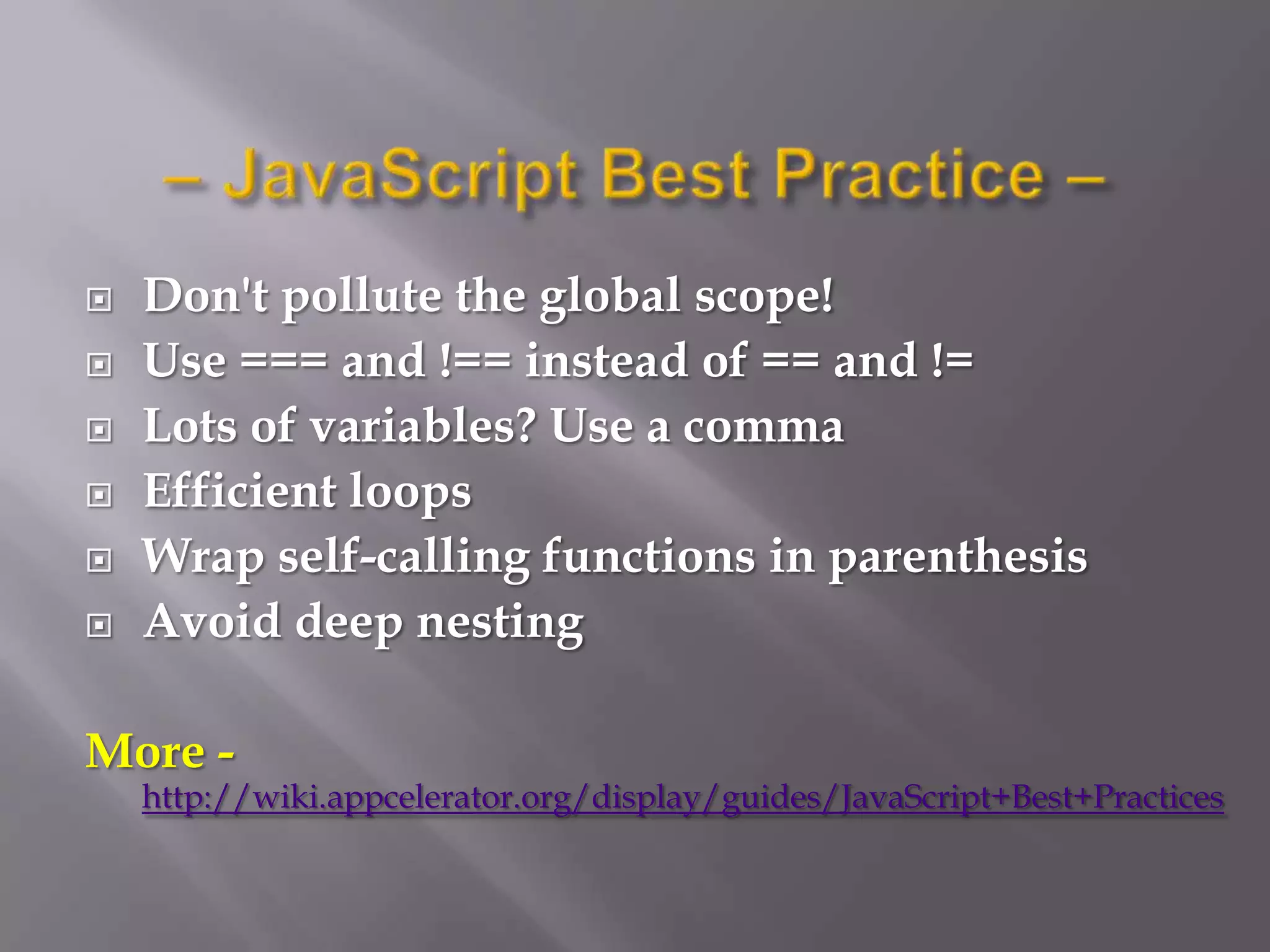

29.  Don't pollute the global scope!
 Use === and !== instead of == and !=
 Lots of variables? Use a comma
 Efficient loops
 Wrap self-calling functions in parenthesis
 Avoid deep nesting
More -
http://wiki.appcelerator.org/display/guides/JavaScript+Best+Practices

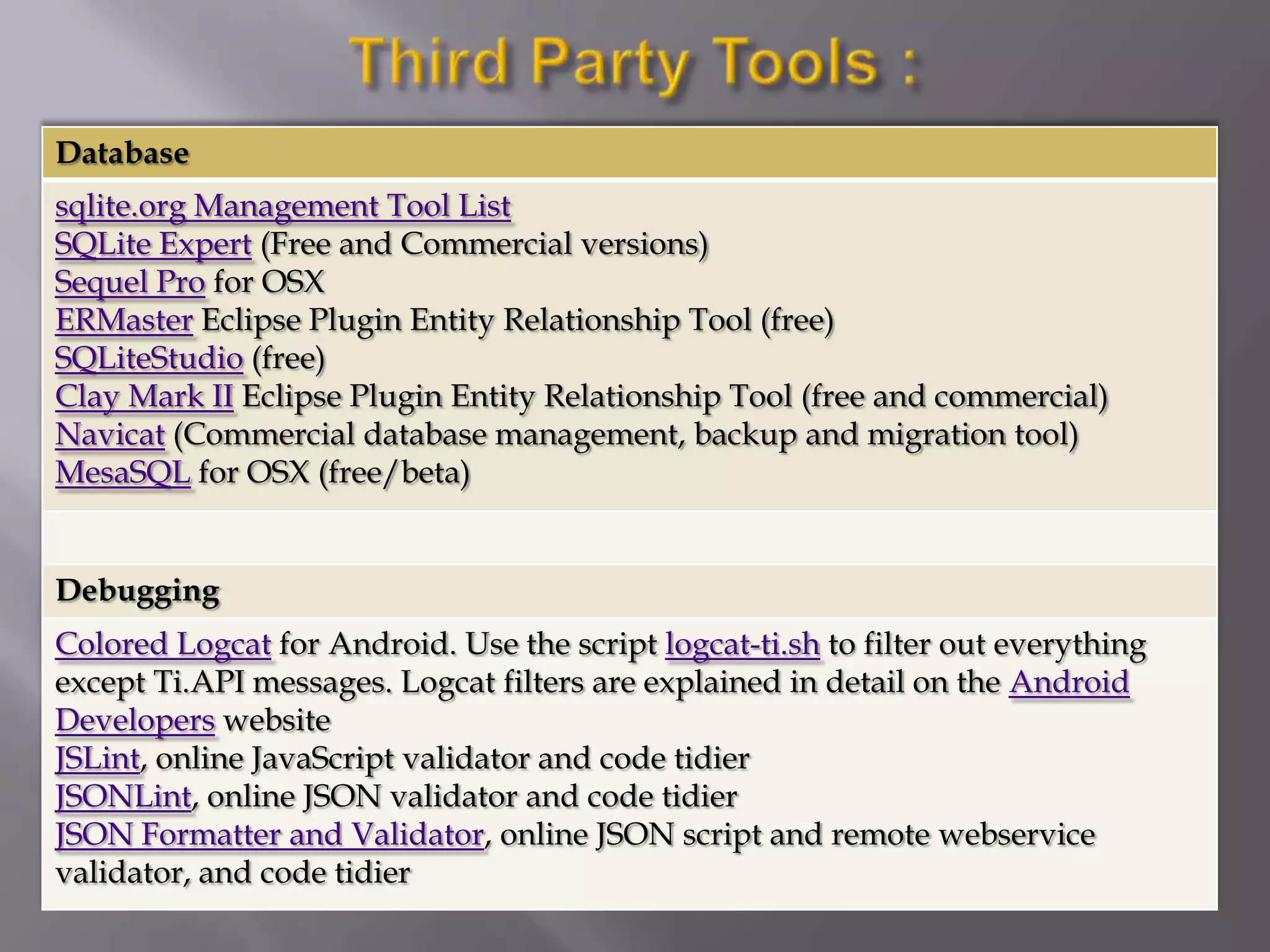

30. Database
sqlite.org Management Tool List
SQLite Expert (Free and Commercial versions)
Sequel Pro for OSX
ERMaster Eclipse Plugin Entity Relationship Tool (free)
SQLiteStudio (free)
Clay Mark II Eclipse Plugin Entity Relationship Tool (free and commercial)
Navicat (Commercial database management, backup and migration tool)
MesaSQL for OSX (free/beta)
Debugging
Colored Logcat for Android. Use the script logcat-ti.sh to filter out everything
except Ti.API messages. Logcat filters are explained in detail on the Android
Developers website
JSLint, online JavaScript validator and code tidier
JSONLint, online JSON validator and code tidier
JSON Formatter and Validator, online JSON script and remote webservice
validator, and code tidier

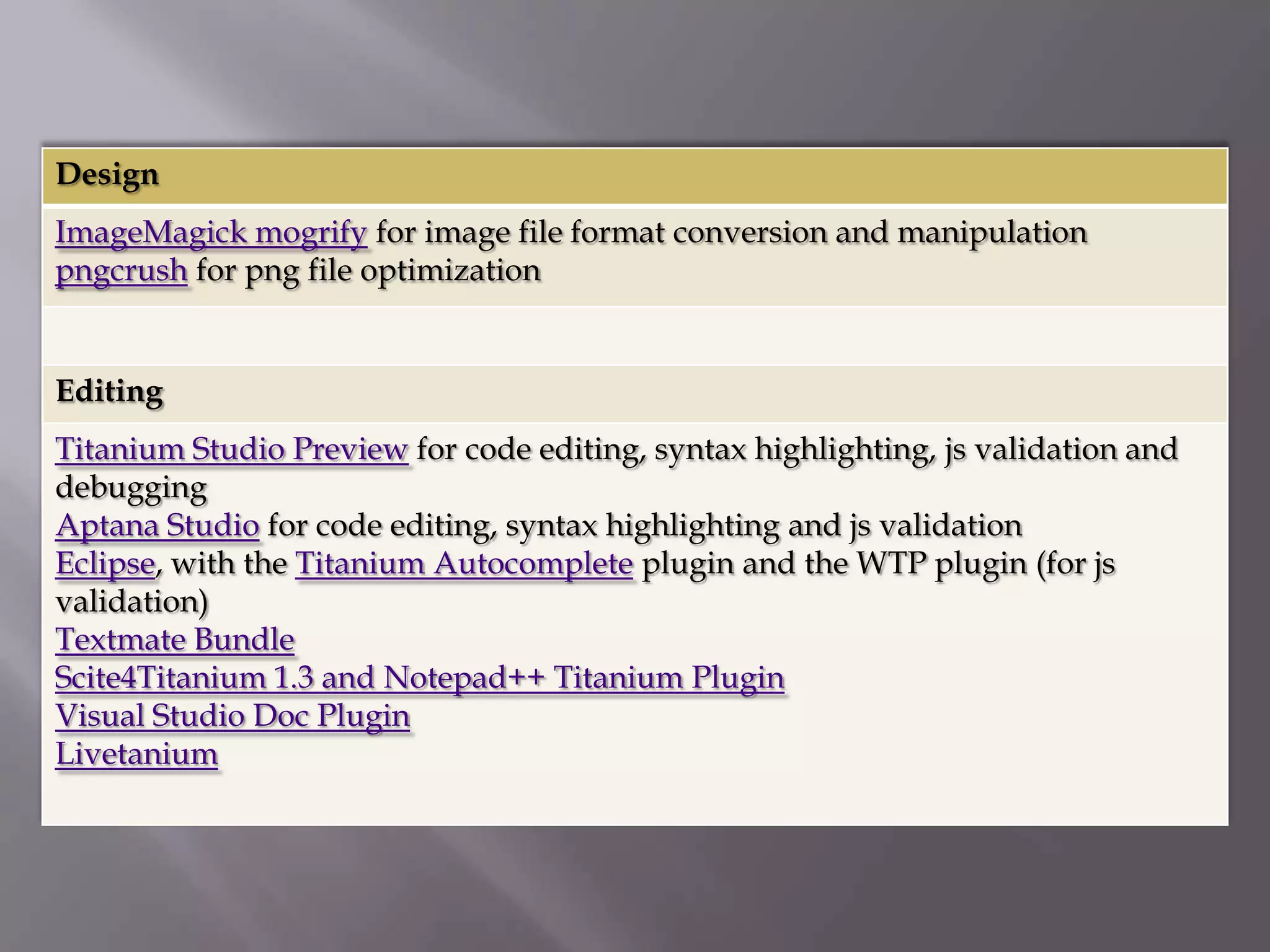

31. Design
ImageMagick mogrify for image file format conversion and manipulation
pngcrush for png file optimization
Editing
Titanium Studio Preview for code editing, syntax highlighting, js validation and
debugging
Aptana Studio for code editing, syntax highlighting and js validation
Eclipse, with the Titanium Autocomplete plugin and the WTP plugin (for js
validation)
Textmate Bundle
Scite4Titanium 1.3 and Notepad++ Titanium Plugin
Visual Studio Doc Plugin
Livetanium

32. Framework
The Titanium platform has given rise to a number of frameworks built on top of
Titanium that add features, increase productivity or organize application code. For
example:
Utility Libraries
Helium - a Titanium utility library and framework for building component-
oriented, event-driven Titanium Mobile applications. Provides visual and non-
visual unit testing support, utility functions, and a JavaScript-based framework for
building and styling UI components
Titanium Redux - utility library for Titanium, aimed at reducing the amount of code
needed for common tasks in Titanium
Titanium Tools - a sweet collection of tools for Titanium Mobile
Foundation - MVC microframework for Titanium 1.5.X
TiQuery - framework for Titanium based on jQuery
Persistence
TiStore - ActiveRecord for Titanium
Joli - small ORM for Titanium
Special Purpose
Twitter oAuth Adapter - utility for making authenticated Twitter API calls

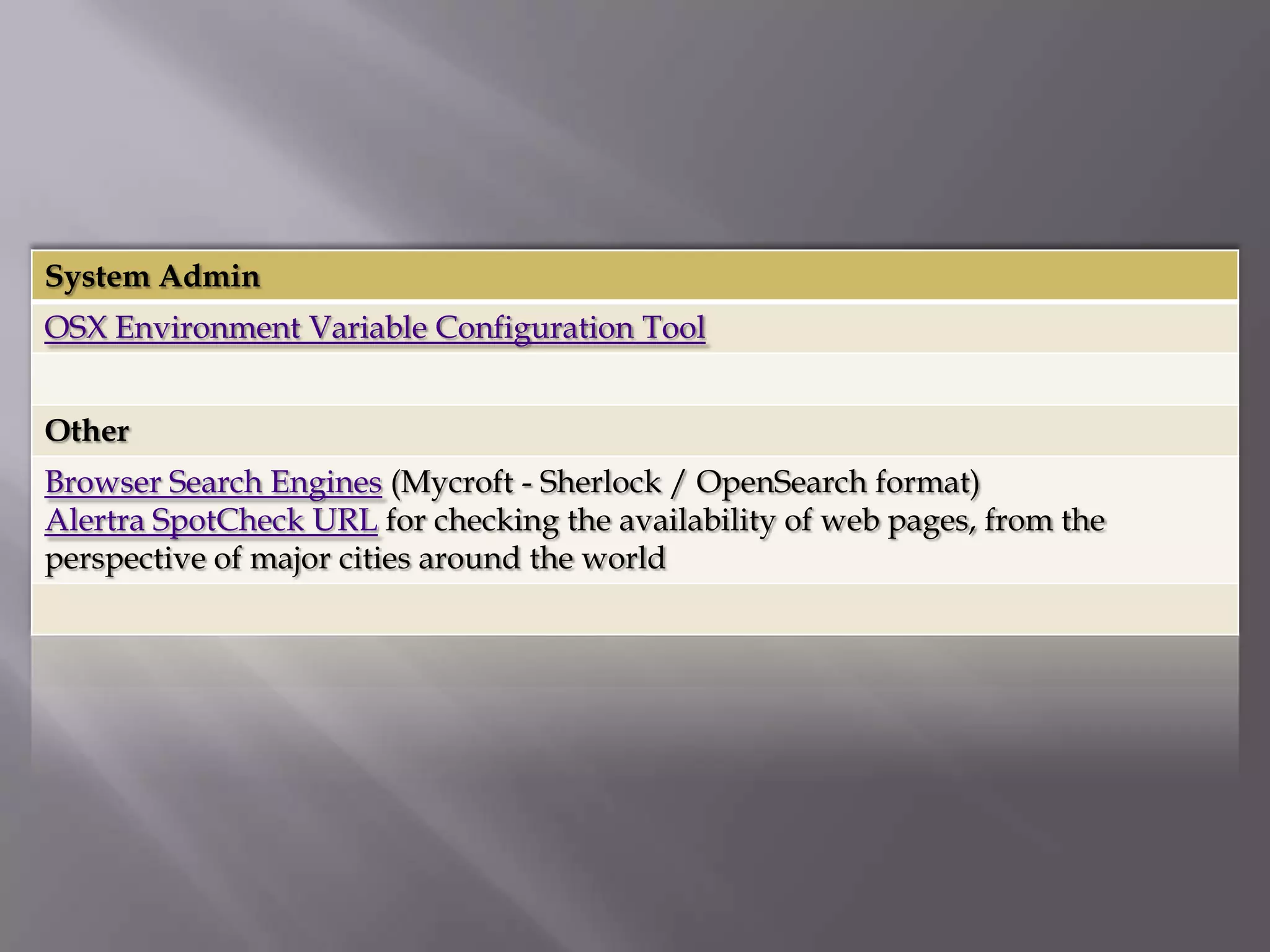

33. System Admin
OSX Environment Variable Configuration Tool
Other
Browser Search Engines (Mycroft - Sherlock / OpenSearch format)
Alertra SpotCheck URL for checking the availability of web pages, from the
perspective of major cities around the world
