- Titanium is an open source framework that allows developers to build native mobile applications using JavaScript, HTML, and CSS. It supports platforms including iOS, Android, and BlackBerry. - The presentation demonstrated how to create a basic photo sharing app called "Oh Snap!" in under 200 lines of code using Titanium. Key features included selecting photos, uploading images to a remote server, and a cross-platform user interface. - Resources for learning more about Titanium development include documentation, demo apps, tutorials on the developer blog, and commercial support from Appcelerator. Questions from attendees were invited.

1. Native Mobile Applications USING Open Source

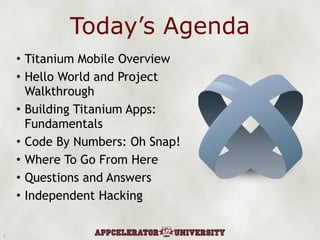

2. Today’s Agenda Titanium Mobile Overview Hello World and Project Walkthrough Building Titanium Apps: Fundamentals Code By Numbers: Oh Snap! Where To Go From Here Questions and Answers Independent Hacking

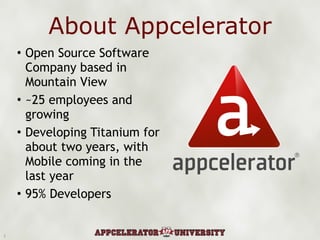

3. About Appcelerator Open Source Software Company based in Mountain View ~25 employees and growing Developing Titanium for about two years, with Mobile coming in the last year 95% Developers

4. About You New To Mobile Development Mobile Dev Veteran

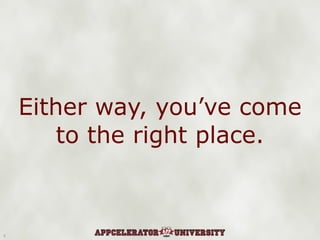

5. Either way, you’ve come to the right place.

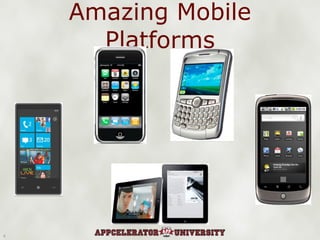

6. Amazing Mobile Platforms

7. Which is great and exciting!

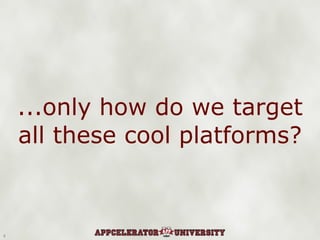

8. ...only how do we target all these cool platforms?

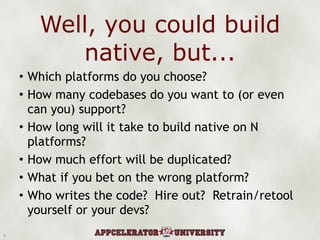

9. Well, you could build native, but... Which platforms do you choose? How many codebases do you want to (or even can you) support? How long will it take to build native on N platforms? How much effort will be duplicated? What if you bet on the wrong platform? Who writes the code? Hire out? Retrain/retool yourself or your devs?

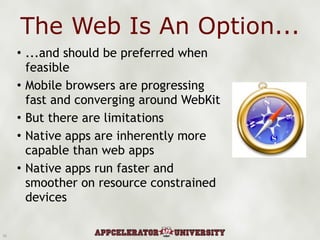

10. The Web Is An Option... ...and should be preferred when feasible Mobile browsers are progressing fast and converging around WebKit But there are limitations Native apps are inherently more capable than web apps Native apps run faster and smoother on resource constrained devices

11. Ideally, we build cross-platform native apps...

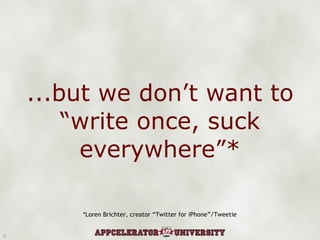

12. ...but we don’t want to “write once, suck everywhere”* *Loren Brichter, creator “Twitter for iPhone”/Tweetie

13. X-Platform Requirements Target multiple platforms from a single codebase Apps must feel like they belong on the platform Apps need to perform like native Bonus: Open source and extensible Bonus: Use skills we already have Hmmm, I wonder if he has a specific technology in mind...

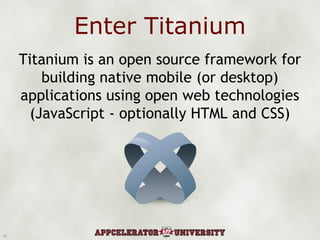

14. Enter Titanium Titanium is an open source framework for building native mobile (or desktop) applications using open web technologies (JavaScript - optionally HTML and CSS)

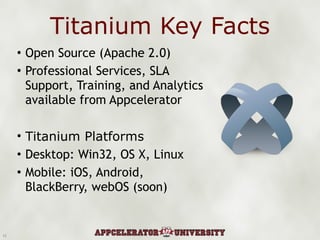

15. Titanium Key Facts Open Source (Apache 2.0) Professional Services, SLA Support, Training, and Analytics available from Appcelerator Titanium Platforms Desktop: Win32, OS X, Linux Mobile: iOS, Android, BlackBerry, webOS (soon)

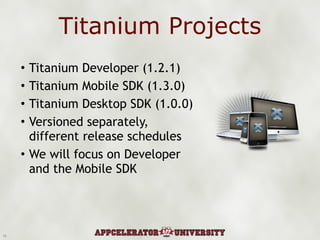

16. Titanium Projects Titanium Developer (1.2.1) Titanium Mobile SDK (1.3.0) Titanium Desktop SDK (1.0.0) Versioned separately, different release schedules We will focus on Developer and the Mobile SDK

17. Titanium Features Native UI Location APIs Local and Remote Data Social APIs Rich Media APIs Open Source and Extensible Integrated Analytics Development Tools Real native tables, tabs, sliders, and views Native Maps, Compass, and Geolocation Local SQL Database, Lightweight Key/Value Store, XHR Integrated Facebook Connect and YQL Local and streaming audio and video, media recording Extend Titanium with custom modules in native code Baked-in analytics APIs to measure results and behavior Develop and distribute your app for multiple platforms from a single tool

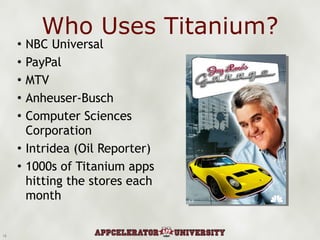

18. Who Uses Titanium? NBC Universal PayPal MTV Anheuser-Busch Computer Sciences Corporation Intridea (Oil Reporter) 1000s of Titanium apps hitting the stores each month

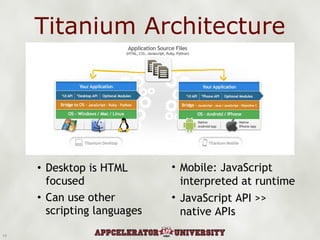

19. Titanium Architecture Desktop is HTML focused Can use other scripting languages Mobile: JavaScript interpreted at runtime JavaScript API >> native APIs

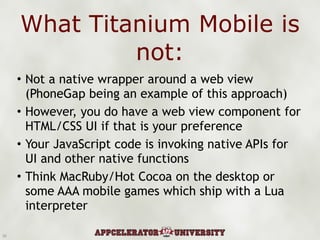

20. What Titanium Mobile is not: Not a native wrapper around a web view (PhoneGap being an example of this approach) However, you do have a web view component for HTML/CSS UI if that is your preference Your JavaScript code is invoking native APIs for UI and other native functions Think MacRuby/Hot Cocoa on the desktop or some AAA mobile games which ship with a Lua interpreter

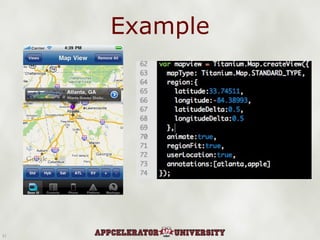

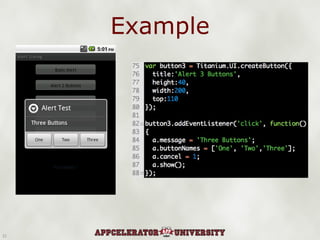

21. Example

22. Example

23. Example

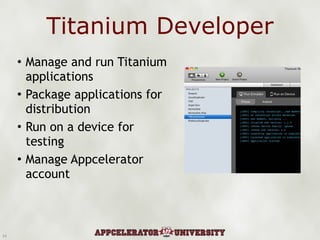

24. Titanium Developer Manage and run Titanium applications Package applications for distribution Run on a device for testing Manage Appcelerator account

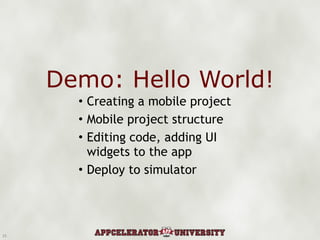

25. Demo: Hello World! Creating a mobile project Mobile project structure Editing code, adding UI widgets to the app Deploy to simulator

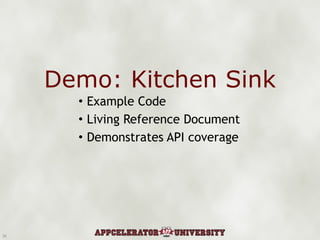

26. Demo: Kitchen Sink Example Code Living Reference Document Demonstrates API coverage

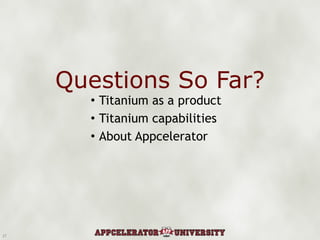

27. Questions So Far? Titanium as a product Titanium capabilities About Appcelerator

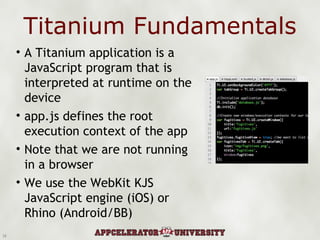

28. Titanium Fundamentals A Titanium application is a JavaScript program that is interpreted at runtime on the device app.js defines the root execution context of the app Note that we are not running in a browser We use the WebKit KJS JavaScript engine (iOS) or Rhino (Android/BB)

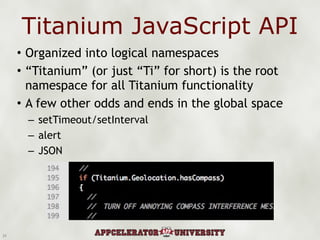

29. Titanium JavaScript API Organized into logical namespaces “ Titanium” (or just “Ti” for short) is the root namespace for all Titanium functionality A few other odds and ends in the global space setTimeout/setInterval alert JSON

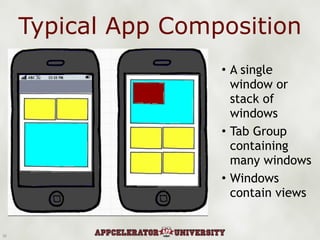

30. Typical App Composition A single window or stack of windows Tab Group containing many windows Windows contain views

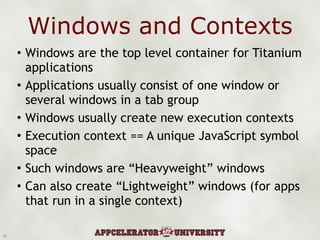

31. Windows and Contexts Windows are the top level container for Titanium applications Applications usually consist of one window or several windows in a tab group Windows usually create new execution contexts Execution context == A unique JavaScript symbol space Such windows are “Heavyweight” windows Can also create “Lightweight” windows (for apps that run in a single context) 3

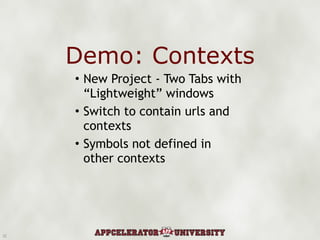

32. Demo: Contexts New Project - Two Tabs with “Lightweight” windows Switch to contain urls and contexts Symbols not defined in other contexts

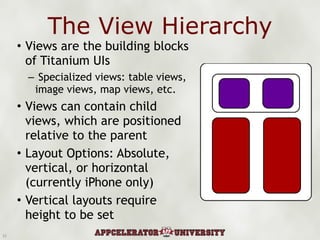

33. The View Hierarchy Views are the building blocks of Titanium UIs Specialized views: table views, image views, map views, etc. Views can contain child views, which are positioned relative to the parent Layout Options: Absolute, vertical, or horizontal (currently iPhone only) Vertical layouts require height to be set

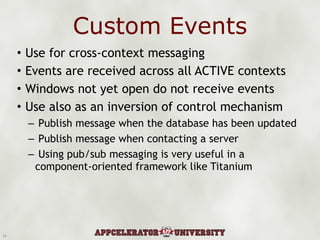

34. Custom Events Use for cross-context messaging Events are received across all ACTIVE contexts Windows not yet open do not receive events Use also as an inversion of control mechanism Publish message when the database has been updated Publish message when contacting a server Using pub/sub messaging is very useful in a component-oriented framework like Titanium

35. Demo: Custom Events Now lets use custom events in our new app Events can have a data payload Remember that events are only received in active contexts

36. Hey, what about layouts? We’ll demo that later in the tutorial...

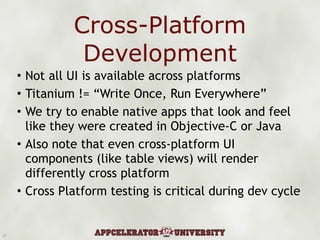

37. Cross-Platform Development Not all UI is available across platforms Titanium != “Write Once, Run Everywhere” We try to enable native apps that look and feel like they were created in Objective-C or Java Also note that even cross-platform UI components (like table views) will render differently cross platform Cross Platform testing is critical during dev cycle

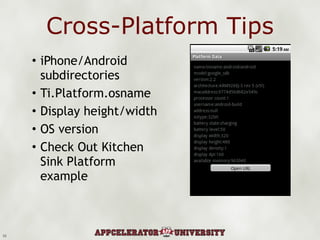

38. Cross-Platform Tips iPhone/Android subdirectories Ti.Platform.osname Display height/width OS version Check Out Kitchen Sink Platform example 10

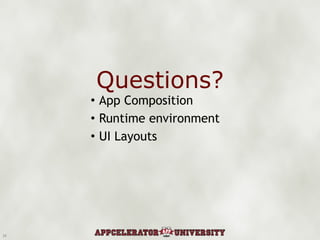

39. Questions? App Composition Runtime environment UI Layouts

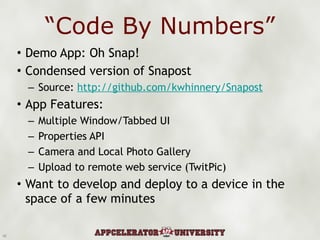

40. “ Code By Numbers” Demo App: Oh Snap! Condensed version of Snapost Source: http://github.com/kwhinnery/Snapost App Features: Multiple Window/Tabbed UI Properties API Camera and Local Photo Gallery Upload to remote web service (TwitPic) Want to develop and deploy to a device in the space of a few minutes

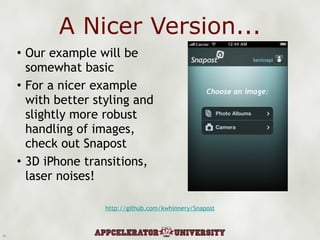

41. A Nicer Version... Our example will be somewhat basic For a nicer example with better styling and slightly more robust handling of images, check out Snapost 3D iPhone transitions, laser noises! http://github.com/kwhinnery/Snapost

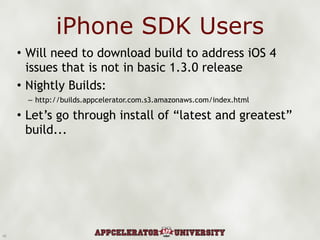

42. iPhone SDK Users Will need to download build to address iOS 4 issues that is not in basic 1.3.0 release Nightly Builds: http://builds.appcelerator.com.s3.amazonaws.com/index.html Let’s go through install of “latest and greatest” build...

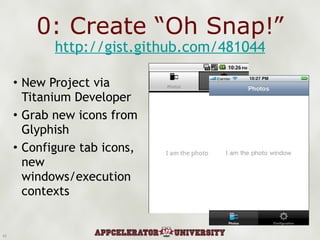

43. 0: Create “Oh Snap!” New Project via Titanium Developer Grab new icons from Glyphish Configure tab icons, new windows/execution contexts http://gist.github.com/481044

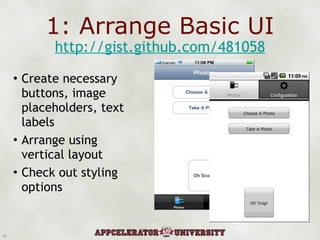

44. 1: Arrange Basic UI Create necessary buttons, image placeholders, text labels Arrange using vertical layout Check out styling options http://gist.github.com/481058

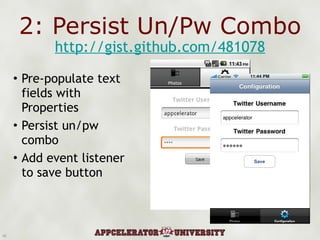

45. 2: Persist Un/Pw Combo Pre-populate text fields with Properties Persist un/pw combo Add event listener to save button http://gist.github.com/481078

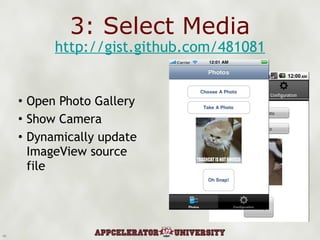

46. 3: Select Media Open Photo Gallery Show Camera Dynamically update ImageView source file http://gist.github.com/481081

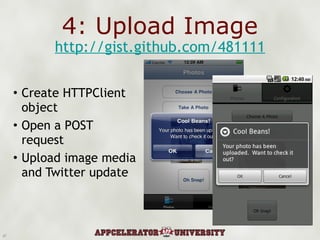

47. 4: Upload Image Create HTTPClient object Open a POST request Upload image media and Twitter update http://gist.github.com/481111

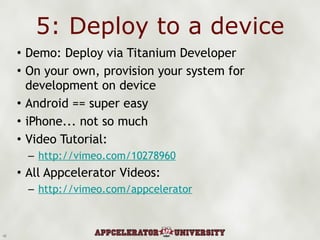

48. 5: Deploy to a device Demo: Deploy via Titanium Developer On your own, provision your system for development on device Android == super easy iPhone... not so much Video Tutorial: http://vimeo.com/10278960 All Appcelerator Videos: http://vimeo.com/appcelerator

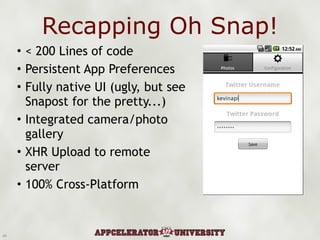

49. Recapping Oh Snap! < 200 Lines of code Persistent App Preferences Fully native UI (ugly, but see Snapost for the pretty...) Integrated camera/photo gallery XHR Upload to remote server 100% Cross-Platform

50. But wait, there’s more! Animation APIs Social Networks Custom Module Development iPad Development HTML 5 and CSS 3 Explore Desktop!!!

51. Resources Community Q&A Reference Docs (new getting started guides just finished) Premium Support (Pro Subscribers) Kitchen Sink and Demo Apps Dev Blog: Tutorials, Updates from dev team, developer-focused content Follow @appcelerator for news and updates

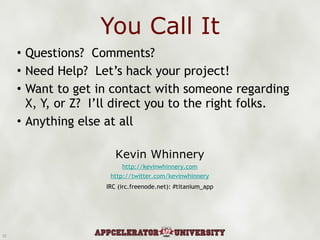

52. You Call It Questions? Comments? Need Help? Let’s hack your project! Want to get in contact with someone regarding X, Y, or Z? I’ll direct you to the right folks. Anything else at all Kevin Whinnery http://kevinwhinnery.com http://twitter.com/kevinwhinnery IRC (irc.freenode.net): #titanium_app
