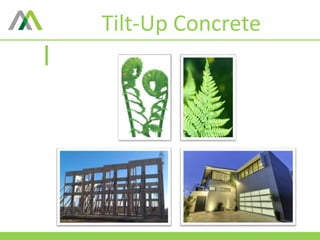

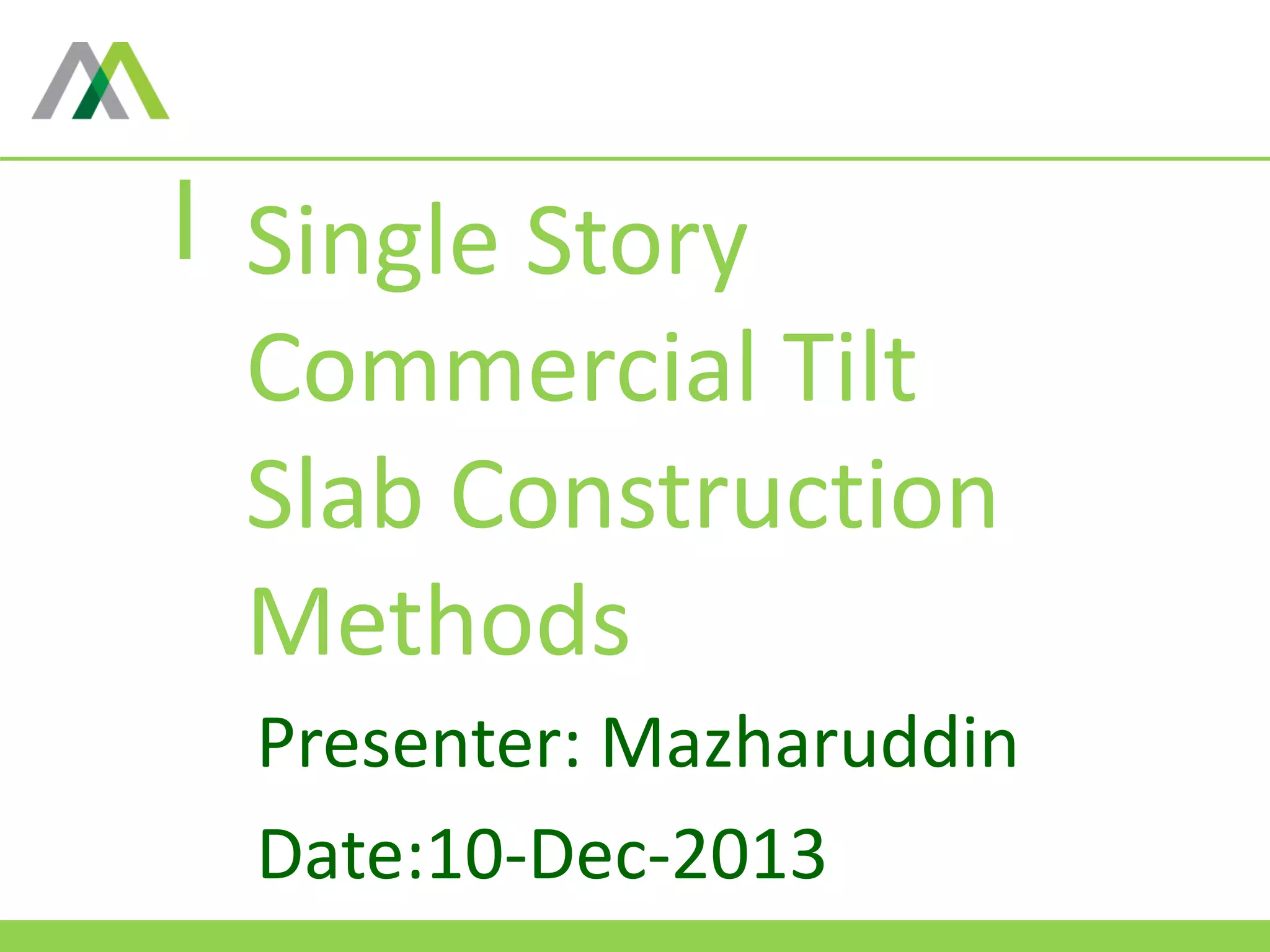

Tilt up-concrete-06a

Single Story
Commercial Tilt
Slab Construction
Methods
Presenter: Mazharuddin
Date:10-Dec-2013

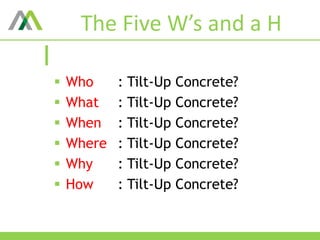

The Five W’s and a H
 Who : Tilt-Up Concrete?
 What : Tilt-Up Concrete?
 When : Tilt-Up Concrete?
 Where : Tilt-Up Concrete?
 Why : Tilt-Up Concrete?
 How : Tilt-Up Concrete?

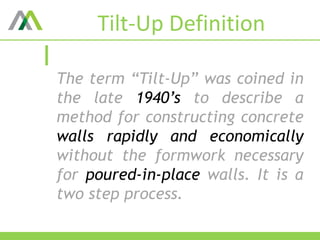

Tilt-Up Definition
The term “Tilt-Up” was coined in
the late 1940’s to describe a
method for constructing concrete
walls rapidly and economically
without the formwork necessary
for poured-in-place walls. It is a
two step process.

Introduction to Tilt-Up
Concrete
 2,000 years ago, Roman builder
 Pioneered in the USA around 1908
 Practiced in New Zealand 1950’s
 W.J. (Bill) Lovell-Smith Contribution
 Tilt-Up,” “tilt-wall”, “site-cast
precast concrete walls.”, “Precast
concrete”

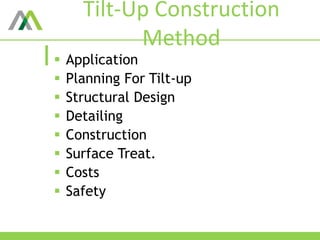

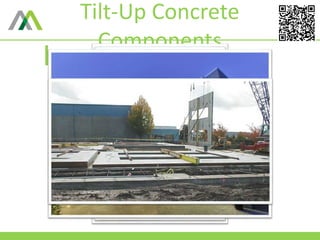

Tilt-Up Construction
Method
 Application
 Planning For Tilt-up
 Structural Design
 Detailing
 Construction
 Surface Treat.
 Costs
 Safety

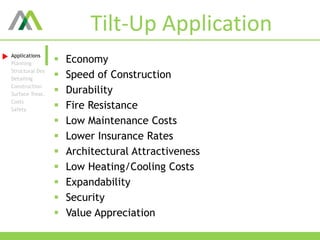

Tilt-Up Application
 Economy
 Speed of Construction
 Durability
 Fire Resistance
 Low Maintenance Costs
 Lower Insurance Rates
 Architectural Attractiveness
 Low Heating/Cooling Costs
 Expandability
 Security
 Value Appreciation
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

Poll Time [
m.socrative.com]
Room No: 856623
http://m.socrative.com
Which type of building would
you prefer with Tilt-Up
Concrete
A – Residential
B – Commercial
C – Industrial
D – Rehabilitation
E – Recreational

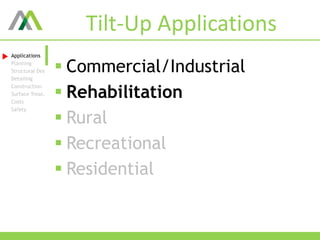

Tilt-Up Applications
 Commercial/Industrial
 Rehabilitation
 Rural
 Recreational
 Residential
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

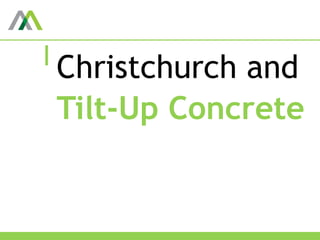

Christchurch and
Tilt-Up Concrete

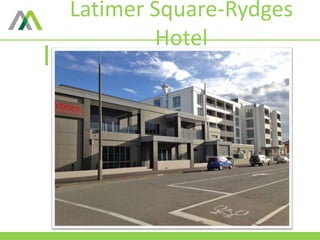

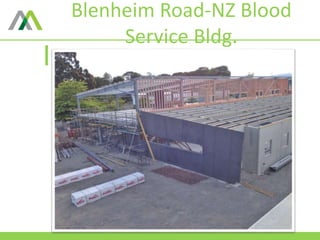

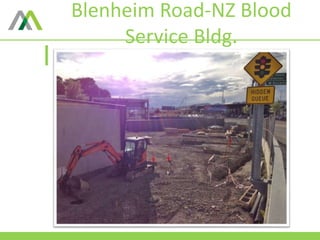

Blenheim Road-NZ Blood
Service Bldg.

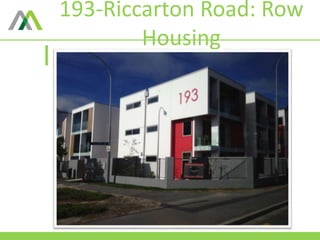

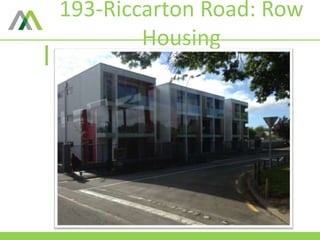

193-Riccarton Road: Row
Housing

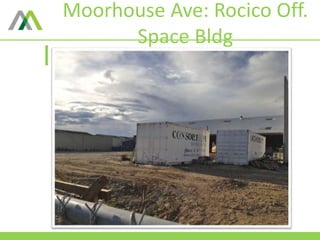

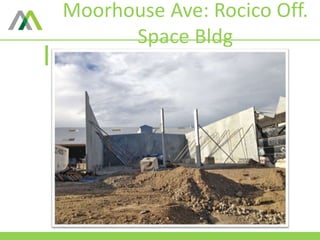

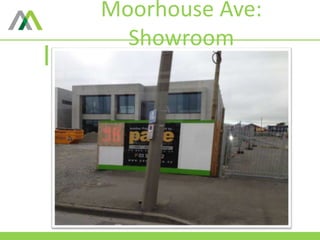

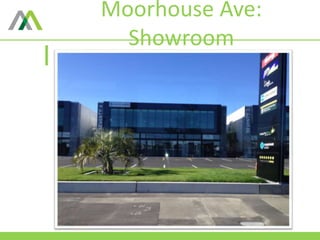

Moorhouse Ave: Rocico Off.
Space Bldg

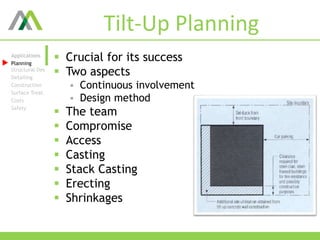

Tilt-Up Planning
 Crucial for its success
 Two aspects
 Continuous involvement
 Design method
 The team
 Compromise
 Access
 Casting
 Stack Casting
 Erecting
 Shrinkages
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

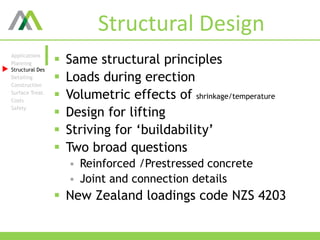

Structural Design
 Same structural principles
 Loads during erection
 Volumetric effects of shrinkage/temperature
 Design for lifting
 Striving for ‘buildability’
 Two broad questions
 Reinforced /Prestressed concrete
 Joint and connection details
 New Zealand loadings code NZS 4203
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

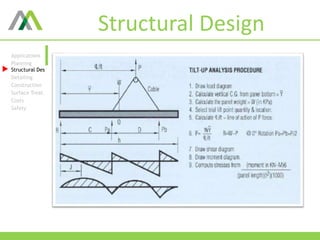

Structural Design
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

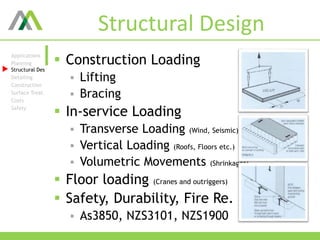

Structural Design
 Construction Loading
 Lifting
 Bracing
 In-service Loading
 Transverse Loading (Wind, Seismic)
 Vertical Loading (Roofs, Floors etc.)
 Volumetric Movements (Shrinkages)
 Floor loading (Cranes and outriggers)
 Safety, Durability, Fire Re.
 As3850, NZS3101, NZS1900
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

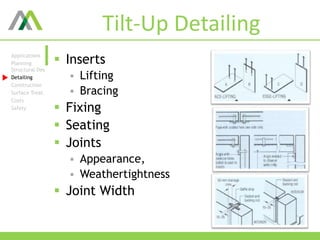

Tilt-Up Detailing
 Inserts
 Lifting
 Bracing
 Fixing
 Seating
 Joints
 Appearance,
 Weathertightness
 Joint Width
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

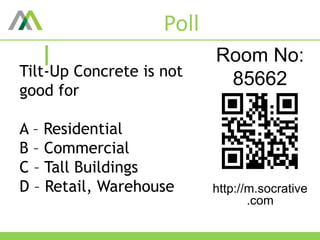

Poll
Room No:
85662
http://m.socrative
.com
Tilt-Up Concrete is not
good for
A – Residential
B – Commercial
C – Tall Buildings
D – Retail, Warehouse

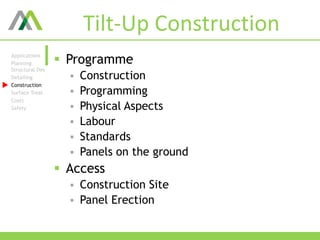

 Programme
 Construction
 Programming
 Physical Aspects
 Labour
 Standards
 Panels on the ground
 Access
 Construction Site
 Panel Erection
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

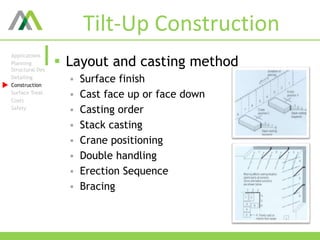

 Layout and casting method
 Surface finish
 Cast face up or face down
 Casting order
 Stack casting
 Crane positioning
 Double handling
 Erection Sequence
 Bracing
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

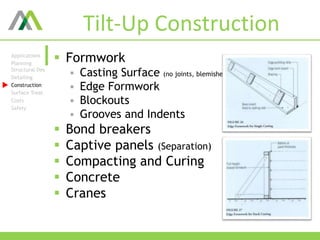

 Formwork
 Casting Surface (no joints, blemishes)
 Edge Formwork
 Blockouts
 Grooves and Indents
 Bond breakers
 Captive panels (Separation)
 Compacting and Curing
 Concrete
 Cranes
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

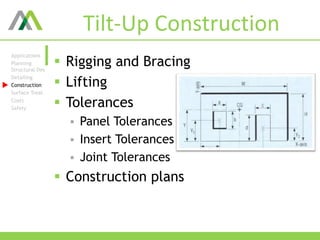

 Rigging and Bracing
 Lifting
 Tolerances
 Panel Tolerances
 Insert Tolerances
 Joint Tolerances
 Construction plans
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

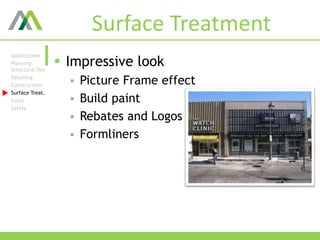

Surface Treatment
 Impressive look
 Picture Frame effect
 Build paint
 Rebates and Logos
 Formliners
Applications
Planning
Structural Des
Detailing
Construction
Surface Treat.
Costs
Safety

Tilt-Up Concrete Facts
 20 - 30 % saving cost
 20- 30 % time saving
 Max Size of the Building = 460 SqM
 Max ht = 10 mt
 Max Thickness = 12 cm
 Slenderness = 50
 Crane capacity = 2-3 times the Panel Wt
 Curing = 28-day concrete strength of 50 MPa

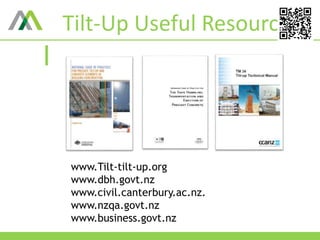

Tilt-Up Useful Resources
www.Tilt-tilt-up.org
www.dbh.govt.nz
www.civil.canterbury.ac.nz.
www.nzqa.govt.nz
www.business.govt.nz

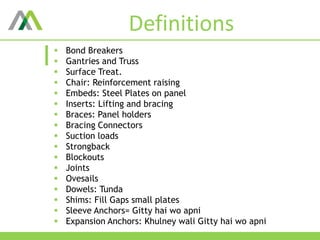

Definitions
 Bond Breakers
 Gantries and Truss
 Surface Treat.
 Chair: Reinforcement raising
 Embeds: Steel Plates on panel
 Inserts: Lifting and bracing
 Braces: Panel holders
 Bracing Connectors
 Suction loads
 Strongback
 Blockouts
 Joints
 Ovesails
 Dowels: Tunda
 Shims: Fill Gaps small plates
 Sleeve Anchors= Gitty hai wo apni
 Expansion Anchors: Khulney wali Gitty hai wo apni

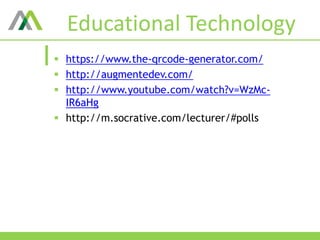

Educational Technology
 https://www.the-qrcode-generator.com/
 http://augmentedev.com/
 http://www.youtube.com/watch?v=WzMc-
IR6aHg
 http://m.socrative.com/lecturer/#polls
