Therapeutic Gymnasium
Dr.Harshal Patel (MPT)
(Musculoskeletal and sports science)

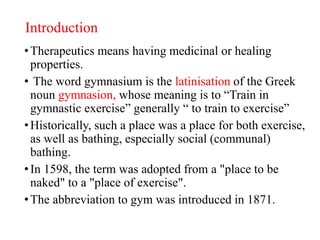

Introduction
•Therapeutics means having medicinal or healing
properties.
• The word gymnasium is the latinisation of the Greek
noun gymnasion, whose meaning is to “Train in
gymnastic exercise” generally “ to train to exercise”
•Historically, such a place was a place for both exercise,
as well as bathing, especially social (communal)
bathing.
•In 1598, the term was adopted from a "place to be
naked" to a "place of exercise".
•The abbreviation to gym was introduced in 1871.

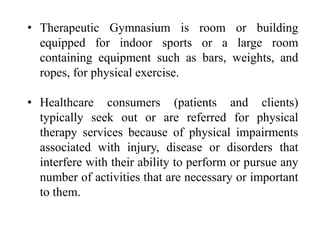

• Therapeutic Gymnasium is room or building
equipped for indoor sports or a large room
containing equipment such as bars, weights, and
ropes, for physical exercise.
• Healthcare consumers (patients and clients)
typically seek out or are referred for physical
therapy services because of physical impairments
associated with injury, disease or disorders that
interfere with their ability to perform or pursue any
number of activities that are necessary or important
to them.

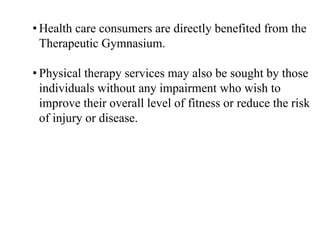

• Health care consumers are directly benefited from the
Therapeutic Gymnasium.
• Physical therapy services may also be sought by those
individuals without any impairment who wish to
improve their overall level of fitness or reduce the risk
of injury or disease.
Definition:
Therapeutic Gymnasium is room or building equipped
for indoor sports or a large room containing equipment
such as bars, weights, and ropes, for physical exercise
or building or room with equipment for physical
exercise.

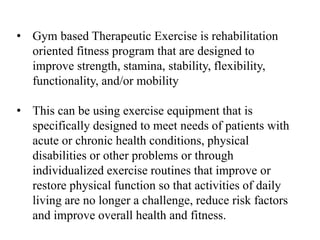

• Gym based Therapeutic Exercise is rehabilitation
oriented fitness program that are designed to
improve strength, stamina, stability, flexibility,
functionality, and/or mobility
• This can be using exercise equipment that is
specifically designed to meet needs of patients with
acute or chronic health conditions, physical
disabilities or other problems or through
individualized exercise routines that improve or
restore physical function so that activities of daily
living are no longer a challenge, reduce risk factors
and improve overall health and fitness.
Therapeutic gymnasium should have the following
facilities:
1. Therapeutic treatment private rooms
2. Remodeling of dressing rooms and bathroom
facilities, with a large area for lockers.
3. Large windows that contribute to a bright
environment and an ample and cosy atmosphere.
4. New physiotherapy state-of-the-art equipment.

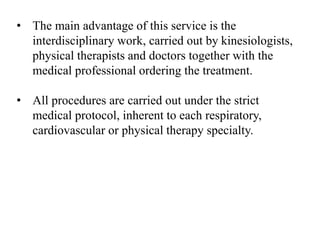

• The main advantage of this service is the
interdisciplinary work, carried out by kinesiologists,
physical therapists and doctors together with the
medical professional ordering the treatment.
• All procedures are carried out under the strict
medical protocol, inherent to each respiratory,
cardiovascular or physical therapy specialty.

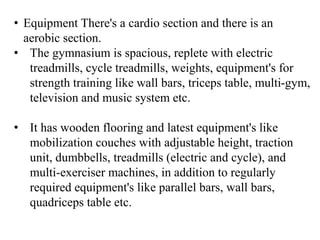

• Equipment There's a cardio section and there is an
aerobic section.
• The gymnasium is spacious, replete with electric
treadmills, cycle treadmills, weights, equipment's for
strength training like wall bars, triceps table, multi-gym,
television and music system etc.
• It has wooden flooring and latest equipment's like
mobilization couches with adjustable height, traction
unit, dumbbells, treadmills (electric and cycle), and
multi-exerciser machines, in addition to regularly
required equipment's like parallel bars, wall bars,

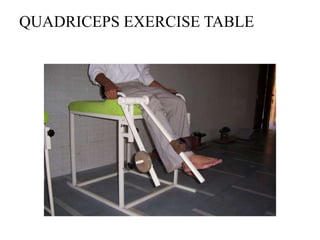

quadriceps table etc.

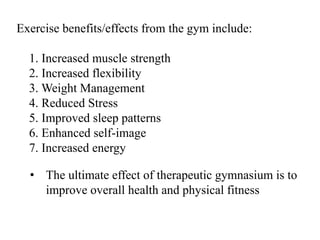

Exercise benefits/effects from the gym include:
1. Increased muscle strength
2. Increased flexibility
3. Weight Management
4. Reduced Stress
5. Improved sleep patterns
6. Enhanced self-image
7. Increased energy
• The ultimate effect of therapeutic gymnasium is to
improve overall health and physical fitness

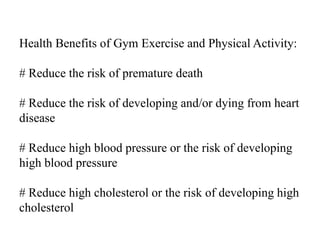

Health Benefits of Gym Exercise and Physical Activity:
# Reduce the risk of premature death
# Reduce the risk of developing and/or dying from heart
disease
# Reduce high blood pressure or the risk of developing
high blood pressure
# Reduce high cholesterol or the risk of developing high
cholesterol

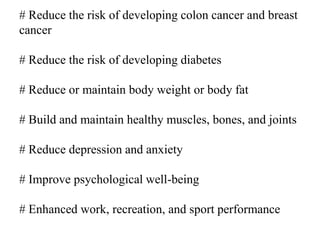

# Reduce the risk of developing colon cancer and breast
cancer
# Reduce the risk of developing diabetes
# Reduce or maintain body weight or body fat
# Build and maintain healthy muscles, bones, and joints
# Reduce depression and anxiety
# Improve psychological well-being
# Enhanced work, recreation, and sport performance

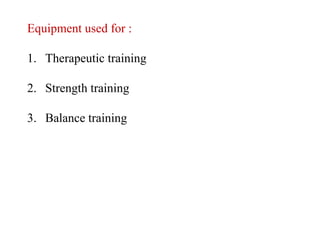

Equipment used for :
1. Therapeutic training
2. Strength training
3. Balance training

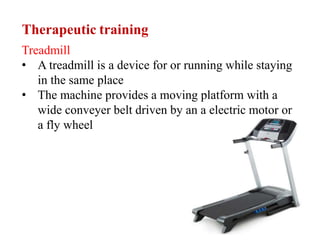

Therapeutic training
Treadmill
• A treadmill is a device for or running while staying
in the same place
• The machine provides a moving platform with a
wide conveyer belt driven by an a electric motor or
a fly wheel

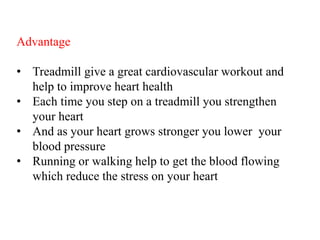

Advantage
• Treadmill give a great cardiovascular workout and
help to improve heart health
• Each time you step on a treadmill you strengthen
your heart
• And as your heart grows stronger you lower your
blood pressure
• Running or walking help to get the blood flowing
which reduce the stress on your heart

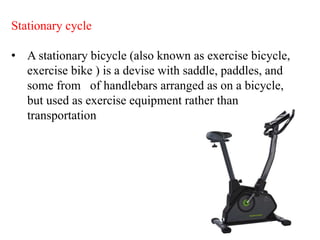

Stationary cycle
• A stationary bicycle (also known as exercise bicycle,
exercise bike ) is a devise with saddle, paddles, and
some from of handlebars arranged as on a bicycle,
but used as exercise equipment rather than
transportation

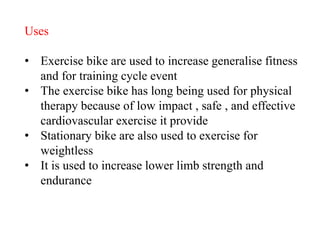

Uses
• Exercise bike are used to increase generalise fitness
and for training cycle event
• The exercise bike has long being used for physical
therapy because of low impact , safe , and effective
cardiovascular exercise it provide
• Stationary bike are also used to exercise for
weightless
• It is used to increase lower limb strength and
endurance
Elliptical trainer / cross trainer
• It provide non impact, reciprocal resistance to the
lower extremities in upright, weight bearing
position Both type of equipment also provide
reciprocal resistance to the upper extremities.

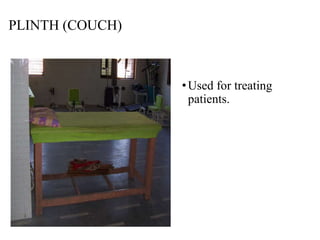

PLINTH (COUCH)
•Used for treating
patients.

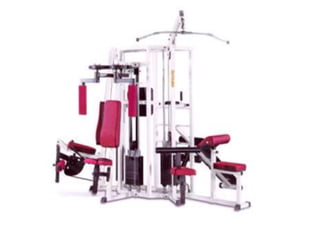

Multi-gym :-
• Parts – seat, back rest,
handle, shin pad, thigh pad,
fixed & movable pulley,
ropes, weights & knobs
• Uses –
• Used to give strengthening
exercise to various body parts
(upper & lower limb, back &
chest)

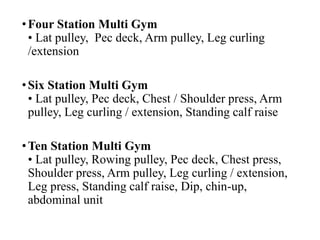

•Four Station Multi Gym
• Lat pulley, Pec deck, Arm pulley, Leg curling
/extension
•Six Station Multi Gym
• Lat pulley, Pec deck, Chest / Shoulder press, Arm
pulley, Leg curling / extension, Standing calf raise
•Ten Station Multi Gym
• Lat pulley, Rowing pulley, Pec deck, Chest press,
Shoulder press, Arm pulley, Leg curling / extension,
Leg press, Standing calf raise, Dip, chin-up,
abdominal unit

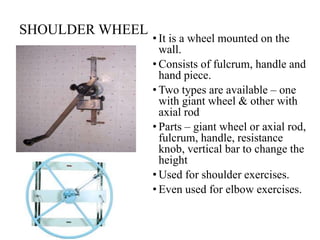

SHOULDER WHEEL
• It is a wheel mounted on the
wall.
• Consists of fulcrum, handle and
hand piece.
• Two types are available – one
with giant wheel & other with
axial rod
• Parts – giant wheel or axial rod,
fulcrum, handle, resistance
knob, vertical bar to change the
height
• Used for shoulder exercises.
• Even used for elbow exercises.

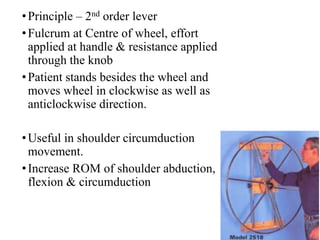

•Principle – 2nd order lever
•Fulcrum at Centre of wheel, effort
applied at handle & resistance applied
through the knob
•Patient stands besides the wheel and
moves wheel in clockwise as well as
anticlockwise direction.
•Useful in shoulder circumduction
movement.
•Increase ROM of shoulder abduction,
flexion & circumduction

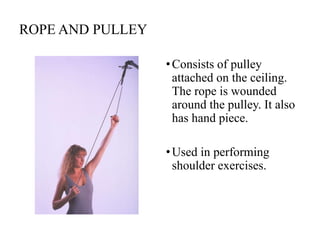

ROPE AND PULLEY
•Consists of pulley
attached on the ceiling.
The rope is wounded
around the pulley. It also
has hand piece.
•Used in performing
shoulder exercises.

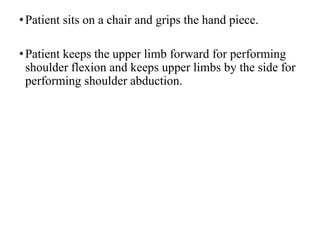

•Patient sits on a chair and grips the hand piece.
•Patient keeps the upper limb forward for performing
shoulder flexion and keeps upper limbs by the side for
performing shoulder abduction.

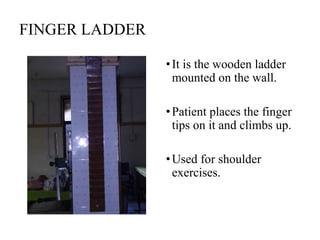

FINGER LADDER
•It is the wooden ladder
mounted on the wall.
•Patient places the finger
tips on it and climbs up.
•Used for shoulder
exercises.

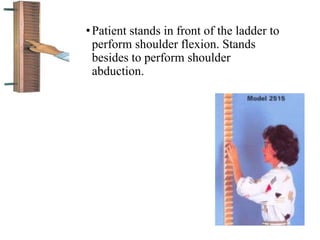

•Patient stands in front of the ladder to
perform shoulder flexion. Stands
besides to perform shoulder
abduction.

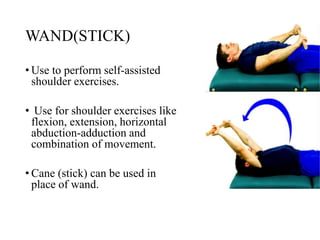

WAND(STICK)
• Use to perform self-assisted
shoulder exercises.
• Use for shoulder exercises like
flexion, extension, horizontal
abduction-adduction and
combination of movement.
• Cane (stick) can be used in
place of wand.

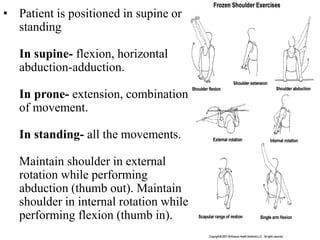

• Patient is positioned in supine or
standing
In supine- flexion, horizontal
abduction-adduction.
In prone- extension, combination
of movement.
In standing- all the movements.
Maintain shoulder in external
rotation while performing
abduction (thumb out). Maintain
shoulder in internal rotation while
performing flexion (thumb in).

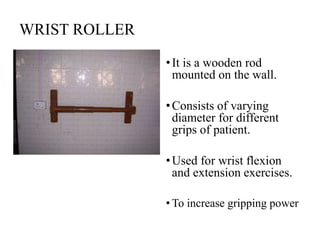

WRIST ROLLER
•It is a wooden rod
mounted on the wall.
•Consists of varying
diameter for different
grips of patient.
•Used for wrist flexion
and extension exercises.
• To increase gripping power

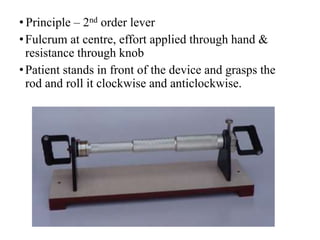

• Principle – 2nd order lever
•Fulcrum at centre, effort applied through hand &
resistance through knob
•Patient stands in front of the device and grasps the
rod and roll it clockwise and anticlockwise.
SUPINATOR – PRONATOR EXERCISER
• It is a device mounted on the wall.
• Consists of wheel and a hand grip.
Uses –
• To strengthen muscles of supination
& pronation
• To mobilize radio ulnar joints &
increase ROM of supination &
pronation movements.
• To give resisted exercises for
supination & pronation.
• Hand gripper also present which can
be used to increase gripping power
of hand & fingers.

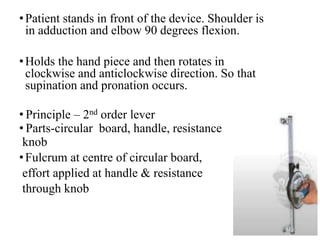

•Patient stands in front of the device. Shoulder is
in adduction and elbow 90 degrees flexion.
•Holds the hand piece and then rotates in
clockwise and anticlockwise direction. So that
supination and pronation occurs.
• Principle – 2nd order lever
• Parts-circular board, handle, resistance
knob
•Fulcrum at centre of circular board,
effort applied at handle & resistance
through knob

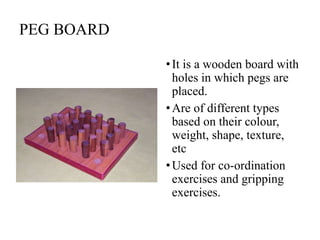

PEG BOARD
•It is a wooden board with
holes in which pegs are
placed.
•Are of different types
based on their colour,
weight, shape, texture,
etc
•Used for co-ordination
exercises and gripping
exercises.

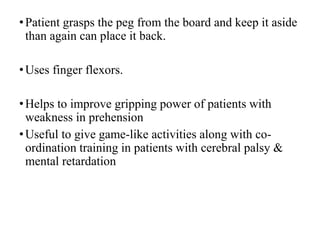

•Patient grasps the peg from the board and keep it aside
than again can place it back.
•Uses finger flexors.
•Helps to improve gripping power of patients with
weakness in prehension
•Useful to give game-like activities along with co-
ordination training in patients with cerebral palsy &
mental retardation

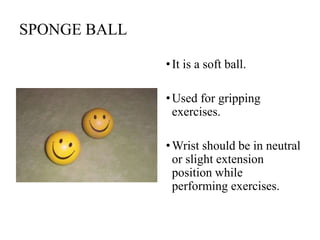

SPONGE BALL
•It is a soft ball.
•Used for gripping
exercises.
•Wrist should be in neutral
or slight extension
position while
performing exercises.

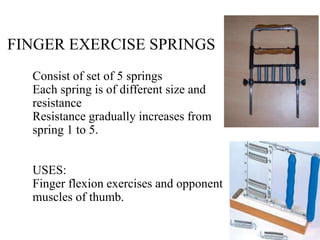

FINGER EXERCISE SPRINGS
Consist of set of 5 springs
Each spring is of different size and
resistance
Resistance gradually increases from
spring 1 to 5.
USES:
Finger flexion exercises and opponent
muscles of thumb.

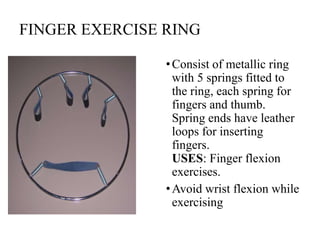

FINGER EXERCISE RING
•Consist of metallic ring
with 5 springs fitted to
the ring, each spring for
fingers and thumb.
Spring ends have leather
loops for inserting
fingers.
USES: Finger flexion
exercises.
•Avoid wrist flexion while
exercising

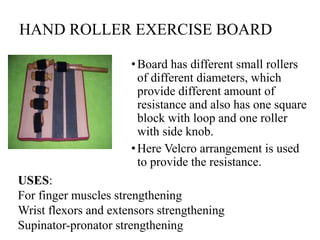

HAND ROLLER EXERCISE BOARD
•Board has different small rollers
of different diameters, which
provide different amount of
resistance and also has one square
block with loop and one roller
with side knob.
•Here Velcro arrangement is used
to provide the resistance.
USES:
For finger muscles strengthening
Wrist flexors and extensors strengthening
Supinator-pronator strengthening

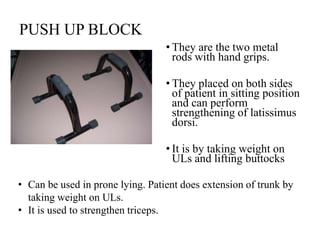

PUSH UP BLOCK
• They are the two metal
rods with hand grips.
• They placed on both sides
of patient in sitting position
and can perform
strengthening of latissimus
dorsi.
• It is by taking weight on
ULs and lifting buttocks
• Can be used in prone lying. Patient does extension of trunk by
taking weight on ULs.
• It is used to strengthen triceps.

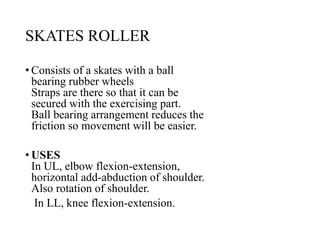

SKATES ROLLER
• Consists of a skates with a ball
bearing rubber wheels
Straps are there so that it can be
secured with the exercising part.
Ball bearing arrangement reduces the
friction so movement will be easier.
• USES
In UL, elbow flexion-extension,
horizontal add-abduction of shoulder.
Also rotation of shoulder.
In LL, knee flexion-extension.

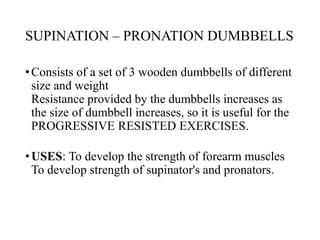

SUPINATION – PRONATION DUMBBELLS
•Consists of a set of 3 wooden dumbbells of different
size and weight
Resistance provided by the dumbbells increases as
the size of dumbbell increases, so it is useful for the
PROGRESSIVE RESISTED EXERCISES.
•USES: To develop the strength of forearm muscles
To develop strength of supinator's and pronators.

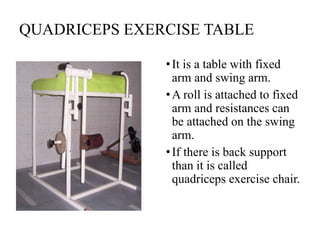

QUADRICEPS EXERCISE TABLE
•It is a table with fixed
arm and swing arm.
•A roll is attached to fixed
arm and resistances can
be attached on the swing
arm.
•If there is back support
than it is called
quadriceps exercise chair.

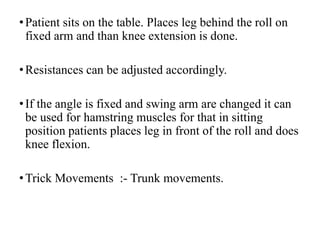

•Patient sits on the table. Places leg behind the roll on
fixed arm and than knee extension is done.
•Resistances can be adjusted accordingly.
•If the angle is fixed and swing arm are changed it can
be used for hamstring muscles for that in sitting
position patients places leg in front of the roll and does
knee flexion.
•Trick Movements :- Trunk movements.
QUADRICEPS EXERCISE TABLE

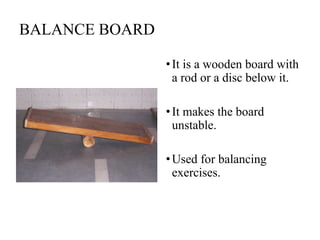

BALANCE BOARD
•It is a wooden board with
a rod or a disc below it.
•It makes the board
unstable.
•Used for balancing
exercises.

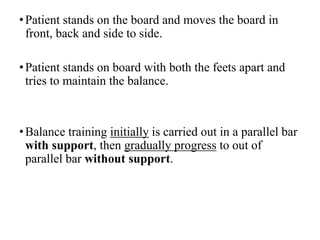

•Patient stands on the board and moves the board in
front, back and side to side.
•Patient stands on board with both the feets apart and
tries to maintain the balance.
•Balance training initially is carried out in a parallel bar
with support, then gradually progress to out of
parallel bar without support.

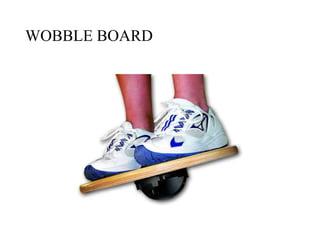

WOBBLE BOARD

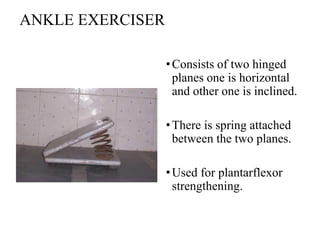

ANKLE EXERCISER
•Consists of two hinged
planes one is horizontal
and other one is inclined.
•There is spring attached
between the two planes.
•Used for plantarflexor
strengthening.

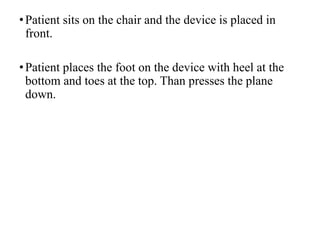

•Patient sits on the chair and the device is placed in
front.
•Patient places the foot on the device with heel at the
bottom and toes at the top. Than presses the plane
down.

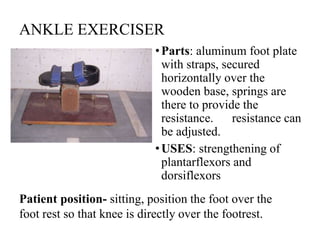

ANKLE EXERCISER
•Parts: aluminum foot plate
with straps, secured
horizontally over the
wooden base, springs are
there to provide the
resistance. resistance can
be adjusted.
•USES: strengthening of
plantarflexors and
dorsiflexors
Patient position- sitting, position the foot over the
foot rest so that knee is directly over the footrest.

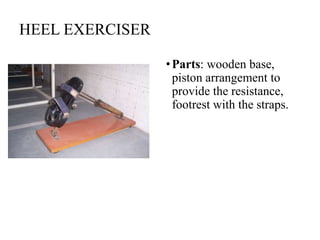

HEEL EXERCISER
•Parts: wooden base,
piston arrangement to
provide the resistance,
footrest with the straps.

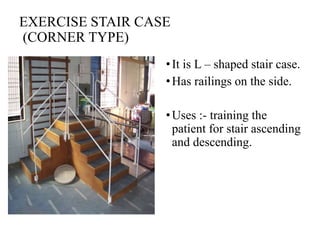

EXERCISE STAIR CASE
(CORNER TYPE)
•It is L – shaped stair case.
•Has railings on the side.
•Uses :- training the
patient for stair ascending
and descending.

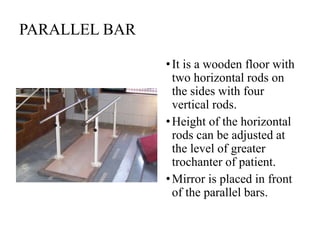

PARALLEL BAR
•It is a wooden floor with
two horizontal rods on
the sides with four
vertical rods.
•Height of the horizontal
rods can be adjusted at
the level of greater
trochanter of patient.
•Mirror is placed in front
of the parallel bars.

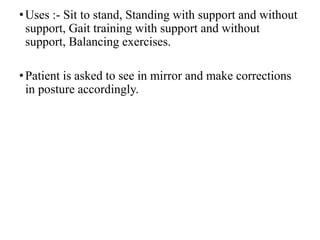

•Uses :- Sit to stand, Standing with support and without
support, Gait training with support and without
support, Balancing exercises.
•Patient is asked to see in mirror and make corrections
in posture accordingly.

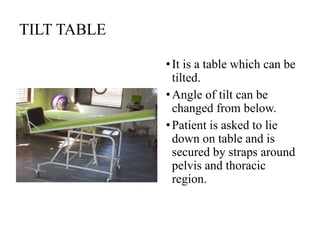

TILT TABLE
•It is a table which can be
tilted.
•Angle of tilt can be
changed from below.
•Patient is asked to lie
down on table and is
secured by straps around
pelvis and thoracic
region.

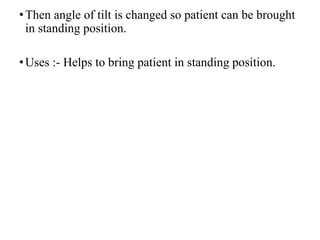

•Then angle of tilt is changed so patient can be brought
in standing position.
•Uses :- Helps to bring patient in standing position.

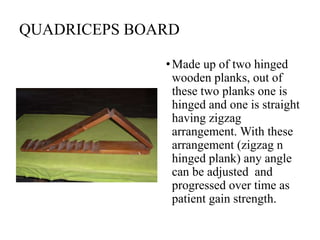

QUADRICEPS BOARD
•Made up of two hinged
wooden planks, out of
these two planks one is
hinged and one is straight
having zigzag
arrangement. With these
arrangement (zigzag n
hinged plank) any angle
can be adjusted and
progressed over time as
patient gain strength.

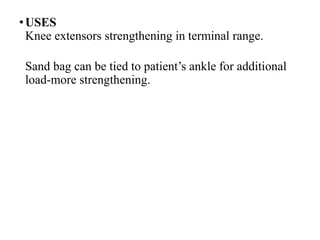

•USES
Knee extensors strengthening in terminal range.
Sand bag can be tied to patient’s ankle for additional
load-more strengthening.

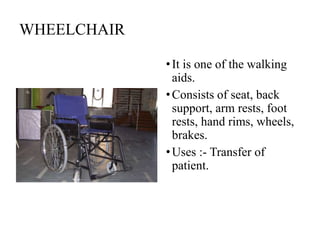

WHEELCHAIR
•It is one of the walking
aids.
•Consists of seat, back
support, arm rests, foot
rests, hand rims, wheels,
brakes.
•Uses :- Transfer of
patient.

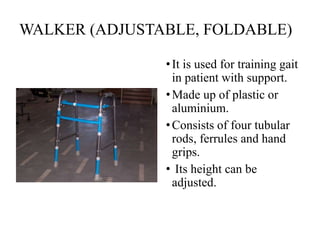

WALKER (ADJUSTABLE, FOLDABLE)
•It is used for training gait
in patient with support.
•Made up of plastic or
aluminium.
•Consists of four tubular
rods, ferrules and hand
grips.
• Its height can be
adjusted.

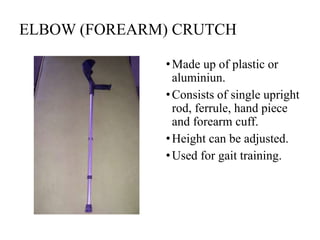

ELBOW (FOREARM) CRUTCH
•Made up of plastic or
aluminiun.
•Consists of single upright
rod, ferrule, hand piece
and forearm cuff.
•Height can be adjusted.
•Used for gait training.

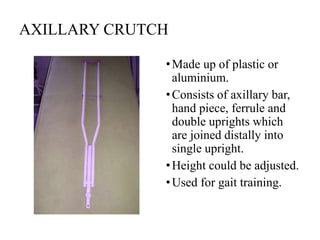

AXILLARY CRUTCH
•Made up of plastic or
aluminium.
•Consists of axillary bar,
hand piece, ferrule and
double uprights which
are joined distally into
single upright.
•Height could be adjusted.
•Used for gait training.

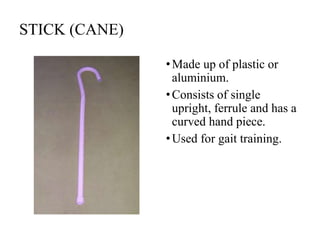

STICK (CANE)
•Made up of plastic or
aluminium.
•Consists of single
upright, ferrule and has a
curved hand piece.
•Used for gait training.

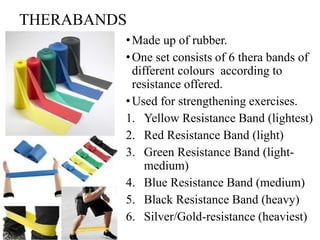

THERABANDS
•Made up of rubber.
•One set consists of 6 thera bands of
different colours according to
resistance offered.
•Used for strengthening exercises.
1. Yellow Resistance Band (lightest)
2. Red Resistance Band (light)
3. Green Resistance Band (light-
medium)
4. Blue Resistance Band (medium)
5. Black Resistance Band (heavy)
6. Silver/Gold-resistance (heaviest)
Theratube

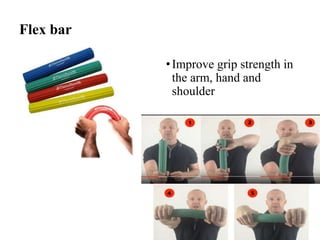

Flex bar
•Improve grip strength in
the arm, hand and
shoulder

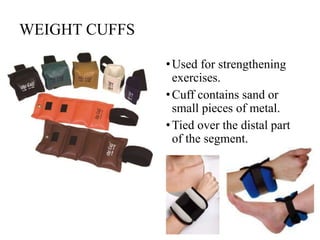

WEIGHT CUFFS
•Used for strengthening
exercises.
•Cuff contains sand or
small pieces of metal.
•Tied over the distal part
of the segment.
DUMBBELL RACK
•Rack consists of variety
of dumbbells of different
size and resistance.
•Used for strengthening
exercises.

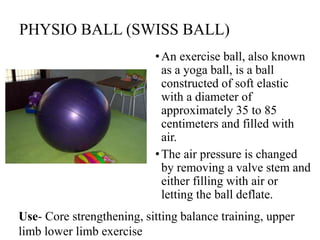

PHYSIO BALL (SWISS BALL)
•An exercise ball, also known
as a yoga ball, is a ball
constructed of soft elastic
with a diameter of
approximately 35 to 85
centimeters and filled with
air.
•The air pressure is changed
by removing a valve stem and
either filling with air or
letting the ball deflate.
Use- Core strengthening, sitting balance training, upper
limb lower limb exercise
SUSPENSION FRAME
(GUTHRICK SMITH’S APPARATUS)
•Frame consists of rope,
pulley, sling, cuff and
hooks.
•Used for suspending limb
for active assisted
exercises.

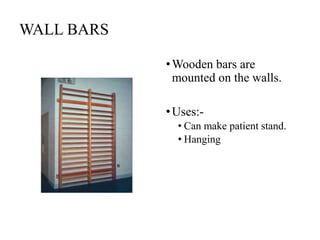

WALL BARS
•Wooden bars are
mounted on the walls.
•Uses:-
• Can make patient stand.
• Hanging

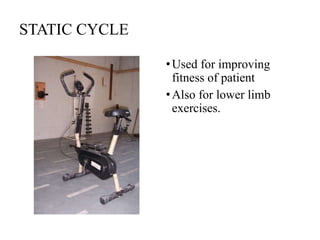

STATIC CYCLE
•Used for improving
fitness of patient
•Also for lower limb
exercises.

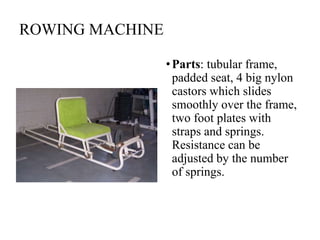

ROWING MACHINE
•Parts: tubular frame,
padded seat, 4 big nylon
castors which slides
smoothly over the frame,
two foot plates with
straps and springs.
Resistance can be
adjusted by the number
of springs.

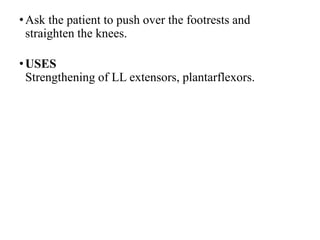

•Ask the patient to push over the footrests and
straighten the knees.
•USES
Strengthening of LL extensors, plantarflexors.

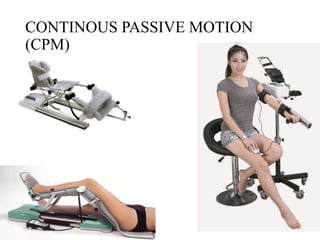

CONTINOUS PASSIVE MOTION
(CPM)

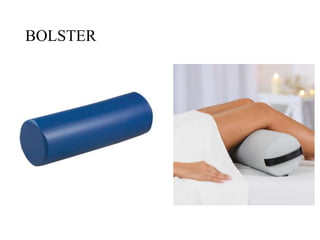

BOLSTER

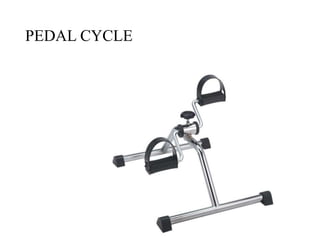

PEDAL CYCLE

More Related Content

What's hot (20)

Whirlpool Bath Dr. Rashi
Whirlpool Bath Dr. RashiWhirlpool Bath Dr. Rashi
Whirlpool Bath Dr. Rashi

Levers in Physiotherapy
Levers in PhysiotherapyLevers in Physiotherapy
Levers in Physiotherapy

Suspension therapy
Suspension therapySuspension therapy
Suspension therapy

Passive movements
Passive movementsPassive movements
Passive movements

Goniometer
GoniometerGoniometer
Goniometer

Derived position
Derived positionDerived position
Derived position

Group exercise
Group exerciseGroup exercise
Group exercise

Contrast bath SRS
Contrast bath SRSContrast bath SRS
Contrast bath SRS

Relaxation
RelaxationRelaxation
Relaxation

Fundamental and derived position
Fundamental and derived positionFundamental and derived position
Fundamental and derived position

Joint structures and function
Joint structures and functionJoint structures and function
Joint structures and function

Active and Passive Insufficiency.pptx
Active and Passive Insufficiency.pptxActive and Passive Insufficiency.pptx
Active and Passive Insufficiency.pptx

SD curve (Strength Duration Curve)
SD curve (Strength Duration Curve)SD curve (Strength Duration Curve)
SD curve (Strength Duration Curve)

Pelvic tilt
Pelvic tiltPelvic tilt
Pelvic tilt

Hydrocollator pack
Hydrocollator packHydrocollator pack
Hydrocollator pack

Low Frequency Therapeutic Currents
Low Frequency Therapeutic CurrentsLow Frequency Therapeutic Currents
Low Frequency Therapeutic Currents

Joint mobilization
Joint mobilizationJoint mobilization
Joint mobilization

Suspension Therapy
Suspension TherapySuspension Therapy
Suspension Therapy

Whirlpool Bath - Physiotherapy.pptx
Whirlpool Bath -  Physiotherapy.pptxWhirlpool Bath -  Physiotherapy.pptx
Whirlpool Bath - Physiotherapy.pptx

Group Exercise_by_Dr_Mumux.pptx
Group Exercise_by_Dr_Mumux.pptxGroup Exercise_by_Dr_Mumux.pptx
Group Exercise_by_Dr_Mumux.pptx


Similar to Therapeutic Gymnasium.pptx

mobility and immobility.pptx
mobility and immobility.pptxmobility and immobility.pptx
mobility and immobility.pptxSulekhaDeshmukh

Acl reconstruction rehablition (zaid hjab)
Acl reconstruction rehablition (zaid hjab)Acl reconstruction rehablition (zaid hjab)
Acl reconstruction rehablition (zaid hjab)Zaid Hjab

WVTA 10/2013 How to utilize rehab therapy post operative/geriatric
WVTA 10/2013 How to utilize rehab therapy post operative/geriatricWVTA 10/2013 How to utilize rehab therapy post operative/geriatric
WVTA 10/2013 How to utilize rehab therapy post operative/geriatricmiltonmush

Fitness and strength testing in sports
Fitness and strength testing in sportsFitness and strength testing in sports
Fitness and strength testing in sportsDr.Rajal Sukhiyaji

Presentation of kinesiology 2.pptx BY ILYAS
Presentation of kinesiology 2.pptx BY ILYASPresentation of kinesiology 2.pptx BY ILYAS
Presentation of kinesiology 2.pptx BY ILYASShumailJAN

flexibility-110622094125-phpapp01.pptx
flexibility-110622094125-phpapp01.pptxflexibility-110622094125-phpapp01.pptx
flexibility-110622094125-phpapp01.pptxAmit4192779

Rehabilitation for paraplegia and quadriplegia
Rehabilitation for paraplegia and quadriplegiaRehabilitation for paraplegia and quadriplegia
Rehabilitation for paraplegia and quadriplegiaJose Anilda

Exercise.pptx
Exercise.pptxExercise.pptx
Exercise.pptxshiwani88

Unit 16. Exercise.pptx
Unit 16. Exercise.pptxUnit 16. Exercise.pptx
Unit 16. Exercise.pptxshiwani88

Meniscus injury / tear
Meniscus injury / tearMeniscus injury / tear
Meniscus injury / tearKhairul Nizam

Rehabilitation following THR and TKR.pptx
Rehabilitation following THR and TKR.pptxRehabilitation following THR and TKR.pptx
Rehabilitation following THR and TKR.pptxKaushal Kafle

Introduction to cinical set up for physiotherapy students
Introduction to cinical set up for physiotherapy studentsIntroduction to cinical set up for physiotherapy students
Introduction to cinical set up for physiotherapy studentsMallika Vhora

Ataxia Management
Ataxia ManagementAtaxia Management
Ataxia ManagementFizio

Body Mechanics and Ergonomics.pptx
Body Mechanics and Ergonomics.pptxBody Mechanics and Ergonomics.pptx
Body Mechanics and Ergonomics.pptxDougieWalker1

Pre & post operative physiotherapy in abdominal surgeries
Pre & post operative physiotherapy in abdominal surgeriesPre & post operative physiotherapy in abdominal surgeries
Pre & post operative physiotherapy in abdominal surgerieskajal sansoya

ROLE_OF_PHYSIOTHERAPIC.pptx
ROLE_OF_PHYSIOTHERAPIC.pptxROLE_OF_PHYSIOTHERAPIC.pptx
ROLE_OF_PHYSIOTHERAPIC.pptxChetan Chetan


Similar to Therapeutic Gymnasium.pptx (20)

mobility and immobility.pptx
mobility and immobility.pptxmobility and immobility.pptx
mobility and immobility.pptx

Acl reconstruction rehablition (zaid hjab)
Acl reconstruction rehablition (zaid hjab)Acl reconstruction rehablition (zaid hjab)
Acl reconstruction rehablition (zaid hjab)

WVTA 10/2013 How to utilize rehab therapy post operative/geriatric
WVTA 10/2013 How to utilize rehab therapy post operative/geriatricWVTA 10/2013 How to utilize rehab therapy post operative/geriatric
WVTA 10/2013 How to utilize rehab therapy post operative/geriatric

IMMOBILITY.pptx
IMMOBILITY.pptxIMMOBILITY.pptx
IMMOBILITY.pptx

Fitness and strength testing in sports
Fitness and strength testing in sportsFitness and strength testing in sports
Fitness and strength testing in sports

Presentation of kinesiology 2.pptx BY ILYAS
Presentation of kinesiology 2.pptx BY ILYASPresentation of kinesiology 2.pptx BY ILYAS
Presentation of kinesiology 2.pptx BY ILYAS

flexibility-110622094125-phpapp01.pptx
flexibility-110622094125-phpapp01.pptxflexibility-110622094125-phpapp01.pptx
flexibility-110622094125-phpapp01.pptx

exercise.pptx
exercise.pptxexercise.pptx
exercise.pptx

Walking aids
Walking aidsWalking aids
Walking aids

Rehabilitation for paraplegia and quadriplegia
Rehabilitation for paraplegia and quadriplegiaRehabilitation for paraplegia and quadriplegia
Rehabilitation for paraplegia and quadriplegia

Exercise.pptx
Exercise.pptxExercise.pptx
Exercise.pptx

Unit 16. Exercise.pptx
Unit 16. Exercise.pptxUnit 16. Exercise.pptx
Unit 16. Exercise.pptx

Acl
AclAcl
Acl

Meniscus injury / tear
Meniscus injury / tearMeniscus injury / tear
Meniscus injury / tear

Rehabilitation following THR and TKR.pptx
Rehabilitation following THR and TKR.pptxRehabilitation following THR and TKR.pptx
Rehabilitation following THR and TKR.pptx

Introduction to cinical set up for physiotherapy students
Introduction to cinical set up for physiotherapy studentsIntroduction to cinical set up for physiotherapy students
Introduction to cinical set up for physiotherapy students

Ataxia Management
Ataxia ManagementAtaxia Management
Ataxia Management

Body Mechanics and Ergonomics.pptx
Body Mechanics and Ergonomics.pptxBody Mechanics and Ergonomics.pptx
Body Mechanics and Ergonomics.pptx

Pre & post operative physiotherapy in abdominal surgeries
Pre & post operative physiotherapy in abdominal surgeriesPre & post operative physiotherapy in abdominal surgeries
Pre & post operative physiotherapy in abdominal surgeries

ROLE_OF_PHYSIOTHERAPIC.pptx
ROLE_OF_PHYSIOTHERAPIC.pptxROLE_OF_PHYSIOTHERAPIC.pptx
ROLE_OF_PHYSIOTHERAPIC.pptx


Recently uploaded

SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdfSEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdfSachin Sharma

CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...
CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...
CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...ocean4396

ESC HF 2024 Spotlights Day-2.pptx heart failure
ESC HF 2024 Spotlights Day-2.pptx heart failureESC HF 2024 Spotlights Day-2.pptx heart failure
ESC HF 2024 Spotlights Day-2.pptx heart failuremahiavy26

Treatment Choices for Slip Disc at Gokuldas Hospital
Treatment Choices for Slip Disc at Gokuldas HospitalTreatment Choices for Slip Disc at Gokuldas Hospital
Treatment Choices for Slip Disc at Gokuldas HospitalGokuldas Hospital

ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptx
ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptxANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptx
ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptxDr. Sohan Biswas

Dermatome and myotome test & pathology.pdf
Dermatome and myotome test & pathology.pdfDermatome and myotome test & pathology.pdf
Dermatome and myotome test & pathology.pdfniloofarbarzegari76

Sell pmk powder cas 28578-16-7 from pmk supplier Telegram +85297504341
Sell pmk powder cas 28578-16-7 from pmk supplier Telegram +85297504341Sell pmk powder cas 28578-16-7 from pmk supplier Telegram +85297504341
Sell pmk powder cas 28578-16-7 from pmk supplier Telegram +85297504341Sherrylee83

TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...marcuskenyatta275

Unveiling Alcohol Withdrawal Syndrome: exploring it's hidden depths
Unveiling Alcohol Withdrawal Syndrome: exploring it's hidden depthsUnveiling Alcohol Withdrawal Syndrome: exploring it's hidden depths
Unveiling Alcohol Withdrawal Syndrome: exploring it's hidden depthsYash Garg

Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose Academics
Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose AcademicsConnective Tissue II - Dr Muhammad Ali Rabbani - Medicose Academics
Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose AcademicsMedicoseAcademics

ROSE CASE SPINAL SBRT BY DR KANHU CHARAN PATRO
ROSE  CASE SPINAL SBRT BY DR KANHU CHARAN PATROROSE  CASE SPINAL SBRT BY DR KANHU CHARAN PATRO
ROSE CASE SPINAL SBRT BY DR KANHU CHARAN PATROKanhu Charan

NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019
NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019
NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019Akash Agnihotri

TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...
TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...
TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...marcuskenyatta275

Overview on the Automatic pill identifier
Overview on the Automatic pill identifierOverview on the Automatic pill identifier
Overview on the Automatic pill identifierNidhi Joshi

Gallbladder Double-Diverticular: A Case Report المرارة مزدوجة التج: تقرير حالة
Gallbladder Double-Diverticular: A Case Report  المرارة مزدوجة التج: تقرير حالةGallbladder Double-Diverticular: A Case Report  المرارة مزدوجة التج: تقرير حالة
Gallbladder Double-Diverticular: A Case Report المرارة مزدوجة التج: تقرير حالةMohamad محمد Al-Gailani الكيلاني

Failure to thrive in neonates and infants + pediatric case.pptx
Failure to thrive in neonates and infants  + pediatric case.pptxFailure to thrive in neonates and infants  + pediatric case.pptx
Failure to thrive in neonates and infants + pediatric case.pptxclaviclebrown44

Signs It’s Time for Physiotherapy Sessions Prioritizing Wellness
Signs It’s Time for Physiotherapy Sessions Prioritizing WellnessSigns It’s Time for Physiotherapy Sessions Prioritizing Wellness
Signs It’s Time for Physiotherapy Sessions Prioritizing WellnessGokuldas Hospital

Mgr university bsc nursing adult health previous question paper with answers
Mgr university  bsc nursing adult health previous question paper with answersMgr university  bsc nursing adult health previous question paper with answers
Mgr university bsc nursing adult health previous question paper with answersShafnaP5

DR. Neha Mehta Best Psychologist.in India
DR. Neha Mehta Best Psychologist.in IndiaDR. Neha Mehta Best Psychologist.in India
DR. Neha Mehta Best Psychologist.in IndiaNehamehta128467


Recently uploaded (20)

SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdfSEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf

CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...
CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...
CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...

ESC HF 2024 Spotlights Day-2.pptx heart failure
ESC HF 2024 Spotlights Day-2.pptx heart failureESC HF 2024 Spotlights Day-2.pptx heart failure
ESC HF 2024 Spotlights Day-2.pptx heart failure

Treatment Choices for Slip Disc at Gokuldas Hospital
Treatment Choices for Slip Disc at Gokuldas HospitalTreatment Choices for Slip Disc at Gokuldas Hospital
Treatment Choices for Slip Disc at Gokuldas Hospital

ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptx
ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptxANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptx
ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptx

Dermatome and myotome test & pathology.pdf
Dermatome and myotome test & pathology.pdfDermatome and myotome test & pathology.pdf
Dermatome and myotome test & pathology.pdf

Sell pmk powder cas 28578-16-7 from pmk supplier Telegram +85297504341
Sell pmk powder cas 28578-16-7 from pmk supplier Telegram +85297504341Sell pmk powder cas 28578-16-7 from pmk supplier Telegram +85297504341
Sell pmk powder cas 28578-16-7 from pmk supplier Telegram +85297504341

TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...

Unveiling Alcohol Withdrawal Syndrome: exploring it's hidden depths
Unveiling Alcohol Withdrawal Syndrome: exploring it's hidden depthsUnveiling Alcohol Withdrawal Syndrome: exploring it's hidden depths
Unveiling Alcohol Withdrawal Syndrome: exploring it's hidden depths

Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose Academics
Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose AcademicsConnective Tissue II - Dr Muhammad Ali Rabbani - Medicose Academics
Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose Academics

ROSE CASE SPINAL SBRT BY DR KANHU CHARAN PATRO
ROSE  CASE SPINAL SBRT BY DR KANHU CHARAN PATROROSE  CASE SPINAL SBRT BY DR KANHU CHARAN PATRO
ROSE CASE SPINAL SBRT BY DR KANHU CHARAN PATRO

Making Patient-Centric Immunotherapy a Reality in Lung Cancer: Best Practices...
Making Patient-Centric Immunotherapy a Reality in Lung Cancer: Best Practices...Making Patient-Centric Immunotherapy a Reality in Lung Cancer: Best Practices...
Making Patient-Centric Immunotherapy a Reality in Lung Cancer: Best Practices...

NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019
NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019
NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019

TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...
TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...
TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...

Overview on the Automatic pill identifier
Overview on the Automatic pill identifierOverview on the Automatic pill identifier
Overview on the Automatic pill identifier

Gallbladder Double-Diverticular: A Case Report المرارة مزدوجة التج: تقرير حالة
Gallbladder Double-Diverticular: A Case Report  المرارة مزدوجة التج: تقرير حالةGallbladder Double-Diverticular: A Case Report  المرارة مزدوجة التج: تقرير حالة
Gallbladder Double-Diverticular: A Case Report المرارة مزدوجة التج: تقرير حالة

Failure to thrive in neonates and infants + pediatric case.pptx
Failure to thrive in neonates and infants  + pediatric case.pptxFailure to thrive in neonates and infants  + pediatric case.pptx
Failure to thrive in neonates and infants + pediatric case.pptx

Signs It’s Time for Physiotherapy Sessions Prioritizing Wellness
Signs It’s Time for Physiotherapy Sessions Prioritizing WellnessSigns It’s Time for Physiotherapy Sessions Prioritizing Wellness
Signs It’s Time for Physiotherapy Sessions Prioritizing Wellness

Mgr university bsc nursing adult health previous question paper with answers
Mgr university  bsc nursing adult health previous question paper with answersMgr university  bsc nursing adult health previous question paper with answers
Mgr university bsc nursing adult health previous question paper with answers

DR. Neha Mehta Best Psychologist.in India
DR. Neha Mehta Best Psychologist.in IndiaDR. Neha Mehta Best Psychologist.in India
DR. Neha Mehta Best Psychologist.in India


Therapeutic Gymnasium.pptx

  • 1. Therapeutic Gymnasium Dr.Harshal Patel (MPT) (Musculoskeletal and sports science)
  • 2. Introduction •Therapeutics means having medicinal or healing properties. • The word gymnasium is the latinisation of the Greek noun gymnasion, whose meaning is to “Train in gymnastic exercise” generally “ to train to exercise” •Historically, such a place was a place for both exercise, as well as bathing, especially social (communal) bathing. •In 1598, the term was adopted from a "place to be naked" to a "place of exercise". •The abbreviation to gym was introduced in 1871.
  • 3. • Therapeutic Gymnasium is room or building equipped for indoor sports or a large room containing equipment such as bars, weights, and ropes, for physical exercise. • Healthcare consumers (patients and clients) typically seek out or are referred for physical therapy services because of physical impairments associated with injury, disease or disorders that interfere with their ability to perform or pursue any number of activities that are necessary or important to them.
  • 4. • Health care consumers are directly benefited from the Therapeutic Gymnasium. • Physical therapy services may also be sought by those individuals without any impairment who wish to improve their overall level of fitness or reduce the risk of injury or disease.
  • 5. Definition: Therapeutic Gymnasium is room or building equipped for indoor sports or a large room containing equipment such as bars, weights, and ropes, for physical exercise or building or room with equipment for physical exercise.
  • 6. • Gym based Therapeutic Exercise is rehabilitation oriented fitness program that are designed to improve strength, stamina, stability, flexibility, functionality, and/or mobility • This can be using exercise equipment that is specifically designed to meet needs of patients with acute or chronic health conditions, physical disabilities or other problems or through individualized exercise routines that improve or restore physical function so that activities of daily living are no longer a challenge, reduce risk factors and improve overall health and fitness.
  • 7. Therapeutic gymnasium should have the following facilities: 1. Therapeutic treatment private rooms 2. Remodeling of dressing rooms and bathroom facilities, with a large area for lockers. 3. Large windows that contribute to a bright environment and an ample and cosy atmosphere. 4. New physiotherapy state-of-the-art equipment.
  • 8. • The main advantage of this service is the interdisciplinary work, carried out by kinesiologists, physical therapists and doctors together with the medical professional ordering the treatment. • All procedures are carried out under the strict medical protocol, inherent to each respiratory, cardiovascular or physical therapy specialty.
  • 9. • Equipment There's a cardio section and there is an aerobic section. • The gymnasium is spacious, replete with electric treadmills, cycle treadmills, weights, equipment's for strength training like wall bars, triceps table, multi-gym, television and music system etc. • It has wooden flooring and latest equipment's like mobilization couches with adjustable height, traction unit, dumbbells, treadmills (electric and cycle), and multi-exerciser machines, in addition to regularly required equipment's like parallel bars, wall bars, quadriceps table etc.
  • 10. Exercise benefits/effects from the gym include: 1. Increased muscle strength 2. Increased flexibility 3. Weight Management 4. Reduced Stress 5. Improved sleep patterns 6. Enhanced self-image 7. Increased energy • The ultimate effect of therapeutic gymnasium is to improve overall health and physical fitness
  • 11. Health Benefits of Gym Exercise and Physical Activity: # Reduce the risk of premature death # Reduce the risk of developing and/or dying from heart disease # Reduce high blood pressure or the risk of developing high blood pressure # Reduce high cholesterol or the risk of developing high cholesterol
  • 12. # Reduce the risk of developing colon cancer and breast cancer # Reduce the risk of developing diabetes # Reduce or maintain body weight or body fat # Build and maintain healthy muscles, bones, and joints # Reduce depression and anxiety # Improve psychological well-being # Enhanced work, recreation, and sport performance
  • 13. Equipment used for : 1. Therapeutic training 2. Strength training 3. Balance training
  • 14. Therapeutic training Treadmill • A treadmill is a device for or running while staying in the same place • The machine provides a moving platform with a wide conveyer belt driven by an a electric motor or a fly wheel
  • 15. Advantage • Treadmill give a great cardiovascular workout and help to improve heart health • Each time you step on a treadmill you strengthen your heart • And as your heart grows stronger you lower your blood pressure • Running or walking help to get the blood flowing which reduce the stress on your heart
  • 16. Stationary cycle • A stationary bicycle (also known as exercise bicycle, exercise bike ) is a devise with saddle, paddles, and some from of handlebars arranged as on a bicycle, but used as exercise equipment rather than transportation
  • 17. Uses • Exercise bike are used to increase generalise fitness and for training cycle event • The exercise bike has long being used for physical therapy because of low impact , safe , and effective cardiovascular exercise it provide • Stationary bike are also used to exercise for weightless • It is used to increase lower limb strength and endurance
  • 18. Elliptical trainer / cross trainer • It provide non impact, reciprocal resistance to the lower extremities in upright, weight bearing position Both type of equipment also provide reciprocal resistance to the upper extremities.
  • 19. PLINTH (COUCH) •Used for treating patients.
  • 20. Multi-gym :- • Parts – seat, back rest, handle, shin pad, thigh pad, fixed & movable pulley, ropes, weights & knobs • Uses – • Used to give strengthening exercise to various body parts (upper & lower limb, back & chest)
  • 21.
  • 22. •Four Station Multi Gym • Lat pulley, Pec deck, Arm pulley, Leg curling /extension •Six Station Multi Gym • Lat pulley, Pec deck, Chest / Shoulder press, Arm pulley, Leg curling / extension, Standing calf raise •Ten Station Multi Gym • Lat pulley, Rowing pulley, Pec deck, Chest press, Shoulder press, Arm pulley, Leg curling / extension, Leg press, Standing calf raise, Dip, chin-up, abdominal unit
  • 23. SHOULDER WHEEL • It is a wheel mounted on the wall. • Consists of fulcrum, handle and hand piece. • Two types are available – one with giant wheel & other with axial rod • Parts – giant wheel or axial rod, fulcrum, handle, resistance knob, vertical bar to change the height • Used for shoulder exercises. • Even used for elbow exercises.
  • 24. •Principle – 2nd order lever •Fulcrum at Centre of wheel, effort applied at handle & resistance applied through the knob •Patient stands besides the wheel and moves wheel in clockwise as well as anticlockwise direction. •Useful in shoulder circumduction movement. •Increase ROM of shoulder abduction, flexion & circumduction
  • 25. ROPE AND PULLEY •Consists of pulley attached on the ceiling. The rope is wounded around the pulley. It also has hand piece. •Used in performing shoulder exercises.
  • 26. •Patient sits on a chair and grips the hand piece. •Patient keeps the upper limb forward for performing shoulder flexion and keeps upper limbs by the side for performing shoulder abduction.
  • 27. FINGER LADDER •It is the wooden ladder mounted on the wall. •Patient places the finger tips on it and climbs up. •Used for shoulder exercises.
  • 28. •Patient stands in front of the ladder to perform shoulder flexion. Stands besides to perform shoulder abduction.
  • 29. WAND(STICK) • Use to perform self-assisted shoulder exercises. • Use for shoulder exercises like flexion, extension, horizontal abduction-adduction and combination of movement. • Cane (stick) can be used in place of wand.
  • 30. • Patient is positioned in supine or standing In supine- flexion, horizontal abduction-adduction. In prone- extension, combination of movement. In standing- all the movements. Maintain shoulder in external rotation while performing abduction (thumb out). Maintain shoulder in internal rotation while performing flexion (thumb in).
  • 31. WRIST ROLLER •It is a wooden rod mounted on the wall. •Consists of varying diameter for different grips of patient. •Used for wrist flexion and extension exercises. • To increase gripping power
  • 32. • Principle – 2nd order lever •Fulcrum at centre, effort applied through hand & resistance through knob •Patient stands in front of the device and grasps the rod and roll it clockwise and anticlockwise.
  • 33. SUPINATOR – PRONATOR EXERCISER • It is a device mounted on the wall. • Consists of wheel and a hand grip. Uses – • To strengthen muscles of supination & pronation • To mobilize radio ulnar joints & increase ROM of supination & pronation movements. • To give resisted exercises for supination & pronation. • Hand gripper also present which can be used to increase gripping power of hand & fingers.
  • 34. •Patient stands in front of the device. Shoulder is in adduction and elbow 90 degrees flexion. •Holds the hand piece and then rotates in clockwise and anticlockwise direction. So that supination and pronation occurs. • Principle – 2nd order lever • Parts-circular board, handle, resistance knob •Fulcrum at centre of circular board, effort applied at handle & resistance through knob
  • 35. PEG BOARD •It is a wooden board with holes in which pegs are placed. •Are of different types based on their colour, weight, shape, texture, etc •Used for co-ordination exercises and gripping exercises.
  • 36. •Patient grasps the peg from the board and keep it aside than again can place it back. •Uses finger flexors. •Helps to improve gripping power of patients with weakness in prehension •Useful to give game-like activities along with co- ordination training in patients with cerebral palsy & mental retardation
  • 37. SPONGE BALL •It is a soft ball. •Used for gripping exercises. •Wrist should be in neutral or slight extension position while performing exercises.
  • 38. FINGER EXERCISE SPRINGS Consist of set of 5 springs Each spring is of different size and resistance Resistance gradually increases from spring 1 to 5. USES: Finger flexion exercises and opponent muscles of thumb.
  • 39. FINGER EXERCISE RING •Consist of metallic ring with 5 springs fitted to the ring, each spring for fingers and thumb. Spring ends have leather loops for inserting fingers. USES: Finger flexion exercises. •Avoid wrist flexion while exercising
  • 40. HAND ROLLER EXERCISE BOARD •Board has different small rollers of different diameters, which provide different amount of resistance and also has one square block with loop and one roller with side knob. •Here Velcro arrangement is used to provide the resistance. USES: For finger muscles strengthening Wrist flexors and extensors strengthening Supinator-pronator strengthening
  • 41. PUSH UP BLOCK • They are the two metal rods with hand grips. • They placed on both sides of patient in sitting position and can perform strengthening of latissimus dorsi. • It is by taking weight on ULs and lifting buttocks • Can be used in prone lying. Patient does extension of trunk by taking weight on ULs. • It is used to strengthen triceps.
  • 42. SKATES ROLLER • Consists of a skates with a ball bearing rubber wheels Straps are there so that it can be secured with the exercising part. Ball bearing arrangement reduces the friction so movement will be easier. • USES In UL, elbow flexion-extension, horizontal add-abduction of shoulder. Also rotation of shoulder. In LL, knee flexion-extension.
  • 43.
  • 44. SUPINATION – PRONATION DUMBBELLS •Consists of a set of 3 wooden dumbbells of different size and weight Resistance provided by the dumbbells increases as the size of dumbbell increases, so it is useful for the PROGRESSIVE RESISTED EXERCISES. •USES: To develop the strength of forearm muscles To develop strength of supinator's and pronators.
  • 45.
  • 46. QUADRICEPS EXERCISE TABLE •It is a table with fixed arm and swing arm. •A roll is attached to fixed arm and resistances can be attached on the swing arm. •If there is back support than it is called quadriceps exercise chair.
  • 47. •Patient sits on the table. Places leg behind the roll on fixed arm and than knee extension is done. •Resistances can be adjusted accordingly. •If the angle is fixed and swing arm are changed it can be used for hamstring muscles for that in sitting position patients places leg in front of the roll and does knee flexion. •Trick Movements :- Trunk movements.
  • 49. BALANCE BOARD •It is a wooden board with a rod or a disc below it. •It makes the board unstable. •Used for balancing exercises.
  • 50. •Patient stands on the board and moves the board in front, back and side to side. •Patient stands on board with both the feets apart and tries to maintain the balance. •Balance training initially is carried out in a parallel bar with support, then gradually progress to out of parallel bar without support.
  • 52. ANKLE EXERCISER •Consists of two hinged planes one is horizontal and other one is inclined. •There is spring attached between the two planes. •Used for plantarflexor strengthening.
  • 53. •Patient sits on the chair and the device is placed in front. •Patient places the foot on the device with heel at the bottom and toes at the top. Than presses the plane down.
  • 54. ANKLE EXERCISER •Parts: aluminum foot plate with straps, secured horizontally over the wooden base, springs are there to provide the resistance. resistance can be adjusted. •USES: strengthening of plantarflexors and dorsiflexors Patient position- sitting, position the foot over the foot rest so that knee is directly over the footrest.
  • 55. HEEL EXERCISER •Parts: wooden base, piston arrangement to provide the resistance, footrest with the straps.
  • 56. EXERCISE STAIR CASE (CORNER TYPE) •It is L – shaped stair case. •Has railings on the side. •Uses :- training the patient for stair ascending and descending.
  • 57. PARALLEL BAR •It is a wooden floor with two horizontal rods on the sides with four vertical rods. •Height of the horizontal rods can be adjusted at the level of greater trochanter of patient. •Mirror is placed in front of the parallel bars.
  • 58. •Uses :- Sit to stand, Standing with support and without support, Gait training with support and without support, Balancing exercises. •Patient is asked to see in mirror and make corrections in posture accordingly.
  • 59. TILT TABLE •It is a table which can be tilted. •Angle of tilt can be changed from below. •Patient is asked to lie down on table and is secured by straps around pelvis and thoracic region.
  • 60. •Then angle of tilt is changed so patient can be brought in standing position. •Uses :- Helps to bring patient in standing position.
  • 61. QUADRICEPS BOARD •Made up of two hinged wooden planks, out of these two planks one is hinged and one is straight having zigzag arrangement. With these arrangement (zigzag n hinged plank) any angle can be adjusted and progressed over time as patient gain strength.
  • 62. •USES Knee extensors strengthening in terminal range. Sand bag can be tied to patient’s ankle for additional load-more strengthening.
  • 63. WHEELCHAIR •It is one of the walking aids. •Consists of seat, back support, arm rests, foot rests, hand rims, wheels, brakes. •Uses :- Transfer of patient.
  • 64. WALKER (ADJUSTABLE, FOLDABLE) •It is used for training gait in patient with support. •Made up of plastic or aluminium. •Consists of four tubular rods, ferrules and hand grips. • Its height can be adjusted.
  • 65. ELBOW (FOREARM) CRUTCH •Made up of plastic or aluminiun. •Consists of single upright rod, ferrule, hand piece and forearm cuff. •Height can be adjusted. •Used for gait training.
  • 66. AXILLARY CRUTCH •Made up of plastic or aluminium. •Consists of axillary bar, hand piece, ferrule and double uprights which are joined distally into single upright. •Height could be adjusted. •Used for gait training.
  • 67. STICK (CANE) •Made up of plastic or aluminium. •Consists of single upright, ferrule and has a curved hand piece. •Used for gait training.
  • 68. THERABANDS •Made up of rubber. •One set consists of 6 thera bands of different colours according to resistance offered. •Used for strengthening exercises. 1. Yellow Resistance Band (lightest) 2. Red Resistance Band (light) 3. Green Resistance Band (light- medium) 4. Blue Resistance Band (medium) 5. Black Resistance Band (heavy) 6. Silver/Gold-resistance (heaviest)
  • 70. Flex bar •Improve grip strength in the arm, hand and shoulder
  • 71. WEIGHT CUFFS •Used for strengthening exercises. •Cuff contains sand or small pieces of metal. •Tied over the distal part of the segment.
  • 72. DUMBBELL RACK •Rack consists of variety of dumbbells of different size and resistance. •Used for strengthening exercises.
  • 73. PHYSIO BALL (SWISS BALL) •An exercise ball, also known as a yoga ball, is a ball constructed of soft elastic with a diameter of approximately 35 to 85 centimeters and filled with air. •The air pressure is changed by removing a valve stem and either filling with air or letting the ball deflate. Use- Core strengthening, sitting balance training, upper limb lower limb exercise
  • 74. SUSPENSION FRAME (GUTHRICK SMITH’S APPARATUS) •Frame consists of rope, pulley, sling, cuff and hooks. •Used for suspending limb for active assisted exercises.
  • 75. WALL BARS •Wooden bars are mounted on the walls. •Uses:- • Can make patient stand. • Hanging
  • 76. STATIC CYCLE •Used for improving fitness of patient •Also for lower limb exercises.
  • 77. ROWING MACHINE •Parts: tubular frame, padded seat, 4 big nylon castors which slides smoothly over the frame, two foot plates with straps and springs. Resistance can be adjusted by the number of springs.
  • 78. •Ask the patient to push over the footrests and straighten the knees. •USES Strengthening of LL extensors, plantarflexors.
