The state of SQL-on-Hadoop in the Cloud

The document discusses the state of SQL-on-Hadoop in the cloud, outlining various PaaS big data services and comparing performance and pricing through extensive benchmarking. It details the evaluation of different platforms, including Amazon EMR, Google Cloud Dataproc, Azure HDInsight, and Rackspace Cloud Big Data using metrics such as execution times and cost efficiency. The findings provide insights into architectural differences and scalability of these services, contributing to future research and development in big data frameworks.

Embed presentation

Download as PDF, PPTX
The state of SQL-on-Hadoop in the Cloud By Nicolas Poggi Lead researcher – Big Data Frameworks Data Centric Computing (DCC) Research Group BDOOP Meetup – Dec 2016

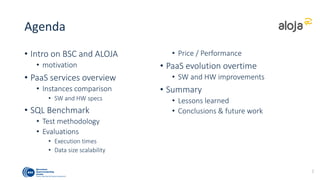

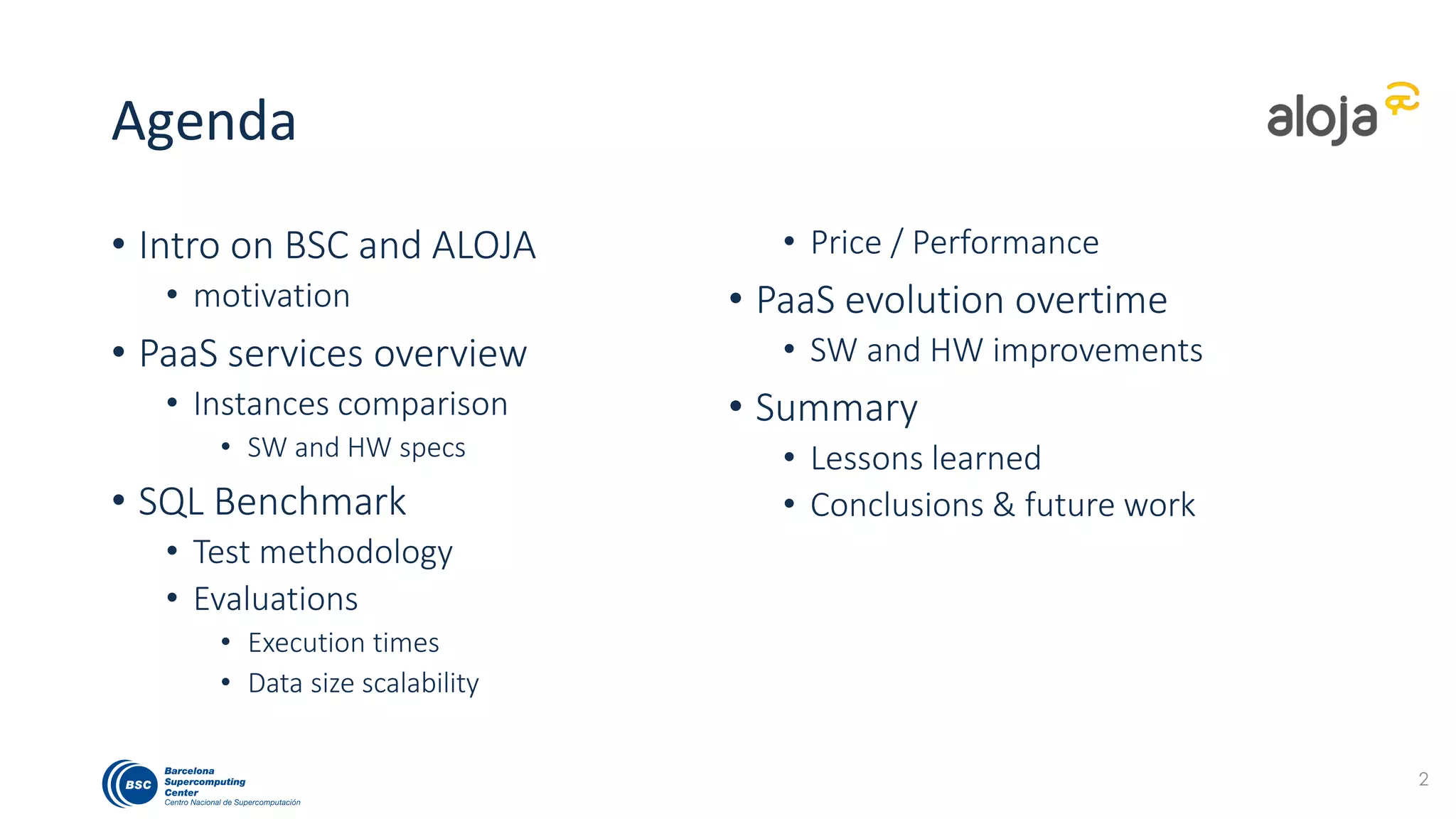

Agenda • Intro and motivation • PaaS services overview • Instances comparison • SW and HW specs • Elasticity • Perf metrics • SQL Benchmark • Test methodology • Evaluations • Execution times • Data size scalability • Price / Performance • PaaS evolution over time • SW and HW improvements • Summary • Lessons learned • Conclusions & future work 2

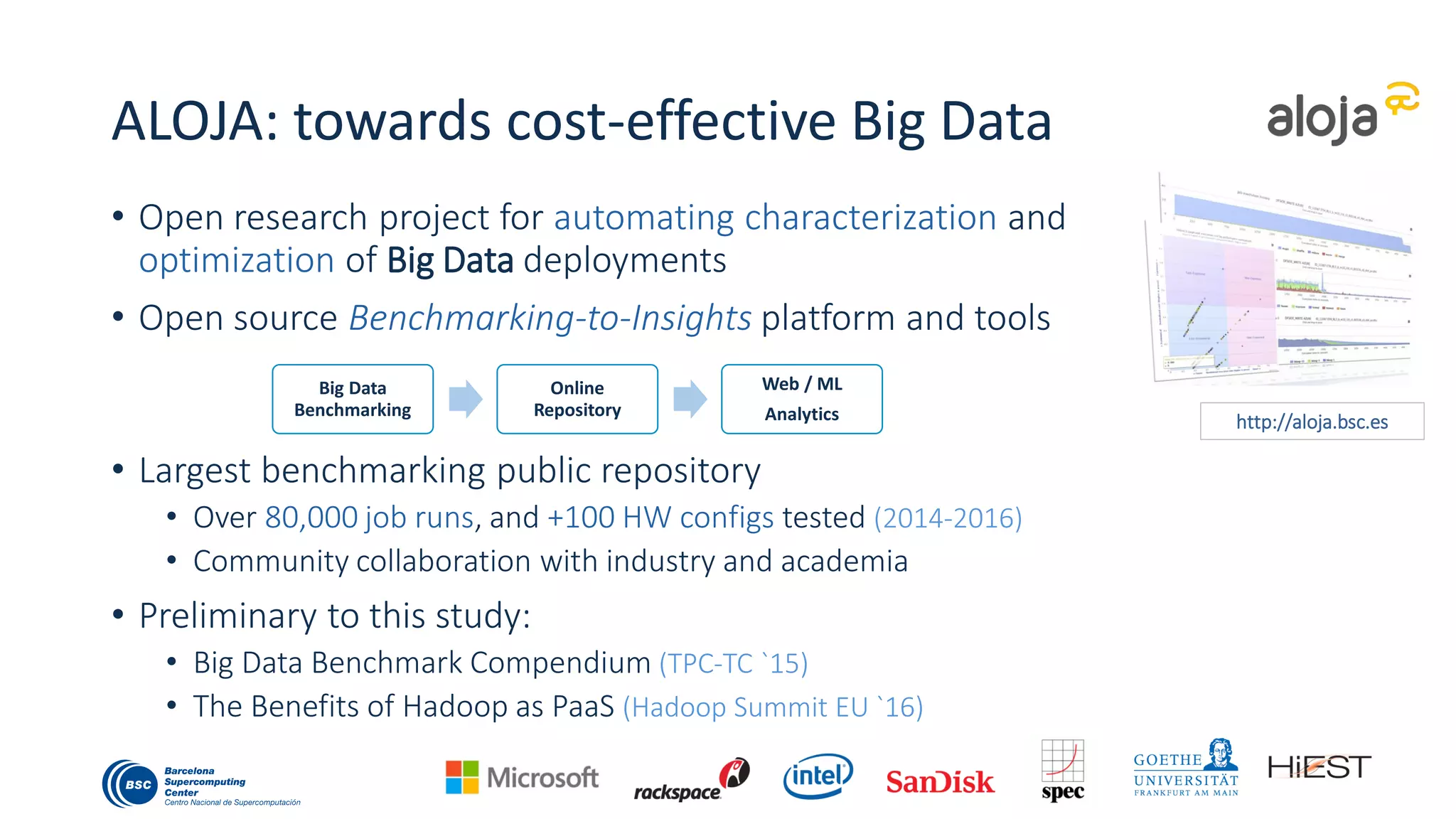

ALOJA: towards cost-effective Big Data • Open research project for automating characterization and optimization of Big Data deployments • Open source Benchmarking-to-Insights platform and tools • Largest Big Data public repository • Community collaboration with industry and academia • Preliminary to this study: • Big Data Benchmark Compendium (TPC-TC `15) • The Benefits of Hadoop as PaaS (Hadoop Summit EU `16) http://aloja.bsc.es Big Data Benchmarking Online Repository Web / ML Analytics

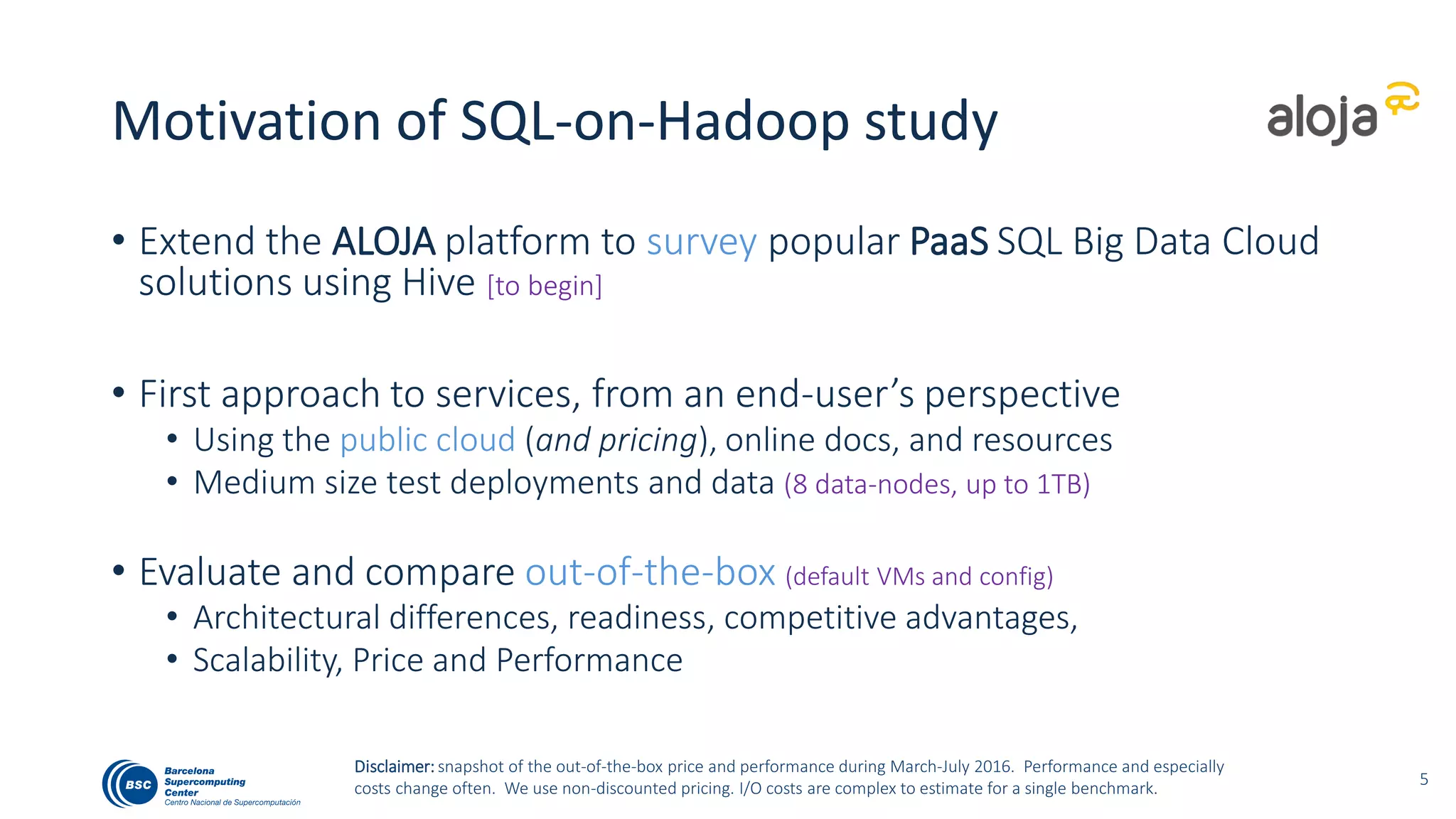

Motivation of SQL-on-Hadoop study • Extend the ALOJA platform to survey popular PaaS SQL Big Data Cloud solutions using Hive [to begin with] • First approach to services, from an end-user’s perspective • Using the public cloud (and pricing), online docs, and resources • Medium-size test deployments and data (8 data-nodes, up to 1TB) • Evaluate and compare out-of-the-box (default VMs and config) • Architectural differences, readiness, competitive advantages • Scalability, Price and Performance Disclaimer: snapshot of the out-of-the-box price and performance during March-July 2016. Performance and especially costs change often. We use non-discounted pricing. I/O costs are complex to estimate for a single benchmark. 5

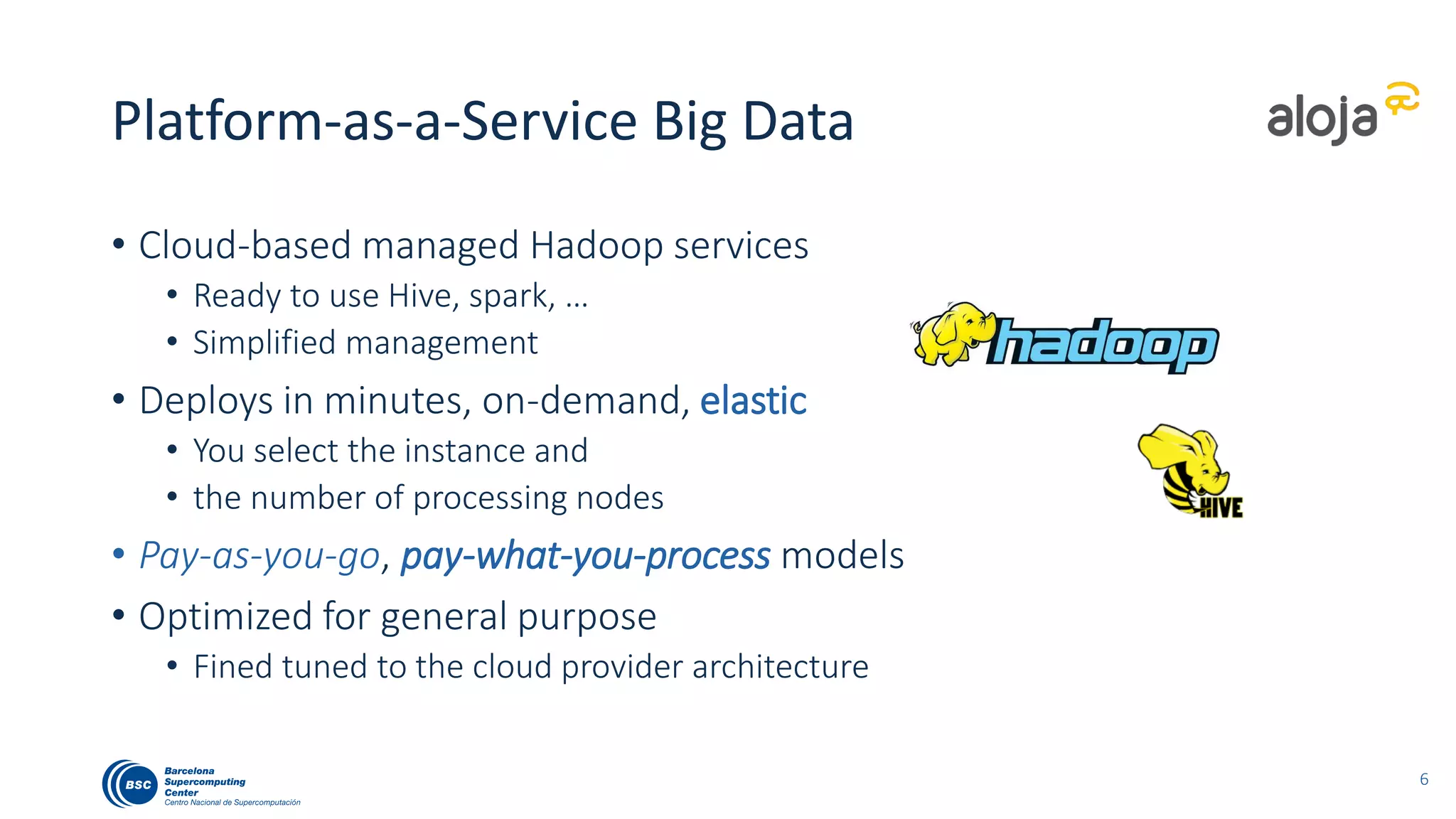

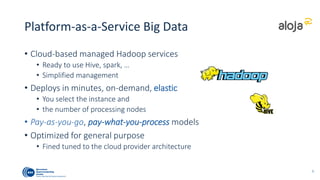

Platform-as-a-Service Big Data • Cloud-based managed Hadoop services • Ready to use Hive, spark, … • Simplified management • Deploys in minutes, on-demand, elastic • You select the instance and • the number of processing nodes • Pay-as-you-go, pay-as-you-process models • Optimized for general purpose • Fined tuned to the cloud provider architecture 6

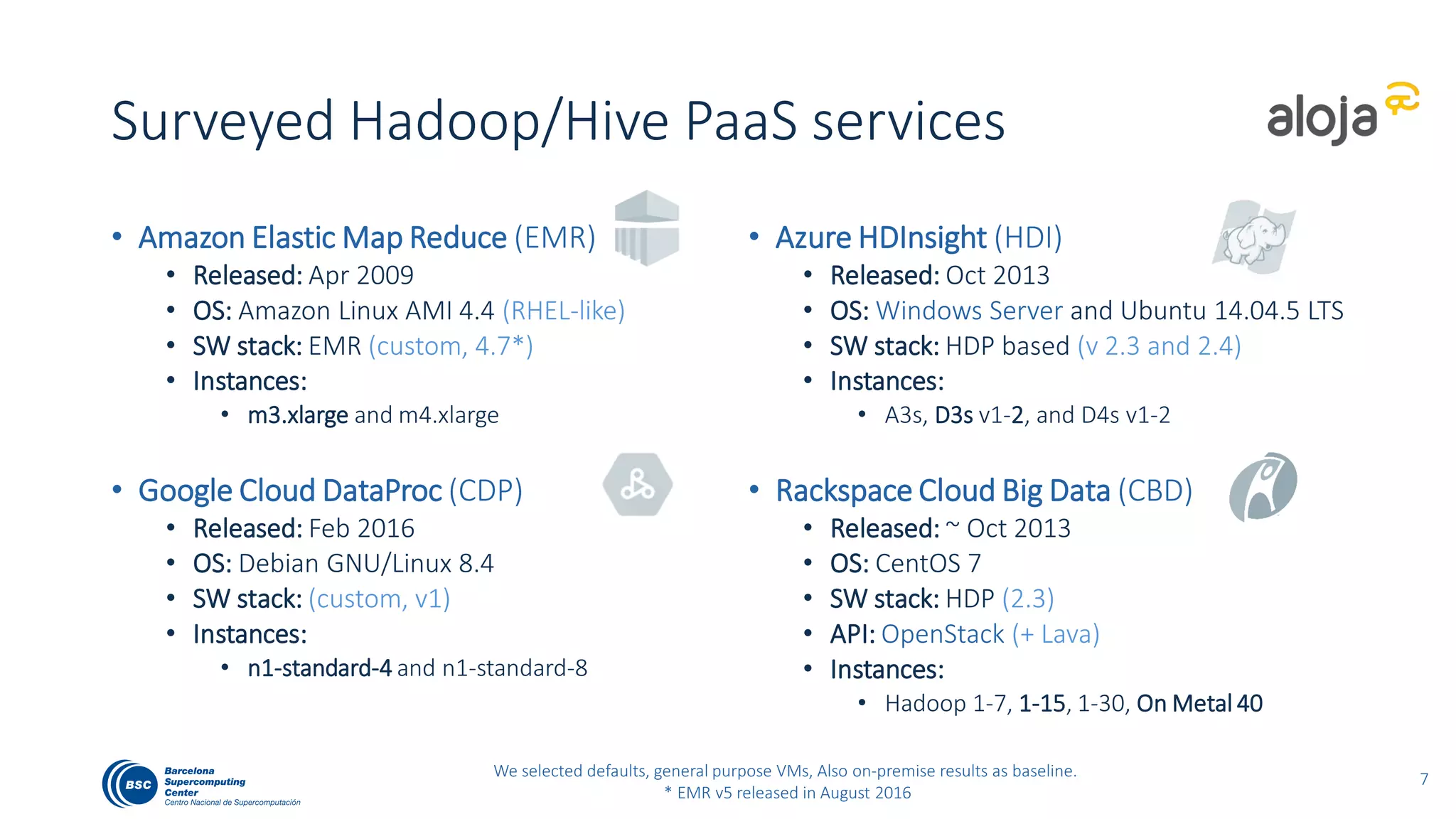

Surveyed Hadoop/Hive PaaS services • Amazon Elastic Map Reduce (EMR) • Released: Apr 2009 • OS: Amazon Linux AMI 4.4 (RHEL-like) • SW stack: EMR (custom, 4.7*) • Instances: • m3.xlarge and m4.xlarge • Google Cloud DataProc (CDP) • Released: Feb 2016 • OS: Debian GNU/Linux 8.4 • SW stack: (custom, v1) • Instances: • n1-standard-4 and n1-standard-8 • Azure HDInsight (HDI) • Released: Oct 2013 • OS: Windows Server and Ubuntu 14.04.5 LTS • SW stack: HDP based (v 2.3 and 2.4 **) • Instances: • A3s, D3s v1-2, and D4s v1-2 • Rackspace Cloud Big Data (CBD) • Released: Oct 2013 • OS: CentOS 7 • SW stack: HDP (2.3) • API: OpenStack (+ Lava) • Instances: • Hadoop 1-7, 1-15, 1-30, On Metal 40 We selected defaults, general purpose VMs, Also on-premises results as baseline. * EMR v5 released in Aug 2016. ** HDI offers HDP 2.5 since Sept 2016 7

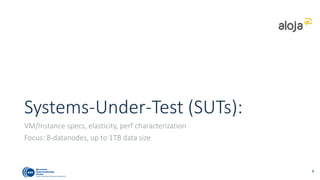

Systems-Under-Test (SUTs): VM/Instance specs, elasticity, perf characterization Focus: 8-datanodes, up to 1TB data size 8

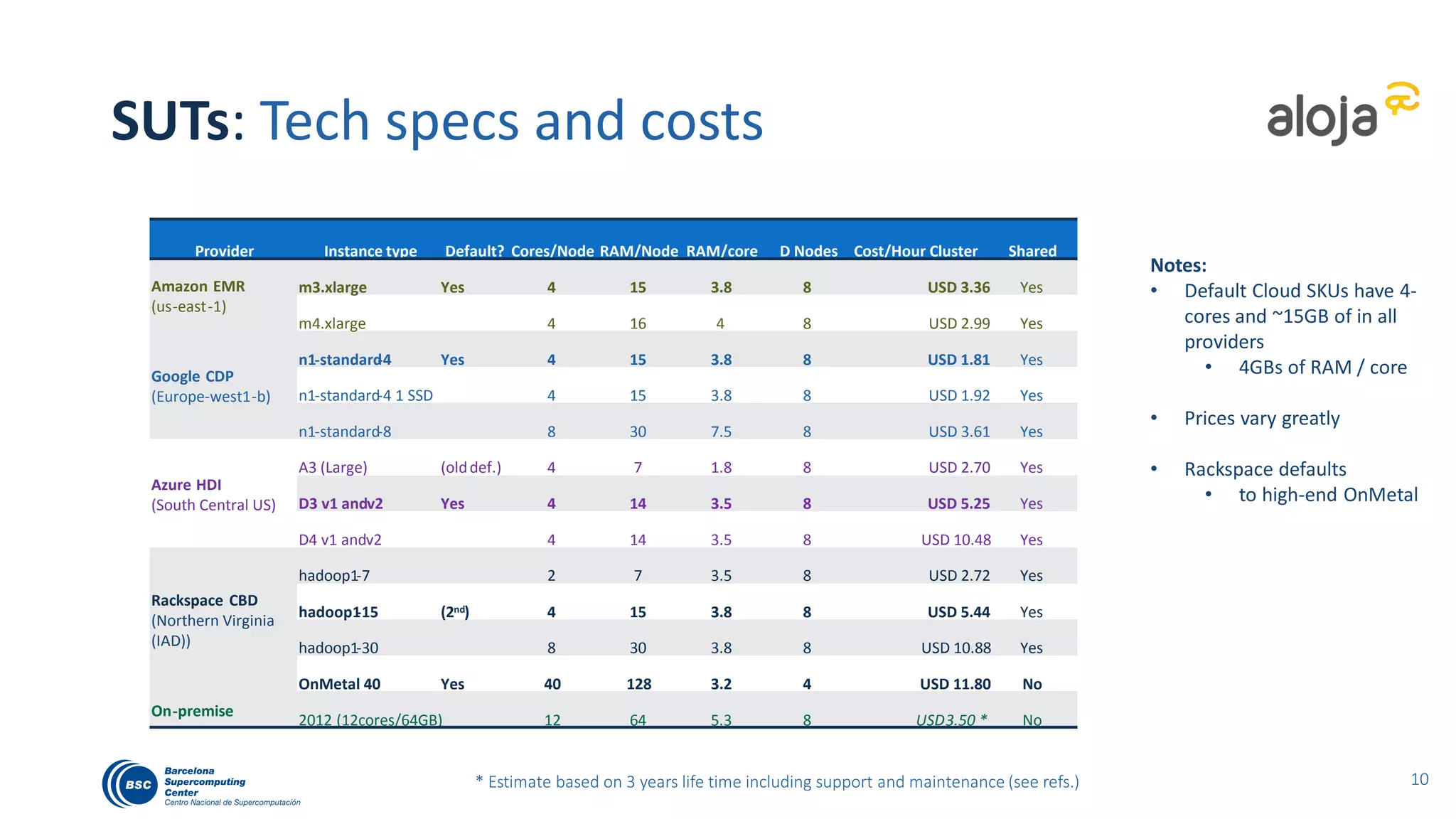

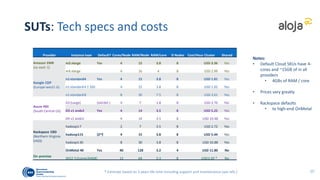

SUTs: Tech specs and costs * Estimate based on 3 years life time including support and maintenance (see refs.) 10 Notes: • Default Cloud SKUs have 4 cores and ~15GB of in all providers • 4GBs of RAM / core • Prices vary greatly • Rackspace defaults to high- end OnMetal Provider Instance type Default? Cores/Node RAM/Node RAM/core Amazon EMR (us-east-1) m3.xlarge Yes 4 15 3.8 m4.xlarge 4 16 4 Google CDP (Europe-west1-b) n1-standard-4 Yes 4 15 3.8 n1-standard-4 1 SSD 4 15 3.8 n1-standard-8 8 30 7.5 Azure HDI (South Central US) A3 (Large) (olddef.) 4 7 1.8 D3 v1 andv2 Yes 4 14 3.5 D4 v1 andv2 8 28 3.5 Rackspace CBD (Northern Virginia (IAD)) hadoop1-7 2 7 3.5 hadoop1-15 (2nd) 4 15 3.8 hadoop1-30 8 30 3.8 OnMetal 40 Yes 40 128 3.2 On-premises 2012 (12cores/64GB) 12 64 5.3 D Nodes Cost/Hour Cluster Shared 8 $ 3.36 Yes 8 $ 2.99 Yes 8 $ 1.81 Yes 8 $ 1.92 Yes 8 $ 3.61 Yes 8 $ 2.70 Yes 8 $ 5.25 Yes 8 $ 10.48 Yes 8 $ 2.72 Yes 8 $ 5.44 Yes 8 $ 10.88 Yes 4 $ 11.80 No 8 $ 3.50 * No

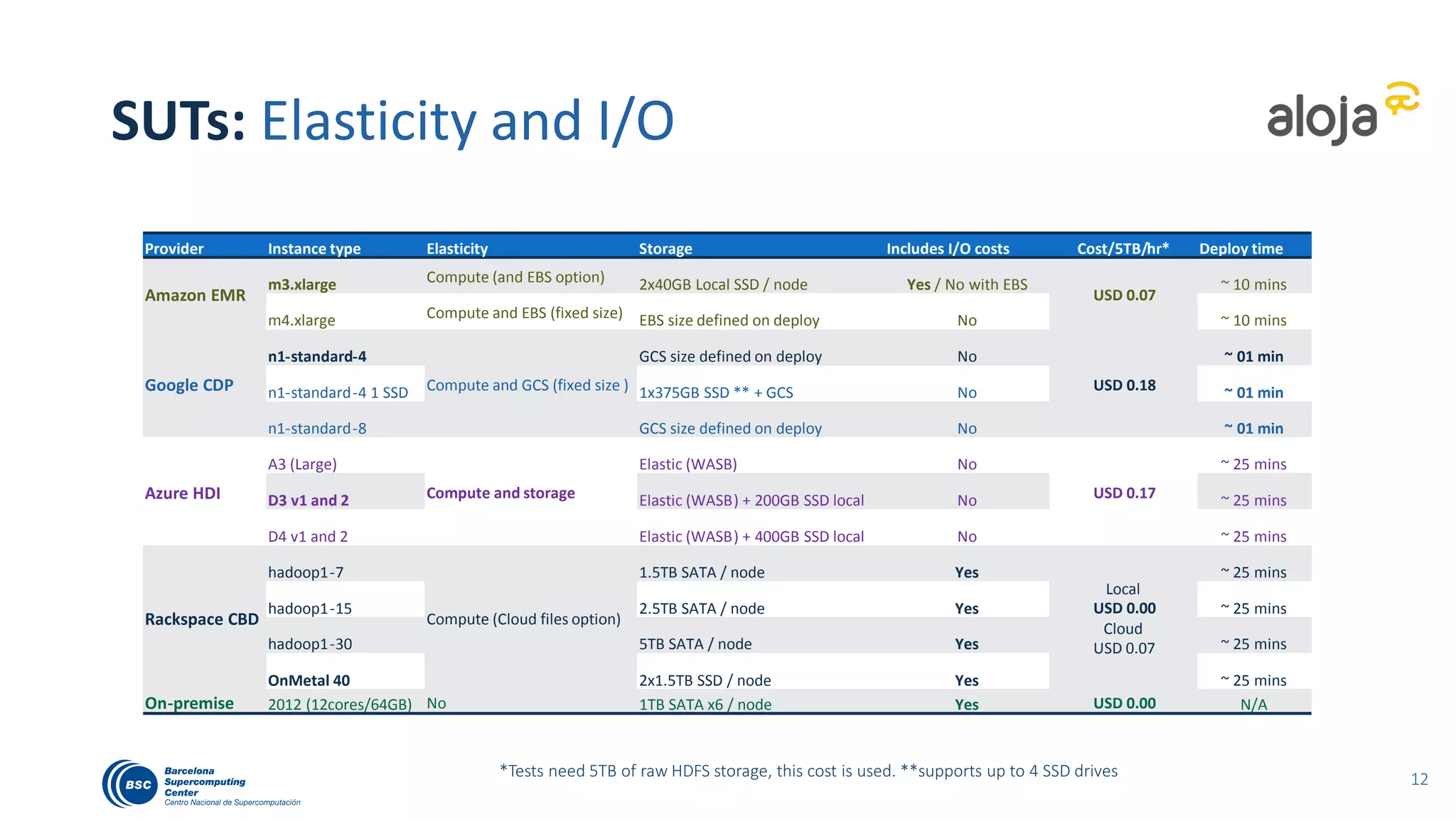

Includes I/O costs Cost/5TB/hr* Deploy time (min) Yes / No with EBS $ 0.07 ~ 10 No ~ 10 No $ 0.18 ~ 01 No ~ 01 No ~ 01 No $ 0.17 ~ 25 No ~ 25 No ~ 25 Yes Local $ 0.00 Cloud $ 0.07 ~ 25 Yes ~ 25 Yes ~ 25 Yes ~ 25 Yes $ 0.00 N/A SUTs: Elasticity and I/O *Tests need 5TB of raw HDFS storage, this cost is used. **supports up to 4 SSD drives 12 Provider Instance type Elasticity Storage Amazon EMR m3.xlarge Compute (and EBS option) 2x40GB Local SSD / node m4.xlarge Compute and EBS (fixed size) EBS size defined on deploy Google CDP n1-standard-4 Compute and GCS (fixed size ) GCS size defined on deploy n1-standard-4 1 SSD 1x375GB SSD ** + GCS n1-standard-8 GCS size defined on deploy Azure HDI A3 (Large) Compute and storage Elastic (WASB) D3 v1 and 2 Elastic (WASB) + 200GB SSD local D4 v1 and 2 Elastic (WASB) + 400GB SSD local Rackspace CBD hadoop1-7 Compute (Cloud files option) 1.5TB SATA / node hadoop1-15 2.5TB SATA / node hadoop1-30 5TB SATA / node OnMetal 40 2x1.5TB SSD / node On-premises 2012 (12cores/64GB) No 1TB SATA x6 / node
SUTs: CPU, MEM, and NET characterization MEM: Ops/s (sysbench 1-thread, default blk size) 0 500000 1000000 1500000 2000000 2500000 3000000 3500000 Higher is better. Defaults in Purple. Benchmarked using ALOJA cluster-bench, sysbench, and iperf 15 EMR m3.x, CBD hadoop1-x, and HDI A3 older gen CPUs OnMetal much higher NET: iperf Gb/s (1 thread 100GB) 8.77 8.77 6.85 5.3 7.41 0.999 2 2.99 2.47 5.97 4.13 4.4 3.98 4.49 0.941 0 1 2 3 4 5 6 7 8 9 10 EMR < 10Gbp/s CDP < 8Gbp/s HDI < 6Gbp/s (SKU dependent) CBD < 5Gbp/s OnPrem 1Gbp/s
30.3814 35.8139 49.5461 320.8429 37.1409 29.9051 31.9703 46.30423 56.575 29.2788 28.7281 73.1942 615.449 49.5514 15.533 31.128 28.9609 90.5373 12.2101 16.3084 35.0701 37.924 50.0872 1.9575 3.5915 4.8559 315.7558 227.9924 DFSIO_read MB/s DFSIO_write MB/s SUTs: HDFS I/O 1TB 17 CBD Highest OnMetal Very low write throughput for Cloud CDP SSDs are used as tiered storage EMR SKU dependent Low MB/s HDI Throughput is SKU dependent Higher is better. Benchmarked using ALOJA Hadoop-Examples Most SUTs < 50 MB/s R/W Expect for OnMetal and CDP with SSD
SQL-on-Hadoop benchmarking Methodology and evaluations 18

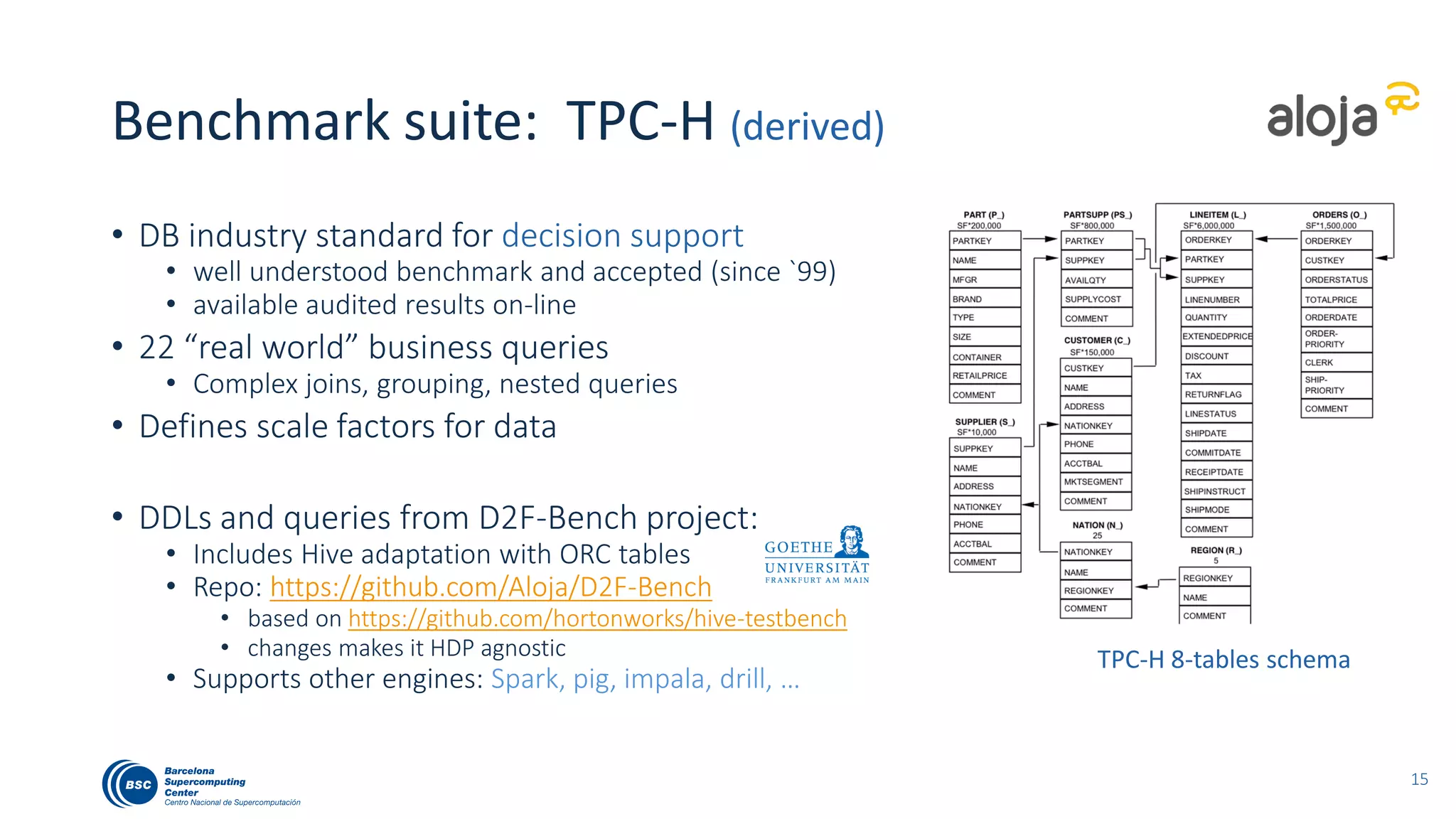

Benchmark suite: TPC-H (derived) • DB industry standard for decision support • well understood benchmark and accepted (since `99) • available audited results on-line • 22 “real world” business queries • Complex joins, grouping, nested queries • Defines scale factors for data • DDLs and queries from D2F-Bench project: • Includes Hive adaptation with ORC tables • Repo: https://github.com/Aloja/D2F-Bench • based on https://github.com/hortonworks/hive-testbench • changes make it HDP agnostic • Supports other engines: Spark, pig, impala, drill, … 19 TPC-H 8-tables schema

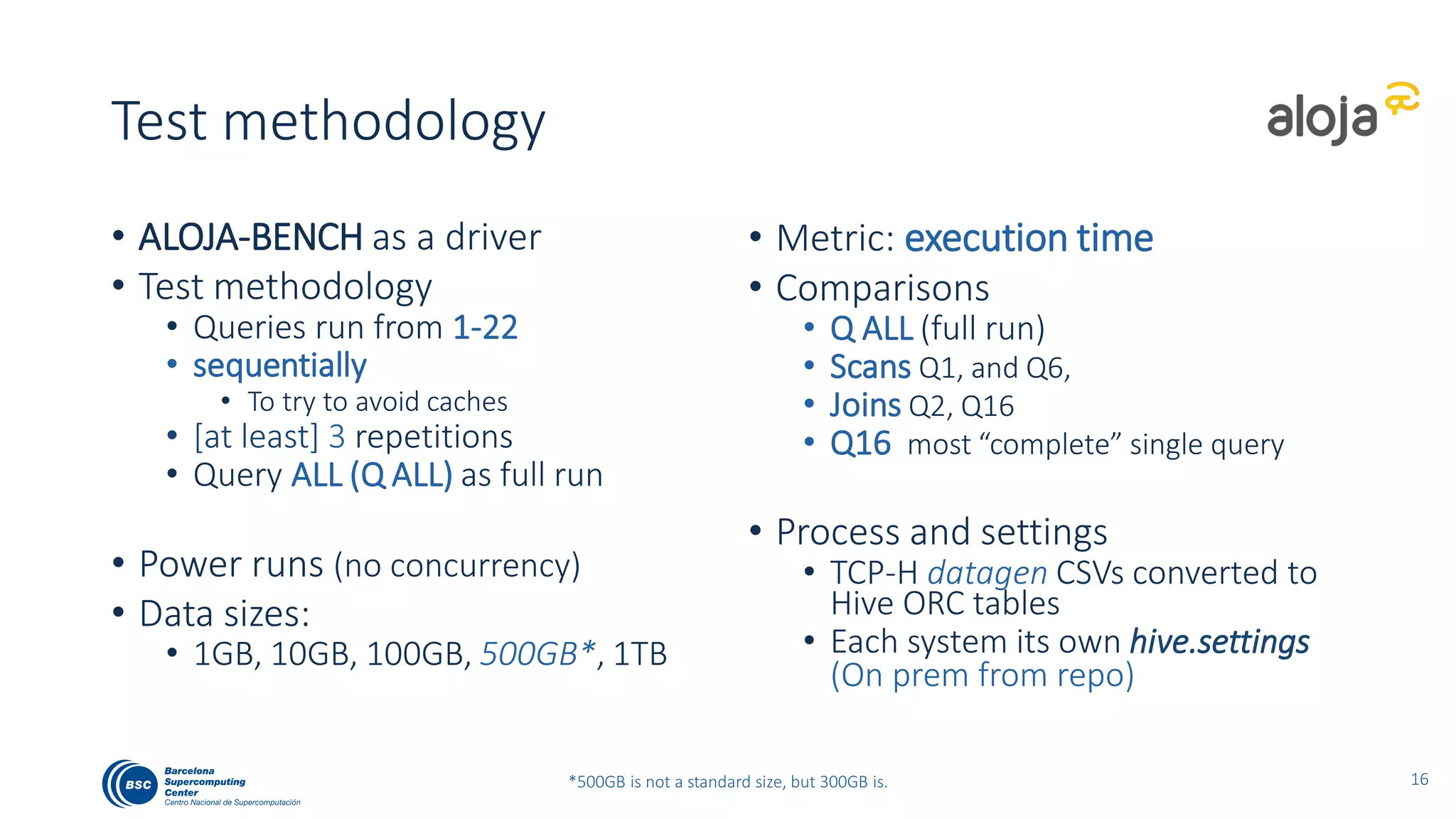

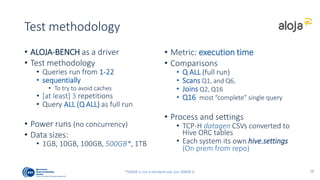

Test methodology • ALOJA-BENCH as a driver • Test methodology • Queries run from 1-22 • sequentially • To try to avoid caches • [at least] 3 repetitions • Query ALL (Q ALL) as full run • Power runs (no concurrency) • Data sizes: • 1GB, 10GB, 100GB, 500GB*, 1TB • Metrics: execution time and cost • Comparisons • Q ALL (full run) • Scans Q1, and Q6, • Joins Q2, Q16 • Q16 most “complete” single query • Process and settings • TCP-H datagen CSVs converted to Hive ORC tables • Each system its own hive.settings • On-prem from source repo 20*500GB is not a standard size, but 300GB is.
SUTs Performance and Scalability Execution times Scalability to data size Query drill-down Latency test 21

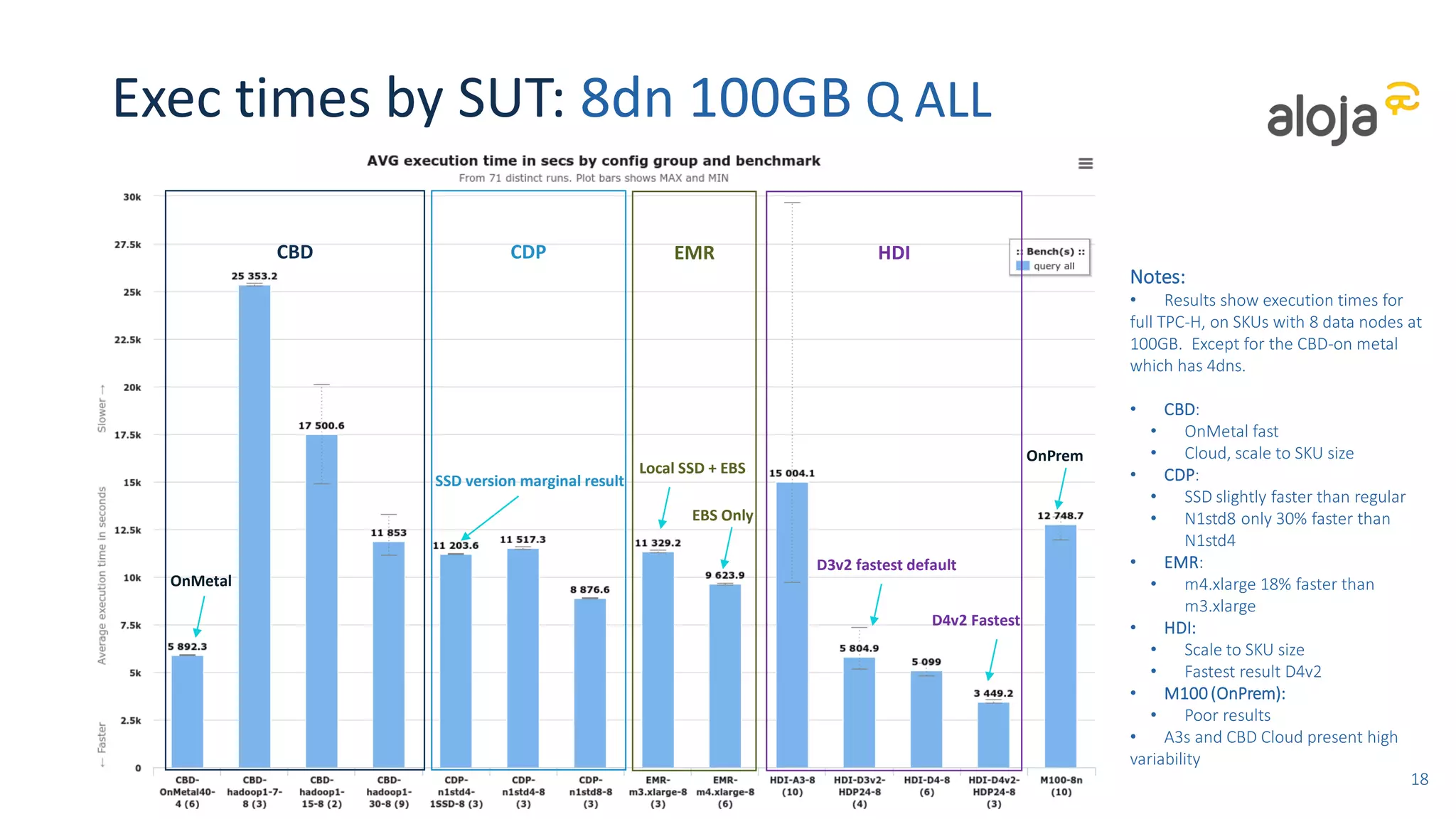

Exec times by SUT: 8dn 100GB Q ALL Notes: • Results show execution times for full TPC-H, on SKUs with 8 data nodes at 100GB. Except for the CBD-on metal which has 4dns. • CBD: • OnMetal fast • Cloud, scale to SKU size • CDP: • SSD slightly faster than regular • N1std8 only 30% faster than N1std4 • EMR: • m4.xlarge 18% faster than m3.xlarge • HDI: • Scale to SKU size • Fastest result D4v2 • OnPrem: • Poor results with M/R • A3s and CBD Cloud present high variability 22 CBD CDP EMR HDI SSD version marginal results Local SSD + EBS OnMetal D4v2 Fastest D3v2 fastest default EBS Only OnPrem

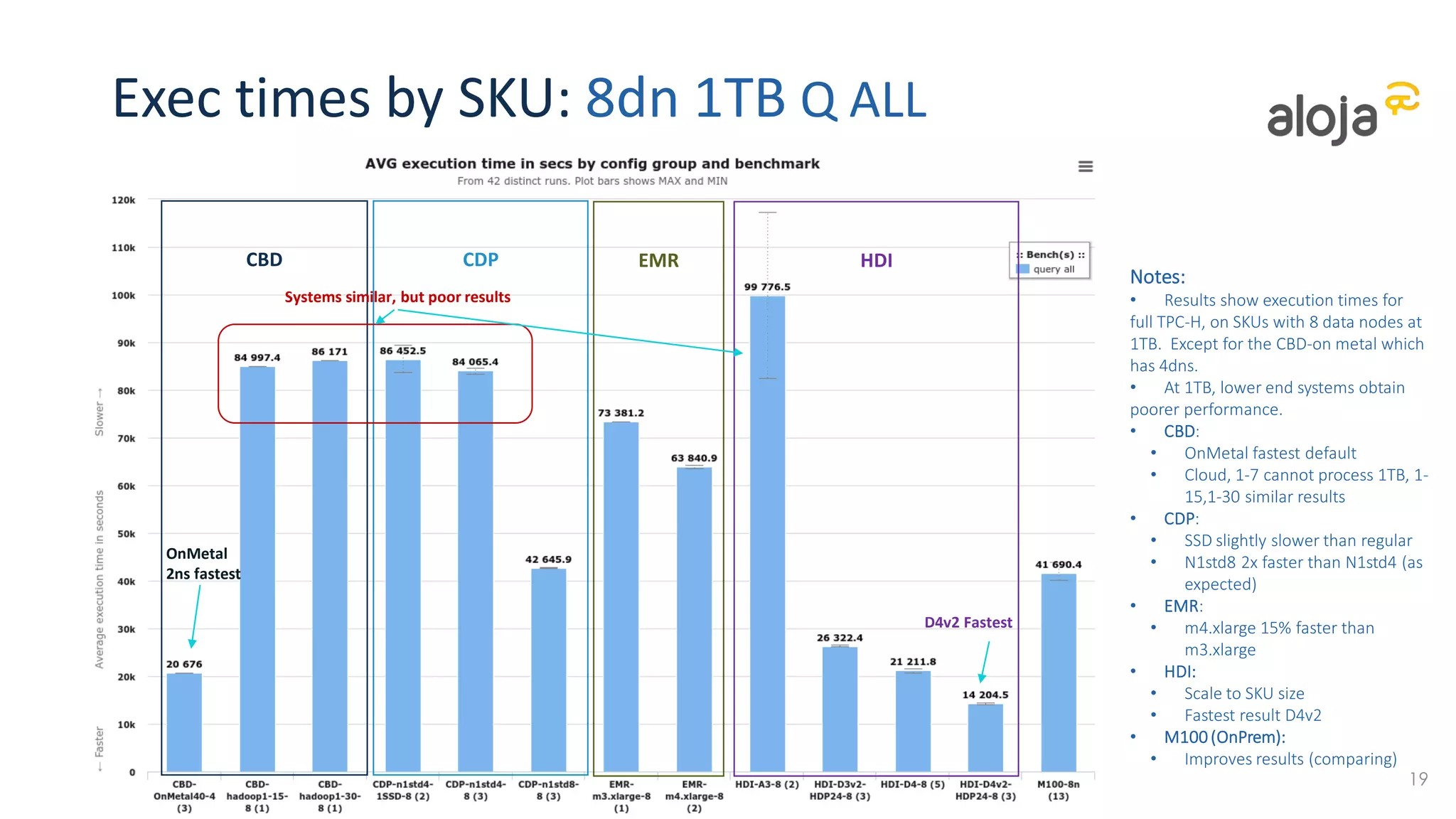

Exec times by SKU: 8dn 1TB Q ALL 23 Notes: • Results show execution times for full TPC-H, on SKUs with 8 data nodes at 1TB. Except for the CBD-on metal which has 4dns. • At 1TB, lower end systems obtain poorer performance. • CBD: • OnMetal fast • Cloud: 1-7 cannot process 1TB, 1- 15,1-30 similar results • CDP: • SSD slightly slower than regular • N1std8 2x faster than N1std4 (as expected) • EMR: • m4.xlarge 15% faster than m3.xlarge • HDI: • Scale to SKU size • Fastest result D4v2 • OnPrem: • Improves results (comparing to 100GB) Systems similar, but poor results OnMetal 2nd fastest Cloud D4v2 Fastest CBD CDP EMR HDI

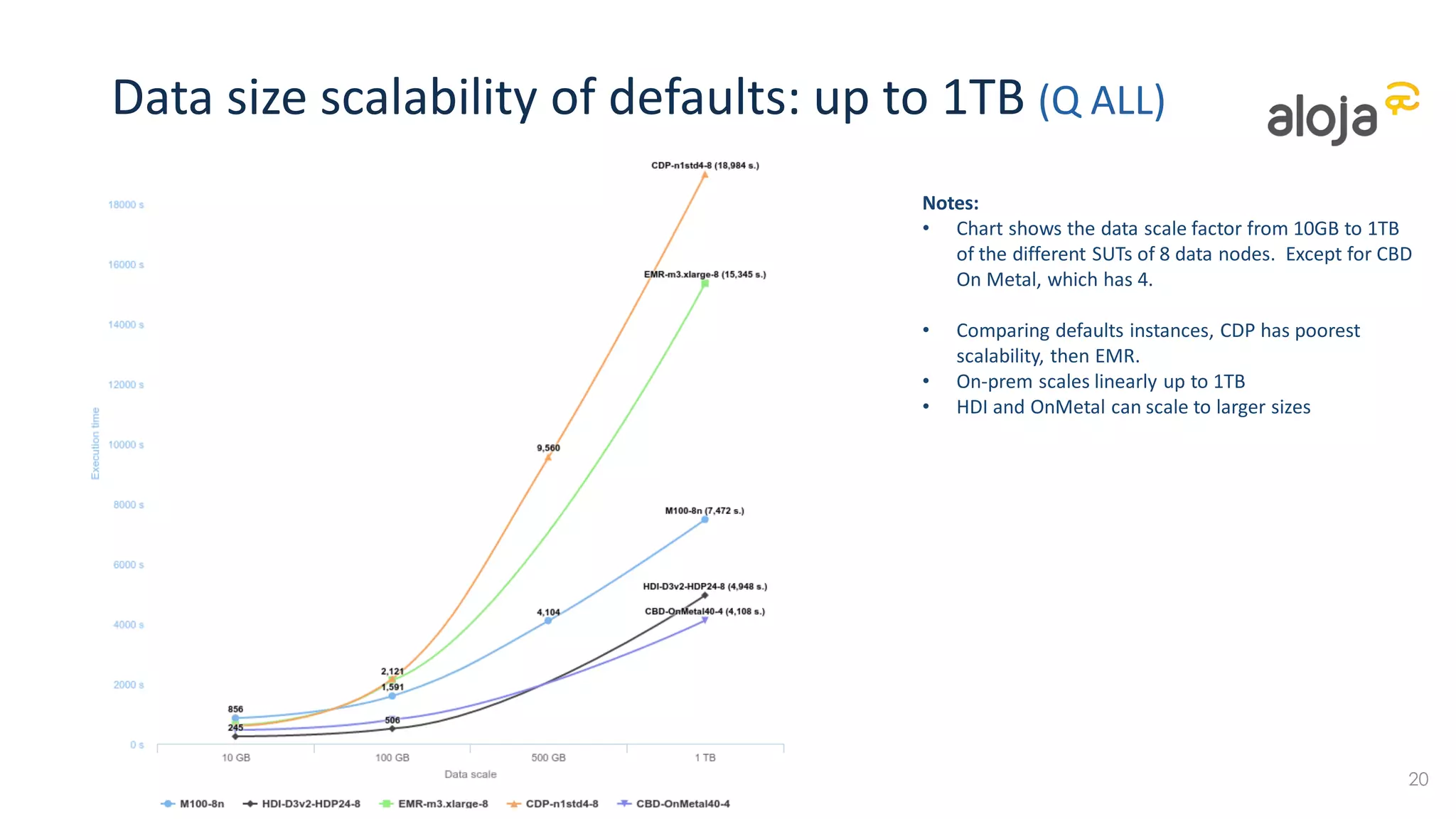

Data size scalability of defaults: up to 1TB (Q ALL) 24 Notes: • Chart shows the data scale factor from 100GB to 1TB of the default SUTs of 8 data nodes. Except for CBD On Metal, which has 4. • Comparing defaults instances, CDP has poorest scalability, then EMR. • On-prem scales linearly up to 1TB • HDI and OnMetal can scale to larger sizes

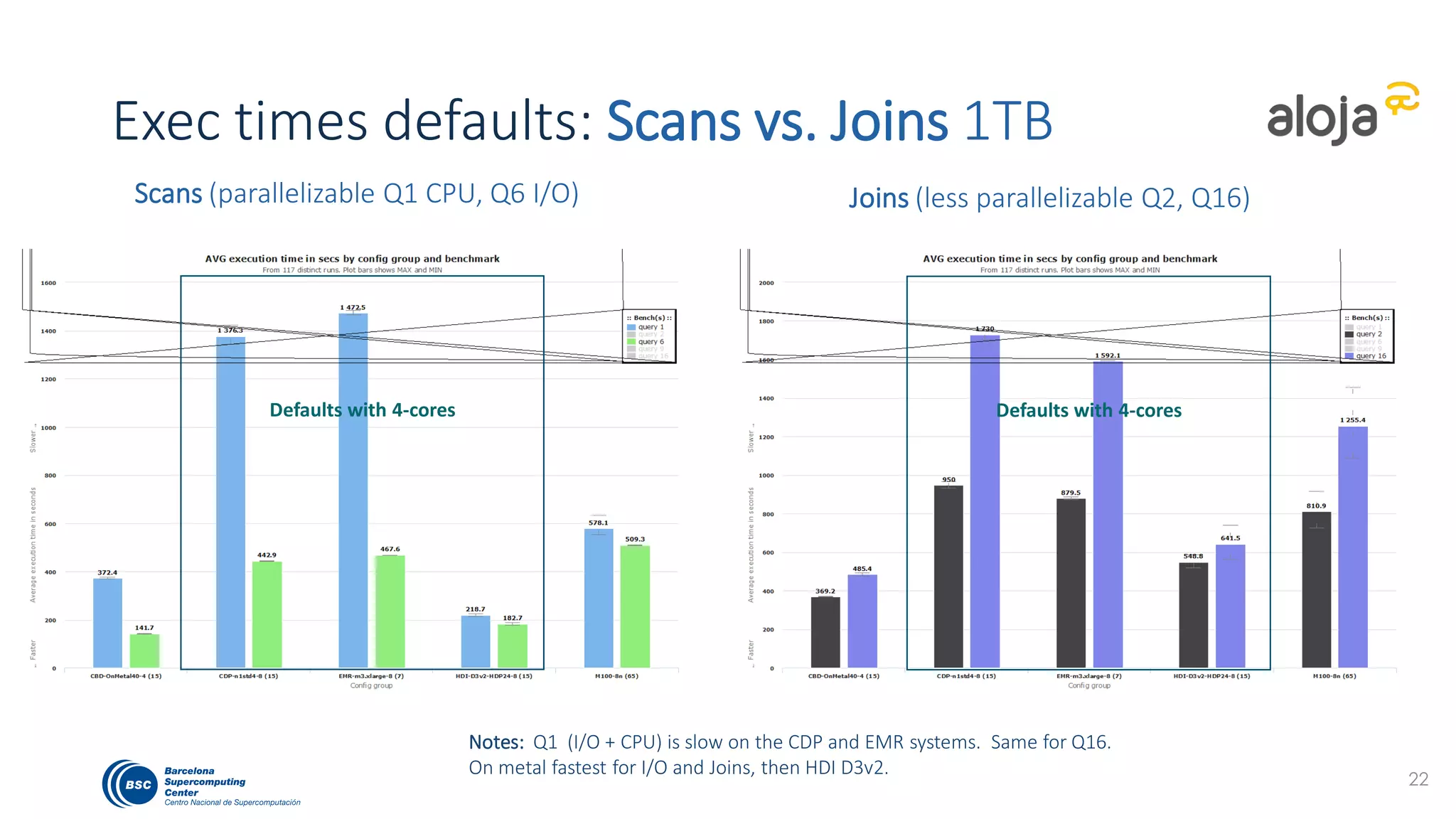

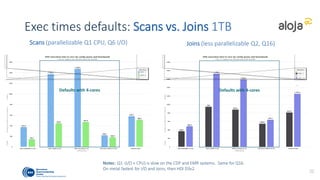

Exec times defaults: Scans vs. Joins 1TB Scans (parallelizable Q1 CPU, Q6 I/O) Joins (less parallelizable Q2, Q16) 27 Notes: Q1 (I/O + CPU) is slow on the CDP and EMR systems. Same for Q16. CBD has inverted times for Q2 and Q16 than other systems. On metal fastest for I/O and Joins, then HDI D3v2. Defaults with 4-cores Defaults with 4-cores
CPU utilization default VMs: Q16 1TB Notes: EMR high CPU and Sys. HDI different pattern (spikes). CDP high iowait. CBD OnMetal Low usage, hadoop1-15 very high iowait 29

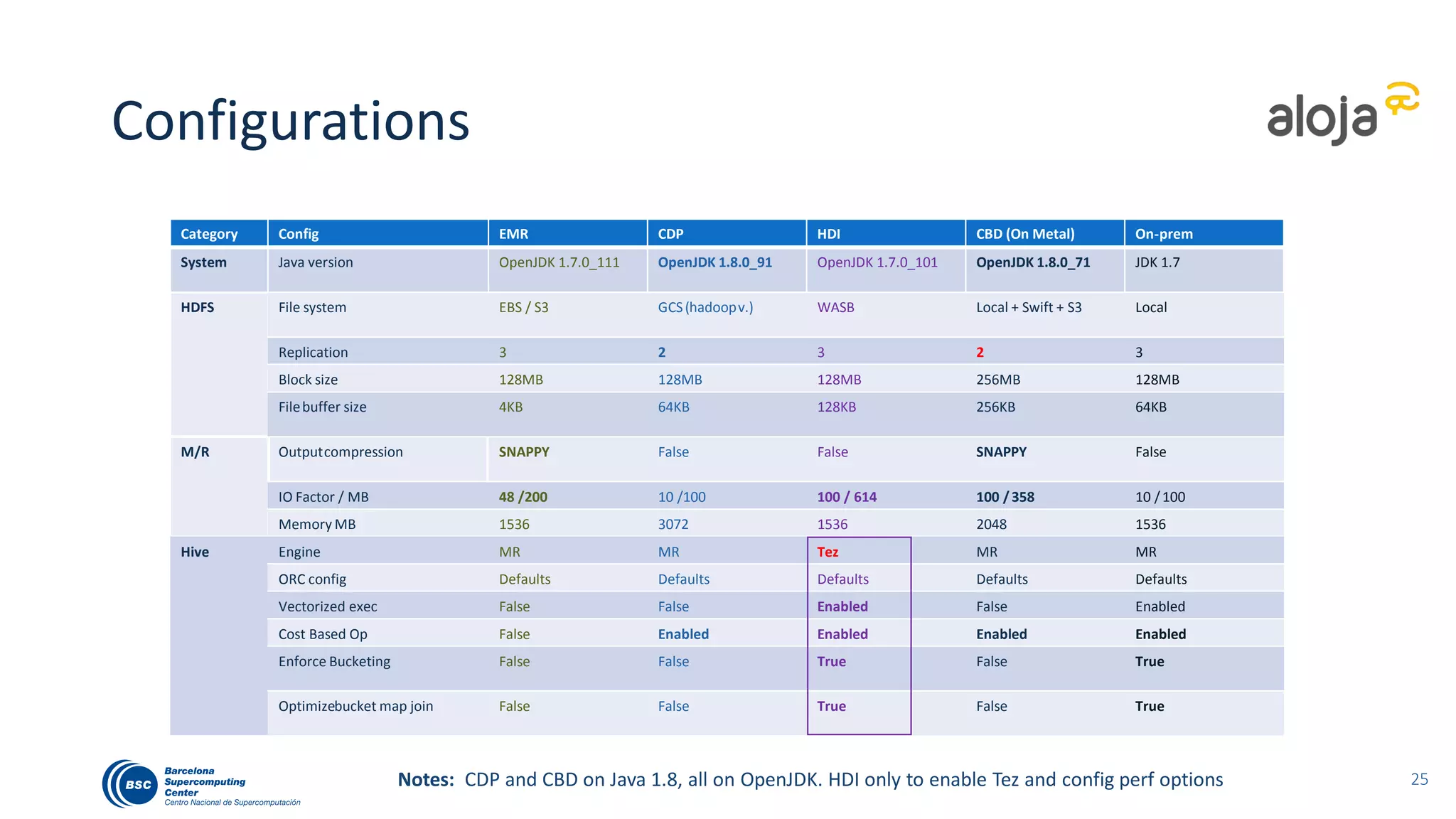

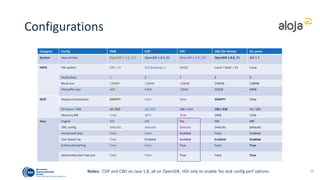

Configurations 32Notes: CDP and CBD on Java 1.8, all on OpenJDK. HDI only to enable Tez and config perf options Category Config EMR CDP HDI CBD (On Metal) On-prem System Java version OpenJDK 1.7.0_111 OpenJDK 1.8.0_91 OpenJDK 1.7.0_101 OpenJDK 1.8.0_71 JDK 1.7 HDFS File system EBS / S3 GCS(hadoopv.) WASB Local + Swift + S3 Local Replication 3 2 3 2 3 Block size 128MB 128MB 128MB 256MB 128MB Filebuffer size 4KB 64KB 128KB 256KB 64KB M/R Outputcompression SNAPPY False False SNAPPY False IO Factor / MB 48 /200 10 /100 100 / 614 100 /358 10 /100 Memory MB 1536 3072 1536 2048 1536 / 4096 Hive Engine MR MR Tez MR MR / Tez ORC config Defaults Defaults Defaults Defaults Defaults Vectorized exec False False Enabled False Enabled Cost-based Opt False Enabled Enabled Enabled Enabled Enforce Bucketing False False True False True Optimizebucket map join False False True False True

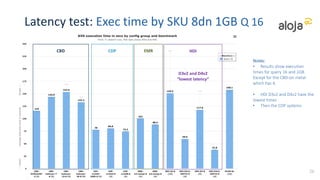

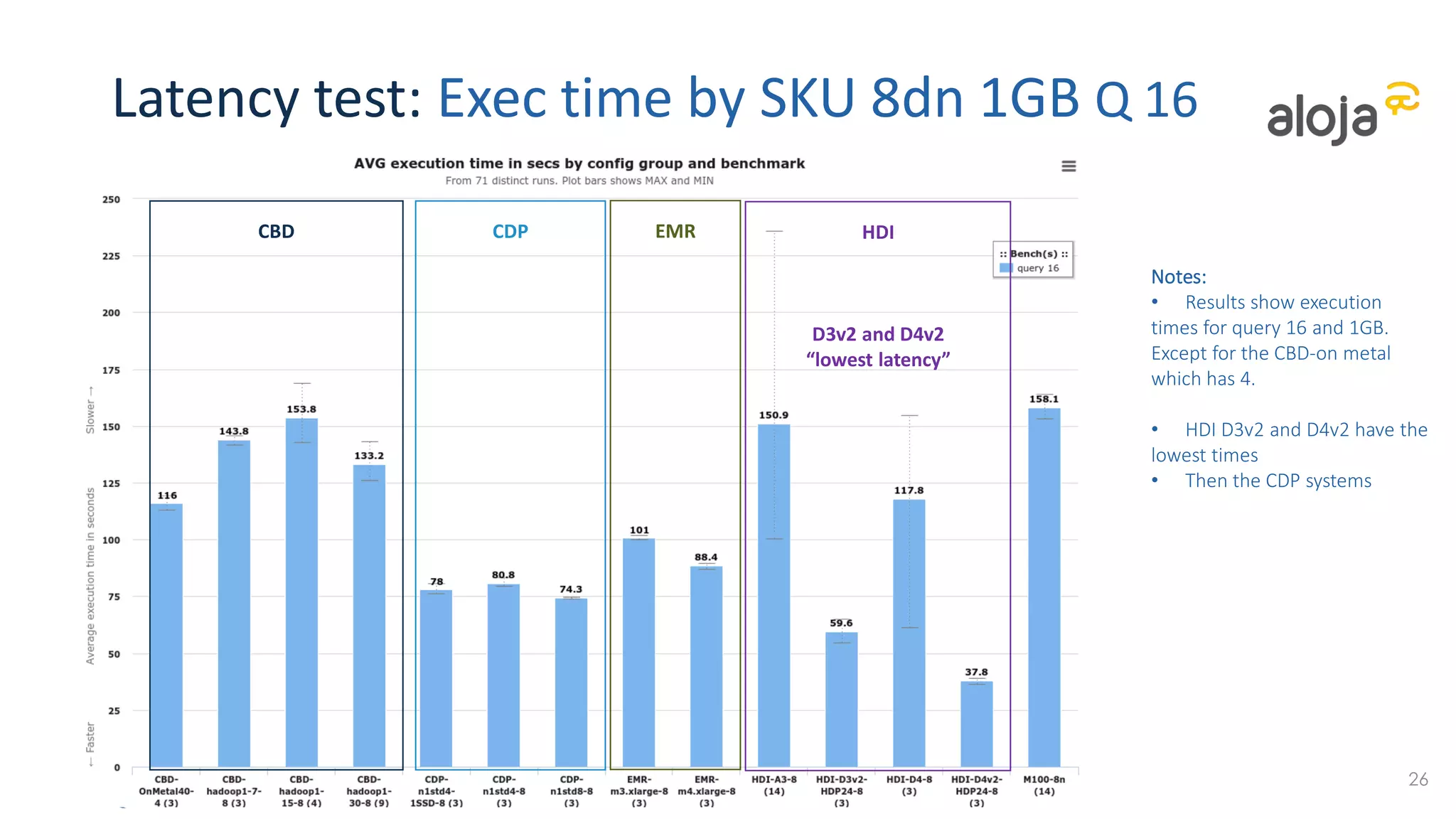

Latency test: Exec time by SKU 8dn 1GB Q 16 Notes: • Results show execution times for query 16 and 1GB. Except for the CBD-on metal which has 4. • HDI D3v2 and D4v2 have the lowest times • Then the CDP systems • OnPrem M/R worst restuls 33 CBD CDP EMR HDI D3v2 and D4v2 “lowest latency”

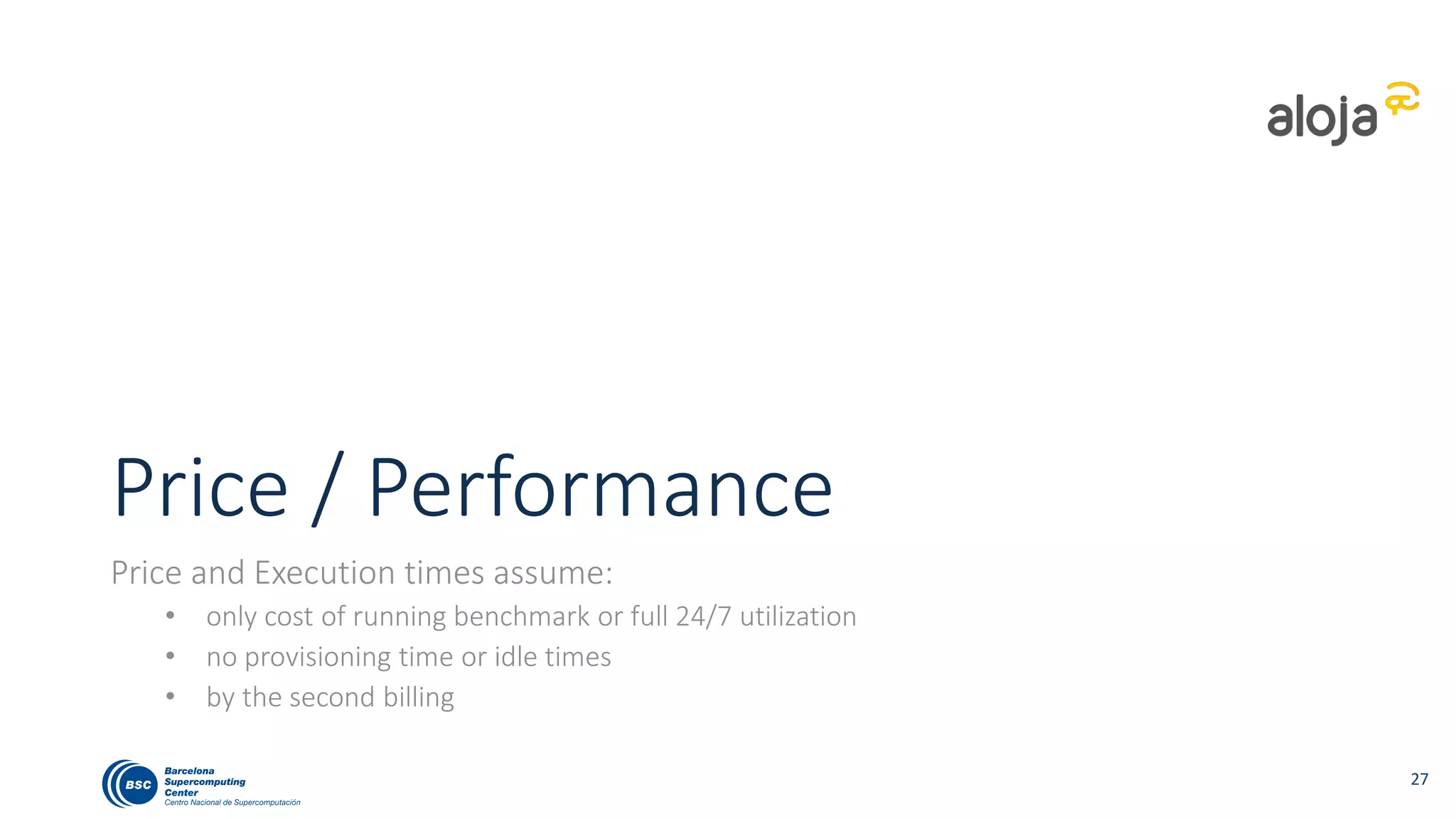

Price / Performance Price and Execution times assume: • only cost of running benchmark or full 24/7 utilization • no provisioning time or idle times • by the second billing 34

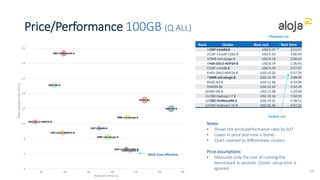

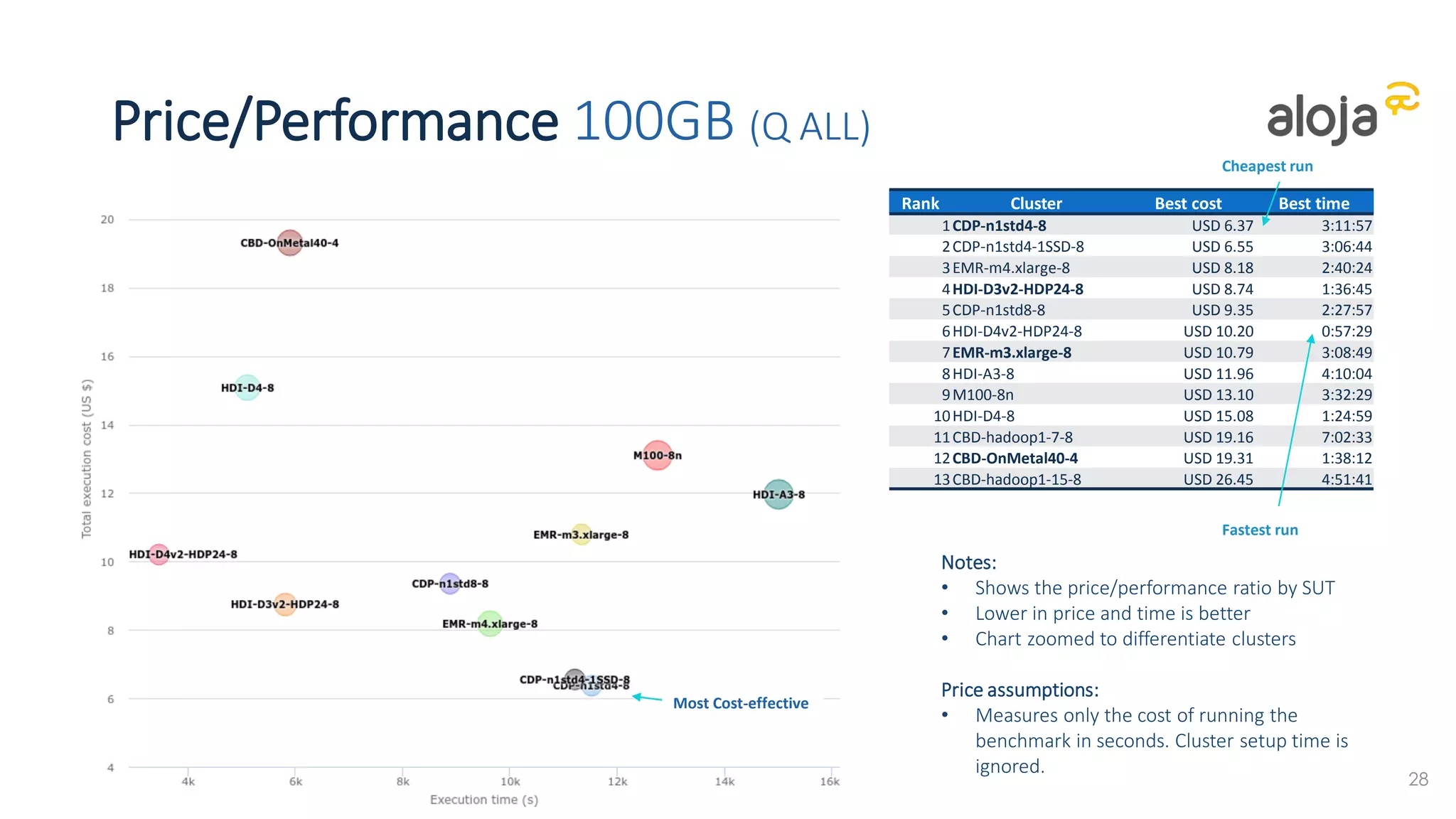

Price/Performance 100GB (Q ALL) 35 Notes: • Shows the price/performance ratio by SUT • Lower in price and time is better • Chart zoomed to differentiate clusters Price assumptions: • Measures only the cost of running the benchmark in seconds. Cluster setup time is ignored. Rank Cluster Best cost Best time 1CDP-n1std4-8 $ 6.37 3:11:57 2CDP-n1std4-1SSD-8 $ 6.55 3:06:44 3EMR-m4.xlarge-8 $ 8.18 2:40:24 4HDI-D3v2-HDP24-8 $ 8.74 1:36:45 5CDP-n1std8-8 $ 9.35 2:27:57 6HDI-D4v2-HDP24-8 $ 10.20 0:57:29 7EMR-m3.xlarge-8 $ 10.79 3:08:49 8HDI-A3-8 $ 11.96 4:10:04 9M100-8n $ 13.10 3:32:29 10HDI-D4-8 $ 15.08 1:24:59 11CBD-hadoop1-7-8 $ 19.16 7:02:33 12CBD-OnMetal40-4 $ 19.31 1:38:12 13CBD-hadoop1-15-8 $ 26.45 4:51:41 Cheapest run Fastest run Most Cost-effective

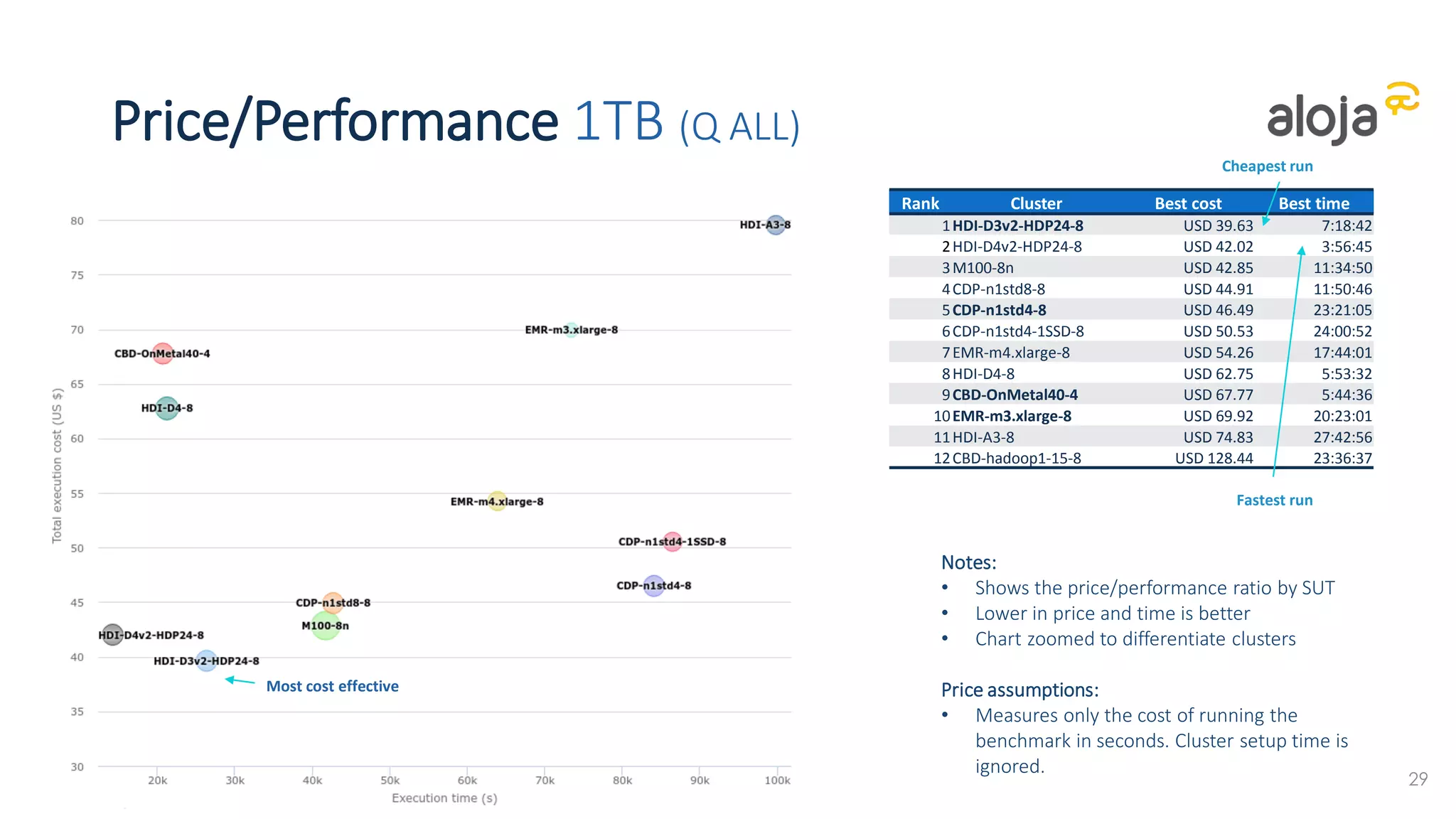

Price/Performance 1TB (Q ALL) 36 Notes: • Shows the price/performance ratio by SUT • Lower in price and time is better • Chart zoomed to differentiate clusters Price assumptions: • Measures only the cost of running the benchmark in seconds. Cluster setup time is ignored. Rank Cluster Best cost Best time 1HDI-D3v2-HDP24-8 $ 39.63 7:18:42 2HDI-D4v2-HDP24-8 $ 42.02 3:56:45 3M100-8n $ 42.85 11:34:50 4CDP-n1std8-8 $ 44.91 11:50:46 5CDP-n1std4-8 $ 46.49 23:21:05 6CDP-n1std4-1SSD-8 $ 50.53 24:00:52 7EMR-m4.xlarge-8 $ 54.26 17:44:01 8HDI-D4-8 $ 62.75 5:53:32 9CBD-OnMetal40-4 $ 67.77 5:44:36 10EMR-m3.xlarge-8 $ 69.92 20:23:01 11HDI-A3-8 $ 74.83 27:42:56 12CBD-hadoop1-15-8 $ 128.44 23:36:37 Cheapest run Fastest run Most cost effective

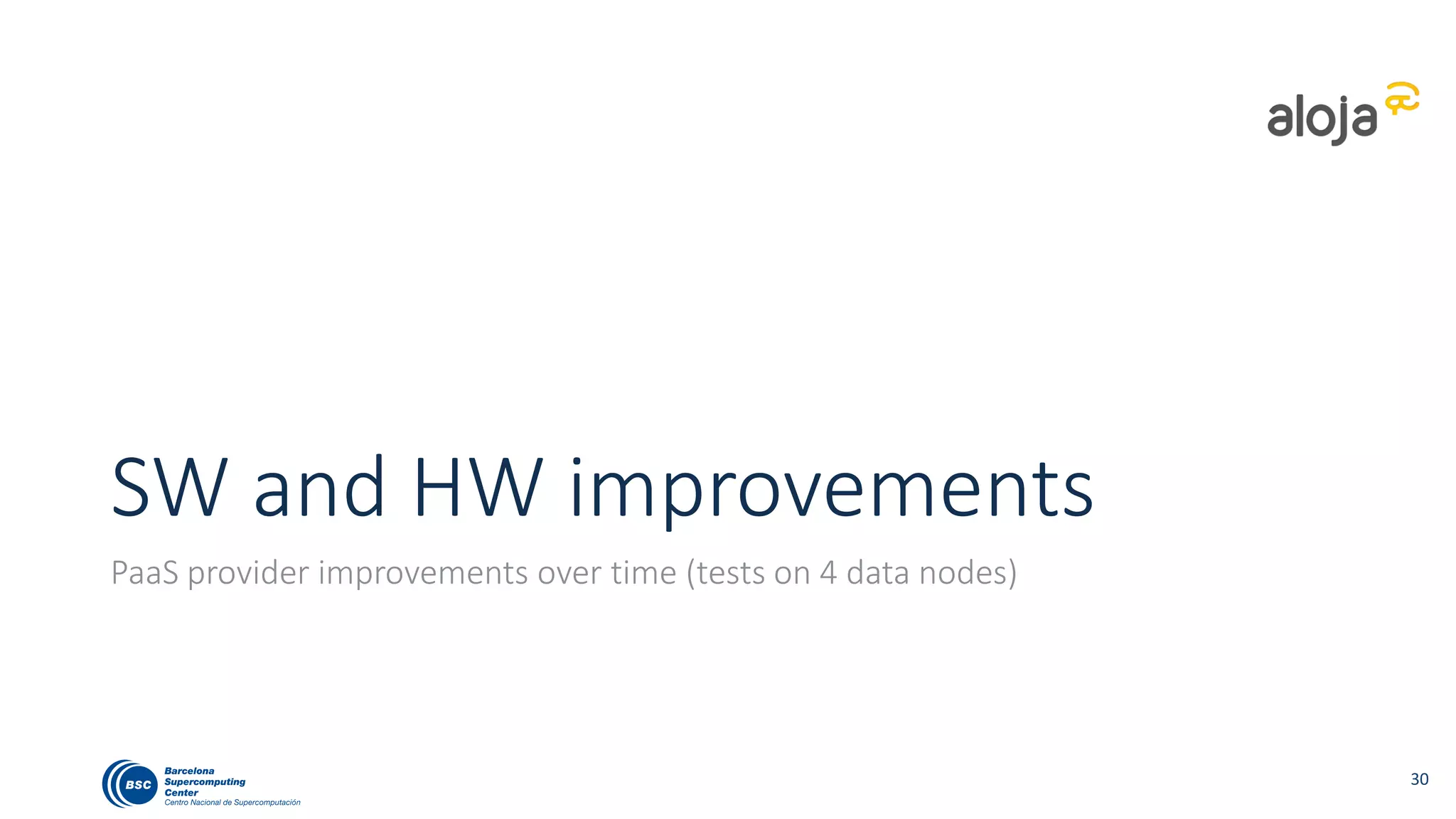

HW and SW improvements PaaS provider improvements over time (tests on 4 data nodes) 37

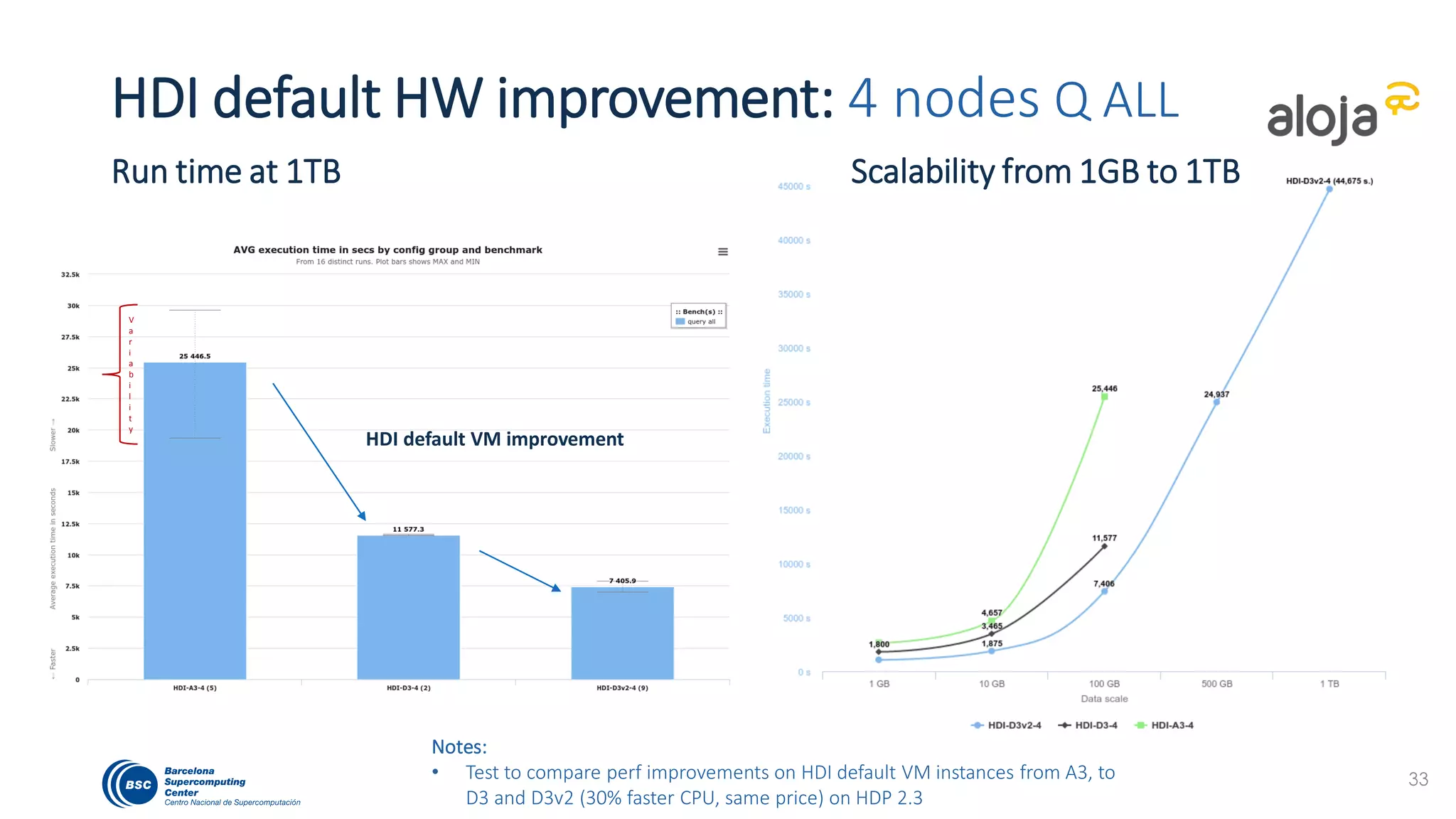

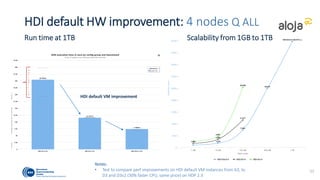

HDI default HW improvement: 4 nodes Q ALL Notes: • Test to compare perf improvements on HDI default VM instances from A3, to D3 and D3v2 (30% faster CPU, same price) on HDP 2.3 38 HDI default VM improvement Run time at 1TB Scalability from 1GB to 1TB V a r i a b i l i t y

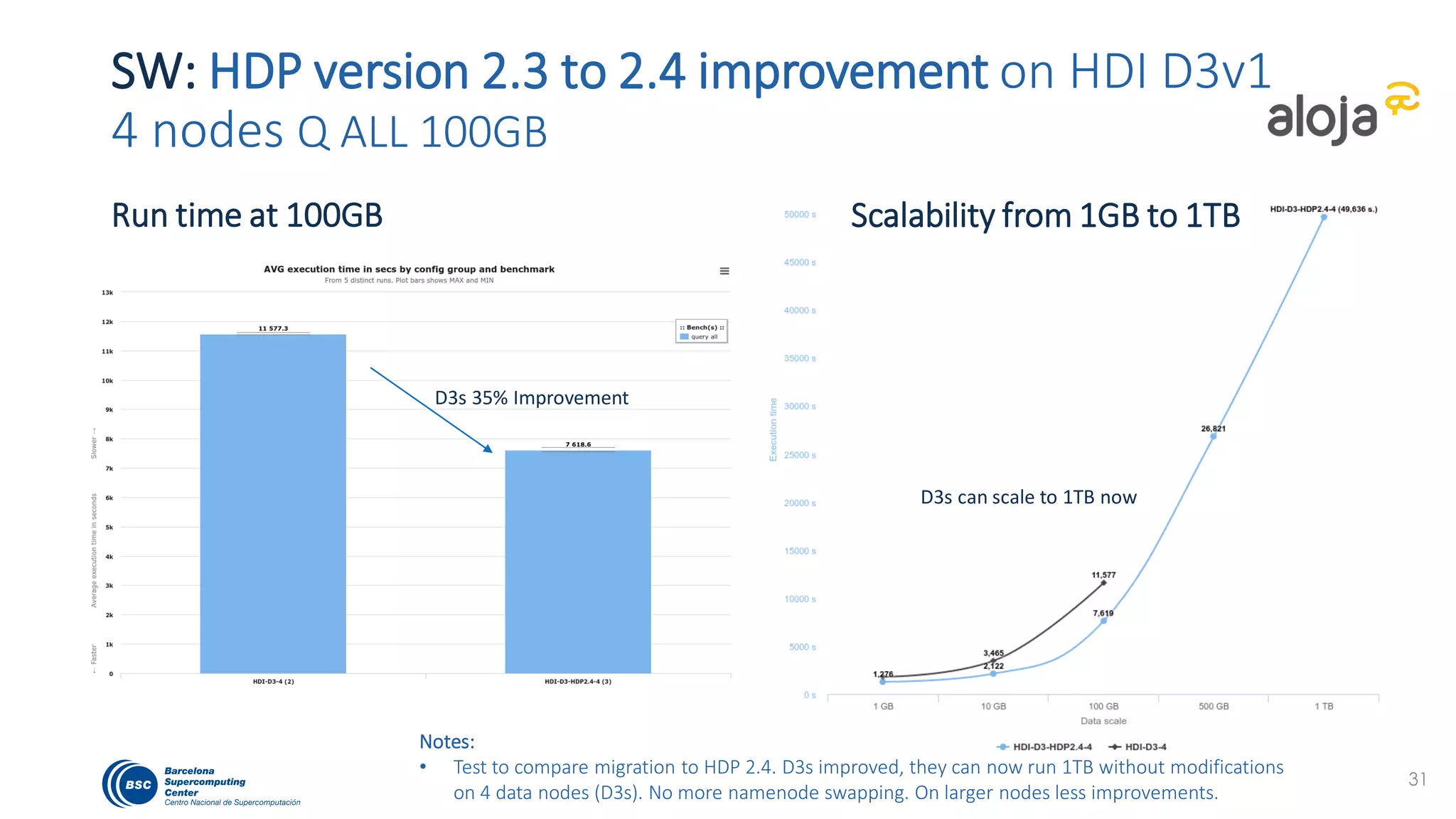

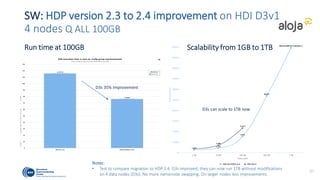

SW: HDP version 2.3 to 2.4 improvement on HDI D3v1 4 nodes Q ALL 100GB Notes: • Test to compare migration to HDP 2.4. D3s improved, they can now run 1TB without modifications on 4 data nodes (D3s). No more namenode swapping. On larger nodes less improvements. 39 D3s 35% Improvement Run time at 100GB Scalability from 1GB to 1TB D3s can scale to 1TB now

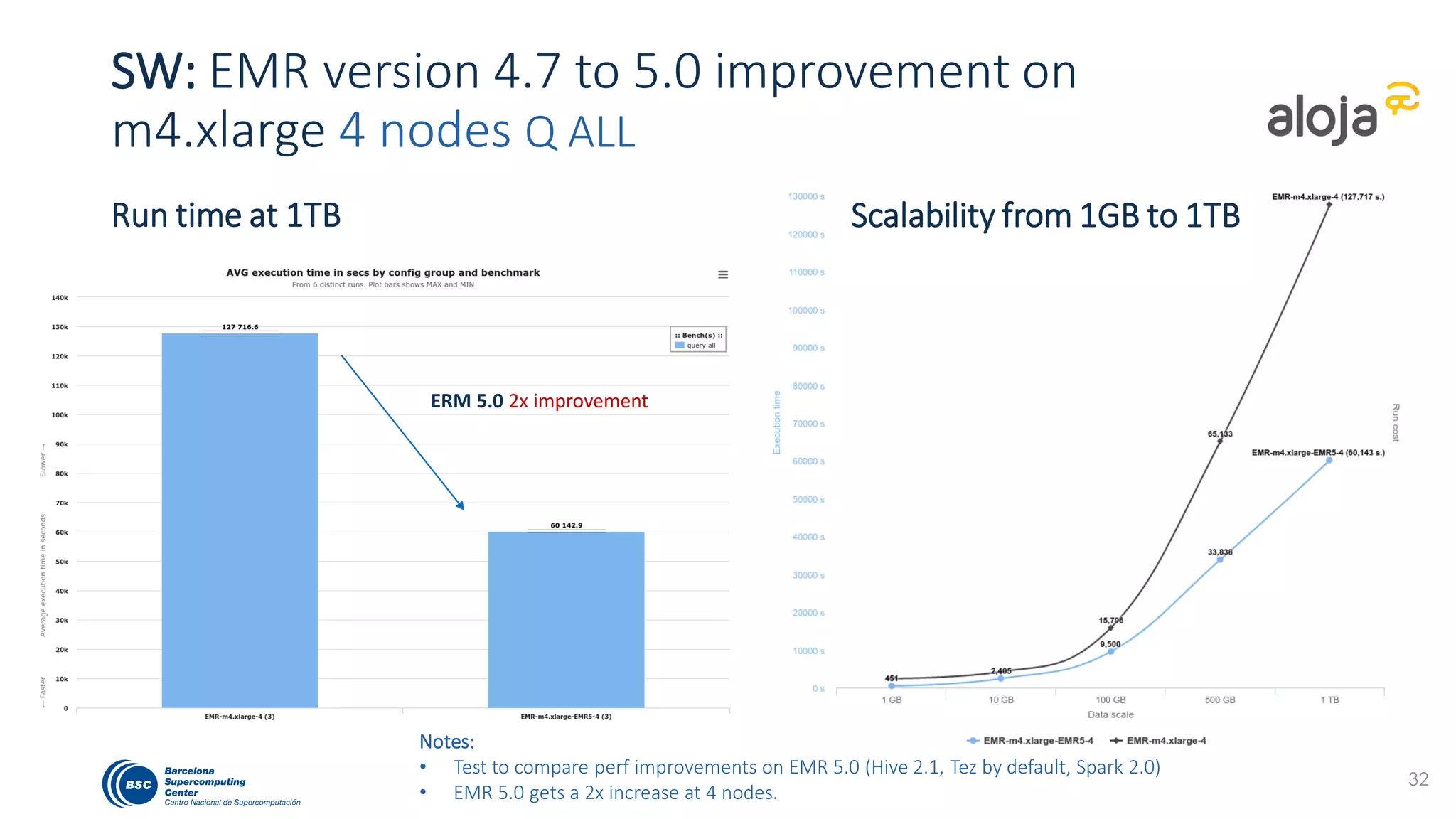

SW: EMR version 4.7 to 5.0 improvement on m4.xlarge 4 nodes Q ALL Notes: • Test to compare perf improvements on EMR 5.0 (Hive 2.1, Tez by default, Spark 2.0) • EMR 5.0 gets a 2x increase at 4 nodes. 40 ERM 5.0 2x improvement Run time at 1TB Scalability from 1GB to 1TB
Summary Lessons learned, findings, conclusions, references 41

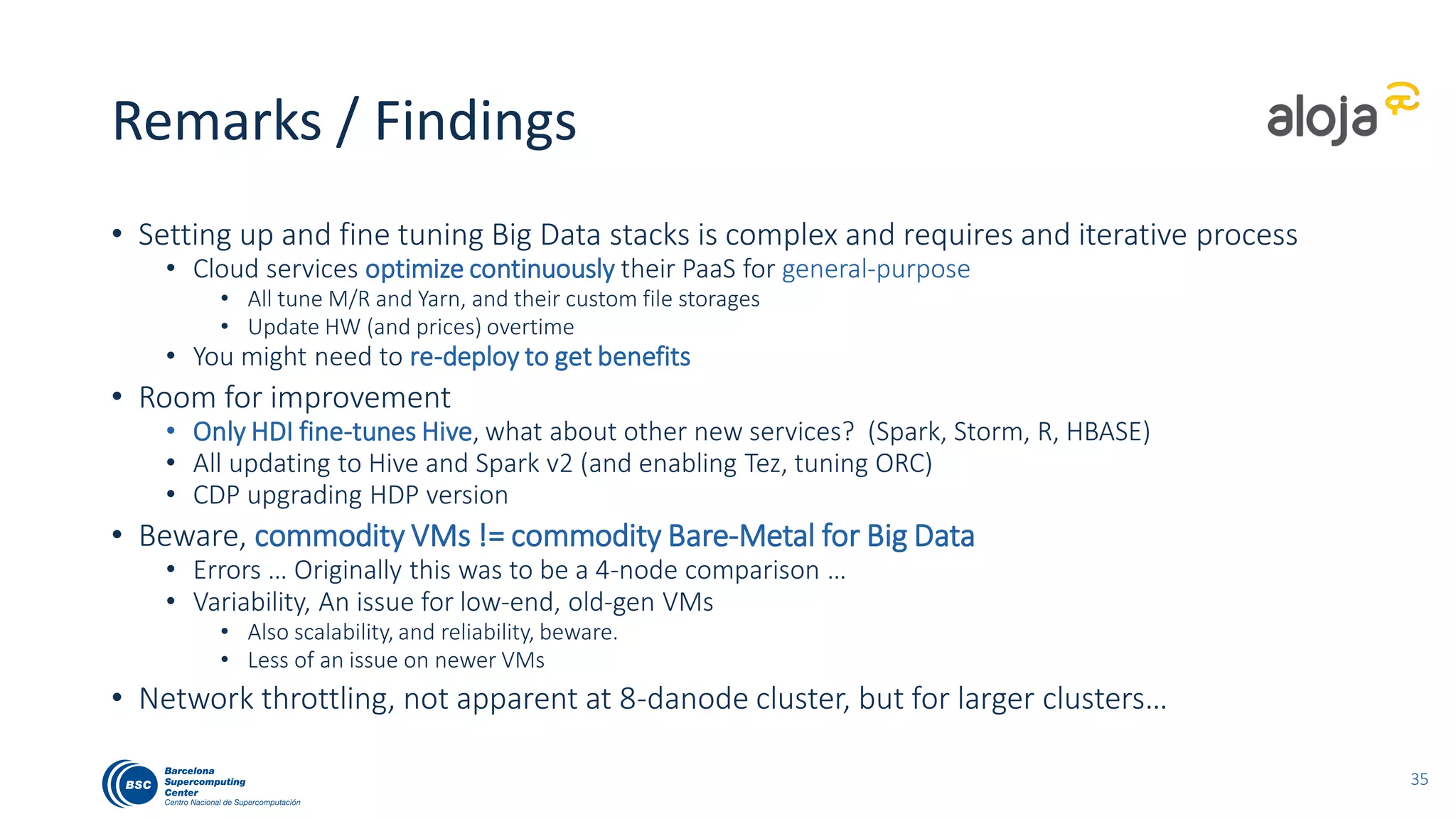

Remarks / Findings • Setting up and fine tuning Big Data stacks is complex and requires and iterative process • Cloud services optimize continuously their PaaS for general-purpose • All tune M/R and Yarn, and their custom file storages • Update HW (and prices) overtime • You might need to re-deploy to get benefits • Room for improvement • Only HDI fine-tunes Hive, what about other new services? (Spark, Storm, R, HBASE) • All updating to Hive and Spark v2 (and enabling Tez, tuning ORC) • CDP upgrading HDP version • Beware, commodity VMs != commodity Bare-Metal for Big Data • Errors … Originally this was to be a 4-node comparison … • Variability, An issue for low-end, old-gen VMs • Also scalability, and reliability, beware. • Less of an issue on newer VMs • Scale by adding more nodes, not disks • Network throttling, not apparent at 8-datanode cluster, but for larger clusters… 42

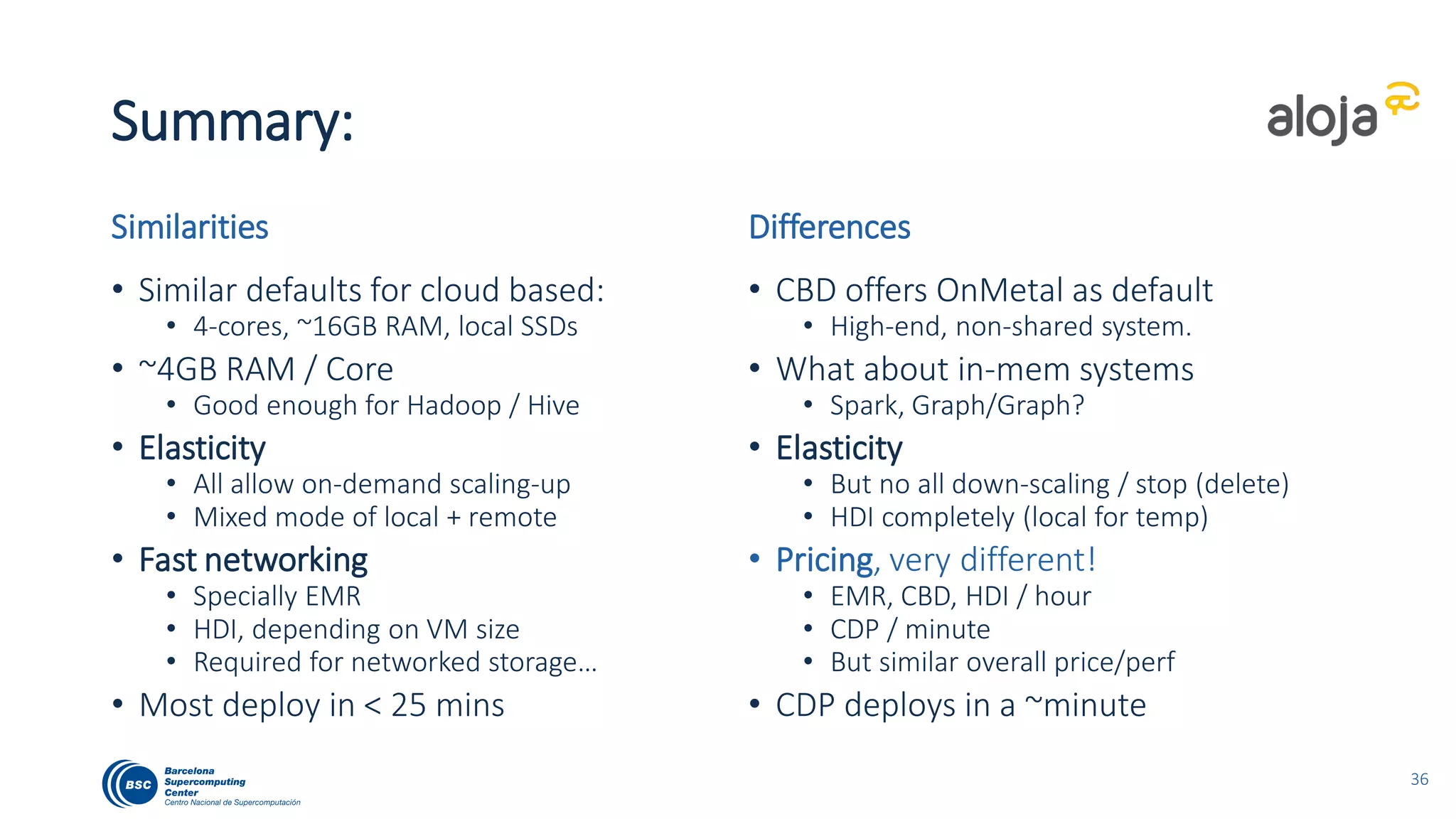

Summary: Similarities • Similar defaults for cloud based: • 4-cores, ~16GB RAM, local SSDs • ~4GB RAM / Core • Good enough for Hadoop / Hive • Elasticity • All allow on-demand scaling-up • Mixed mode of local + remote • Fast networking • Especially EMR • HDI, depending on VM size • Required for networked storage… • Most deploy in < 25 mins Differences • CBD offers OnMetal as default • High-end, non-shared system. • What about in-mem systems • Spark, Graph/Graph? • Elasticity • But no all down-scaling / stop (delete) • HDI completely for disks (local for temp) • Pricing, very different! • EMR, CBD, HDI / hour • CDP / minute • But similar overall price/perf (<30%) • CDP deploys in 1 minute 43

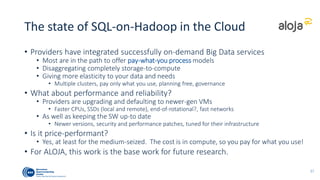

The state of SQL-on-Hadoop in the Cloud • Providers have integrated successfully on-demand Big Data services • Most are in the path to offer pay-what-you process models • Disaggregating completely storage-to-compute • Giving more elasticity to your data and needs • Multiple clusters, pay only what you use, planning free, governance • What about performance and reliability? • Providers are upgrading and defaulting to newer-gen VMs • Faster CPUs, SSDs (local and remote), end-of-rotational?, fast networks • As well as keeping the SW up-to date • Newer versions, security and performance patches, tuned for their infrastructure • Is it price-performant? • Yes, at least for the medium-sized. The cost is in compute, so you pay for what you use! • For ALOJA, this work is the basis for future research 44
More info: • Upcoming publication: • The state of SQL-on-Hadoop in the Cloud • Data release and more in-depth tech analysis • ALOJA Benchmarking platform and online repository • http://aloja.bsc.es http://aloja.bsc.es/publications • SPEC Research Big Data working group • http://research.spec.org/working-groups/big-data-working-group.html
Thanks, questions? Follow up / feedback : Nicolas.Poggi@bsc.es Twitter: @ni_po The state of SQL-on-Hadoop in the Cloud

More Related Content

PDF
The state of Hive and Spark in the Cloud (July 2017)
byNicolas Poggi

PDF
BDSE 2015 Evaluation of Big Data Platforms with HiBench
byt_ivanov

PDF
Benchmarking Hadoop and Big Data
byNicolas Poggi

PDF
sudoers: Benchmarking Hadoop with ALOJA
byNicolas Poggi

PDF
The state of Spark in the cloud
byNicolas Poggi

PDF
Using BigBench to compare Hive and Spark (short version)
byNicolas Poggi

PDF
Using BigBench to compare Hive and Spark (Long version)
byNicolas Poggi

PDF
Hadoop Summit 2010 Benchmarking And Optimizing Hadoop
byYahoo Developer Network

The state of Hive and Spark in the Cloud (July 2017)
byNicolas Poggi

BDSE 2015 Evaluation of Big Data Platforms with HiBench
byt_ivanov

Benchmarking Hadoop and Big Data
byNicolas Poggi

sudoers: Benchmarking Hadoop with ALOJA
byNicolas Poggi

The state of Spark in the cloud
byNicolas Poggi

Using BigBench to compare Hive and Spark (short version)
byNicolas Poggi

Using BigBench to compare Hive and Spark (Long version)
byNicolas Poggi

Hadoop Summit 2010 Benchmarking And Optimizing Hadoop
byYahoo Developer Network


What's hot

PDF
Rapids: Data Science on GPUs
byinside-BigData.com

PDF
Optimizing Performance and Computing Resource Efficiency of In-Memory Big Dat...
byDatabricks

PPTX
Hive, Presto, and Spark on TPC-DS benchmark
byDongwon Kim

PPTX
Tez Shuffle Handler: Shuffling at Scale with Apache Hadoop
byDataWorks Summit

PDF
Accelerating Apache Spark Shuffle for Data Analytics on the Cloud with Remote...
byDatabricks

PPTX
Practice of large Hadoop cluster in China Mobile
byDataWorks Summit

PPTX
TensorFlowOnSpark: Scalable TensorFlow Learning on Spark Clusters
byDataWorks Summit

PPTX
How to overcome mysterious problems caused by large and multi-tenancy Hadoop ...
byDataWorks Summit/Hadoop Summit

PPTX
Achieving 100k Queries per Hour on Hive on Tez
byDataWorks Summit/Hadoop Summit

PPTX
Beyond unit tests: Deployment and testing for Hadoop/Spark workflows
byDataWorks Summit

PDF
The Future of Apache Storm
byDataWorks Summit/Hadoop Summit

PPTX
What's new in Hadoop Common and HDFS
byDataWorks Summit/Hadoop Summit

PPTX
A Container-based Sizing Framework for Apache Hadoop/Spark Clusters
byDataWorks Summit/Hadoop Summit

PPTX
Hadoop Query Performance Smackdown
byDataWorks Summit

PDF
No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
byDatabricks

PPTX
February 2014 HUG : Hive On Tez
byYahoo Developer Network

PDF
Towards True Elasticity of Spark-(Michael Le and Min Li, IBM)
bySpark Summit

PDF
Strata Conference + Hadoop World NY 2016: Lessons learned building a scalable...
bySumeet Singh

PPTX
Enterprise Grade Streaming under 2ms on Hadoop
byDataWorks Summit/Hadoop Summit

PDF
Pinpoint Ceph Bottleneck Out of Cluster Behavior Mists - Yingxin Cheng
byCeph Community

Rapids: Data Science on GPUs
byinside-BigData.com

Optimizing Performance and Computing Resource Efficiency of In-Memory Big Dat...
byDatabricks

Hive, Presto, and Spark on TPC-DS benchmark
byDongwon Kim

Tez Shuffle Handler: Shuffling at Scale with Apache Hadoop
byDataWorks Summit

Accelerating Apache Spark Shuffle for Data Analytics on the Cloud with Remote...
byDatabricks

Practice of large Hadoop cluster in China Mobile
byDataWorks Summit

TensorFlowOnSpark: Scalable TensorFlow Learning on Spark Clusters
byDataWorks Summit

How to overcome mysterious problems caused by large and multi-tenancy Hadoop ...
byDataWorks Summit/Hadoop Summit

Achieving 100k Queries per Hour on Hive on Tez
byDataWorks Summit/Hadoop Summit

Beyond unit tests: Deployment and testing for Hadoop/Spark workflows
byDataWorks Summit

The Future of Apache Storm
byDataWorks Summit/Hadoop Summit

What's new in Hadoop Common and HDFS
byDataWorks Summit/Hadoop Summit

A Container-based Sizing Framework for Apache Hadoop/Spark Clusters
byDataWorks Summit/Hadoop Summit

Hadoop Query Performance Smackdown
byDataWorks Summit

No More Cumbersomeness: Automatic Predictive Modeling on Apache Spark with Ma...
byDatabricks

February 2014 HUG : Hive On Tez
byYahoo Developer Network

Towards True Elasticity of Spark-(Michael Le and Min Li, IBM)
bySpark Summit

Strata Conference + Hadoop World NY 2016: Lessons learned building a scalable...
bySumeet Singh

Enterprise Grade Streaming under 2ms on Hadoop
byDataWorks Summit/Hadoop Summit

Pinpoint Ceph Bottleneck Out of Cluster Behavior Mists - Yingxin Cheng
byCeph Community


Viewers also liked

PDF
Accelerating HBase with NVMe and Bucket Cache
byNicolas Poggi

PDF
Looking for Cracks in Control Rod Drive Mechanisms (CRDM)
byEddyfi

PDF
Detecting Cracks and Corrosion in Aircraft Longerons
byEddyfi

PDF
Assessing Circumferential Cracking in Non-Ferromagnetic Heat Exchanger Tubes
byEddyfi

PDF
Inspecting Lead-Clad Pipes with Pulsed Eddy Current (PEC)
byEddyfi

PPTX
Detecting Flaws in Condenser Tubing Welds With the DefHi® Probe
byEddyfi

PDF
Inspection of Stainless Steel Heat Exchanger Tubes with Eddy Current Array Probe
byEddyfi

PPT
Texture powerpoint final
bykphan22

PDF
JLL JF 500 Spin Bike
byJLL Fitness

PPTX
MASALAH EKONOMI
bySri Utanti

DOCX
Bipolar junction transistor characterstics biassing and amplification, lab 9
bykehali Haileselassie

PPTX
Bahasa indonesia teks laporan hasil observasi
bySri Utanti

DOCX
Engineering Mechanics Statics design problem # 5.4 concrete chut by Kehali...
bykehali Haileselassie

PDF
Keeping Pressure Vessels Safe with the Sharck™  Probe
byEddyfi

PDF
The case for Hadoop performance
byNicolas Poggi

PPTX
스마트큐 발표자료 김재우
byJaeWoo Kim

PDF
JLL Electronics Treadmills Magzine
byJLL Fitness

PPT
La salute degli occhi 5 semplici cose da
bymindspk101

PPTX
Factors affecting lls usage
byEvelyn Estrella

PPTX
Trainer David Cruuz Slimmers Testimonies
byTrainerDavid

Accelerating HBase with NVMe and Bucket Cache
byNicolas Poggi

Looking for Cracks in Control Rod Drive Mechanisms (CRDM)
byEddyfi

Detecting Cracks and Corrosion in Aircraft Longerons
byEddyfi

Assessing Circumferential Cracking in Non-Ferromagnetic Heat Exchanger Tubes
byEddyfi

Inspecting Lead-Clad Pipes with Pulsed Eddy Current (PEC)
byEddyfi

Detecting Flaws in Condenser Tubing Welds With the DefHi® Probe
byEddyfi

Inspection of Stainless Steel Heat Exchanger Tubes with Eddy Current Array Probe
byEddyfi

Texture powerpoint final
bykphan22

JLL JF 500 Spin Bike
byJLL Fitness

MASALAH EKONOMI
bySri Utanti

Bipolar junction transistor characterstics biassing and amplification, lab 9
bykehali Haileselassie

Bahasa indonesia teks laporan hasil observasi
bySri Utanti

Engineering Mechanics Statics design problem # 5.4 concrete chut by Kehali...
bykehali Haileselassie

Keeping Pressure Vessels Safe with the Sharck™  Probe
byEddyfi

The case for Hadoop performance
byNicolas Poggi

스마트큐 발표자료 김재우
byJaeWoo Kim

JLL Electronics Treadmills Magzine
byJLL Fitness

La salute degli occhi 5 semplici cose da
bymindspk101

Factors affecting lls usage
byEvelyn Estrella

Trainer David Cruuz Slimmers Testimonies
byTrainerDavid


Similar to The state of SQL-on-Hadoop in the Cloud

PDF
Lessons Learned on Benchmarking Big Data Platforms
byt_ivanov

PDF
Benefits of Hadoop as Platform as a Service
byDataWorks Summit/Hadoop Summit

PPTX
Empower Data-Driven Organizations
byDataWorks Summit/Hadoop Summit

PPTX
What it takes to run Hadoop at Scale: Yahoo! Perspectives
byDataWorks Summit

PPTX
Hive + Amazon EMR + S3 = Elastic big data SQL analytics processing in the cloud
byJaipaul Agonus

PPTX
Hadoop AWS infrastructure cost evaluation
bymattlieber

PDF
The state of SQL-on-Hadoop in the Cloud
byDataWorks Summit/Hadoop Summit

PDF
Red Hat Storage Day Atlanta - Designing Ceph Clusters Using Intel-Based Hardw...
byRed_Hat_Storage

PDF
Red Hat Storage Day New York - New Reference Architectures
byRed_Hat_Storage

PDF
Hadoop Summit San Jose 2015: What it Takes to Run Hadoop at Scale Yahoo Persp...
bySumeet Singh

PDF
Architecting a Scalable Hadoop Platform: Top 10 considerations for success
byDataWorks Summit

PDF
Hadoop Summit Brussels 2015: Architecting a Scalable Hadoop Platform - Top 10...
bySumeet Singh

PPTX
Data Warehouse Modernization - Big Data in the Cloud Success with Qubole on O...
byQubole

PDF
Is your cloud ready for Big Data? Strata NY 2013
byRichard McDougall

PPTX
Big Data Day LA 2015 - Lessons learned from scaling Big Data in the Cloud by...
byData Con LA

PPTX
Red Hat Storage Day LA - Performance and Sizing Software Defined Storage
byRed_Hat_Storage

PDF
App Cap2956v2 121001194956 Phpapp01 (1)
byoutstanding59

PDF
App cap2956v2-121001194956-phpapp01 (1)
byoutstanding59

PDF
Inside the Hadoop Machine @ VMworld
byRichard McDougall

PPTX
Rocking mongo db on the cloud
byMongoDB

Lessons Learned on Benchmarking Big Data Platforms
byt_ivanov

Benefits of Hadoop as Platform as a Service
byDataWorks Summit/Hadoop Summit

Empower Data-Driven Organizations
byDataWorks Summit/Hadoop Summit

What it takes to run Hadoop at Scale: Yahoo! Perspectives
byDataWorks Summit

Hive + Amazon EMR + S3 = Elastic big data SQL analytics processing in the cloud
byJaipaul Agonus

Hadoop AWS infrastructure cost evaluation
bymattlieber

The state of SQL-on-Hadoop in the Cloud
byDataWorks Summit/Hadoop Summit

Red Hat Storage Day Atlanta - Designing Ceph Clusters Using Intel-Based Hardw...
byRed_Hat_Storage

Red Hat Storage Day New York - New Reference Architectures
byRed_Hat_Storage

Hadoop Summit San Jose 2015: What it Takes to Run Hadoop at Scale Yahoo Persp...
bySumeet Singh

Architecting a Scalable Hadoop Platform: Top 10 considerations for success
byDataWorks Summit

Hadoop Summit Brussels 2015: Architecting a Scalable Hadoop Platform - Top 10...
bySumeet Singh

Data Warehouse Modernization - Big Data in the Cloud Success with Qubole on O...
byQubole

Is your cloud ready for Big Data? Strata NY 2013
byRichard McDougall

Big Data Day LA 2015 - Lessons learned from scaling Big Data in the Cloud by...
byData Con LA

Red Hat Storage Day LA - Performance and Sizing Software Defined Storage
byRed_Hat_Storage

App Cap2956v2 121001194956 Phpapp01 (1)
byoutstanding59

App cap2956v2-121001194956-phpapp01 (1)
byoutstanding59

Inside the Hadoop Machine @ VMworld
byRichard McDougall

Rocking mongo db on the cloud
byMongoDB


Recently uploaded

PPTX
cloud computing ppt useful for studestns
byNagarajuJajam

PPTX
[DSC Europe 25] Miodrag Pesovic & Vladislav Radonjic - Federated Data Archite...
byDataScienceConferenc1

PPTX
[DSC Europe 25] Behzad Hosseini - AI Agents in the Wild: Deploying Models tha...
byDataScienceConferenc1

PDF
High-Performance Loading of Financial Market Data Streams to the Snowflake Pl...
byDataFuze

PPTX
Integrated matching and rebalancing for ride-hailing services.pptx
byWenjiaShen1

PDF
01-Introduction_to_Computers and app.pdf
byjaveriaafsar575

PPTX
[DSC Europe 25] Tatevik Maytesyan - How to actually use AI in marketing: gett...
byDataScienceConferenc1

PPTX
Online Hospital Appointment Management System
byahsanalishigre

PPTX
Deep Learning The Next Frontier (AI).pptx
bywaheedshahzad6

PPTX
PPT presentasi PKL anak smk yang .pptx
bycahyantoananda3

PPTX
Edison Research's Top 10 Findings of 2025
bymlazovick

PPTX
[DSC Europe 25] Branko Urosevic -Rethinking Financial Talent: Integrating Cod...
byDataScienceConferenc1

PDF
OWASP-Top-10-for-Large-Language-Models-2023.pdf
byReynir Orn Bachmann Gudmundsson

PDF
ICT Prep2 Lesson1-2 SM_251002_074210.pdf
bymhalexeg82

DOCX
A SURVEY ABOUT USING CRYPTOGRAPHIC ALGORITHM
byjaskarans90411

PPTX
[DSC Europe 25] Bassam Maharmeh - Artificial Intelligence: Opportunities and ...
byDataScienceConferenc1

PPTX
[DSC Europe 25] Hans Kleinsman - The Compliance Gearbox: How Tax Tech Mediate...
byDataScienceConferenc1

PPTX
[DSC Europe 25] Katherine Forrest - AI NOW: Understanding the Velocity of Cha...
byDataScienceConferenc1

PDF
[DSC Europe 25] Branko Dzakula - From Defense to Attack: How AI Redefines Cyb...
byDataScienceConferenc1

PDF
OWASP-Top-10-for-Agentic-Applications-2026.pdf
byReynir Orn Bachmann Gudmundsson

cloud computing ppt useful for studestns
byNagarajuJajam

[DSC Europe 25] Miodrag Pesovic & Vladislav Radonjic - Federated Data Archite...
byDataScienceConferenc1

[DSC Europe 25] Behzad Hosseini - AI Agents in the Wild: Deploying Models tha...
byDataScienceConferenc1

High-Performance Loading of Financial Market Data Streams to the Snowflake Pl...
byDataFuze

Integrated matching and rebalancing for ride-hailing services.pptx
byWenjiaShen1

01-Introduction_to_Computers and app.pdf
byjaveriaafsar575

[DSC Europe 25] Tatevik Maytesyan - How to actually use AI in marketing: gett...
byDataScienceConferenc1

Online Hospital Appointment Management System
byahsanalishigre

Deep Learning The Next Frontier (AI).pptx
bywaheedshahzad6

PPT presentasi PKL anak smk yang .pptx
bycahyantoananda3

Edison Research's Top 10 Findings of 2025
bymlazovick

[DSC Europe 25] Branko Urosevic -Rethinking Financial Talent: Integrating Cod...
byDataScienceConferenc1

OWASP-Top-10-for-Large-Language-Models-2023.pdf
byReynir Orn Bachmann Gudmundsson

ICT Prep2 Lesson1-2 SM_251002_074210.pdf
bymhalexeg82

A SURVEY ABOUT USING CRYPTOGRAPHIC ALGORITHM
byjaskarans90411

[DSC Europe 25] Bassam Maharmeh - Artificial Intelligence: Opportunities and ...
byDataScienceConferenc1

[DSC Europe 25] Hans Kleinsman - The Compliance Gearbox: How Tax Tech Mediate...
byDataScienceConferenc1

[DSC Europe 25] Katherine Forrest - AI NOW: Understanding the Velocity of Cha...
byDataScienceConferenc1

[DSC Europe 25] Branko Dzakula - From Defense to Attack: How AI Redefines Cyb...
byDataScienceConferenc1

OWASP-Top-10-for-Agentic-Applications-2026.pdf
byReynir Orn Bachmann Gudmundsson


The state of SQL-on-Hadoop in the Cloud

  • 1.
    The state ofSQL-on-Hadoop in the Cloud By Nicolas Poggi Lead researcher – Big Data Frameworks Data Centric Computing (DCC) Research Group BDOOP Meetup – Dec 2016
  • 2.
    Agenda • Intro andmotivation • PaaS services overview • Instances comparison • SW and HW specs • Elasticity • Perf metrics • SQL Benchmark • Test methodology • Evaluations • Execution times • Data size scalability • Price / Performance • PaaS evolution over time • SW and HW improvements • Summary • Lessons learned • Conclusions & future work 2
  • 3.
    ALOJA: towards cost-effectiveBig Data • Open research project for automating characterization and optimization of Big Data deployments • Open source Benchmarking-to-Insights platform and tools • Largest Big Data public repository • Community collaboration with industry and academia • Preliminary to this study: • Big Data Benchmark Compendium (TPC-TC `15) • The Benefits of Hadoop as PaaS (Hadoop Summit EU `16) http://aloja.bsc.es Big Data Benchmarking Online Repository Web / ML Analytics
  • 4.
    Motivation of SQL-on-Hadoopstudy • Extend the ALOJA platform to survey popular PaaS SQL Big Data Cloud solutions using Hive [to begin with] • First approach to services, from an end-user’s perspective • Using the public cloud (and pricing), online docs, and resources • Medium-size test deployments and data (8 data-nodes, up to 1TB) • Evaluate and compare out-of-the-box (default VMs and config) • Architectural differences, readiness, competitive advantages • Scalability, Price and Performance Disclaimer: snapshot of the out-of-the-box price and performance during March-July 2016. Performance and especially costs change often. We use non-discounted pricing. I/O costs are complex to estimate for a single benchmark. 5
  • 5.
    Platform-as-a-Service Big Data •Cloud-based managed Hadoop services • Ready to use Hive, spark, … • Simplified management • Deploys in minutes, on-demand, elastic • You select the instance and • the number of processing nodes • Pay-as-you-go, pay-as-you-process models • Optimized for general purpose • Fined tuned to the cloud provider architecture 6
  • 6.
    Surveyed Hadoop/Hive PaaSservices • Amazon Elastic Map Reduce (EMR) • Released: Apr 2009 • OS: Amazon Linux AMI 4.4 (RHEL-like) • SW stack: EMR (custom, 4.7*) • Instances: • m3.xlarge and m4.xlarge • Google Cloud DataProc (CDP) • Released: Feb 2016 • OS: Debian GNU/Linux 8.4 • SW stack: (custom, v1) • Instances: • n1-standard-4 and n1-standard-8 • Azure HDInsight (HDI) • Released: Oct 2013 • OS: Windows Server and Ubuntu 14.04.5 LTS • SW stack: HDP based (v 2.3 and 2.4 **) • Instances: • A3s, D3s v1-2, and D4s v1-2 • Rackspace Cloud Big Data (CBD) • Released: Oct 2013 • OS: CentOS 7 • SW stack: HDP (2.3) • API: OpenStack (+ Lava) • Instances: • Hadoop 1-7, 1-15, 1-30, On Metal 40 We selected defaults, general purpose VMs, Also on-premises results as baseline. * EMR v5 released in Aug 2016. ** HDI offers HDP 2.5 since Sept 2016 7
  • 7.
    Systems-Under-Test (SUTs): VM/Instance specs,elasticity, perf characterization Focus: 8-datanodes, up to 1TB data size 8
  • 8.
    SUTs: Tech specsand costs * Estimate based on 3 years life time including support and maintenance (see refs.) 10 Notes: • Default Cloud SKUs have 4 cores and ~15GB of in all providers • 4GBs of RAM / core • Prices vary greatly • Rackspace defaults to high- end OnMetal Provider Instance type Default? Cores/Node RAM/Node RAM/core Amazon EMR (us-east-1) m3.xlarge Yes 4 15 3.8 m4.xlarge 4 16 4 Google CDP (Europe-west1-b) n1-standard-4 Yes 4 15 3.8 n1-standard-4 1 SSD 4 15 3.8 n1-standard-8 8 30 7.5 Azure HDI (South Central US) A3 (Large) (olddef.) 4 7 1.8 D3 v1 andv2 Yes 4 14 3.5 D4 v1 andv2 8 28 3.5 Rackspace CBD (Northern Virginia (IAD)) hadoop1-7 2 7 3.5 hadoop1-15 (2nd) 4 15 3.8 hadoop1-30 8 30 3.8 OnMetal 40 Yes 40 128 3.2 On-premises 2012 (12cores/64GB) 12 64 5.3 D Nodes Cost/Hour Cluster Shared 8 $ 3.36 Yes 8 $ 2.99 Yes 8 $ 1.81 Yes 8 $ 1.92 Yes 8 $ 3.61 Yes 8 $ 2.70 Yes 8 $ 5.25 Yes 8 $ 10.48 Yes 8 $ 2.72 Yes 8 $ 5.44 Yes 8 $ 10.88 Yes 4 $ 11.80 No 8 $ 3.50 * No
  • 9.
    Includes I/O costsCost/5TB/hr* Deploy time (min) Yes / No with EBS $ 0.07 ~ 10 No ~ 10 No $ 0.18 ~ 01 No ~ 01 No ~ 01 No $ 0.17 ~ 25 No ~ 25 No ~ 25 Yes Local $ 0.00 Cloud $ 0.07 ~ 25 Yes ~ 25 Yes ~ 25 Yes ~ 25 Yes $ 0.00 N/A SUTs: Elasticity and I/O *Tests need 5TB of raw HDFS storage, this cost is used. **supports up to 4 SSD drives 12 Provider Instance type Elasticity Storage Amazon EMR m3.xlarge Compute (and EBS option) 2x40GB Local SSD / node m4.xlarge Compute and EBS (fixed size) EBS size defined on deploy Google CDP n1-standard-4 Compute and GCS (fixed size ) GCS size defined on deploy n1-standard-4 1 SSD 1x375GB SSD ** + GCS n1-standard-8 GCS size defined on deploy Azure HDI A3 (Large) Compute and storage Elastic (WASB) D3 v1 and 2 Elastic (WASB) + 200GB SSD local D4 v1 and 2 Elastic (WASB) + 400GB SSD local Rackspace CBD hadoop1-7 Compute (Cloud files option) 1.5TB SATA / node hadoop1-15 2.5TB SATA / node hadoop1-30 5TB SATA / node OnMetal 40 2x1.5TB SSD / node On-premises 2012 (12cores/64GB) No 1TB SATA x6 / node
  • 10.
    SUTs: CPU, MEM,and NET characterization MEM: Ops/s (sysbench 1-thread, default blk size) 0 500000 1000000 1500000 2000000 2500000 3000000 3500000 Higher is better. Defaults in Purple. Benchmarked using ALOJA cluster-bench, sysbench, and iperf 15 EMR m3.x, CBD hadoop1-x, and HDI A3 older gen CPUs OnMetal much higher NET: iperf Gb/s (1 thread 100GB) 8.77 8.77 6.85 5.3 7.41 0.999 2 2.99 2.47 5.97 4.13 4.4 3.98 4.49 0.941 0 1 2 3 4 5 6 7 8 9 10 EMR < 10Gbp/s CDP < 8Gbp/s HDI < 6Gbp/s (SKU dependent) CBD < 5Gbp/s OnPrem 1Gbp/s
  • 11.
    30.3814 35.8139 49.5461 320.8429 37.1409 29.905131.9703 46.30423 56.575 29.2788 28.7281 73.1942 615.449 49.5514 15.533 31.128 28.9609 90.5373 12.2101 16.3084 35.0701 37.924 50.0872 1.9575 3.5915 4.8559 315.7558 227.9924 DFSIO_read MB/s DFSIO_write MB/s SUTs: HDFS I/O 1TB 17 CBD Highest OnMetal Very low write throughput for Cloud CDP SSDs are used as tiered storage EMR SKU dependent Low MB/s HDI Throughput is SKU dependent Higher is better. Benchmarked using ALOJA Hadoop-Examples Most SUTs < 50 MB/s R/W Expect for OnMetal and CDP with SSD
  • 12.
  • 13.
    Benchmark suite: TPC-H(derived) • DB industry standard for decision support • well understood benchmark and accepted (since `99) • available audited results on-line • 22 “real world” business queries • Complex joins, grouping, nested queries • Defines scale factors for data • DDLs and queries from D2F-Bench project: • Includes Hive adaptation with ORC tables • Repo: https://github.com/Aloja/D2F-Bench • based on https://github.com/hortonworks/hive-testbench • changes make it HDP agnostic • Supports other engines: Spark, pig, impala, drill, … 19 TPC-H 8-tables schema
  • 14.
    Test methodology • ALOJA-BENCHas a driver • Test methodology • Queries run from 1-22 • sequentially • To try to avoid caches • [at least] 3 repetitions • Query ALL (Q ALL) as full run • Power runs (no concurrency) • Data sizes: • 1GB, 10GB, 100GB, 500GB*, 1TB • Metrics: execution time and cost • Comparisons • Q ALL (full run) • Scans Q1, and Q6, • Joins Q2, Q16 • Q16 most “complete” single query • Process and settings • TCP-H datagen CSVs converted to Hive ORC tables • Each system its own hive.settings • On-prem from source repo 20*500GB is not a standard size, but 300GB is.
  • 15.
    SUTs Performance andScalability Execution times Scalability to data size Query drill-down Latency test 21
  • 16.
    Exec times bySUT: 8dn 100GB Q ALL Notes: • Results show execution times for full TPC-H, on SKUs with 8 data nodes at 100GB. Except for the CBD-on metal which has 4dns. • CBD: • OnMetal fast • Cloud, scale to SKU size • CDP: • SSD slightly faster than regular • N1std8 only 30% faster than N1std4 • EMR: • m4.xlarge 18% faster than m3.xlarge • HDI: • Scale to SKU size • Fastest result D4v2 • OnPrem: • Poor results with M/R • A3s and CBD Cloud present high variability 22 CBD CDP EMR HDI SSD version marginal results Local SSD + EBS OnMetal D4v2 Fastest D3v2 fastest default EBS Only OnPrem
  • 17.
    Exec times bySKU: 8dn 1TB Q ALL 23 Notes: • Results show execution times for full TPC-H, on SKUs with 8 data nodes at 1TB. Except for the CBD-on metal which has 4dns. • At 1TB, lower end systems obtain poorer performance. • CBD: • OnMetal fast • Cloud: 1-7 cannot process 1TB, 1- 15,1-30 similar results • CDP: • SSD slightly slower than regular • N1std8 2x faster than N1std4 (as expected) • EMR: • m4.xlarge 15% faster than m3.xlarge • HDI: • Scale to SKU size • Fastest result D4v2 • OnPrem: • Improves results (comparing to 100GB) Systems similar, but poor results OnMetal 2nd fastest Cloud D4v2 Fastest CBD CDP EMR HDI
  • 18.
    Data size scalabilityof defaults: up to 1TB (Q ALL) 24 Notes: • Chart shows the data scale factor from 100GB to 1TB of the default SUTs of 8 data nodes. Except for CBD On Metal, which has 4. • Comparing defaults instances, CDP has poorest scalability, then EMR. • On-prem scales linearly up to 1TB • HDI and OnMetal can scale to larger sizes
  • 19.
    Exec times defaults:Scans vs. Joins 1TB Scans (parallelizable Q1 CPU, Q6 I/O) Joins (less parallelizable Q2, Q16) 27 Notes: Q1 (I/O + CPU) is slow on the CDP and EMR systems. Same for Q16. CBD has inverted times for Q2 and Q16 than other systems. On metal fastest for I/O and Joins, then HDI D3v2. Defaults with 4-cores Defaults with 4-cores
  • 20.
    CPU utilization defaultVMs: Q16 1TB Notes: EMR high CPU and Sys. HDI different pattern (spikes). CDP high iowait. CBD OnMetal Low usage, hadoop1-15 very high iowait 29
  • 21.
    Configurations 32Notes: CDP andCBD on Java 1.8, all on OpenJDK. HDI only to enable Tez and config perf options Category Config EMR CDP HDI CBD (On Metal) On-prem System Java version OpenJDK 1.7.0_111 OpenJDK 1.8.0_91 OpenJDK 1.7.0_101 OpenJDK 1.8.0_71 JDK 1.7 HDFS File system EBS / S3 GCS(hadoopv.) WASB Local + Swift + S3 Local Replication 3 2 3 2 3 Block size 128MB 128MB 128MB 256MB 128MB Filebuffer size 4KB 64KB 128KB 256KB 64KB M/R Outputcompression SNAPPY False False SNAPPY False IO Factor / MB 48 /200 10 /100 100 / 614 100 /358 10 /100 Memory MB 1536 3072 1536 2048 1536 / 4096 Hive Engine MR MR Tez MR MR / Tez ORC config Defaults Defaults Defaults Defaults Defaults Vectorized exec False False Enabled False Enabled Cost-based Opt False Enabled Enabled Enabled Enabled Enforce Bucketing False False True False True Optimizebucket map join False False True False True
  • 22.
    Latency test: Exectime by SKU 8dn 1GB Q 16 Notes: • Results show execution times for query 16 and 1GB. Except for the CBD-on metal which has 4. • HDI D3v2 and D4v2 have the lowest times • Then the CDP systems • OnPrem M/R worst restuls 33 CBD CDP EMR HDI D3v2 and D4v2 “lowest latency”
  • 23.
    Price / Performance Priceand Execution times assume: • only cost of running benchmark or full 24/7 utilization • no provisioning time or idle times • by the second billing 34
  • 24.
    Price/Performance 100GB (QALL) 35 Notes: • Shows the price/performance ratio by SUT • Lower in price and time is better • Chart zoomed to differentiate clusters Price assumptions: • Measures only the cost of running the benchmark in seconds. Cluster setup time is ignored. Rank Cluster Best cost Best time 1CDP-n1std4-8 $ 6.37 3:11:57 2CDP-n1std4-1SSD-8 $ 6.55 3:06:44 3EMR-m4.xlarge-8 $ 8.18 2:40:24 4HDI-D3v2-HDP24-8 $ 8.74 1:36:45 5CDP-n1std8-8 $ 9.35 2:27:57 6HDI-D4v2-HDP24-8 $ 10.20 0:57:29 7EMR-m3.xlarge-8 $ 10.79 3:08:49 8HDI-A3-8 $ 11.96 4:10:04 9M100-8n $ 13.10 3:32:29 10HDI-D4-8 $ 15.08 1:24:59 11CBD-hadoop1-7-8 $ 19.16 7:02:33 12CBD-OnMetal40-4 $ 19.31 1:38:12 13CBD-hadoop1-15-8 $ 26.45 4:51:41 Cheapest run Fastest run Most Cost-effective
  • 25.
    Price/Performance 1TB (QALL) 36 Notes: • Shows the price/performance ratio by SUT • Lower in price and time is better • Chart zoomed to differentiate clusters Price assumptions: • Measures only the cost of running the benchmark in seconds. Cluster setup time is ignored. Rank Cluster Best cost Best time 1HDI-D3v2-HDP24-8 $ 39.63 7:18:42 2HDI-D4v2-HDP24-8 $ 42.02 3:56:45 3M100-8n $ 42.85 11:34:50 4CDP-n1std8-8 $ 44.91 11:50:46 5CDP-n1std4-8 $ 46.49 23:21:05 6CDP-n1std4-1SSD-8 $ 50.53 24:00:52 7EMR-m4.xlarge-8 $ 54.26 17:44:01 8HDI-D4-8 $ 62.75 5:53:32 9CBD-OnMetal40-4 $ 67.77 5:44:36 10EMR-m3.xlarge-8 $ 69.92 20:23:01 11HDI-A3-8 $ 74.83 27:42:56 12CBD-hadoop1-15-8 $ 128.44 23:36:37 Cheapest run Fastest run Most cost effective
  • 26.
    HW and SWimprovements PaaS provider improvements over time (tests on 4 data nodes) 37
  • 27.
    HDI default HWimprovement: 4 nodes Q ALL Notes: • Test to compare perf improvements on HDI default VM instances from A3, to D3 and D3v2 (30% faster CPU, same price) on HDP 2.3 38 HDI default VM improvement Run time at 1TB Scalability from 1GB to 1TB V a r i a b i l i t y
  • 28.
    SW: HDP version2.3 to 2.4 improvement on HDI D3v1 4 nodes Q ALL 100GB Notes: • Test to compare migration to HDP 2.4. D3s improved, they can now run 1TB without modifications on 4 data nodes (D3s). No more namenode swapping. On larger nodes less improvements. 39 D3s 35% Improvement Run time at 100GB Scalability from 1GB to 1TB D3s can scale to 1TB now
  • 29.
    SW: EMR version4.7 to 5.0 improvement on m4.xlarge 4 nodes Q ALL Notes: • Test to compare perf improvements on EMR 5.0 (Hive 2.1, Tez by default, Spark 2.0) • EMR 5.0 gets a 2x increase at 4 nodes. 40 ERM 5.0 2x improvement Run time at 1TB Scalability from 1GB to 1TB
  • 30.
    Summary Lessons learned, findings,conclusions, references 41
  • 31.
    Remarks / Findings •Setting up and fine tuning Big Data stacks is complex and requires and iterative process • Cloud services optimize continuously their PaaS for general-purpose • All tune M/R and Yarn, and their custom file storages • Update HW (and prices) overtime • You might need to re-deploy to get benefits • Room for improvement • Only HDI fine-tunes Hive, what about other new services? (Spark, Storm, R, HBASE) • All updating to Hive and Spark v2 (and enabling Tez, tuning ORC) • CDP upgrading HDP version • Beware, commodity VMs != commodity Bare-Metal for Big Data • Errors … Originally this was to be a 4-node comparison … • Variability, An issue for low-end, old-gen VMs • Also scalability, and reliability, beware. • Less of an issue on newer VMs • Scale by adding more nodes, not disks • Network throttling, not apparent at 8-datanode cluster, but for larger clusters… 42
  • 32.
    Summary: Similarities • Similar defaultsfor cloud based: • 4-cores, ~16GB RAM, local SSDs • ~4GB RAM / Core • Good enough for Hadoop / Hive • Elasticity • All allow on-demand scaling-up • Mixed mode of local + remote • Fast networking • Especially EMR • HDI, depending on VM size • Required for networked storage… • Most deploy in < 25 mins Differences • CBD offers OnMetal as default • High-end, non-shared system. • What about in-mem systems • Spark, Graph/Graph? • Elasticity • But no all down-scaling / stop (delete) • HDI completely for disks (local for temp) • Pricing, very different! • EMR, CBD, HDI / hour • CDP / minute • But similar overall price/perf (<30%) • CDP deploys in 1 minute 43
  • 33.
    The state ofSQL-on-Hadoop in the Cloud • Providers have integrated successfully on-demand Big Data services • Most are in the path to offer pay-what-you process models • Disaggregating completely storage-to-compute • Giving more elasticity to your data and needs • Multiple clusters, pay only what you use, planning free, governance • What about performance and reliability? • Providers are upgrading and defaulting to newer-gen VMs • Faster CPUs, SSDs (local and remote), end-of-rotational?, fast networks • As well as keeping the SW up-to date • Newer versions, security and performance patches, tuned for their infrastructure • Is it price-performant? • Yes, at least for the medium-sized. The cost is in compute, so you pay for what you use! • For ALOJA, this work is the basis for future research 44
  • 34.

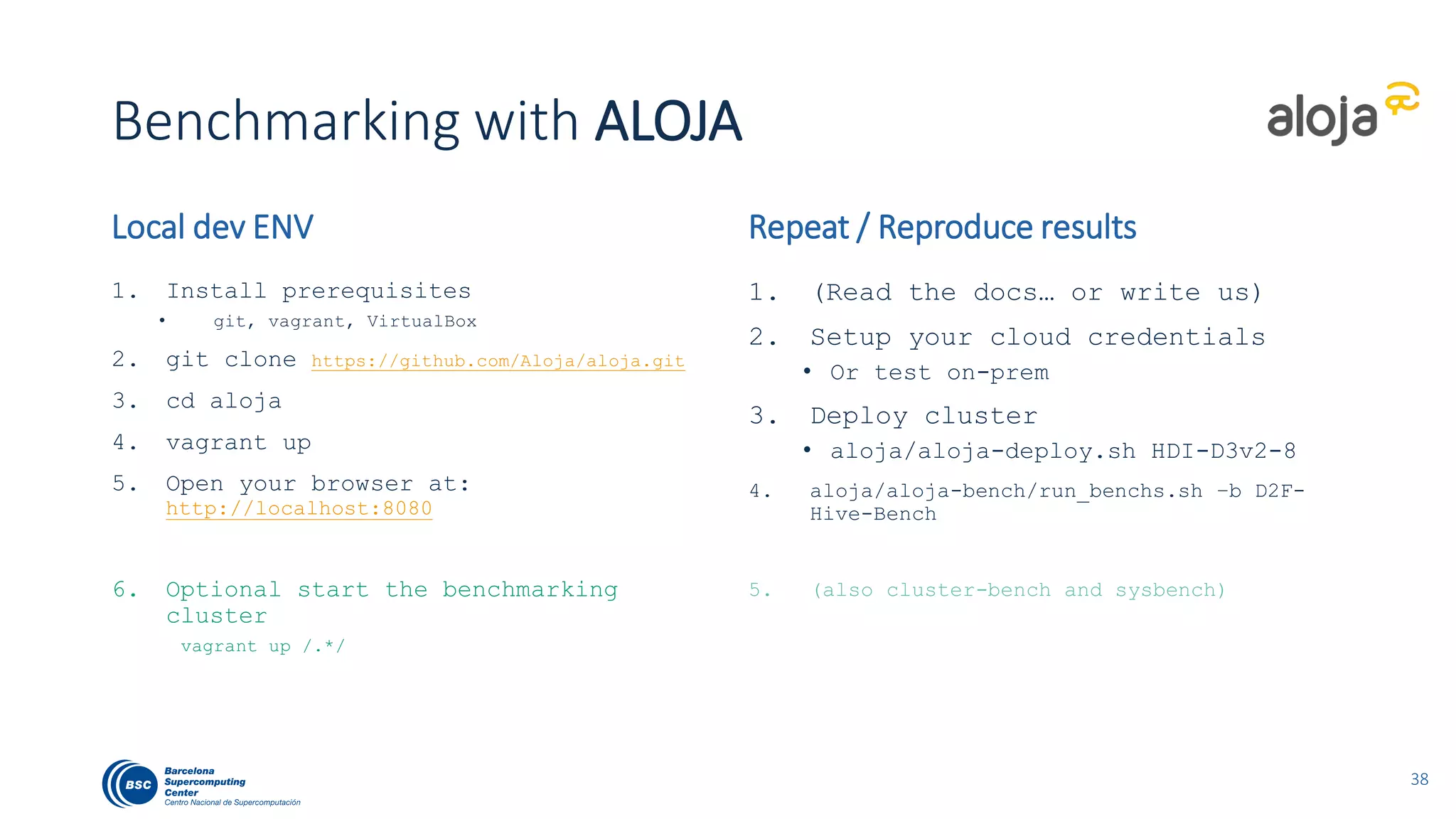

    More info: • Upcomingpublication: • The state of SQL-on-Hadoop in the Cloud • Data release and more in-depth tech analysis • ALOJA Benchmarking platform and online repository • http://aloja.bsc.es http://aloja.bsc.es/publications • SPEC Research Big Data working group • http://research.spec.org/working-groups/big-data-working-group.html
  • 35.
    Thanks, questions? Follow up/ feedback : Nicolas.Poggi@bsc.es Twitter: @ni_po The state of SQL-on-Hadoop in the Cloud
