The Social Semantic Web:ICWSM Tutorial Alexandre Passant John Breslin
Introduction Why is this important?
The Social Web is exploding! image from tinyurl.com/nuketest

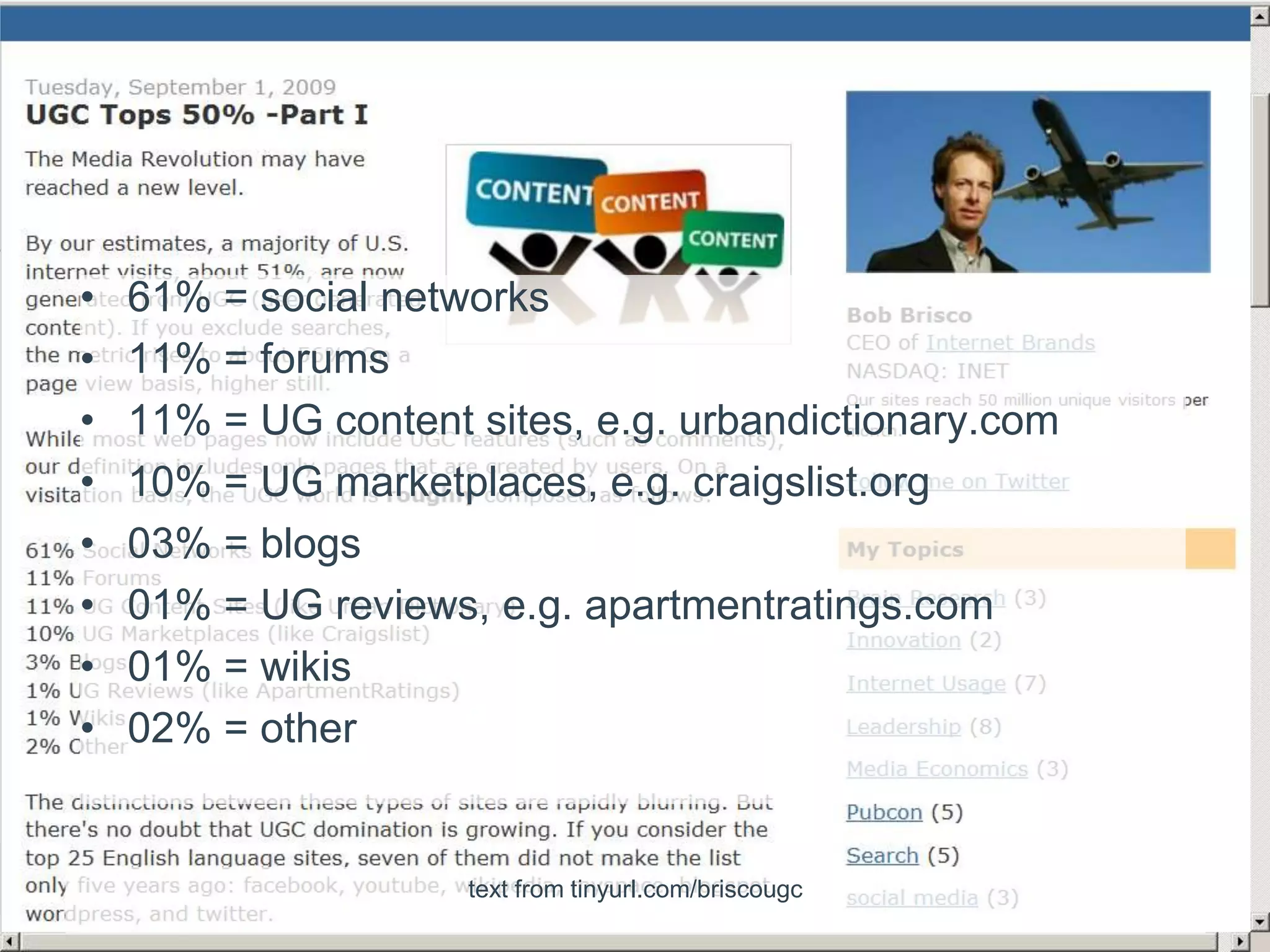

61% = social networks 11% = forums 11% = UG content sites, e.g. urbandictionary.com 10% = UG marketplaces, e.g. craigslist.org 03% = blogs 01% = UG reviews, e.g. apartmentratings.com 01% = wikis 02% = other text from tinyurl.com/briscougc
Sites go up... image from tinyurl.com/rocket15

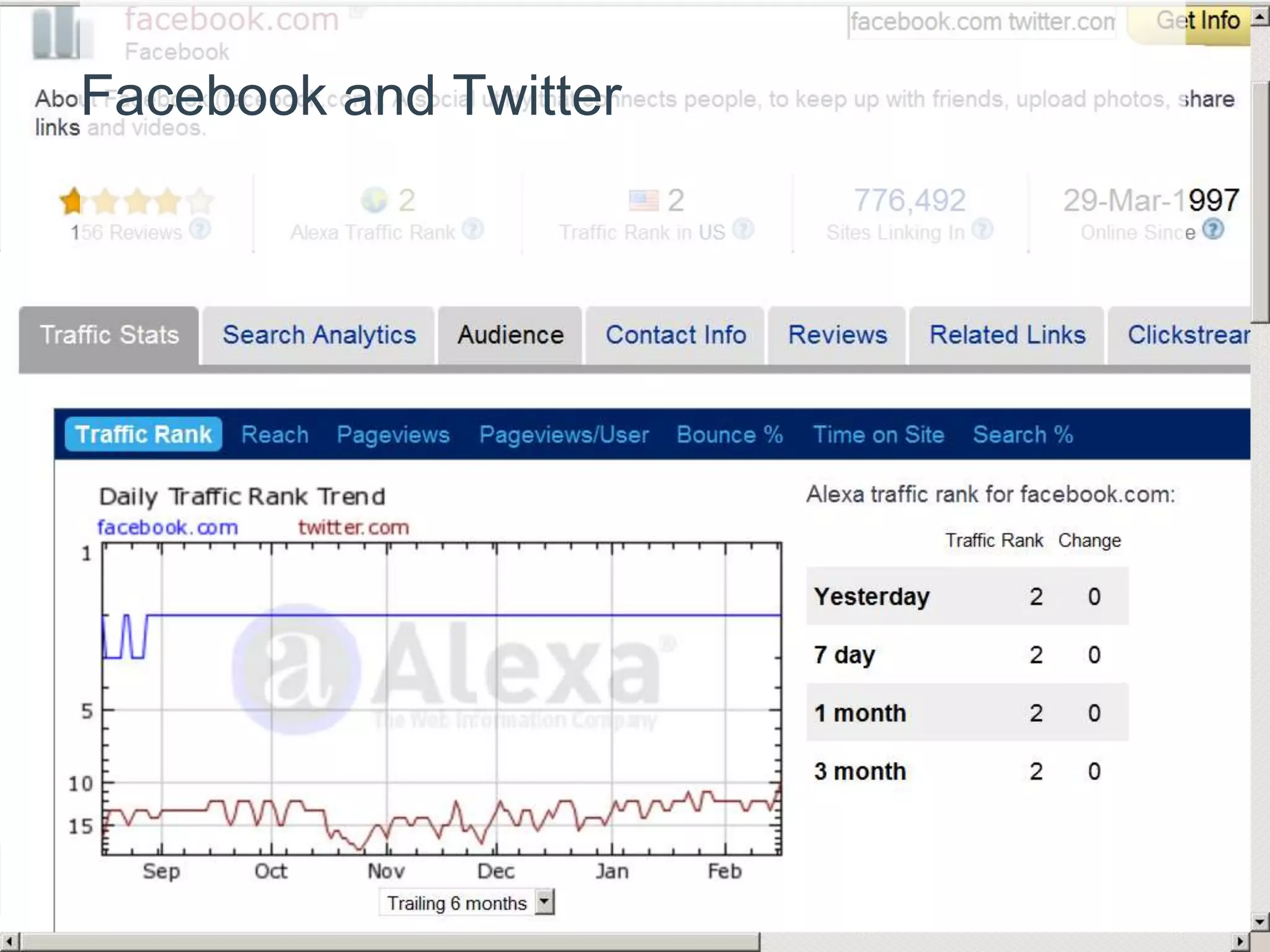

Facebook and Twitter
...and sites come down image from tinyurl.com/elhell

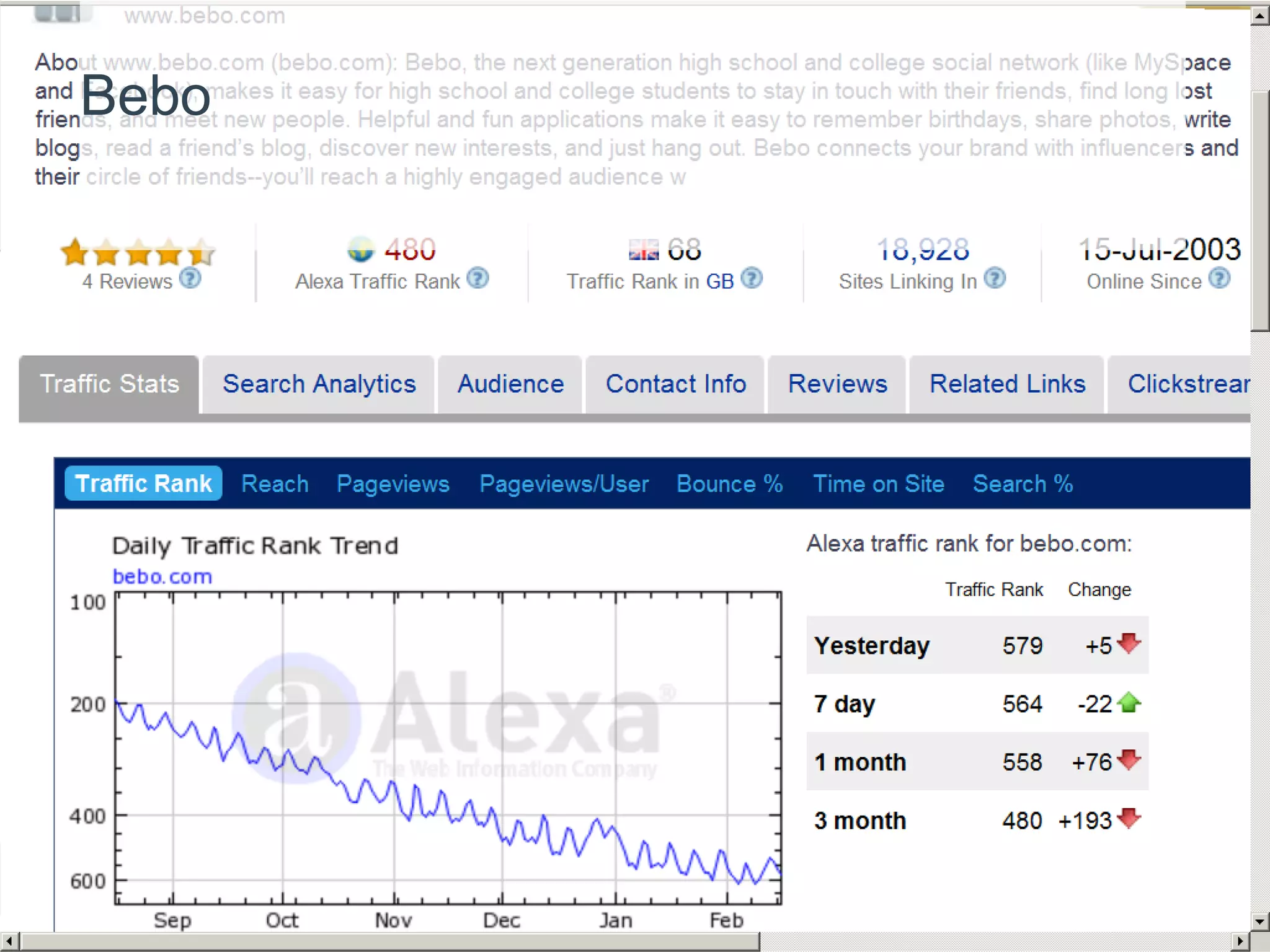

Bebo

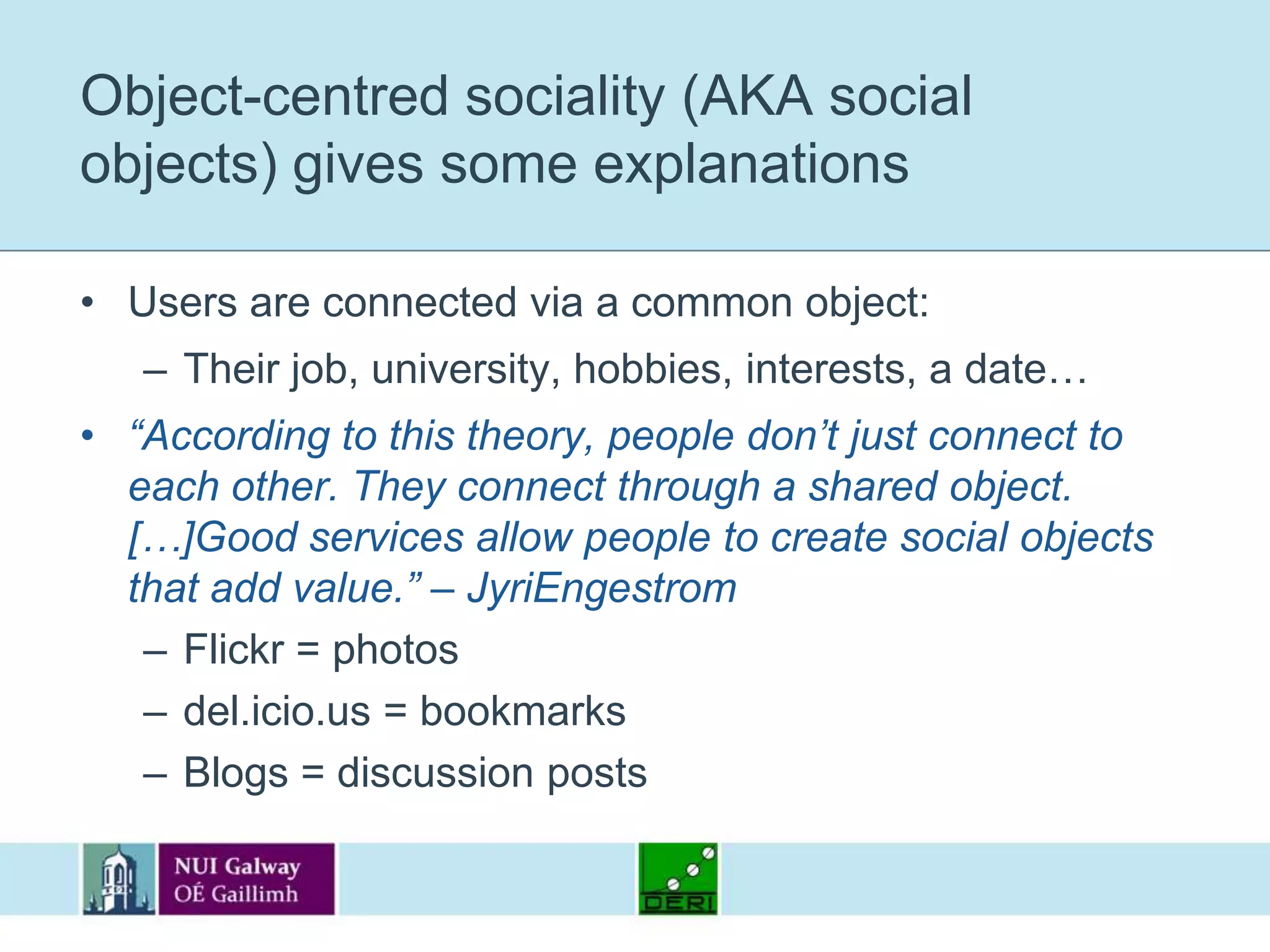

Object-centred sociality (AKA social objects) gives some explanations Users are connected via a common object: Their job, university, hobbies, interests, a date… “According to this theory, people don’t just connect to each other. They connect through a shared object. […]Good services allow people to create social objects that add value.” – JyriEngestrom Flickr = photos del.icio.us = bookmarks Blogs = discussion posts

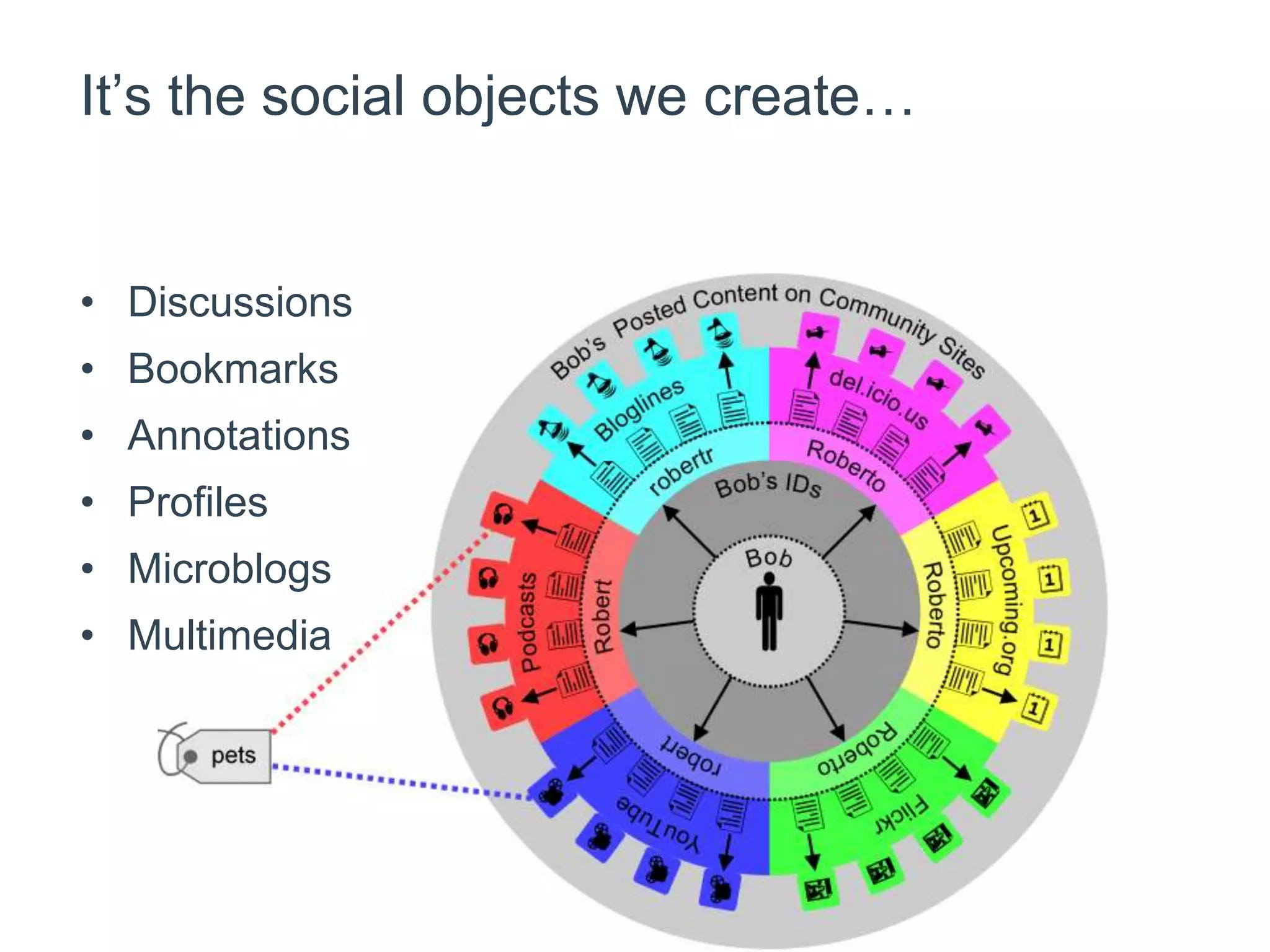

It’s the social objects we create… Discussions Bookmarks Annotations Profiles Microblogs Multimedia
…that connect usto other people
Boom!
image from tinyurl.com/orionw The amount of stuff out there is vast
Social websites are like data silos image from pidgintech.com
Many isolated communities of users and their data image from pidgintech.com
Need ways to connect these islands image from pidgintech.com
Allowing users to easily move from one to another image from pidgintech.com
Enabling users to easily bring their data with them image from pidgintech.com

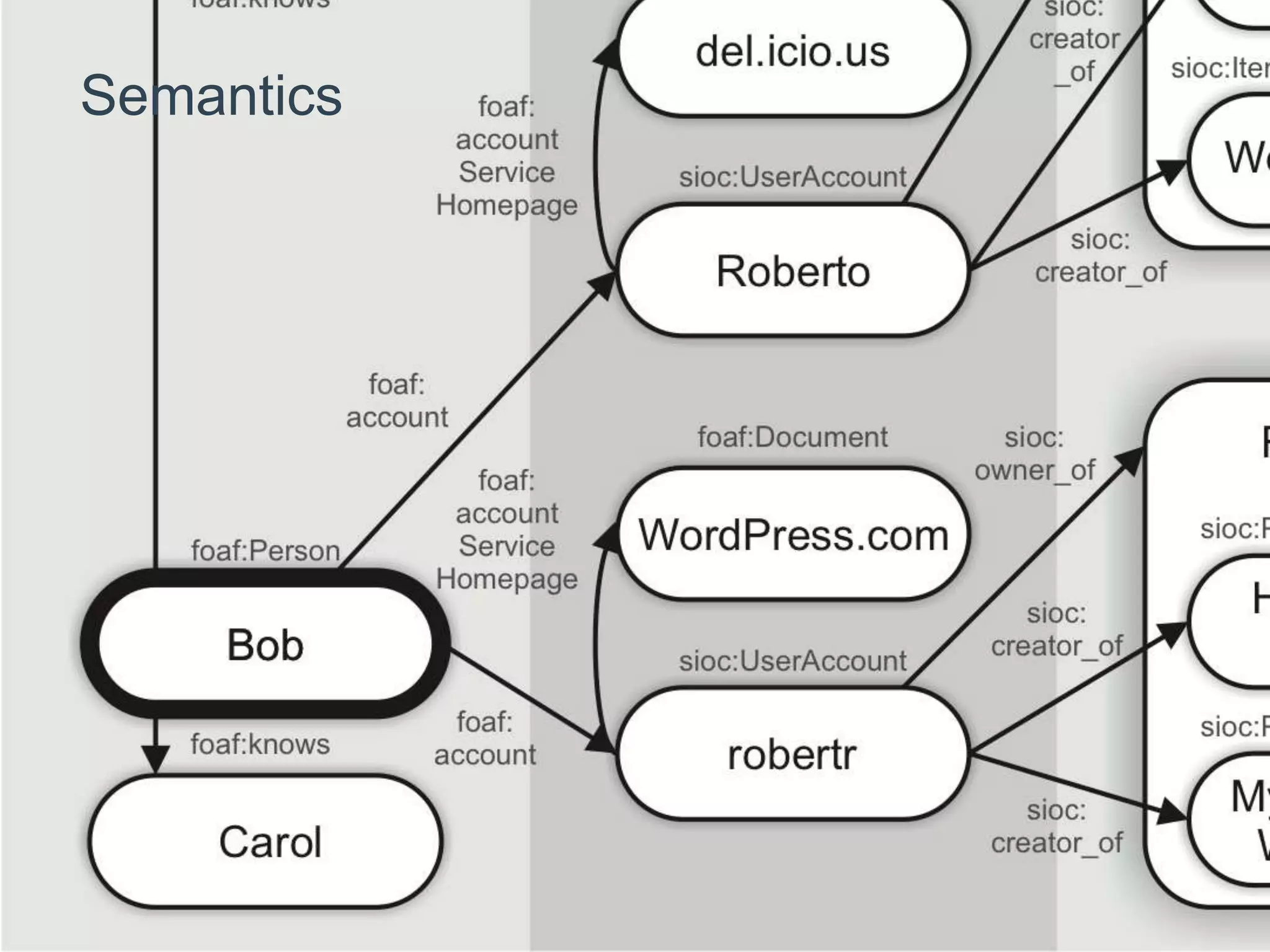

Semantics
The Semantic Web A brief overview

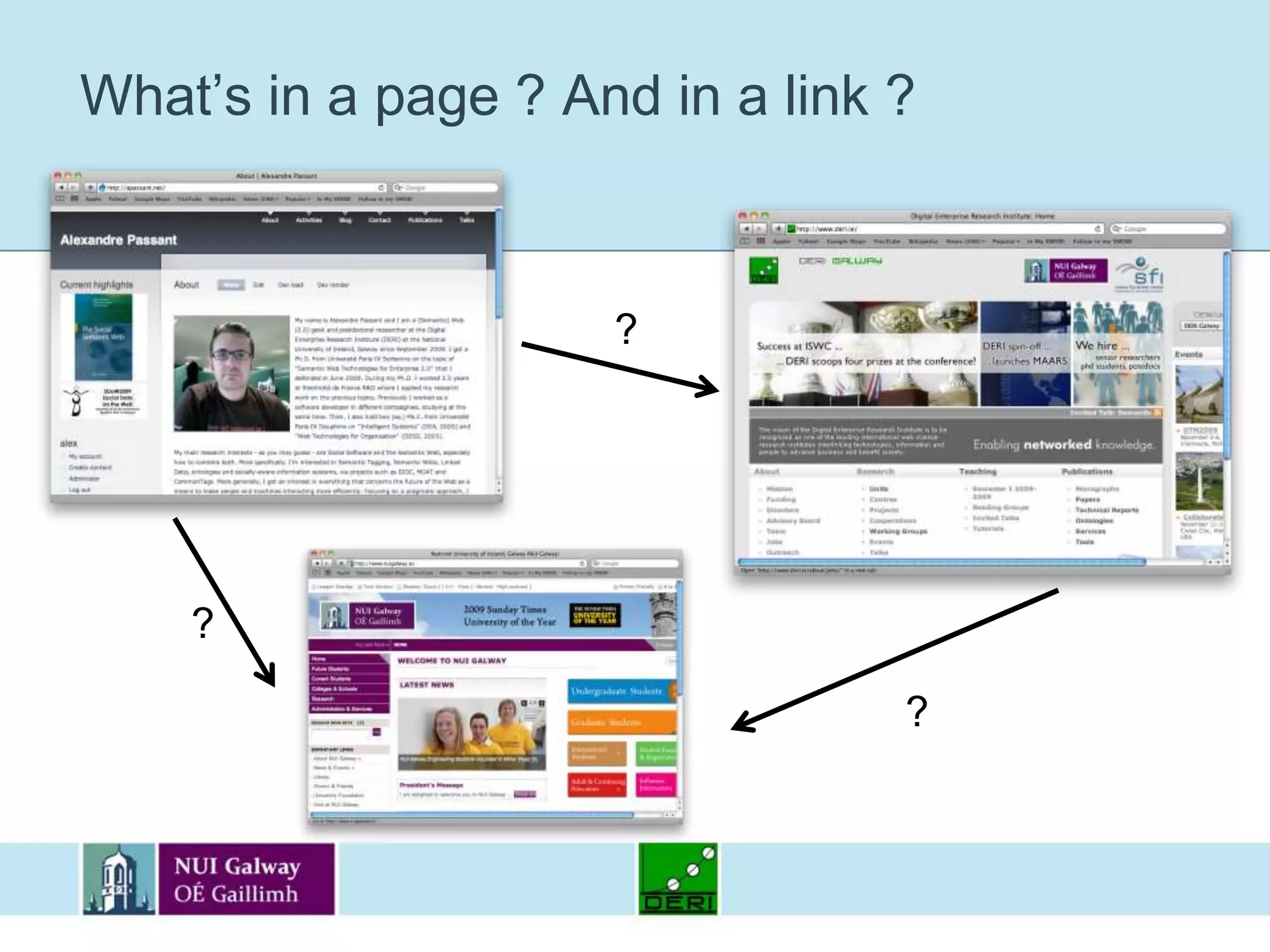

What’s in a page ? And in a link ? ? ? ?

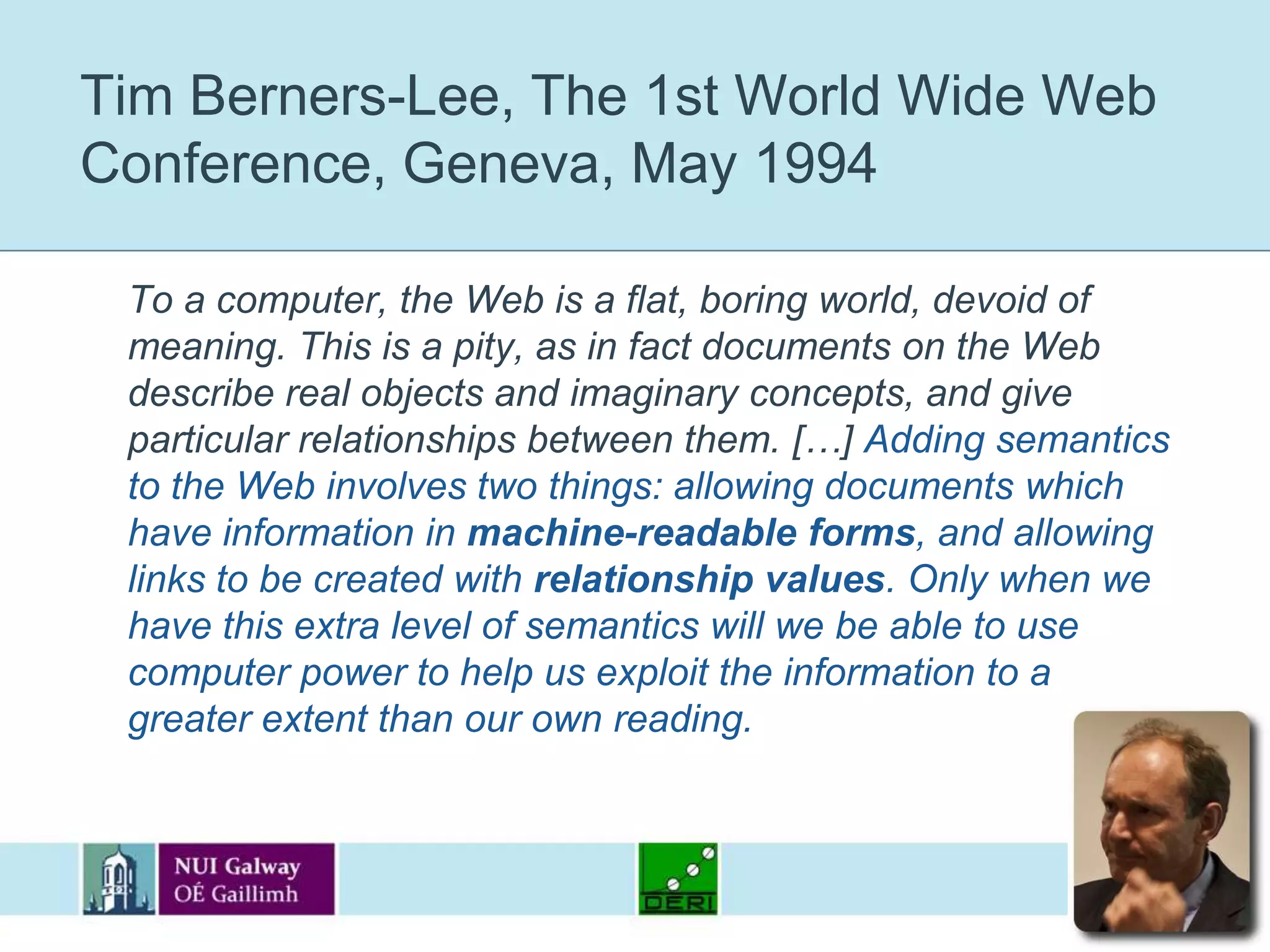

Tim Berners-Lee, The 1st World Wide Web Conference, Geneva, May 1994 	To a computer, the Web is a flat, boring world, devoid of meaning. This is a pity, as in fact documents on the Web describe real objects and imaginary concepts, and give particular relationships between them. […] Adding semantics to the Web involves two things: allowing documents which have information in machine-readable forms, and allowing links to be created with relationship values. Only when we have this extra level of semantics will we be able to use computer power to help us exploit the information to a greater extent than our own reading.
Aims of the Semantic Web Bridging the gap between a Web of Documents to a Web of Data, with typed objects and typed relationships Adding machine-readable metadata to existing content, so that information can be parsed, queried, reused Defining shared semantics for this metadata to allow interoperability between applications and for advanced purposes, such as reasoning Enabling machine-readable knowledge at Web scale, making information more easy to find and process
A bit of history Memex, Vannevar Bush, 1945: “A device in which an individual stores all his books, records, and communications.” Augmenting Human Intellect, Douglas Engelbart, 1960:  “By ‘augmenting human intellect’ we mean increasing the capability of a man to approach a complex problem situation, to gain comprehension to suit his particular needs, and to derive solutions to problems.”

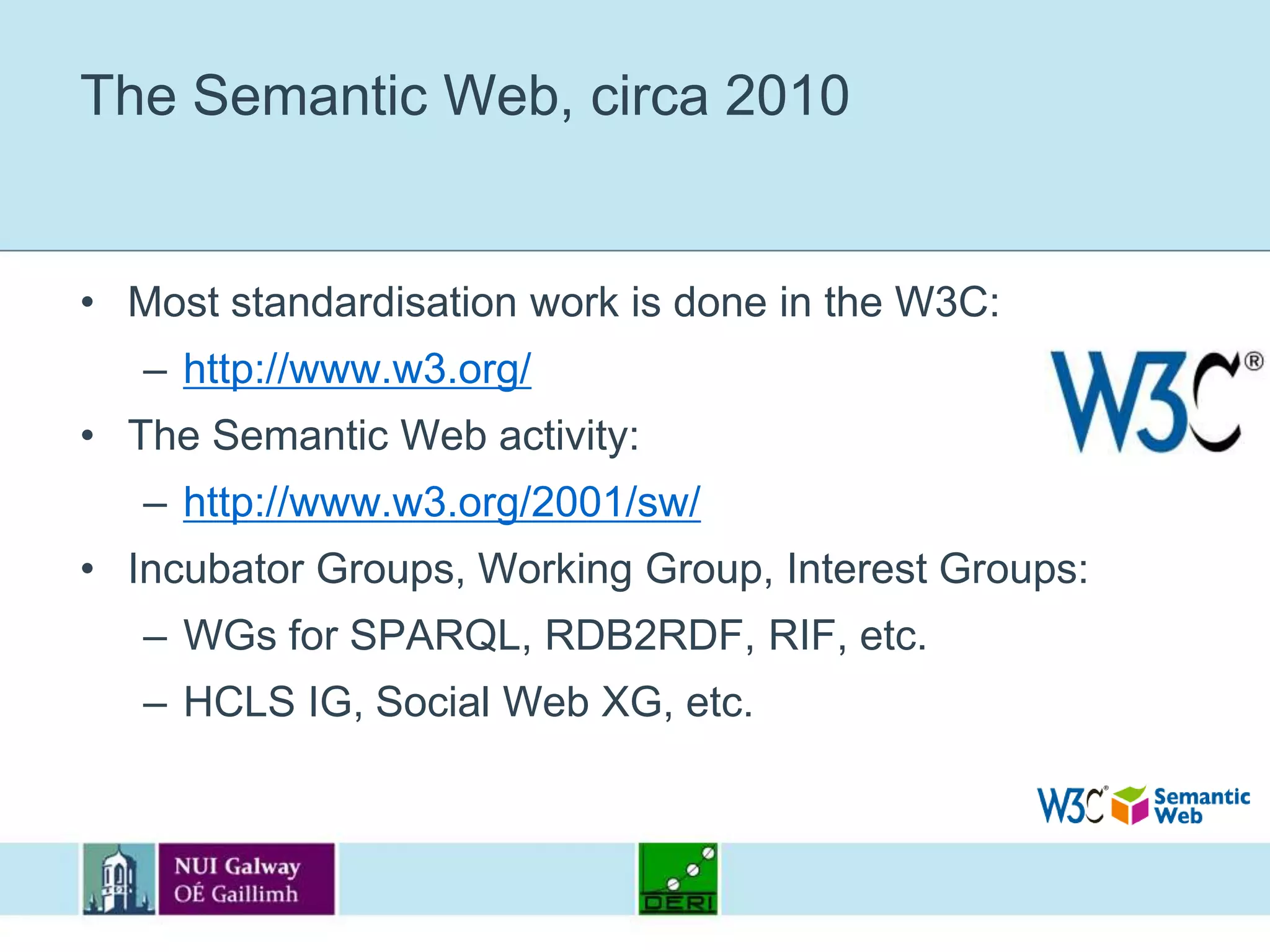

The Semantic Web, circa 2010 Most standardisation work is done in the W3C: http://www.w3.org/ The Semantic Web activity: http://www.w3.org/2001/sw/ Incubator Groups, Working Group, Interest Groups: WGs for SPARQL, RDB2RDF, RIF, etc. HCLS IG, Social Web XG, etc.

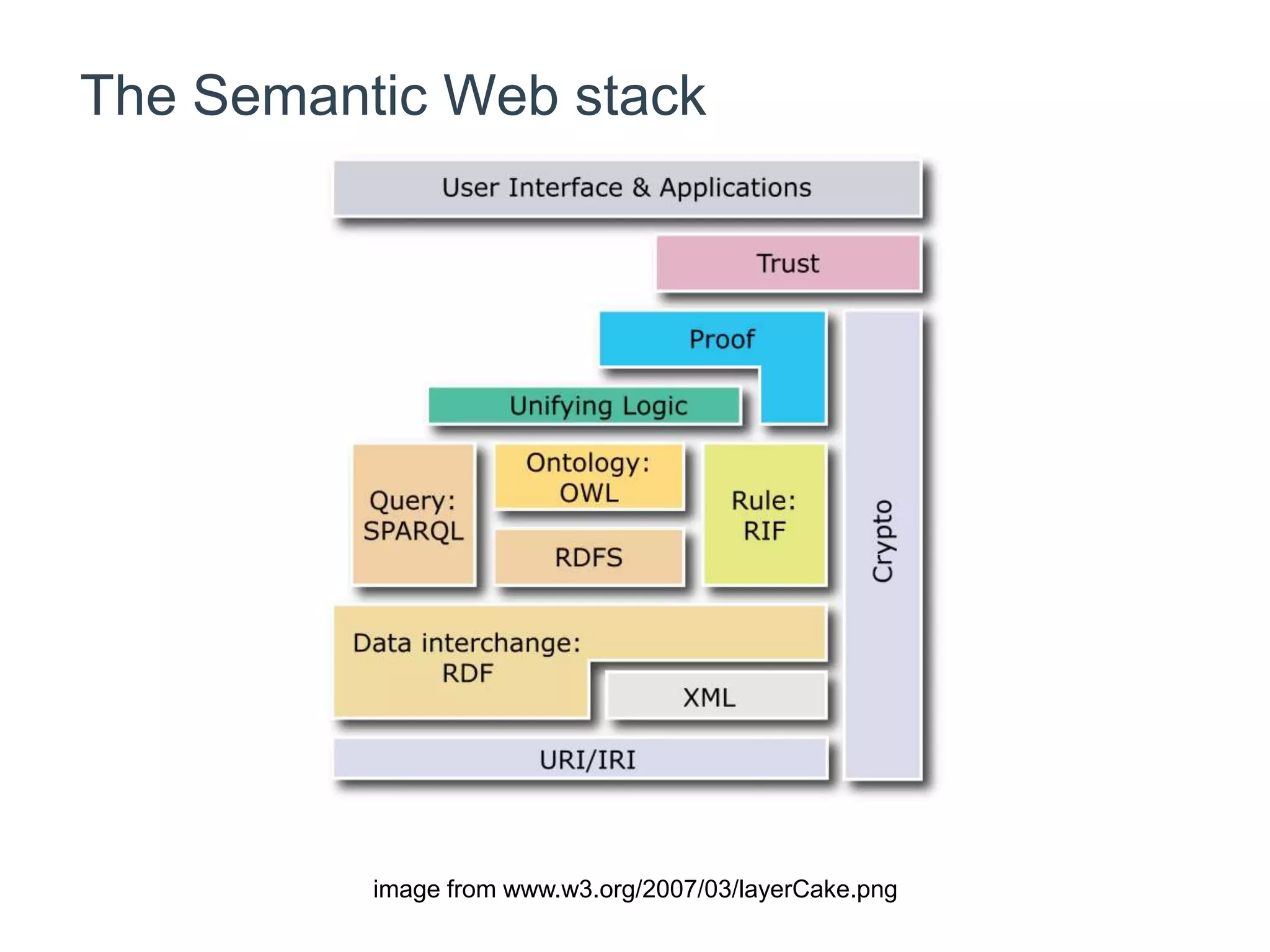

image from www.w3.org/2007/03/layerCake.png The Semantic Web stack
Identifying resources with URIs URIs are used to identify everything in a unique and non-ambiguous way: Not only pages (as on the current Web), but any resource (people, documents, books, interests, etc.) A URI for a person is different from a URI for a document about the person, because a person is not a document! e.g. http://dbpedia.org/resource/Galway

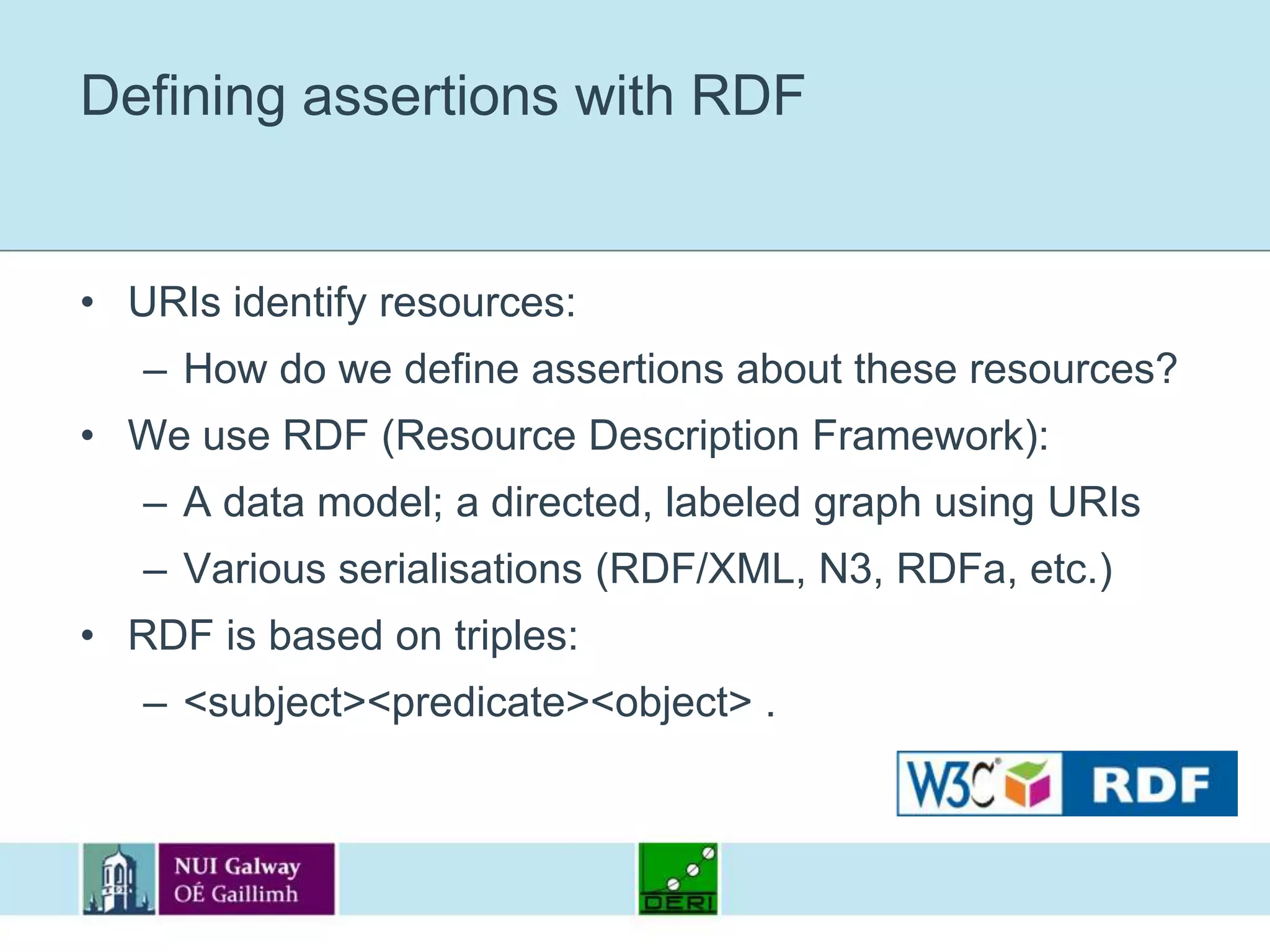

Defining assertions with RDF URIs identify resources: How do we define assertions about these resources? We use RDF (Resource Description Framework): A data model; a directed, labeled graph using URIs Various serialisations (RDF/XML, N3, RDFa, etc.) RDF is based on triples: <subject> <predicate> <object> .
RDF by example @prefix dct: <http://purl.org/dc/terms/> .  <http://example.org/dm110-semweb> dct:title“Introduction to the Semantic Web” ; dct:author <http://apassant.net/alex> ; dct:subject <http://dbpedia.org/resource/Semantic_Web> .

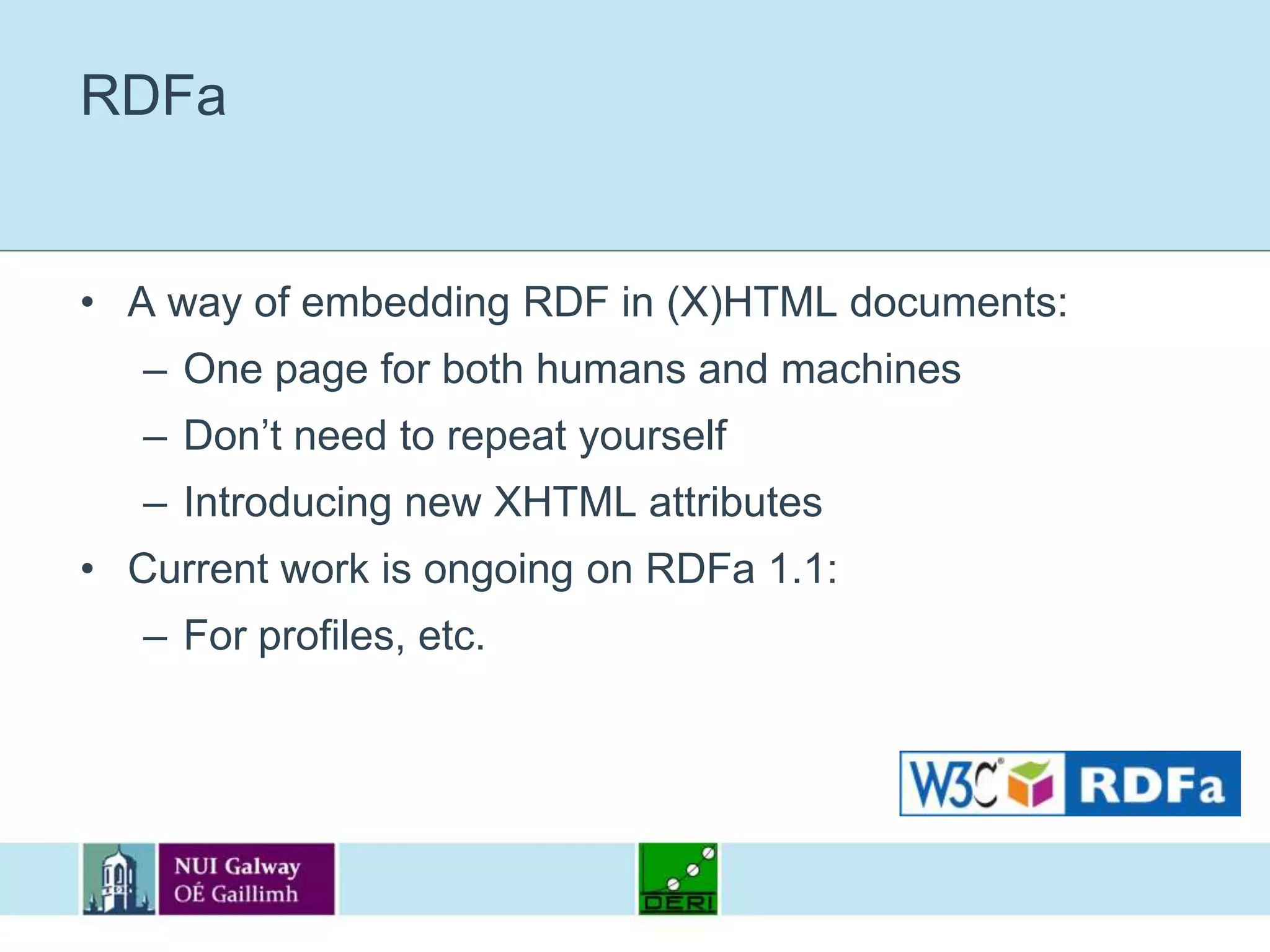

RDFa A way of embedding RDF in (X)HTML documents: One page for both humans and machines Don’t need to repeat yourself Introducing new XHTML attributes Current work is ongoing on RDFa 1.1: For profiles, etc.
RDFa example
Defining semantics with ontologies RDF provides a way to write assertions about URIs: But what about the semantics of these assertions, e.g. to state that http://xmlns.com/foaf/0.1/knows identifies an acquaintance relationship? Ontologies provide common semantics for resources on the Semantic Web: “An ontology is a specification of a conceptualization” RDFS and OWL have different expressiveness levels

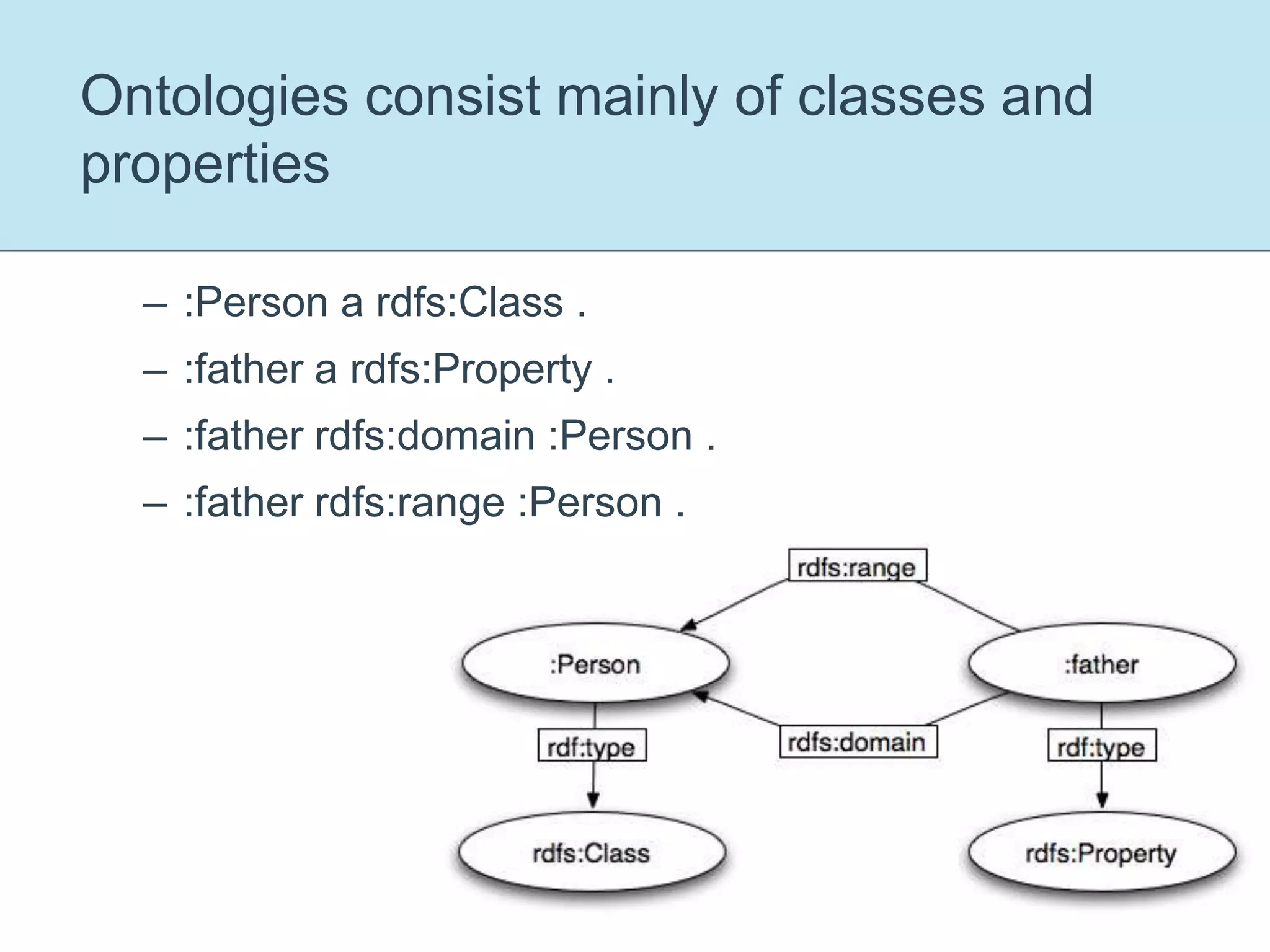

Ontologies consist mainly of classes and properties :Person a rdfs:Class . :father a rdfs:Property . :father rdfs:domain :Person . :father rdfs:range :Person .
Metadata and ontologies

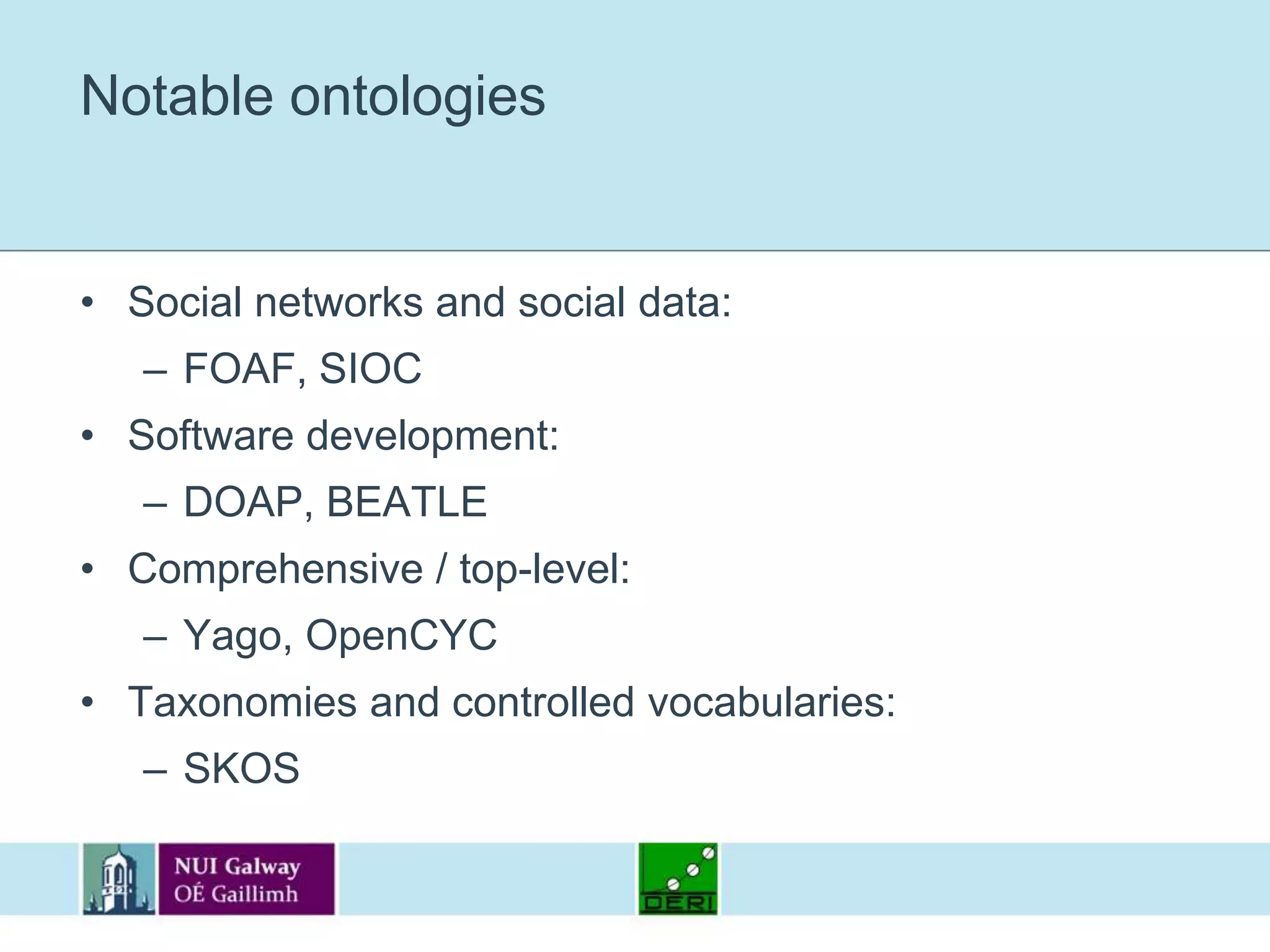

Notable ontologies Social networks and social data:  FOAF, SIOC Software development:  DOAP, BEATLE Comprehensive / top-level:  Yago, OpenCYC Taxonomies and controlled vocabularies:  SKOS

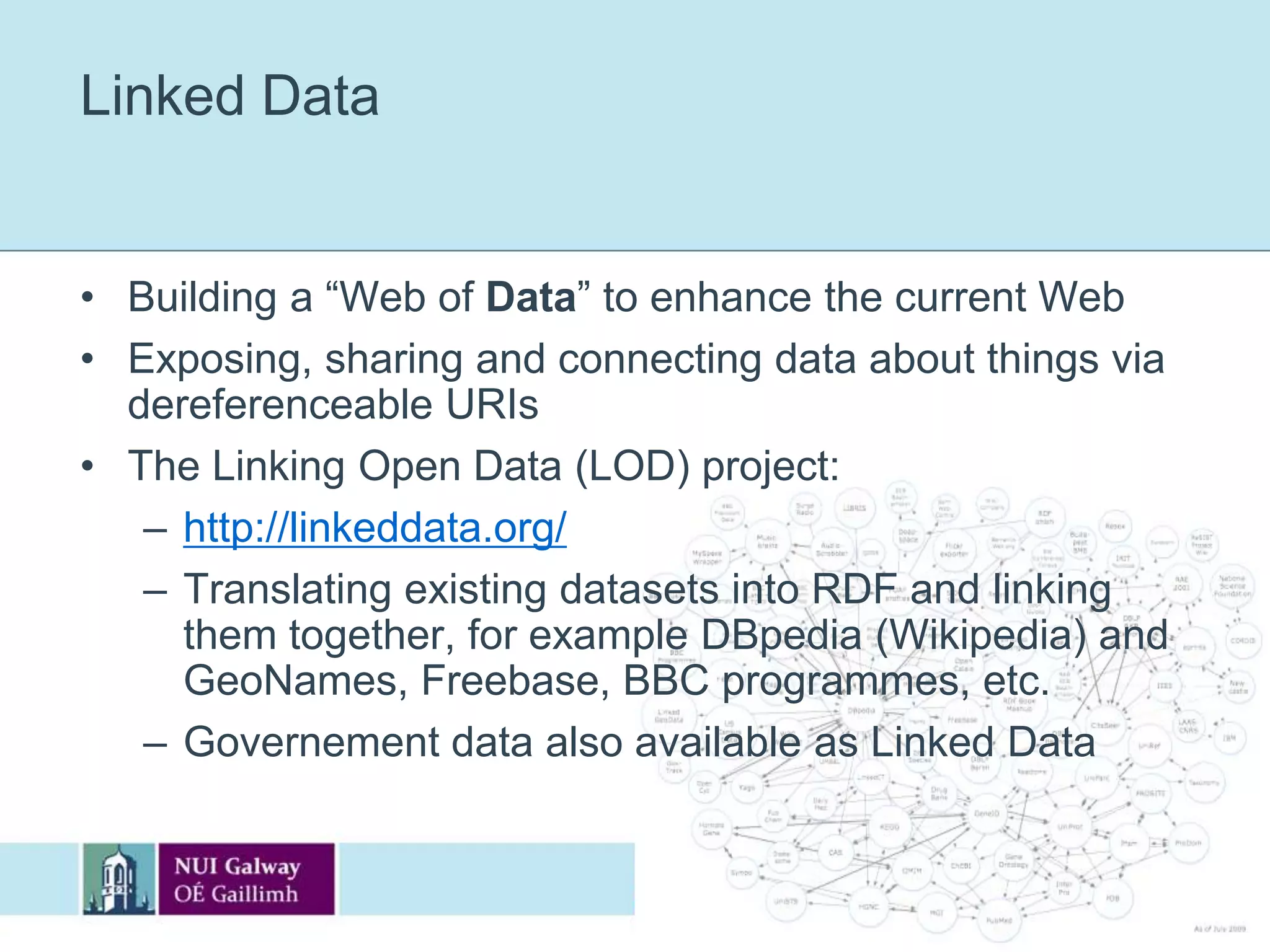

Linked Data Building a “Web of Data” to enhance the current Web Exposing, sharing and connecting data about things via dereferenceable URIs The Linking Open Data (LOD) project: http://linkeddata.org/ Translating existing datasets into RDF and linking them together, for example DBpedia (Wikipedia) and GeoNames, Freebase, BBC programmes, etc. Governement data also available as Linked Data

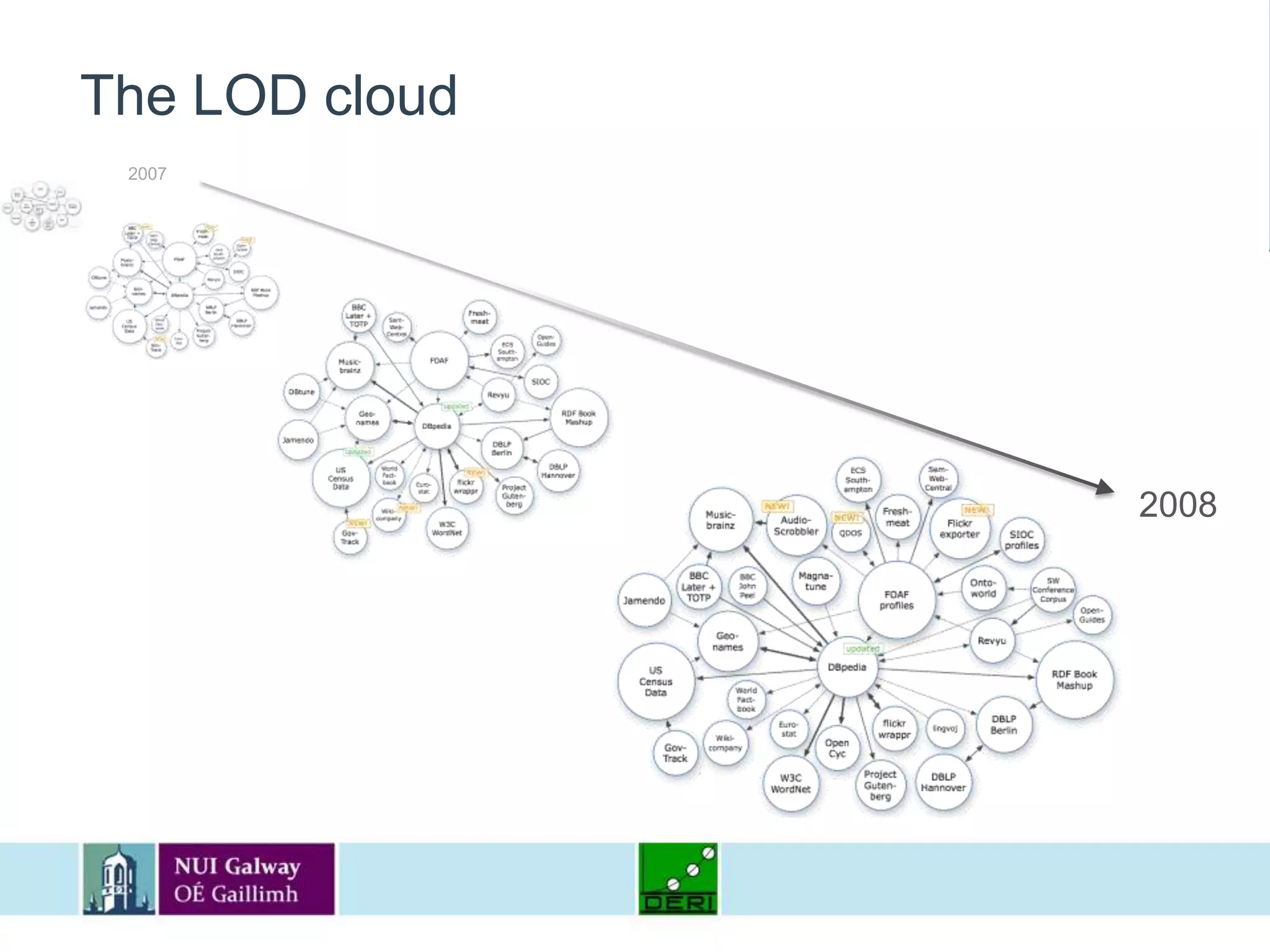

The LOD cloud 2007 2008

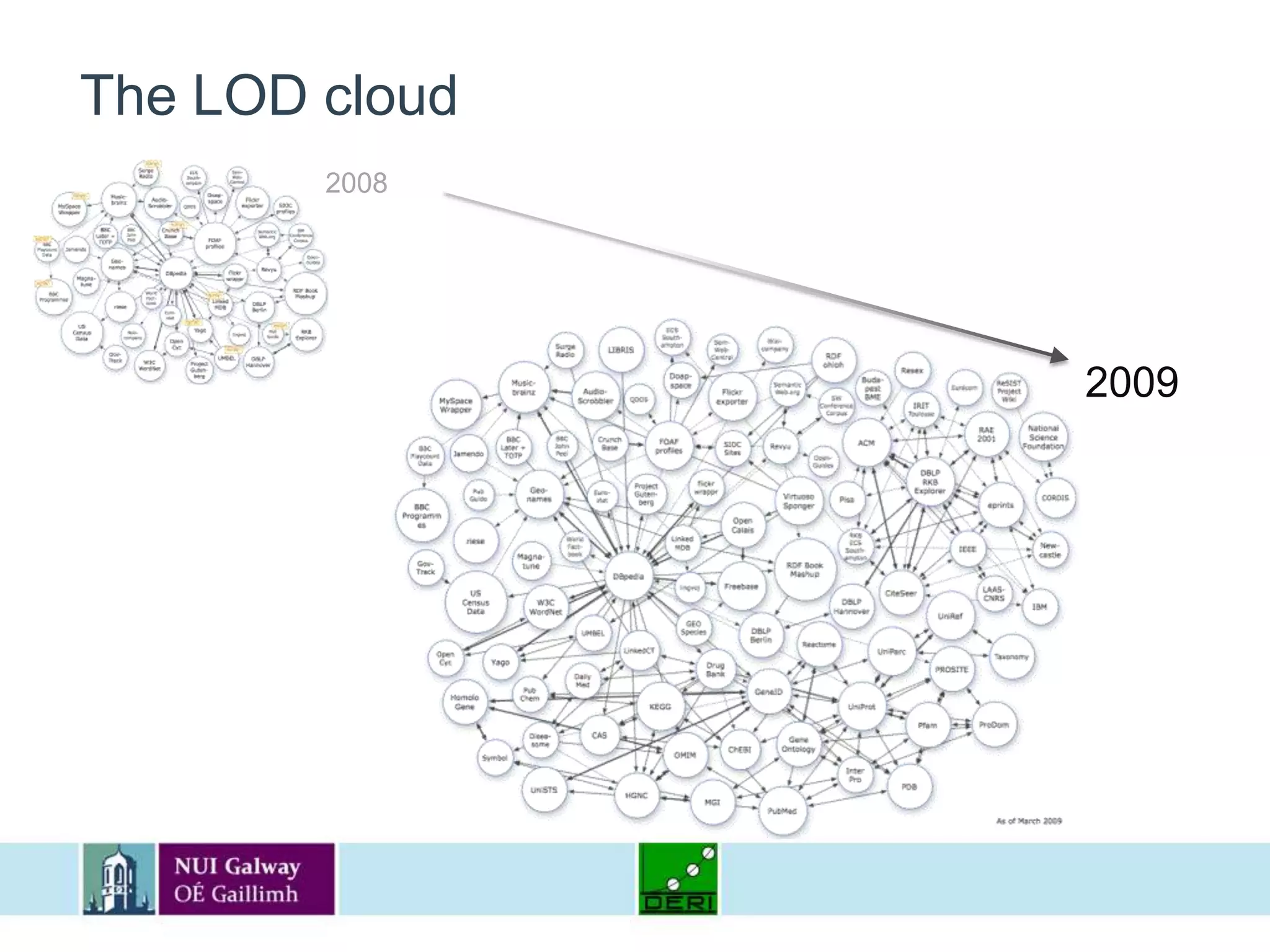

The LOD cloud 2008 2009

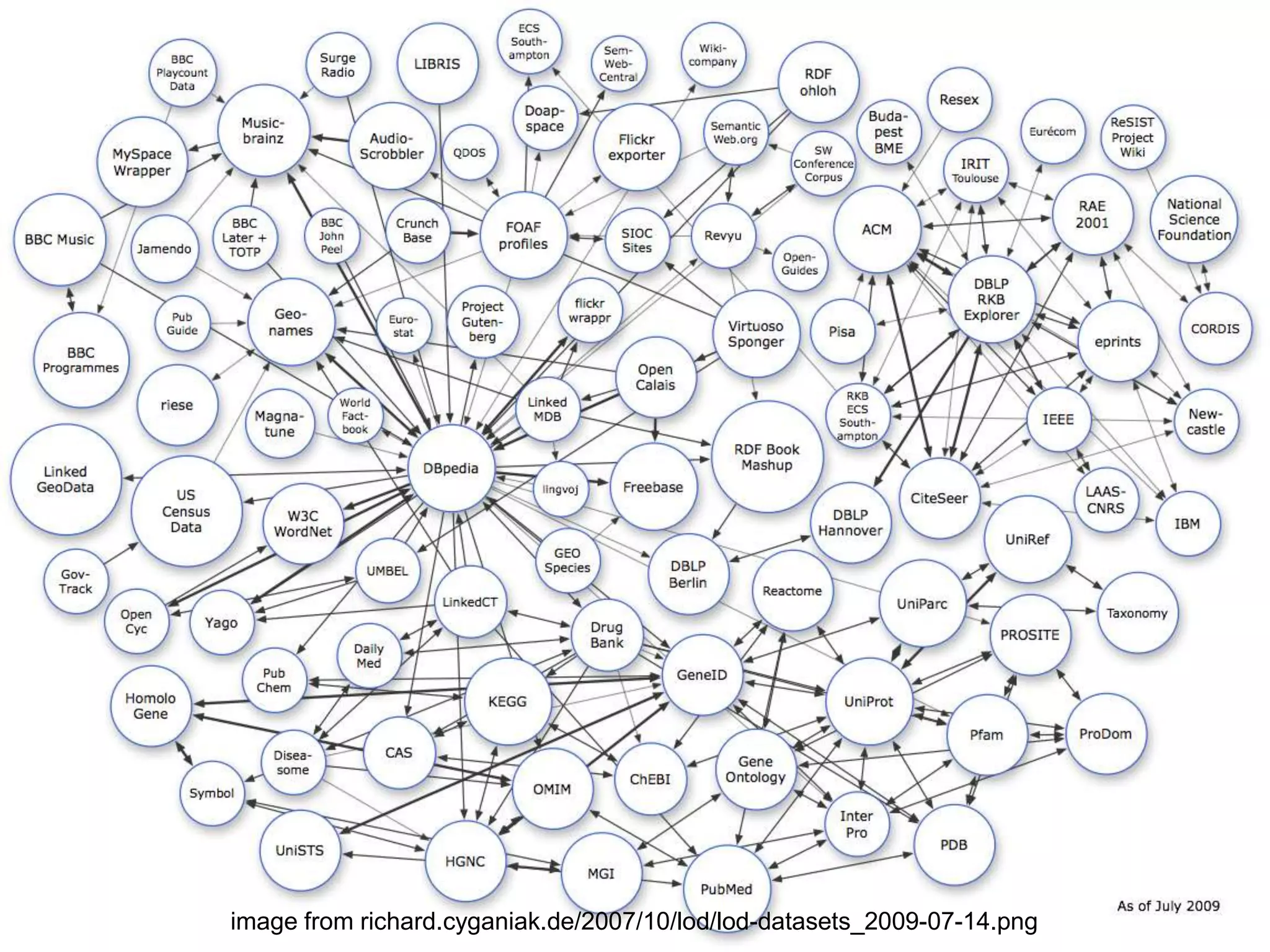

image from richard.cyganiak.de/2007/10/lod/lod-datasets_2009-07-14.png

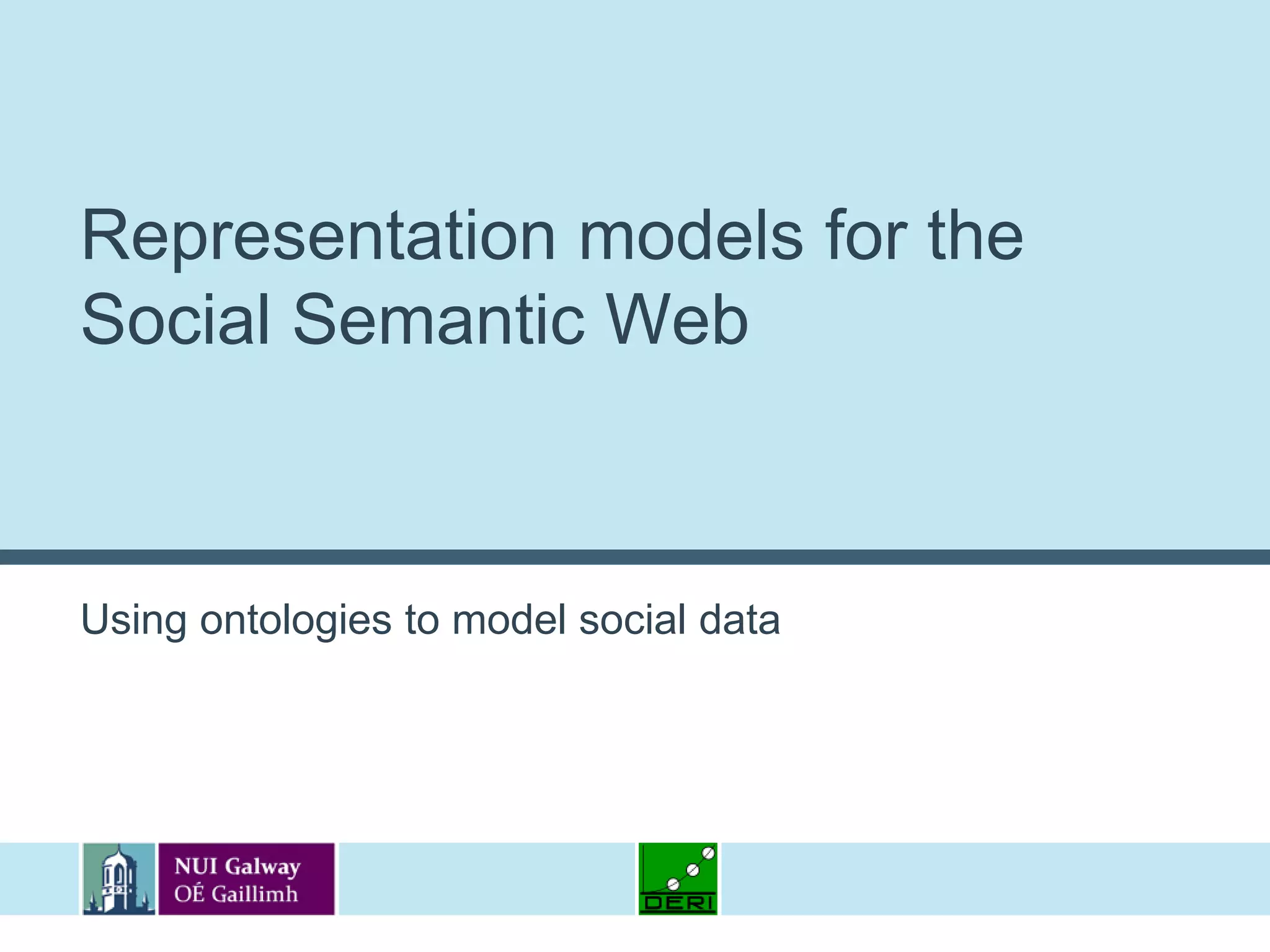

Representation models for the Social Semantic Web Using ontologies to model social data

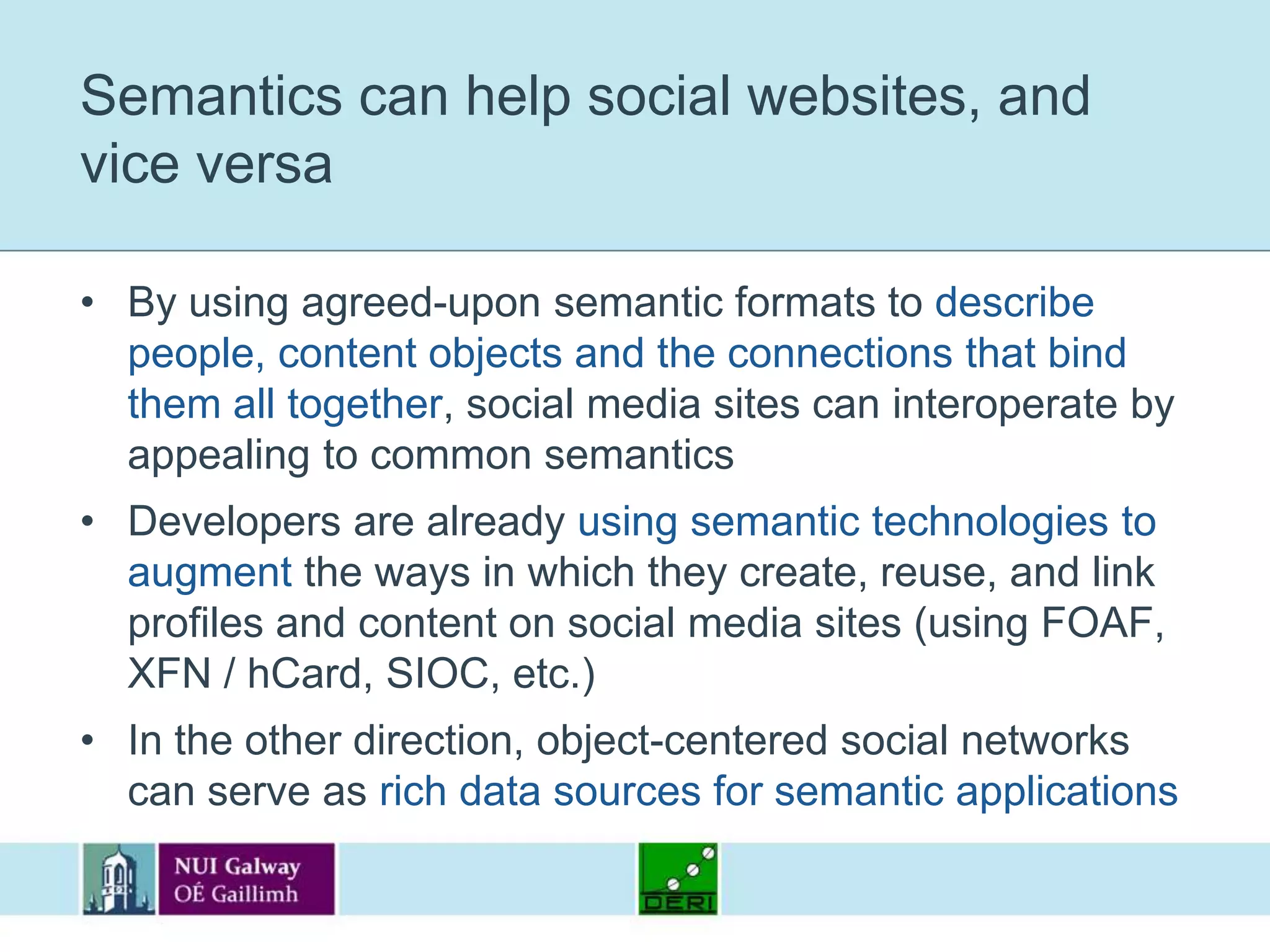

Semantics can help social websites, and vice versa By using agreed-upon semantic formats to describe people, content objects and the connections that bind them all together, social media sites can interoperate by appealing to common semantics Developers are already using semantic technologies to augment the ways in which they create, reuse, and link profiles and content on social media sites (using FOAF, XFN / hCard, SIOC, etc.) In the other direction, object-centered social networks can serve as rich data sources for semantic applications

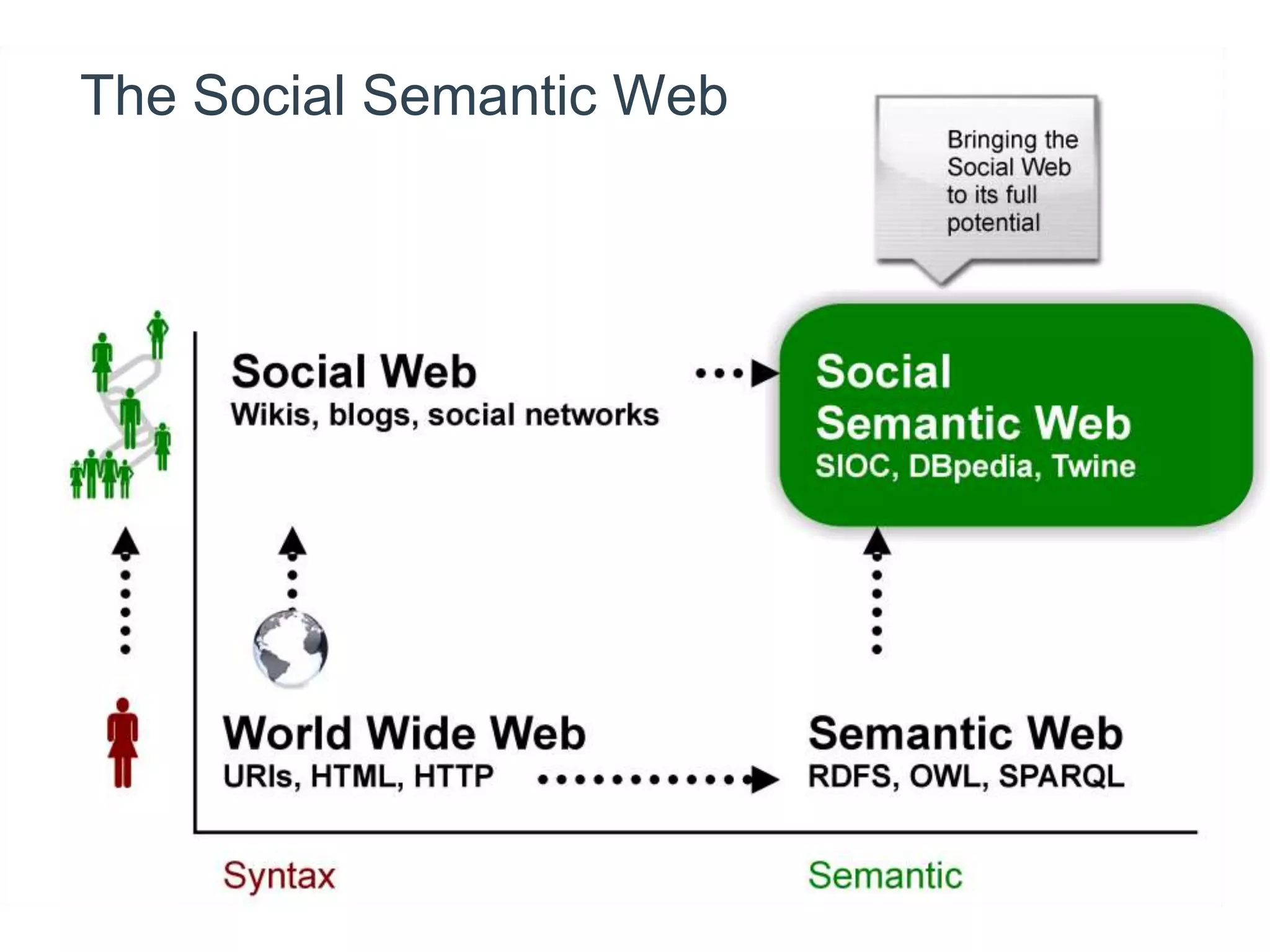

The Social Semantic Web
FOAF Friend Of A Friend

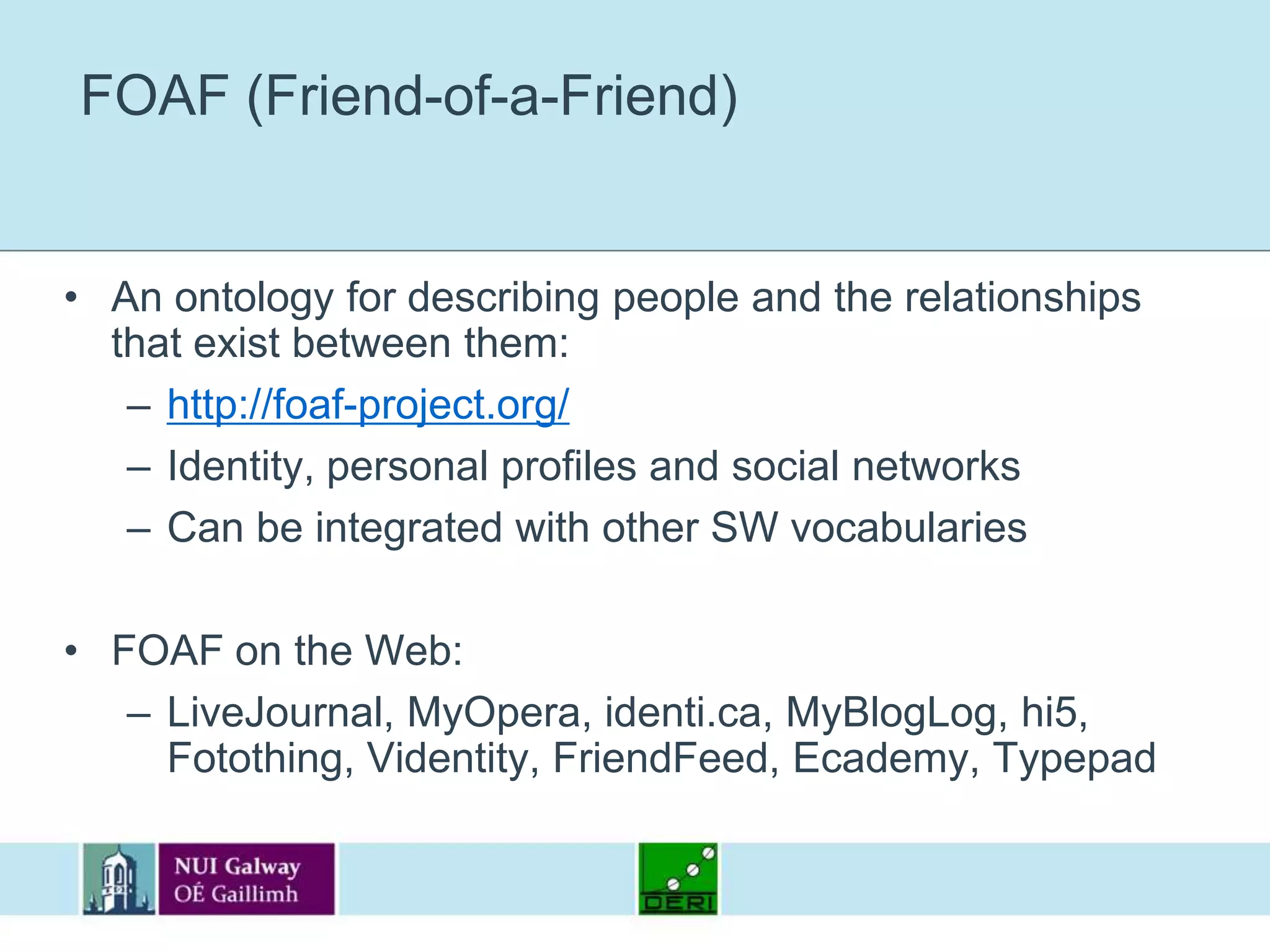

FOAF (Friend-of-a-Friend) An ontology for describing people and the relationships that exist between them: http://foaf-project.org/ Identity, personal profiles and social networks Can be integrated with other SW vocabularies FOAF on the Web: LiveJournal, MyOpera, identi.ca, MyBlogLog, hi5, Fotothing, Videntity, FriendFeed, Ecademy, Typepad

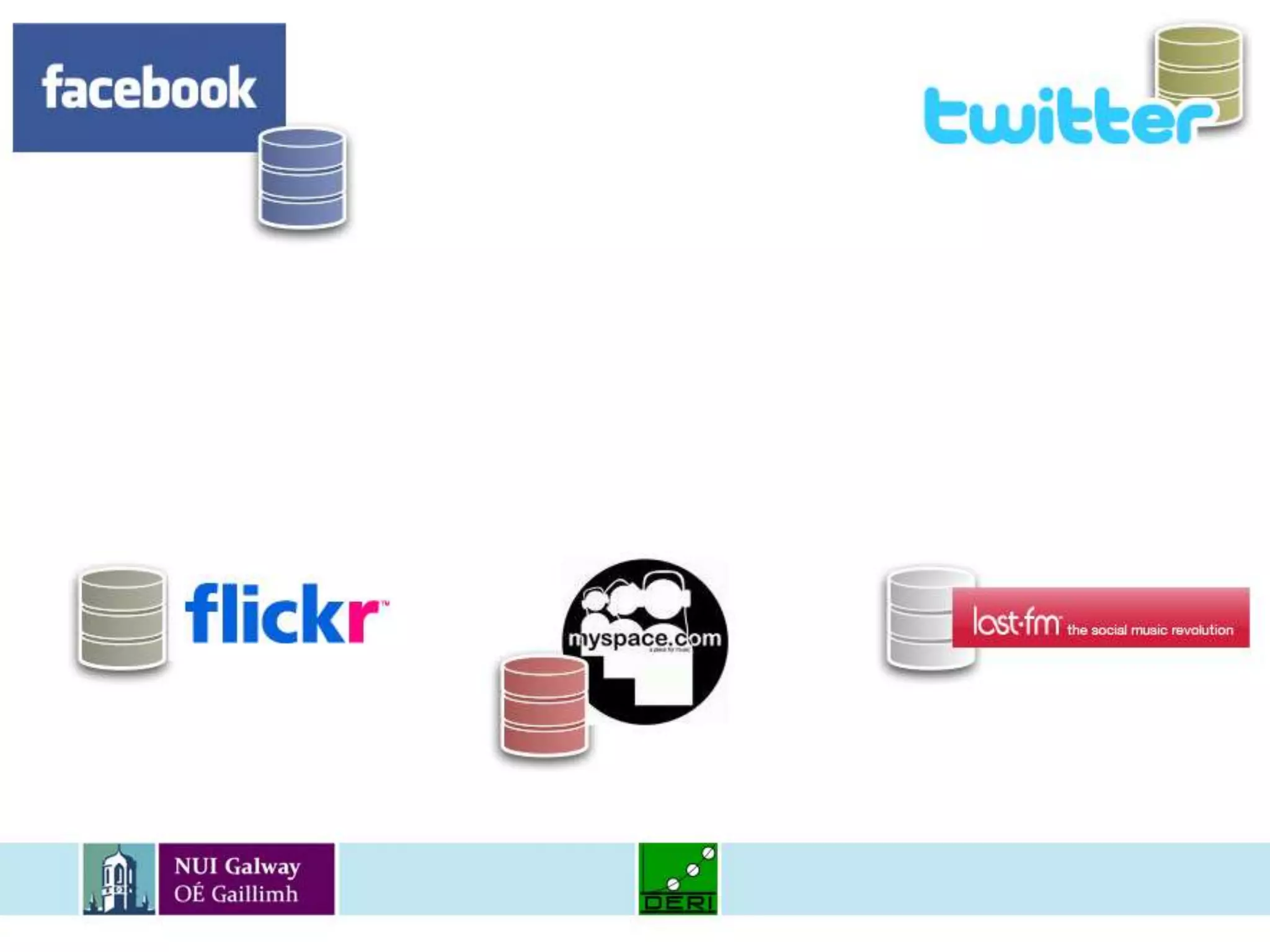

FOAF (Friend-of-a-Friend)
FOAF (Friend-of-a-Friend)

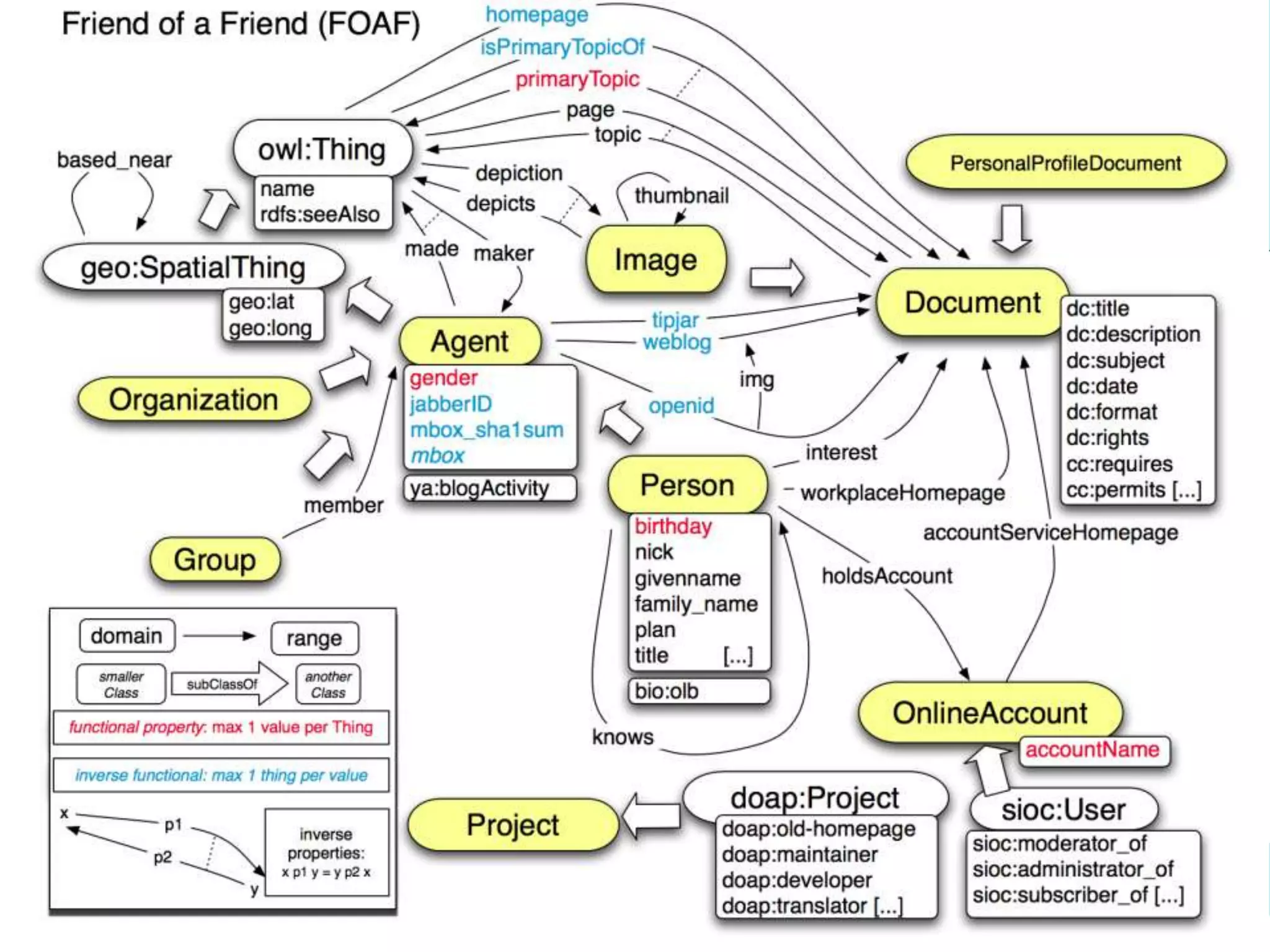

FOAF at a glance

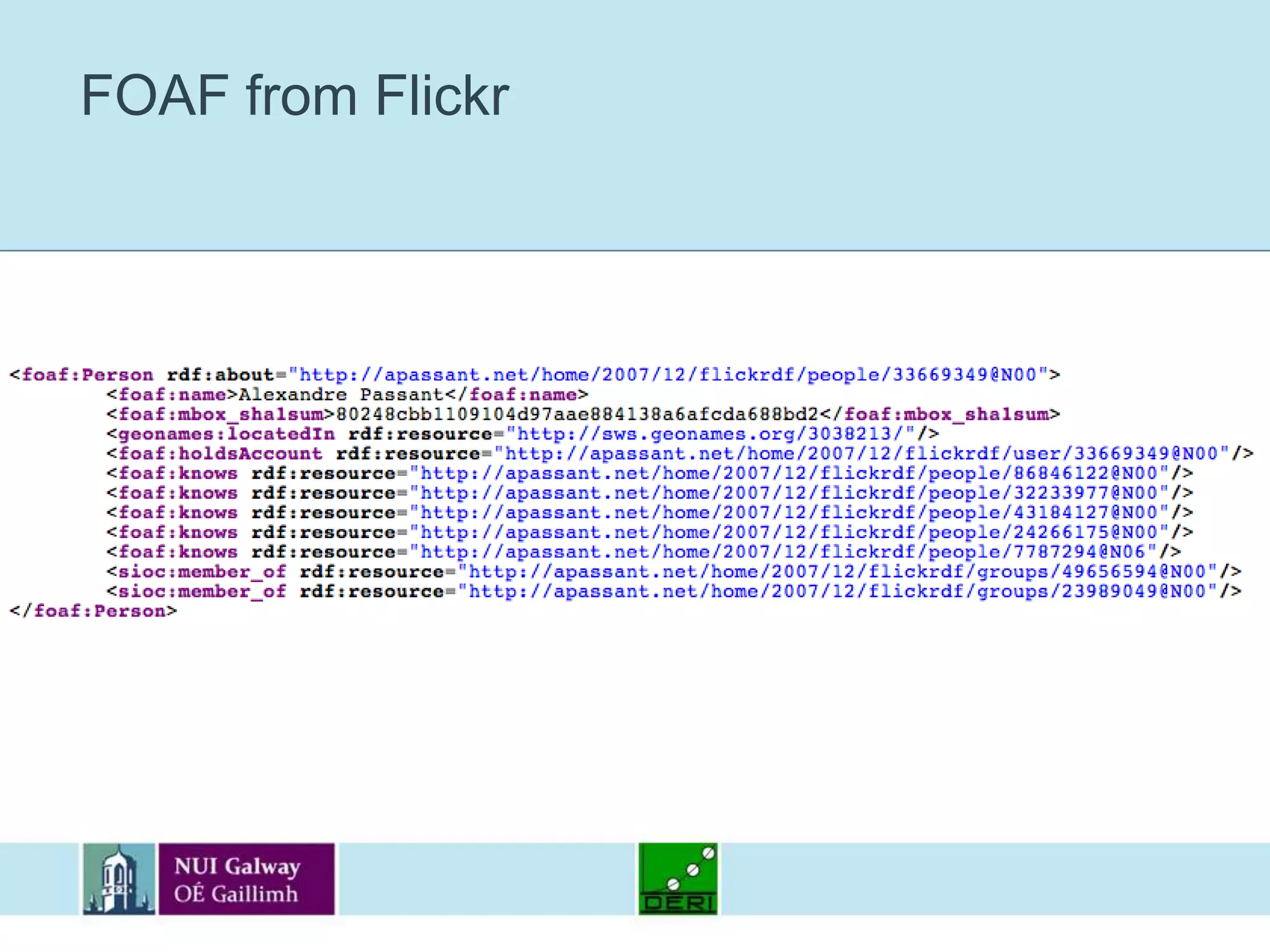

FOAF from Flickr

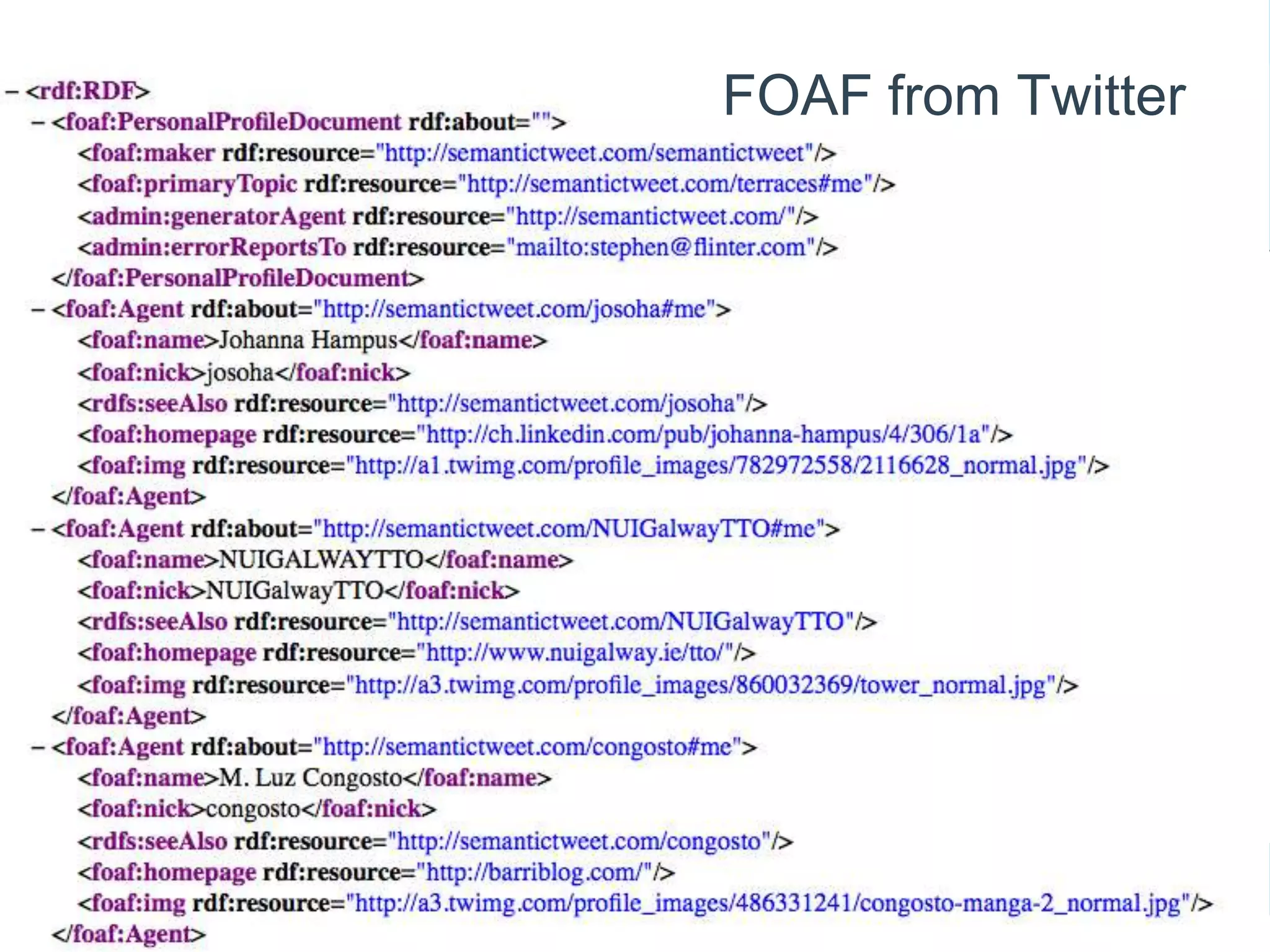

FOAF from Twitter

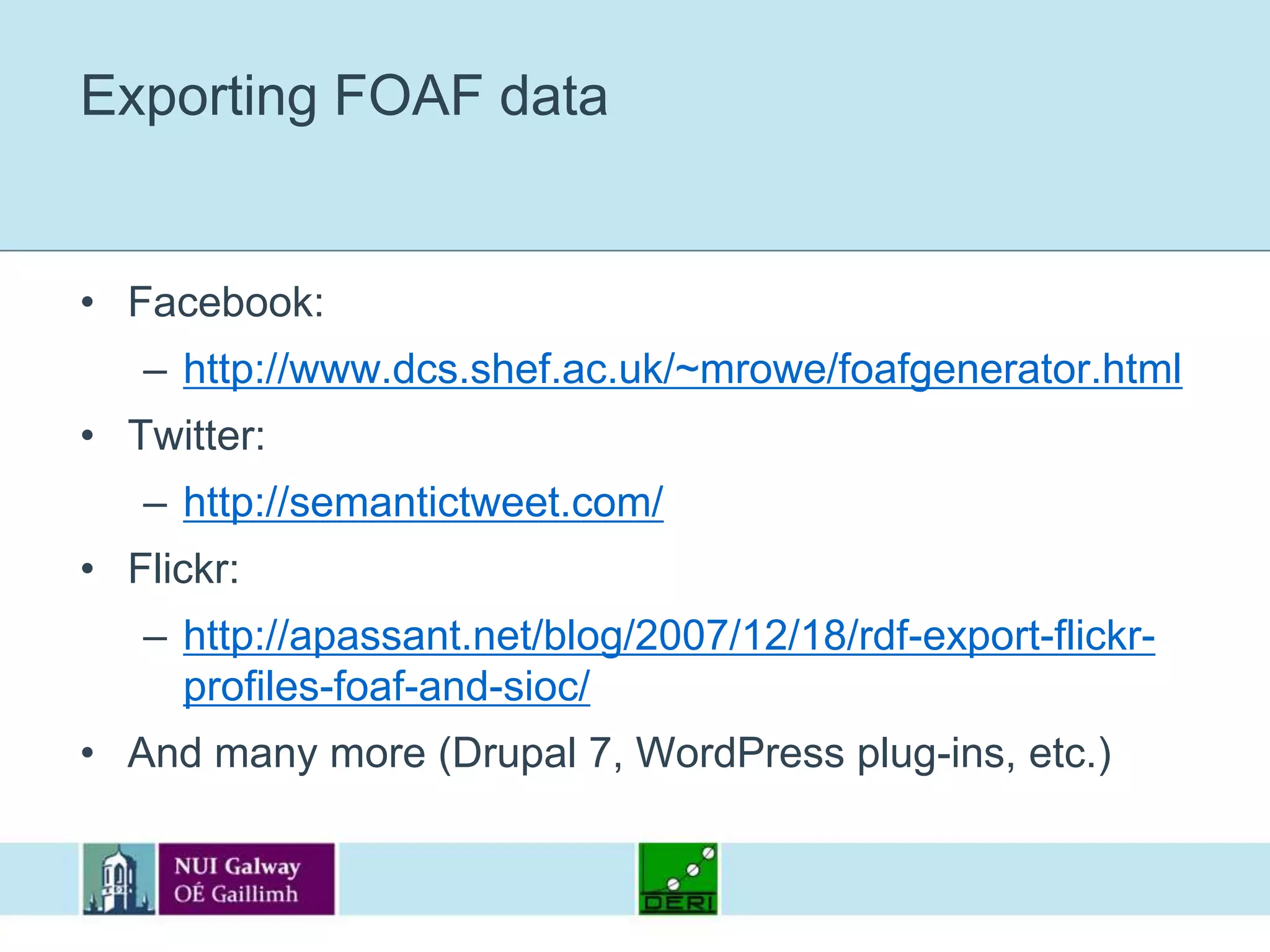

Exporting FOAF data Facebook: http://www.dcs.shef.ac.uk/~mrowe/foafgenerator.html Twitter: http://semantictweet.com/ Flickr: http://apassant.net/blog/2007/12/18/rdf-export-flickr-profiles-foaf-and-sioc/ And many more (Drupal 7, WordPress plug-ins, etc.)

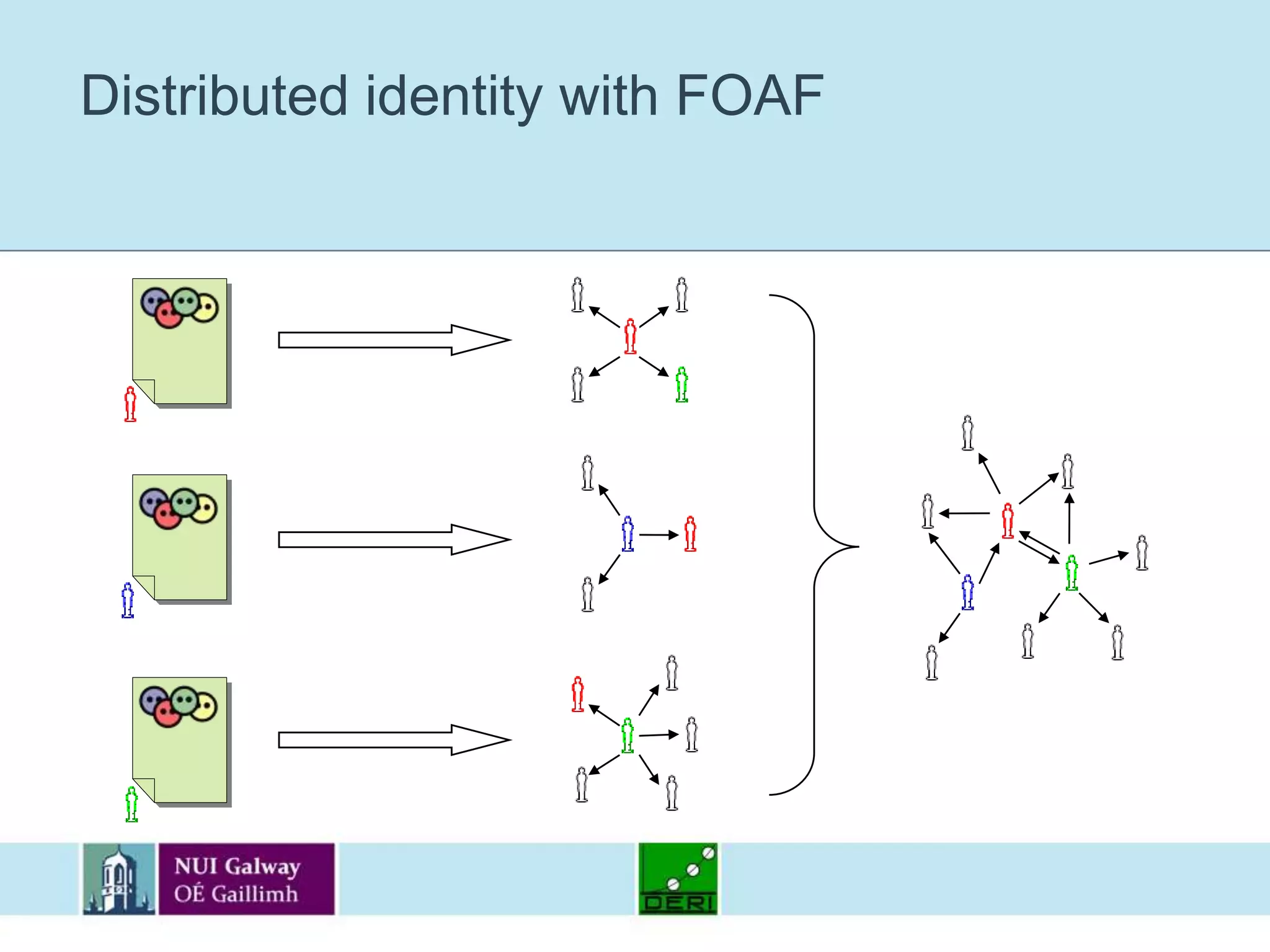

Distributed identity with FOAF

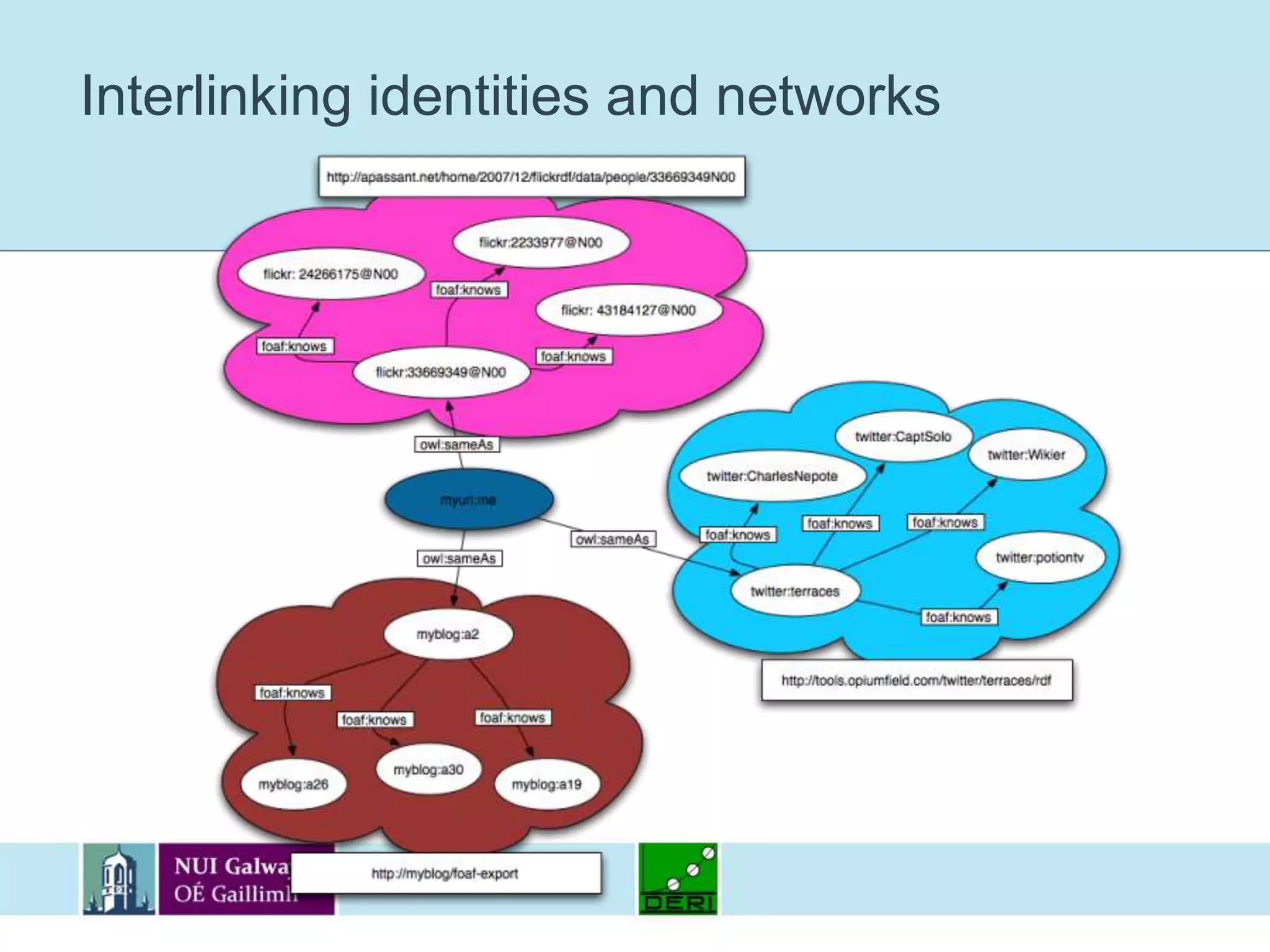

Interlinking identities and networks
Cross-site social recommendations with FOAF

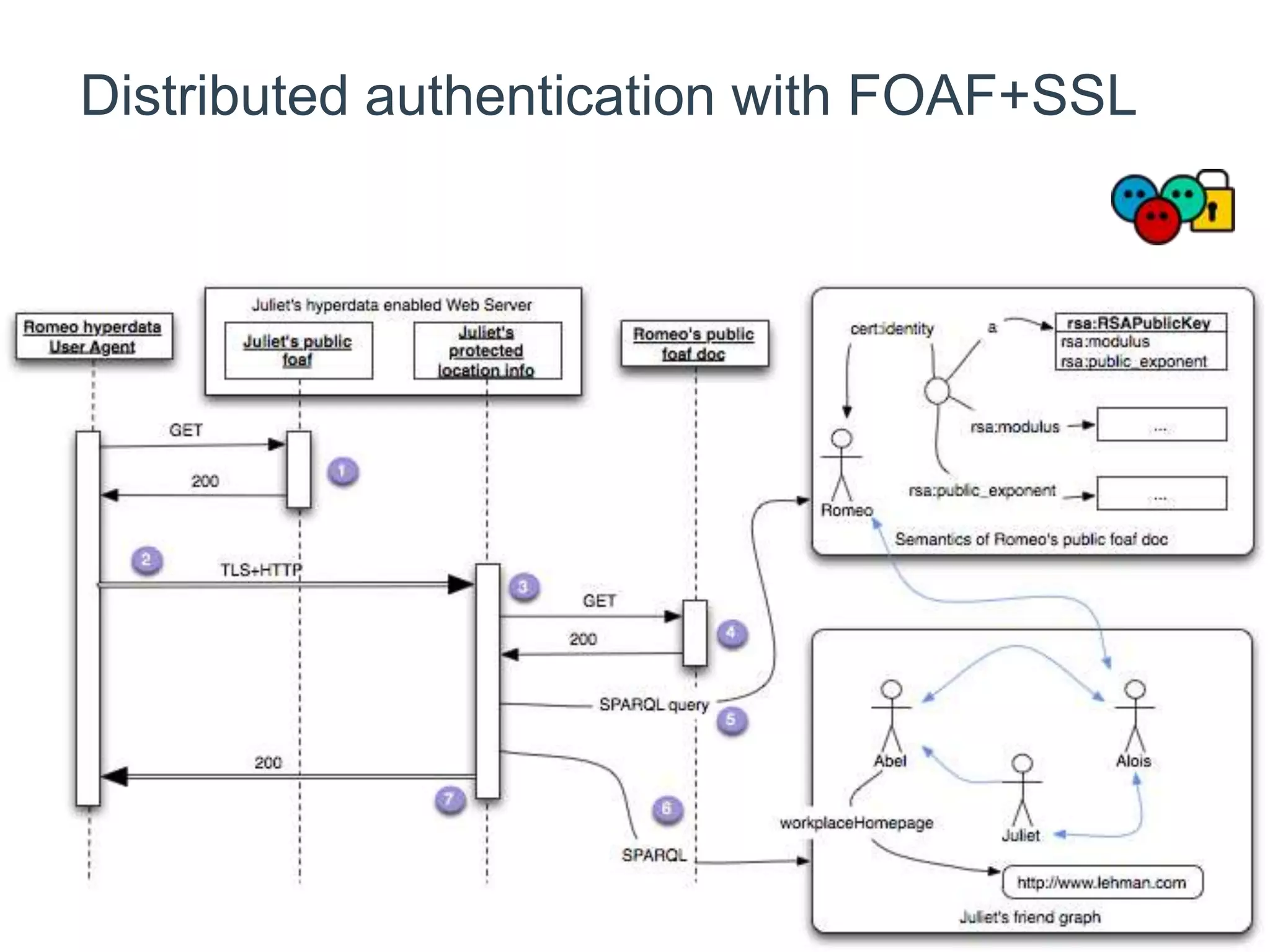

Distributed authentication with FOAF+SSL
SIOC Semantically-Interlinked Online Communities
SIOC, pronounced shock image from tinyurl.com/siocshock

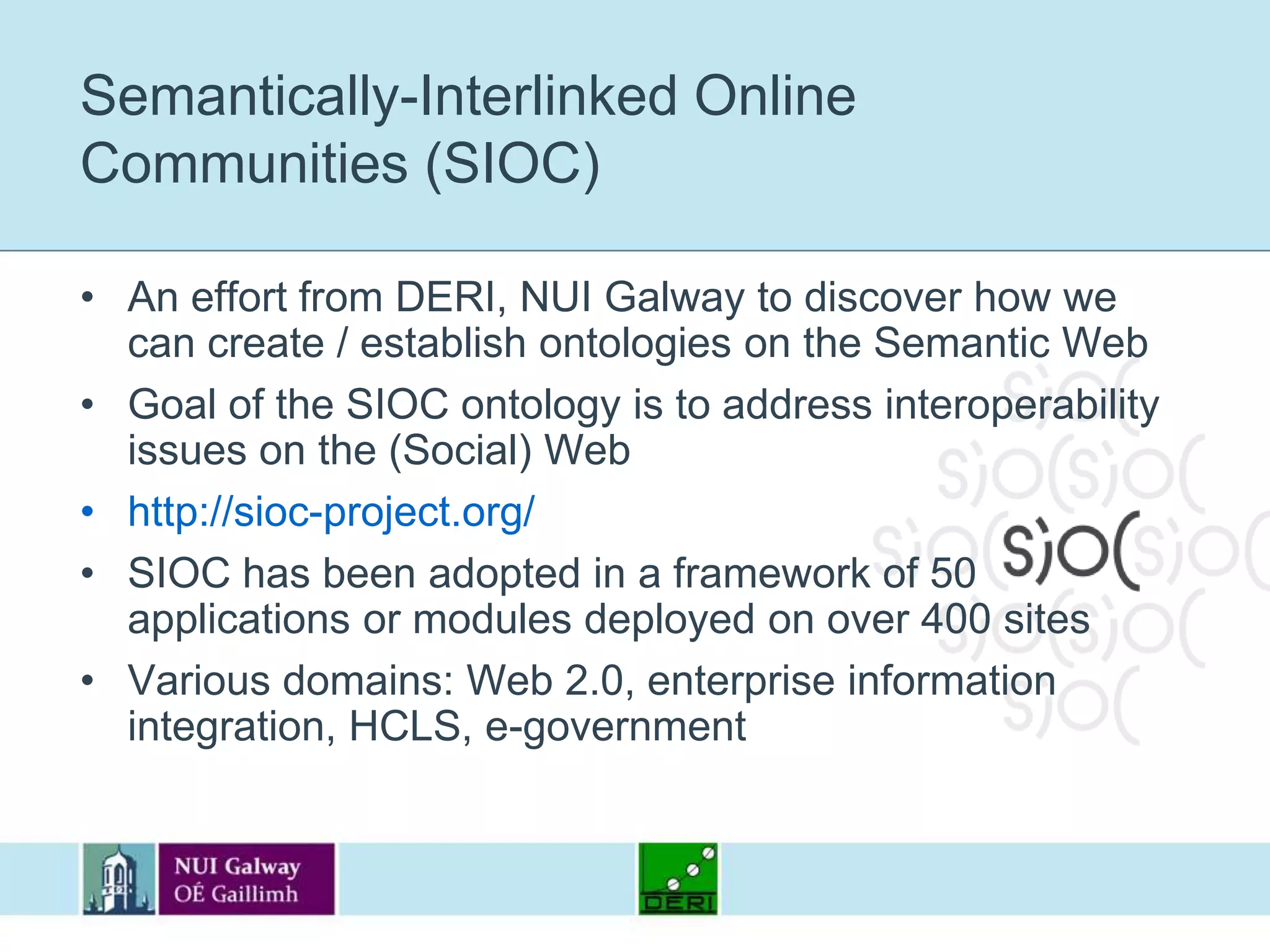

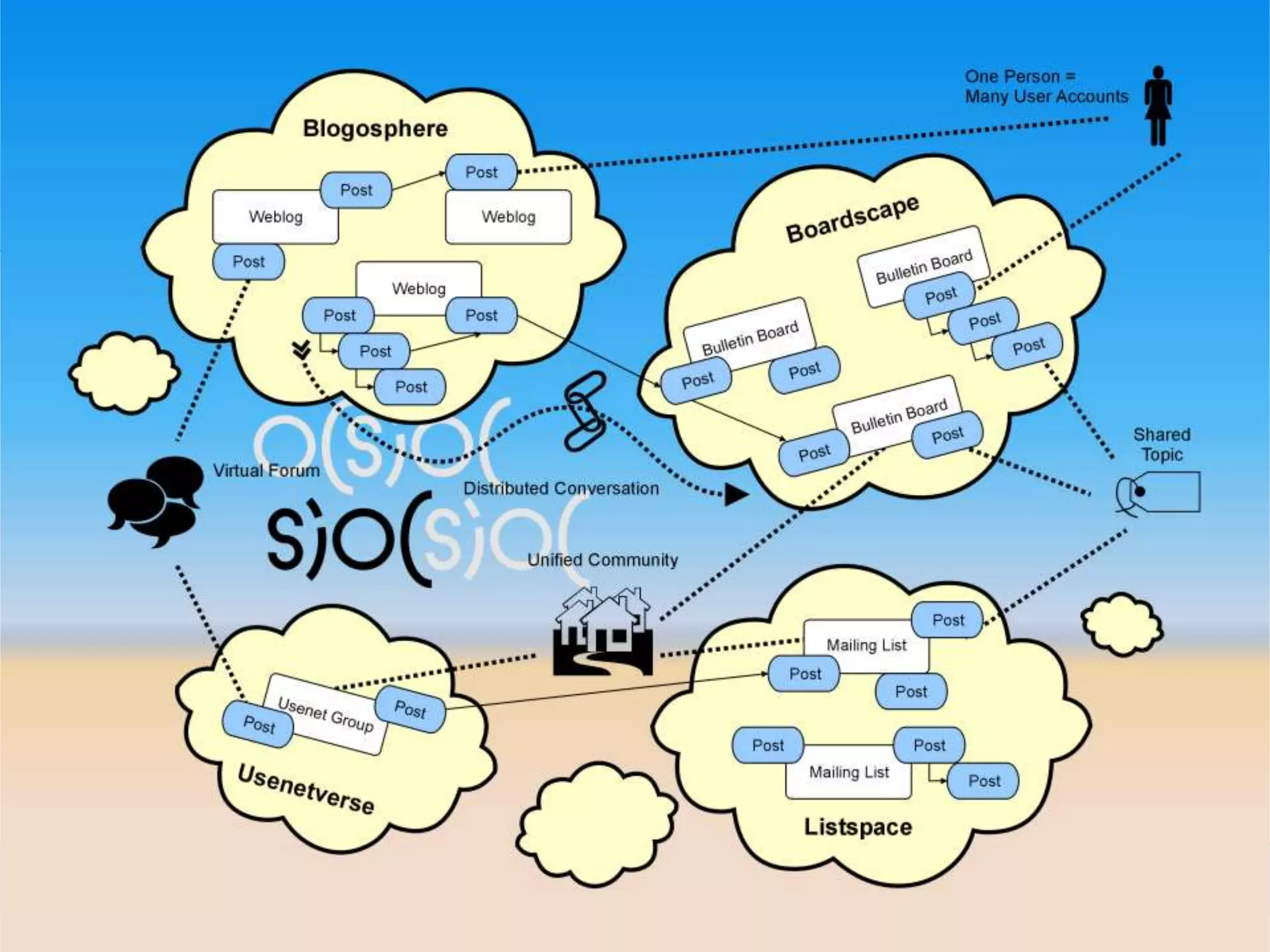

Semantically-Interlinked Online Communities (SIOC) An effort from DERI, NUI Galway to discover how we can create / establish ontologies on the Semantic Web Goal of the SIOC ontology is to address interoperability issues on the (Social) Web http://sioc-project.org/ SIOC has been adopted in a framework of 50 applications or modules deployed on over 400 sites Various domains: Web 2.0, enterprise information integration, HCLS, e-government

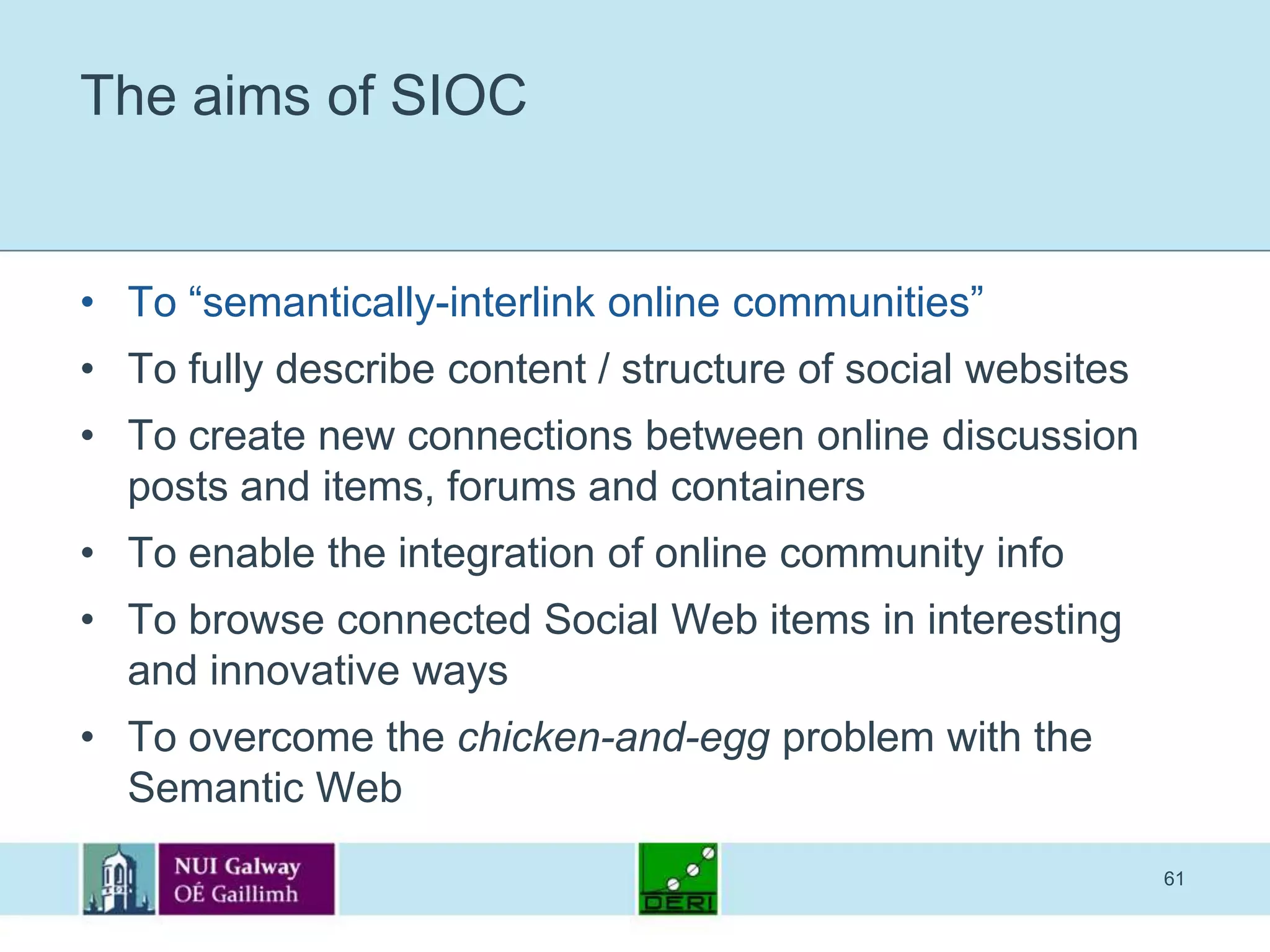

61 The aims of SIOC To “semantically-interlink online communities” To fully describe content / structure of social websites To create new connections between online discussion posts and items, forums and containers To enable the integration of online community info To browse connected Social Web items in interesting and innovative ways To overcome the chicken-and-egg problem with the Semantic Web

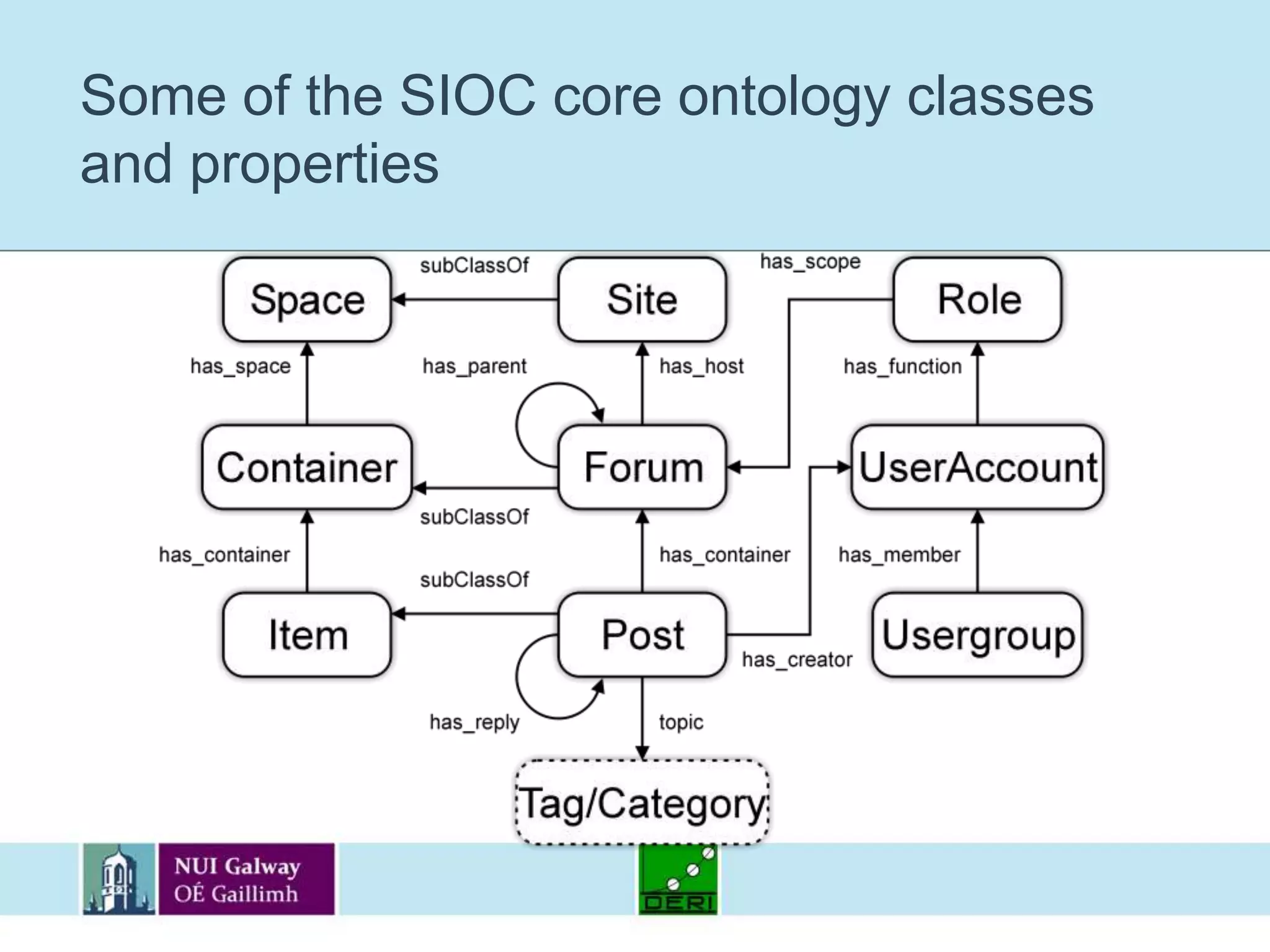

Some of the SIOC core ontology classes and properties

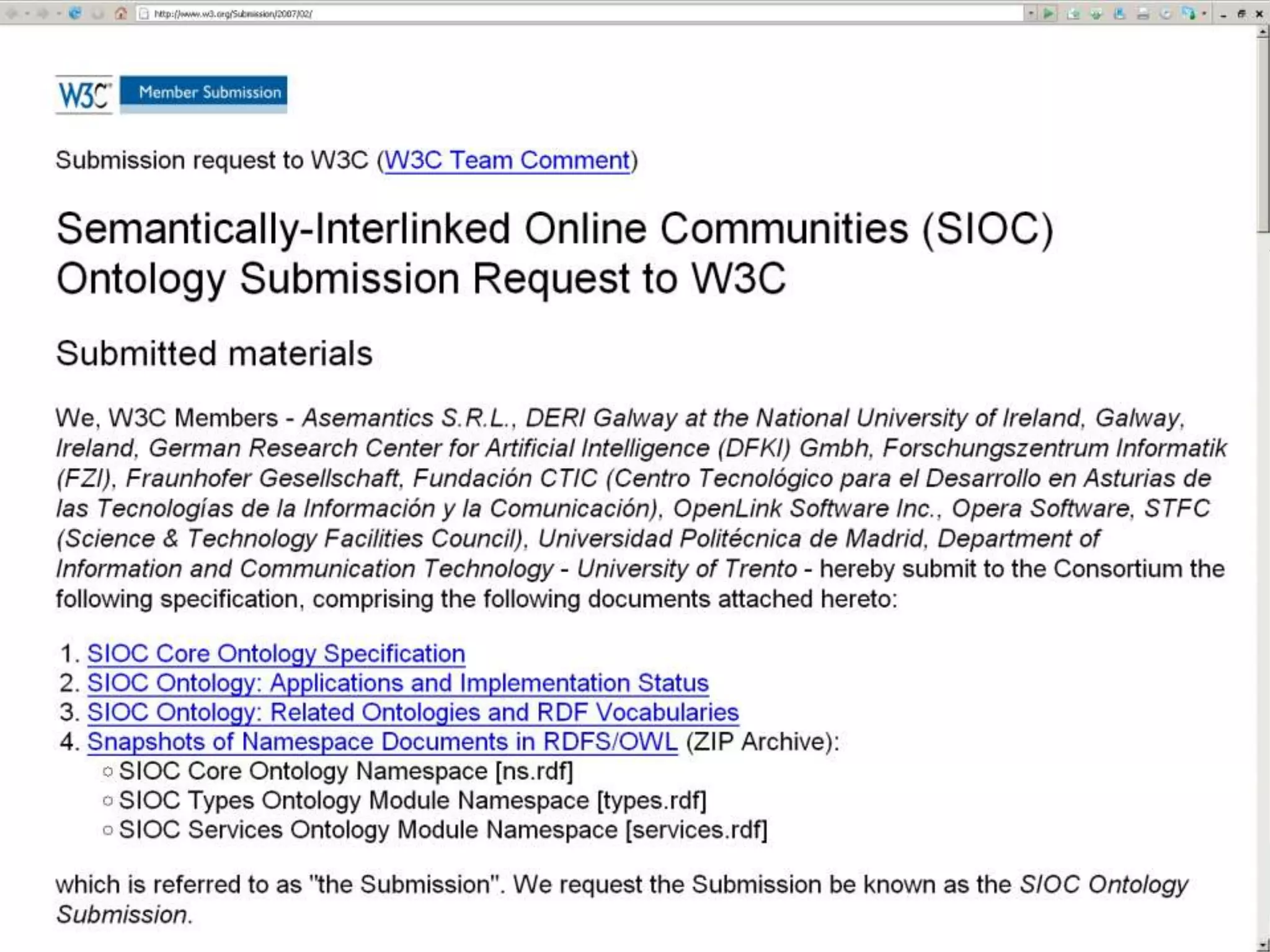

64

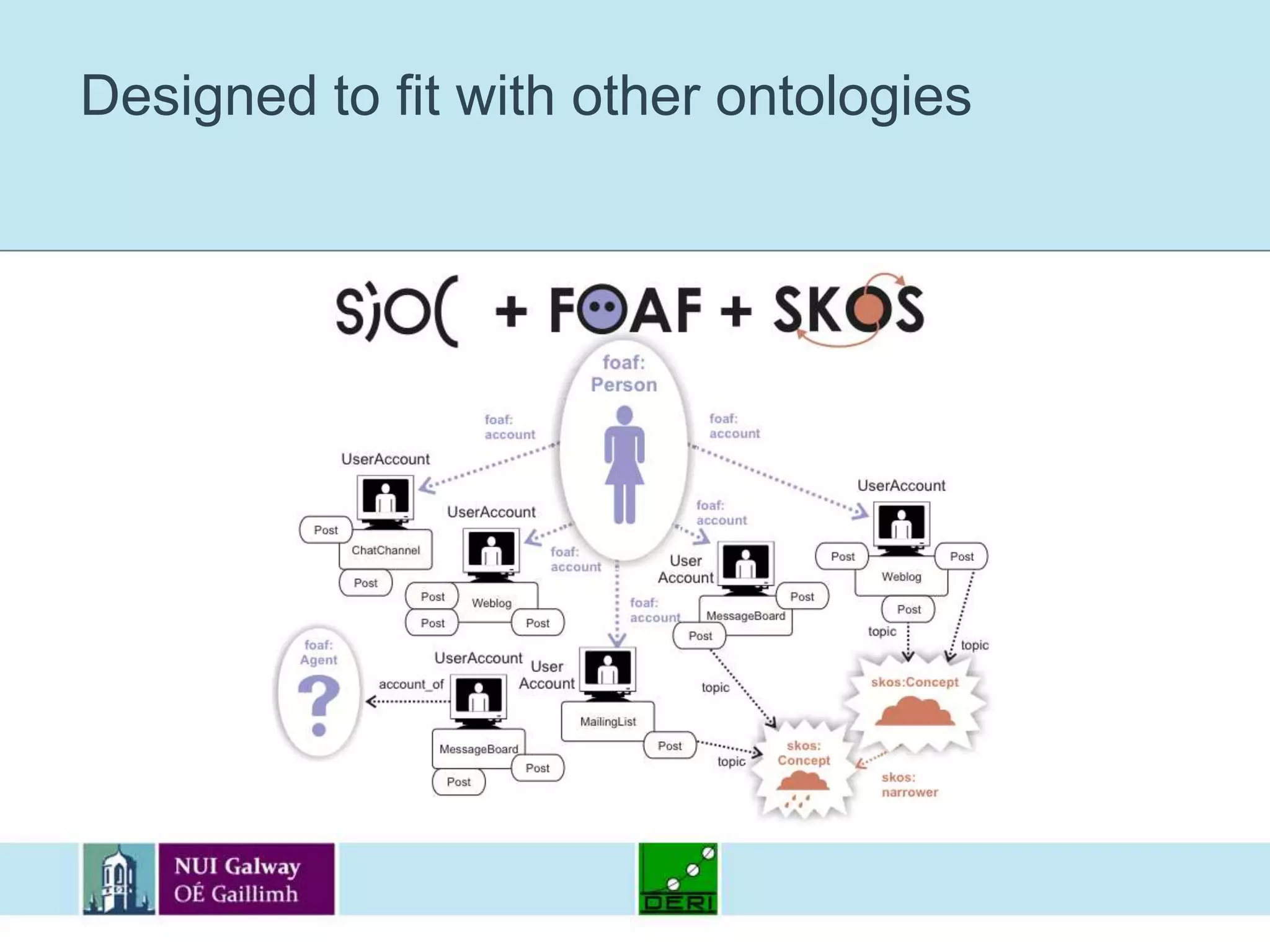

Designed to fit with other ontologies

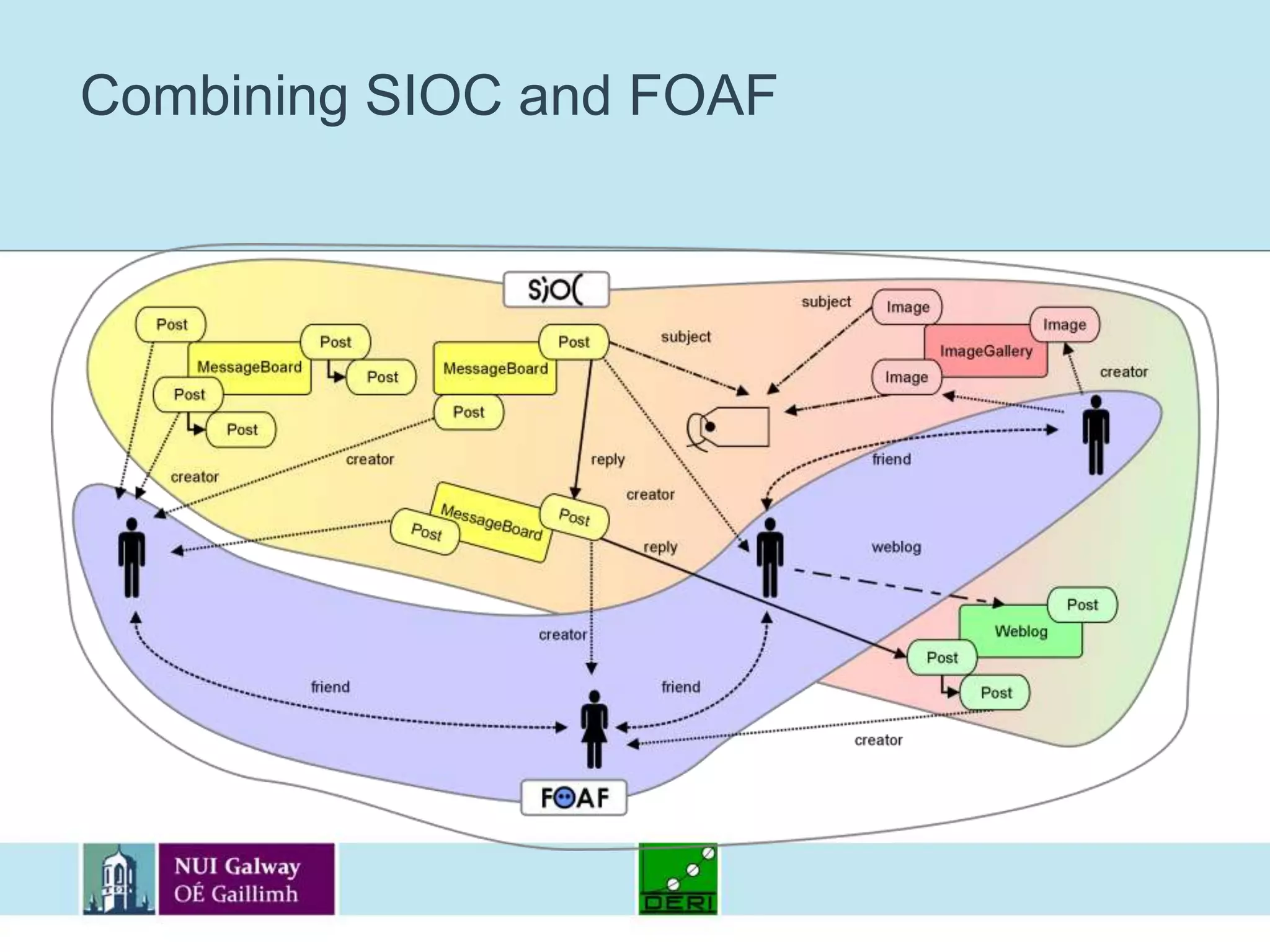

Combining SIOC and FOAF

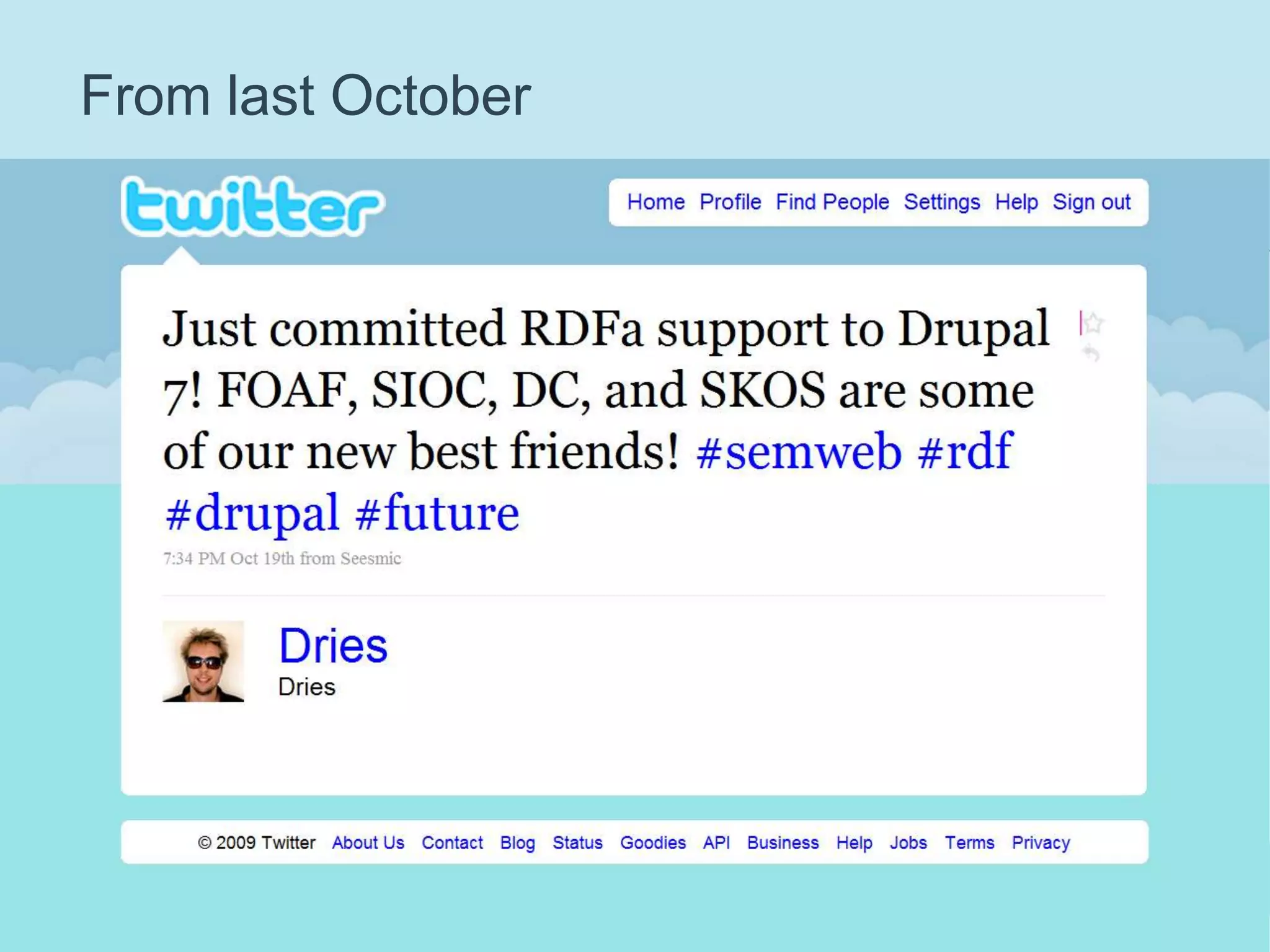

68 From last October

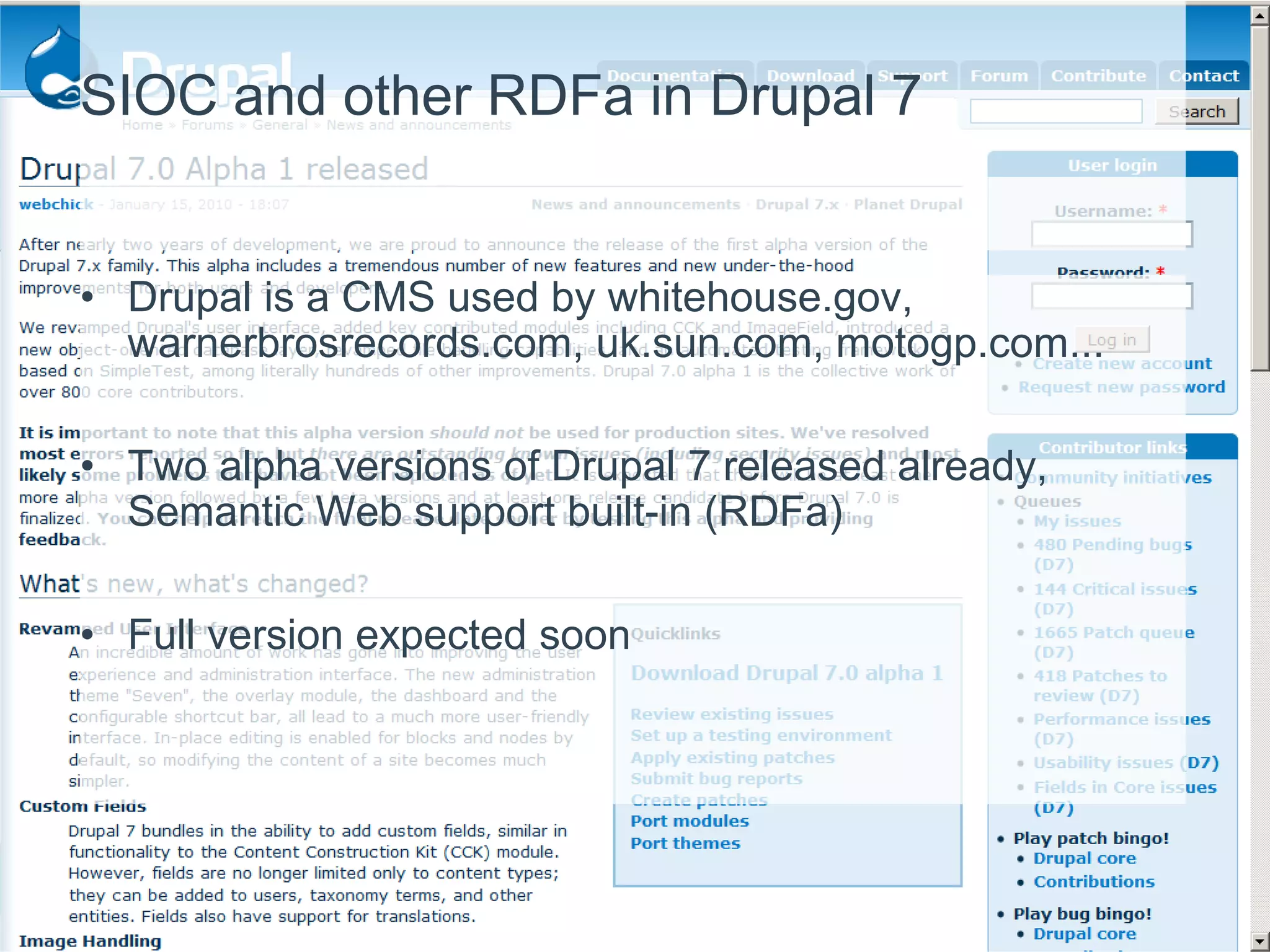

SIOC and other RDFa in Drupal 7 Drupal is a CMS used by whitehouse.gov, warnerbrosrecords.com, uk.sun.com, motogp.com...  Two alpha versions of Drupal 7 released already, Semantic Web support built-in (RDFa) Full version expected soon

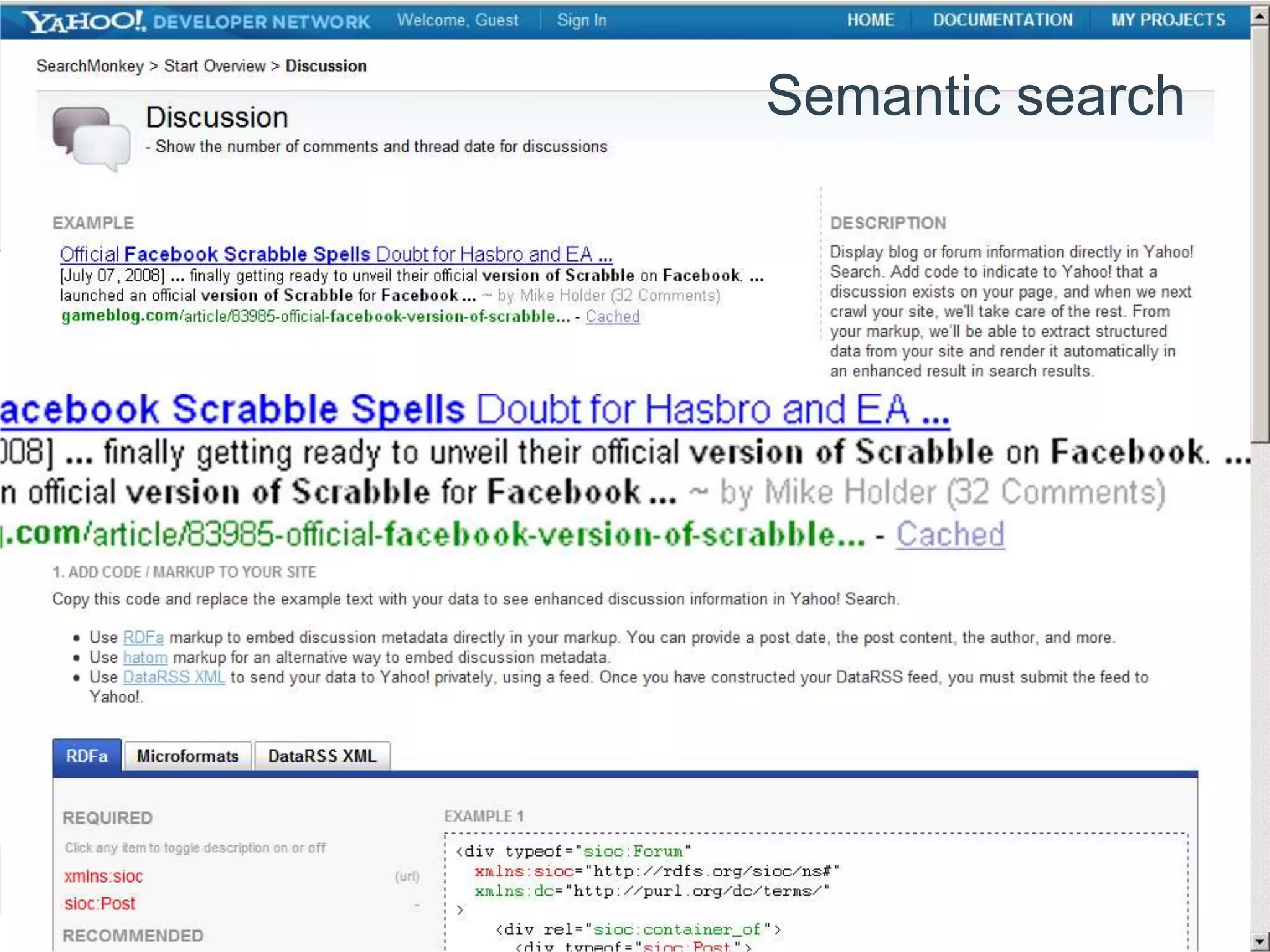

Semantic search
71

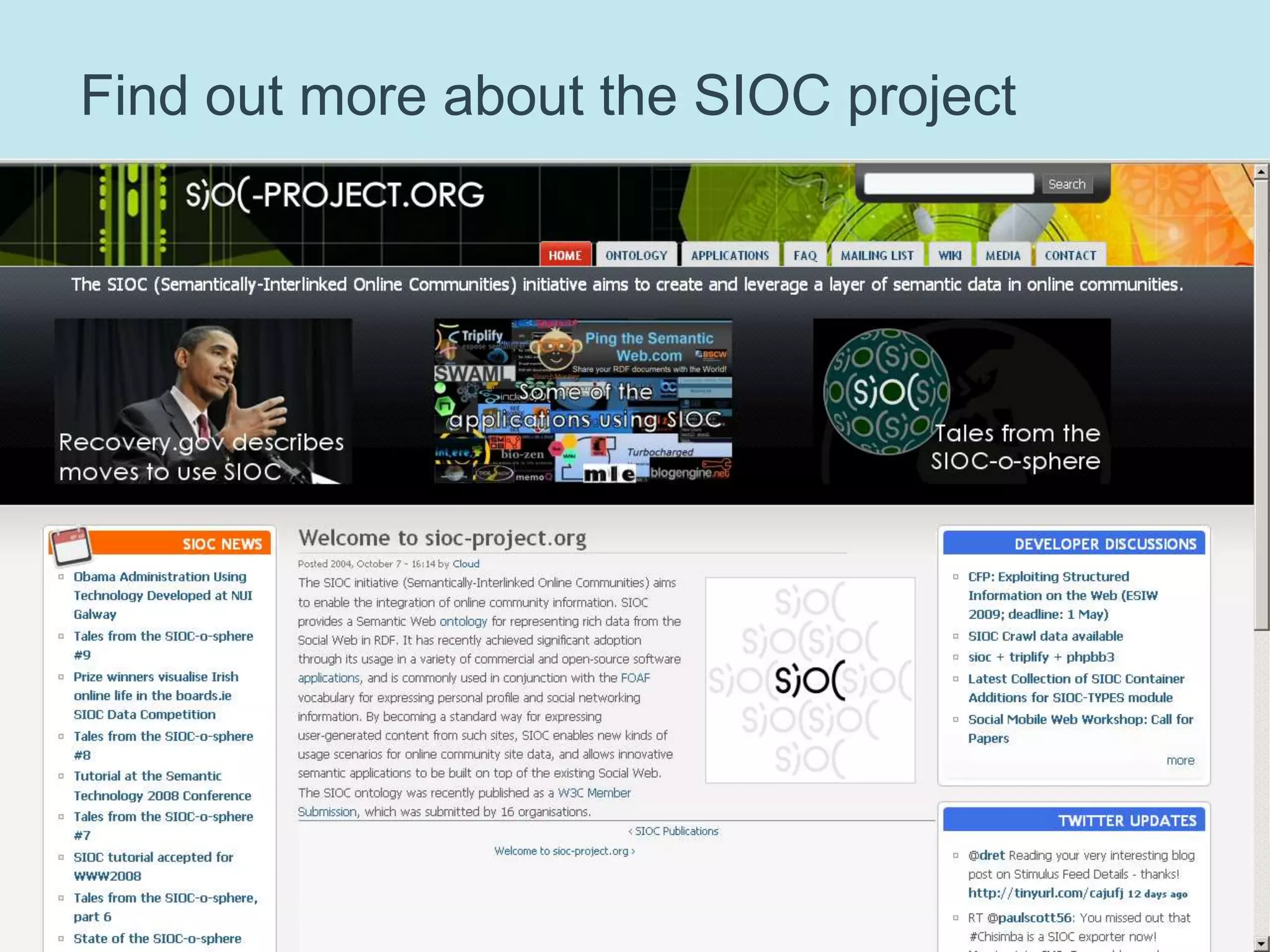

72 Find out more about the SIOC project

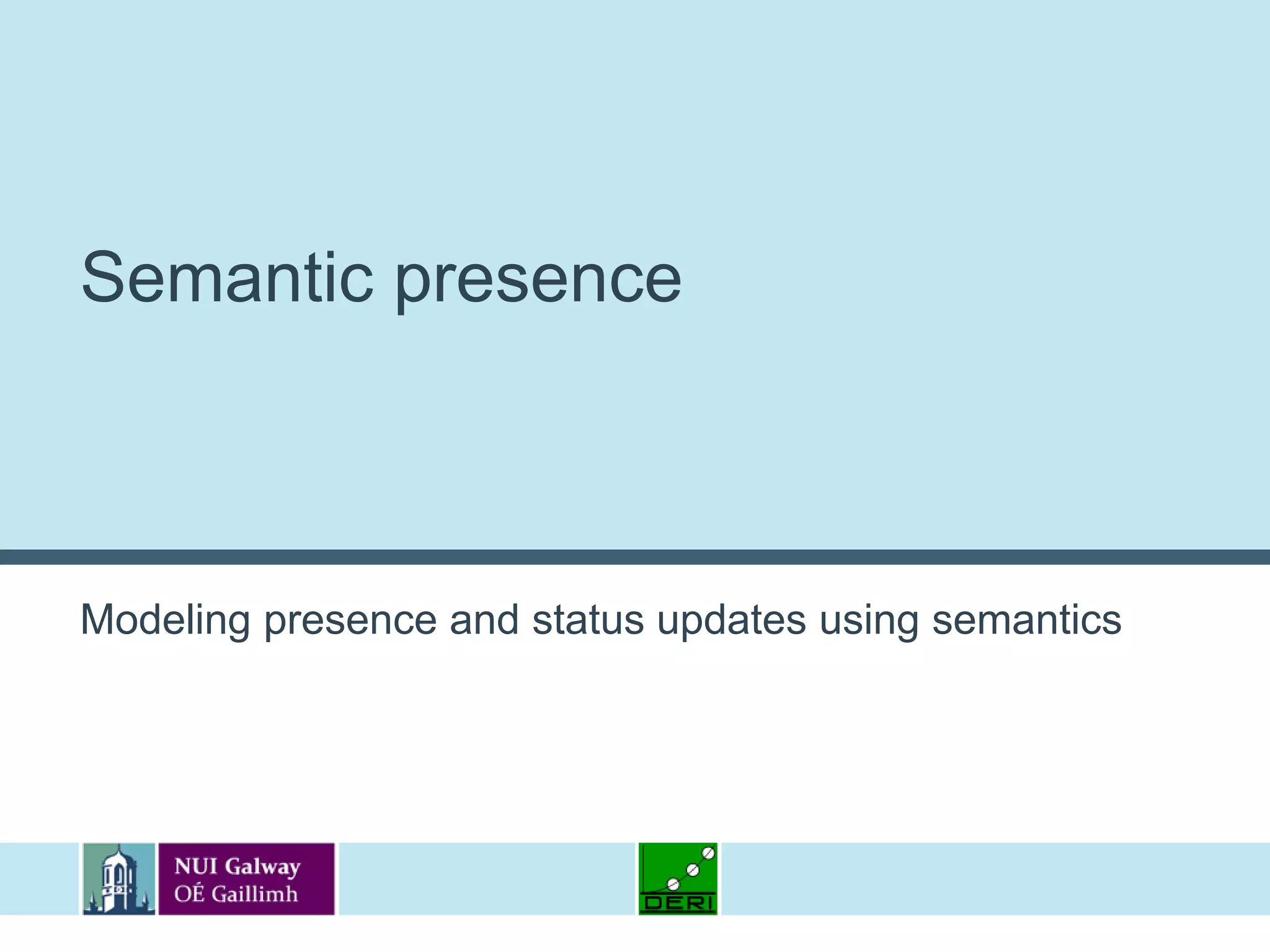

Semantic presence Modeling presence and status updates using semantics

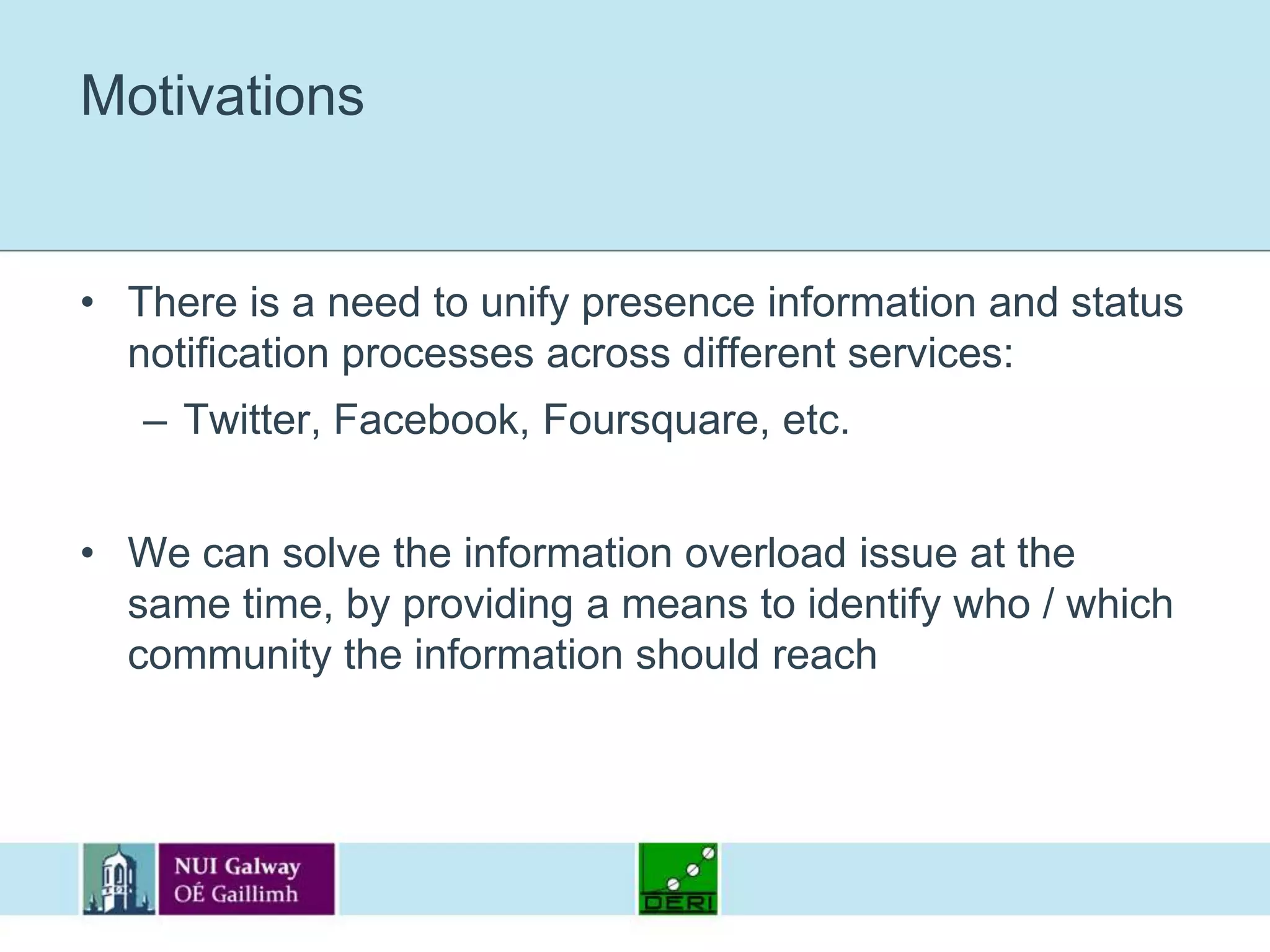

Motivations There is a need to unify presence information and status notification processes across different services: Twitter, Facebook, Foursquare, etc. We can solve the information overload issue at the same time, by providing a means to identify who / which community the information should reach
Online PresenceOntology @@ TODO

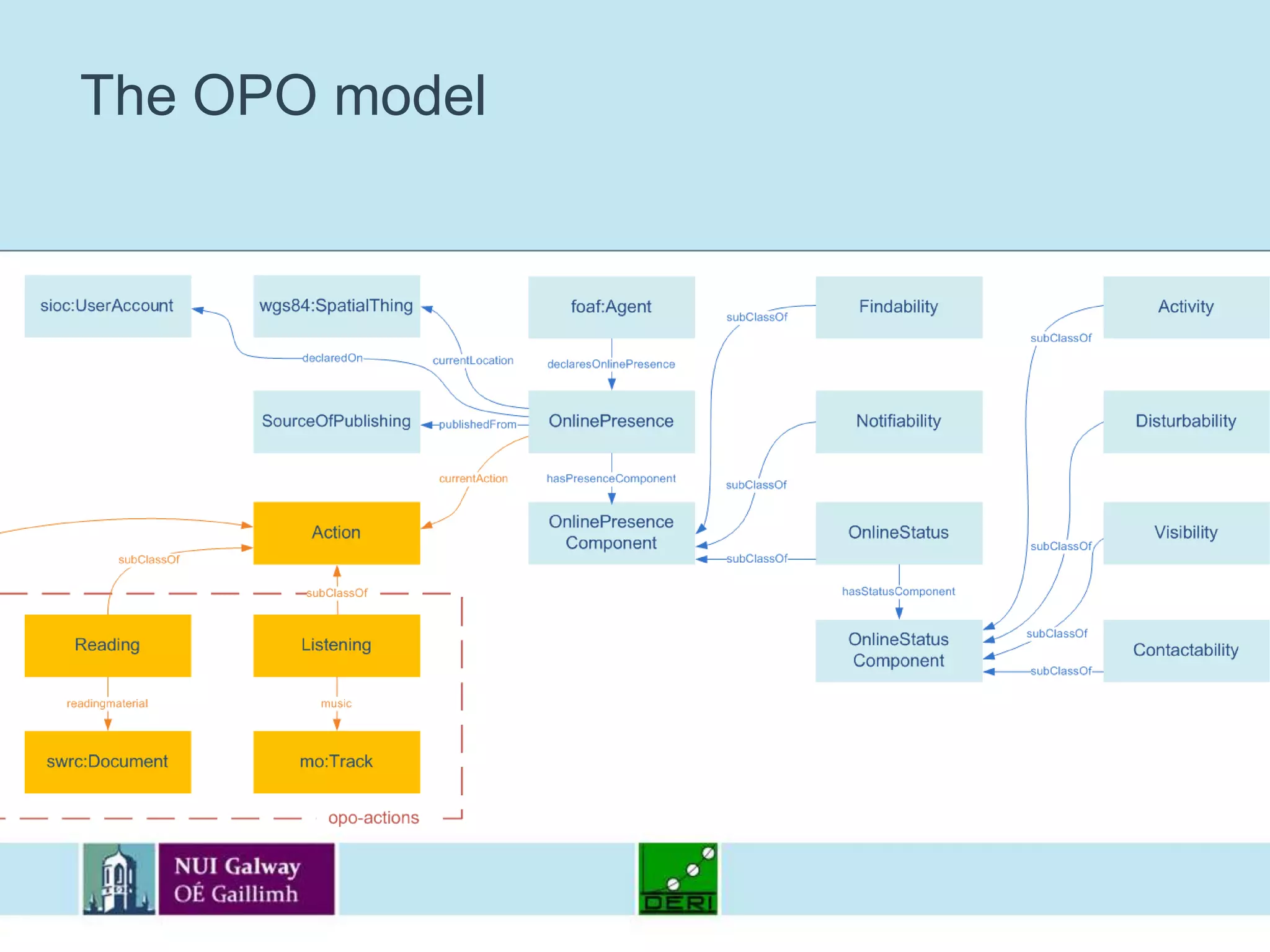

The OPO model
Sharing spaces allow us to… Solve the identity fragmentation problem related to status messages sharing: We may not want to share the same information to different people Model whom information is directed to: e.g. “Social media-aware people”, “Family contacts”, “Good friends”, “Work colleagues”, etc. Build with OPO, using rules defined in SPARQL, the query language for RDF

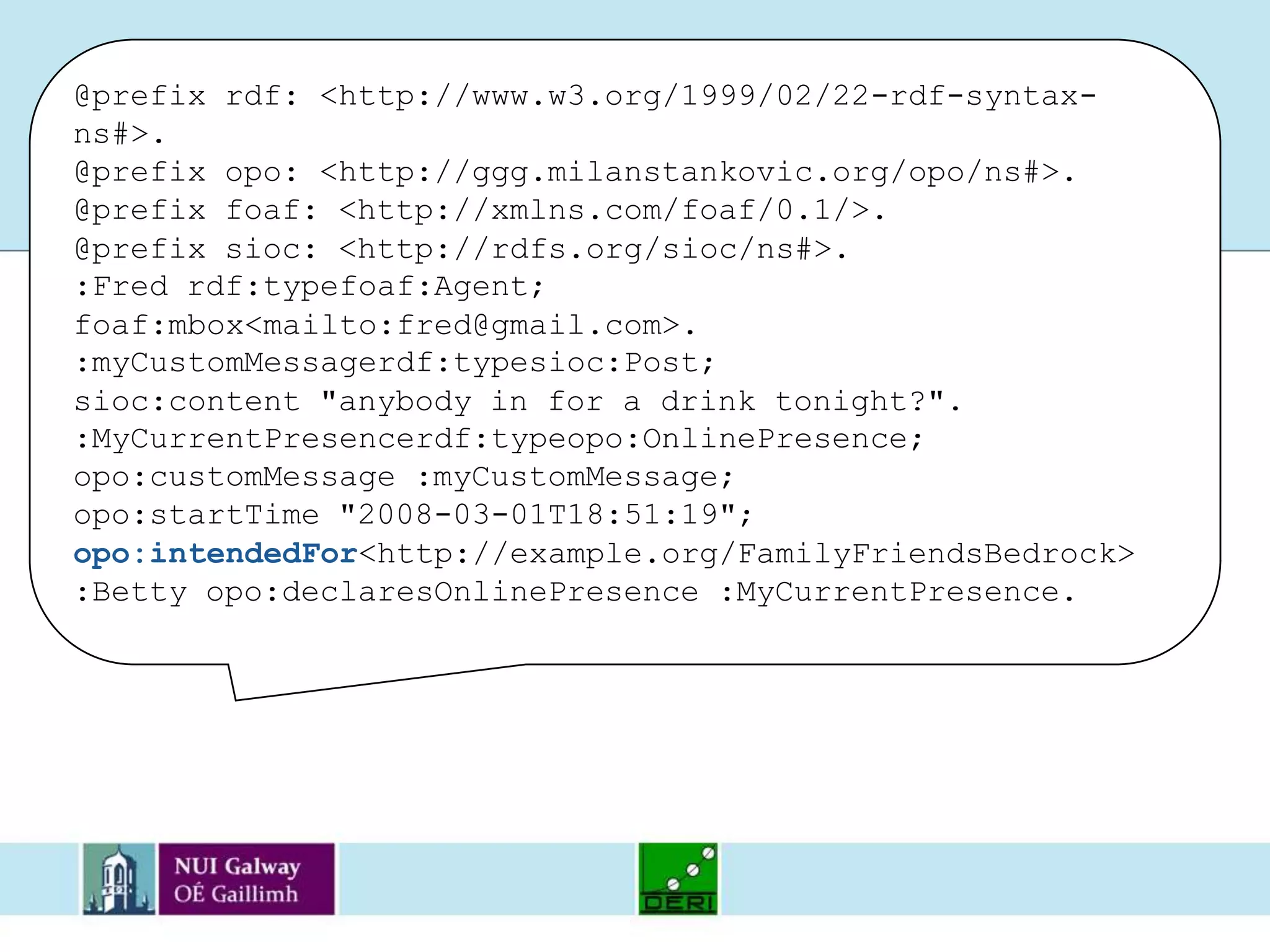

@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>.@prefix opo: <http://ggg.milanstankovic.org/opo/ns#>.@prefix foaf: <http://xmlns.com/foaf/0.1/>.@prefix sioc: <http://rdfs.org/sioc/ns#>. :Fred rdf:typefoaf:Agent;foaf:mbox <mailto:fred@gmail.com>. :myCustomMessagerdf:typesioc:Post;sioc:content "anybody in for a drink tonight?". :MyCurrentPresencerdf:typeopo:OnlinePresence;opo:customMessage :myCustomMessage;opo:startTime "2008-03-01T18:51:19";opo:intendedFor<http://example.org/FamilyFriendsBedrock> :Betty opo:declaresOnlinePresence :MyCurrentPresence.
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>.@prefix opo: <http://ggg.milanstankovic.org/opo/ns#>.@prefix foaf: <http://xmlns.com/foaf/0.1/>.@prefix sioc: <http://rdfs.org/sioc/ns#>. :Fred rdf:typefoaf:Agent;foaf:mbox <mailto:fred@gmail.com>. :myCustomMessagerdf:typesioc:Post;sioc:content "anybody in for a drink tonight?". :MyCurrentPresencerdf:typeopo:OnlinePresence;opo:customMessage :myCustomMessage;opo:startTime "2008-03-01T18:51:19";opo:intendedFor <http://example.org/FamilyFriendsBedrock> :Betty opo:declaresOnlinePresence :MyCurrentPresence. PREFIX foaf: <http://xmlns.com/foaf/0.1/> PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> PREFIX rel: <http://purl.org/vocab/relationship> CONSTRUCT {                                                                                                                                                                                                                                                                                                                                                <http://example.org/ns#FamilyFriendsBedrock> rdf:typeopo:SharingSpace; foaf:member?person. } WHERE {  { ?person rel:friendOf_ <http://flintstones.org/Fred> } UNION   { ?person rel:spouseOf_ <http://flintstones.org/Fred> } UNION  { ?person rel:childOf_ <http://flintstones.org/Fred> } .  ?person foaf:basedNear <http://imaginary.geonames.org/bedrock/> . }
Semantic tagging Bridging the gap between folksonomies and ontologies

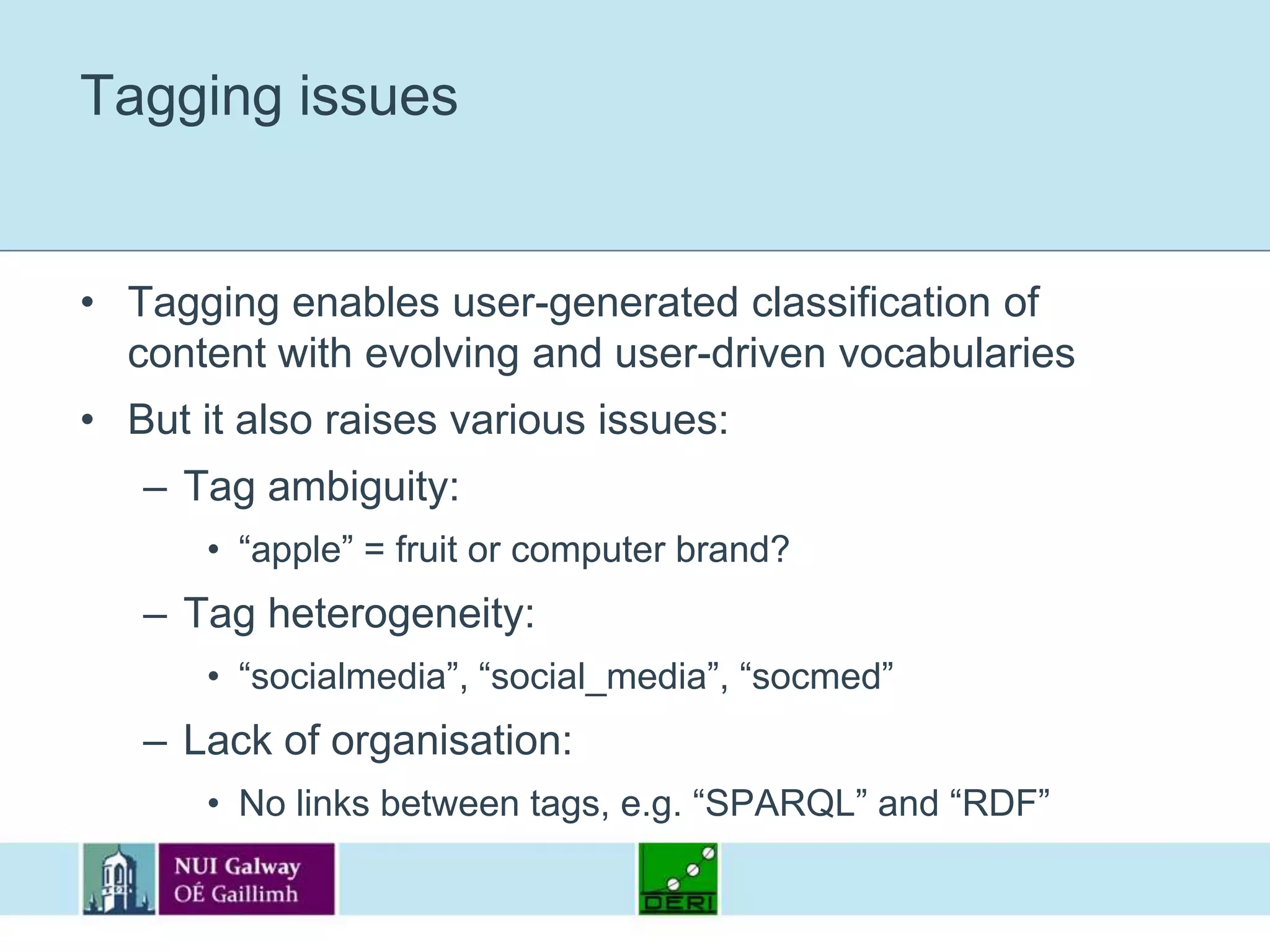

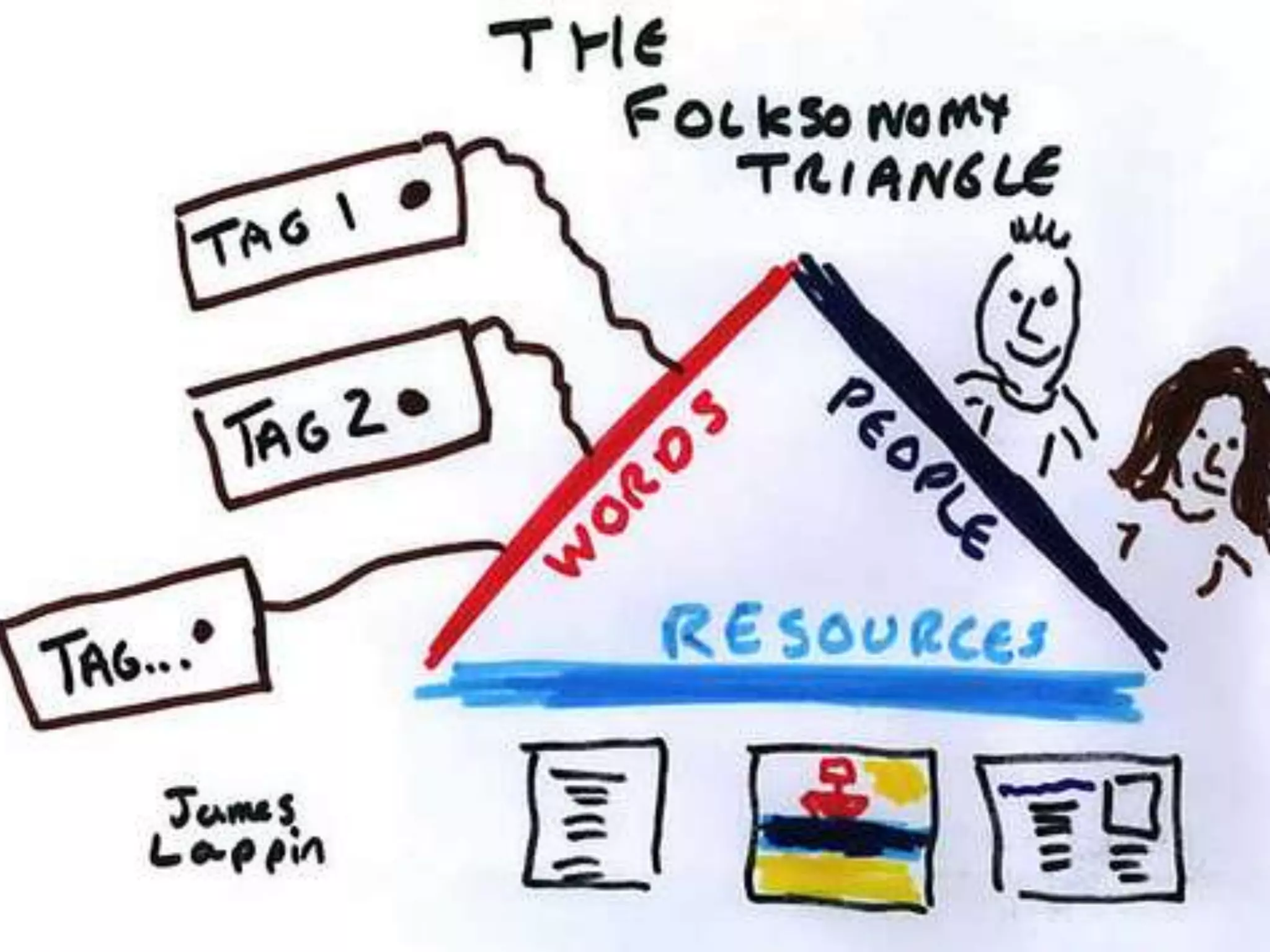

Tagging issues Tagging enables user-generated classification of content with evolving and user-driven vocabularies But it also raises various issues: Tag ambiguity: “apple” = fruit or computer brand? Tag heterogeneity: “socialmedia”, “social_media”, “socmed” Lack of organisation: No links between tags, e.g. “SPARQL” and “RDF”

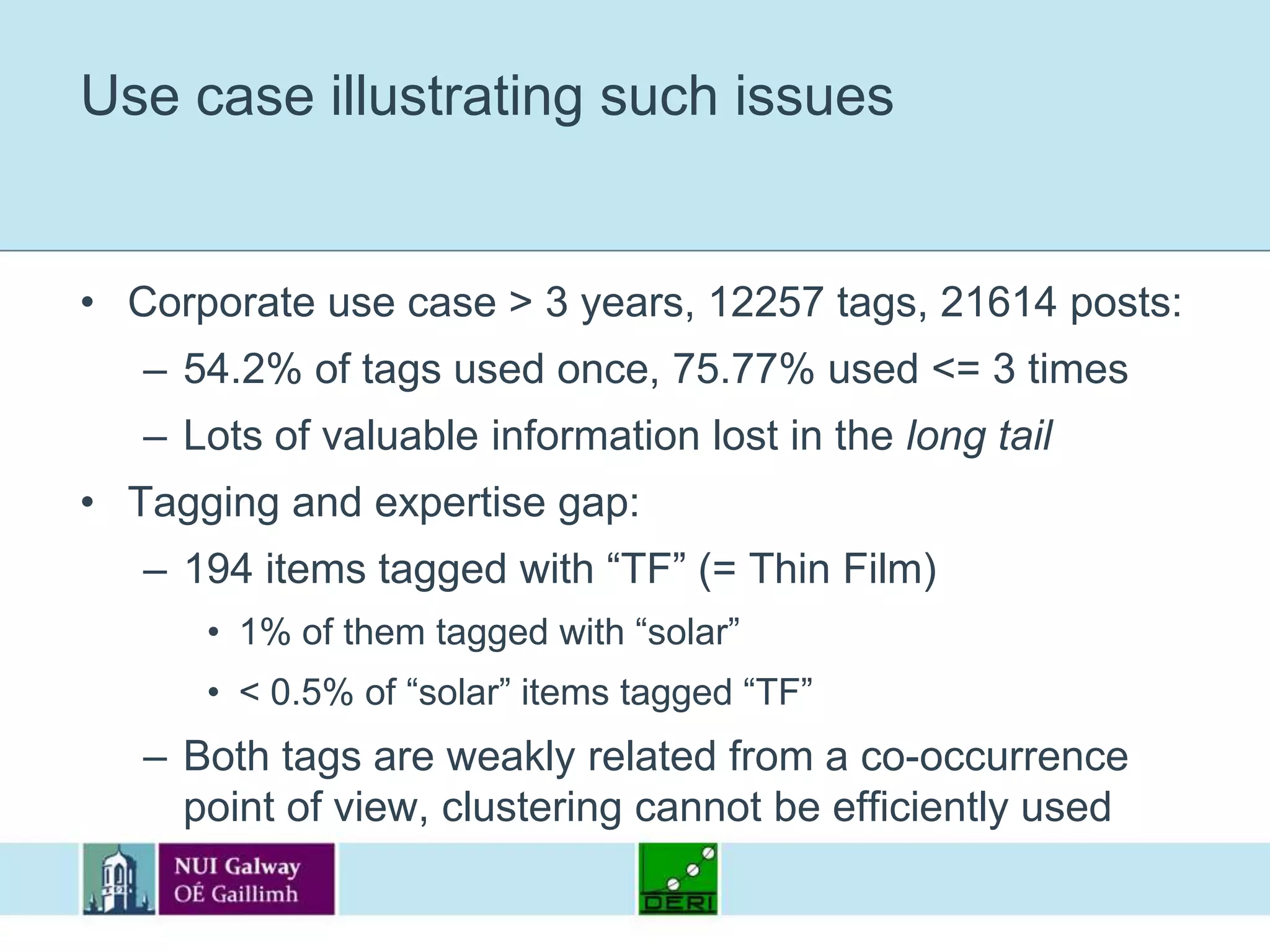

Use case illustrating such issues Corporate use case > 3 years, 12257 tags, 21614 posts: 54.2% of tags used once, 75.77% used <= 3 times Lots of valuable information lost in the long tail Tagging and expertise gap: 194 items tagged with “TF” (= Thin Film) 1% of them tagged with “solar” < 0.5% of “solar” items tagged “TF” Both tags are weakly related from a co-occurrence point of view, clustering cannot be efficiently used

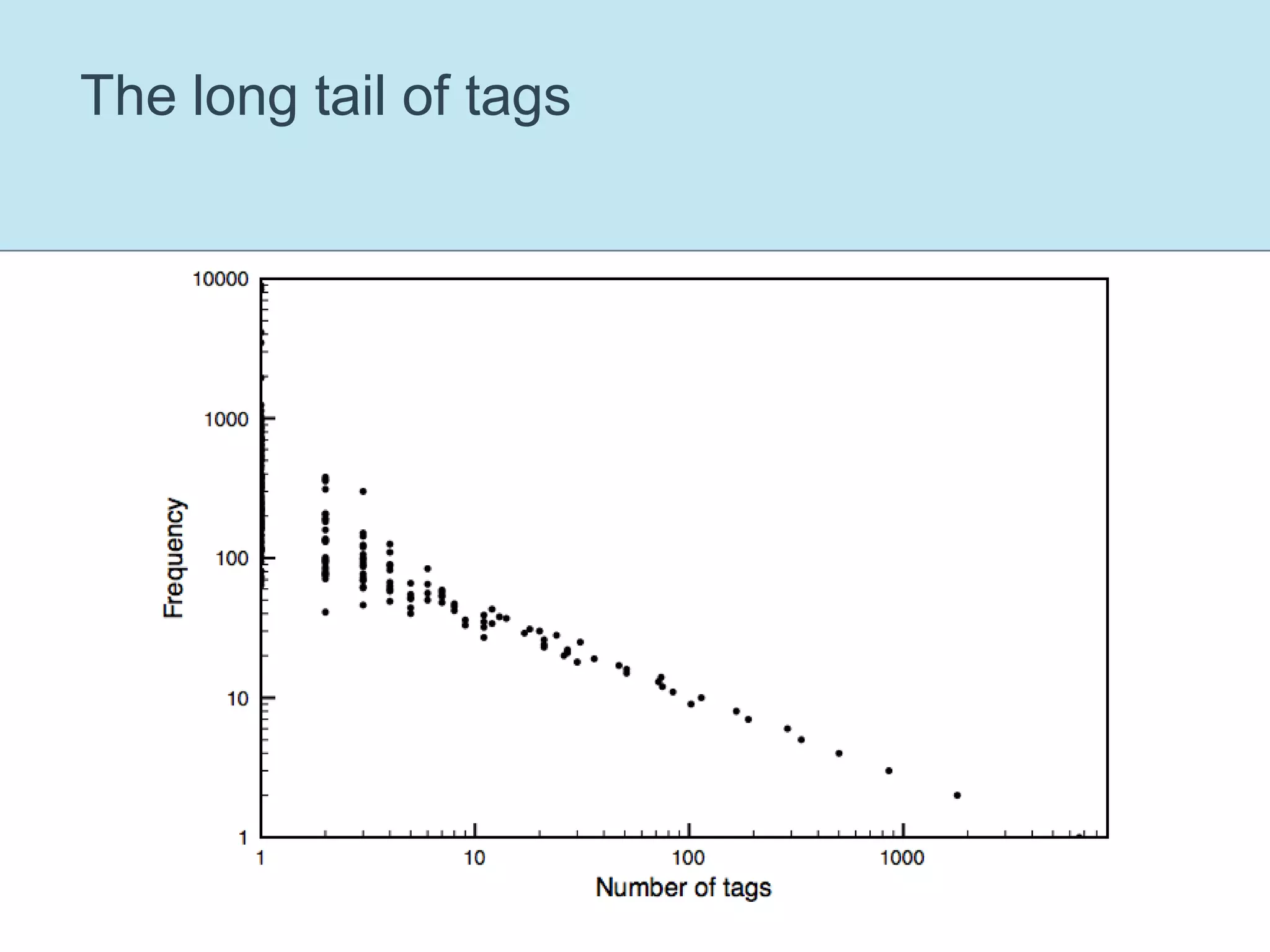

The long tail of tags

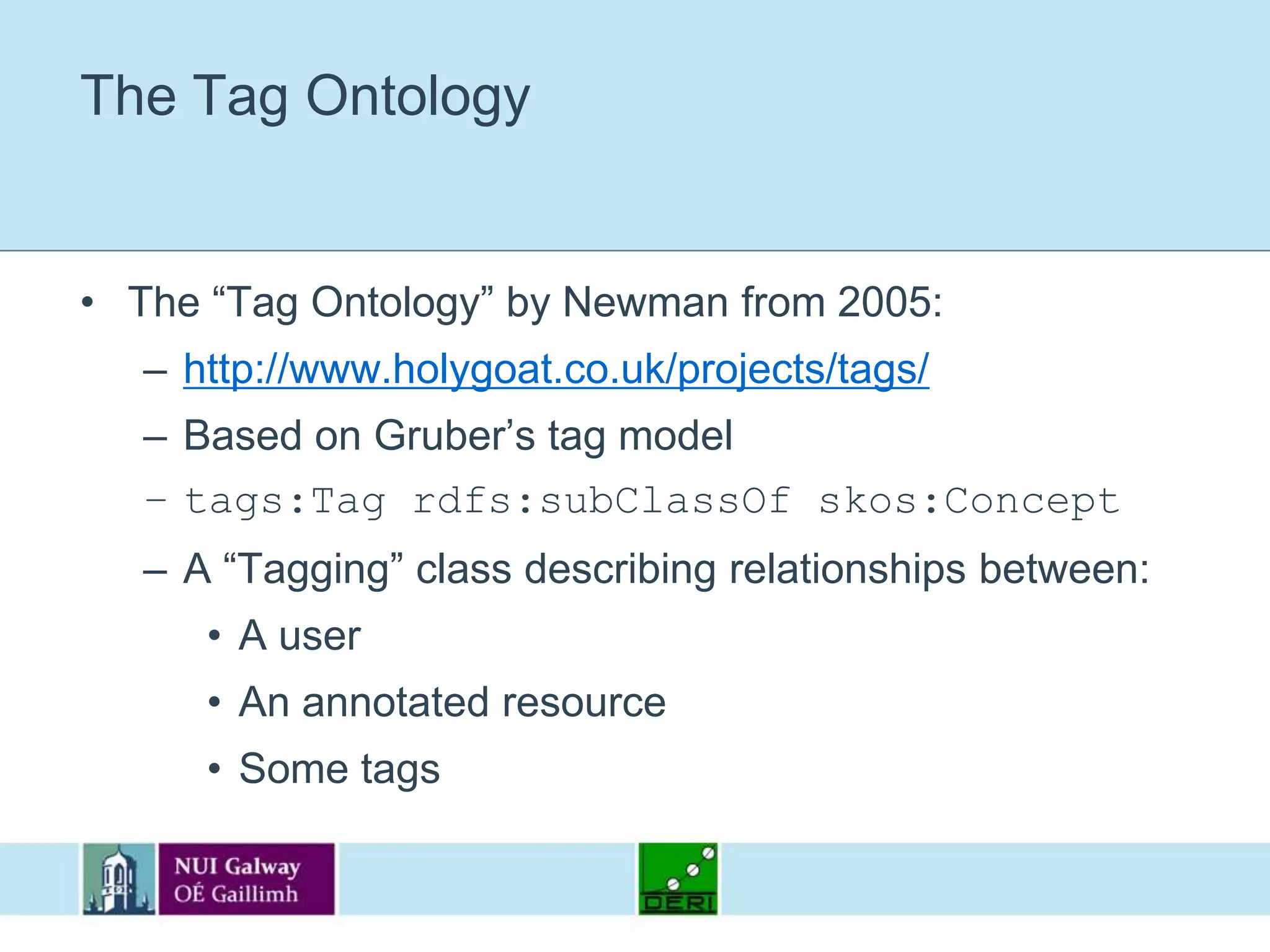

The Tag Ontology The “Tag Ontology” by Newman from 2005: http://www.holygoat.co.uk/projects/tags/ Based on Gruber’s tag model tags:Tag rdfs:subClassOf skos:Concept A “Tagging” class describing relationships between: A user An annotated resource Some tags

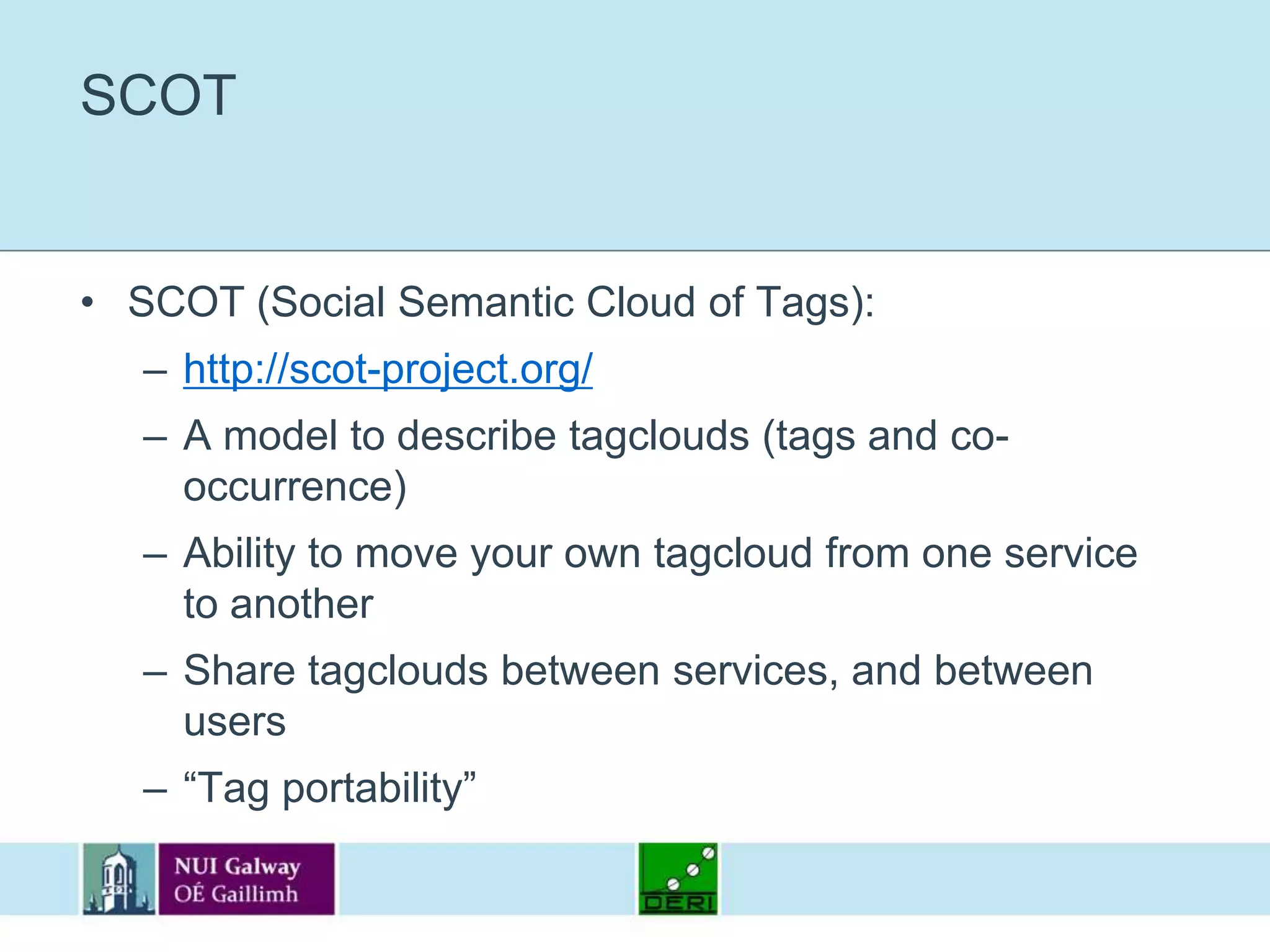

SCOT SCOT (Social Semantic Cloud of Tags): http://scot-project.org/ A model to describe tagclouds (tags and co-occurrence) Ability to move your own tagcloud from one service to another Share tagclouds between services, and between users “Tag portability”

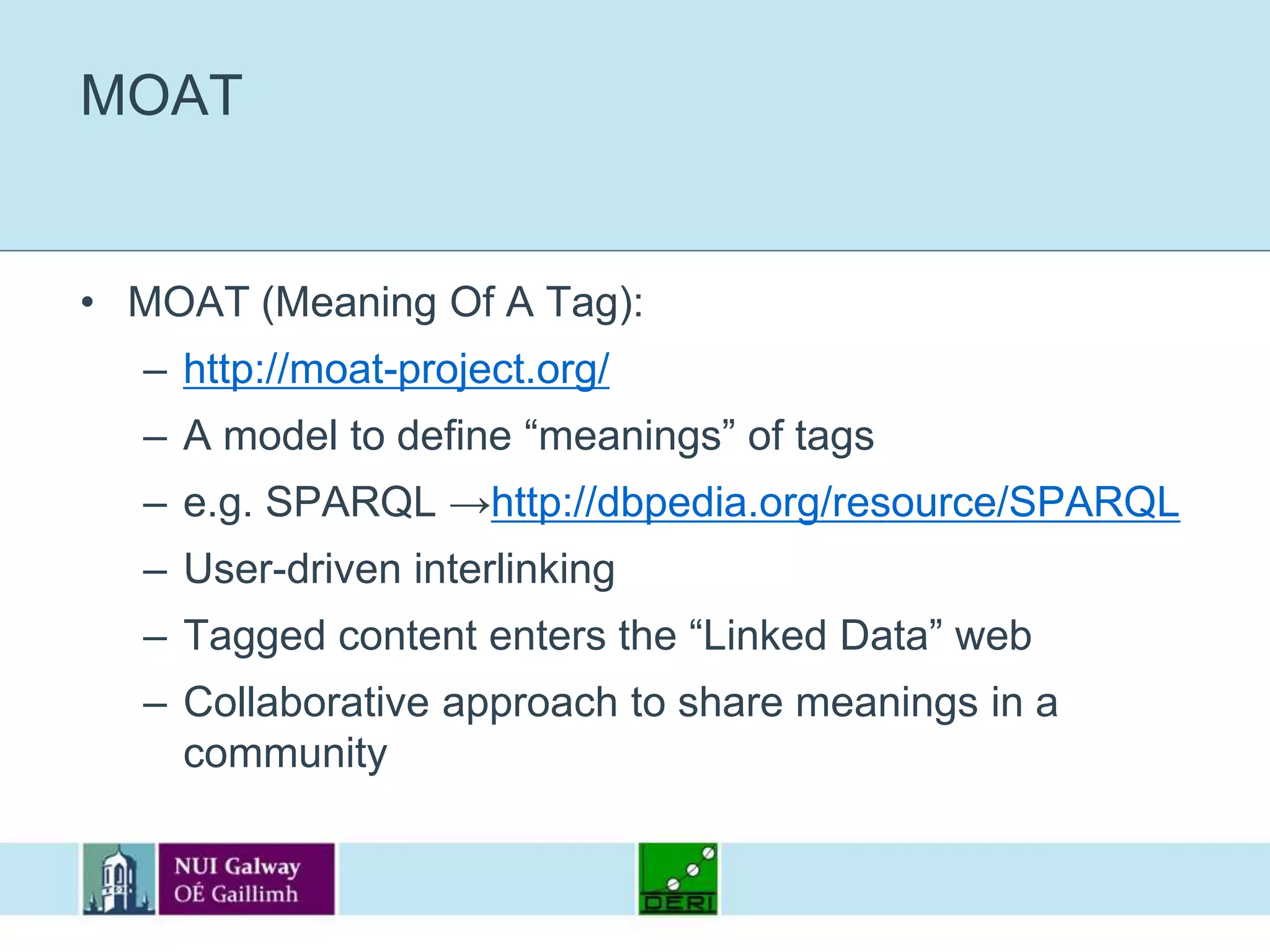

MOAT MOAT (Meaning Of A Tag): http://moat-project.org/ A model to define “meanings” of tags e.g. SPARQL ->http://dbpedia.org/resource/SPARQL User-driven interlinking Tagged content enters the “Linked Data” web Collaborative approach to share meanings in a community

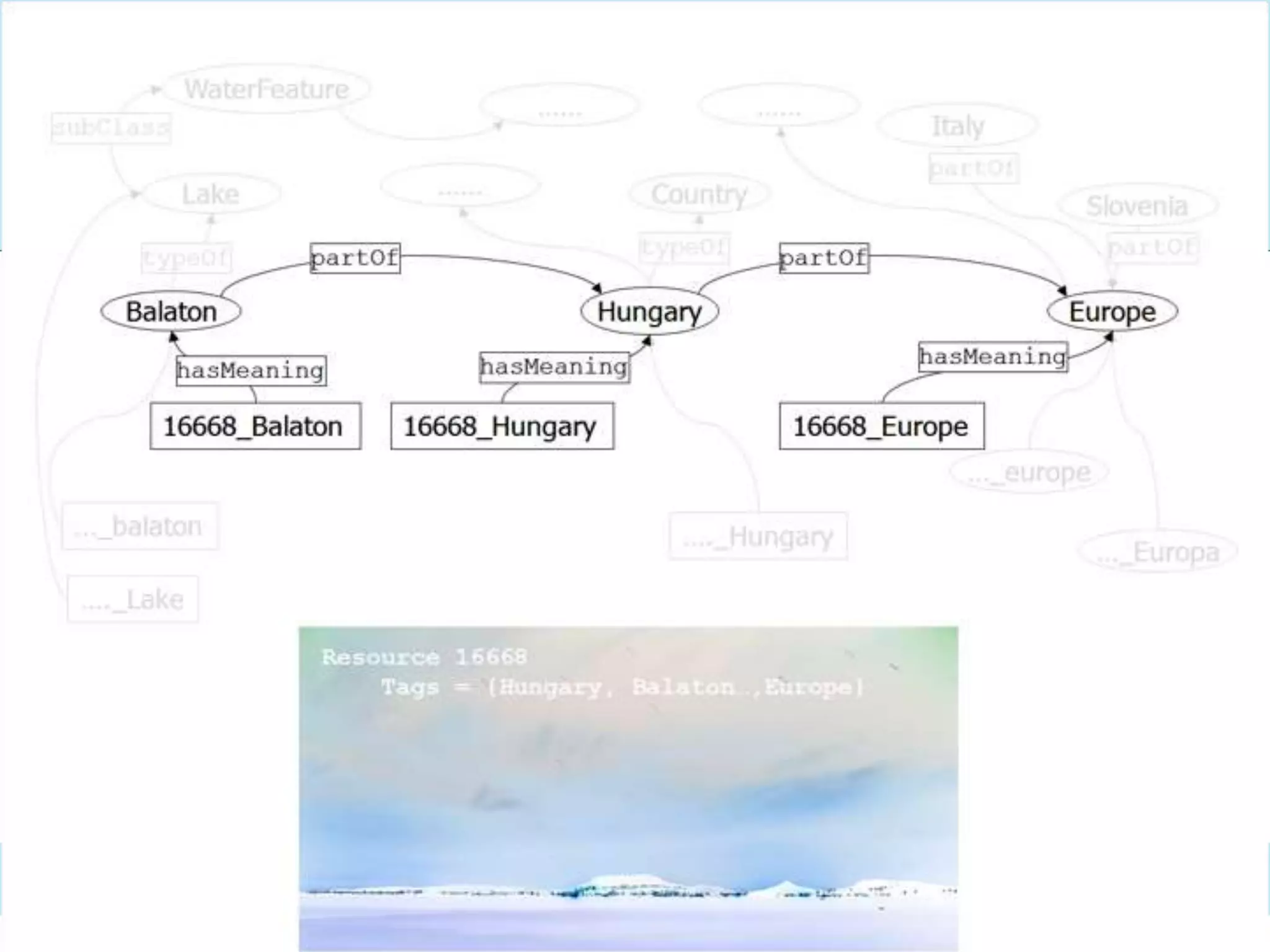

MOAT with DBpedia example data

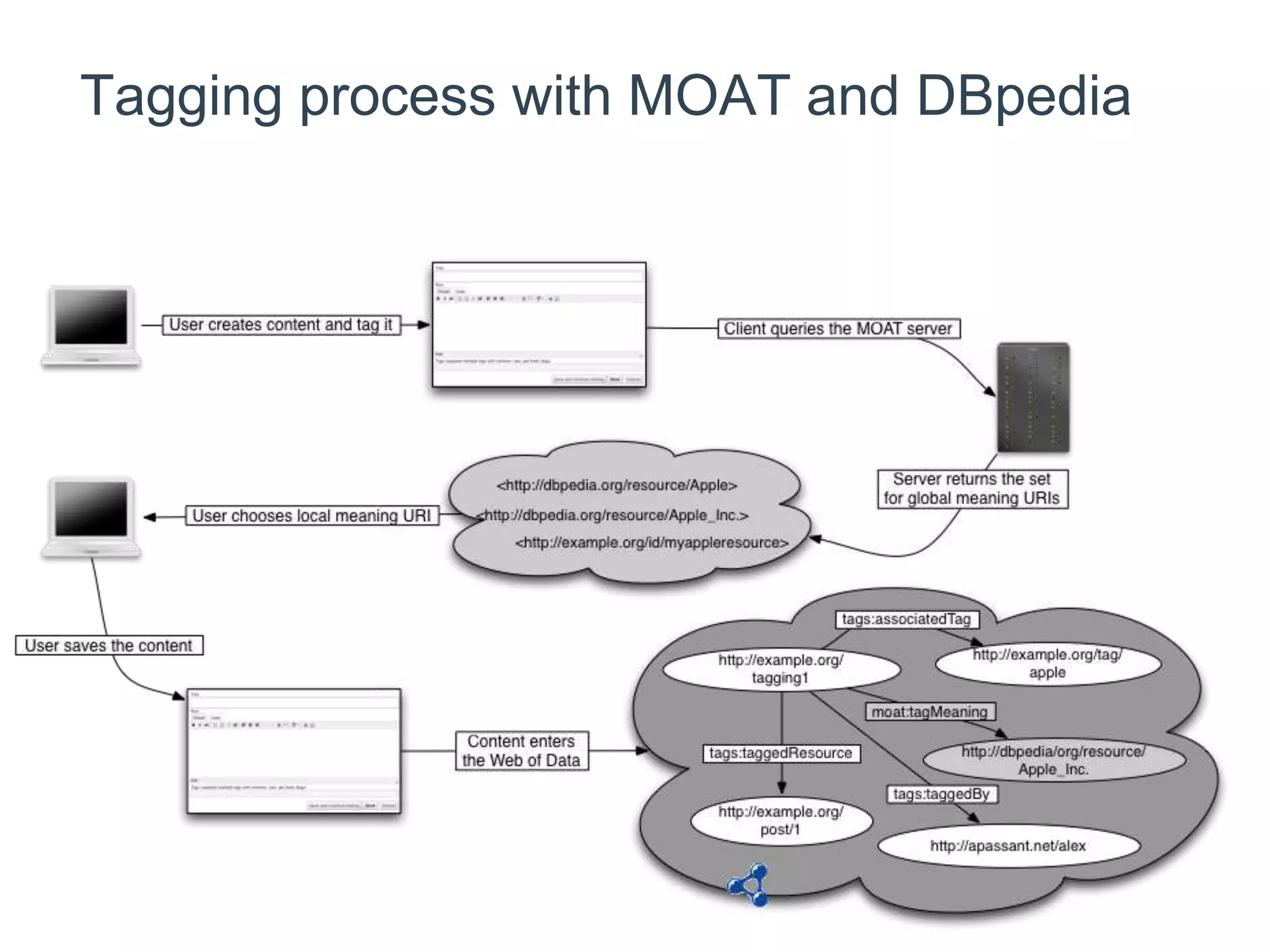

Tagging process with MOAT and DBpedia
MOAT in Drupal
CommonTag CommonTag: http://commontag.org/ A joint effort by AdaptiveBlue, DERI at NUI Galway, Faviki, Freebase, Yahoo!, Zemanta and Zigtag Linking tags to meaningful resource (à la MOAT)

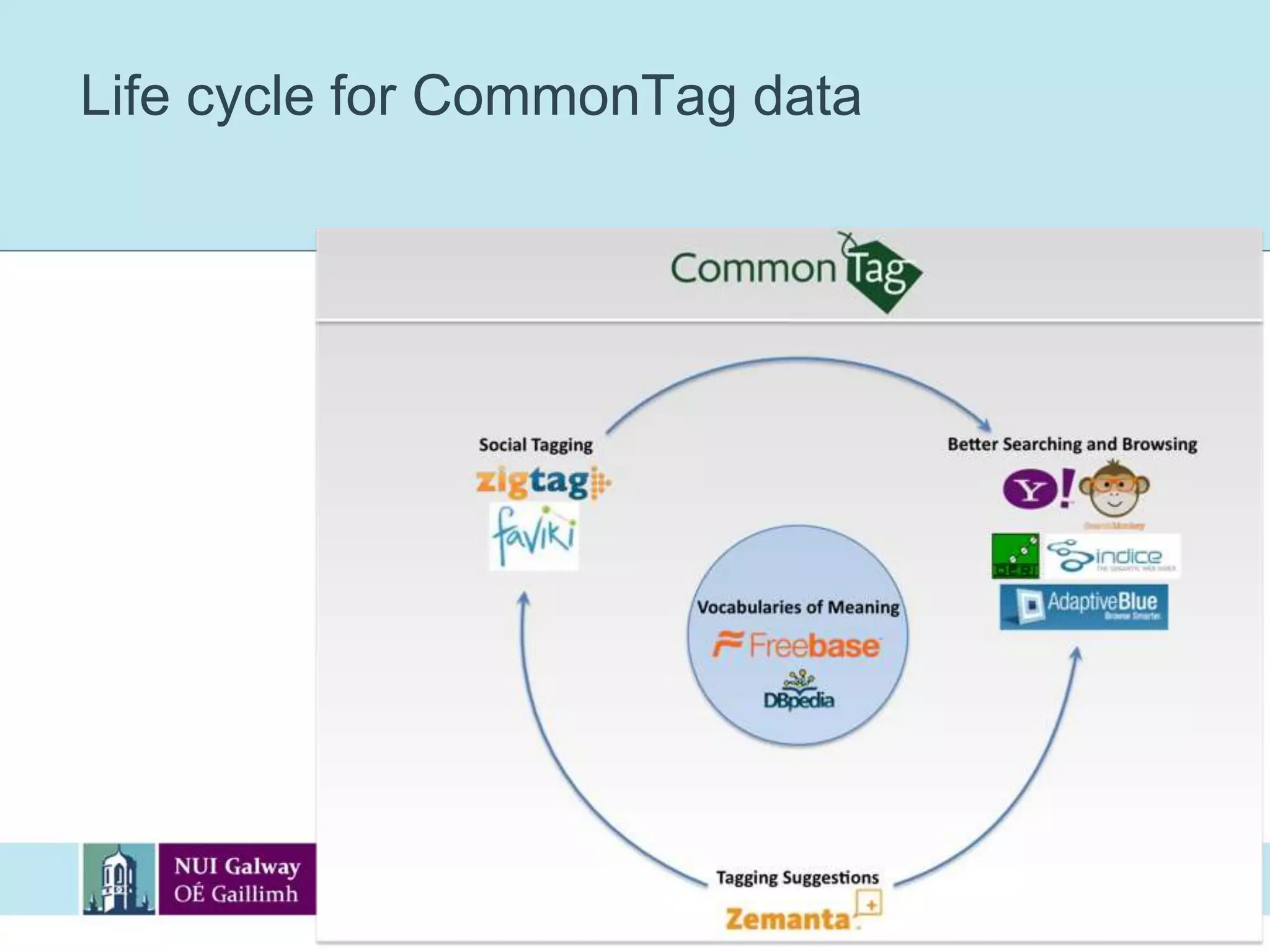

Life cycle for CommonTag data
NiceTag NiceTag Ontology: Tagging meets speech act theory Focus on the link between a tag and a tagged item

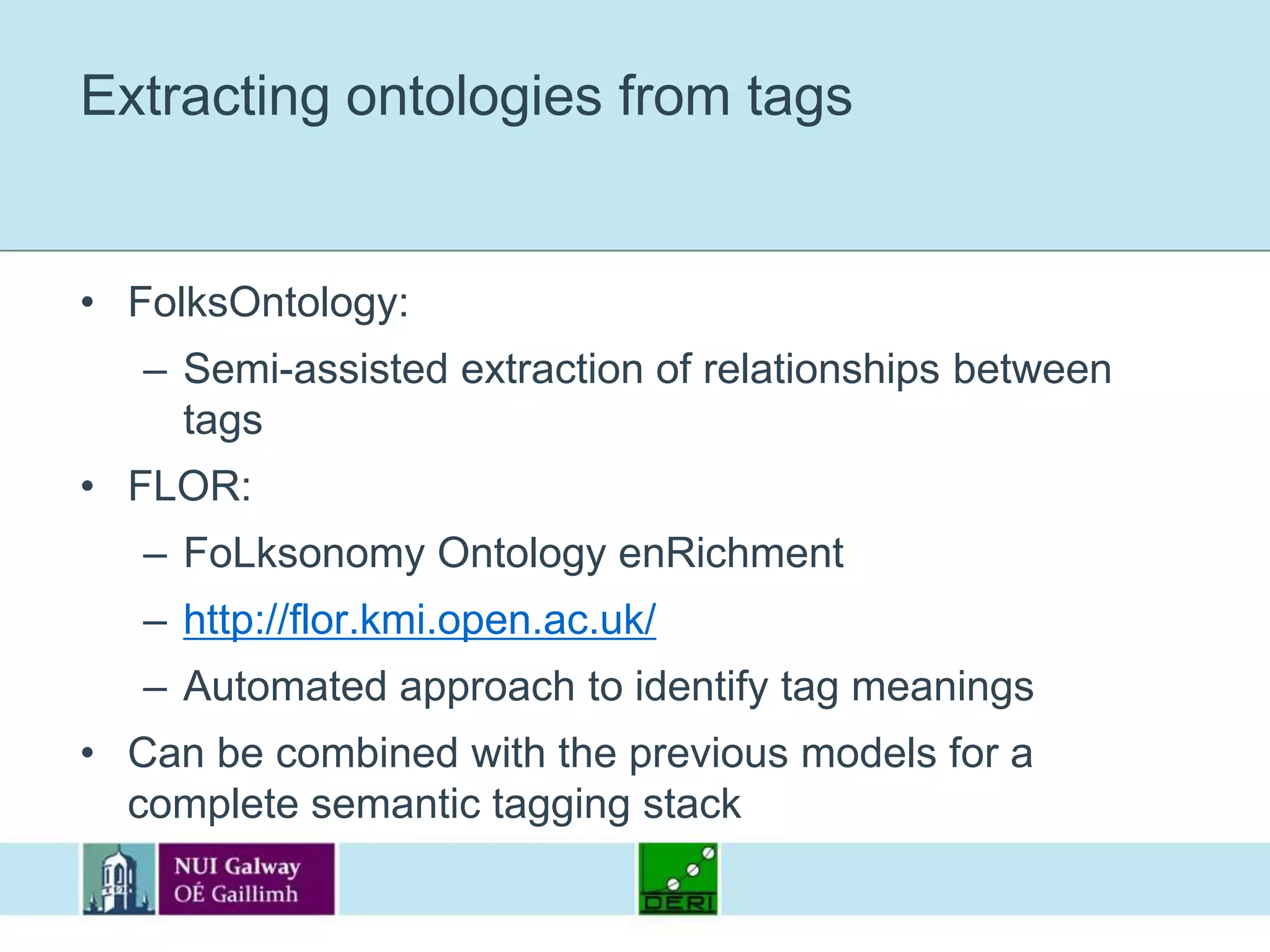

Extracting ontologies from tags FolksOntology: Semi-assisted extraction of relationships between tags FLOR: FoLksonomy Ontology enRichment http://flor.kmi.open.ac.uk/ Automated approach to identify tag meanings Can be combined with the previous models for a complete semantic tagging stack

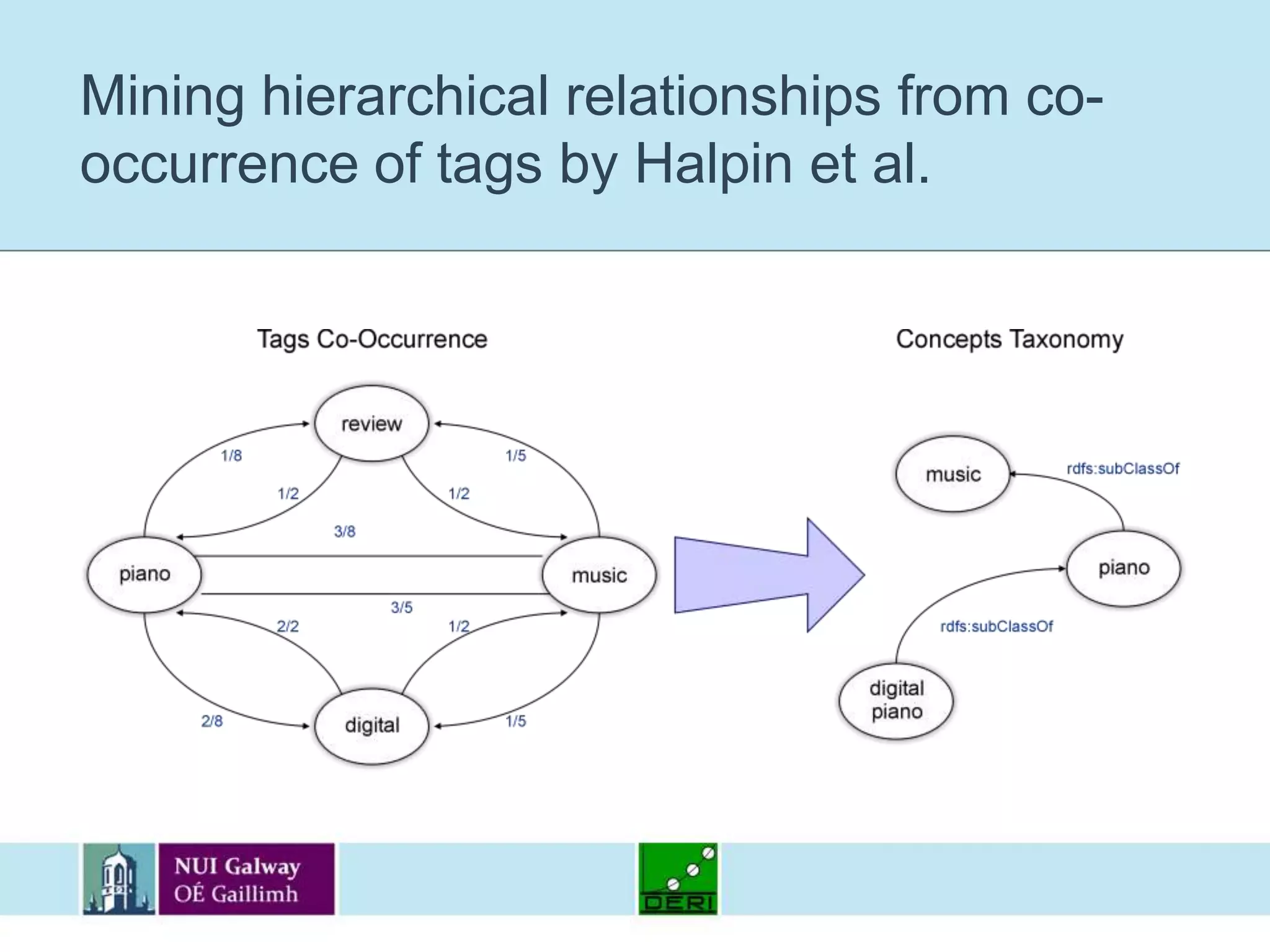

Mining hierarchical relationships from co-occurrence of tags by Halpin et al.
LODr: semantic tagging for social data
Faviki: bookmarking meets DBpedia
Unifying conversations Some more semantically-enhanced systems

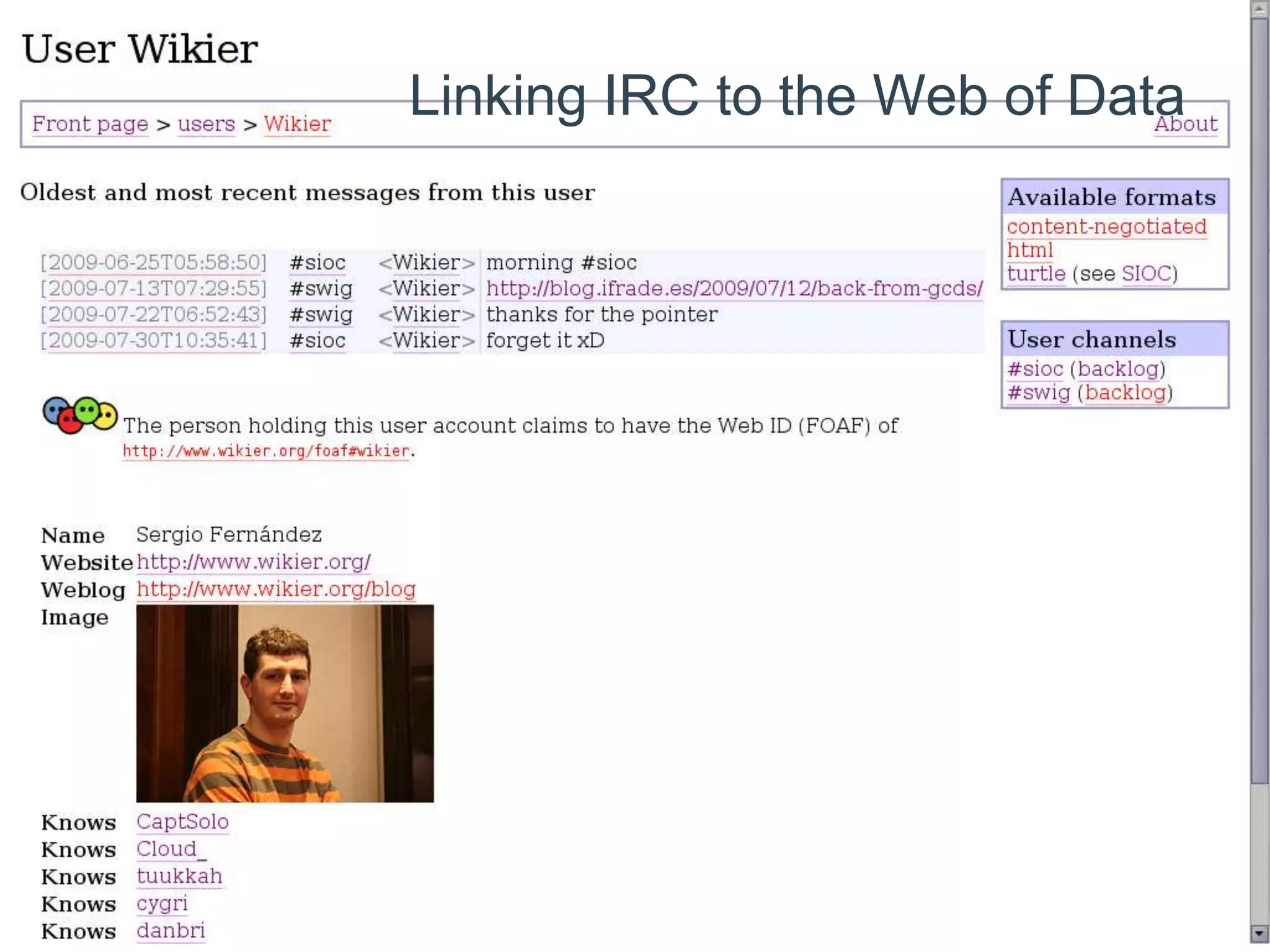

Linking IRC to the Web of Data

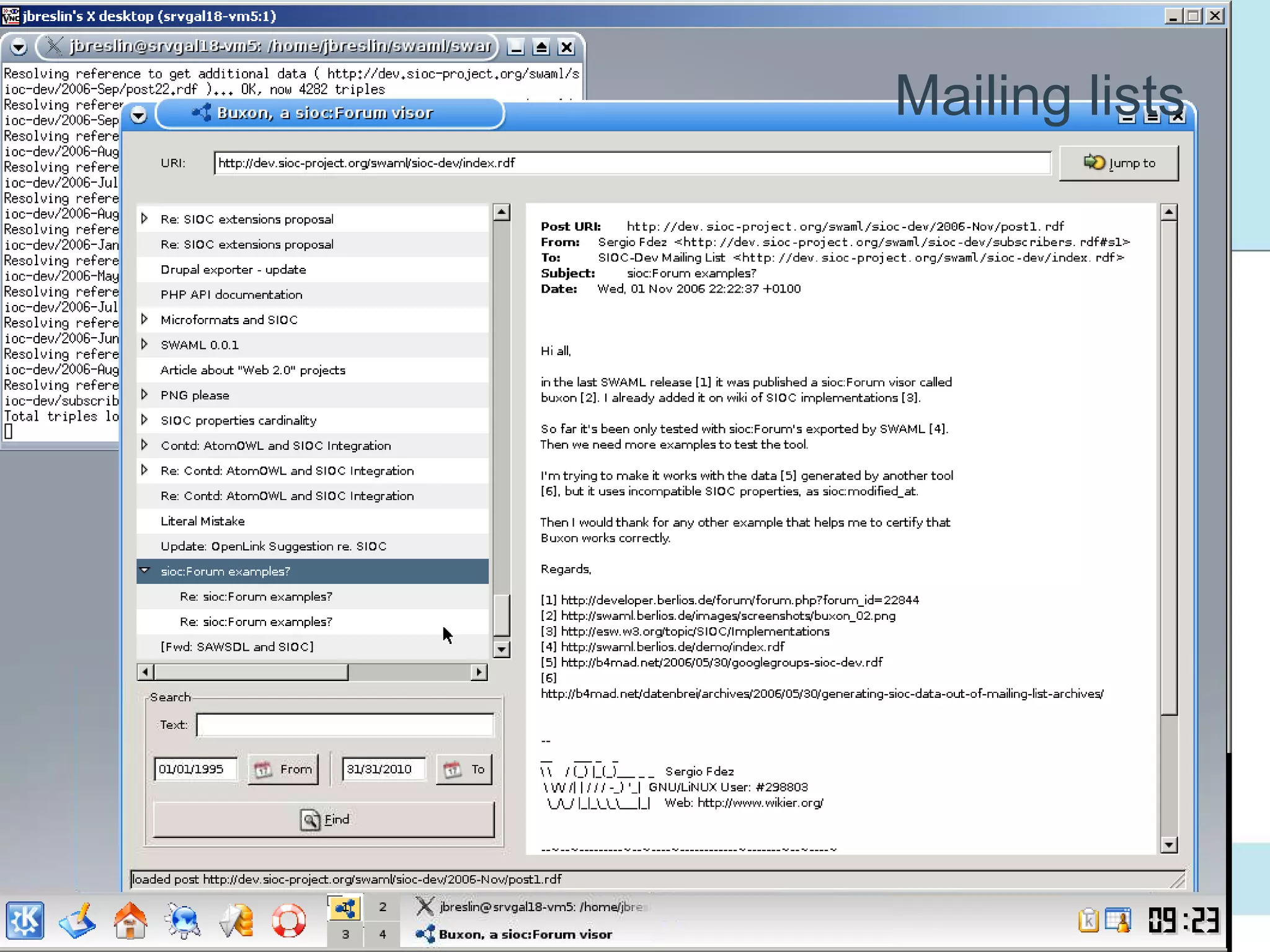

Mailing lists
102 Bulletin boards

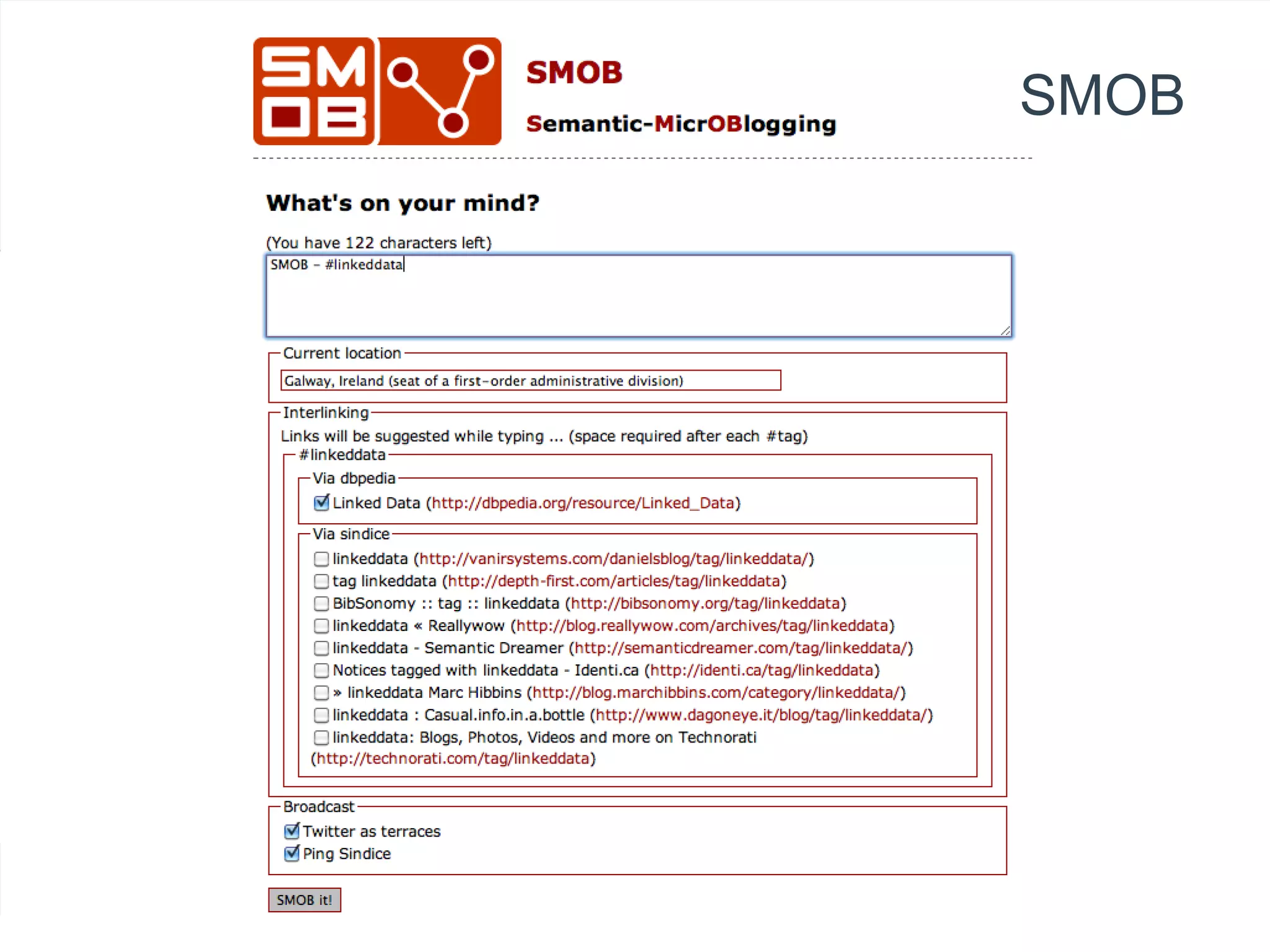

SMOB

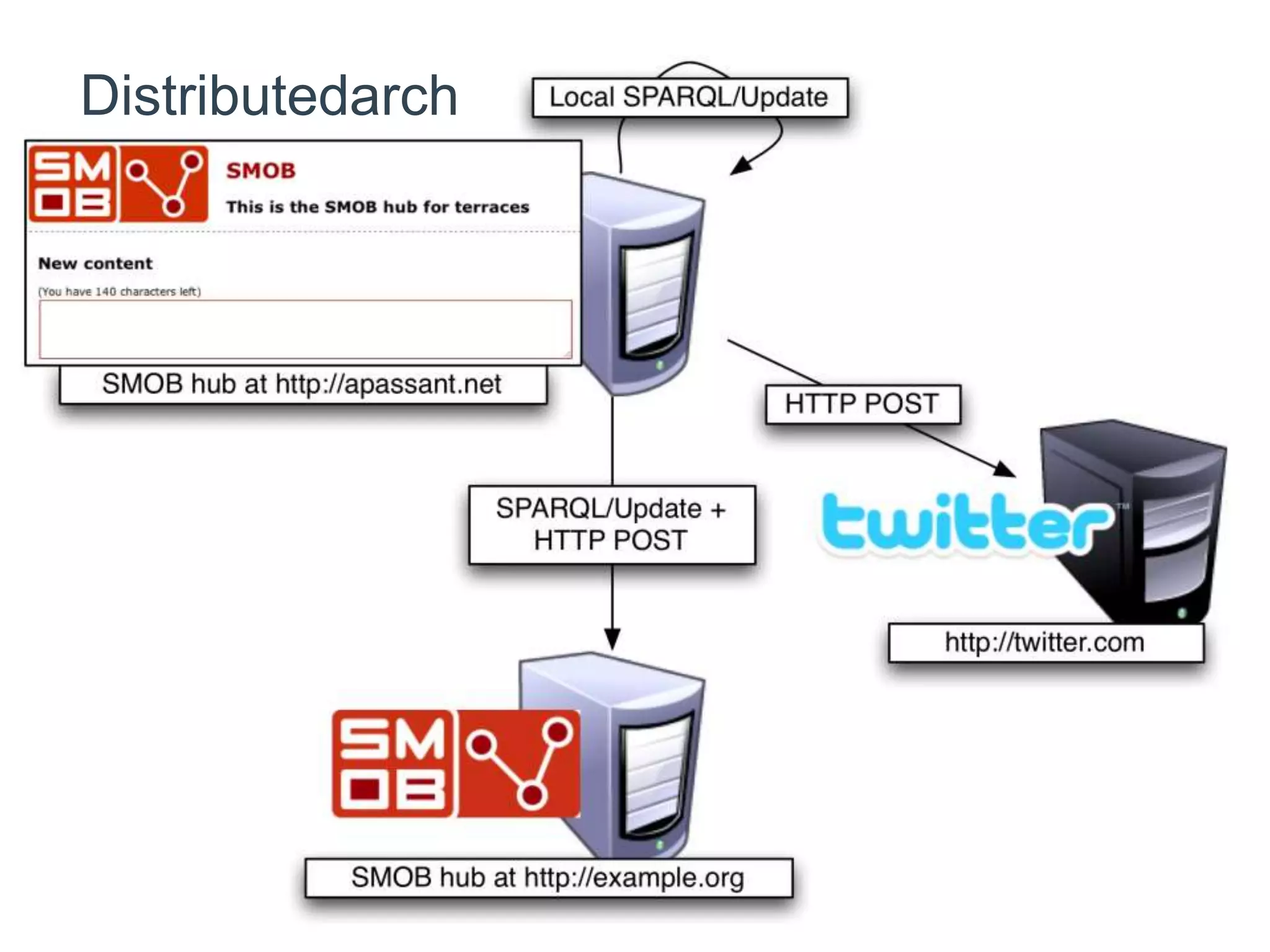

Distributedarch

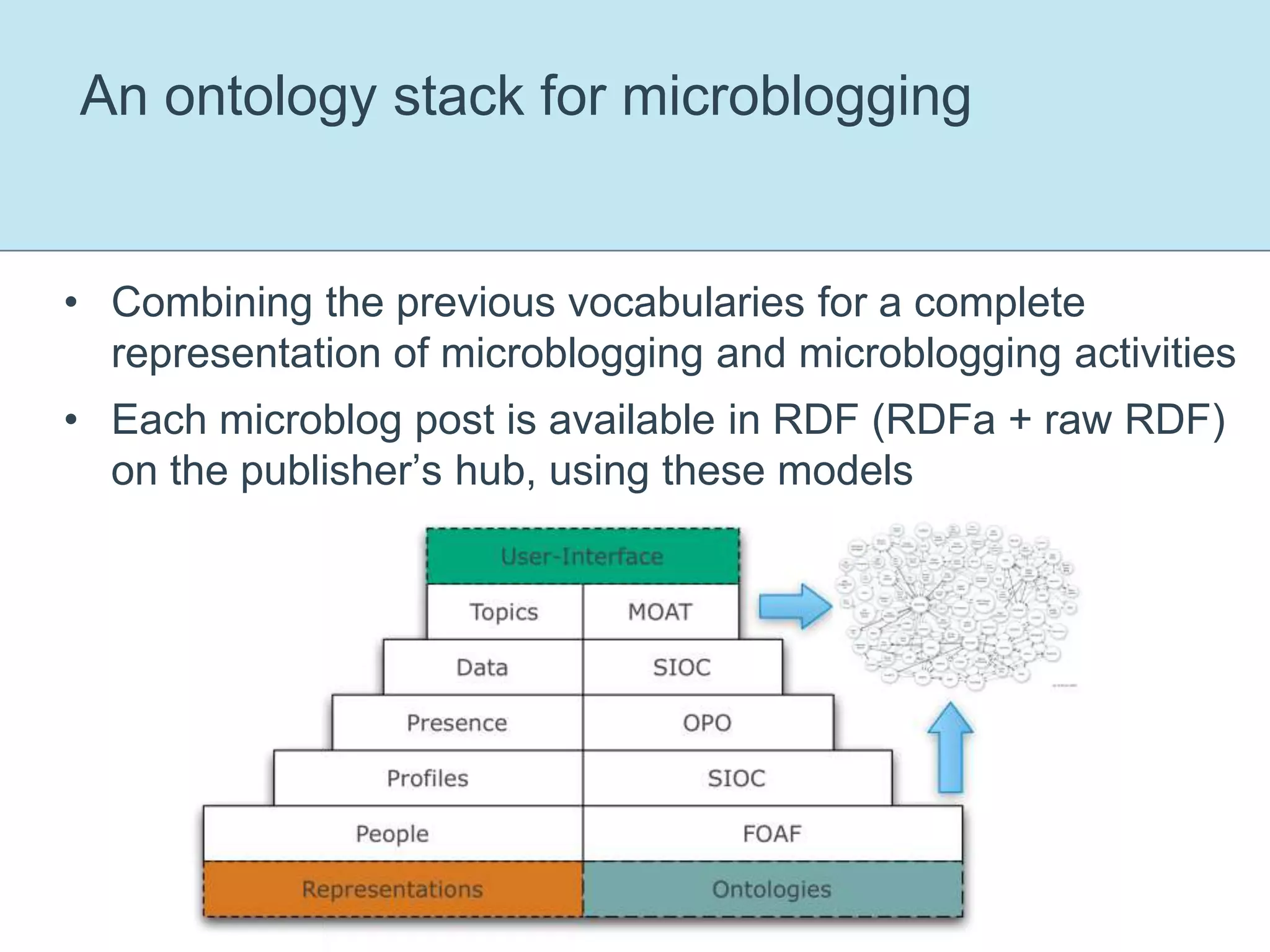

An ontology stack for microblogging Combining the previous vocabularies for a complete representation of microblogging and microblogging activities Each microblog post is available in RDF (RDFa + raw RDF) on the publisher’s hub, using these models

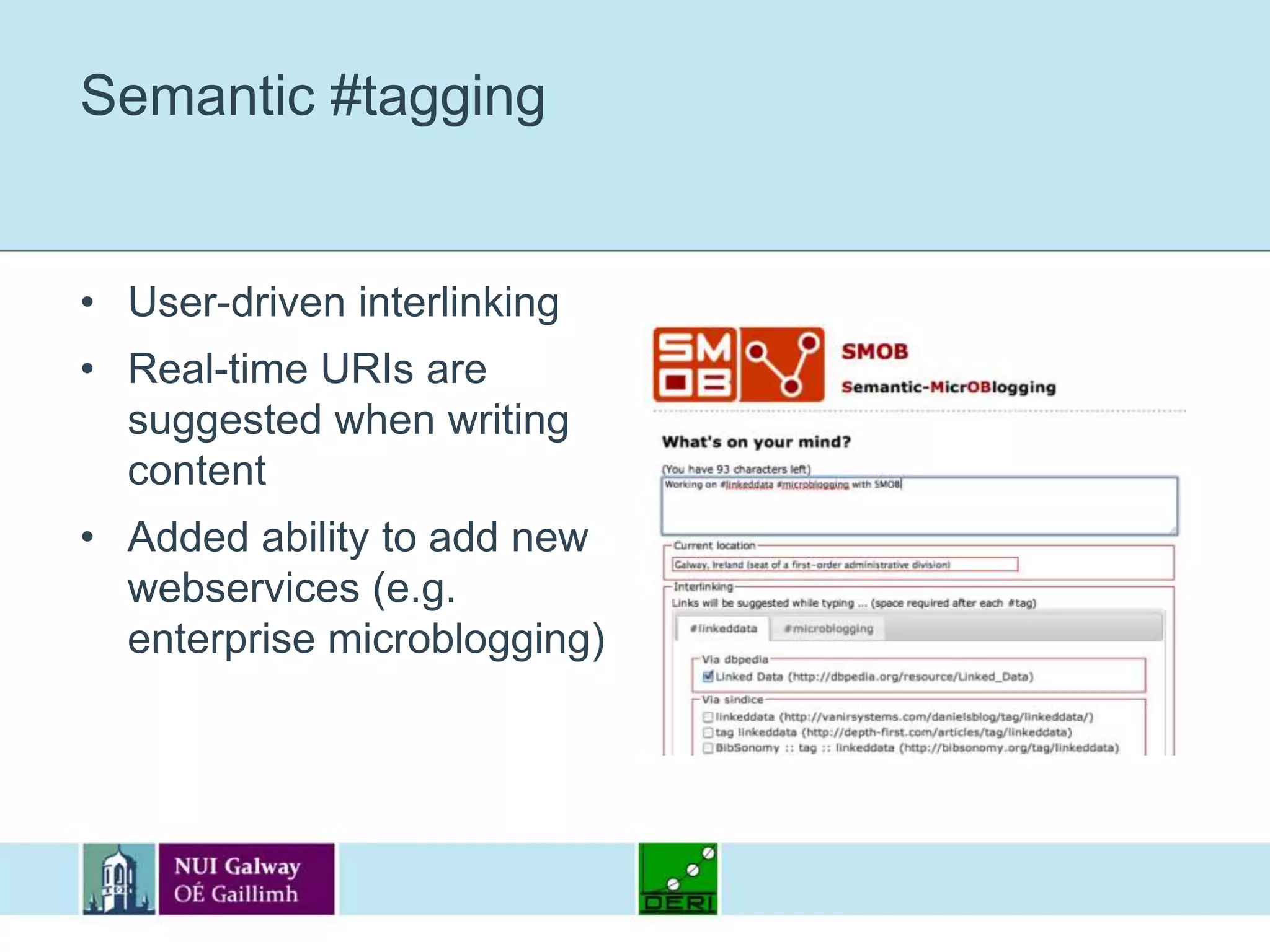

Semantic #tagging User-driven interlinking Real-time URIs are suggested when writing content Added ability to add new webservices (e.g. enterprise microblogging)
Semantic microblogging mashups

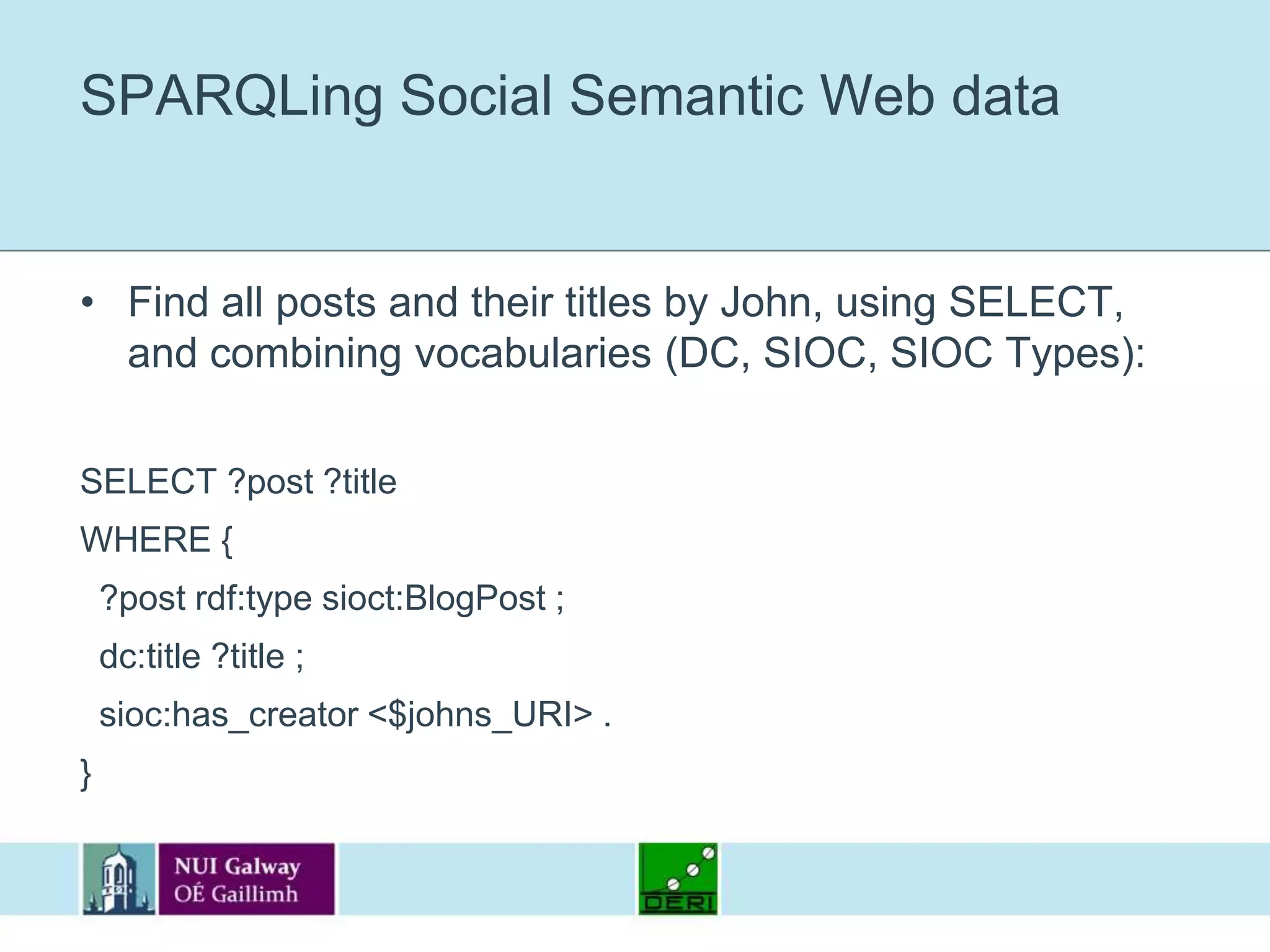

SPARQLing Social Semantic Web data Find all posts and their titles by John, using SELECT, and combining vocabularies (DC, SIOC, SIOC Types): SELECT ?post ?title WHERE {   ?post rdf:type sioct:BlogPost ;   dc:title ?title ;   sioc:has_creator <$johns_URI> . }

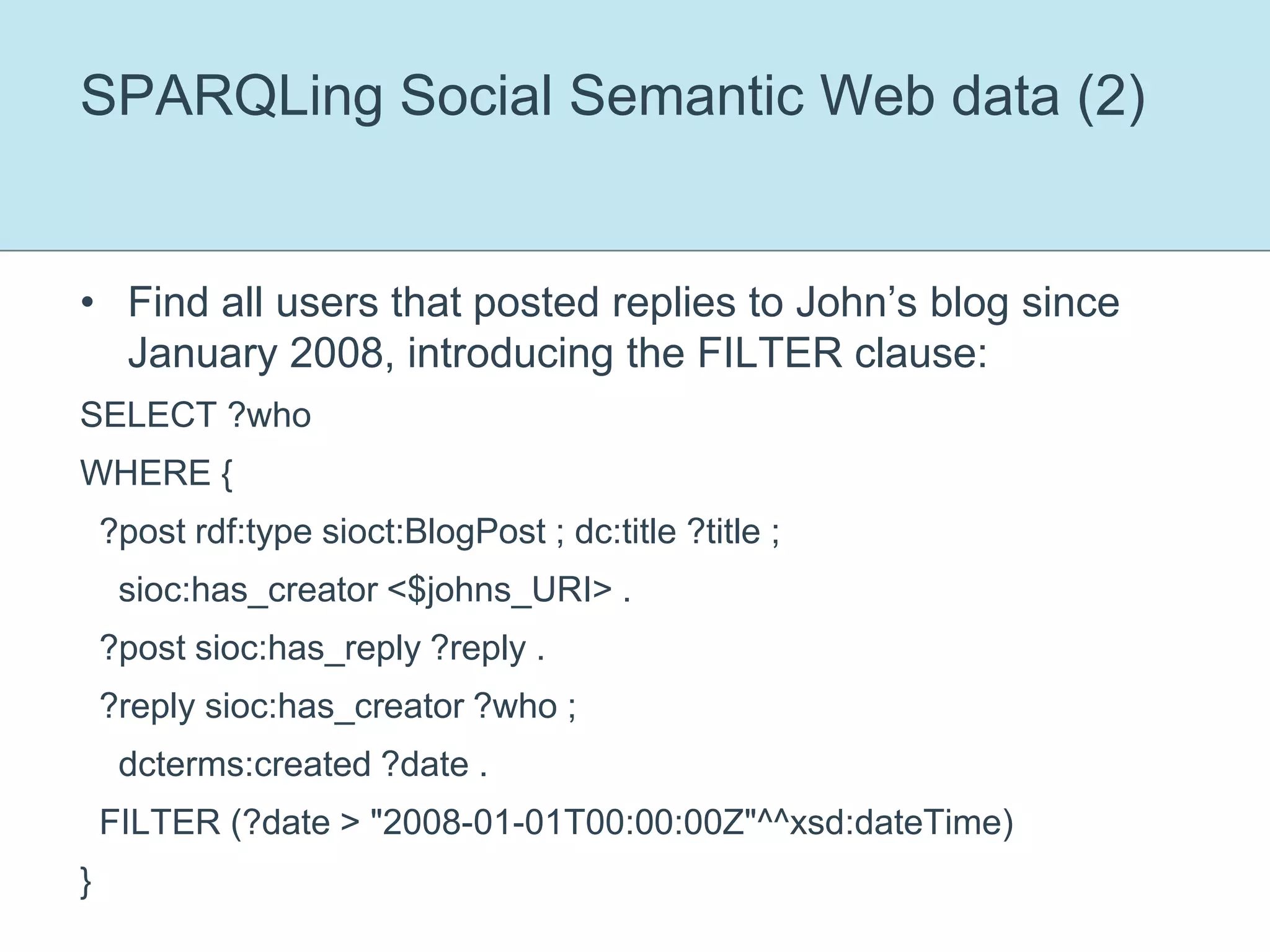

SPARQLing Social Semantic Web data (2) Find all users that posted replies to John’s blog since January 2008, introducing the FILTER clause: SELECT ?who WHERE {   ?post rdf:type sioct:BlogPost ; dc:title ?title ;     sioc:has_creator <$johns_URI> .   ?post sioc:has_reply ?reply .   ?reply sioc:has_creator ?who ;     dcterms:created ?date .   FILTER (?date > "2008-01-01T00:00:00Z"^^xsd:dateTime) }

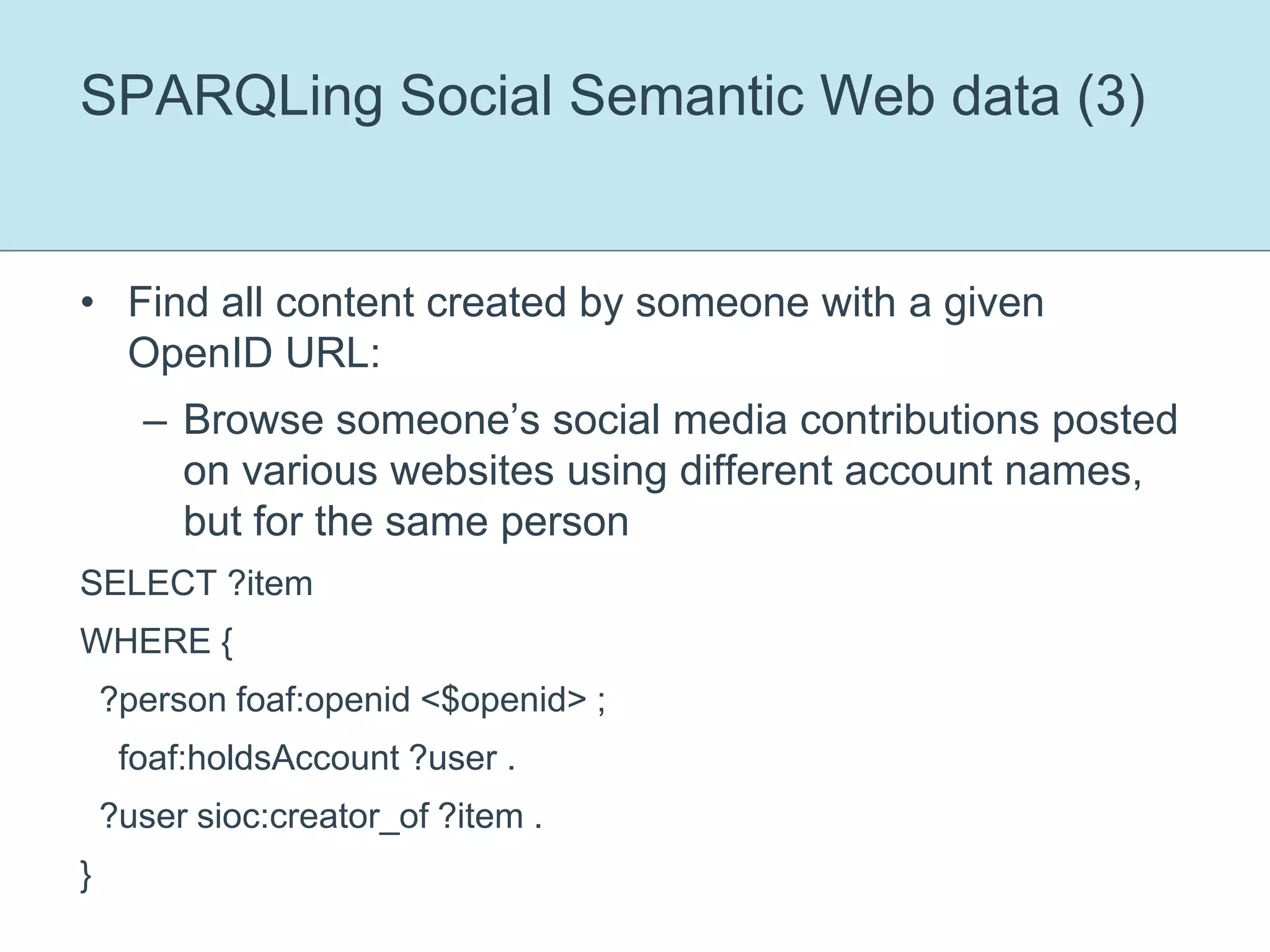

SPARQLing Social Semantic Web data (3) Find all content created by someone with a given OpenID URL: Browse someone’s social media contributions posted on various websites using different account names, but for the same person SELECT ?item WHERE {    ?person foaf:openid <$openid> ;     foaf:holdsAccount ?user .   ?user sioc:creator_of ?item . }

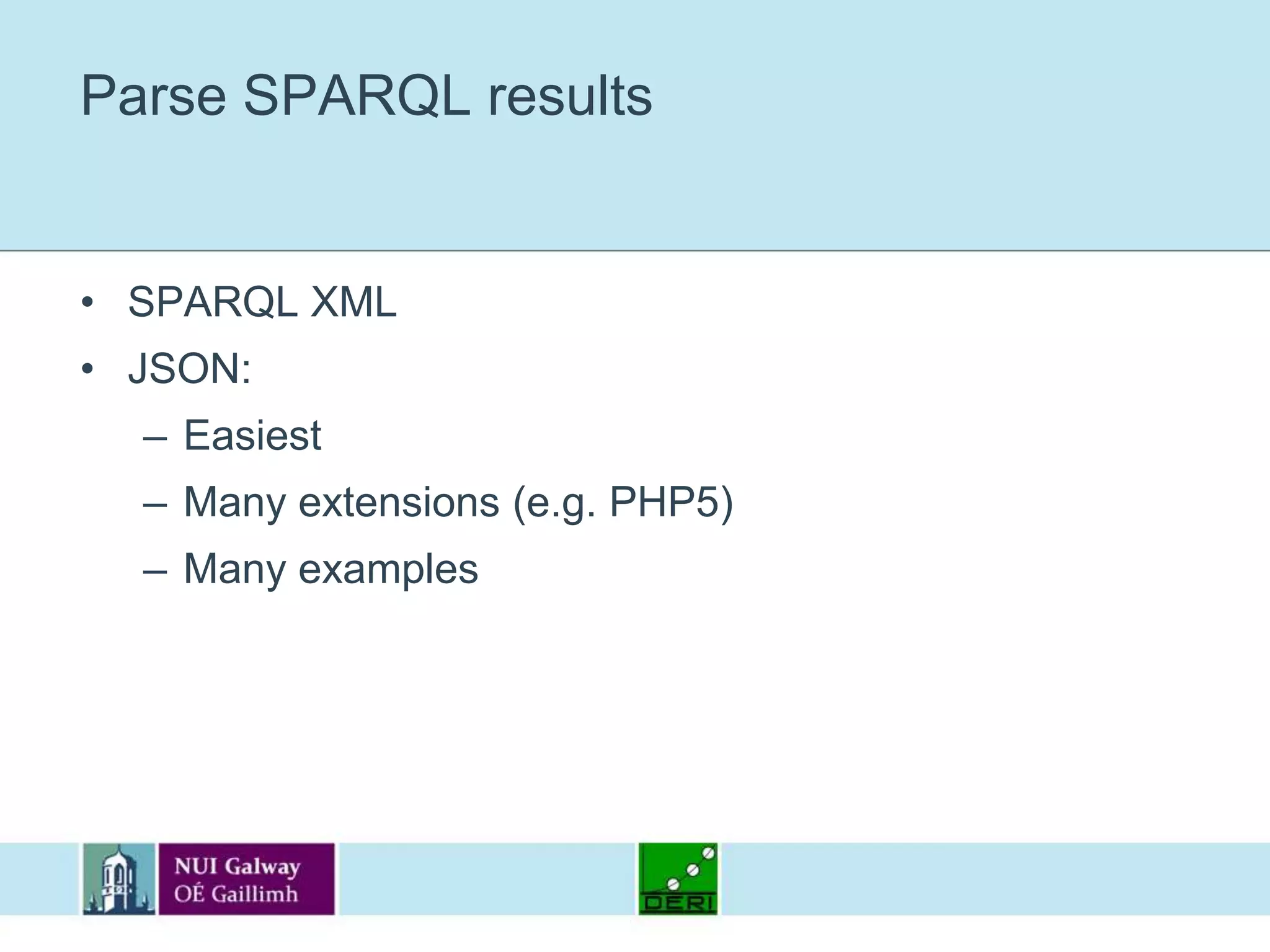

Parse SPARQL results SPARQL XML JSON: Easiest Many extensions (e.g. PHP5) Many examples

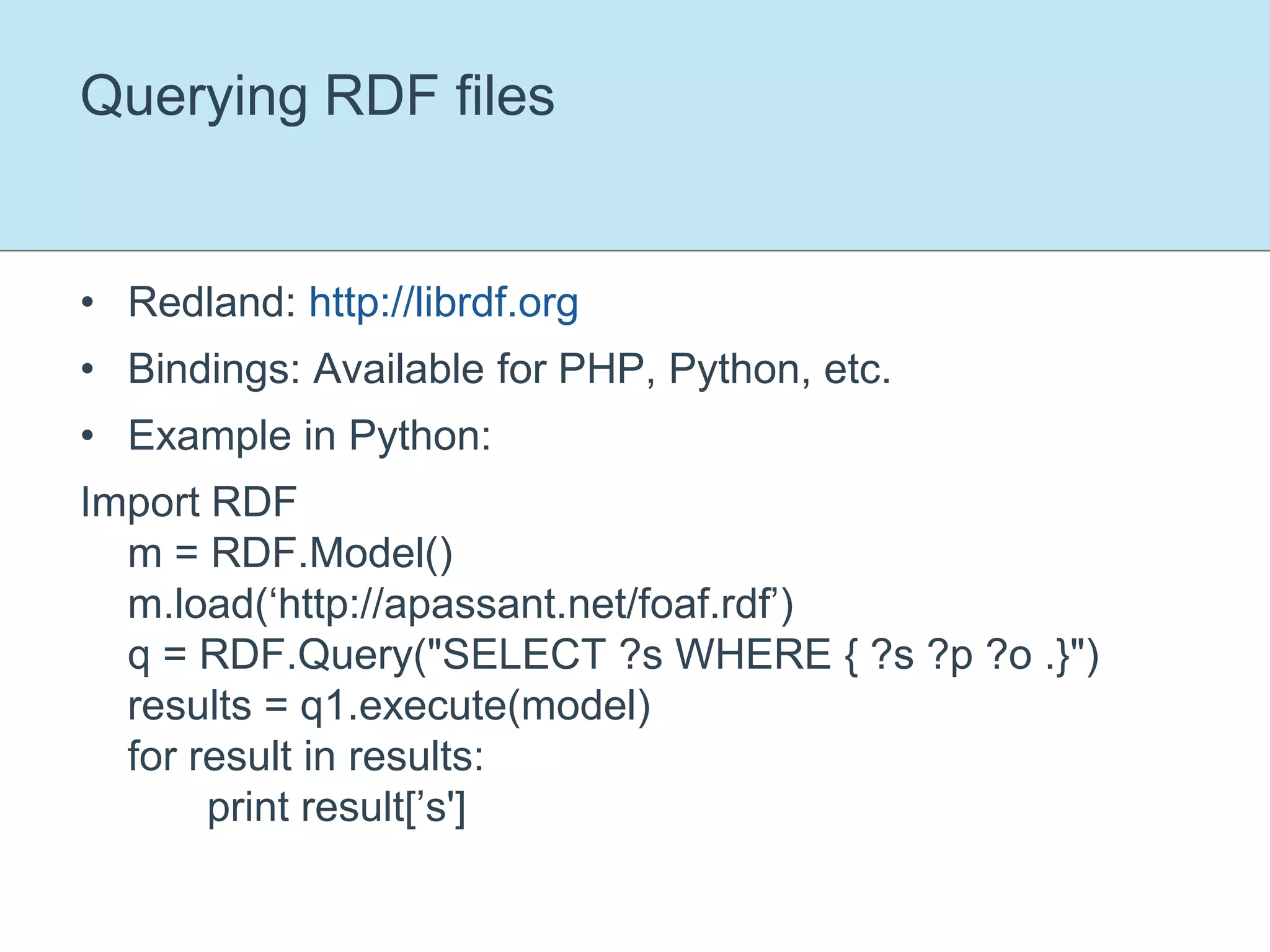

Querying RDF files Redland: http://librdf.org Bindings: Available for PHP, Python, etc. Example in Python: Import RDFm = RDF.Model()m.load(‘http://apassant.net/foaf.rdf’)q = RDF.Query("SELECT ?s WHERE { ?s ?p ?o .}")results = q1.execute(model)for result in results:	print result[’s']

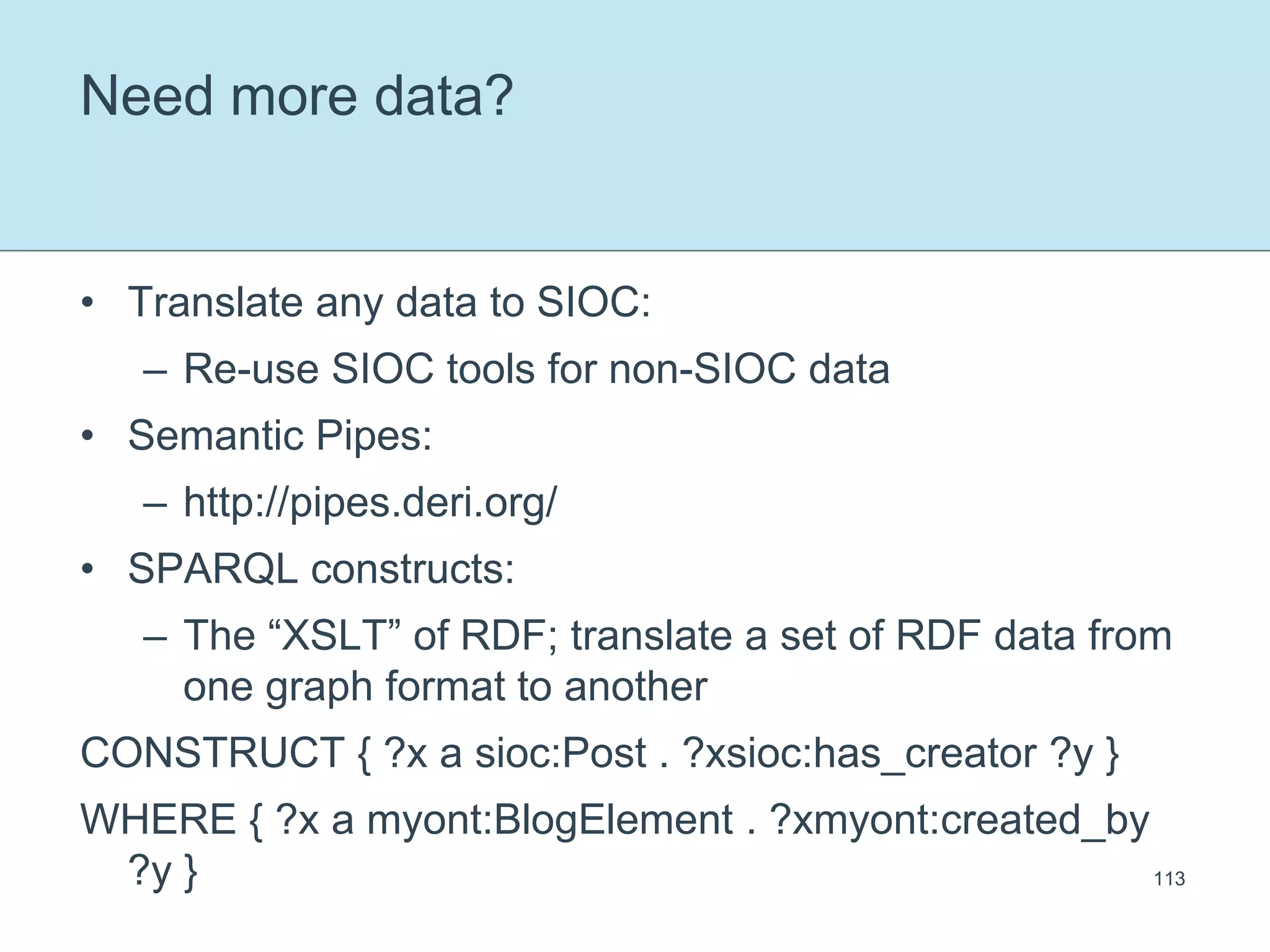

Need more data? Translate any data to SIOC: Re-use SIOC tools for non-SIOC data Semantic Pipes: http://pipes.deri.org/ SPARQL constructs: The “XSLT” of RDF; translate a set of RDF data from one graph format to another CONSTRUCT { ?x a sioc:Post . ?xsioc:has_creator ?y } WHERE { ?x a myont:BlogElement . ?xmyont:created_by ?y } 113

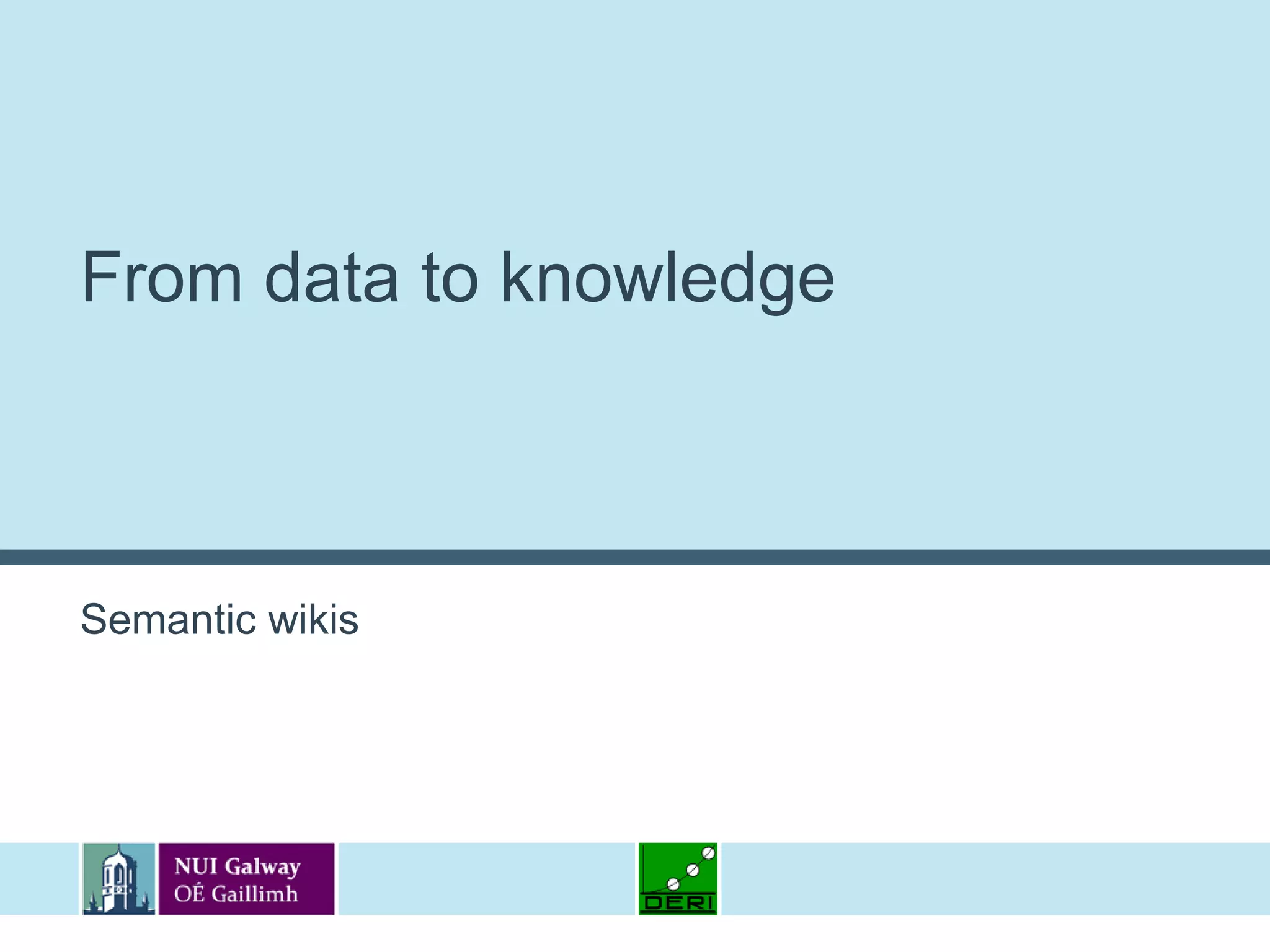

From data to knowledge Semantic wikis

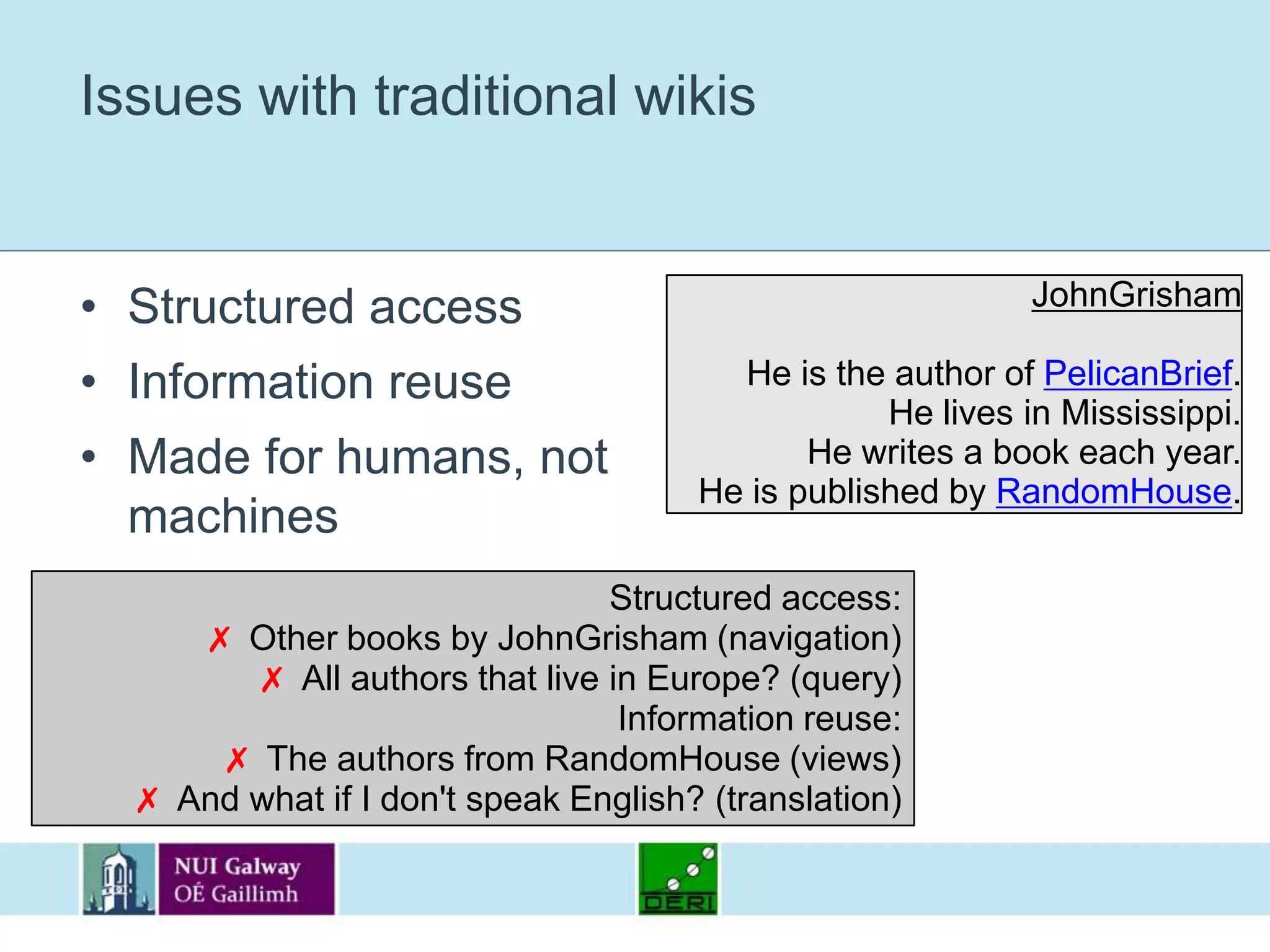

Issues with traditional wikis Structured access Information reuse Made for humans, not machines JohnGrisham He is the author of PelicanBrief.He lives in Mississippi. He writes a book each year. He is published by RandomHouse. Structured access: ,[object Object]
All authors that live in Europe? (query)Information reuse: ,[object Object]
And what if I don't speak English? (translation),[object Object]
From wikis to semantic wikis

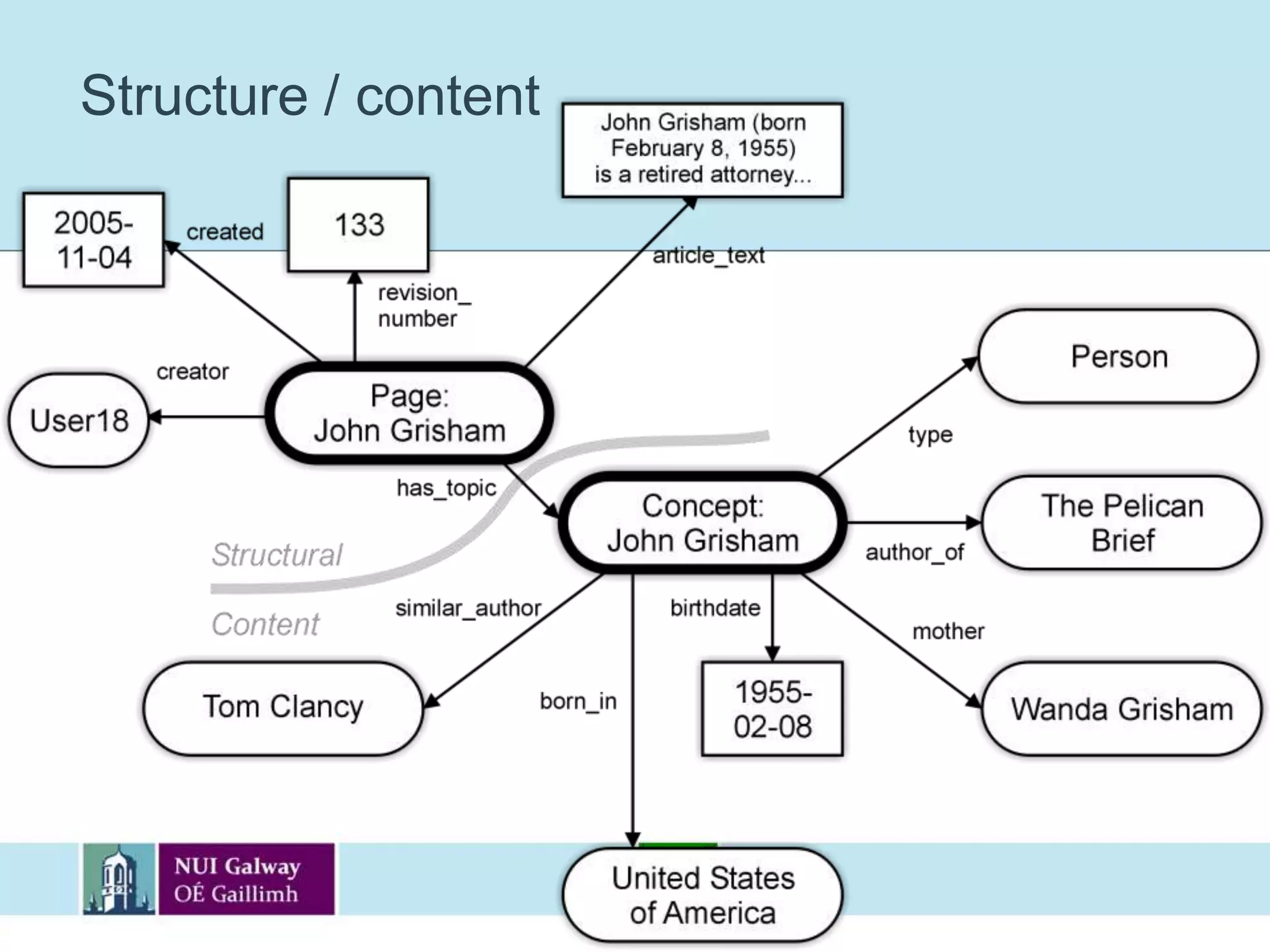

Structure / content
SemperWiki

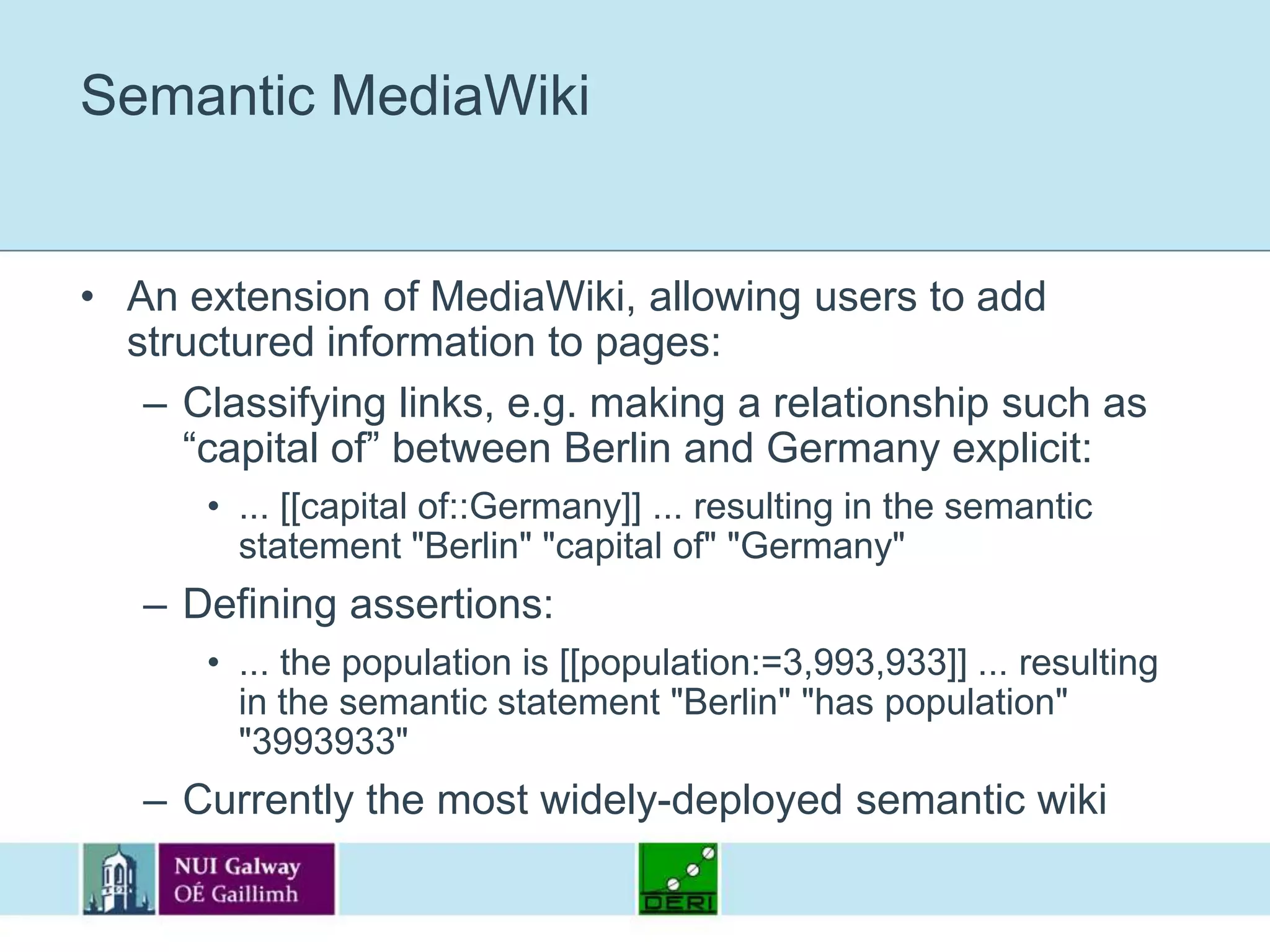

Semantic MediaWiki An extension of MediaWiki, allowing users to add structured information to pages: Classifying links, e.g. making a relationship such as “capital of” between Berlin and Germany explicit: ... [[capital of::Germany]] ... resulting in the semantic statement "Berlin" "capital of" "Germany" Defining assertions: ... the population is [[population:=3,993,933]] ... resulting in the semantic statement "Berlin" "has population" "3993933" Currently the most widely-deployed semantic wiki

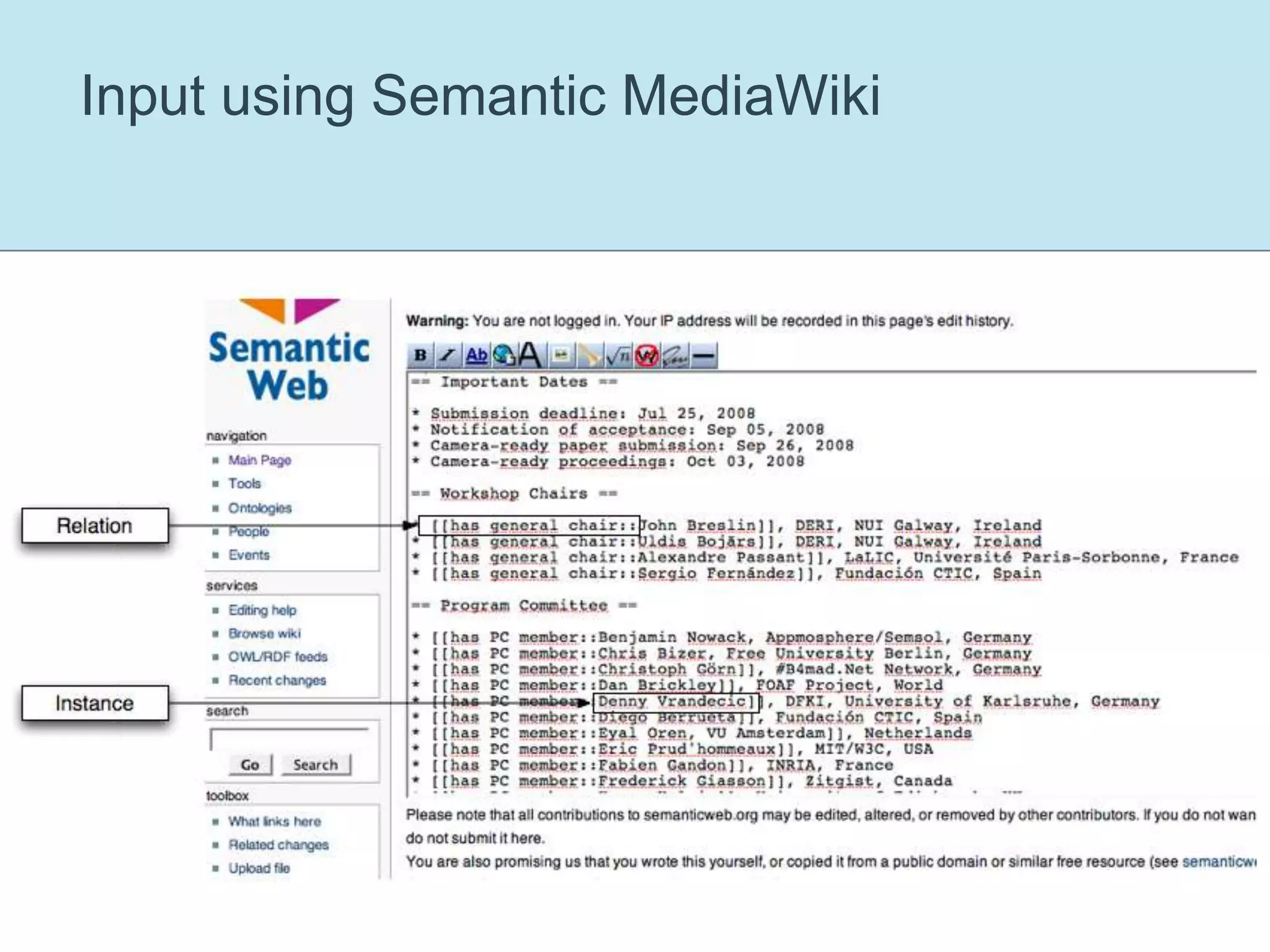

Input using Semantic MediaWiki

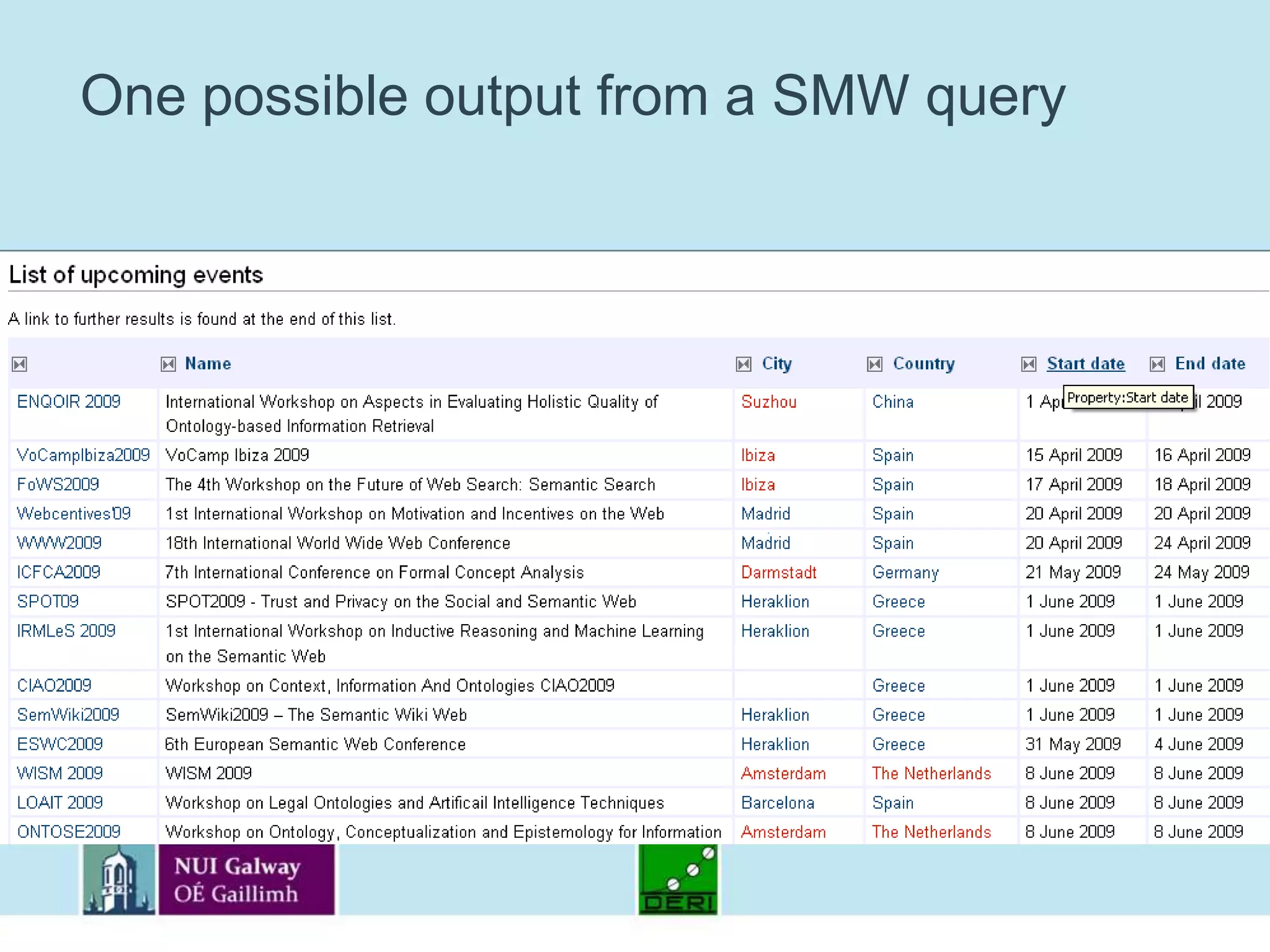

One possible output from a SMW query

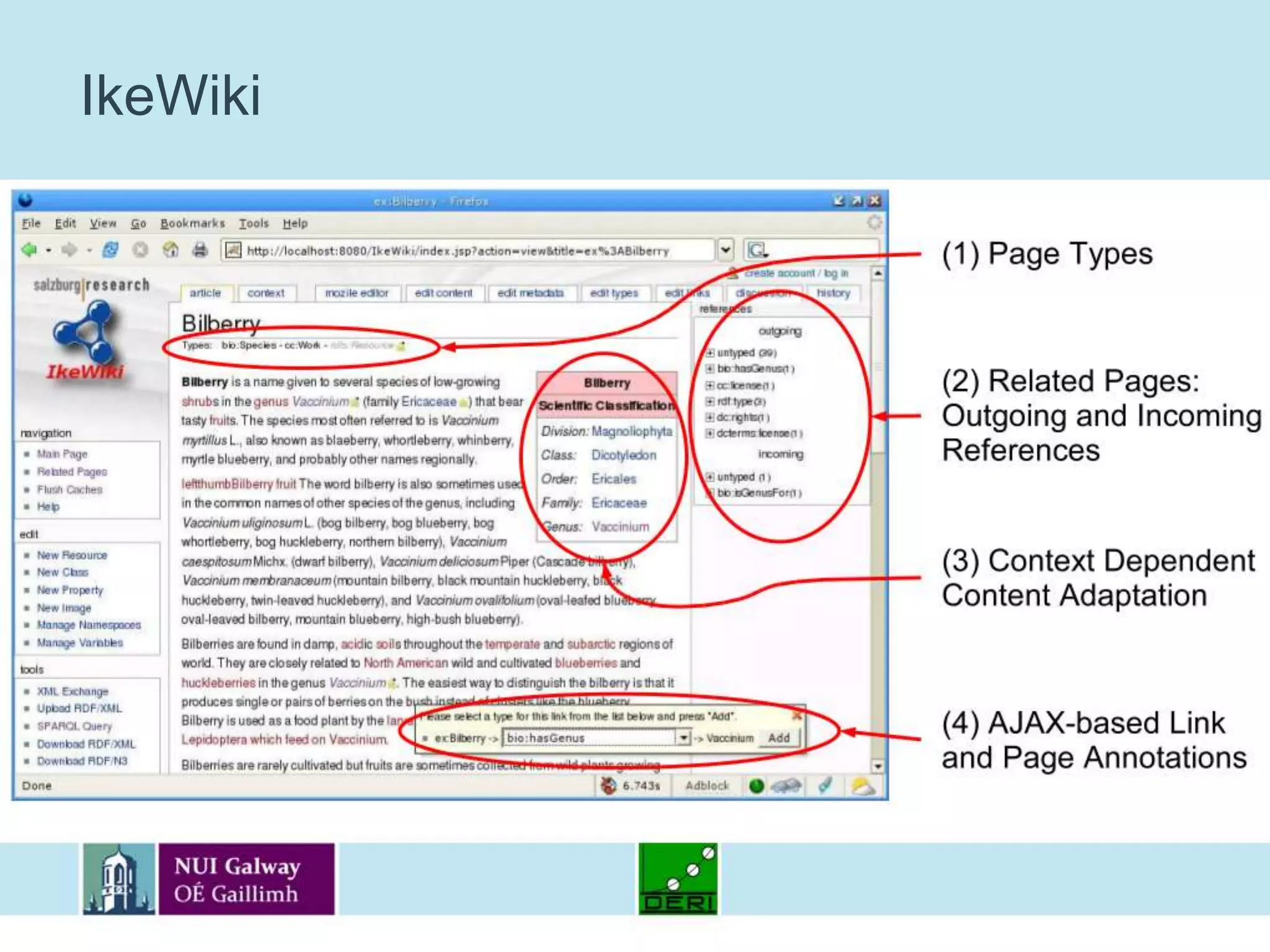

IkeWiki

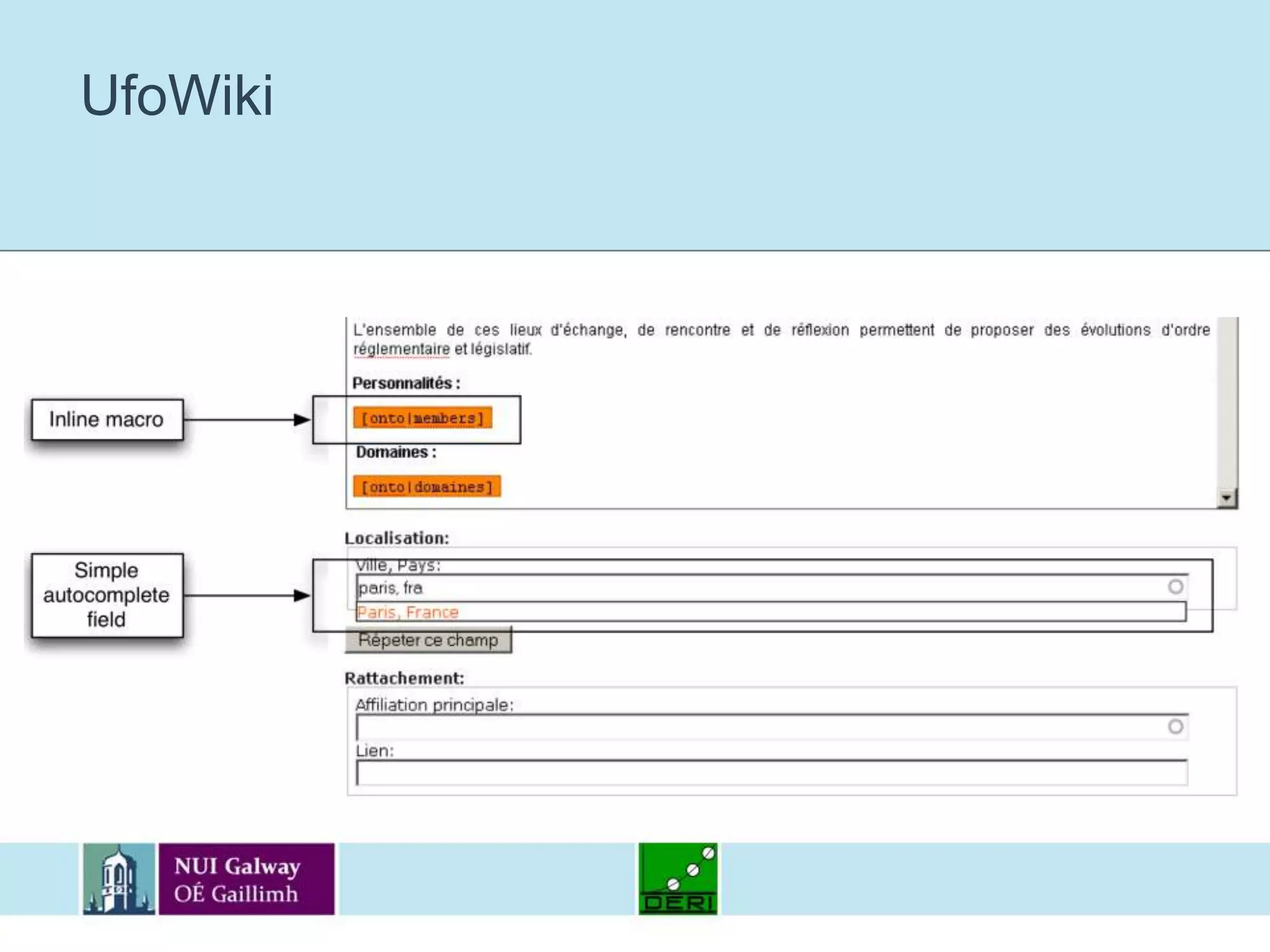

UfoWiki
FromWikipedia…
…to DBpedia @@ TODO

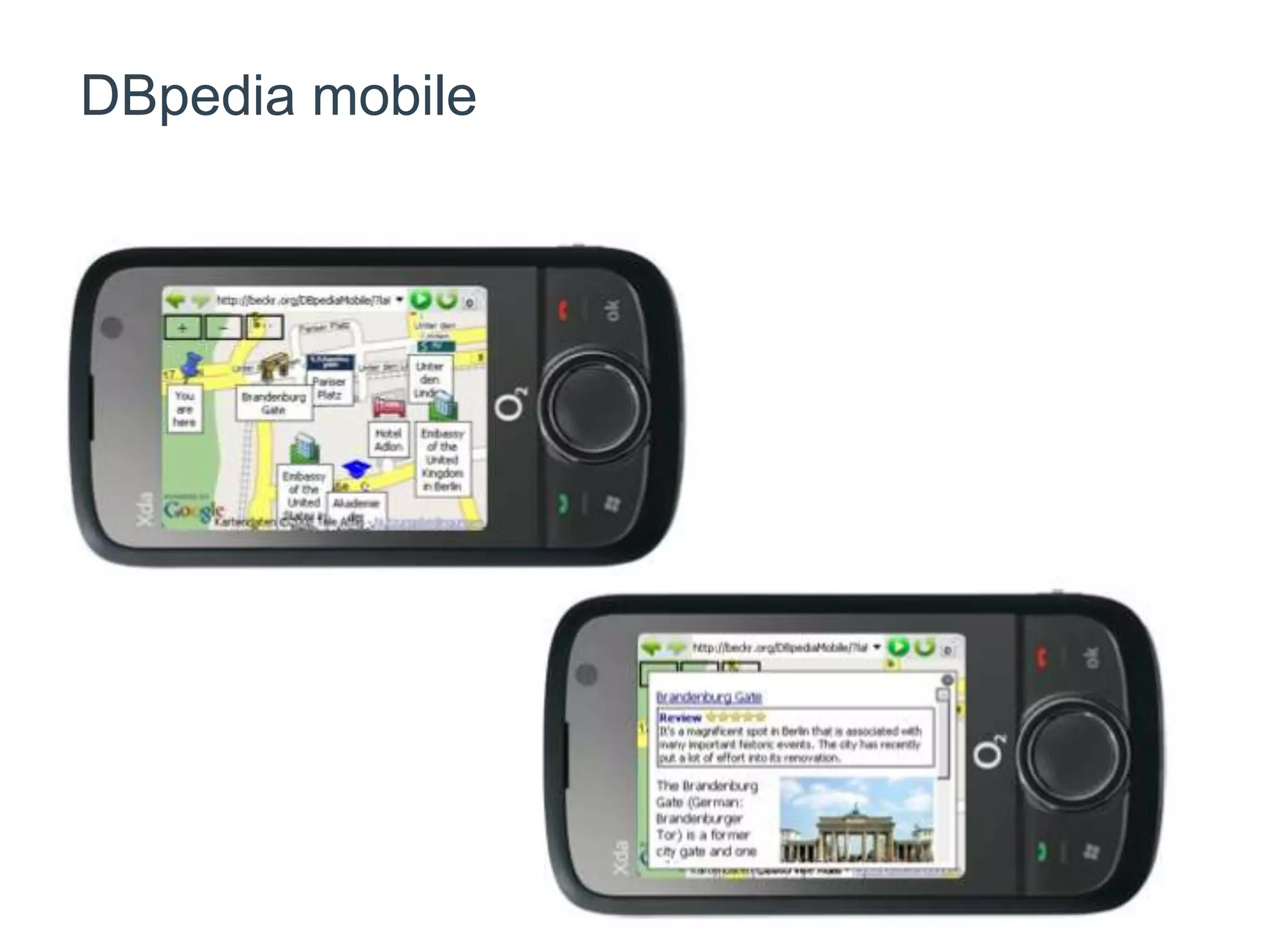

DBpedia mobile

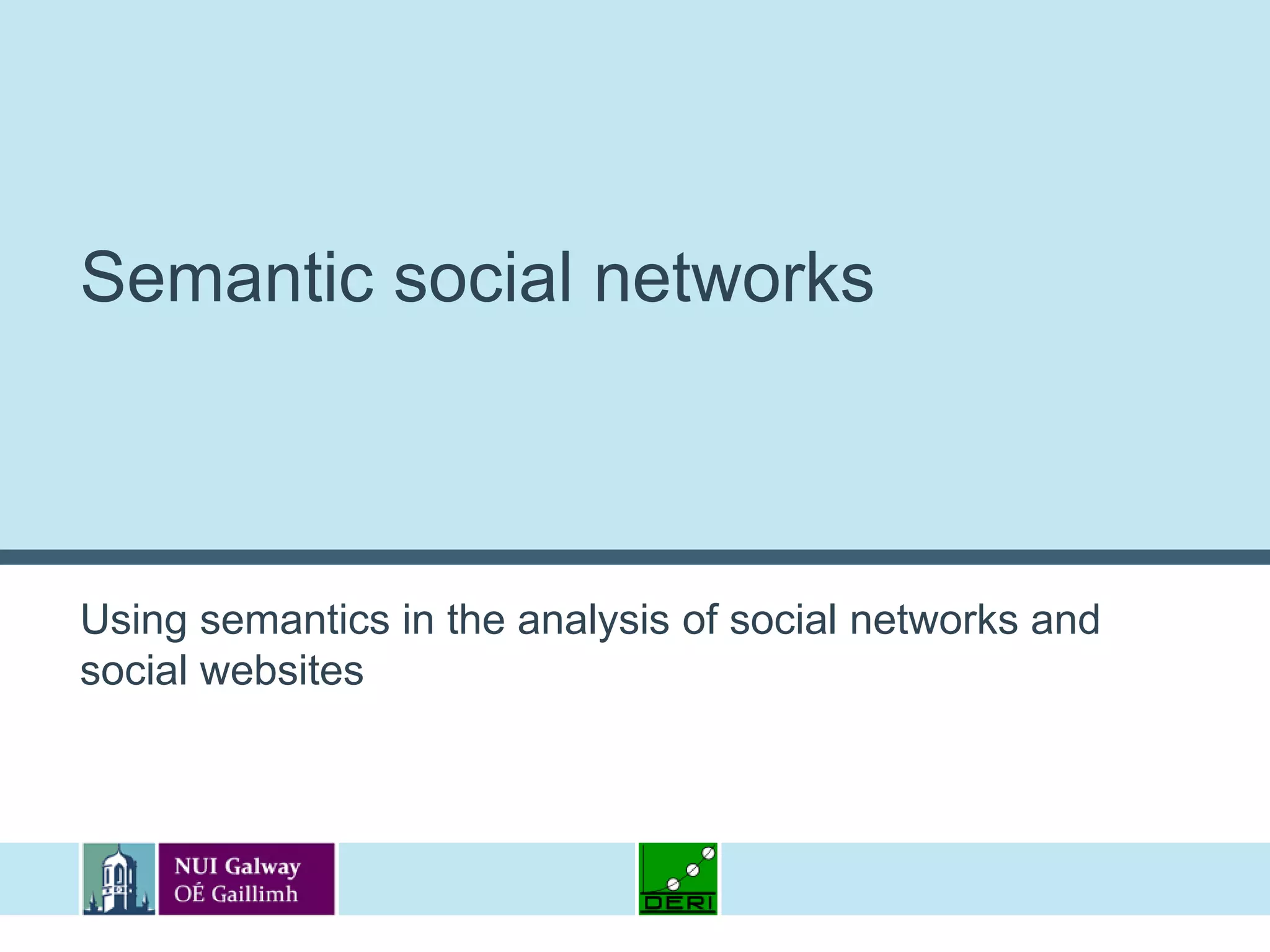

Semantic social networks Using semantics in the analysis of social networks and social websites

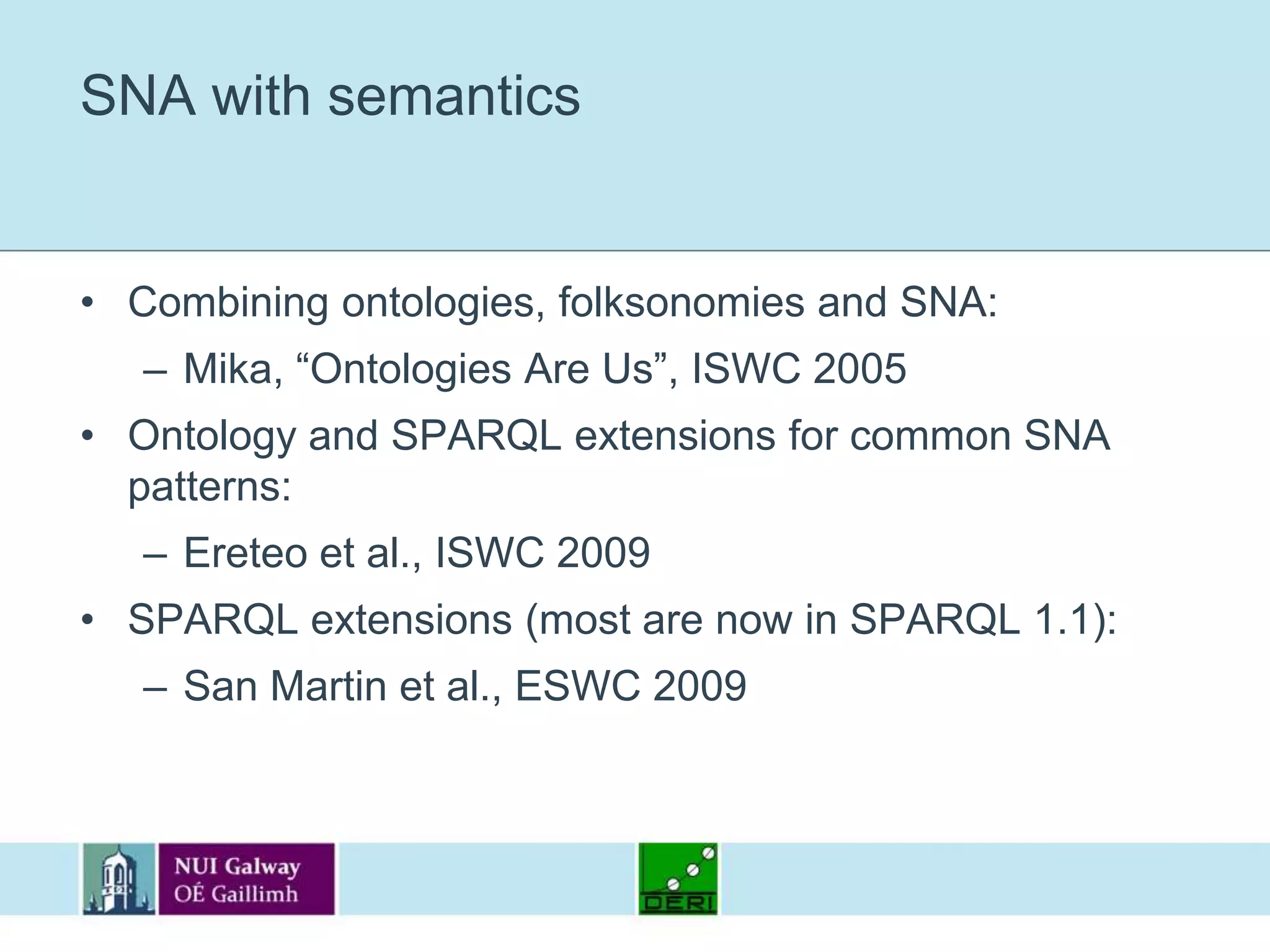

SNA with semantics Combining ontologies, folksonomies and SNA: Mika, “Ontologies Are Us”, ISWC 2005 Ontology and SPARQL extensions for common SNA patterns: Ereteo et al., ISWC 2009 SPARQL extensions (most are now in SPARQL 1.1): San Martin et al., ESWC 2009

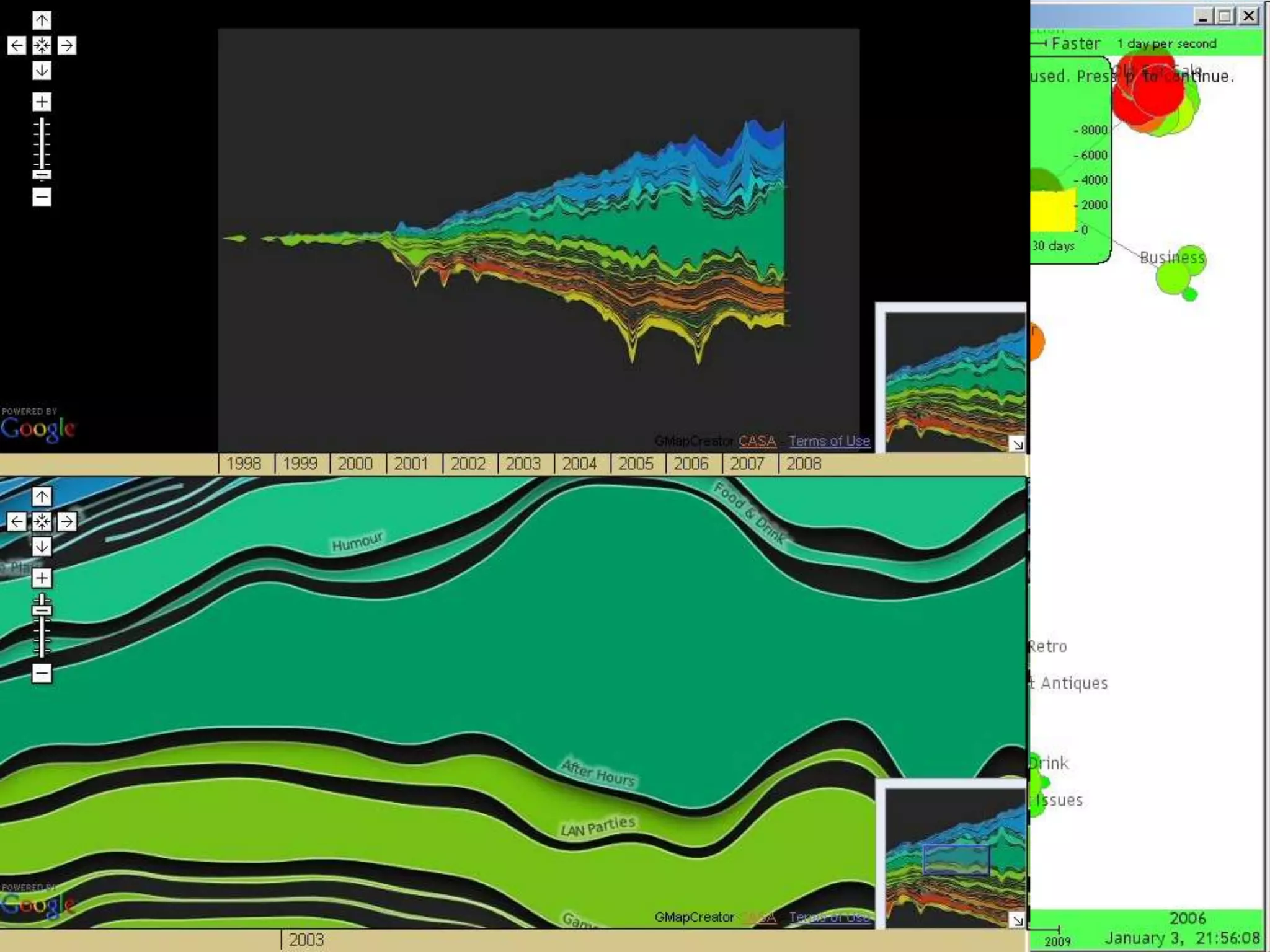

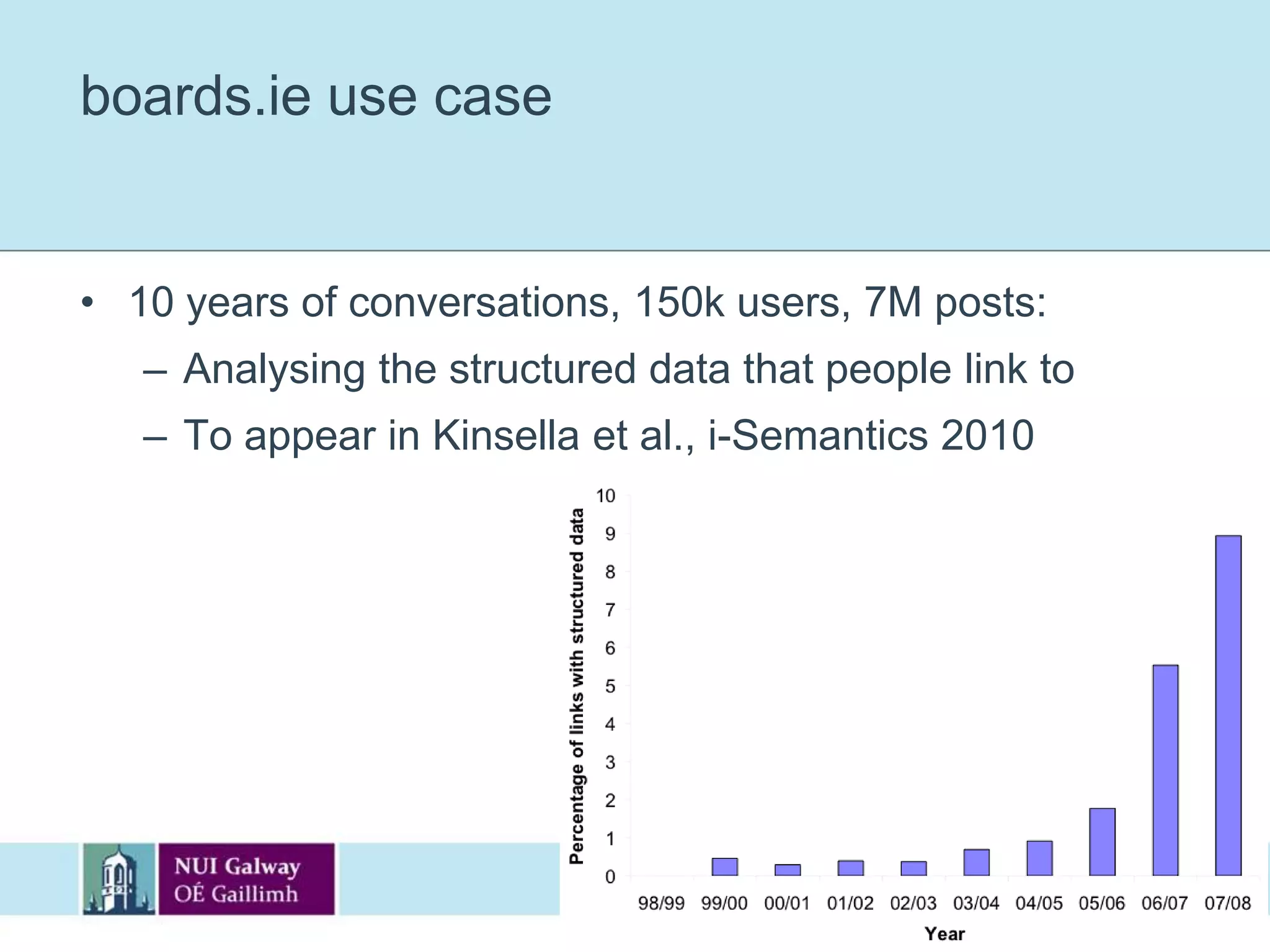

boards.ie use case 10 years of conversations, 150k users, 7M posts: Analysing the structured data that people link to To appear in Kinsella et al., i-Semantics 2010

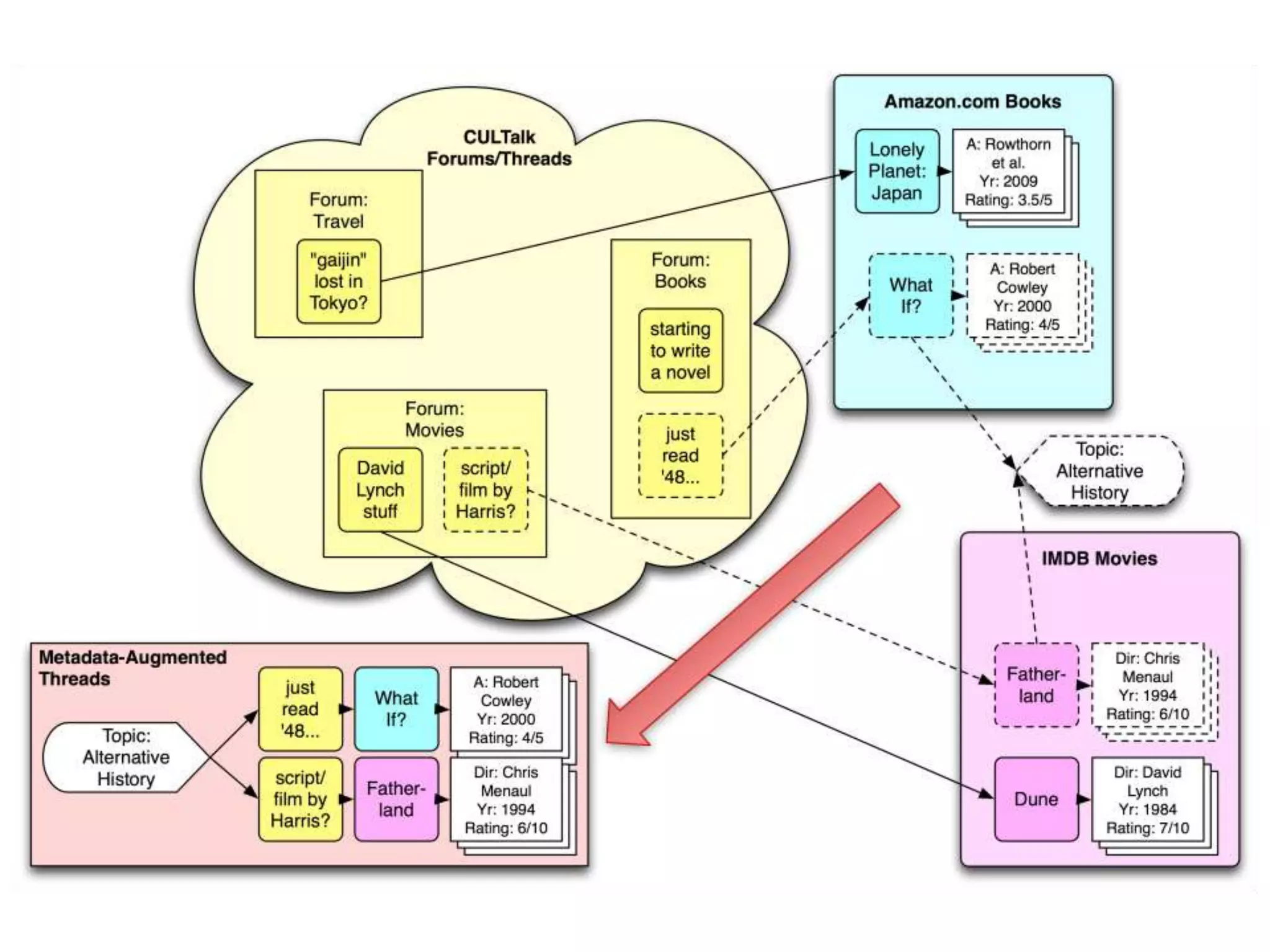

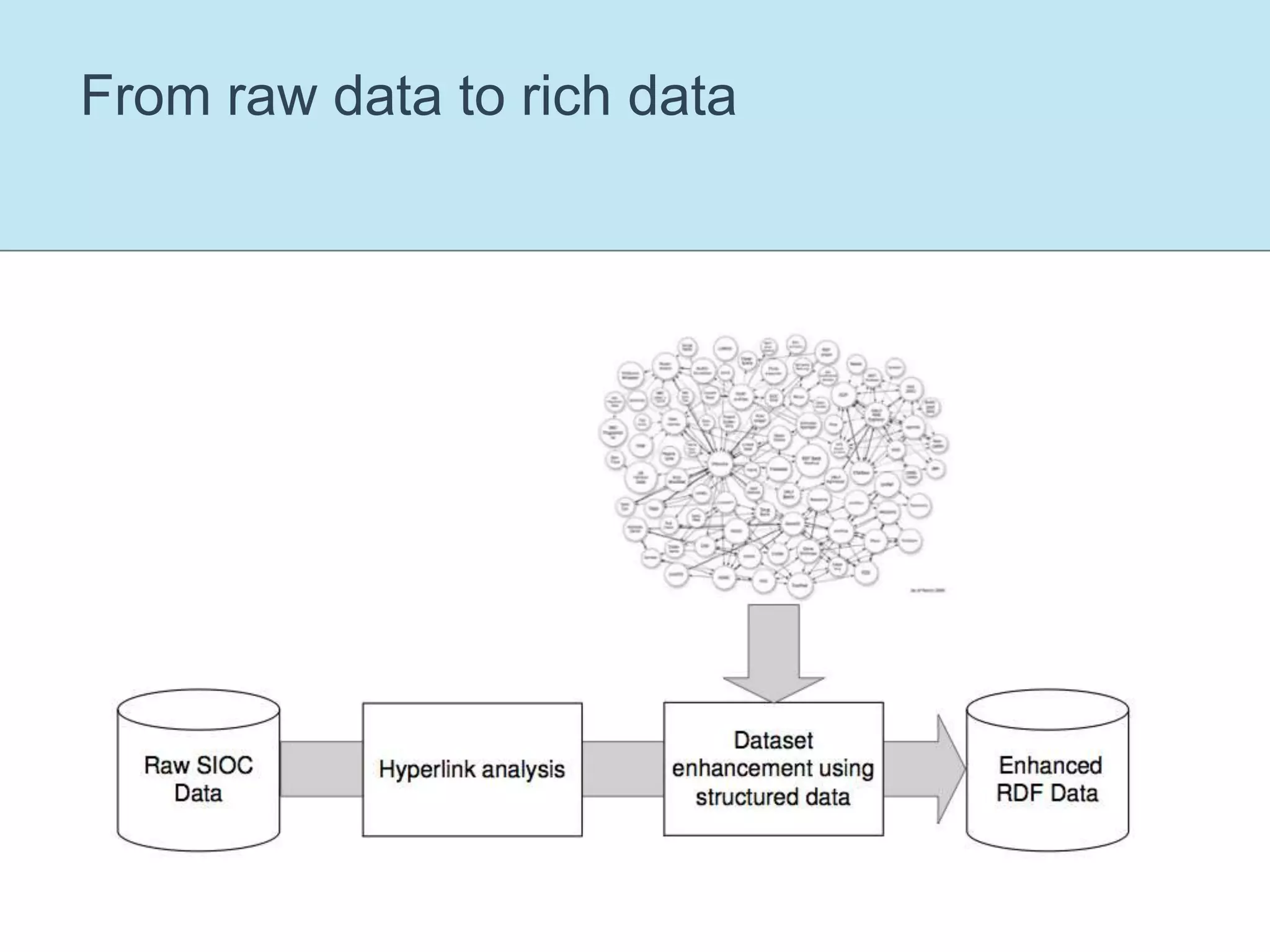

From raw data to rich data
Some of the main sources of structured data
New possibilities for SNA and SMA

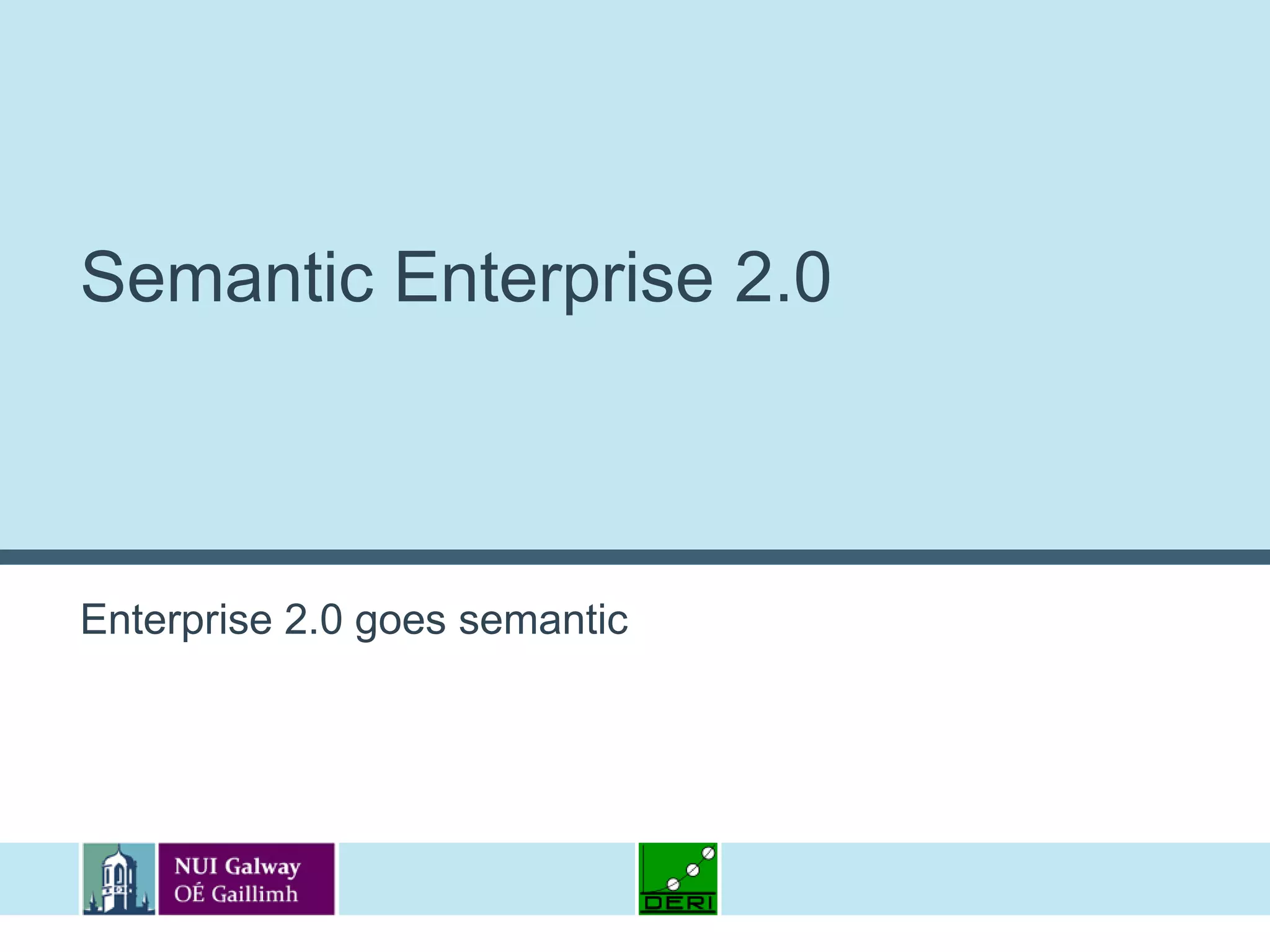

Semantic Enterprise 2.0 Enterprise 2.0 goes semantic

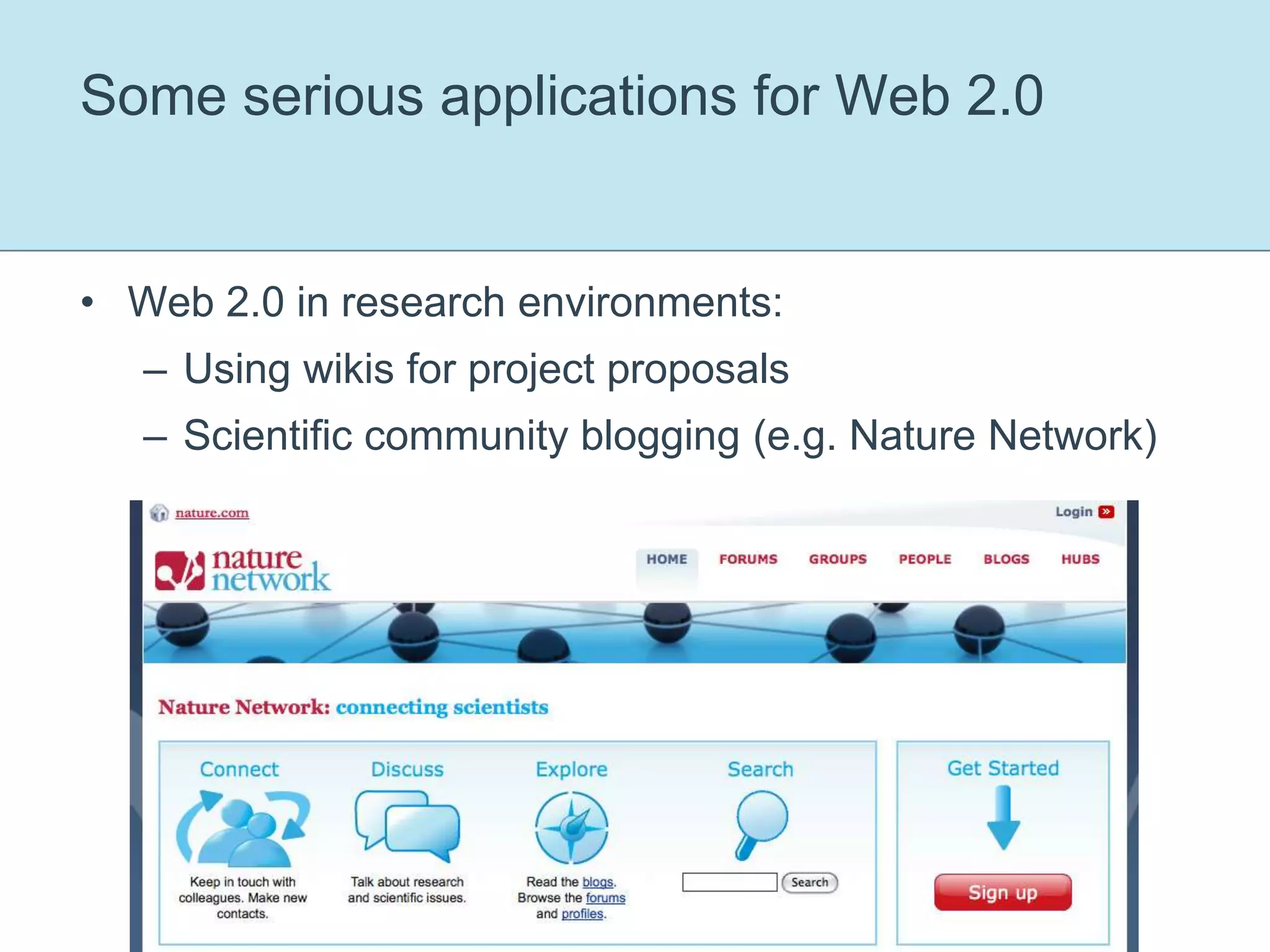

Some serious applications for Web 2.0 Web 2.0 in research environments: Using wikis for project proposals Scientific community blogging (e.g. Nature Network)
Enterprise 2.0 Web 2.0 includes applications such as blogs, wikis, RSS feeds and social networking, while Enterprise 2.0 is the packaging of those technologies in both corporate IT and workplace environments: Corporate blogging, wikis, microblogging Social networking within organisations, etc. “Enterprise 2.0 is the use of emergent social software platforms within companies, or between companies and their partners or customers” - McAfee, MIT Sloan, 2006

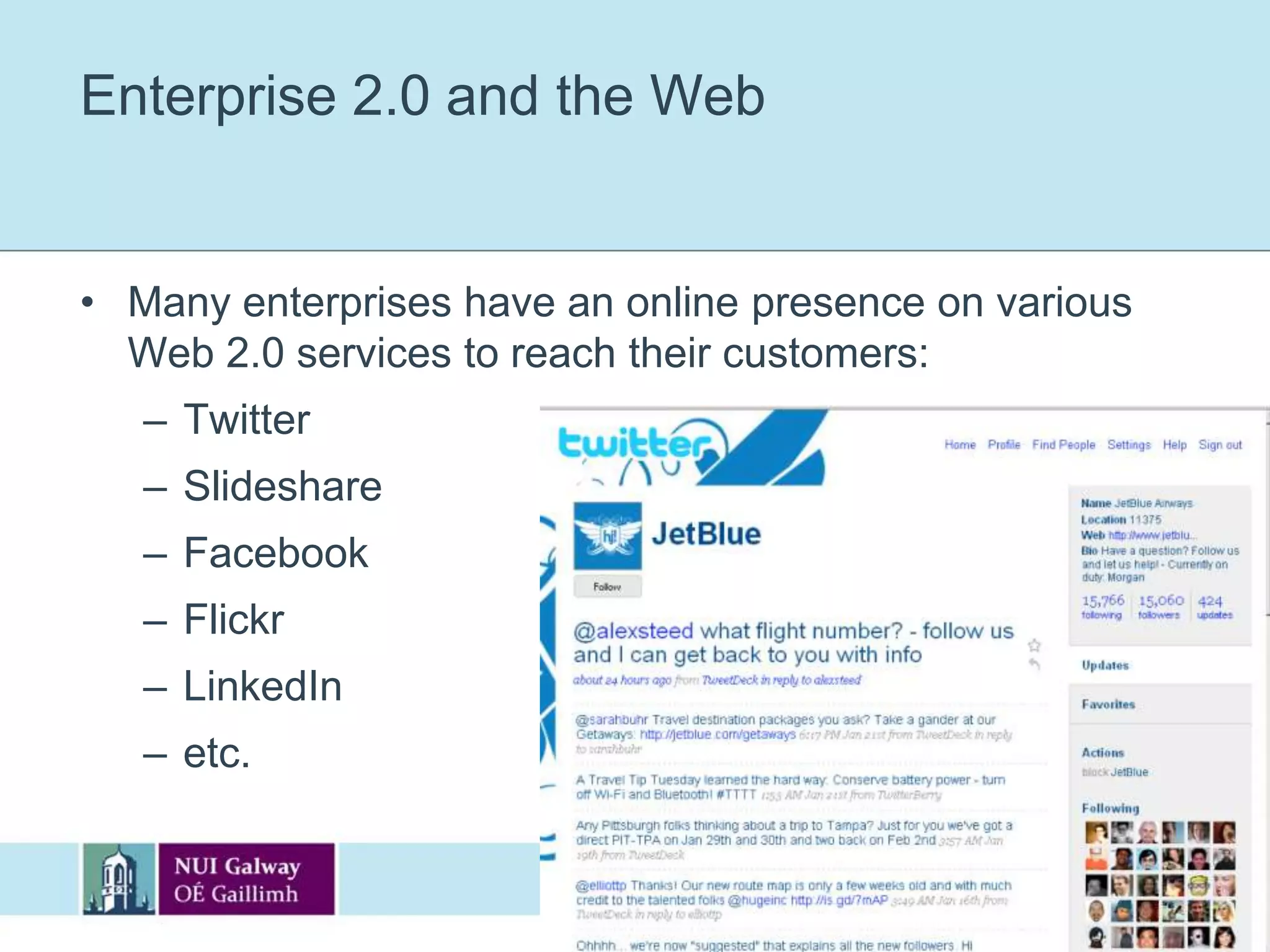

Enterprise 2.0 and the Web Many enterprises have an online presence on various Web 2.0 services to reach their customers: Twitter Slideshare Facebook Flickr LinkedIn etc.
The SLATES acronym Search: Easy and relevant access to information Links: Enable better browsing capabilities between content Authoring: Easy interfaces to produce content, in a collaborative way Tagging: User-generated classification, enables serendipity and knowledge discovery Extension: Recommendation of relevant content Signals: Identify relevant content

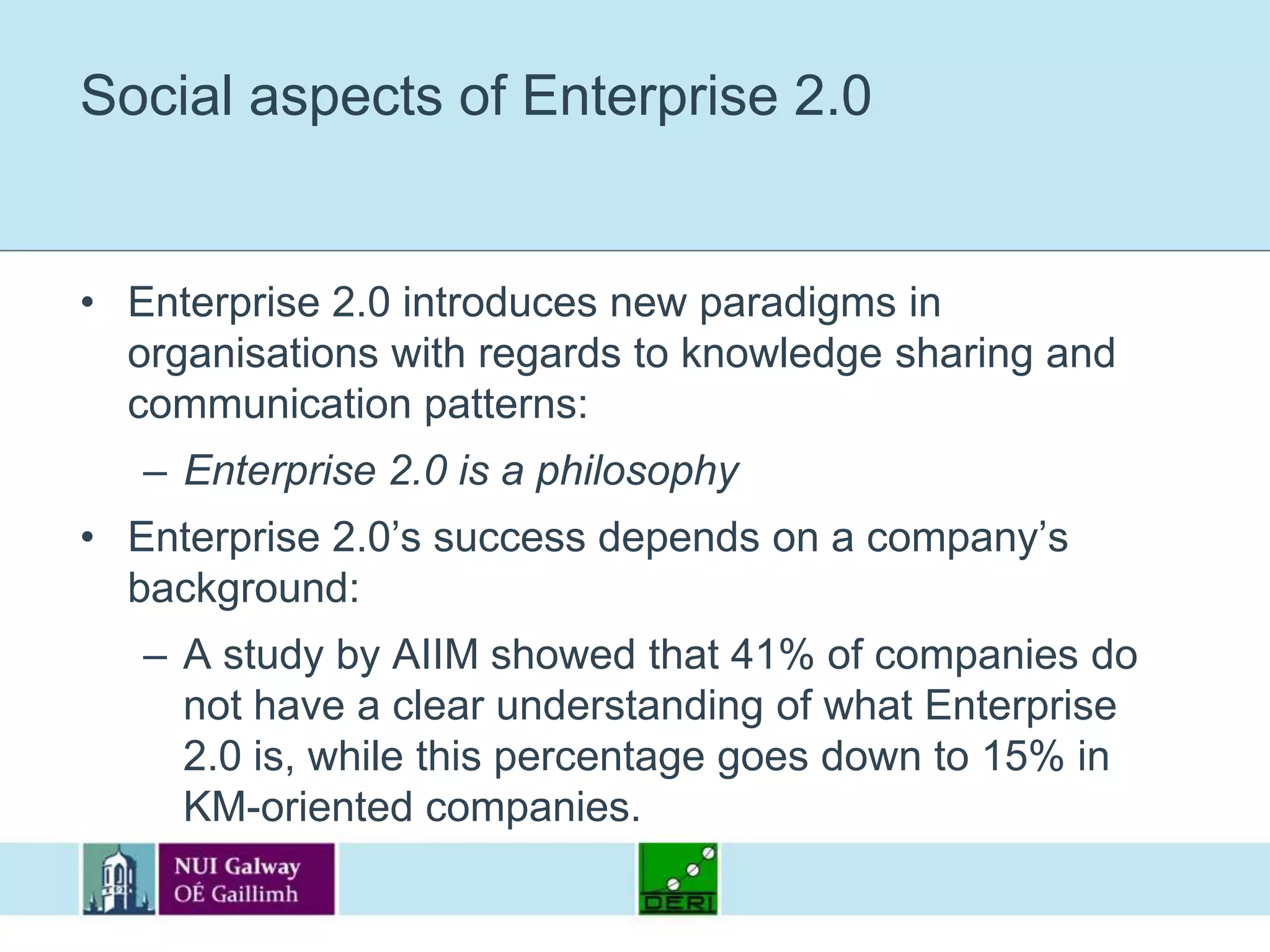

Social aspects of Enterprise 2.0 Enterprise 2.0 introduces new paradigms in organisations with regards to knowledge sharing and communication patterns: Enterprise 2.0 is a philosophy Enterprise 2.0’s success depends on a company’s background: A study by AIIM showed that 41% of companies do not have a clear understanding of what Enterprise 2.0 is, while this percentage goes down to 15% in KM-oriented companies.

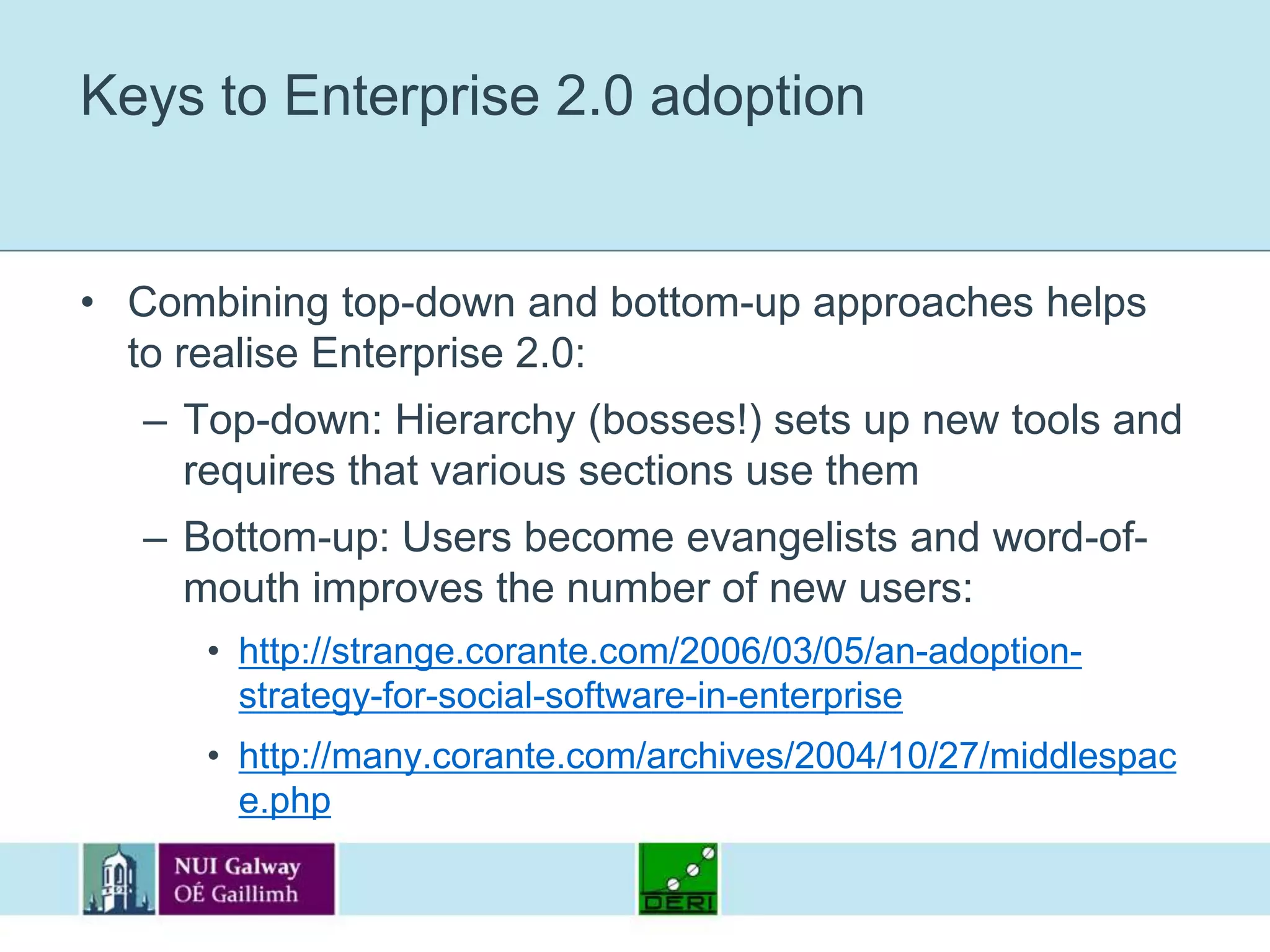

Keys to Enterprise 2.0 adoption Combining top-down and bottom-up approaches helps to realise Enterprise 2.0: Top-down: Hierarchy (bosses!) sets up new tools and requires that various sections use them Bottom-up: Users become evangelists and word-of-mouth improves the number of new users: http://strange.corante.com/2006/03/05/an-adoption-strategy-for-social-software-in-enterprise http://many.corante.com/archives/2004/10/27/middlespace.php

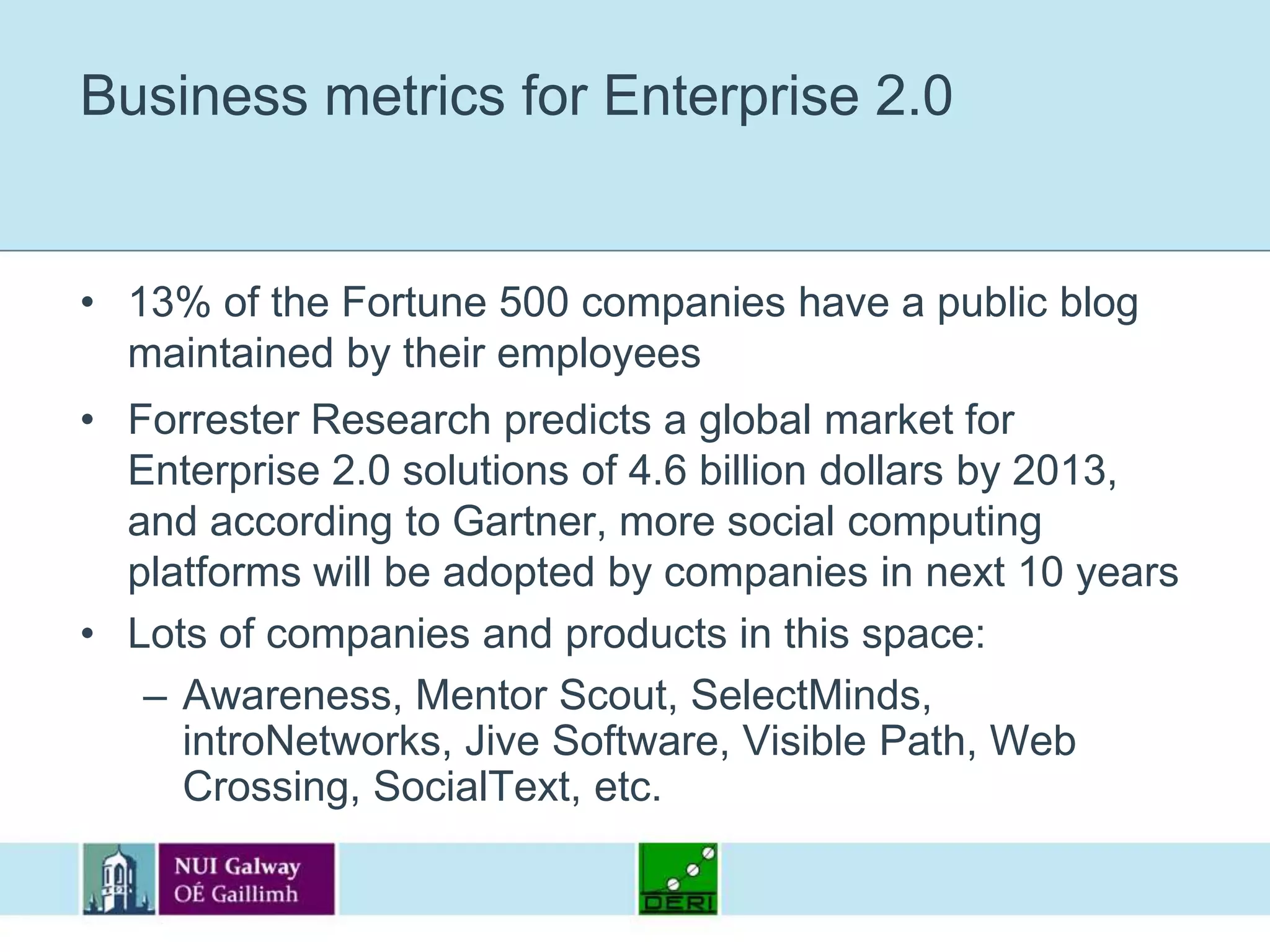

Business metrics for Enterprise 2.0 13% of the Fortune 500 companies have a public blog maintained by their employees Forrester Research predicts a global market for Enterprise 2.0 solutions of 4.6 billion dollars by 2013, and according to Gartner, more social computing platforms will be adopted by companies in next 10 years Lots of companies and products in this space: Awareness, Mentor Scout, SelectMinds, introNetworks, Jive Software, Visible Path, Web Crossing, SocialText, etc.

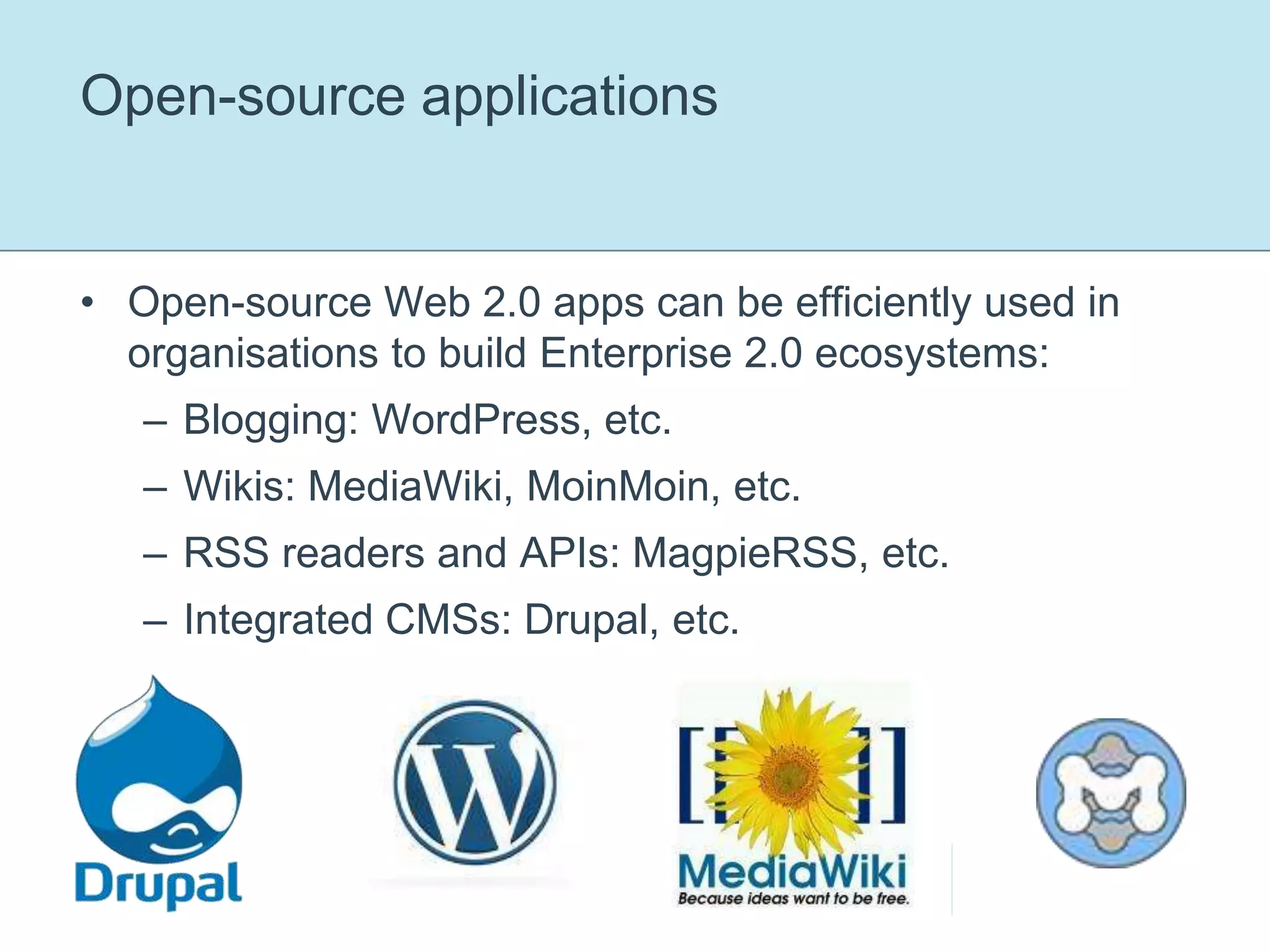

Open-source applications  Open-source Web 2.0 apps can be efficiently used in organisations to build Enterprise 2.0 ecosystems: Blogging: WordPress, etc. Wikis: MediaWiki, MoinMoin, etc. RSS readers and APIs: MagpieRSS, etc. Integrated CMSs: Drupal, etc.
Information fragmentation issues Heterogeneity of people, services, needs and practices leads to various services and tools being deployed By using various services (blogs, wikis, etc.), information about a particular object (e.g. a project) is fragmented over a company’s network: Getting a global picture is difficult Applications act as independent data silos, with different APIs, different data formats, etc.: Data integration can be a costly task

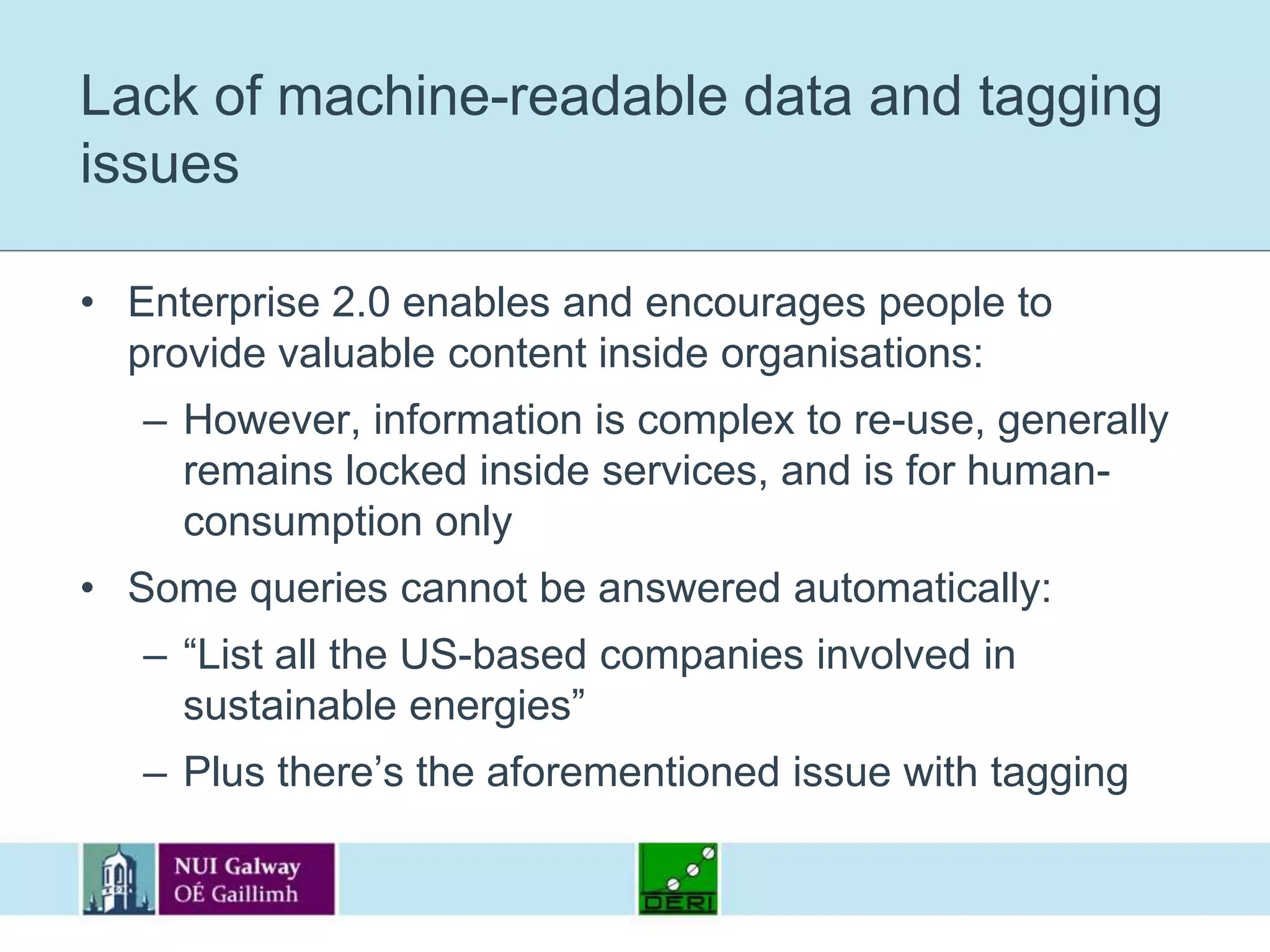

Lack of machine-readable data and tagging issues Enterprise 2.0 enables and encourages people to provide valuable content inside organisations: However, information is complex to re-use, generally remains locked inside services, and is for human-consumption only Some queries cannot be answered automatically: “List all the US-based companies involved in sustainable energies” Plus there’s the aforementioned issue with tagging

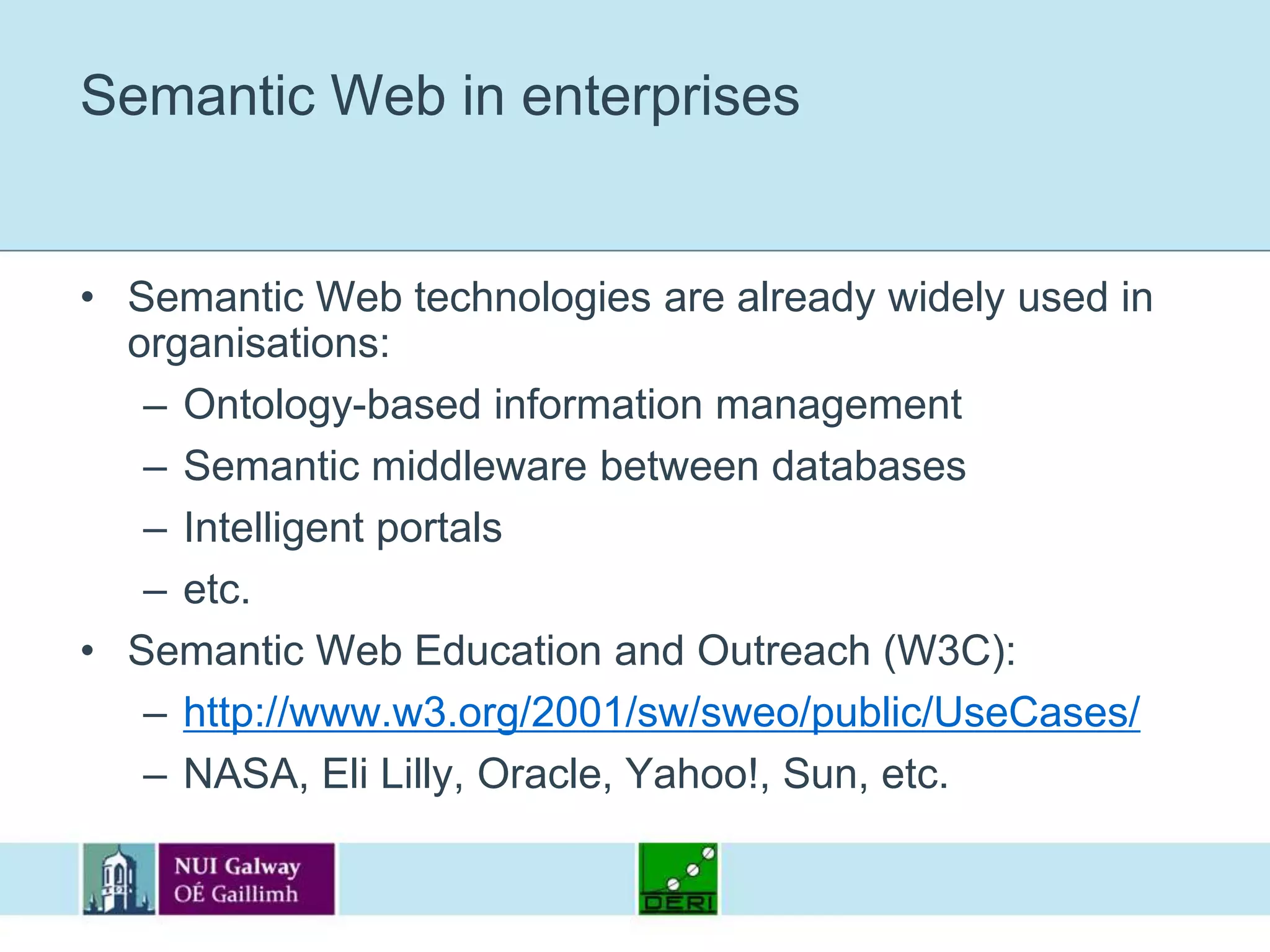

Semantic Web in enterprises Semantic Web technologies are already widely used in organisations: Ontology-based information management Semantic middleware between databases  Intelligent portals etc. Semantic Web Education and Outreach (W3C): http://www.w3.org/2001/sw/sweo/public/UseCases/ NASA, Eli Lilly, Oracle, Yahoo!, Sun, etc.
A Semantic Enterprise 2.0 architecture Lightweight add-ons to existing applications to provide RDF data: Exporters, wrappers, dedicated scripts, etc. Taking into account the social aspect (e.g. semantic wikis) Models to give meaning to this RDF data: Domain ontologies, taxonomies, etc. Applications on the top of it: Thanks to RDF(S)/OWL and SPARQL

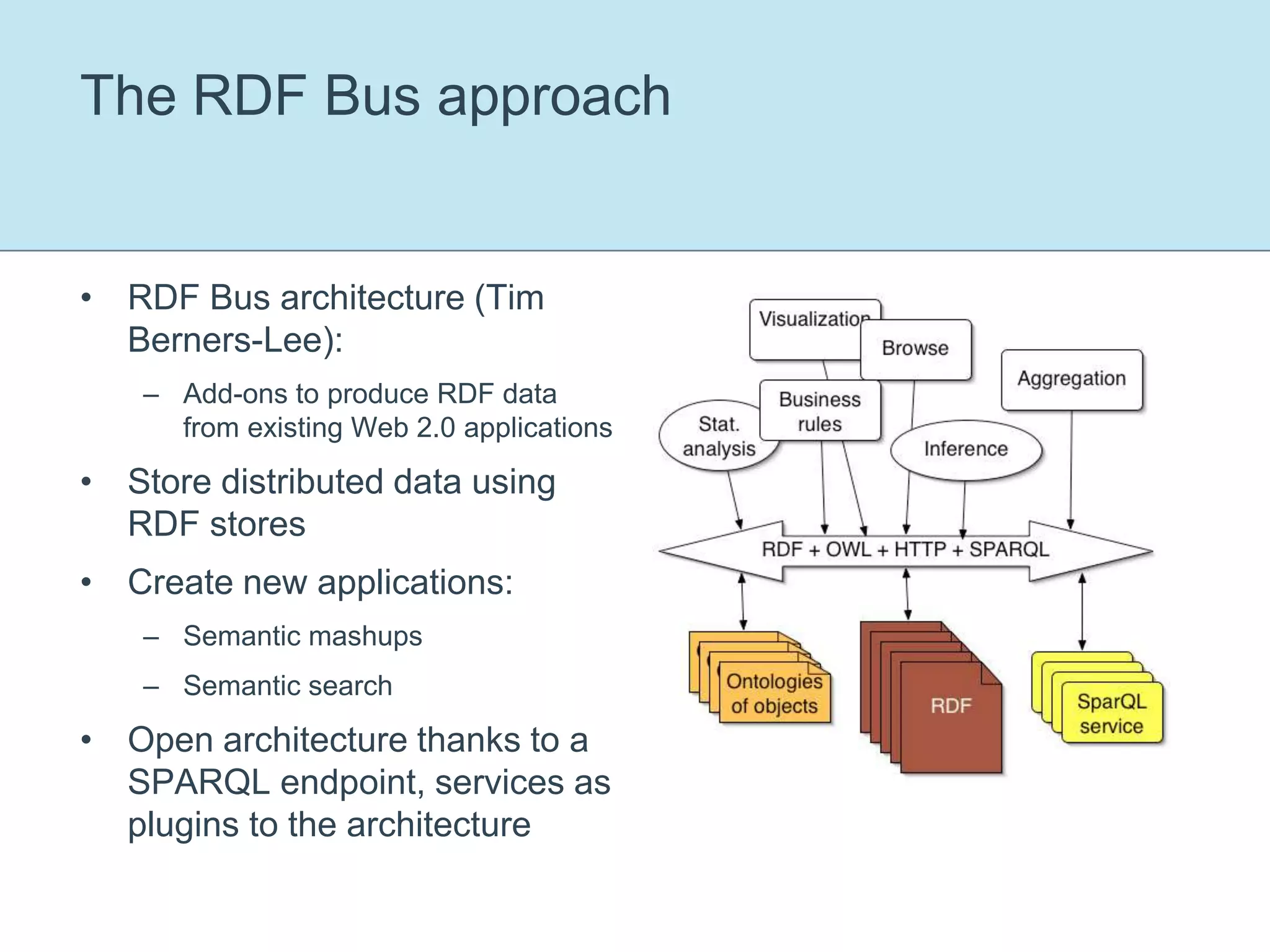

The RDF Bus approach RDF Bus architecture (Tim Berners-Lee): Add-ons to produce RDF data from existing Web 2.0 applications Store distributed data using RDF stores Create new applications: Semantic mashups Semantic search Open architecture thanks to a SPARQL endpoint, services as plugins to the architecture
Relational DB to RDF mapping Relational data (RDB) is structured data and can be mapped to RDF straightforward: Allows integration of existing enterprise databases into the Semantic Enterprise 2.0 architecture Main issues include: closed-world vs. open-world modeling; assigning URIs for entities (records); mapping language expressivity For a state-of-the-art see http://www.w3.org/2005/Incubator/rdbrdf/RDB2RDF_SurveyReport.pdf
LOD and Semantic Enterprise 2.0 Huge potential for internal IT infrastructures to enhance existing applications (mashups, extended UIs, etc.): Integration of open and structured data from various sources at minor cost Issue: dependance on external services, replication may be required RSS is already widely used in organisations as a way to get information from the Web, LOD provides structured data to extend IT ecosystems

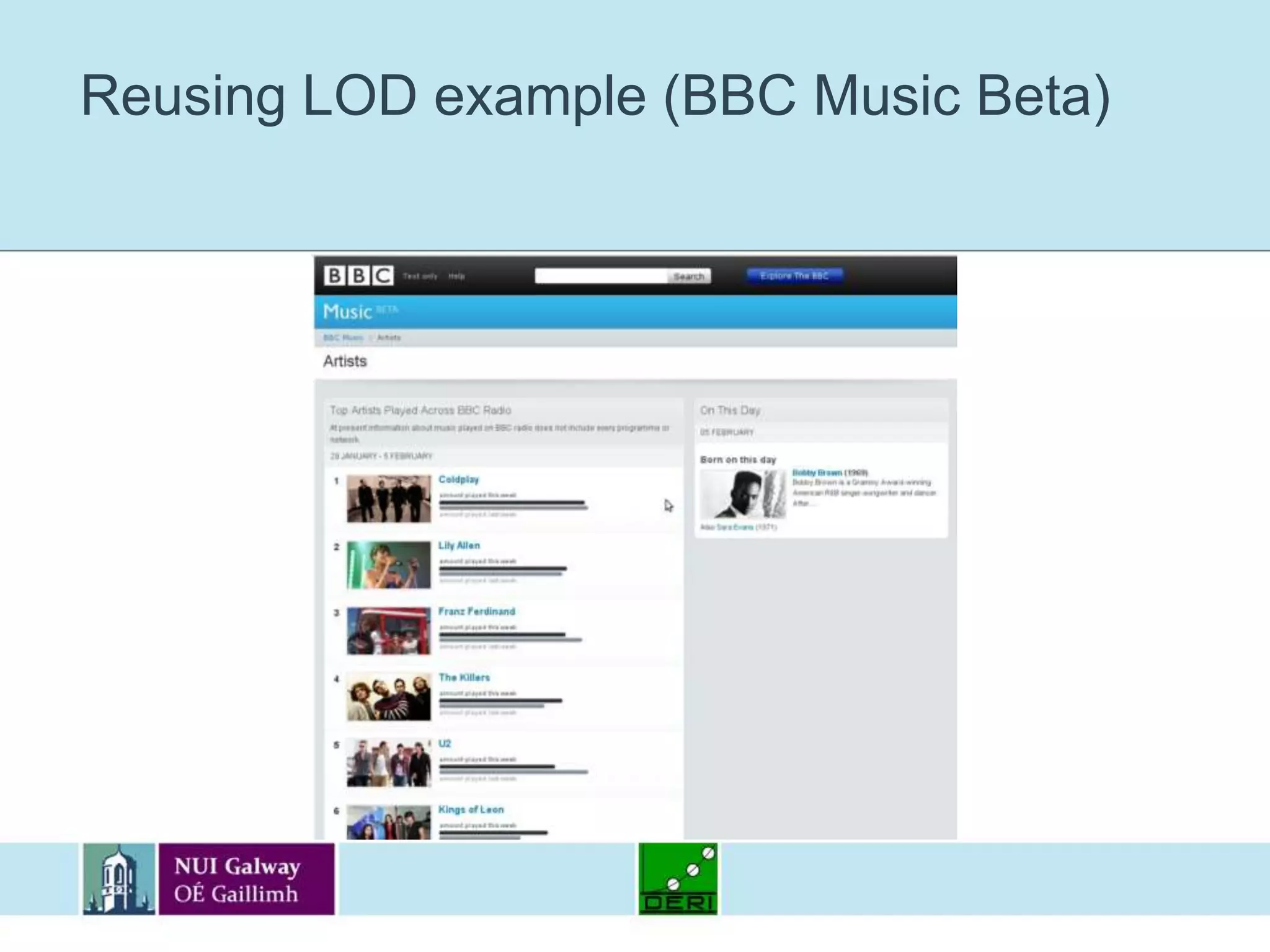

Reusing LOD example (BBC Music Beta)

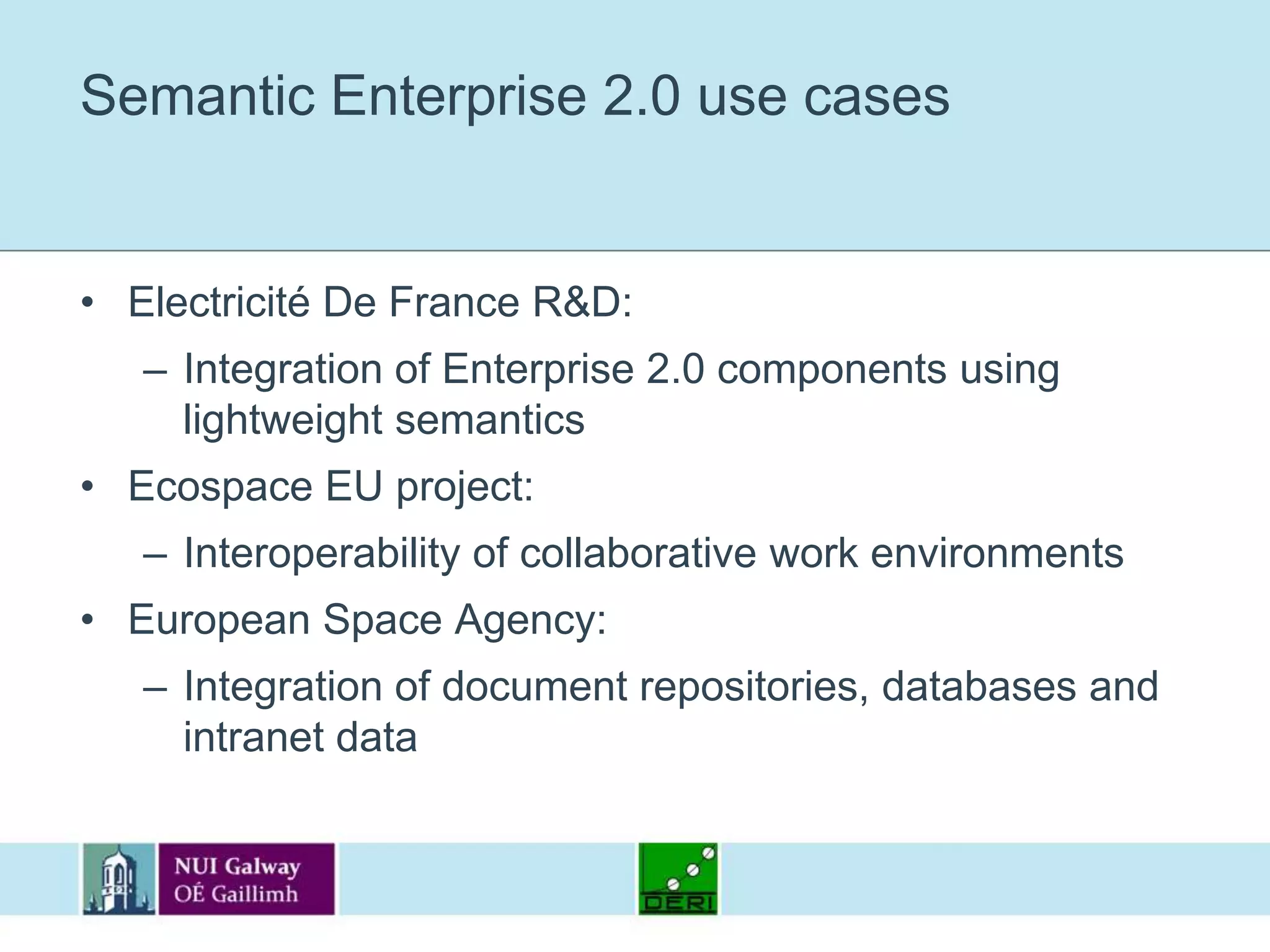

Semantic Enterprise 2.0 use cases Electricité De France R&D: Integration of Enterprise 2.0 components using lightweight semantics Ecospace EU project: Interoperability of collaborative work environments European Space Agency: Integration of document repositories, databases and intranet data

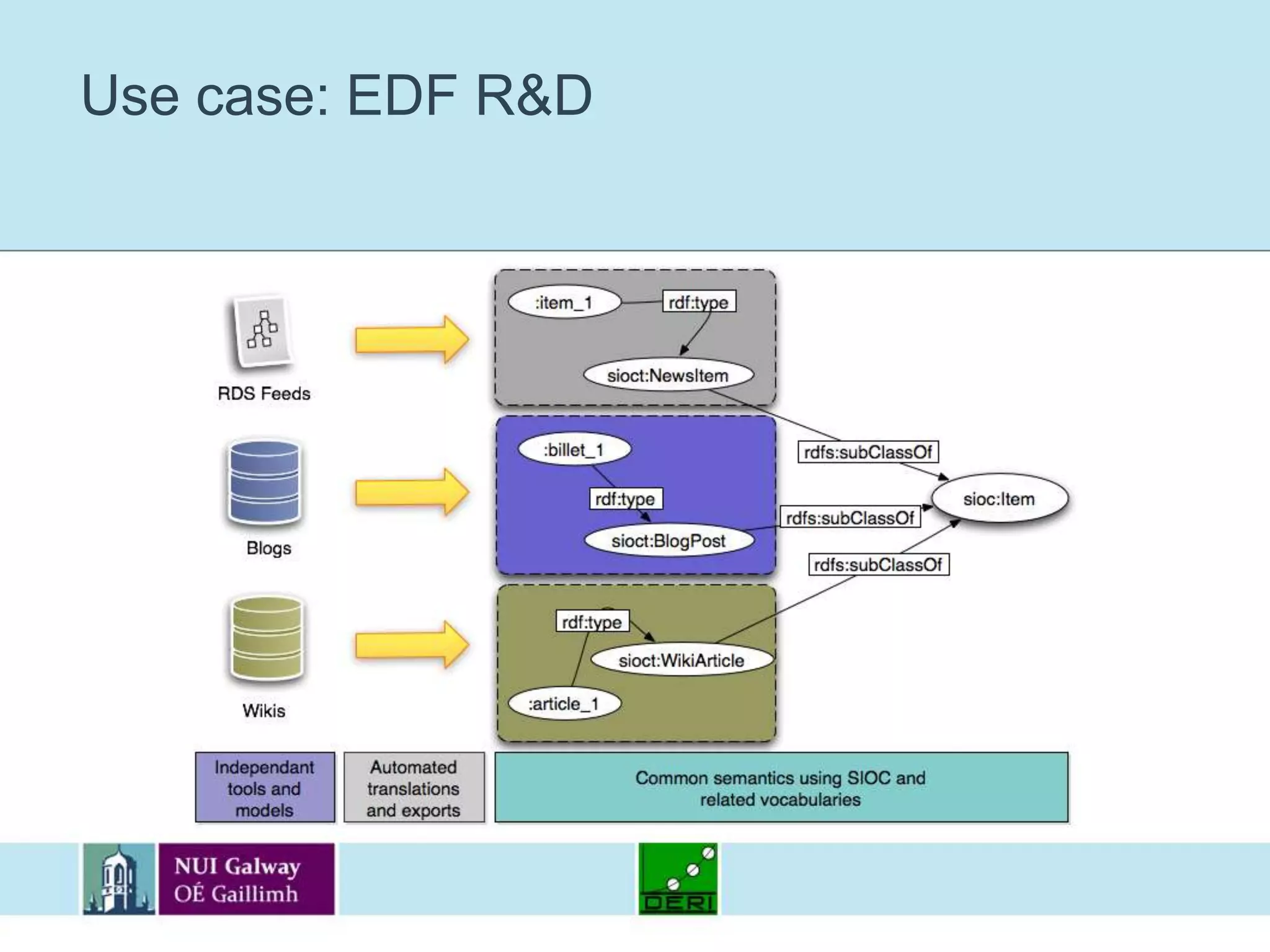

Use case: EDF R&D

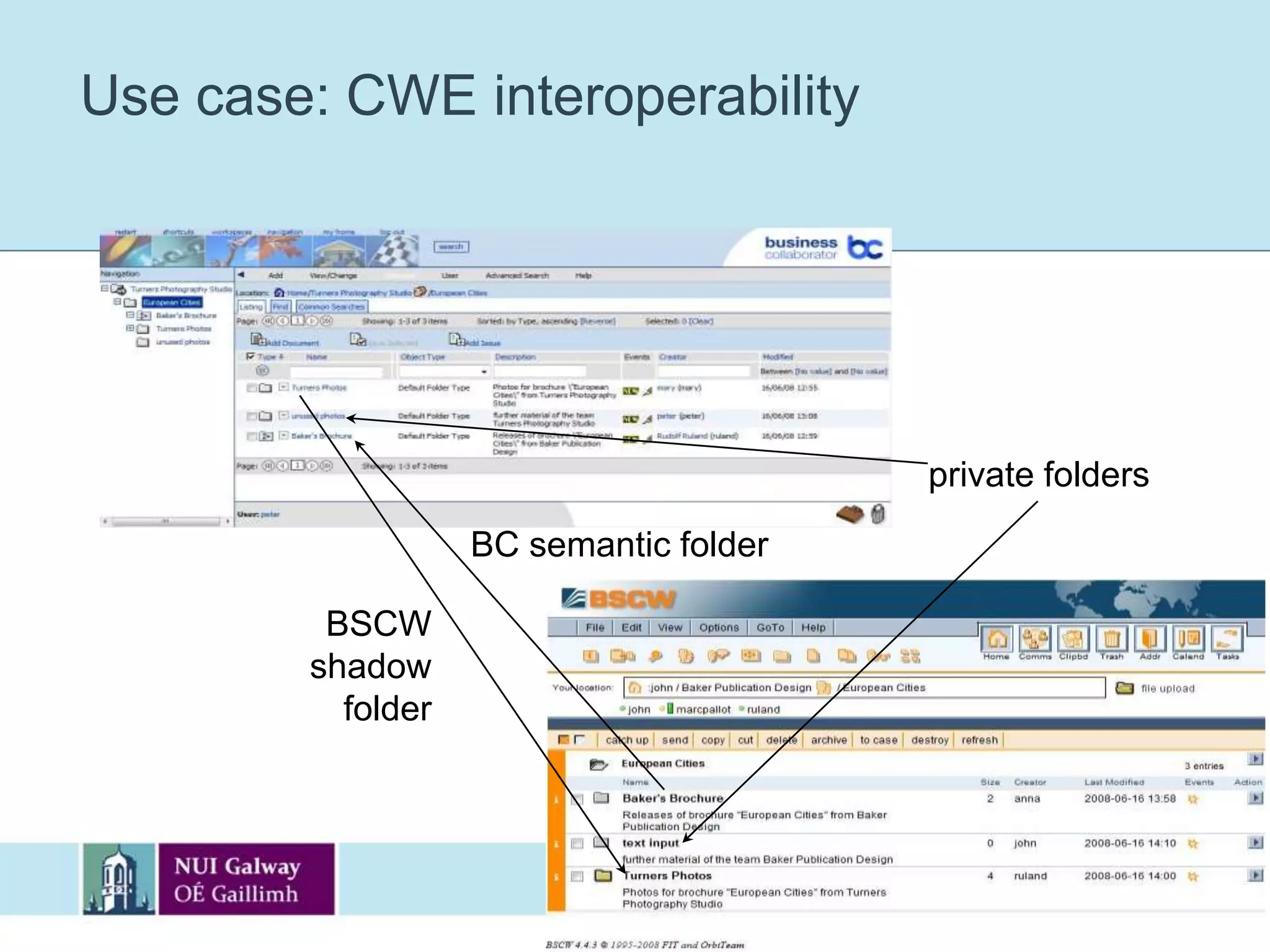

Use case: CWE interoperability private folders BC semantic folder BSCW shadow folder

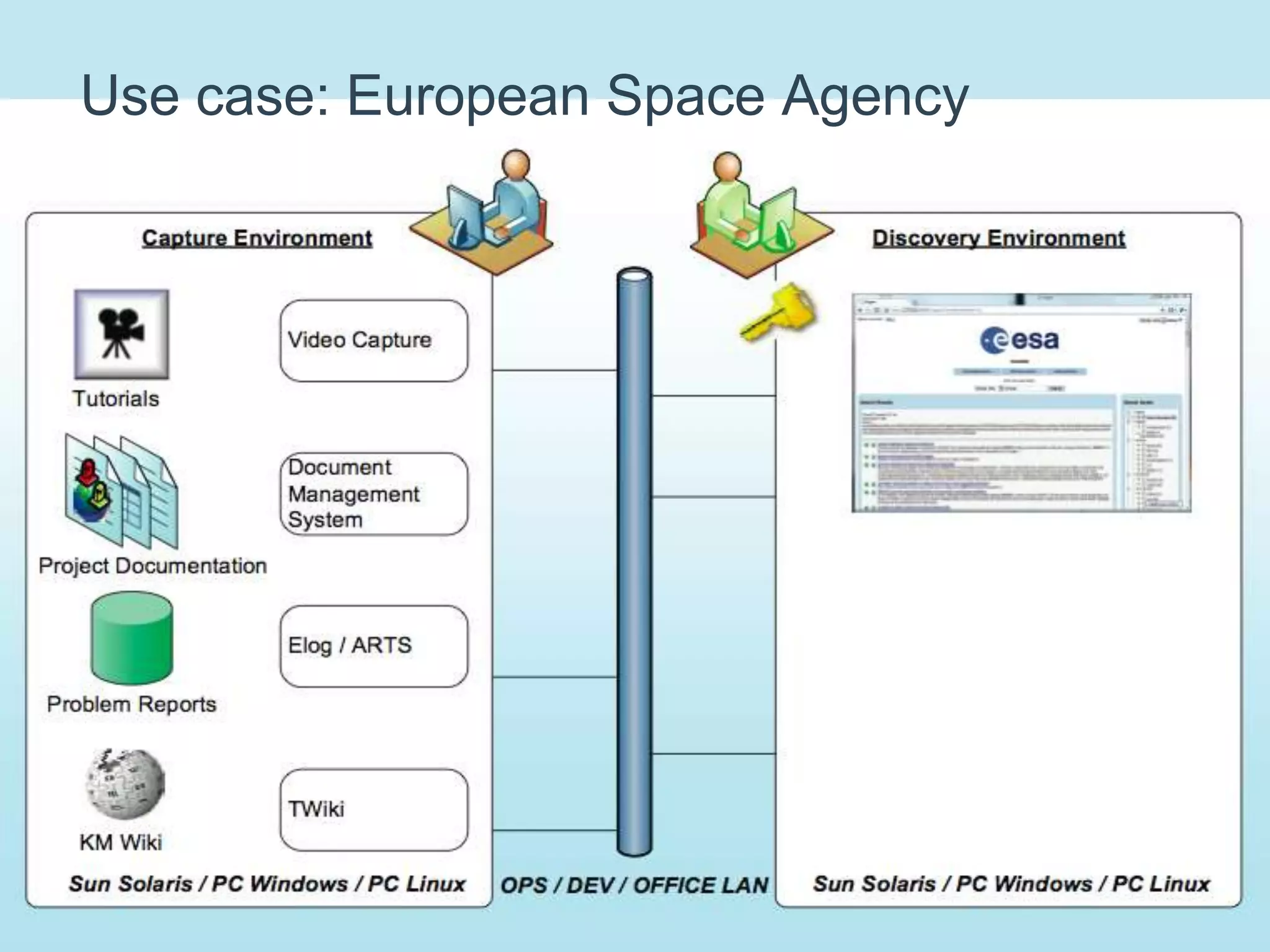

Use case: European Space Agency
Recent developments Facebook Open Graph, Twitter Annotations, etc.
Facebook Open Graph Allows metadata from external pages to be embedded (and claimed) within Facebook e.g. metadata about a restaurant (name, location, contacts) could be imported into a Facebook news feed via a “Like” button Good for Facebook, good for the Semantic Web? Yes, for both!

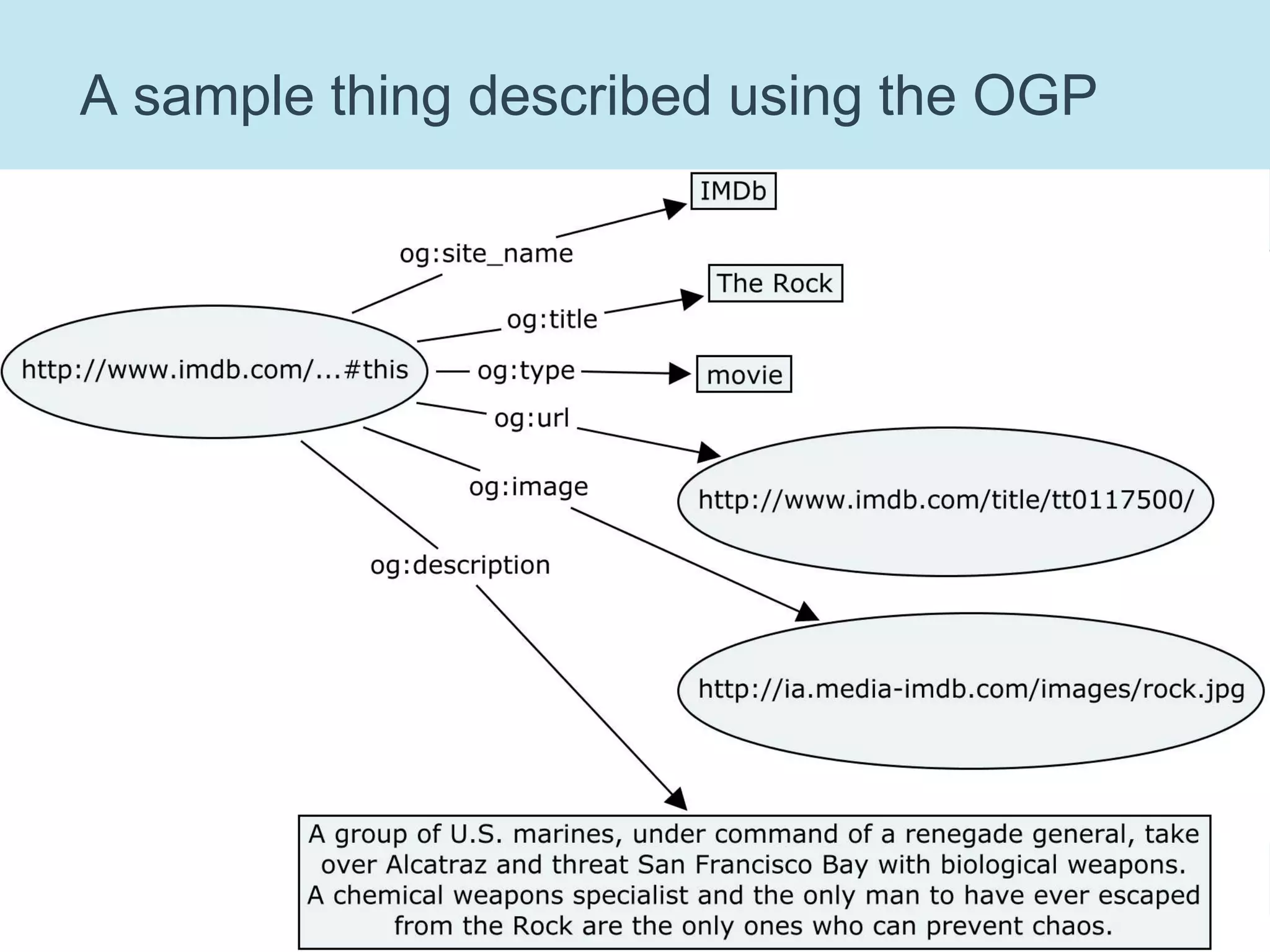

A sample thing described using the OGP

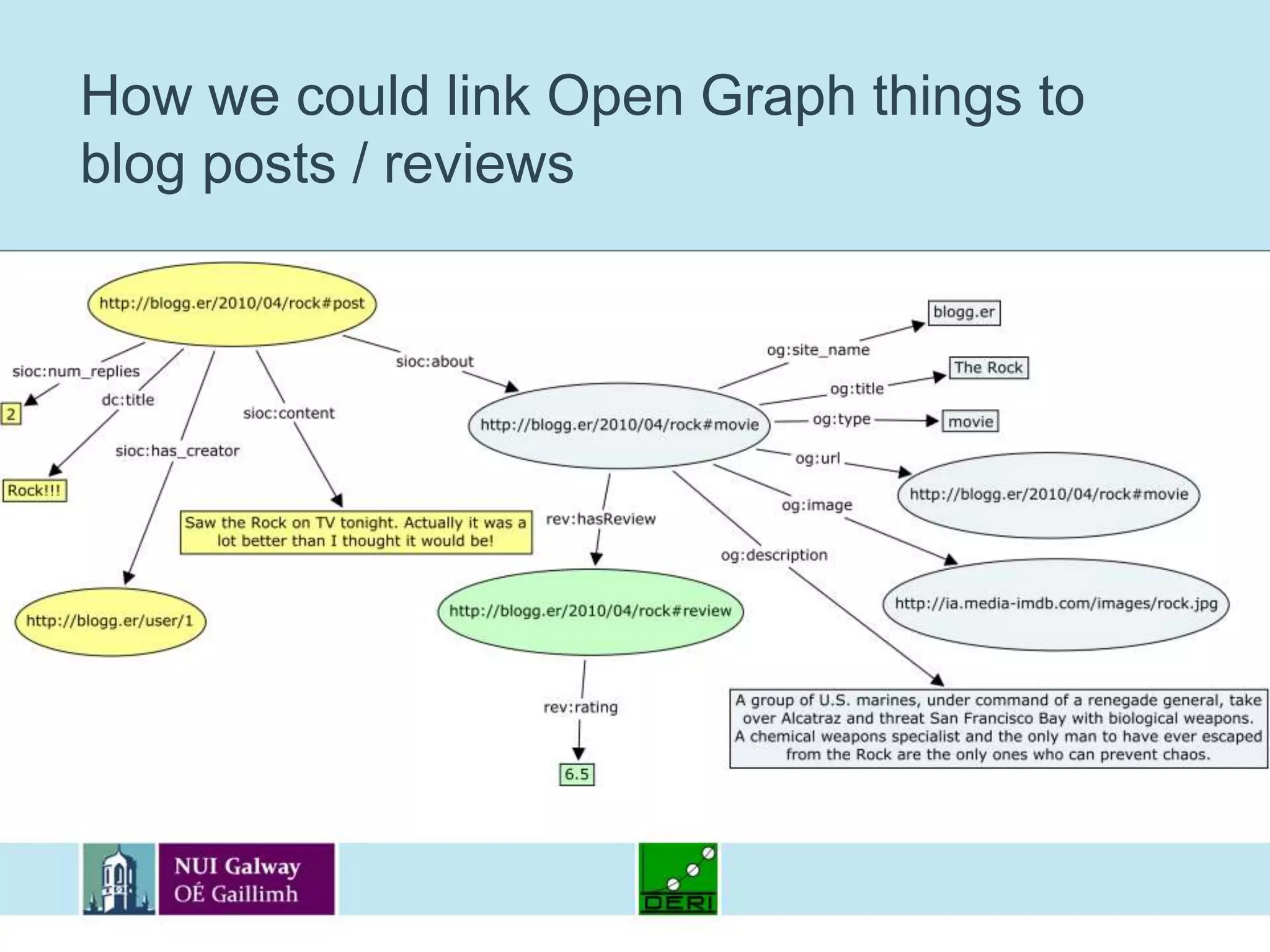

How we could link Open Graph things to blog posts / reviews

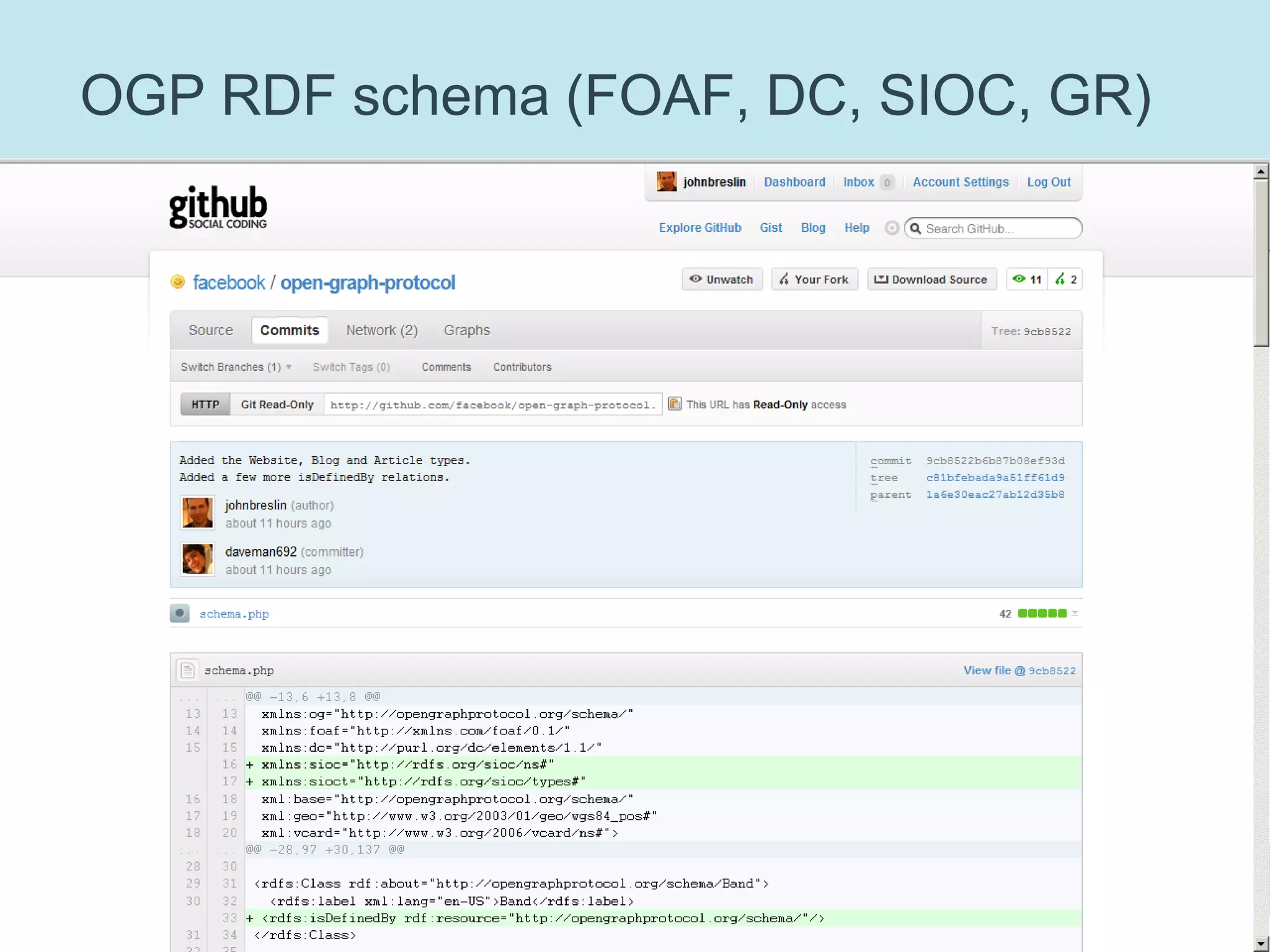

OGP RDF schema (FOAF, DC, SIOC, GR)

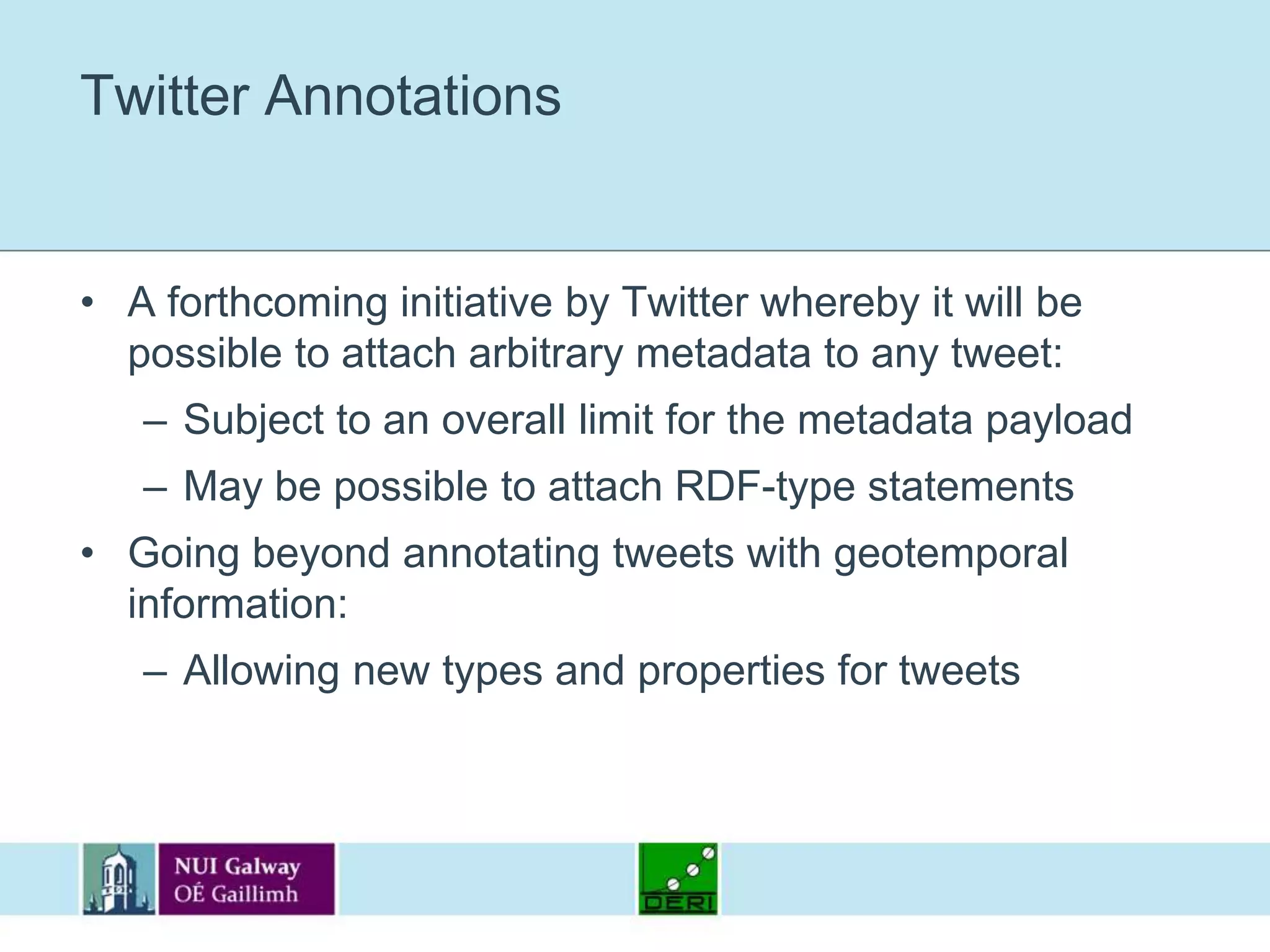

Twitter Annotations A forthcoming initiative by Twitter whereby it will be possible to attach arbitrary metadata to any tweet: Subject to an overall limit for the metadata payload May be possible to attach RDF-type statements Going beyond annotating tweets with geotemporal information: Allowing new types and properties for tweets
What if your car could tweet? image from knightriderfestival.com
Diaspora effort http://nyti.ms/aDYjKQ and http://joindiaspora.com

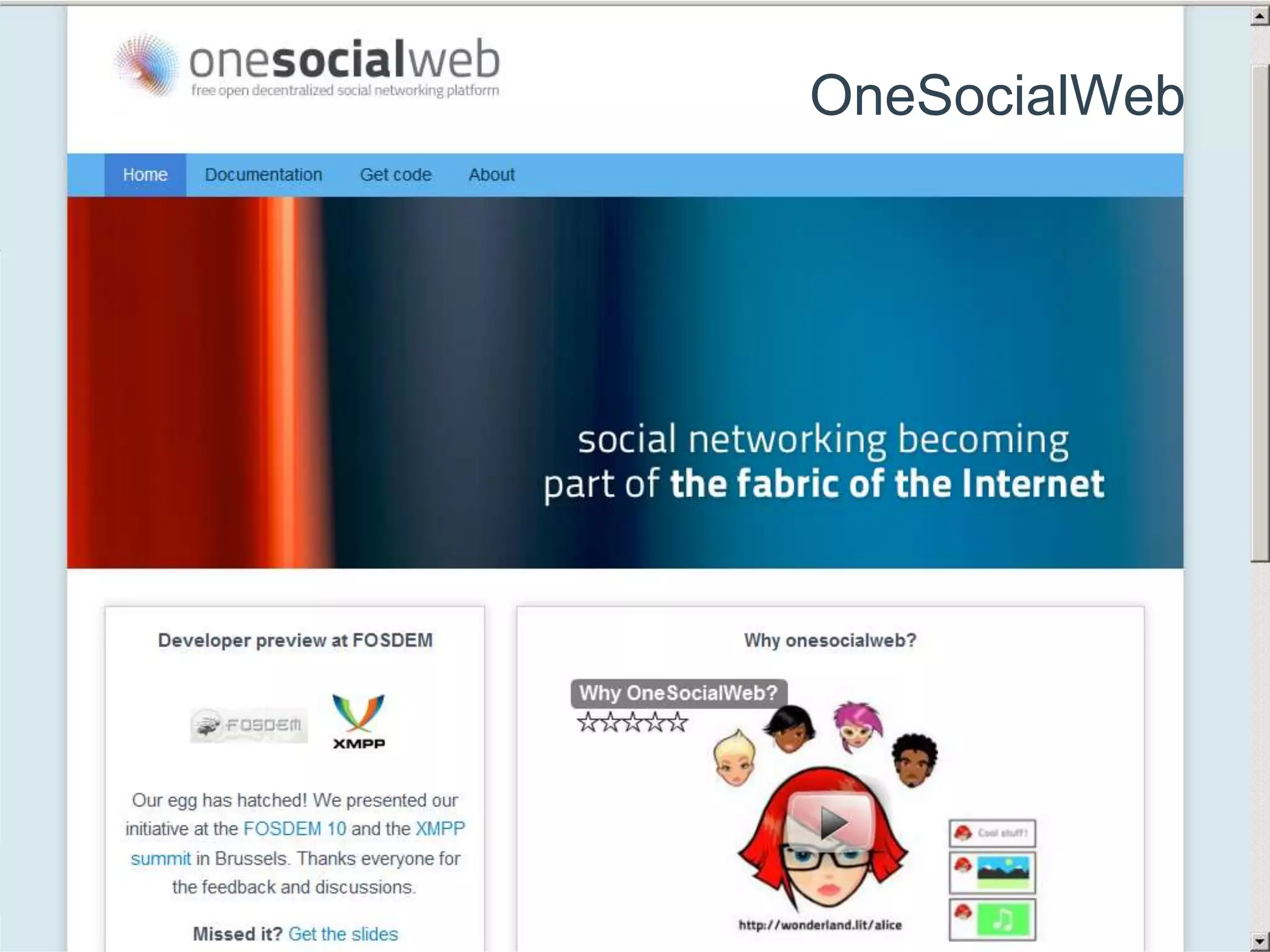

OneSocialWeb

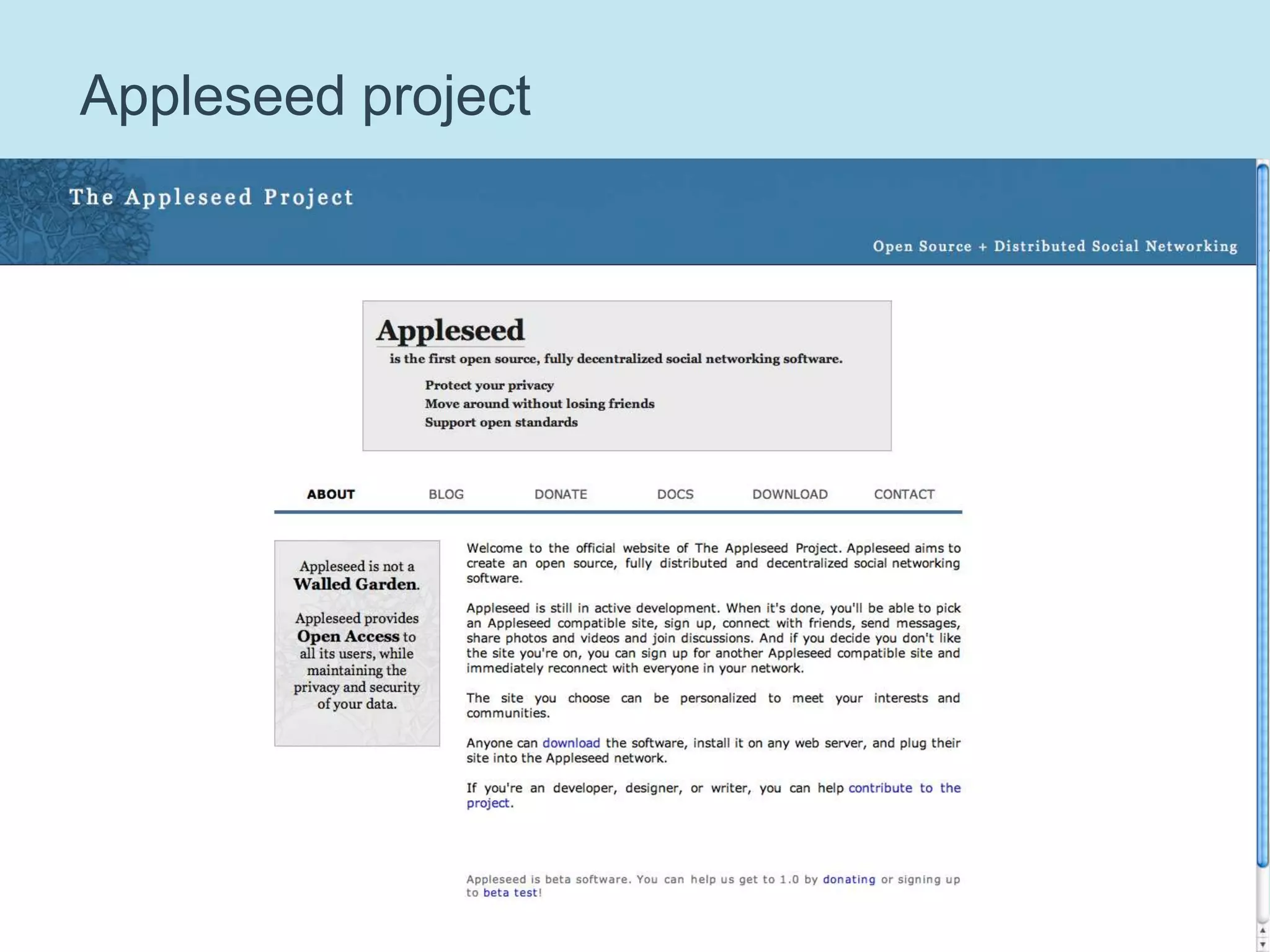

Appleseed project

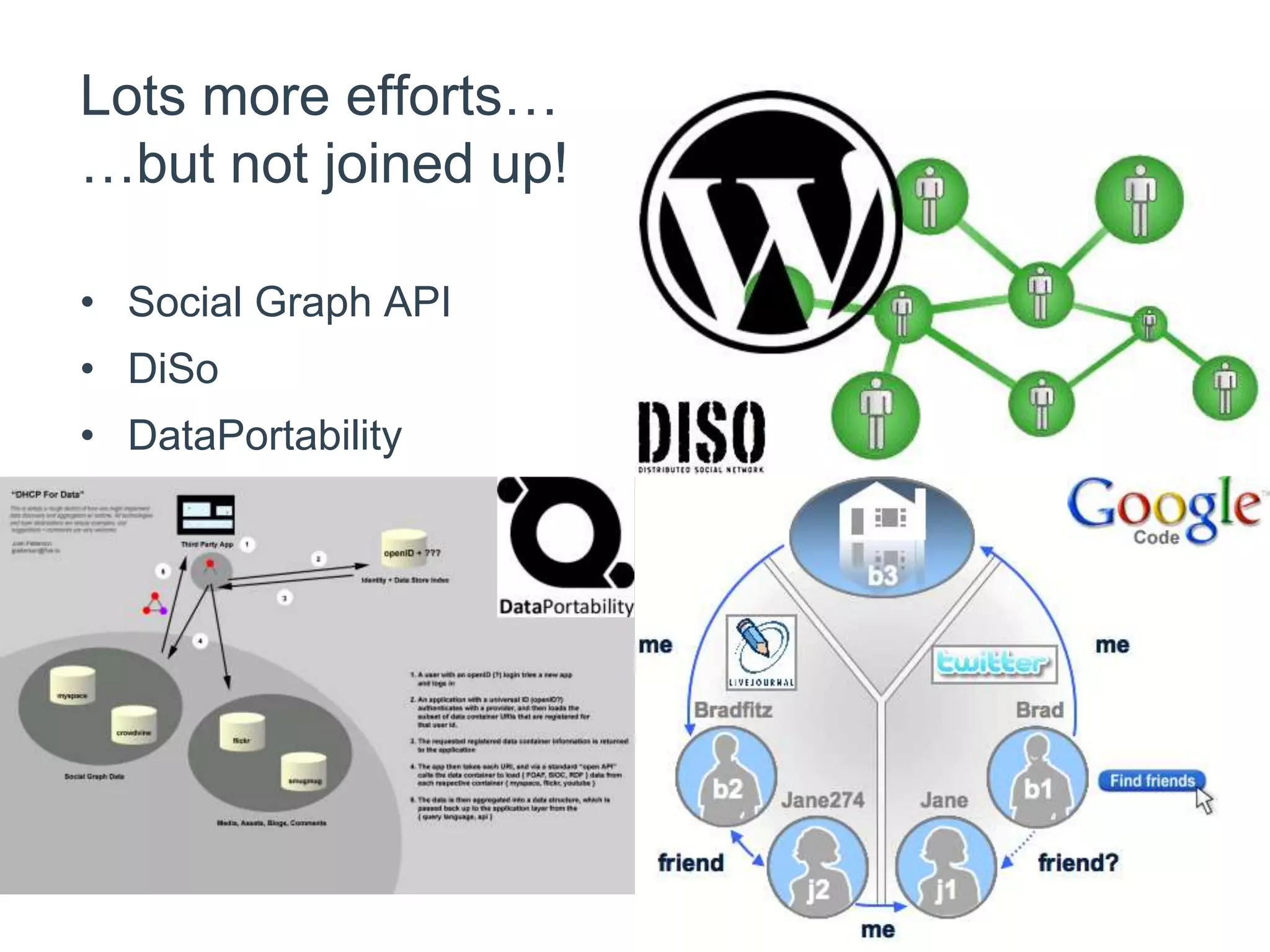

166 Lots more efforts……but not joined up! Social Graph API DiSo DataPortability
Everywhere real-time streams image from sonyericsson.com

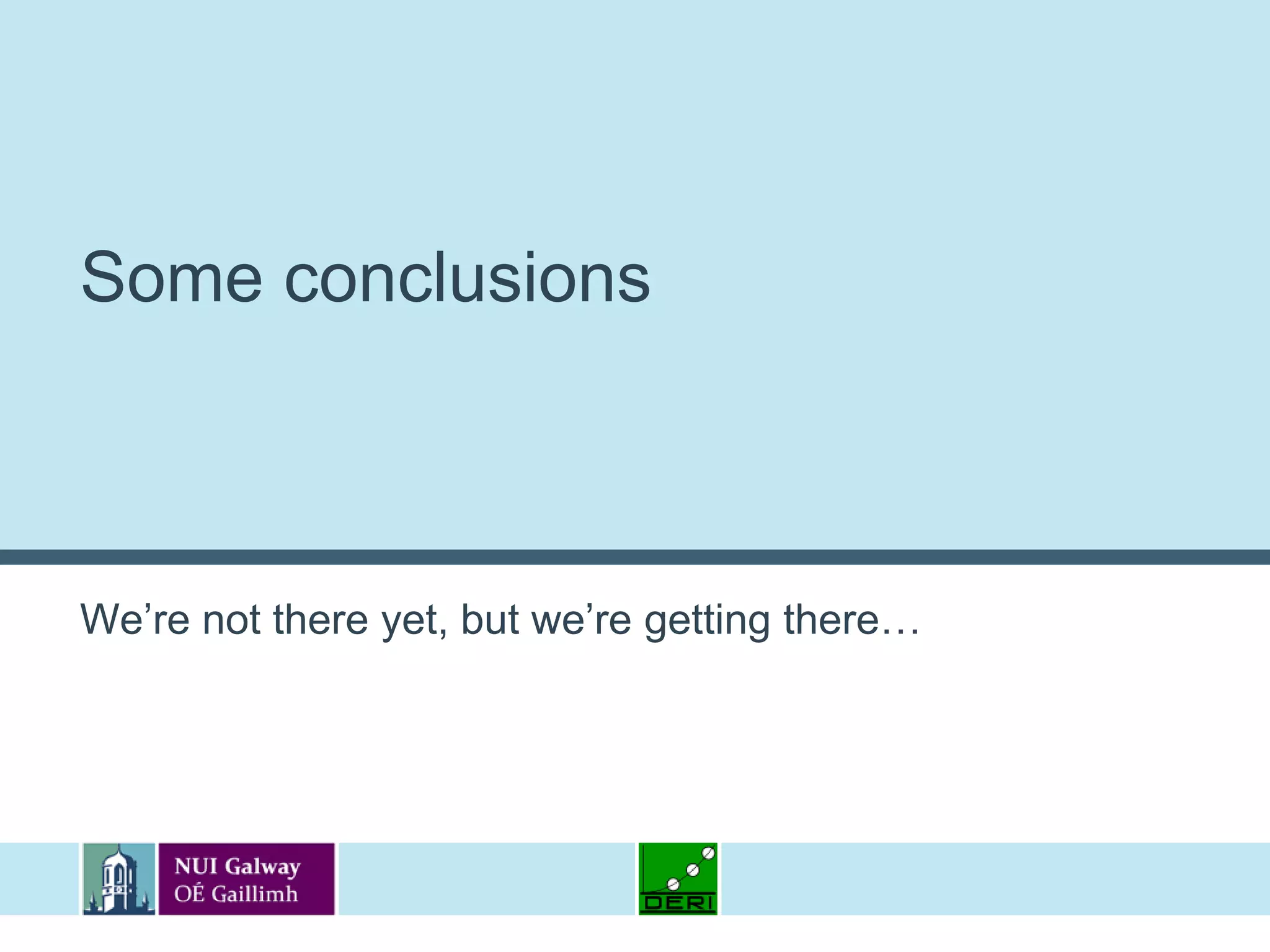

Some conclusions We’re not there yet, but we’re getting there…
This area is hot right now image from tinyurl.com/fireflames

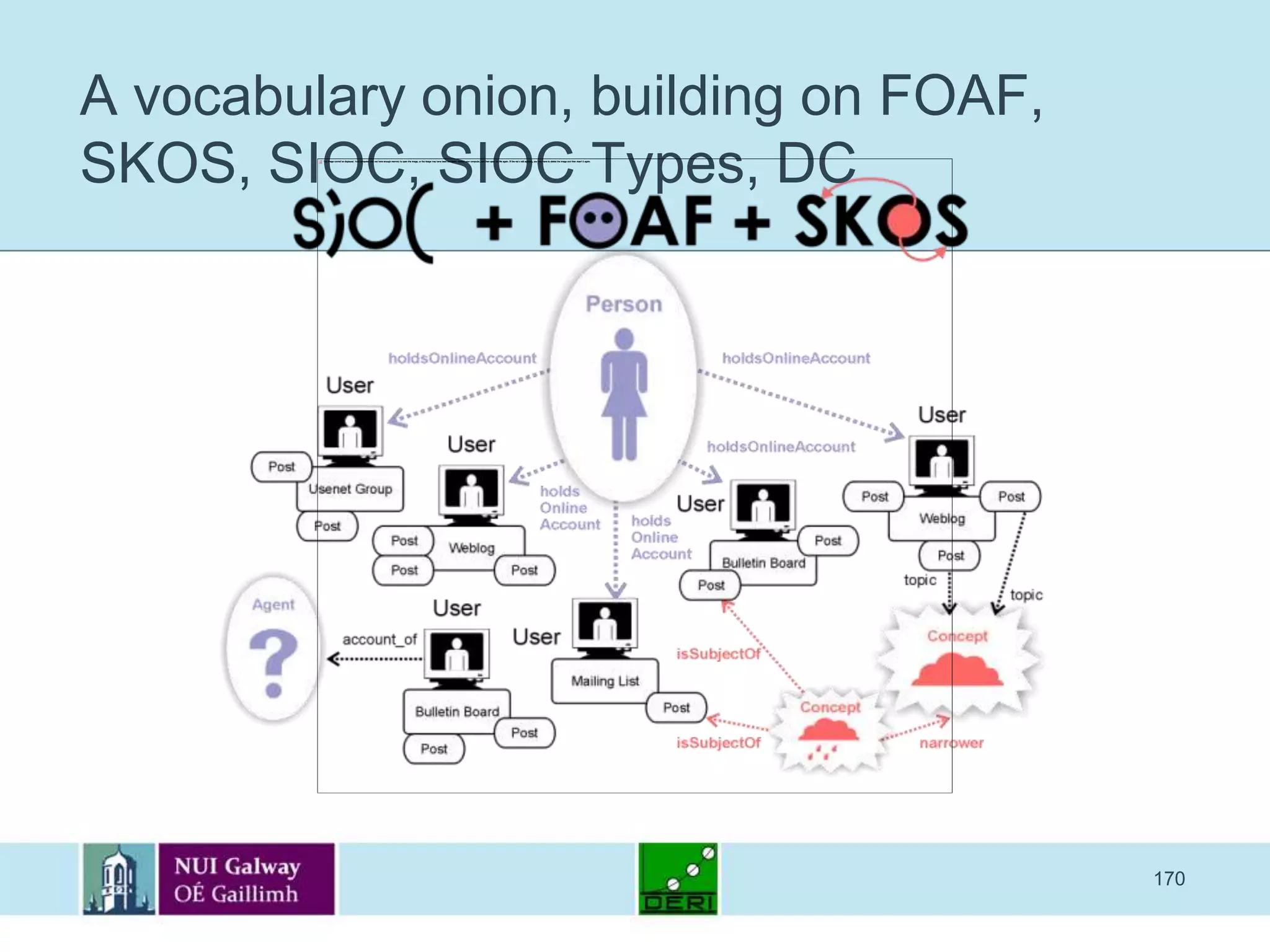

170 A vocabulary onion, building on FOAF, SKOS, SIOC, SIOC Types, DC

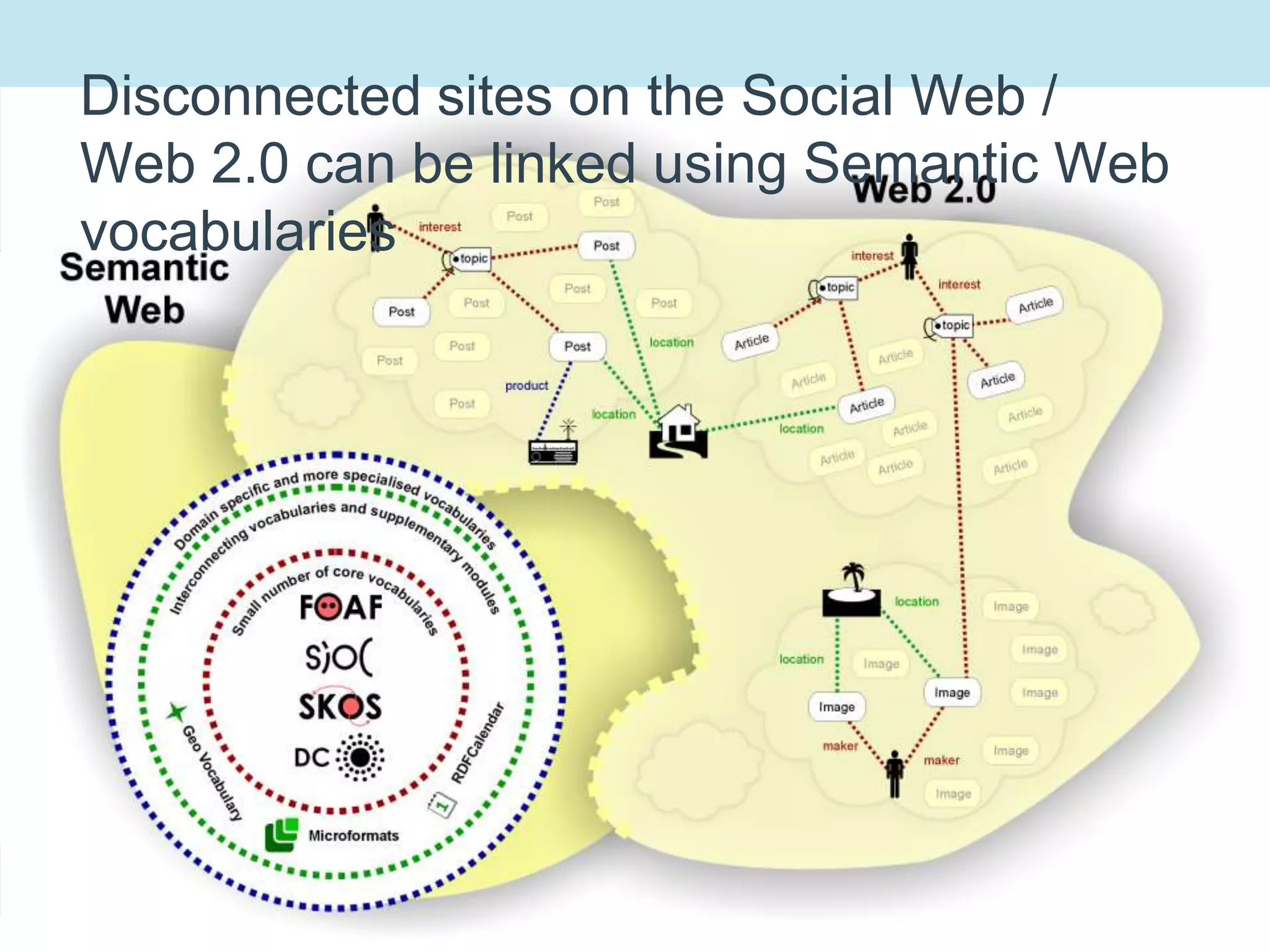

171 Disconnected sites on the Social Web / Web 2.0 can be linked using Semantic Web vocabularies
174 Summary Object-centred sociality refers to how we really use social websites: Can use semantics to describe this usage, by representing objects for linkage and reuse ,[object Object],Interlinking disconnected sites and profiles: Leveraging a “vocabulary onion” of ontologies Providing solutions for novel uses in organisations: Not just for the “Social” Web, but for Enterprise 2.0
image from tinyurl.com/starshiptr
…now at Amazon.com Our new book…

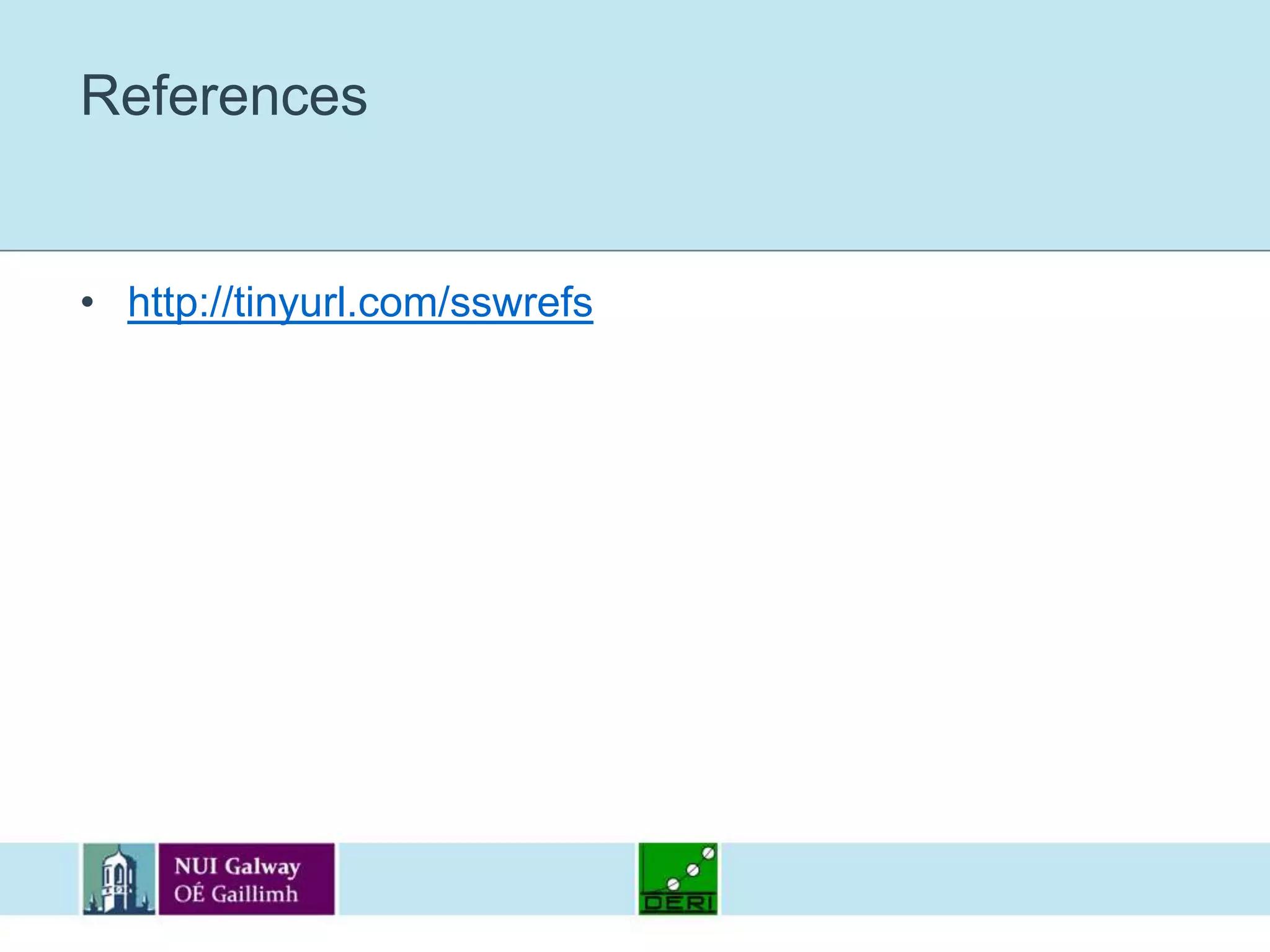

References http://tinyurl.com/sswrefs

More Related Content

What's hot

Social Network Analysis
Social Network AnalysisSocial Network Analysis
Social Network Analysis
Giorgos Cheliotis

Representing uncertainty in expert systems
Representing uncertainty in expert systemsRepresenting uncertainty in expert systems
Representing uncertainty in expert systems
bhupendra kumar

Web ontology language (owl)
Web ontology language (owl)Web ontology language (owl)
Web ontology language (owl)
Ameer Sameer

NE7012- SOCIAL NETWORK ANALYSIS
NE7012- SOCIAL NETWORK ANALYSISNE7012- SOCIAL NETWORK ANALYSIS
NE7012- SOCIAL NETWORK ANALYSIS
rathnaarul

Social network analysis intro part I
Social network analysis intro part ISocial network analysis intro part I
Social network analysis intro part I
THomas Plotkowiak

Community Detection in Social Media
Community Detection in Social MediaCommunity Detection in Social Media
Community Detection in Social Media
Symeon Papadopoulos

Introduction to the Semantic Web
Introduction to the Semantic WebIntroduction to the Semantic Web
Introduction to the Semantic Web
Tomek Pluskiewicz

4.3 multimedia datamining
4.3 multimedia datamining4.3 multimedia datamining
4.3 multimedia datamining
Krish_ver2

T9. Trust and reputation in multi-agent systems
T9. Trust and reputation in multi-agent systemsT9. Trust and reputation in multi-agent systems
T9. Trust and reputation in multi-agent systems
EASSS 2012

What is Big Data?
What is Big Data?What is Big Data?
What is Big Data?
Bernard Marr

Recommender Systems
Recommender SystemsRecommender Systems
Recommender Systems
Lior Rokach

06 Community Detection
06 Community Detection06 Community Detection
06 Community Detection
Duke Network Analysis Center

The semantic web
The semantic web The semantic web
The semantic web
ap

Introduction to linked data
Introduction to linked dataIntroduction to linked data
Introduction to linked data
Open Data Support

Bayesian networks
Bayesian networksBayesian networks
Bayesian networks
Massimiliano Patacchiola

Modelling and evaluation
Modelling and evaluationModelling and evaluation
Modelling and evaluation
eShikshak

NE7012- SOCIAL NETWORK ANALYSIS
NE7012- SOCIAL NETWORK ANALYSISNE7012- SOCIAL NETWORK ANALYSIS
NE7012- SOCIAL NETWORK ANALYSIS
rathnaarul

Data mining for social media
Data mining for social mediaData mining for social media
Data mining for social media
rangesharp

Data streaming fundamentals
Data streaming fundamentalsData streaming fundamentals
Data streaming fundamentals
Mohammed Fazuluddin

Slides: Knowledge Graphs vs. Property Graphs
Slides: Knowledge Graphs vs. Property GraphsSlides: Knowledge Graphs vs. Property Graphs
Slides: Knowledge Graphs vs. Property Graphs
DATAVERSITY


What's hot (20)

Social Network Analysis
Social Network AnalysisSocial Network Analysis
Social Network Analysis

Representing uncertainty in expert systems
Representing uncertainty in expert systemsRepresenting uncertainty in expert systems
Representing uncertainty in expert systems

Web ontology language (owl)
Web ontology language (owl)Web ontology language (owl)
Web ontology language (owl)

NE7012- SOCIAL NETWORK ANALYSIS
NE7012- SOCIAL NETWORK ANALYSISNE7012- SOCIAL NETWORK ANALYSIS
NE7012- SOCIAL NETWORK ANALYSIS

Social network analysis intro part I
Social network analysis intro part ISocial network analysis intro part I
Social network analysis intro part I

Community Detection in Social Media
Community Detection in Social MediaCommunity Detection in Social Media
Community Detection in Social Media

Introduction to the Semantic Web
Introduction to the Semantic WebIntroduction to the Semantic Web
Introduction to the Semantic Web

4.3 multimedia datamining
4.3 multimedia datamining4.3 multimedia datamining
4.3 multimedia datamining

T9. Trust and reputation in multi-agent systems
T9. Trust and reputation in multi-agent systemsT9. Trust and reputation in multi-agent systems
T9. Trust and reputation in multi-agent systems

What is Big Data?
What is Big Data?What is Big Data?
What is Big Data?

Recommender Systems
Recommender SystemsRecommender Systems
Recommender Systems

06 Community Detection
06 Community Detection06 Community Detection
06 Community Detection

The semantic web
The semantic web The semantic web
The semantic web

Introduction to linked data
Introduction to linked dataIntroduction to linked data
Introduction to linked data

Bayesian networks
Bayesian networksBayesian networks
Bayesian networks

Modelling and evaluation
Modelling and evaluationModelling and evaluation
Modelling and evaluation

NE7012- SOCIAL NETWORK ANALYSIS
NE7012- SOCIAL NETWORK ANALYSISNE7012- SOCIAL NETWORK ANALYSIS
NE7012- SOCIAL NETWORK ANALYSIS

Data mining for social media
Data mining for social mediaData mining for social media
Data mining for social media

Data streaming fundamentals
Data streaming fundamentalsData streaming fundamentals
Data streaming fundamentals

Slides: Knowledge Graphs vs. Property Graphs
Slides: Knowledge Graphs vs. Property GraphsSlides: Knowledge Graphs vs. Property Graphs
Slides: Knowledge Graphs vs. Property Graphs


Viewers also liked

Web 3.0 The Semantic Web
Web 3.0 The Semantic WebWeb 3.0 The Semantic Web
Web 3.0 The Semantic Web
Hatem Mahmoud

Introduction to the Semantic Web
Introduction to the Semantic WebIntroduction to the Semantic Web
Introduction to the Semantic Web
Marin Dimitrov

The Semantic Web
The Semantic WebThe Semantic Web
The Semantic Web
ostephens

Evolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic WebEvolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic Web
LeeFeigenbaum

From the Semantic Web to the Web of Data: ten years of linking up
From the Semantic Web to the Web of Data: ten years of linking upFrom the Semantic Web to the Web of Data: ten years of linking up
From the Semantic Web to the Web of Data: ten years of linking up
Davide Palmisano

The Social Semantic Web: An Introduction
The Social Semantic Web: An IntroductionThe Social Semantic Web: An Introduction
The Social Semantic Web: An Introduction
John Breslin

An introduction to Semantic Web and Linked Data
An introduction to Semantic Web and Linked DataAn introduction to Semantic Web and Linked Data
An introduction to Semantic Web and Linked Data
Fabien Gandon

Retos Investigación Web Semántica
Retos Investigación Web SemánticaRetos Investigación Web Semántica
Retos Investigación Web Semántica
iSOCO

Semantic Core Research Will Help Your Site Get Found
Semantic Core Research Will Help Your Site Get FoundSemantic Core Research Will Help Your Site Get Found
Semantic Core Research Will Help Your Site Get Found
David Black

Ontologies in computer science and on the web
Ontologies in computer science and on the webOntologies in computer science and on the web
Ontologies in computer science and on the web
Fabien Gandon

Semantic Web 2.0: Creating Social Semantic Information Spaces
Semantic Web 2.0: Creating Social Semantic Information SpacesSemantic Web 2.0: Creating Social Semantic Information Spaces
Semantic Web 2.0: Creating Social Semantic Information Spaces
John Breslin

Social Networks, Dominance And Interoperability
Social Networks, Dominance And InteroperabilitySocial Networks, Dominance And Interoperability
Social Networks, Dominance And Interoperability
blogzilla

The digital traces of user generated content
The digital traces of user generated contentThe digital traces of user generated content
The digital traces of user generated content
Katrin Weller

About the Social Semantic Web
About the Social Semantic WebAbout the Social Semantic Web
About the Social Semantic Web
Web Information Systems, TU Delft

Social Media and Scholarly Communication
Social Media and Scholarly CommunicationSocial Media and Scholarly Communication
Social Media and Scholarly Communication
Crossref

Using narratives in enterprise gamification for sales, training, service and ...
Using narratives in enterprise gamification for sales, training, service and ...Using narratives in enterprise gamification for sales, training, service and ...
Using narratives in enterprise gamification for sales, training, service and ...
Centrical

The Social Semantic Web
The Social Semantic Web The Social Semantic Web
The Social Semantic Web
John Breslin

The Social Semantic Web
The Social Semantic WebThe Social Semantic Web
The Social Semantic Web
John Breslin

SIOC
SIOCSIOC
PLNs, CoPs, and Connectivism
PLNs, CoPs, and ConnectivismPLNs, CoPs, and Connectivism
PLNs, CoPs, and Connectivism
David Mulder


Viewers also liked (20)

Web 3.0 The Semantic Web
Web 3.0 The Semantic WebWeb 3.0 The Semantic Web
Web 3.0 The Semantic Web

Introduction to the Semantic Web
Introduction to the Semantic WebIntroduction to the Semantic Web
Introduction to the Semantic Web

The Semantic Web
The Semantic WebThe Semantic Web
The Semantic Web

Evolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic WebEvolution Towards Web 3.0: The Semantic Web
Evolution Towards Web 3.0: The Semantic Web

From the Semantic Web to the Web of Data: ten years of linking up
From the Semantic Web to the Web of Data: ten years of linking upFrom the Semantic Web to the Web of Data: ten years of linking up
From the Semantic Web to the Web of Data: ten years of linking up

The Social Semantic Web: An Introduction
The Social Semantic Web: An IntroductionThe Social Semantic Web: An Introduction
The Social Semantic Web: An Introduction

An introduction to Semantic Web and Linked Data
An introduction to Semantic Web and Linked DataAn introduction to Semantic Web and Linked Data
An introduction to Semantic Web and Linked Data

Retos Investigación Web Semántica
Retos Investigación Web SemánticaRetos Investigación Web Semántica
Retos Investigación Web Semántica

Semantic Core Research Will Help Your Site Get Found
Semantic Core Research Will Help Your Site Get FoundSemantic Core Research Will Help Your Site Get Found
Semantic Core Research Will Help Your Site Get Found

Ontologies in computer science and on the web
Ontologies in computer science and on the webOntologies in computer science and on the web
Ontologies in computer science and on the web

Semantic Web 2.0: Creating Social Semantic Information Spaces
Semantic Web 2.0: Creating Social Semantic Information SpacesSemantic Web 2.0: Creating Social Semantic Information Spaces
Semantic Web 2.0: Creating Social Semantic Information Spaces

Social Networks, Dominance And Interoperability
Social Networks, Dominance And InteroperabilitySocial Networks, Dominance And Interoperability
Social Networks, Dominance And Interoperability

The digital traces of user generated content
The digital traces of user generated contentThe digital traces of user generated content
The digital traces of user generated content

About the Social Semantic Web
About the Social Semantic WebAbout the Social Semantic Web
About the Social Semantic Web

Social Media and Scholarly Communication
Social Media and Scholarly CommunicationSocial Media and Scholarly Communication
Social Media and Scholarly Communication

Using narratives in enterprise gamification for sales, training, service and ...
Using narratives in enterprise gamification for sales, training, service and ...Using narratives in enterprise gamification for sales, training, service and ...
Using narratives in enterprise gamification for sales, training, service and ...

The Social Semantic Web
The Social Semantic Web The Social Semantic Web
The Social Semantic Web

The Social Semantic Web
The Social Semantic WebThe Social Semantic Web
The Social Semantic Web

SIOC
SIOCSIOC
SIOC

PLNs, CoPs, and Connectivism
PLNs, CoPs, and ConnectivismPLNs, CoPs, and Connectivism
PLNs, CoPs, and Connectivism


Similar to The Social Semantic Web

Interlinking Online Communities and Enriching Social Software with the Semant...
Interlinking Online Communities and Enriching Social Software with the Semant...Interlinking Online Communities and Enriching Social Software with the Semant...
Interlinking Online Communities and Enriching Social Software with the Semant...
John Breslin

DataPortability and Me: Introducing SIOC, FOAF and the Semantic Web
DataPortability and Me: Introducing SIOC, FOAF and the Semantic WebDataPortability and Me: Introducing SIOC, FOAF and the Semantic Web
DataPortability and Me: Introducing SIOC, FOAF and the Semantic Web
John Breslin

Data Accessibility and Me: Introducing SIOC, FOAF and the Linked Data Web
Data Accessibility and Me: Introducing SIOC, FOAF and the Linked Data WebData Accessibility and Me: Introducing SIOC, FOAF and the Linked Data Web
Data Accessibility and Me: Introducing SIOC, FOAF and the Linked Data Web
John Breslin

Data Portability with SIOC and FOAF
Data Portability with SIOC and FOAFData Portability with SIOC and FOAF
Data Portability with SIOC and FOAF
Uldis Bojars

Breaking Down Walls in Enterprise with Social Semantics
Breaking Down Walls in Enterprise with Social SemanticsBreaking Down Walls in Enterprise with Social Semantics
Breaking Down Walls in Enterprise with Social Semantics
John Breslin

The Social Semantic Web
The Social Semantic WebThe Social Semantic Web
The Social Semantic Web
John Breslin

Semantic web
Semantic webSemantic web
Semantic web
Vijay Thorat

Web of Data as a Solution for Interoperability. Case Studies
Web of Data as a Solution for Interoperability. Case StudiesWeb of Data as a Solution for Interoperability. Case Studies
Web of Data as a Solution for Interoperability. Case Studies
Sabin Buraga

Interactive Innovation Through Social Software And Web 2.0
Interactive Innovation Through Social Software And Web 2.0Interactive Innovation Through Social Software And Web 2.0
Interactive Innovation Through Social Software And Web 2.0
Thomas Ryberg

SIOC: Semantic Web for Social Media Sites
SIOC: Semantic Web for Social Media SitesSIOC: Semantic Web for Social Media Sites
SIOC: Semantic Web for Social Media Sites
Uldis Bojars

Hypertext2007 Carole Goble Keynote - "The Return of the Prodigal Web"
Hypertext2007 Carole Goble Keynote - "The Return of the Prodigal Web"Hypertext2007 Carole Goble Keynote - "The Return of the Prodigal Web"
Hypertext2007 Carole Goble Keynote - "The Return of the Prodigal Web"
hypertext2007

DM110 - Week 10 - Semantic Web / Web 3.0
DM110 - Week 10 - Semantic Web / Web 3.0DM110 - Week 10 - Semantic Web / Web 3.0
DM110 - Week 10 - Semantic Web / Web 3.0
John Breslin

Linked Data and Locah, UKSG2011
Linked Data and Locah, UKSG2011 Linked Data and Locah, UKSG2011
Linked Data and Locah, UKSG2011
Jane Stevenson

Linked Data to Improve the OER Experience
Linked Data to Improve the OER ExperienceLinked Data to Improve the OER Experience
Linked Data to Improve the OER Experience
The Open Education Consortium

Geo-annotations in Semantic Digital Libraries
Geo-annotations in Semantic Digital Libraries Geo-annotations in Semantic Digital Libraries
Geo-annotations in Semantic Digital Libraries
mdabrowski

Metadata and Scotland’s information environment: potential benefits of Web 2.0
Metadata and Scotland’s information environment: potential benefits of Web 2.0Metadata and Scotland’s information environment: potential benefits of Web 2.0
Metadata and Scotland’s information environment: potential benefits of Web 2.0
Scottish Library & Information Council (SLIC), CILIP in Scotland (CILIPS)

ADLUG 2008 Web 2.0 - Library 2.0 presentation
ADLUG 2008 Web 2.0 - Library 2.0 presentationADLUG 2008 Web 2.0 - Library 2.0 presentation
ADLUG 2008 Web 2.0 - Library 2.0 presentation
@CULT Srl

Repositories thru the looking glass
Repositories thru the looking glassRepositories thru the looking glass
Repositories thru the looking glass
Eduserv Foundation

Walking Our Way to the Web
Walking Our Way to the WebWalking Our Way to the Web
Walking Our Way to the Web
Fabien Gandon

Gic2011 aula10-ingles
Gic2011 aula10-inglesGic2011 aula10-ingles
Gic2011 aula10-ingles
Marielba-Mayeya Zacarias


Similar to The Social Semantic Web (20)

Interlinking Online Communities and Enriching Social Software with the Semant...
Interlinking Online Communities and Enriching Social Software with the Semant...Interlinking Online Communities and Enriching Social Software with the Semant...
Interlinking Online Communities and Enriching Social Software with the Semant...

DataPortability and Me: Introducing SIOC, FOAF and the Semantic Web
DataPortability and Me: Introducing SIOC, FOAF and the Semantic WebDataPortability and Me: Introducing SIOC, FOAF and the Semantic Web
DataPortability and Me: Introducing SIOC, FOAF and the Semantic Web

Data Accessibility and Me: Introducing SIOC, FOAF and the Linked Data Web
Data Accessibility and Me: Introducing SIOC, FOAF and the Linked Data WebData Accessibility and Me: Introducing SIOC, FOAF and the Linked Data Web
Data Accessibility and Me: Introducing SIOC, FOAF and the Linked Data Web

Data Portability with SIOC and FOAF
Data Portability with SIOC and FOAFData Portability with SIOC and FOAF
Data Portability with SIOC and FOAF

Breaking Down Walls in Enterprise with Social Semantics
Breaking Down Walls in Enterprise with Social SemanticsBreaking Down Walls in Enterprise with Social Semantics
Breaking Down Walls in Enterprise with Social Semantics

The Social Semantic Web
The Social Semantic WebThe Social Semantic Web
The Social Semantic Web

Semantic web
Semantic webSemantic web
Semantic web

Web of Data as a Solution for Interoperability. Case Studies
Web of Data as a Solution for Interoperability. Case StudiesWeb of Data as a Solution for Interoperability. Case Studies
Web of Data as a Solution for Interoperability. Case Studies

Interactive Innovation Through Social Software And Web 2.0
Interactive Innovation Through Social Software And Web 2.0Interactive Innovation Through Social Software And Web 2.0
Interactive Innovation Through Social Software And Web 2.0

SIOC: Semantic Web for Social Media Sites
SIOC: Semantic Web for Social Media SitesSIOC: Semantic Web for Social Media Sites
SIOC: Semantic Web for Social Media Sites

Hypertext2007 Carole Goble Keynote - "The Return of the Prodigal Web"
Hypertext2007 Carole Goble Keynote - "The Return of the Prodigal Web"Hypertext2007 Carole Goble Keynote - "The Return of the Prodigal Web"
Hypertext2007 Carole Goble Keynote - "The Return of the Prodigal Web"

DM110 - Week 10 - Semantic Web / Web 3.0
DM110 - Week 10 - Semantic Web / Web 3.0DM110 - Week 10 - Semantic Web / Web 3.0
DM110 - Week 10 - Semantic Web / Web 3.0

Linked Data and Locah, UKSG2011
Linked Data and Locah, UKSG2011 Linked Data and Locah, UKSG2011
Linked Data and Locah, UKSG2011

Linked Data to Improve the OER Experience
Linked Data to Improve the OER ExperienceLinked Data to Improve the OER Experience
Linked Data to Improve the OER Experience

Geo-annotations in Semantic Digital Libraries
Geo-annotations in Semantic Digital Libraries Geo-annotations in Semantic Digital Libraries
Geo-annotations in Semantic Digital Libraries

Metadata and Scotland’s information environment: potential benefits of Web 2.0
Metadata and Scotland’s information environment: potential benefits of Web 2.0Metadata and Scotland’s information environment: potential benefits of Web 2.0
Metadata and Scotland’s information environment: potential benefits of Web 2.0

ADLUG 2008 Web 2.0 - Library 2.0 presentation
ADLUG 2008 Web 2.0 - Library 2.0 presentationADLUG 2008 Web 2.0 - Library 2.0 presentation
ADLUG 2008 Web 2.0 - Library 2.0 presentation

Repositories thru the looking glass
Repositories thru the looking glassRepositories thru the looking glass
Repositories thru the looking glass

Walking Our Way to the Web
Walking Our Way to the WebWalking Our Way to the Web
Walking Our Way to the Web

Gic2011 aula10-ingles
Gic2011 aula10-inglesGic2011 aula10-ingles
Gic2011 aula10-ingles


More from John Breslin

Ireland: Island of Innovation and Entrepreneurship
Ireland: Island of Innovation and EntrepreneurshipIreland: Island of Innovation and Entrepreneurship
Ireland: Island of Innovation and Entrepreneurship
John Breslin

Old Ireland in Colour
Old Ireland in ColourOld Ireland in Colour
Old Ireland in Colour
John Breslin

A Balanced Routing Algorithm for Blockchain Offline Channels using Flocking
A Balanced Routing Algorithm for Blockchain Offline Channels using FlockingA Balanced Routing Algorithm for Blockchain Offline Channels using Flocking
A Balanced Routing Algorithm for Blockchain Offline Channels using Flocking
John Breslin

Collusion Attack from Hubs in the Blockchain Offline Channel Network
Collusion Attack from Hubs in the Blockchain Offline Channel NetworkCollusion Attack from Hubs in the Blockchain Offline Channel Network
Collusion Attack from Hubs in the Blockchain Offline Channel Network
John Breslin

Collaborative Leadership to Increase the Northern & Western Region’s Innovati...
Collaborative Leadership to Increase the Northern & Western Region’s Innovati...Collaborative Leadership to Increase the Northern & Western Region’s Innovati...
Collaborative Leadership to Increase the Northern & Western Region’s Innovati...
John Breslin

TRICS: Teaching Researchers and Innovators how to Create Startups
TRICS: Teaching Researchers and Innovators how to Create StartupsTRICS: Teaching Researchers and Innovators how to Create Startups
TRICS: Teaching Researchers and Innovators how to Create Startups
John Breslin

Entrepreneurship is in Our DNA
Entrepreneurship is in Our DNAEntrepreneurship is in Our DNA
Entrepreneurship is in Our DNA
John Breslin

Galway City Innovation District
Galway City Innovation DistrictGalway City Innovation District
Galway City Innovation District
John Breslin

Innovation Districts and Innovation Hubs
Innovation Districts and Innovation HubsInnovation Districts and Innovation Hubs
Innovation Districts and Innovation Hubs
John Breslin

Disciplined mHealth Entrepreneurship
Disciplined mHealth EntrepreneurshipDisciplined mHealth Entrepreneurship
Disciplined mHealth Entrepreneurship
John Breslin

Searching for Startups
Searching for StartupsSearching for Startups
Searching for Startups
John Breslin

Intellectual Property: Protecting Ideas, Designs and Brands in the Real World...
Intellectual Property: Protecting Ideas, Designs and Brands in the Real World...Intellectual Property: Protecting Ideas, Designs and Brands in the Real World...
Intellectual Property: Protecting Ideas, Designs and Brands in the Real World...
John Breslin

Innovation and Entrepreneurship: Tips, Tools and Tricks
Innovation and Entrepreneurship: Tips, Tools and TricksInnovation and Entrepreneurship: Tips, Tools and Tricks
Innovation and Entrepreneurship: Tips, Tools and Tricks
John Breslin

Growing Galway's Startup Community
Growing Galway's Startup CommunityGrowing Galway's Startup Community
Growing Galway's Startup Community
John Breslin

Startup Community: What Galway Can Do Next
Startup Community: What Galway Can Do NextStartup Community: What Galway Can Do Next
Startup Community: What Galway Can Do Next
John Breslin

Adding More Semantics to the Social Web
Adding More Semantics to the Social WebAdding More Semantics to the Social Web
Adding More Semantics to the Social Web
John Breslin

Communities and Tech: Build Which and What Will Come?
Communities and Tech: Build Which and What Will Come?Communities and Tech: Build Which and What Will Come?
Communities and Tech: Build Which and What Will Come?
John Breslin

Data Analytics and Industry-Academic Partnerships: An Irish Perspective
Data Analytics and Industry-Academic Partnerships: An Irish PerspectiveData Analytics and Industry-Academic Partnerships: An Irish Perspective
Data Analytics and Industry-Academic Partnerships: An Irish Perspective
John Breslin

“I Like” - Analysing Interactions within Social Networks to Assert the Trustw...
“I Like” - Analysing Interactions within Social Networks to Assert the Trustw...“I Like” - Analysing Interactions within Social Networks to Assert the Trustw...
“I Like” - Analysing Interactions within Social Networks to Assert the Trustw...
John Breslin

John Breslin at the Innovation Academy
John Breslin at the Innovation AcademyJohn Breslin at the Innovation Academy
John Breslin at the Innovation Academy
John Breslin


More from John Breslin (20)

Ireland: Island of Innovation and Entrepreneurship
Ireland: Island of Innovation and EntrepreneurshipIreland: Island of Innovation and Entrepreneurship
Ireland: Island of Innovation and Entrepreneurship

Old Ireland in Colour
Old Ireland in ColourOld Ireland in Colour
Old Ireland in Colour

A Balanced Routing Algorithm for Blockchain Offline Channels using Flocking
A Balanced Routing Algorithm for Blockchain Offline Channels using FlockingA Balanced Routing Algorithm for Blockchain Offline Channels using Flocking
A Balanced Routing Algorithm for Blockchain Offline Channels using Flocking

Collusion Attack from Hubs in the Blockchain Offline Channel Network
Collusion Attack from Hubs in the Blockchain Offline Channel NetworkCollusion Attack from Hubs in the Blockchain Offline Channel Network
Collusion Attack from Hubs in the Blockchain Offline Channel Network

Collaborative Leadership to Increase the Northern & Western Region’s Innovati...
Collaborative Leadership to Increase the Northern & Western Region’s Innovati...Collaborative Leadership to Increase the Northern & Western Region’s Innovati...
Collaborative Leadership to Increase the Northern & Western Region’s Innovati...

TRICS: Teaching Researchers and Innovators how to Create Startups
TRICS: Teaching Researchers and Innovators how to Create StartupsTRICS: Teaching Researchers and Innovators how to Create Startups
TRICS: Teaching Researchers and Innovators how to Create Startups

Entrepreneurship is in Our DNA
Entrepreneurship is in Our DNAEntrepreneurship is in Our DNA
Entrepreneurship is in Our DNA

Galway City Innovation District
Galway City Innovation DistrictGalway City Innovation District
Galway City Innovation District

Innovation Districts and Innovation Hubs
Innovation Districts and Innovation HubsInnovation Districts and Innovation Hubs
Innovation Districts and Innovation Hubs

Disciplined mHealth Entrepreneurship
Disciplined mHealth EntrepreneurshipDisciplined mHealth Entrepreneurship
Disciplined mHealth Entrepreneurship

Searching for Startups
Searching for StartupsSearching for Startups
Searching for Startups

Intellectual Property: Protecting Ideas, Designs and Brands in the Real World...
Intellectual Property: Protecting Ideas, Designs and Brands in the Real World...Intellectual Property: Protecting Ideas, Designs and Brands in the Real World...
Intellectual Property: Protecting Ideas, Designs and Brands in the Real World...

Innovation and Entrepreneurship: Tips, Tools and Tricks
Innovation and Entrepreneurship: Tips, Tools and TricksInnovation and Entrepreneurship: Tips, Tools and Tricks
Innovation and Entrepreneurship: Tips, Tools and Tricks

Growing Galway's Startup Community
Growing Galway's Startup CommunityGrowing Galway's Startup Community
Growing Galway's Startup Community

Startup Community: What Galway Can Do Next
Startup Community: What Galway Can Do NextStartup Community: What Galway Can Do Next
Startup Community: What Galway Can Do Next

Adding More Semantics to the Social Web
Adding More Semantics to the Social WebAdding More Semantics to the Social Web
Adding More Semantics to the Social Web

Communities and Tech: Build Which and What Will Come?
Communities and Tech: Build Which and What Will Come?Communities and Tech: Build Which and What Will Come?
Communities and Tech: Build Which and What Will Come?

Data Analytics and Industry-Academic Partnerships: An Irish Perspective
Data Analytics and Industry-Academic Partnerships: An Irish PerspectiveData Analytics and Industry-Academic Partnerships: An Irish Perspective
Data Analytics and Industry-Academic Partnerships: An Irish Perspective

“I Like” - Analysing Interactions within Social Networks to Assert the Trustw...
“I Like” - Analysing Interactions within Social Networks to Assert the Trustw...“I Like” - Analysing Interactions within Social Networks to Assert the Trustw...
“I Like” - Analysing Interactions within Social Networks to Assert the Trustw...

John Breslin at the Innovation Academy
John Breslin at the Innovation AcademyJohn Breslin at the Innovation Academy
John Breslin at the Innovation Academy


Recently uploaded

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus
Zilliz

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx
MichaelKnudsen27

AWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptxAWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptx
HarisZaheer8

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
alexjohnson7307

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations
kumardaparthi1024

Recommendation System using RAG Architecture
Recommendation System using RAG ArchitectureRecommendation System using RAG Architecture
Recommendation System using RAG Architecture
fredae14

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus
Zilliz

Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr
Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStrDeep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr
Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr
saastr

Finale of the Year: Apply for Next One!
Finale of the Year: Apply for Next One!Finale of the Year: Apply for Next One!
Finale of the Year: Apply for Next One!
GDSC PJATK

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr

Nunit vs XUnit vs MSTest Differences Between These Unit Testing Frameworks.pdf
Nunit vs XUnit vs MSTest Differences Between These Unit Testing Frameworks.pdfNunit vs XUnit vs MSTest Differences Between These Unit Testing Frameworks.pdf
Nunit vs XUnit vs MSTest Differences Between These Unit Testing Frameworks.pdf
flufftailshop

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
akankshawande

Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
saastr

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxOcean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
SitimaJohn


Recently uploaded (20)

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx

AWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptxAWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptx

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations

Recommendation System using RAG Architecture
Recommendation System using RAG ArchitectureRecommendation System using RAG Architecture
Recommendation System using RAG Architecture

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus

Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr
Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStrDeep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr
Deep Dive: Getting Funded with Jason Jason Lemkin Founder & CEO @ SaaStr

Finale of the Year: Apply for Next One!
Finale of the Year: Apply for Next One!Finale of the Year: Apply for Next One!
Finale of the Year: Apply for Next One!

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...

Nunit vs XUnit vs MSTest Differences Between These Unit Testing Frameworks.pdf
Nunit vs XUnit vs MSTest Differences Between These Unit Testing Frameworks.pdfNunit vs XUnit vs MSTest Differences Between These Unit Testing Frameworks.pdf
Nunit vs XUnit vs MSTest Differences Between These Unit Testing Frameworks.pdf

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers

Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxOcean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptx


The Social Semantic Web

  • 1. The Social Semantic Web:ICWSM Tutorial Alexandre Passant John Breslin
  • 2. Introduction Why is this important?
  • 3. The Social Web is exploding! image from tinyurl.com/nuketest
  • 4. 61% = social networks 11% = forums 11% = UG content sites, e.g. urbandictionary.com 10% = UG marketplaces, e.g. craigslist.org 03% = blogs 01% = UG reviews, e.g. apartmentratings.com 01% = wikis 02% = other text from tinyurl.com/briscougc
  • 5. Sites go up... image from tinyurl.com/rocket15
  • 7. ...and sites come down image from tinyurl.com/elhell
  • 9. Object-centred sociality (AKA social objects) gives some explanations Users are connected via a common object: Their job, university, hobbies, interests, a date… “According to this theory, people don’t just connect to each other. They connect through a shared object. […]Good services allow people to create social objects that add value.” – JyriEngestrom Flickr = photos del.icio.us = bookmarks Blogs = discussion posts
  • 10. It’s the social objects we create… Discussions Bookmarks Annotations Profiles Microblogs Multimedia
  • 11. …that connect usto other people
  • 12. Boom!
  • 13. image from tinyurl.com/orionw The amount of stuff out there is vast
  • 14. Social websites are like data silos image from pidgintech.com
  • 15. Many isolated communities of users and their data image from pidgintech.com
  • 16. Need ways to connect these islands image from pidgintech.com
  • 17. Allowing users to easily move from one to another image from pidgintech.com
  • 18. Enabling users to easily bring their data with them image from pidgintech.com

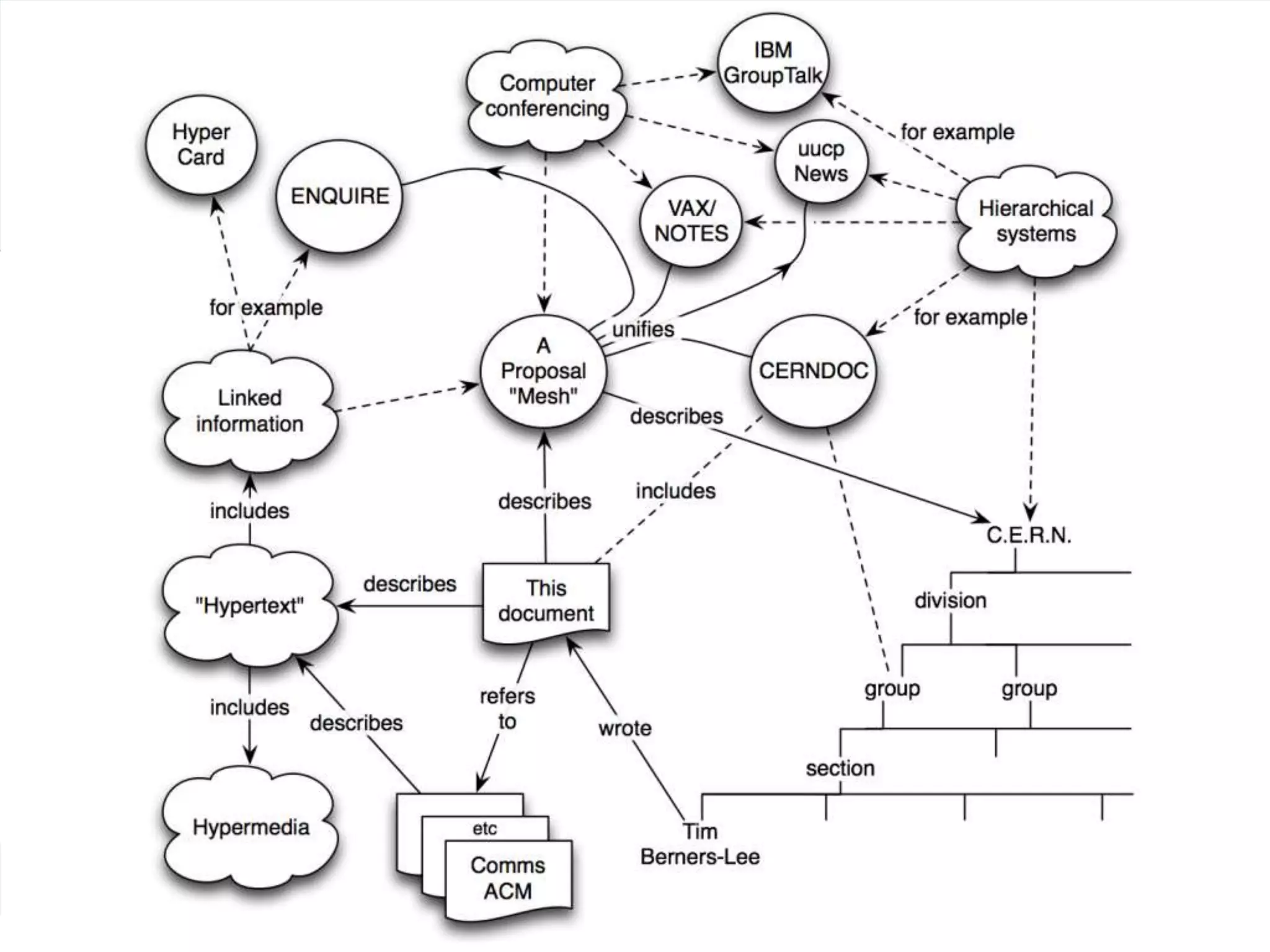

  • 20.
  • 21.
  • 22. The Semantic Web A brief overview
  • 23. What’s in a page ? And in a link ? ? ? ?
  • 24. Tim Berners-Lee, The 1st World Wide Web Conference, Geneva, May 1994 To a computer, the Web is a flat, boring world, devoid of meaning. This is a pity, as in fact documents on the Web describe real objects and imaginary concepts, and give particular relationships between them. […] Adding semantics to the Web involves two things: allowing documents which have information in machine-readable forms, and allowing links to be created with relationship values. Only when we have this extra level of semantics will we be able to use computer power to help us exploit the information to a greater extent than our own reading.
  • 25. Aims of the Semantic Web Bridging the gap between a Web of Documents to a Web of Data, with typed objects and typed relationships Adding machine-readable metadata to existing content, so that information can be parsed, queried, reused Defining shared semantics for this metadata to allow interoperability between applications and for advanced purposes, such as reasoning Enabling machine-readable knowledge at Web scale, making information more easy to find and process
  • 26. A bit of history Memex, Vannevar Bush, 1945: “A device in which an individual stores all his books, records, and communications.” Augmenting Human Intellect, Douglas Engelbart, 1960: “By ‘augmenting human intellect’ we mean increasing the capability of a man to approach a complex problem situation, to gain comprehension to suit his particular needs, and to derive solutions to problems.”
  • 27. The Semantic Web, circa 2010 Most standardisation work is done in the W3C: http://www.w3.org/ The Semantic Web activity: http://www.w3.org/2001/sw/ Incubator Groups, Working Group, Interest Groups: WGs for SPARQL, RDB2RDF, RIF, etc. HCLS IG, Social Web XG, etc.
  • 29. Identifying resources with URIs URIs are used to identify everything in a unique and non-ambiguous way: Not only pages (as on the current Web), but any resource (people, documents, books, interests, etc.) A URI for a person is different from a URI for a document about the person, because a person is not a document! e.g. http://dbpedia.org/resource/Galway
  • 30. Defining assertions with RDF URIs identify resources: How do we define assertions about these resources? We use RDF (Resource Description Framework): A data model; a directed, labeled graph using URIs Various serialisations (RDF/XML, N3, RDFa, etc.) RDF is based on triples: <subject> <predicate> <object> .
  • 31. RDF by example @prefix dct: <http://purl.org/dc/terms/> . <http://example.org/dm110-semweb> dct:title“Introduction to the Semantic Web” ; dct:author <http://apassant.net/alex> ; dct:subject <http://dbpedia.org/resource/Semantic_Web> .
  • 32. RDFa A way of embedding RDF in (X)HTML documents: One page for both humans and machines Don’t need to repeat yourself Introducing new XHTML attributes Current work is ongoing on RDFa 1.1: For profiles, etc.
  • 34. Defining semantics with ontologies RDF provides a way to write assertions about URIs: But what about the semantics of these assertions, e.g. to state that http://xmlns.com/foaf/0.1/knows identifies an acquaintance relationship? Ontologies provide common semantics for resources on the Semantic Web: “An ontology is a specification of a conceptualization” RDFS and OWL have different expressiveness levels
  • 35. Ontologies consist mainly of classes and properties :Person a rdfs:Class . :father a rdfs:Property . :father rdfs:domain :Person . :father rdfs:range :Person .
  • 37. Notable ontologies Social networks and social data: FOAF, SIOC Software development: DOAP, BEATLE Comprehensive / top-level: Yago, OpenCYC Taxonomies and controlled vocabularies: SKOS
  • 38. Linked Data Building a “Web of Data” to enhance the current Web Exposing, sharing and connecting data about things via dereferenceable URIs The Linking Open Data (LOD) project: http://linkeddata.org/ Translating existing datasets into RDF and linking them together, for example DBpedia (Wikipedia) and GeoNames, Freebase, BBC programmes, etc. Governement data also available as Linked Data
  • 39. The LOD cloud 2007 2008
  • 40. The LOD cloud 2008 2009
  • 42. Representation models for the Social Semantic Web Using ontologies to model social data
  • 43. Semantics can help social websites, and vice versa By using agreed-upon semantic formats to describe people, content objects and the connections that bind them all together, social media sites can interoperate by appealing to common semantics Developers are already using semantic technologies to augment the ways in which they create, reuse, and link profiles and content on social media sites (using FOAF, XFN / hCard, SIOC, etc.) In the other direction, object-centered social networks can serve as rich data sources for semantic applications
  • 45. FOAF Friend Of A Friend
  • 46.
  • 47. FOAF (Friend-of-a-Friend) An ontology for describing people and the relationships that exist between them: http://foaf-project.org/ Identity, personal profiles and social networks Can be integrated with other SW vocabularies FOAF on the Web: LiveJournal, MyOpera, identi.ca, MyBlogLog, hi5, Fotothing, Videntity, FriendFeed, Ecademy, Typepad
  • 50. FOAF at a glance
  • 53. Exporting FOAF data Facebook: http://www.dcs.shef.ac.uk/~mrowe/foafgenerator.html Twitter: http://semantictweet.com/ Flickr: http://apassant.net/blog/2007/12/18/rdf-export-flickr-profiles-foaf-and-sioc/ And many more (Drupal 7, WordPress plug-ins, etc.)
  • 59. SIOC, pronounced shock image from tinyurl.com/siocshock
  • 60. Semantically-Interlinked Online Communities (SIOC) An effort from DERI, NUI Galway to discover how we can create / establish ontologies on the Semantic Web Goal of the SIOC ontology is to address interoperability issues on the (Social) Web http://sioc-project.org/ SIOC has been adopted in a framework of 50 applications or modules deployed on over 400 sites Various domains: Web 2.0, enterprise information integration, HCLS, e-government
  • 61. 61 The aims of SIOC To “semantically-interlink online communities” To fully describe content / structure of social websites To create new connections between online discussion posts and items, forums and containers To enable the integration of online community info To browse connected Social Web items in interesting and innovative ways To overcome the chicken-and-egg problem with the Semantic Web
  • 62.
  • 63. Some of the SIOC core ontology classes and properties
  • 64. 64
  • 65. Designed to fit with other ontologies
  • 67.
  • 68. 68 From last October
  • 69. SIOC and other RDFa in Drupal 7 Drupal is a CMS used by whitehouse.gov, warnerbrosrecords.com, uk.sun.com, motogp.com... Two alpha versions of Drupal 7 released already, Semantic Web support built-in (RDFa) Full version expected soon
  • 71. 71
  • 72. 72 Find out more about the SIOC project
  • 73. Semantic presence Modeling presence and status updates using semantics
  • 74. Motivations There is a need to unify presence information and status notification processes across different services: Twitter, Facebook, Foursquare, etc. We can solve the information overload issue at the same time, by providing a means to identify who / which community the information should reach
  • 77. Sharing spaces allow us to… Solve the identity fragmentation problem related to status messages sharing: We may not want to share the same information to different people Model whom information is directed to: e.g. “Social media-aware people”, “Family contacts”, “Good friends”, “Work colleagues”, etc. Build with OPO, using rules defined in SPARQL, the query language for RDF
  • 78. @prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>.@prefix opo: <http://ggg.milanstankovic.org/opo/ns#>.@prefix foaf: <http://xmlns.com/foaf/0.1/>.@prefix sioc: <http://rdfs.org/sioc/ns#>. :Fred rdf:typefoaf:Agent;foaf:mbox <mailto:fred@gmail.com>. :myCustomMessagerdf:typesioc:Post;sioc:content "anybody in for a drink tonight?". :MyCurrentPresencerdf:typeopo:OnlinePresence;opo:customMessage :myCustomMessage;opo:startTime "2008-03-01T18:51:19";opo:intendedFor<http://example.org/FamilyFriendsBedrock> :Betty opo:declaresOnlinePresence :MyCurrentPresence.
  • 79. @prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>.@prefix opo: <http://ggg.milanstankovic.org/opo/ns#>.@prefix foaf: <http://xmlns.com/foaf/0.1/>.@prefix sioc: <http://rdfs.org/sioc/ns#>. :Fred rdf:typefoaf:Agent;foaf:mbox <mailto:fred@gmail.com>. :myCustomMessagerdf:typesioc:Post;sioc:content "anybody in for a drink tonight?". :MyCurrentPresencerdf:typeopo:OnlinePresence;opo:customMessage :myCustomMessage;opo:startTime "2008-03-01T18:51:19";opo:intendedFor <http://example.org/FamilyFriendsBedrock> :Betty opo:declaresOnlinePresence :MyCurrentPresence. PREFIX foaf: <http://xmlns.com/foaf/0.1/> PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> PREFIX rel: <http://purl.org/vocab/relationship> CONSTRUCT { <http://example.org/ns#FamilyFriendsBedrock> rdf:typeopo:SharingSpace; foaf:member?person. } WHERE { { ?person rel:friendOf_ <http://flintstones.org/Fred> } UNION { ?person rel:spouseOf_ <http://flintstones.org/Fred> } UNION { ?person rel:childOf_ <http://flintstones.org/Fred> } . ?person foaf:basedNear <http://imaginary.geonames.org/bedrock/> . }
  • 80. Semantic tagging Bridging the gap between folksonomies and ontologies
  • 81. Tagging issues Tagging enables user-generated classification of content with evolving and user-driven vocabularies But it also raises various issues: Tag ambiguity: “apple” = fruit or computer brand? Tag heterogeneity: “socialmedia”, “social_media”, “socmed” Lack of organisation: No links between tags, e.g. “SPARQL” and “RDF”
  • 82. Use case illustrating such issues Corporate use case > 3 years, 12257 tags, 21614 posts: 54.2% of tags used once, 75.77% used <= 3 times Lots of valuable information lost in the long tail Tagging and expertise gap: 194 items tagged with “TF” (= Thin Film) 1% of them tagged with “solar” < 0.5% of “solar” items tagged “TF” Both tags are weakly related from a co-occurrence point of view, clustering cannot be efficiently used
  • 83. The long tail of tags
  • 84.
  • 85. The Tag Ontology The “Tag Ontology” by Newman from 2005: http://www.holygoat.co.uk/projects/tags/ Based on Gruber’s tag model tags:Tag rdfs:subClassOf skos:Concept A “Tagging” class describing relationships between: A user An annotated resource Some tags
  • 86. SCOT SCOT (Social Semantic Cloud of Tags): http://scot-project.org/ A model to describe tagclouds (tags and co-occurrence) Ability to move your own tagcloud from one service to another Share tagclouds between services, and between users “Tag portability”
  • 87. MOAT MOAT (Meaning Of A Tag): http://moat-project.org/ A model to define “meanings” of tags e.g. SPARQL ->http://dbpedia.org/resource/SPARQL User-driven interlinking Tagged content enters the “Linked Data” web Collaborative approach to share meanings in a community
  • 88. MOAT with DBpedia example data
  • 89. Tagging process with MOAT and DBpedia
  • 91. CommonTag CommonTag: http://commontag.org/ A joint effort by AdaptiveBlue, DERI at NUI Galway, Faviki, Freebase, Yahoo!, Zemanta and Zigtag Linking tags to meaningful resource (à la MOAT)
  • 92. Life cycle for CommonTag data
  • 93. NiceTag NiceTag Ontology: Tagging meets speech act theory Focus on the link between a tag and a tagged item
  • 94. Extracting ontologies from tags FolksOntology: Semi-assisted extraction of relationships between tags FLOR: FoLksonomy Ontology enRichment http://flor.kmi.open.ac.uk/ Automated approach to identify tag meanings Can be combined with the previous models for a complete semantic tagging stack
  • 95.
  • 96. Mining hierarchical relationships from co-occurrence of tags by Halpin et al.
  • 97. LODr: semantic tagging for social data
  • 99. Unifying conversations Some more semantically-enhanced systems
  • 100. Linking IRC to the Web of Data
  • 103. SMOB
  • 105. An ontology stack for microblogging Combining the previous vocabularies for a complete representation of microblogging and microblogging activities Each microblog post is available in RDF (RDFa + raw RDF) on the publisher’s hub, using these models
  • 106. Semantic #tagging User-driven interlinking Real-time URIs are suggested when writing content Added ability to add new webservices (e.g. enterprise microblogging)
  • 108. SPARQLing Social Semantic Web data Find all posts and their titles by John, using SELECT, and combining vocabularies (DC, SIOC, SIOC Types): SELECT ?post ?title WHERE { ?post rdf:type sioct:BlogPost ; dc:title ?title ; sioc:has_creator <$johns_URI> . }
  • 109. SPARQLing Social Semantic Web data (2) Find all users that posted replies to John’s blog since January 2008, introducing the FILTER clause: SELECT ?who WHERE { ?post rdf:type sioct:BlogPost ; dc:title ?title ; sioc:has_creator <$johns_URI> . ?post sioc:has_reply ?reply . ?reply sioc:has_creator ?who ; dcterms:created ?date . FILTER (?date > "2008-01-01T00:00:00Z"^^xsd:dateTime) }
  • 110. SPARQLing Social Semantic Web data (3) Find all content created by someone with a given OpenID URL: Browse someone’s social media contributions posted on various websites using different account names, but for the same person SELECT ?item WHERE { ?person foaf:openid <$openid> ; foaf:holdsAccount ?user . ?user sioc:creator_of ?item . }
  • 111. Parse SPARQL results SPARQL XML JSON: Easiest Many extensions (e.g. PHP5) Many examples
  • 112. Querying RDF files Redland: http://librdf.org Bindings: Available for PHP, Python, etc. Example in Python: Import RDFm = RDF.Model()m.load(‘http://apassant.net/foaf.rdf’)q = RDF.Query("SELECT ?s WHERE { ?s ?p ?o .}")results = q1.execute(model)for result in results: print result[’s']
  • 113. Need more data? Translate any data to SIOC: Re-use SIOC tools for non-SIOC data Semantic Pipes: http://pipes.deri.org/ SPARQL constructs: The “XSLT” of RDF; translate a set of RDF data from one graph format to another CONSTRUCT { ?x a sioc:Post . ?xsioc:has_creator ?y } WHERE { ?x a myont:BlogElement . ?xmyont:created_by ?y } 113
  • 114. From data to knowledge Semantic wikis
  • 115.
  • 116.
  • 117.
  • 118. From wikis to semantic wikis
  • 121. Semantic MediaWiki An extension of MediaWiki, allowing users to add structured information to pages: Classifying links, e.g. making a relationship such as “capital of” between Berlin and Germany explicit: ... [[capital of::Germany]] ... resulting in the semantic statement "Berlin" "capital of" "Germany" Defining assertions: ... the population is [[population:=3,993,933]] ... resulting in the semantic statement "Berlin" "has population" "3993933" Currently the most widely-deployed semantic wiki
  • 122. Input using Semantic MediaWiki
  • 123. One possible output from a SMW query
  • 129. Semantic social networks Using semantics in the analysis of social networks and social websites
  • 130. SNA with semantics Combining ontologies, folksonomies and SNA: Mika, “Ontologies Are Us”, ISWC 2005 Ontology and SPARQL extensions for common SNA patterns: Ereteo et al., ISWC 2009 SPARQL extensions (most are now in SPARQL 1.1): San Martin et al., ESWC 2009
  • 131. boards.ie use case 10 years of conversations, 150k users, 7M posts: Analysing the structured data that people link to To appear in Kinsella et al., i-Semantics 2010
  • 132. From raw data to rich data
  • 133.
  • 134. Some of the main sources of structured data
  • 135. New possibilities for SNA and SMA
  • 136. Semantic Enterprise 2.0 Enterprise 2.0 goes semantic
  • 137. Some serious applications for Web 2.0 Web 2.0 in research environments: Using wikis for project proposals Scientific community blogging (e.g. Nature Network)
  • 138. Enterprise 2.0 Web 2.0 includes applications such as blogs, wikis, RSS feeds and social networking, while Enterprise 2.0 is the packaging of those technologies in both corporate IT and workplace environments: Corporate blogging, wikis, microblogging Social networking within organisations, etc. “Enterprise 2.0 is the use of emergent social software platforms within companies, or between companies and their partners or customers” - McAfee, MIT Sloan, 2006
  • 139. Enterprise 2.0 and the Web Many enterprises have an online presence on various Web 2.0 services to reach their customers: Twitter Slideshare Facebook Flickr LinkedIn etc.
  • 140. The SLATES acronym Search: Easy and relevant access to information Links: Enable better browsing capabilities between content Authoring: Easy interfaces to produce content, in a collaborative way Tagging: User-generated classification, enables serendipity and knowledge discovery Extension: Recommendation of relevant content Signals: Identify relevant content
  • 141. Social aspects of Enterprise 2.0 Enterprise 2.0 introduces new paradigms in organisations with regards to knowledge sharing and communication patterns: Enterprise 2.0 is a philosophy Enterprise 2.0’s success depends on a company’s background: A study by AIIM showed that 41% of companies do not have a clear understanding of what Enterprise 2.0 is, while this percentage goes down to 15% in KM-oriented companies.
  • 142. Keys to Enterprise 2.0 adoption Combining top-down and bottom-up approaches helps to realise Enterprise 2.0: Top-down: Hierarchy (bosses!) sets up new tools and requires that various sections use them Bottom-up: Users become evangelists and word-of-mouth improves the number of new users: http://strange.corante.com/2006/03/05/an-adoption-strategy-for-social-software-in-enterprise http://many.corante.com/archives/2004/10/27/middlespace.php
  • 143. Business metrics for Enterprise 2.0 13% of the Fortune 500 companies have a public blog maintained by their employees Forrester Research predicts a global market for Enterprise 2.0 solutions of 4.6 billion dollars by 2013, and according to Gartner, more social computing platforms will be adopted by companies in next 10 years Lots of companies and products in this space: Awareness, Mentor Scout, SelectMinds, introNetworks, Jive Software, Visible Path, Web Crossing, SocialText, etc.
  • 144. Open-source applications Open-source Web 2.0 apps can be efficiently used in organisations to build Enterprise 2.0 ecosystems: Blogging: WordPress, etc. Wikis: MediaWiki, MoinMoin, etc. RSS readers and APIs: MagpieRSS, etc. Integrated CMSs: Drupal, etc.
  • 145. Information fragmentation issues Heterogeneity of people, services, needs and practices leads to various services and tools being deployed By using various services (blogs, wikis, etc.), information about a particular object (e.g. a project) is fragmented over a company’s network: Getting a global picture is difficult Applications act as independent data silos, with different APIs, different data formats, etc.: Data integration can be a costly task
  • 146. Lack of machine-readable data and tagging issues Enterprise 2.0 enables and encourages people to provide valuable content inside organisations: However, information is complex to re-use, generally remains locked inside services, and is for human-consumption only Some queries cannot be answered automatically: “List all the US-based companies involved in sustainable energies” Plus there’s the aforementioned issue with tagging
  • 147. Semantic Web in enterprises Semantic Web technologies are already widely used in organisations: Ontology-based information management Semantic middleware between databases Intelligent portals etc. Semantic Web Education and Outreach (W3C): http://www.w3.org/2001/sw/sweo/public/UseCases/ NASA, Eli Lilly, Oracle, Yahoo!, Sun, etc.
  • 148. A Semantic Enterprise 2.0 architecture Lightweight add-ons to existing applications to provide RDF data: Exporters, wrappers, dedicated scripts, etc. Taking into account the social aspect (e.g. semantic wikis) Models to give meaning to this RDF data: Domain ontologies, taxonomies, etc. Applications on the top of it: Thanks to RDF(S)/OWL and SPARQL
  • 149. The RDF Bus approach RDF Bus architecture (Tim Berners-Lee): Add-ons to produce RDF data from existing Web 2.0 applications Store distributed data using RDF stores Create new applications: Semantic mashups Semantic search Open architecture thanks to a SPARQL endpoint, services as plugins to the architecture
  • 150. Relational DB to RDF mapping Relational data (RDB) is structured data and can be mapped to RDF straightforward: Allows integration of existing enterprise databases into the Semantic Enterprise 2.0 architecture Main issues include: closed-world vs. open-world modeling; assigning URIs for entities (records); mapping language expressivity For a state-of-the-art see http://www.w3.org/2005/Incubator/rdbrdf/RDB2RDF_SurveyReport.pdf
  • 151. LOD and Semantic Enterprise 2.0 Huge potential for internal IT infrastructures to enhance existing applications (mashups, extended UIs, etc.): Integration of open and structured data from various sources at minor cost Issue: dependance on external services, replication may be required RSS is already widely used in organisations as a way to get information from the Web, LOD provides structured data to extend IT ecosystems
  • 152. Reusing LOD example (BBC Music Beta)
  • 153. Semantic Enterprise 2.0 use cases Electricité De France R&D: Integration of Enterprise 2.0 components using lightweight semantics Ecospace EU project: Interoperability of collaborative work environments European Space Agency: Integration of document repositories, databases and intranet data
  • 155. Use case: CWE interoperability private folders BC semantic folder BSCW shadow folder
  • 156. Use case: European Space Agency
  • 157. Recent developments Facebook Open Graph, Twitter Annotations, etc.
  • 158. Facebook Open Graph Allows metadata from external pages to be embedded (and claimed) within Facebook e.g. metadata about a restaurant (name, location, contacts) could be imported into a Facebook news feed via a “Like” button Good for Facebook, good for the Semantic Web? Yes, for both!
  • 159. A sample thing described using the OGP
  • 160. How we could link Open Graph things to blog posts / reviews
  • 161. OGP RDF schema (FOAF, DC, SIOC, GR)
  • 162. Twitter Annotations A forthcoming initiative by Twitter whereby it will be possible to attach arbitrary metadata to any tweet: Subject to an overall limit for the metadata payload May be possible to attach RDF-type statements Going beyond annotating tweets with geotemporal information: Allowing new types and properties for tweets
  • 163. What if your car could tweet? image from knightriderfestival.com
  • 164. Diaspora effort http://nyti.ms/aDYjKQ and http://joindiaspora.com
  • 167. 166 Lots more efforts……but not joined up! Social Graph API DiSo DataPortability
  • 168. Everywhere real-time streams image from sonyericsson.com
  • 169. Some conclusions We’re not there yet, but we’re getting there…
  • 170. This area is hot right now image from tinyurl.com/fireflames
  • 171. 170 A vocabulary onion, building on FOAF, SKOS, SIOC, SIOC Types, DC
  • 172. 171 Disconnected sites on the Social Web / Web 2.0 can be linked using Semantic Web vocabularies
  • 173.
  • 174.
  • 175.
  • 177. …now at Amazon.com Our new book…
  • 179. Acknowledgements We thank our funding agency, Science Foundation Ireland, and also our colleagues: Uldis Bojars (SIOC) Sheila Kinsella (Semantic SNA) Milan Stankovic (OPO)

Editor's Notes

  1. FIX THE TRIPLES
  2. Alex
  3. Alex
  4. CHANGED
