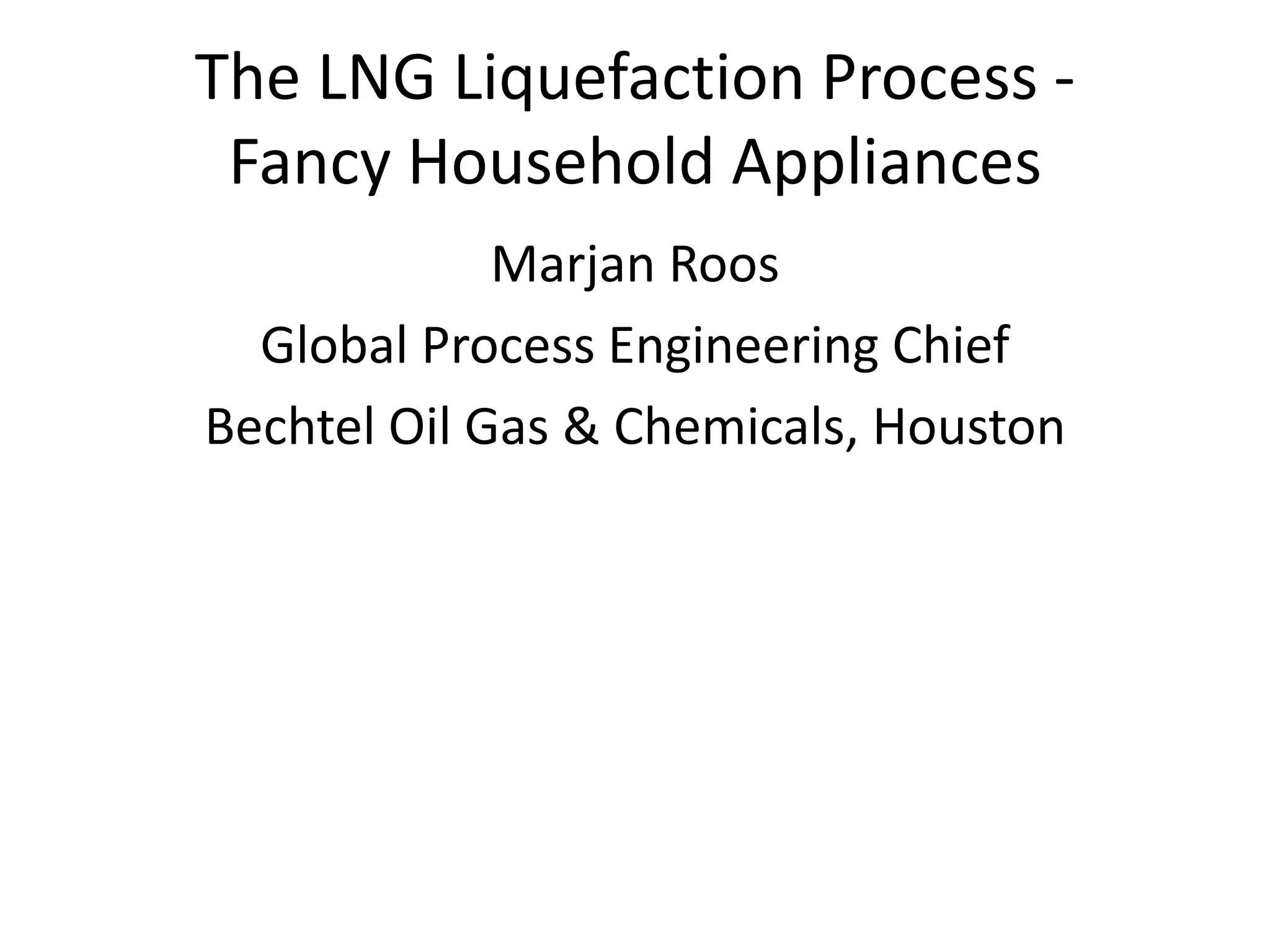

- 1. The LNG LiquefactionProcess - Fancy Household Appliances Marjan Roos Global Process Engineering Chief Bechtel Oil Gas & Chemicals, Houston

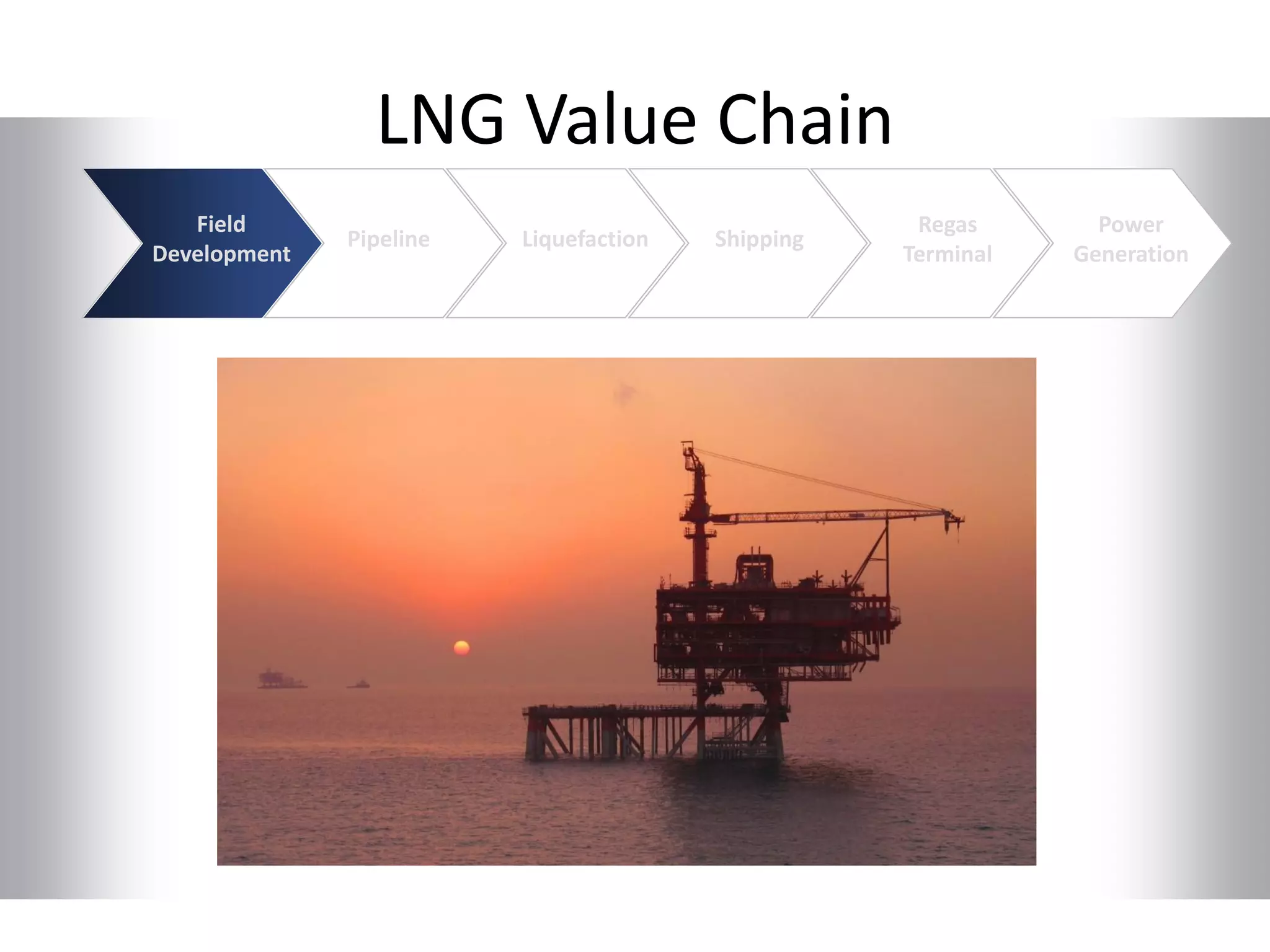

- 2. LNG Value Chain Field Development PipelineLiquefaction Shipping Regas Terminal Power Generation

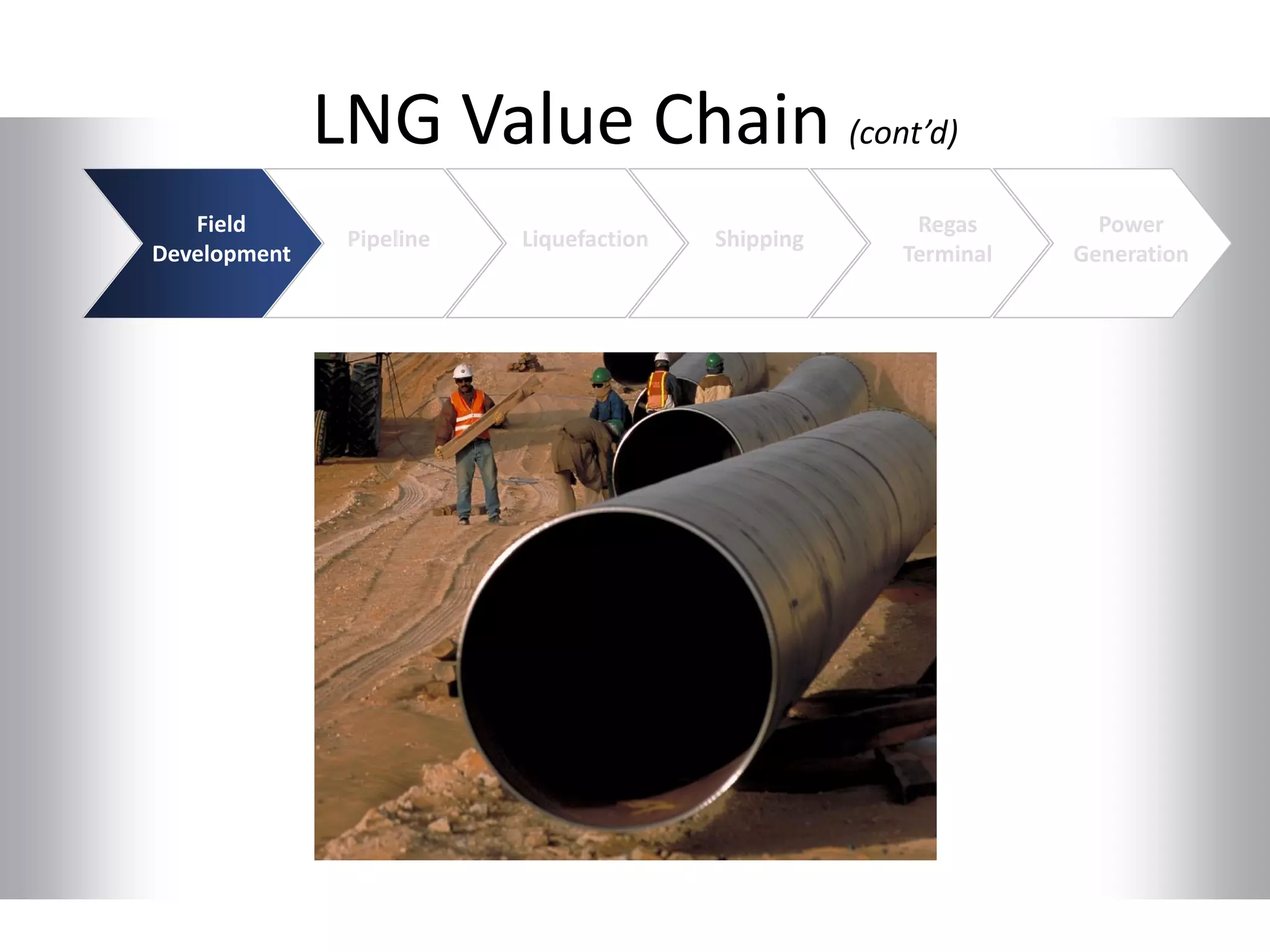

- 3. LNG Value Chain(cont’d) Liquefaction Shipping Regas Terminal Power Generation Field Development Pipeline

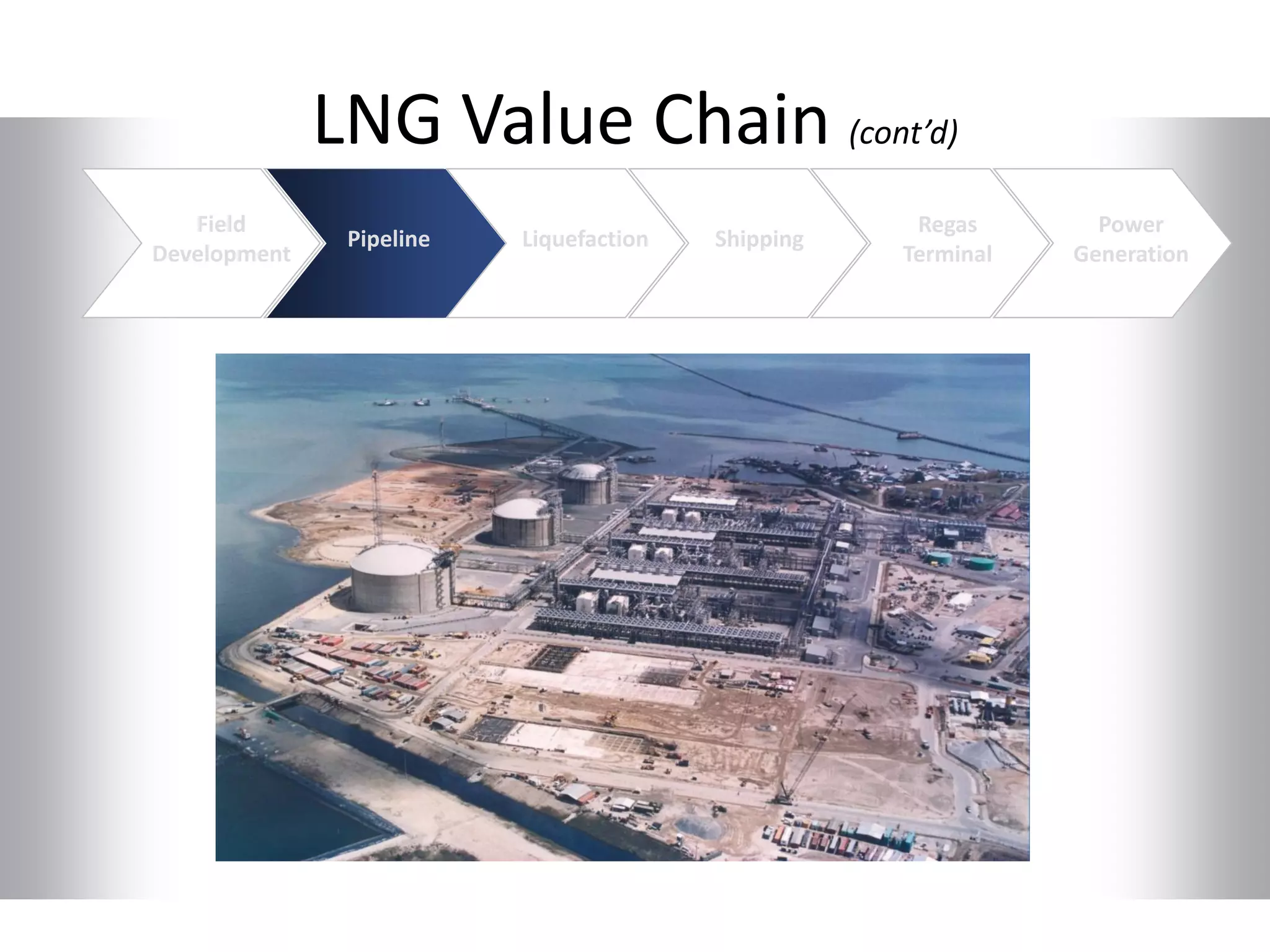

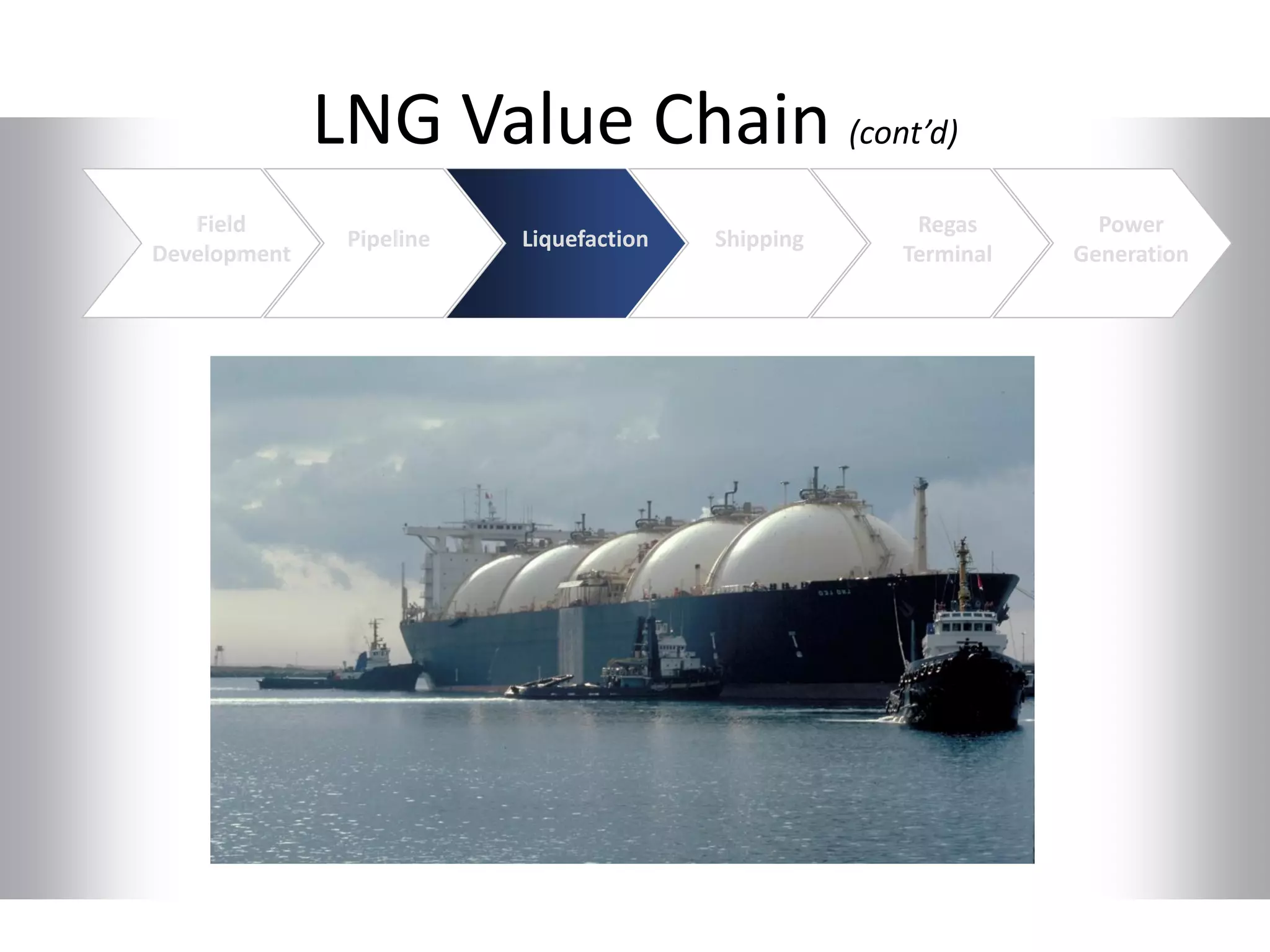

- 4. LNG Value Chain(cont’d) Shipping Regas Terminal Power Generation Field Development Pipeline Liquefaction
- 5. LNG Value Chain(cont’d) Regas Terminal Power Generation Field Development Pipeline Liquefaction Shipping

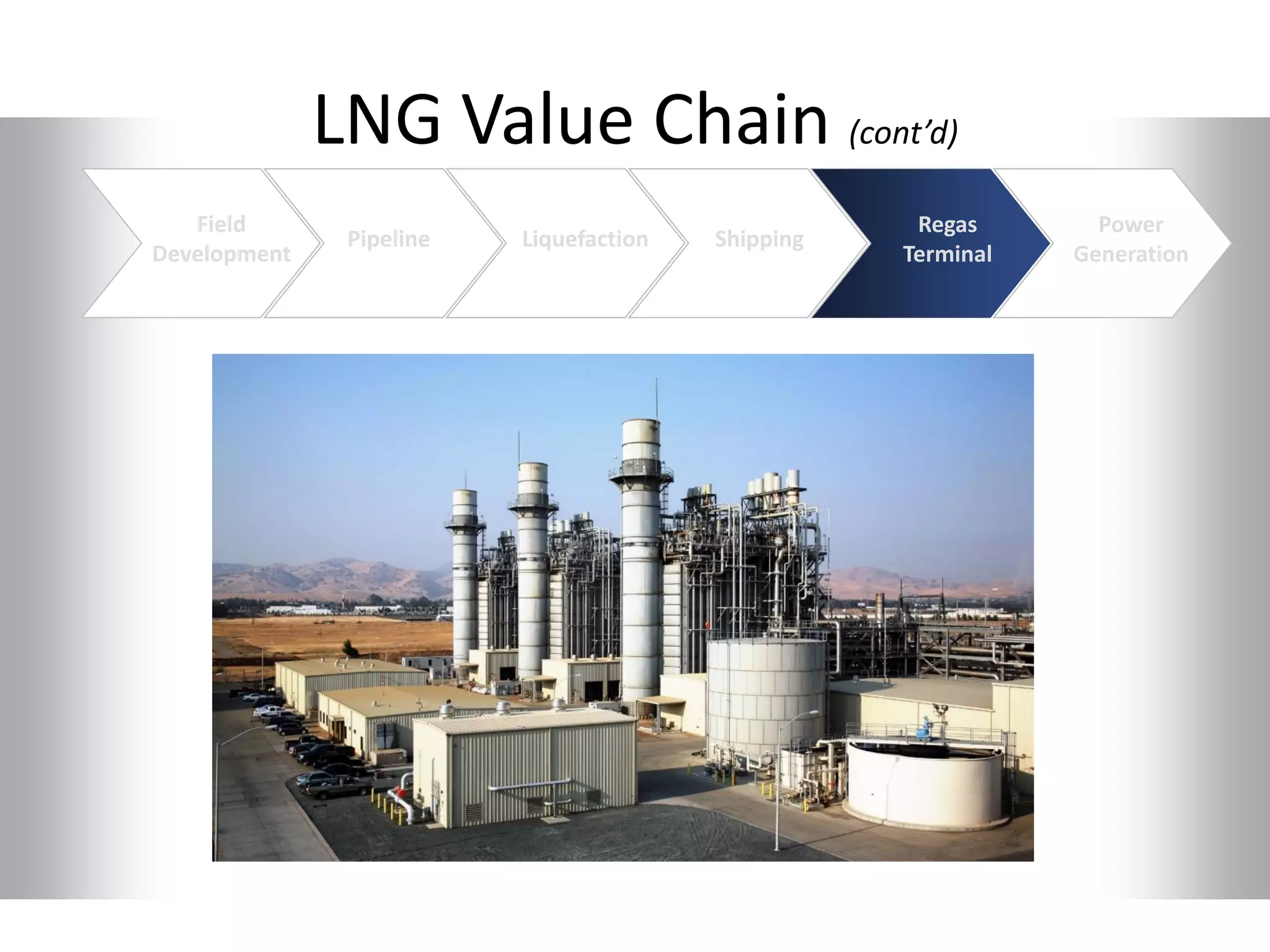

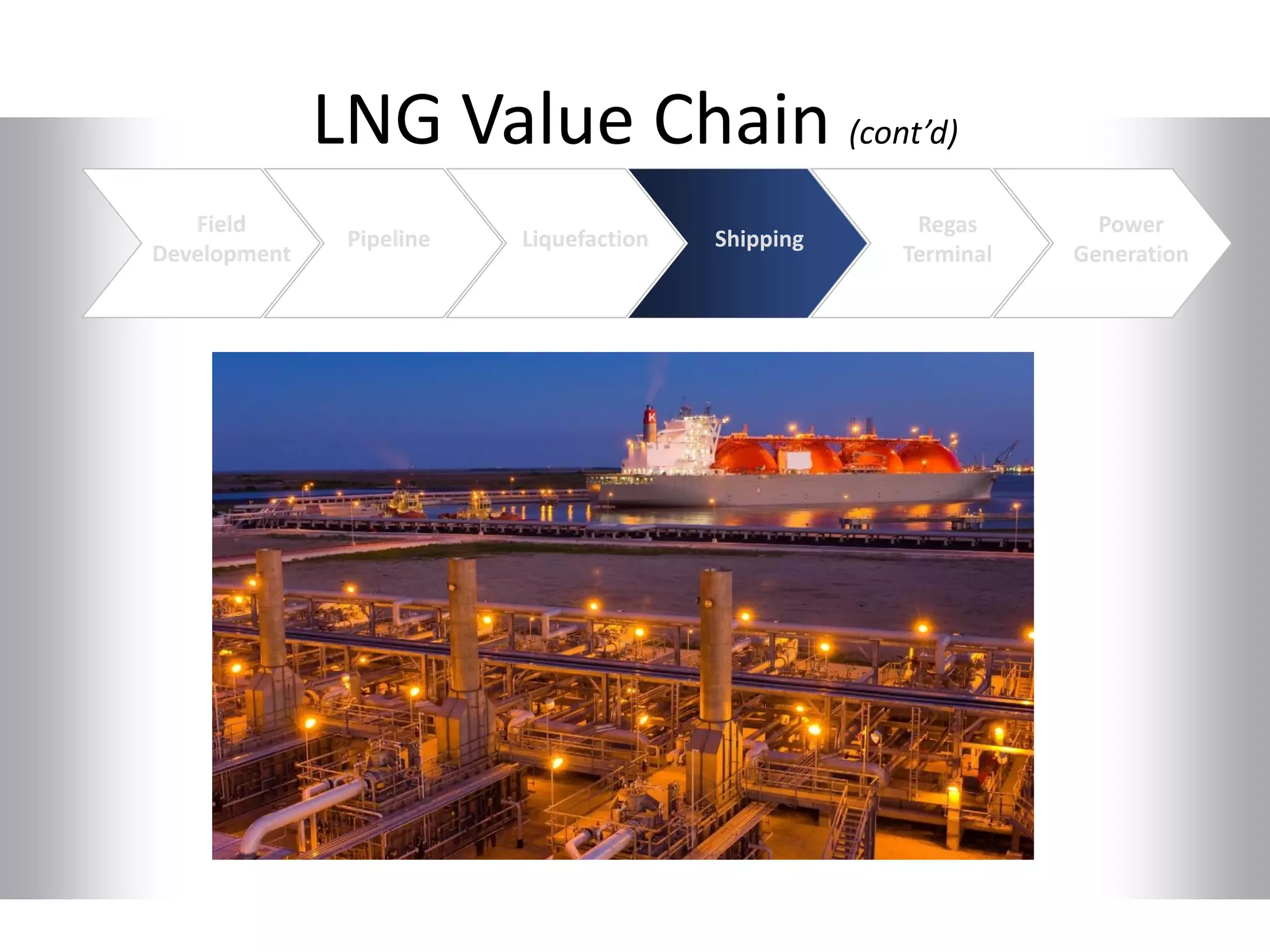

- 6. LNG Value Chain(cont’d) Power Generation Field Development Pipeline Liquefaction Shipping Regas Terminal
- 7. LNG Value Chain(cont’d) Field Development Pipeline Liquefaction Shipping Regas Terminal Power Generation
- 8. Natural Gas –Where is it
- 9. Natural Gas –Who Wants it

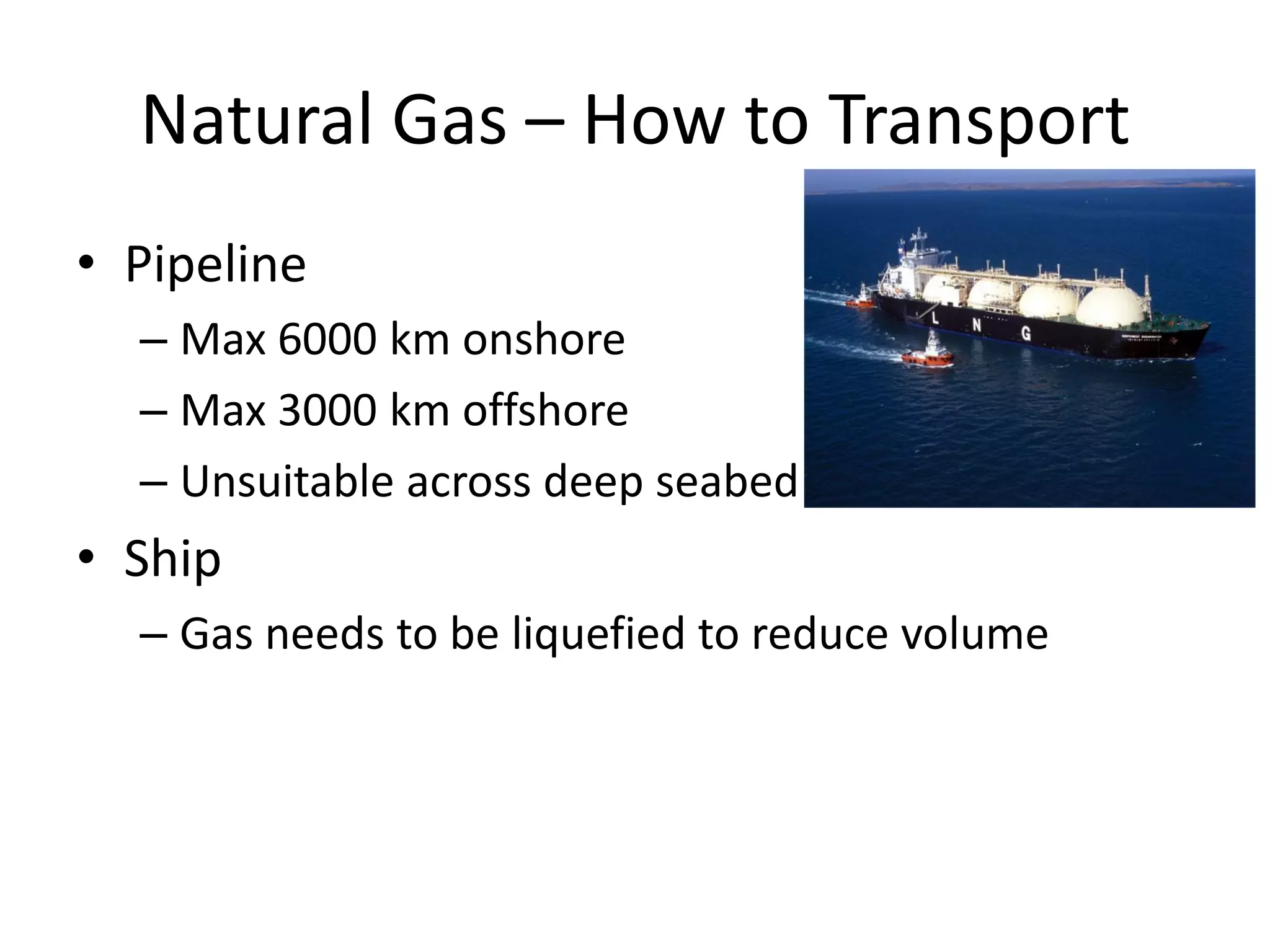

- 10. Natural Gas –How to Transport • Pipeline – Max 6000 km onshore – Max 3000 km offshore – Unsuitable across deep seabed • Ship – Gas needs to be liquefied to reduce volume

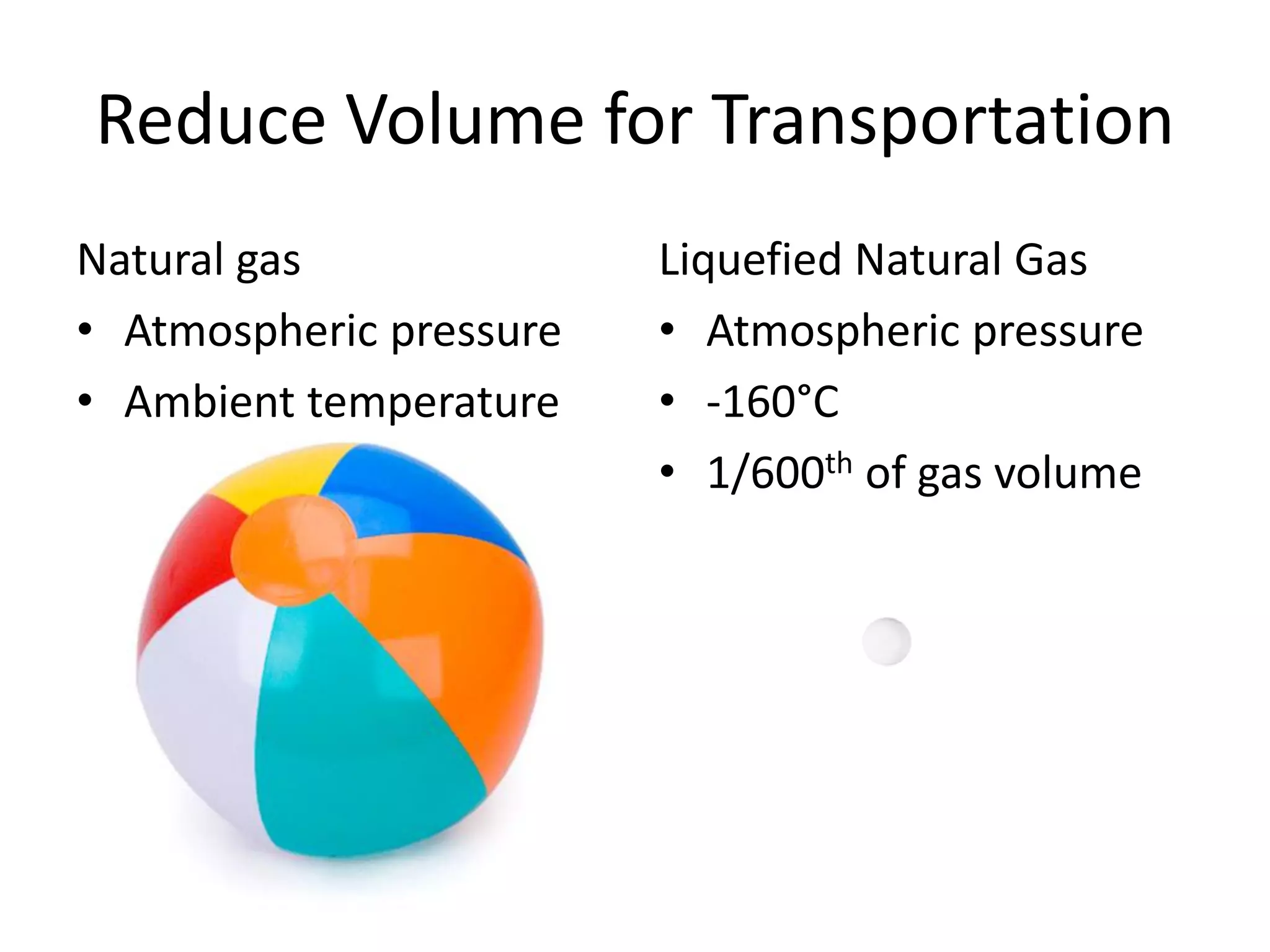

- 11. Reduce Volume forTransportation Natural gas • Atmospheric pressure • Ambient temperature Liquefied Natural Gas • Atmospheric pressure • -160°C • 1/600th of gas volume

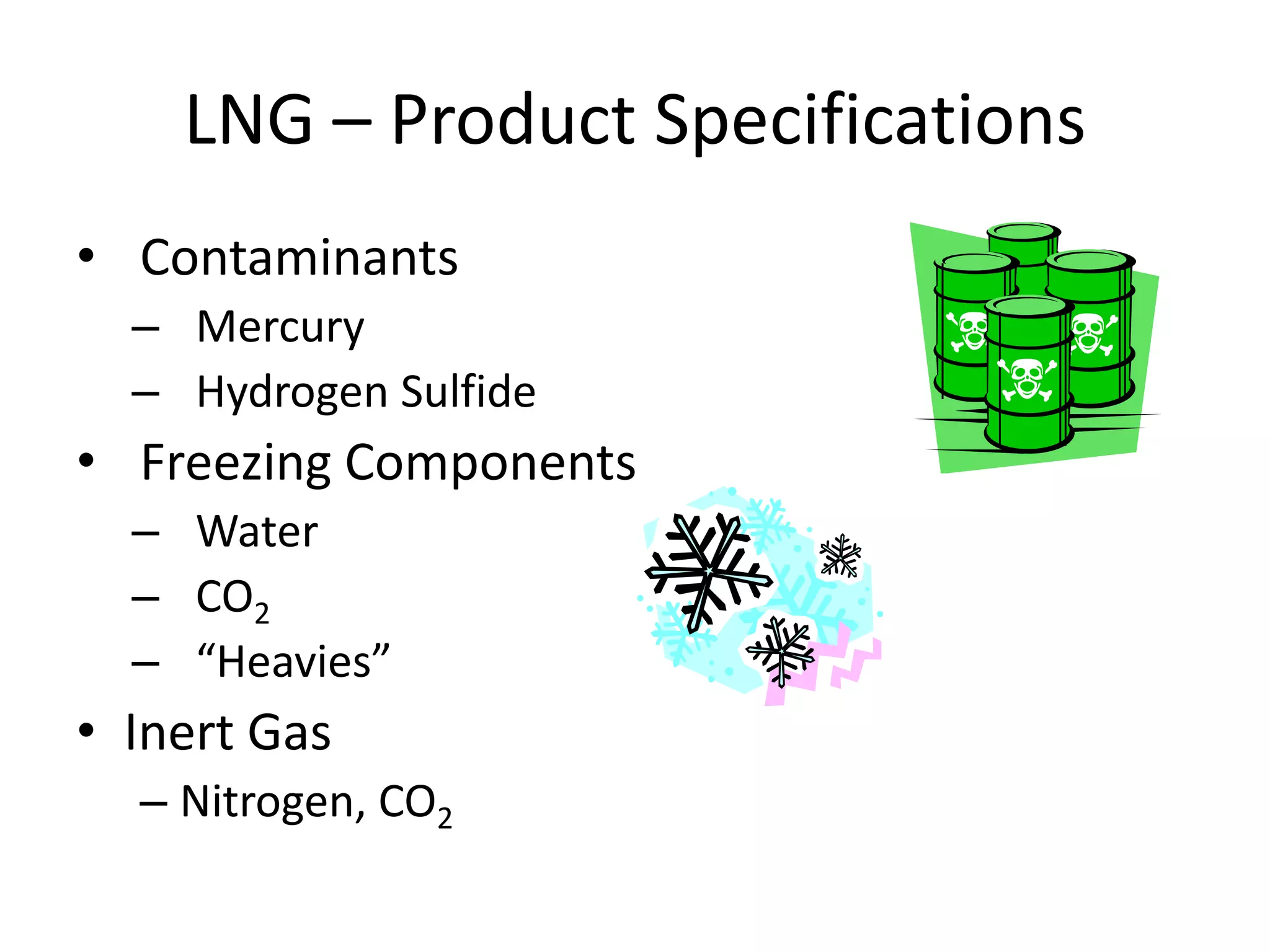

- 12. LNG – ProductSpecifications • Contaminants – Mercury – Hydrogen Sulfide • Freezing Components – Water – CO2 – “Heavies” • Inert Gas – Nitrogen, CO2
- 13. The liquefaction process Natural Gas AcidGas Water Nitrogen Heavies LNG

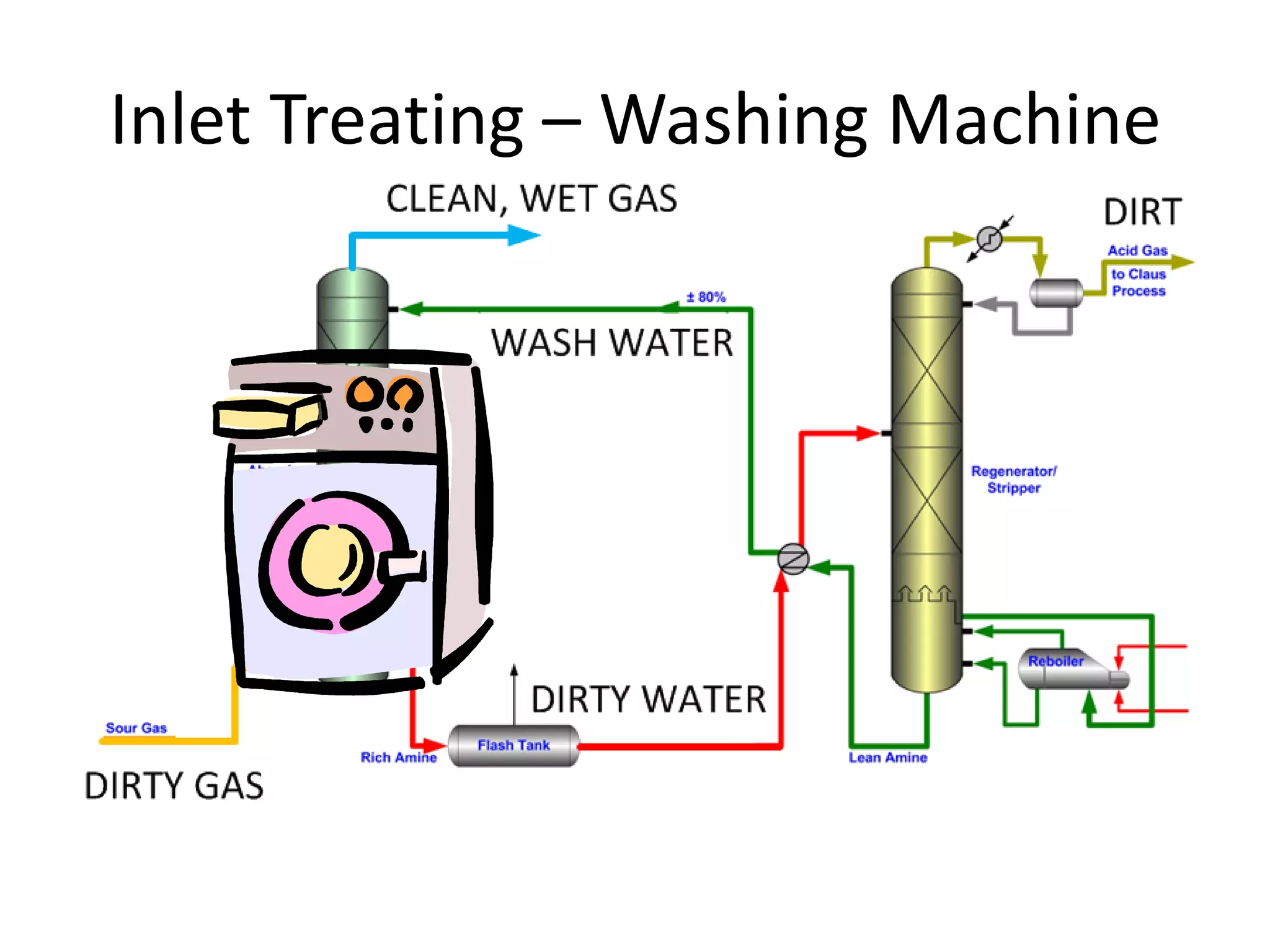

- 14. Inlet Treating –Washing Machine
- 15. Inlet Treating -Dryer
- 16. Liquefaction – Refrigerator/Freezer COLDCOLDER COLDEST

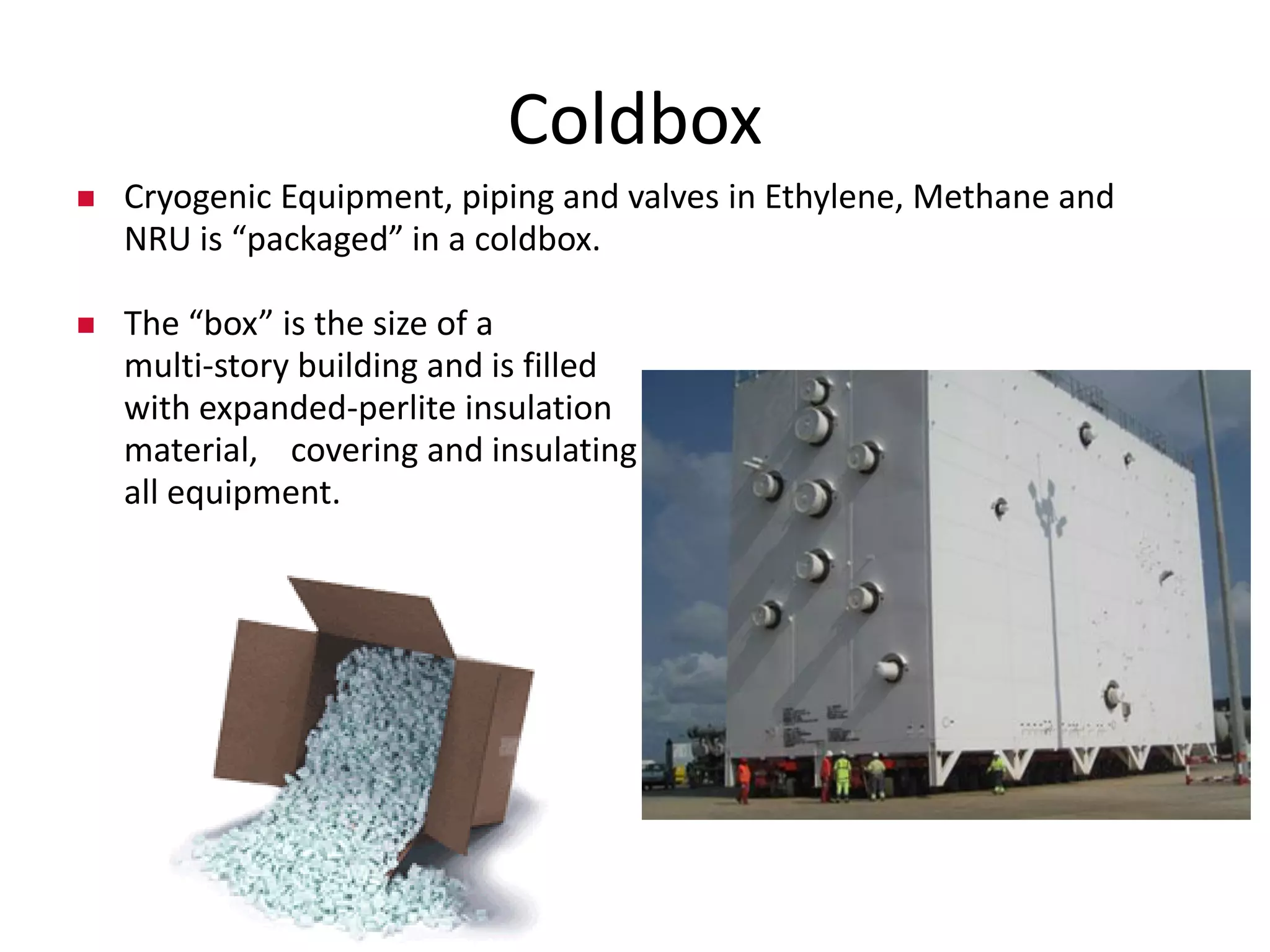

- 17. Coldbox Cryogenic Equipment,piping and valves in Ethylene, Methane and NRU is “packaged” in a coldbox. The “box” is the size of a multi-story building and is filled with expanded-perlite insulation material, covering and insulating all equipment.
- 18. Why does LNGnot evaporate???

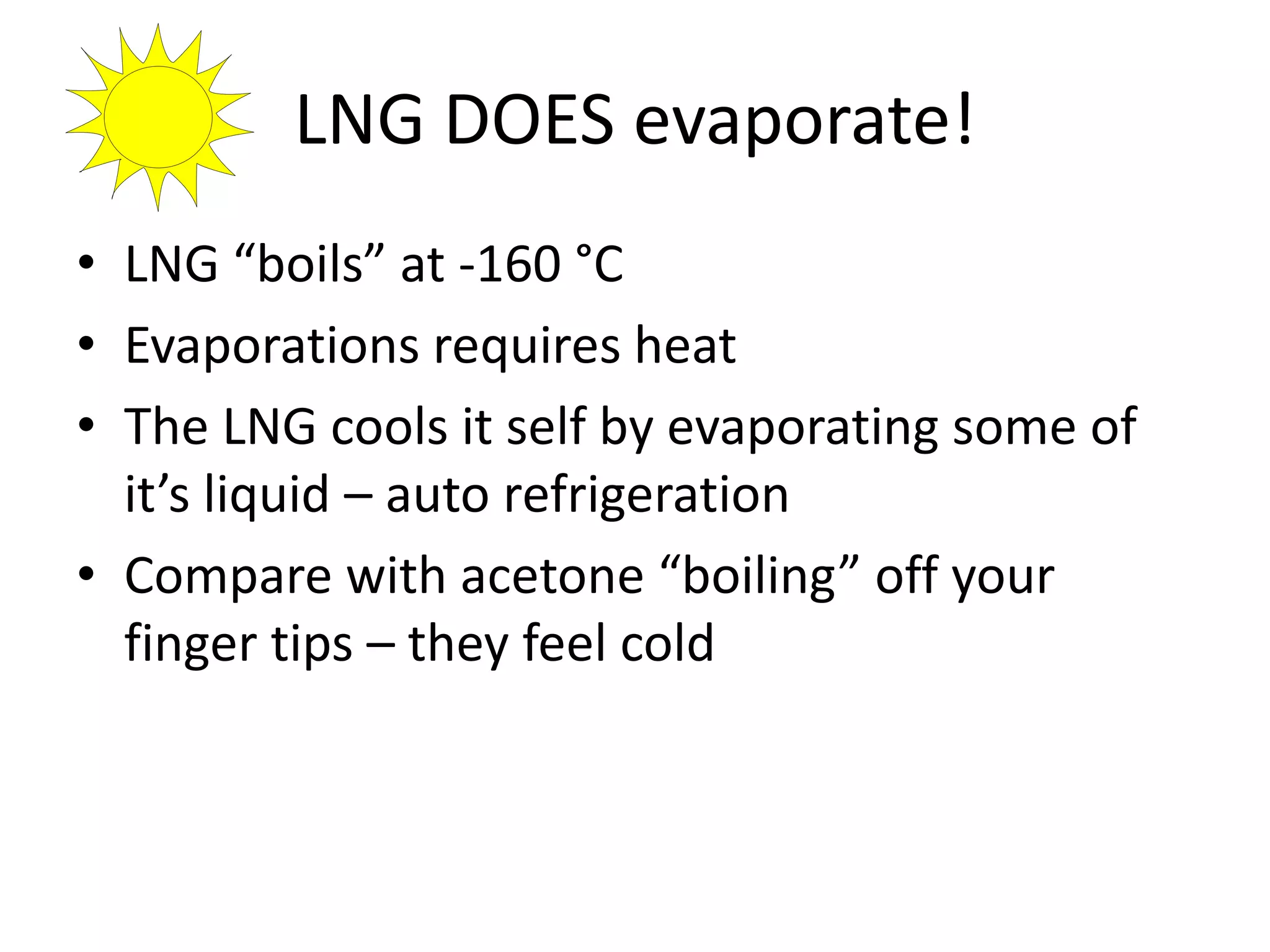

- 19. LNG DOES evaporate! •LNG “boils” at -160 °C • Evaporations requires heat • The LNG cools it self by evaporating some of it’s liquid – auto refrigeration • Compare with acetone “boiling” off your finger tips – they feel cold
