Talk given at TAPP'16 (Theory and Practice of Provenance), June 2016, paper is here: https://arxiv.org/abs/1604.06412 Abstract: The cost of deriving actionable knowledge from large datasets has been decreasing thanks to a convergence of positive factors: low cost data generation, inexpensively scalable storage and processing infrastructure (cloud), software frameworks and tools for massively distributed data processing, and parallelisable data analytics algorithms. One observation that is often overlooked, however, is that each of these elements is not immutable, rather they all evolve over time. As those datasets change over time, the value of their derivative knowledge may decay, unless it is preserved by reacting to those changes. Our broad research goal is to develop models, methods, and tools for selectively reacting to changes by balancing costs and benefits, i.e. through complete or partial re-computation of some of the underlying processes. In this paper we present an initial model for reasoning about change and re-computations, and show how analysis of detailed provenance of derived knowledge informs re-computation decisions. We illustrate the main ideas through a real-world case study in genomics, namely on the interpretation of human variants in support of genetic diagnosis.

1. TAPP’16
P.Missier,2016
The data, they are a-changin’
(ReComp: Your Data Will Not Stay Smart Forever)
Paolo Missier, Jacek Cala, Eldarina Wijaya
School of Computing Science,
Newcastle University
{firstname.lastname}@ncl.ac.uk
TAPP’16
McLean, VA, USA
June, 2016
(*) Painting by Johannes Moreelse
(*)
Panta Rhei
(Heraclitus, through Plato)

2. TAPP’16
P.Missier,2016

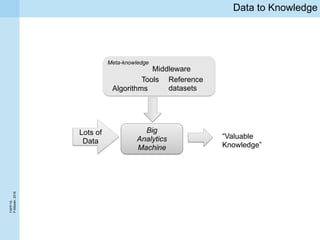

Data to Knowledge
Lots of
Data
Big
Analytics
Machine
“Valuable
Knowledge”
Meta-knowledge
Algorithms
Tools
Middleware
Reference
datasets

3. TAPP’16
P.Missier,2016

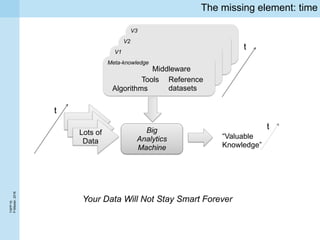

The missing element: time
Lots of
Data
Big
Analytics
Machine
“Valuable
Knowledge”
V3
V2
V1
Meta-knowledge
Algorithms
Tools
Middleware
Reference
datasets
t
t
t
Your Data Will Not Stay Smart Forever

4. TAPP’16
P.Missier,2016

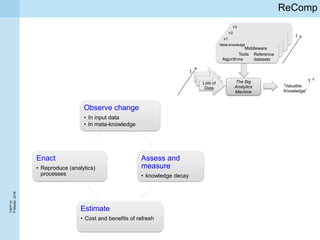

ReComp
Observe change
• In input data
• In meta-knowledge
Assess and
measure
• knowledge decay
Estimate
• Cost and benefits of refresh
Enact
• Reproduce (analytics)
processes
Lots of
Data
The Big
Analytics
Machine
“Valuable
Knowledge”
V3
V2
V1
Meta-knowledge
Algorithms
Tools
Middleware
Reference
datasets
t
t
t

5. TAPP’16
P.Missier,2016
The ReComp decision support system
Observe
change
Assess and
measure
Estimate
Enact
Change
Events
Diff(.,.)
functions
utility
functions
Impact estimation
Cost estimates
Reproducibility
assessment
ReComp
Decision
Support
System
History of
Knowledge Assets
and their metadata
Re-computation
recommendations

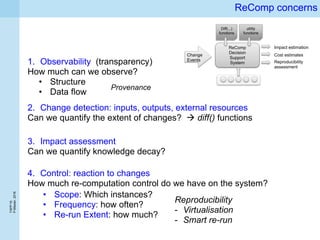

6. TAPP’16
P.Missier,2016
ReComp concerns
1. Observability (transparency)
How much can we observe?
• Structure
• Data flow
2. Change detection: inputs, outputs, external resources
Can we quantify the extent of changes?  diff() functions
4. Control: reaction to changes
How much re-computation control do we have on the system?
Provenance
3. Impact assessment
Can we quantify knowledge decay?
Reproducibility
- Virtualisation
- Smart re-run
• Scope: Which instances?
• Frequency: how often?
• Re-run Extent: how much?
Change
Events
Diff(.,.)
functions
utility
functions
Impact estimation
Cost estimates
Reproducibility
assessment
ReComp
Decision
Support
System

7. TAPP’16
P.Missier,2016
Observability / transparency
White box Black box
Structure
(static view)
Dataflow
- eScience Central, Taverna,
VisTrails…
Scripting:
- R, Matlab, Python...
- Packaged components
- Third party services
Data
dependencies
(runtime
view)
Provenance recording:
• Inputs,
• Reference datasets,
• Component versions,
• Outputs
• Input
• Outputs
• No data dependencies
• No details on individual
components
Cost • Detailed resource monitoring
• Cloud  £££
• Wall clock time
• Service pricing
• Setup time (eg model
learning)
This talk: White box ReComp -- initial experiments

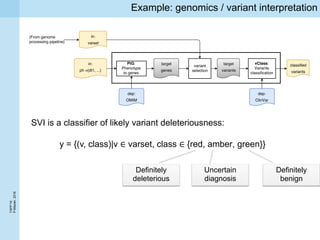

8. TAPP’16
P.Missier,2016
Example: genomics / variant interpretation
SVI is a classifier of likely variant deleteriousness:
y = {(v, class)|v ∈ varset, class ∈ {red, amber, green}}
Uncertain
diagnosis
Definitely
deleterious
Definitely
benign

9. TAPP’16
P.Missier,2016

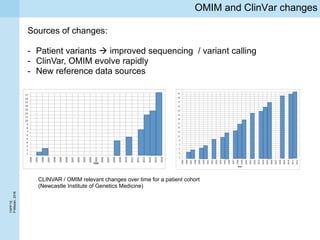

OMIM and ClinVar changes
Sources of changes:
- Patient variants  improved sequencing / variant calling
- ClinVar, OMIM evolve rapidly
- New reference data sources
CLINVAR / OMIM relevant changes over time for a patient cohort
(Newcastle Institute of Genetics Medicine)

10. TAPP’16
P.Missier,2016
x11
x12 y11
P
D11 D12
White box ReComp
For each run i:
Observables:
Inputs X = {xi1, x12, …}
Outputs y = {yi1, yi2,…}
Dependencies D11, D12, ...
Variable-granularity provenance prov(y)
Granular Cost(y)  single-block level
Granular Process structure P  workflow graph

11. TAPP’16
P.Missier,2016

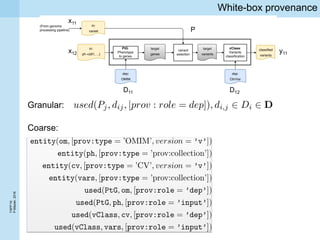

White-box provenance
x11
x12 y11
P
D11 D12
Coarse:
Granular:

12. TAPP’16
P.Missier,2016
A history of runs
x11
x12 y1
P
D11 DCV
Run 1,
Patient A
x21
x22 y2
P
D21 DCV
Run 2,
Patient B
History database:

13. TAPP’16
P.Missier,2016

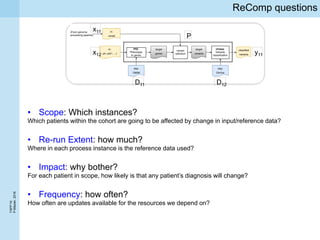

ReComp questions
• Scope: Which instances?
Which patients within the cohort are going to be affected by change in input/reference data?
• Re-run Extent: how much?
Where in each process instance is the reference data used?
• Impact: why bother?
For each patient in scope, how likely is that any patient’s diagnosis will change?
• Frequency: how often?
How often are updates available for the resources we depend on?
x11
x12 y11
P
D11 D12

14. TAPP’16
P.Missier,2016

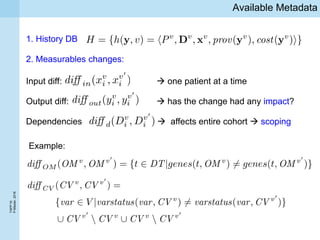

Available Metadata
1. History DB
2. Measurables changes:
Input diff:  one patient at a time
Output diff:  has the change had any impact?
Dependencies  affects entire cohort  scoping
Example:

15. TAPP’16
P.Missier,2016
Querying provenance to determine Scope and Re-run Extent
Given observed changes in resources
History instance:
1. Scoping: For each
Case 1: Granular provenance
is in the scope S ⊆ H if
Pj is added to Pscope(y)
2. Re-run Extent:
1. Find a partial order on Pscope(y)
2. Re-run starts from each of the earliest Pj such that their output is
available as persistent intermediate result
see for instance Smart Run Manager [1]
[1] Ludäscher, B., Altintas, I., Berkley, C., Higgins, D., Jaeger-Frank, E., Jones, M., Lee, E., Tao, J., Zhao, Y.:
Scientific Workflow Management and the Kepler System. Concurrency and Computation: Practice & Experience,
Special Issue on Scientific Workflows, 2005, Wiley.

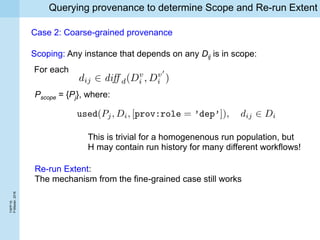

16. TAPP’16
P.Missier,2016
Querying provenance to determine Scope and Re-run Extent
Scoping: Any instance that depends on any Dij is in scope:
Pscope = {Pj}, where:
For each
Case 2: Coarse-grained provenance
Re-run Extent:
The mechanism from the fine-grained case still works
This is trivial for a homogenenous run population, but
H may contain run history for many different workflows!

17. TAPP’16
P.Missier,2016
Assessing impact and cost
Approach: small-scale re-comp over the population in scope
1. Sample instances S’ ⊆ S from the population in scope S
2. Perform partial re-run on each instance h(yi,v) ∈ S’,
generating new outputs yi’
3. Compute
4. Assess impact (user-defined) and cost(y’)
5. Estimate cost difference diff(cost(y), cost(y’))

18. TAPP’16
P.Missier,2016

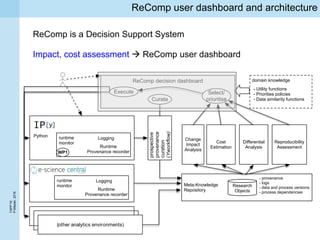

ReComp user dashboard and architecture
ReComp decision dashboard
Execute
Curate
Select/
prioritise
prospective
provenance
curation
(Yworkflow)
Meta-Knowledge
Repository
Research
Objects
Change
Impact
Analysis
Cost
Estimation
Differential
Analysis
Reproducibility
Assessment
- Utility functions
- Priorities policies
- Data similarity functions
domain knowledge
runtime
monitor
Logging
Runtime
Provenance recorder
runtime
monitor
Logging
Runtime
Provenance recorder
Python
WP1
- provenance
- logs
- data and process versions
- process dependencies
(other analytics environments)
ReComp is a Decision Support System
Impact, cost assessment  ReComp user dashboard

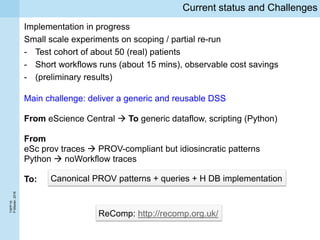

19. TAPP’16
P.Missier,2016
Current status and Challenges
Implementation in progress
Small scale experiments on scoping / partial re-run
- Test cohort of about 50 (real) patients
- Short workflows runs (about 15 mins), observable cost savings
- (preliminary results)
Main challenge: deliver a generic and reusable DSS
From eScience Central  To generic dataflow, scripting (Python)
From
eSc prov traces  PROV-compliant but idiosincratic patterns
Python  noWorkflow traces
To: Canonical PROV patterns + queries + H DB implementation
ReComp: http://recomp.org.uk/

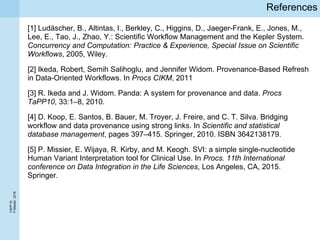

20. TAPP’16
P.Missier,2016
References
[1] Ludäscher, B., Altintas, I., Berkley, C., Higgins, D., Jaeger-Frank, E., Jones, M.,
Lee, E., Tao, J., Zhao, Y.: Scientific Workflow Management and the Kepler System.
Concurrency and Computation: Practice & Experience, Special Issue on Scientific
Workflows, 2005, Wiley.
[2] Ikeda, Robert, Semih Salihoglu, and Jennifer Widom. Provenance-Based Refresh
in Data-Oriented Workflows. In Procs CIKM, 2011
[3] R. Ikeda and J. Widom. Panda: A system for provenance and data. Procs
TaPP10, 33:1–8, 2010.
[4] D. Koop, E. Santos, B. Bauer, M. Troyer, J. Freire, and C. T. Silva. Bridging
workflow and data provenance using strong links. In Scientific and statistical
database management, pages 397–415. Springer, 2010. ISBN 3642138179.
[5] P. Missier, E. Wijaya, R. Kirby, and M. Keogh. SVI: a simple single-nucleotide
Human Variant Interpretation tool for Clinical Use. In Procs. 11th International
conference on Data Integration in the Life Sciences, Los Angeles, CA, 2015.
Springer.
