Optimizing performance
This document discusses optimizing performance for enterprise PHP applications, highlighting its importance due to potential costs associated with downtime. It covers key factors that influence performance, methods for measuring and improving it, and practical techniques such as opcode caching, data caching, page caching, and asynchronous processing. The overall message emphasizes that performance is a continuous cycle that should be integrated into the development process.
More Related Content
More from Zend by Rogue Wave Software
Optimizing performance
- 1. Building the perfectPHP app for the enterprise Episode 4: Optimizing performance Zeev Suraski Twitter: @zeevs Email: zeev@zend.com

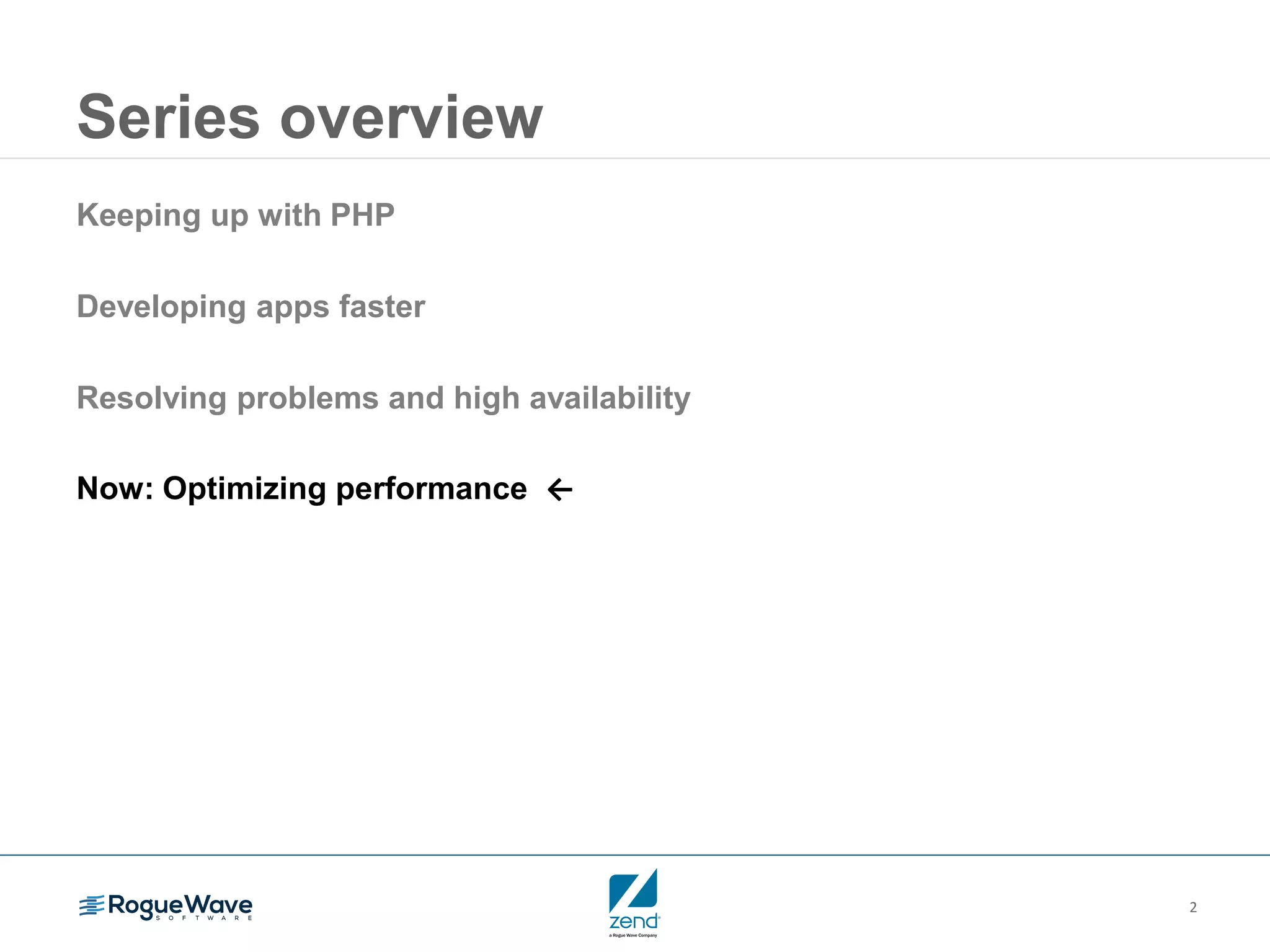

- 2. 2 Series overview Keeping upwith PHP Developing apps faster Resolving problems and high availability Now: Optimizing performance ←
- 3. Zeev Suraski CTO, Zend RogueWave Software

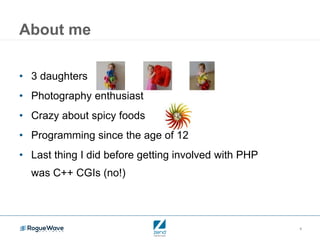

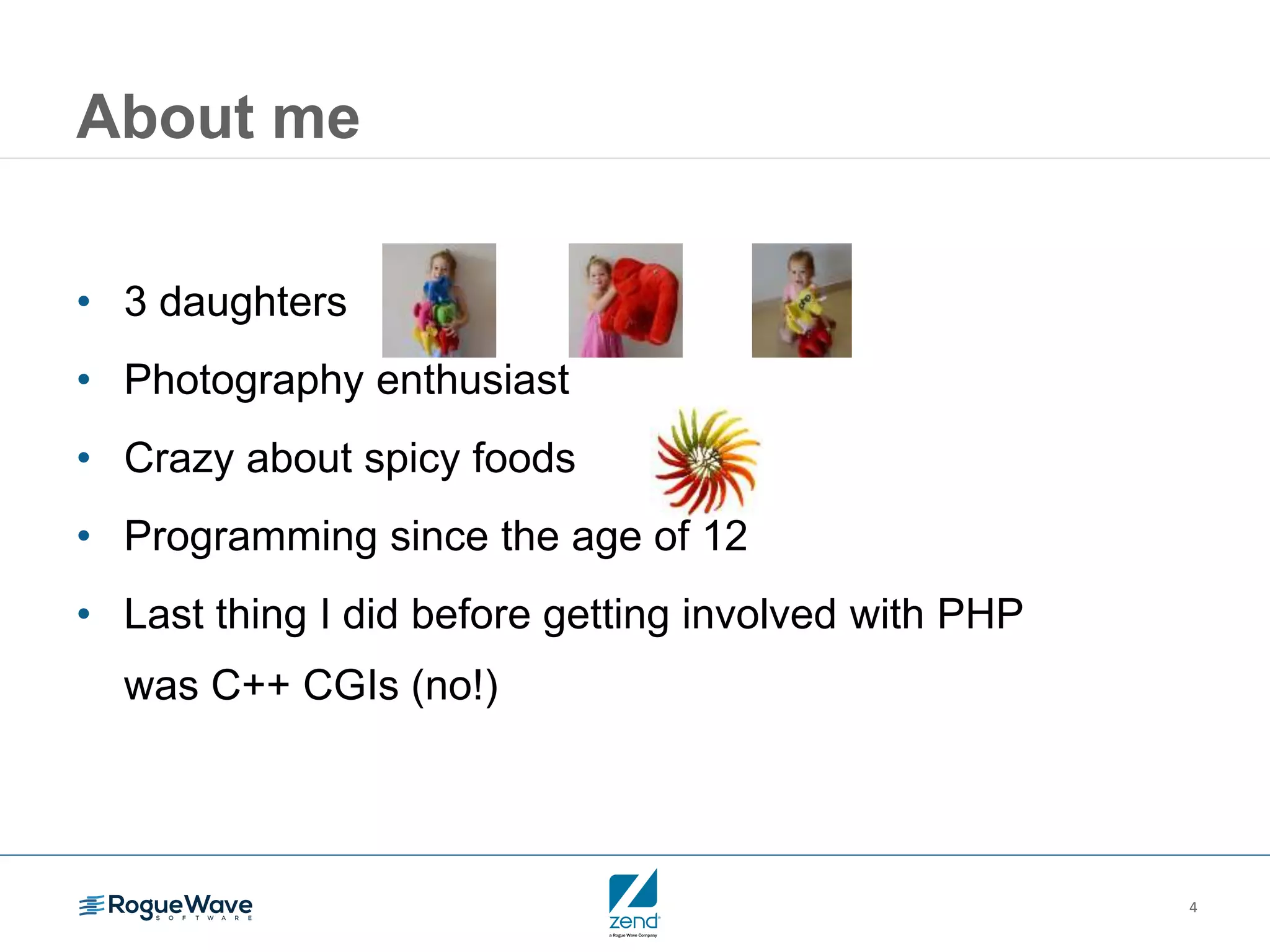

- 4. 4 • 3 daughters •Photography enthusiast • Crazy about spicy foods • Programming since the age of 12 • Last thing I did before getting involved with PHP was C++ CGIs (no!) About me

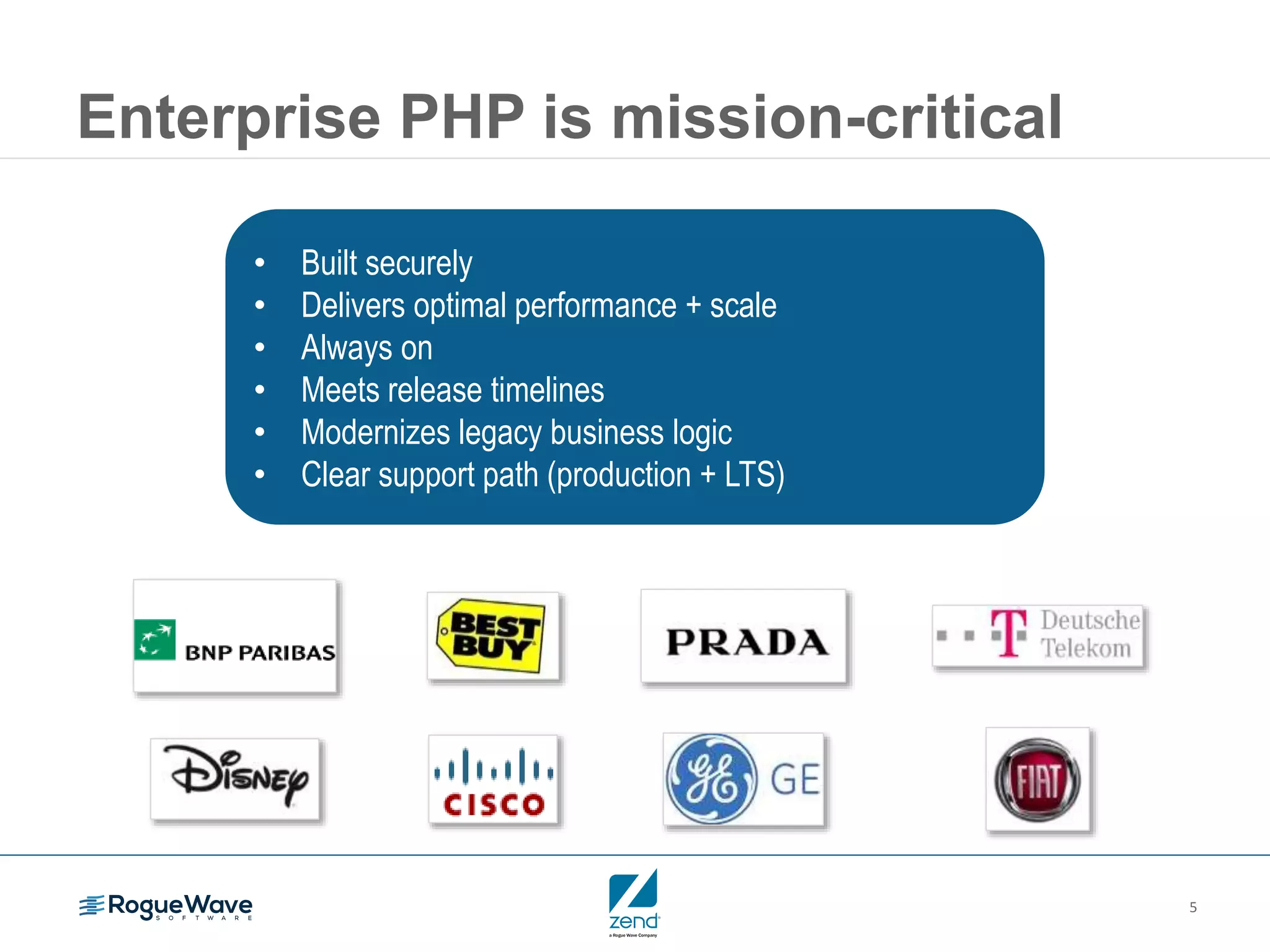

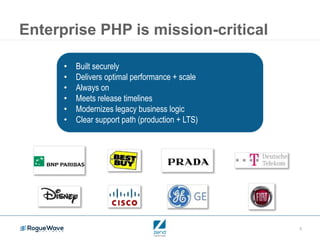

- 5. 5 Enterprise PHP ismission-critical • Built securely • Delivers optimal performance + scale • Always on • Meets release timelines • Modernizes legacy business logic • Clear support path (production + LTS)

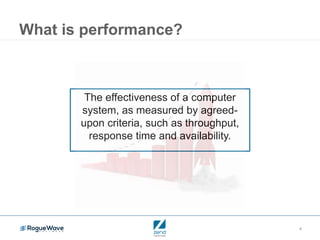

- 6. 6 What is performance? Theeffectiveness of a computer system, as measured by agreed- upon criteria, such as throughput, response time and availability.

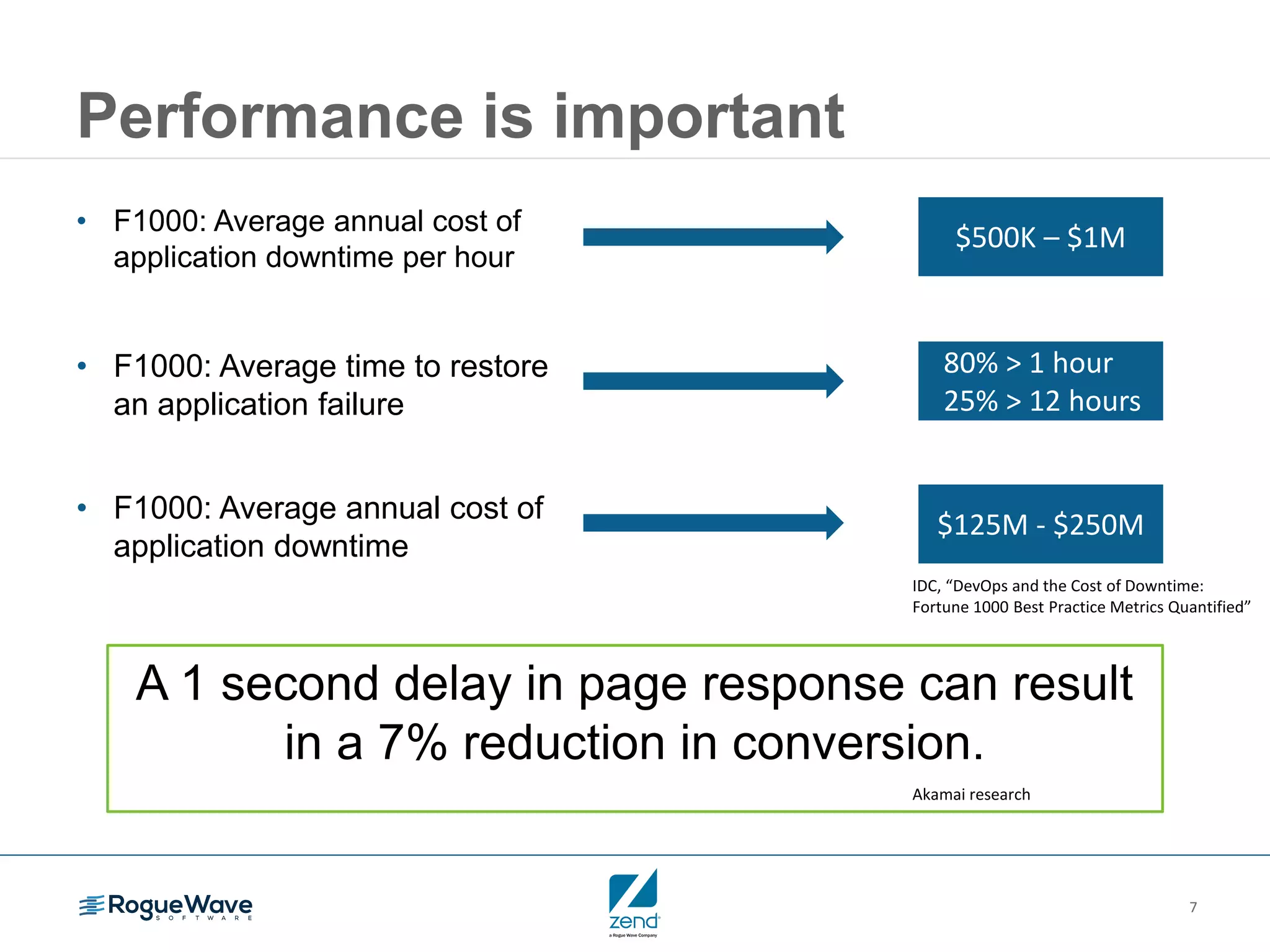

- 7. 7 Performance is important •F1000: Average annual cost of application downtime per hour $500K – $1M • F1000: Average time to restore an application failure 80% > 1 hour 25% > 12 hours • F1000: Average annual cost of application downtime $125M - $250M A 1 second delay in page response can result in a 7% reduction in conversion. IDC, “DevOps and the Cost of Downtime: Fortune 1000 Best Practice Metrics Quantified” Akamai research

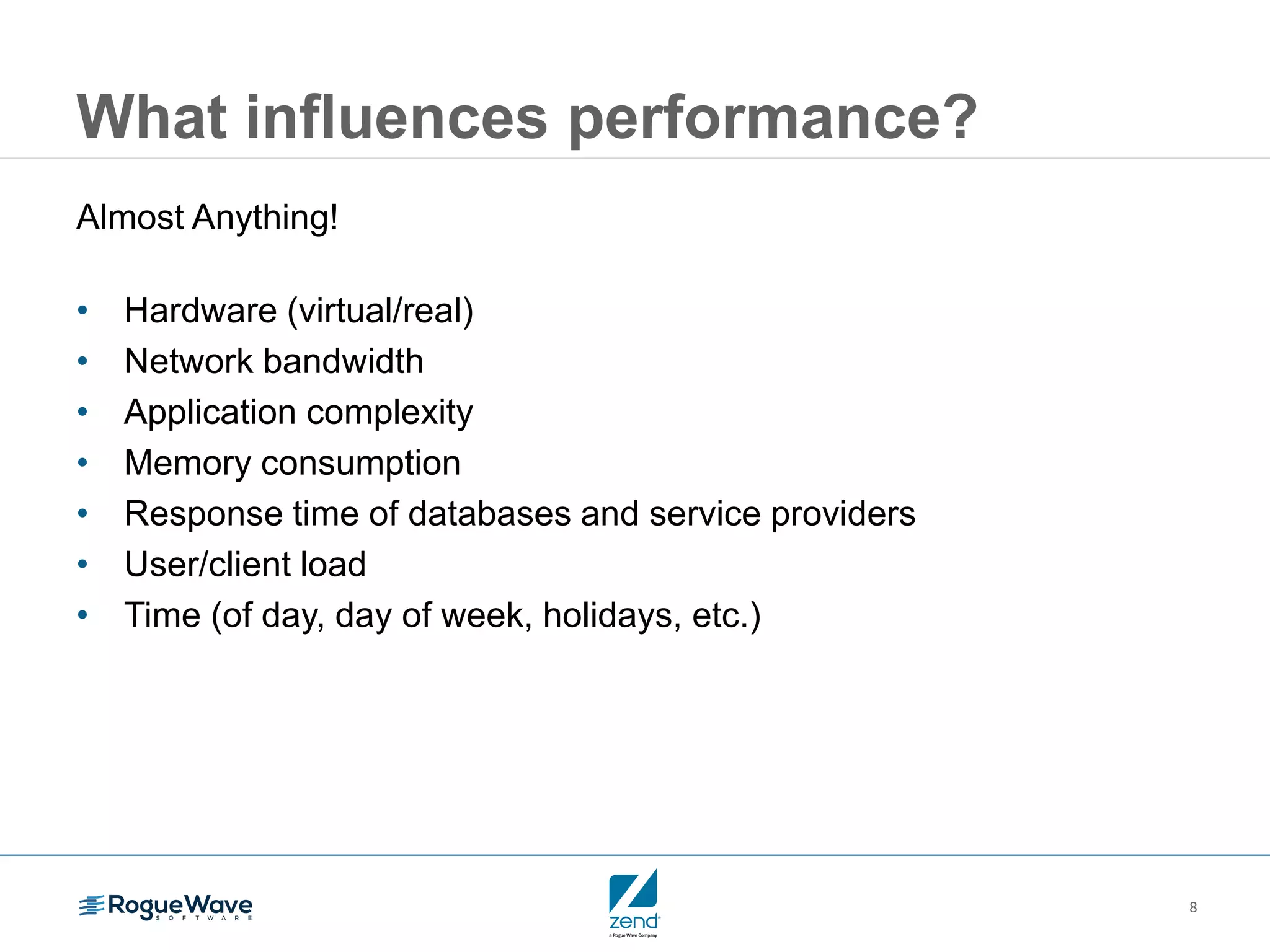

- 8. 8 What influences performance? AlmostAnything! • Hardware (virtual/real) • Network bandwidth • Application complexity • Memory consumption • Response time of databases and service providers • User/client load • Time (of day, day of week, holidays, etc.)
- 9.

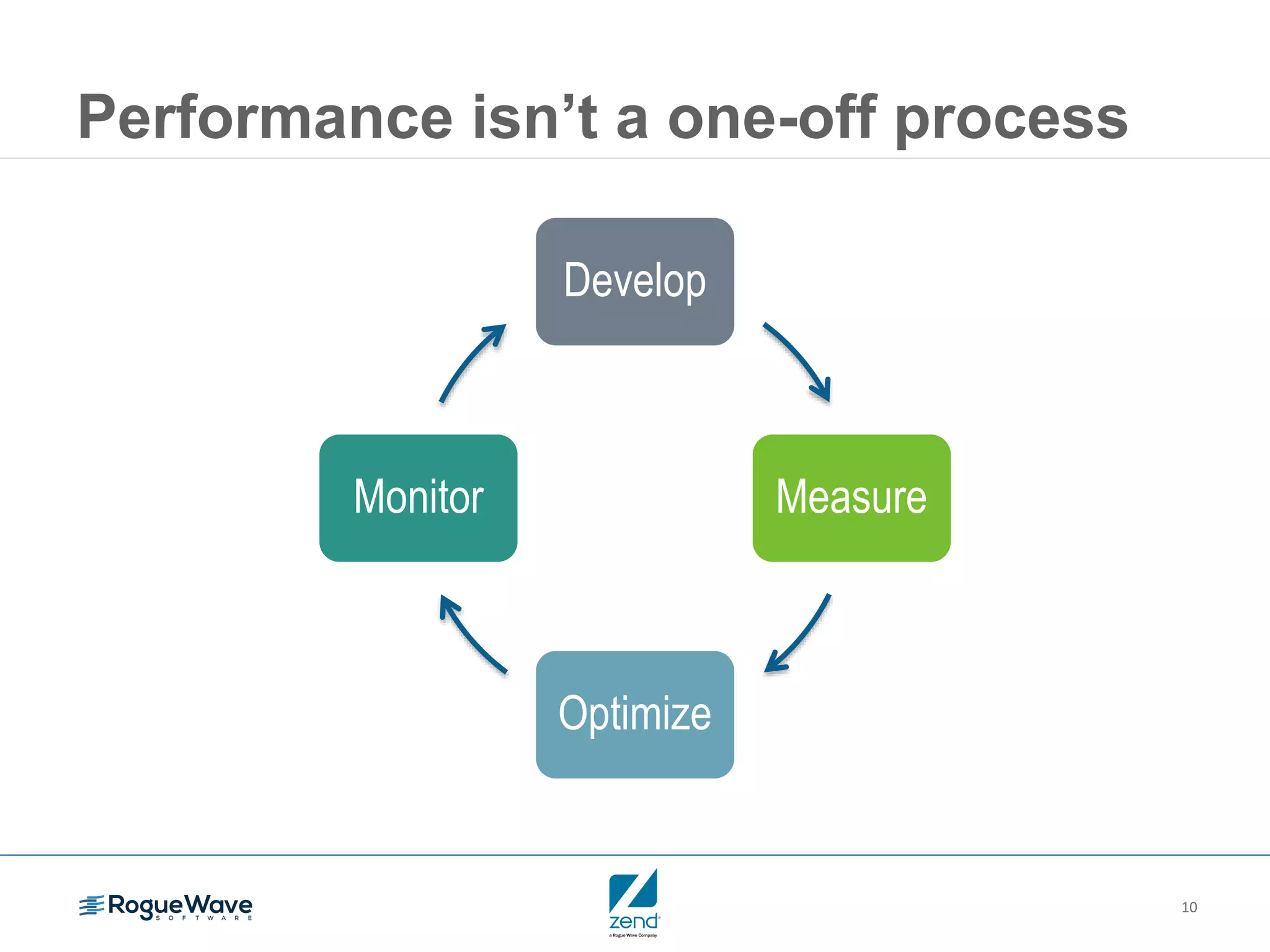

- 10. 10 Performance isn’t aone-off process Develop Measure Optimize Monitor
- 11.
- 12.

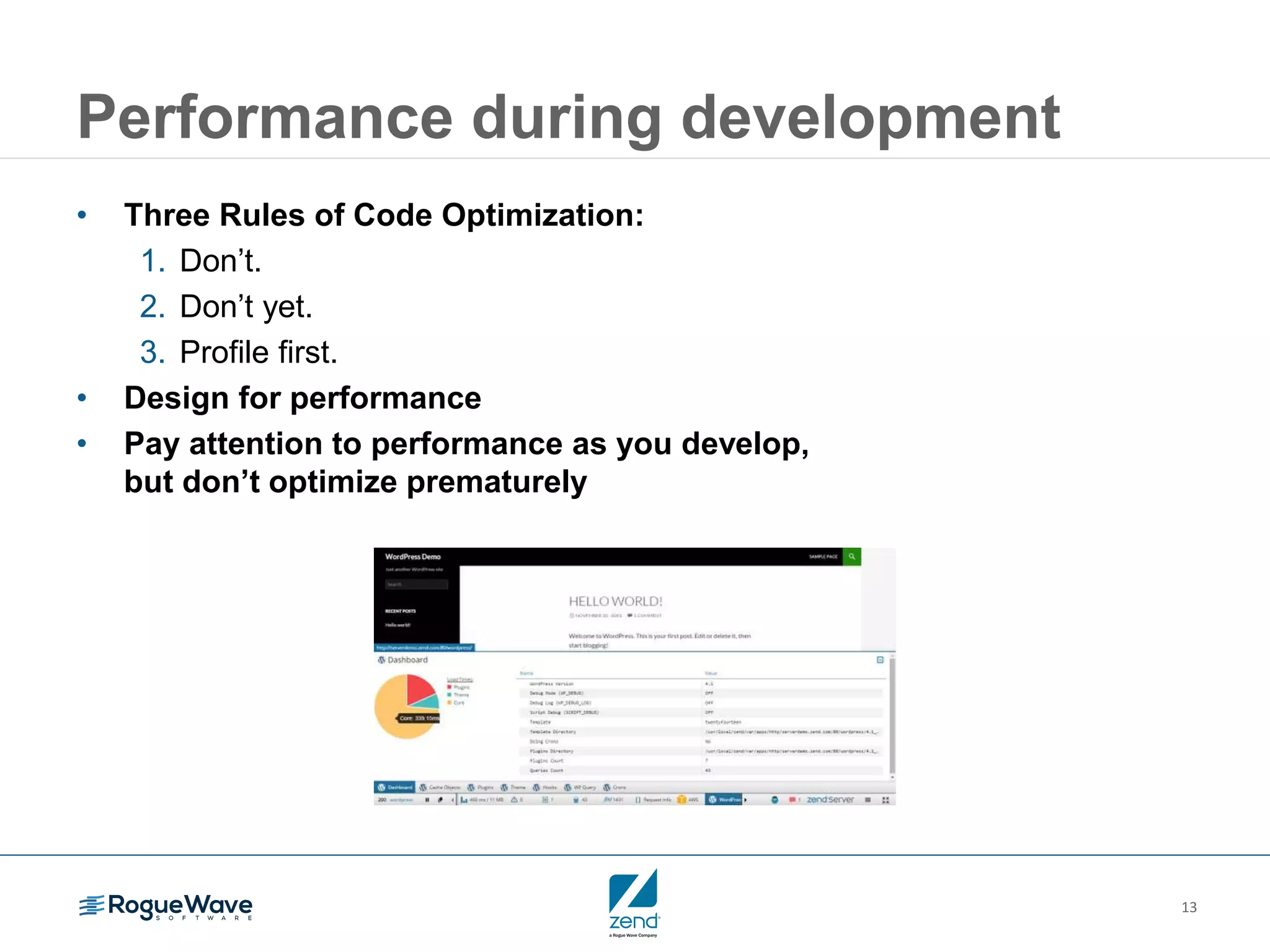

- 13. 13 Performance during development •Three Rules of Code Optimization: 1. Don’t. 2. Don’t yet. 3. Profile first. • Design for performance • Pay attention to performance as you develop, but don’t optimize prematurely

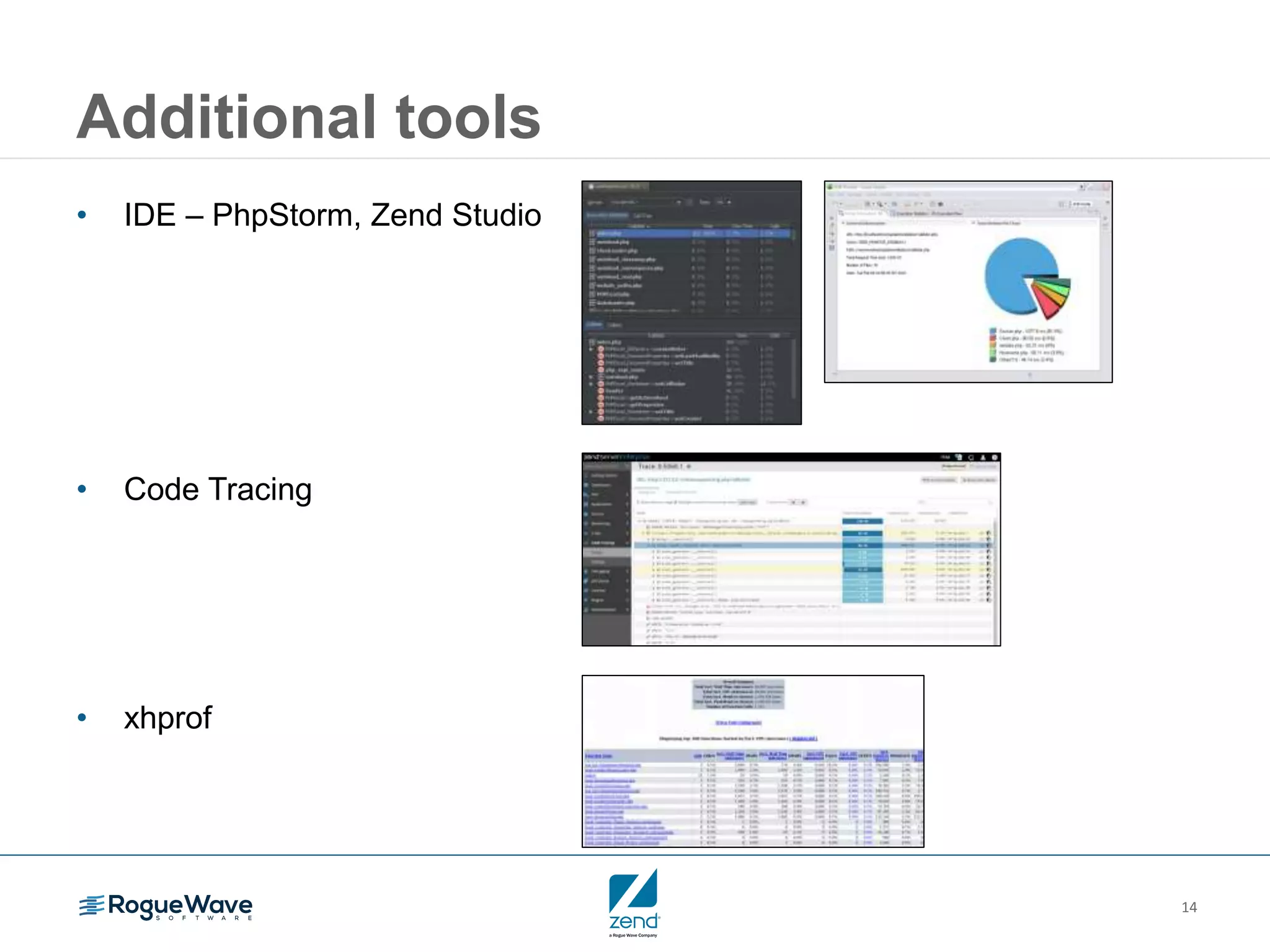

- 14. 14 Additional tools • IDE– PhpStorm, Zend Studio • Code Tracing • xhprof
- 15.
- 16.

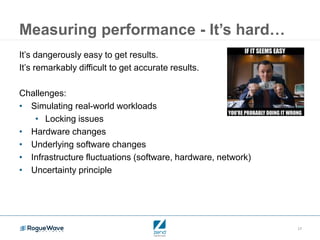

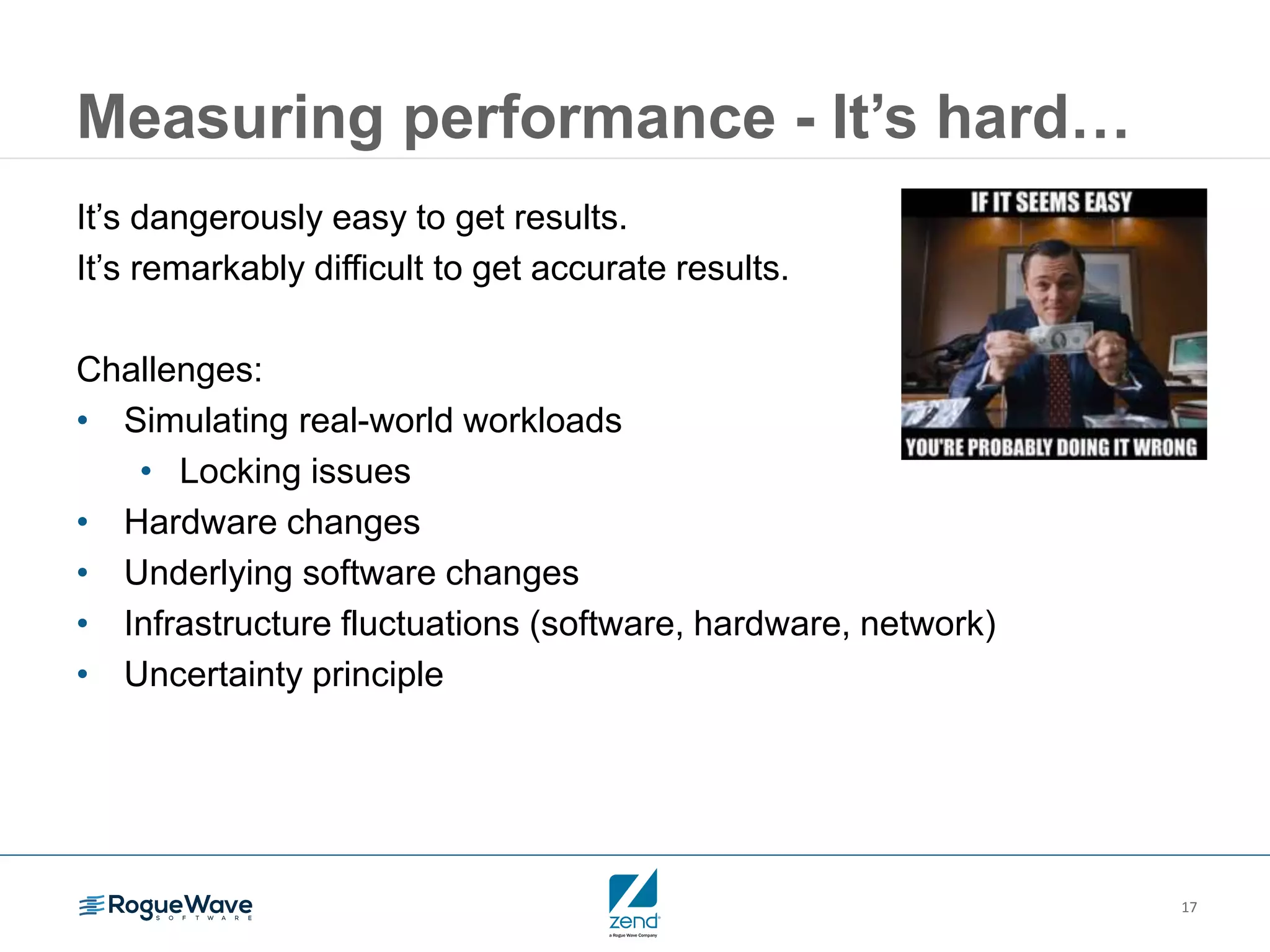

- 17. 17 Measuring performance -It’s hard… It’s dangerously easy to get results. It’s remarkably difficult to get accurate results. Challenges: • Simulating real-world workloads • Locking issues • Hardware changes • Underlying software changes • Infrastructure fluctuations (software, hardware, network) • Uncertainty principle

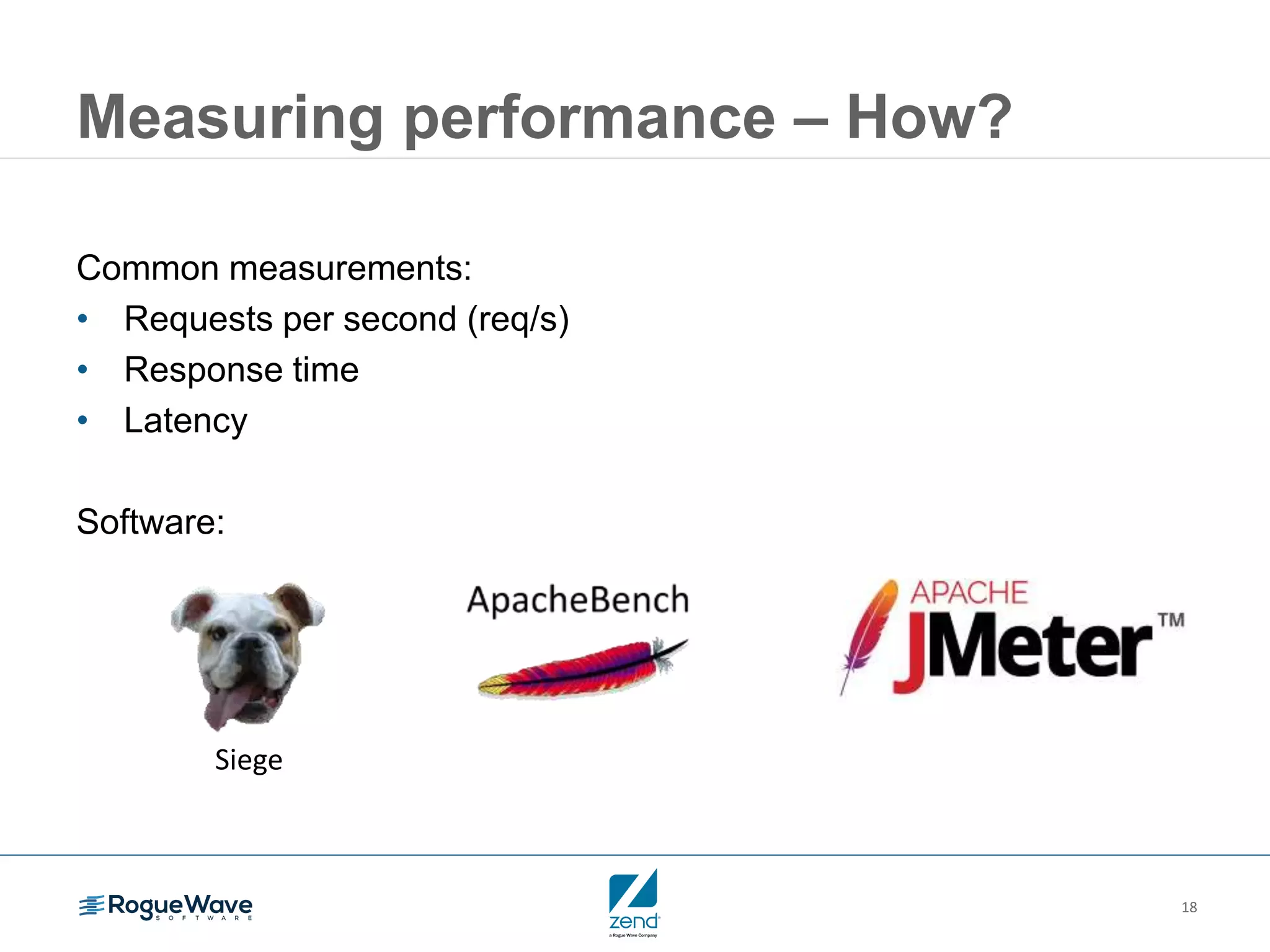

- 18. 18 Measuring performance –How? Common measurements: • Requests per second (req/s) • Response time • Latency Software: Siege

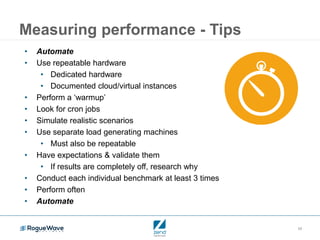

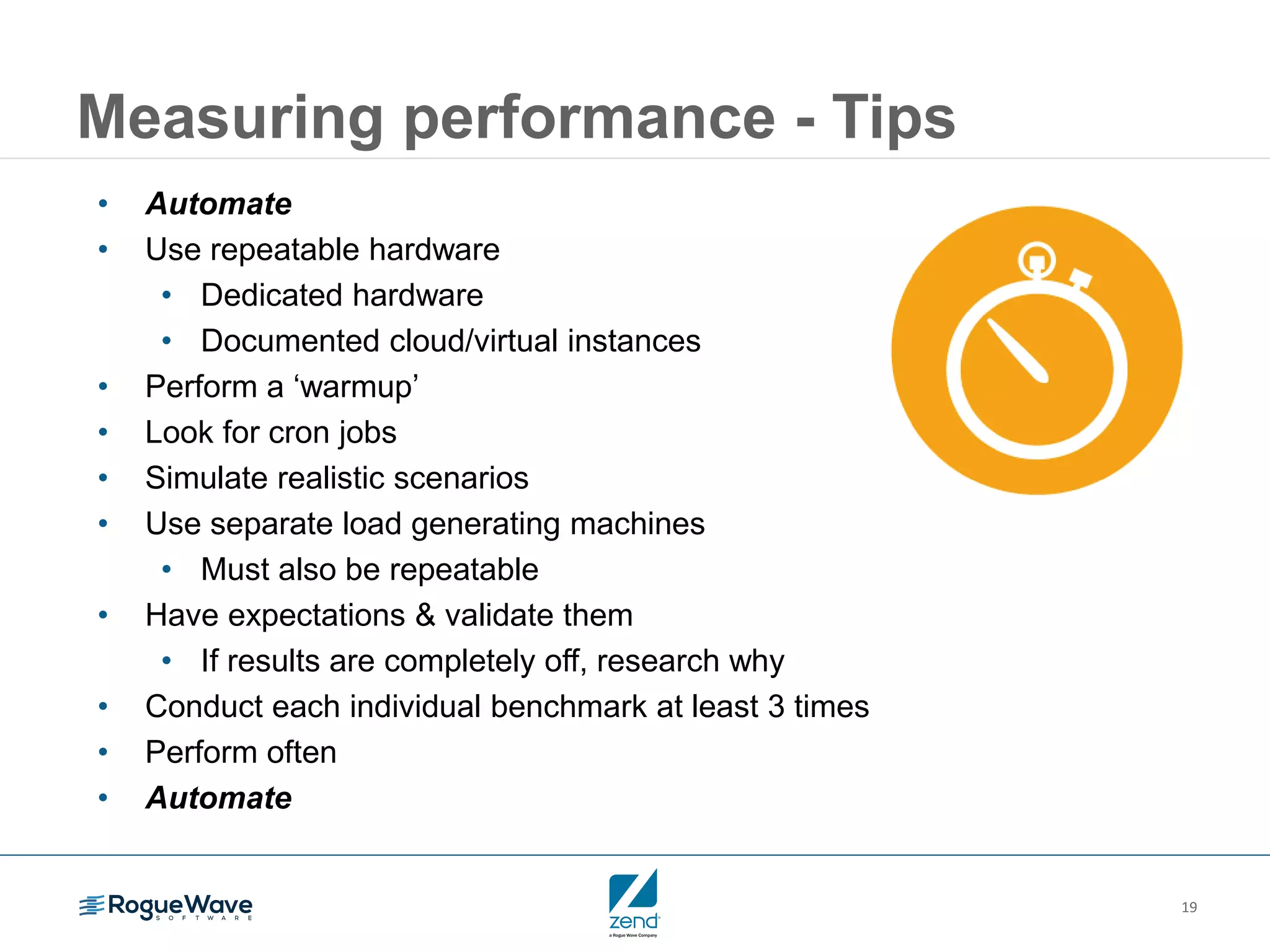

- 19. 19 Measuring performance -Tips • Automate • Use repeatable hardware • Dedicated hardware • Documented cloud/virtual instances • Perform a ‘warmup’ • Look for cron jobs • Simulate realistic scenarios • Use separate load generating machines • Must also be repeatable • Have expectations & validate them • If results are completely off, research why • Conduct each individual benchmark at least 3 times • Perform often • Automate
- 20.

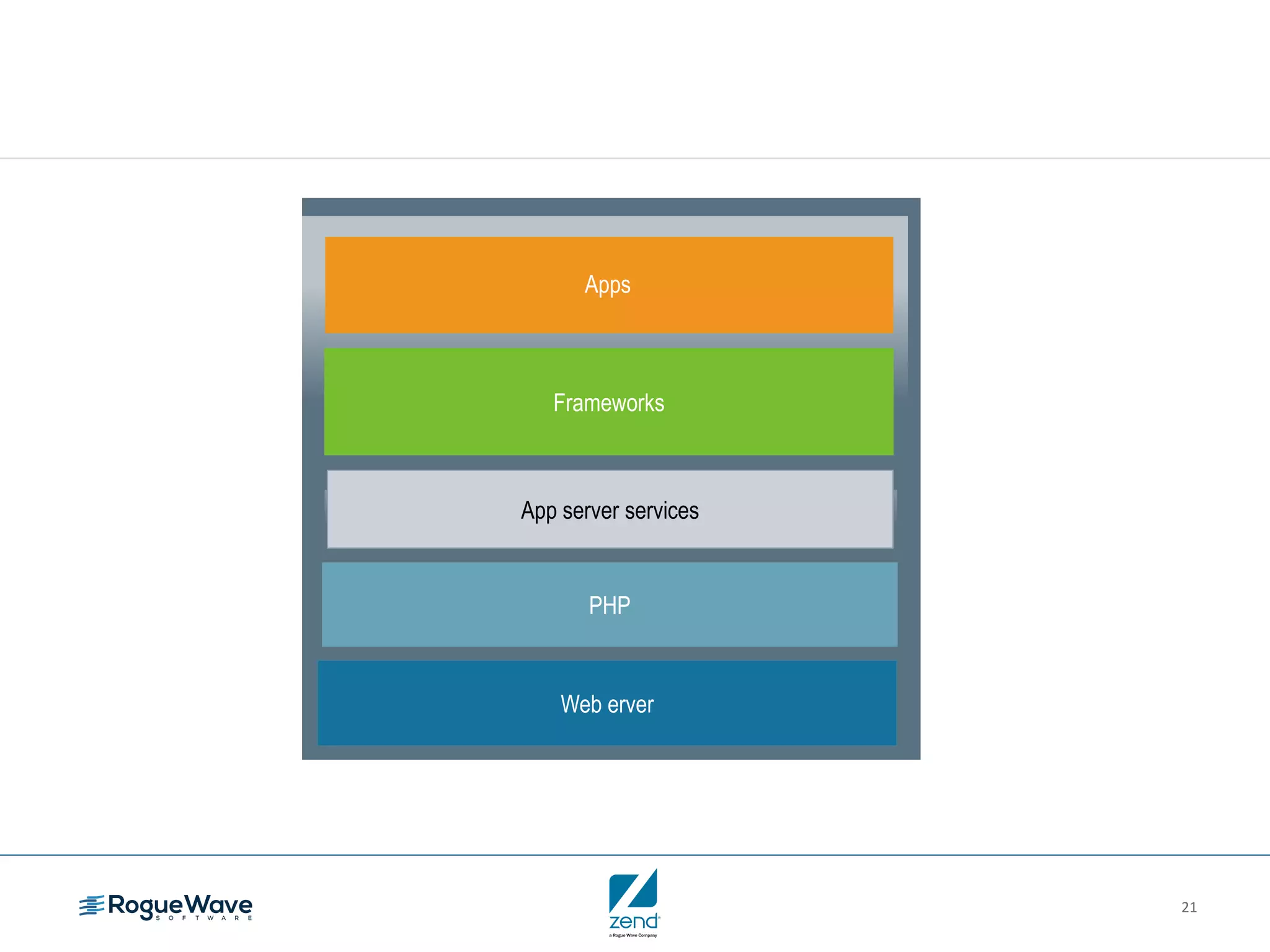

- 21.

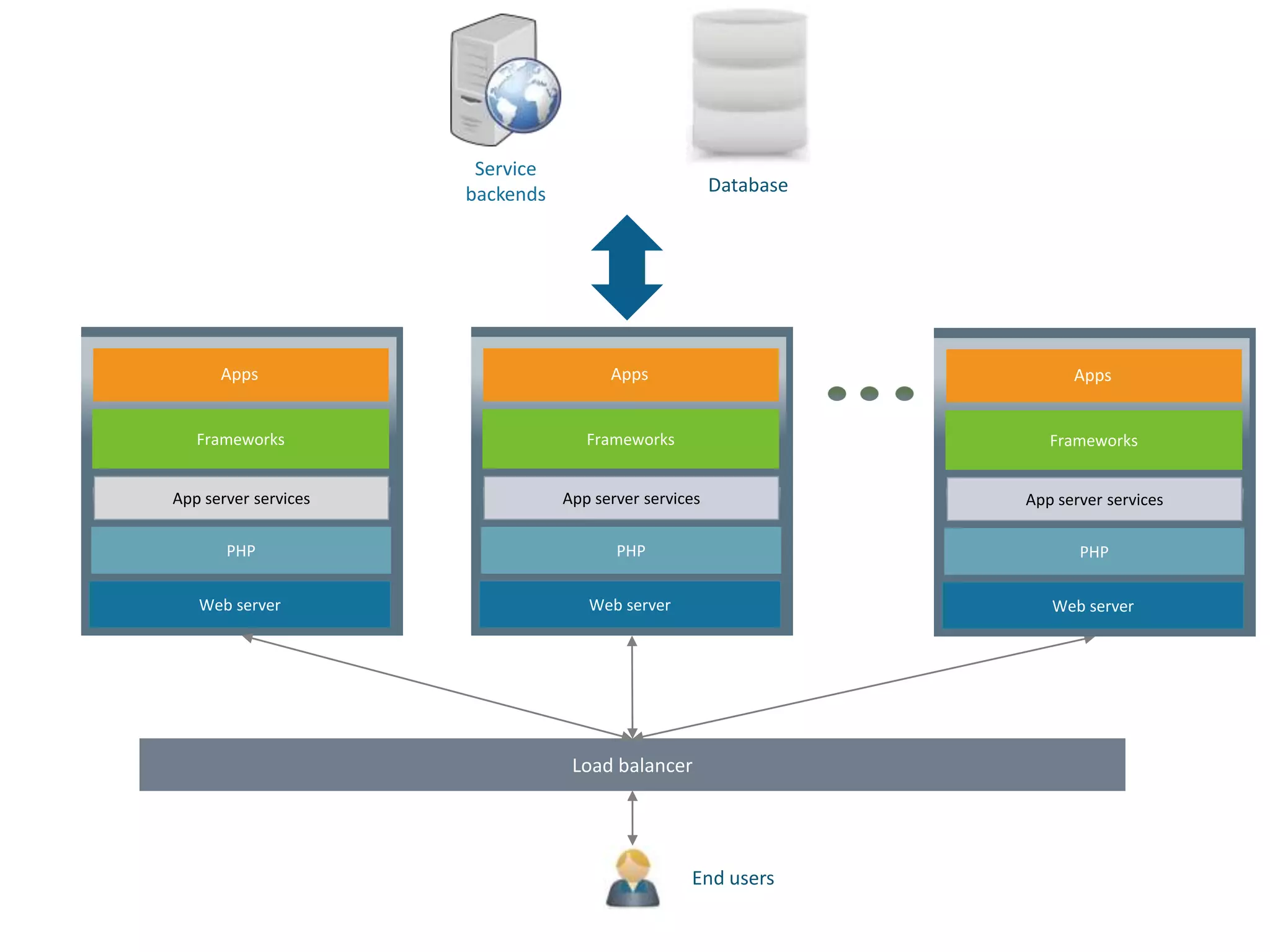

- 22. Load balancer End users Database Webserver PHP Frameworks Apps App server services Web server PHP Frameworks Apps App server services Web server PHP Frameworks Apps App server services Service backends

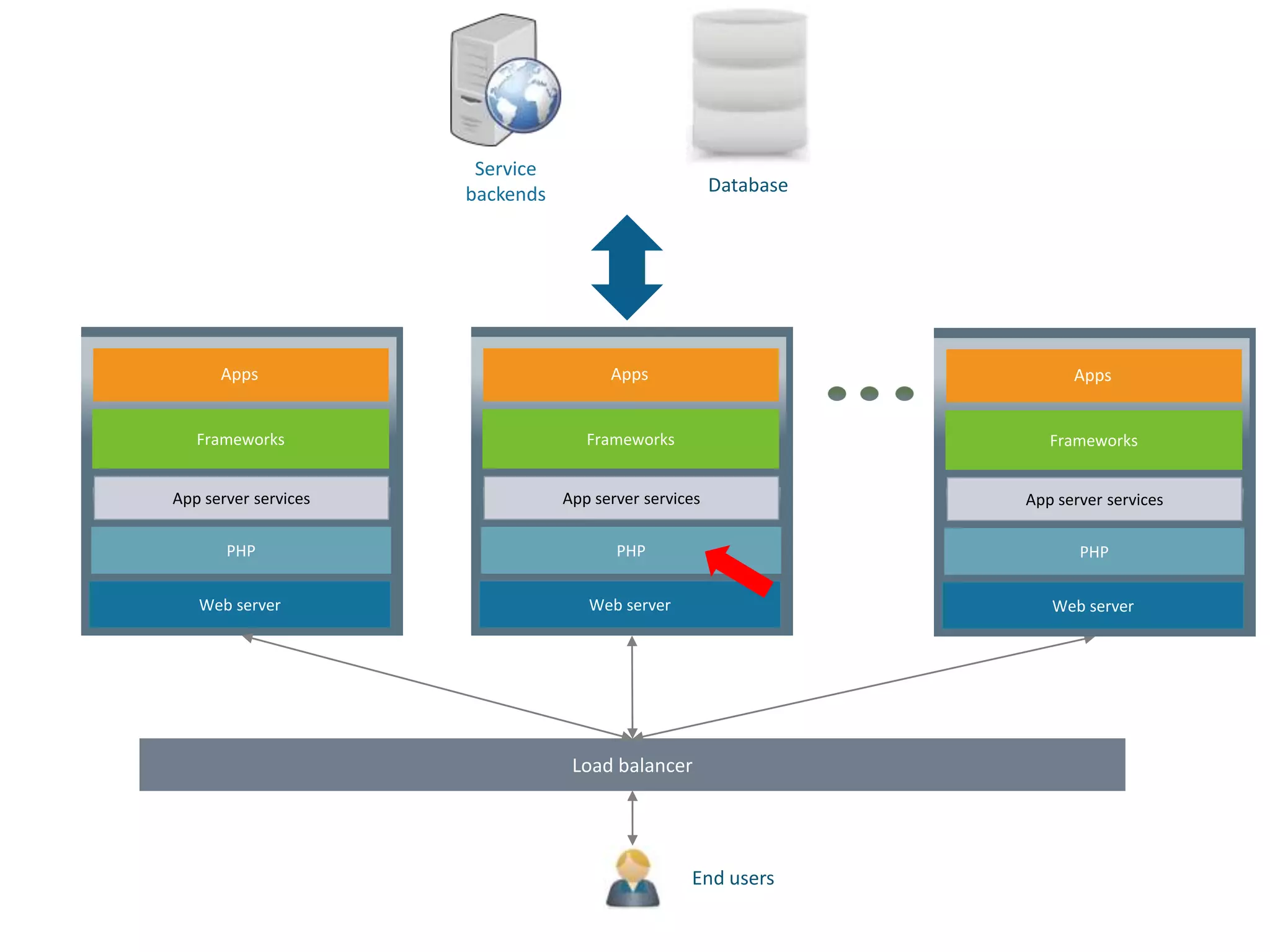

- 23. Load balancer End users Database Webserver PHP Frameworks Apps App server services Web server PHP Frameworks Apps App server services Web server PHP Frameworks Apps App server services Service backends
- 24.

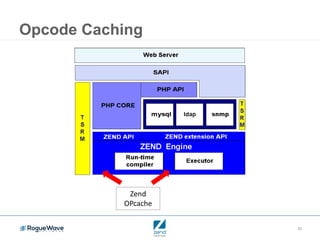

- 25.

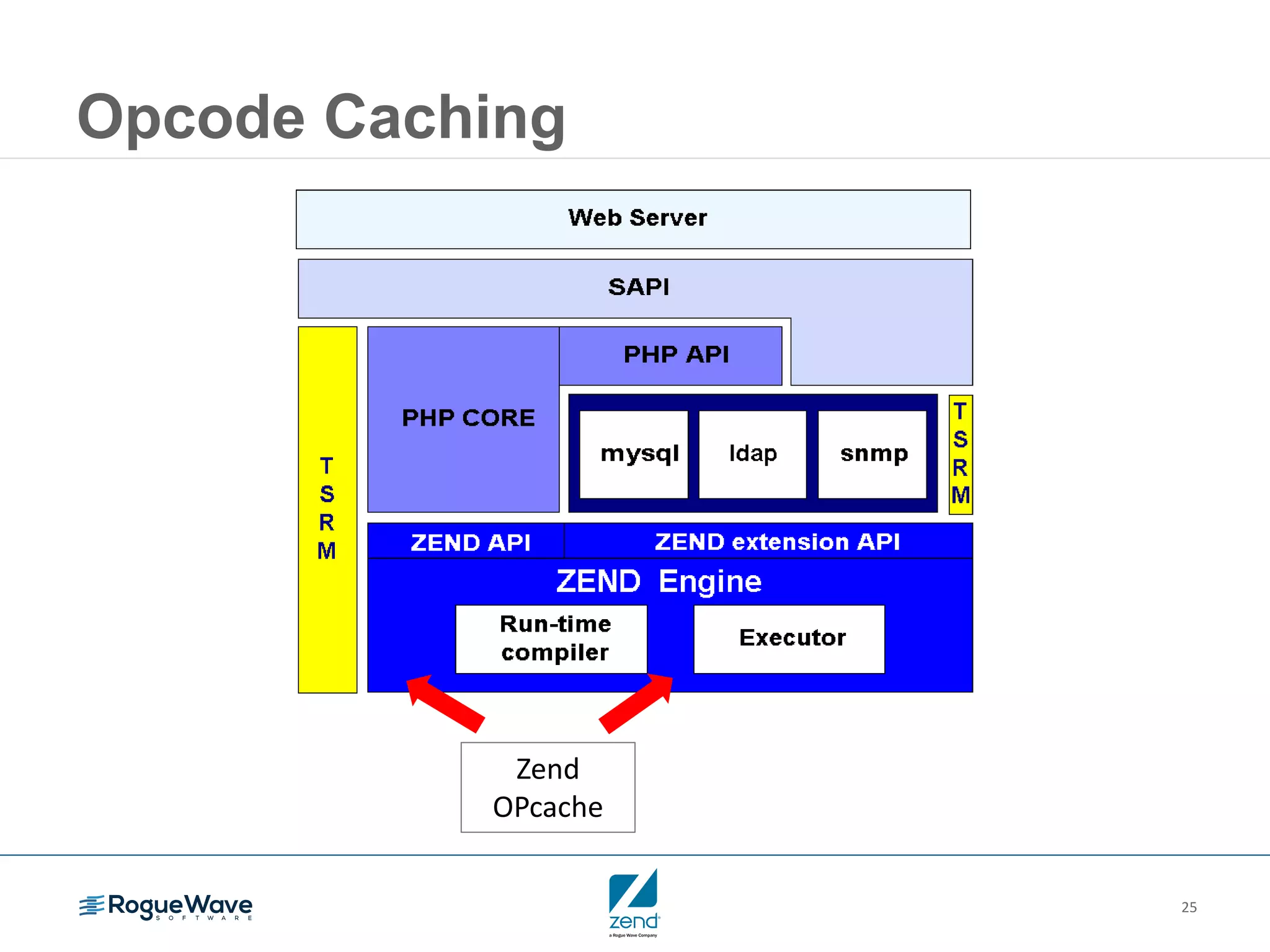

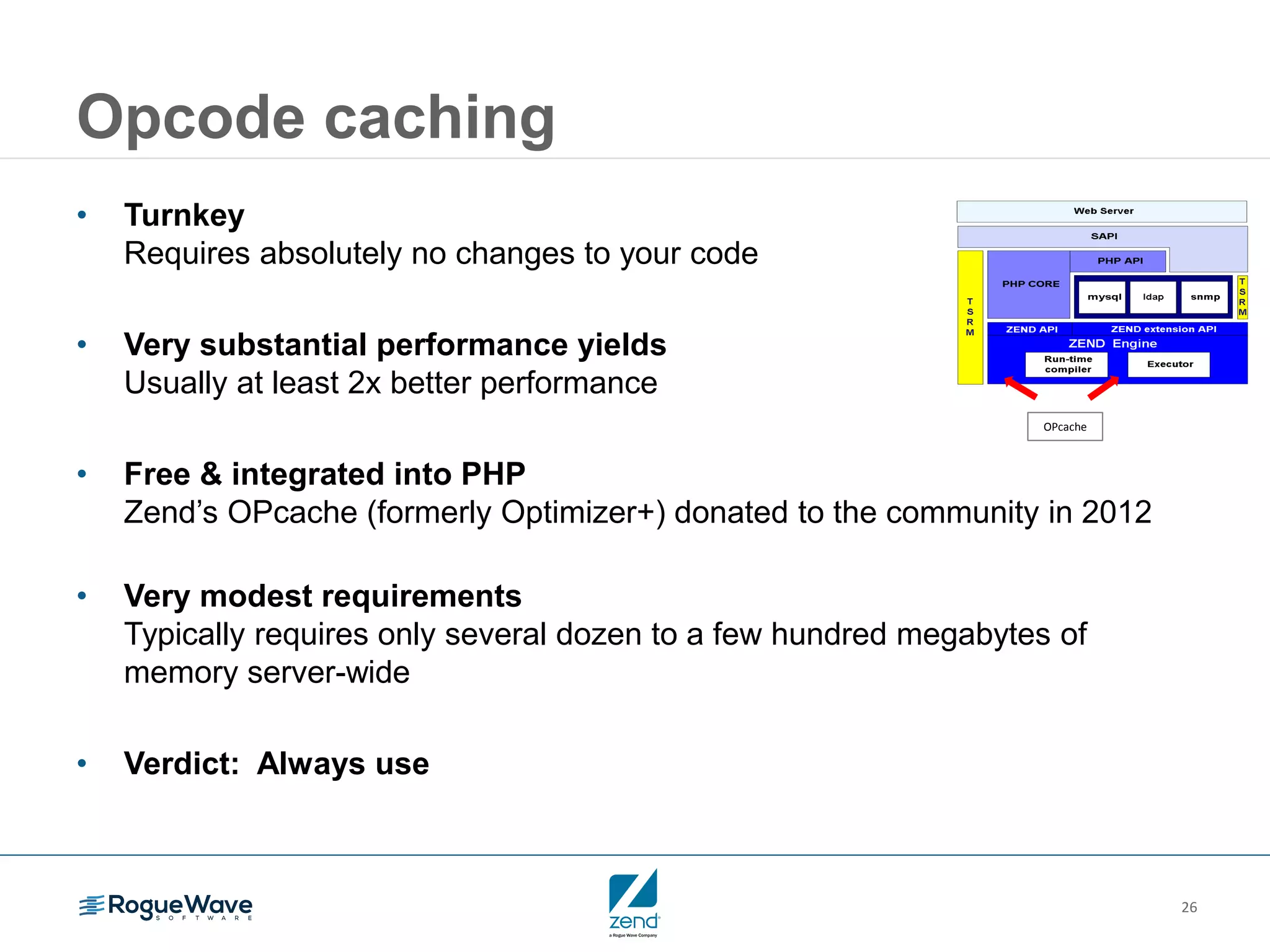

- 26. 26 Opcode caching OPcache • Turnkey Requiresabsolutely no changes to your code • Very substantial performance yields Usually at least 2x better performance • Free & integrated into PHP Zend’s OPcache (formerly Optimizer+) donated to the community in 2012 • Very modest requirements Typically requires only several dozen to a few hundred megabytes of memory server-wide • Verdict: Always use

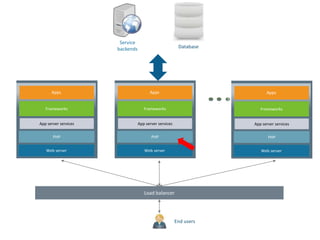

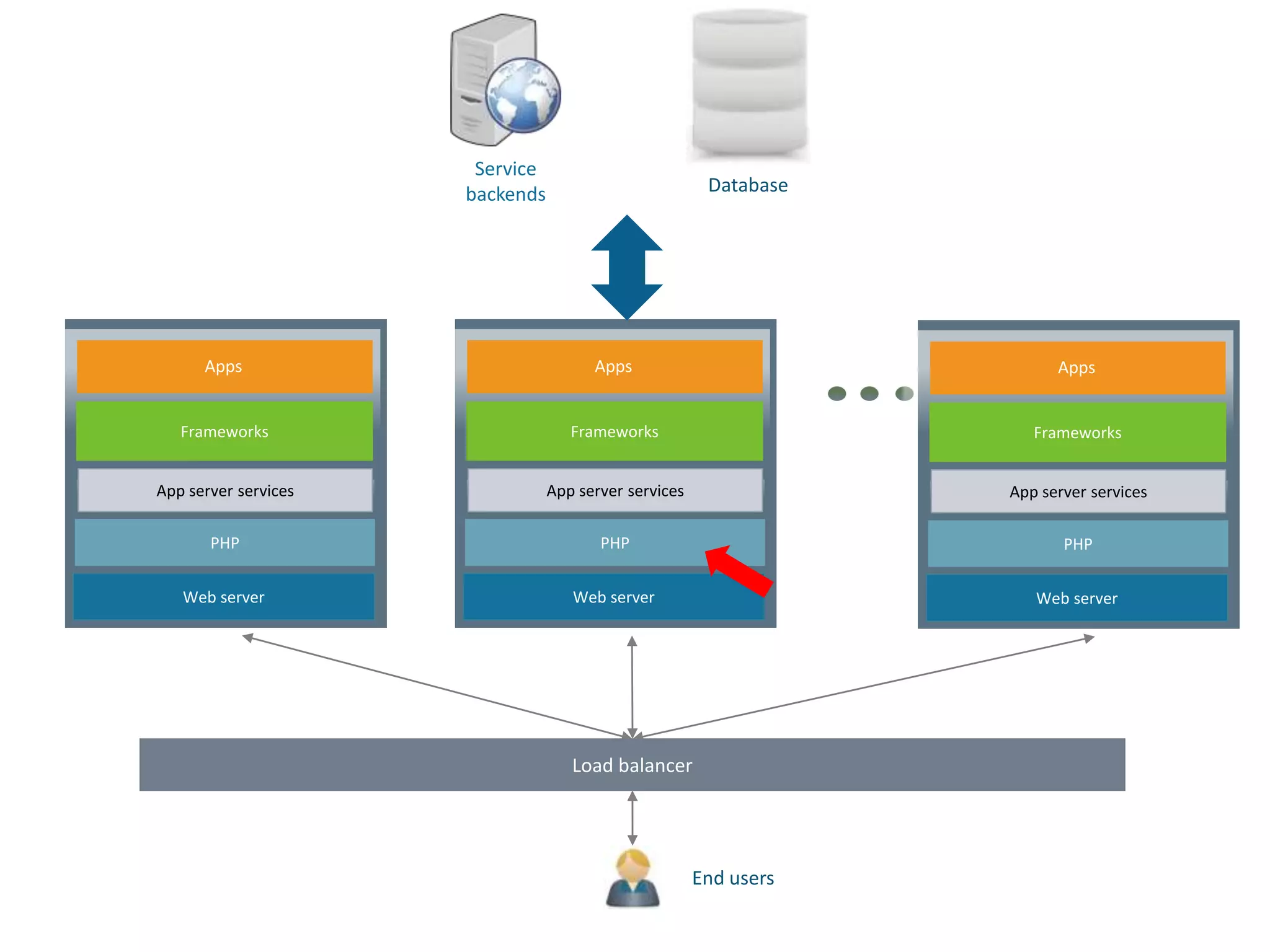

- 27. Web server PHP Frameworks Apps App serverservices End users Database Service backends Web server PHP Frameworks Apps App server services Web server PHP Frameworks Apps App server services Load balancer

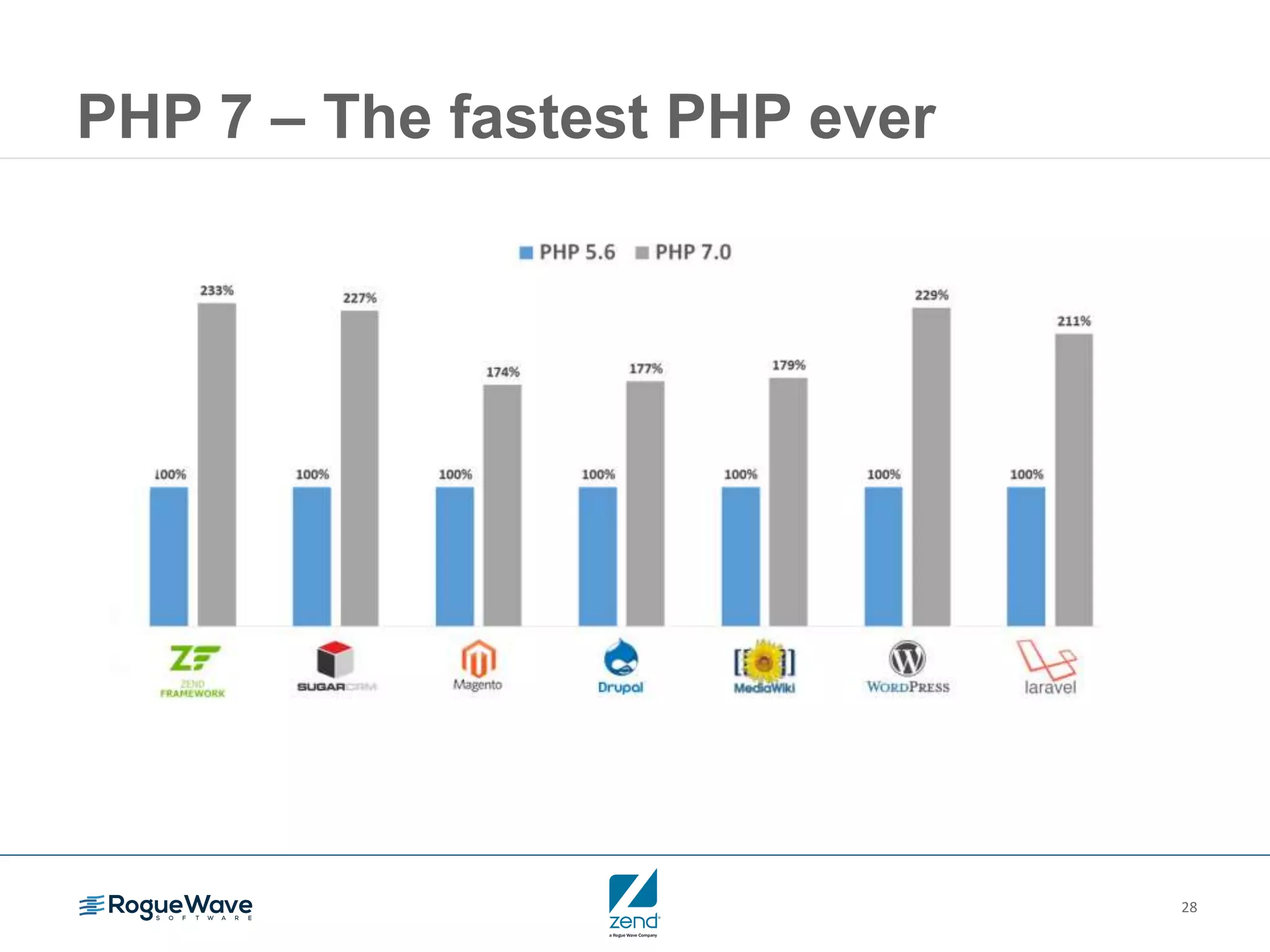

- 28. 28 PHP 7 –The fastest PHP ever

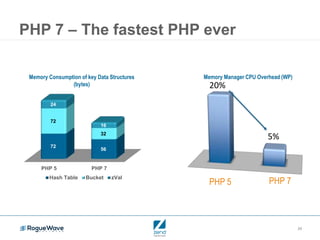

- 29. 29 PHP 7 –The fastest PHP ever PHP 5 PHP 7 72 56 72 32 24 16 Hash Table Bucket zVal PHP 5 PHP 7 20% 5% Memory Manager CPU Overhead (WP)Memory Consumption of key Data Structures (bytes)

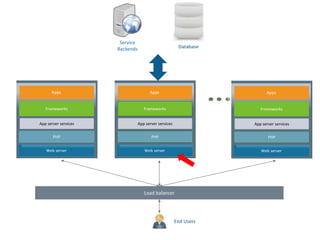

- 30. 30 Web server PHP Frameworks Apps App serverservices End Users Database Service Backends Web server PHP Frameworks Apps App server services Web server PHP Frameworks Apps App server services Load balancer
- 31. 31 Web server softwareand setup Different Web Server software have different performance characteristics. Some are faster than others. Pay attention to: • Apache vs. Nginx vs. IIS • mod_php vs. FPM • Concurrency settings • KeepAlive settings

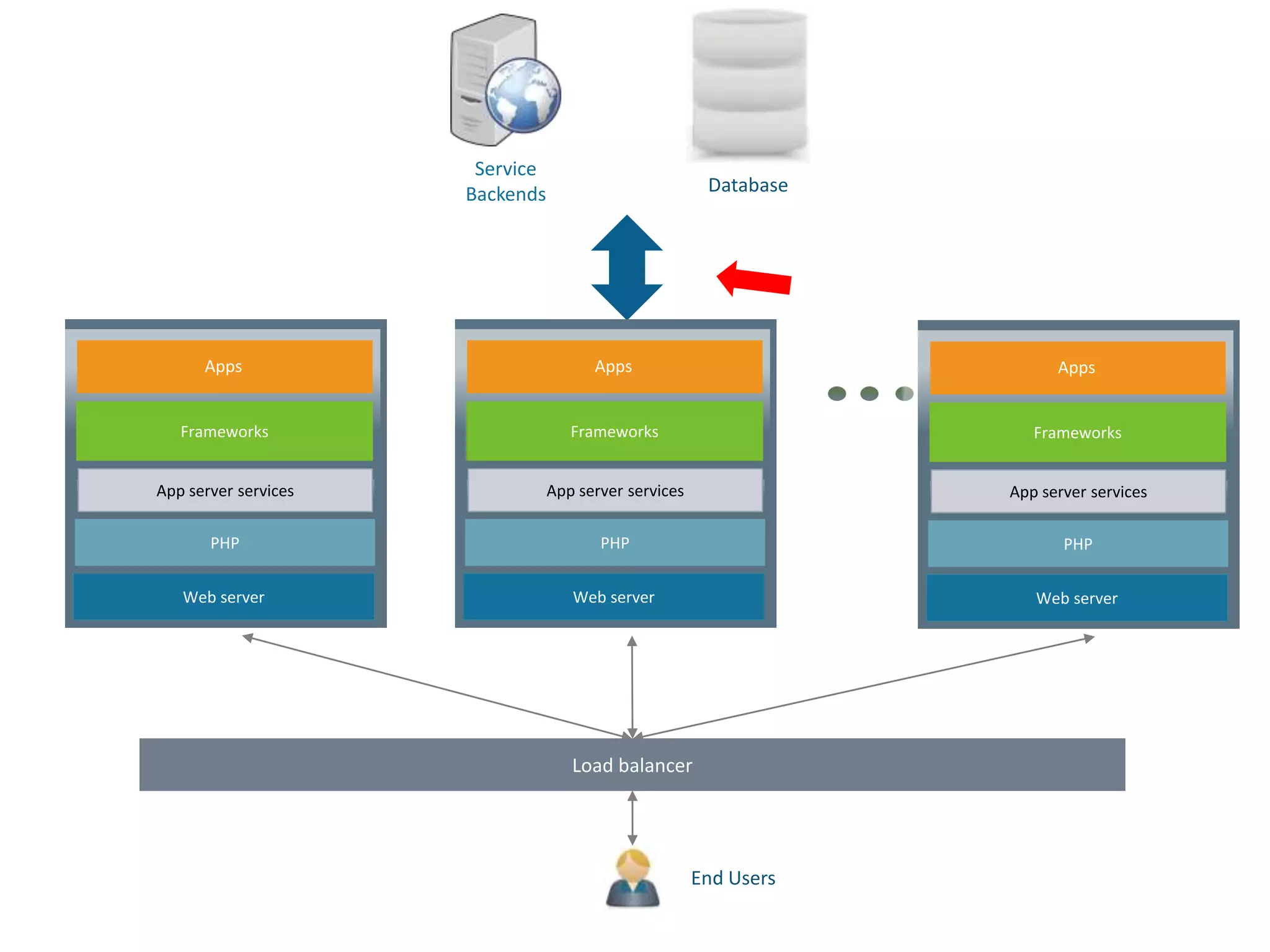

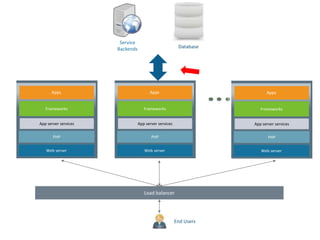

- 32. 32 End Users Database Service Backends Web server PHP Frameworks Apps Appserver services Web server PHP Frameworks Apps App server services Web server PHP Frameworks Apps App server services Load balancer

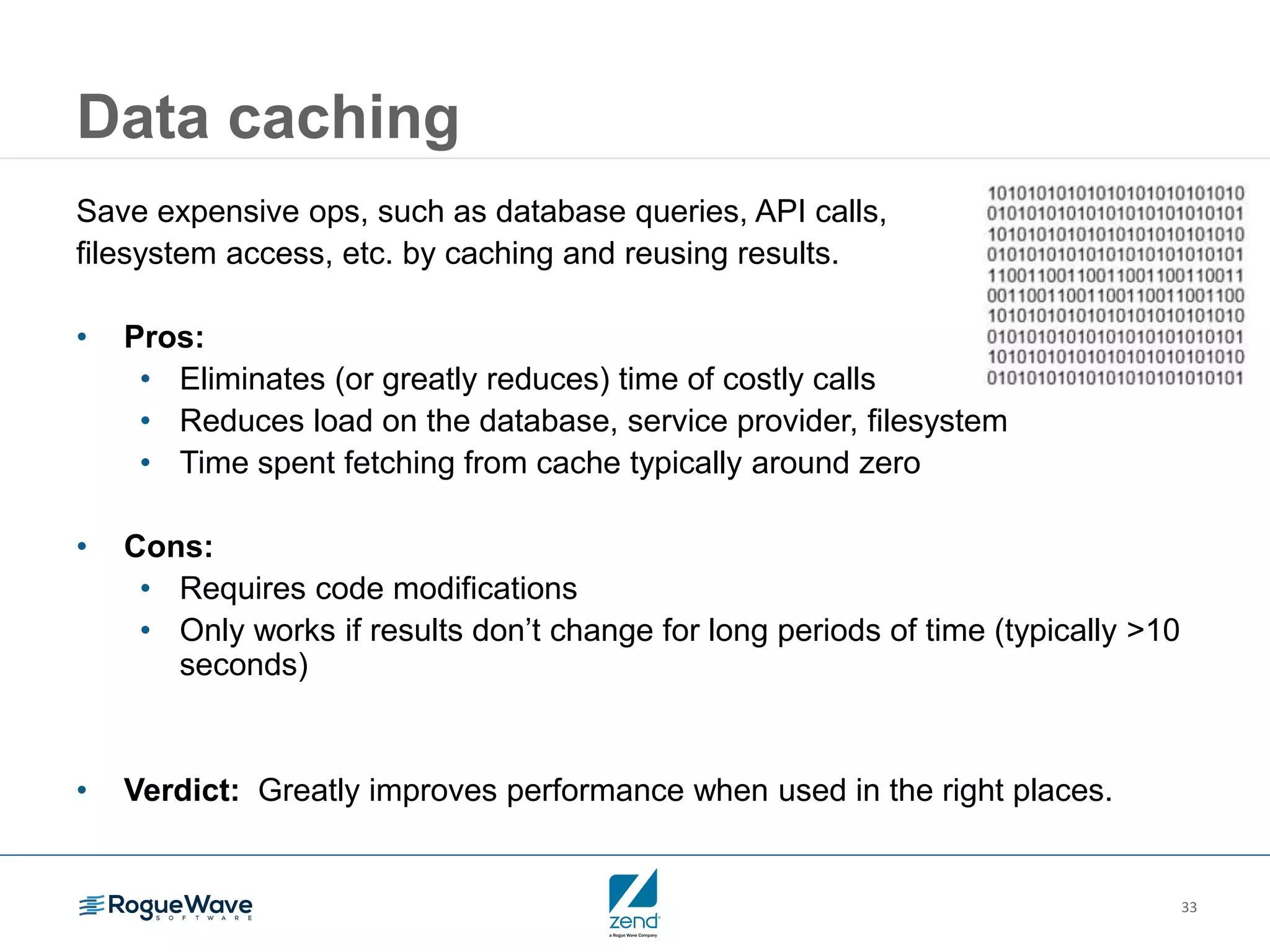

- 33. 33 Data caching Save expensiveops, such as database queries, API calls, filesystem access, etc. by caching and reusing results. • Pros: • Eliminates (or greatly reduces) time of costly calls • Reduces load on the database, service provider, filesystem • Time spent fetching from cache typically around zero • Cons: • Requires code modifications • Only works if results don’t change for long periods of time (typically >10 seconds) • Verdict: Greatly improves performance when used in the right places.

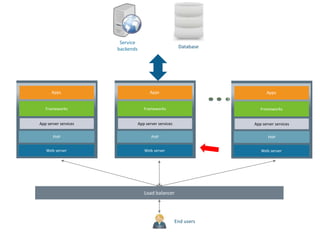

- 34. End users Database Service backends Web server PHP Frameworks Apps Appserver services Web server PHP Frameworks Apps App server services Web server PHP Frameworks Apps App server services Load balancer

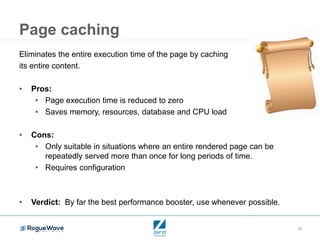

- 35. 35 Page caching Eliminates theentire execution time of the page by caching its entire content. • Pros: • Page execution time is reduced to zero • Saves memory, resources, database and CPU load • Cons: • Only suitable in situations where an entire rendered page can be repeatedly served more than once for long periods of time. • Requires configuration • Verdict: By far the best performance booster, use whenever possible.

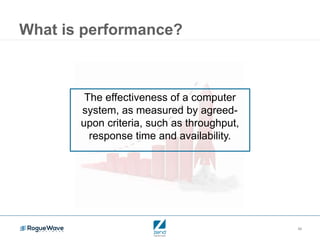

- 36. 36 What is performance? Theeffectiveness of a computer system, as measured by agreed- upon criteria, such as throughput, response time and availability.

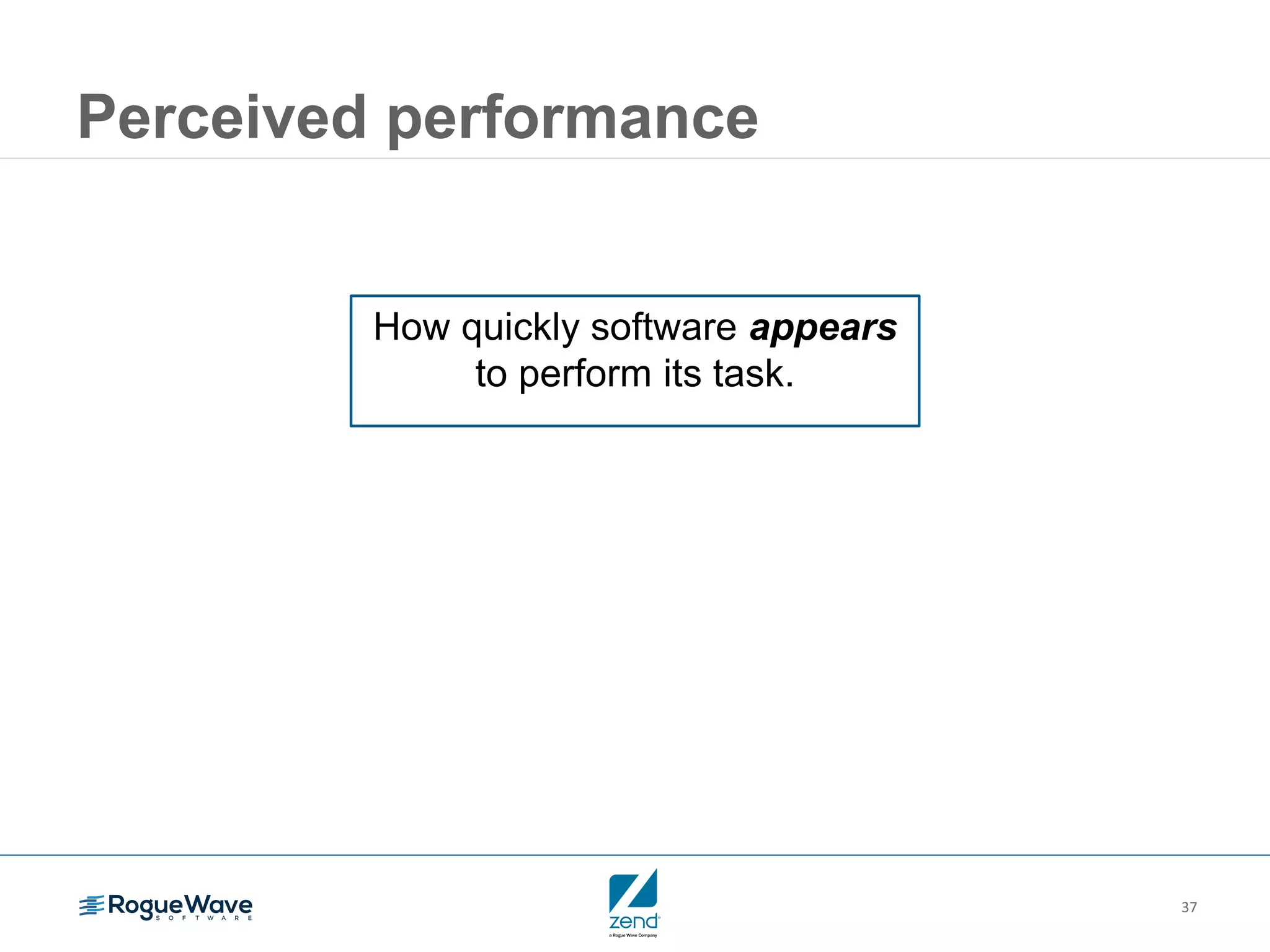

- 37. 37 Perceived performance How quicklysoftware appears to perform its task.

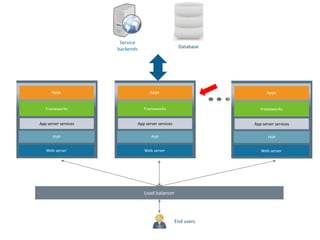

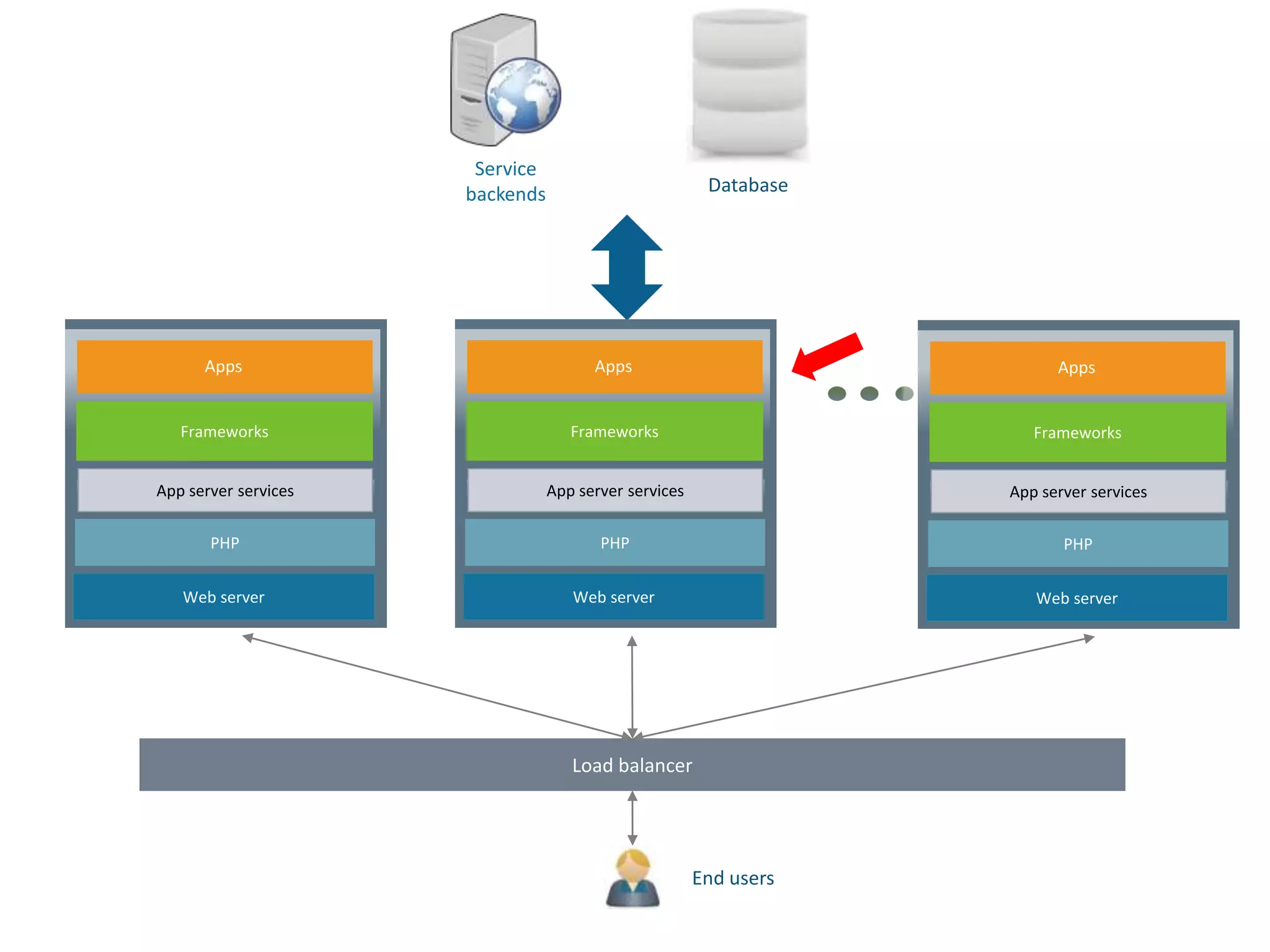

- 38. Load balancer End users Database Service backends Webserver PHP Frameworks Apps App server services Web server PHP Frameworks Apps App server services Web server PHP Frameworks Apps App server services

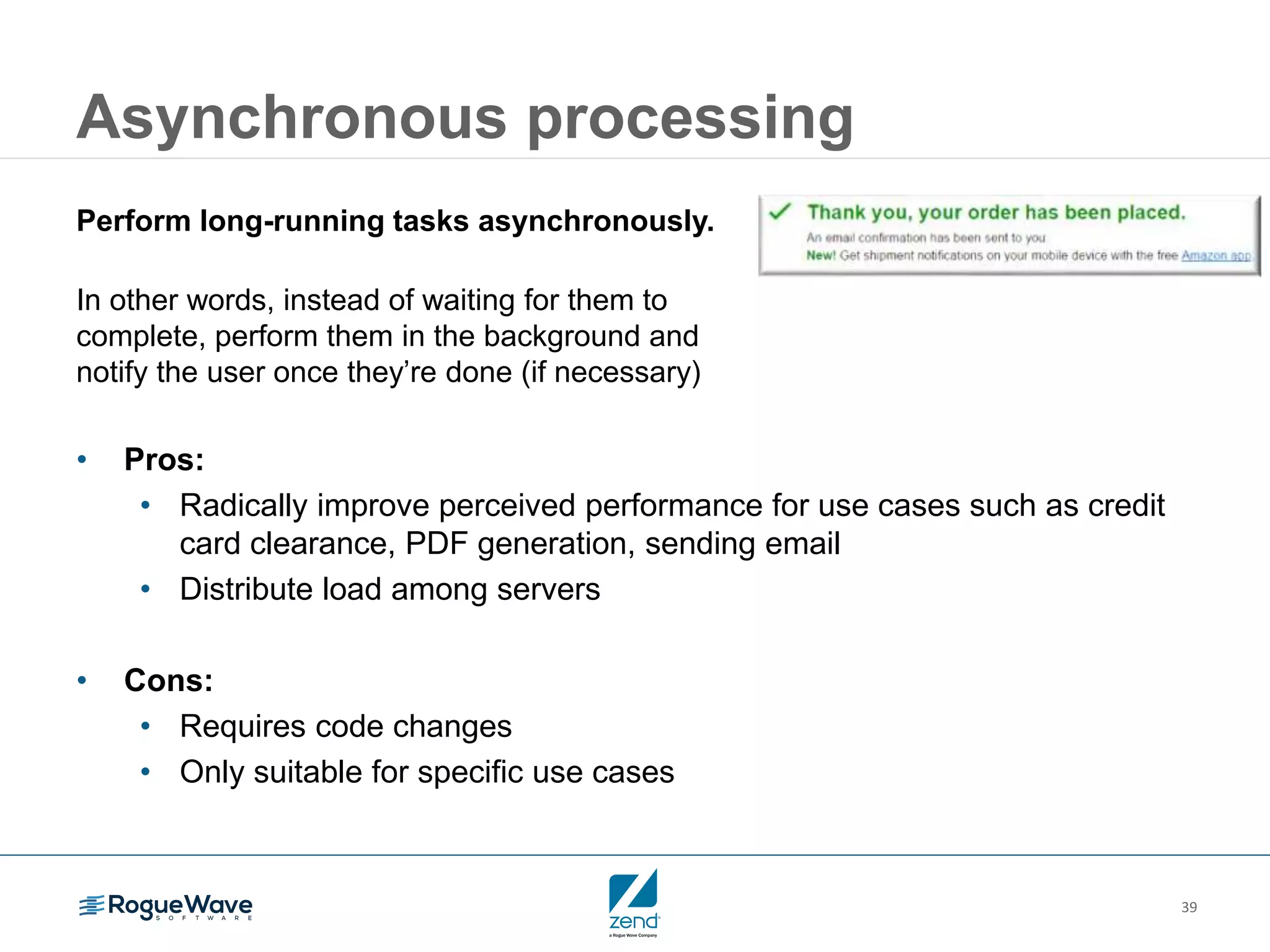

- 39. 39 Asynchronous processing Perform long-runningtasks asynchronously. In other words, instead of waiting for them to complete, perform them in the background and notify the user once they’re done (if necessary) • Pros: • Radically improve perceived performance for use cases such as credit card clearance, PDF generation, sending email • Distribute load among servers • Cons: • Requires code changes • Only suitable for specific use cases

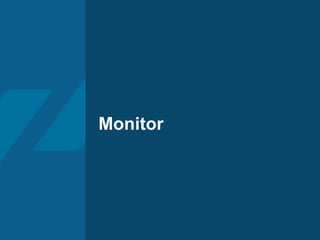

- 40.

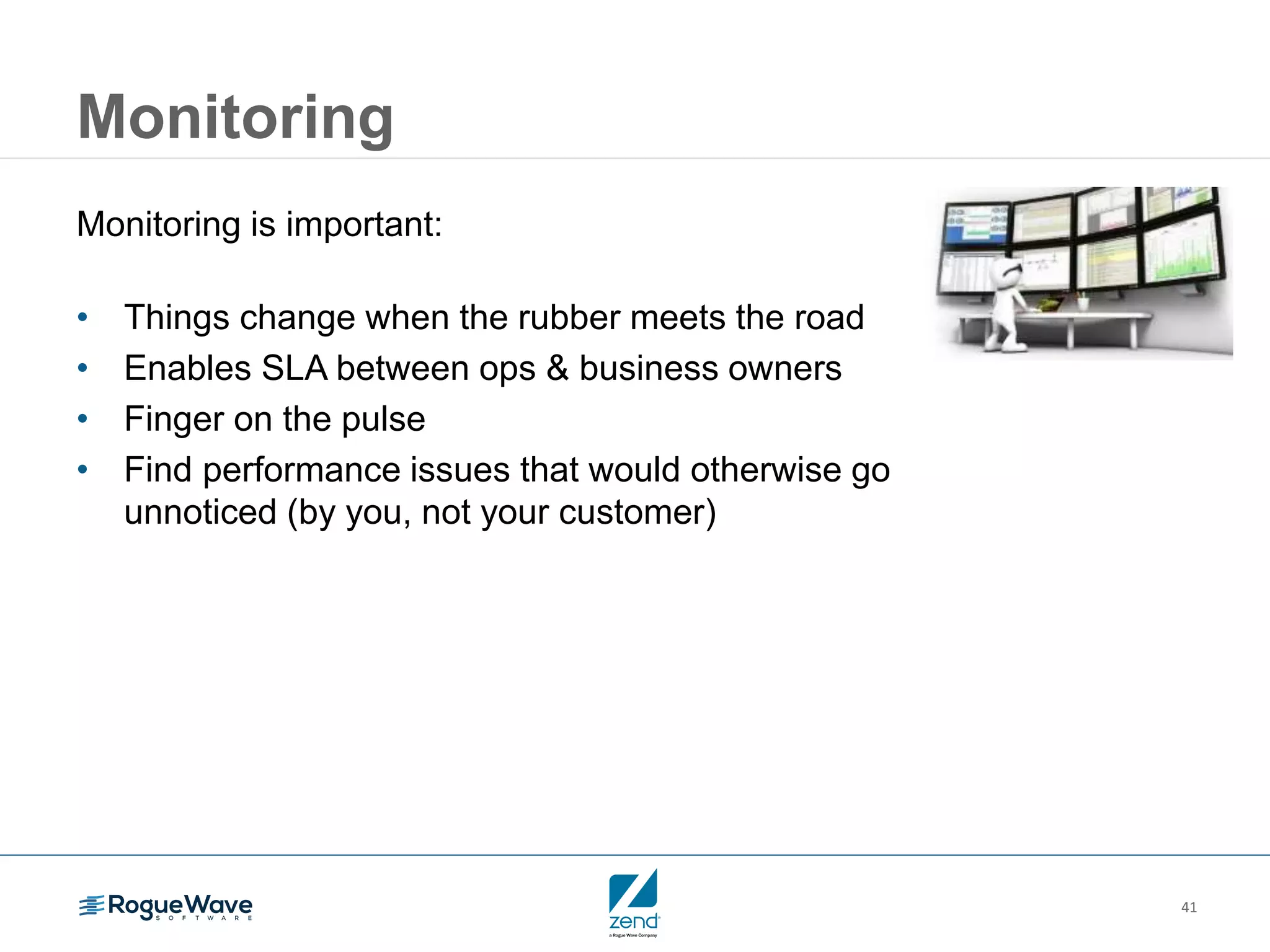

- 41. 41 Monitoring Monitoring is important: •Things change when the rubber meets the road • Enables SLA between ops & business owners • Finger on the pulse • Find performance issues that would otherwise go unnoticed (by you, not your customer)

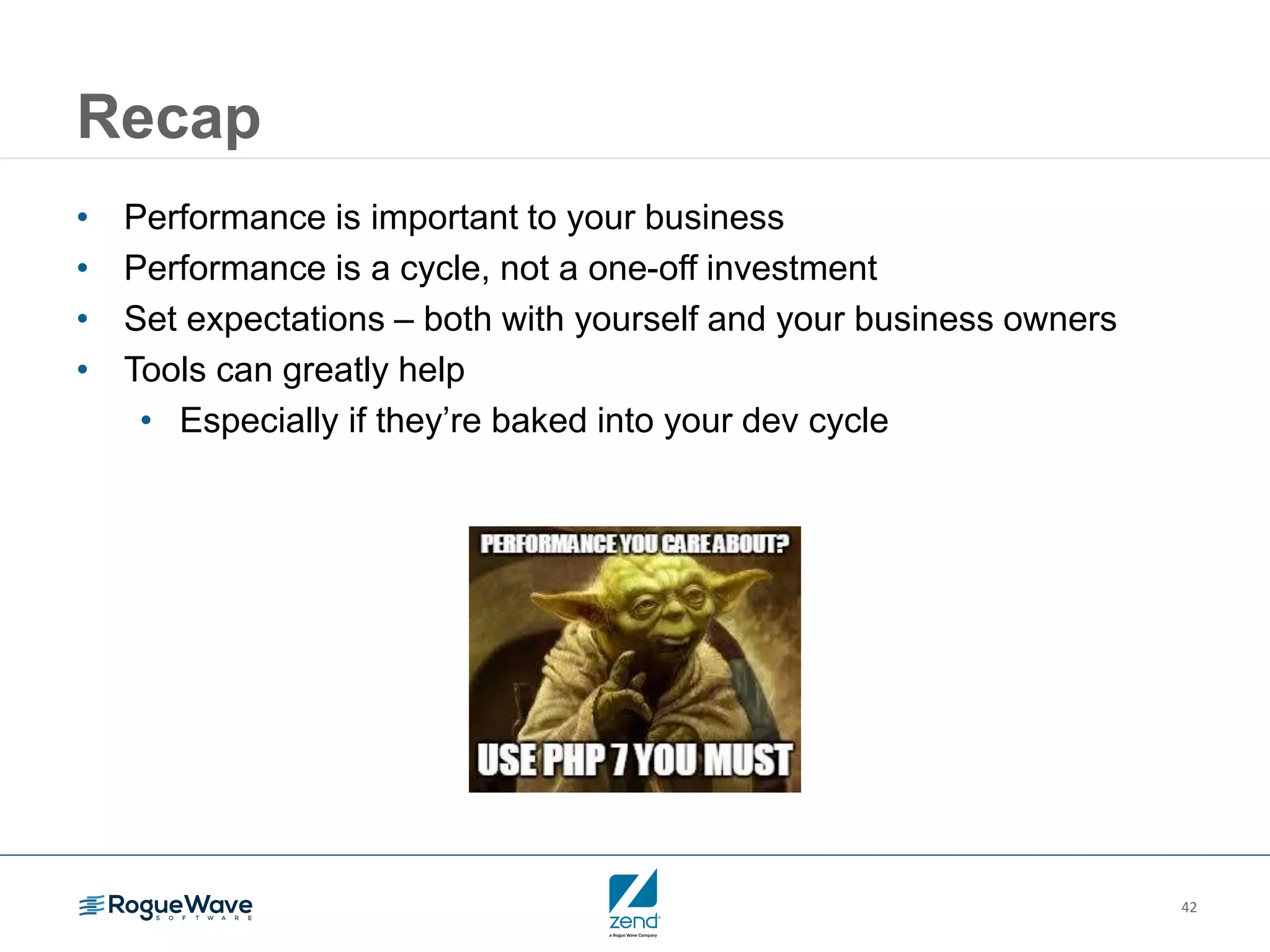

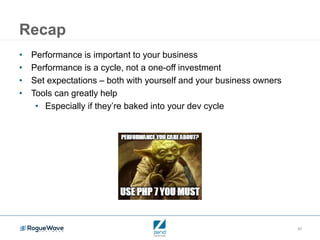

- 42. 42 Recap • Performance isimportant to your business • Performance is a cycle, not a one-off investment • Set expectations – both with yourself and your business owners • Tools can greatly help • Especially if they’re baked into your dev cycle
- 43. 43 Learn more • Watchthis webinar on demand • Read the recap blog
- 44.
