New media applications need to connect to millions of users across multiple media and platforms. Applications simultaneously need to - Work across computers, smart phones and other mobile devices, all of which have to sync up seamlessly in the background. - Link to various social media platforms, such as blogs, twitter, facebook, etc. - Target the content to the users of each of these platforms This brings up its own set of technical challenges namely scalable application architectures, flexible IT infrastructure and tools for targeting

1. Technology Challenges in Building New Media Applications ManjushaMadabushi

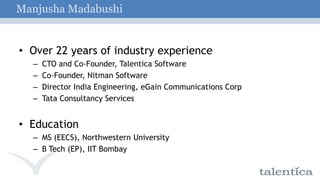

2. ManjushaMadabushi Over 22 years of industry experience CTO and Co-Founder, Talentica Software Co-Founder, Nitman Software Director India Engineering, eGain Communications Corp Tata Consultancy Services Education MS (EECS), Northwestern University B Tech (EP), IIT Bombay

3. Media Trends What’s “new media”? New media is not just digitizing of media content into bits. The difference really lies in the dynamic life of the 'new media' content and its interactive relationship with media consumer. - Wikipedia Yearly Technology Growth 1971 1979 1991 1995 1998 2005 Internet / Web 1st Social Networking Site TV Digital Media Phones / Wireless Smart Phones Blogs / Forums Print Media Newspaper

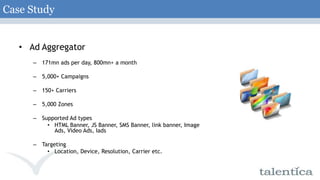

4. Case Study Ad Aggregator 171mn ads per day, 800mn+ a month 5,000+ Campaigns 150+ Carriers 5,000 Zones Supported Ad types HTML Banner, JS Banner, SMS Banner, link banner, Image Ads, Video Ads, Iads Targeting Location, Device, Resolution, Carrier etc.

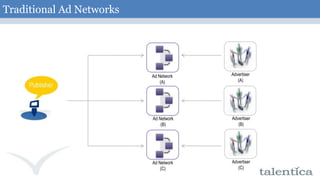

5. Traditional Ad Networks Advertiser (A) Ad Network (A) Advertiser (B) Ad Network (B) Advertiser (C) Ad Network (C)

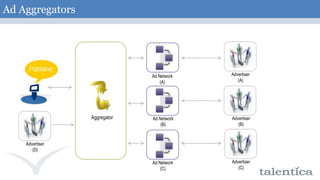

6. Ad Aggregators Advertiser (A) Ad Network (A) Aggregator Advertiser (B) Ad Network (B) Advertiser (D) Advertiser (C) Ad Network (C)

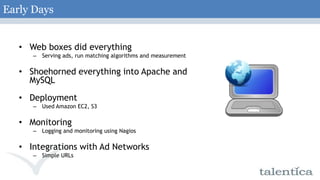

7. Early Days Web boxes did everything Serving ads, run matching algorithms and measurement Shoehorned everything into Apache and MySQL Deployment Used Amazon EC2, S3 Monitoring Logging and monitoring using Nagios Integrations with Ad Networks Simple URLs

8. Early Days Deployment Load Balancer MySQL Server EC2 Apache Server 1 EC2 Apache Server 1 EC2 Apache Server 1 EC2 S3 Server

10. Click to Call ads

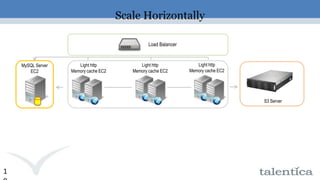

12. Load Balancer Light http Memory cache EC2 Light http Memory cache EC2 Light http Memory cache EC2 MySQL Server EC2 S3 Server 10 Scale Horizontally

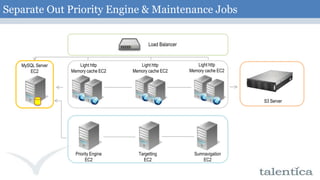

13. Separate Out Priority Engine & Maintenance Jobs Load Balancer Light http Memory cache EC2 Light http Memory cache EC2 Light http Memory cache EC2 MySQL Server EC2 S3 Server Priority Engine EC2 Targetting EC2 Sumnavigation EC2

14. Scale the Database Load Balancer Light http Memory cache EC2 Light http Memory cache EC2 Light http Memory cache EC2 MySQL Master EC2 S3 Server MySQL Slave EC2 Priority Engine EC2 Targetting EC2 Sumnavigation EC2

17. Click to Call ads

18. Video AdsUser attention reduced Needed better targeting – data analysis

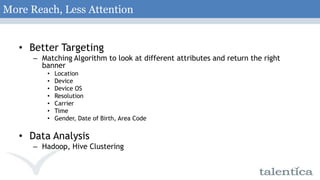

19. More Reach, Less Attention Better Targeting Matching Algorithm to look at different attributes and return the right banner Location Device Device OS Resolution Carrier Time Gender, Date of Birth, Area Code Data Analysis Hadoop, Hive Clustering

20. Targeting & Data Analysis Hive Hadoop Cluster Device Location Time Carrier Hive Queries MySql Database Reporting Reports BI Reporting

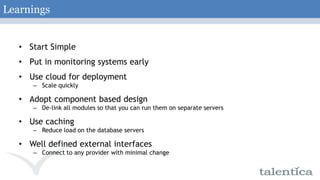

21. Learnings Start Simple Put in monitoring systems early Use cloud for deployment Scale quickly Adopt component based design De-link all modules so that you can run them on separate servers Use caching Reduce load on the database servers Well defined external interfaces Connect to any provider with minimal change

22. Questions, Comments…
