Techniques of-biotechnology-mcclean-good

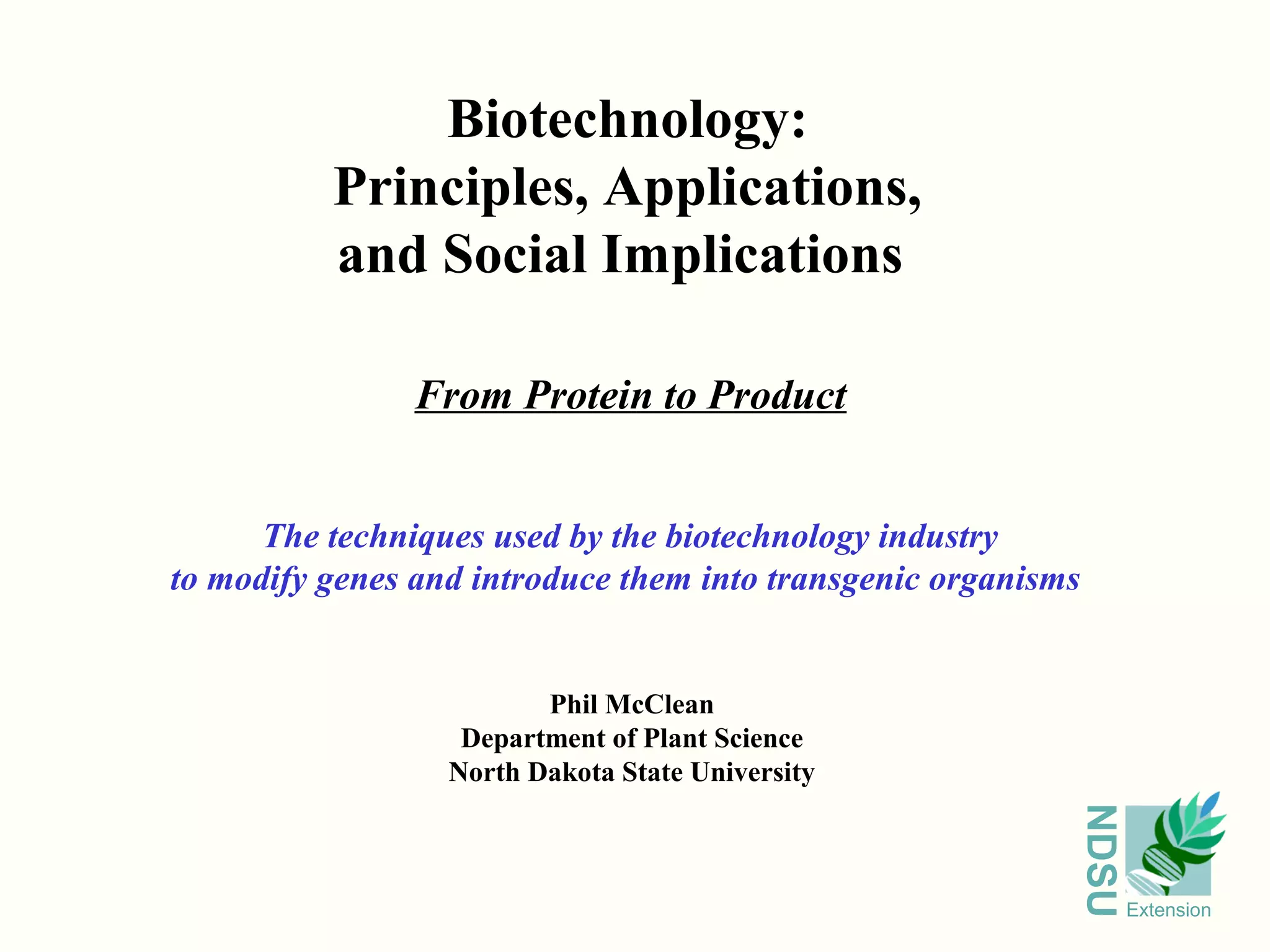

- 1. Biotechnology: Principles, Applications, and Social Implications From Protein to Product The techniques used by the biotechnology industry to modify genes and introduce them into transgenic organisms Phil McClean Department of Plant Science North Dakota State University NDSU Extension
- 2. What is Biotechnology? How about some definitions General Definition The application of technology to improve a biological organism Detailed Definition The application of the technology to modify the biological function of an organism by adding genes from another organism NDSU Extension

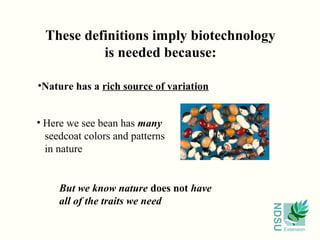

- 3. These definitions implybiotechnology is needed because: •Nature has a rich source of variation • Here we see bean has many seedcoat colors and patterns in nature But we know nature does not have all of the traits we need NDSU Extension

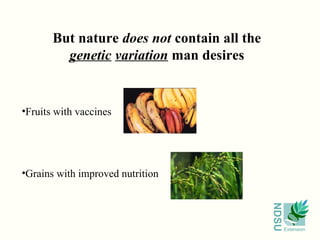

- 4. But nature doesnot contain all the genetic variation man desires •Fruits with vaccines •Grains with improved nutrition NDSU Extension

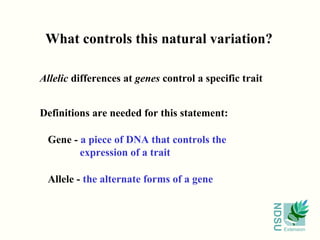

- 5. What controls thisnatural variation? Allelic differences at genes control a specific trait Definitions are needed for this statement: Gene - a piece of DNA that controls the expression of a trait Allele - the alternate forms of a gene NDSU Extension

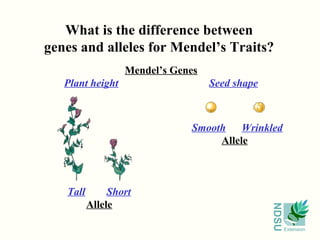

- 6. What is thedifference between genes and alleles for Mendel’s Traits? Mendel’s Genes Plant height Seed shape Smooth Wrinkled Allele Tall Short Allele NDSU Extension

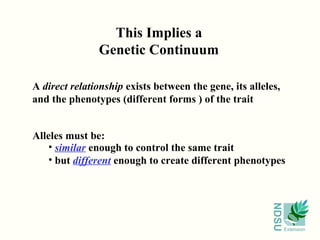

- 7. This Implies a Genetic Continuum A direct relationship exists between the gene, its alleles, and the phenotypes (different forms ) of the trait Alleles must be: • similar enough to control the same trait • but different enough to create different phenotypes NDSU Extension

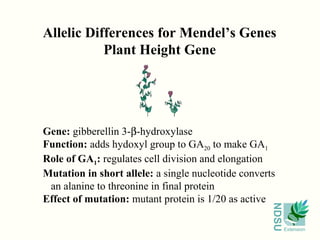

- 8. Allelic Differences forMendel’s Genes Plant Height Gene Gene: gibberellin 3-β-hydroxylase Function: adds hydoxyl group to GA20 to make GA1 Role of GA1: regulates cell division and elongation Mutation in short allele: a single nucleotide converts an alanine to threonine in final protein Effect of mutation: mutant protein is 1/20 as active NDSU Extension

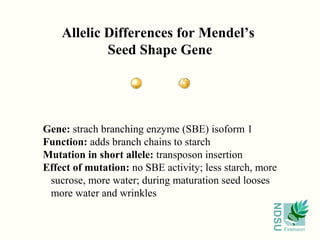

- 9. Allelic Differences forMendel’s Seed Shape Gene Gene: strach branching enzyme (SBE) isoform 1 Function: adds branch chains to starch Mutation in short allele: transposon insertion Effect of mutation: no SBE activity; less starch, more sucrose, more water; during maturation seed looses more water and wrinkles NDSU Extension

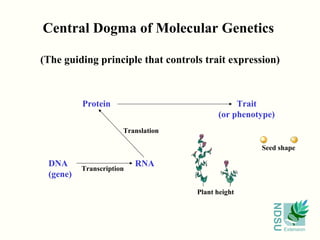

- 10. Central Dogma ofMolecular Genetics (The guiding principle that controls trait expression) Protein Trait (or phenotype) Translation Seed shape DNA RNA Transcription (gene) Plant height NDSU Extension
- 11. In General, PlantBiotechnology Techniques Fall Into Two Classes Gene Manipulation • Identify a gene from another species which controls a trait of interest • Or modify an existing gene (create a new allele) Gene Introduction • Introduces that gene into an organism • Technique called transformation • Forms transgenic organisms NDSU Extension
- 12. Gene Manipulation Starts At the DNA Level The nucleus contains DNA NDSU Source: Access Excellence Extension

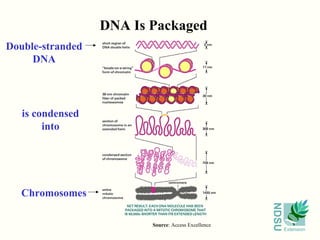

- 13. DNA Is Packaged Double-stranded DNA is condensed into Chromosomes NDSU Source: Access Excellence Extension

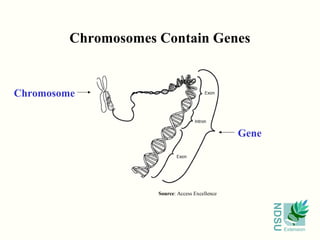

- 14. Chromosomes Contain Genes Chromosome Gene Source: Access Excellence NDSU Extension

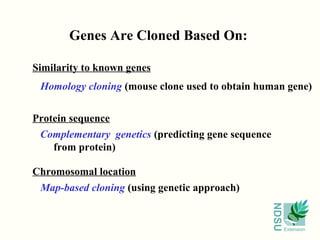

- 15. Genes Are ClonedBased On: Similarity to known genes Homology cloning (mouse clone used to obtain human gene) Protein sequence Complementary genetics (predicting gene sequence from protein) Chromosomal location Map-based cloning (using genetic approach) NDSU Extension

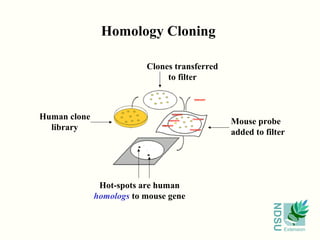

- 16. Homology Cloning Clones transferred to filter Human clone Mouse probe library added to filter Hot-spots are human homologs to mouse gene NDSU Extension

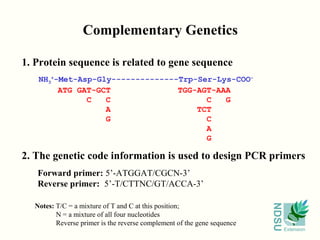

- 17. Complementary Genetics 1. Proteinsequence is related to gene sequence NH3+-Met-Asp-Gly--------------Trp-Ser-Lys-COO- ATG GAT-GCT TGG-AGT-AAA C C C G A TCT G C A G 2. The genetic code information is used to design PCR primers Forward primer: 5’-ATGGAT/CGCN-3’ Reverse primer: 5’-T/CTTNC/GT/ACCA-3’ Notes: T/C = a mixture of T and C at this position; NDSU N = a mixture of all four nucleotides Reverse primer is the reverse complement of the gene sequence Extension

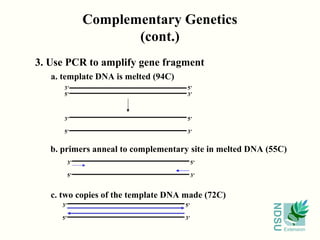

- 18. Complementary Genetics (cont.) 3. Use PCR to amplify gene fragment a. template DNA is melted (94C) 3’ 5’ 5’ 3’ 3’ 5’ 5’ 3’ b. primers anneal to complementary site in melted DNA (55C) 3’ 5’ 5’ 3’ c. two copies of the template DNA made (72C) 3’ 5’ NDSU 5’ 3’ Extension

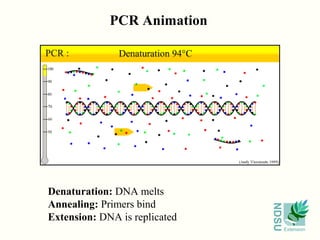

- 19. PCR Animation Denaturation: DNAmelts Annealing: Primers bind NDSU Extension: DNA is replicated Extension

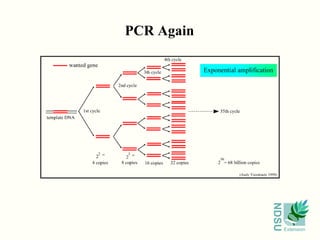

- 20. PCR Again NDSU Extension

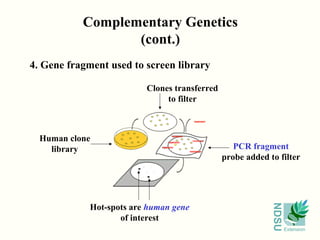

- 21. Complementary Genetics (cont.) 4. Gene fragment used to screen library Clones transferred to filter Human clone library PCR fragment probe added to filter Hot-spots are human gene NDSU of interest Extension

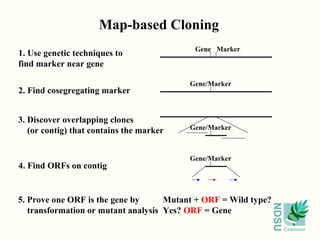

- 22. Map-based Cloning Gene Marker 1. Use genetic techniques to find marker near gene Gene/Marker 2. Find cosegregating marker 3. Discover overlapping clones (or contig) that contains the marker Gene/Marker Gene/Marker 4. Find ORFs on contig 5. Prove one ORF is the gene by Mutant + ORF = Wild type? NDSU transformation or mutant analysis Yes? ORF = Gene Extension

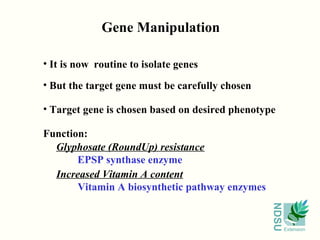

- 23. Gene Manipulation • Itis now routine to isolate genes • But the target gene must be carefully chosen • Target gene is chosen based on desired phenotype Function: Glyphosate (RoundUp) resistance EPSP synthase enzyme Increased Vitamin A content Vitamin A biosynthetic pathway enzymes NDSU Extension

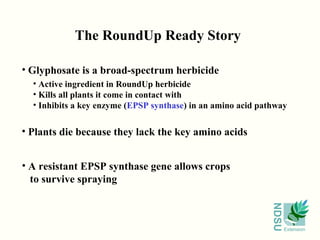

- 24. The RoundUp ReadyStory • Glyphosate is a broad-spectrum herbicide • Active ingredient in RoundUp herbicide • Kills all plants it come in contact with • Inhibits a key enzyme (EPSP synthase) in an amino acid pathway • Plants die because they lack the key amino acids • A resistant EPSP synthase gene allows crops to survive spraying NDSU Extension

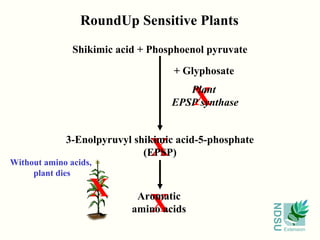

- 25. RoundUp Sensitive Plants Shikimic acid + Phosphoenol pyruvate + Glyphosate X Plant EPSP synthase Without amino acids, X 3-Enolpyruvyl shikimic acid-5-phosphate (EPSP) plant dies X X Aromatic NDSU amino acids Extension

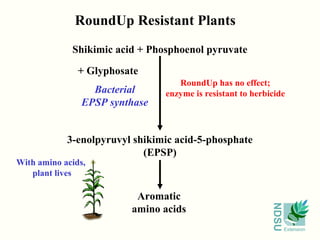

- 26. RoundUp Resistant Plants Shikimic acid + Phosphoenol pyruvate + Glyphosate RoundUp has no effect; Bacterial enzyme is resistant to herbicide EPSP synthase 3-enolpyruvyl shikimic acid-5-phosphate (EPSP) With amino acids, plant lives Aromatic NDSU amino acids Extension

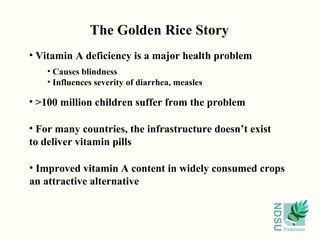

- 27. The Golden RiceStory • Vitamin A deficiency is a major health problem • Causes blindness • Influences severity of diarrhea, measles • >100 million children suffer from the problem • For many countries, the infrastructure doesn’t exist to deliver vitamin pills • Improved vitamin A content in widely consumed crops an attractive alternative NDSU Extension

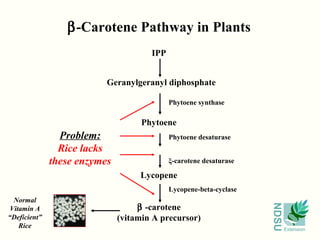

- 28. β-Carotene Pathway inPlants IPP Geranylgeranyl diphosphate Phytoene synthase Phytoene Problem: Phytoene desaturase Rice lacks these enzymes ξ-carotene desaturase Lycopene Lycopene-beta-cyclase Normal β -carotene NDSU Vitamin A “Deficient” (vitamin A precursor) Rice Extension
- 29. The Golden RiceSolution β-Carotene Pathway Genes Added IPP Geranylgeranyl diphosphate Daffodil gene Phytoene synthase Phytoene Vitamin A Phytoene desaturase Pathway Single bacterial gene; is complete performs both functions and functional ξ-carotene desaturase Lycopene Daffodil gene Lycopene-beta-cyclase β -carotene NDSU Golden Rice (vitamin A precursor) Extension

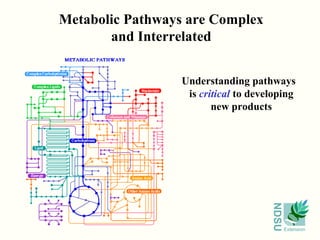

- 30. Metabolic Pathways areComplex and Interrelated Understanding pathways is critical to developing new products NDSU Extension

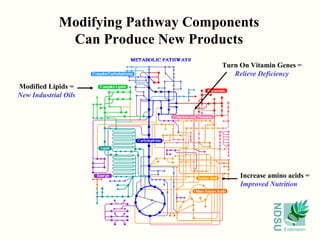

- 31. Modifying Pathway Components Can Produce New Products Turn On Vitamin Genes = Relieve Deficiency Modified Lipids = New Industrial Oils Increase amino acids = Improved Nutrition NDSU Extension
- 32. Trait/Gene Examples Trait Gene RoundUp Ready Bacterial EPSP Golden Rice Complete Pathway Plant Virus Resistance Viral Coat Protein Male Sterility Barnase Plant Bacterial Resistance p35 Salt tolerance AtNHX1 NDSU Extension

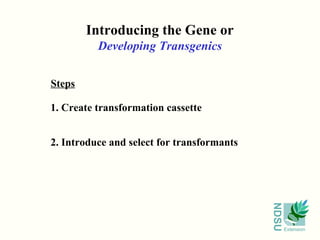

- 33. Introducing the Geneor Developing Transgenics Steps 1. Create transformation cassette 2. Introduce and select for transformants NDSU Extension

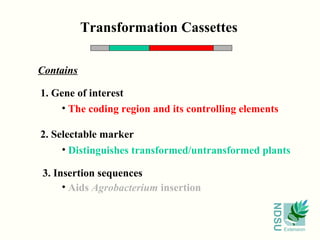

- 34. Transformation Cassettes Contains 1. Geneof interest • The coding region and its controlling elements 2. Selectable marker • Distinguishes transformed/untransformed plants 3. Insertion sequences • Aids Agrobacterium insertion NDSU Extension

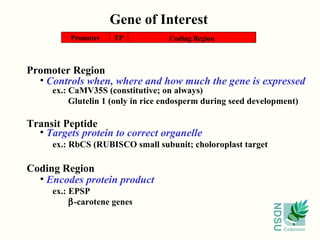

- 35. Gene of Interest Promoter TP Coding Region Promoter Region • Controls when, where and how much the gene is expressed ex.: CaMV35S (constitutive; on always) Glutelin 1 (only in rice endosperm during seed development) Transit Peptide • Targets protein to correct organelle ex.: RbCS (RUBISCO small subunit; choloroplast target Coding Region • Encodes protein product ex.: EPSP β-carotene genes NDSU Extension
- 36. Selectable Marker Promoter Coding Region Promoter Region • Normally constitutive ex.: CaMV35s (Cauliflower Mosaic Virus 35S RNA promoter Coding Region • Gene that breaks down a toxic compound; non-transgenic plants die ex.: nptII [kanamycin (bacterial antibiotic) resistance] aphIV [hygromycin (bacterial antibiotic) resistance] Bar [glufosinate (herbicide) resistance] NDSU Extension

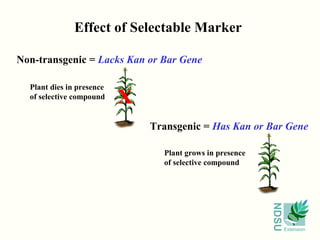

- 37. Effect of SelectableMarker Non-transgenic = Lacks Kan or Bar Gene Plant dies in presence of selective compound X Transgenic = Has Kan or Bar Gene Plant grows in presence of selective compound NDSU Extension

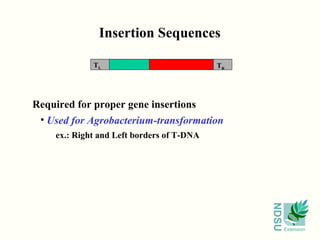

- 38. Insertion Sequences TL TR Required for proper gene insertions • Used for Agrobacterium-transformation ex.: Right and Left borders of T-DNA NDSU Extension

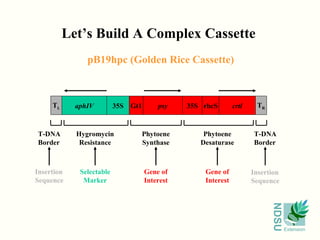

- 39. Let’s Build AComplex Cassette pB19hpc (Golden Rice Cassette) TL aphIV 35S Gt1 psy 35S rbcS crtl TR T-DNA Hygromycin Phytoene Phytoene T-DNA Border Resistance Synthase Desaturase Border Insertion Selectable Gene of Gene of Insertion Sequence Marker Interest Interest Sequence NDSU Extension

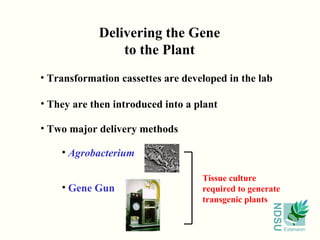

- 40. Delivering the Gene to the Plant • Transformation cassettes are developed in the lab • They are then introduced into a plant • Two major delivery methods • Agrobacterium Tissue culture • Gene Gun required to generate transgenic plants NDSU Extension
- 41. Plant Tissue Culture A Requirement for Transgenic Development Callus grows A plant part Shoots Is cultured develop Shoots are rooted; plant grows to maturity NDSU Extension
- 42. Agrobacterium A natural DNA delivery system • A plant pathogen found in nature • Infects many plant species • Delivers DNA that encodes for plant hormones • DNA incorporates into plant chromosome • Hormone genes expressed and galls form at infection site Gall on stem NDSU Gall on leaf Extension
- 43. The Galls CanBe Huge NDSU Extension

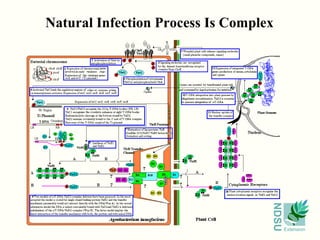

- 44. Natural Infection ProcessIs Complex NDSU Extension

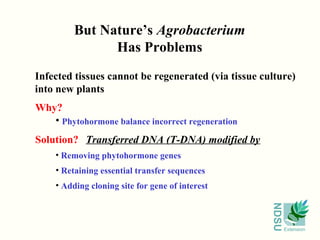

- 45. But Nature’s Agrobacterium Has Problems Infected tissues cannot be regenerated (via tissue culture) into new plants Why? • Phytohormone balance incorrect regeneration Solution? Transferred DNA (T-DNA) modified by • Removing phytohormone genes • Retaining essential transfer sequences • Adding cloning site for gene of interest NDSU Extension

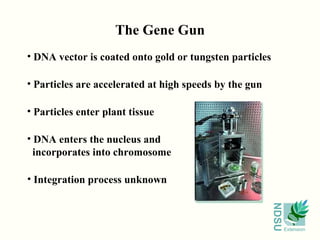

- 46. The Gene Gun •DNA vector is coated onto gold or tungsten particles • Particles are accelerated at high speeds by the gun • Particles enter plant tissue • DNA enters the nucleus and incorporates into chromosome • Integration process unknown NDSU Extension

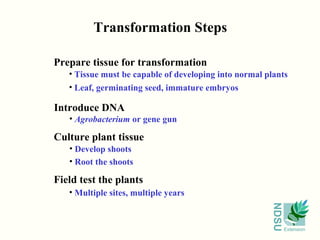

- 47. Transformation Steps Prepare tissuefor transformation • Tissue must be capable of developing into normal plants • Leaf, germinating seed, immature embryos Introduce DNA • Agrobacterium or gene gun Culture plant tissue • Develop shoots • Root the shoots Field test the plants • Multiple sites, multiple years NDSU Extension

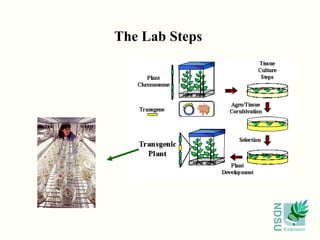

- 48. The Lab Steps NDSU Extension

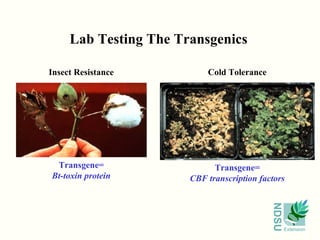

- 49. Lab Testing TheTransgenics Insect Resistance Cold Tolerance Transgene= Transgene= Bt-toxin protein CBF transcription factors NDSU Extension
- 50. More Modern Examples SaltTolerant Mercury Resistance Transgene= Transgene= Glyoxylase I Mercuric ion reductase NDSU Extension

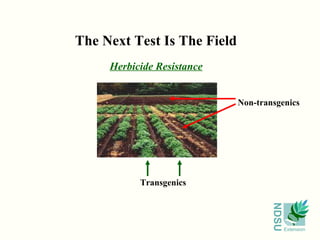

- 51. The Next TestIs The Field Herbicide Resistance Non-transgenics Transgenics NDSU Extension

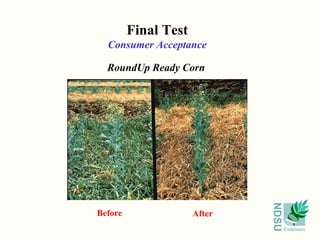

- 52. Final Test Consumer Acceptance RoundUp Ready Corn NDSU Before After Extension

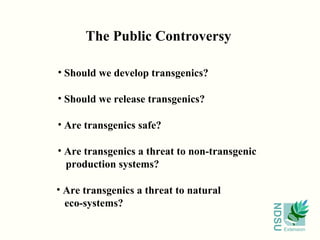

- 53. The Public Controversy •Should we develop transgenics? • Should we release transgenics? • Are transgenics safe? • Are transgenics a threat to non-transgenic production systems? • Are transgenics a threat to natural eco-systems? NDSU Extension
