Tech meetup: Web Applications Performance

Tech Meetup: Web Applications Performance

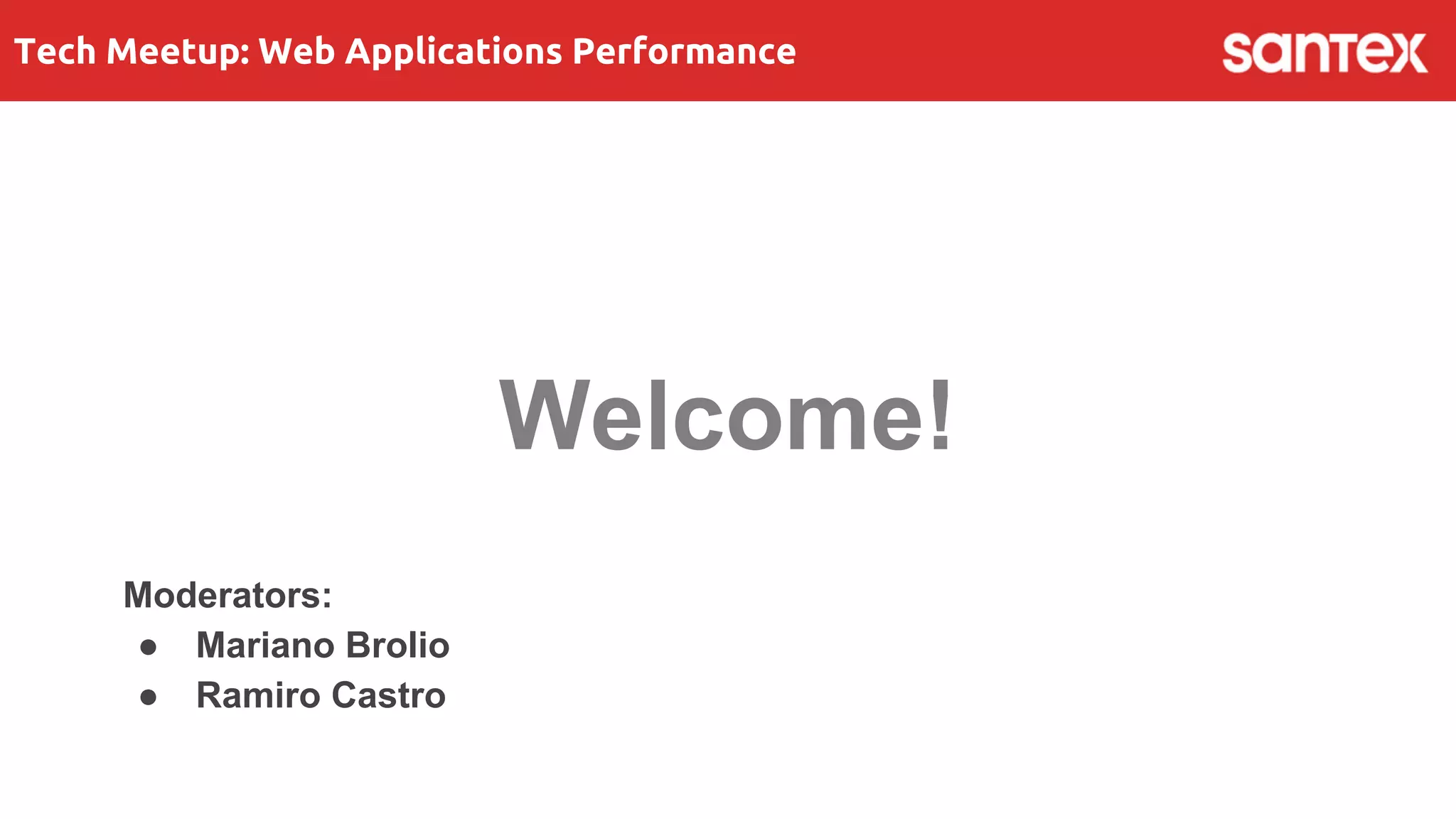

Welcome!
Moderators:
● Mariano Brolio
● Ramiro Castro

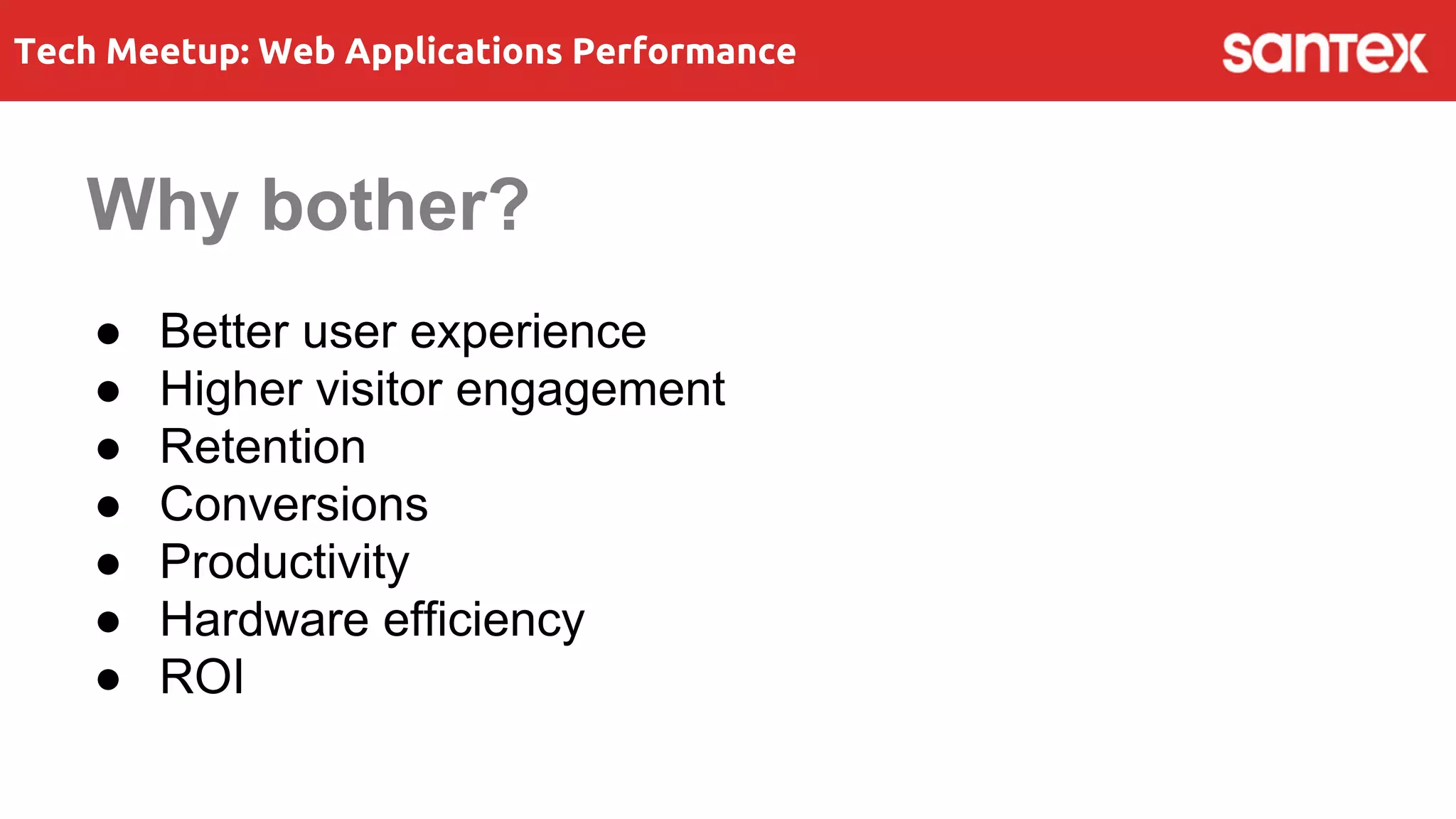

Why bother?
● Better user experience
● Higher visitor engagement
● Retention
● Conversions
● Productivity
● Hardware efficiency
● ROI

Web Applications Performance
Back-end vs. Front-end
The Golden Performance Rule:
80-90% of the end-user response time is spent on the frontend

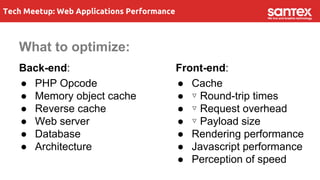

What to optimize:
Back-end:
● PHP Opcode
● Memory object cache
● Reverse cache
● Web server
● Database
● Architecture
Front-end:
● Cache
● ▿ Round-trip times
● ▿ Request overhead
● ▿ Payload size
● Rendering performance
● Javascript performance
● Perception of speed

What is PHP Opcode cache?
● Performance Enhancing Extensions for PHP.
● Caches a compiled version of PHP script (bytecode) in
memory.
● Inject cache into the PHP life-cycle.
● Average 100% speed increase with default settings.
● Reduce file system I/O overhead.

PHP Opcode
Extensions
● APC
● xCache
● Zend OPcache
● Microsoft WinCache

Memory Object Cache
● Memcached
Memcached is an in-memory key-value store for small chunks of arbitrary
data (strings, objects) from results of database calls, API calls, or page
rendering.
● APC
● Redis

Memory Object Cache
What to cache:
● Database results
● Config variables
● Rendered templates
● Processed data
● Web services responses

Reverse Cache
● Varnish
● Nginx
● Squid
Web
Server
Web
Server
Web
Server
DB Server DB Server
Memcached / Redis
Varnish

Server side compression
● Google PageSpeed module
● Apache
○ mod_deflate
● Nginx
○ HttpGzipModule
● IIS
○ Configure HTTP compression

PHP Performance Tips
● Profile your code to pinpoint
bottlenecks
● Upgrade your version of PHP
● Use caching
● Use output buffering
● Avoid doing SQL queries within a
loop
● Use queues to avoid unnecessary
waits
● Prefer “foreach” loops
● Calculate loop length in advance
● Other micro-optimizations to
discuss
“Premature optimization is the root of all evil”. Donald Knuth

MySQL Performance
● InnoDB vs. MyISAM
● Log slow queries
[mysqld]
log-slow-queries = /var/log/mysql/mysqld-
slow.log
long_query_time=1
● Analyze slow queries
EXPLAIN SELECT ...
● mytop
● Iterative Optimization by
Benchmarking
● Optimize Schema
○ Simple data types
○ Avoid NULL
○ Too many columns / joins
● Indexing
● Fetching more rows than needed
● Fetching all columns from a multi-
table join
● * is evil
● MySQL in the cloud

Architecture Design
Just to mention a few:
● DNS Round Robin
● Load-balanced architecture
● HipHop Virtual Machine
● Database sharding
● Queues

Performance in the Front-end
● Optimize Caching
● Minimize Round-Trip Times
● Minimize Request overhead
● Minimize Payload size
● Optimize Rendering
● asynchronous != instantaneous

Optimize Caching
● Configure web server for caching
static resources
○ Set far future Expires header
○ Set Cache-Control
○ Configure ETags
● Set caching headers aggressively
for all static resources
● Cache redirections
● Use fingerprinting to dynamically
enable caching.
● Don't include a query string in the
URL for static resources.
● Don't enable proxy caching for
resources that set cookies.
● Be aware of issues with proxy
caching of JS and CSS files.

Cache headers example
Request: Response:
Accept-Encoding:gzip,deflate,sdch Content-Encoding: gzip
Cache-Control: max-age=0 Cache-Control: public | private, no-cache, no-
store, must-revalidate
Expires:Mon, 16 Mar 2015 00:07:51 GMT
If-None-Match:
eb3878bf2bb06c1e33f1b09b285d13e0
ETag:eb3878bf2bb06c1e33f1b09b285d13e0
Connection:keep-alive Connection:Keep-Alive
Keep-Alive:timeout=5, max=100
If-Modified-Since: Mon, 16 Mar 2015 00:07:51
GMT
Last-Modified: Mon, 16 Mar 2015 00:07:51 GMT

Minimize round-trip times
● Use a CDN for static content
● Minimize DNS lookups
● Minimize redirects
● Avoid bad requests
● Combine JS files
● Combine CSS files
● Combine images using sprites
● Use inline images when needed:
○ data: URL scheme
● Use image maps when possible
● Use font icons if available
● Put external scripts after external
stylesheets if possible.
● Put inline scripts after other
resources if possible.
● Avoid document.write
● Prefer async resources
○ async HTML5 attribute

Minimize request overhead
● Don’t store large amounts of data
on cookies
● Serve static content from a
cookie-less domain
● Use server-side storage for most
of the cookie payload
● Remove unused or duplicated
cookie fields

Minimize Payload Size
● Optimize Images
○ Use an appropriate file format
○ Use an image compressor
● Serve scaled version of images
● Defer loading of resources not
used on startup
● Enable Compression
○ Write your web page content to make
compression most effective
● Minify Javascript
● Minify CSS
○ Remove unused CSS
● Minify HTML
○ Omit optional HTML tags/attrib.

Optimize browser rendering
● Apply animations with position fixed or
absolute
● Add/remove classes not styles
● Specify image dimensions
○ that match those of the images on the
img element or block-level parent
● Specify a character set
○ Always specify a content type and
correct character encoding.
● Reduce number of DOM elems.
● Batch DOM changes
● Stay away from table layouts
● Put CSS in the document head
● Use efficient CSS selectors
○ Avoid a universal key selector
○ Make your rules as specific as
possible.
○ Remove redundant qualifiers.
○ Use class selectors instead of
descendant selectors.
● Avoid CSS expressions
● Avoid reflows:
○ Change CSS classes as low in the
DOM as possible

Optimize jQuery
● Use $(window).load( ) instead of
$(document).ready( ) when
possible.
● Use object detection even if
jQuery doesn't throw an error
● Use direct functions rather than
their convenience counterparts
● Avoid using jquery in loops
● Cache jQuery objects: $id =
$(‘#id’)
● Chain instead of repeat
● Always descend from an id:
$(‘#id’).find( )
● Use (HTML5) tags before classes
$(‘p’)
● Always prefix a class with a tag
name
● Avoid using general selectors

Optimize JavaScript
● Use strict mode: “use strict”;
● Use window.performance
● Listen for events lower in the
DOM
● Bind multiple events at once
● Remember to unbind events when
they are no longer needed
● Avoid unnecessary closures
● Avoid creating functions
unnecessarily
● Cache references
● Cache AJAX results in an variable
● Store references to elements
deep in arrays when calling
multiple times.
● Use Local variables
● Batch DOM changes

Tools
Analysis Tools
● Chrome Dev Tools
● Firebug
● YSlow extension
● PageSpeed Insights / extension
● Web Page Test
● Apache Benchmark
Compression Tools
● YUI Compressor
● Closure Compiler
● JSmin
● SpriteMe
● Smush.it

Chrome Dev Tools

Firebug

Perception of speed
● The 100ms rule:
“No single JavaScript job should execute for more than 100ms to ensure a
responsive UI”
● Ensure a fast response
● Keep the user busy on waits
● Use progress bar indicators
● Staring at a blank page is not a good user experience
● Quickly show the skeleton of the screen

Thanks!
