2. DRAWING INDEX
AN-0019th JUNE, 2014

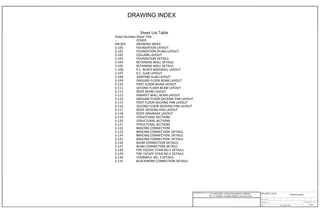

DRAWING INDEX
Sheet List Table
Sheet Number Sheet Title
-- COVER
AN-001 DRAWING INDEX
S-100 FOUNDATION LAYOUT

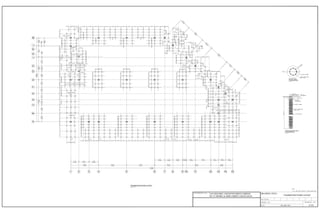

S-101 FOUNDATION PILING LAYOUT

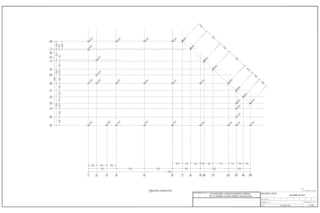

S-102 COLUMN LAYOUT
S-103 FOUNDATION DETAILS

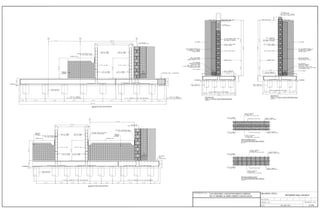

S-104 RETAINING WALL DETAILS
S-105 RETAINING WALL DETAILS
C-106 R.C. BLOCK BASEWALL LAYOUT
S-107 R.C. SLAB LAYOUT
S-108 JOINTING SLAB LAYOUT
S-109 GROUND FLOOR BEAM LAYOUT
S-110 FIRST FLOOR BEAM LAYOUT

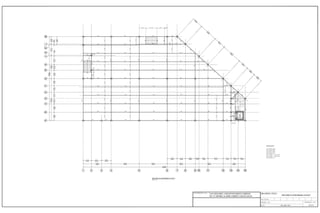

S-111 SECOND FLOOR BEAM LAYOUT
S-112 ROOF BEAM LAYOUT

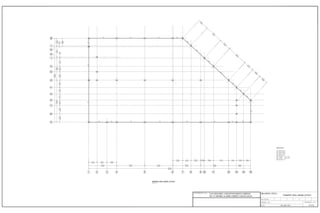

S-113 PARAPET WALL BEAM LAYOUT
S-114 GROUND FLOOR DECKING PAN LAYOUT
S-115 FIRST FLOOR DECKING PAN LAYOUT
S-116 SECOND FLOOR DECKING PAN LAYOUT

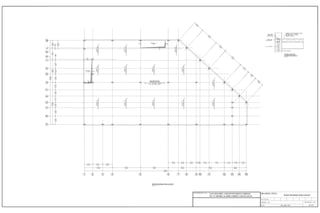

S-117 ROOF DECKING PAN LAYOUT
S-118 ROOF DRAINAGE LAYOUT
S-119 STRUCTURAL SECTIONS
S-120 STRUCTURAL SECTIONS
S-121 STRUCTURAL SECTIONS
S-122 BRACING CONNECTION
S-123 BRACING CONNECTION DETAILS
S-124 BRACING CONNECTION DETAILS
S-125 BRACING CONNECTION DETAILS
S-126 BEAM CONNECTION DETAILS.
S-127 BEAM CONNECTION DETAILS
S-128 FIRE ESCAPE STAIR NO.1 DETAILS
S-129 FIRE ESCAPE STAIR NO.2 DETAILS
S-130 STAIRWELL NO. 3 DETAILS
S-131 BLOCKWORK CONNECTION DETAILS

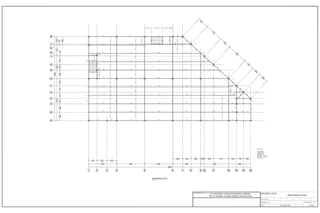

3. AFL
1411865431
C
7 9 10
HJ
2 12
EGKD
13 15
BMG'K'
LEGEND:-
F1=17'1 x 8'-10" x 1'-8" DEEP R.C. PAD FOOTING
F2=13'-1" x 13'-1" x 1'-8" DEEP R.C. PAD FOOTING
F3=9'-10" x 9'-10" x 1'-8" DEEP R.C. PAD FOOTING
GROUND BEAM = 1'-4" WIDEx 1'-8" DEEP
P1=2'-4" x 2'-4" R.C. PEDESTAL
- 1'-4" THK. R.C. BLOCK RETAINING WALL
FOUNDATION LAYOUT
S-100
FOUNDATION LAYOUT
Scale 1/8"=1'-0"
9th JUNE, 2014

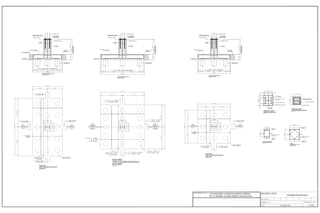

6. TYPE F1 FOUNDATION DETAILS
SECTION VIEW A-A
Scale 1/2"=1'-0"
PLAN VIEW
TYPE F1 FOUNDATION DETAILS
PLAN VIEW
Scale 3/8"=1'-0"
PLAN VIEW
TYPE F2 FOUNDATION DETAILS
PLAN VIEW
Scale 1/4"=1'-0"
TYPE F2 FOUNDATION DETAILS
SECTION VIEW B-B
Scale 1/2"=1'-0"
TYPE F3 FOUNDATION DETAILS
SECTION VIEW C-C
Scale 1/2"=1'-0"
PLAN VIEW
TYPE F3 FOUNDATION DETAILS
PLAN VIEW
Scale 3/8"=1'-0"
1'-4" WD.x1'-8" DEEP R.C.
GROUND BEAM DETAILS
Scale 1/2"=1'-0"
PEDESTAL TYPE 1
UC ENCASEMENT DETAILS
Scale 1/2"=1'-0"
PEDESTAL TYPE P1
BASEPLATE DETAILS
Scale 1/2"=1'-0"
TYPE P1
SECTION THRU.' 2'-4"x2'-4"
R.C. PEDESTAL
Scale 1/2"=1'-0"
FOUNDATION DETAILS
S-1039th JUNE, 2014

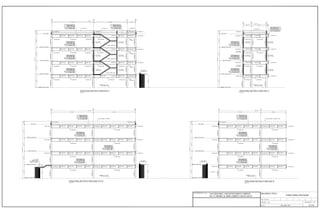

22. STRUCTURAL SECTION AT GRID LINE "1"
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINE "2"
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINES "5" & "6"
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINE "9"
Scale 1/8"=1'-0"
STRUCTURAL SECTIONS
S-1199th JUNE, 2014
23. STRUCTURAL SECTION AT GRID LINE "12"
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINE "13"
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINE "15"
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINE "A"
Scale 1/8"=1'-0"
STRUCTURAL SECTIONS
S-1209th JUNE, 2014
24. STRUCTURAL SECTION AT GRID LINE "G"
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINE "M"
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT DIAGONAL GRID LINE
Scale 1/8"=1'-0"
STRUCTURAL SECTIONS
S-1219th JUNE, 2014

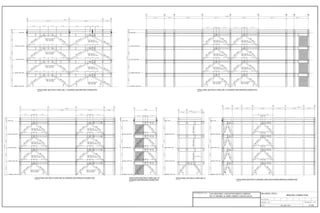

25. STRUCTURAL SECTION AT GRID LINE "1" SHOWING HSSP BRACING CONNECTION
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINE "A" SHOWING HSSP BRACING CONNECTION
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINE "M" SHOWING HSSP BRACING CONNECTION
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINE "15"
SHOWING HSSP BRACING CONNECTION
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT DIAGONAL GRID LINE SHOWING BRACING CONNECTION
Scale 1/8"=1'-0"
STRUCTURAL SECTION AT GRID LINE "2"
Scale 1/8"=1'-0"
BRACING CONNECTION
S-1229th JUNE, 2014

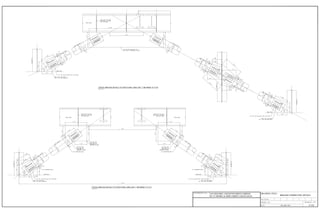

26. TYPICAL BRACING DETAILS TO STRUCTURAL GRID LINE "1" BETWEEN "A" & "G"
Scale 3/4"=1'-0"
TYPICAL BRACING DETAILS TO STRUCTURAL GRID LINE "1" BETWEEN "G" & "M"
Scale 3/4"=1'-0"
BRACING CONNECTION DETAILS
S-1239th JUNE, 2014

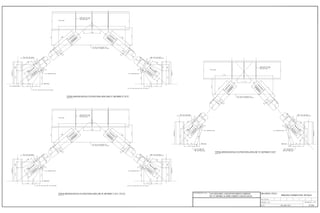

27. TYPICAL BRACING DETAILS TO STRUCTURAL GRID LINES "A" BETWEEN "5" TO "9"
Scale 3/4"=1'-0"
TYPICAL BRACING DETAILS TO STRUCTURAL GRID LINE "M" BETWEEN "1" &"4" - "5" & "6"
Scale 3/4"=1'-0"
TYPICAL BRACING DETAILS TO STRUCTURAL GRID LINE "15" BETWEEN "A" &"D"
Scale 3/4"=1'-0"
BRACING CONNECTION DETAILS
S-1249th JUNE, 2014

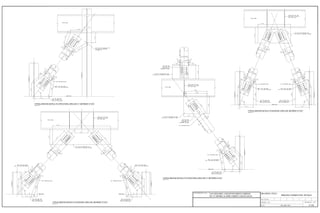

28. TYPICAL BRACING DETAILS TO DIAGONAL GRID LINE BETWEEN "G" &"H"
Scale 3/4"=1'-0"
TYPICAL BRACING DETAILS TO DIAGONAL GRID LINE BETWEEN "D" &"E"
Scale 3/4"=1'-0"
TYPICAL BRACING DETAILS TO STRUCTURAL GRID LINE "2" BETWEEN "G" &"G'
Scale 3/4"=1'-0"
TYPICAL BRACING DETAILS TO STRUCTURAL GRID LINE "2" BETWEEN G' &"K"
Scale 3/4"=1'-0"
BRACING CONNECTION DETAILS
S-1259th JUNE, 2014

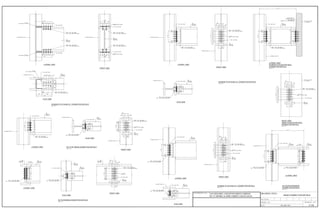

29. R2 BEAM TO W14x283 UC. CONNECTION DETAILS
Scale 1"=1'-0"
PLAN VIEW
LATERAL VIEW
FRONT VIEW
R4 BEAM TO W14x283 UC. CONNECTION DETAILS
Scale 1"=1'-0"
PLAN VIEW
LATERAL VIEW
FRONT VIEW
LATERAL VIEW
R4 BEAM TO ELEVATOR WALL
CONNECTION DETAILS
Scale 1"=1'-0"
FRONT VIEW
BEAM TO ELEVATOR WALL
CONNECTION DETAILS
Scale 1"=1'-0"
R4 BEAM TO W14x283 UC. CONNECTION DETAILS
Scale 1"=1'-0"
PLAN VIEW
LATERAL VIEW
FRONT VIEW
LATERAL VIEW
R4 CANTILEVER BEAM
CONNECTION DETAILS
Scale 1"=1'-0"
R4 TO R3 BEAM CONNECTION DETAILS
Scale 1"=1'-0"
PLAN VIEW
LATERAL VIEW
FRONT VIEW
R4 TO R5 BEAM CONNECTION DETAILS
Scale 1"=1'-0"
PLAN VIEW
LATERAL VIEW
FRONT VIEW
BEAM CONNECTION DETAILS.
S-1269th JUNE, 2014

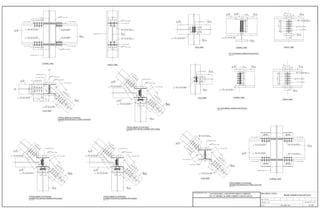

30. TYPICAL BEAM TO STACHION
CONNECTION DETAILS AT GRID LOCATION
Scale 1"=1'-0"
PLAN VIEW
LATERAL VIEW
FRONT VIEW
R4 TO R2 BEAM CONNECTION DETAILS
Scale 1"=1'-0"
PLAN VIEW LATERAL VIEW FRONT VIEW
R4 TO R4 BEAM CONNECTION DETAILS
Scale 1"=1'-0"
PLAN VIEW LATERAL VIEW
FRONT VIEW
TYPICAL BEAM TO STACHION
CONNECTION DETAILS AT GRID LOCATION
Scale 1"=1'-0"
LATERAL VIEWPLAN VIEW
TYPICAL BEAM TO STACHION
CONNECTION DETAILS WHERE APPLICABLE
Scale 1"=1'-0"
TYPICAL BEAM TO STACHION
CONNECTION DETAILS WHERE APPLICABLE
Scale 1"=1'-0"
TYPICAL BEAM TO STACHION
CONNECTION DETAILS WHERE APPLICABLE
Scale 1"=1'-0"
BEAM CONNECTION DETAILS
S-1279th JUNE, 2014

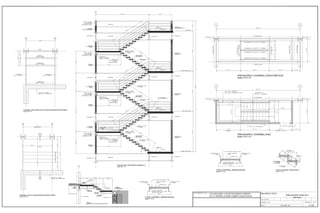

31. SECTION THRU.' FIRE ESPAPE STAIRWELL # 1
Scale 3/8"=1'-0"
3 4
STAIRWELL LAYOUT TO MAIN ENTRANCE (MANIC STREET)
Scale 3/8"=1'-0"
TYPICAL STAIRWELL TREADER DETAILS
Scale 1"=1'-0"
SECTION "L-L"
STAIRWELL LAYOUT TO MAIN ENTRANCE (MANIC STREET)
Scale 3/8"=1'-0"
TYPICAL STAIRWELL TREADER DETAILS
Scale 1"=1'-0"
FIRE ESCAPE # 1 STAIRWELL STRUCTURE PLAN
Scale 1/4"=1'-0"
FIRE ESCAPE # 1 STAIRWELL PLAN
Scale 1/4"=1'-0"
TYPICAL STAIRWELL TREAD DETAILS
Scale 1"=1'-0"
3 4
STAIRWELL STRUCTURE LAYOUT TO MAIN ENTRANCE (MANIC STREET)
Scale 3/8"=1'-0"
FIRE ESCAPE STAIR NO.1
DETAILS
S-1289th JUNE, 2014
32. SECTION THRU.' FIRE ESPAPE STAIRWELL # 2
Scale 3/8"=1'-0"
TYPICAL STAIRWELL TREADER DETAILS
Scale 1"=1'-0"
FIRE ESCAPE # 2 STAIRWELL STRUCTURE PLAN
Scale 1/4"=1'-0"
FIRE ESCAPE # 2 STAIRWELL PLAN
Scale 1/4"=1'-0"
TYPICAL STAIRWELL TREAD DETAILS
Scale 1"=1'-0"
FIRE ESCAPE STAIR NO.2
DETAILS
S-1299th JUNE, 2014
