1. Hands on Raspberry Pi

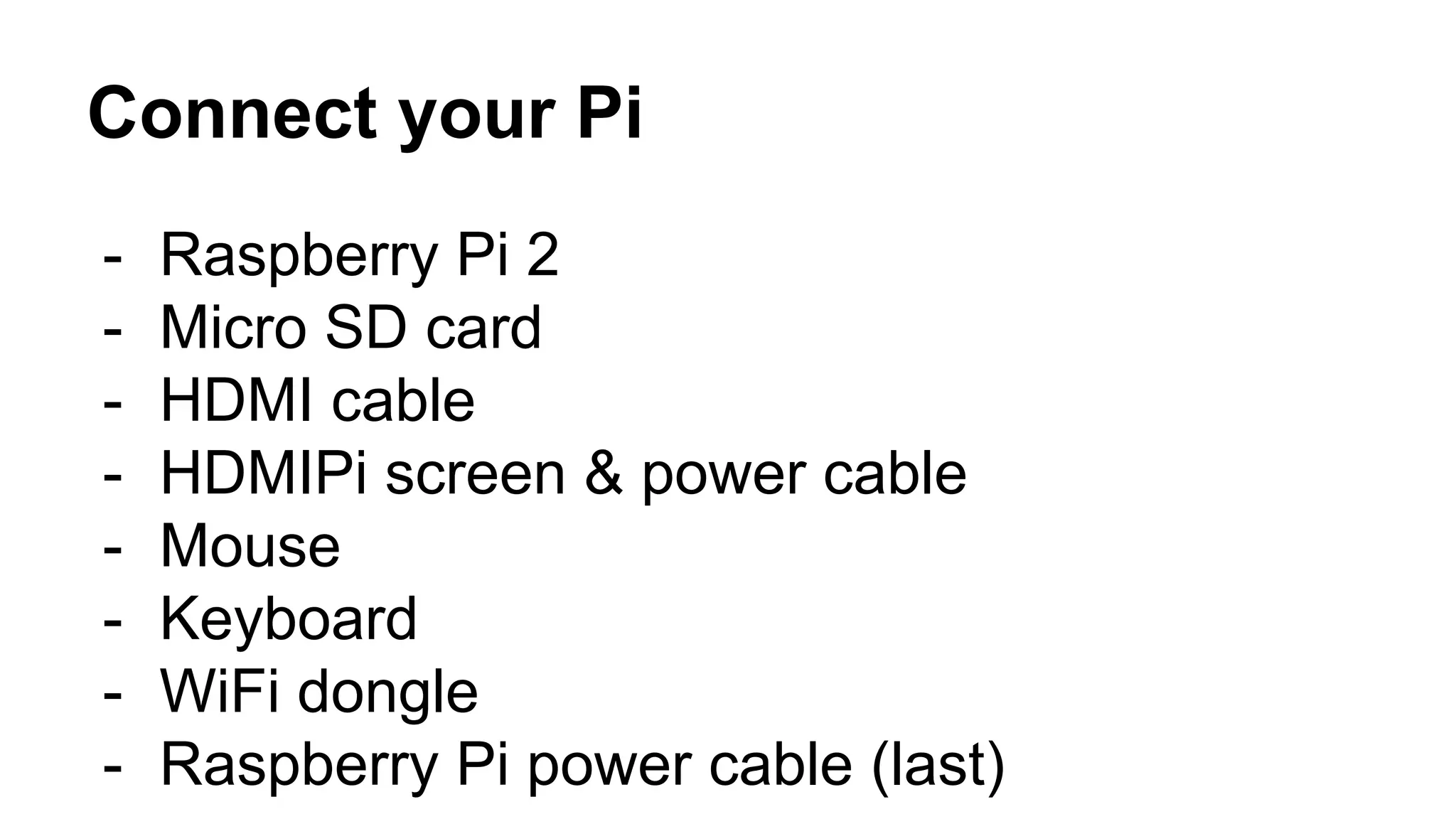

2. Connect your Pi
- Raspberry Pi 2
- Micro SD card
- HDMI cable
- HDMIPi screen & power cable
- Mouse
- Keyboard
- WiFi dongle
- Raspberry Pi power cable (last)

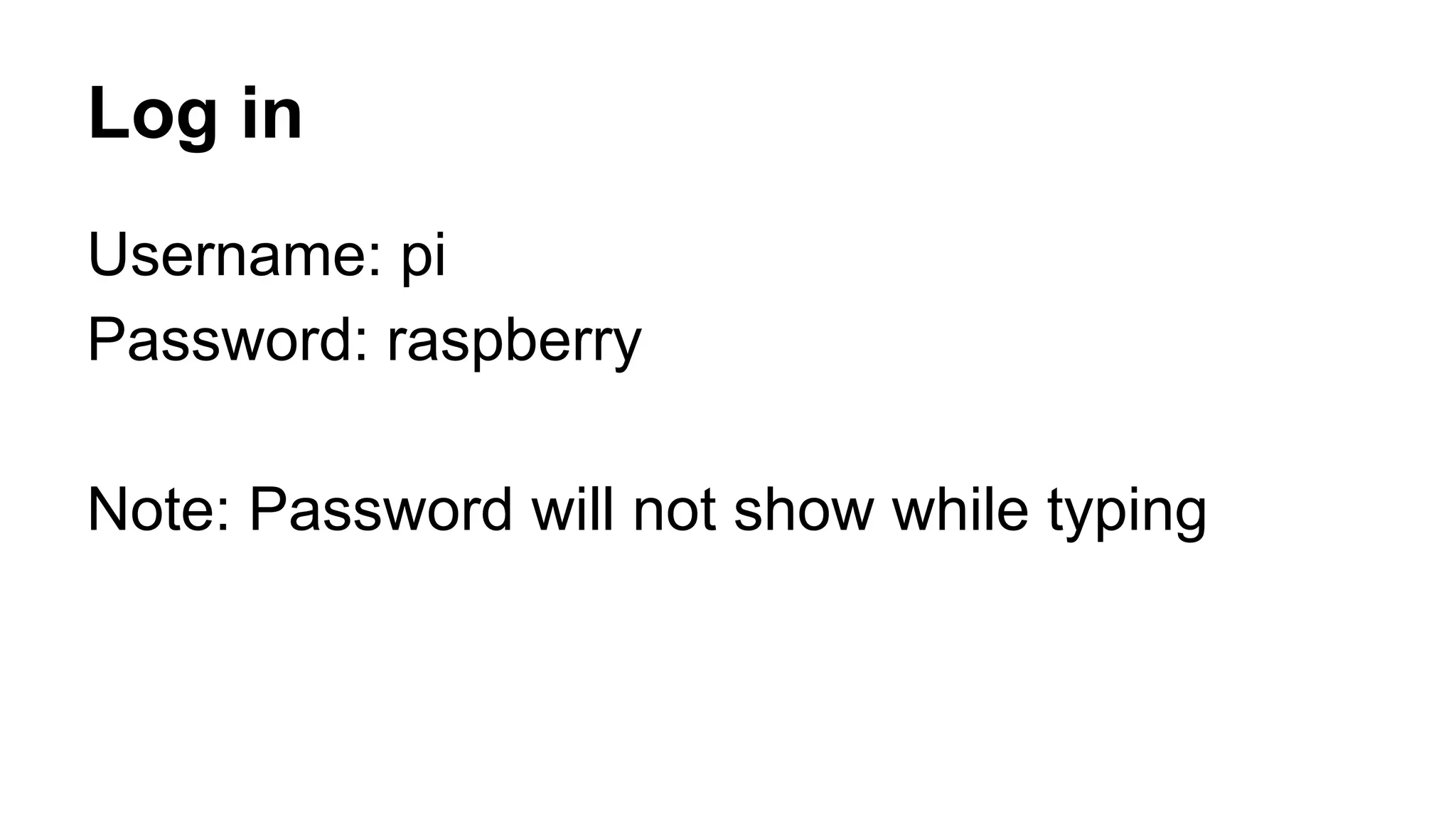

3. Log in
Username: pi
Password: raspberry
Note: Password will not show while typing

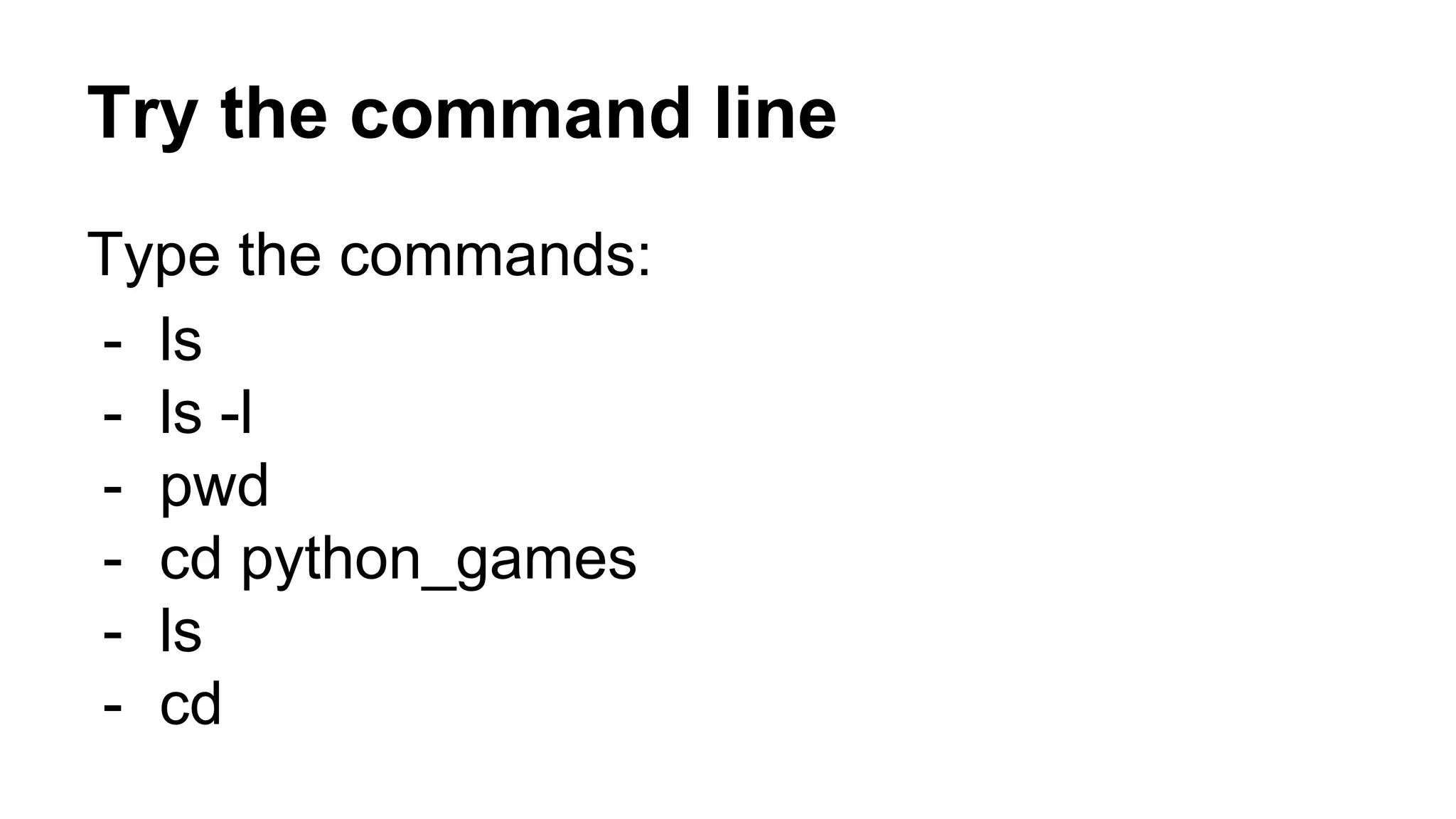

4. Try the command line
Type the commands:
- ls
- ls -l
- pwd
- cd python_games
- ls
- cd

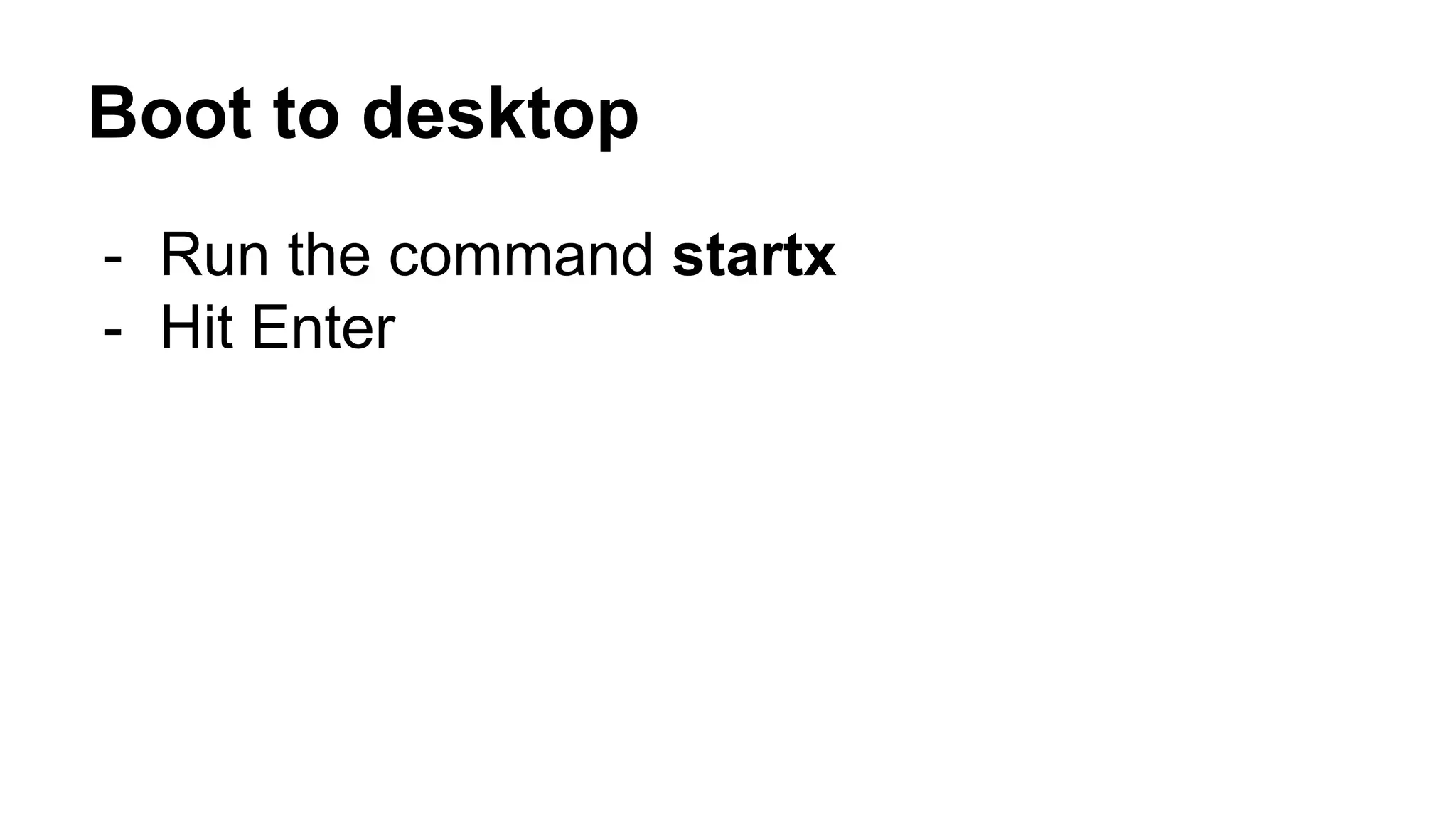

5. Boot to desktop
- Run the command startx
- Hit Enter

6. Open Python 3
Python is a programming language
IDLE is a Python application

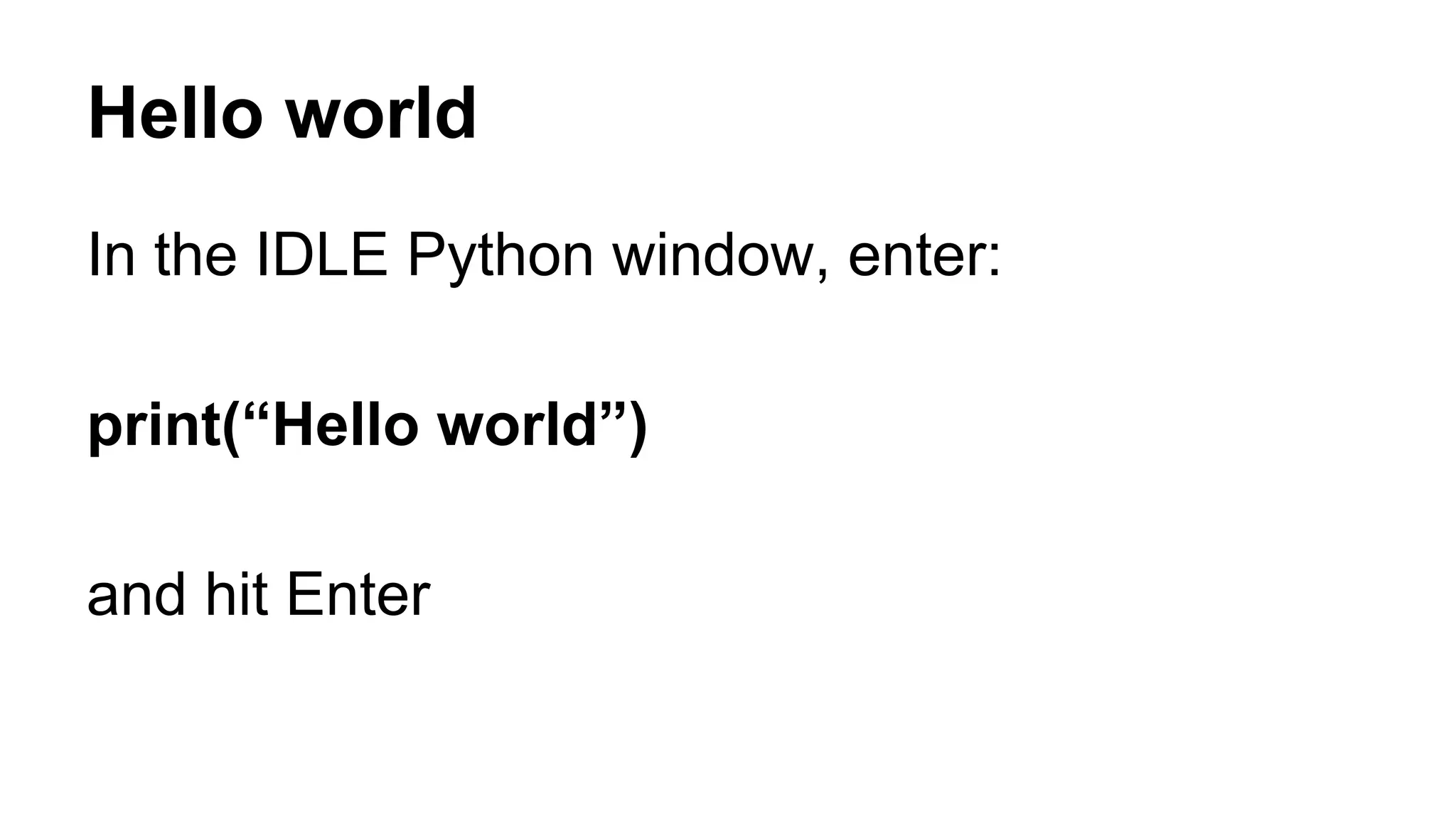

7. Hello world
In the IDLE Python window, enter:
print(“Hello world”)
and hit Enter

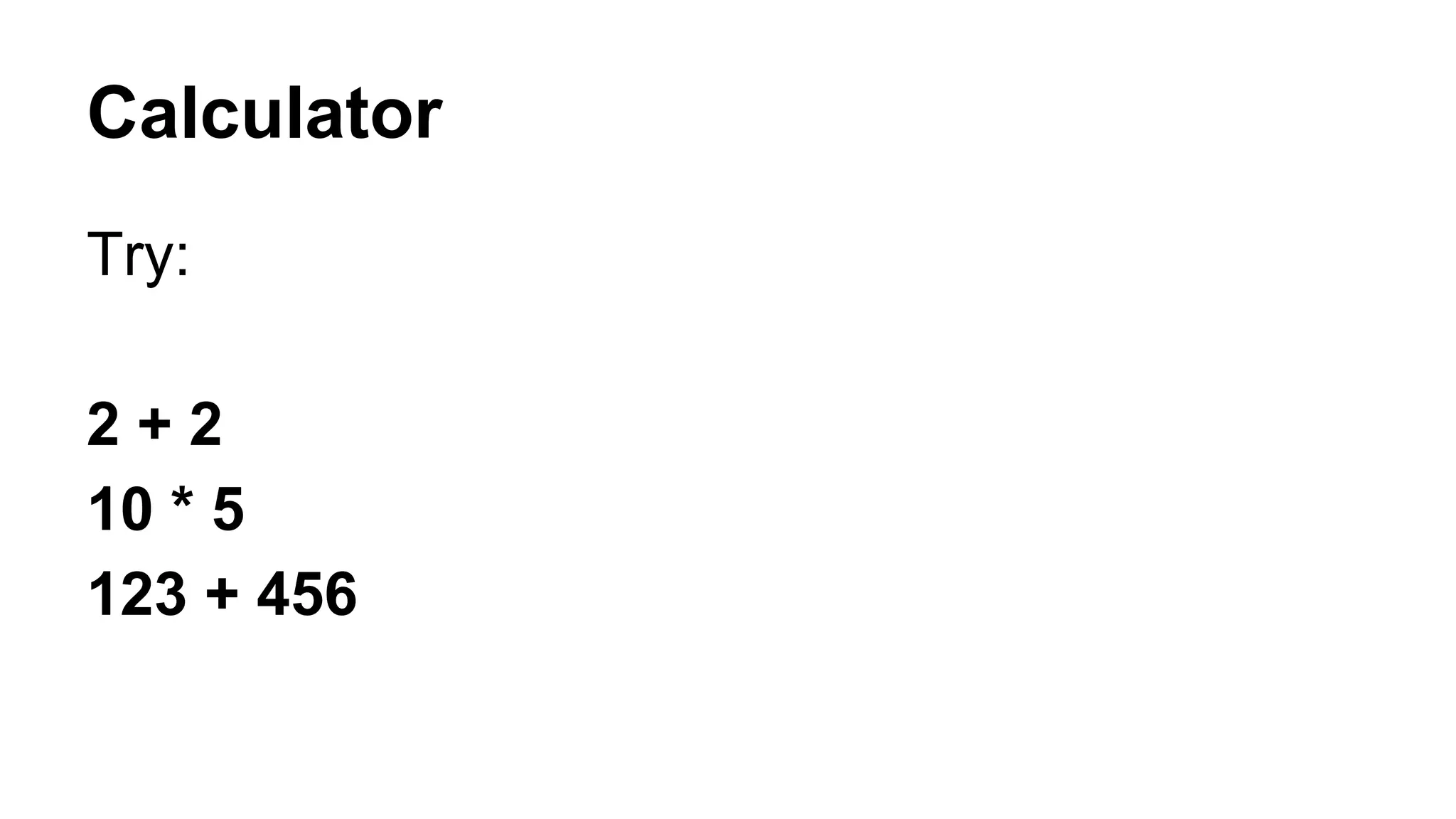

8. Calculator
Try:
2 + 2
10 * 5
123 + 456

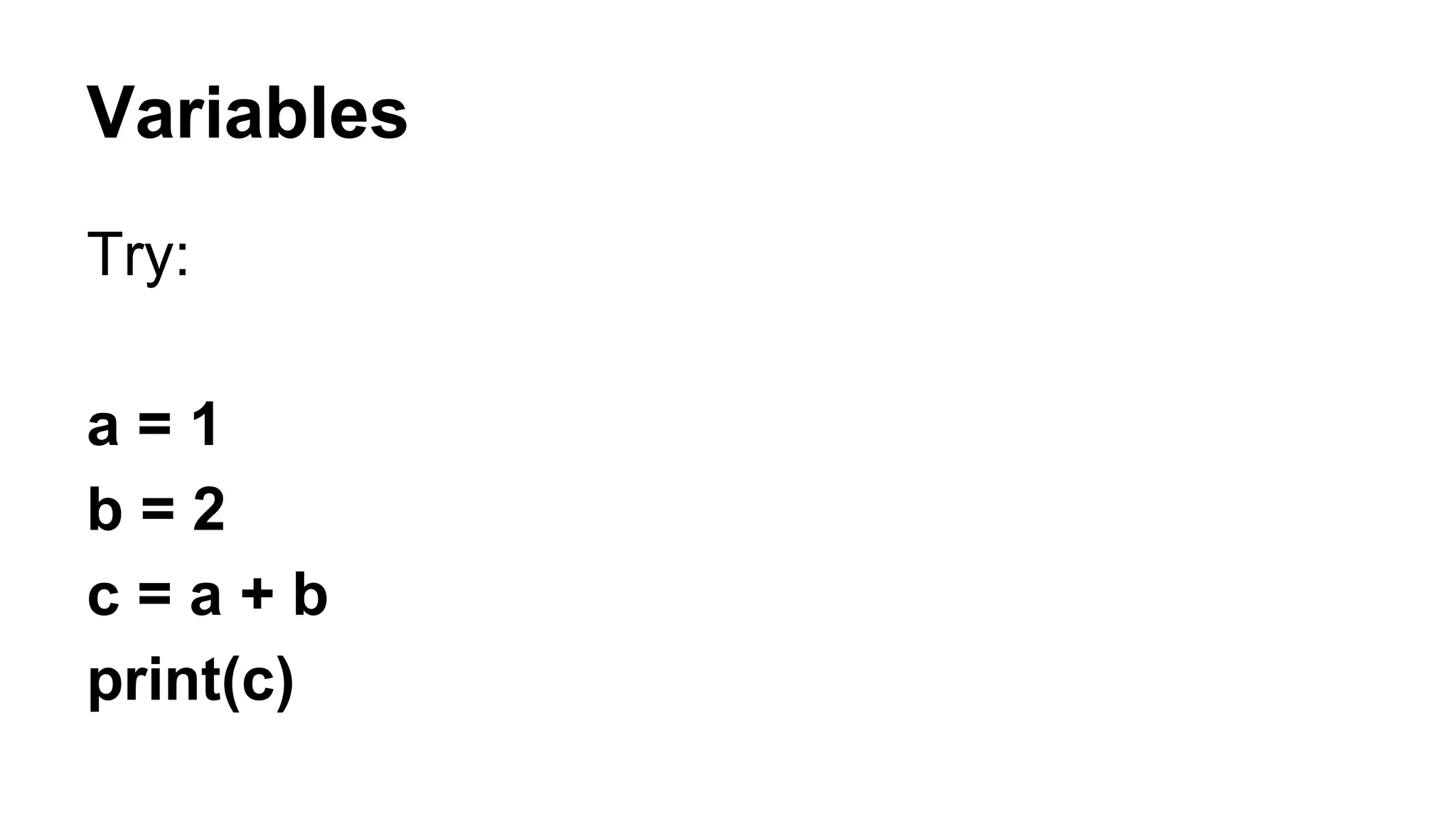

9. Variables
Try:
a = 1
b = 2
c = a + b
print(c)

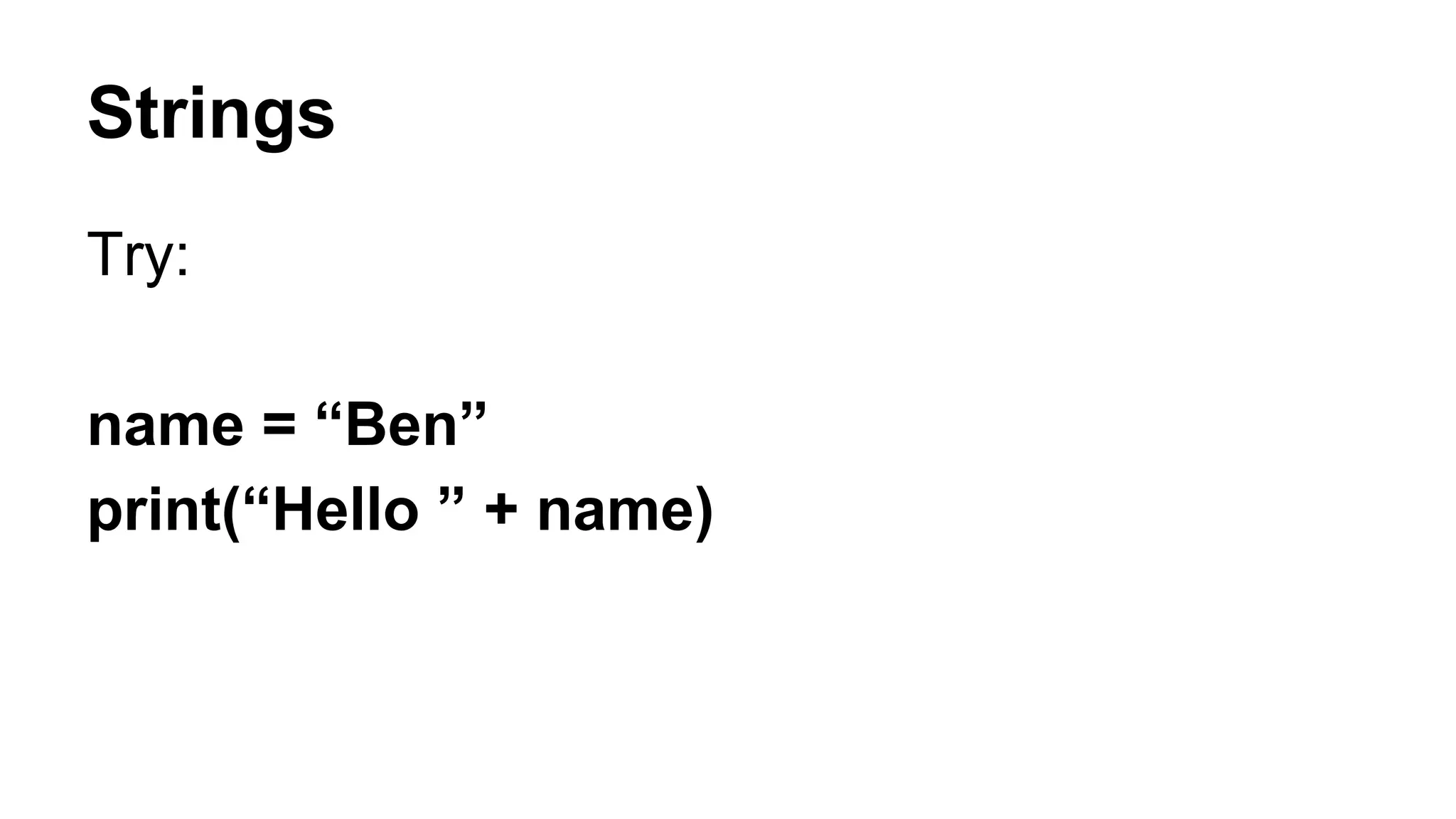

10. Strings
Try:
name = “Ben”
print(“Hello ” + name)

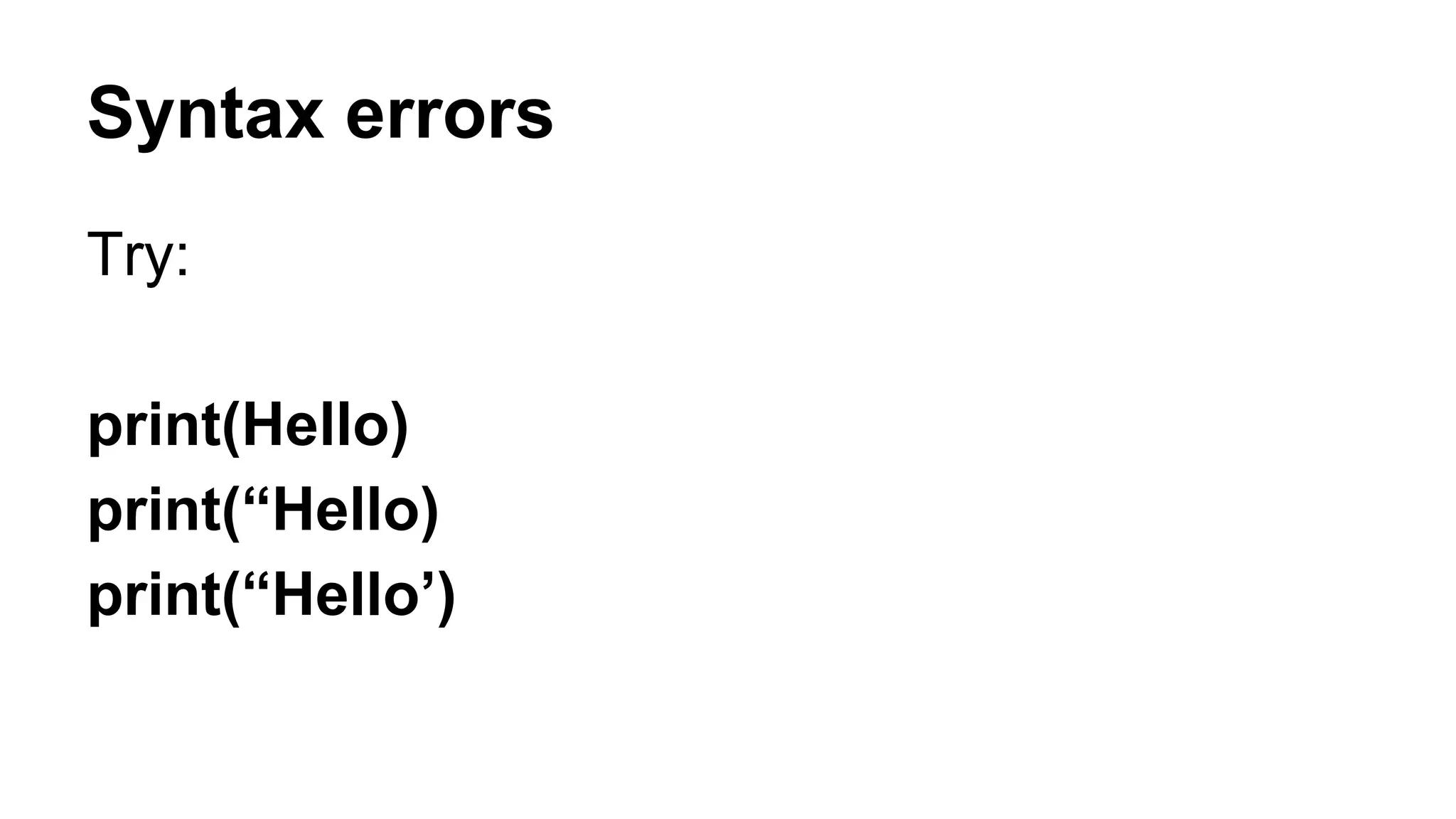

11. Syntax errors
Try:
print(Hello)
print(“Hello)
print(“Hello’)

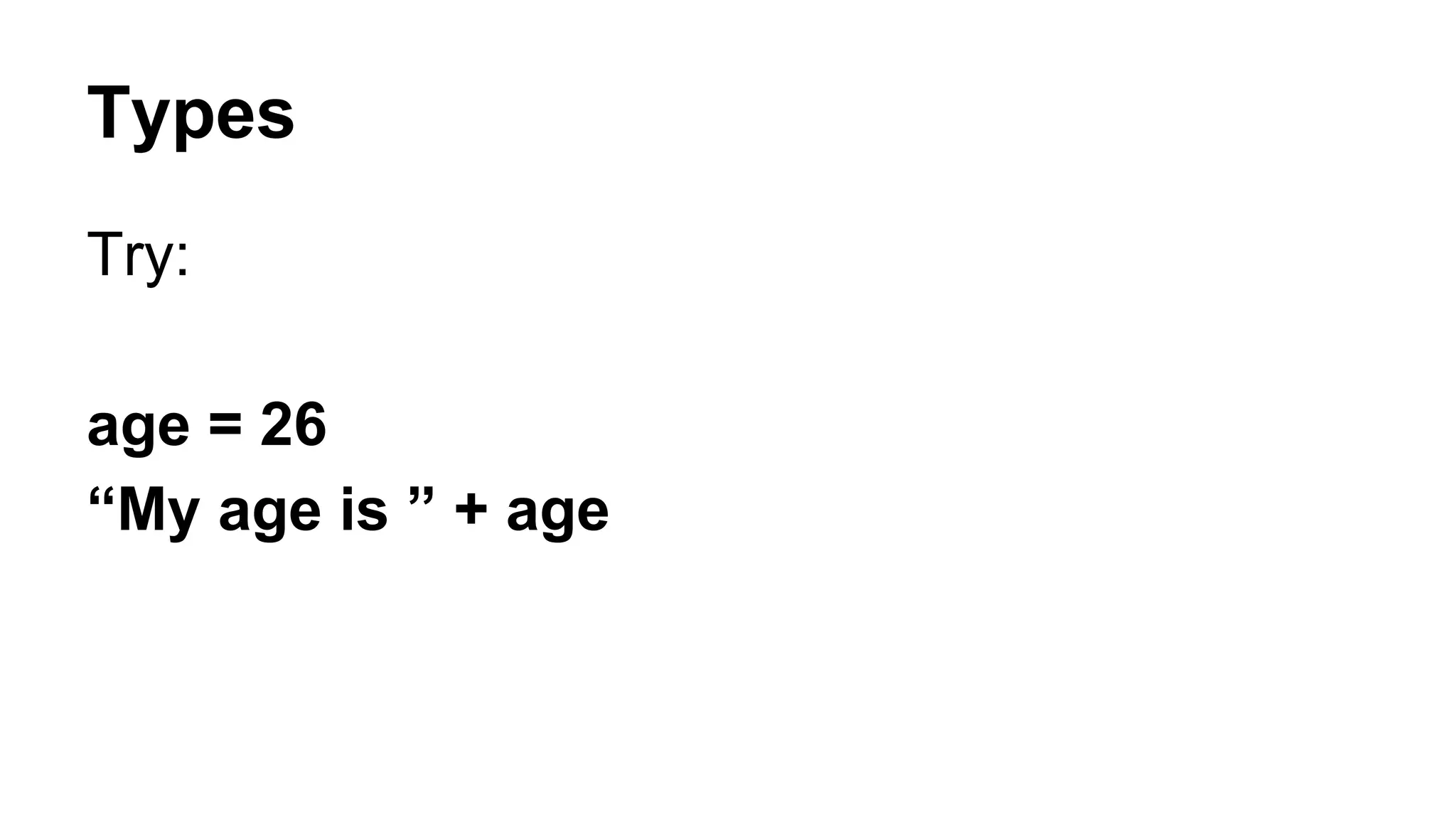

12. Types
Try:
age = 26
“My age is ” + age

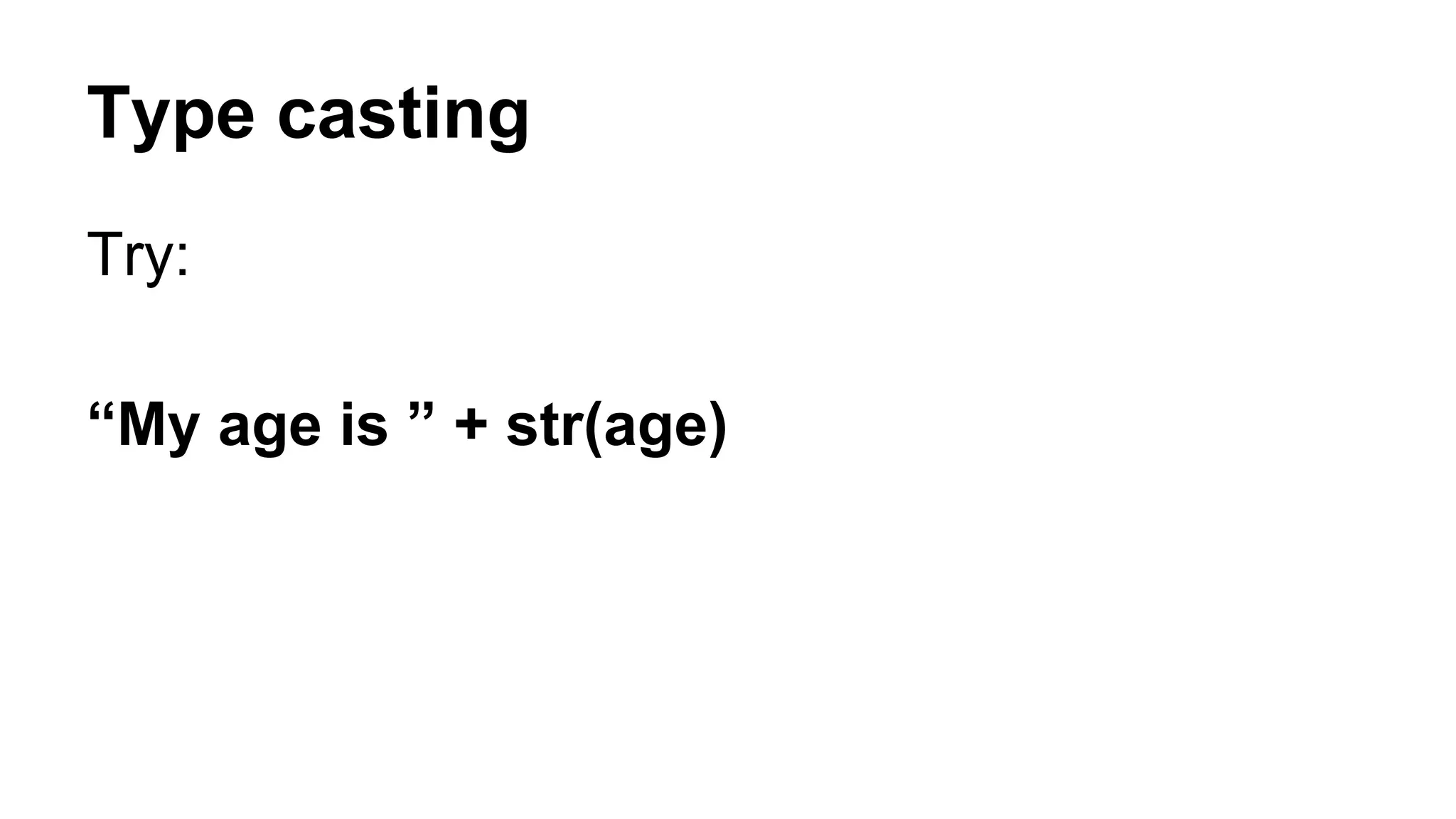

13. Type casting
Try:
“My age is ” + str(age)

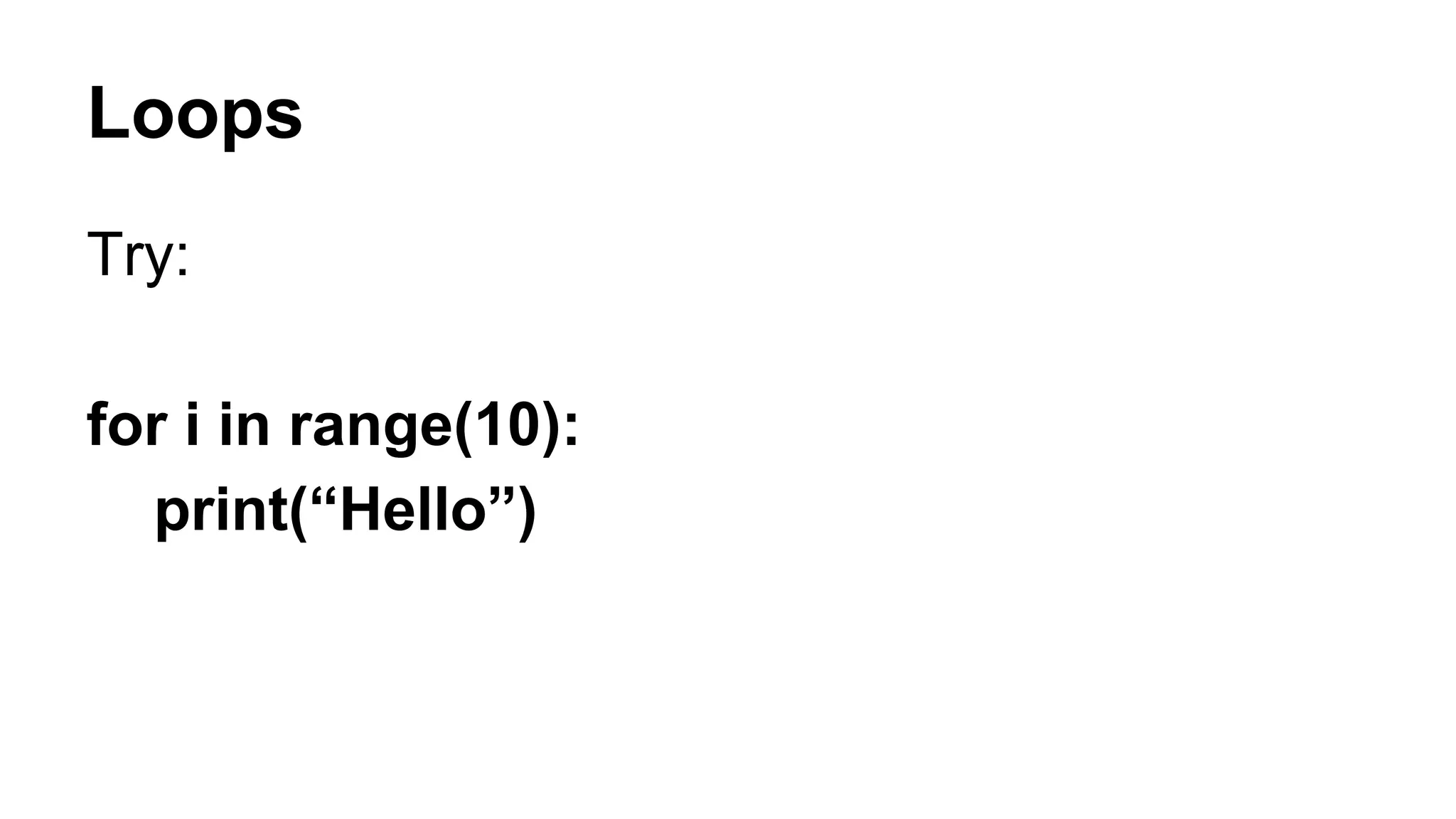

14. Loops
Try:
for i in range(10):
print(“Hello”)

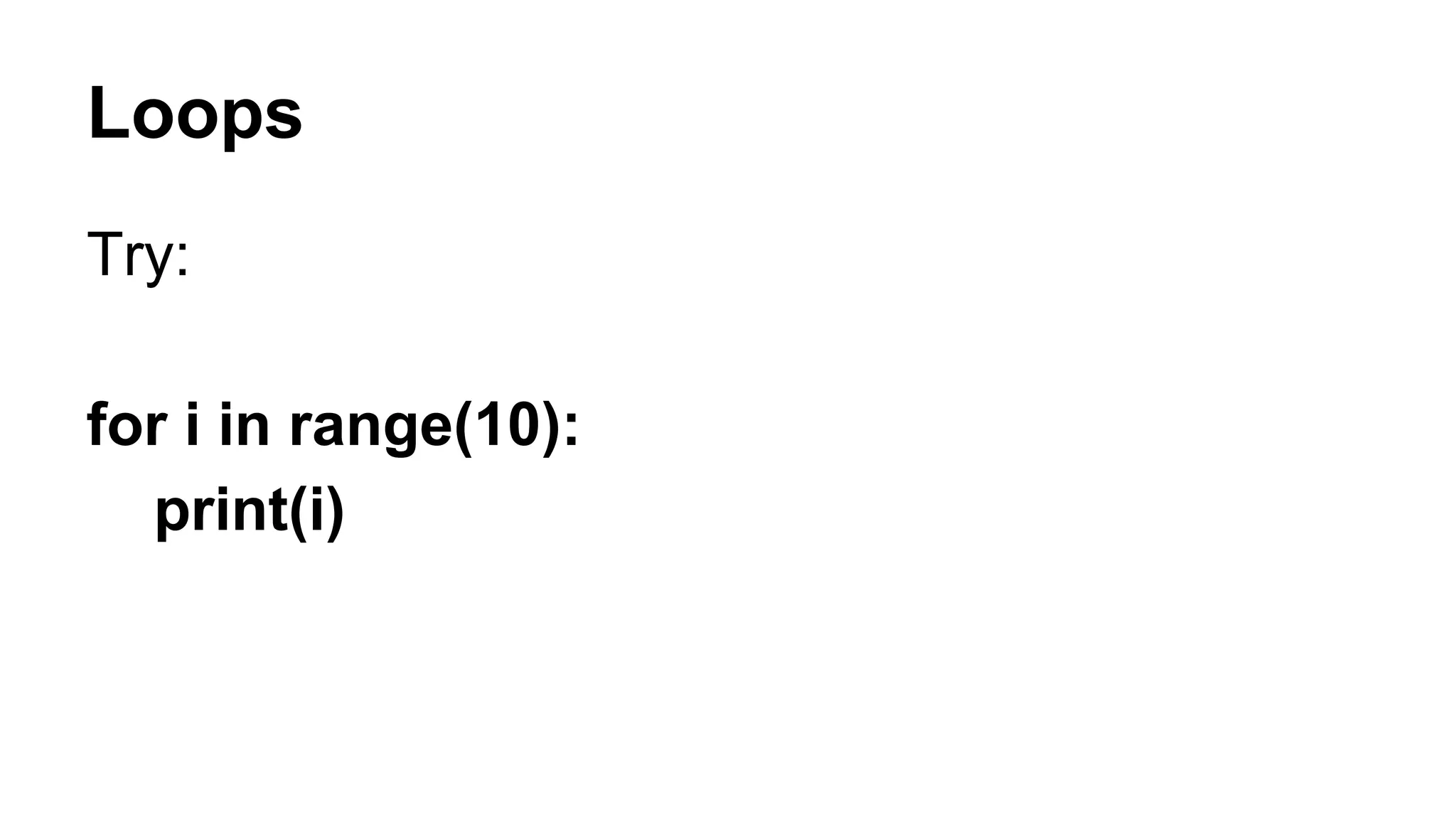

15. Loops
Try:
for i in range(10):
print(i)

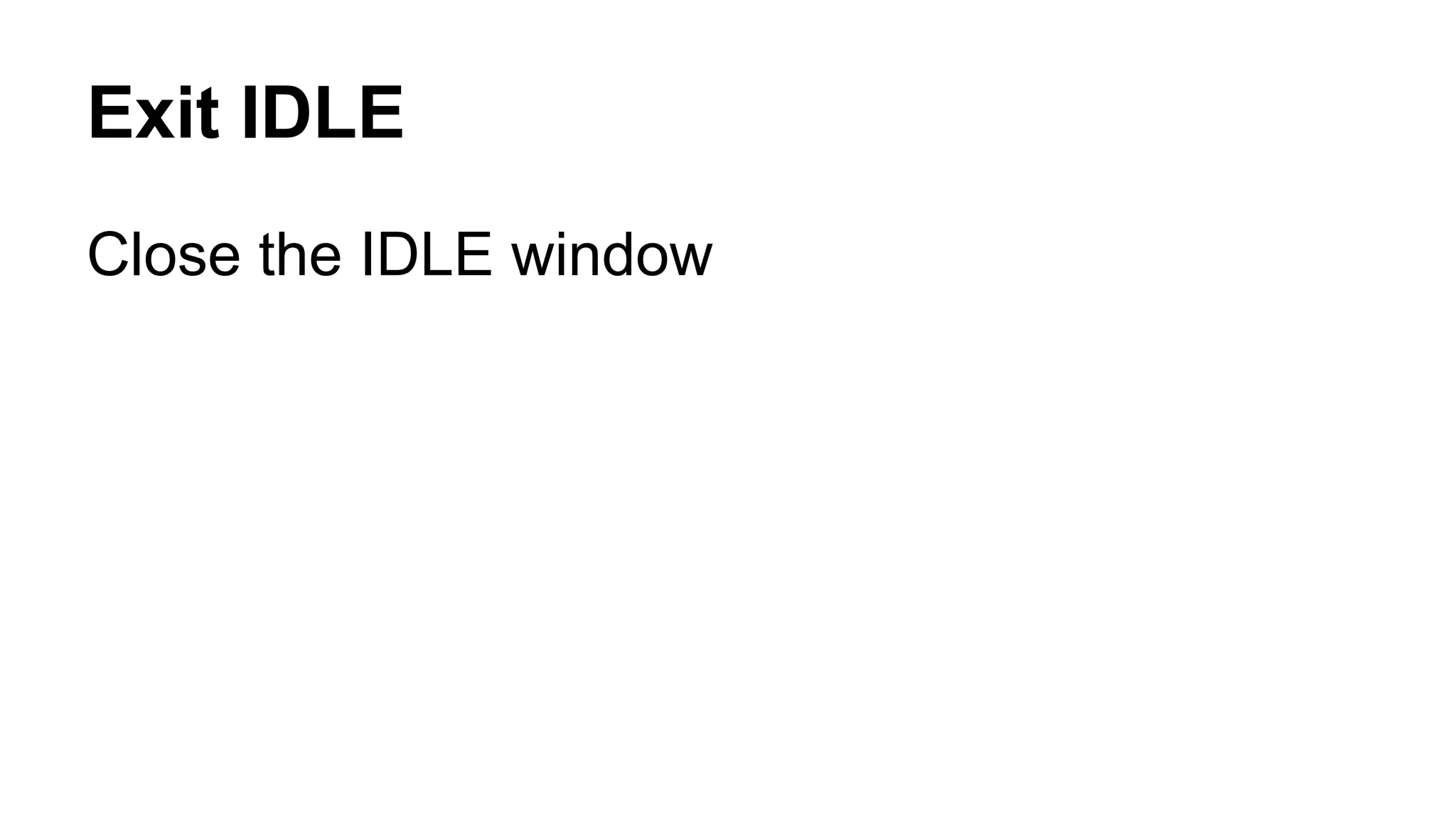

16. Exit IDLE
Close the IDLE window

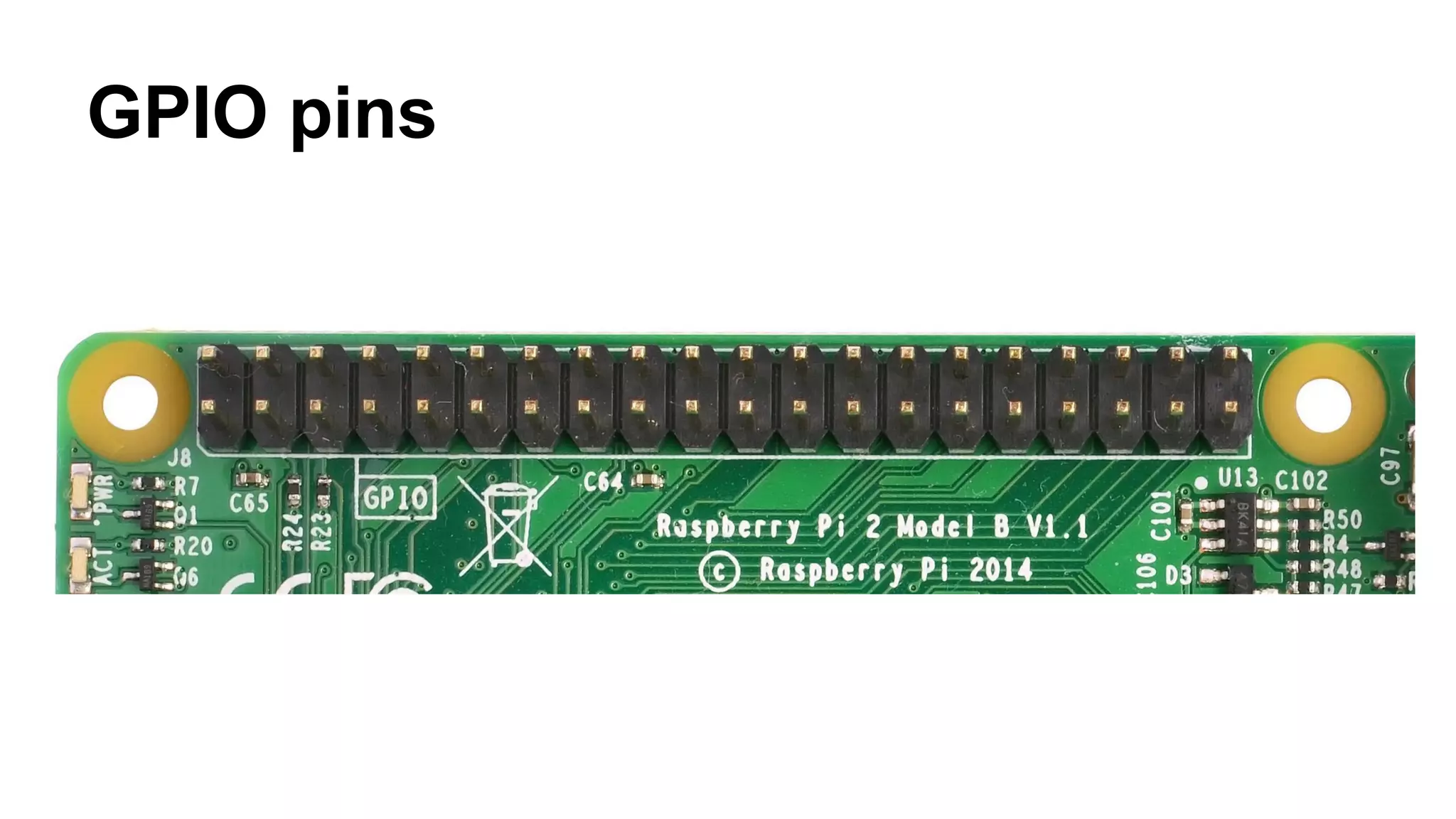

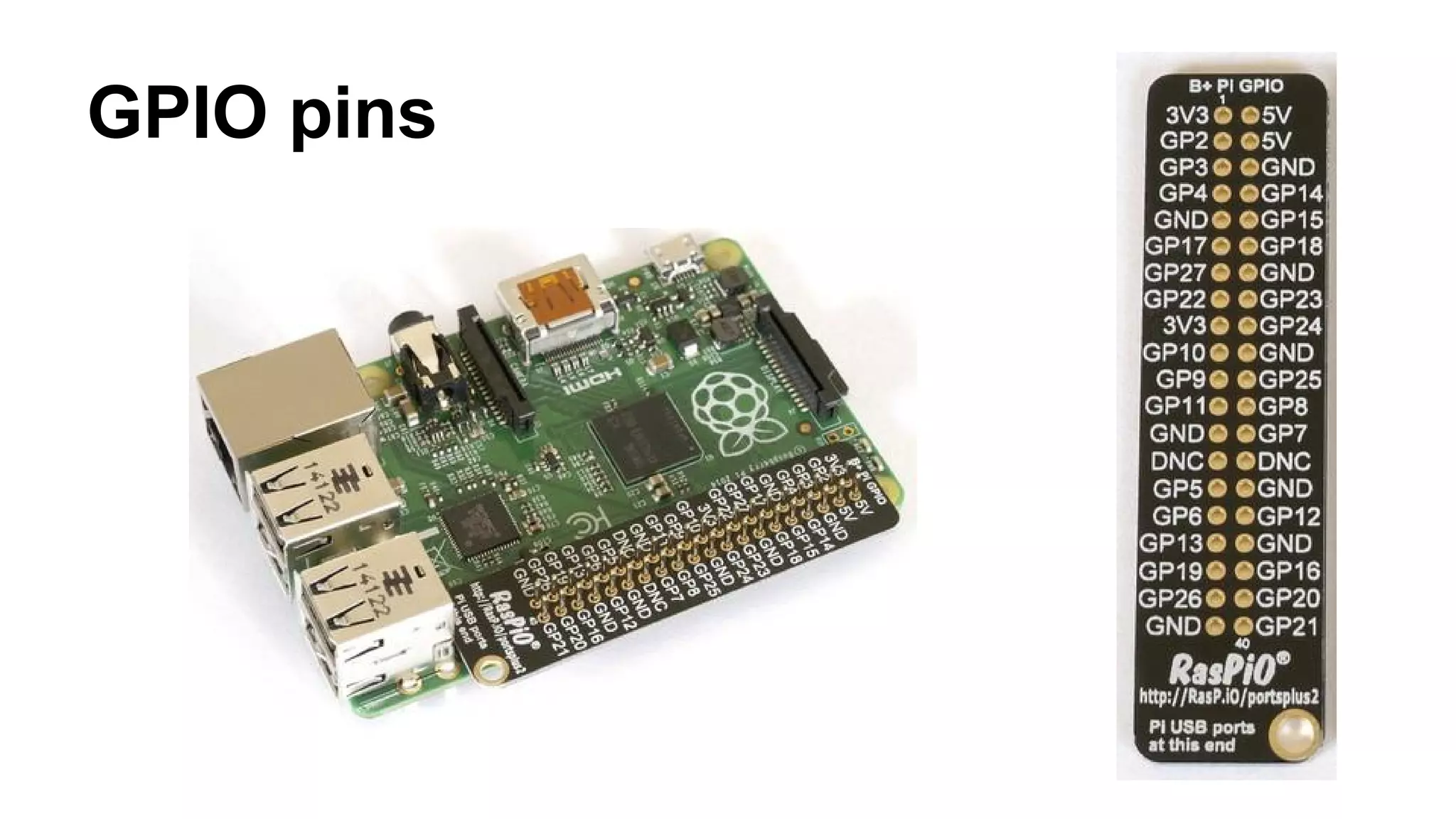

17. GPIO pins

18. GPIO pins

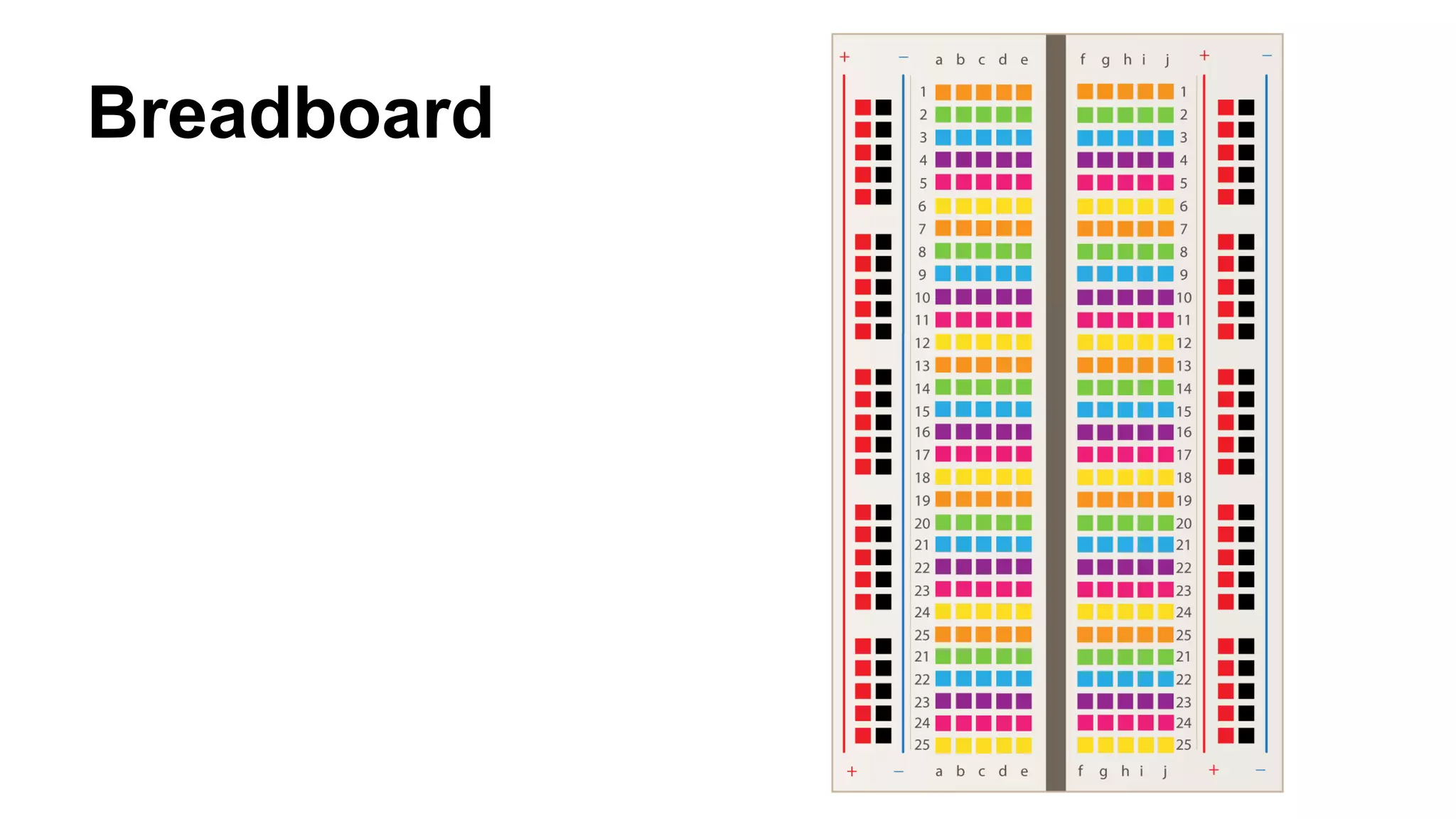

19. Breadboard

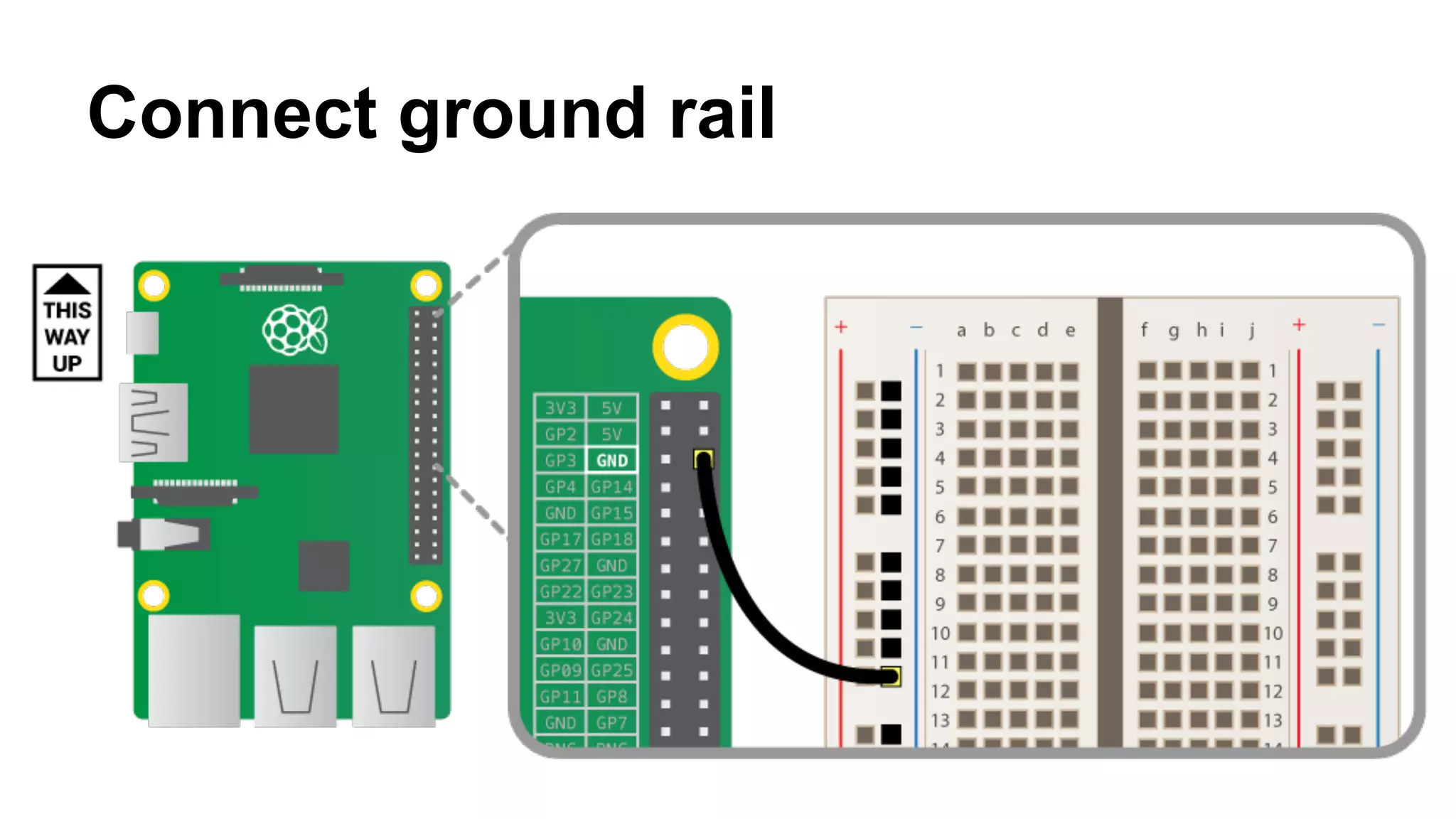

20. Connect ground rail

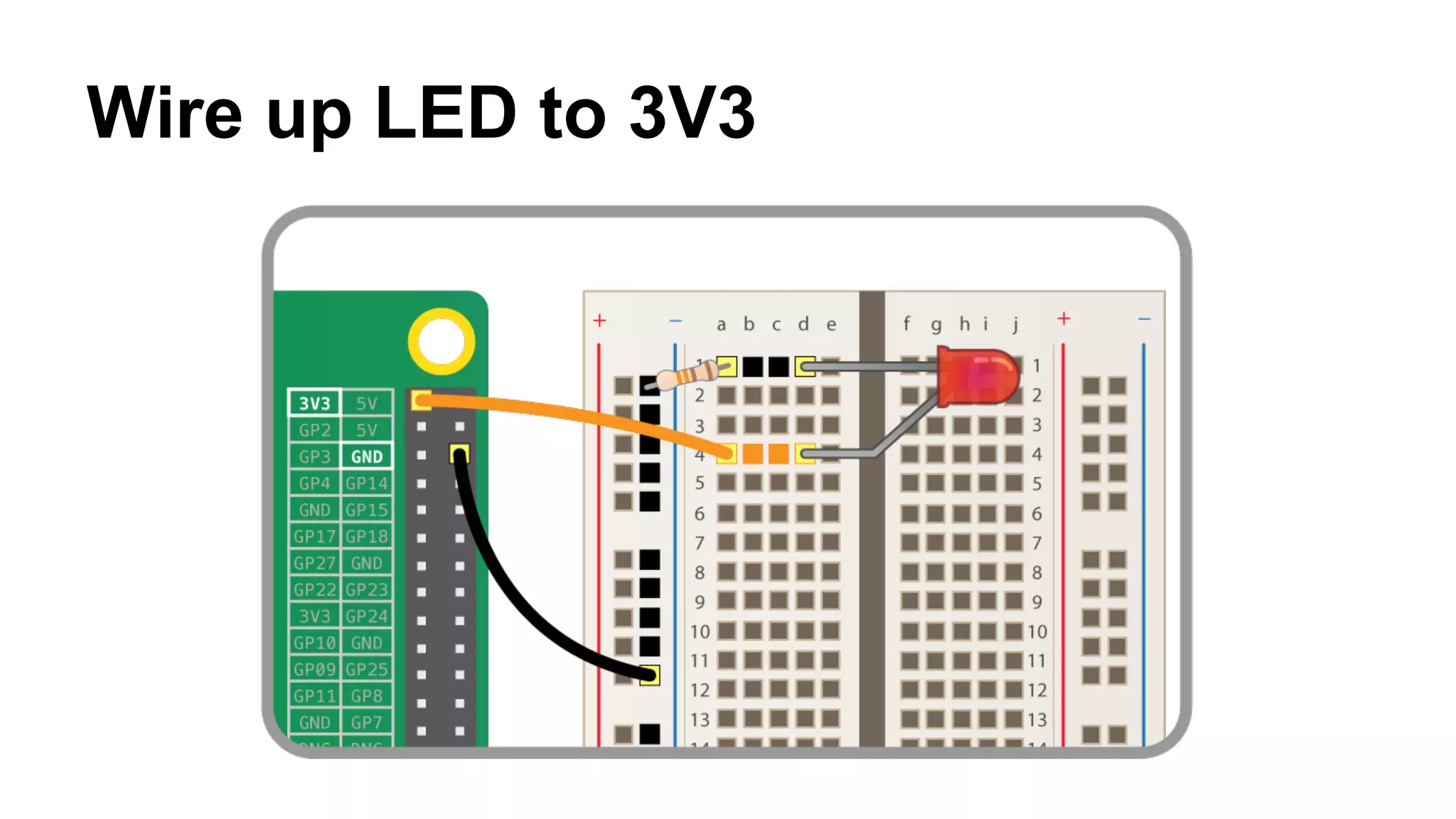

21. Wire up LED to 3V3

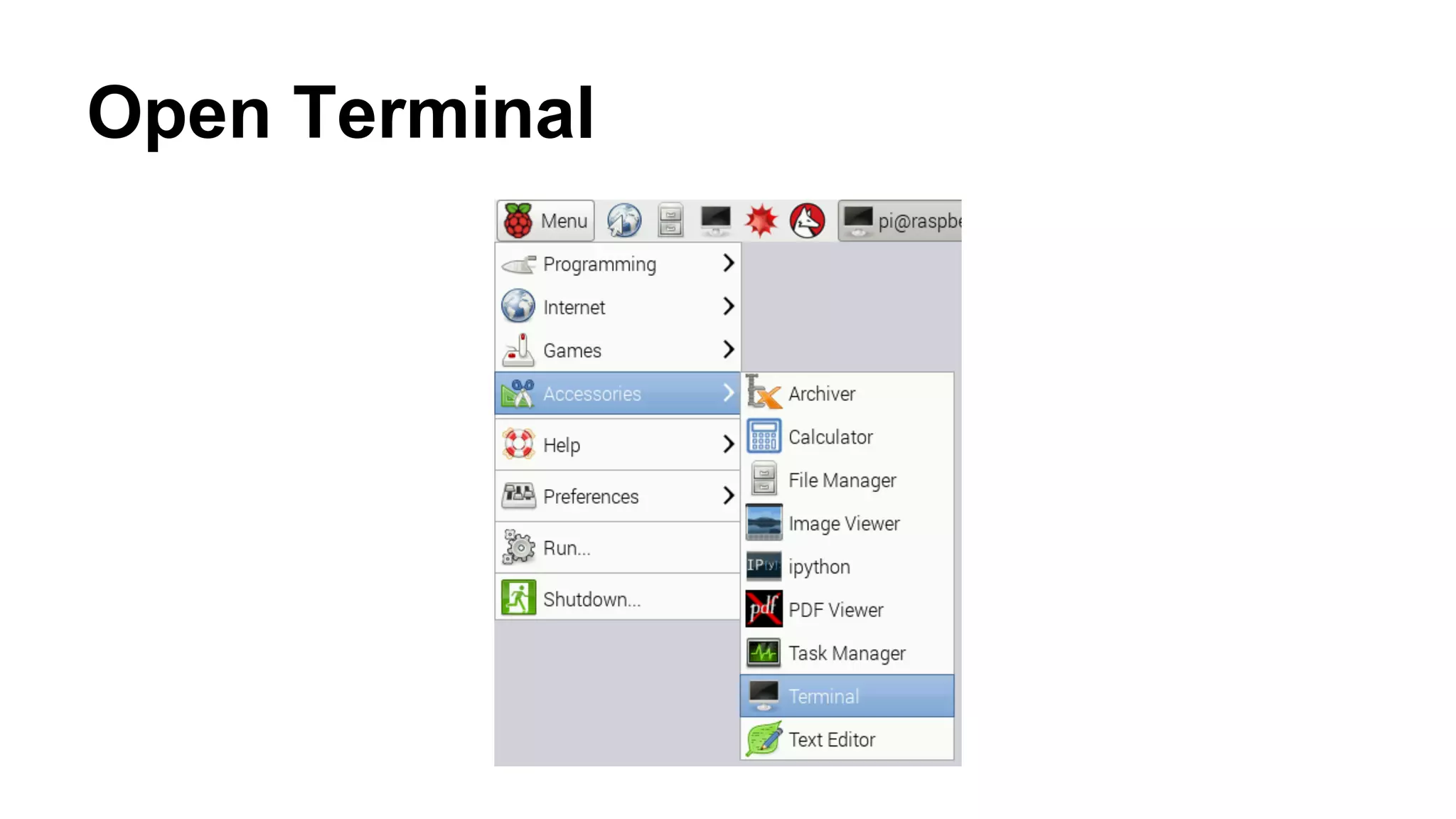

22. Open Terminal

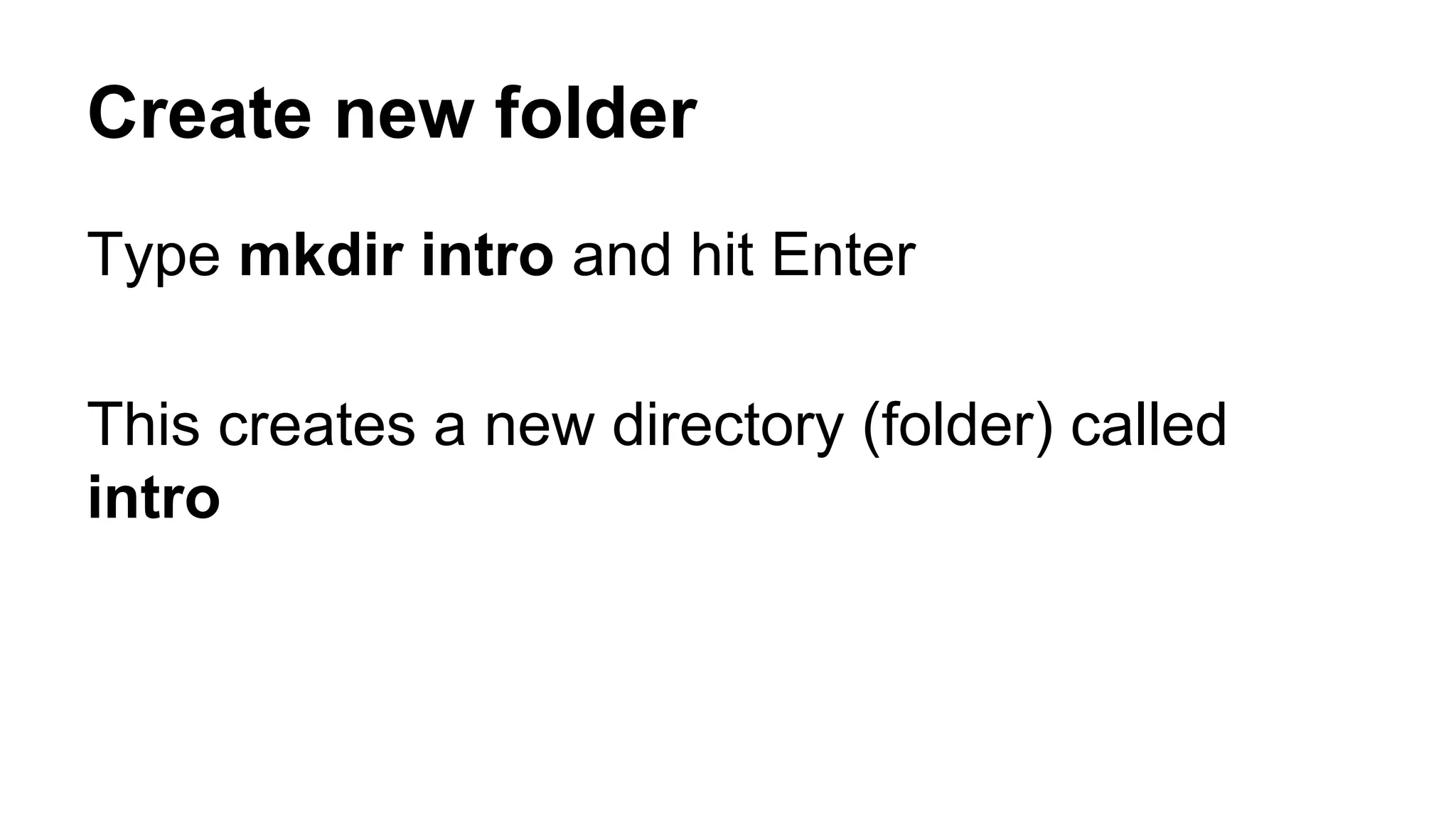

23. Create new folder
Type mkdir intro and hit Enter
This creates a new directory (folder) called
intro

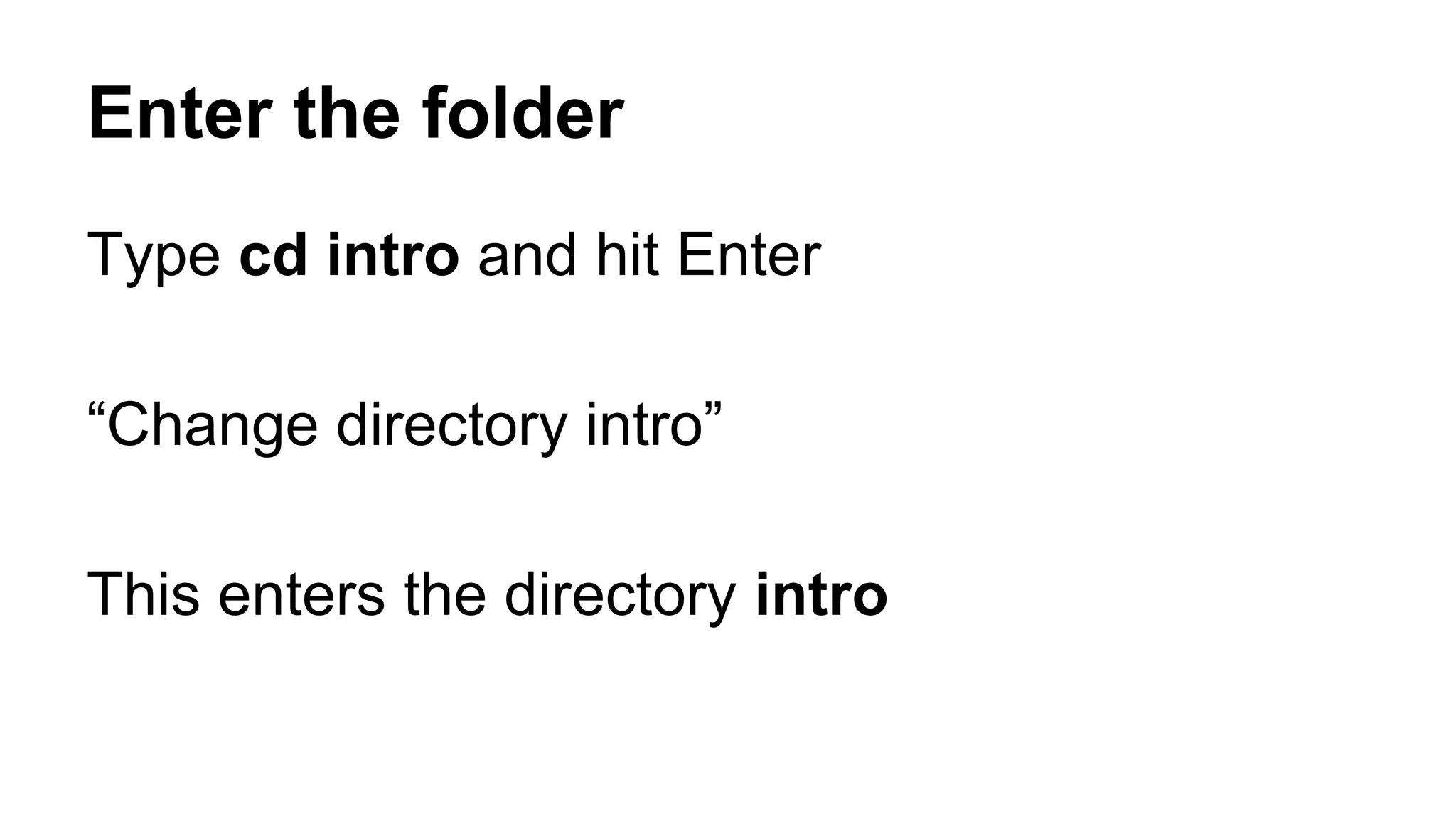

24. Enter the folder
Type cd intro and hit Enter
“Change directory intro”
This enters the directory intro

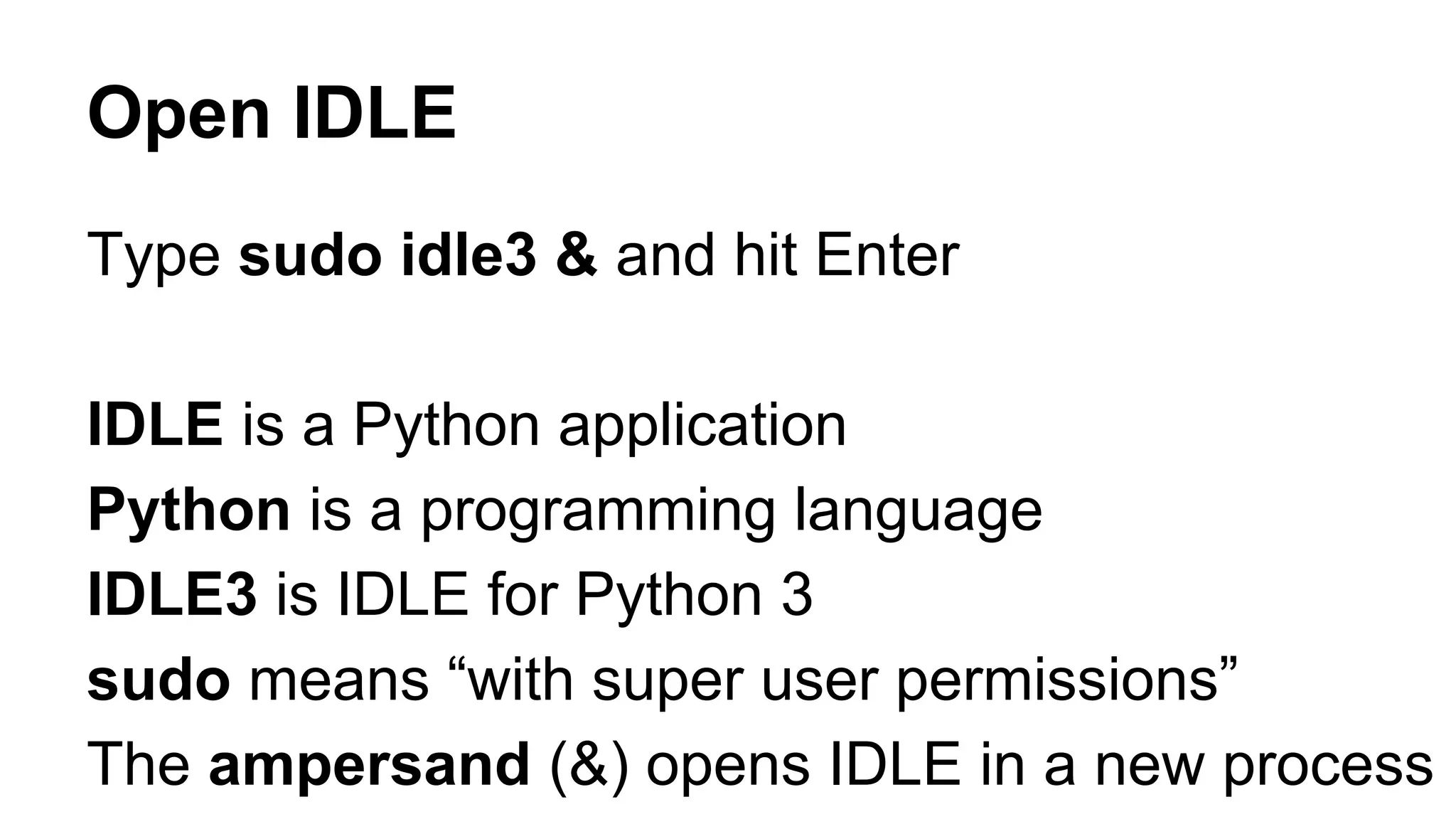

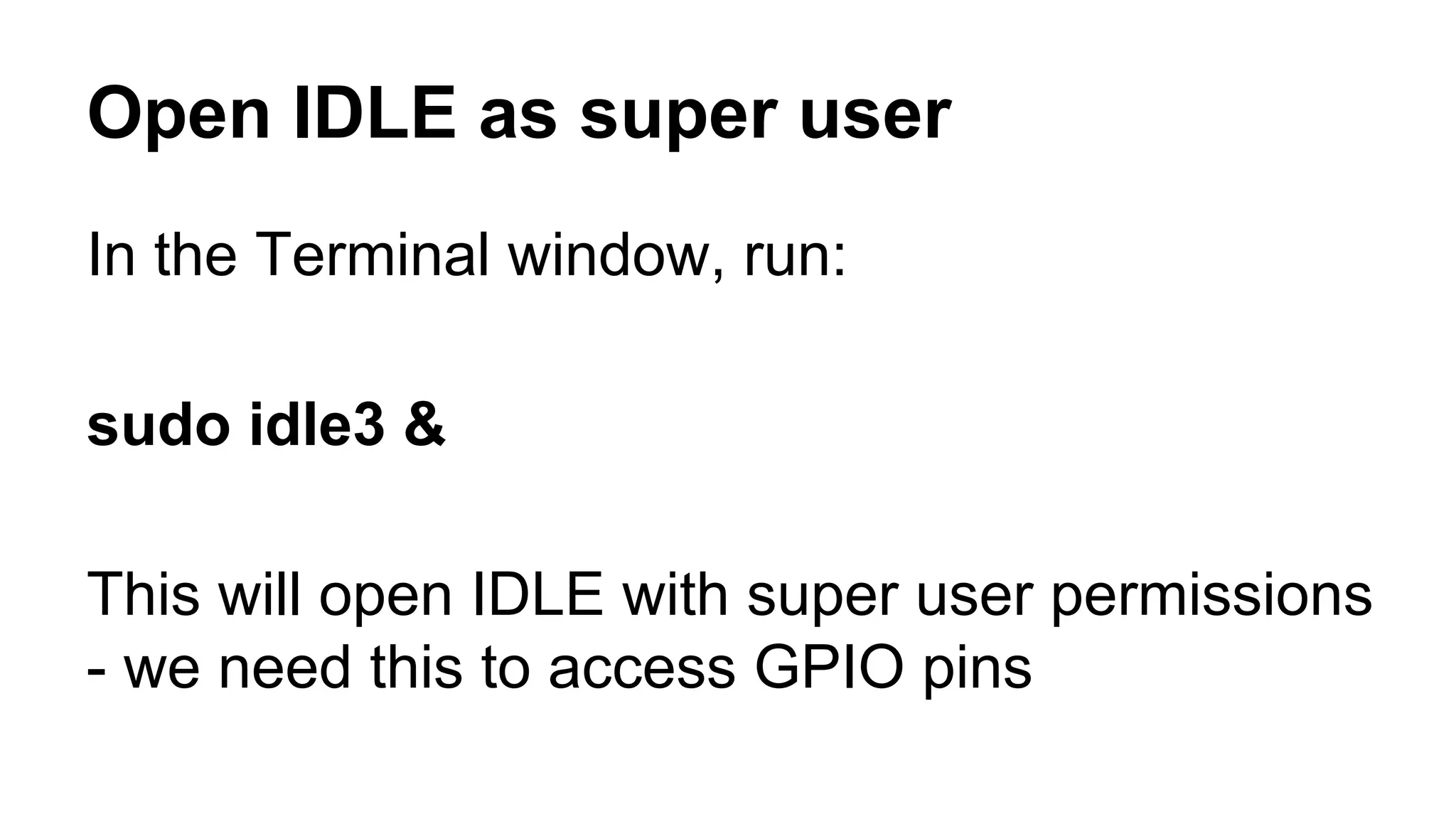

25. Open IDLE as super user
In the Terminal window, run:
sudo idle3 &
This will open IDLE with super user permissions
- we need this to access GPIO pins
The ampersand (&) opens it in a new process

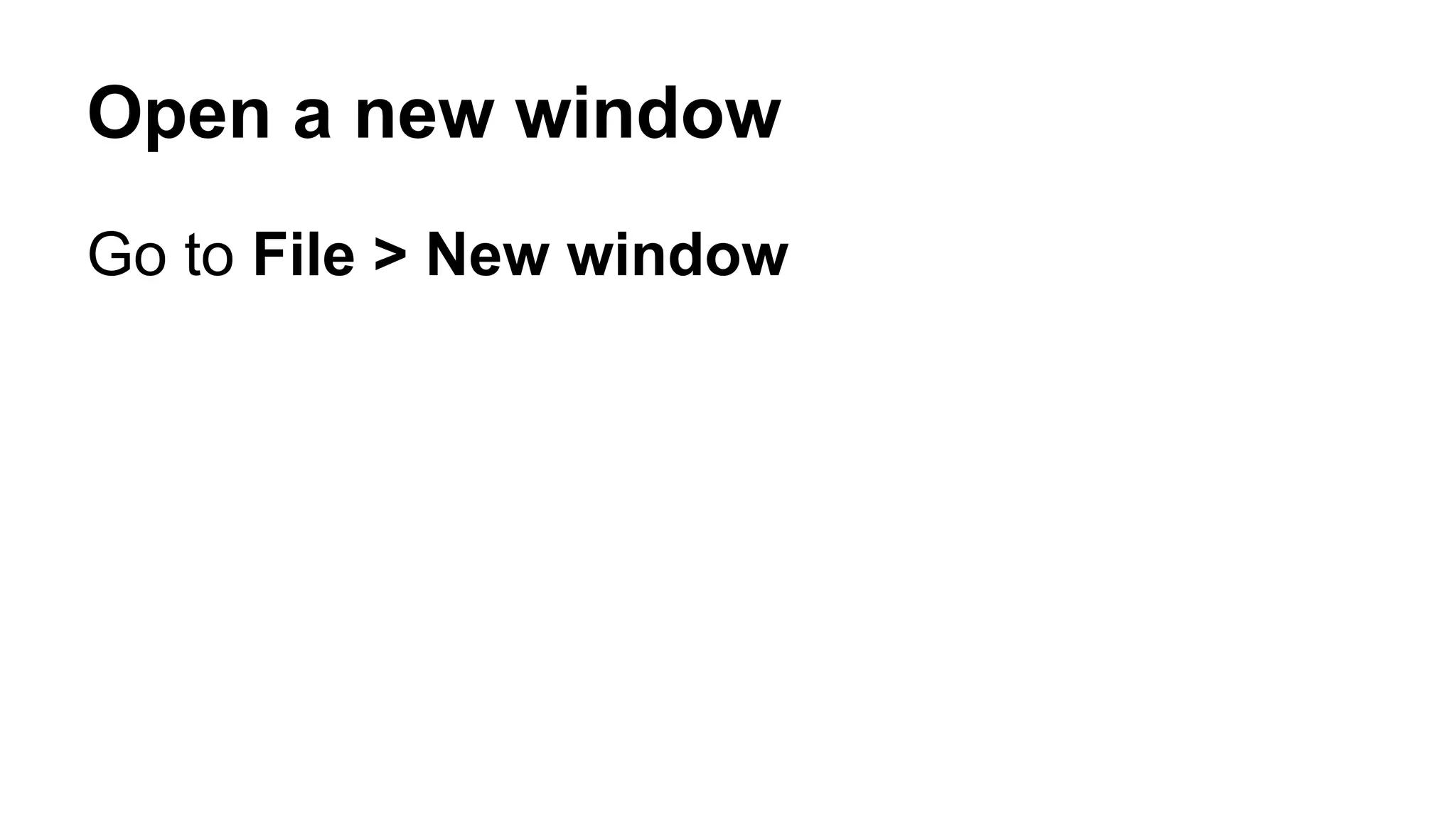

26. Open a new window
Go to File > New window

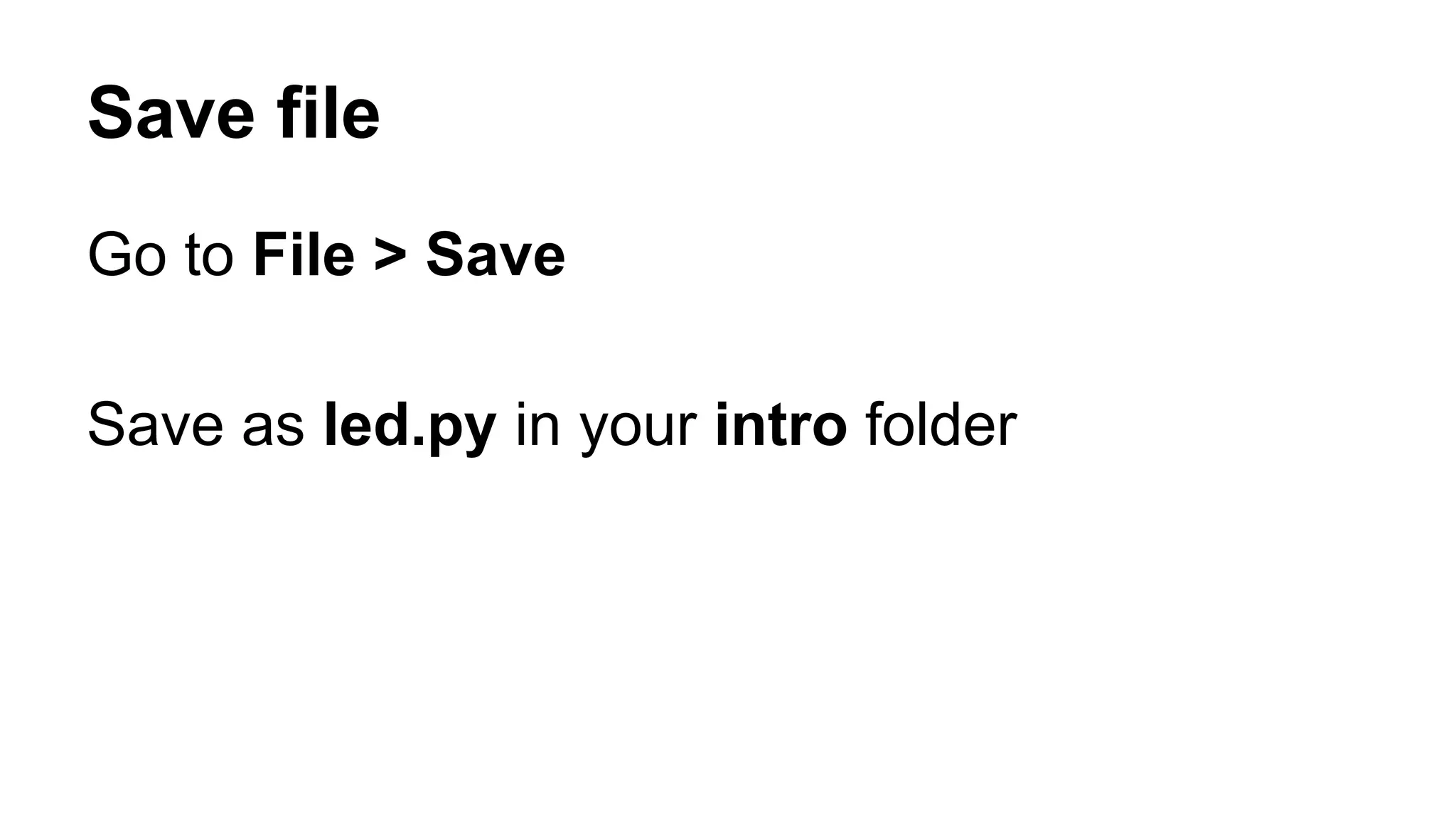

27. Save file
Go to File > Save
Save as led.py in your intro folder

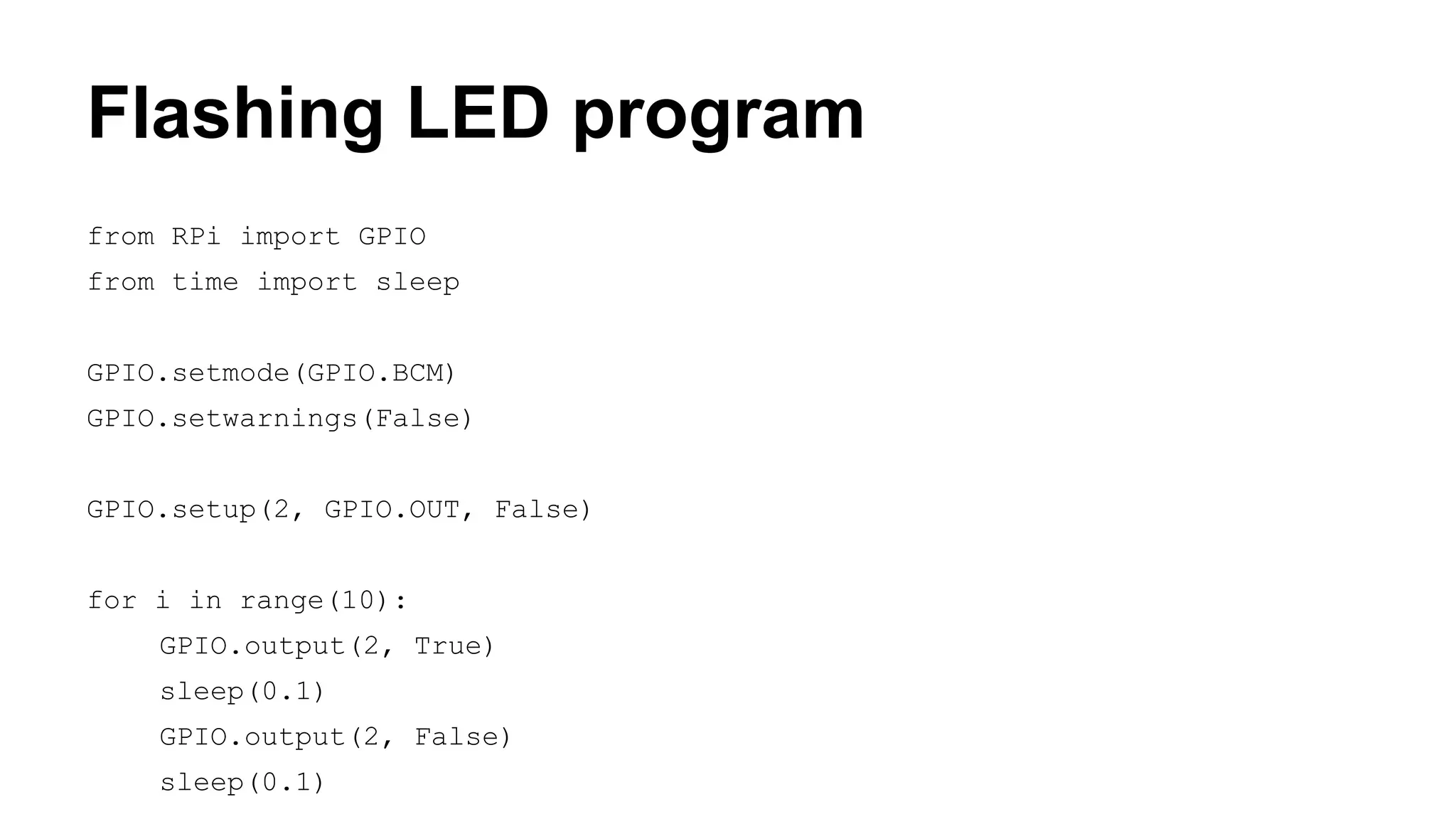

28. Flashing LED program
from RPi import GPIO
from time import sleep
GPIO.setmode(GPIO.BCM)
GPIO.setwarnings(False)
GPIO.setup(2, GPIO.OUT, False)
for i in range(10):
GPIO.output(2, True)
sleep(0.1)
GPIO.output(2, False)
sleep(0.1)

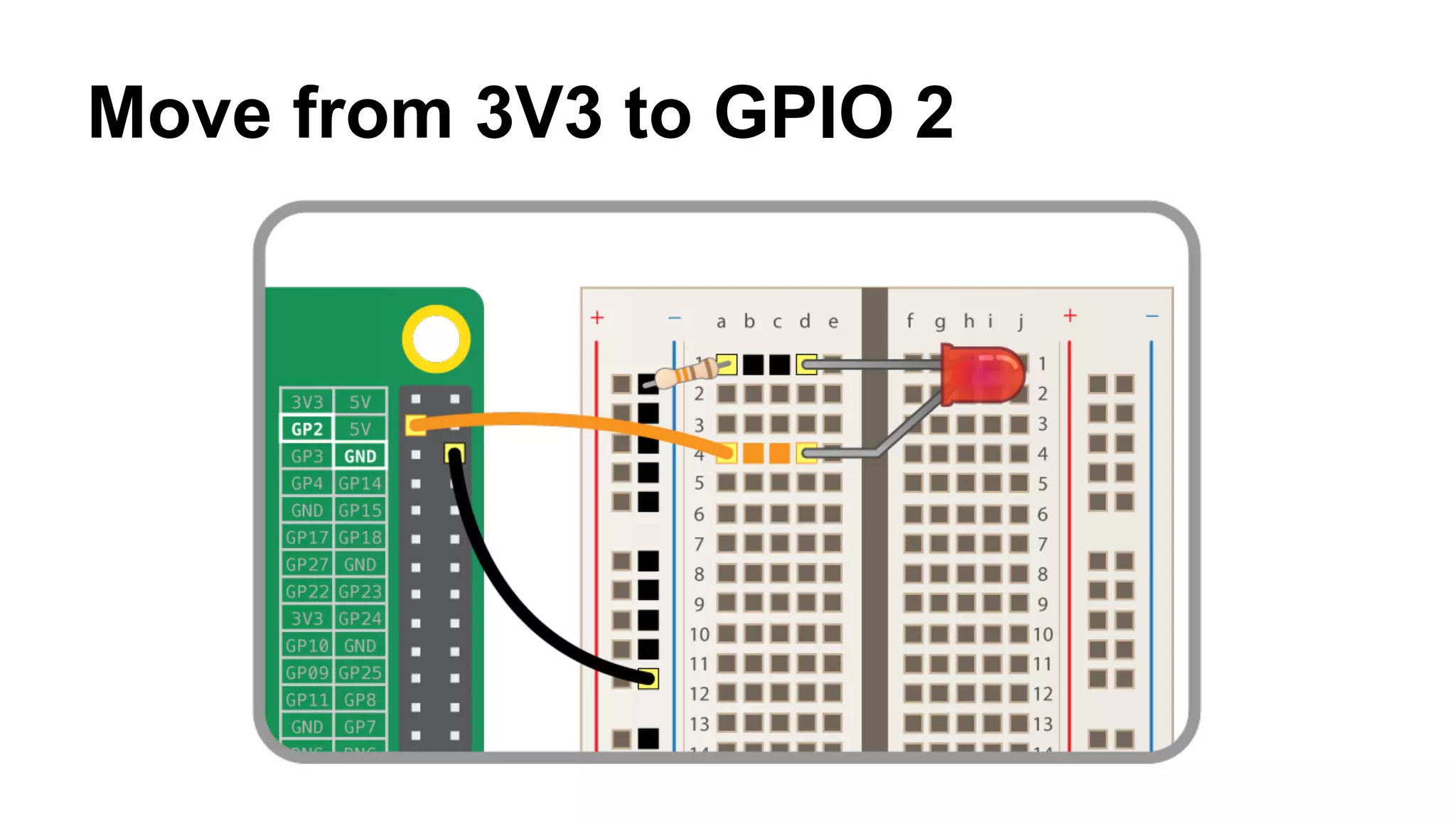

29. Move from 3V3 to GPIO 2

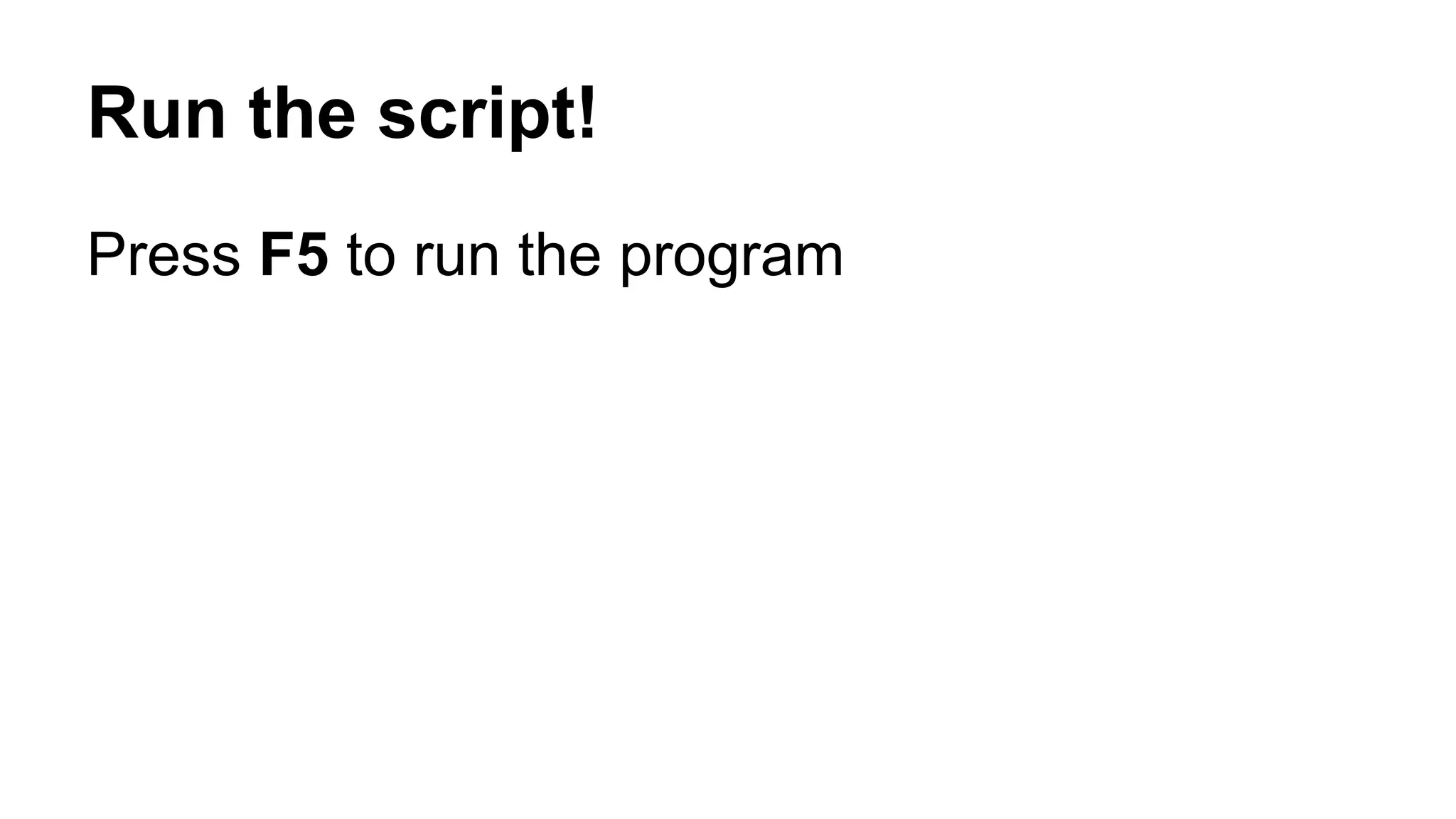

30. Run the script!
Press F5 to run the program

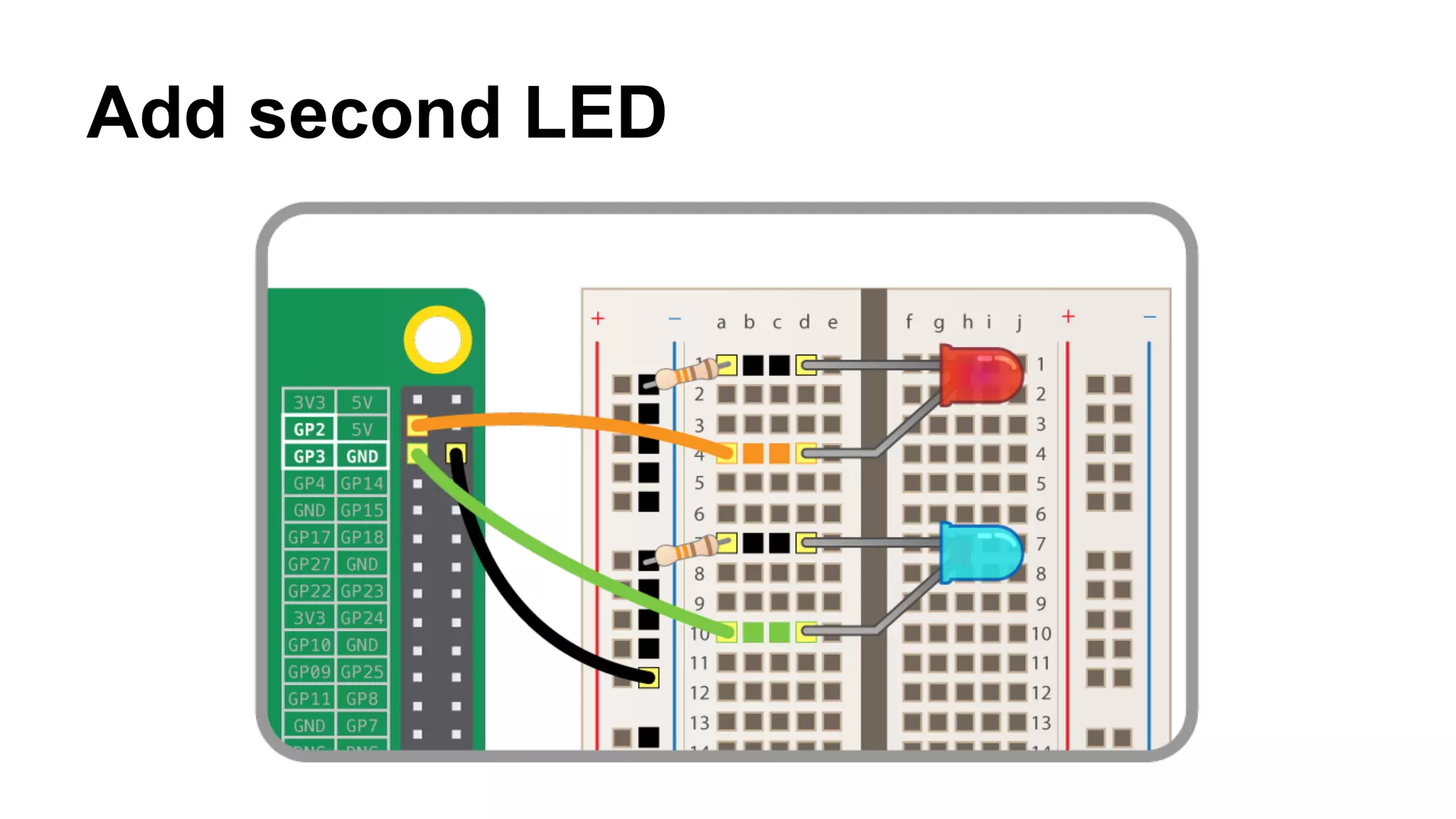

31. Add second LED

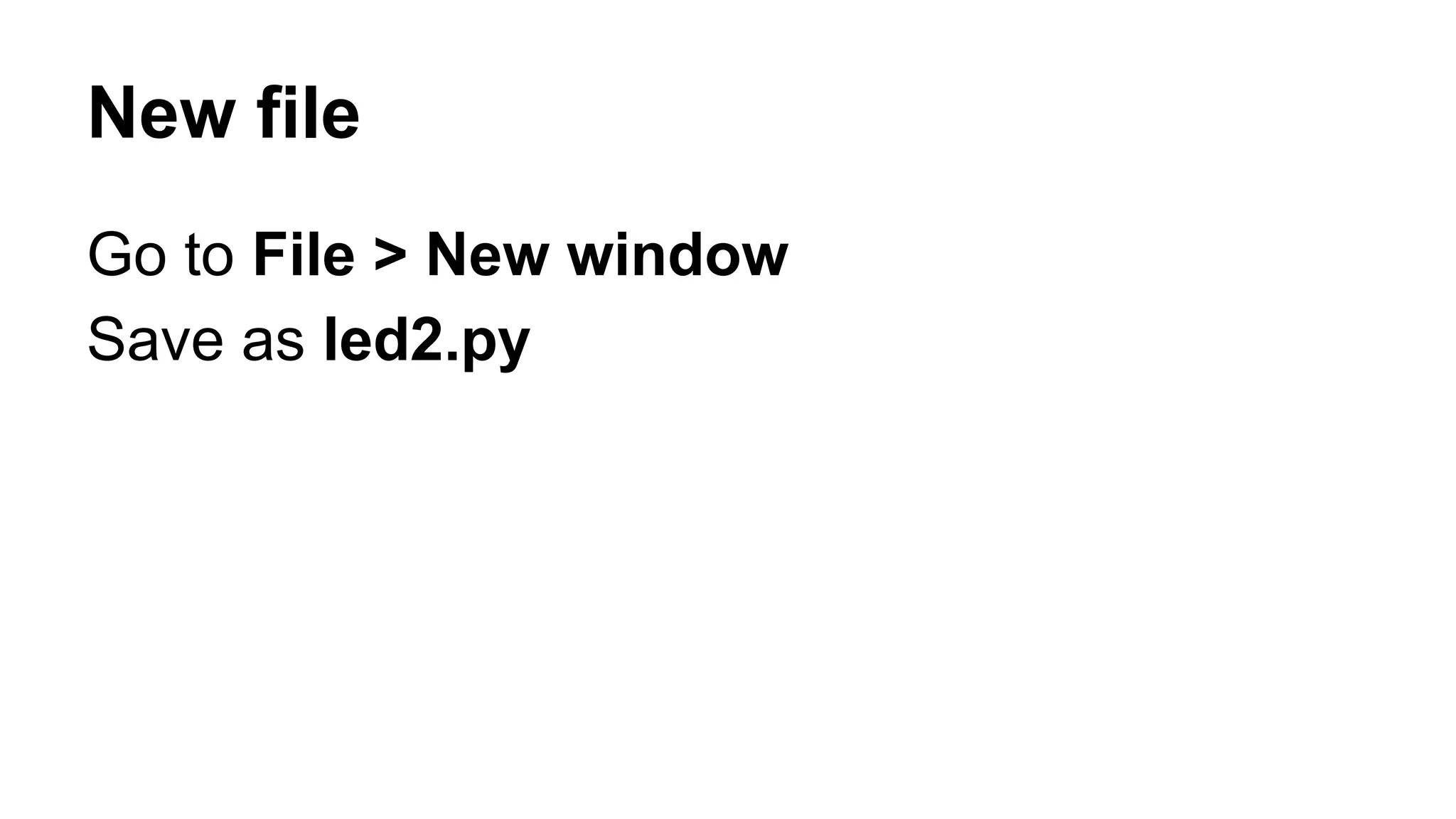

32. New file
Go to File > New window
Save as led2.py

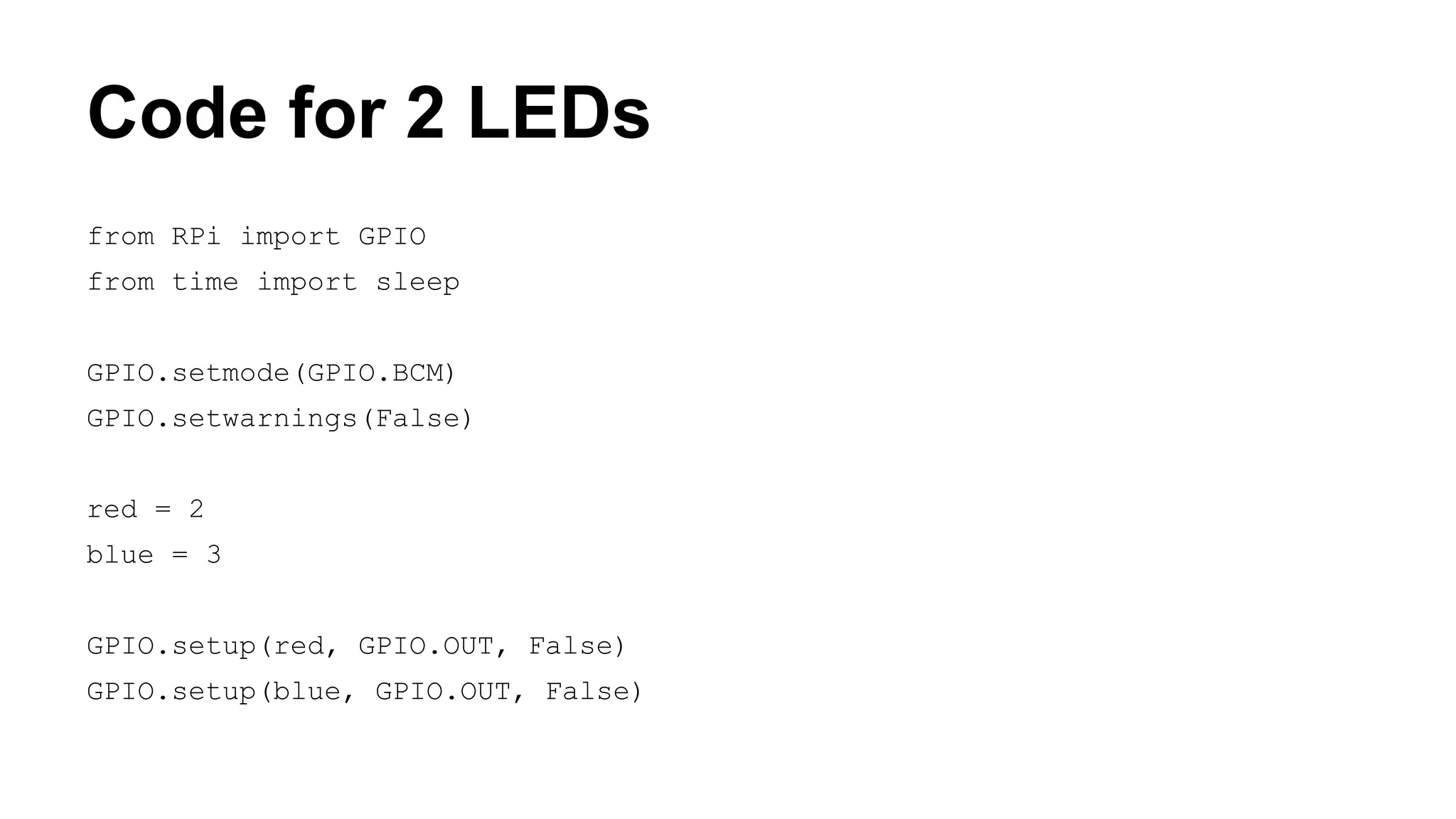

33. Code for 2 LEDs
from RPi import GPIO
from time import sleep
GPIO.setmode(GPIO.BCM)
GPIO.setwarnings(False)
red = 2
blue = 3
GPIO.setup(red, GPIO.OUT, False)
GPIO.setup(blue, GPIO.OUT, False)

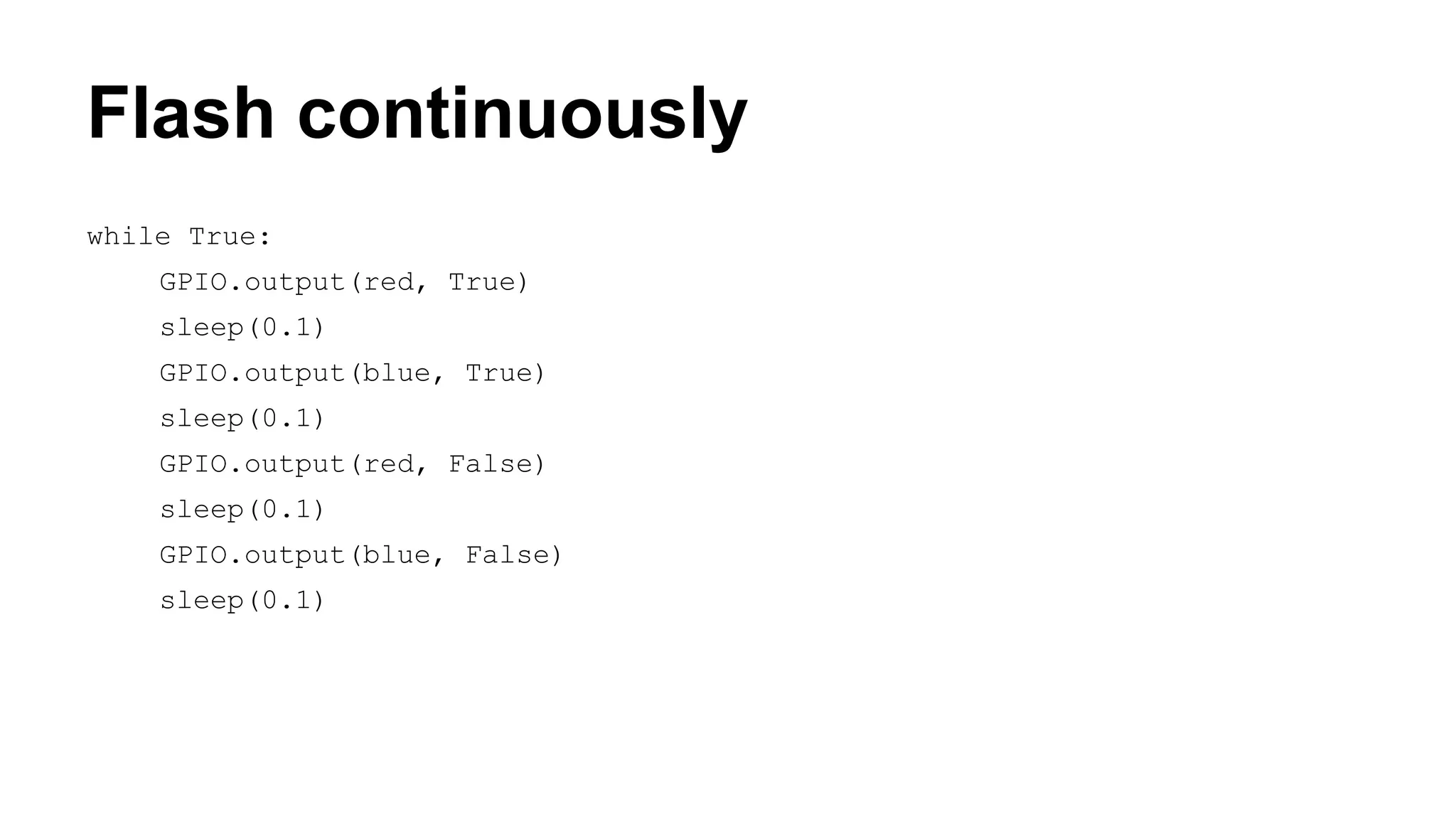

34. Flash continuously
while True:
GPIO.output(red, True)
sleep(0.1)
GPIO.output(blue, True)
sleep(0.1)
GPIO.output(red, False)
sleep(0.1)
GPIO.output(blue, False)
sleep(0.1)

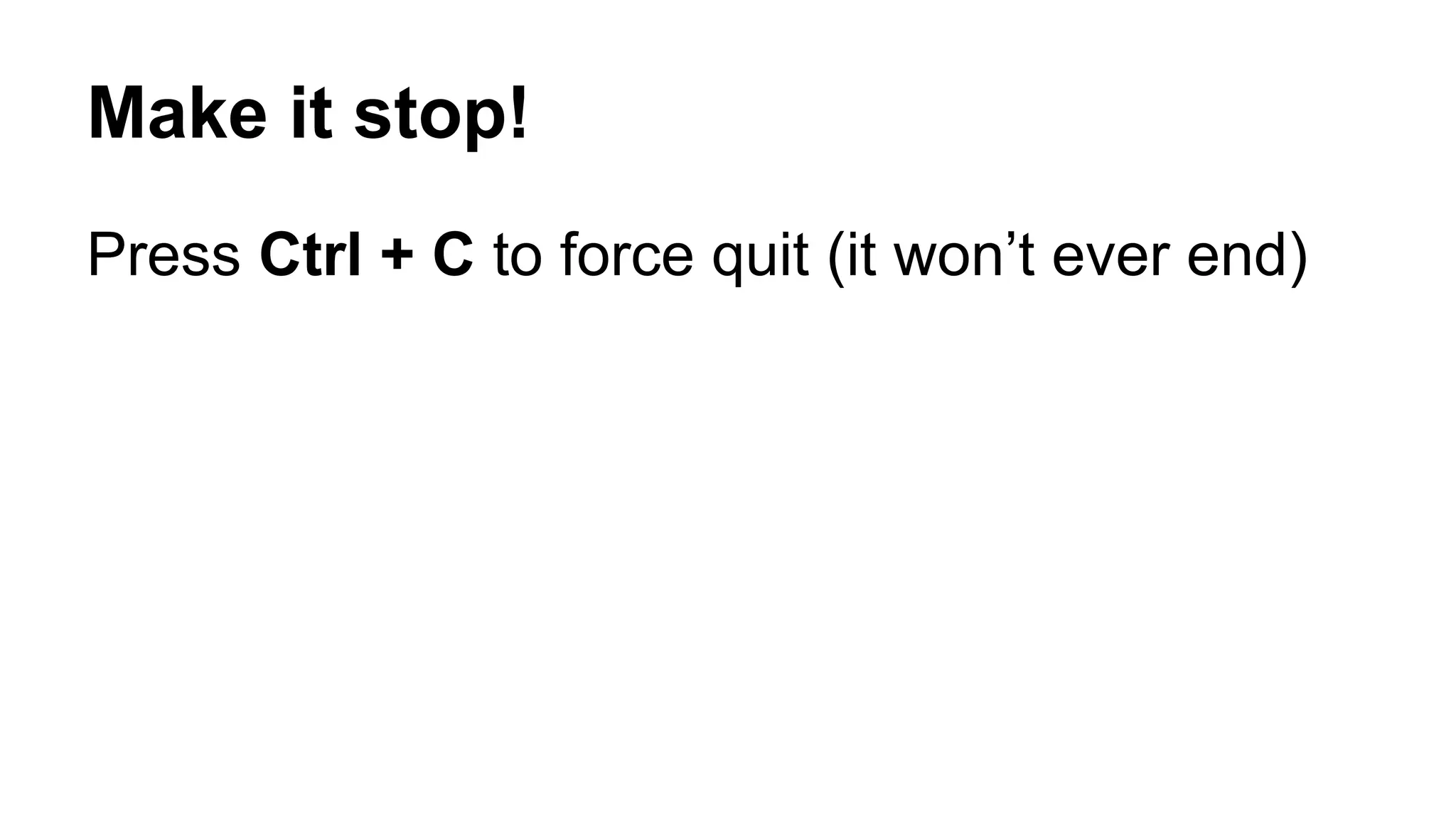

35. Make it stop!
Press Ctrl + C to force quit (it won’t ever end)

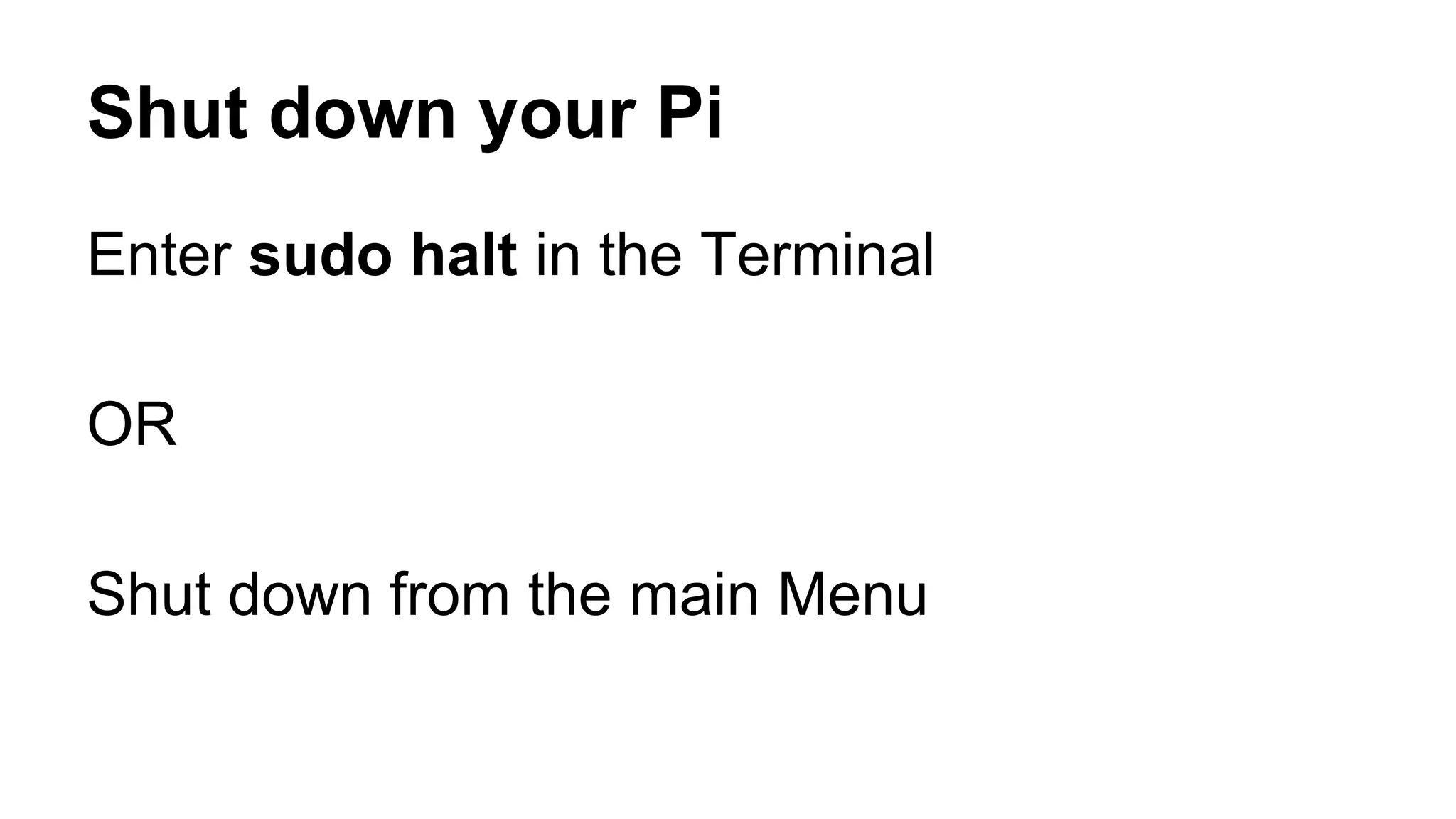

36. Shut down your Pi
Enter sudo halt in the Terminal
OR
Shut down from the main Menu

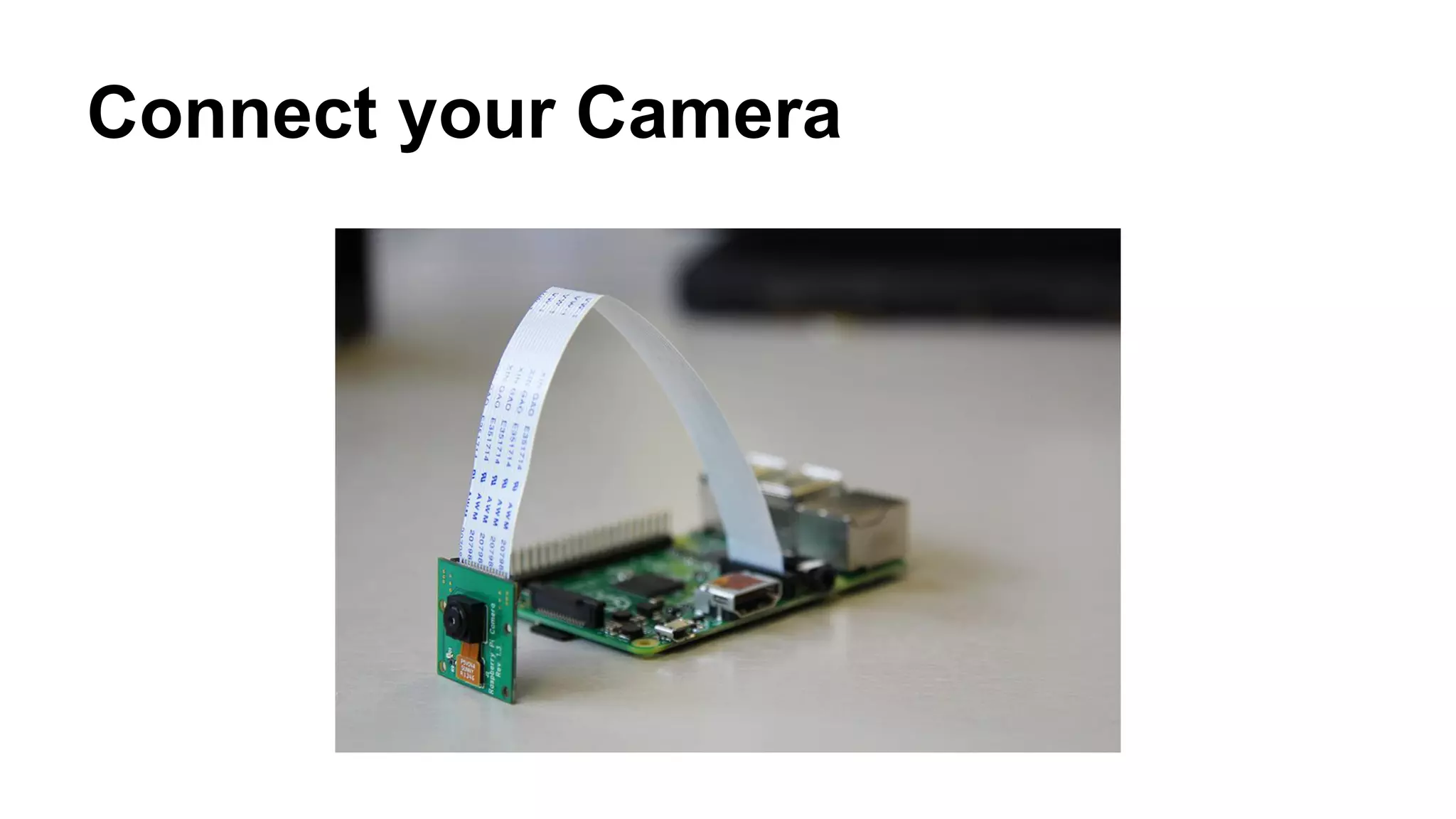

37. Connect your Camera

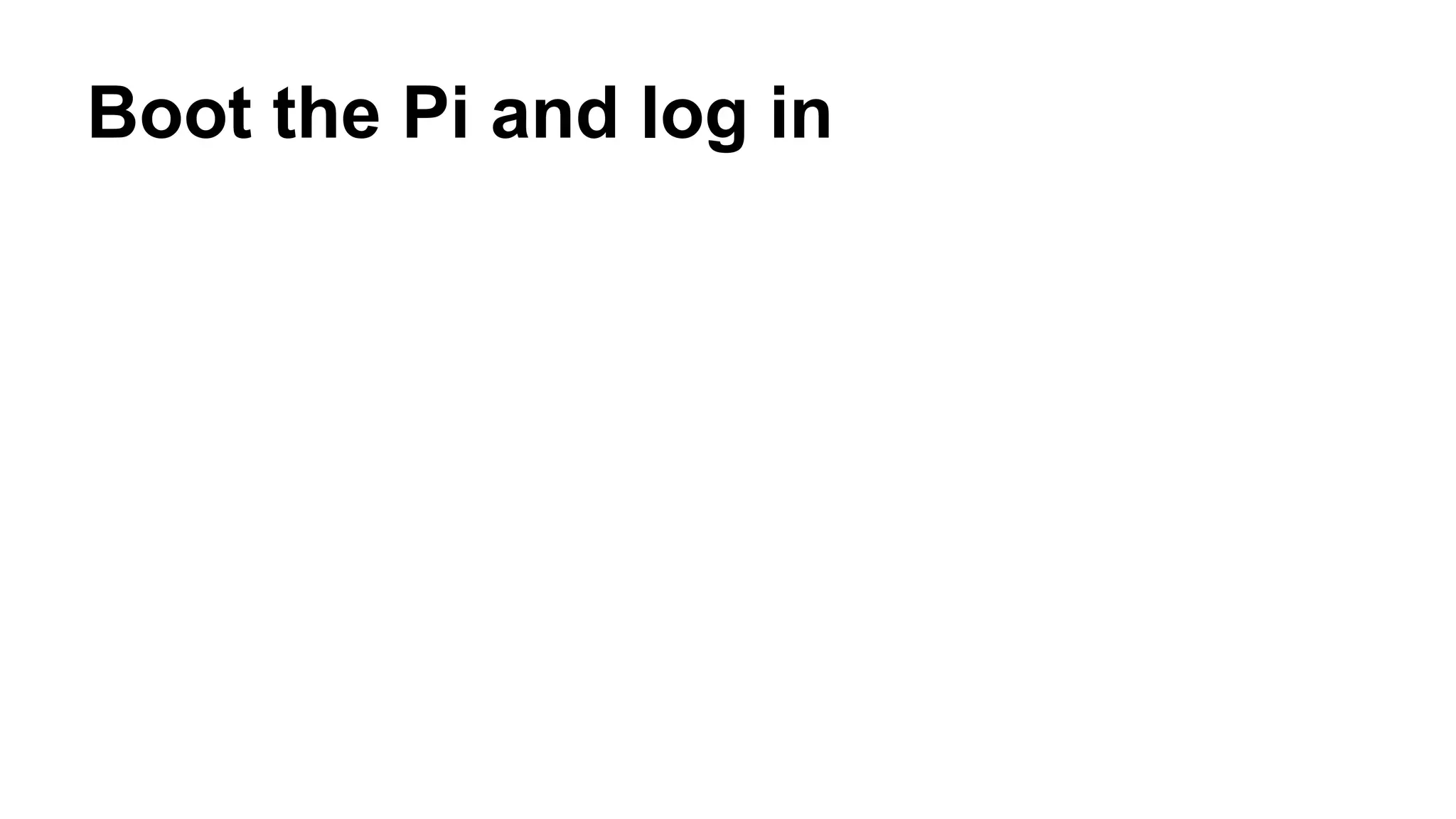

38. Boot the Pi and log in

39. Test the camera
Type raspistill -k and hit Enter
This starts the camera preview
Hit Ctrl + C to stop

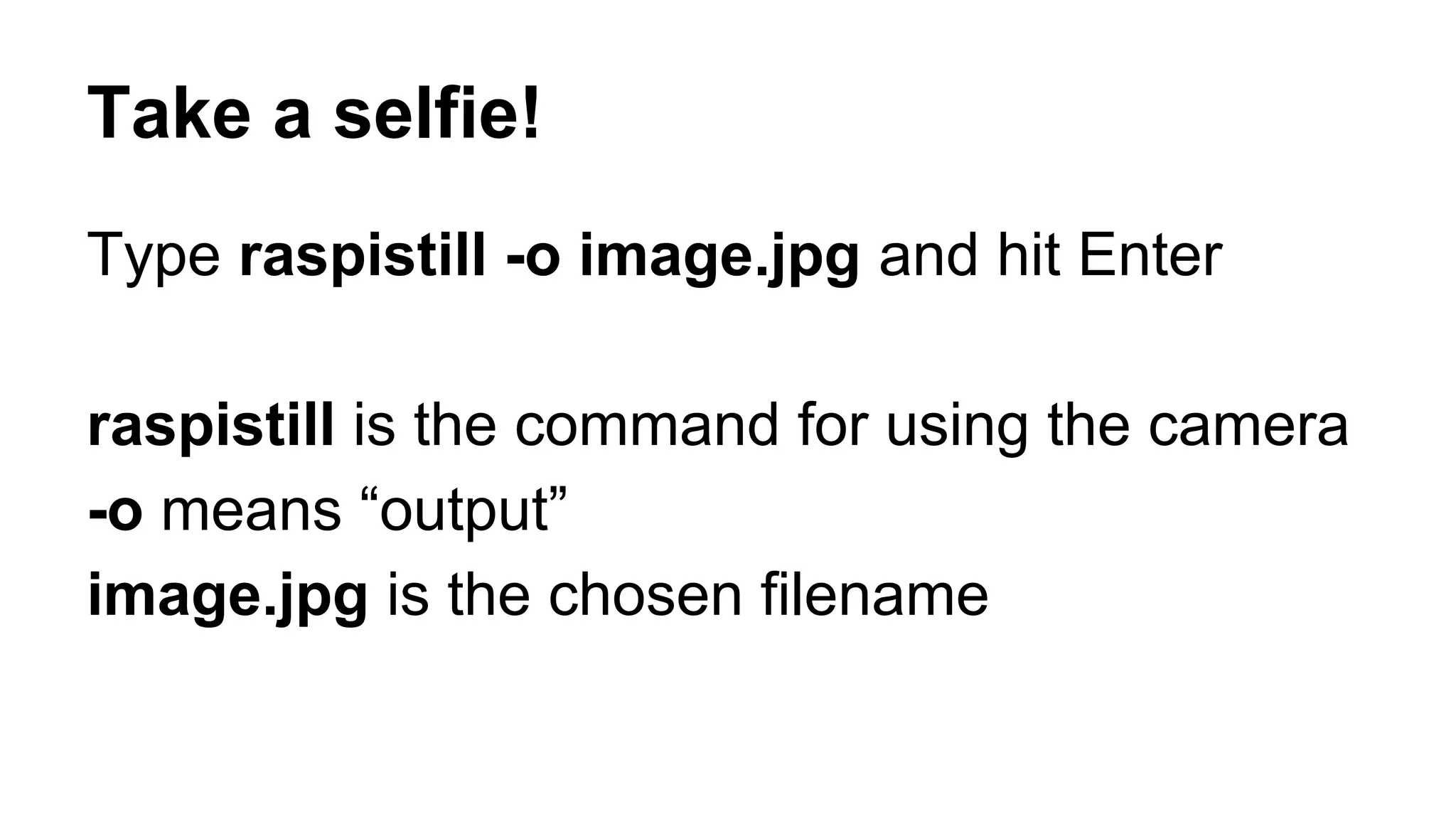

40. Take a selfie!
Type raspistill -o image.jpg and hit Enter
raspistill is the command for using the camera
-o means “output”
image.jpg is the chosen filename

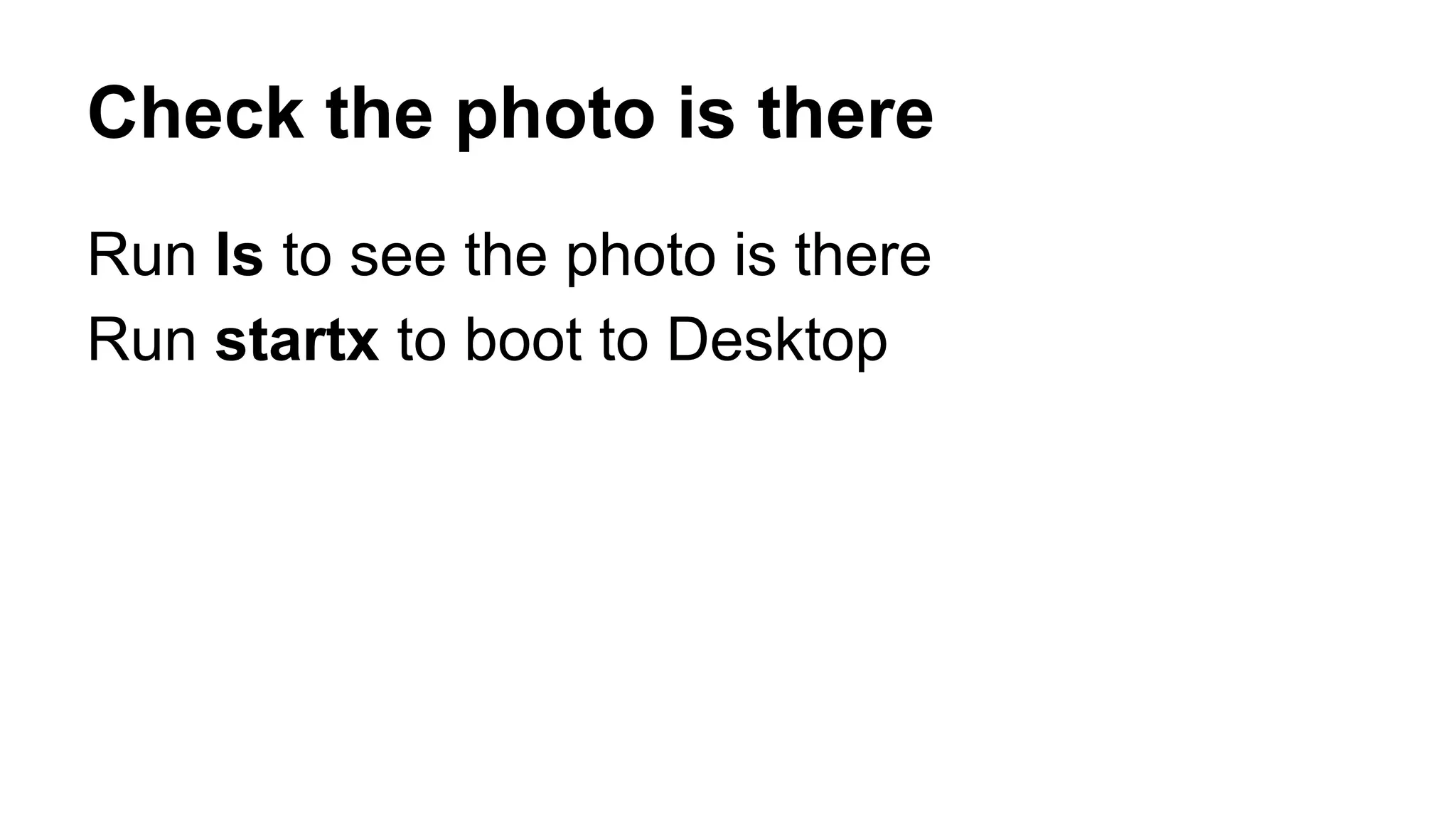

41. Check the photo is there
Run ls to see the photo is there
Run startx to boot to Desktop

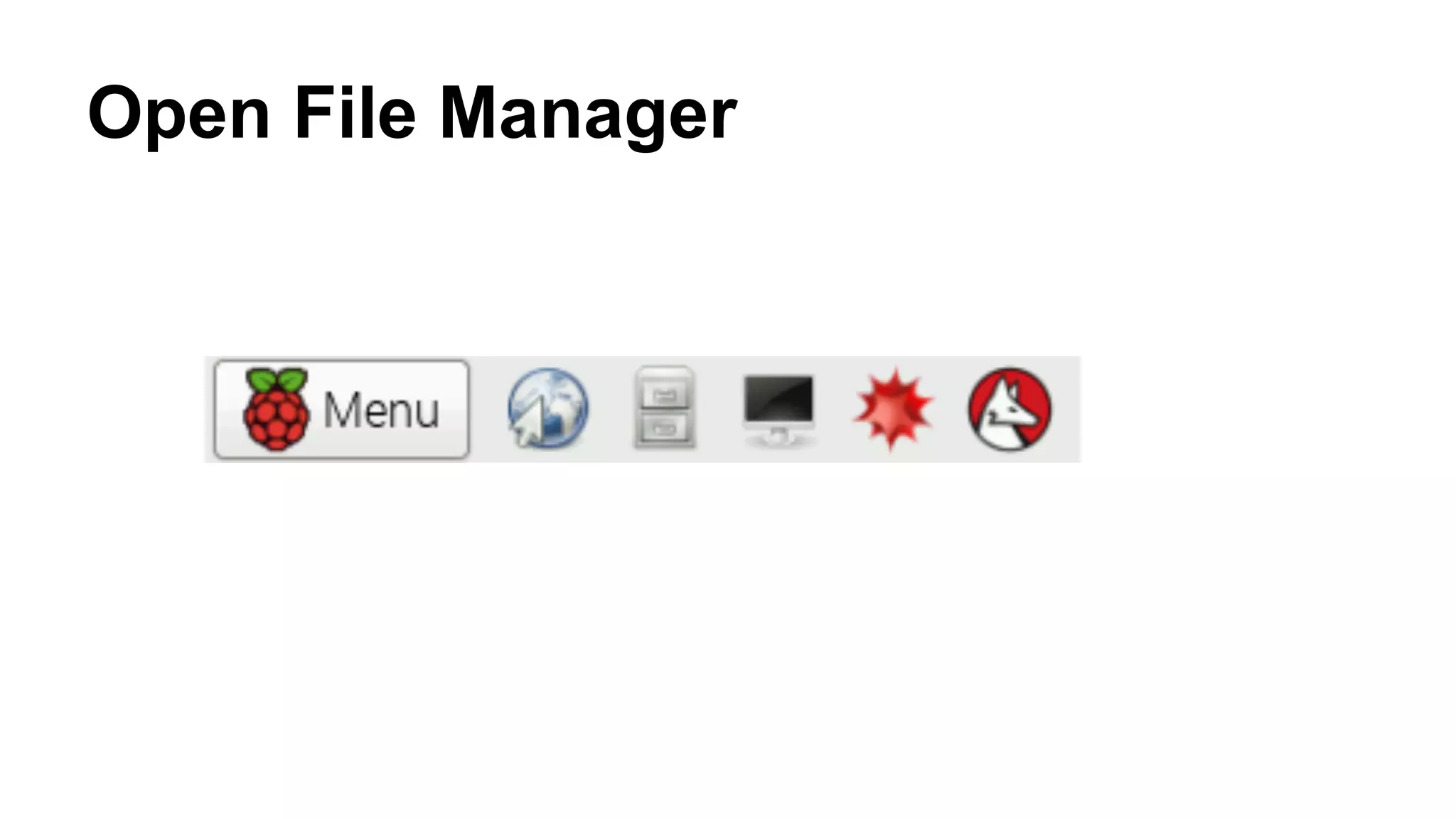

42. Open File Manager

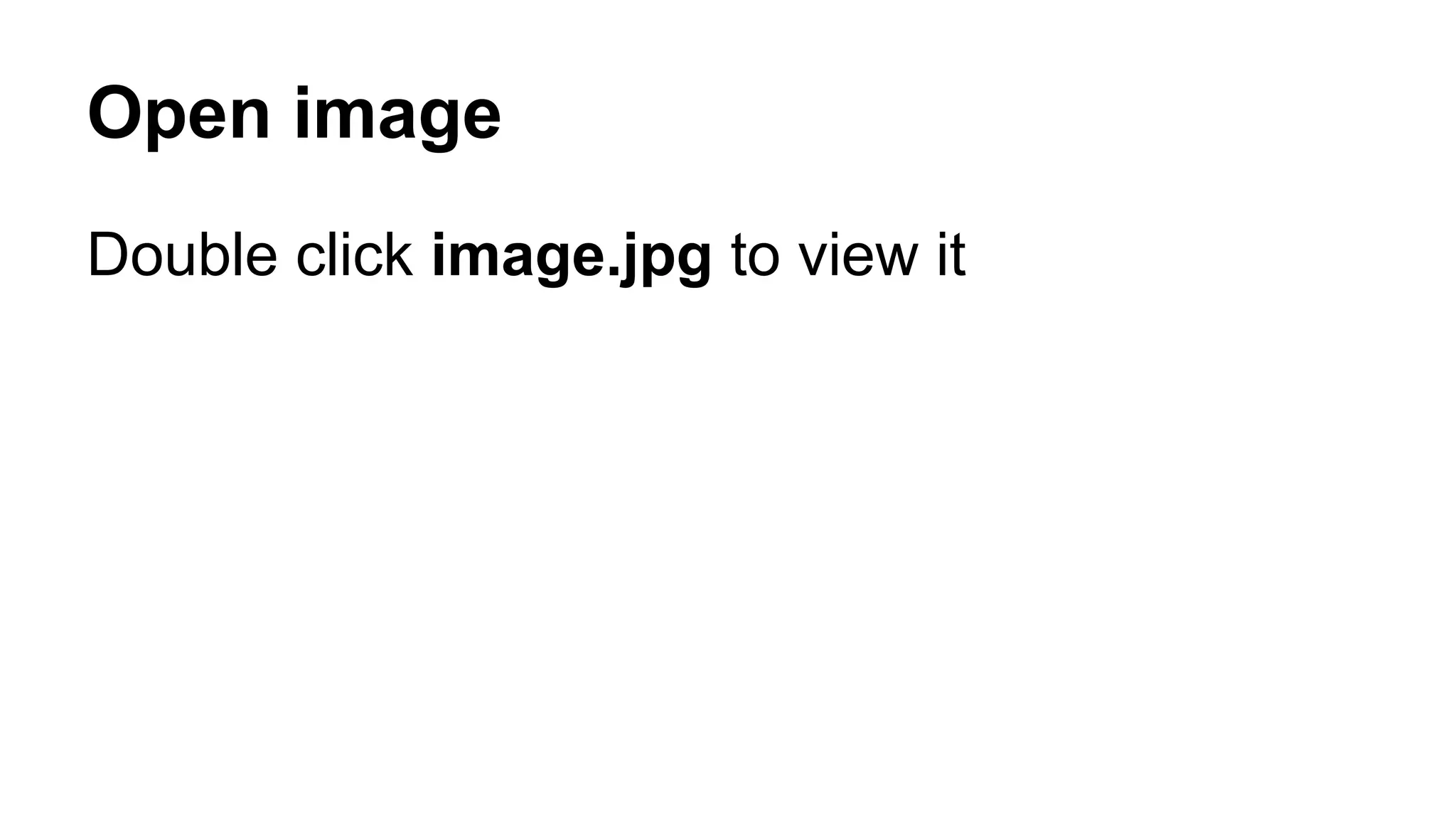

43. Open image
Double click image.jpg to view it

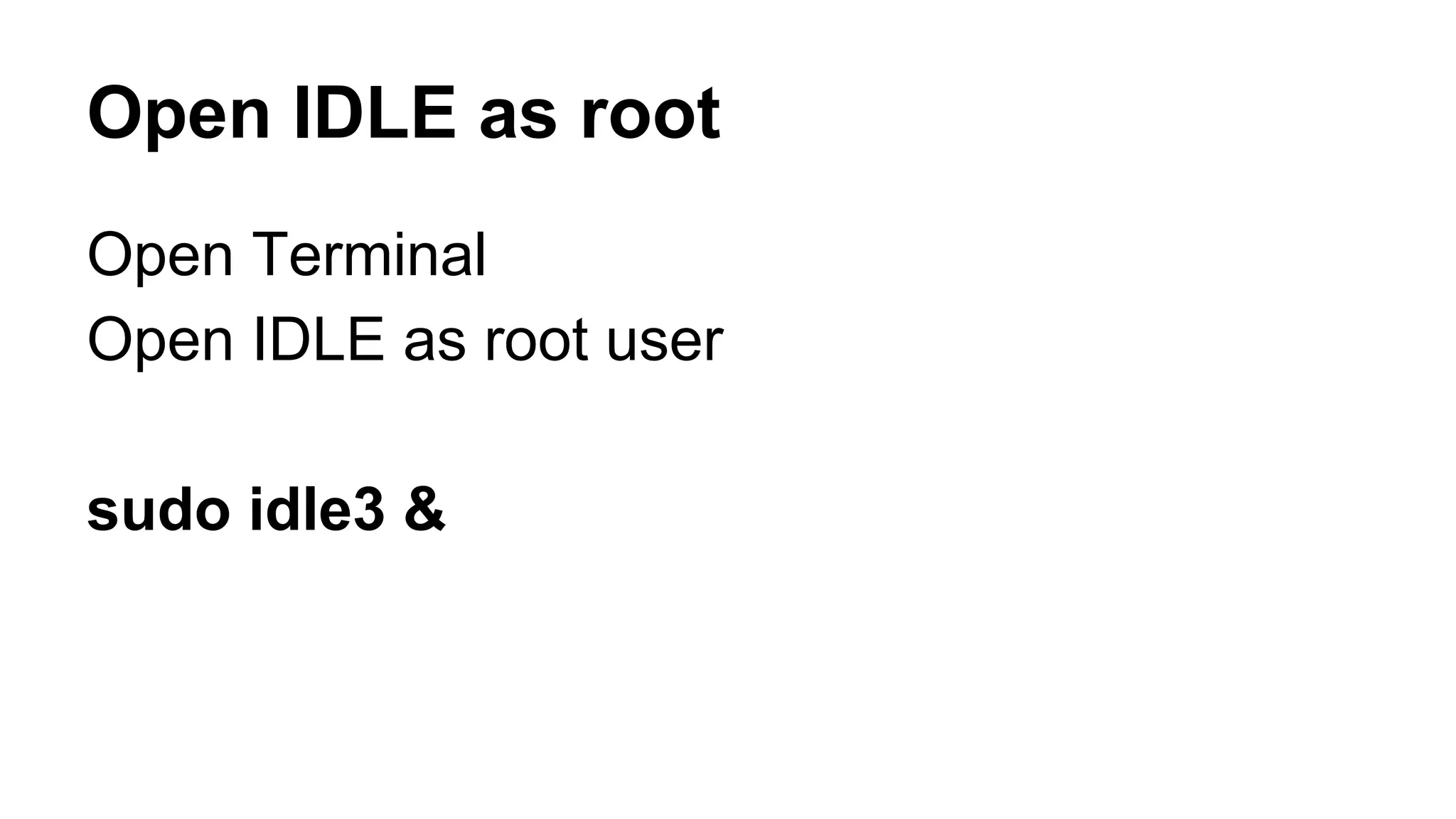

44. Open IDLE as root
Open Terminal
Open IDLE as root user
sudo idle3 &

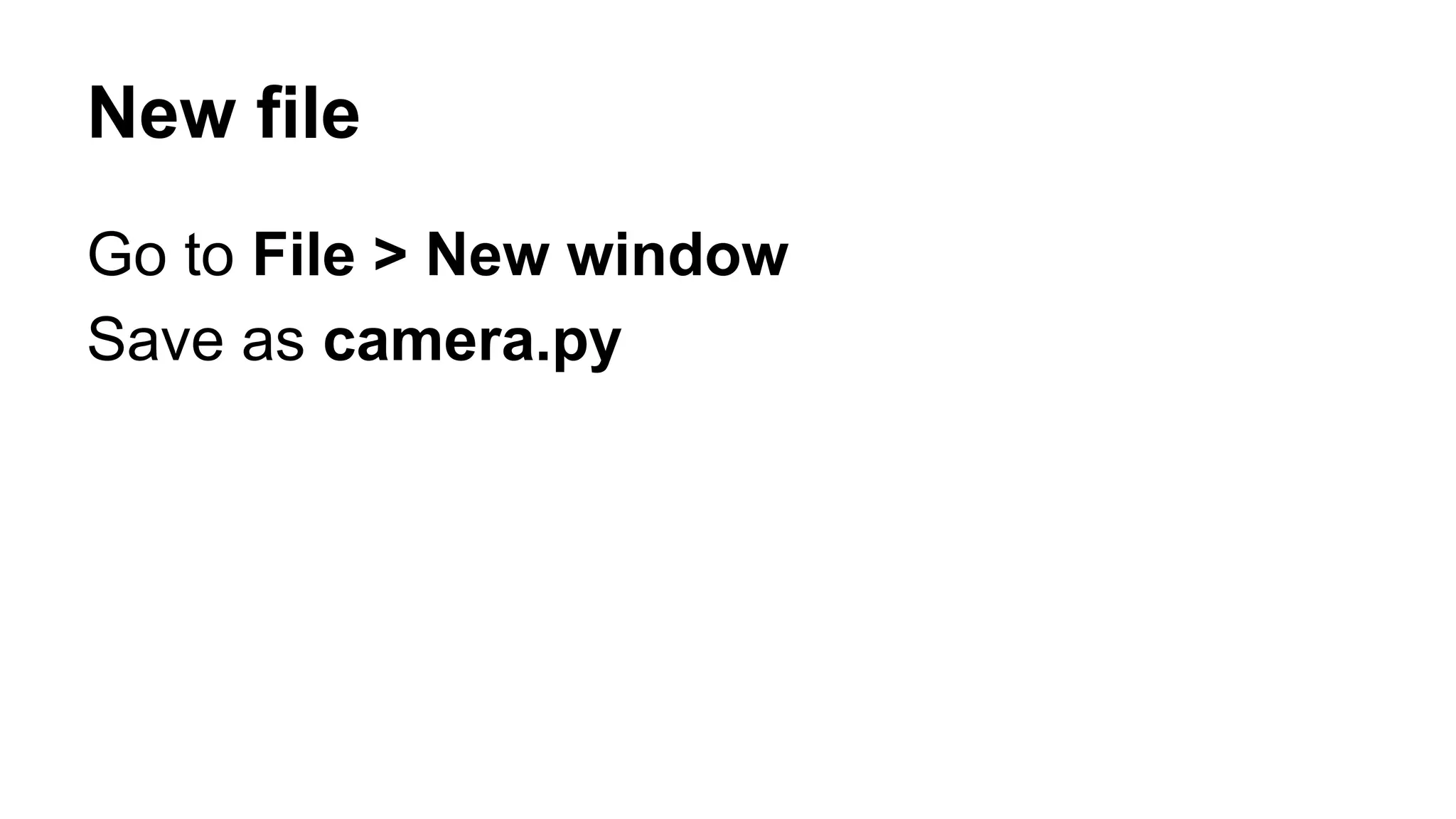

45. New file
Go to File > New window
Save as camera.py

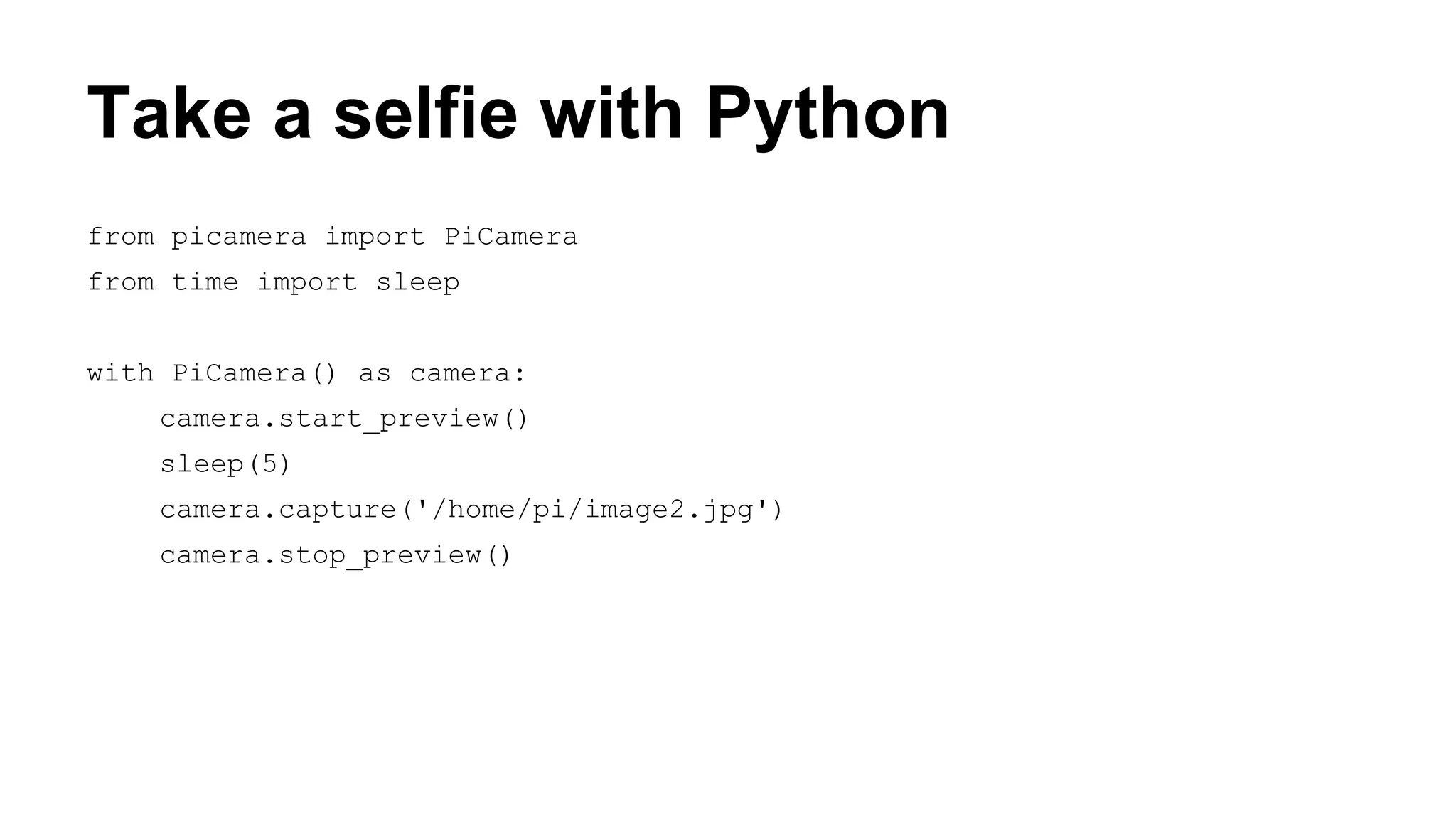

46. Take a selfie with Python
from picamera import PiCamera
from time import sleep
with PiCamera() as camera:
camera.start_preview()
sleep(5)
camera.capture('/home/pi/image2.jpg')
camera.stop_preview()

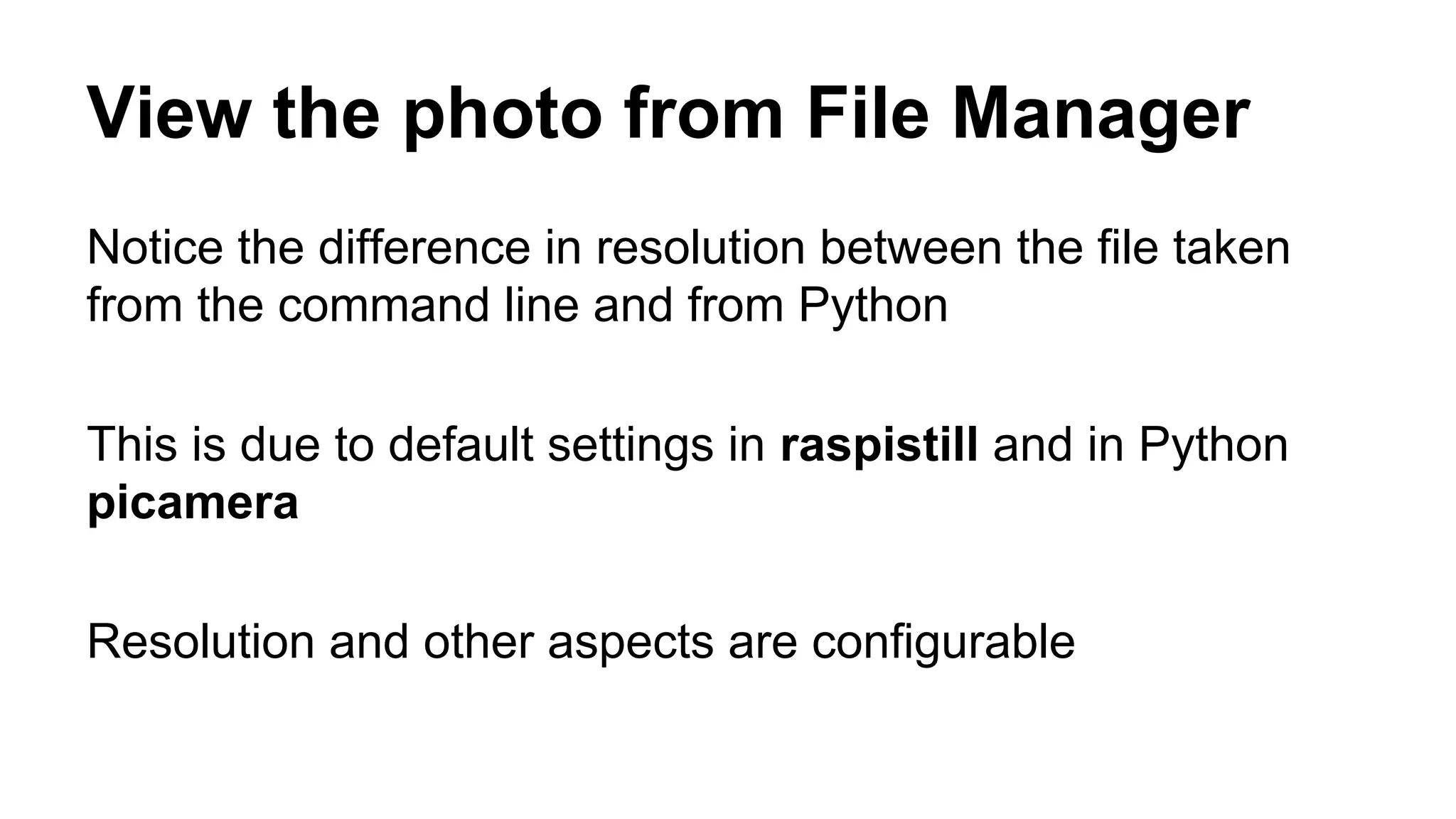

47. View the photo from File Manager
Notice the difference in resolution between the file taken
from the command line and from Python
This is due to default settings in raspistill and in Python
picamera
Resolution and other aspects are configurable

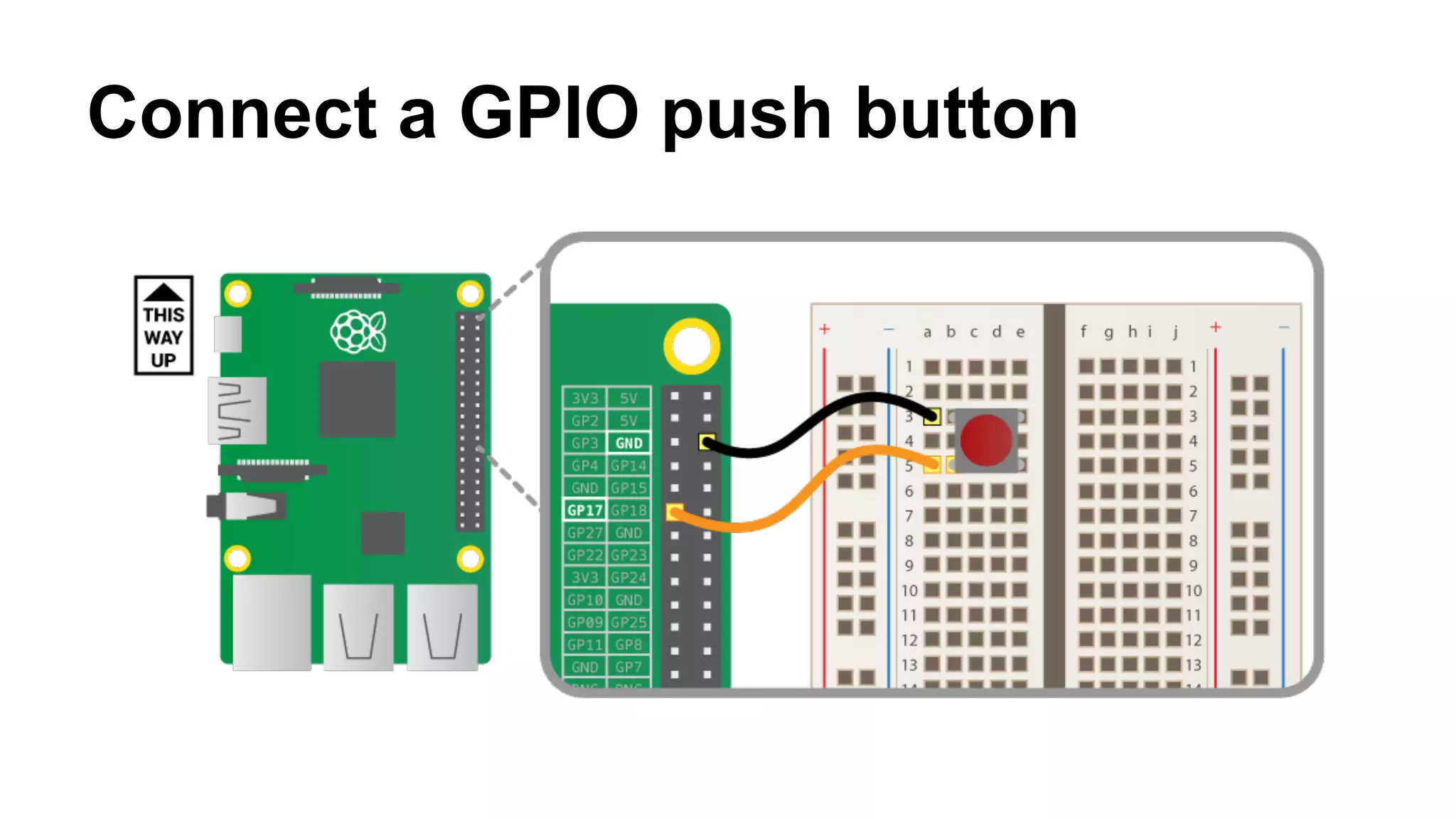

48. Connect a GPIO push button

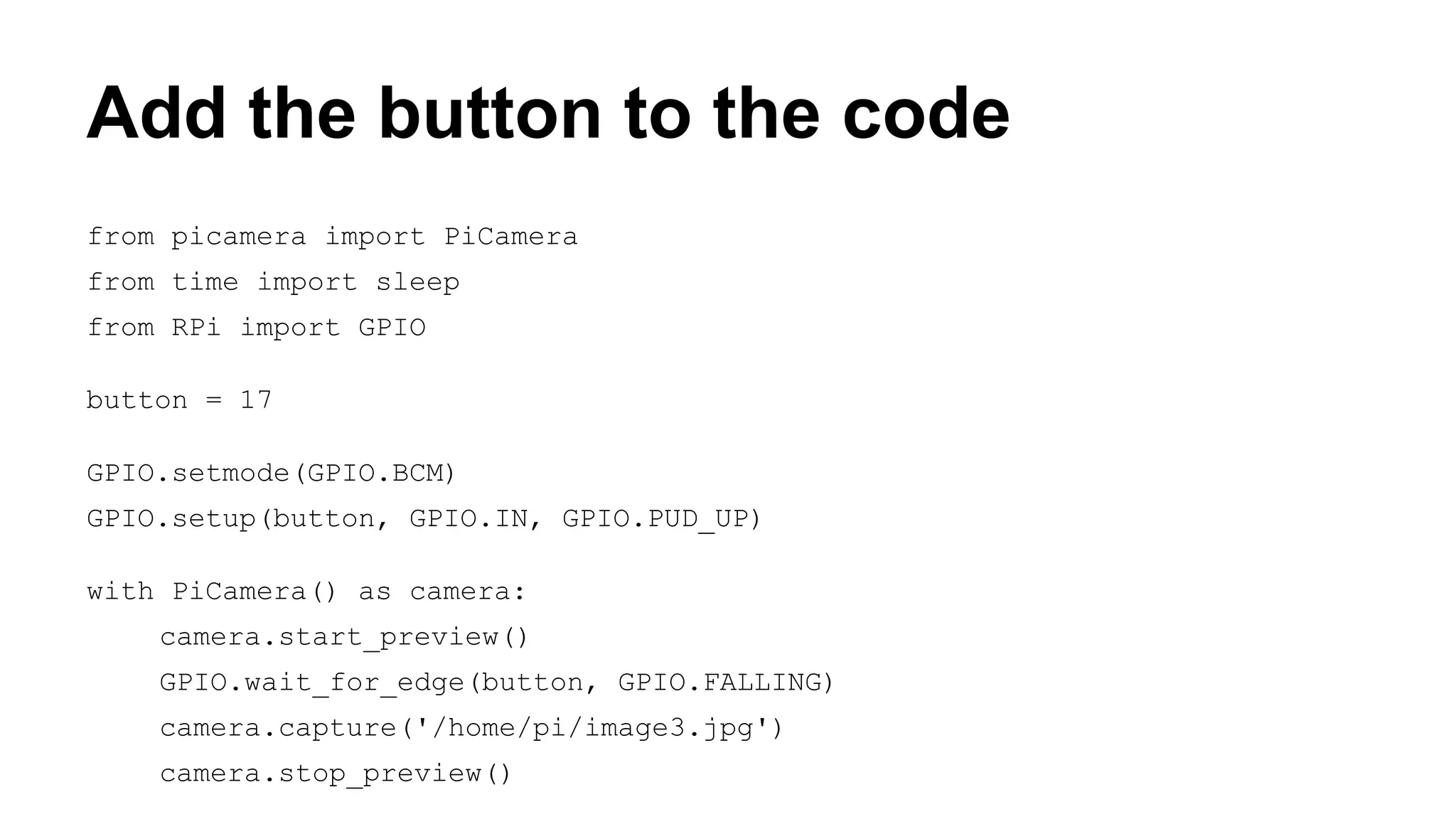

49. Add the button to the code
from picamera import PiCamera
from time import sleep
from RPi import GPIO
button = 17
GPIO.setmode(GPIO.BCM)
GPIO.setup(button, GPIO.IN, GPIO.PUD_UP)
with PiCamera() as camera:
camera.start_preview()
GPIO.wait_for_edge(button, GPIO.FALLING)
camera.capture('/home/pi/image3.jpg')
camera.stop_preview()

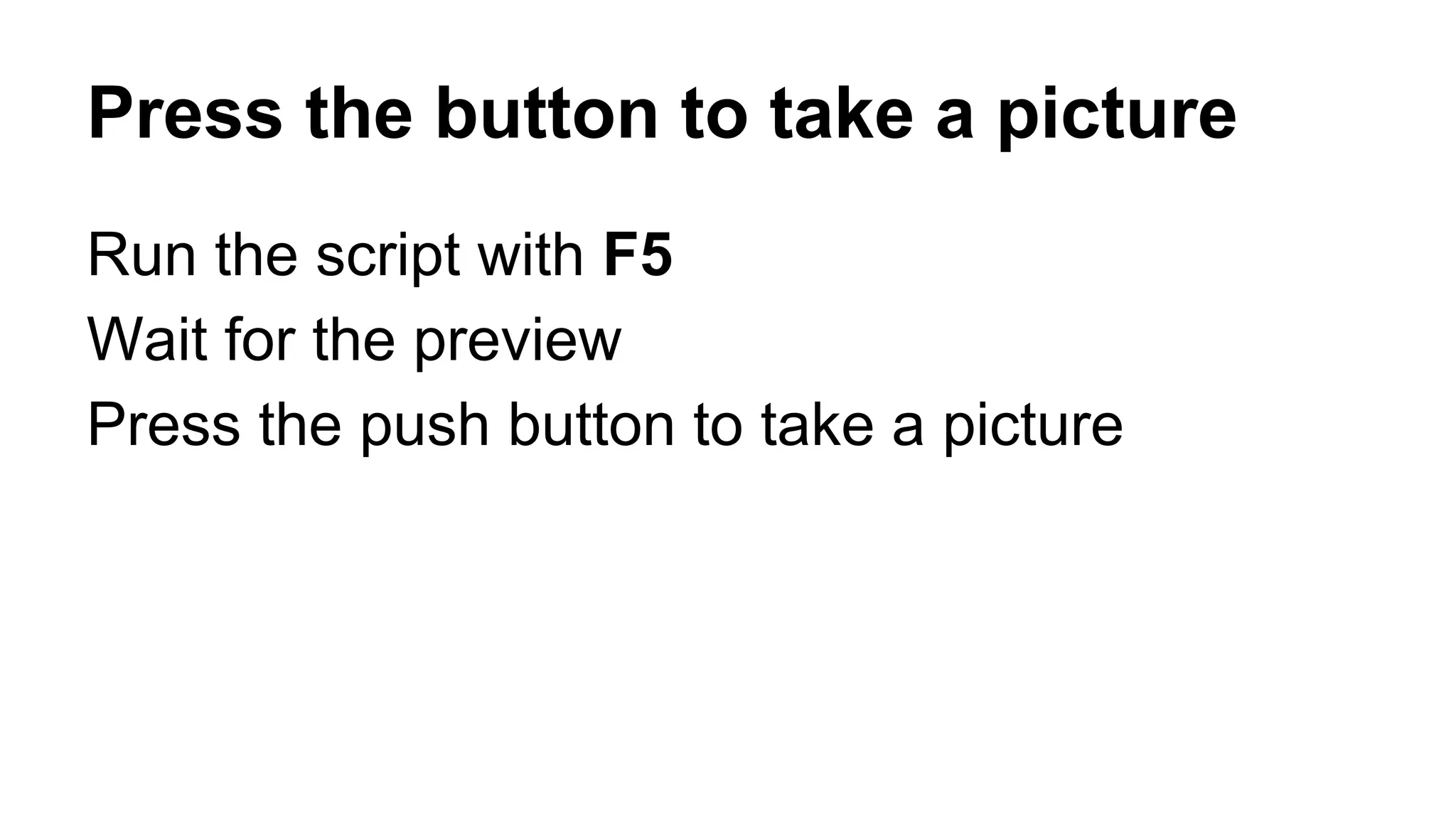

50. Press the button to take a picture
Run the script with F5
Wait for the preview
Press the push button to take a picture

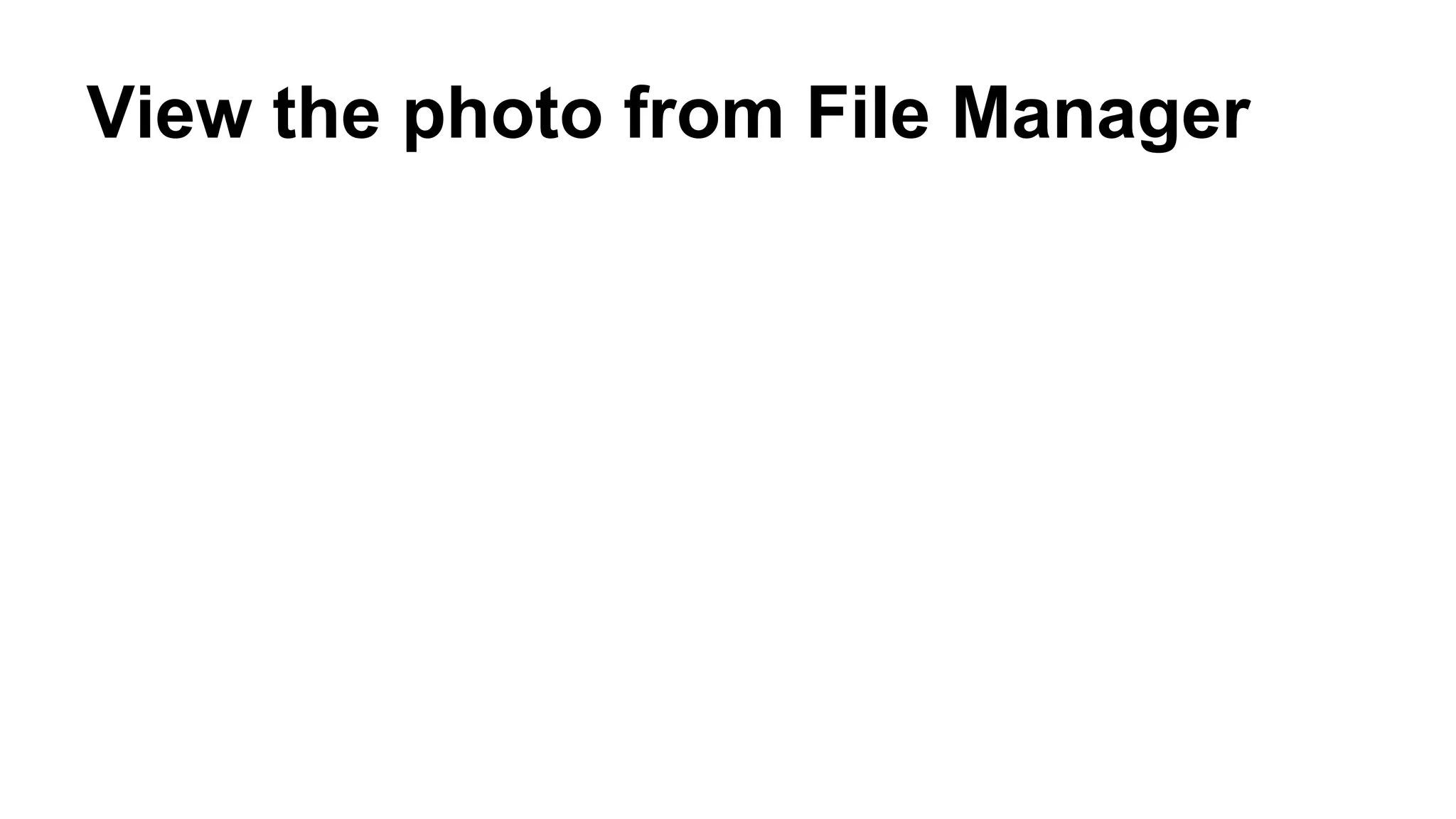

51. View the photo from File Manager

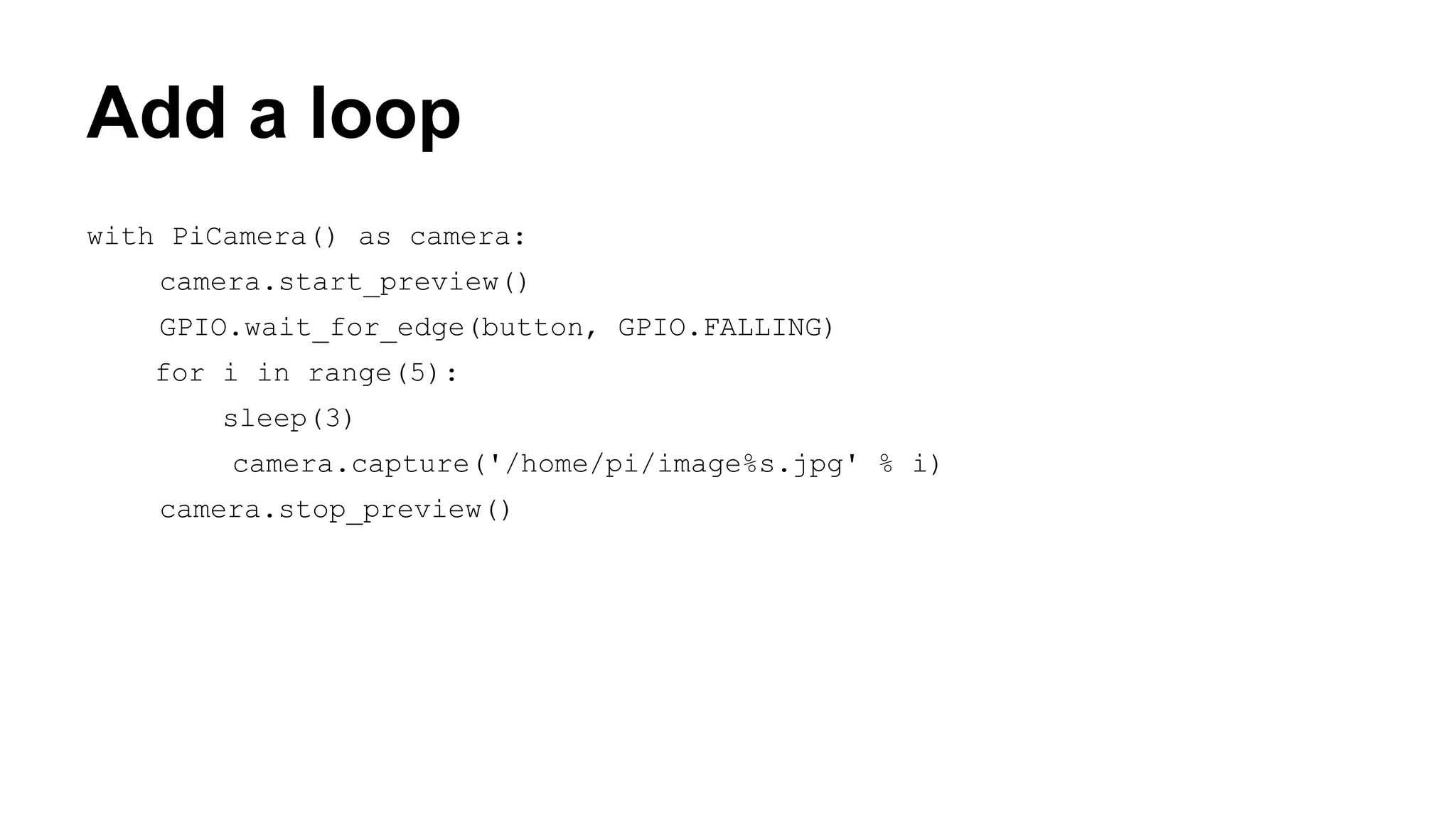

52. Add a loop
with PiCamera() as camera:
camera.start_preview()
GPIO.wait_for_edge(button, GPIO.FALLING)
for i in range(5):
sleep(3)
camera.capture('/home/pi/image%s.jpg' % i)
camera.stop_preview()

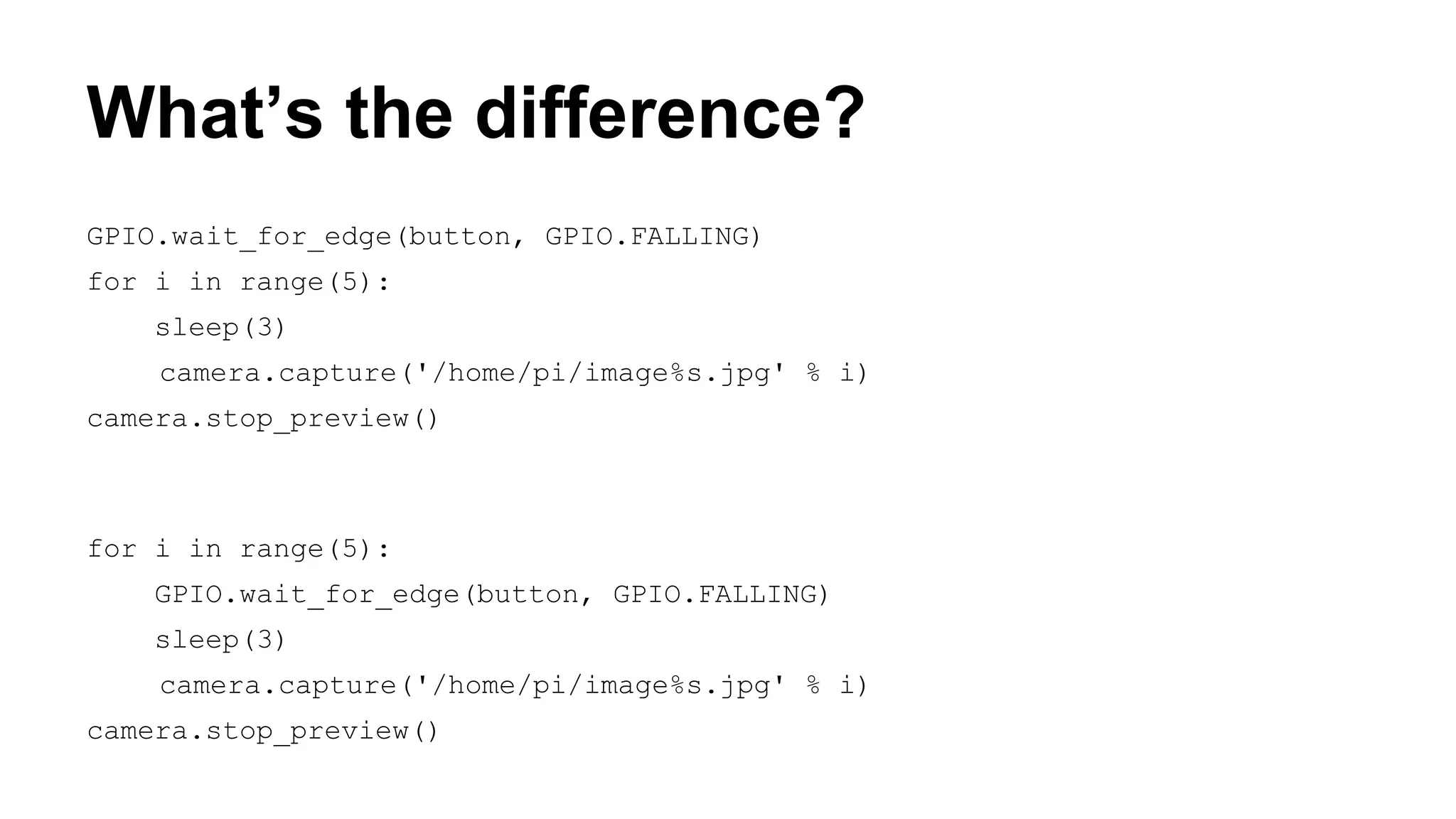

53. What’s the difference?
GPIO.wait_for_edge(button, GPIO.FALLING)
for i in range(5):
sleep(3)
camera.capture('/home/pi/image%s.jpg' % i)
camera.stop_preview()
for i in range(5):
GPIO.wait_for_edge(button, GPIO.FALLING)
sleep(3)
camera.capture('/home/pi/image%s.jpg' % i)
camera.stop_preview()

54. What can you do?

55. Raspberry Pi Resources

56. Raspberry Pi Camera Resources

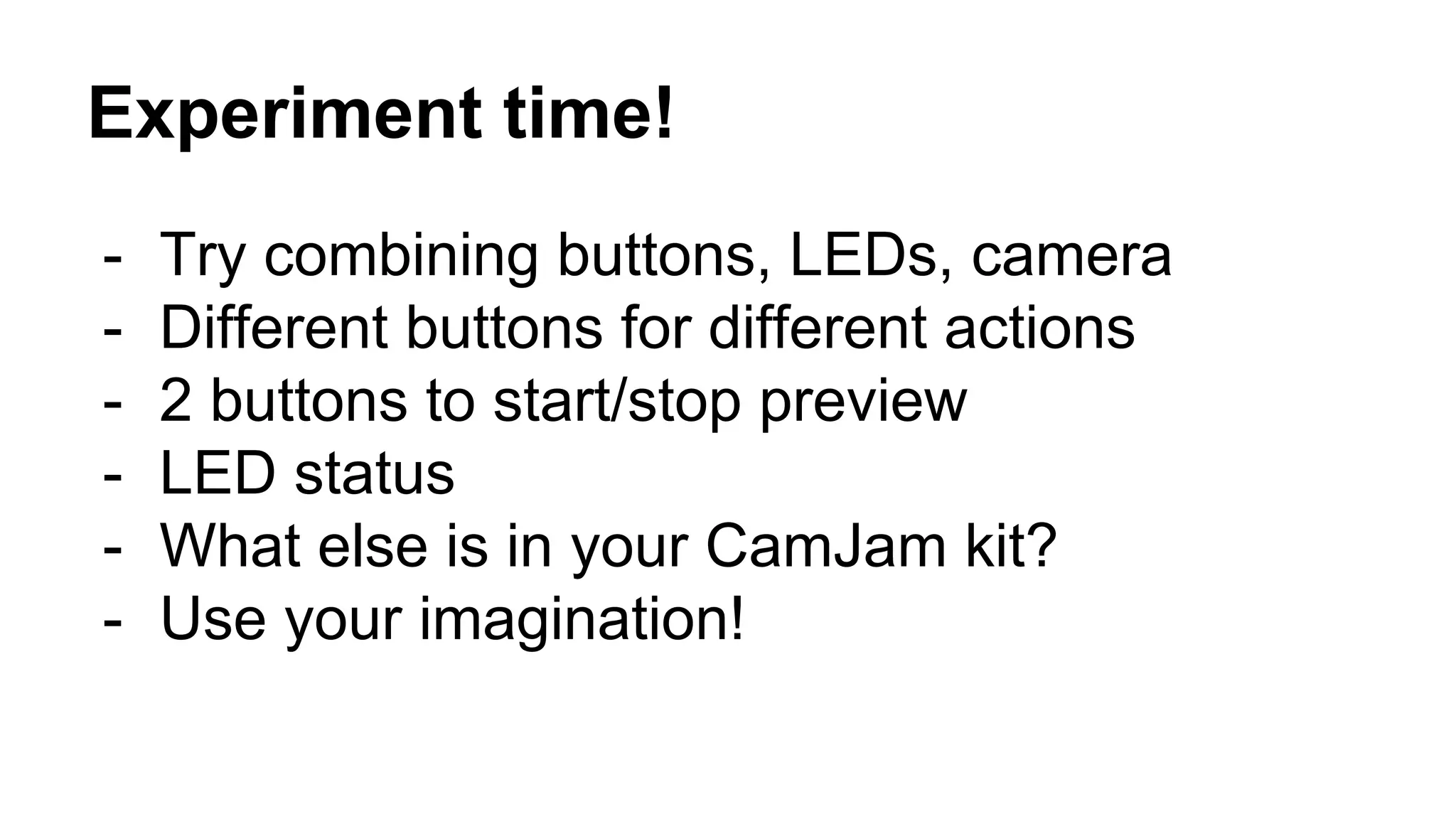

57. Experiment time!
- Try combining buttons, LEDs, camera
- Different buttons for different actions
- 2 buttons to start/stop preview
- LED status
- What else is in your CamJam kit?
- Use your imagination!

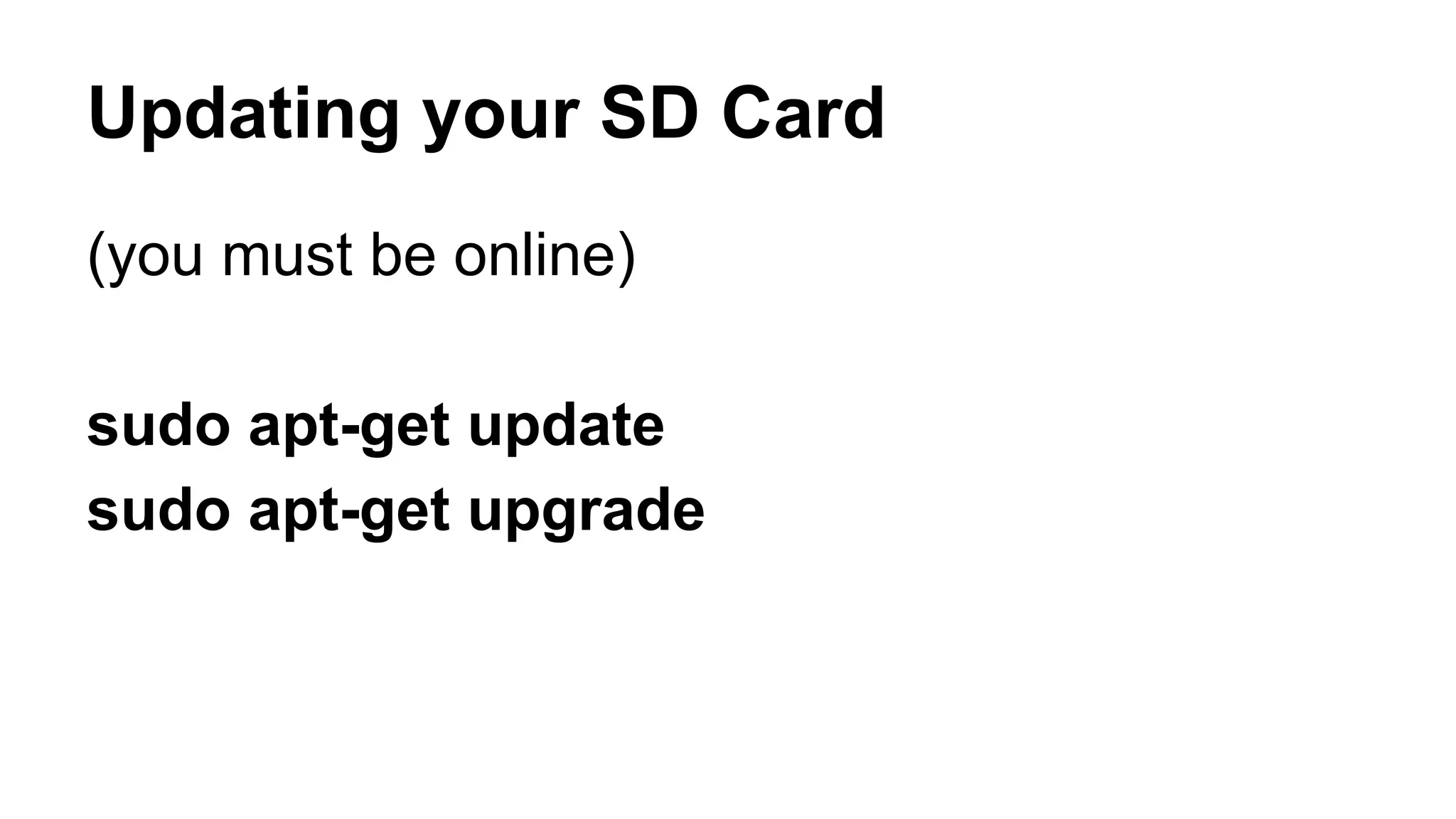

58. Updating your SD Card
(you must be online)
sudo apt-get update
sudo apt-get upgrade

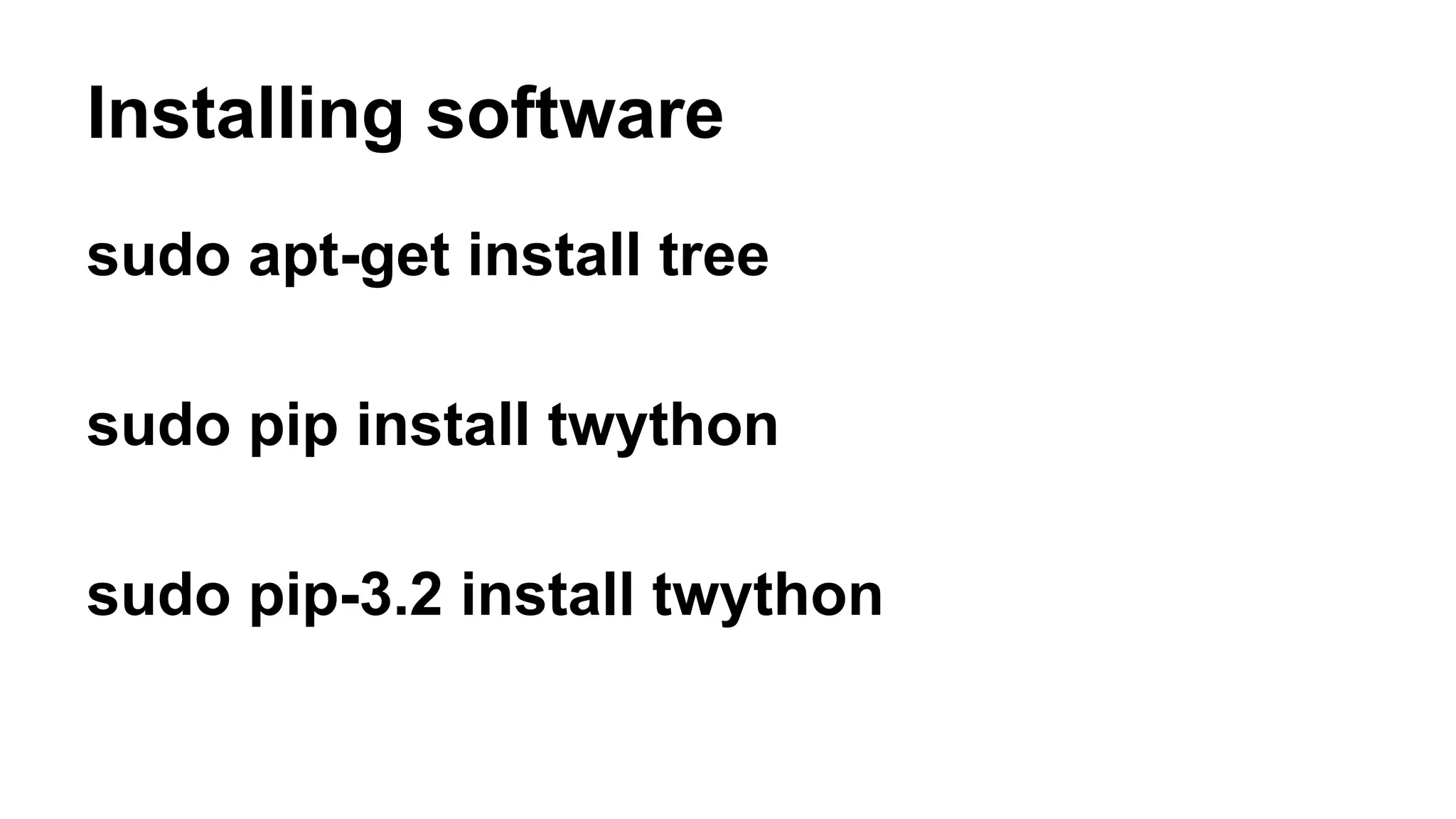

59. Installing software
sudo apt-get install tree
sudo pip install twython
sudo pip-3.2 install twython
