Getting started with
Python picamera
@ben_nuttall

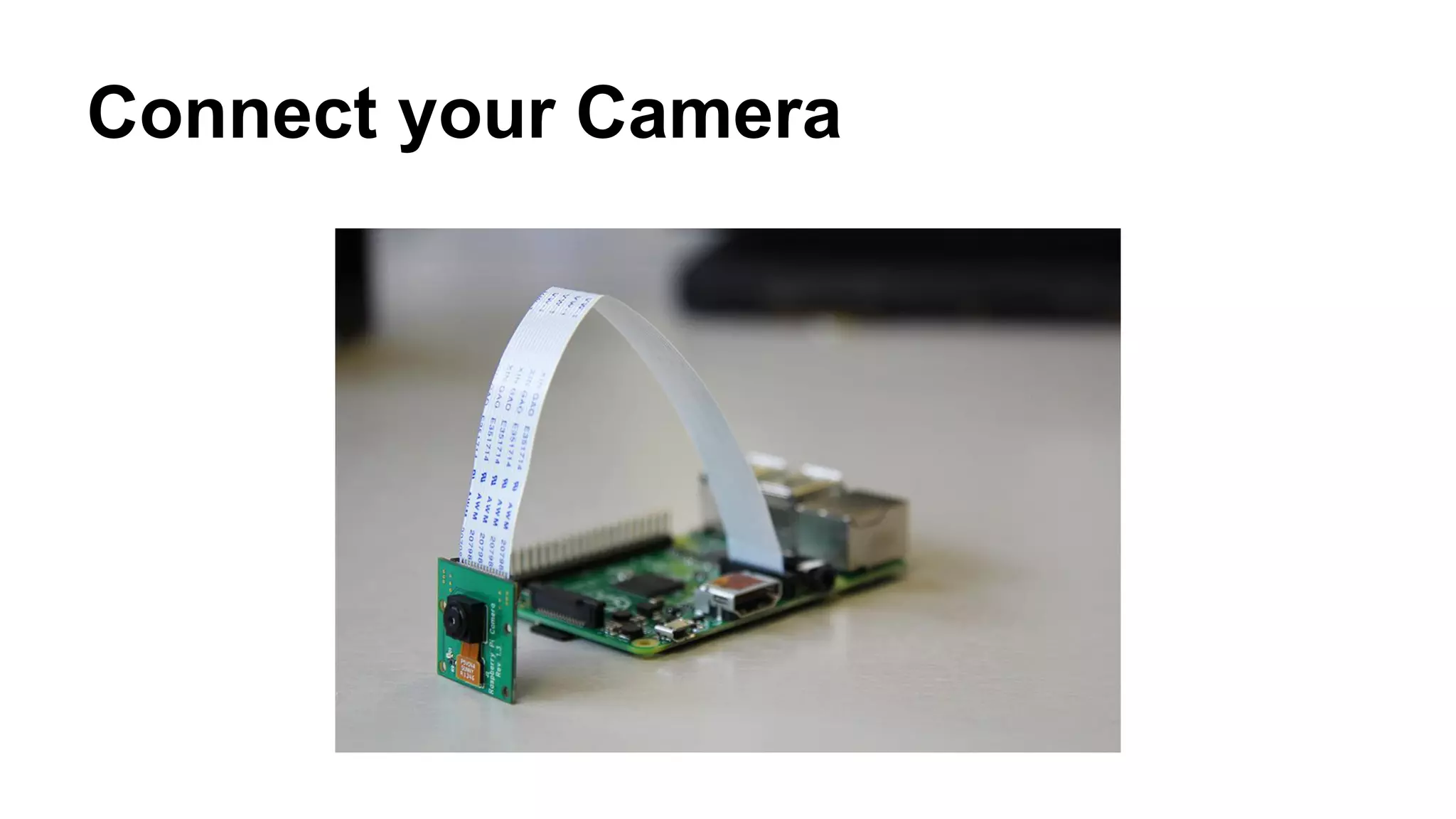

Connect your Camera
Boot the Pi and log in
Test the camera
Type raspistill -k and hit Enter
This starts the camera preview
Hit Ctrl + C to stop
Take a selfie!
Type raspistill -o image.jpg and hit Enter
raspistill is the command for using the camera
-o means “output”
image.jpg is the chosen filename
Check the photo is there
Run ls to see the photo is there
Run startx to boot to Desktop
Open File Manager
Open image
Double click image.jpg to view it
Open Terminal
Open IDLE as root
Type sudo idle3 & and hit Enter
sudo means super user do
IDLE is a Python application
& means open in a new process
New file
Go to File > New window
Save as camera.py
Take a selfie with Python
from picamera import PiCamera
from time import sleep
with PiCamera() as camera:
camera.start_preview()
sleep(5)
camera.capture('/home/pi/image2.jpg')
camera.stop_preview()
Press F5 to run
View the photo from File Manager
Notice the difference in resolution between the file taken
from the command line and from Python
This is due to default settings in raspistill and in Python
picamera
Resolution and other aspects are configurable
GPIO pins
GPIO pins
Breadboard
Connect a GPIO push button
Add the button to the code
from picamera import PiCamera
from time import sleep
from RPi import GPIO
button = 17
GPIO.setmode(GPIO.BCM)
GPIO.setup(button, GPIO.IN, GPIO.PUD_UP)
with PiCamera() as camera:
camera.start_preview()
GPIO.wait_for_edge(button, GPIO.FALLING)
camera.capture('/home/pi/image3.jpg')
camera.stop_preview()
Press the button to take a picture
Run the script with F5
Wait for the preview
Press the push button to take a picture
View the photo from File Manager
Add a loop
with PiCamera() as camera:
camera.start_preview()
GPIO.wait_for_edge(button, GPIO.FALLING)
for i in range(5):
sleep(3)
camera.capture('/home/pi/picture%s.jpg' % i)
camera.stop_preview()
What’s the difference?
GPIO.wait_for_edge(button, GPIO.FALLING)
for i in range(5):
sleep(3)
camera.capture('/home/pi/picture%s.jpg' % i)
camera.stop_preview()
for i in range(5):
GPIO.wait_for_edge(button, GPIO.FALLING)
sleep(3)
camera.capture('/home/pi/picture%s.jpg' % i)
camera.stop_preview()
What can you do?
Raspberry Pi Camera Resources
Raspberry Pi Resources
