This document provides instructions for a self-directed workshop using a Raspberry Pi to take photos with a connected camera, view the photos through a web browser, and tweet the photos using Twitter APIs. The workshop instructions guide participants through connecting a camera, taking test photos, browsing an example photo app project on GitHub, running the app locally and through a browser on other devices on the same network, generating Twitter API keys to enable tweeting from the app, modifying the app code to add their own API keys, and exploring ways to expand on the project by changing the app's features or design.

1. Raspberry Pi
Creative Technologists
Sheffield
July 2015

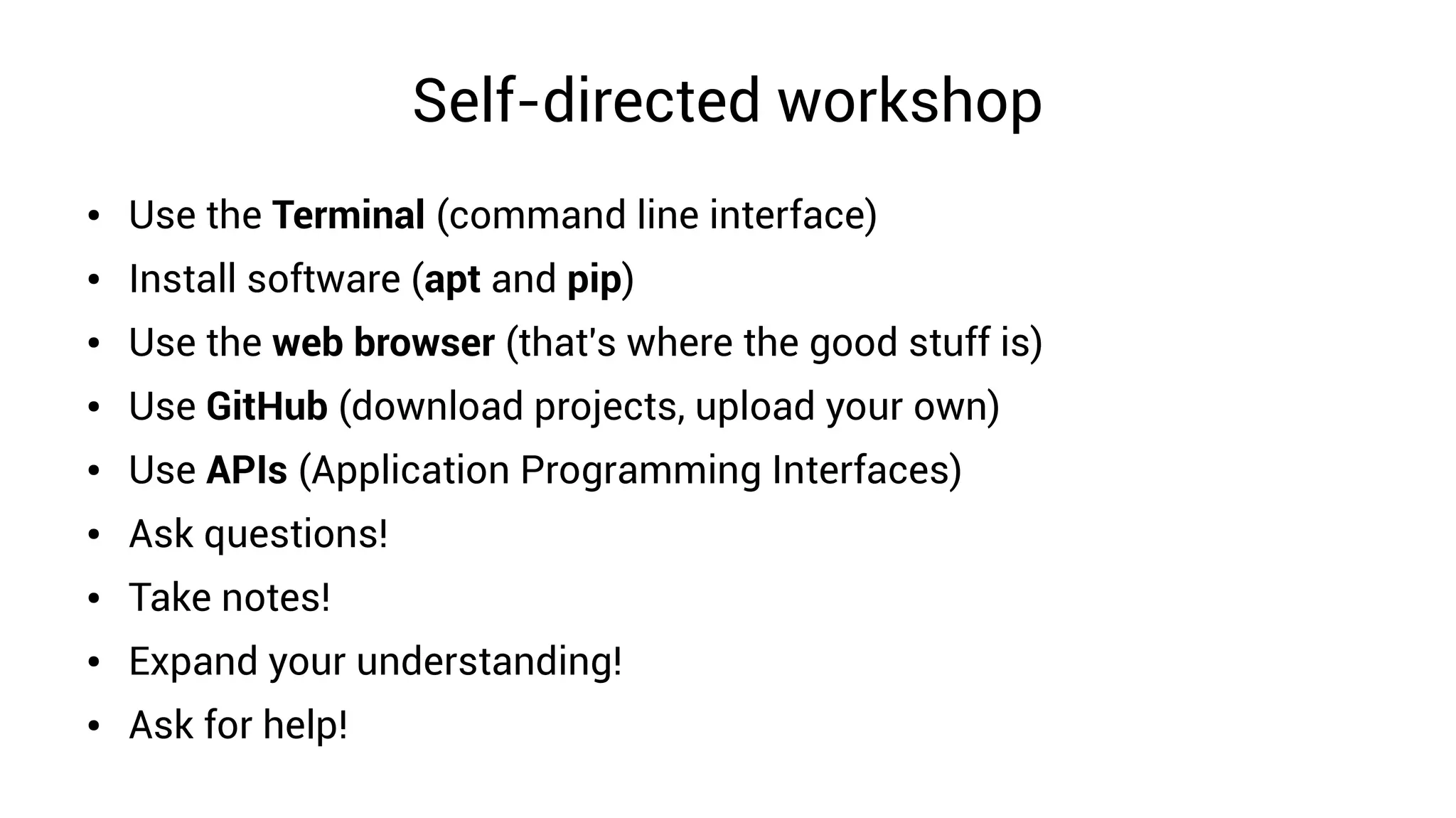

2. Self-directed workshop
● Use the Terminal (command line interface)
● Install software (apt and pip)
● Use the web browser (that's where the good stuff is)
● Use GitHub (download projects, upload your own)
● Use APIs (Application Programming Interfaces)
● Ask questions!
● Take notes!
● Expand your understanding!
● Ask for help!

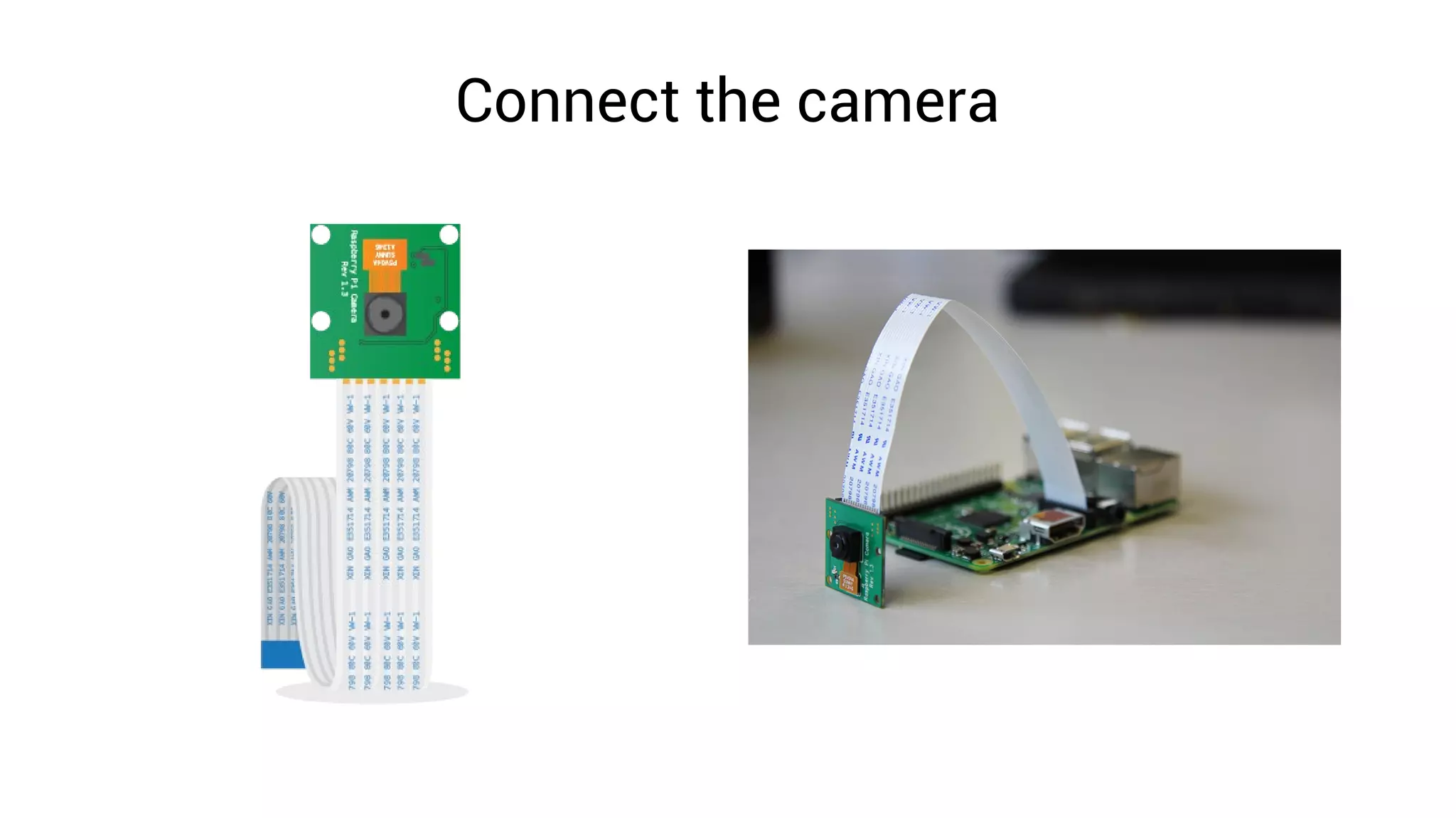

3. Connect the camera

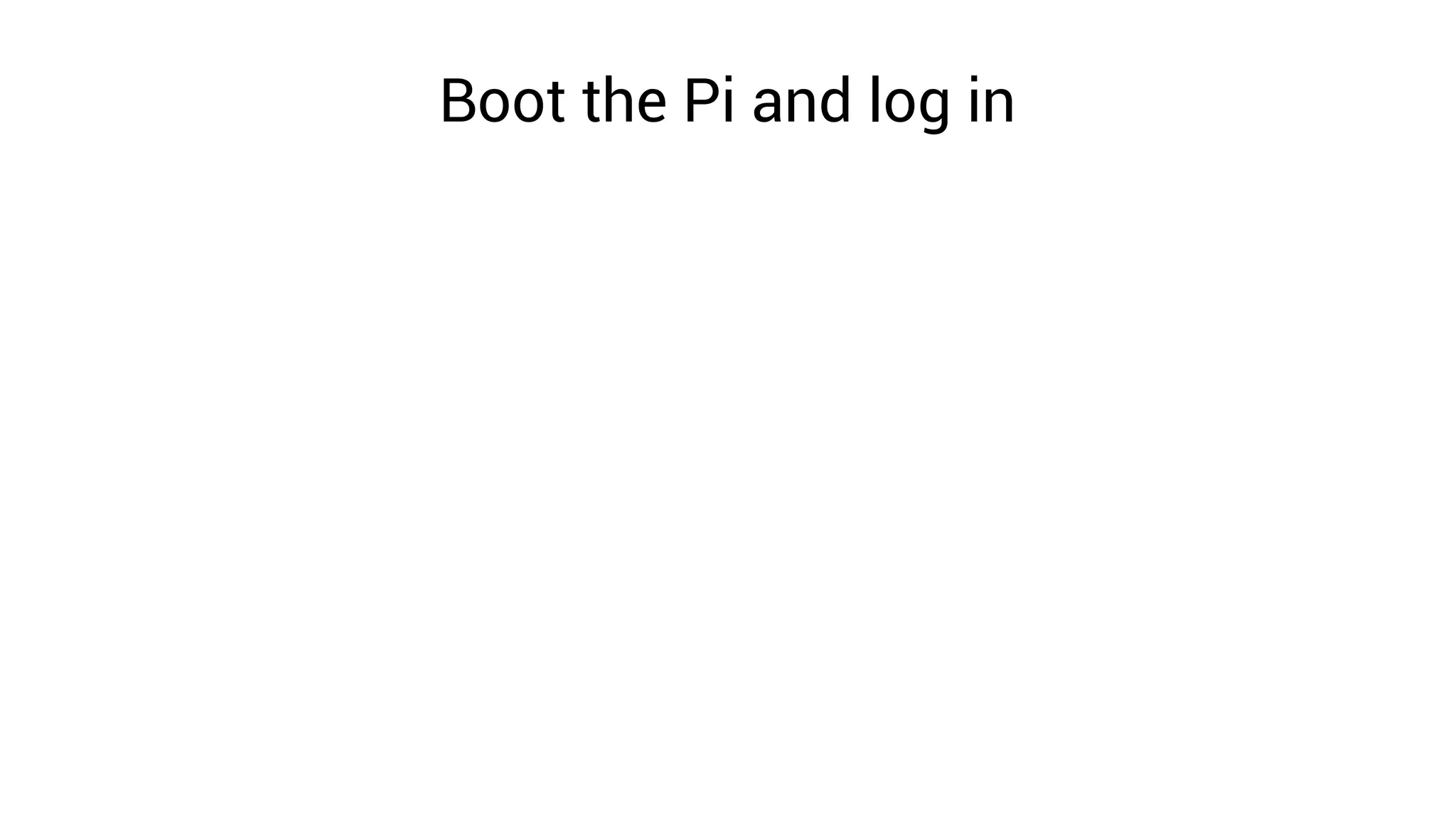

4. Boot the Pi and log in

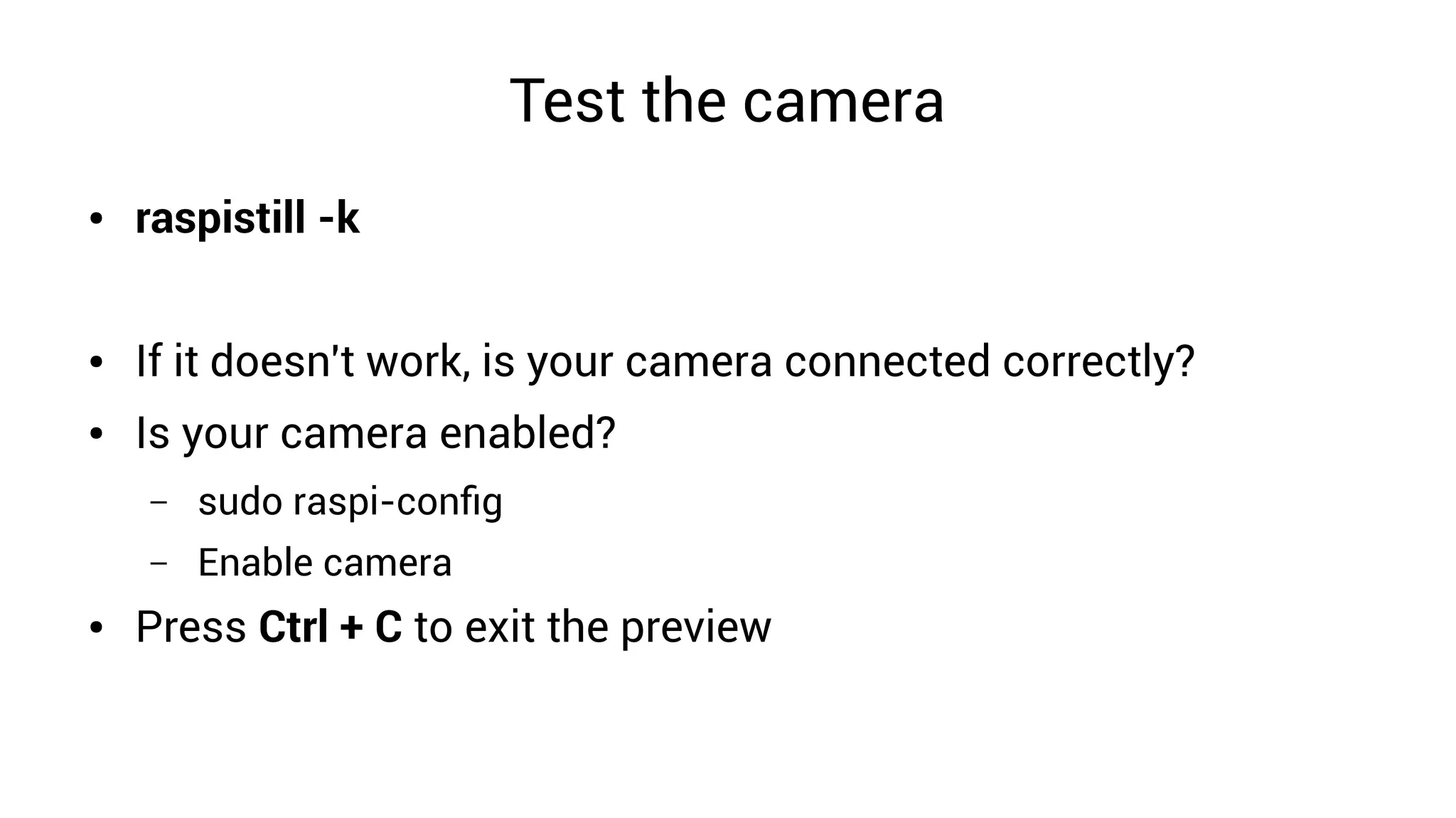

5. Test the camera
● raspistill -k
● If it doesn't work, is your camera connected correctly?
● Is your camera enabled?
– sudo raspi-config
– Enable camera
● Press Ctrl + C to exit the preview

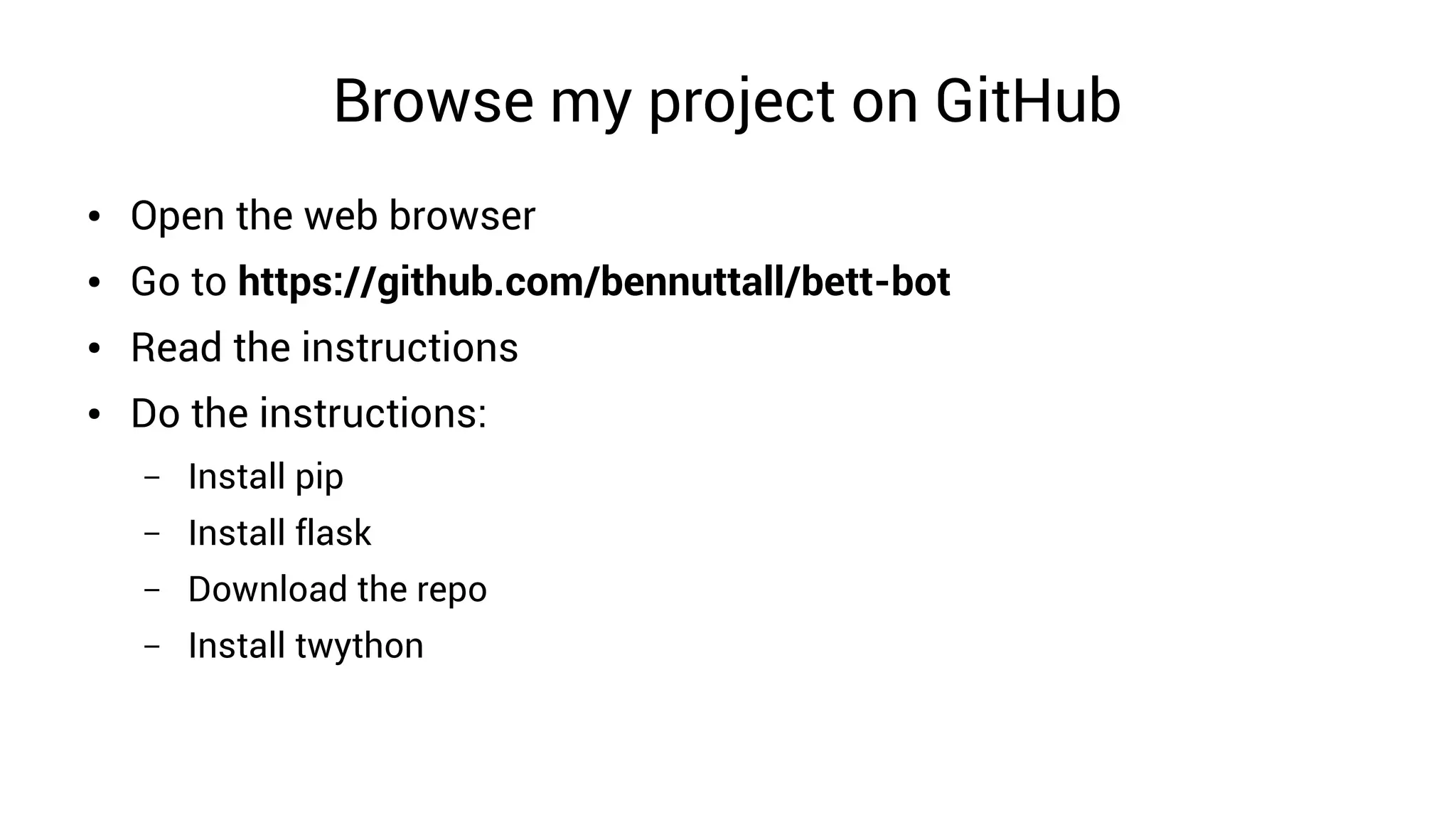

6. Browse my project on GitHub
● Open the web browser
● Go to https://github.com/bennuttall/bett-bot
● Read the instructions
● Do the instructions:
– Install pip
– Install flask
– Download the repo
– Install twython

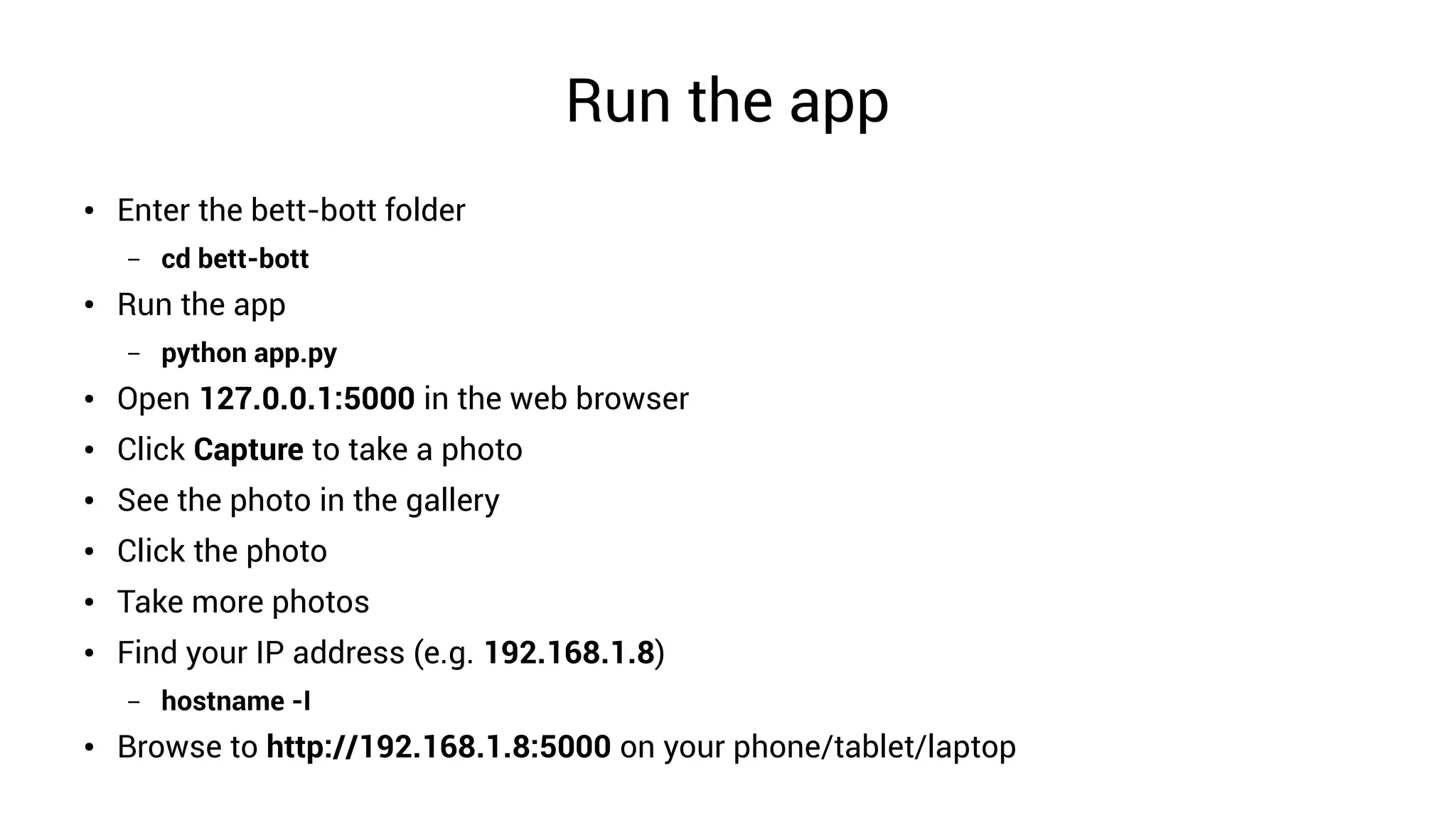

7. Run the app
● Enter the bett-bott folder
– cd bett-bott
● Run the app
– python app.py
● Open 127.0.0.1:5000 in the web browser
● Click Capture to take a photo
● See the photo in the gallery
● Click the photo
● Take more photos
●
Find your IP address (e.g. 192.168.1.8)
– hostname -I
● Browse to http://192.168.1.8:5000 on your phone/tablet/laptop

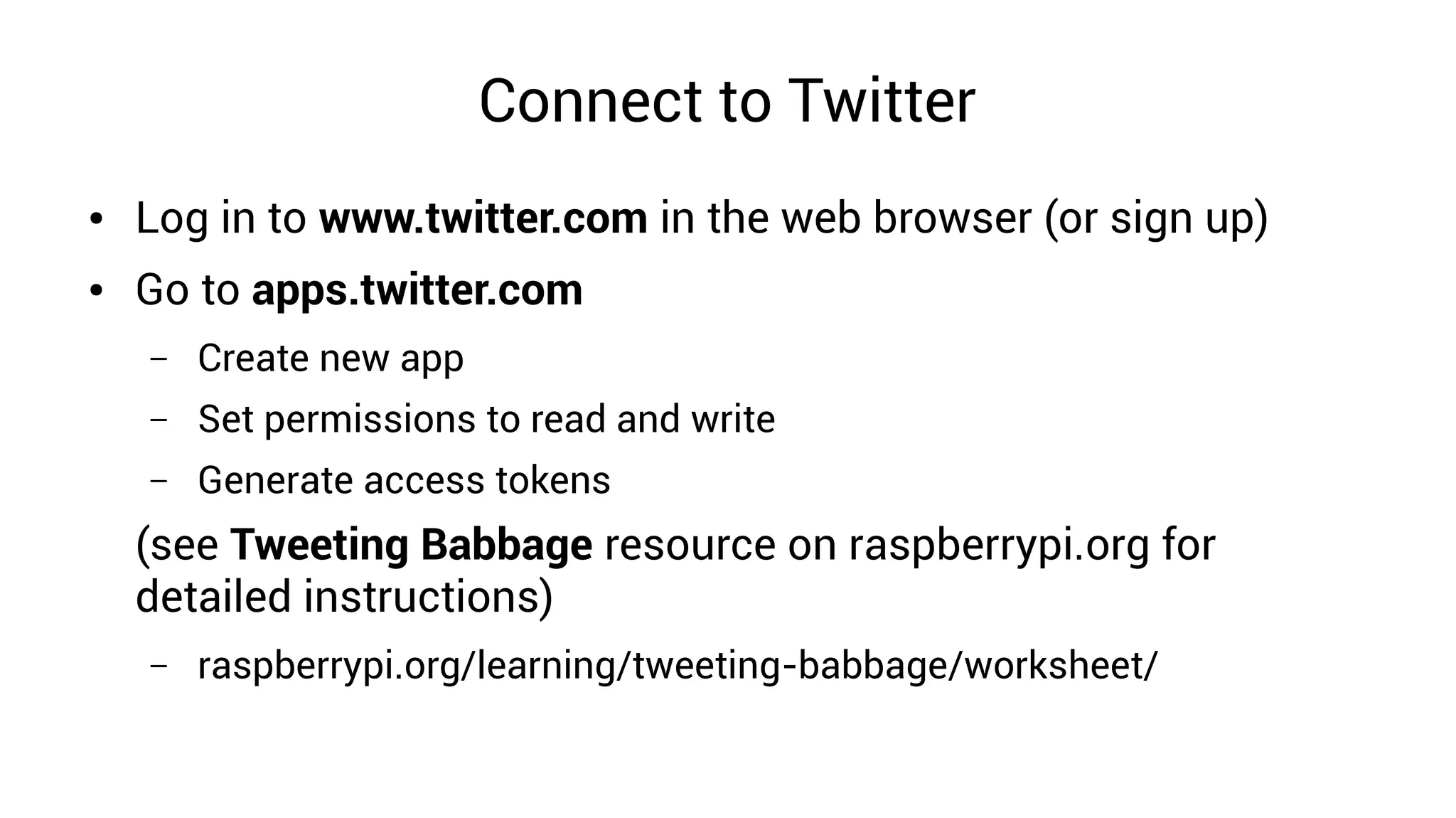

8. Connect to Twitter
● Log in to www.twitter.com in the web browser (or sign up)
● Go to apps.twitter.com
– Create new app
– Set permissions to read and write
– Generate access tokens
(see Tweeting Babbage resource on raspberrypi.org for
detailed instructions)
– raspberrypi.org/learning/tweeting-babbage/worksheet/

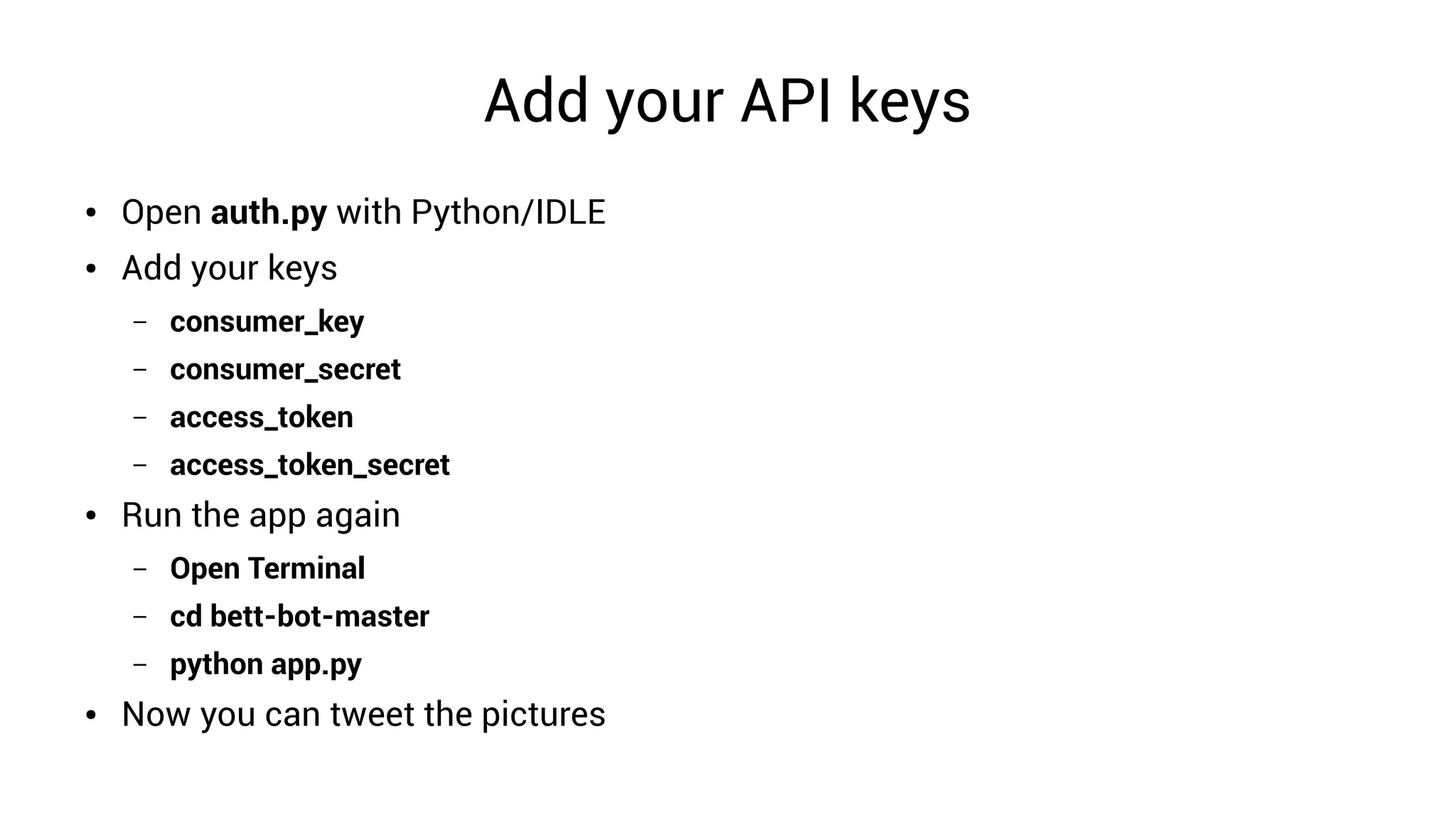

9. Add your API keys
● Open auth.py with Python/IDLE
● Add your keys
– consumer_key
– consumer_secret
– access_token
– access_token_secret
● Run the app again
– Open Terminal
– cd bett-bot-master
– python app.py
● Now you can tweet the pictures

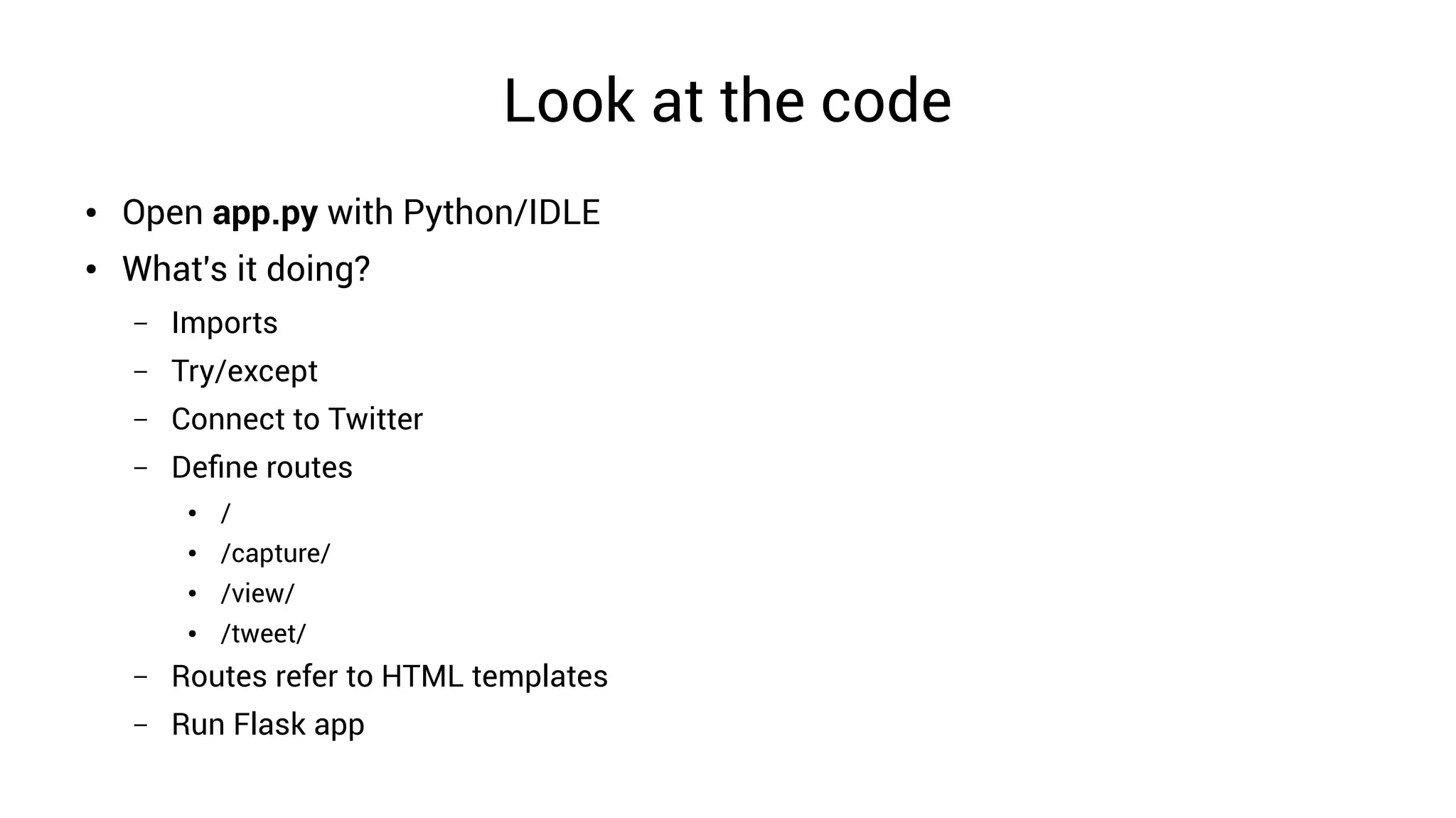

10. Look at the code
● Open app.py with Python/IDLE
● What's it doing?
– Imports
– Try/except
– Connect to Twitter
– Define routes
● /
● /capture/
● /view/
● /tweet/
– Routes refer to HTML templates
– Run Flask app

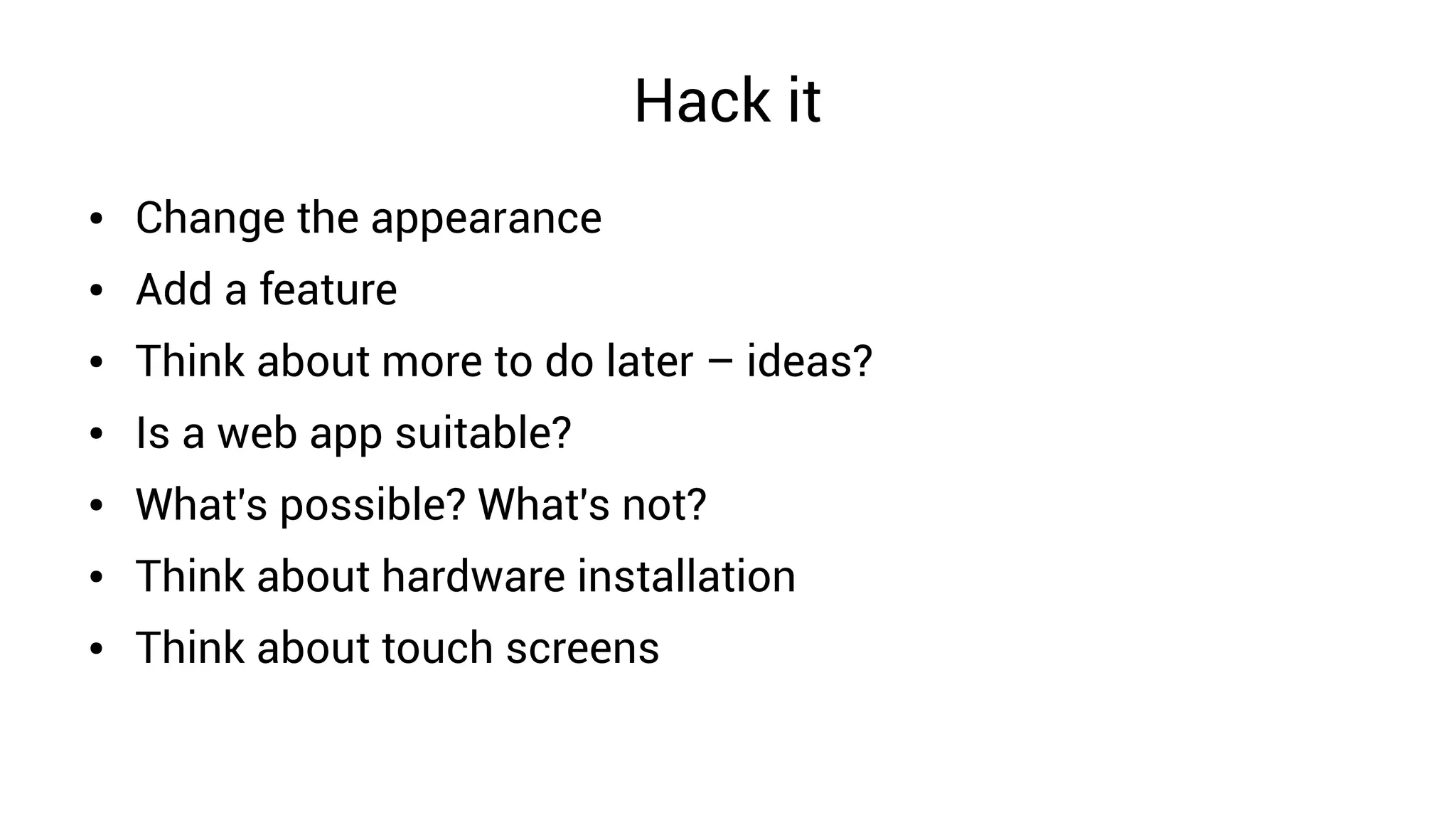

11. Hack it
● Change the appearance
● Add a feature
● Think about more to do later – ideas?
● Is a web app suitable?
● What's possible? What's not?
● Think about hardware installation
● Think about touch screens
