Suborbital Opportunities for Students
- 1. Fly Early, FlyOften, Fly Safe (science and research on reusable suborbital vehicles) Dr. Kimberly Ennico NASA Ames Research Center November 15, 2011 CU SEDS
- 2. A little bitabout me...
- 3. Photo by C.Conrad Dr. Kimberly Ennico & Dr. Sam Durrance (STS-35 & STS-67) at the runway dedication of Spaceport America, Las Cruces, NM, October 22, 2010.
- 4. Topics du jour What is Suborbital? What is Suborbital Science? What is Commercial Suborbital? Who are involved? What are NASA’s roles? How can you get involved?
- 5. Topics du jour What is Suborbital? What is Suborbital Science? What is Commercial Suborbital? Who are involved? What are NASA’s roles? How can you get involved?

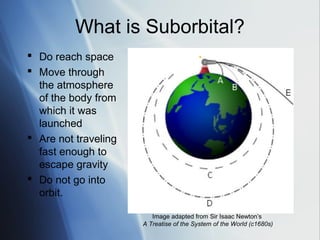

- 6. What is Suborbital? Do reach space Move through the atmosphere of the body from which it was launched Are not traveling fast enough to escape gravity Do not go into orbit. Image adapted from Sir Isaac Newton’s A Treatise of the System of the World (c1680s)

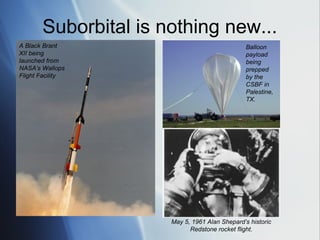

- 7. Suborbital is nothingnew... A Black Brant Balloon XII being payload launched from being NASA’s Wallops prepped Flight Facility by the CSBF in Palestine, TX. May 5, 1961 Alan Shepard’s historic Redstone rocket flight.
- 8. Suborbital is International Institute of Space and Astronautical Science (ISAS) Japanese Balloon & Sounding Rocket Program hs de wS ec ap S Australian Space Research Norway's i Institute Andøya Rocket Range hr opa Cgna s E) mi e GA S DAE/ a nu lo e r y na m rt s u r S s ux a M yili c af c r t
- 9. Major World Spaceports 23 http://www.spacetoday.org/Rockets/Spaceports/LaunchSites.html *This graphic is a bit dated (see next slide)

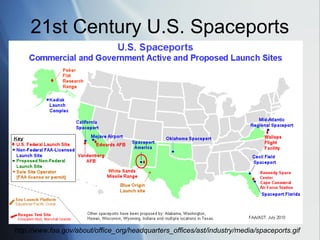

- 10. 21st Century U.S.Spaceports http://www.faa.gov/about/office_org/headquarters_offices/ast/industry/media/spaceports.gif

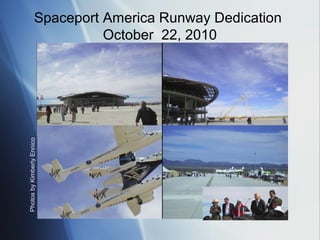

- 11. Spaceport America RunwayDedication Photos by Kimberly Ennico October 22, 2010

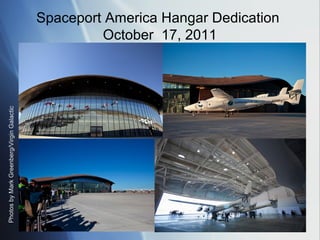

- 12. Spaceport America HangarDedication October 17, 2011 Photos by Mark Greenberg/Virgin Galactic
- 13. Student Launch (SL-5) May 20, 2011 http://www.spaceportamerica.com/ http://www.launchnm.com
- 14. CU RocketSat Sounding Rocket Payload Program Started in 2005 by students RockSat1 - Launched Sep 25, 2006a RockSat2 - Launched Apr 28,2007a RockSat3- Launched June 27, 2007a RockSat 4 - Launched June 27, 2008b RockOn/RockSat - Launched June 26, 2009b Morphed into the RockSat-C & X programs... Las Cruces, NM; bWallops, VA a http://spacegrant.colorado.edu/COSGC_Projects/rocketsat/ http://spacegrant.colorado.edu/rockon/RockSat/RockSat.htm

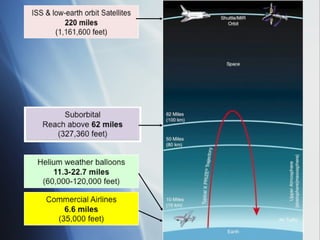

- 15. “Suborbital” has alsobeen used to describe these platforms... ER-2 Global Hawk WB57 Stratospheric Observatory for Infrared Astronomy http://airbornescience.nasa.gov/ http://sofia.usra.edu/
- 17. Topics du jour What is Suborbital? What is Suborbital Science? What is Commercial Suborbital? Who are involved? What are NASA’s roles? How can you get involved?

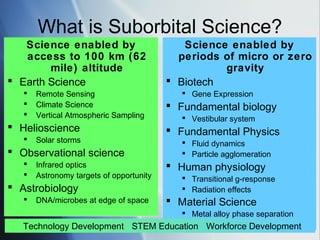

- 18. What is SuborbitalScience? Science enabled by Science enabled by access to 100 km (62 periods of micro or zero mile) altitude gravity Earth Science Biotech Remote Sensing Gene Expression Climate Science Fundamental biology Vertical Atmospheric Sampling Vestibular system Helioscience Fundamental Physics Solar storms Fluid dynamics Observational science Particle agglomeration Infrared optics Human physiology Astronomy targets of opportunity Transitional g-response Astrobiology Radiation effects DNA/microbes at edge of space Material Science Metal alloy phase separation Combustion physics Technology Development STEM Education Workforce Development
- 19. What is SuborbitalScience? Science Payloads Science Payloads Technology Development STEM Education Workforce Development

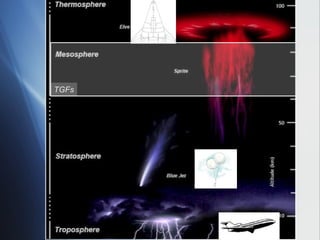

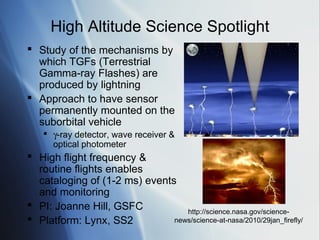

- 20. High Altitude ScienceSpotlight Study of the mechanisms by which TGFs (Terrestrial Gamma-ray Flashes) are produced by lightning Approach to have sensor permanently mounted on the suborbital vehicle γ-ray detector, wave receiver & optical photometer High flight frequency & routine flights enables cataloging of (1-2 ms) events and monitoring PI: Joanne Hill, GSFC http://science.nasa.gov/science- Platform: Lynx, SS2 news/science-at-nasa/2010/29jan_firefly/
- 21.
- 22. 35,000 feet 100,000 feet (airline) (balloon) Expected for 330,000 feet 1,000,000 feet (commercial suborbital) (ISS)
- 23. Microgravity Science NASA Glenn's 5 second Zero Gravity Facility Drop Towers Parabolic Aircraft Zero Gravity Corporation
- 24. Microgravity Science Spotlight A proposed study on how Itokawa “rubble pile” asteroids form and stick An experimental study of the mechanical reorientation of ejecta 535 × 294 × 209 meters blocks in a microgravity environment Approach tests methods of reconstructing the block distribution from an imaging dataset PI: Dan Durda/SwRI Platform: SF-104, Zero-G, Blue Origin
- 26. the SwRI PathfinderPayloads

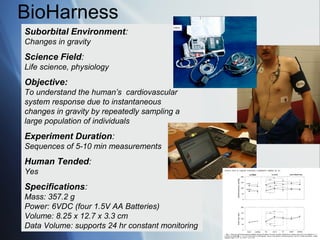

- 27. BioHarness Suborbital Environment: Changes ingravity Science Field: Life science, physiology Objective: To understand the human’s cardiovascular system response due to instantaneous changes in gravity by repeatedly sampling a large population of individuals Experiment Duration: Sequences of 5-10 min measurements Human Tended: Yes Specifications: Mass: 357.2 g Power: 6VDC (four 1.5V AA Batteries) Volume: 8.25 x 12.7 x 3.3 cm Data Volume: supports 24 hr constant monitoring

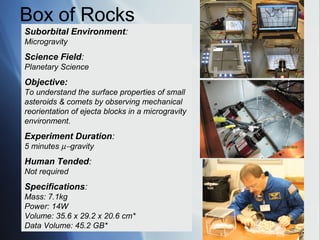

- 28. Box of Rocks SuborbitalEnvironment: Microgravity Science Field: Planetary Science Objective: To understand the surface properties of small asteroids & comets by observing mechanical reorientation of ejecta blocks in a microgravity environment. Experiment Duration: 5 minutes µ−gravity Human Tended: Not required Specifications: Mass: 7.1kg Power: 14W Volume: 35.6 x 29.2 x 20.6 cm* Data Volume: 45.2 GB*

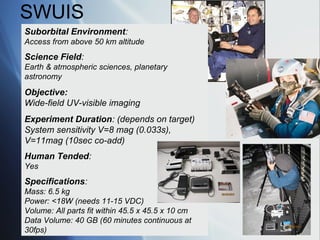

- 29. SWUIS Suborbital Environment: Access fromabove 50 km altitude Science Field: Earth & atmospheric sciences, planetary astronomy Objective: Wide-field UV-visible imaging Experiment Duration: (depends on target) System sensitivity V=8 mag (0.033s), V=11mag (10sec co-add) Human Tended: Yes Specifications: Mass: 6.5 kg Power: <18W (needs 11-15 VDC) Volume: All parts fit within 45.5 x 45.5 x 10 cm Data Volume: 40 GB (60 minutes continuous at 30fps)

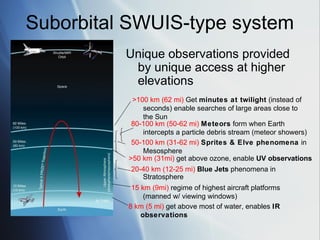

- 30. Suborbital SWUIS-type system Unique observations provided by unique access at higher elevations >100 km (62 mi) Get minutes at twilight (instead of seconds) enable searches of large areas close to the Sun 80-100 km (50-62 mi) Meteors form when Earth intercepts a particle debris stream (meteor showers) 50-100 km (31-62 mi) Sprites & Elve phenomena in Mesosphere >50 km (31mi) get above ozone, enable UV observations 20-40 km (12-25 mi) Blue Jets phenomena in Stratosphere 15 km (9mi) regime of highest aircraft platforms (manned w/ viewing windows) 8 km (5 mi) get above most of water, enables IR observations

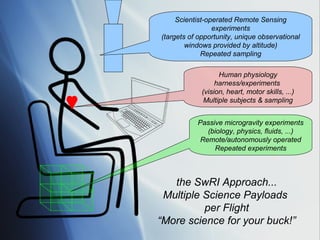

- 31. Scientist-operated Remote Sensing experiments (targets of opportunity, unique observational windows provided by altitude) Repeated sampling Human physiology harness/experiments (vision, heart, motor skills, ...) Multiple subjects & sampling Passive microgravity experiments (biology, physics, fluids, ...) Remote/autonomously operated Repeated experiments the SwRI Approach... Multiple Science Payloads per Flight “More science for your buck!”

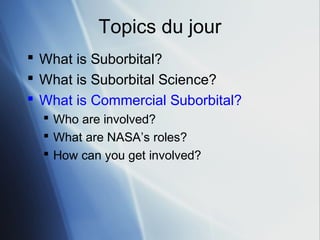

- 32. Topics du jour What is Suborbital? What is Suborbital Science? What is Commercial Suborbital? Who are involved? What are NASA’s roles? How can you get involved?

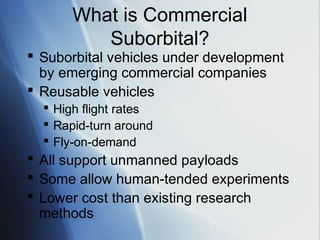

- 33. What is Commercial Suborbital? Suborbital vehicles under development by emerging commercial companies Reusable vehicles High flight rates Rapid-turn around Fly-on-demand All support unmanned payloads Some allow human-tended experiments Lower cost than existing research methods
- 34. Topics du jour What is Suborbital? What is Suborbital Science? What is Commercial Suborbital? Who are involved? What are NASA’s roles? How can you get involved?

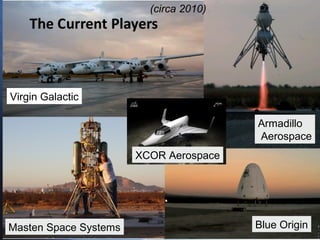

- 35. (circa 2010) Virgin Galactic Armadillo Aerospace XCOR Aerospace Masten Space Systems Blue Origin

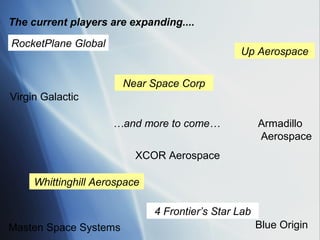

- 36. The current playersare expanding.... RocketPlane Global Up Aerospace Near Space Corp Virgin Galactic …and more to come… Armadillo Aerospace XCOR Aerospace Whittinghill Aerospace 4 Frontier’s Star Lab Masten Space Systems Blue Origin

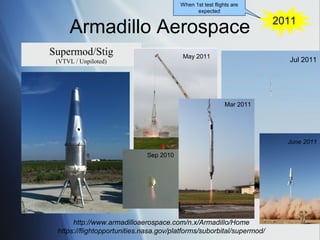

- 37. When 1st testflights are expected 2011 Armadillo Aerospace Supermod/Stig May 2011 (VTVL / Unpiloted) Jul 2011 Mar 2011 June 2011 Sep 2010 http://www.armadilloaerospace.com/n.x/Armadillo/Home https://flightopportunities.nasa.gov/platforms/suborbital/supermod/

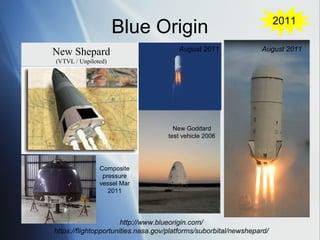

- 38. 2011 Blue Origin August 2011 August 2011 New Shepard (VTVL / Unpiloted) New Goddard test vehicle 2006 Composite pressure vessel Mar 2011 http://www.blueorigin.com/ https://flightopportunities.nasa.gov/platforms/suborbital/newshepard/
- 39. 2011 Masten Space Systems Xaero Xoie Xombie (VTVL / Unpiloted) Oct 2009 Nov 2011 Test Stand Xaero May 2011 http://masten-space.com/ https://flightopportunities.nasa.gov/platforms/suborbital/xaero/

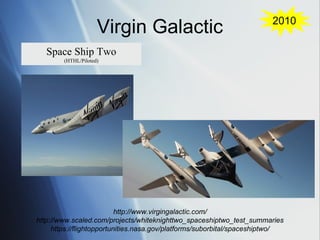

- 40. 2010 Virgin Galactic Space Ship Two (HTHL/Piloted) http://www.virgingalactic.com/ http://www.scaled.com/projects/whiteknighttwo_spaceshiptwo_test_summaries https://flightopportunities.nasa.gov/platforms/suborbital/spaceshiptwo/
- 41. Photo: Mark Greenberg/VirginAmerica April 6, 2011. Opening of SFO’s Terminal 2. White Knight 2 with Space Ship 2, underneath, visits SFO.

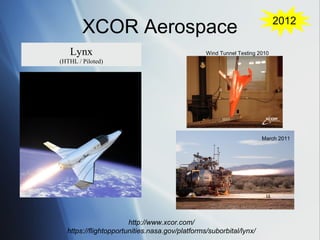

- 42. 2012 XCOR Aerospace Lynx Wind Tunnel Testing 2010 (HTHL / Piloted) March 2011 http://www.xcor.com/ https://flightopportunities.nasa.gov/platforms/suborbital/lynx/

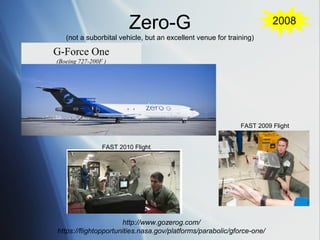

- 43. Zero-G 2008 (not a suborbital vehicle, but an excellent venue for training) G-Force One (Boeing 727-200F ) FAST 2009 Flight FAST 2010 Flight http://www.gozerog.com/ https://flightopportunities.nasa.gov/platforms/parabolic/gforce-one/
- 44. Who are Involved? These new commercial suborbital vehicles are “Complementary not Competitive” to other suborbital and/or microgravity platforms

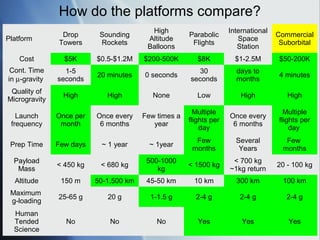

- 45. How do theplatforms compare? High International Drop Sounding Parabolic Commercial Platform Altitude Space Towers Rockets Flights Suborbital Balloons Station Cost $5K $0.5-$1.2M $200-500K $8K $1-2.5M $50-200K Cont. Time 1-5 30 days to 20 minutes 0 seconds 4 minutes in µ-gravity seconds seconds months Quality of High High None Low High High Microgravity Multiple Multiple Launch Once per Once every Few times a Once every flights per flights per frequency month 6 months year 6 months day day Few Several Few Prep Time Few days ~ 1 year ~ 1year months Years months Payload 500-1000 < 700 kg < 450 kg < 680 kg < 1500 kg 20 - 100 kg Mass kg ~1kg return Altitude 150 m 50-1,500 km 45-50 km 10 km 300 km 100 km Maximum 25-65 g 20 g 1-1.5 g 2-4 g 2-4 g 2-4 g g-loading Human Tended No No No Yes Yes Yes Science
- 46. How do theplatforms compare? High International Drop Sounding Parabolic Commercial Platform Altitude Space Towers Rockets Flights Suborbital Balloons Station Cost $5K $0.5-$1.2M $200-500K $8K $1-2.5M $50-200K Cont. Time 1-5 30 days to 20 minutes 0 seconds 4 minutes in µ-gravity seconds seconds months Quality of High High None Low High High Microgravity Multiple Multiple Launch Once per Once every Few times a Once every flights per flights per frequency month 6 months year 6 months day day Few Several Few Prep Time Few days ~ 1 year ~ 1year months Years months Payload 500-1000 < 700 kg < 450 kg < 680 kg < 1500 kg 20 - 100 kg Mass kg ~1kg return Altitude 150 m 50-1,500 km 45-50 km 10 km 300 km 100 km Maximum 25-65 g 20 g 1-1.5 g 2-4 g 2-4 g 2-4 g g-loading Human Tended No No No Yes Yes Yes Science

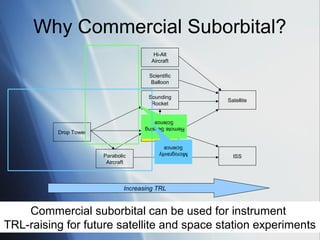

- 47. Why Commercial Suborbital? Hi-Alt Aircraft Scientific Balloon Sounding Satellite Rocket Science Commercial Remote Sensing Drop Tower Suborbital Science Microgravity Parabolic ISS Aircraft Increasing TRL Commercial suborbital can be used for instrument TRL-raising for future satellite and space station experiments
- 48. Technology Readiness Levels http://www.hq.nasa.gov/office/codeq/trl/trlchrt.pdf http://en.wikipedia.org/wiki/Technology_readiness_level
- 49. Founded 1869 Founded 1869 20 Leagues 1 League 246 Teams/Clubs 30 Teams/Clubs

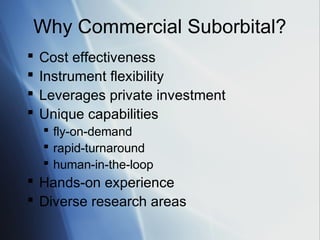

- 50. Why Commercial Suborbital? Cost effectiveness Instrument flexibility Leverages private investment Unique capabilities fly-on-demand rapid-turnaround human-in-the-loop Hands-on experience Diverse research areas
- 51. Topics du jour What is Suborbital? What is Suborbital Science? What is Commercial Suborbital? Who are involved? What are NASA’s roles? How can you get involved?

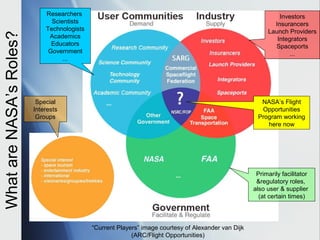

- 52. Researchers Investors Scientists Insurancers Technologists Launch Providers What are NASA’s Roles? Academics Integrators Educators Spaceports Government ... ... Special NASA’s Flight Interests Opportunities Groups Program working here now Primarily facilitator ®ulatory roles, also user & supplier (at certain times) “Current Players” image courtesy of Alexander van Dijk (ARC/Flight Opportunities)

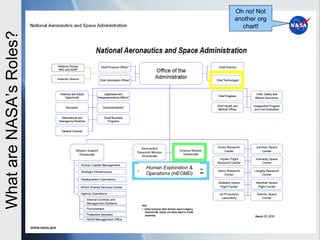

- 53. Oh no! Not another org chart! What are NASA’s Roles? Human Exploration & Operations (HEOMD)

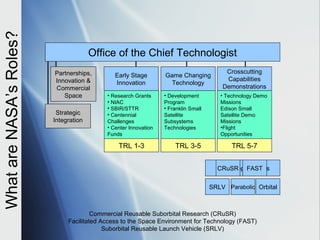

- 54. What are NASA’sRoles? Office of the Chief Technologist Partnerships, Crosscutting Early Stage Game Changing Innovation & Capabilities Innovation Technology Commercial Demonstrations Space • Research Grants • Development • Technology Demo • NIAC Program Missions • SBIR/STTR • Franklin Small Edison Small Strategic • Centennial Satellite Satellite Demo Integration Challenges Subsystems Missions • Center Innovation Technologies •Flight Funds Opportunities TRL 1-3 TRL 3-5 TRL 5-7 Flight Opportunities CRuSR FAST SRLV Parabolic Orbital Commercial Reusable Suborbital Research (CRuSR) Facilitated Access to the Space Environment for Technology (FAST) Suborbital Reusable Launch Vehicle (SRLV)
- 55. This sounds socool, but... How much is NASA investing in commercial suborbital?
- 56. NASA’S FY2011 Budget~$19B NASA today gets 0.47% of the Federal Budget, about $19B

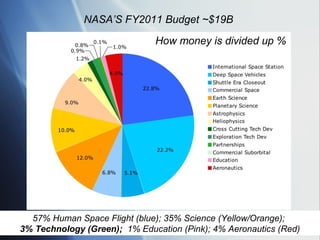

- 57. NASA’S FY2011 Budget~$19B How money is divided up % 57% Human Space Flight (blue); 35% Science (Yellow/Orange); 3% Technology (Green); 1% Education (Pink); 4% Aeronautics (Red)
- 58. NASA’S FY2011 Budget~$19B How money is divided up $B $11B Human Space Flight (blue); $6.5B Science (Yellow/Orange); $570M Technology (Green); $190M Education (Pink); $760 Aeronautics (Red)

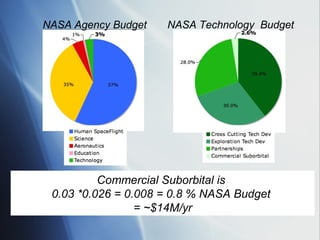

- 59. NASA Agency Budget NASA Technology Budget Commercial Suborbital is 0.03 *0.026 = 0.008 = 0.8 % NASA Budget = ~$14M/yr

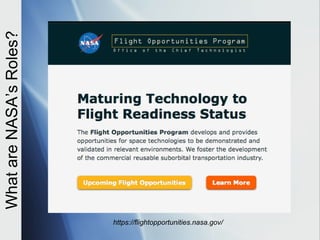

- 60. What are NASA’sRoles? https://flightopportunities.nasa.gov/
- 61. Topics du jour What is Suborbital? What is Suborbital Science? What is Commercial Suborbital? Who are involved? What are NASA’s roles? How can you get involved?

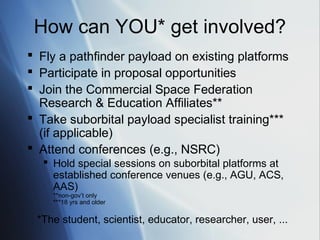

- 62. How can YOU*get involved? Fly a pathfinder payload on existing platforms Participate in proposal opportunities Join the Commercial Space Federation Research & Education Affiliates** Take suborbital payload specialist training*** (if applicable) Attend conferences (e.g., NSRC) Hold special sessions on suborbital platforms at established conference venues (e.g., AGU, ACS, AAS) **non-gov’t only ***18 yrs and older *The student, scientist, educator, researcher, user, ...

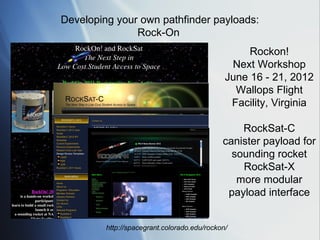

- 63. Developing your ownpathfinder payloads: Rock-On Rockon! Next Workshop June 16 - 21, 2012 Wallops Flight Facility, Virginia RockSat-C canister payload for sounding rocket RockSat-X more modular payload interface http://spacegrant.colorado.edu/rockon/

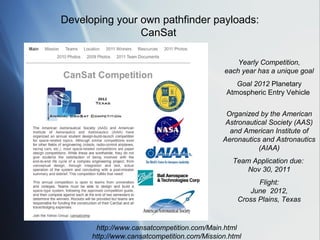

- 64. Developing your ownpathfinder payloads: CanSat Yearly Competition, each year has a unique goal Goal 2012 Planetary Atmospheric Entry Vehicle Organized by the American Astronautical Society (AAS) and American Institute of Aeronautics and Astronautics (AIAA) Team Application due: Nov 30, 2011 Flight: June 2012, Cross Plains, Texas http://www.cansatcompetition.com/Main.html http://www.cansatcompetition.com/Mission.html

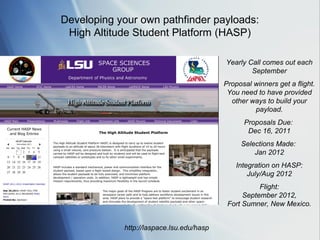

- 65. Developing your ownpathfinder payloads: High Altitude Student Platform (HASP) Yearly Call comes out each September Proposal winners get a flight. You need to have provided other ways to build your payload. Proposals Due: Dec 16, 2011 Selections Made: Jan 2012 Integration on HASP: July/Aug 2012 Flight: September 2012, Fort Sumner, New Mexico. http://laspace.lsu.edu/hasp

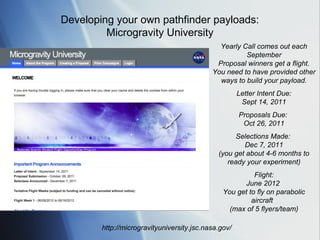

- 66. Developing your ownpathfinder payloads: Microgravity University Yearly Call comes out each September Proposal winners get a flight. You need to have provided other ways to build your payload. Letter Intent Due: Sept 14, 2011 Proposals Due: Oct 26, 2011 Selections Made: Dec 7, 2011 (you get about 4-6 months to ready your experiment) Flight: June 2012 You get to fly on parabolic aircraft (max of 5 flyers/team) http://microgravityuniversity.jsc.nasa.gov/

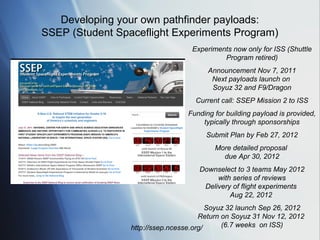

- 67. Developing your ownpathfinder payloads: SSEP (Student Spaceflight Experiments Program) Experiments now only for ISS (Shuttle Program retired) Announcement Nov 7, 2011 Next payloads launch on Soyuz 32 and F9/Dragon Current call: SSEP Mission 2 to ISS Funding for building payload is provided, typically through sponsorships Submit Plan by Feb 27, 2012 More detailed proposal due Apr 30, 2012 Downselect to 3 teams May 2012 with series of reviews Delivery of flight experiments Aug 22, 2012 Soyuz 32 launch Sep 26, 2012 Return on Soyuz 31 Nov 12, 2012 http://ssep.ncesse.org/ (6.7 weeks on ISS)
- 68. Developing your ownpathfinder payloads: DIME (Dropping In a Microgravity Environment) & WING (What If No Gravity?) Drop Tower Experiments at NASA’s Glenn Research Center Annual Middle School & High School Competition Proposals due November Selections made December Drop tests occur in March Can get funding from NASA space grant consortiums! http://spaceflightsystems.grc.nasa.gov/DIME.html
- 69. How to Flya Science Investigation There is not yet a fixed path for this activity NASA Flight Opportunity model is “in the same spirit” as the Airborne Science Operations Flight Request System (SOFRS) http://airbornescience.nasa.gov/sofrs/ Note: Proposals for high-altitude aircraft payloads will continue to go through SMD ROSES (if available that year). Aircraft flight services proposals (using existing instruments, e.g. AVIRIS/ASTER) go through the established NASA SOFRS program.

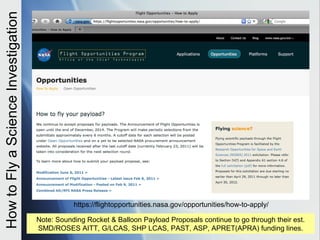

- 70. How to Flya Science Investigation https://flightopportunities.nasa.gov/opportunities/how-to-apply/ Note: Sounding Rocket & Balloon Payload Proposals continue to go through their est. SMD/ROSES AITT, G/LCAS, SHP LCAS, PAST, ASP, APRET(APRA) funding lines.

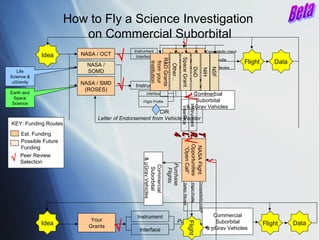

- 71. How to Flya Science Investigation on Commercial Suborbital √ √ Instrument Compatibility check Idea NASA / OCT Interface NASA Flight Space Grant R&D Grants Opportunities Flight Profile Flight Data Institution from your NASA / Other... “Open Call” Safety Review DoD NSF NIH Life SOMD Science & √ uGravity Purchase NASA / SMD Instrument Flights (ROSES) Earth and Interface Commercial √ Space Flight Profile Suborbital Science & µGrav Vehicles Instrument Interface CIR Letter of Endorsement from Vehicle Vendor KEY: Funding Routes Est. Funding √ Opportunities Possible Future Funding NASA Flight “Open Call” √ Peer Review & µGrav Vehicles √ Selection Purchase Commercial Suborbital Flights Compatibility check Safety Review Flight Profile Instrument Commercial Your √ Idea Purchase Suborbital Flight Data Flight Grants Flights & µGrav Vehicles Interface

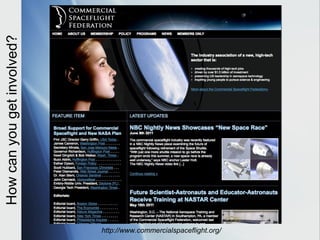

- 72. How can youget involved? http://www.commercialspaceflight.org/
- 73. How can youget involved? http://www.commercialspaceflight.org/research_and_education_affiliates.shtml

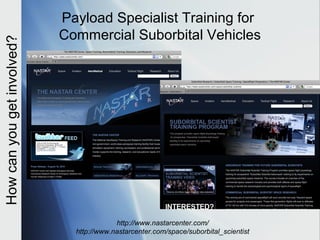

- 74. Payload Specialist Trainingfor Commercial Suborbital Vehicles How can you get involved? http://www.nastarcenter.com/ http://www.nastarcenter.com/space/suborbital_scientist

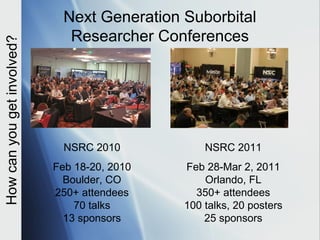

- 75. Next Generation Suborbital Researcher Conferences How can you get involved? NSRC 2010 NSRC 2011 Feb 18-20, 2010 Feb 28-Mar 2, 2011 Boulder, CO Orlando, FL 250+ attendees 350+ attendees 70 talks 100 talks, 20 posters 13 sponsors 25 sponsors
- 76. NSRC 2012 How canyou get involved? Conference dates Feb 27-29, 2012 Palo Alto, CA Registration is open Abstracts due Dec 2, 2011 http://nsrc.swri.edu

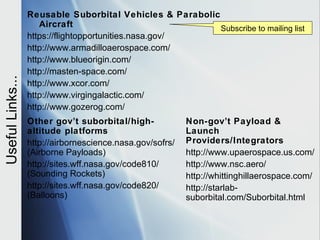

- 77. Reusable Suborbital Vehicles& Parabolic Aircraft Subscribe to mailing list https://flightopportunities.nasa.gov/ http://www.armadilloaerospace.com/ http://www.blueorigin.com/ http://masten-space.com/ Useful Links... http://www.xcor.com/ http://www.virgingalactic.com/ http://www.gozerog.com/ Other gov’t suborbital/high- Non-gov’t Payload & altitude platforms Launch http://airbornescience.nasa.gov/sofrs/ Providers/Integrators (Airborne Payloads) http://www.upaerospace.us.com/ http://sites.wff.nasa.gov/code810/ http://www.nsc.aero/ (Sounding Rockets) http://whittinghillaerospace.com/ http://sites.wff.nasa.gov/code820/ http://starlab- (Balloons) suborbital.com/Suborbital.html

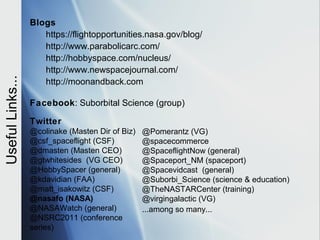

- 78. Blogs https://flightopportunities.nasa.gov/blog/ http://www.parabolicarc.com/ http://hobbyspace.com/nucleus/ http://www.newspacejournal.com/ Useful Links... http://moonandback.com Facebook: Suborbital Science (group) Twitter @colinake (Masten Dir of Biz) @Pomerantz (VG) @csf_spaceflight (CSF) @spacecommerce @dmasten (Masten CEO) @SpaceflightNow (general) @gtwhitesides (VG CEO) @Spaceport_NM (spaceport) @HobbySpacer (general) @Spacevidcast (general) @kdavidian (FAA) @Suborbi_Science (science & education) @matt_isakowitz (CSF) @TheNASTARCenter (training) @nasafo (NASA) @virgingalactic (VG) @NASAWatch (general) ...among so many... @NSRC2011 (conference series)
- 79. Fly Early, FlyOften, Fly Safe (science and research on reusable suborbital vehicles) Thank you. Questions?
