Stub Testing and Driver Testing
Stubs are used in top-down integration testing to simulate functionality of undeveloped modules. Drivers are used in bottom-up testing to test modules by calling them and returning values. Stubs provide dummy code to allow testing of dependent modules before completion. Drivers act as the caller for modules under test, allowing testing without complete dependencies. Stubs and drivers allow testing modules in isolation before full system development.
More Related Content
Similar to Stub Testing and Driver Testing
Stub Testing and Driver Testing
- 1. Stubs and Drivers Testing Powerpoint Templates Page 1

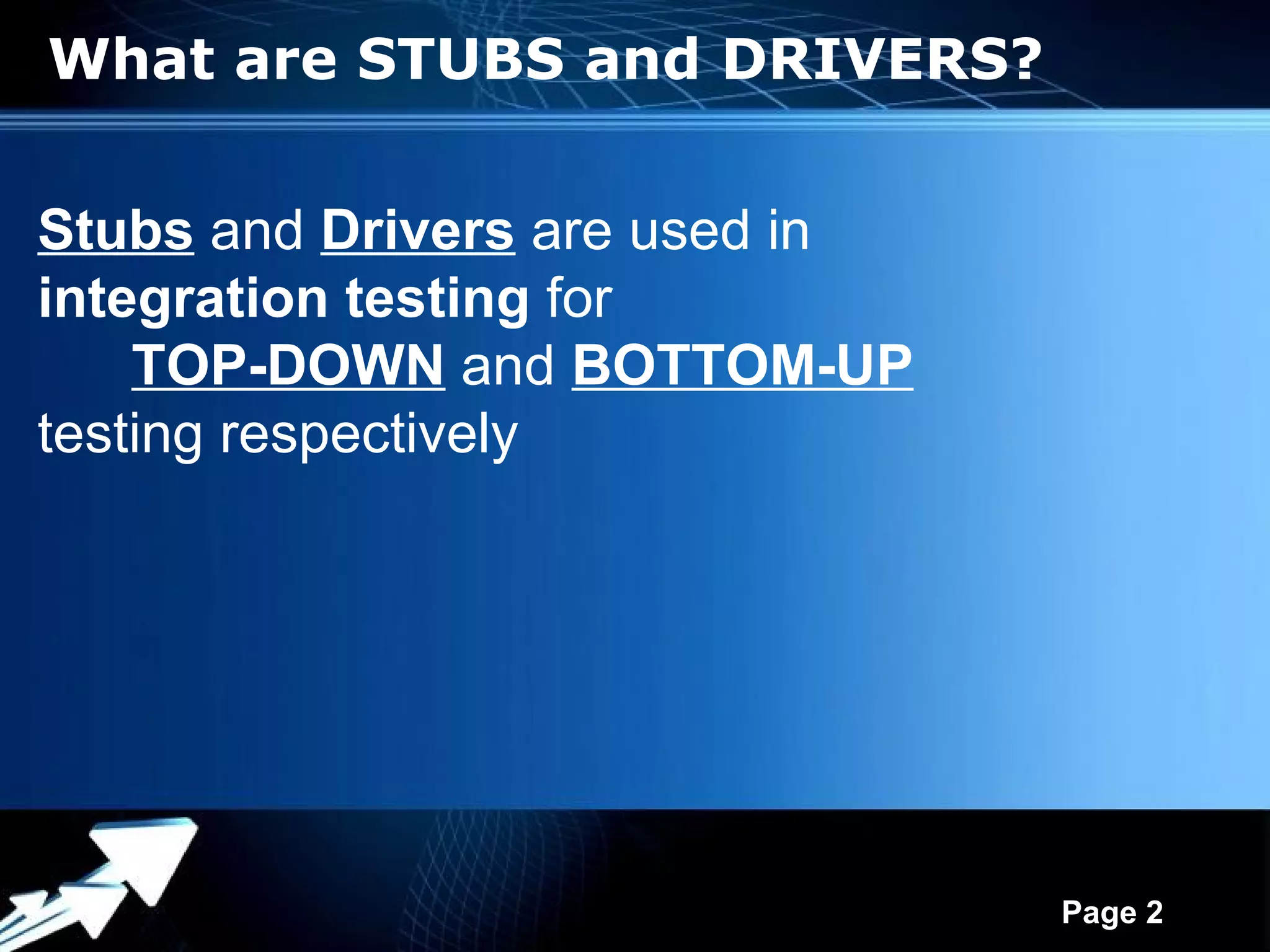

- 2. What are STUBSand DRIVERS? Stubs and Drivers are used in integration testing for TOP-DOWN and BOTTOM-UP testing respectively Powerpoint Templates Page 2
- 3. What is Top-DownDevelopment? Top-Down development: We first create the “root” module and after that each module (child) that is called by the “root”. Next we move down the tree and consider each child as a root for the next modules that need to be developed. We repeat these steps until we reach the “leaf” modules Powerpoint Templates Page 3
- 4. What is Bottom-UpDevelopment? Bottom-Up development: Considering the same tree of modules described in the previous screen, we first develop the leaf modules. Next, we move up one level and develop the parent-modules (the ones that call the leaf modules). After each level is complete, we move up one level and develop it, until we reach the “root” module. Powerpoint Templates Page 4
- 5. Context –A NormalProgram Main Main point of entry Powerpoint Templates Page 5
- 6. Context –A NormalProgram Main Main point of entry Functions Function 1 Function 2 Function 3 called in main() Powerpoint Templates Page 6
- 7. Context –A NormalProgram Main Main point of entry Functions Function 1 Function 2 Function 3 called in main() Last layer function function function of functions Powerpoint Templates Page 7
- 8. Context – Nocircular dependencies Main Main point of entry Functions Function 1 Function 2 Function 3 called in main() Last layer function function function of functions Powerpoint Templates Page 8
- 9. Context – Modules,not Functions Main Main point of entry Modules Module 1 Module 2 Module 3 called in main() Last layer Module L Module K Module F of Modules Powerpoint Templates Page 9
- 10. A Tipical Example Module L Module K Module F (not developed) (not developed) Powerpoint Templates Page 10
- 11. A Tipical Example So how can we test MODULE L? Module L Module K Module F (not developed) (not developed) Powerpoint Templates Page 11
- 12. A Tipical Example Module L Module K Stub Module F Stub Dummy code that SIMULATES the functionality of the undeveloped modules Powerpoint Templates Page 12
- 13. Code Example -Stub void functionWeTest(params..) { ………... int p = price(param1); ……….. } void price(int param) { //this is the stub return 10; // We don’t care what the price is. We just need a value so we can test the other function } Powerpoint Templates Page 13
- 14. Let’s Move toDrivers (not developed) Module L Module K Module F Powerpoint Templates Page 14
- 15. Let’s Move toDrivers Dummy code that returns values from Module L and Module K Module L Driver Module K Module F Powerpoint Templates Page 15
- 16. A Tipical Example voidfunctionThatCallsPrice (params..) { //this is the driver int p = price(param1); printf(“Price is: %d”, p); } void price(int param) { //complex ecuations and DB interogations that determin the real price } Powerpoint Templates Page 16
- 17. Conclusions No need towrite all the modules in order to begin testing Stubs and Drivers are usually easy to create The hard part is identifying what is essential and what can be simulated Stubs and Drivers can be thrown away once the equivalent module is created Powerpoint Templates Page 17
