This document summarizes the components and functioning of a bioreactor system for treating wastewater. It describes the construction of the bioreactor out of mild steel sheets. It also details the tube deck media made of PVC that prevents large sludge particles from exiting. Finally, it explains the moving bed biofilm reactor technology uses HDPE beads that allow bacterial colonies to grow and move freely, facilitating biodegradation with lower sludge production.

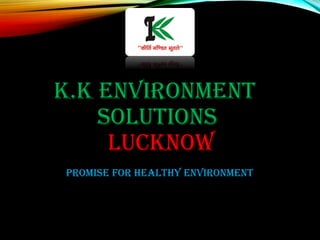

1. k.K environment
solutions
Lucknow
promise for healthy environment

2. BIO REACTOR
• It is made up of MS(Mild steel) sheet.
• Thickness- 5mm
• Length – 10 feet
• Width - 8 feet
• Depth - 5 feet

3. BIOREACTOR

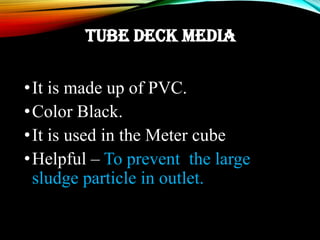

4. TUBE DECK MEDIA
•It is made up of PVC.
•Color Black.
•It is used in the Meter cube
•Helpful – To prevent the large
sludge particle in outlet.

5. TUBE DECK MEDIA

6. MBBR(MOVING BED BIOFILM
REACTOR)
• It is made up of HDPE(polyethylene)
• It is t the technology which used for small area.
• Bacterial colony grow on this it move here & there Easily
biodegradation occur.
• Lower sludge production.
• Less area required.
• Resilient to toxic shock.
• Process performance independent of secondary clarifier (due to the
fact that there is no sludge return line).

7. MBBR(MOVING BED BIOFILM
REACTOR)

9. Above mentioned
whole process occur
in the bio reactor

10. BRIEF DESCRIPTION
• Filter thickness MS -5mm
• Height 5-6 feet
• Dia -12-14 inch
• Sand media remove TSS( Total
suspended solid that should be 50-100
mg/liter
• Carbon media remove color & odor

11. CARBON &PRESSURE SAND MEDIA
FILTER
