Curing is the process of controlling the rate and extent of moisture loss from concrete during cement hydration. It is important to cure concrete for a reasonable period of time, such as days or weeks, to allow hydration to occur and for the concrete to achieve its potential strength and durability. There are several curing methods, including impermeable membrane curing using plastic sheeting or curing compounds to minimize moisture loss, and water curing through ponding, sprinkling, or wet coverings to continuously wet the exposed concrete surface and prevent moisture loss. The appropriate curing method depends on factors like the type of concrete member, the environment, and whether formwork can be retained.
If cracks develop while curing, this has a long-term negative impact on the concrete service life.
You can improve crack prevention at time of pour, and maximize concrete service life.
#futureof #concrete_curing #hydrogel
If cracks develop while curing, this has a long-term negative impact on the concrete service life.
You can improve crack prevention at time of pour, and maximize concrete service life.
#futureof #concrete_curing #hydrogel
Self-curing concrete is achieved by means of replacing a part of aggregate by lightweight aggregate or adding chemical admixtures. The self-curing process of concrete takes place from inside to outside, thus reducing the autogenous shrinkage and self-desiccation, especially for the high-performance concrete with relatively low water/binder ratio.
interesting civil engineering topics
civil engineering topics for presentation
seminar topics pdf
best seminar topics for civil engineering
civil seminar topics ppt
civil engineering seminar topics 2019
seminar topics for mechanical engineers
mechanical engineering seminar topics 2018
a brief research about permeability & durability of concrete with helpful images for civil engineering students
fully made by Amira Abdullah (civil engineering student in Ismailia - Egypt)
this presentation deals with the different types of cracks generated in concrete during its usage and after its application and also methods to retrofit these cracks
Effective use of crystalline waterproofing technology will reduce the
porosity and permeability of conventional concrete, and provide the high performance
advantages and benefits that building owners and design professionals have come to rely
upon in design and construction projects.
Self-curing concrete is achieved by means of replacing a part of aggregate by lightweight aggregate or adding chemical admixtures. The self-curing process of concrete takes place from inside to outside, thus reducing the autogenous shrinkage and self-desiccation, especially for the high-performance concrete with relatively low water/binder ratio.
interesting civil engineering topics
civil engineering topics for presentation
seminar topics pdf
best seminar topics for civil engineering
civil seminar topics ppt
civil engineering seminar topics 2019
seminar topics for mechanical engineers
mechanical engineering seminar topics 2018
a brief research about permeability & durability of concrete with helpful images for civil engineering students
fully made by Amira Abdullah (civil engineering student in Ismailia - Egypt)
this presentation deals with the different types of cracks generated in concrete during its usage and after its application and also methods to retrofit these cracks
Effective use of crystalline waterproofing technology will reduce the
porosity and permeability of conventional concrete, and provide the high performance
advantages and benefits that building owners and design professionals have come to rely
upon in design and construction projects.
Cement based building_materials_icr_aug2020Dr J.D. Bapat
Cite this paper: J D Bapat, Kalpana Karthikeyan, "Cement Based Building Materials", Indian Cement Review, August 2020, pp 48-51
The work on the following cement-based building materials has been covered: dry mix mortar plaster (DMM), cement-based fly ash bricks, AAC blocks and micro-concrete for concrete repair work.
Plastering is a process of rendering mortar onto a surface to bond the bricks and also to cover the same inside outside and ceiling mortar. There are different grades and types of plaster mortars also ways of rendering the same are different.
This slide is special for master students (MIBS & MIFB) in UUM. Also useful for readers who are interested in the topic of contemporary Islamic banking.
Macroeconomics- Movie Location
This will be used as part of your Personal Professional Portfolio once graded.
Objective:
Prepare a presentation or a paper using research, basic comparative analysis, data organization and application of economic information. You will make an informed assessment of an economic climate outside of the United States to accomplish an entertainment industry objective.
Biological screening of herbal drugs: Introduction and Need for
Phyto-Pharmacological Screening, New Strategies for evaluating
Natural Products, In vitro evaluation techniques for Antioxidants, Antimicrobial and Anticancer drugs. In vivo evaluation techniques
for Anti-inflammatory, Antiulcer, Anticancer, Wound healing, Antidiabetic, Hepatoprotective, Cardio protective, Diuretics and
Antifertility, Toxicity studies as per OECD guidelines
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
Normal Labour/ Stages of Labour/ Mechanism of LabourWasim Ak
Normal labor is also termed spontaneous labor, defined as the natural physiological process through which the fetus, placenta, and membranes are expelled from the uterus through the birth canal at term (37 to 42 weeks
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...Levi Shapiro
Letter from the Congress of the United States regarding Anti-Semitism sent June 3rd to MIT President Sally Kornbluth, MIT Corp Chair, Mark Gorenberg
Dear Dr. Kornbluth and Mr. Gorenberg,
The US House of Representatives is deeply concerned by ongoing and pervasive acts of antisemitic
harassment and intimidation at the Massachusetts Institute of Technology (MIT). Failing to act decisively to ensure a safe learning environment for all students would be a grave dereliction of your responsibilities as President of MIT and Chair of the MIT Corporation.
This Congress will not stand idly by and allow an environment hostile to Jewish students to persist. The House believes that your institution is in violation of Title VI of the Civil Rights Act, and the inability or
unwillingness to rectify this violation through action requires accountability.
Postsecondary education is a unique opportunity for students to learn and have their ideas and beliefs challenged. However, universities receiving hundreds of millions of federal funds annually have denied
students that opportunity and have been hijacked to become venues for the promotion of terrorism, antisemitic harassment and intimidation, unlawful encampments, and in some cases, assaults and riots.
The House of Representatives will not countenance the use of federal funds to indoctrinate students into hateful, antisemitic, anti-American supporters of terrorism. Investigations into campus antisemitism by the Committee on Education and the Workforce and the Committee on Ways and Means have been expanded into a Congress-wide probe across all relevant jurisdictions to address this national crisis. The undersigned Committees will conduct oversight into the use of federal funds at MIT and its learning environment under authorities granted to each Committee.
• The Committee on Education and the Workforce has been investigating your institution since December 7, 2023. The Committee has broad jurisdiction over postsecondary education, including its compliance with Title VI of the Civil Rights Act, campus safety concerns over disruptions to the learning environment, and the awarding of federal student aid under the Higher Education Act.
• The Committee on Oversight and Accountability is investigating the sources of funding and other support flowing to groups espousing pro-Hamas propaganda and engaged in antisemitic harassment and intimidation of students. The Committee on Oversight and Accountability is the principal oversight committee of the US House of Representatives and has broad authority to investigate “any matter” at “any time” under House Rule X.
• The Committee on Ways and Means has been investigating several universities since November 15, 2023, when the Committee held a hearing entitled From Ivory Towers to Dark Corners: Investigating the Nexus Between Antisemitism, Tax-Exempt Universities, and Terror Financing. The Committee followed the hearing with letters to those institutions on January 10, 202
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Dr. Vinod Kumar Kanvaria
Exploiting Artificial Intelligence for Empowering Researchers and Faculty,
International FDP on Fundamentals of Research in Social Sciences
at Integral University, Lucknow, 06.06.2024
By Dr. Vinod Kumar Kanvaria
Safalta Digital marketing institute in Noida, provide complete applications that encompass a huge range of virtual advertising and marketing additives, which includes search engine optimization, virtual communication advertising, pay-per-click on marketing, content material advertising, internet analytics, and greater. These university courses are designed for students who possess a comprehensive understanding of virtual marketing strategies and attributes.Safalta Digital Marketing Institute in Noida is a first choice for young individuals or students who are looking to start their careers in the field of digital advertising. The institute gives specialized courses designed and certification.
for beginners, providing thorough training in areas such as SEO, digital communication marketing, and PPC training in Noida. After finishing the program, students receive the certifications recognised by top different universitie, setting a strong foundation for a successful career in digital marketing.
Operation “Blue Star” is the only event in the history of Independent India where the state went into war with its own people. Even after about 40 years it is not clear if it was culmination of states anger over people of the region, a political game of power or start of dictatorial chapter in the democratic setup.
The people of Punjab felt alienated from main stream due to denial of their just demands during a long democratic struggle since independence. As it happen all over the word, it led to militant struggle with great loss of lives of military, police and civilian personnel. Killing of Indira Gandhi and massacre of innocent Sikhs in Delhi and other India cities was also associated with this movement.

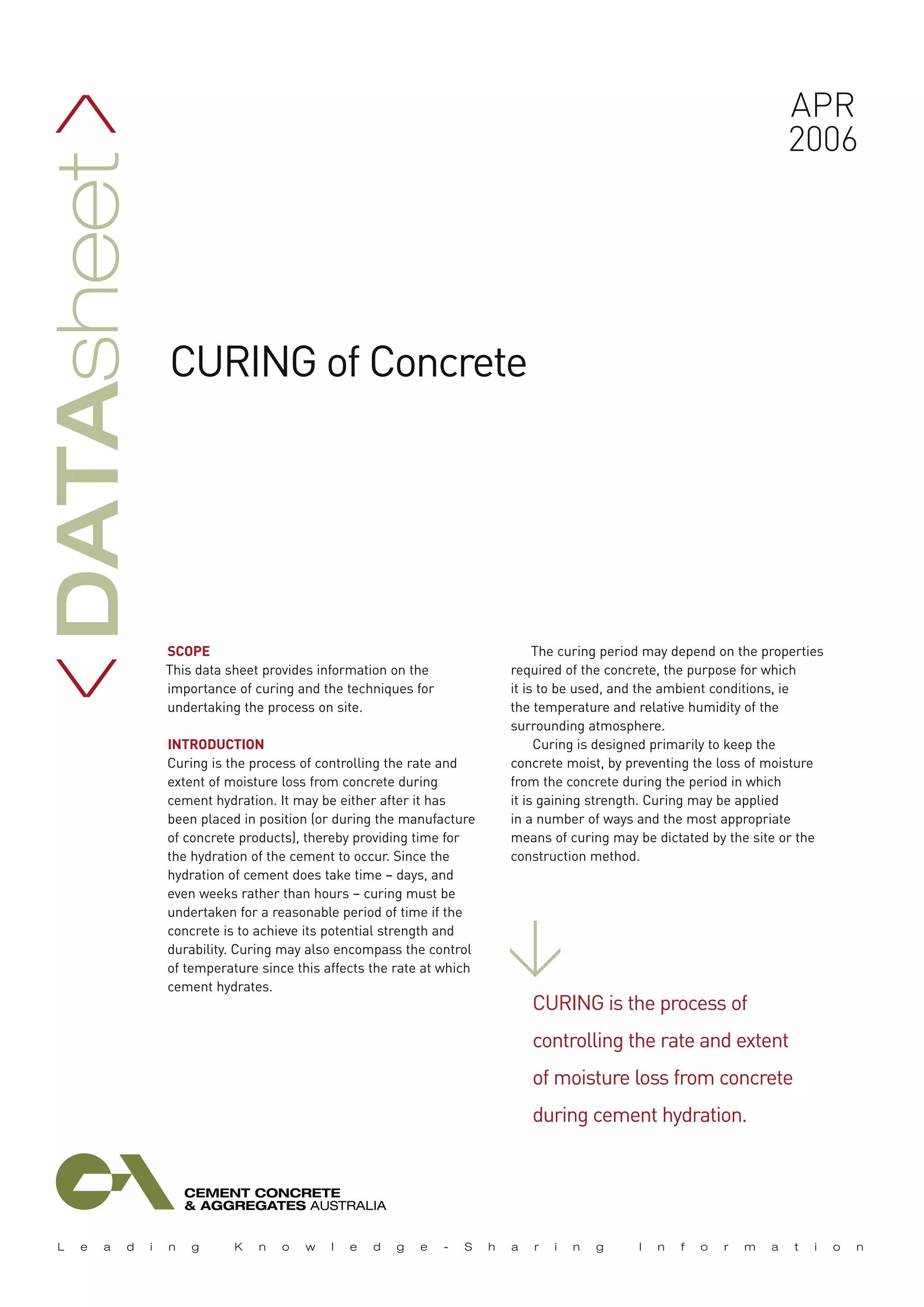

1. SCOPE
This data sheet provides information on the
importance of curing and the techniques for
undertaking the process on site.
INTRODUCTION
Curing is the process of controlling the rate and
extent of moisture loss from concrete during
cement hydration. It may be either after it has
been placed in position (or during the manufacture
of concrete products), thereby providing time for
the hydration of the cement to occur. Since the
hydration of cement does take time – days, and
even weeks rather than hours – curing must be
undertaken for a reasonable period of time if the
concrete is to achieve its potential strength and
durability. Curing may also encompass the control
of temperature since this affects the rate at which
cement hydrates.
The curing period may depend on the properties
required of the concrete, the purpose for which
it is to be used, and the ambient conditions, ie
the temperature and relative humidity of the
surrounding atmosphere.
Curing is designed primarily to keep the
concrete moist, by preventing the loss of moisture
from the concrete during the period in which
it is gaining strength. Curing may be applied
in a number of ways and the most appropriate
means of curing may be dictated by the site or the
construction method.
Apr
2006
Datasheet
>>
curing of Concrete
Curing is the process of
controlling the rate and extent
of moisture loss from concrete
during cement hydration.
>

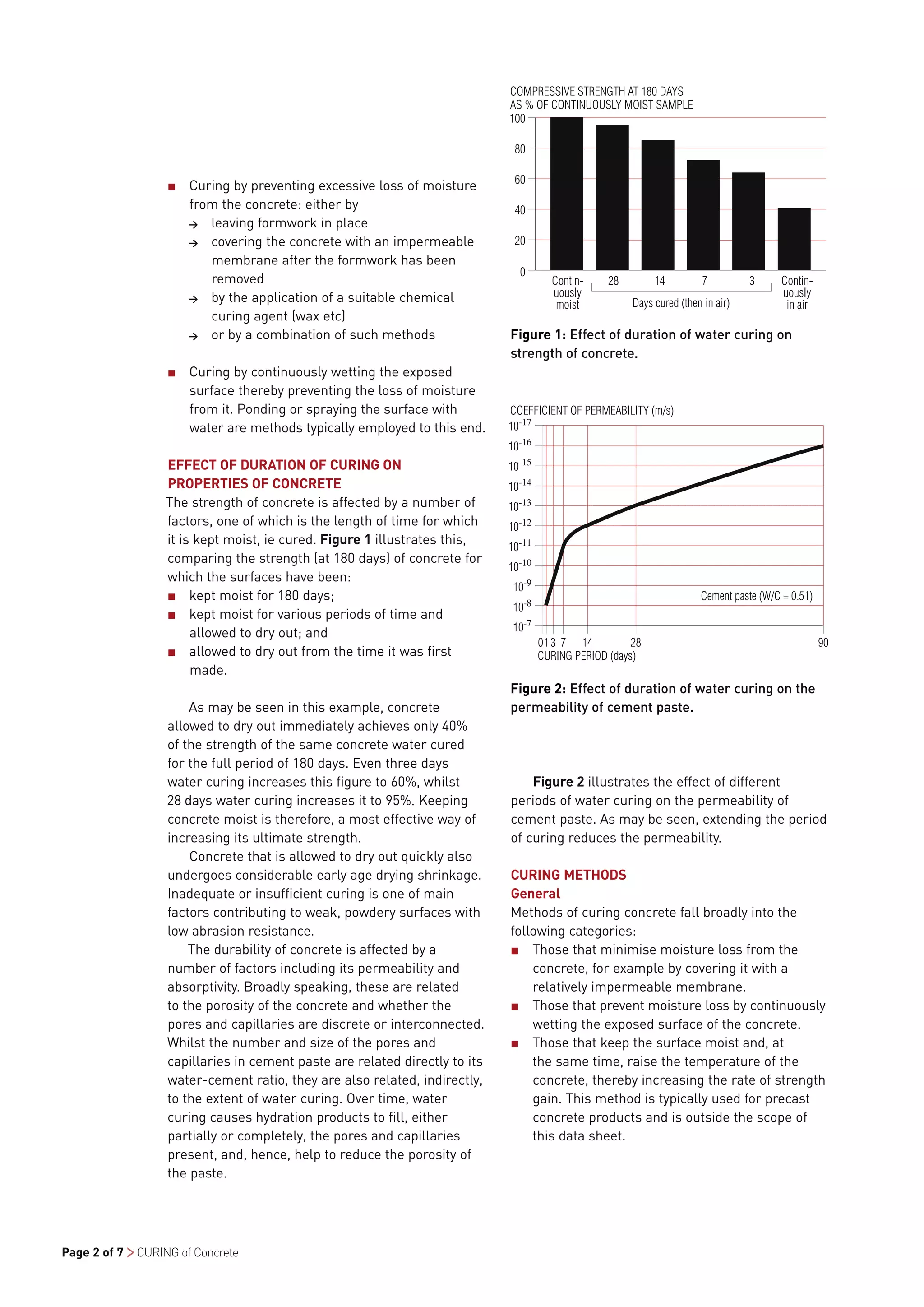

2. Page of 7 curing of Concrete
n Curing by preventing excessive loss of moisture
from the concrete: either by
leaving formwork in place
covering the concrete with an impermeable
membrane after the formwork has been
removed
by the application of a suitable chemical
curing agent (wax etc)
or by a combination of such methods
n Curing by continuously wetting the exposed
surface thereby preventing the loss of moisture
from it. Ponding or spraying the surface with
water are methods typically employed to this end.
EFFECT OF DURATION OF CURING ON
PROPERTIES OF CONCRETE
The strength of concrete is affected by a number of
factors, one of which is the length of time for which
it is kept moist, ie cured. Figure 1 illustrates this,
comparing the strength (at 180 days) of concrete for
which the surfaces have been:
n kept moist for 180 days;
n kept moist for various periods of time and
allowed to dry out; and
n allowed to dry out from the time it was first
made.
As may be seen in this example, concrete
allowed to dry out immediately achieves only 40%
of the strength of the same concrete water cured
for the full period of 180 days. Even three days
water curing increases this figure to 60%, whilst
28 days water curing increases it to 95%. Keeping
concrete moist is therefore, a most effective way of
increasing its ultimate strength.
Concrete that is allowed to dry out quickly also
undergoes considerable early age drying shrinkage.
Inadequate or insufficient curing is one of main
factors contributing to weak, powdery surfaces with
low abrasion resistance.
The durability of concrete is affected by a
number of factors including its permeability and
absorptivity. Broadly speaking, these are related
to the porosity of the concrete and whether the
pores and capillaries are discrete or interconnected.
Whilst the number and size of the pores and
capillaries in cement paste are related directly to its
water-cement ratio, they are also related, indirectly,
to the extent of water curing. Over time, water
curing causes hydration products to fill, either
partially or completely, the pores and capillaries
present, and, hence, help to reduce the porosity of
the paste.
Figure 2 illustrates the effect of different
periods of water curing on the permeability of
cement paste. As may be seen, extending the period
of curing reduces the permeability.
CURING METHODS
General
Methods of curing concrete fall broadly into the
following categories:
n Those that minimise moisture loss from the
concrete, for example by covering it with a
relatively impermeable membrane.
n Those that prevent moisture loss by continuously
wetting the exposed surface of the concrete.
n Those that keep the surface moist and, at
the same time, raise the temperature of the
concrete, thereby increasing the rate of strength
gain. This method is typically used for precast
concrete products and is outside the scope of
this data sheet.
COMPRESSIVE STRENGTH AT 180 DAYS
AS % OF CONTINUOUSLY MOIST SAMPLE
Days cured (then in air)
20
40
60
80
0
Contin-
uously
moist
28 14 7 3
100
Contin-
uously
in air
Figure 1: Effect of duration of water curing on
strength of concrete.
COEFFICIENT OF PERMEABILITY (m/s)
CURING PERIOD (days)
Cement paste (W/C = 0.51)
0
10-8
10-9
10-10
10-11
10-12
10-13
10-14
10-15
10-16
10-7
13 7 14 28 90
10-17
Figure 2: Effect of duration of water curing on the
permeability of cement paste.
3. Page of 7 curing of Concrete
Impermeable-membrane Curing
Formwork Leaving formwork in place is often
an efficient and cost-effective method of curing
concrete, particularly during its early stages. In
very hot dry weather, it may be desirable to moisten
timber formwork, to prevent it drying out during the
curing period, thereby increasing the length of time
for which it remains effective.
It is desirable that any exposed surfaces of the
concrete (eg the tops of beams) be covered with
plastic sheeting or kept moist by other means. It
should be noted that, when vertical formwork is
eased from a surface (eg from a wall surface) its
effectiveness as a curing system is significantly
reduced.
Plastic sheeting Plastic sheets, or other similar
material, form an effective barrier against water
loss, provided they are kept securely in place and
are protected from damage. Their effectiveness is
very much reduced if they are not kept securely in
place. The movement of forced draughts under the
sheeting must be prevented.
They should be placed over the exposed
surfaces of the concrete as soon as it is possible to
do so without marring the finish. On flat surfaces,
such as pavements, they should extend beyond the
edges of the slab for some distance, eg or at least
twice the thickness of the slab, or be turned down
over the edge of the slab and sealed.
For flat work, sheeting should be placed on the
surface of the concrete and, as far as practical, all
wrinkles smoothed out to minimise the mottling
effects (hydration staining), due to uneven curing,
which might otherwise occur. Flooding the surface
of the slab under the sheet can be a useful way to
prevent mottling. Strips of wood, or windrows of
sand or earth, should be placed across all edges and
joints in the sheeting to prevent wind from lifting it,
and also to seal in moisture and minimise drying.
For decorative finishes or where colour
uniformity of the surface is required sheeting
may need to be supported clear of the surface
if hydration staining is of concern. This can be
achieved with wooden battens or even scaffolding
components, provided that a complete seal can be
achieved and maintained.
For vertical work, the member should be
wrapped with sheeting and taped to limit moisture
loss. As with flatwork, where colour of the finished
surface is a consideration, the plastic sheeting
should be kept clear of the surface to avoid
hydration staining.
Care must also be taken to prevent the sheeting
being torn or otherwise damaged during use. A
minimum thickness is required to ensure adequate
strength in the sheet; ASTM C 171 Sheet Materials
for Curing Concrete specifies 0.01 mm. Figure 3
illustrates the lack of effectiveness of plastic
sheeting with holes equivalent to only 1.7% of the
sheet’s surface area.
Plastic sheeting may be clear or coloured.
Care must be taken that the colour is appropriate
for the ambient conditions. For example, white or
lightly coloured sheets reflect the rays of the sun
and, hence, help to keep concrete relatively cool
during hot weather. Black plastic, on the other hand,
absorbs heat to a marked extent and may cause
unacceptably high concrete temperatures. Its use
should be avoided in hot weather, although in cold
weather its use may be beneficial in accelerating
the rate at which the concrete gains strength.
Clear plastic sheeting tends to be more neutral
in its effect on temperature (except in hot weather,
where it fails to shade the surface of the concrete)
but tends to be less durable than the coloured
sheets, thereby reducing its potential for re-use.
Membrane-forming curing compounds Curing
compounds are liquids which are usually sprayed
directly onto concrete surfaces and which then dry
to form a relatively impermeable membrane that
retards the loss of moisture from the concrete.
Their properties and use are described in AS 3799
Liquid Membrane-forming Curing Compounds for
Concrete.
They are an efficient and cost-effective means
of curing concrete and may be applied to freshly
placed concrete or that which has been partially
cured by some other means. However, they may
affect the bond between concrete and subsequent
surface treatments. Special care in the choice of a
suitable compound needs to be exercised in such
circumstances. The residue from some products
may prevent the adhesion of flooring products and
tiles onto the concrete surface.
STANDARD CURING
1-day mould
1-day mould
+ 6-days fog
PLASTIC (sealed)
3-days
7-days
3-days
7-days
PLASTIC (1.7% holes)
0
WATER SORPTIVITY (mm/h0.5
)
2 4 6 8 10 12 14 16 18 20
Figure 3: Effectiveness of plastic sheeting
compared to standard curing.
4. Page of 7 curing of Concrete
Curing compounds are generally formulated
from wax emulsions, chlorinated rubbers, synthetic
and natural resins, and from PVA emulsions. Their
effectiveness varies quite widely, depending on
the material and strength of the emulsion, as is
illustrated in Figure 4. Note: Attention should be
drawn to the very poor efficiency of PVA curing
compounds.
When used to cure fresh concrete, the timing of
the application of the curing compounds is critical
for maximum effectiveness. They should be applied
to the surface of the concrete after it has been
finished, as soon as the free water on the surface
has evaporated and there is no water sheen visible.
Too early an application dilutes the membrane; too
late results in it being absorbed into the concrete,
with a consequent failure of the membrane to form.
They may also be used to reduce moisture
loss from concrete after initial moist curing or the
removal of formwork. In both cases, the surface
of the concrete should be thoroughly moistened
before the application of the compound to prevent
its absorption into the concrete.
The use of curing compounds will not prevent
formation of early age thermal cracking.
Curing compounds can be applied by hand
spray, power spray, brush or roller. The type or
grade of curing compound should be matched
to the type of equipment available and the
manufacturer’s directions followed. The rate of
application should be uniform, with coverage
normally in the range 0.20 to 0.25 litres/m2. Where
feasible, two applications at right angles to each
other will help ensure complete coverage.
Pigmented compounds also help ensure
complete coverage and are advantageous in helping
concrete surfaces reflect rather than absorb heat.
Figure 5 shows pressure spraying of a white-
pigmented curing compound.
It is extremely important to check the
subsequent floor finish. Most curing compounds
must be removed before the application of any
applied floor finishes such as direct stick carpet and
vinyl, epoxy or polyurethane coatings and ceramic
tile adhesives.
Finally, it should be noted when using curing
compounds that are solvent-based adequate
ventilation must always be provided in enclosed
spaces and other necessary safety precautions
taken. Manufacturer’s recommendations should
always be followed.
Internal curing compounds These are incorporated
into the concrete as an admixture hence known as
internal curing compounds. They inhibit moisture
loss and thereby improve long term strength
and reduce drying shrinkage. Internal curing
compounds are relatively new and care should be
taken when utilised. They have been used in tunnel
linings and underground mines to provide at least
partial curing when traditional methods are difficult
or even impossible to employ.
Water Curing
General Water curing is carried out by supplying
water to the surface of concrete in a way that
ensures that it is kept continuously moist.
The water used for this purpose should not
be more than about 5°C cooler than the concrete
surface. Spraying warm concrete with cold water
may give rise to ‘thermal shock’ that may cause or
contribute to cracking. Alternate wetting and drying
of the concrete must also be avoided as this causes
volume changes that may also contribute to surface
crazing and cracking.
Ponding Flat or near-flat surfaces such as floors,
pavements, flat roofs and the like may be cured
by ponding. A ‘dam’ or ‘dike’ is erected around the
edge of the slab and water is then added to create
WAX
EMULSION
CHLORINATED
RUBBER
HYDROCARBON
RESIN
ACRYLIC
EMULSION
PVA
EMULSION
100
EFFICIENCY INDEX (%)
Ranging from well
formulated to adulterated
AS 3799 requirements
(≥ 90% after 72 hours)
90 80 70 60 50 40 30 20 10 0
Figure 4: Comparative efficiency of curing
compounds
Figure 5: Spray application of curing compound
5. Page of 7 curing of Concrete
a shallow ‘pond’ as shown in Figure 6. Care must
be taken to ensure the pond does not empty due to
evaporation or leaks.
Ponding is a quick, inexpensive and effective
form of curing when there is a ready supply of
good ‘dam’ material (eg clay soil), a supply of water,
and the ‘pond’ does not interfere with subsequent
building operations. It has the added advantage of
helping to maintain a uniform temperature on the
surface of the slab. There is thus less likelihood of
early age thermal cracking in slabs that are cured
by water ponding.
Sprinkling or fog curing Using a fine spray or fog
of water can be an efficient method of supplying
additional moisture for curing and, during hot
weather, helps to reduce the temperature of the
concrete.
As with other methods of moist curing, it is
important that the sprinklers keep the concrete
permanently wet. However, the sprinklers do not
have to be on permanently; they may be on an
intermittent timer.
Sprinklers require a major water supply, can
be wasteful of water and may need a drainage
system to handle run-off. The alternative is to have
a ‘closed’ system where the water is collected and
recycled.
Sprinkler systems may be affected by windy
conditions and supervision is required to see that
all of the concrete is being kept moist and that no
part of it is being subjected to alternated wetting
and drying. This is not easy to achieve.
Wet coverings Fabrics such as hessian, or
materials such as sand, can be used like a ‘mulch’
to maintain water on the surface of the concrete. On
flat areas, fabrics may need to be weighed down.
Also, it is important to see that the whole area is
covered. Wet coverings should be placed as soon
as the concrete has hardened sufficiently to prevent
surface damage. They should not be allowed to dry
out as they can act as a wick and effectively draw
water out of the concrete.
Fabrics may be particularly useful on vertical
surfaces since they help distribute water evenly
over the surface and even where not in contact with
it, will reduce the rate of surface evaporation. Care
should be taken however, that the surface of the
concrete is not stained, perhaps by impurities in the
water, or by the covering material.
New fabrics can leach fabric stains, pre‑washing
should be essential. Prior to placement of any
fabric – pre moisten to avoid wicking of moisture
from the concrete that can result in the fabric
texture negatively absorbed into the concrete
surface.
Figure 6: Ponding method of water curing
6. Page of 7 curing of Concrete
Summary Considerations for selecting a curing method
General
Impermeable
membrane
curing
Water curing
Type of member
Environment
Retention of formwork
Plastic sheeting
Curing compounds
Ponding
Sprinkling
Wet coverings
Is the member vertical or horizontal? Some methods are affected or excluded
by orientation, eg ponding.
Is the member thin or thick? Thick sections such as large columns or mass
concrete are mostly ‘self-curing’ but require temperature gradient at outer
layers to be limited.
Is the member insitu or precast? Precast members are suited to low-pressure
steam curing while precast products may benefit from autoclaving.
Does the location affect the availability or cost of some curing materials?
eg water in an arid region.
Is the weather likely to be hot or cold? If the temperature is higher than 30°C
or less than 10°C special precautions need to be taken.
Is the site exposed to winds? If so, special precautions may be required to
prevent plastic shrinkage cracking; sprinkling methods may be affected;
or extra care required when using plastic sheeting.
What is the effect on site operations and construction cycle schedule?
Is there likely to be cold weather? This method allows easy addition of
insulation.
Is uniform concrete colour specified? If so, a constant stripping time will need
to be maintained to avoid hydration colour change.
What is the effect on access and site operations?
Is there a safety consideration? Plastic sheeting may be slippery, and is
therefore a hazard in horizontal applications.
Is there likely to be hot or cold weather? Colour of sheeting should be selected
to suit.
Is the situation such that the seal can be maintained with minimum risk of
holing.
Is uniform concrete colour specified? If so, the sheeting must be kept clear of
the surface to avoid hydration staining.
What are the manufacturer’s recommendations? Both the rate of application
and the timing are critical for effectiveness. Does the product comply with
AS 3799.
What is the concrete surface texture? Coarse textures require higher
application rates.
Can a uniform application be achieved in the particular situation? Two
applications at right-angles help. Sites exposed to wind create problems.
Is there likely to be hot or cold weather? A suitably pigmented compound can
help.
Are there to be applied finishes (render, tiles, etc)? Residue from compounds
can affect the ‘bond’ of later applied finishes.
Is there a health consideration? Compounds may be toxic, and their use in
enclosed situations may therefore be hazardous.
What is the effect on access and site operations?
Is suitable ‘dam’ material available? A clay soil is the most suitable.
Is there likely to be hot weather? Ponding is an efficient means of maintaining
a uniform temperature on slabs.
Is concrete colour or appearance a consideration? ‘Dam’ materials,
particularly clay, tend to stain.
What is the effect on site operations?
Is there an adequate water supply?
What is effect of run-off? Usually some form of drainage is required.
Will required volume/timing be such as not to damage the concrete surface?
Can application be maintained continuously? Intermittent wetting and drying
can be deleterious.
Is site exposed to winds? This makes continuous application very difficult.
What is the effect on site operations?
Can they effectively cover all surfaces?
Is site exposed to wind? Wet coverings are easier to keep in place than plastic
sheeting.
Is concrete colour or appearance a consideration? If so, sand should have low
clay content; fabrics and water should contain no impurities.
In the case of sand, its supply or removal a problem?
Can coverings be kept continuously moist? Intermittent wetting and drying can
be deleterious.
7. Page of 7 curing of Concrete
CCAA OFFICES
SYDNEY OFFICE:
Level 6, 504 Pacific Highway
St Leonards NSW Australia 2065
POSTAL ADDRESS:
Locked Bag 2010
St Leonards NSW 1590
TELEPHONE: (61 2) 9437 9711
FACSIMILE: (61 2) 9437 9470
BRISBANE OFFICE:
Level 14, IBM Building
348 Edward Street
Brisbane QLD 4000
TELEPHONE: (61 7) 3831 3288
FACSIMILE: (61 7) 3839 6005
MELBOURNE OFFICE:
2nd Floor, 1 Hobson Street
South Yarra VIC 3141
TELEPHONE: (61 3) 9825 0200
FACSIMILE: (61 3) 9825 0222
PERTH OFFICE:
45 Ventnor Avenue
West Perth WA 6005
TELEPHONE: (61 8) 9389 4452
FACSIMILE: (61 8) 9389 4451
ADELAIDE OFFICE:
Greenhill Executive Suites
213 Greenhill Road
Eastwood SA 5063
POSTAL ADDRESS:
PO Box 229
Fullarton SA 5063
TELEPHONE: (61 8) 8274 3758
FACSIMILE: (61 8) 8373 7210
EXTRACTIVE INDUSTRIES OFFICE
PO Box 243
Henley Beach SA 5022
TELEPHONE: (61 8) 8353 8151
FACSIMILE: (61 8) 8353 8151
TASMANIAN OFFICE:
EXTRACTIVE INDUSTRIES OFFICE
PO Box 246
Sheffield TAS 7306
TELEPHONE: (61 3) 6491 2529
FACSIMILE: (61 3) 6491 2529
WEBSITE: www.concrete.net.au
EMAIL: info@ccaa.com.au
Layout: Helen Rix Design
Disclaimer: Cement Concrete Aggregates
Australia is a not for profit organisation sponsored
by the cement concrete and aggregate industries
in Australia to provide information on the many
uses of cement and concrete. This publication
is produced by CCAA for that purpose. Since
the information provided is intended for general
guidance only and in no way replaces the services
of professional consultants on particular projects, no
legal liability can be accepted by CCAA for its use.
CCAA respects your privacy. Your details have
been collected to provide you with information on
our activities, publications and services. From time
to time your details may be made available to third
party organisations who comply with the Privacy
Act such as affiliated associations, sponsors of
events and other reputable organisations whose
services we think you may find of interest. If you do
not wish to receive information from CCAA or wish
to be taken off the database please write to the
Privacy Officer, CCAA, Locked Bag 2010,
St Leonards, NSW, 1590
Apr
2006
FURTHER INFORMATION
Further information on good concreting practices
can be downloaded from the Cement Concrete
Aggregates Australia website at
www.concrete.net.au.
