Stored procedures in Firebird

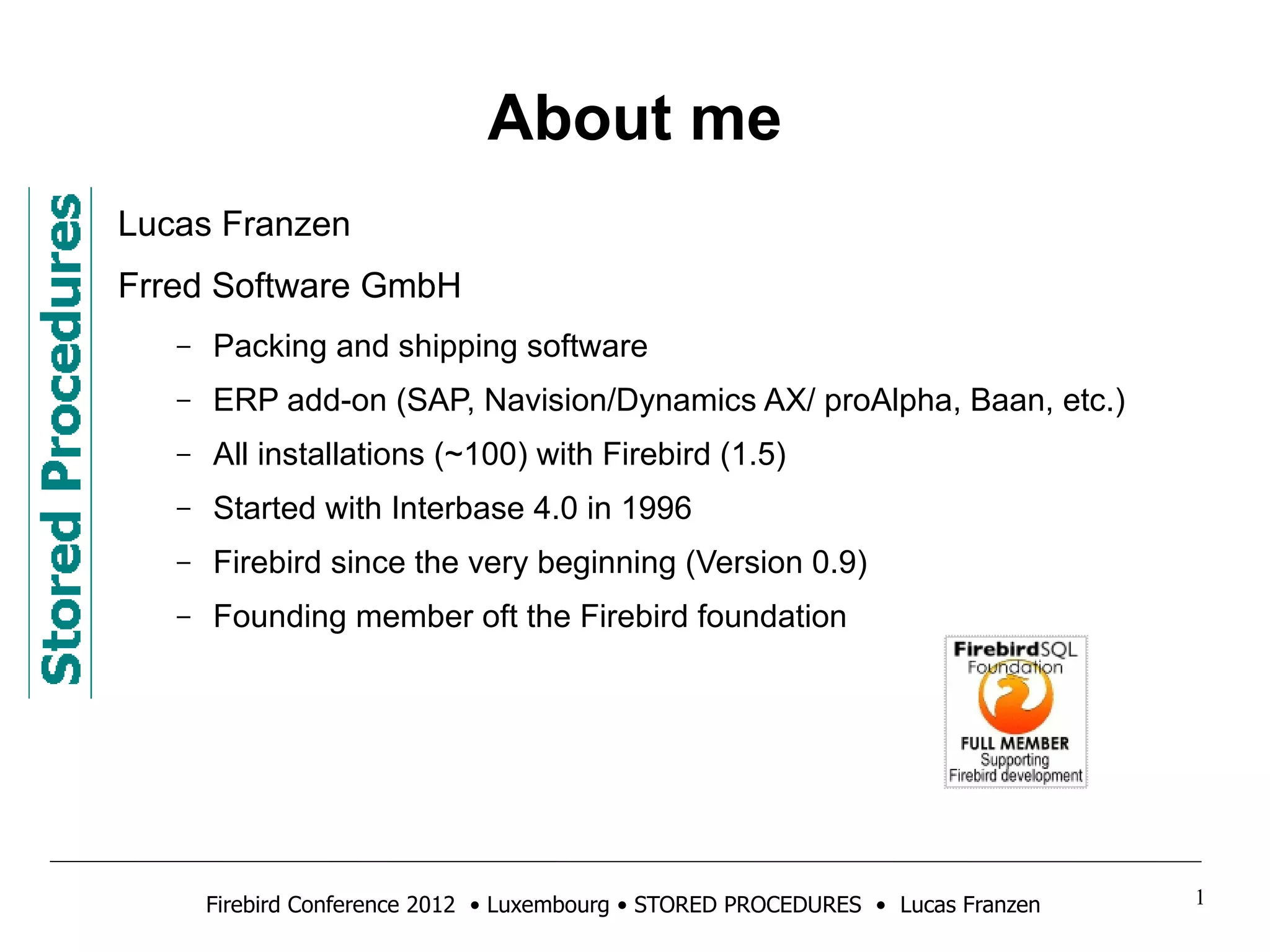

About me
Lucas Franzen
Frred Software GmbH
– Packing and shipping software
– ERP add-on (SAP, Navision/Dynamics AX/ proAlpha, Baan, etc.)
– All installations (~100) with Firebird (1.5)
– Started with Interbase 4.0 in 1996
– Firebird since the very beginning (Version 0.9)
– Founding member oft the Firebird foundation
Firebird Conference 2012 • Luxembourg • STORED PROCEDURES • Lucas Franzen 1

About this session
● General Overview
● How to write stored procedures
● How to interact with stored procedures
● Debugging / testing
● Examples / example applications

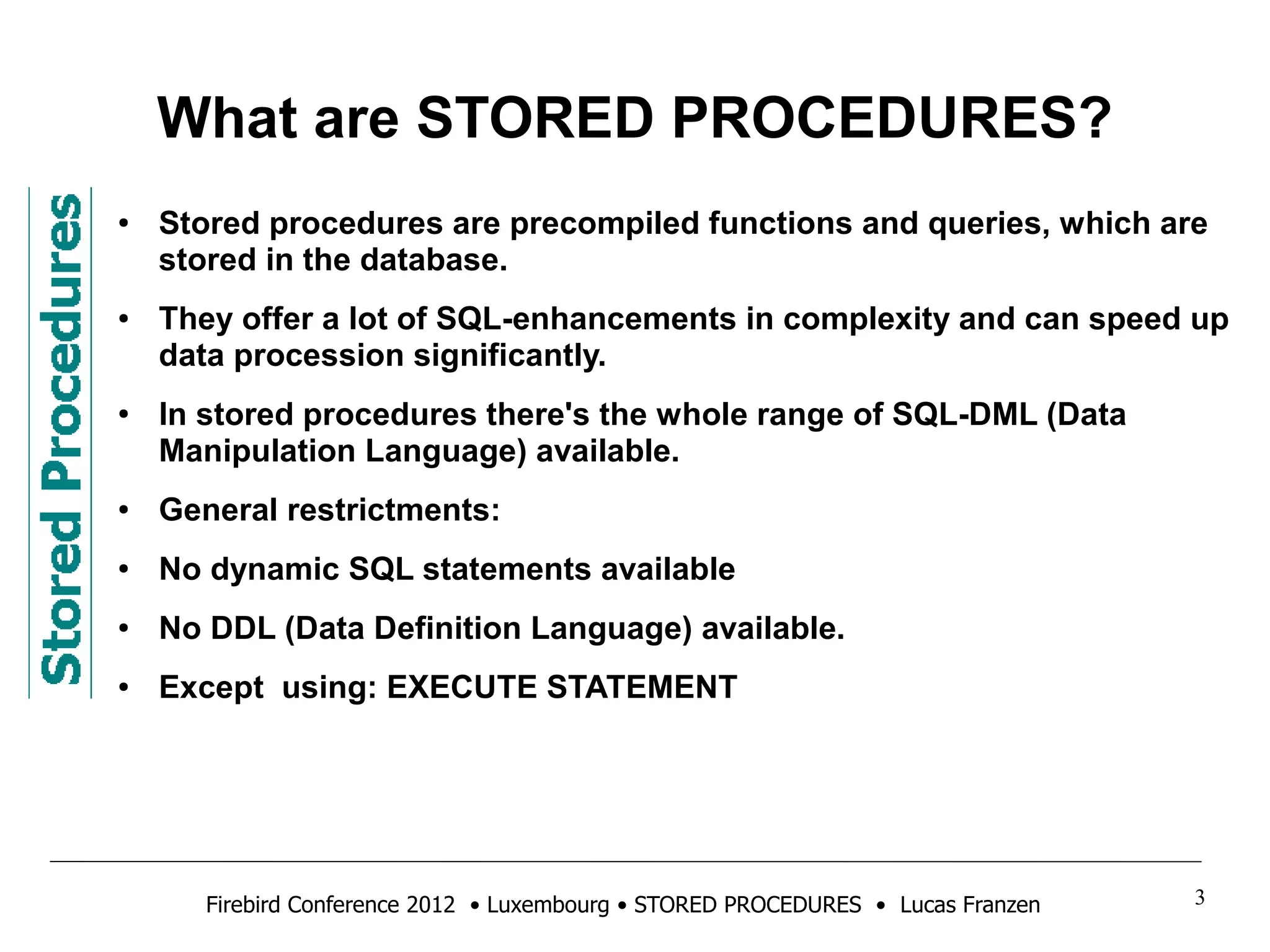

What are STORED PROCEDURES?
● Stored procedures are precompiled functions and queries, which are
stored in the database.
● They offer a lot of SQL-enhancements in complexity and can speed up
data procession significantly.
● In stored procedures there's the whole range of SQL-DML (Data
Manipulation Language) available.
● General restrictments:
● No dynamic SQL statements available
● No DDL (Data Definition Language) available.
● Except using: EXECUTE STATEMENT

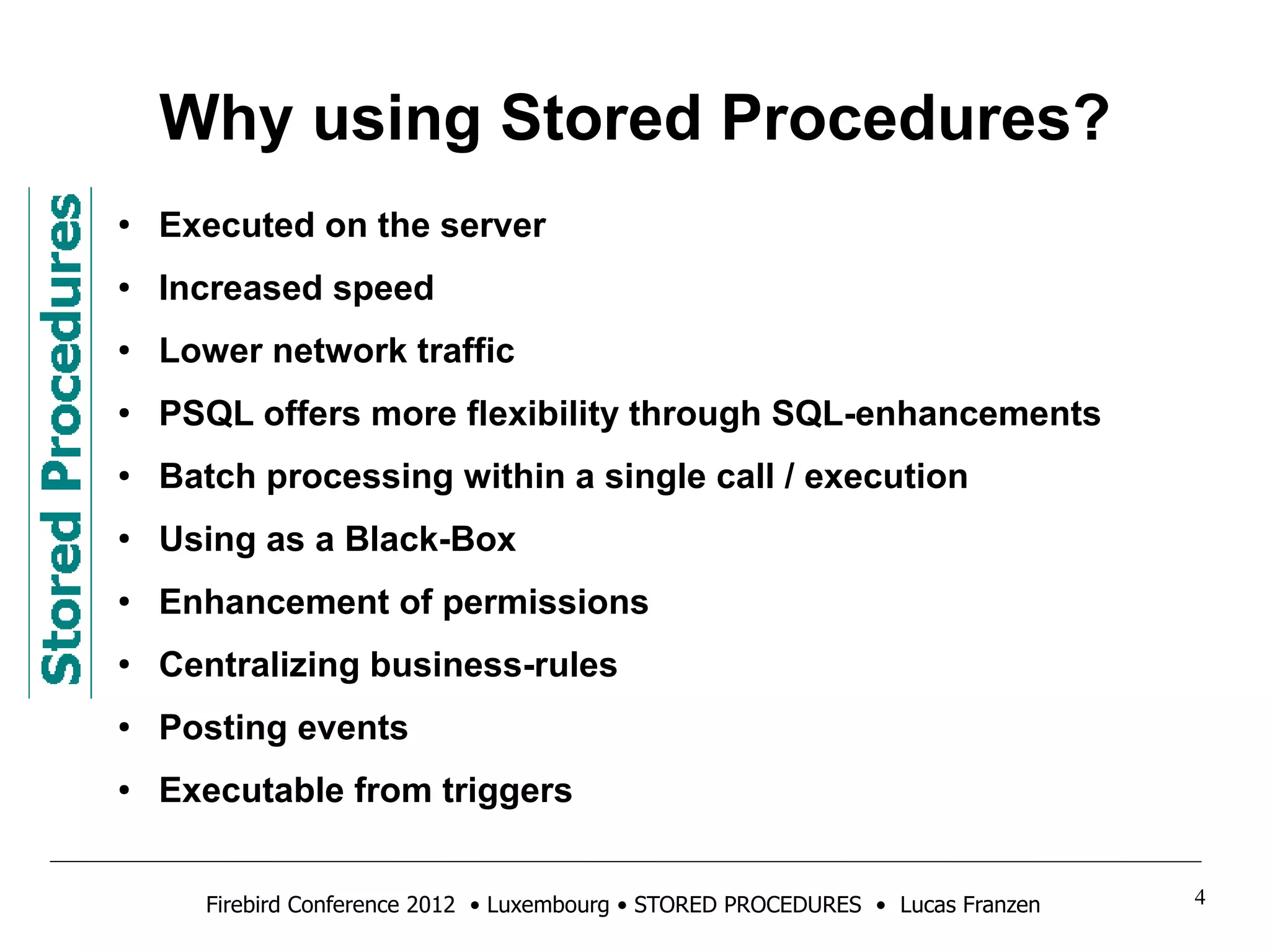

Why using Stored Procedures?
● Executed on the server
● Increased speed
● Lower network traffic
● PSQL offers more flexibility through SQL-enhancements
● Batch processing within a single call / execution
● Using as a Black-Box
● Enhancement of permissions
● Centralizing business-rules
● Posting events
● Executable from triggers

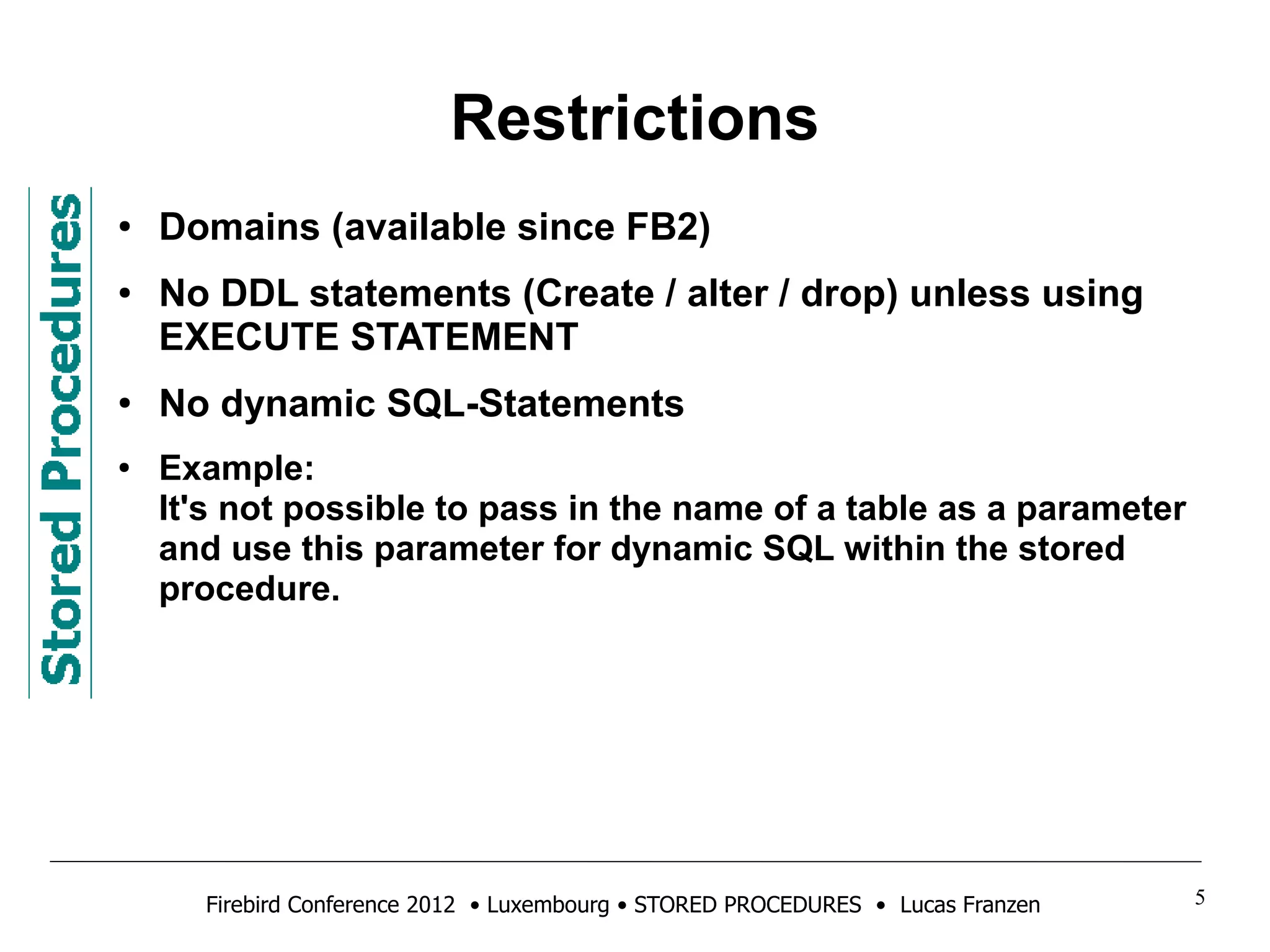

Restrictions
● Domains (available since FB2)
● No DDL statements (Create / alter / drop) unless using
EXECUTE STATEMENT
● No dynamic SQL-Statements
● Example:
It's not possible to pass in the name of a table as a parameter
and use this parameter for dynamic SQL within the stored
procedure.

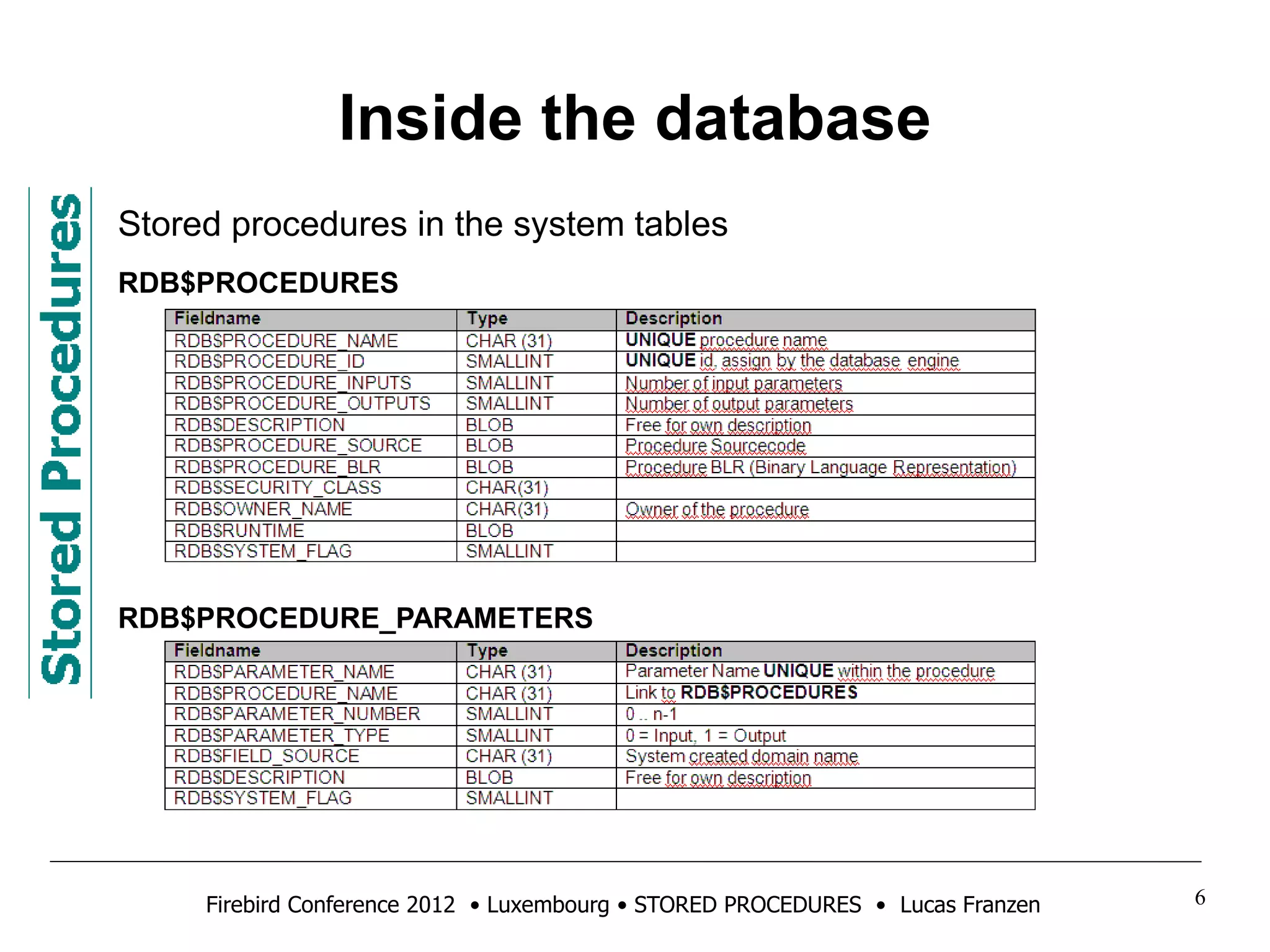

Inside the database
Stored procedures in the system tables
RDB$PROCEDURES
RDB$PROCEDURE_PARAMETERS

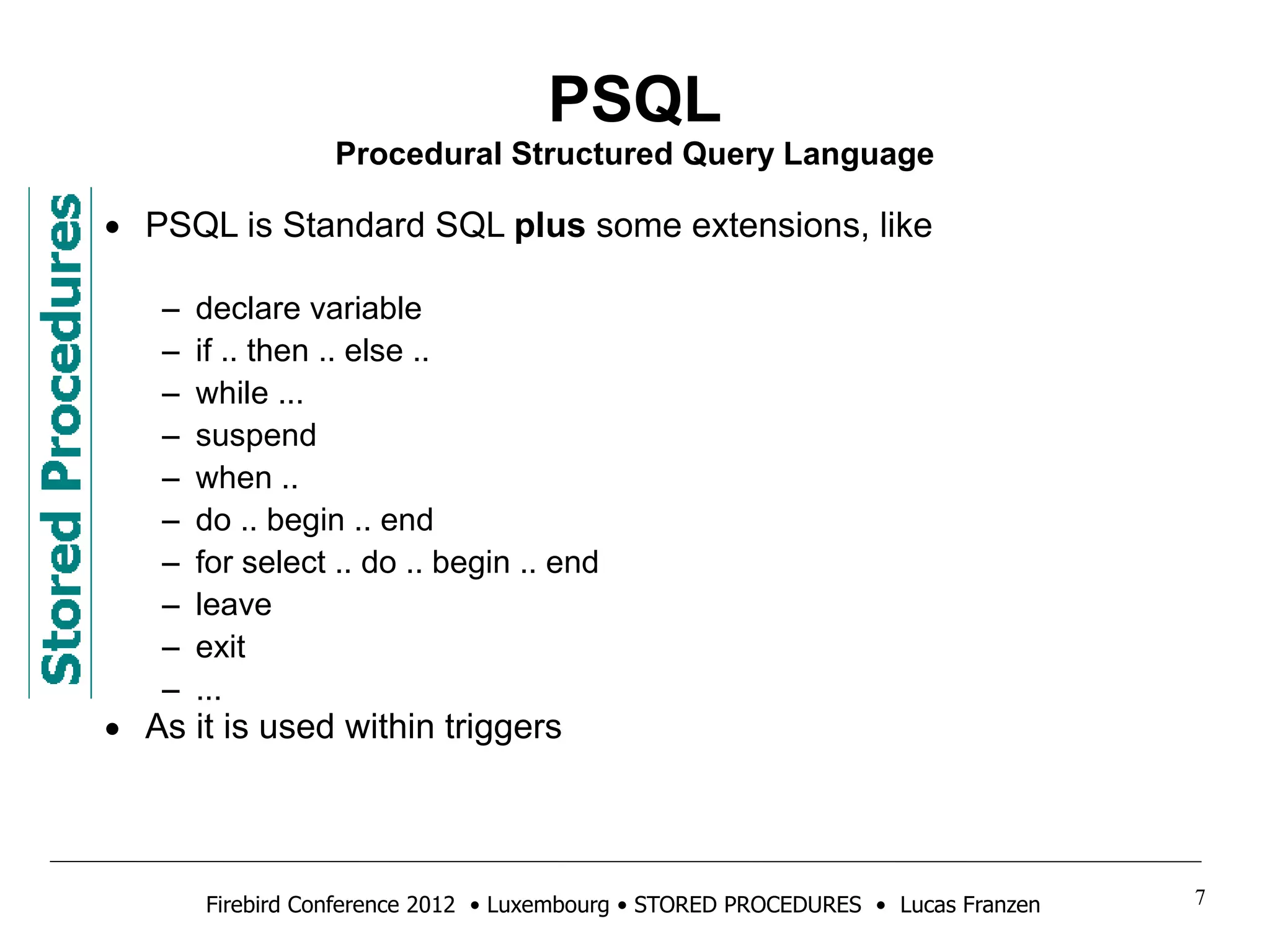

PSQL
Procedural Structured Query Language
• PSQL is Standard SQL plus some extensions, like
– declare variable
– if .. then .. else ..
– while ...
– suspend
– when ..
– do .. begin .. end
– for select .. do .. begin .. end
– leave
– exit
– ...
• As it is used within triggers

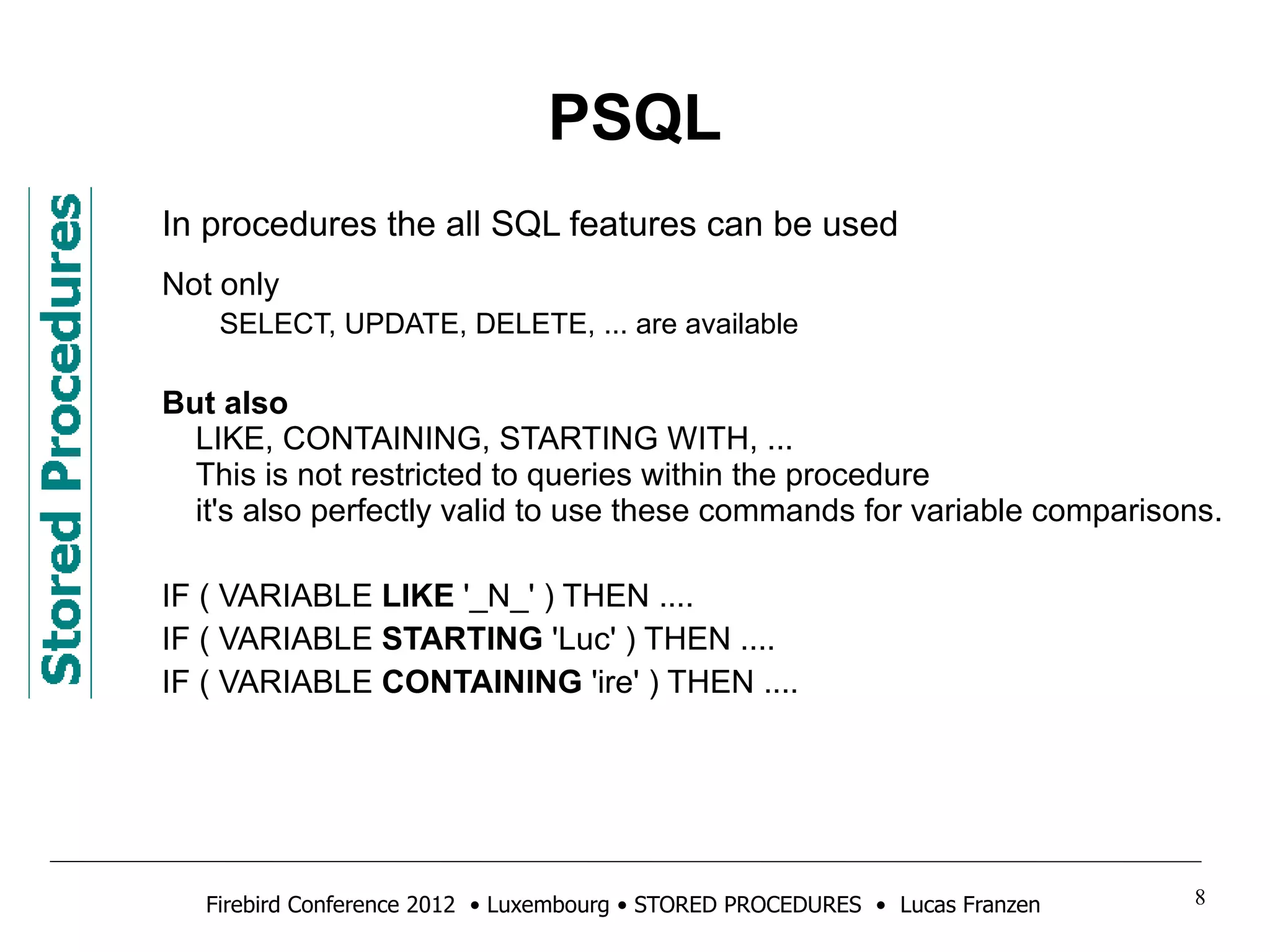

PSQL
In procedures the all SQL features can be used
Not only
SELECT, UPDATE, DELETE, ... are available
But also
LIKE, CONTAINING, STARTING WITH, ...
This is not restricted to queries within the procedure
it's also perfectly valid to use these commands for variable comparisons.
IF ( VARIABLE LIKE '_N_' ) THEN ....
IF ( VARIABLE STARTING 'Luc' ) THEN ....
IF ( VARIABLE CONTAINING 'ire' ) THEN ....

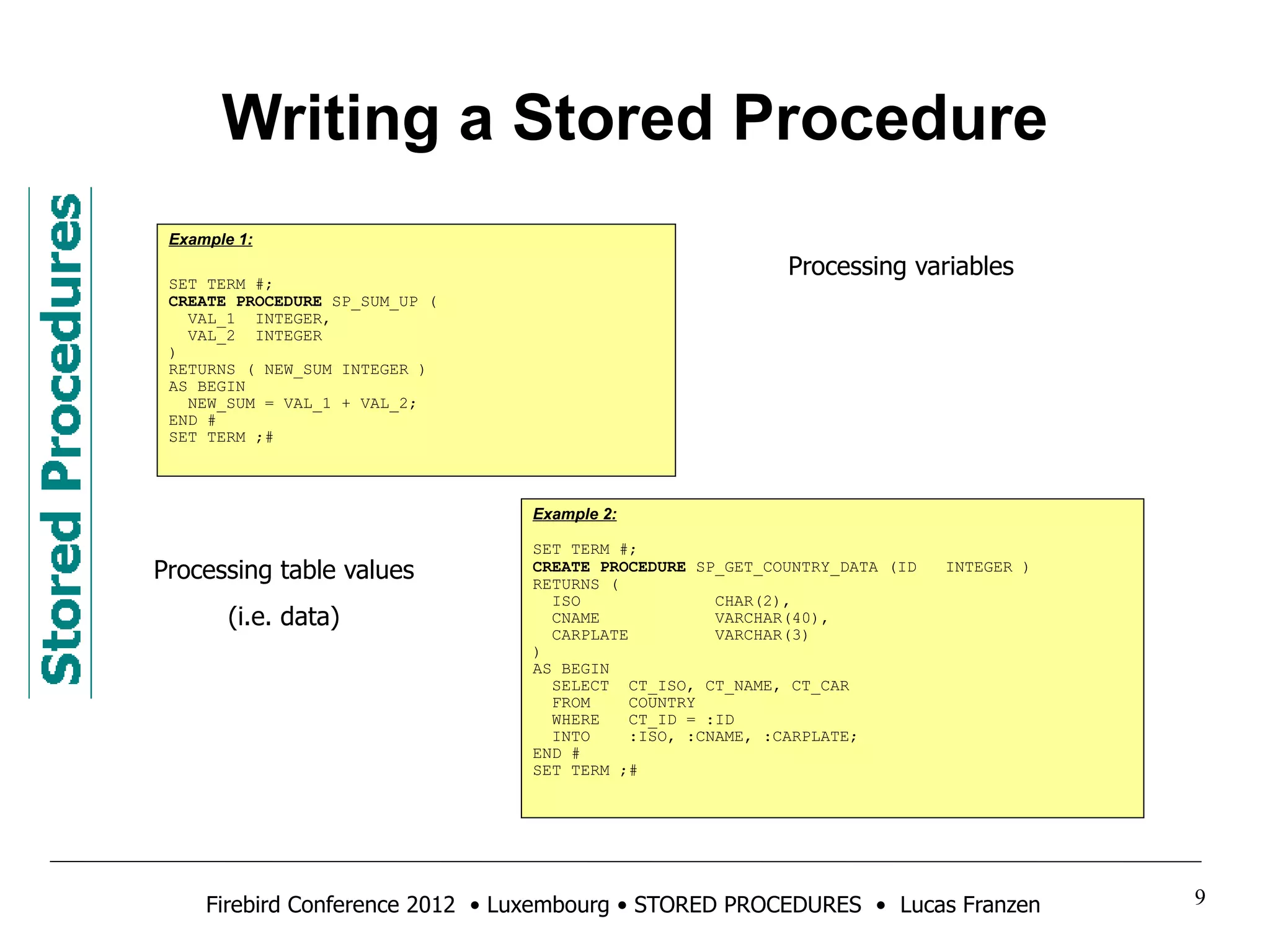

Writing a Stored Procedure
Example 1:
SET TERM #;
CREATE PROCEDURE SP_SUM_UP (
VAL_1 INTEGER,
VAL_2 INTEGER
)
RETURNS ( NEW_SUM INTEGER )
AS BEGIN
NEW_SUM = VAL_1 + VAL_2;
END #
SET TERM ;#
Processing variables
Processing table values
(i.e. data)
Example 2:
SET TERM #;
CREATE PROCEDURE SP_GET_COUNTRY_DATA (ID INTEGER )
RETURNS (
ISO CHAR(2),
CNAME VARCHAR(40),
CARPLATE VARCHAR(3)
)
AS BEGIN
SELECT CT_ISO, CT_NAME, CT_CAR
FROM COUNTRY
WHERE CT_ID = :ID
INTO :ISO, :CNAME, :CARPLATE;
END #
SET TERM ;#

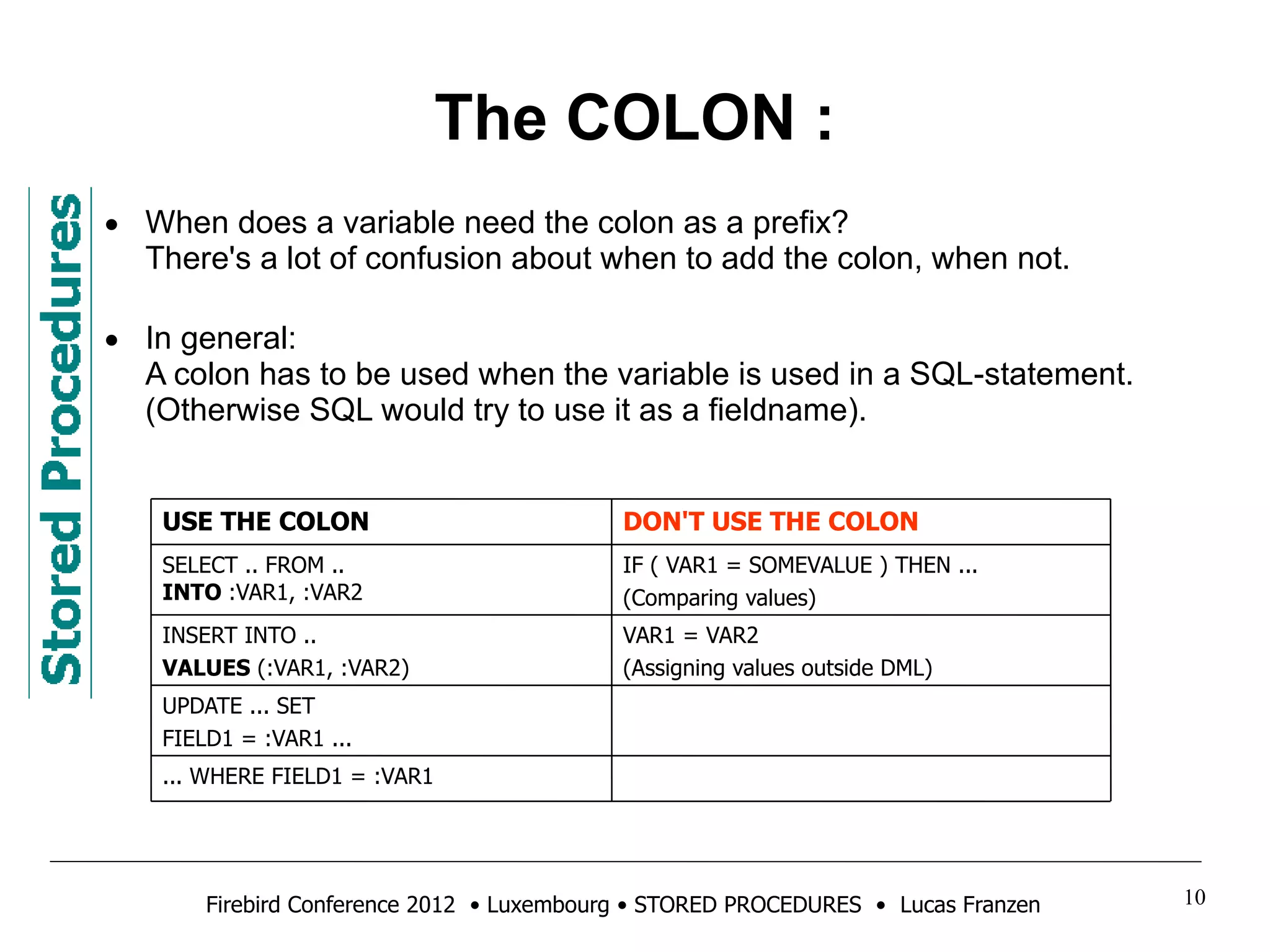

The COLON :
• When does a variable need the colon as a prefix?
There's a lot of confusion about when to add the colon, when not.
• In general:
A colon has to be used when the variable is used in a SQL-statement.
(Otherwise SQL would try to use it as a fieldname).
USE THE COLON DON'T USE THE COLON
SELECT .. FROM ..
INTO :VAR1, :VAR2
INSERT INTO ..
VALUES (:VAR1, :VAR2)
UPDATE ... SET
FIELD1 = :VAR1 ...
... WHERE FIELD1 = :VAR1
IF ( VAR1 = SOMEVALUE ) THEN ...
(Comparing values)
VAR1 = VAR2
(Assigning values outside DML)

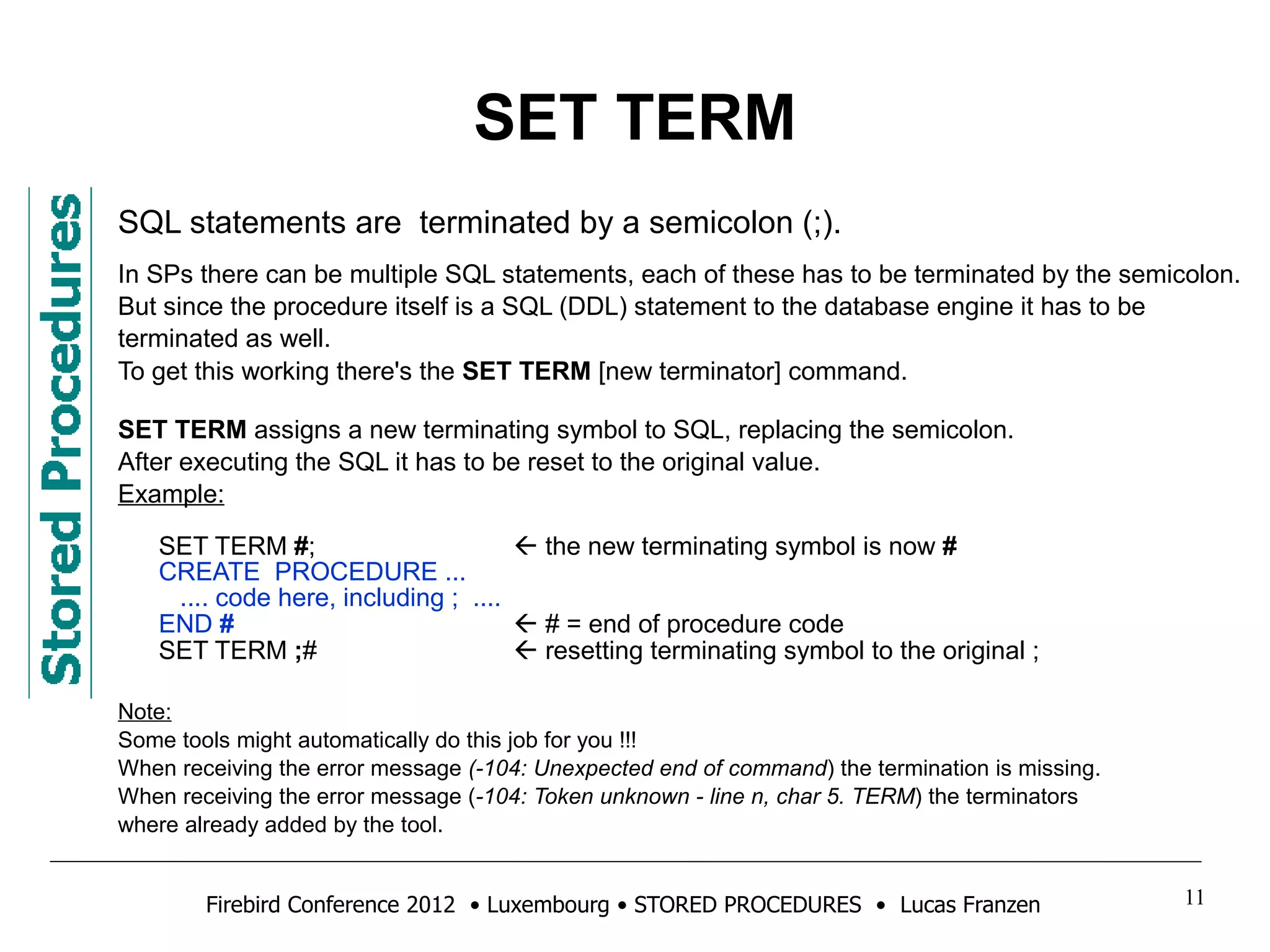

SET TERM
SQL statements are terminated by a semicolon (;).
In SPs there can be multiple SQL statements, each of these has to be terminated by the semicolon.
But since the procedure itself is a SQL (DDL) statement to the database engine it has to be
terminated as well.
To get this working there's the SET TERM [new terminator] command.
SET TERM assigns a new terminating symbol to SQL, replacing the semicolon.
After executing the SQL it has to be reset to the original value.
Example:
SET TERM #;  the new terminating symbol is now #
CREATE PROCEDURE ...
.... code here, including ; ....
END #  # = end of procedure code
SET TERM ;#  resetting terminating symbol to the original ;
Note:
Some tools might automatically do this job for you !!!
When receiving the error message (-104: Unexpected end of command) the termination is missing.
When receiving the error message (-104: Token unknown - line n, char 5. TERM) the terminators
where already added by the tool.

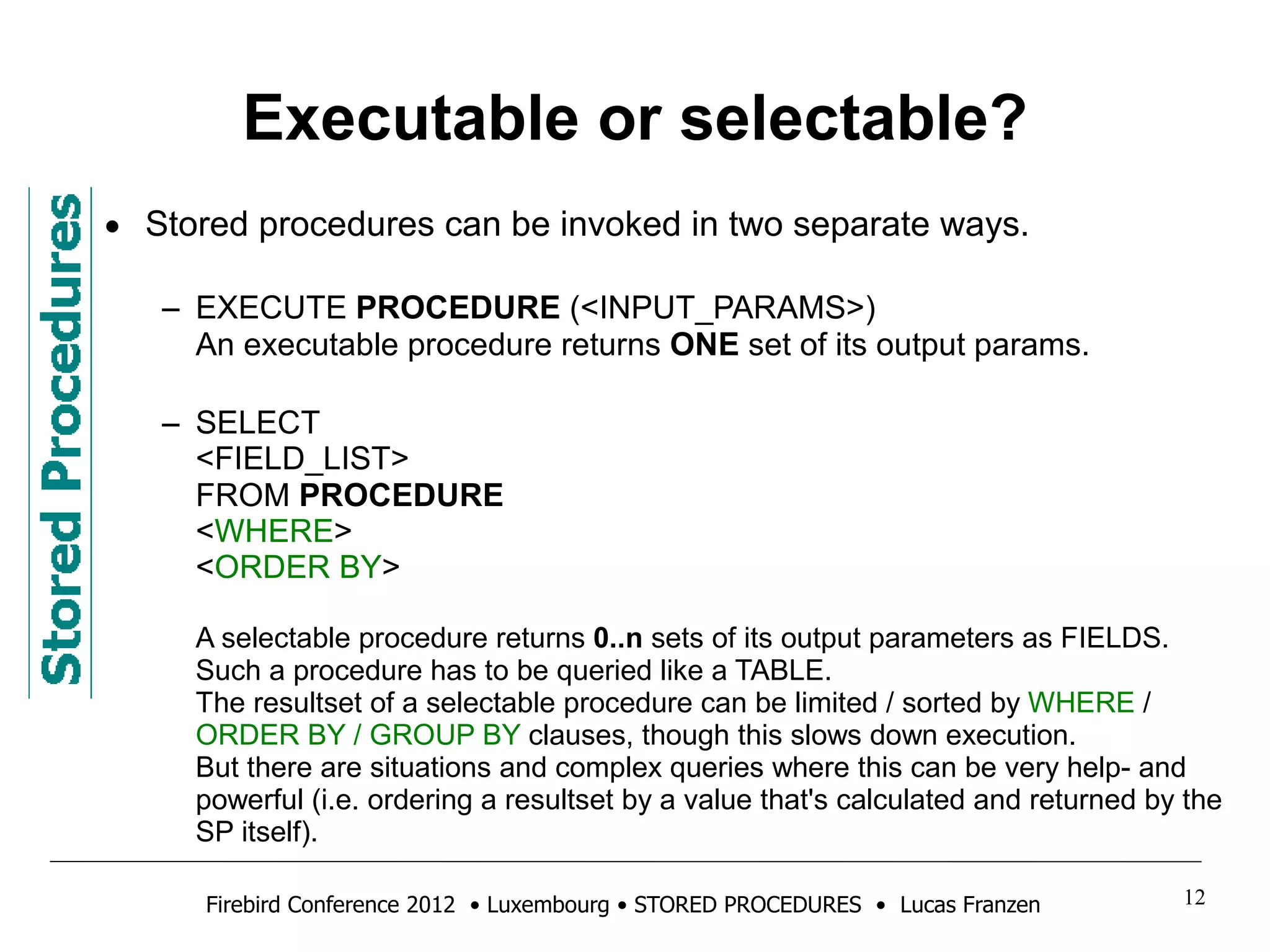

Executable or selectable?
• Stored procedures can be invoked in two separate ways.
– EXECUTE PROCEDURE (<INPUT_PARAMS>)
An executable procedure returns ONE set of its output params.
– SELECT
<FIELD_LIST>
FROM PROCEDURE
<WHERE>
<ORDER BY>
A selectable procedure returns 0..n sets of its output parameters as FIELDS.
Such a procedure has to be queried like a TABLE.
The resultset of a selectable procedure can be limited / sorted by WHERE /
ORDER BY / GROUP BY clauses, though this slows down execution.
But there are situations and complex queries where this can be very help- and
powerful (i.e. ordering a resultset by a value that's calculated and returned by the
SP itself).

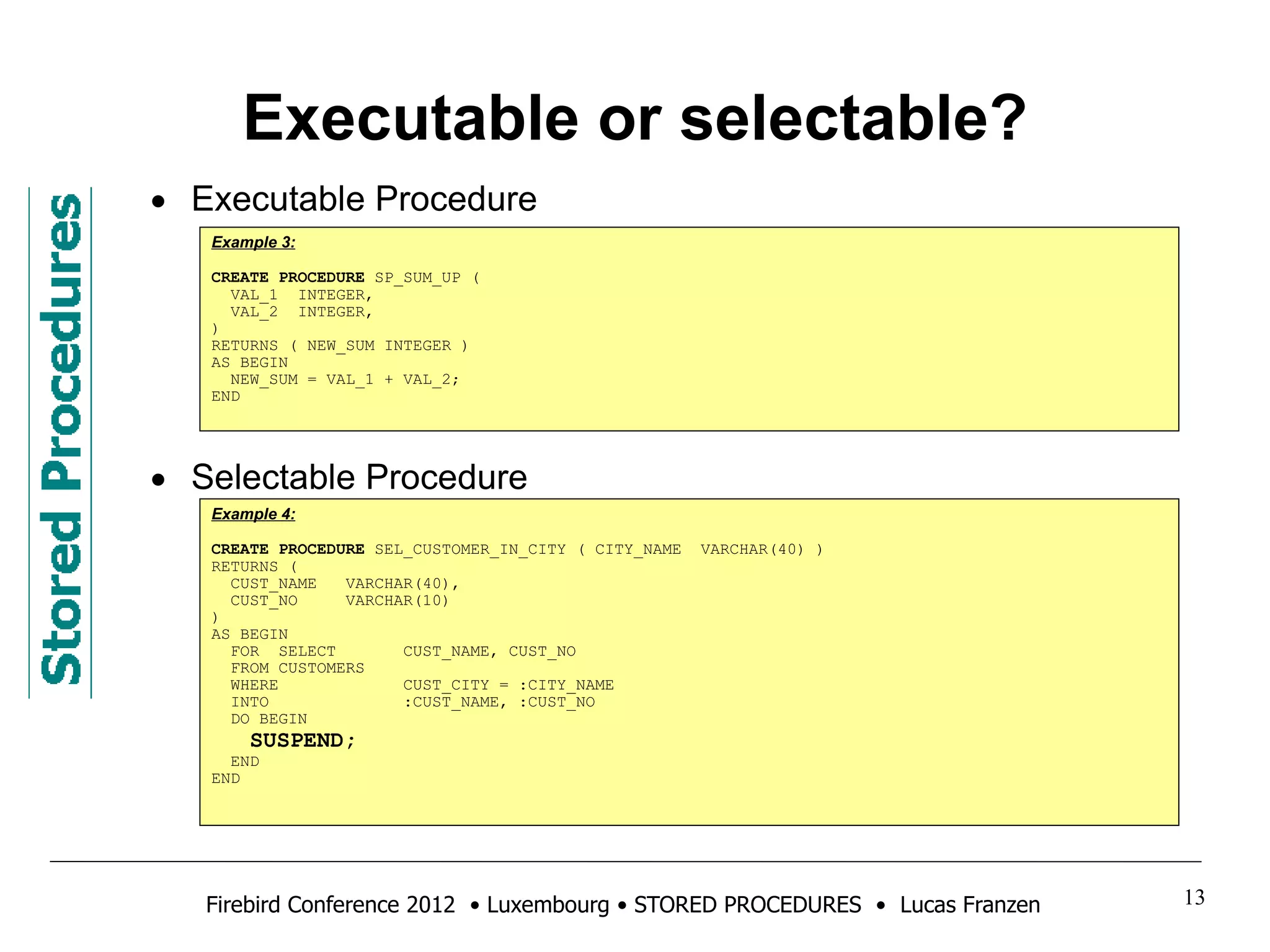

Executable or selectable?
• Executable Procedure
Example 3:
CREATE PROCEDURE SP_SUM_UP (
VAL_1 INTEGER,
VAL_2 INTEGER,
)
RETURNS ( NEW_SUM INTEGER )
AS BEGIN
NEW_SUM = VAL_1 + VAL_2;
END
• Selectable Procedure
Example 4:
CREATE PROCEDURE SEL_CUSTOMER_IN_CITY ( CITY_NAME VARCHAR(40) )
RETURNS (
CUST_NAME VARCHAR(40),
CUST_NO VARCHAR(10)
)
AS BEGIN
FOR SELECT CUST_NAME, CUST_NO
FROM CUSTOMERS
WHERE CUST_CITY = :CITY_NAME
INTO :CUST_NAME, :CUST_NO
DO BEGIN
SUSPEND;
END
END

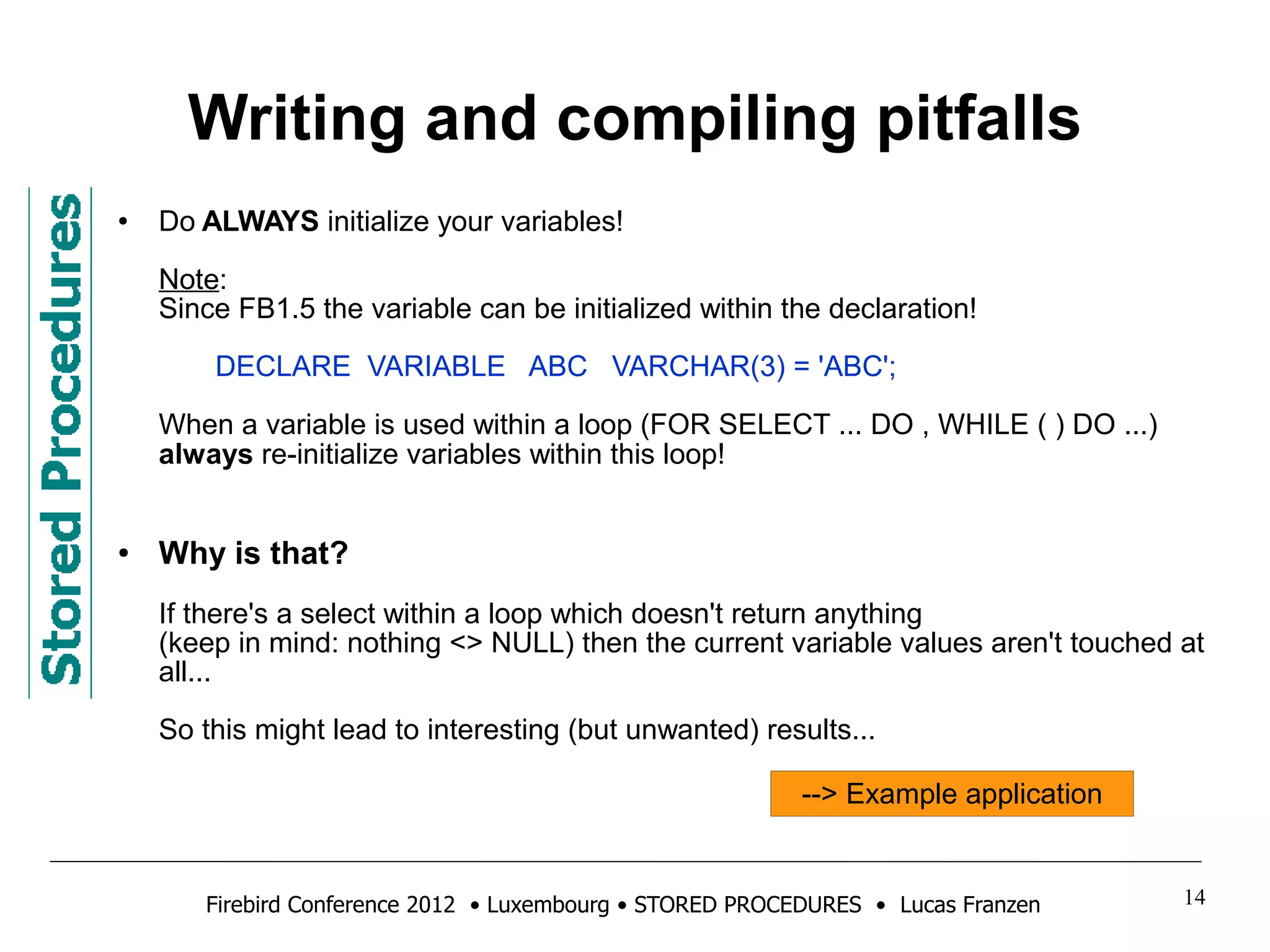

Writing and compiling pitfalls
● Do ALWAYS initialize your variables!
Note:
Since FB1.5 the variable can be initialized within the declaration!
DECLARE VARIABLE ABC VARCHAR(3) = 'ABC';
When a variable is used within a loop (FOR SELECT ... DO , WHILE ( ) DO ...)
always re-initialize variables within this loop!
● Why is that?
If there's a select within a loop which doesn't return anything
(keep in mind: nothing <> NULL) then the current variable values aren't touched at
all...
So this might lead to interesting (but unwanted) results...
--> Example application

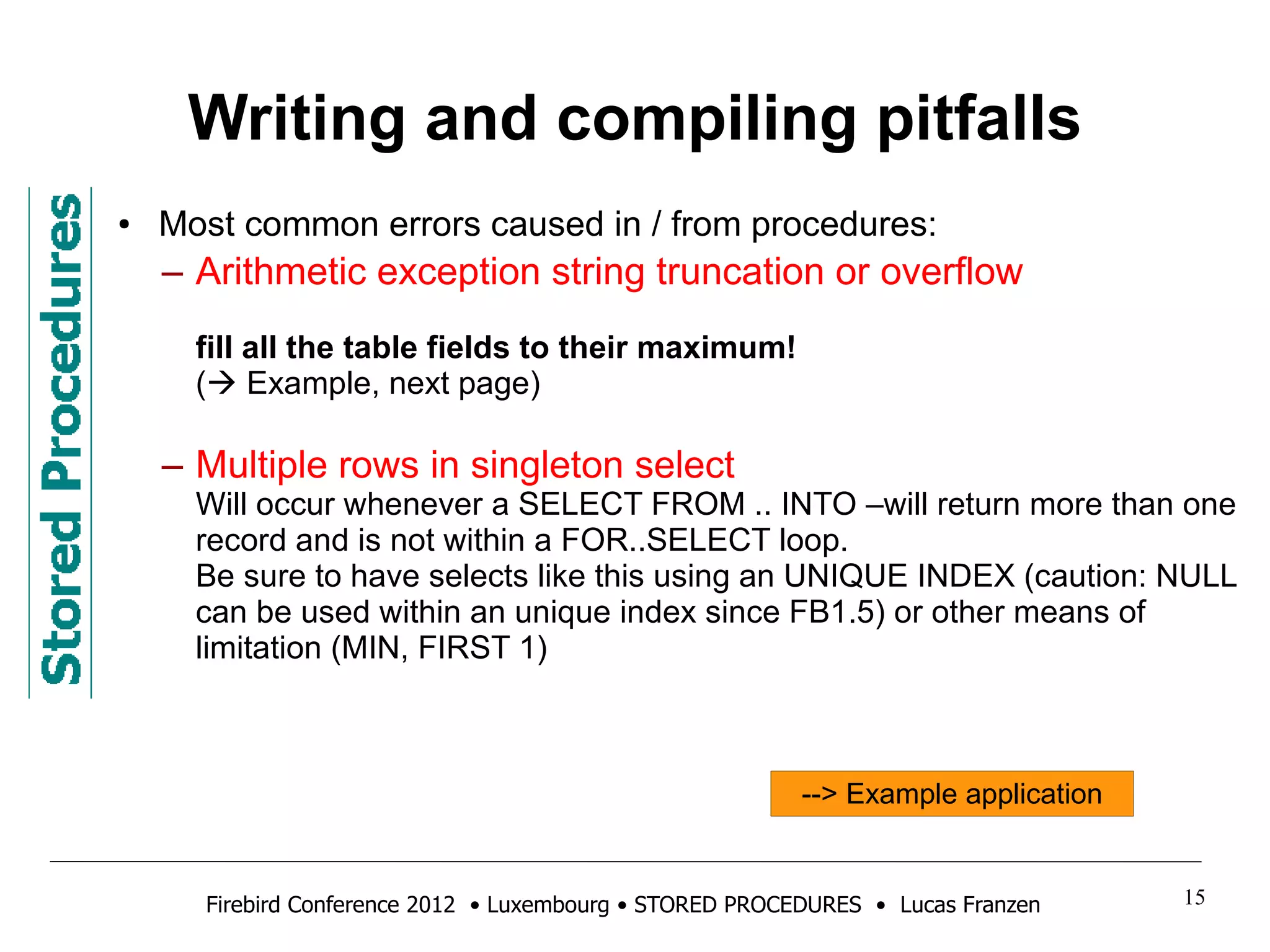

Writing and compiling pitfalls

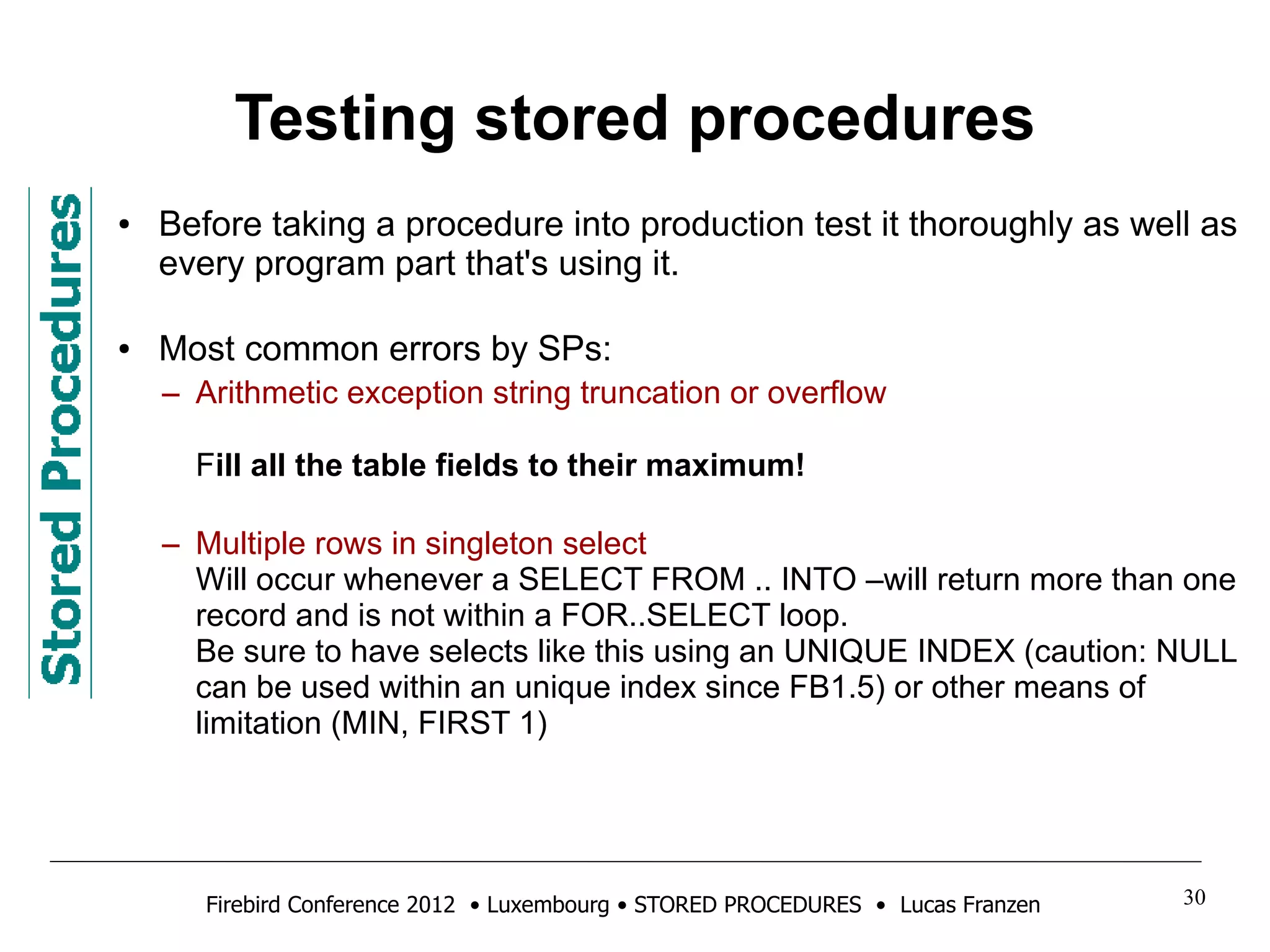

● Most common errors caused in / from procedures:
– Arithmetic exception string truncation or overflow
fill all the table fields to their maximum!
( Example, next page)
– Multiple rows in singleton select
Will occur whenever a SELECT FROM .. INTO –will return more than one
record and is not within a FOR..SELECT loop.
Be sure to have selects like this using an UNIQUE INDEX (caution: NULL
can be used within an unique index since FB1.5) or other means of
limitation (MIN, FIRST 1)

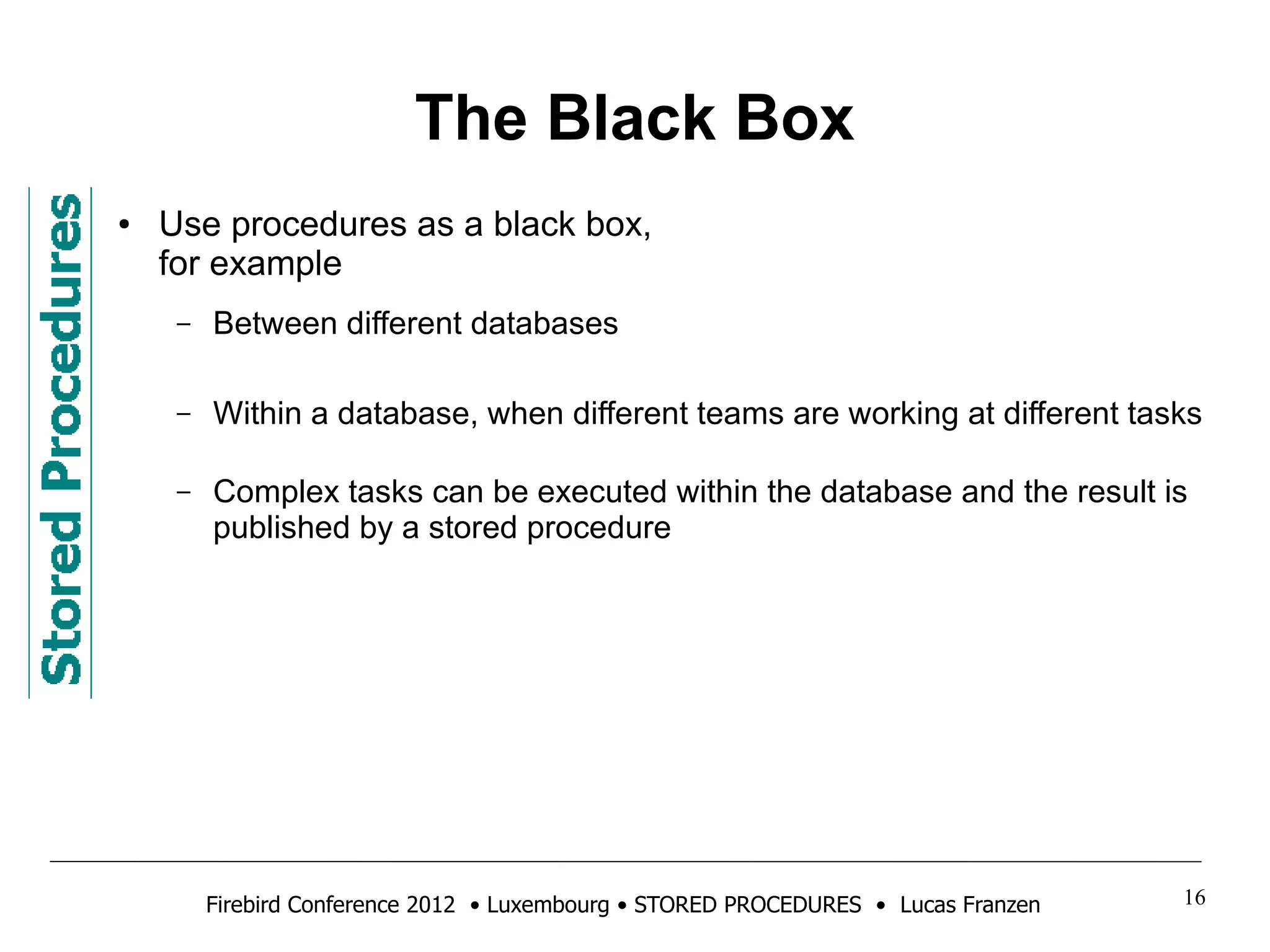

The Black Box
● Use procedures as a black box,
for example
– Between different databases
– Within a database, when different teams are working at different tasks
– Complex tasks can be executed within the database and the result is
published by a stored procedure

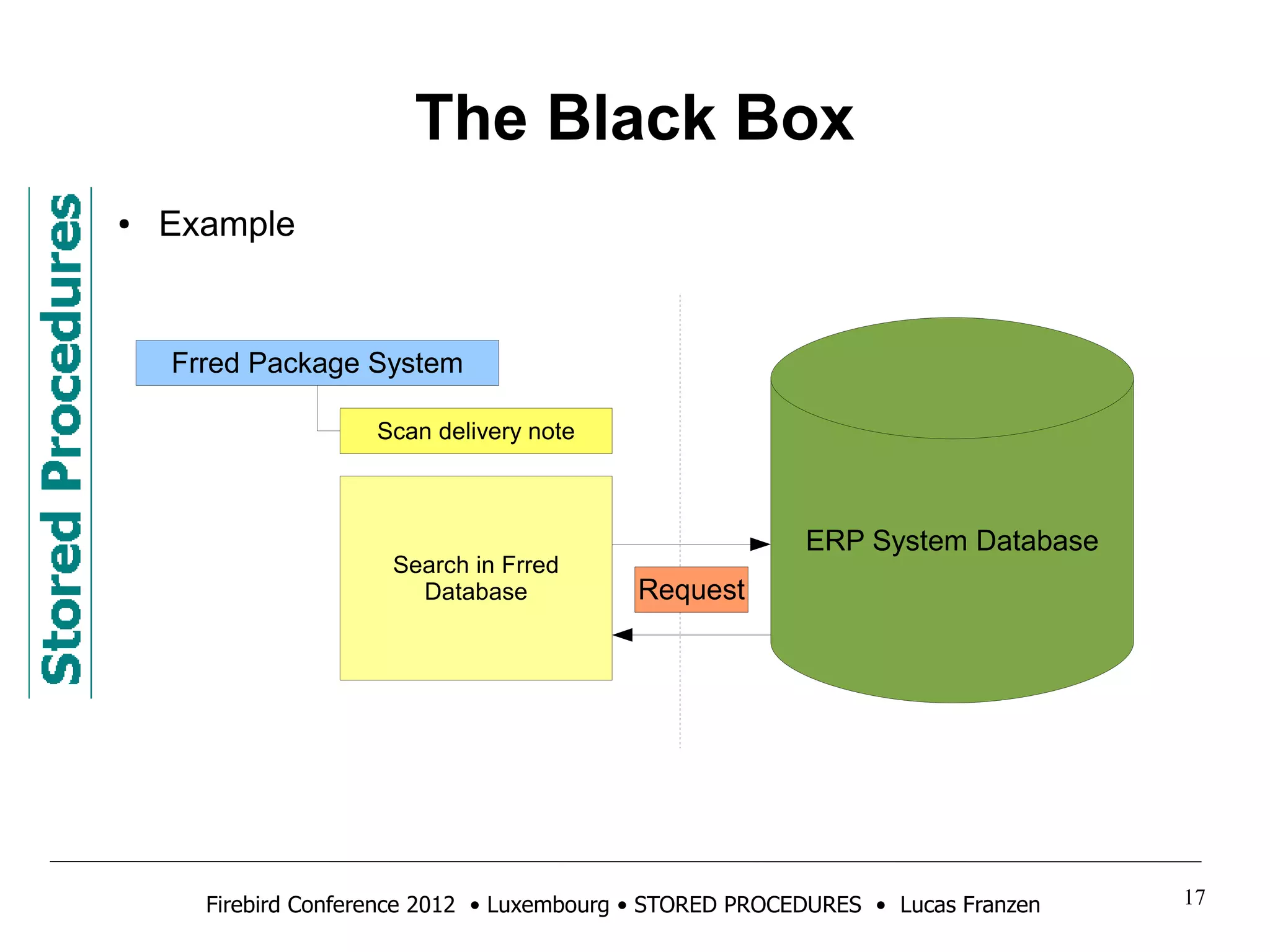

The Black Box
● Example
Frred Package System
Scan delivery note
Search in Frred
Database
ERP System Database
Request

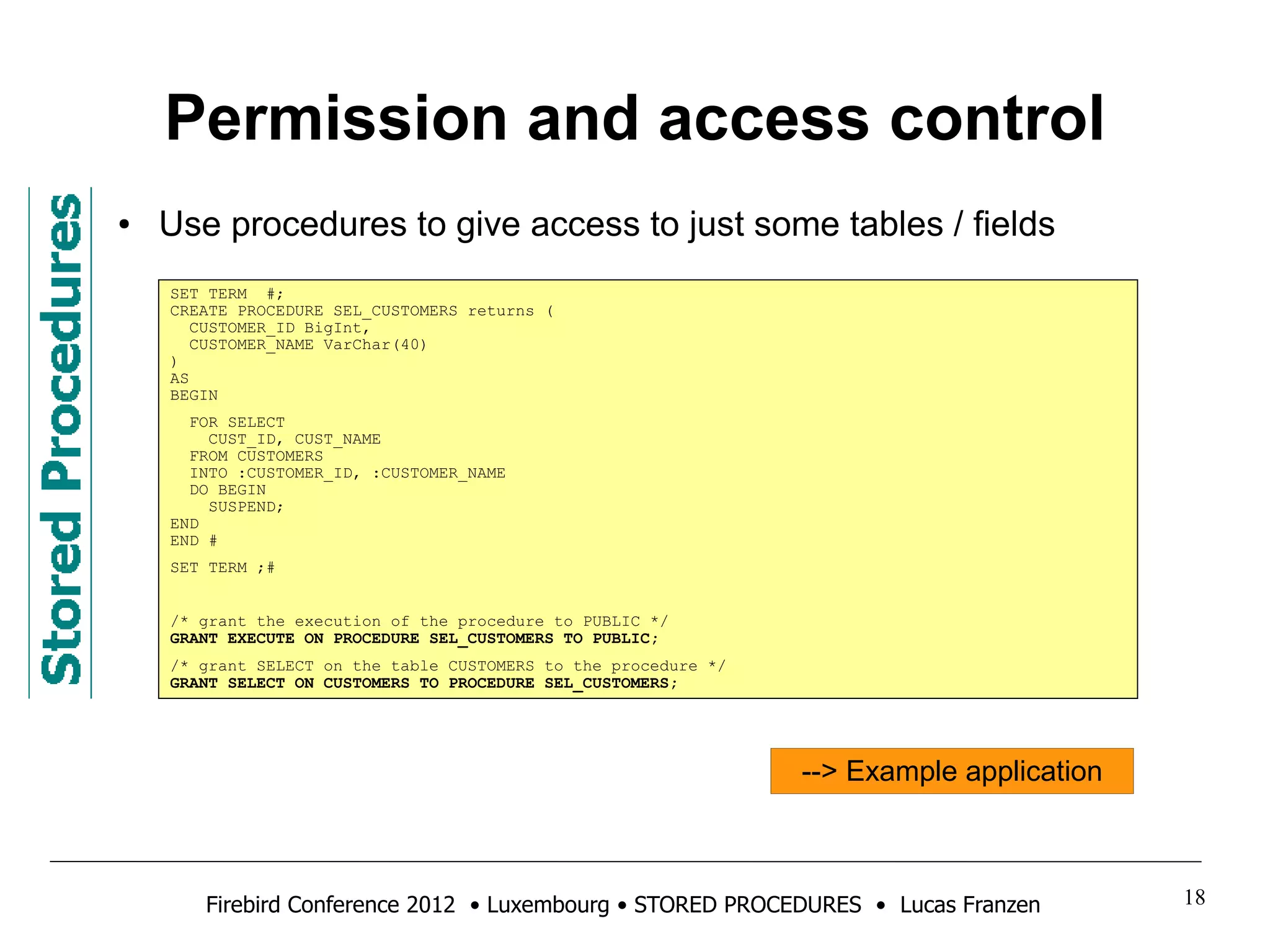

Permission and access control
● Use procedures to give access to just some tables / fields
SET TERM #;
CREATE PROCEDURE SEL_CUSTOMERS returns (
CUSTOMER_ID BigInt,
CUSTOMER_NAME VarChar(40)
)
AS
BEGIN
FOR SELECT
CUST_ID, CUST_NAME
FROM CUSTOMERS
INTO :CUSTOMER_ID, :CUSTOMER_NAME
DO BEGIN
SUSPEND;
END
END #
SET TERM ;#
/* grant the execution of the procedure to PUBLIC */
GRANT EXECUTE ON PROCEDURE SEL_CUSTOMERS TO PUBLIC;
/* grant SELECT on the table CUSTOMERS to the procedure */
GRANT SELECT ON CUSTOMERS TO PROCEDURE SEL_CUSTOMERS;

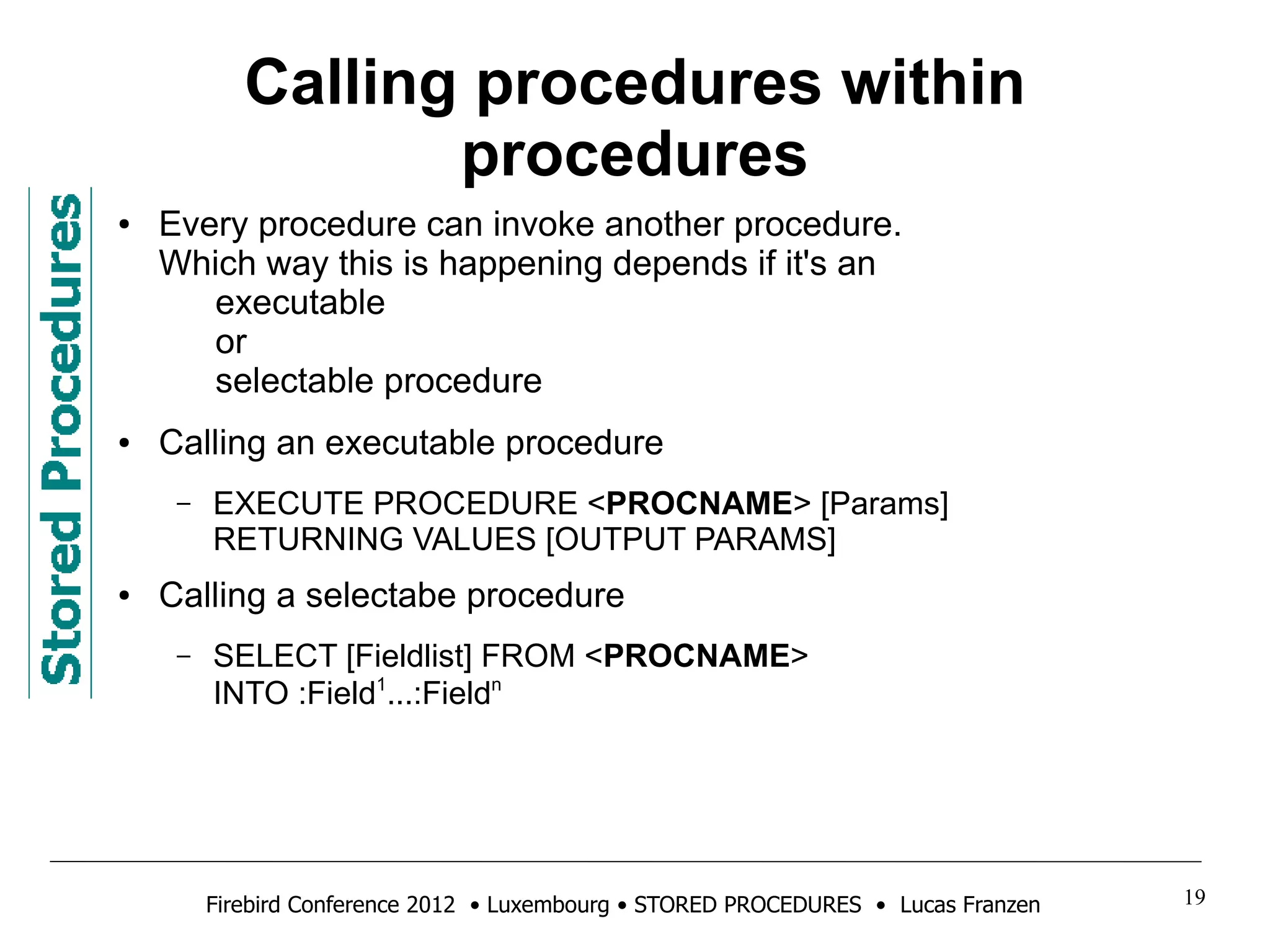

Calling procedures within
procedures
● Every procedure can invoke another procedure.
Which way this is happening depends if it's an
executable
or
selectable procedure
● Calling an executable procedure
– EXECUTE PROCEDURE <PROCNAME> [Params]
RETURNING VALUES [OUTPUT PARAMS]
● Calling a selectabe procedure
– SELECT [Fieldlist] FROM <PROCNAME>
INTO :Field1...:Fieldn

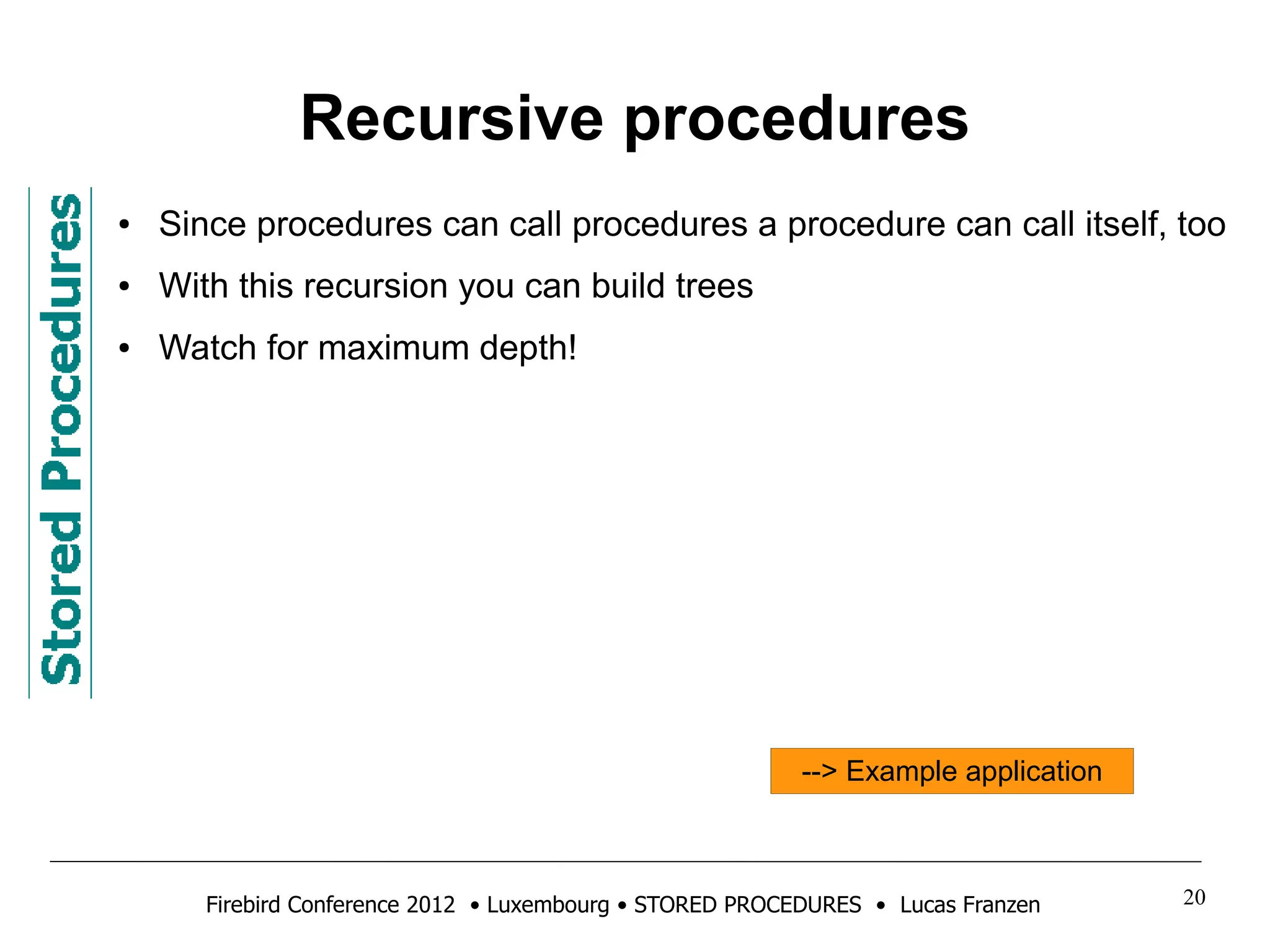

Recursive procedures
● Since procedures can call procedures a procedure can call itself, too
● With this recursion you can build trees
● Watch for maximum depth!

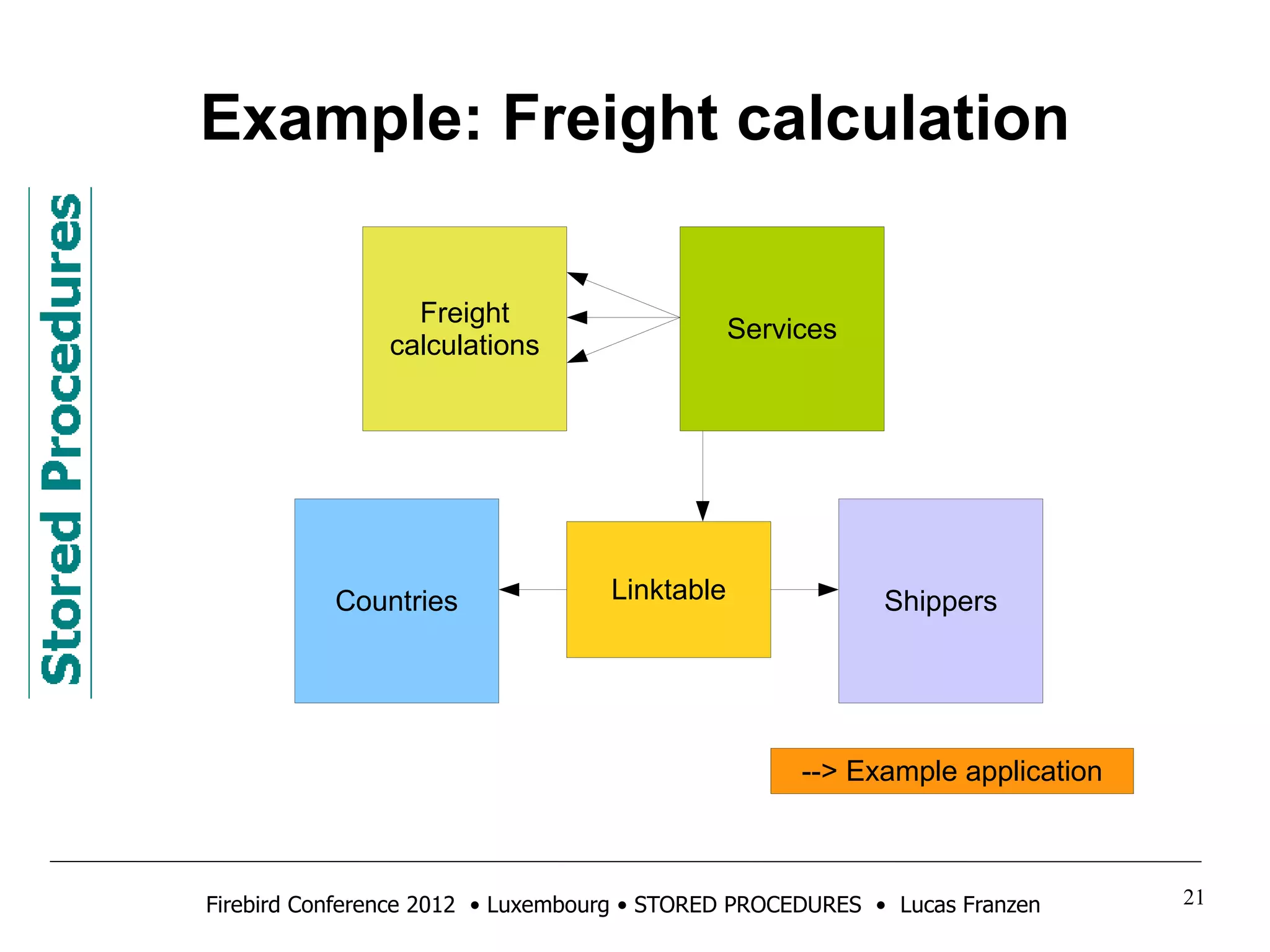

Example: Freight calculation
Freight
calculations Services
Countries Linktable Shippers

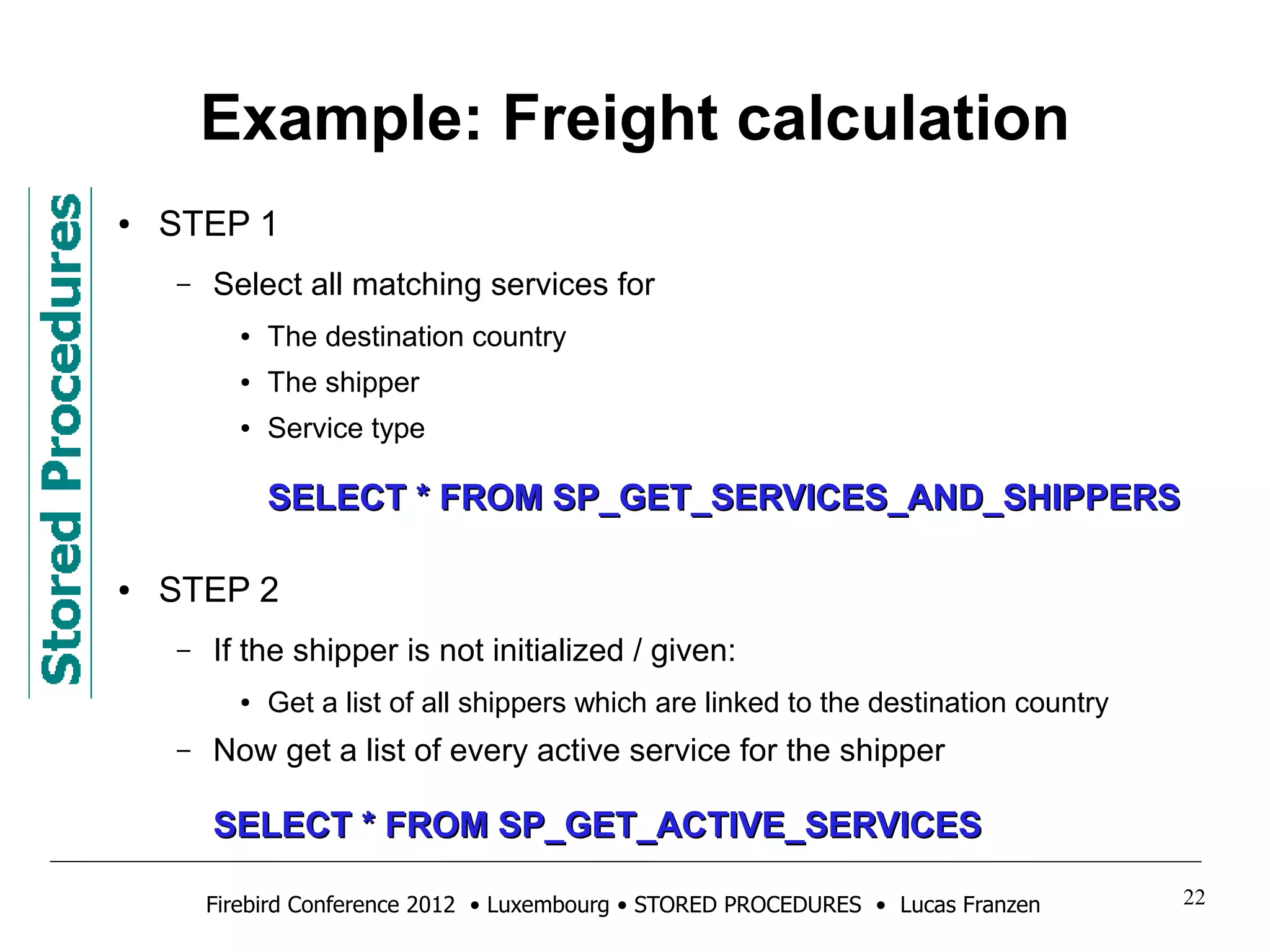

● STEP 1
– Select all matching services for
● The destination country
● The shipper
● Service type
SSEELLEECCTT ** FFRROOMM SSPP__GGEETT__SSEERRVVIICCEESS__AANNDD__SSHHIIPPPPEERRSS
● STEP 2
– If the shipper is not initialized / given:
● Get a list of all shippers which are linked to the destination country
– Now get a list of every active service for the shipper
SSEELLEECCTT ** FFRROOMM SSPP__GGEETT__AACCTTIIVVEE__SSEERRVVIICCEESS

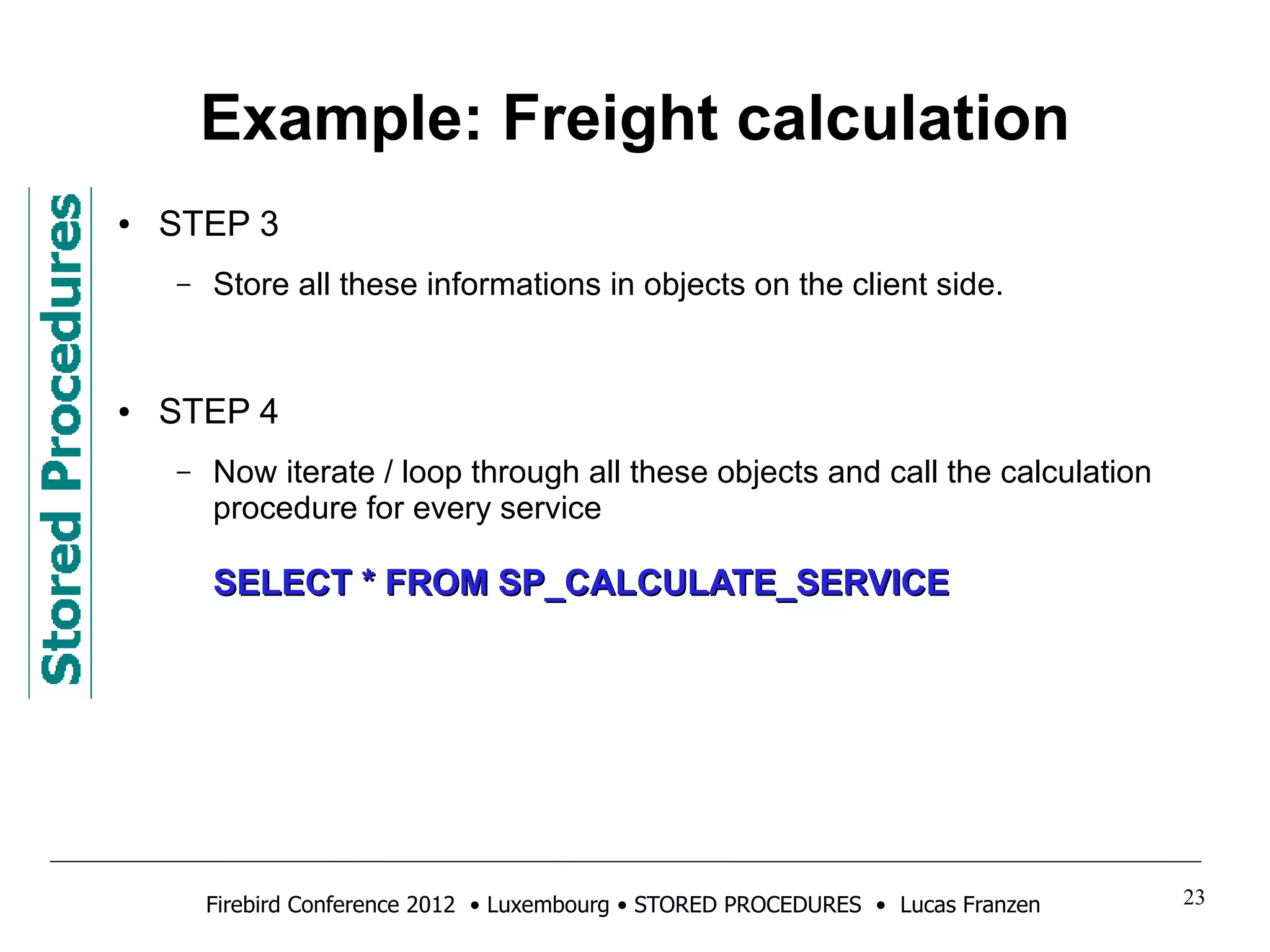

● STEP 3
– Store all these informations in objects on the client side.
● STEP 4
– Now iterate / loop through all these objects and call the calculation
procedure for every service
SSEELLEECCTT ** FFRROOMM SSPP__CCAALLCCUULLAATTEE__SSEERRVVIICCEE

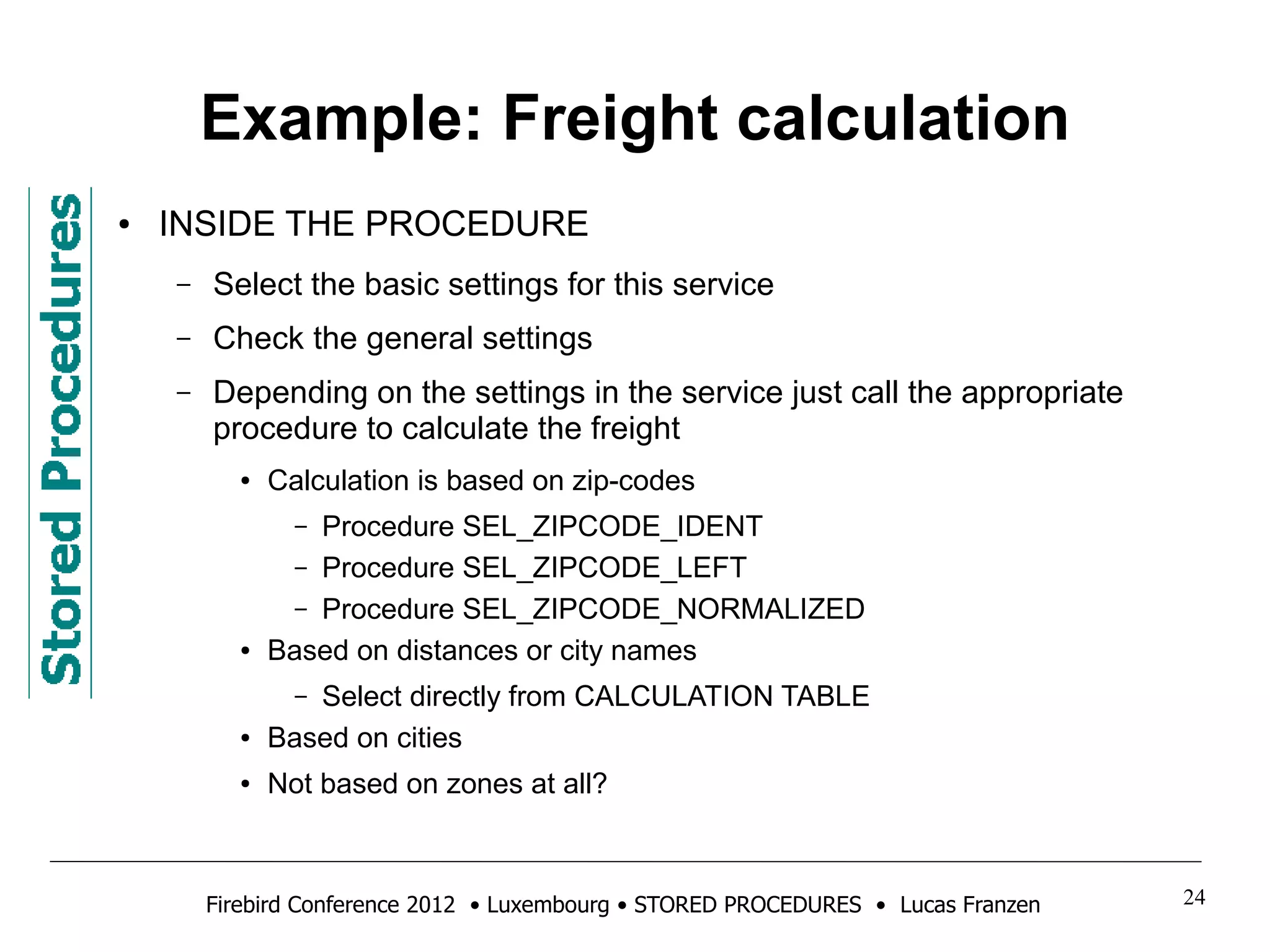

● INSIDE THE PROCEDURE
– Select the basic settings for this service
– Check the general settings
– Depending on the settings in the service just call the appropriate
procedure to calculate the freight
● Calculation is based on zip-codes
– Procedure SEL_ZIPCODE_IDENT
– Procedure SEL_ZIPCODE_LEFT
– Procedure SEL_ZIPCODE_NORMALIZED
● Based on distances or city names
– Select directly from CALCULATION TABLE
● Based on cities
● Not based on zones at all?

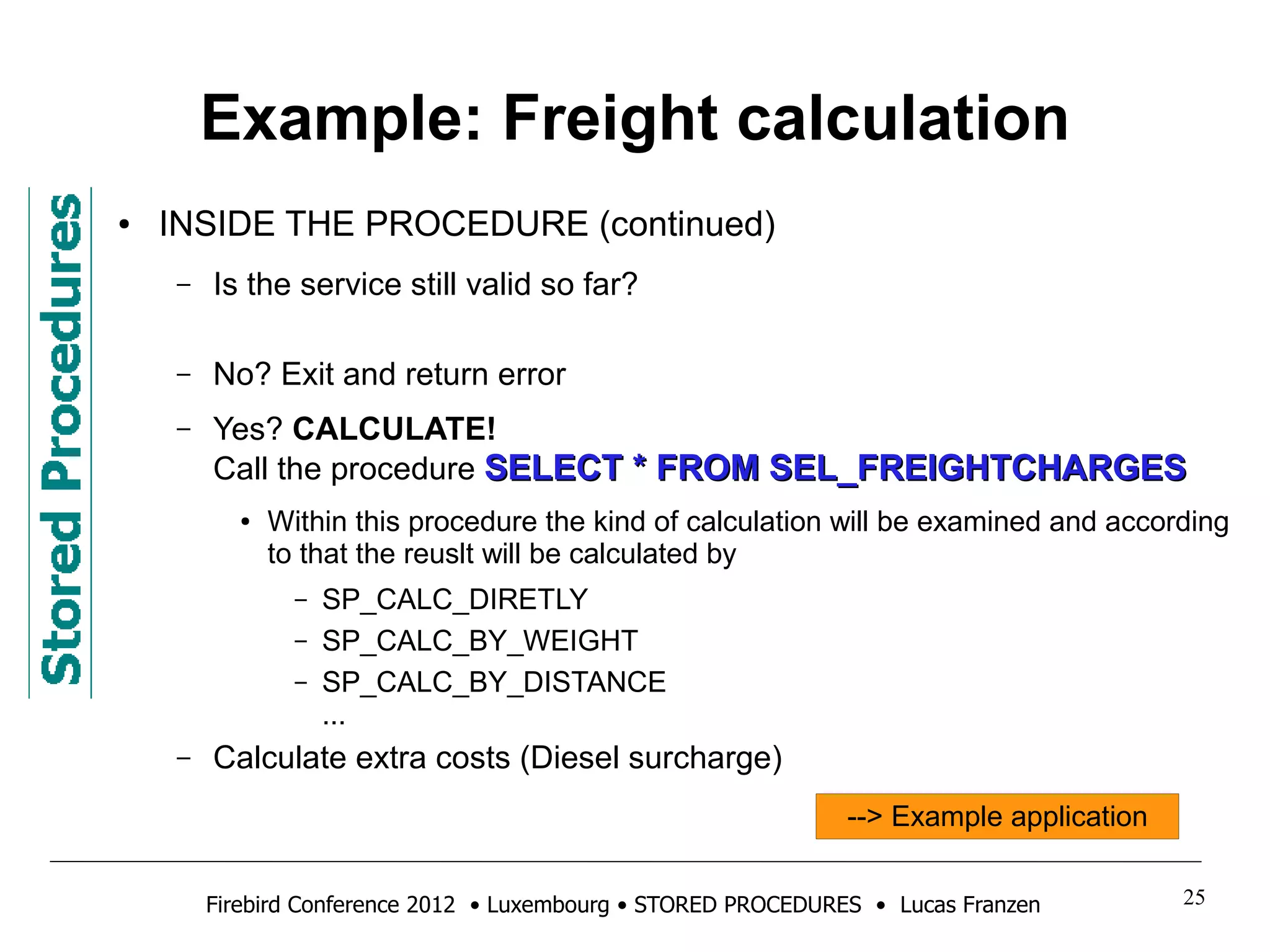

● INSIDE THE PROCEDURE (continued)
– Is the service still valid so far?
– No? Exit and return error
– Yes? CALCULATE!
Call the procedure SSEELLEECCTT ** FFRROOMM SSEELL__FFRREEIIGGHHTTCCHHAARRGGEESS
● Within this procedure the kind of calculation will be examined and according
to that the reuslt will be calculated by
– SP_CALC_DIRETLY
– SP_CALC_BY_WEIGHT
– SP_CALC_BY_DISTANCE
...
– Calculate extra costs (Diesel surcharge)

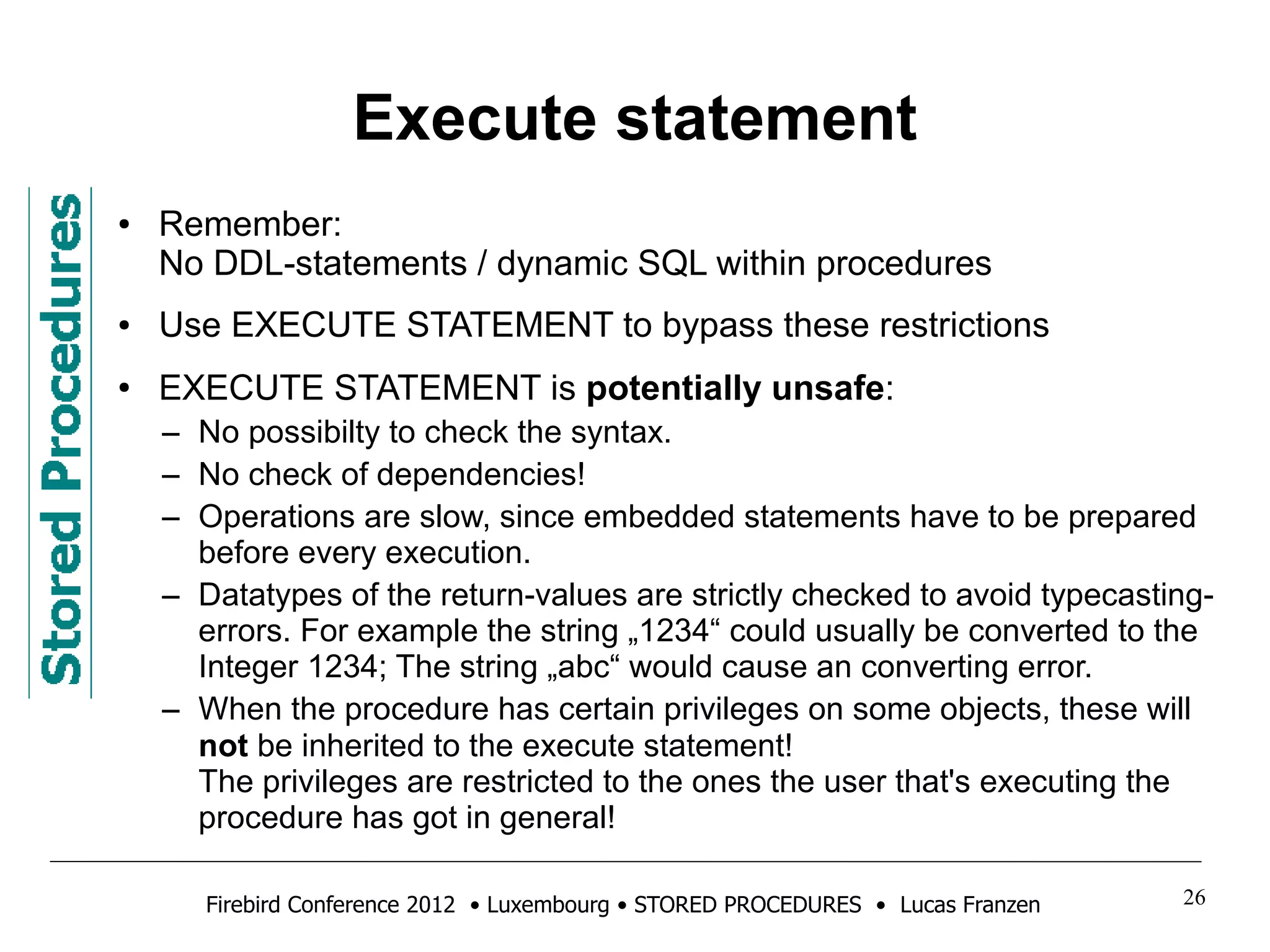

Execute statement
● Remember:
No DDL-statements / dynamic SQL within procedures
● Use EXECUTE STATEMENT to bypass these restrictions
● EXECUTE STATEMENT is potentially unsafe:
– No possibilty to check the syntax.
– No check of dependencies!
– Operations are slow, since embedded statements have to be prepared
before every execution.
– Datatypes of the return-values are strictly checked to avoid typecasting-errors.
For example the string „1234“ could usually be converted to the
Integer 1234; The string „abc“ would cause an converting error.
– When the procedure has certain privileges on some objects, these will
not be inherited to the execute statement!
The privileges are restricted to the ones the user that's executing the
procedure has got in general!

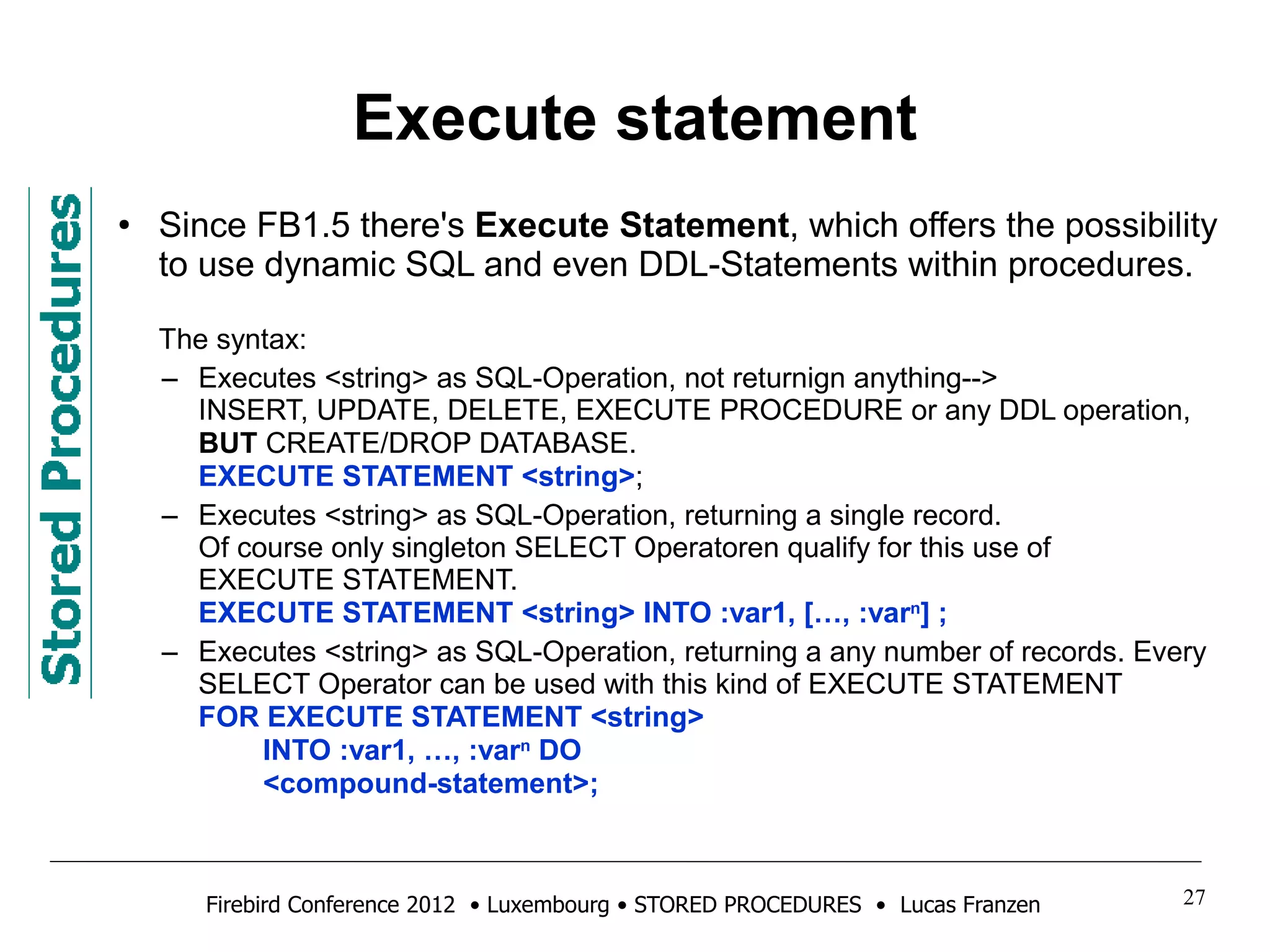

Execute statement
● Since FB1.5 there's Execute Statement, which offers the possibility
to use dynamic SQL and even DDL-Statements within procedures.
The syntax:
– Executes <string> as SQL-Operation, not returnign anything-->
INSERT, UPDATE, DELETE, EXECUTE PROCEDURE or any DDL operation,
BUT CREATE/DROP DATABASE.
EXECUTE STATEMENT <string>;
– Executes <string> as SQL-Operation, returning a single record.
Of course only singleton SELECT Operatoren qualify for this use of
EXECUTE STATEMENT.
EXECUTE STATEMENT <string> INTO :var1, […, :varn] ;
– Executes <string> as SQL-Operation, returning a any number of records. Every
SELECT Operator can be used with this kind of EXECUTE STATEMENT
FOR EXECUTE STATEMENT <string>
INTO :var1, …, :varn DO
<compound-statement>;

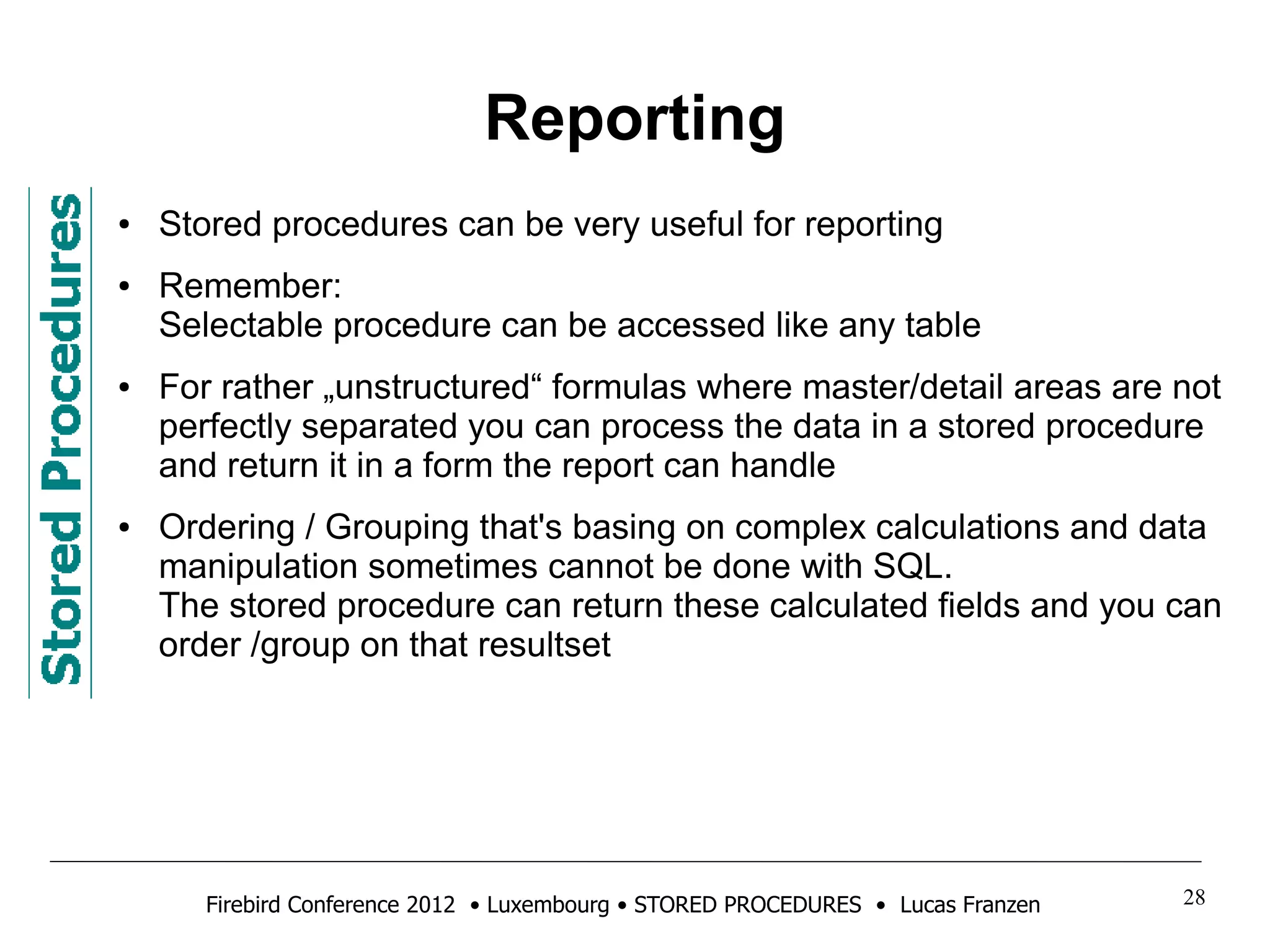

Reporting
● Stored procedures can be very useful for reporting
● Remember:
Selectable procedure can be accessed like any table
● For rather „unstructured“ formulas where master/detail areas are not
perfectly separated you can process the data in a stored procedure
and return it in a form the report can handle
● Ordering / Grouping that's basing on complex calculations and data
manipulation sometimes cannot be done with SQL.
The stored procedure can return these calculated fields and you can
order /group on that resultset

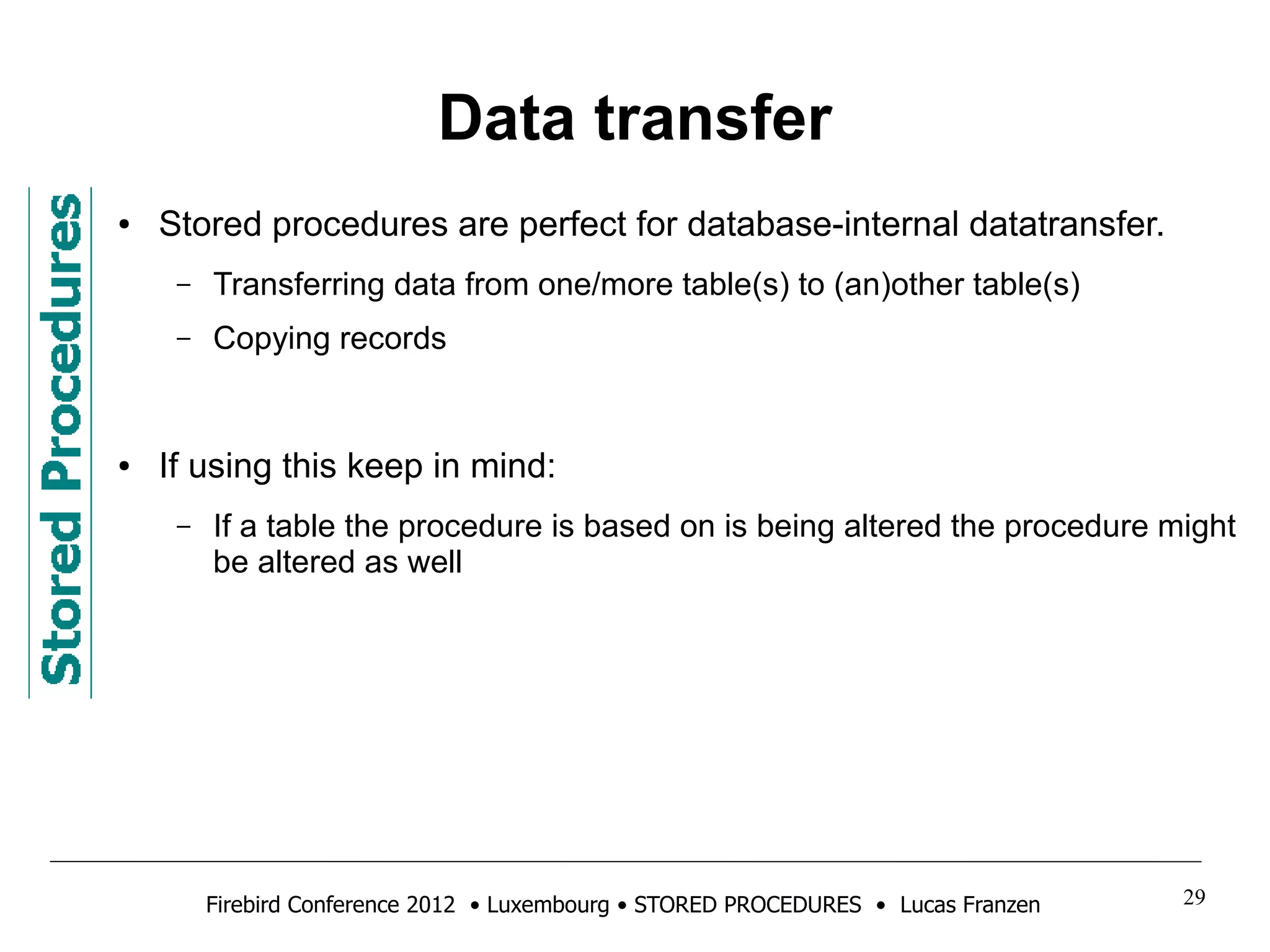

Data transfer
● Stored procedures are perfect for database-internal datatransfer.
– Transferring data from one/more table(s) to (an)other table(s)
– Copying records
● If using this keep in mind:
– If a table the procedure is based on is being altered the procedure might
be altered as well

Testing stored procedures
● Before taking a procedure into production test it thoroughly as well as
every program part that's using it.
● Most common errors by SPs:
– Arithmetic exception string truncation or overflow
Fill all the table fields to their maximum!
– Multiple rows in singleton select
Will occur whenever a SELECT FROM .. INTO –will return more than one
record and is not within a FOR..SELECT loop.
Be sure to have selects like this using an UNIQUE INDEX (caution: NULL
can be used within an unique index since FB1.5) or other means of
limitation (MIN, FIRST 1)

Debugging Stored Procedures
● Use Tools
– IB Expert
– Database Workbench
– ...
● On your own:
Catch an exception
by using WHEN ANY
– Use
INSERT STATEMENTS
to store information from
with the procedure in a
table
– Use variables to identify
wherethe problem occured
BEISPIEL:
SET TERM #;
CREATE PROCEDURE SEL_PROCEDURE
RETURNS (
FIELD_1 VARCHAR(40),
...
ERROR_AT INTEGER
)
AS BEGIN
ERROR_AT = 0;
/* Step 1 */
ERROR_AT = 1;
... CODE ...
/* Step 2 */
ERROR_AT = 2;
... CODE ...
/* End of Code */
WHEN ANY DO
BEGIN
/* Return Variable ERROR_AT */
SUSPEND;
END
END #
SET TERM ;#
On exception the WHEN ANY will be executed:
 by looking at ERROR_AT variable you'll find out
where it occured.

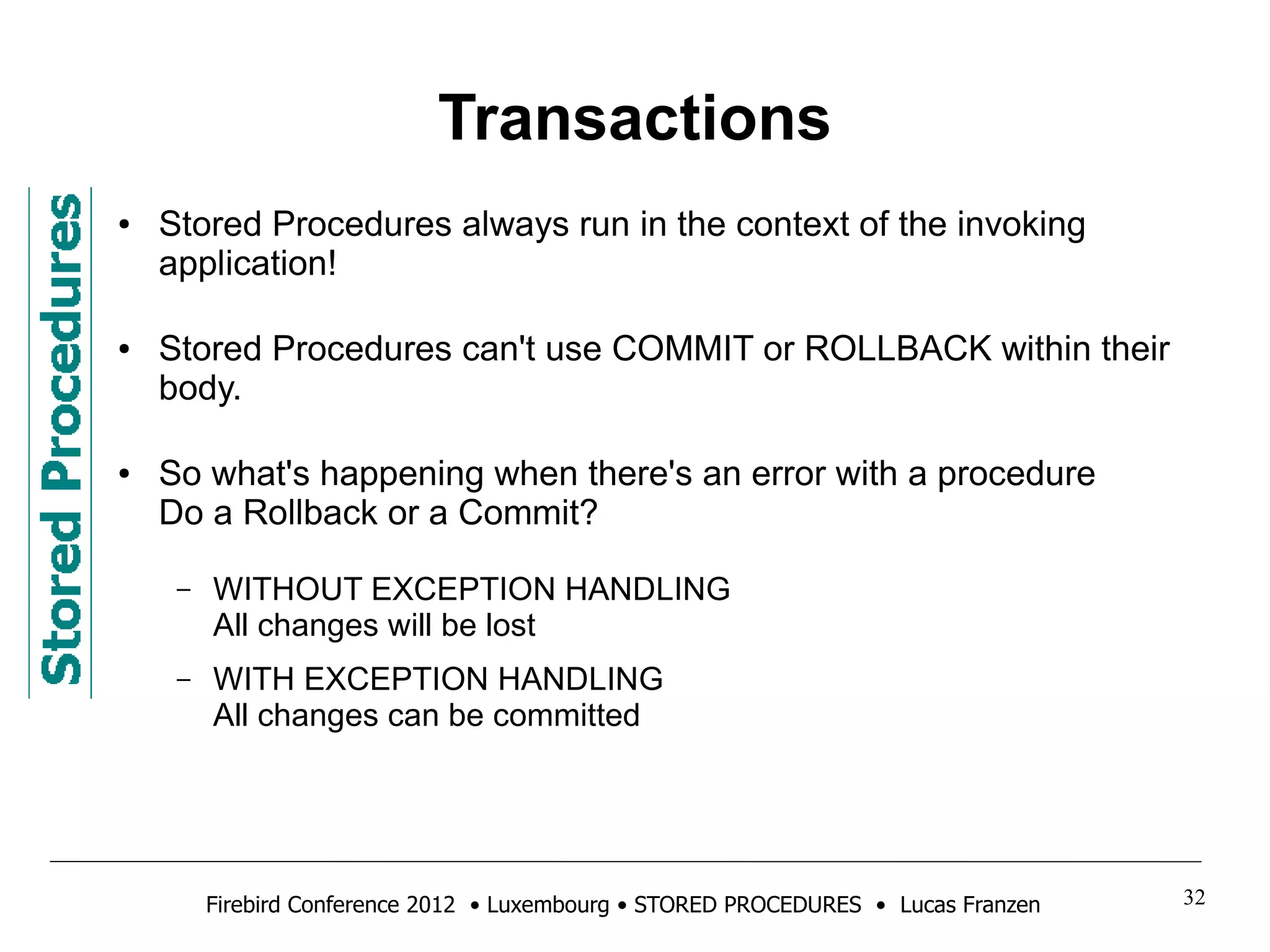

Transactions
● Stored Procedures always run in the context of the invoking
application!
● Stored Procedures can't use COMMIT or ROLLBACK within their
body.
● So what's happening when there's an error with a procedure
Do a Rollback or a Commit?
– WITHOUT EXCEPTION HANDLING
All changes will be lost
– WITH EXCEPTION HANDLING
All changes can be committed

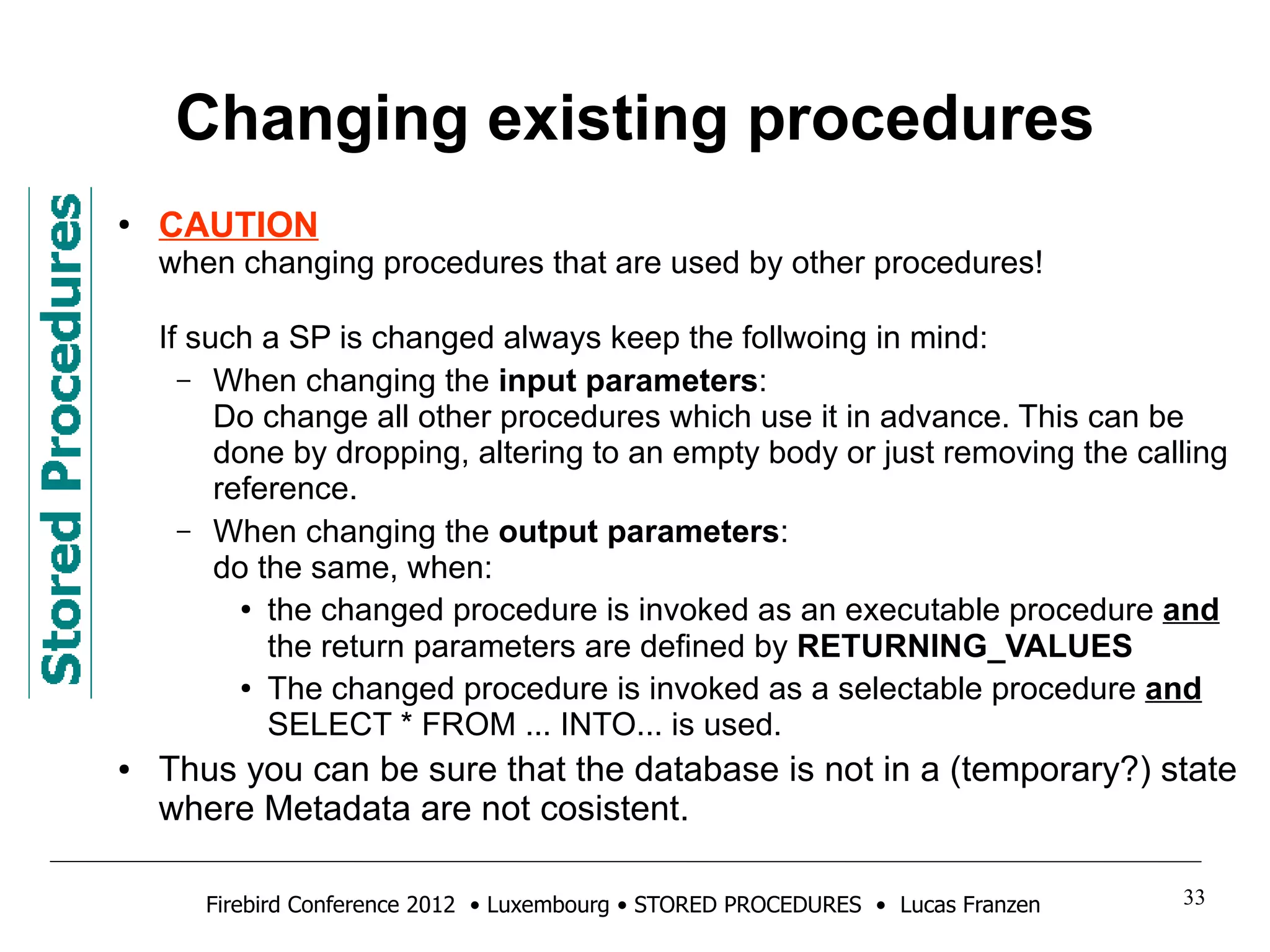

Changing existing procedures
● CAUTION
when changing procedures that are used by other procedures!
If such a SP is changed always keep the follwoing in mind:
– When changing the input parameters:
Do change all other procedures which use it in advance. This can be
done by dropping, altering to an empty body or just removing the calling
reference.
– When changing the output parameters:
do the same, when:
● the changed procedure is invoked as an executable procedure and
the return parameters are defined by RETURNING_VALUES
● The changed procedure is invoked as a selectable procedure and
SELECT * FROM ... INTO... is used.
● Thus you can be sure that the database is not in a (temporary?) state
where Metadata are not cosistent.

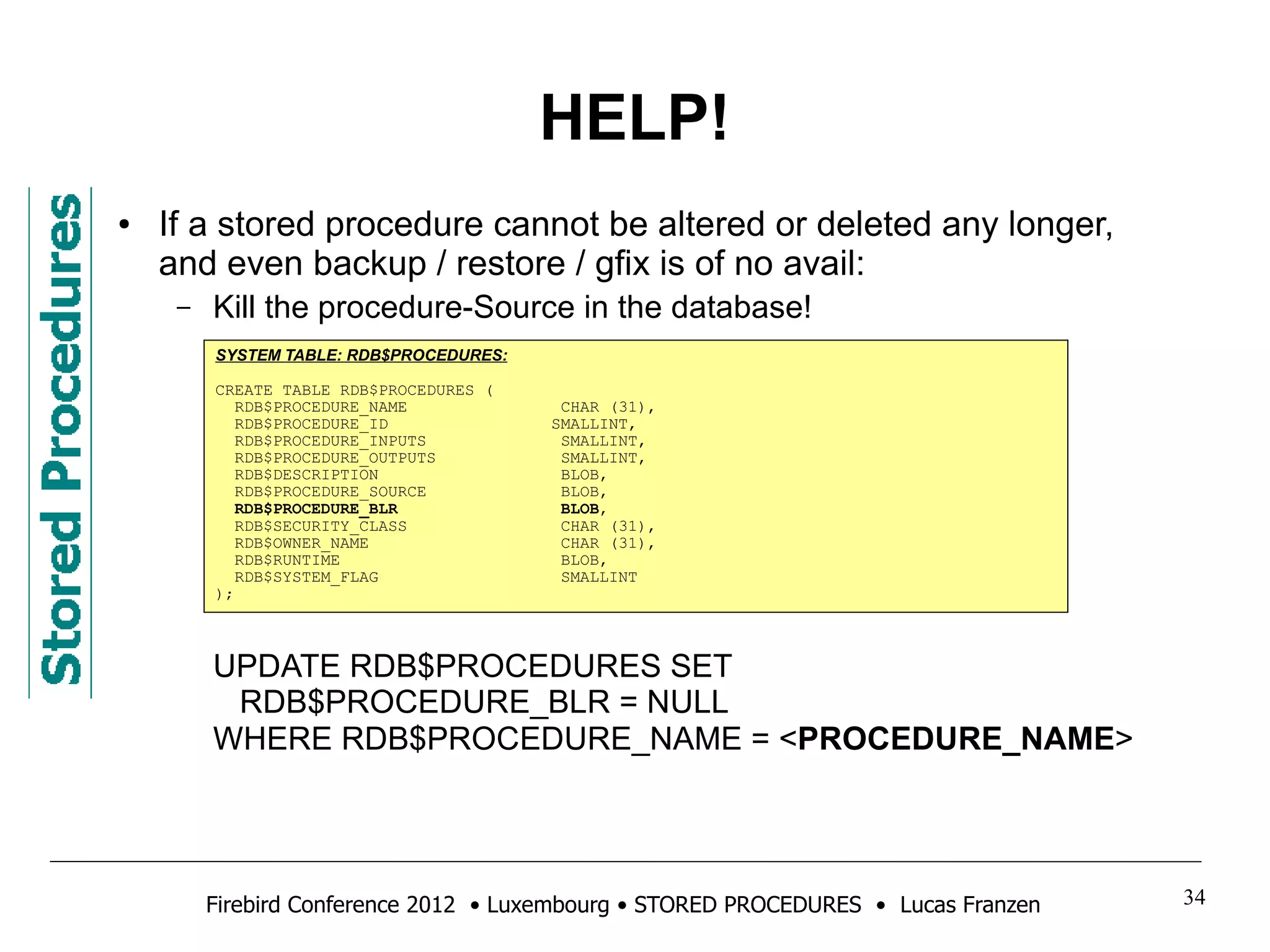

HELP!
● If a stored procedure cannot be altered or deleted any longer,
and even backup / restore / gfix is of no avail:
– Kill the procedure-Source in the database!
SYSTEM TABLE: RDB$PROCEDURES:
CREATE TABLE RDB$PROCEDURES (
RDB$PROCEDURE_NAME CHAR (31),
RDB$PROCEDURE_ID SMALLINT,
RDB$PROCEDURE_INPUTS SMALLINT,
RDB$PROCEDURE_OUTPUTS SMALLINT,
RDB$DESCRIPTION BLOB,
RDB$PROCEDURE_SOURCE BLOB,
RDB$PROCEDURE_BLR BLOB,
RDB$SECURITY_CLASS CHAR (31),
RDB$OWNER_NAME CHAR (31),
RDB$RUNTIME BLOB,
RDB$SYSTEM_FLAG SMALLINT
);
UPDATE RDB$PROCEDURES SET
RDB$PROCEDURE_BLR = NULL
WHERE RDB$PROCEDURE_NAME = <PROCEDURE_NAME>

The END
AANNYY QQUUEESSTTIIOONNSS??
Feel free to contact me:
lucas.franzen@frred.de
luc@frred.de

Stored procedures in Firebird

More Related Content

What's hot

Viewers also liked

Similar to Stored procedures in Firebird

More from Mind The Firebird

Recently uploaded

Stored procedures in Firebird
