1 Firebird Conference 2014, Prague © IBSurgeon
How Firebird transactions work
Dmitry Kuzmenko
www.IBSurgeon.com
2
2 Firebird Conference 2014, Prague © IBSurgeon
Thank you!
3
3 Firebird Conference 2014, Prague © IBSurgeon
• Tools and consulting
• Platinum Sponsor of Firebird
Foundation
• Founded in 2002: 12 years of
Firebird and InterBase recoveries
and consulting
• Based in Moscow, Russia
4
4 Firebird Conference 2014, Prague © IBSurgeon

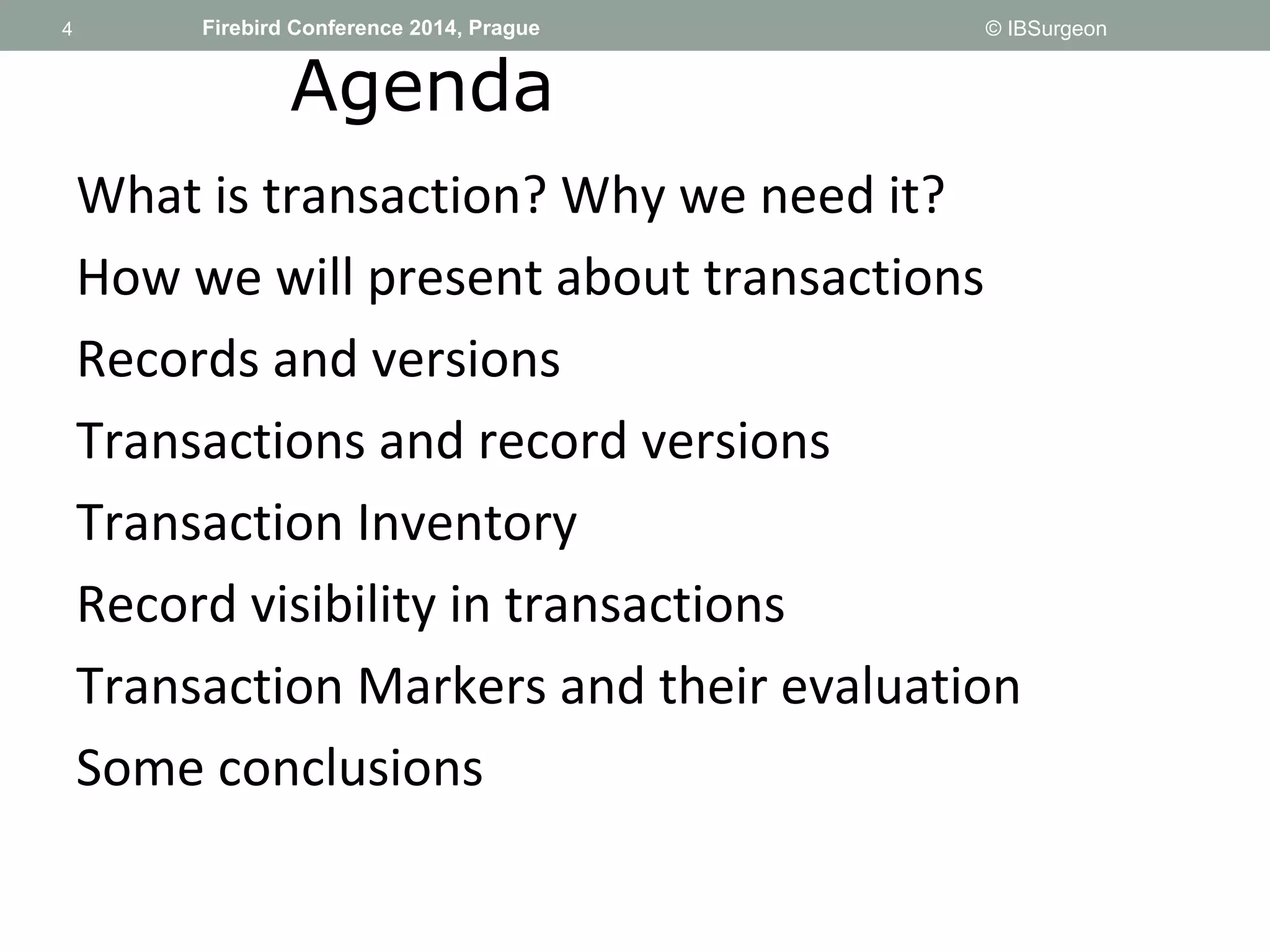

Agenda
What is transaction? Why we need it?
How we will present about transactions
Records and versions
Transactions and record versions
Transaction Inventory
Record visibility in transactions
Transaction Markers and their evaluation
Some conclusions
5
5 Firebird Conference 2014, Prague © IBSurgeon

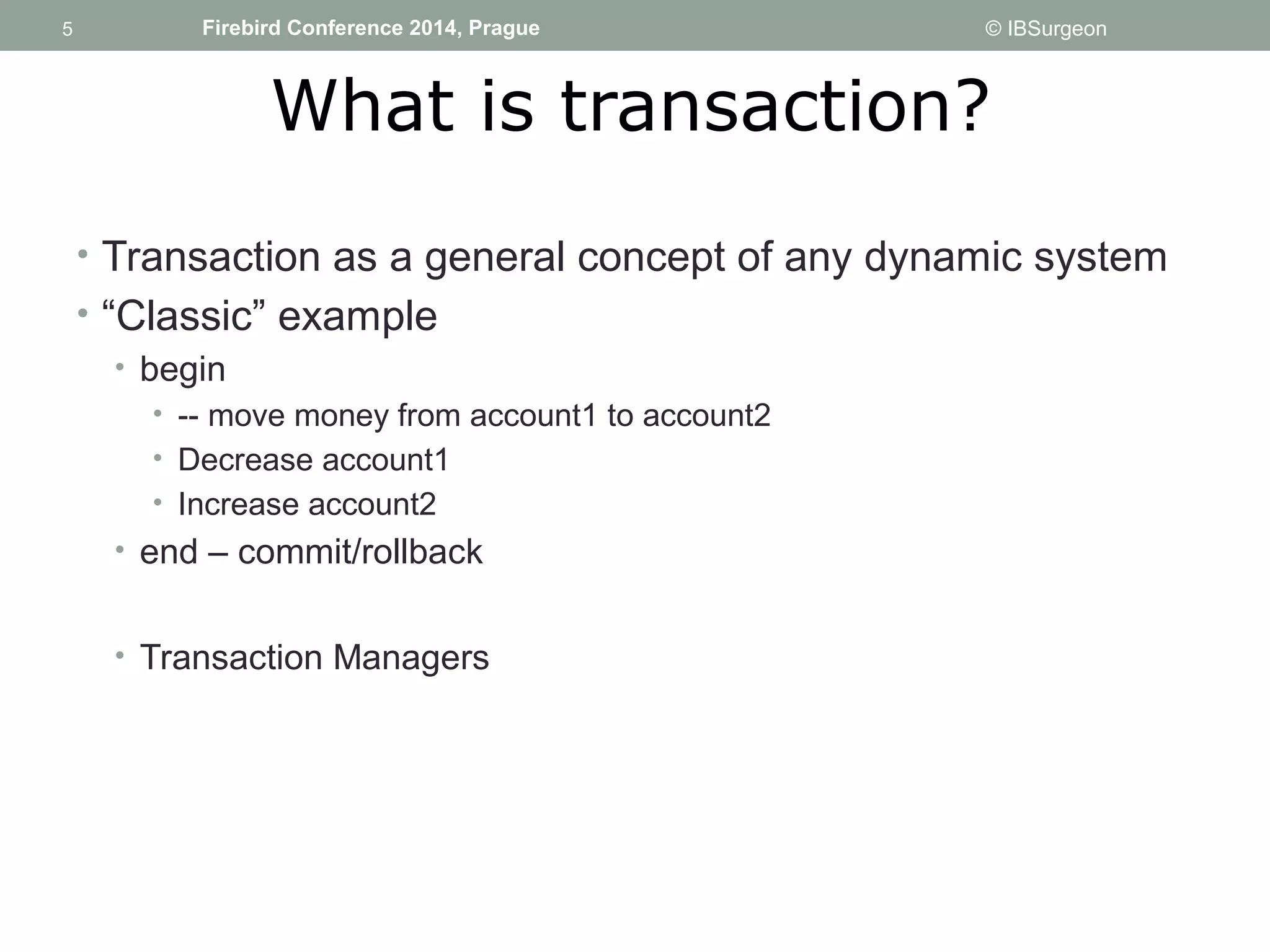

What is transaction?
• Transaction as a general concept of any dynamic system
• “Classic” example
• begin
• -- move money from account1 to account2
• Decrease account1
• Increase account2
• end – commit/rollback
• Transaction Managers
6
6 Firebird Conference 2014, Prague © IBSurgeon

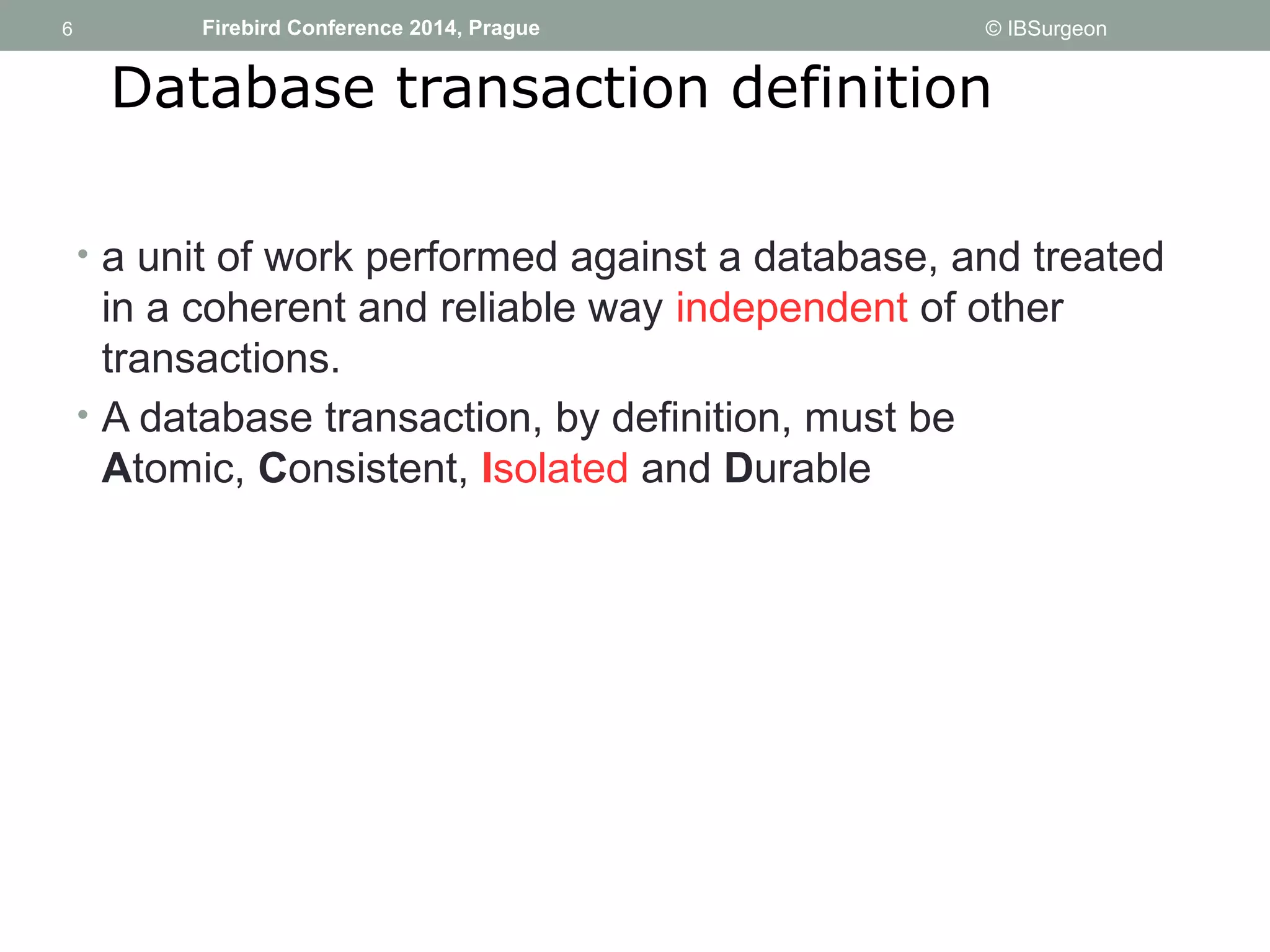

Database transaction definition
• a unit of work performed against a database, and treated
in a coherent and reliable way independent of other
transactions.
• A database transaction, by definition, must be
Atomic, Consistent, Isolated and Durable
7
7 Firebird Conference 2014, Prague © IBSurgeon

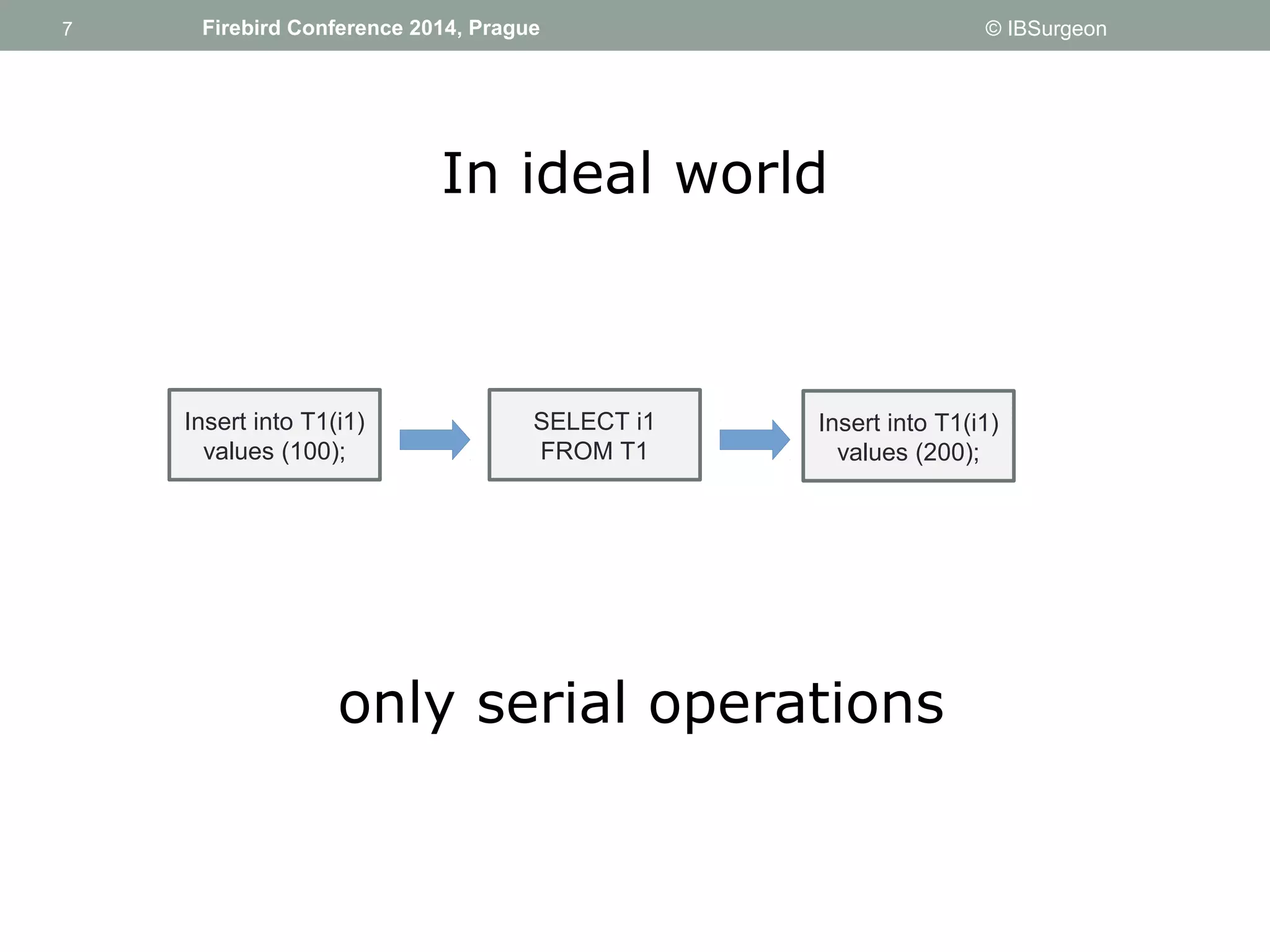

In ideal world
Insert into T1(i1)
values (100);
SELECT i1
FROM T1
Insert into T1(i1)
values (200);
only serial operations
8
8 Firebird Conference 2014, Prague © IBSurgeon
9
9 Firebird Conference 2014, Prague © IBSurgeon
10
10 Firebird Conference 2014, Prague © IBSurgeon

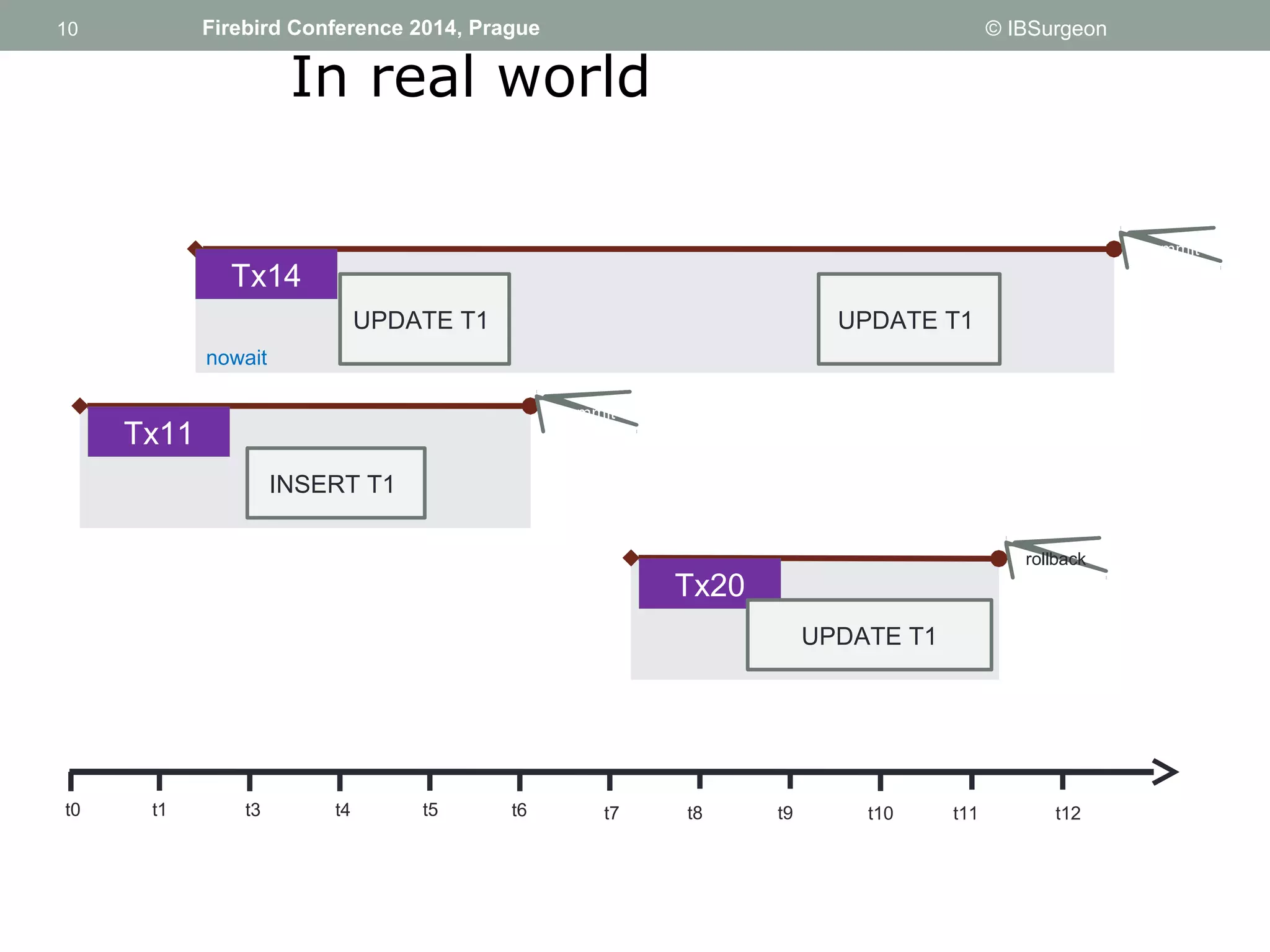

In real world
Tx11
Tx14
INSERT T1
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
commit
UPDATE T1
nowait
commit
Tx20
UPDATE T1
rollback
UPDATE T1
11
11 Firebird Conference 2014, Prague © IBSurgeon

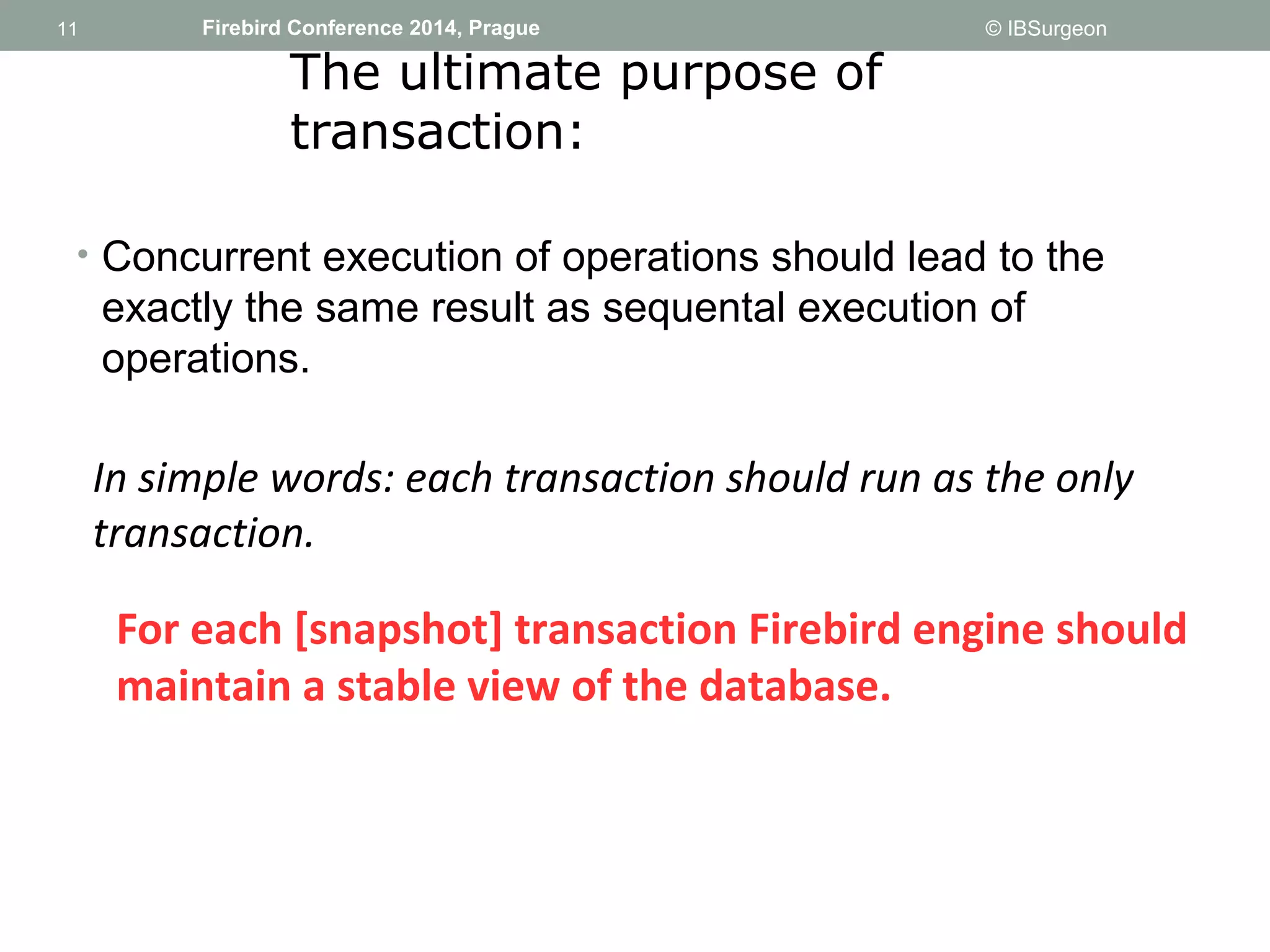

The ultimate purpose of
transaction:
• Concurrent execution of operations should lead to the
exactly the same result as sequental execution of
operations.
In simple words: each transaction should run as the only
transaction.
For each [snapshot] transaction Firebird engine should
maintain a stable view of the database.
12
12 Firebird Conference 2014, Prague © IBSurgeon
13
13 Firebird Conference 2014, Prague © IBSurgeon

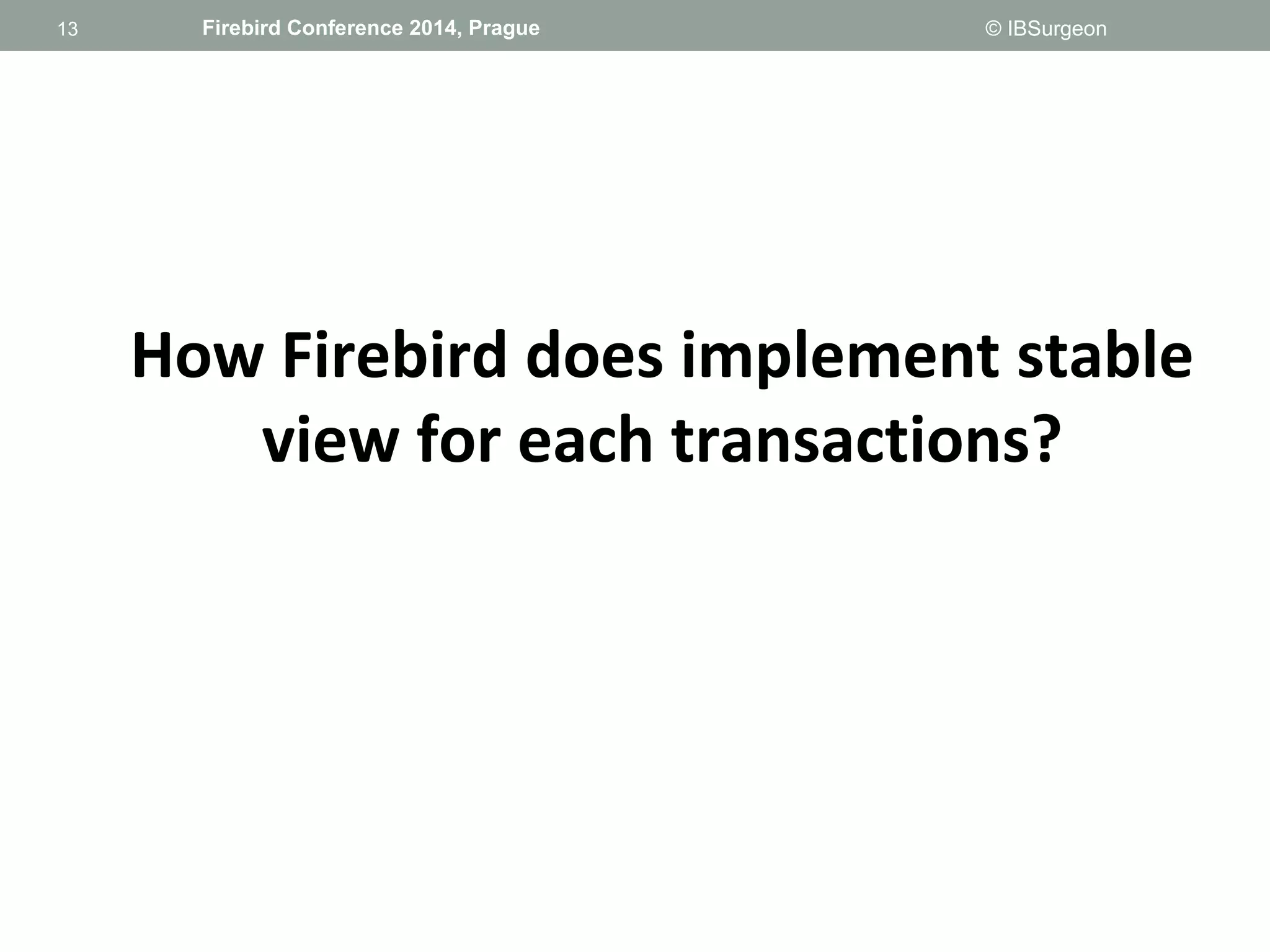

How Firebird does implement stable
view for each transactions?
14
14 Firebird Conference 2014, Prague © IBSurgeon

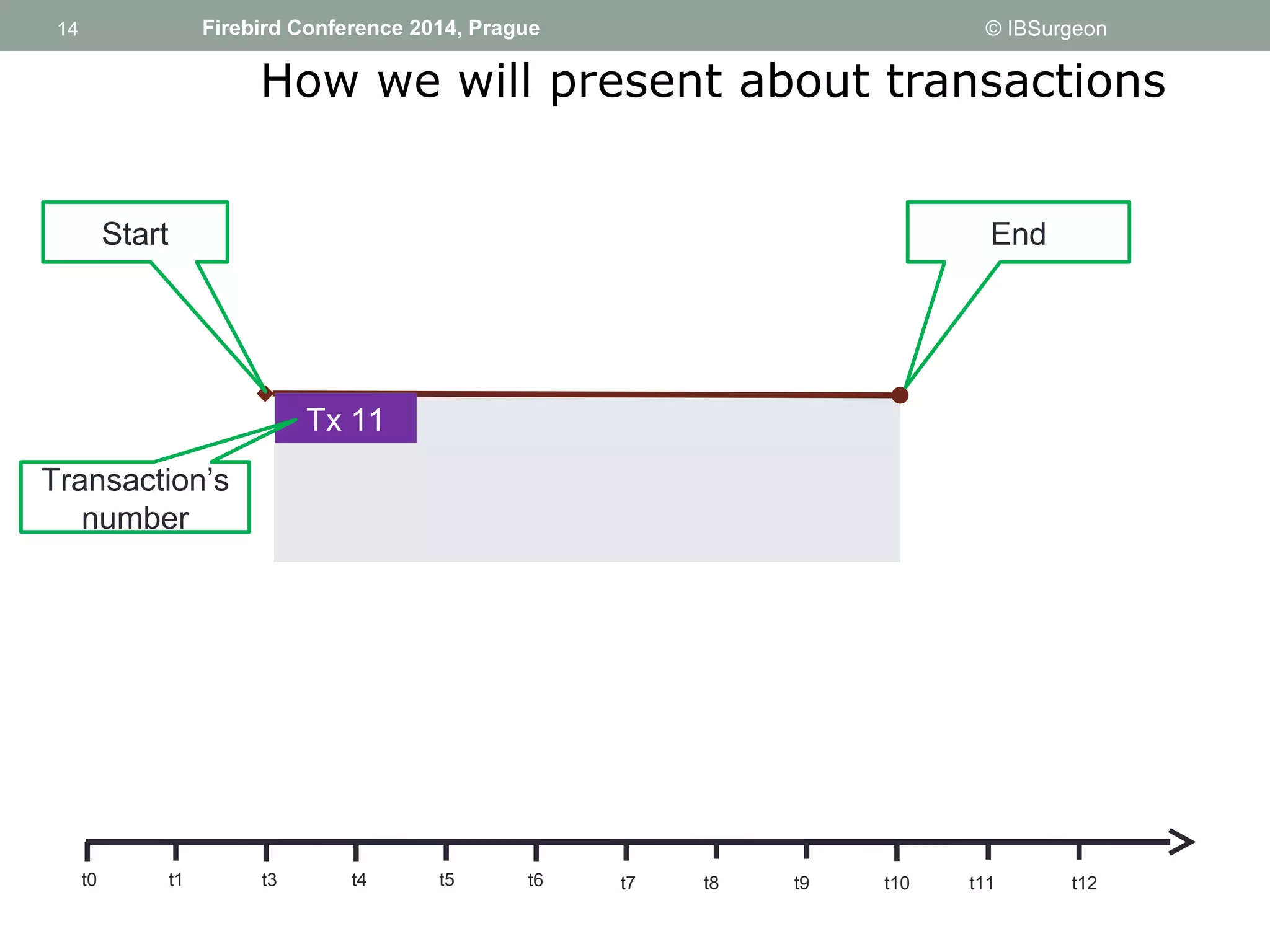

How we will present about transactions
Start End
Tx 11
Transaction’s
number
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
15
15 Firebird Conference 2014, Prague © IBSurgeon

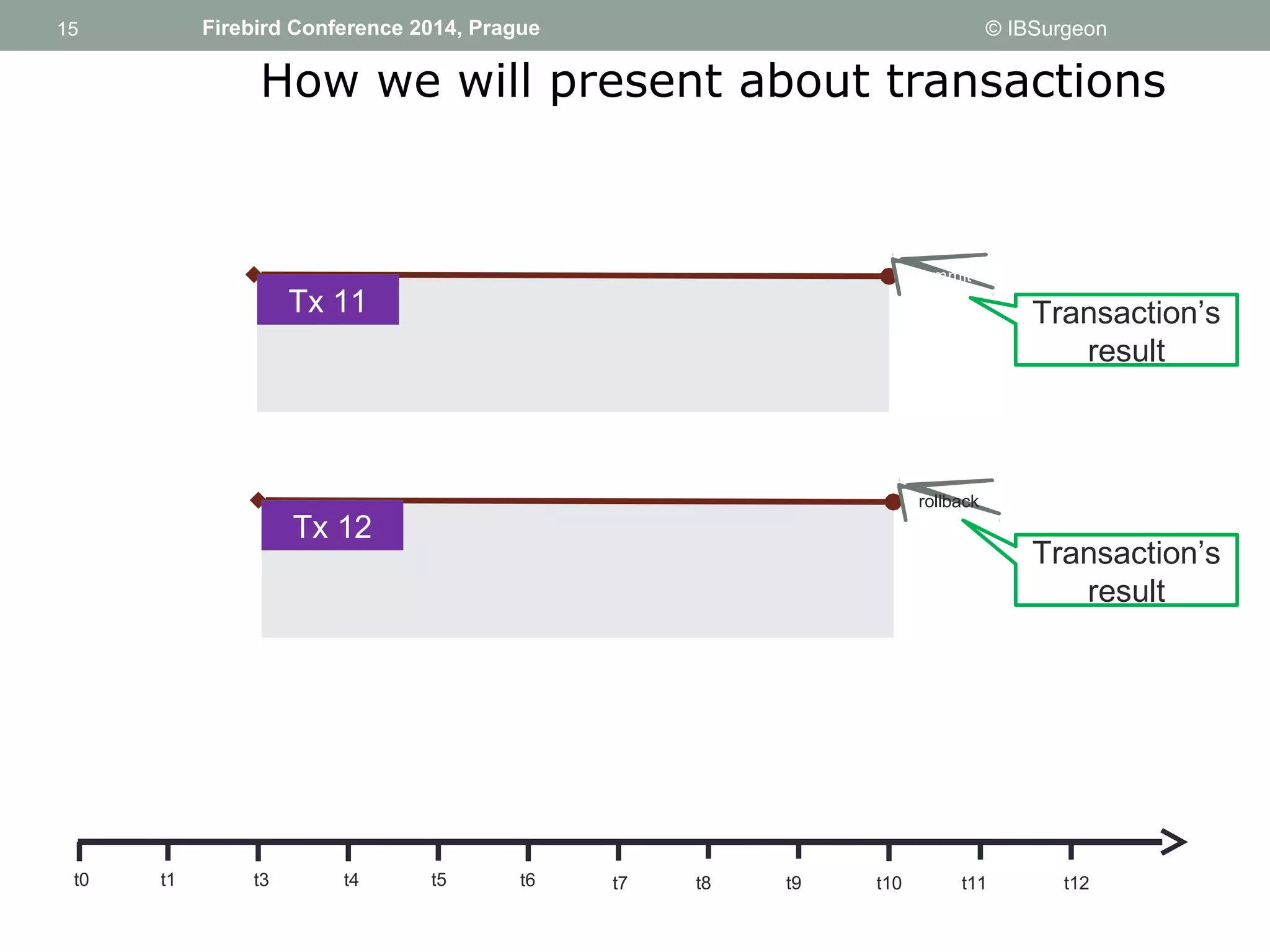

How we will present about transactions
Tx 11
commit
Tx 12
rollback
Transaction’s
result
Transaction’s
result
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
16
16 Firebird Conference 2014, Prague © IBSurgeon

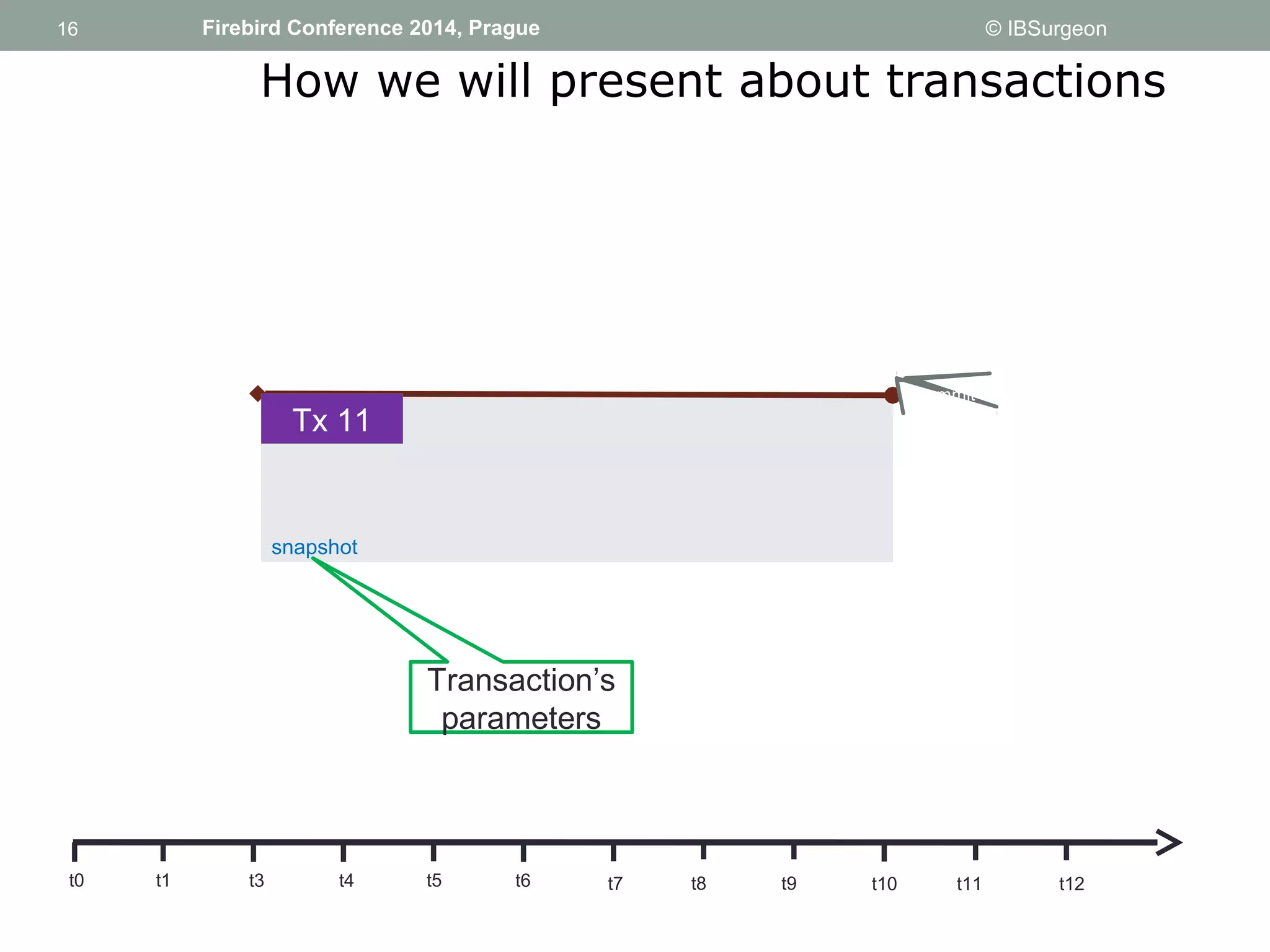

How we will present about transactions
Tx 11
commit
snapshot
Transaction’s
parameters
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
17
17 Firebird Conference 2014, Prague © IBSurgeon

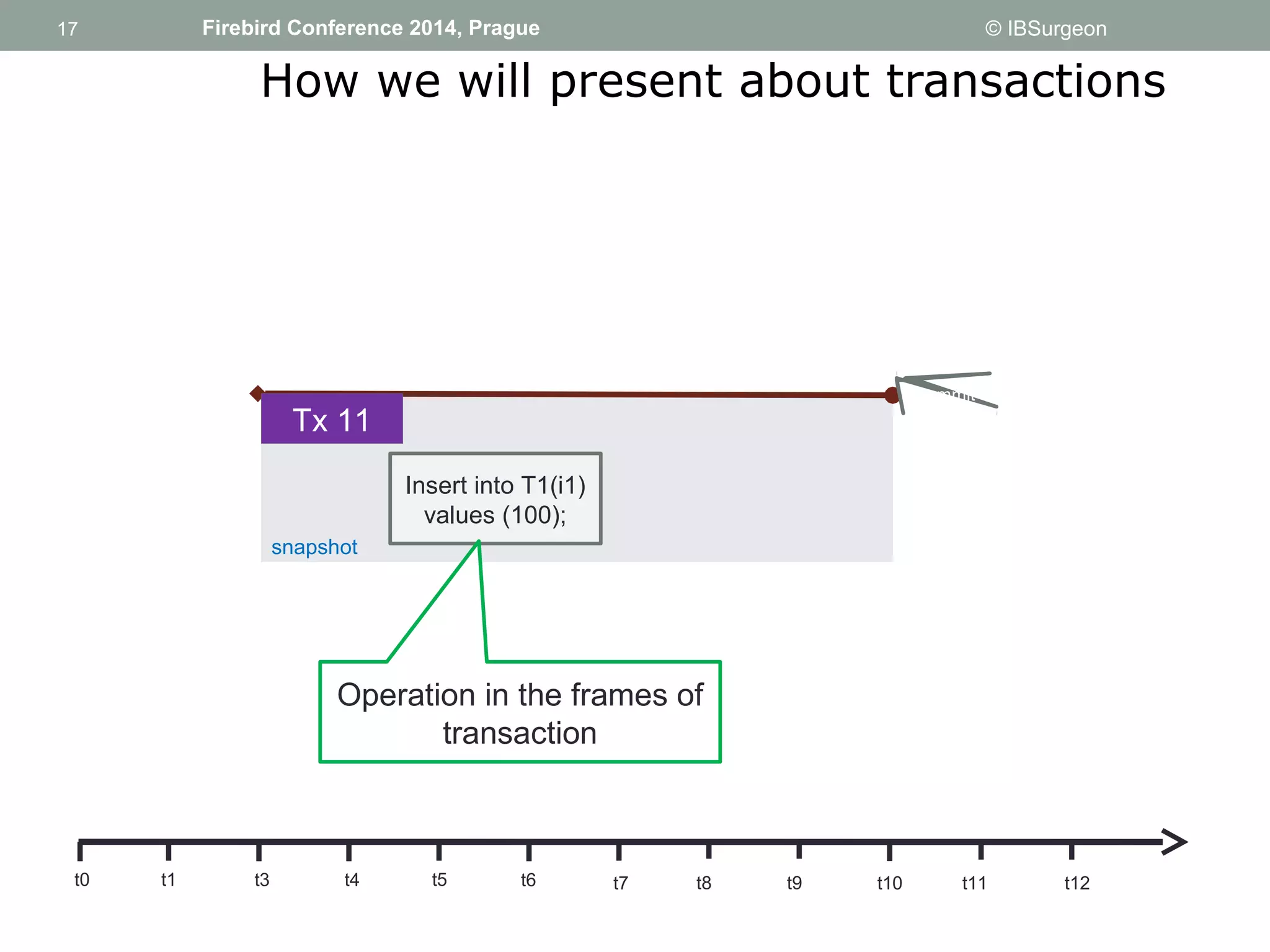

How we will present about transactions
Tx 11
commit
Insert into T1(i1)
values (100);
snapshot
Operation in the frames of
transaction
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
18
18 Firebird Conference 2014, Prague © IBSurgeon

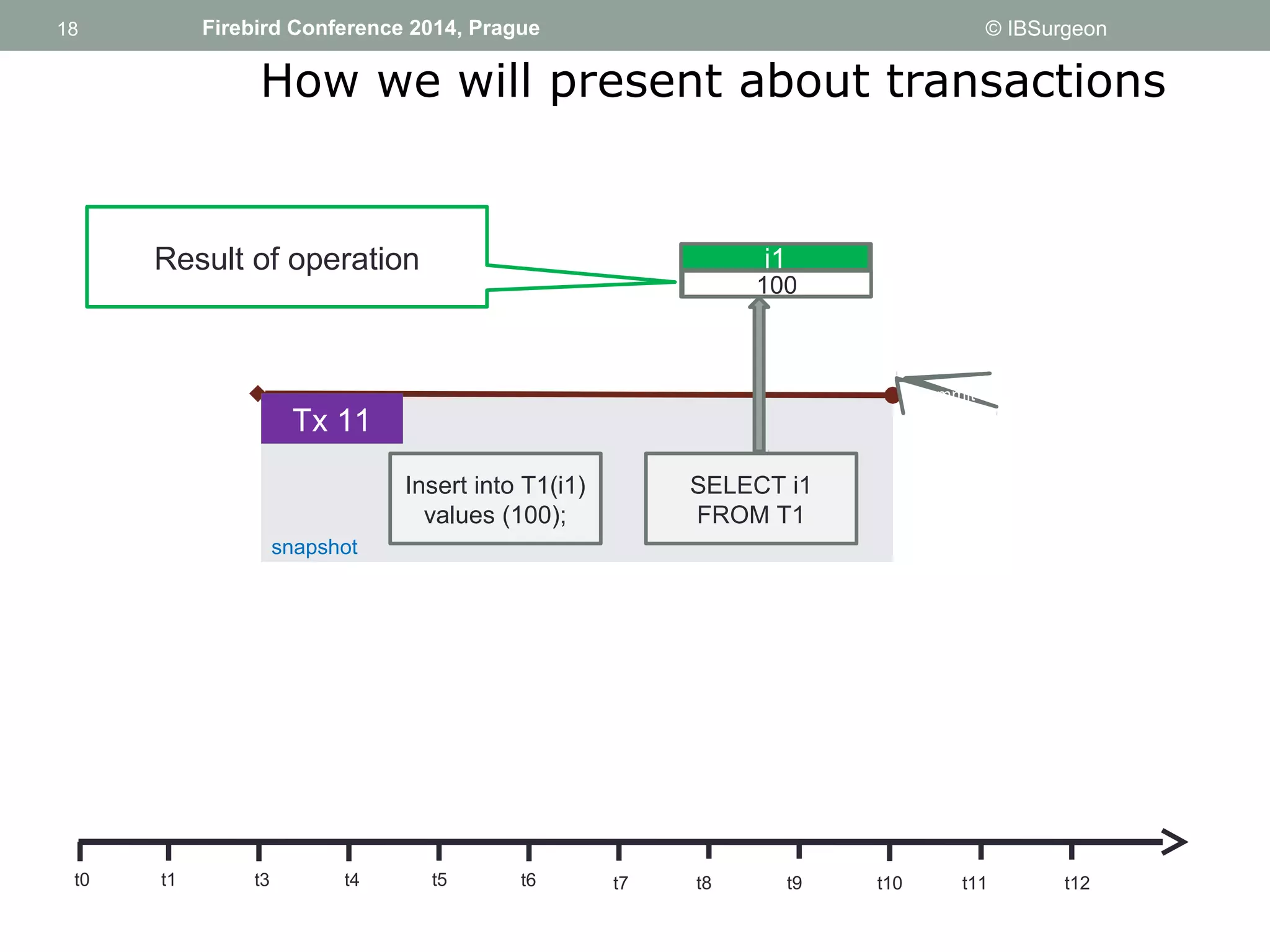

How we will present about transactions
Result of operation
Tx 11
commit
Insert into T1(i1)
values (100);
i1
100
SELECT i1
FROM T1
snapshot
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
19
19 Firebird Conference 2014, Prague © IBSurgeon

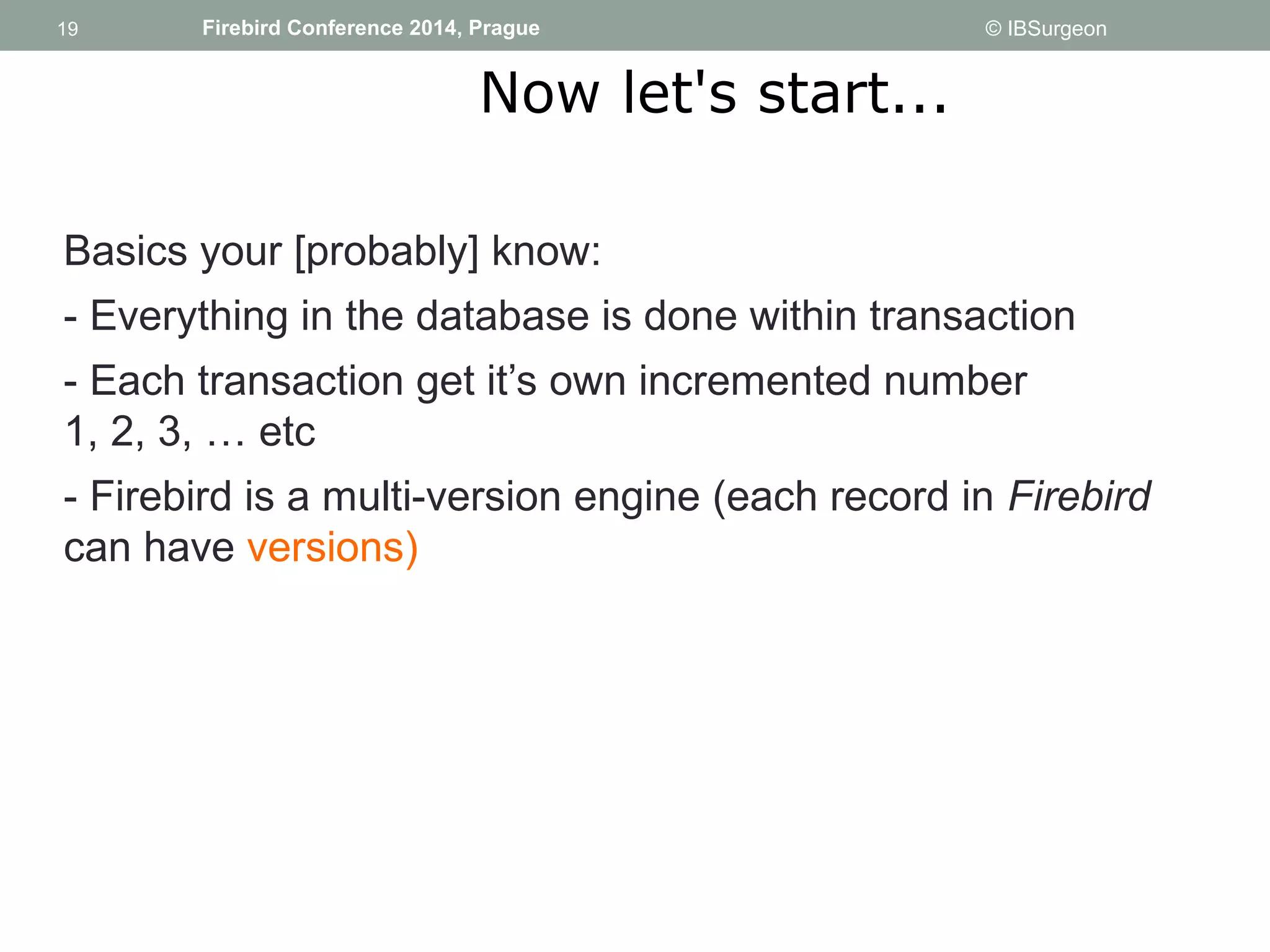

Now let's start...
Basics your [probably] know:
- Everything in the database is done within transaction
- Each transaction get it’s own incremented number
1, 2, 3, … etc
- Firebird is a multi-version engine (each record in Firebird
can have versions)
20
20 Firebird Conference 2014, Prague © IBSurgeon

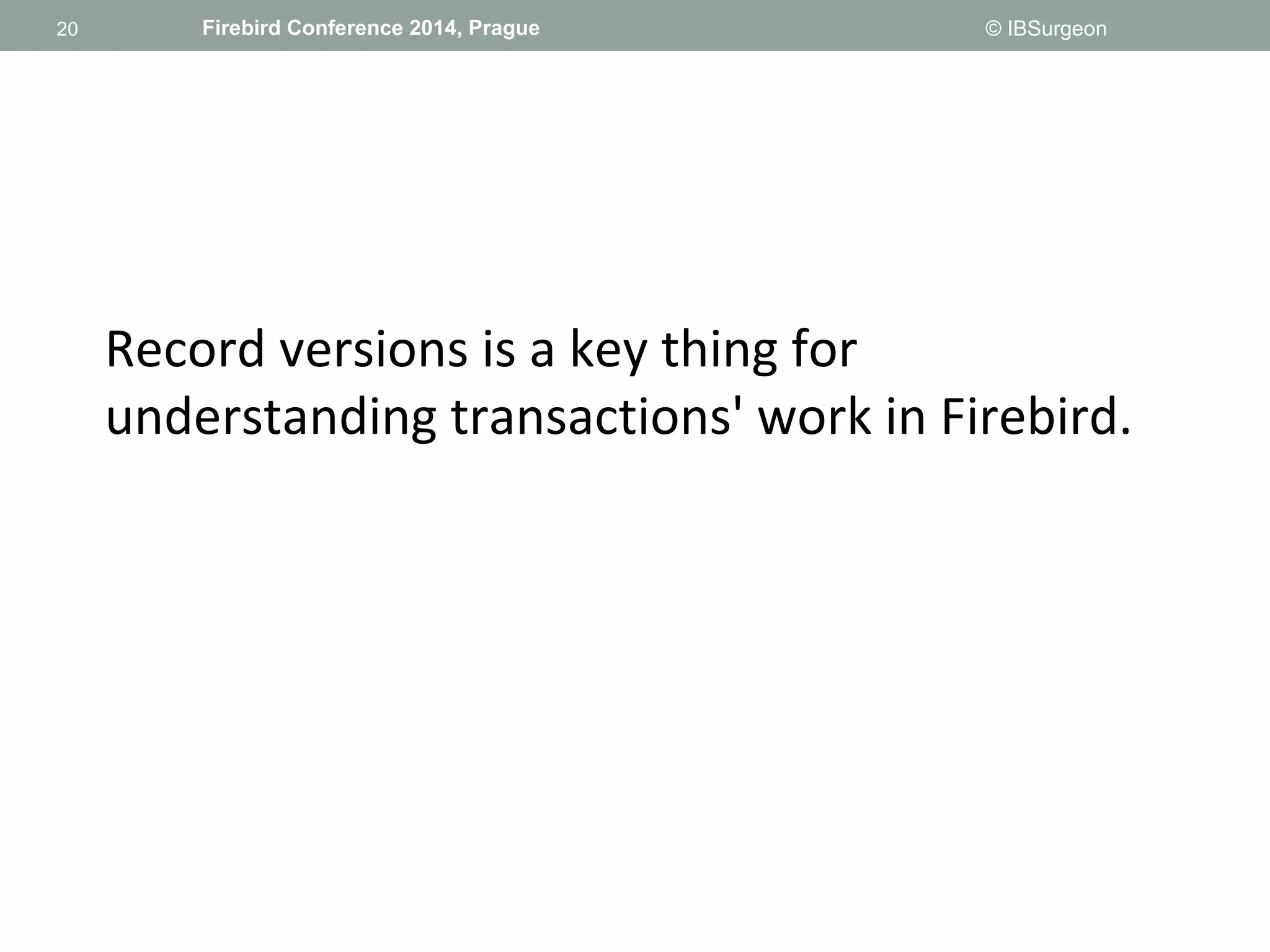

Record versions is a key thing for
understanding transactions' work in Firebird.
21
21 Firebird Conference 2014, Prague © IBSurgeon

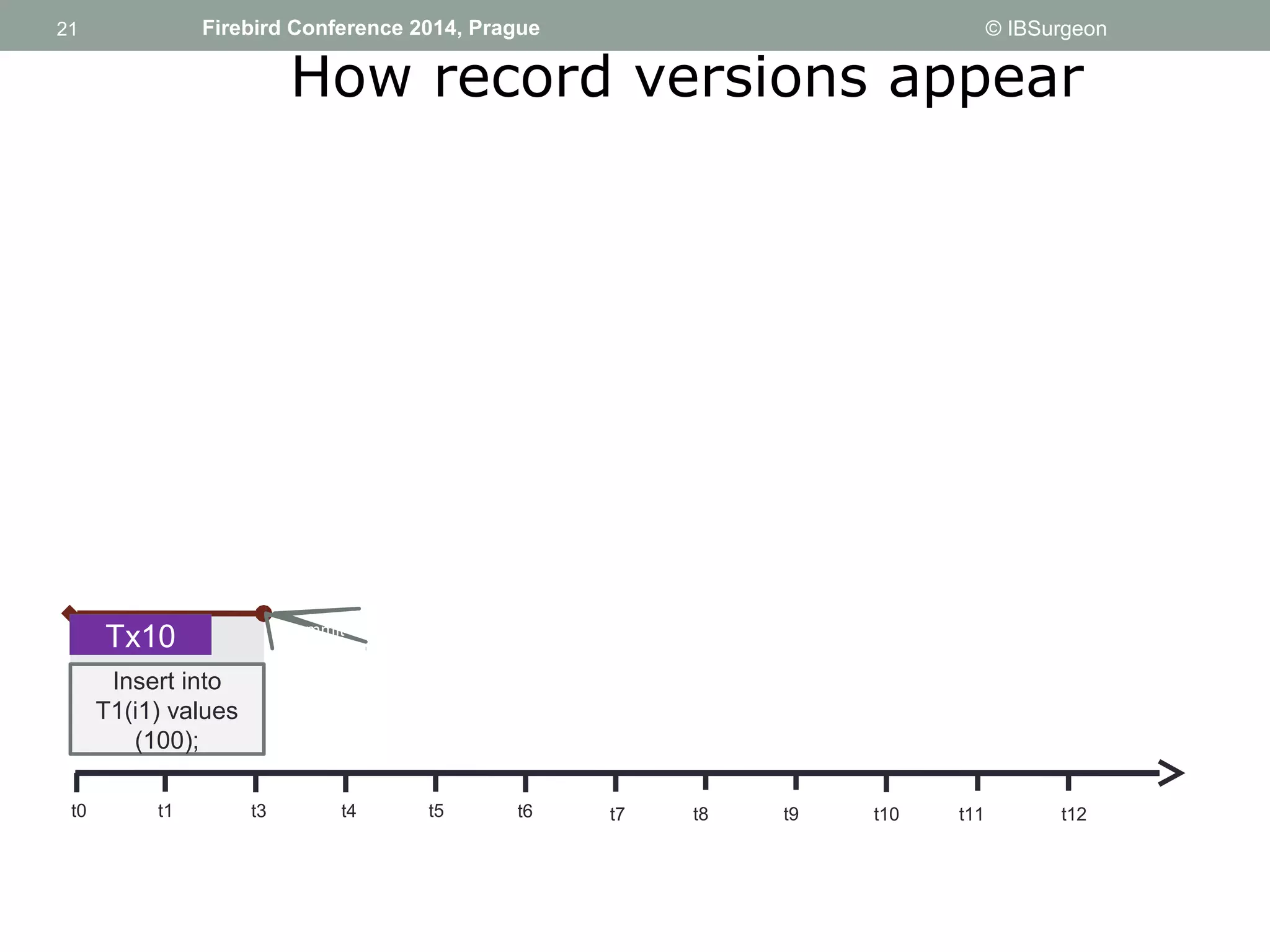

How record versions appear
Tx10 commit
Insert into
T1(i1) values
(100);
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
22
22 Firebird Conference 2014, Prague © IBSurgeon

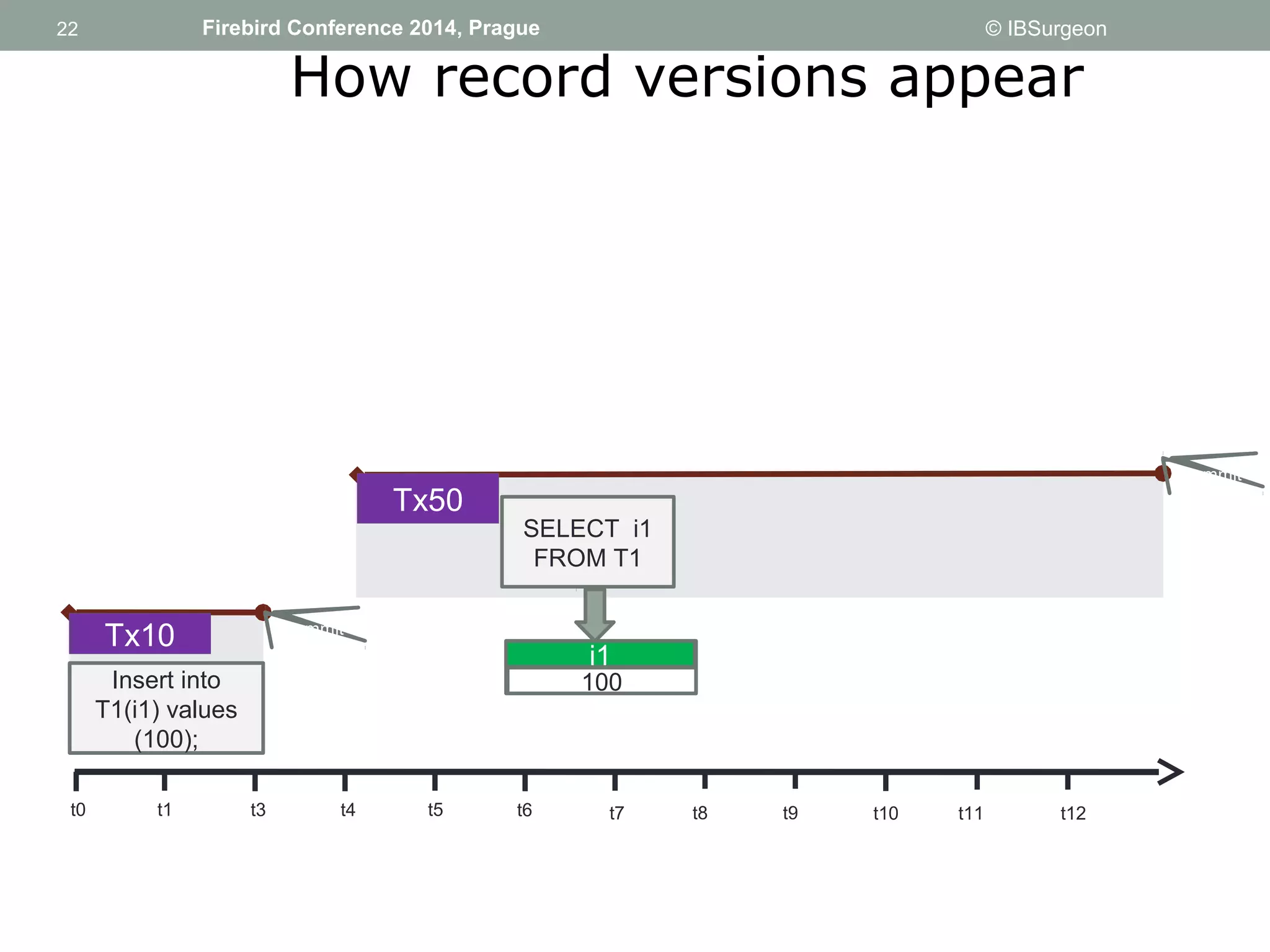

How record versions appear
Tx10 commit
Insert into
T1(i1) values
(100);
Tx50
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
commit
SELECT i1
FROM T1
i1
100
23

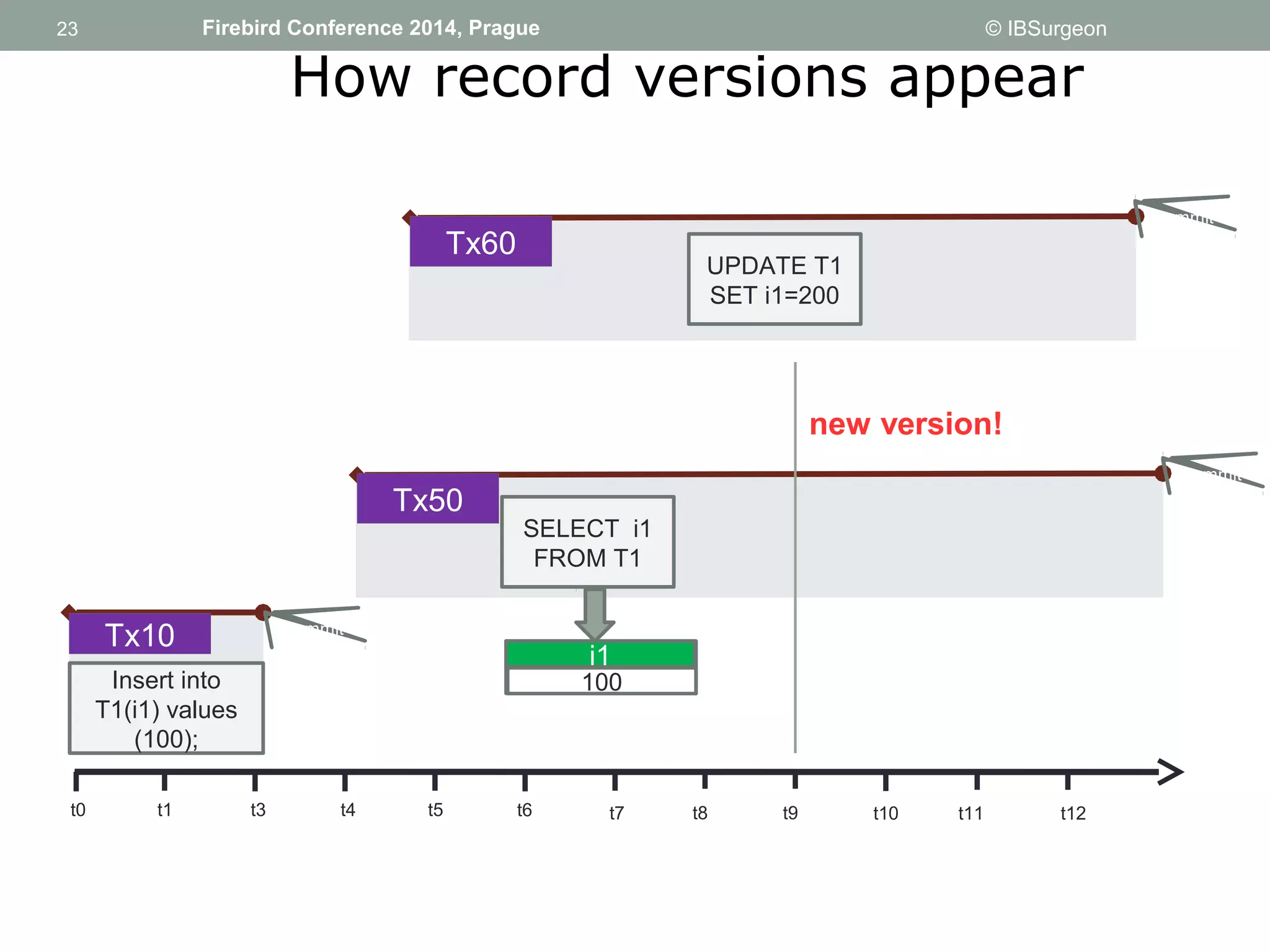

23 Firebird Conference 2014, Prague © IBSurgeon
How record versions appear
Tx10 commit
Insert into
T1(i1) values
(100);
Tx50
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
commit
SELECT i1
FROM T1
i1
100
Tx60
commit
UPDATE T1
SET i1=200
new version!
24
24 Firebird Conference 2014, Prague © IBSurgeon

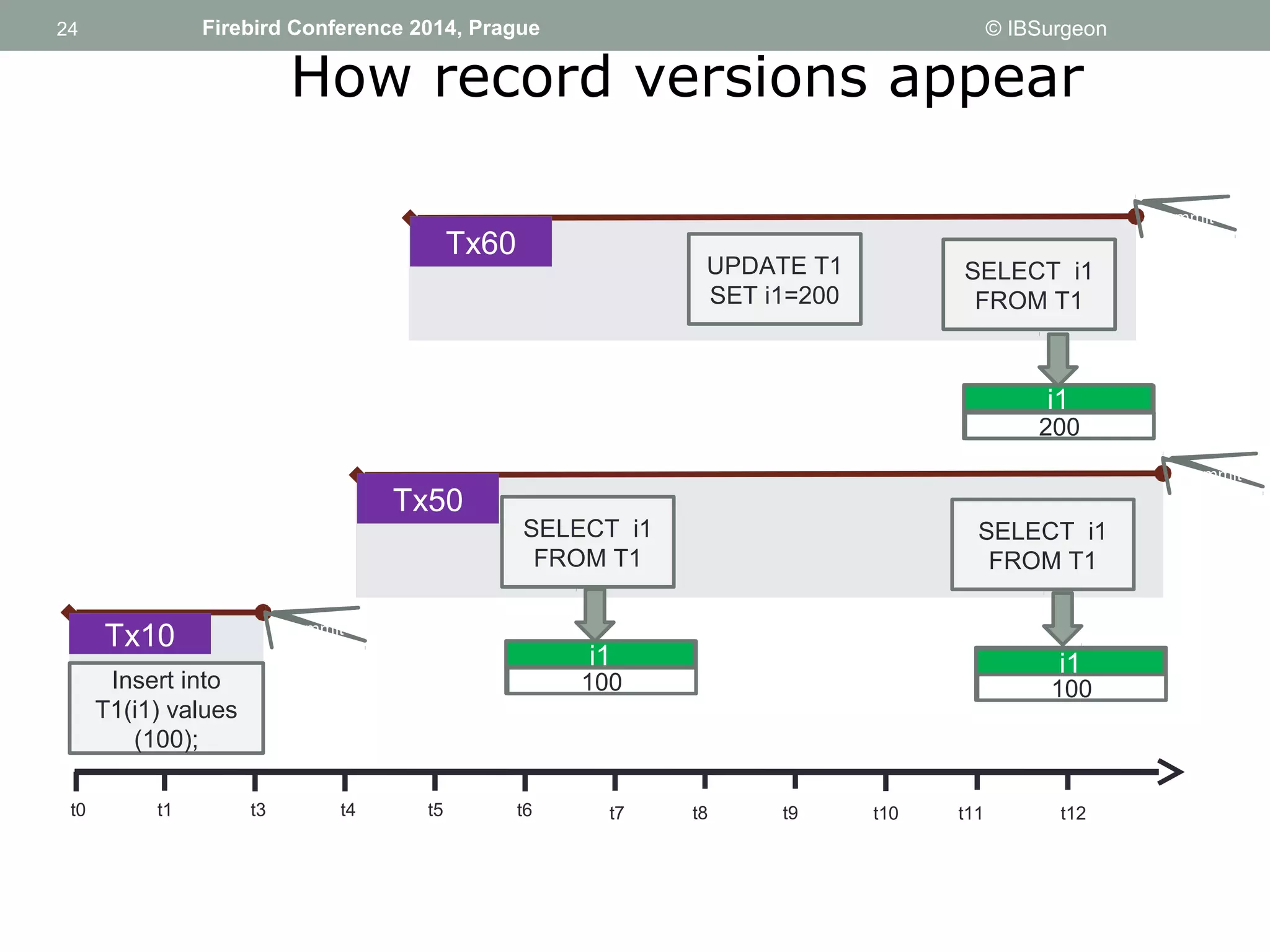

How record versions appear
Tx10 commit
Insert into
T1(i1) values
(100);
Tx50
i1
200
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
commit
SELECT i1
FROM T1
i1
100
SELECT i1
FROM T1
Tx60
commit
UPDATE T1
SET i1=200
SELECT i1
FROM T1
i1
100
25
25 Firebird Conference 2014, Prague © IBSurgeon
How it works?
26
26 Firebird Conference 2014, Prague © IBSurgeon

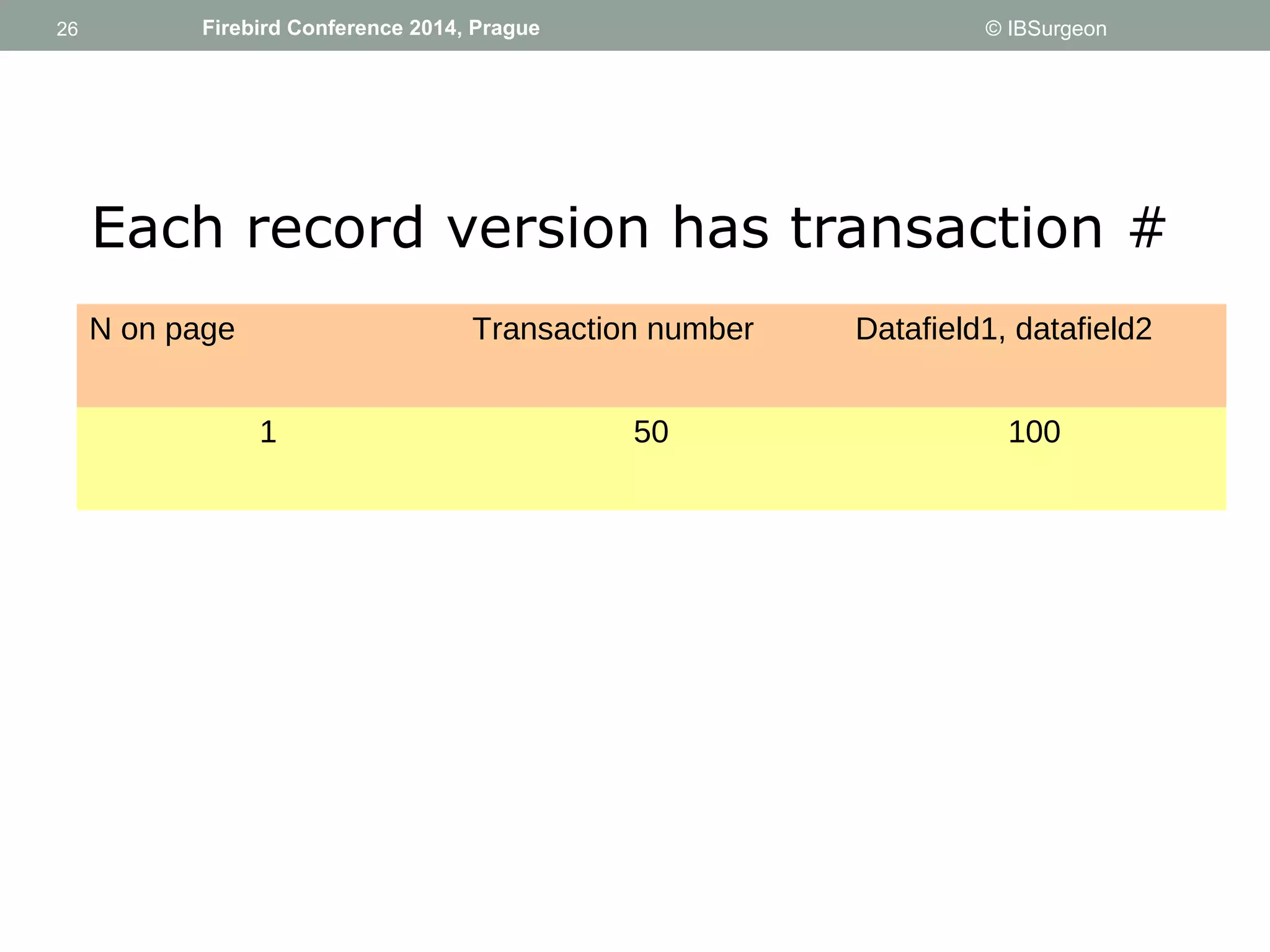

Each record version has transaction #
N on page Transaction number Datafield1, datafield2
1 50 100
27
27 Firebird Conference 2014, Prague © IBSurgeon

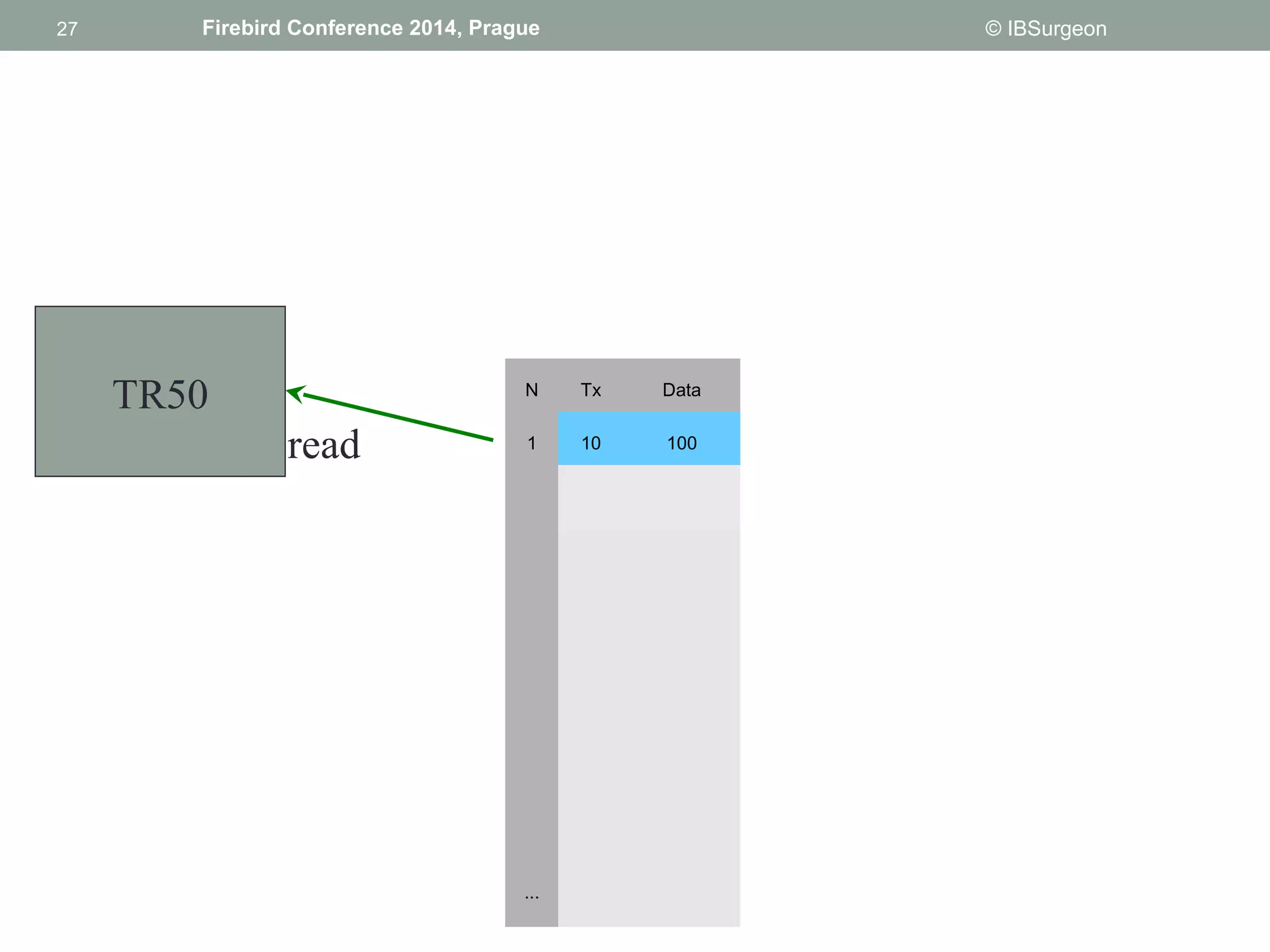

TR50
read
N Tx Data
1 10 100
...
28
28 Firebird Conference 2014, Prague © IBSurgeon
TR50 N Tx Data
write TR60
1 10 100
...
read
29
29 Firebird Conference 2014, Prague © IBSurgeon

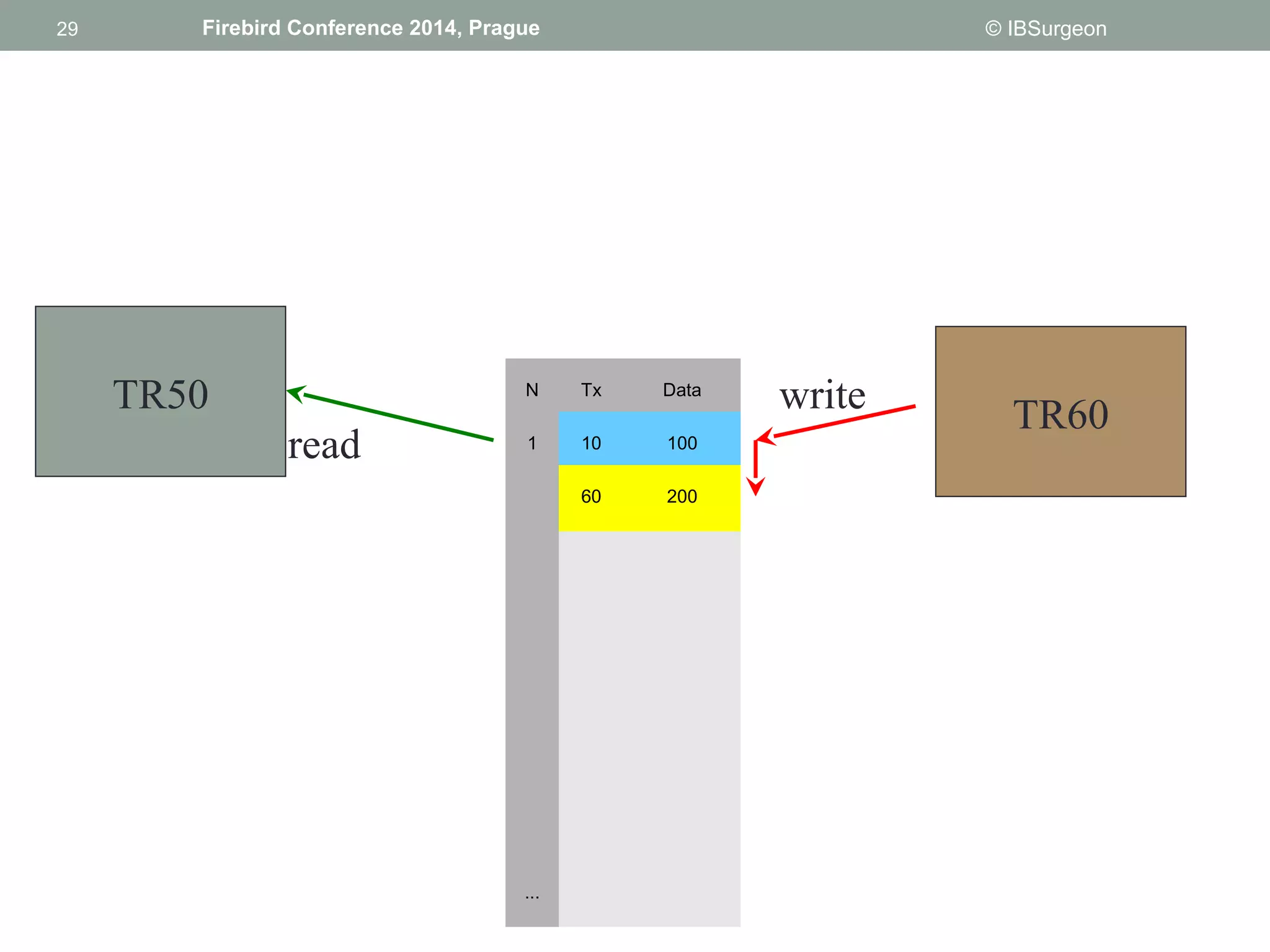

TR50 N Tx Data
TR60
1 10 100
60 200
...
read
write
30
30 Firebird Conference 2014, Prague © IBSurgeon
TR50 TR60
read
N Tx Data
1 10 100
60 200
...
read
write
31
31 Firebird Conference 2014, Prague © IBSurgeon

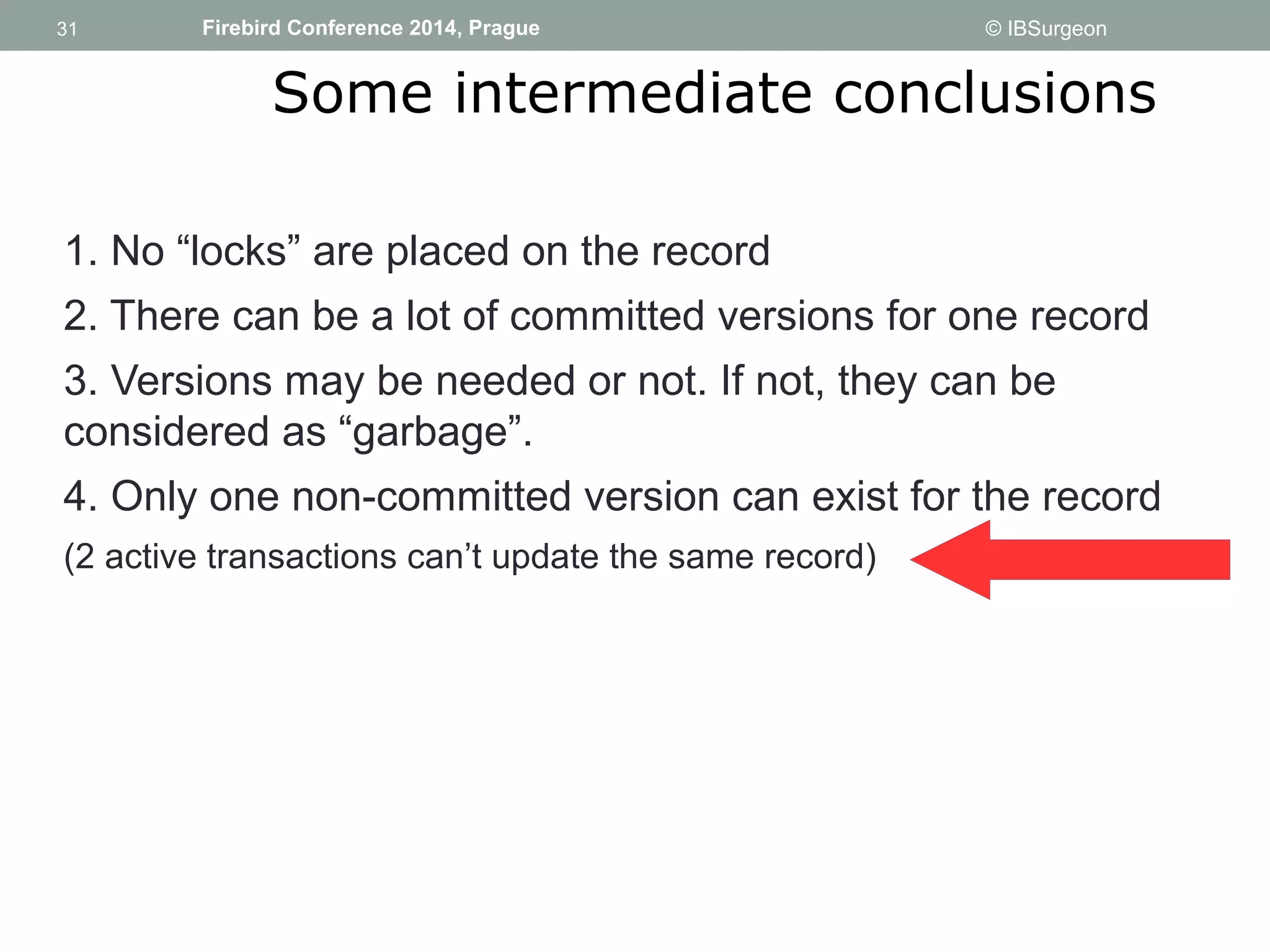

Some intermediate conclusions
1. No “locks” are placed on the record
2. There can be a lot of committed versions for one record
3. Versions may be needed or not. If not, they can be
considered as “garbage”.
4. Only one non-committed version can exist for the record
(2 active transactions can’t update the same record)
32
32 Firebird Conference 2014, Prague © IBSurgeon

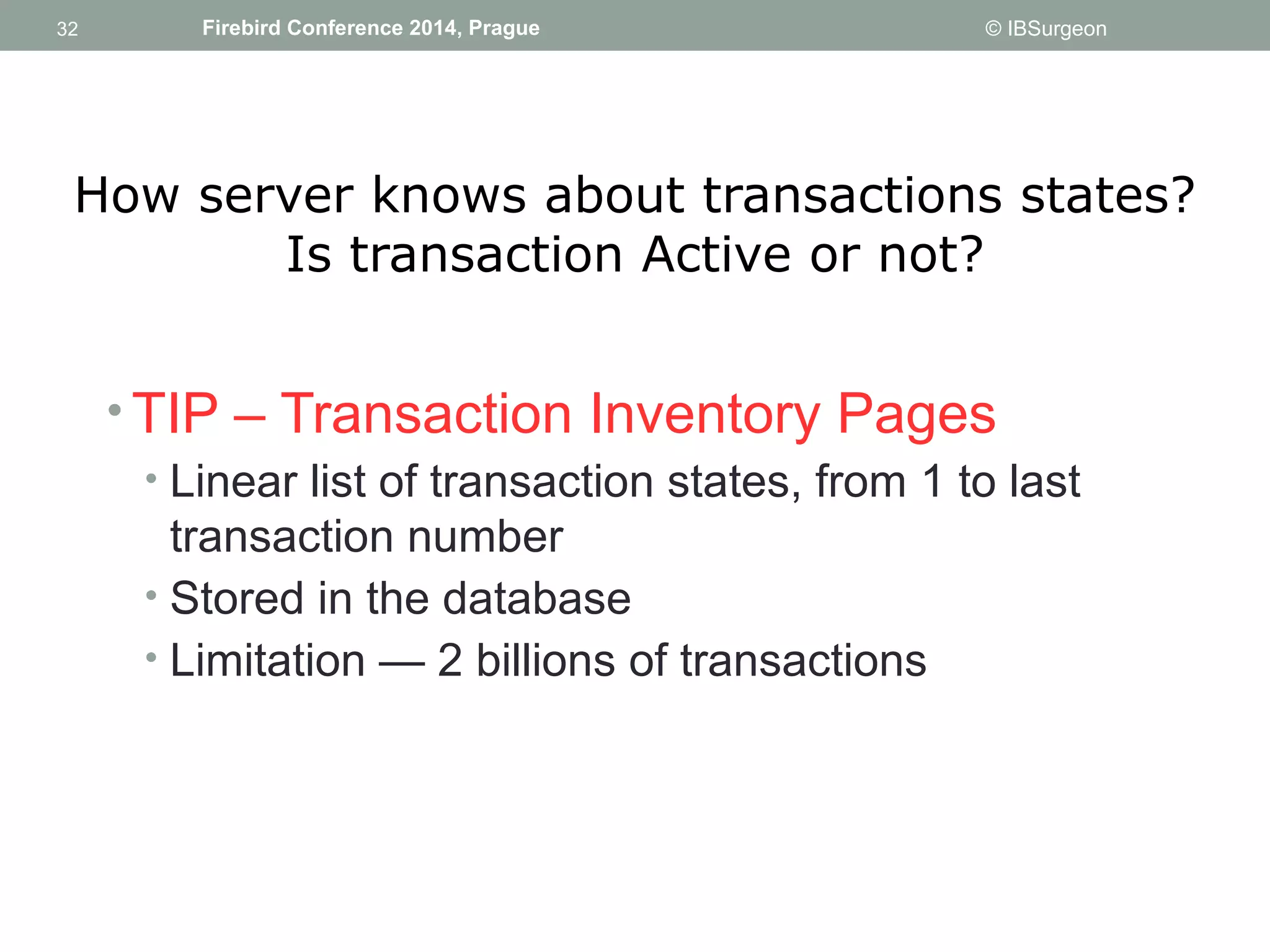

How server knows about transactions states?
Is transaction Active or not?
•TIP – Transaction Inventory Pages
• Linear list of transaction states, from 1 to last
transaction number
• Stored in the database
• Limitation — 2 billions of transactions
33
33 Firebird Conference 2014, Prague © IBSurgeon

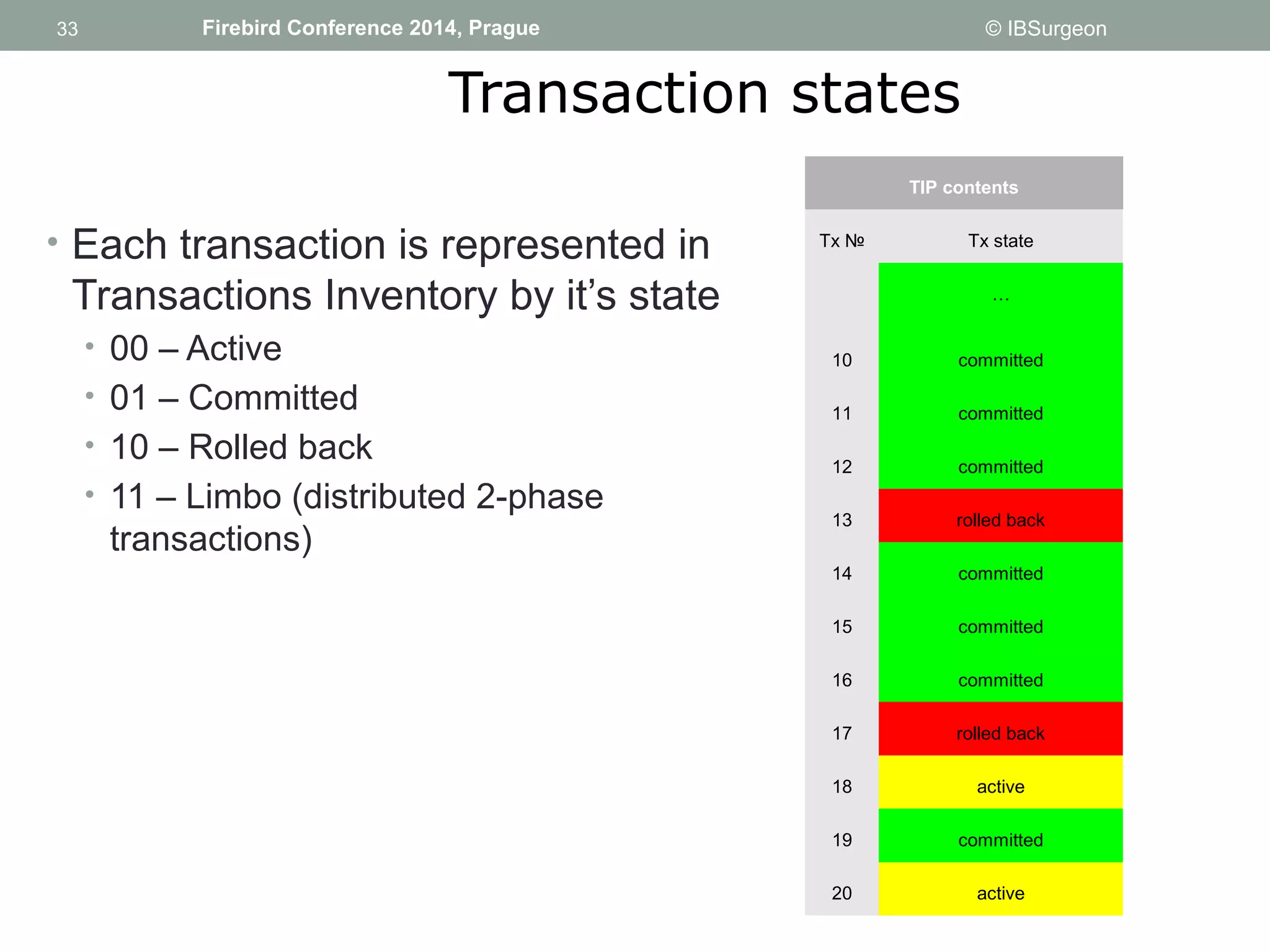

Transaction states
• Each transaction is represented in
Transactions Inventory by it’s state
• 00 – Active
• 01 – Committed
• 10 – Rolled back
• 11 – Limbo (distributed 2-phase
transactions)
TIP contents
Tx № Tx state
…
10 committed
11 committed
12 committed
13 rolled back
14 committed
15 committed
16 committed
17 rolled back
18 active
19 committed
20 active
34
34 Firebird Conference 2014, Prague © IBSurgeon

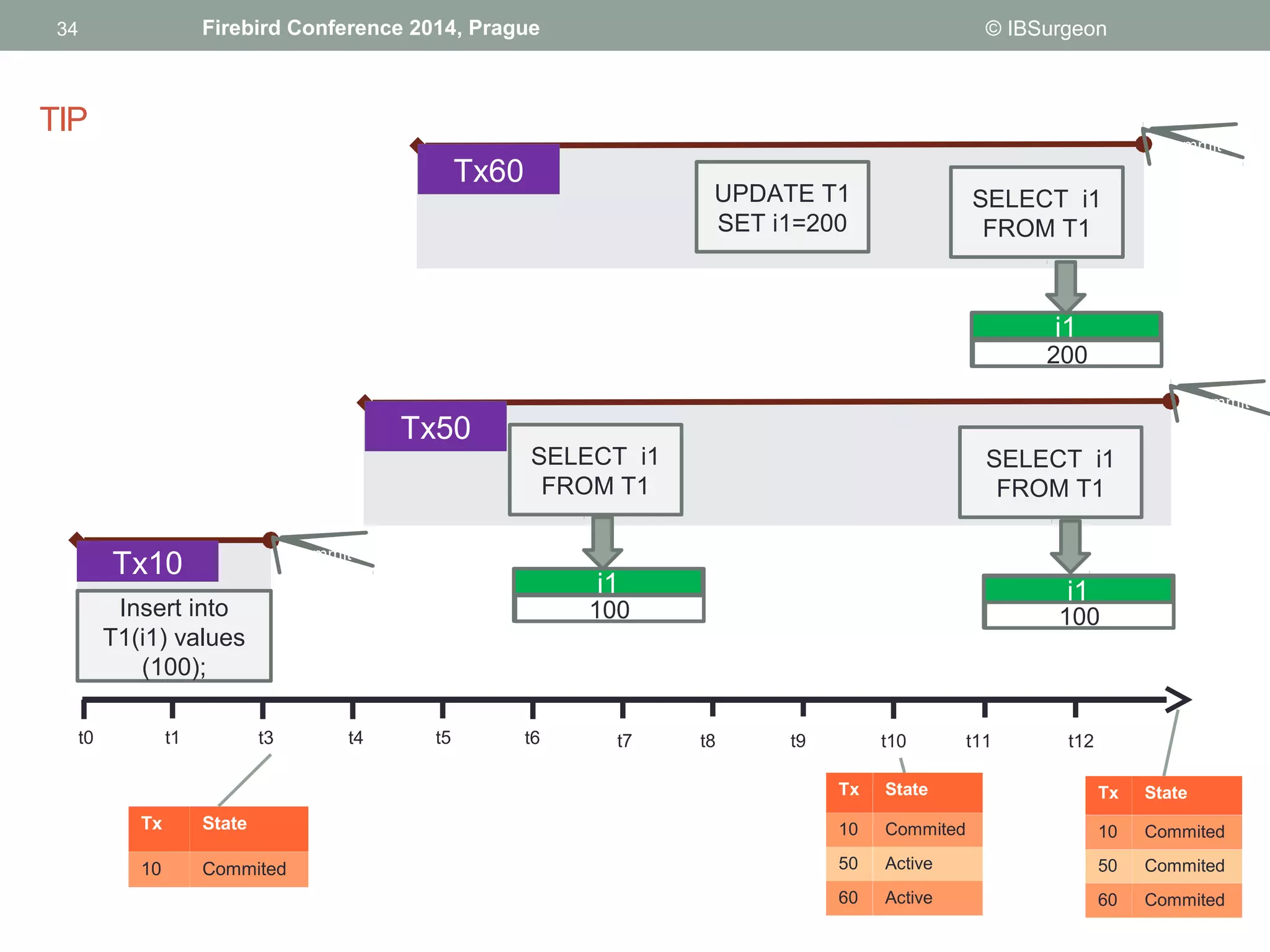

Tx10 commit
Insert into
T1(i1) values
(100);
Tx50
i1
200
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
commit
SELECT i1
FROM T1
i1
100
SELECT i1
FROM T1
Tx60
commit
UPDATE T1
SET i1=200
SELECT i1
FROM T1
i1
100
TIP
Tx State
10 Commited
Tx State
10 Commited
50 Active
60 Active
Tx State
10 Commited
50 Commited
60 Commited
35
35 Firebird Conference 2014, Prague © IBSurgeon

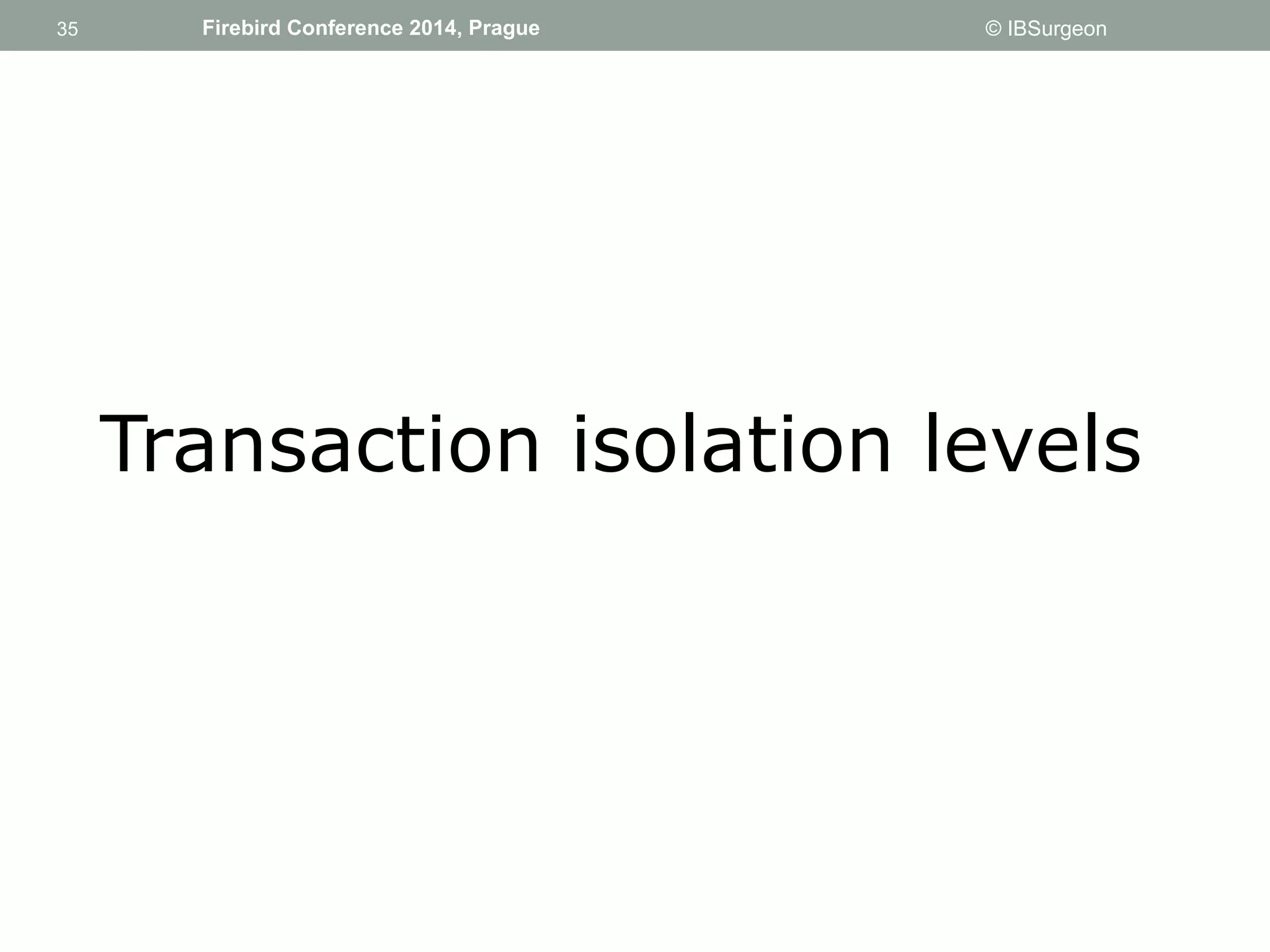

Transaction isolation levels
36
36 Firebird Conference 2014, Prague © IBSurgeon

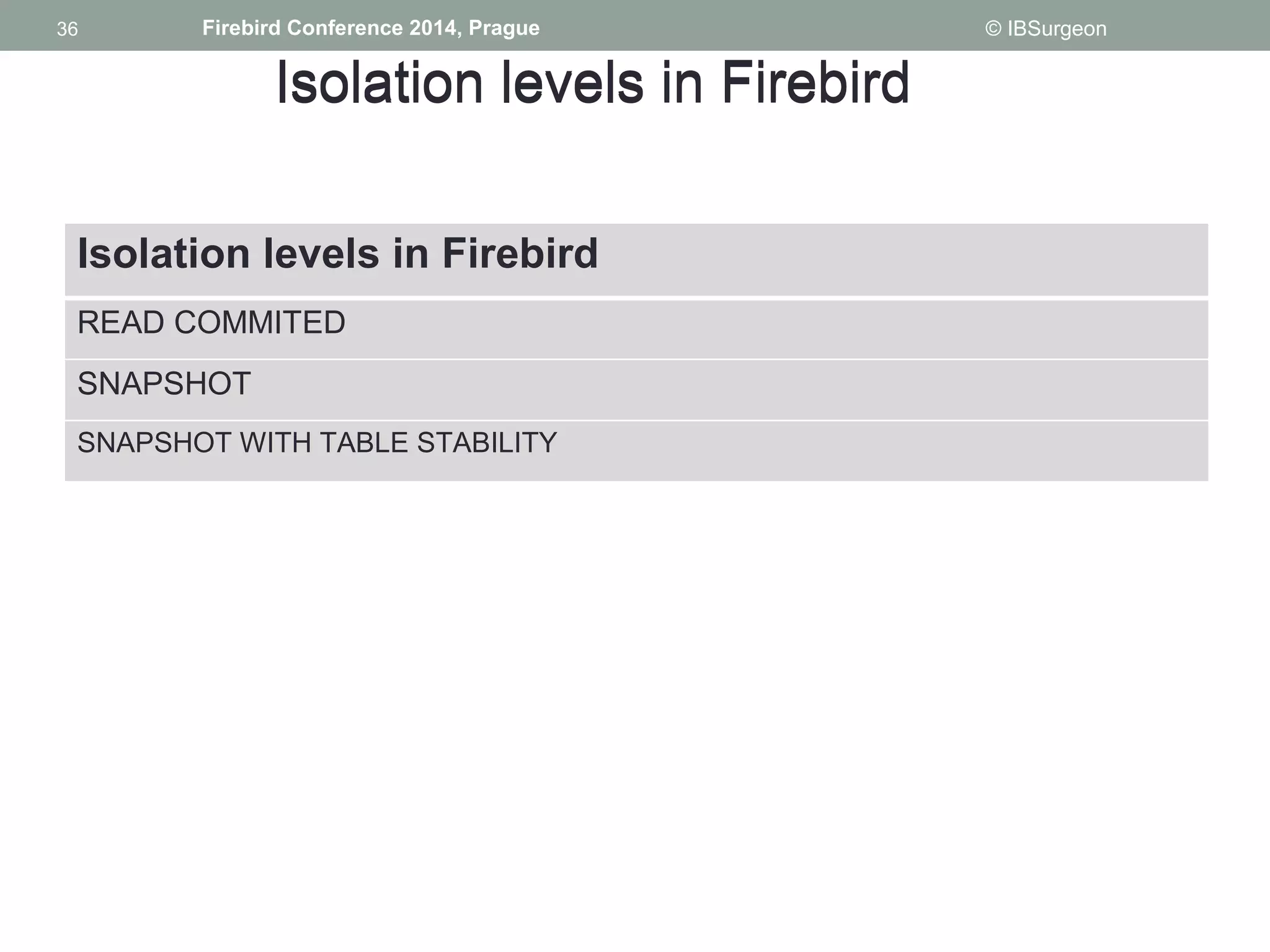

IIssoollaattiioonn lleevveellss iinn FFiirreebbiirrdd
Isolation levels in Firebird
READ COMMITED
SNAPSHOT
SNAPSHOT WITH TABLE STABILITY
37
37 Firebird Conference 2014, Prague © IBSurgeon

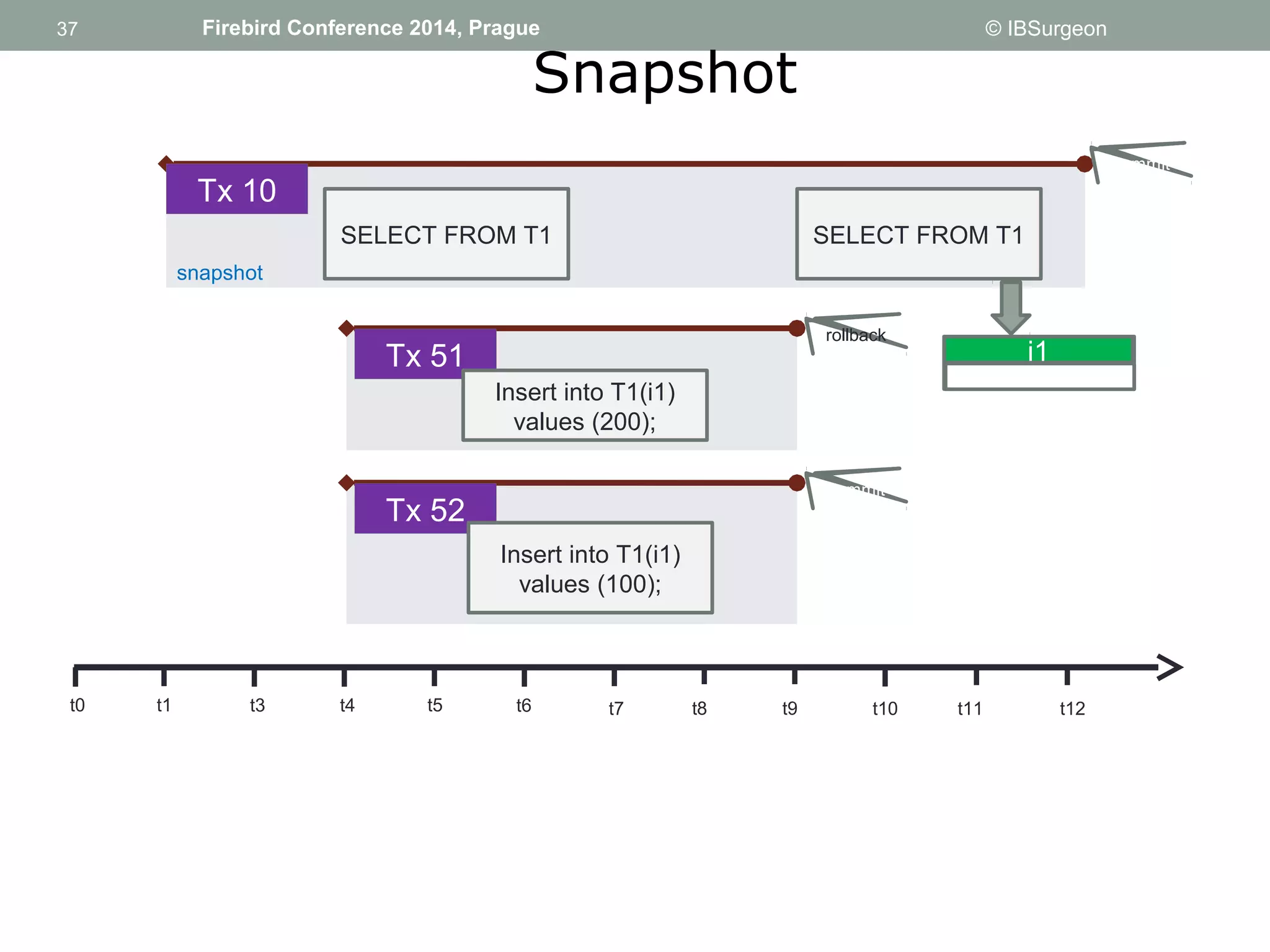

Snapshot
Tx 51 rollback
Insert into T1(i1)
values (200);
Tx 52 commit
Insert into T1(i1)
values (100);
Tx 10
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
commit
SELECT FROM T1 SELECT FROM T1
snapshot
i1
38
38 Firebird Conference 2014, Prague © IBSurgeon

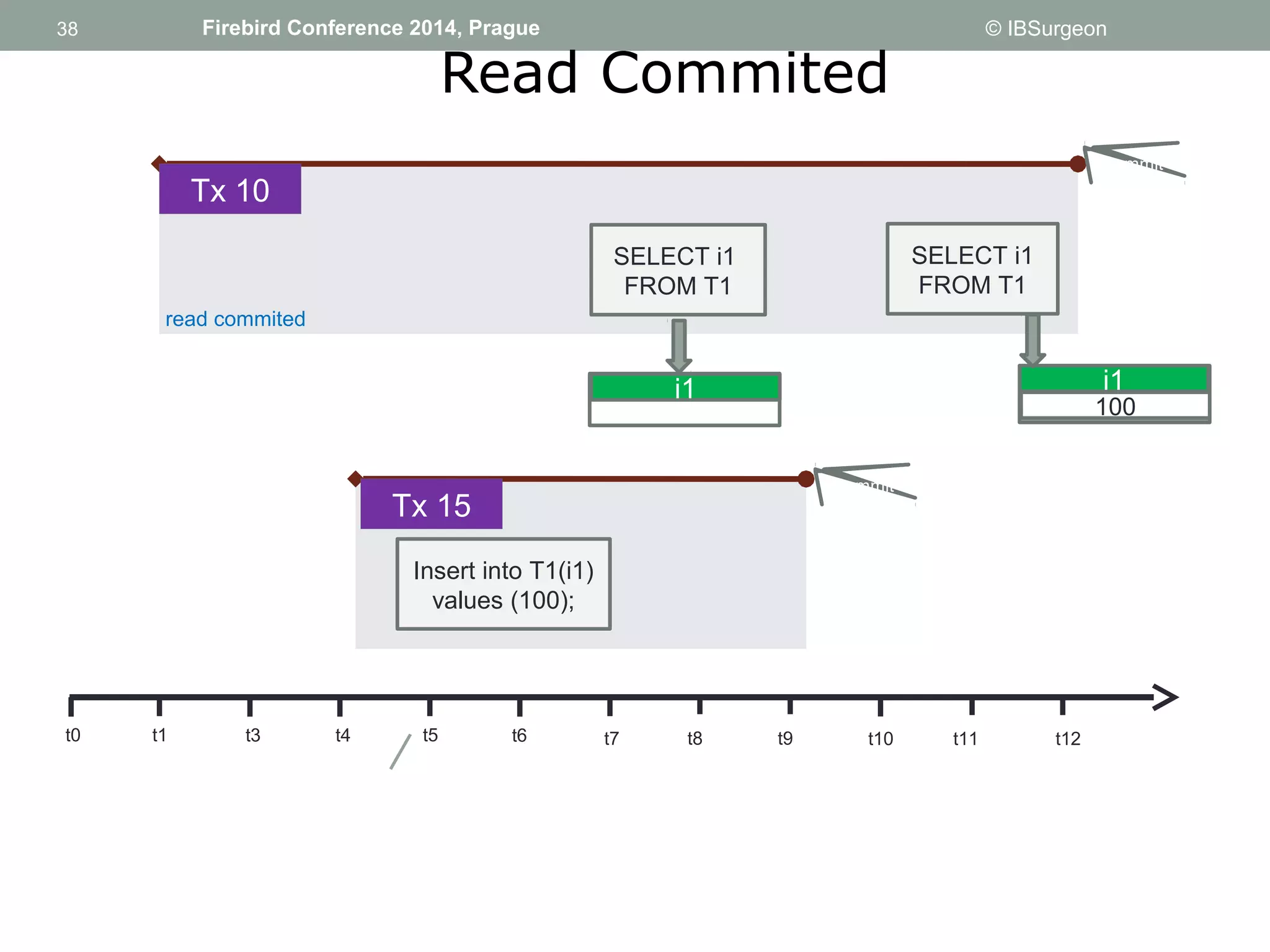

Read Commited
Tx 15 commit
Insert into T1(i1)
values (100);
Tx 10
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
commit
SELECT i1
FROM T1
SELECT i1
FROM T1
read commited
i1
100 i1
39
39 Firebird Conference 2014, Prague © IBSurgeon

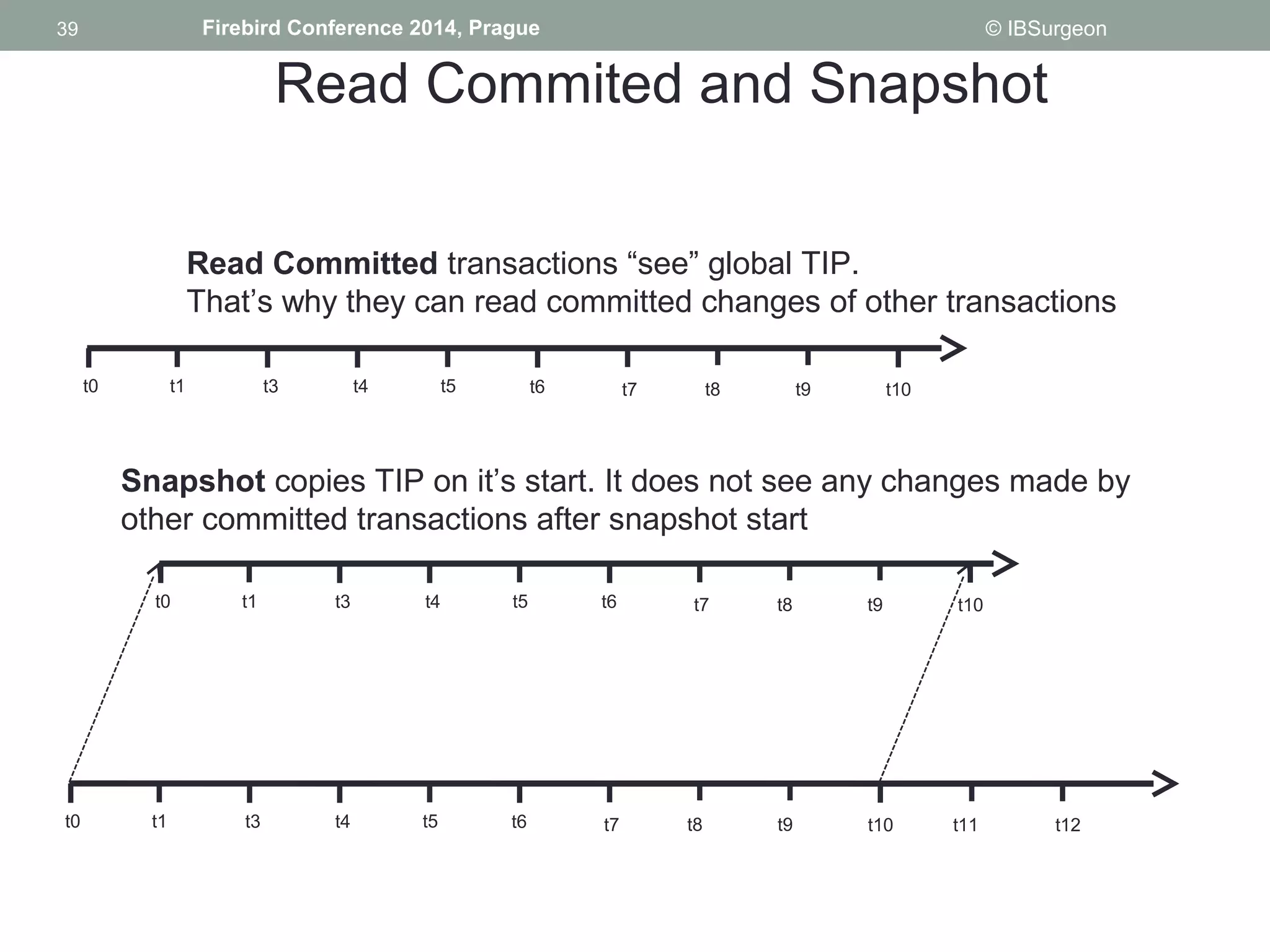

Read Commited and Snapshot
Read Committed transactions “see” global TIP.
That’s why they can read committed changes of other transactions
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10
Snapshot copies TIP on it’s start. It does not see any changes made by
other committed transactions after snapshot start
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
40
40 Firebird Conference 2014, Prague © IBSurgeon

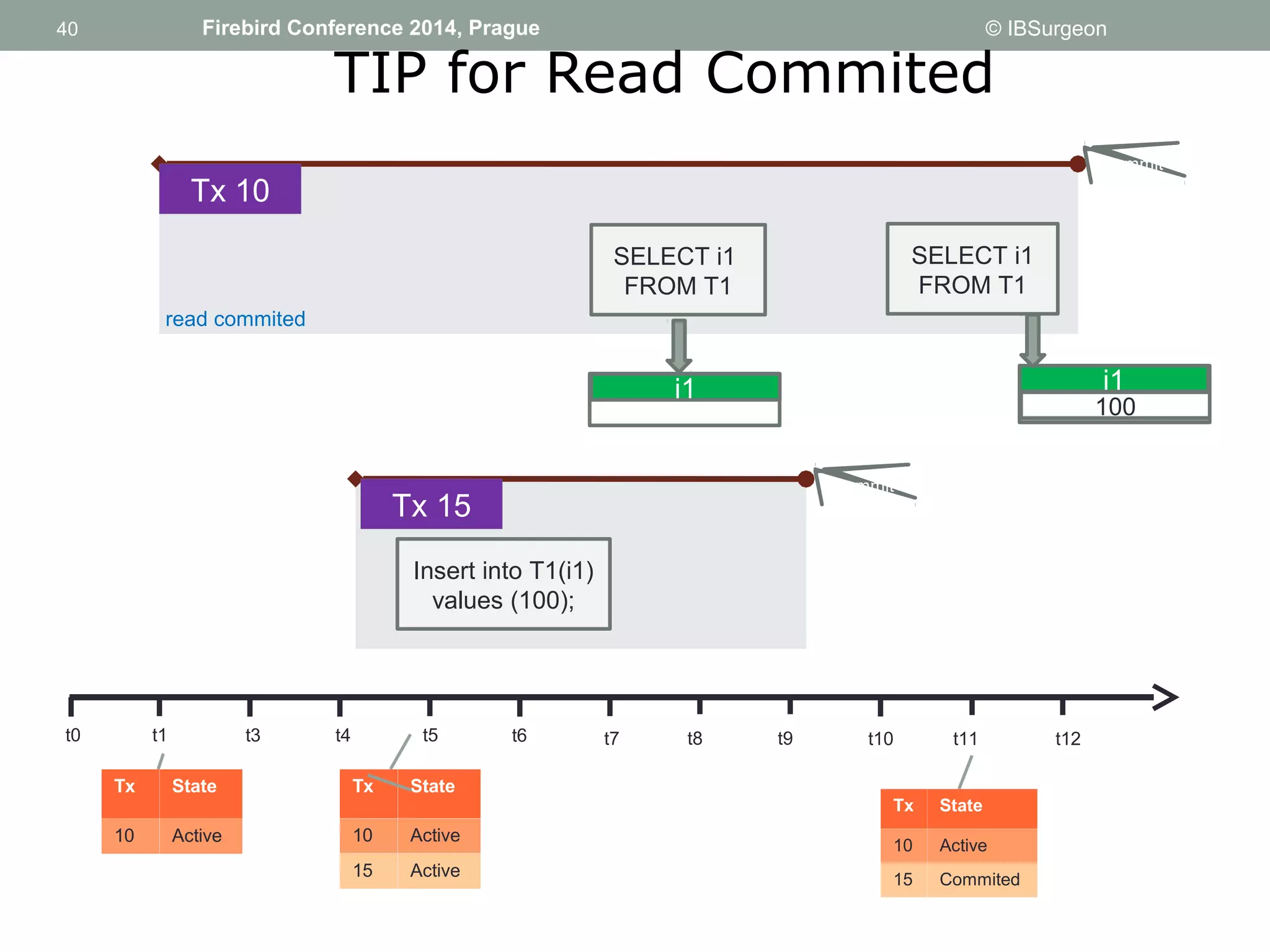

TIP for Read Commited
Tx 15 commit
Insert into T1(i1)
values (100);
Tx 10
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
commit
SELECT i1
FROM T1
SELECT i1
FROM T1
read commited
i1
100 i1
Tx State
10 Active
Tx State
10 Active
15 Active
Tx State
10 Active
15 Commited
41
41 Firebird Conference 2014, Prague © IBSurgeon

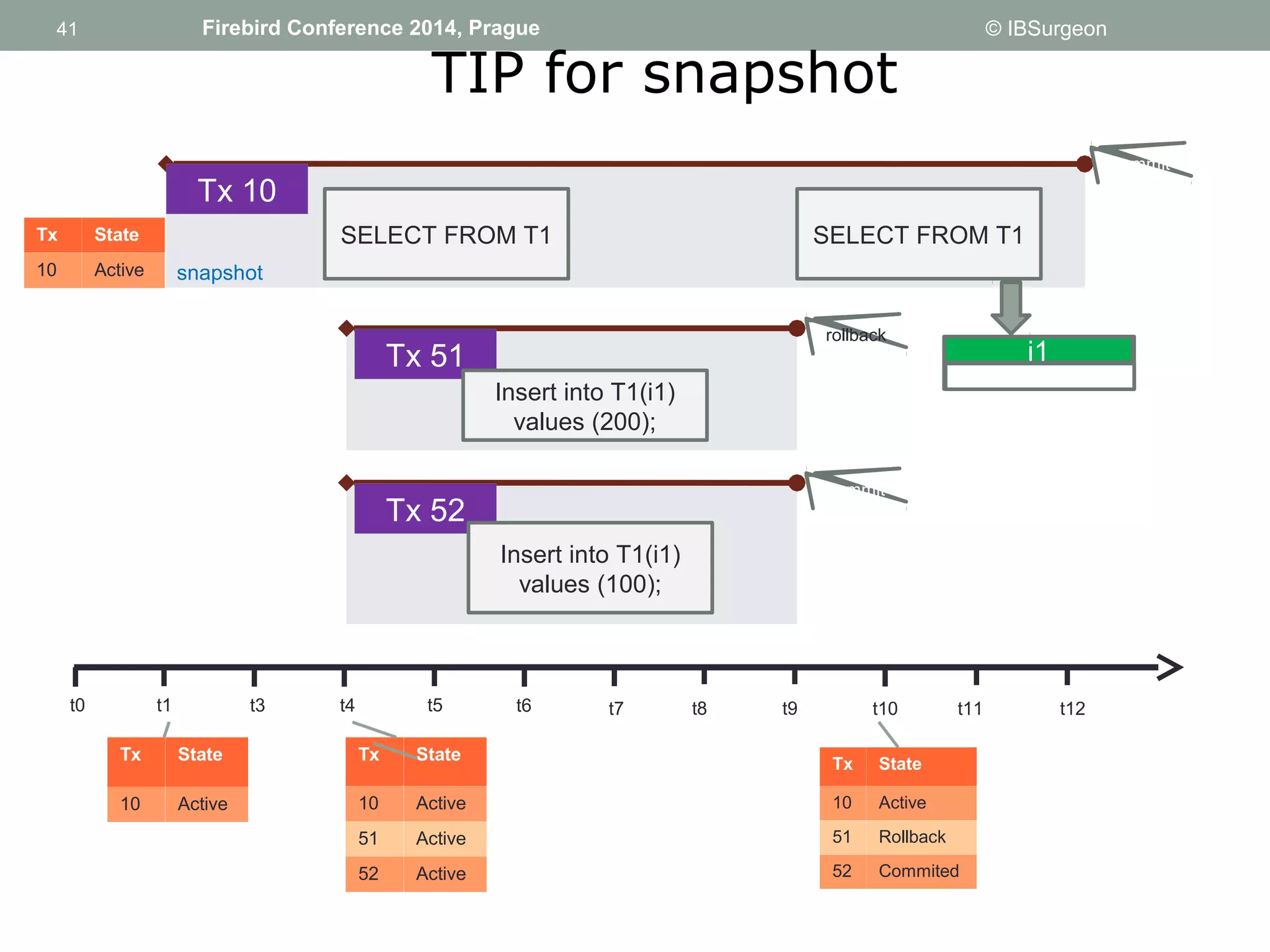

Tx 51 rollback
Insert into T1(i1)
values (200);
Tx 52 commit
Insert into T1(i1)
values (100);
Tx 10
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
commit
SELECT FROM T1 SELECT FROM T1
snapshot
i1
Tx State
10 Active
Tx State
10 Active
51 Active
52 Active
Tx State
10 Active
51 Rollback
52 Commited
Tx State
10 Active
TIP for snapshot
42
42 Firebird Conference 2014, Prague © IBSurgeon

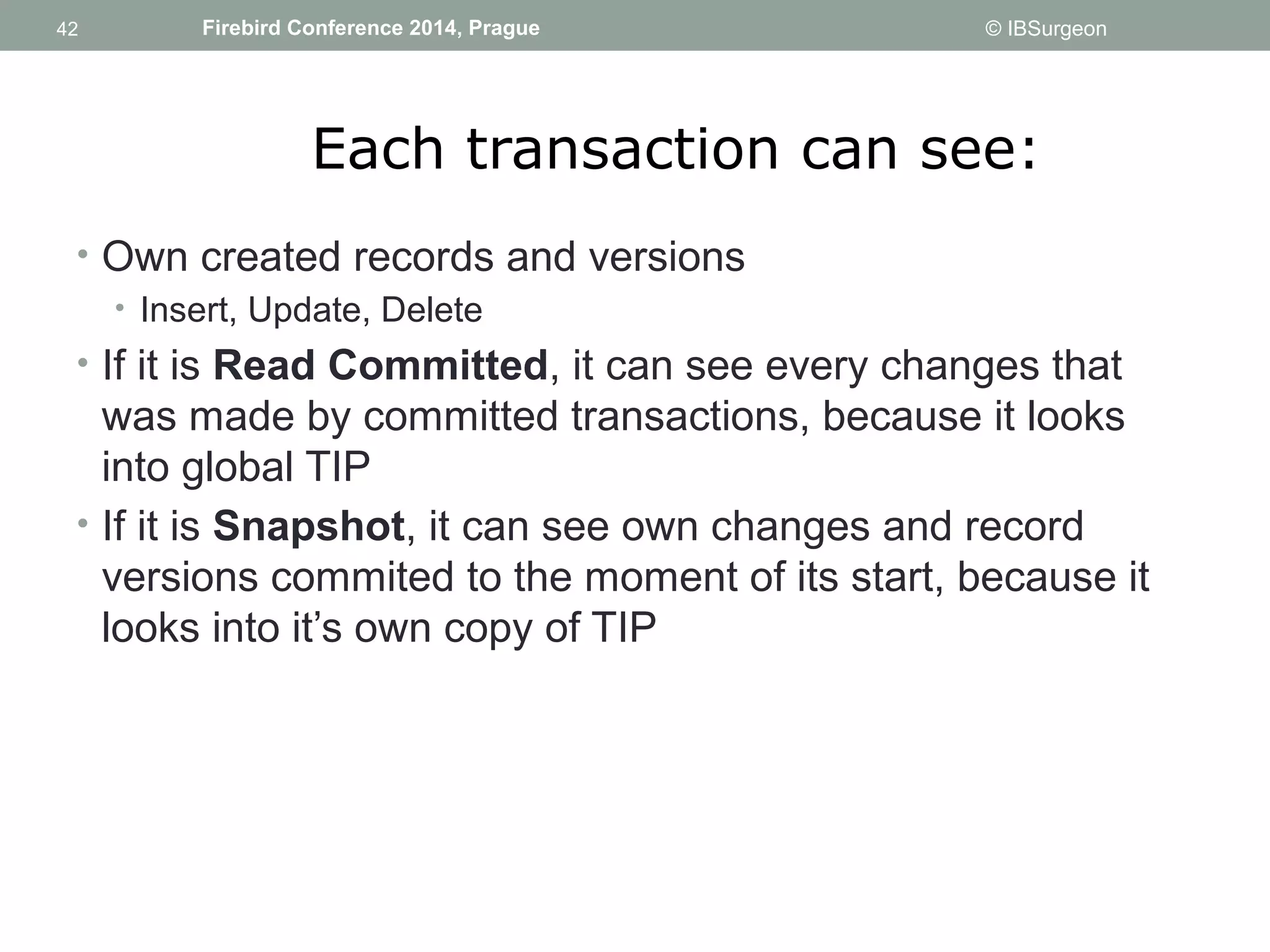

Each transaction can see:
• Own created records and versions
• Insert, Update, Delete
• If it is Read Committed, it can see every changes that
was made by committed transactions, because it looks
into global TIP
• If it is Snapshot, it can see own changes and record
versions commited to the moment of its start, because it
looks into it’s own copy of TIP
43
43 Firebird Conference 2014, Prague © IBSurgeon
Record versions visibility
44
44 Firebird Conference 2014, Prague © IBSurgeon

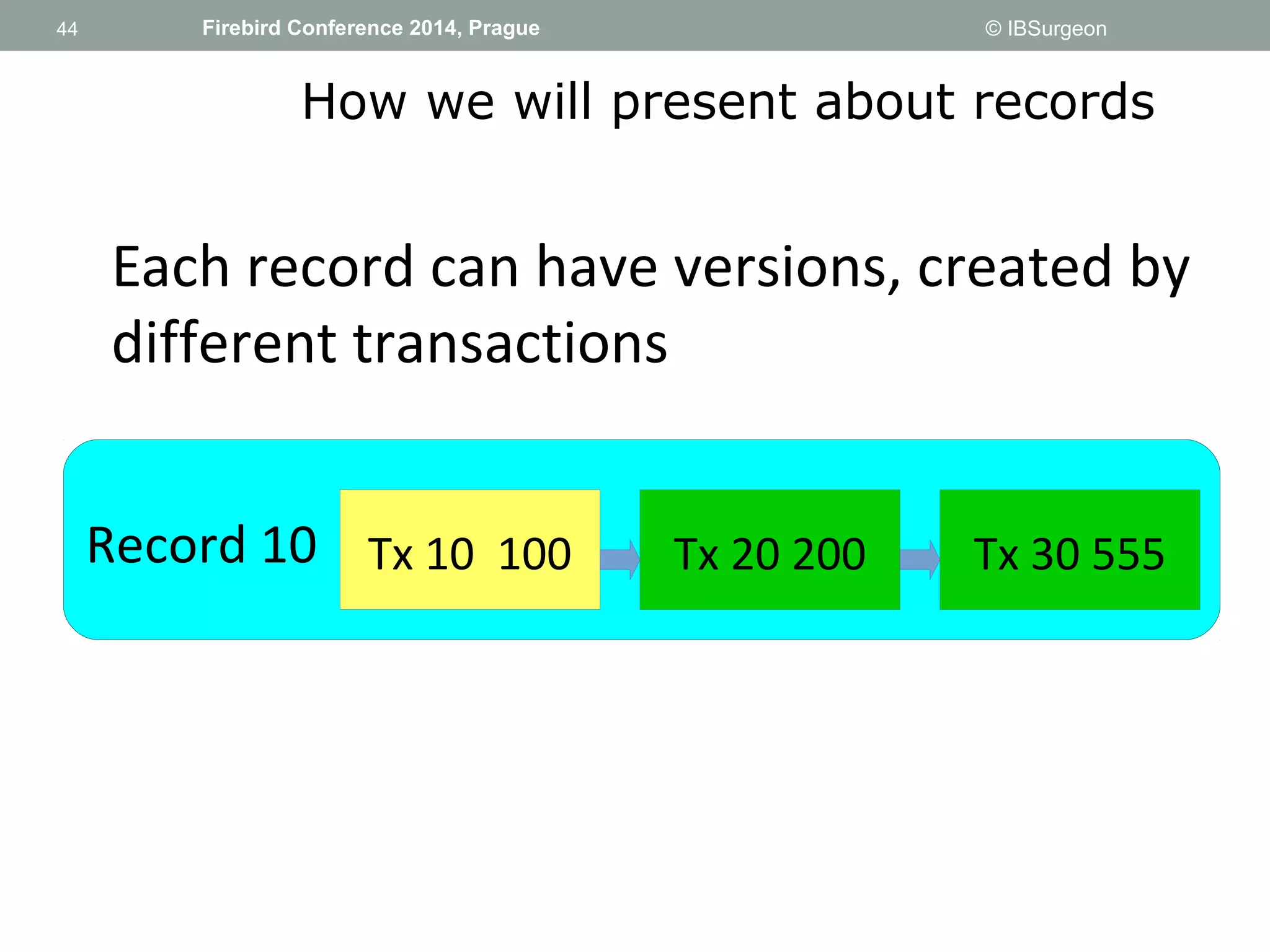

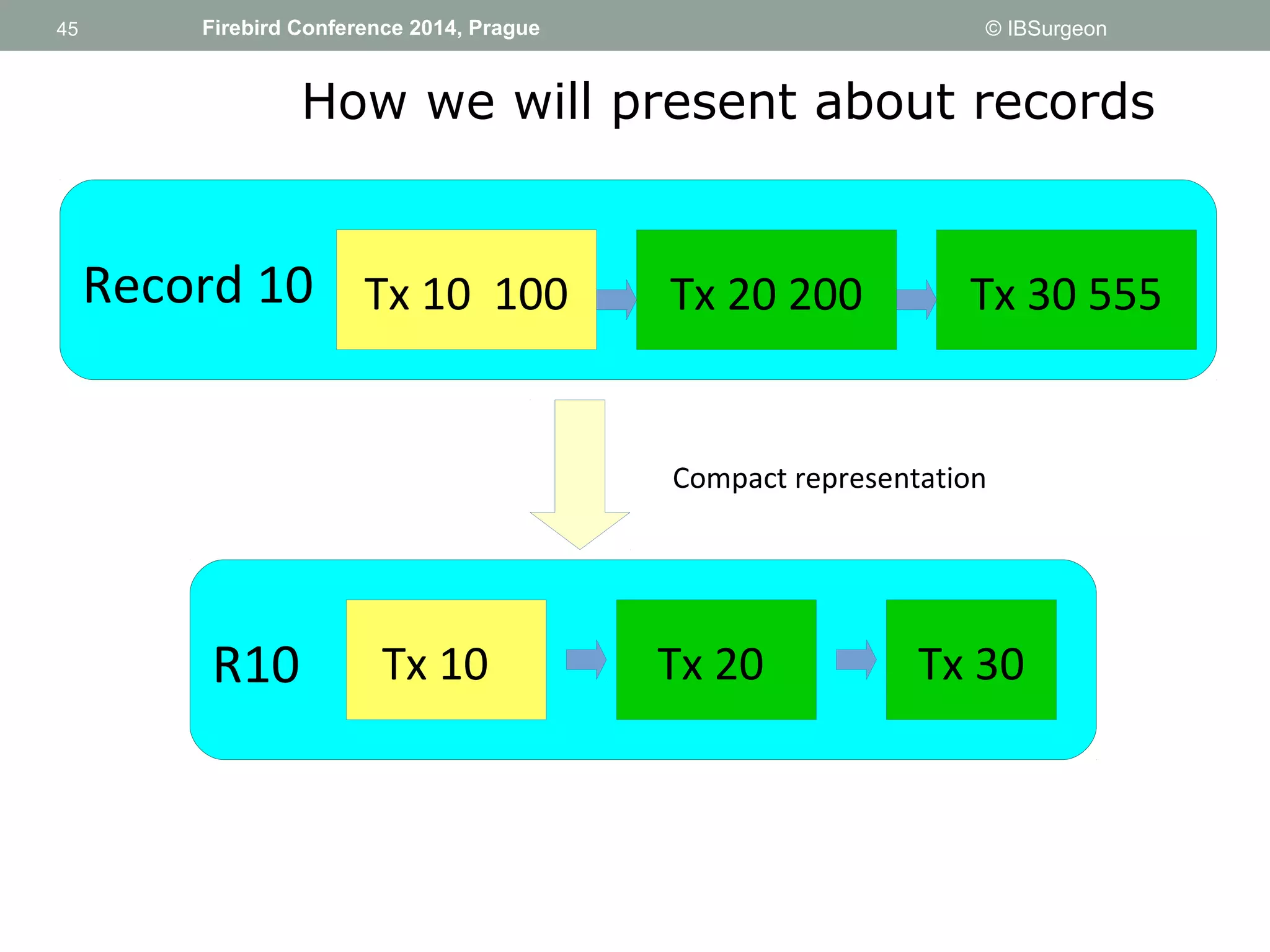

How we will present about records
Each record can have versions, created by
different transactions
Record 10 Tx 10 100 Tx 20 200 Tx 30 555
45
45 Firebird Conference 2014, Prague © IBSurgeon
How we will present about records
Record 10 Tx 10 100 Tx 20 200 Tx 30 555
Compact representation
R10 Tx 10 Tx 20 Tx 30
46
46 Firebird Conference 2014, Prague © IBSurgeon

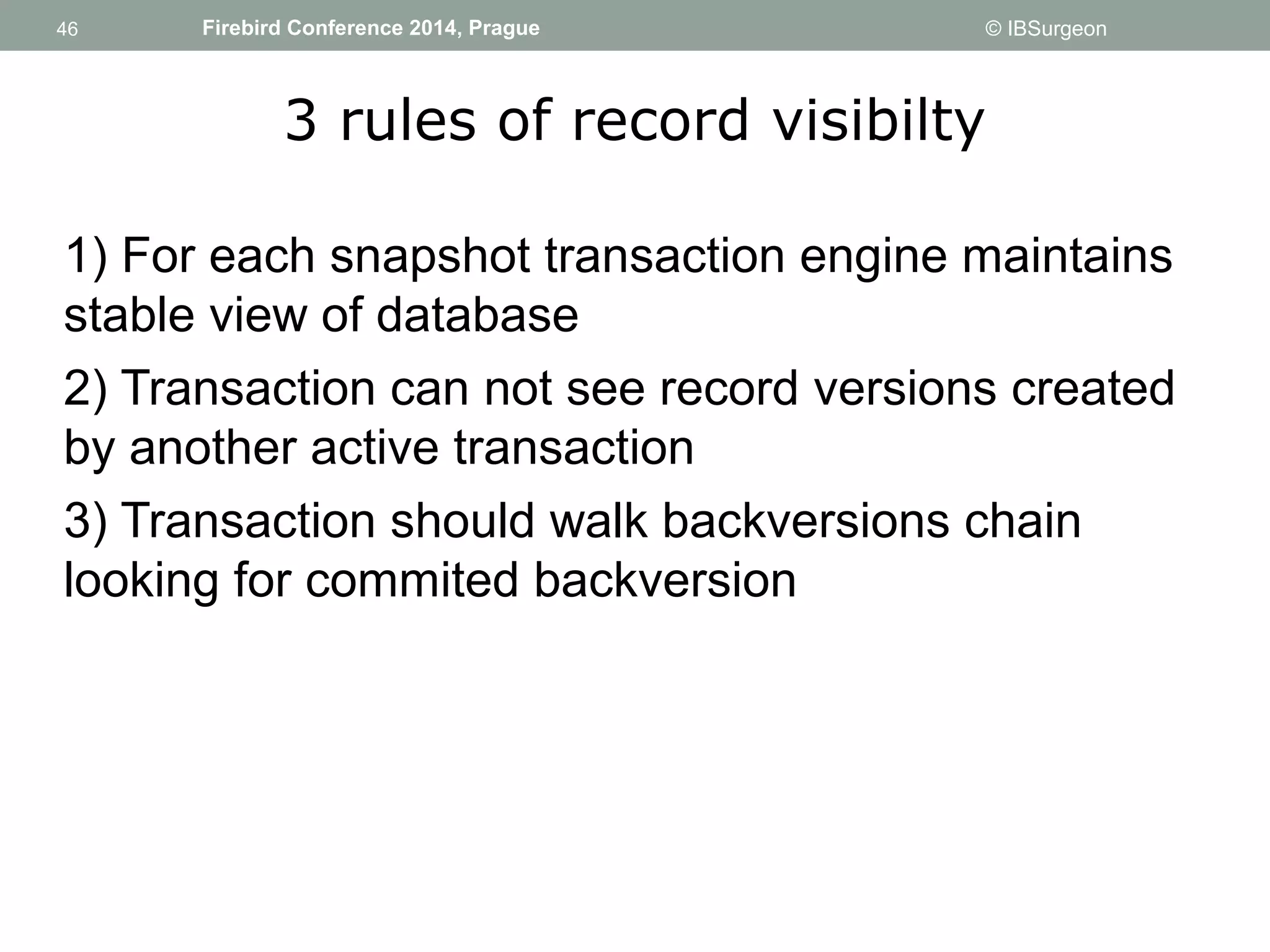

3 rules of record visibilty
1) For each snapshot transaction engine maintains
stable view of database
2) Transaction can not see record versions created
by another active transaction
3) Transaction should walk backversions chain
looking for commited backversion
47
47 Firebird Conference 2014, Prague © IBSurgeon

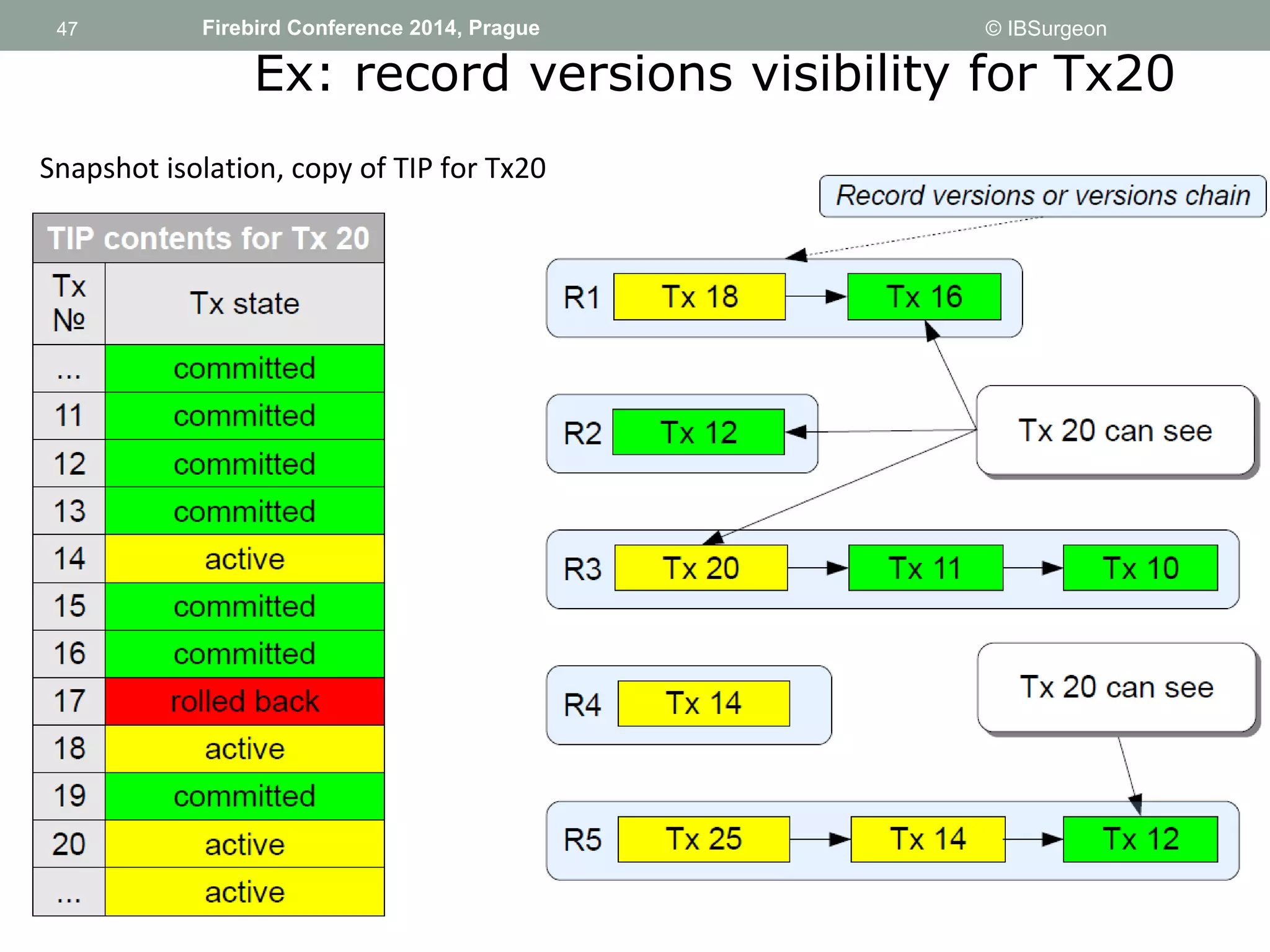

Ex: record versions visibility for Tx20
Snapshot isolation, copy of TIP for Tx20
48
48 Firebird Conference 2014, Prague © IBSurgeon

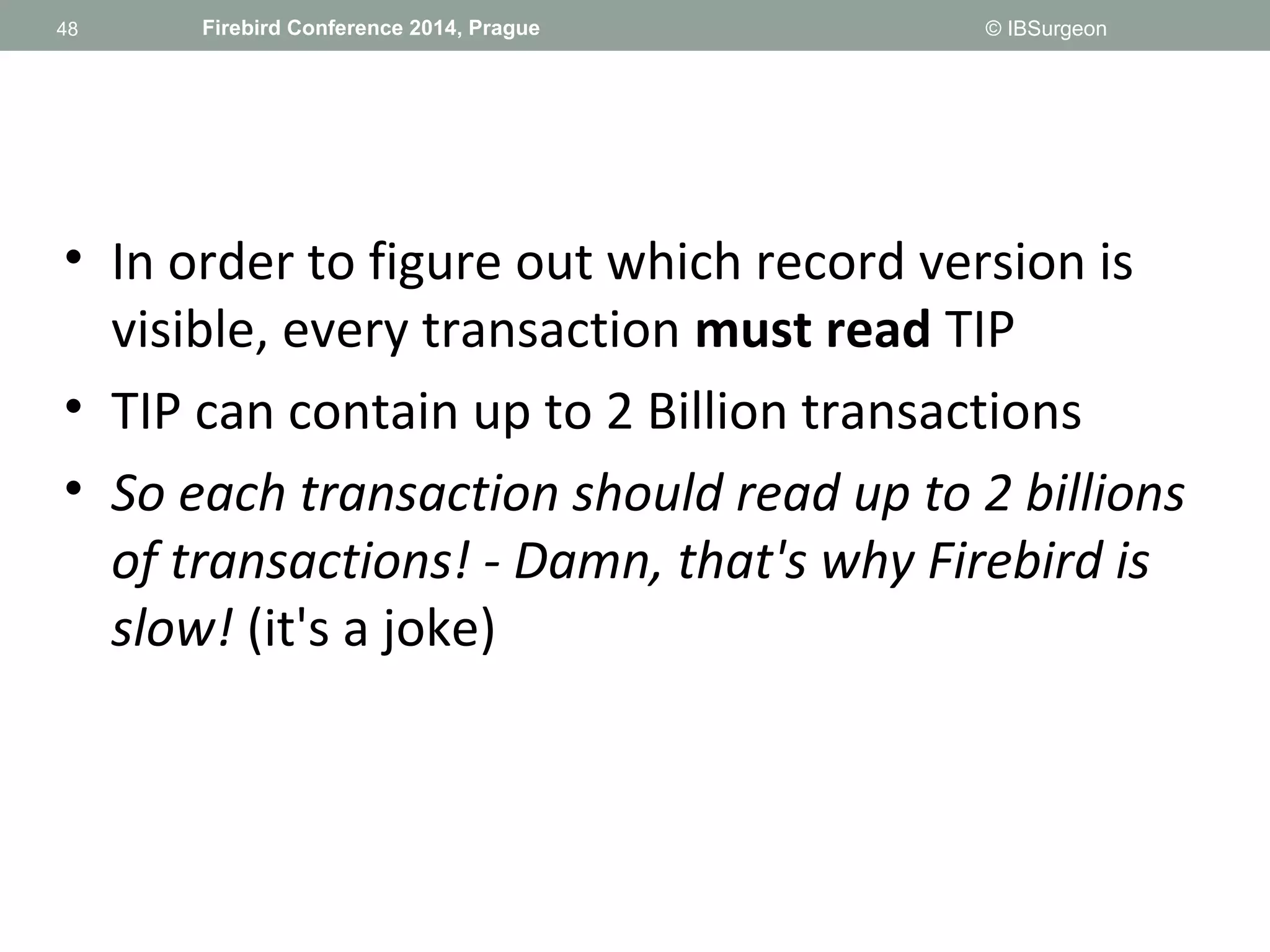

• In order to figure out which record version is
visible, every transaction must read TIP
• TIP can contain up to 2 Billion transactions
• So each transaction should read up to 2 billions
of transactions! - Damn, that's why Firebird is
slow! (it's a joke)
49
49 Firebird Conference 2014, Prague © IBSurgeon

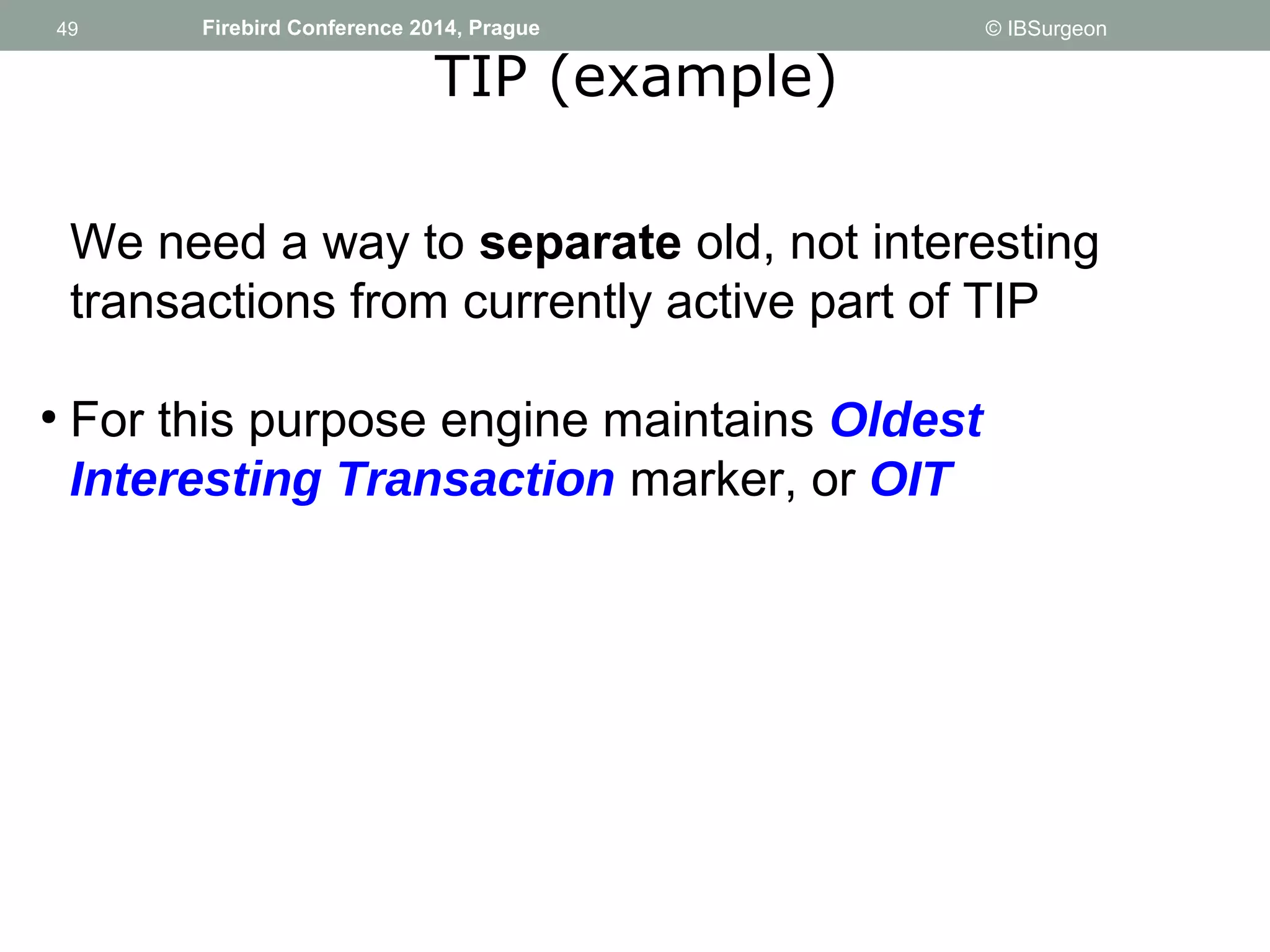

TIP (example)
We need a way to separate old, not interesting
transactions from currently active part of TIP
● For this purpose engine maintains Oldest
Interesting Transaction marker, or OIT
50
50 Firebird Conference 2014, Prague © IBSurgeon

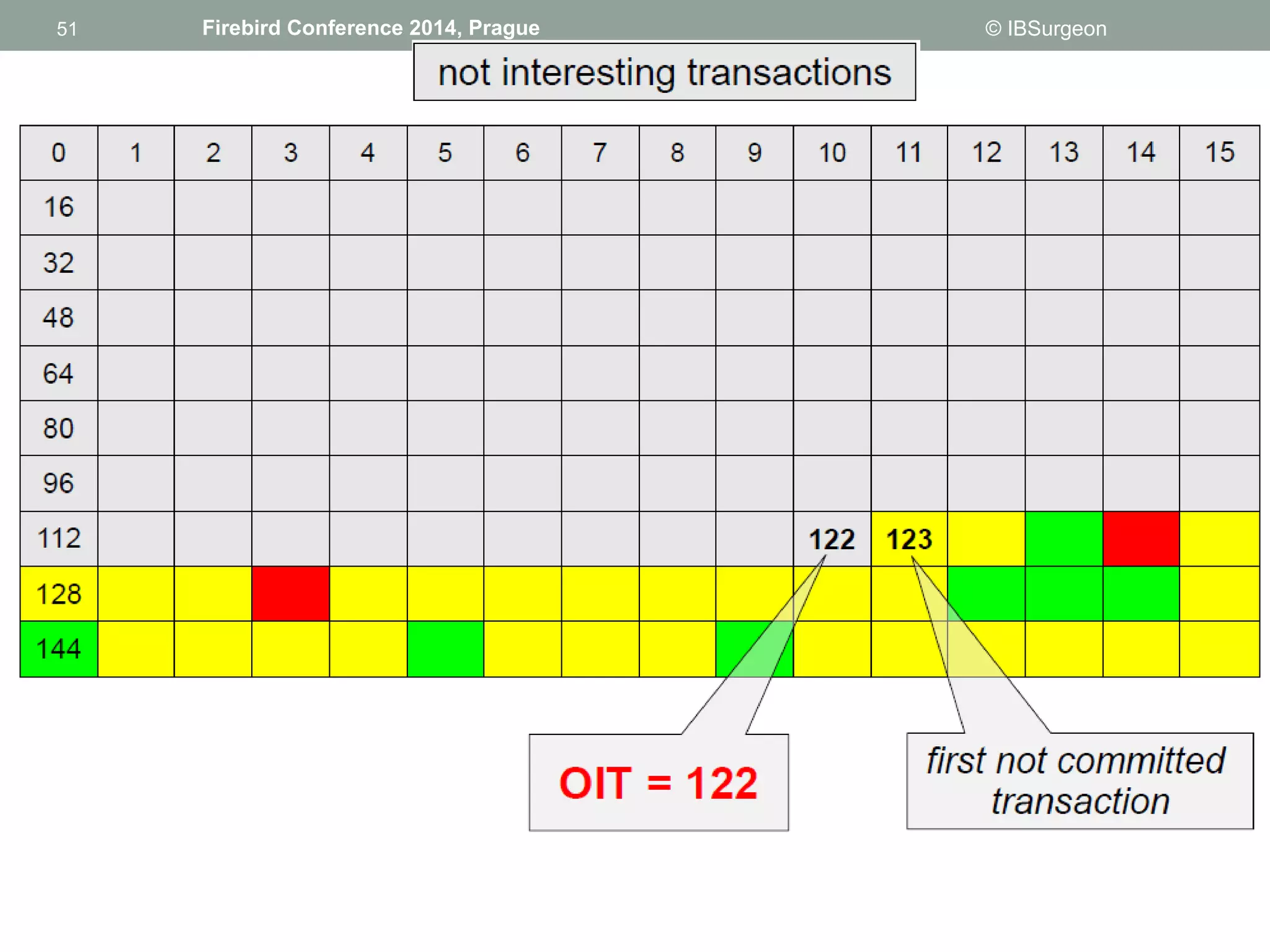

TIP (example)
51
51 Firebird Conference 2014, Prague © IBSurgeon
52
52 Firebird Conference 2014, Prague © IBSurgeon

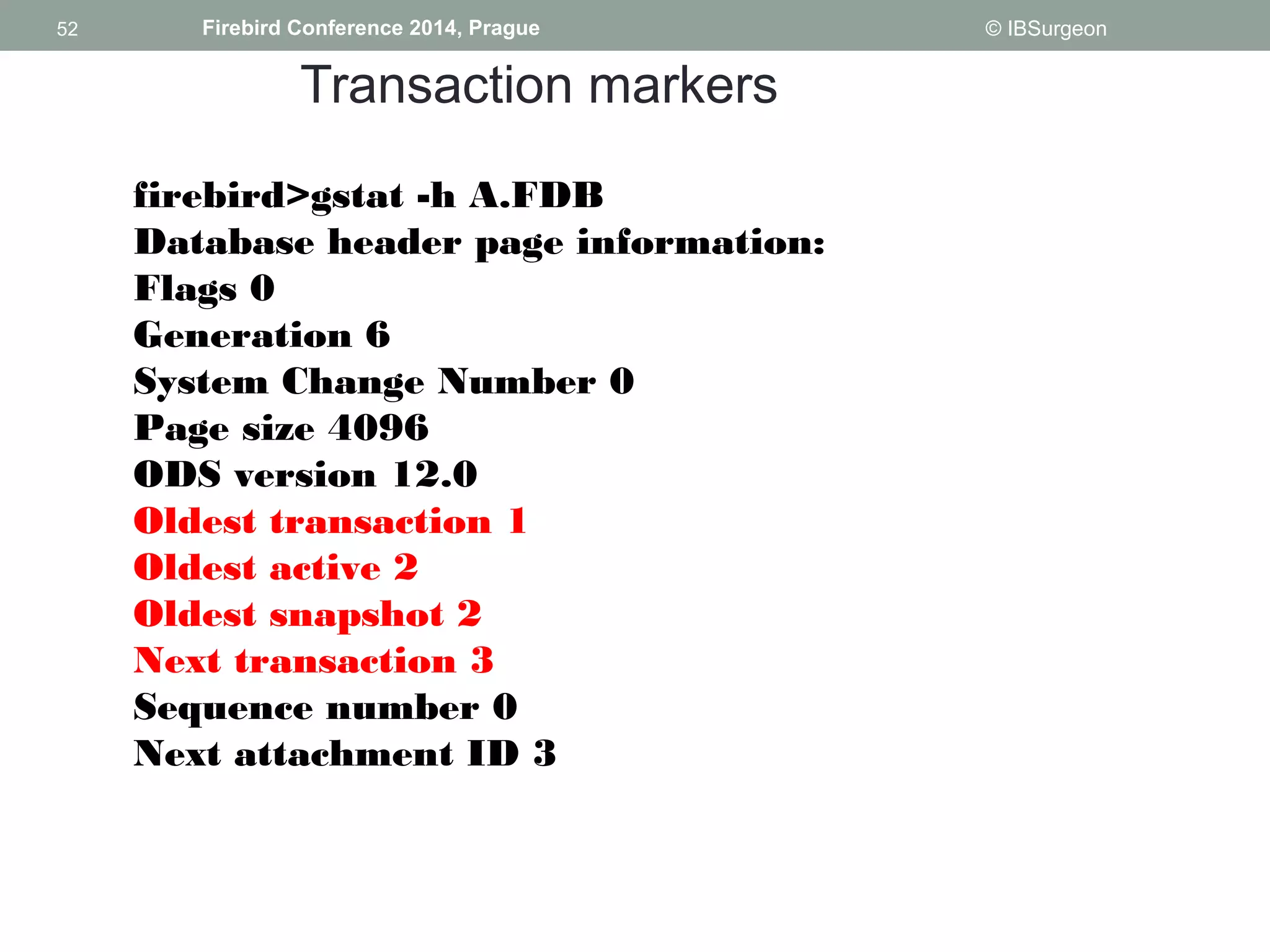

Transaction markers
firebird>gstat -h A.FDB
Database header page information:
Flags 0
Generation 6
System Change Number 0
Page size 4096
ODS version 12.0
Oldest transaction 1
Oldest active 2
Oldest snapshot 2
Next transaction 3
Sequence number 0
Next attachment ID 3
53
53 Firebird Conference 2014, Prague © IBSurgeon
4 markers
• Transaction markers are key characterstics of
TIP and transaction mechanism
– Let's see what they mean and how they evaluated:
• NEXT — next transaction
• OAT — Oldest Active
• OST — Oldest Snapshot
• OIT — Oldest Interesting
54
54 Firebird Conference 2014, Prague © IBSurgeon

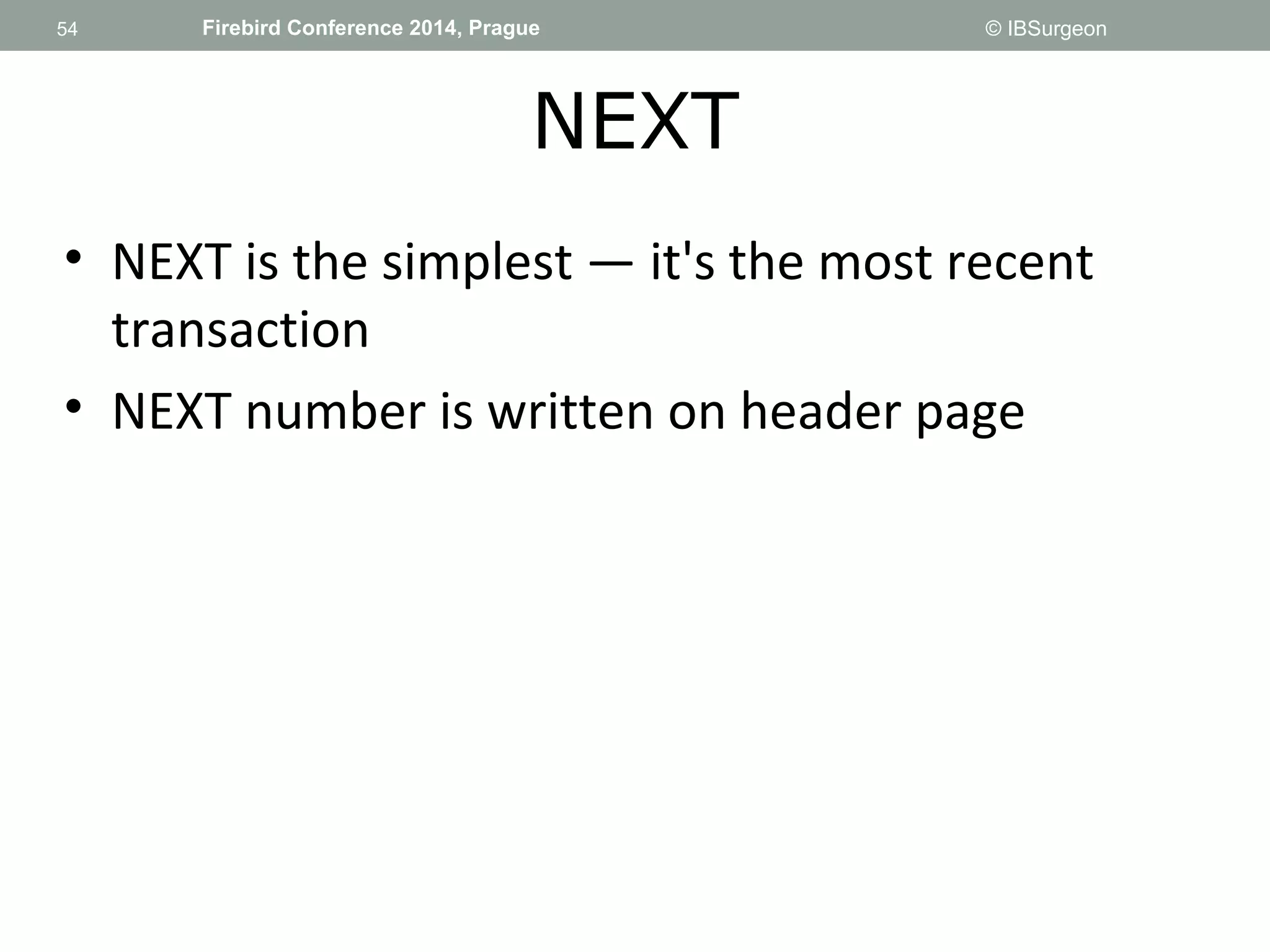

NEXT
• NEXT is the simplest — it's the most recent
transaction
• NEXT number is written on header page
55
55 Firebird Conference 2014, Prague © IBSurgeon

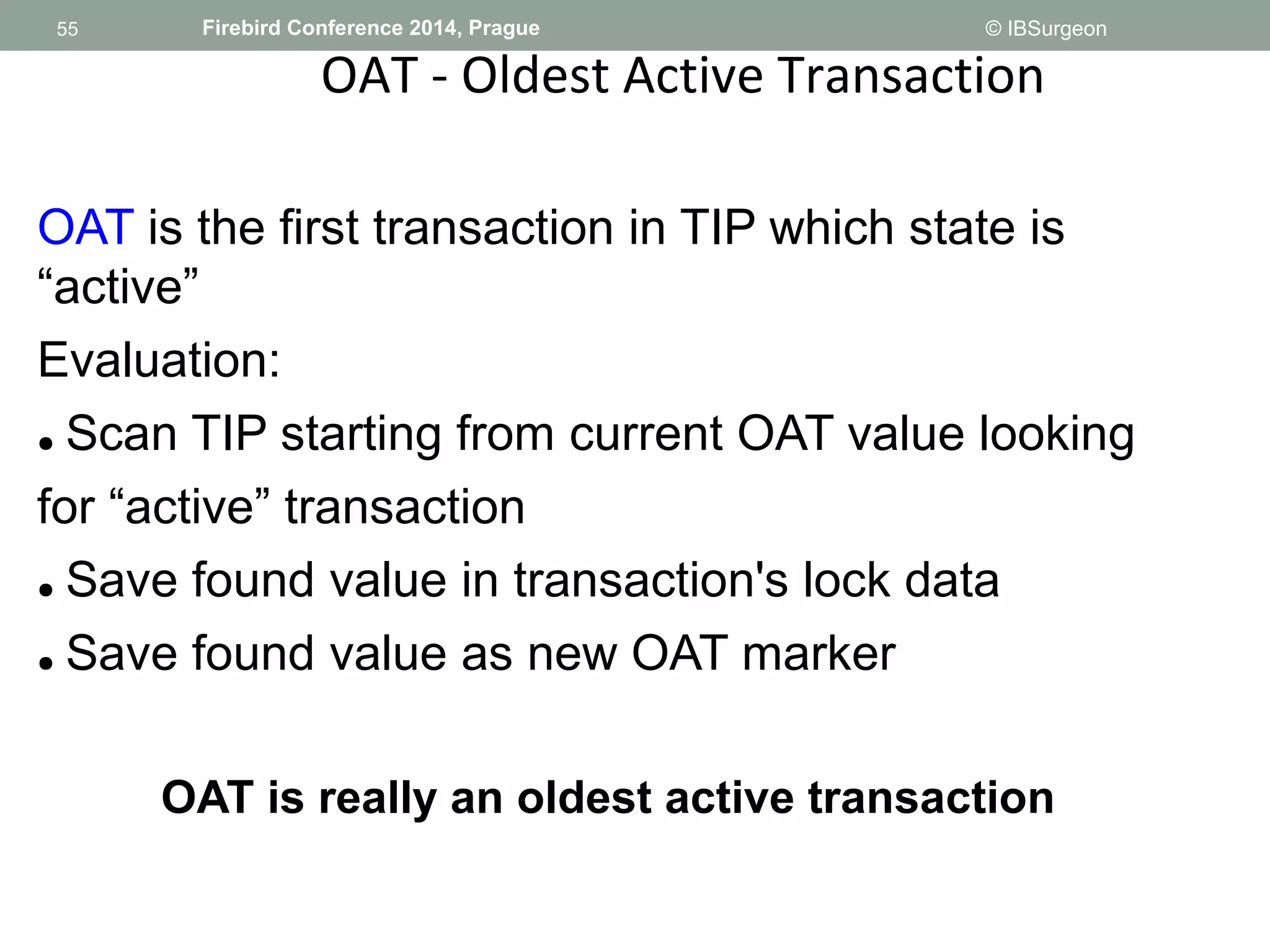

OAT - Oldest Active Transaction
OAT is the first transaction in TIP which state is
“active”
Evaluation:
● Scan TIP starting from current OAT value looking
for “active” transaction
● Save found value in transaction's lock data
● Save found value as new OAT marker
OAT is really an oldest active transaction
56
56 Firebird Conference 2014, Prague © IBSurgeon

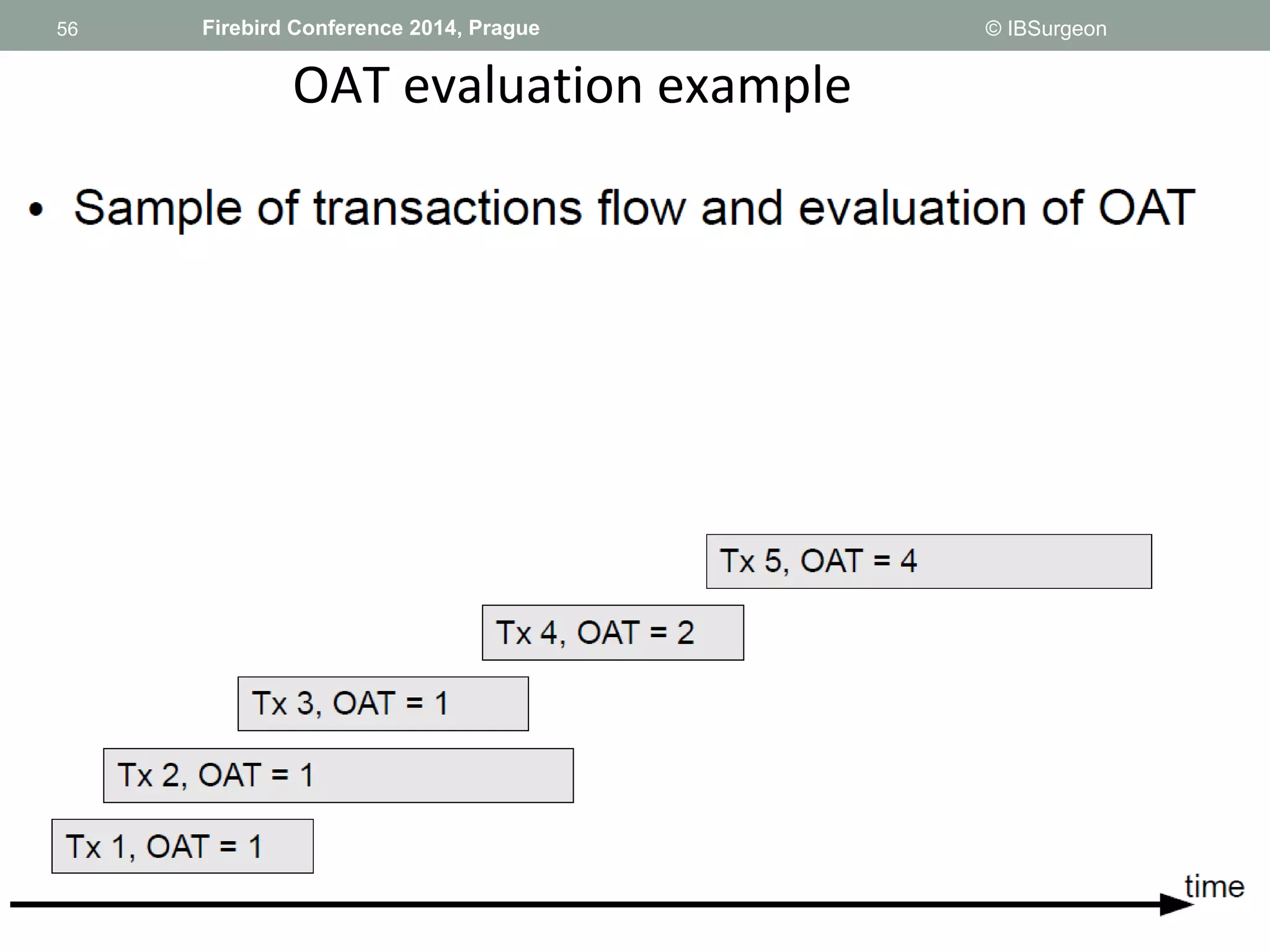

OAT evaluation example
57
57 Firebird Conference 2014, Prague © IBSurgeon

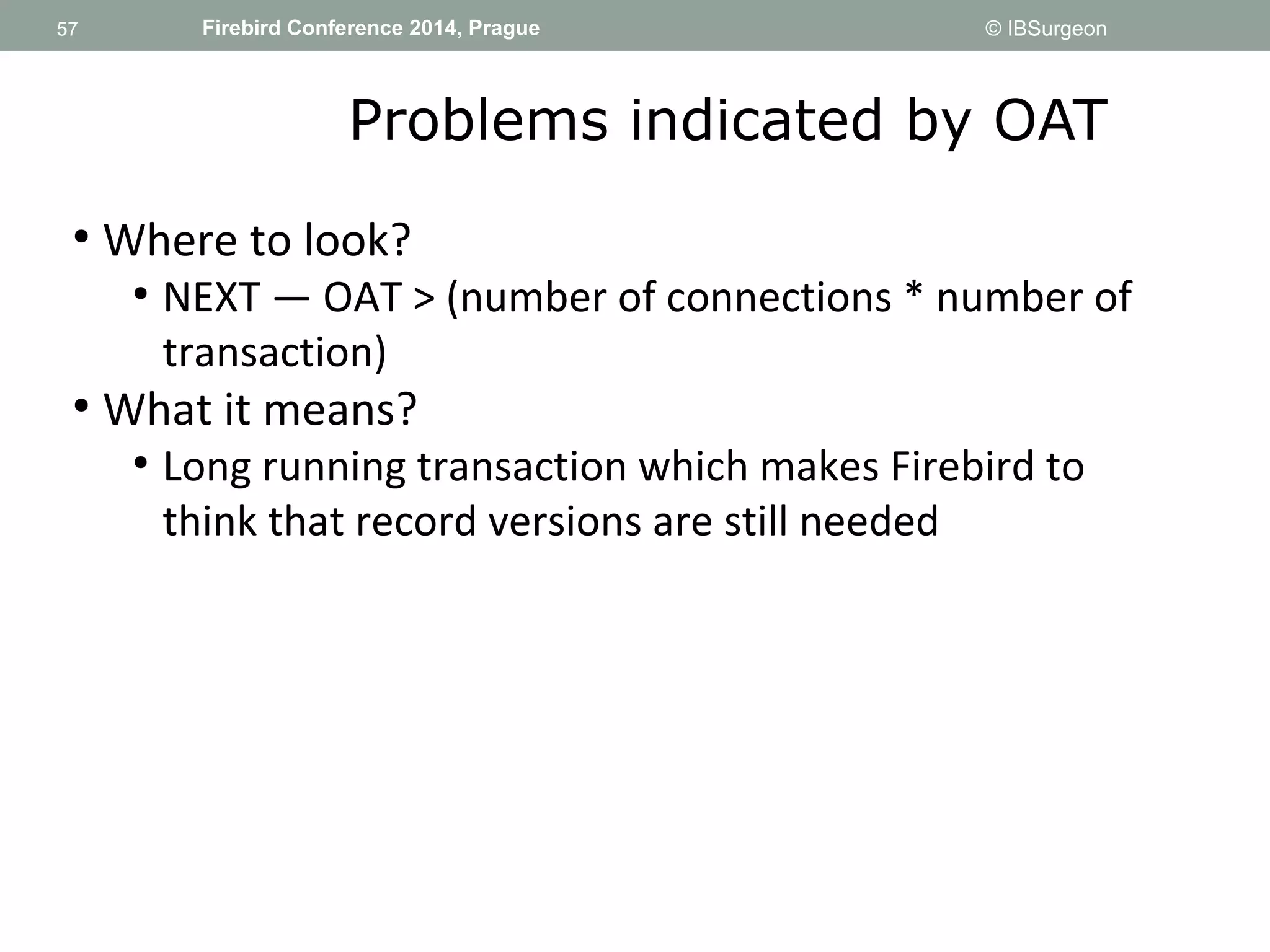

Problems indicated by OAT
● Where to look?
● NEXT — OAT > (number of connections * number of
transaction)
● What it means?
● Long running transaction which makes Firebird to
think that record versions are still needed
58

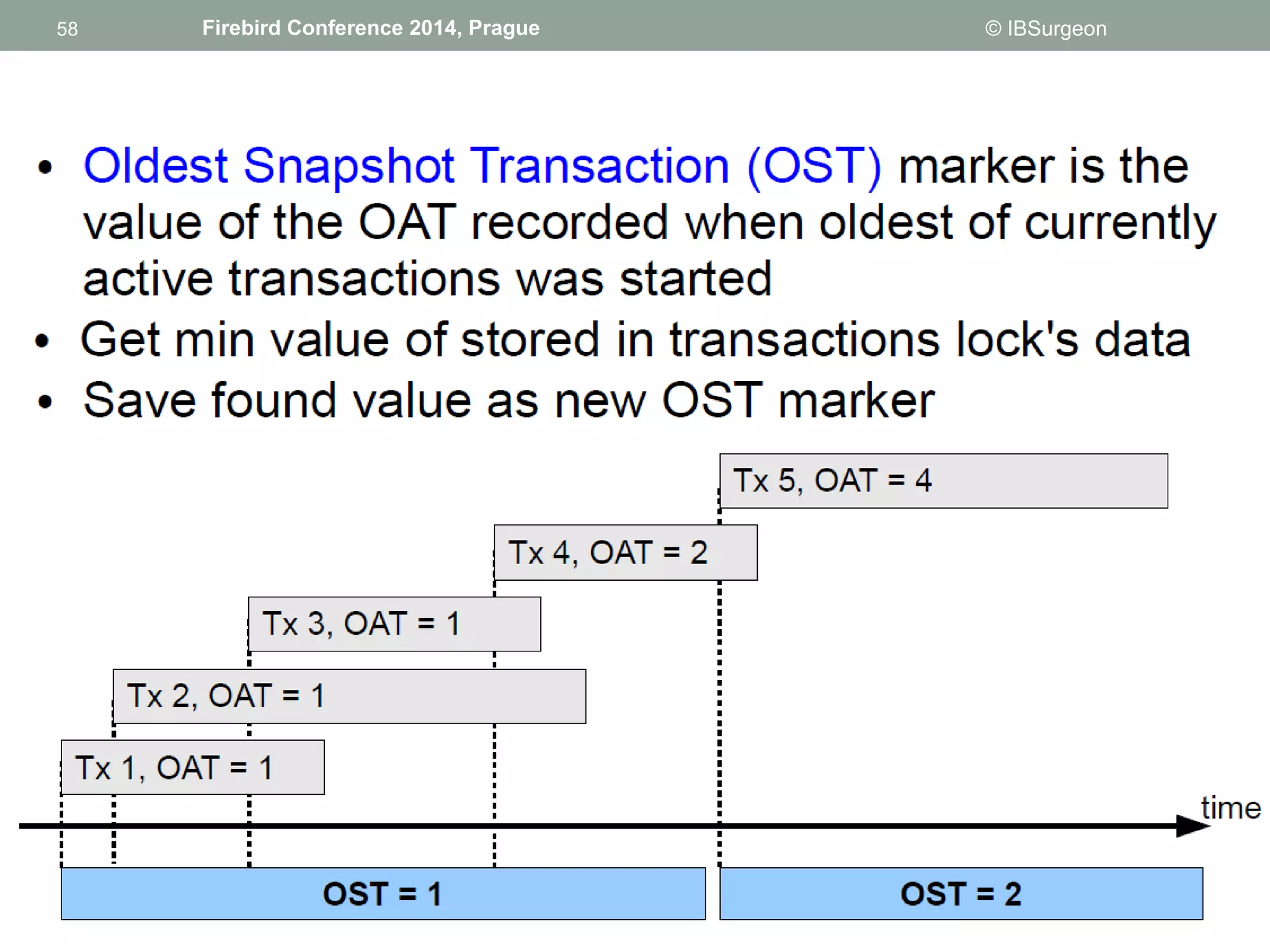

58 Firebird Conference 2014, Prague © IBSurgeon
59

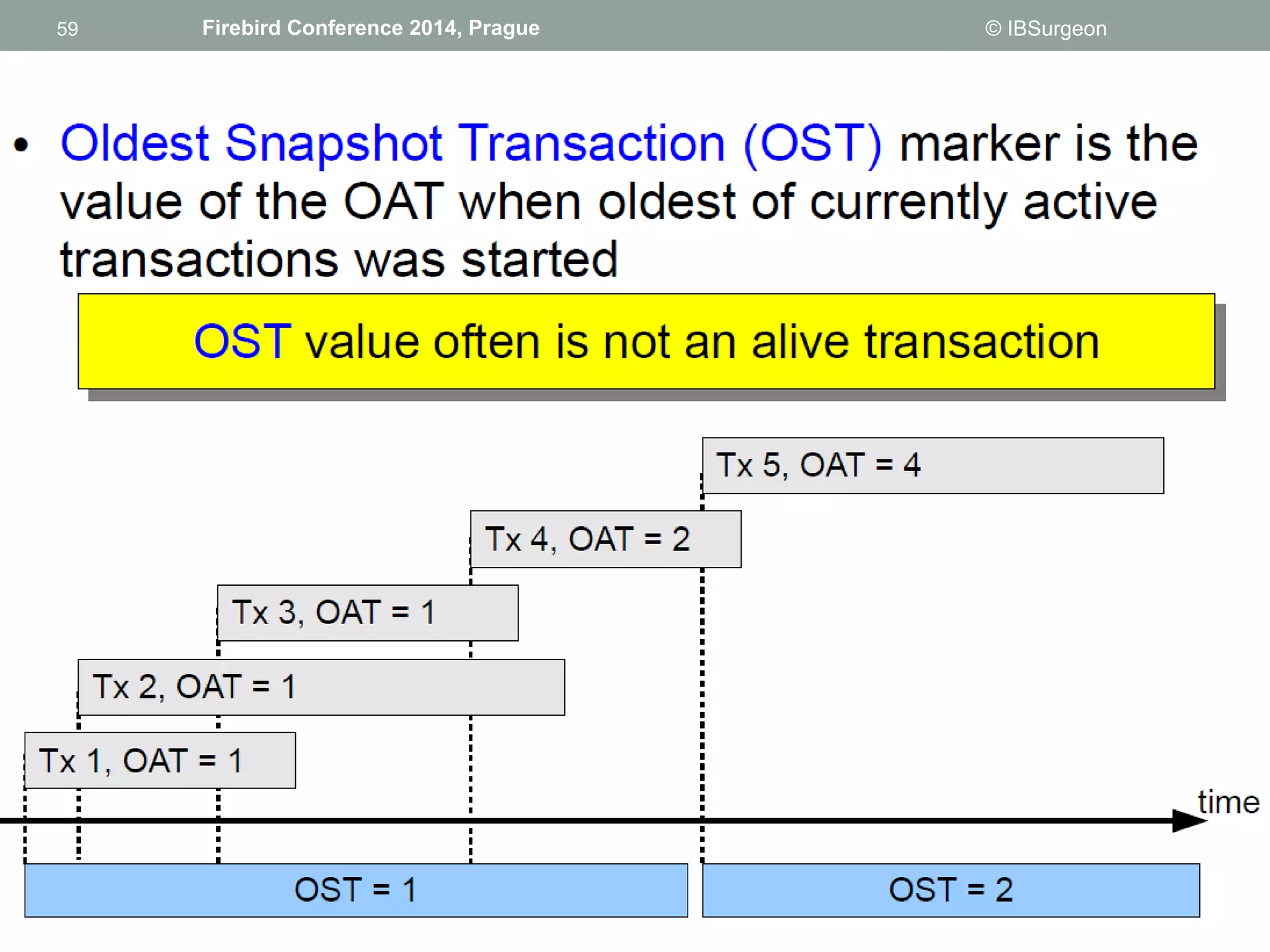

59 Firebird Conference 2014, Prague © IBSurgeon

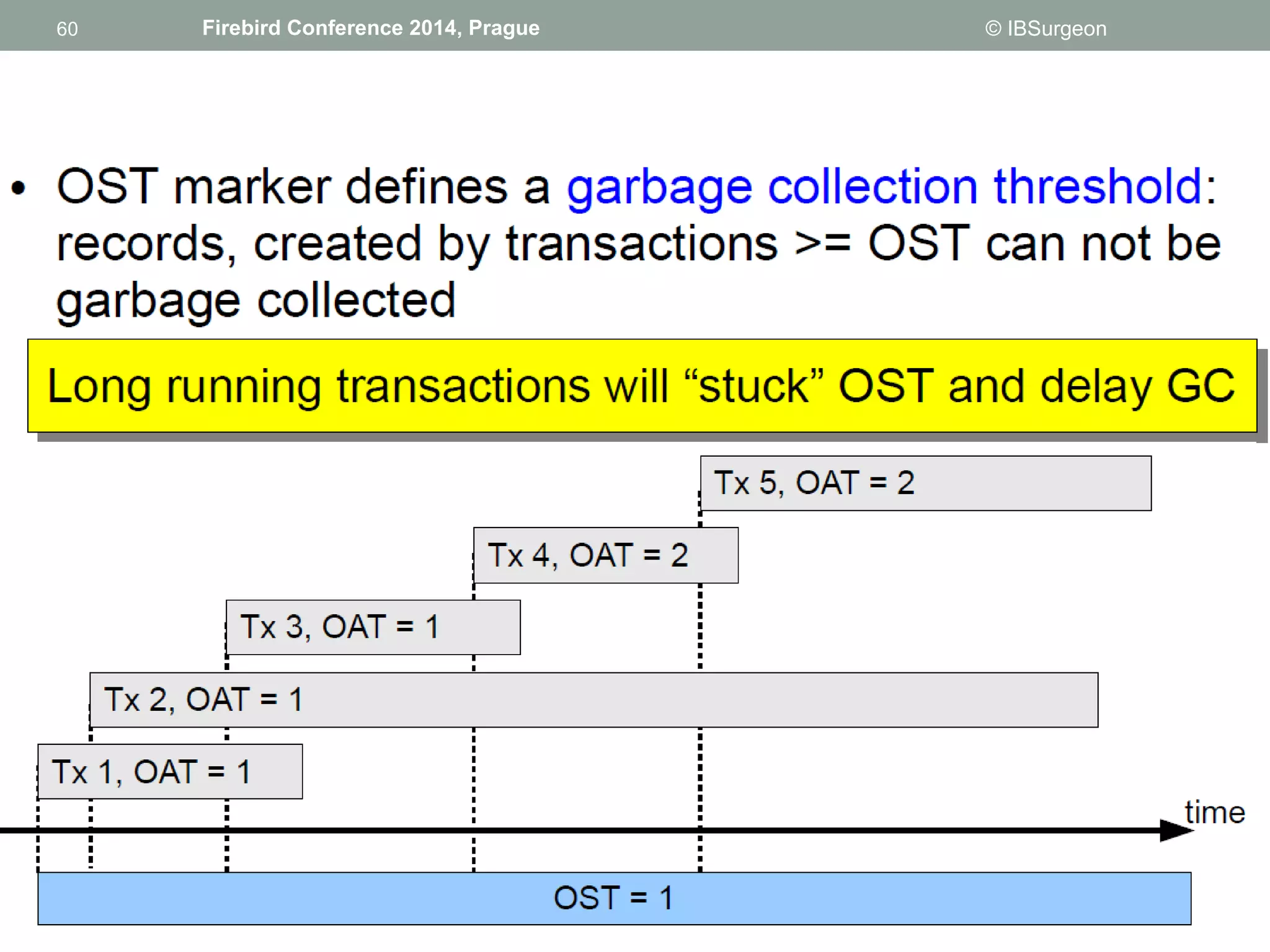

60
60 Firebird Conference 2014, Prague © IBSurgeon
61
61 Firebird Conference 2014, Prague © IBSurgeon

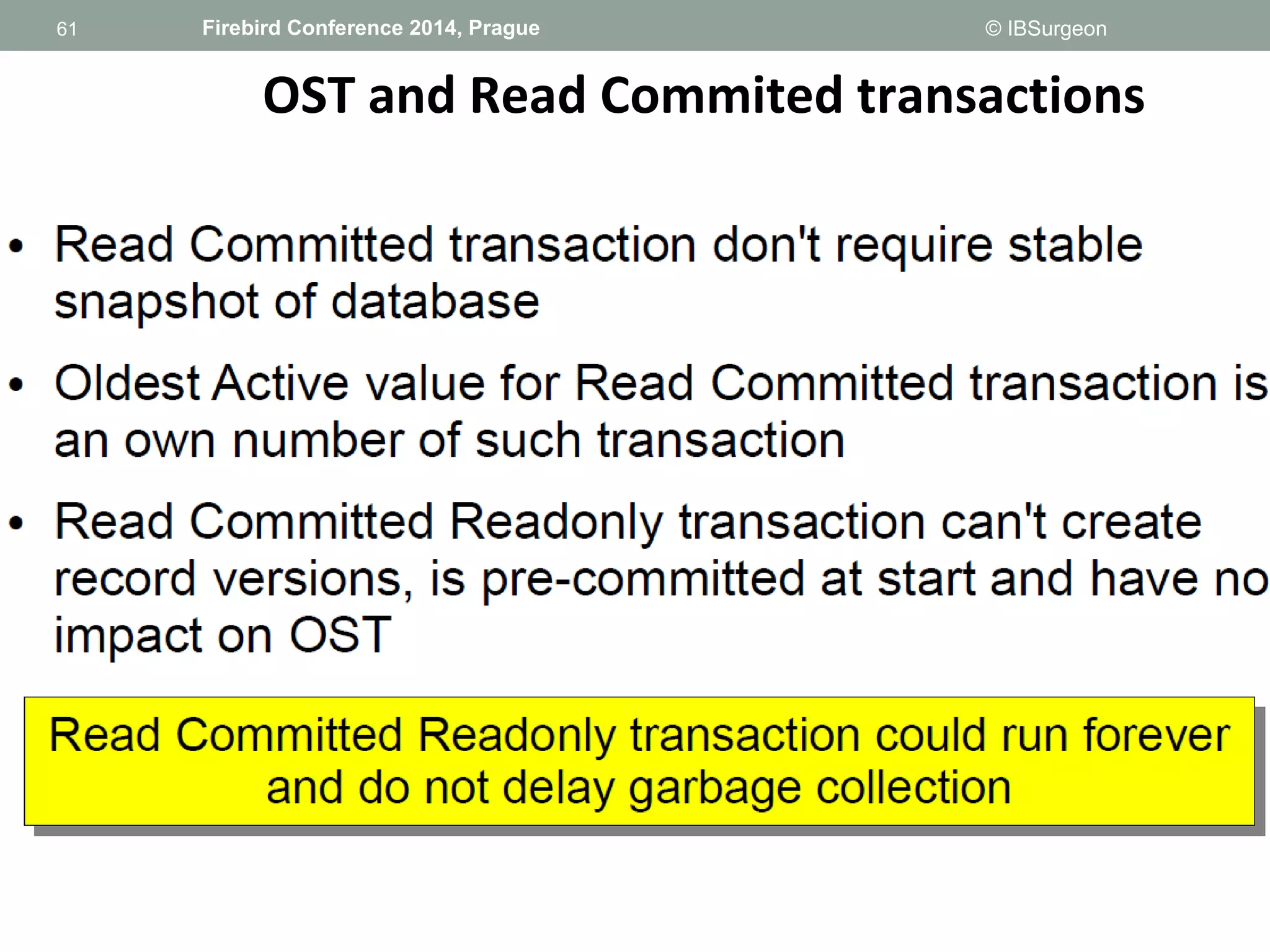

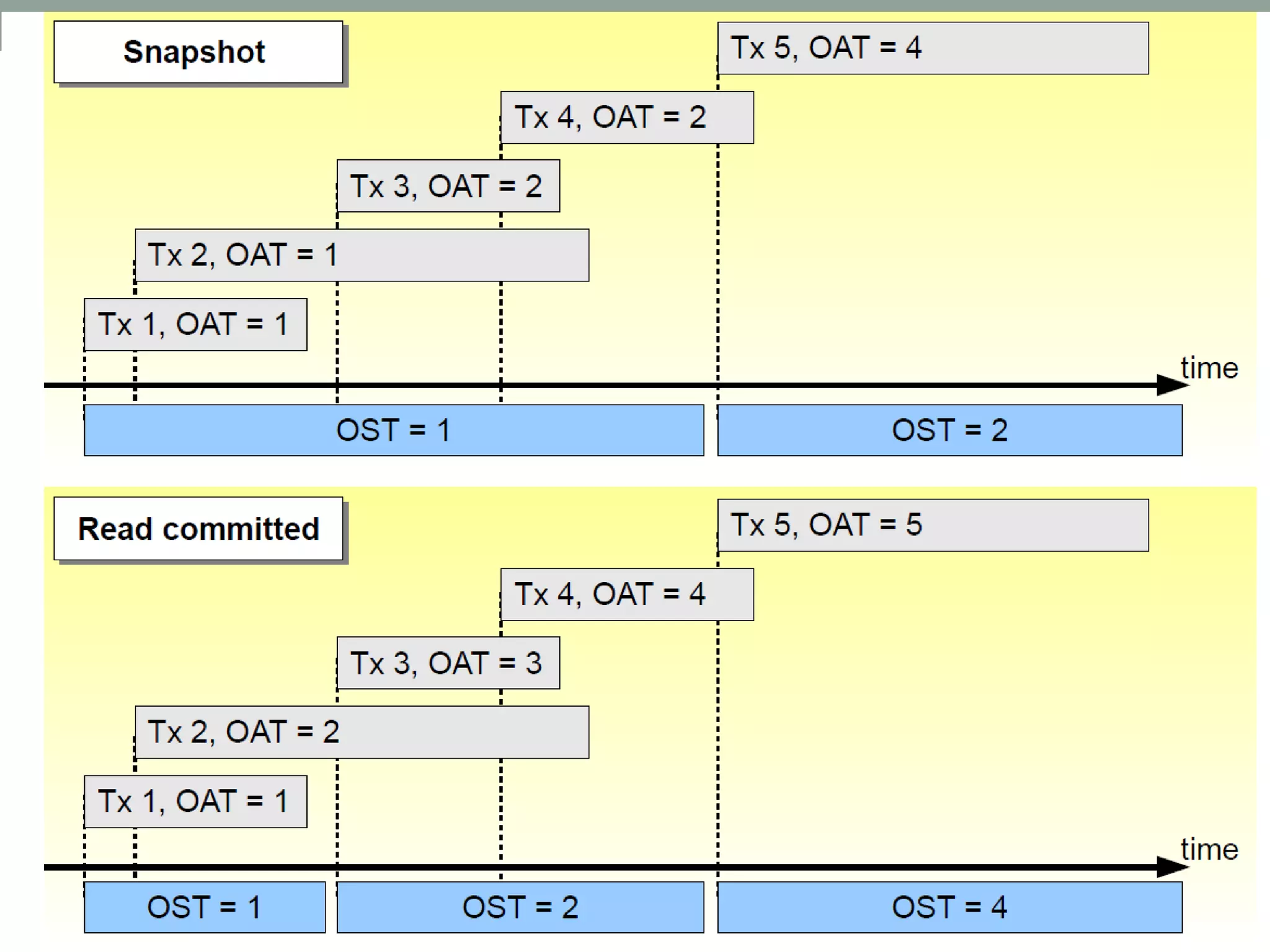

OST and Read Commited transactions
62
62 Firebird Conference 2014, Prague © IBSurgeon
63
63 Firebird Conference 2014, Prague © IBSurgeon

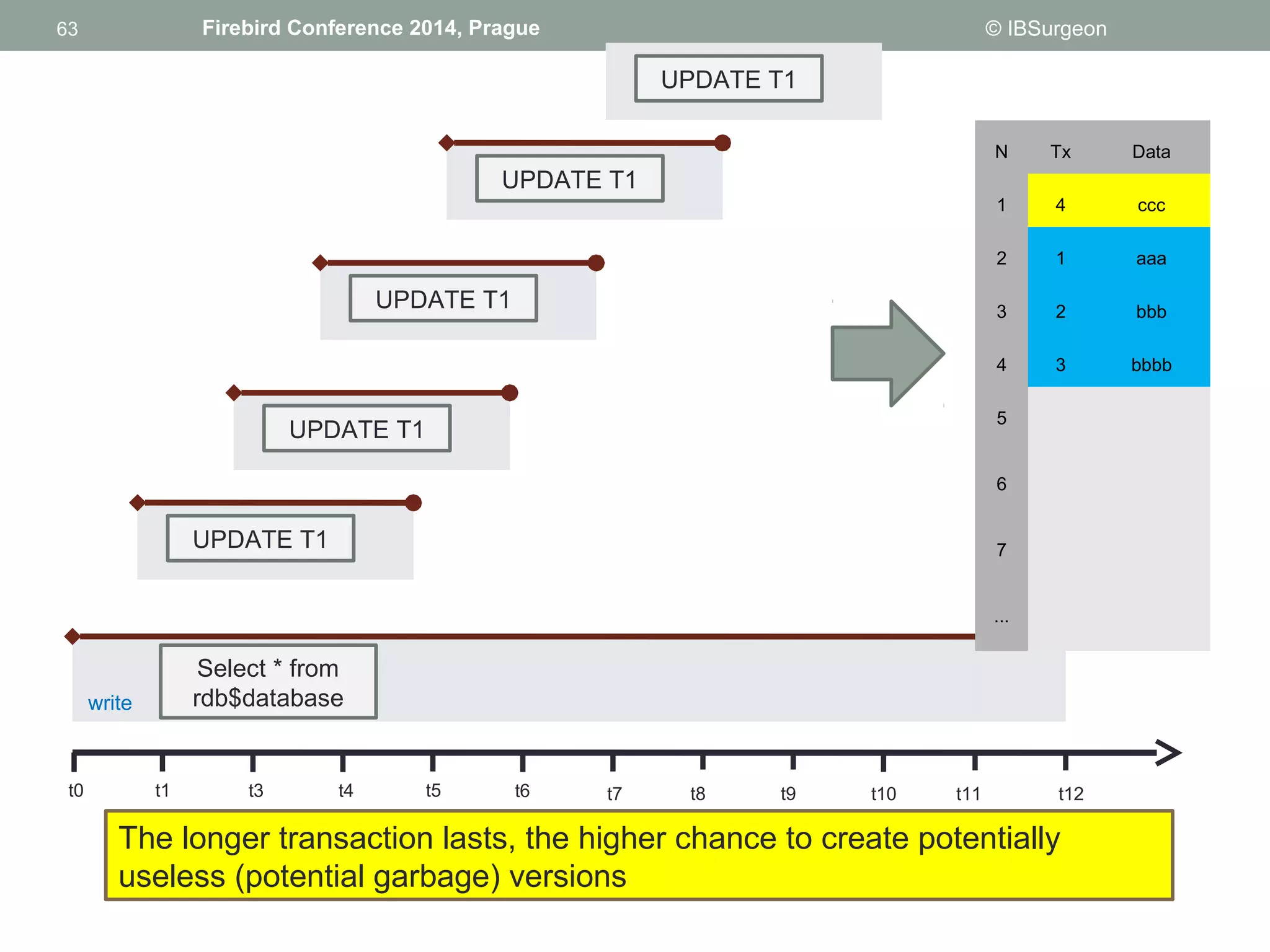

UPDATE T1
UPDATE T1
UPDATE T1
UPDATE T1
UPDATE T1
N Tx Data
1 4 ccc
2 1 aaa
3 2 bbb
4 3 bbbb
5
6
7
...
Select * from
write rdb$database
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
The longer transaction lasts, the higher chance to create potentially
useless (potential garbage) versions
64
64 Firebird Conference 2014, Prague © IBSurgeon

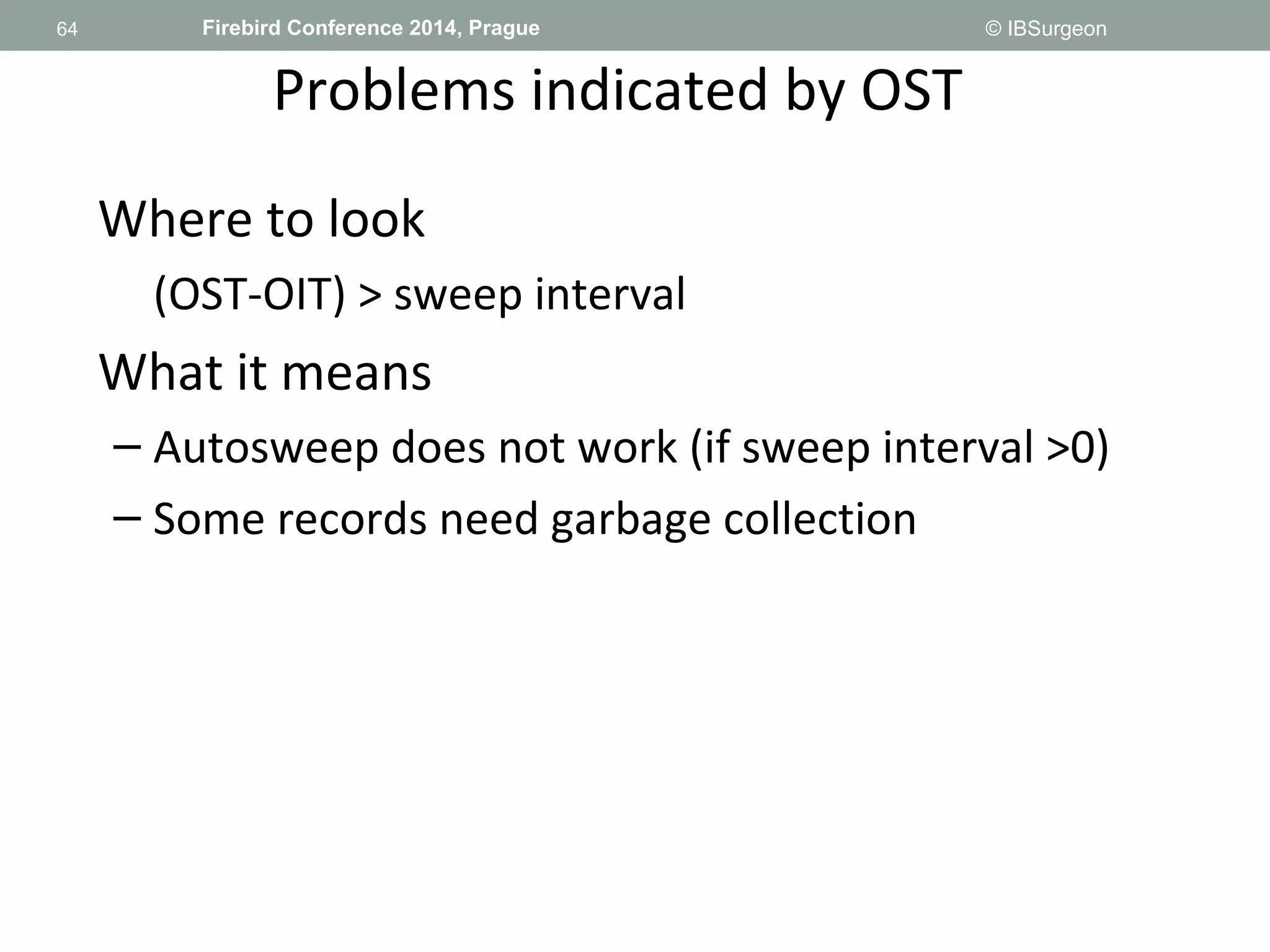

Problems indicated by OST
Where to look
(OST-OIT) > sweep interval
What it means
– Autosweep does not work (if sweep interval >0)
– Some records need garbage collection
65
65 Firebird Conference 2014, Prague © IBSurgeon

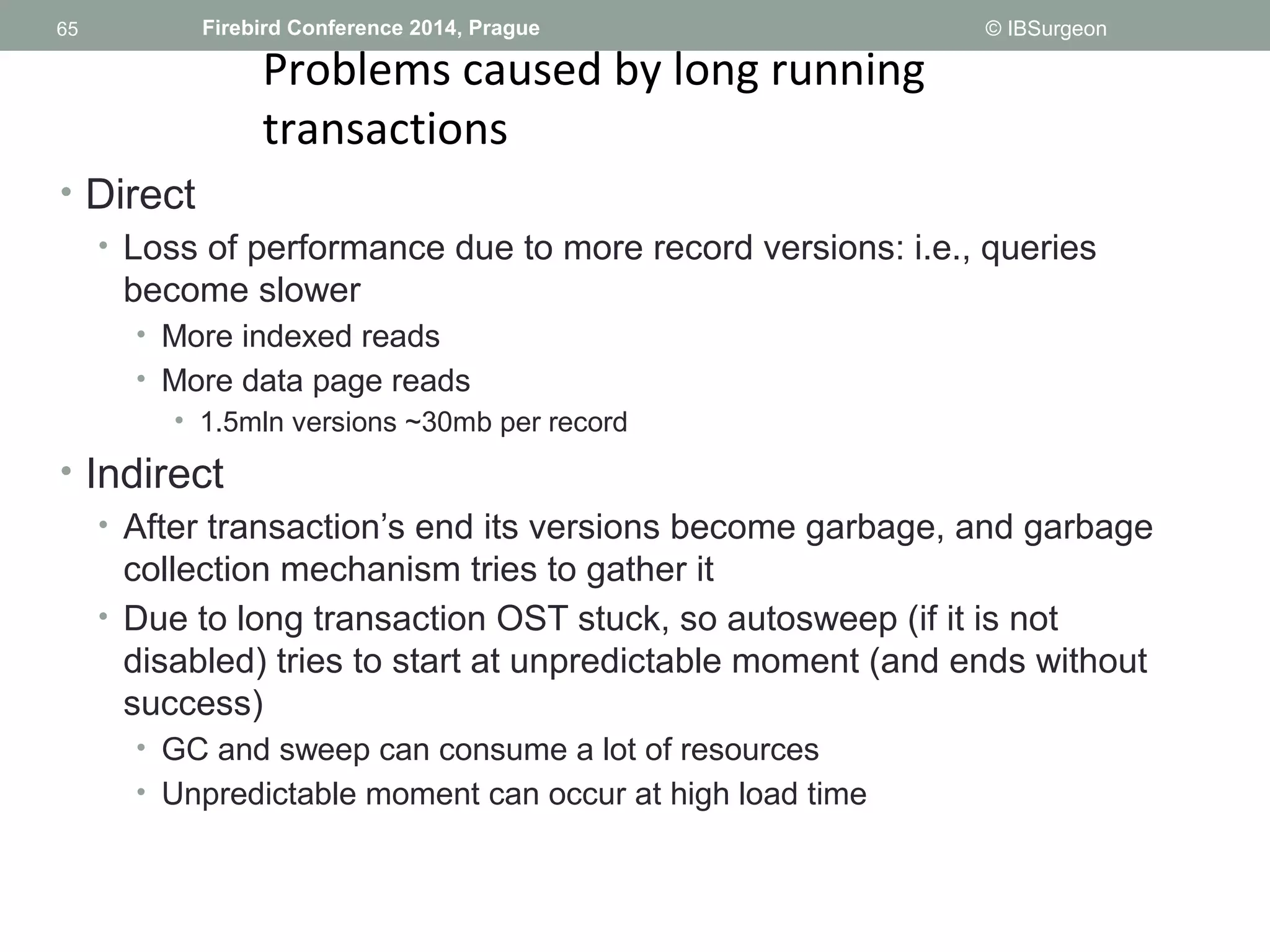

Problems caused by long running
transactions
• Direct
• Loss of performance due to more record versions: i.e., queries
become slower
• More indexed reads
• More data page reads
• 1.5mln versions ~30mb per record
• Indirect
• After transaction’s end its versions become garbage, and garbage
collection mechanism tries to gather it
• Due to long transaction OST stuck, so autosweep (if it is not
disabled) tries to start at unpredictable moment (and ends without
success)
• GC and sweep can consume a lot of resources
• Unpredictable moment can occur at high load time
66
66 Firebird Conference 2014, Prague © IBSurgeon

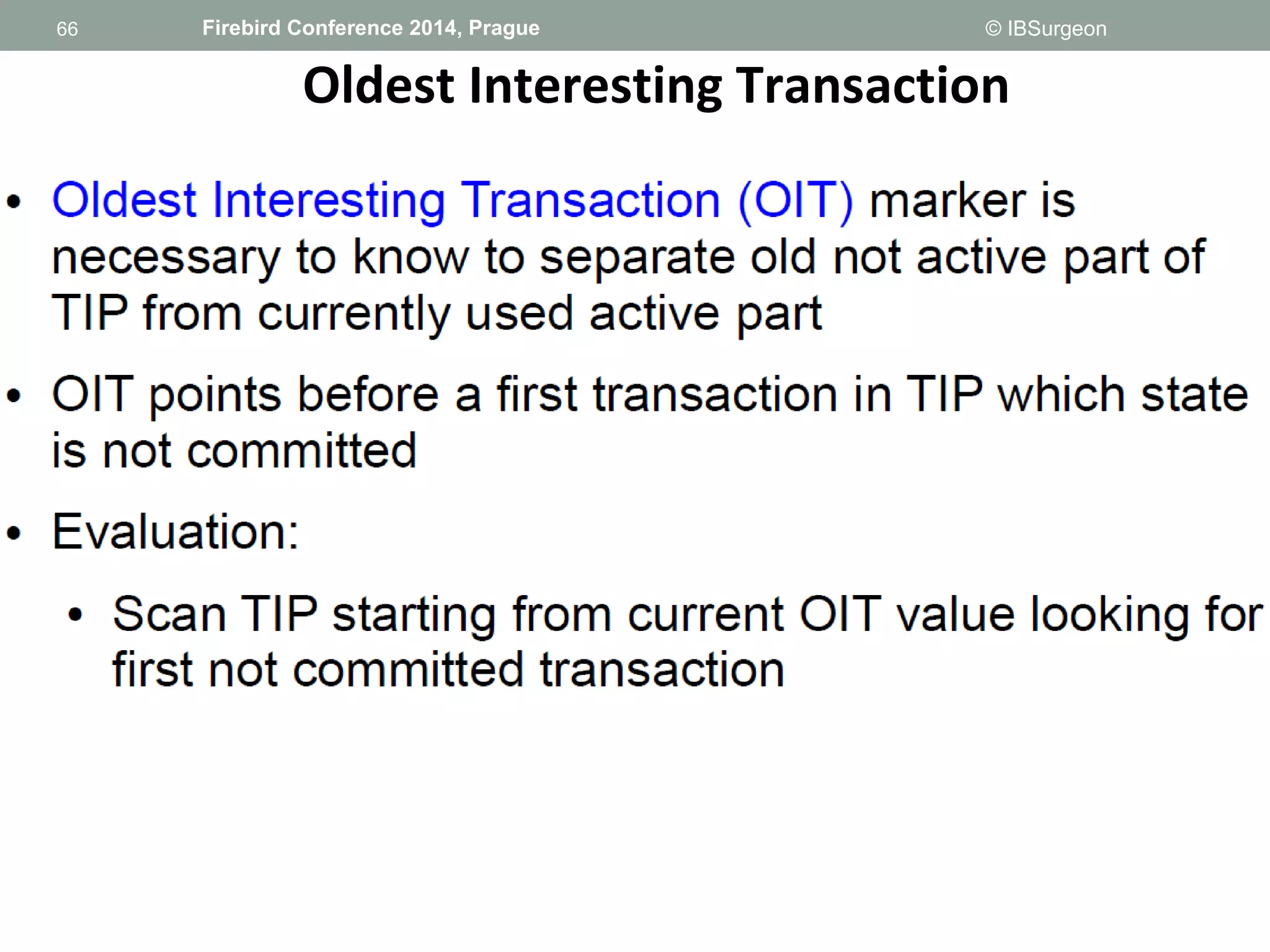

Oldest Interesting Transaction
67
67 Firebird Conference 2014, Prague © IBSurgeon

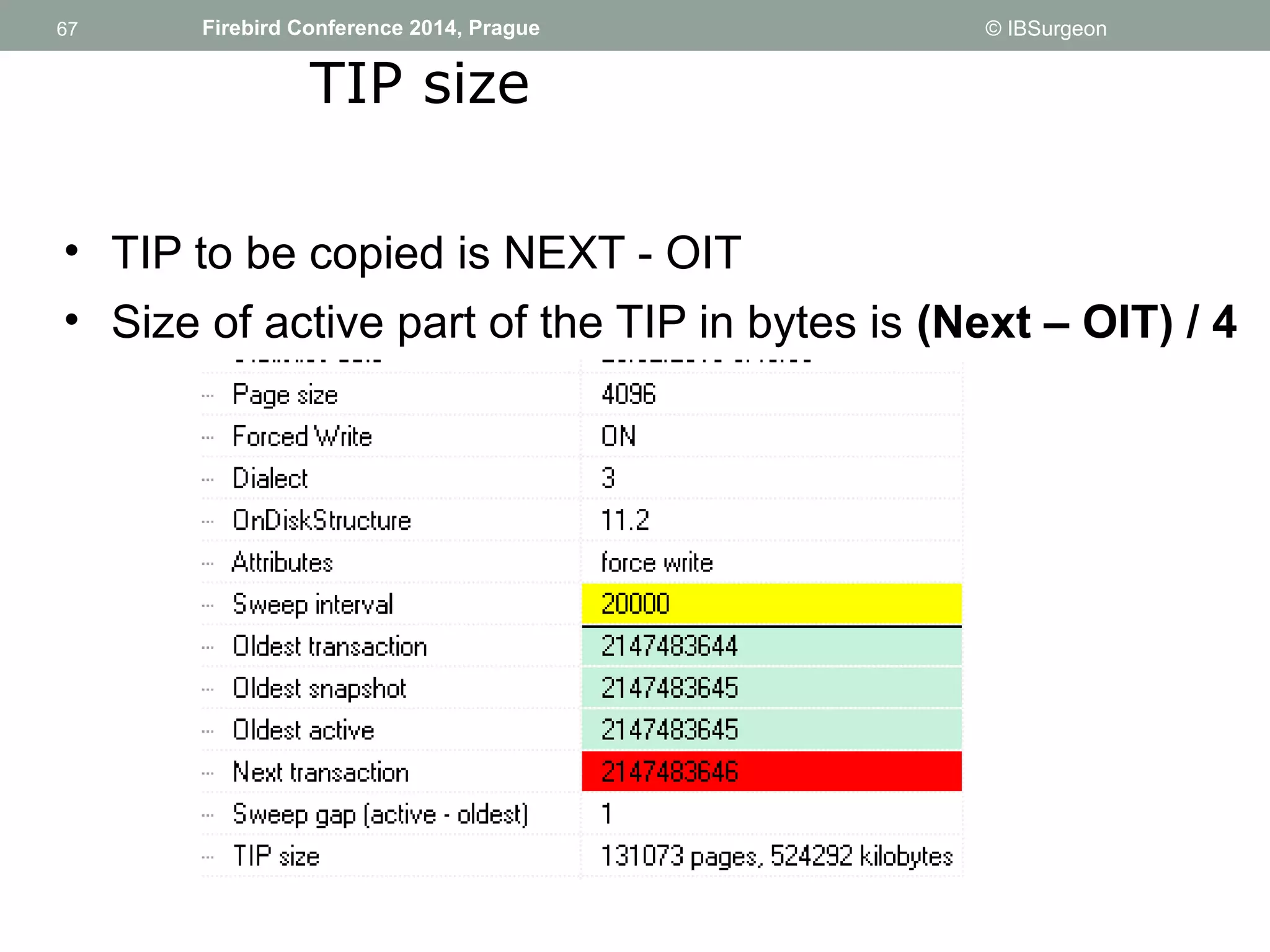

TIP size
• TIP to be copied is NEXT - OIT
• Size of active part of the TIP in bytes is (Next – OIT) / 4

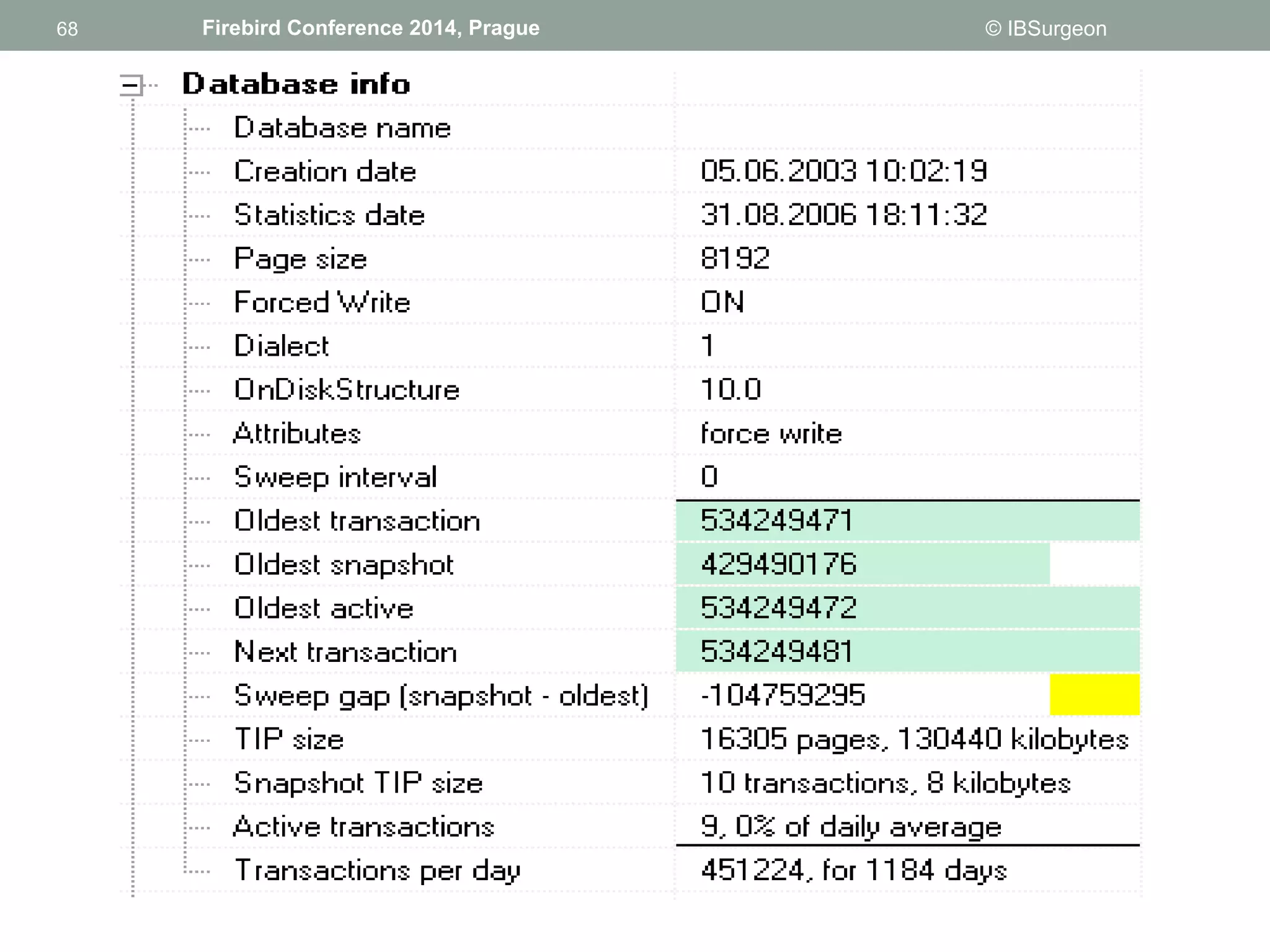

68
68 Firebird Conference 2014, Prague © IBSurgeon
69
69 Firebird Conference 2014, Prague © IBSurgeon

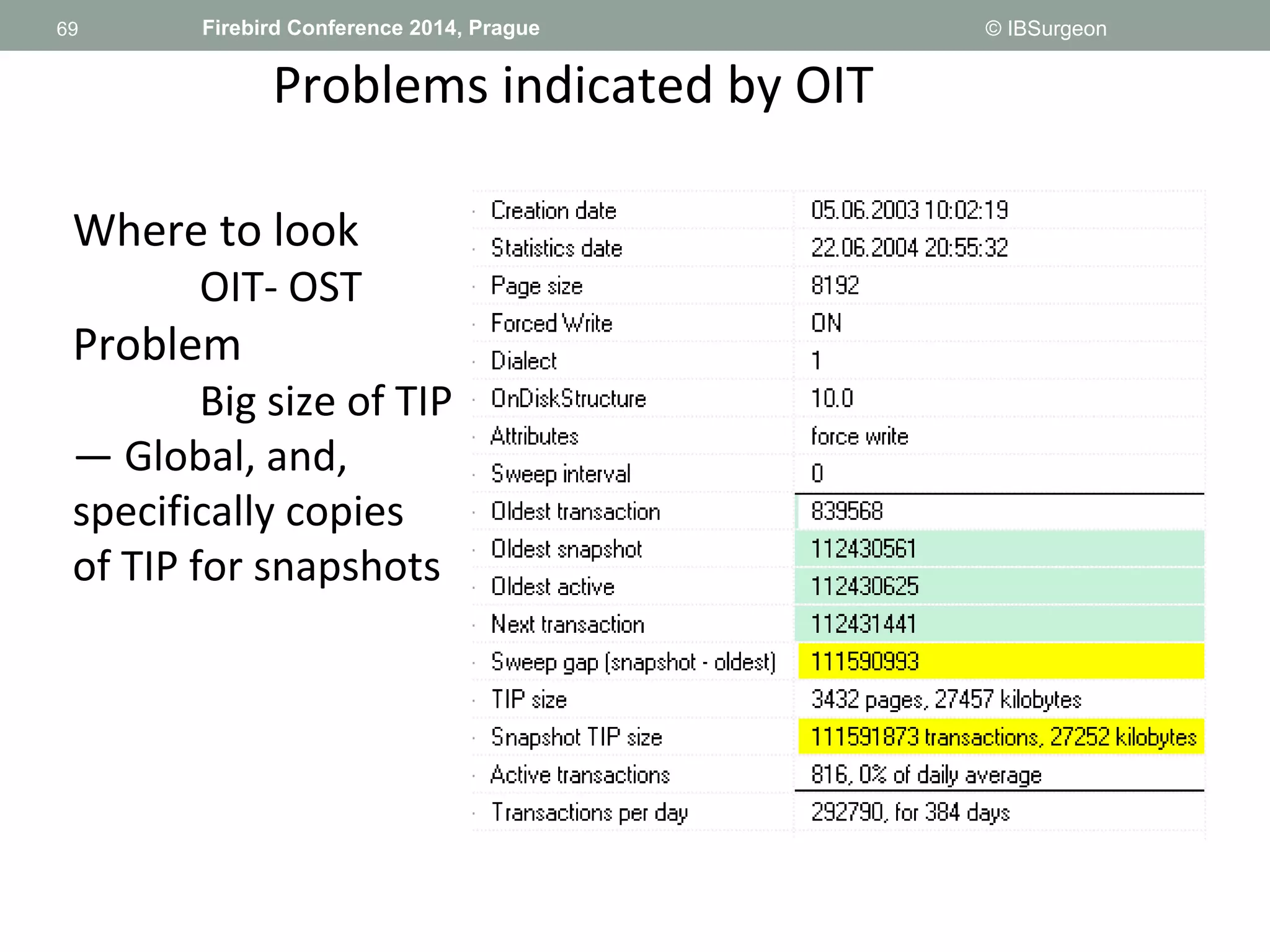

Problems indicated by OIT
Where to look
OIT- OST
Problem
Big size of TIP
— Global, and,
specifically copies
of TIP for snapshots
70
70 Firebird Conference 2014, Prague © IBSurgeon

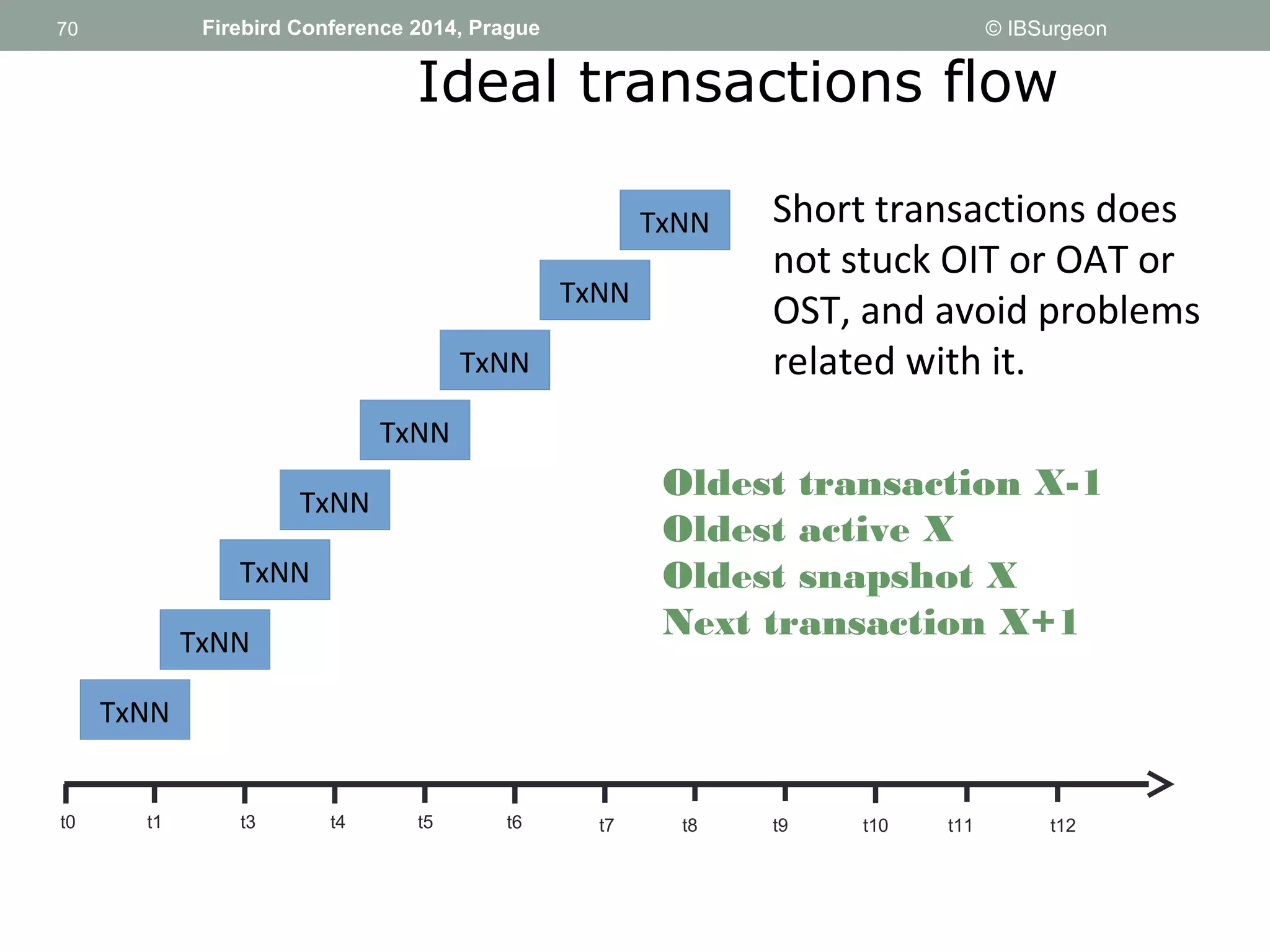

Ideal transactions flow
TxNN
TxNN
TxNN
TxNN
TxNN
TxNN
TxNN
TxNN Short transactions does
not stuck OIT or OAT or
OST, and avoid problems
related with it.
Oldest transaction X-1
Oldest active X
Oldest snapshot X
Next transaction X+1
t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
71
71 Firebird Conference 2014, Prague © IBSurgeon

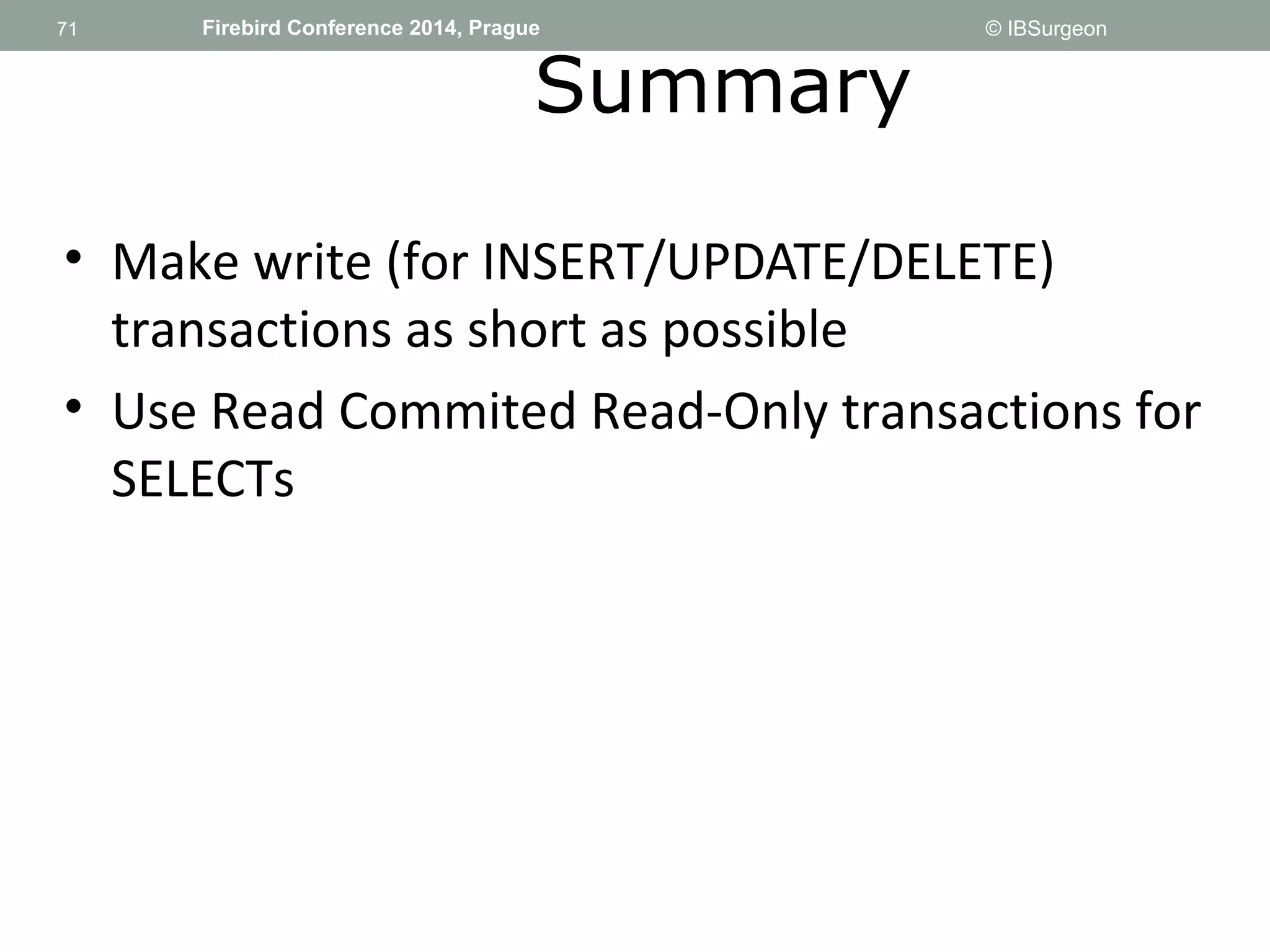

Summary
• Make write (for INSERT/UPDATE/DELETE)
transactions as short as possible
• Use Read Commited Read-Only transactions for
SELECTs
72
72 Firebird Conference 2014, Prague © IBSurgeon
Thank you!
• Questions? support@ib-aid.com

More Related Content

Viewers also liked

Firebird
FirebirdFirebird
Firebird
Chinsan Huang

New SQL Features in Firebird 3, by Vlad Khorsun
New SQL Features in Firebird 3, by Vlad KhorsunNew SQL Features in Firebird 3, by Vlad Khorsun
New SQL Features in Firebird 3, by Vlad Khorsun
Mind The Firebird

Tips for using Firebird system tables
Tips for using Firebird system tablesTips for using Firebird system tables
Tips for using Firebird system tables
Mind The Firebird

SuperServer in Firebird 3
SuperServer in Firebird 3SuperServer in Firebird 3
SuperServer in Firebird 3
Mind The Firebird

Life with big Firebird databases
Life with big Firebird databasesLife with big Firebird databases
Life with big Firebird databases
Alexey Kovyazin

Resolving Firebird performance problems
Resolving Firebird performance problemsResolving Firebird performance problems
Resolving Firebird performance problems
Alexey Kovyazin


Viewers also liked (6)

Firebird
FirebirdFirebird
Firebird

New SQL Features in Firebird 3, by Vlad Khorsun
New SQL Features in Firebird 3, by Vlad KhorsunNew SQL Features in Firebird 3, by Vlad Khorsun
New SQL Features in Firebird 3, by Vlad Khorsun

Tips for using Firebird system tables
Tips for using Firebird system tablesTips for using Firebird system tables
Tips for using Firebird system tables

SuperServer in Firebird 3
SuperServer in Firebird 3SuperServer in Firebird 3
SuperServer in Firebird 3

Life with big Firebird databases
Life with big Firebird databasesLife with big Firebird databases
Life with big Firebird databases

Resolving Firebird performance problems
Resolving Firebird performance problemsResolving Firebird performance problems
Resolving Firebird performance problems


Similar to How Firebird transactions work

PLC Training Intro
PLC Training IntroPLC Training Intro
PLC Training Intro
Business Industrial Network

Efficient Scheduler for Electronic Funds Tranfer (EFT) Scenarios
Efficient Scheduler for Electronic Funds Tranfer (EFT) ScenariosEfficient Scheduler for Electronic Funds Tranfer (EFT) Scenarios
Efficient Scheduler for Electronic Funds Tranfer (EFT) Scenarios
rrrighi

Dee2034 chapter 6 register
Dee2034 chapter 6 registerDee2034 chapter 6 register
Dee2034 chapter 6 register
SITI SABARIAH SALIHIN

25.3.10 packet tracer explore a net flow implementation
25.3.10 packet tracer   explore a net flow implementation25.3.10 packet tracer   explore a net flow implementation
25.3.10 packet tracer explore a net flow implementation
Freddy Buenaño

Introduction to Microprocesso programming and interfacing.pptx
Introduction to Microprocesso programming and interfacing.pptxIntroduction to Microprocesso programming and interfacing.pptx
Introduction to Microprocesso programming and interfacing.pptx
vipinkmenon1

Local or Global Sourcing and Firms' Performance: Empirical Evidence from the ...
Local or Global Sourcing and Firms' Performance: Empirical Evidence from the ...Local or Global Sourcing and Firms' Performance: Empirical Evidence from the ...
Local or Global Sourcing and Firms' Performance: Empirical Evidence from the ...
Structuralpolicyanalysis

CPU
CPUCPU
An cm-303 8-bit-siso_sipo_piso_pipo_shift_registers
An cm-303 8-bit-siso_sipo_piso_pipo_shift_registersAn cm-303 8-bit-siso_sipo_piso_pipo_shift_registers
Eee3420 lecture04 rev2011
Eee3420 lecture04 rev2011Eee3420 lecture04 rev2011
Eee3420 lecture04 rev2011
benson215

Loader
LoaderLoader
Loader
nikhilshrama

Consistent Updates in Software-De!ned Networks
Consistent Updates in Software-De!ned NetworksConsistent Updates in Software-De!ned Networks
Consistent Updates in Software-De!ned Networks
Open Networking Summits

Hardware Description Beyond Register-Transfer Level (RTL) Languages
Hardware Description Beyond Register-Transfer Level (RTL) LanguagesHardware Description Beyond Register-Transfer Level (RTL) Languages
Hardware Description Beyond Register-Transfer Level (RTL) Languages
LEGATO project

Instruction set
Instruction setInstruction set
Instruction set
Lívia Sousa

Eee3420 lecture04 rev2011
Eee3420 lecture04 rev2011Eee3420 lecture04 rev2011
Eee3420 lecture04 rev2011
benson215

OCBC_MX-3.1Pre-Post-Trade-Walk-Through.ppt
OCBC_MX-3.1Pre-Post-Trade-Walk-Through.pptOCBC_MX-3.1Pre-Post-Trade-Walk-Through.ppt
OCBC_MX-3.1Pre-Post-Trade-Walk-Through.ppt
Faisal Sal

Using Apache Fluo to Create a Derived Graph
Using Apache Fluo to Create a Derived GraphUsing Apache Fluo to Create a Derived Graph
Using Apache Fluo to Create a Derived Graph
Accumulo Summit

Describe the register
Describe the registerDescribe the register
Describe the register
Brenda Debra

TaxCycle Software and Tax Update Seminar Tour October 2013 for Canadian Tax P...
TaxCycle Software and Tax Update Seminar Tour October 2013 for Canadian Tax P...TaxCycle Software and Tax Update Seminar Tour October 2013 for Canadian Tax P...
TaxCycle Software and Tax Update Seminar Tour October 2013 for Canadian Tax P...
Trilogy Software

Sap edi idoc
Sap edi idocSap edi idoc
Sap edi idoc
Lokesh Modem

Running Flink in Production: The good, The bad and The in Between - Lakshmi ...
Running Flink in Production:  The good, The bad and The in Between - Lakshmi ...Running Flink in Production:  The good, The bad and The in Between - Lakshmi ...
Running Flink in Production: The good, The bad and The in Between - Lakshmi ...
Flink Forward


Similar to How Firebird transactions work (20)

PLC Training Intro
PLC Training IntroPLC Training Intro
PLC Training Intro

Efficient Scheduler for Electronic Funds Tranfer (EFT) Scenarios
Efficient Scheduler for Electronic Funds Tranfer (EFT) ScenariosEfficient Scheduler for Electronic Funds Tranfer (EFT) Scenarios
Efficient Scheduler for Electronic Funds Tranfer (EFT) Scenarios

Dee2034 chapter 6 register
Dee2034 chapter 6 registerDee2034 chapter 6 register
Dee2034 chapter 6 register

25.3.10 packet tracer explore a net flow implementation
25.3.10 packet tracer   explore a net flow implementation25.3.10 packet tracer   explore a net flow implementation
25.3.10 packet tracer explore a net flow implementation

Introduction to Microprocesso programming and interfacing.pptx
Introduction to Microprocesso programming and interfacing.pptxIntroduction to Microprocesso programming and interfacing.pptx
Introduction to Microprocesso programming and interfacing.pptx

Local or Global Sourcing and Firms' Performance: Empirical Evidence from the ...
Local or Global Sourcing and Firms' Performance: Empirical Evidence from the ...Local or Global Sourcing and Firms' Performance: Empirical Evidence from the ...
Local or Global Sourcing and Firms' Performance: Empirical Evidence from the ...

CPU
CPUCPU
CPU

An cm-303 8-bit-siso_sipo_piso_pipo_shift_registers
An cm-303 8-bit-siso_sipo_piso_pipo_shift_registersAn cm-303 8-bit-siso_sipo_piso_pipo_shift_registers
An cm-303 8-bit-siso_sipo_piso_pipo_shift_registers

Eee3420 lecture04 rev2011
Eee3420 lecture04 rev2011Eee3420 lecture04 rev2011
Eee3420 lecture04 rev2011

Loader
LoaderLoader
Loader

Consistent Updates in Software-De!ned Networks
Consistent Updates in Software-De!ned NetworksConsistent Updates in Software-De!ned Networks
Consistent Updates in Software-De!ned Networks

Hardware Description Beyond Register-Transfer Level (RTL) Languages
Hardware Description Beyond Register-Transfer Level (RTL) LanguagesHardware Description Beyond Register-Transfer Level (RTL) Languages
Hardware Description Beyond Register-Transfer Level (RTL) Languages

Instruction set
Instruction setInstruction set
Instruction set

Eee3420 lecture04 rev2011
Eee3420 lecture04 rev2011Eee3420 lecture04 rev2011
Eee3420 lecture04 rev2011

OCBC_MX-3.1Pre-Post-Trade-Walk-Through.ppt
OCBC_MX-3.1Pre-Post-Trade-Walk-Through.pptOCBC_MX-3.1Pre-Post-Trade-Walk-Through.ppt
OCBC_MX-3.1Pre-Post-Trade-Walk-Through.ppt

Using Apache Fluo to Create a Derived Graph
Using Apache Fluo to Create a Derived GraphUsing Apache Fluo to Create a Derived Graph
Using Apache Fluo to Create a Derived Graph

Describe the register
Describe the registerDescribe the register
Describe the register

TaxCycle Software and Tax Update Seminar Tour October 2013 for Canadian Tax P...
TaxCycle Software and Tax Update Seminar Tour October 2013 for Canadian Tax P...TaxCycle Software and Tax Update Seminar Tour October 2013 for Canadian Tax P...
TaxCycle Software and Tax Update Seminar Tour October 2013 for Canadian Tax P...

Sap edi idoc
Sap edi idocSap edi idoc
Sap edi idoc

Running Flink in Production: The good, The bad and The in Between - Lakshmi ...
Running Flink in Production:  The good, The bad and The in Between - Lakshmi ...Running Flink in Production:  The good, The bad and The in Between - Lakshmi ...
Running Flink in Production: The good, The bad and The in Between - Lakshmi ...


More from Mind The Firebird

Using Azure cloud and Firebird to develop applications easily
Using Azure cloud and Firebird to develop applications easilyUsing Azure cloud and Firebird to develop applications easily
Using Azure cloud and Firebird to develop applications easily
Mind The Firebird

A year in the life of Firebird .Net provider
A year in the life of Firebird .Net providerA year in the life of Firebird .Net provider
A year in the life of Firebird .Net provider
Mind The Firebird

Copycat presentation
Copycat presentationCopycat presentation
Copycat presentation
Mind The Firebird

Using ТРСС to study Firebird performance
Using ТРСС to study Firebird performanceUsing ТРСС to study Firebird performance
Using ТРСС to study Firebird performance
Mind The Firebird

Overview of RedDatabase 2.5
Overview of RedDatabase 2.5Overview of RedDatabase 2.5
Overview of RedDatabase 2.5
Mind The Firebird

Firebird Performance counters in details
Firebird Performance counters in detailsFirebird Performance counters in details
Firebird Performance counters in details
Mind The Firebird

Understanding Numbers in Firebird SQL
Understanding Numbers in Firebird SQLUnderstanding Numbers in Firebird SQL
Understanding Numbers in Firebird SQL
Mind The Firebird

Threading through InterBase, Firebird, and beyond
Threading through InterBase, Firebird, and beyondThreading through InterBase, Firebird, and beyond
Threading through InterBase, Firebird, and beyond
Mind The Firebird

Orphans, Corruption, Careful Write, and Logging
Orphans, Corruption, Careful Write, and LoggingOrphans, Corruption, Careful Write, and Logging
Orphans, Corruption, Careful Write, and Logging
Mind The Firebird

Firebird release strategy and roadmap for 2015/2016
Firebird release strategy and roadmap for 2015/2016Firebird release strategy and roadmap for 2015/2016
Firebird release strategy and roadmap for 2015/2016
Mind The Firebird

Nbackup and Backup: Internals, Usage strategy and Pitfalls, by Dmitry Kuzmenk...
Nbackup and Backup: Internals, Usage strategy and Pitfalls, by Dmitry Kuzmenk...Nbackup and Backup: Internals, Usage strategy and Pitfalls, by Dmitry Kuzmenk...
Nbackup and Backup: Internals, Usage strategy and Pitfalls, by Dmitry Kuzmenk...
Mind The Firebird

Working with Large Firebird databases
Working with Large Firebird databasesWorking with Large Firebird databases
Working with Large Firebird databases
Mind The Firebird

Stored procedures in Firebird
Stored procedures in FirebirdStored procedures in Firebird
Stored procedures in Firebird
Mind The Firebird

Firebird on Linux
Firebird on LinuxFirebird on Linux
Firebird on Linux
Mind The Firebird

Superchaging big production systems on Firebird: transactions, garbage, maint...
Superchaging big production systems on Firebird: transactions, garbage, maint...Superchaging big production systems on Firebird: transactions, garbage, maint...
Superchaging big production systems on Firebird: transactions, garbage, maint...
Mind The Firebird

Firebird meets NoSQL
Firebird meets NoSQLFirebird meets NoSQL
Firebird meets NoSQL
Mind The Firebird

Continuous Database Monitoring with the Trace API
Continuous Database Monitoring with the Trace APIContinuous Database Monitoring with the Trace API
Continuous Database Monitoring with the Trace API
Mind The Firebird

Firebird Conference 2011 - Introduction
Firebird Conference 2011 - IntroductionFirebird Conference 2011 - Introduction
Firebird Conference 2011 - Introduction
Mind The Firebird

Firebird database recovery and protection for enterprises and ISV
Firebird database recovery and protection for enterprises and ISVFirebird database recovery and protection for enterprises and ISV
Firebird database recovery and protection for enterprises and ISV
Mind The Firebird

Migration from Firebird 1.5 to Firebird 2.5
Migration from Firebird 1.5 to Firebird 2.5Migration from Firebird 1.5 to Firebird 2.5
Migration from Firebird 1.5 to Firebird 2.5
Mind The Firebird


More from Mind The Firebird (20)

Using Azure cloud and Firebird to develop applications easily
Using Azure cloud and Firebird to develop applications easilyUsing Azure cloud and Firebird to develop applications easily
Using Azure cloud and Firebird to develop applications easily

A year in the life of Firebird .Net provider
A year in the life of Firebird .Net providerA year in the life of Firebird .Net provider
A year in the life of Firebird .Net provider

Copycat presentation
Copycat presentationCopycat presentation
Copycat presentation

Using ТРСС to study Firebird performance
Using ТРСС to study Firebird performanceUsing ТРСС to study Firebird performance
Using ТРСС to study Firebird performance

Overview of RedDatabase 2.5
Overview of RedDatabase 2.5Overview of RedDatabase 2.5
Overview of RedDatabase 2.5

Firebird Performance counters in details
Firebird Performance counters in detailsFirebird Performance counters in details
Firebird Performance counters in details

Understanding Numbers in Firebird SQL
Understanding Numbers in Firebird SQLUnderstanding Numbers in Firebird SQL
Understanding Numbers in Firebird SQL

Threading through InterBase, Firebird, and beyond
Threading through InterBase, Firebird, and beyondThreading through InterBase, Firebird, and beyond
Threading through InterBase, Firebird, and beyond

Orphans, Corruption, Careful Write, and Logging
Orphans, Corruption, Careful Write, and LoggingOrphans, Corruption, Careful Write, and Logging
Orphans, Corruption, Careful Write, and Logging

Firebird release strategy and roadmap for 2015/2016
Firebird release strategy and roadmap for 2015/2016Firebird release strategy and roadmap for 2015/2016
Firebird release strategy and roadmap for 2015/2016

Nbackup and Backup: Internals, Usage strategy and Pitfalls, by Dmitry Kuzmenk...
Nbackup and Backup: Internals, Usage strategy and Pitfalls, by Dmitry Kuzmenk...Nbackup and Backup: Internals, Usage strategy and Pitfalls, by Dmitry Kuzmenk...
Nbackup and Backup: Internals, Usage strategy and Pitfalls, by Dmitry Kuzmenk...

Working with Large Firebird databases
Working with Large Firebird databasesWorking with Large Firebird databases
Working with Large Firebird databases

Stored procedures in Firebird
Stored procedures in FirebirdStored procedures in Firebird
Stored procedures in Firebird

Firebird on Linux
Firebird on LinuxFirebird on Linux
Firebird on Linux

Superchaging big production systems on Firebird: transactions, garbage, maint...
Superchaging big production systems on Firebird: transactions, garbage, maint...Superchaging big production systems on Firebird: transactions, garbage, maint...
Superchaging big production systems on Firebird: transactions, garbage, maint...

Firebird meets NoSQL
Firebird meets NoSQLFirebird meets NoSQL
Firebird meets NoSQL

Continuous Database Monitoring with the Trace API
Continuous Database Monitoring with the Trace APIContinuous Database Monitoring with the Trace API
Continuous Database Monitoring with the Trace API

Firebird Conference 2011 - Introduction
Firebird Conference 2011 - IntroductionFirebird Conference 2011 - Introduction
Firebird Conference 2011 - Introduction

Firebird database recovery and protection for enterprises and ISV
Firebird database recovery and protection for enterprises and ISVFirebird database recovery and protection for enterprises and ISV
Firebird database recovery and protection for enterprises and ISV

Migration from Firebird 1.5 to Firebird 2.5
Migration from Firebird 1.5 to Firebird 2.5Migration from Firebird 1.5 to Firebird 2.5
Migration from Firebird 1.5 to Firebird 2.5


Recently uploaded

Optimizing Your E-commerce with WooCommerce.pptx
Optimizing Your E-commerce with WooCommerce.pptxOptimizing Your E-commerce with WooCommerce.pptx
Optimizing Your E-commerce with WooCommerce.pptx
WebConnect Pvt Ltd

Boost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management AppsBoost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management Apps
Jhone kinadey

一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
kgyxske

Enhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom KittEnhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom Kitt
Peter Caitens

Hyperledger Besu 빨리 따라하기 (Private Networks)
Hyperledger Besu 빨리 따라하기 (Private Networks)Hyperledger Besu 빨리 따라하기 (Private Networks)
Hyperledger Besu 빨리 따라하기 (Private Networks)
wonyong hwang

Beginner's Guide to Observability@Devoxx PL 2024
Beginner's  Guide to Observability@Devoxx PL 2024Beginner's  Guide to Observability@Devoxx PL 2024
Beginner's Guide to Observability@Devoxx PL 2024
michniczscribd

Ensuring Efficiency and Speed with Practical Solutions for Clinical Operations
Ensuring Efficiency and Speed with Practical Solutions for Clinical OperationsEnsuring Efficiency and Speed with Practical Solutions for Clinical Operations
Ensuring Efficiency and Speed with Practical Solutions for Clinical Operations
OnePlan Solutions

Streamlining End-to-End Testing Automation
Streamlining End-to-End Testing AutomationStreamlining End-to-End Testing Automation
Streamlining End-to-End Testing Automation
Anand Bagmar

How GenAI Can Improve Supplier Performance Management.pdf
How GenAI Can Improve Supplier Performance Management.pdfHow GenAI Can Improve Supplier Performance Management.pdf
How GenAI Can Improve Supplier Performance Management.pdf
Zycus

A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...
A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...
A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...
kalichargn70th171

Hands-on with Apache Druid: Installation & Data Ingestion Steps
Hands-on with Apache Druid: Installation & Data Ingestion StepsHands-on with Apache Druid: Installation & Data Ingestion Steps
Hands-on with Apache Druid: Installation & Data Ingestion Steps
servicesNitor

The Role of DevOps in Digital Transformation.pdf
The Role of DevOps in Digital Transformation.pdfThe Role of DevOps in Digital Transformation.pdf
The Role of DevOps in Digital Transformation.pdf
mohitd6

Stork Product Overview: An AI-Powered Autonomous Delivery Fleet
Stork Product Overview: An AI-Powered Autonomous Delivery FleetStork Product Overview: An AI-Powered Autonomous Delivery Fleet
Stork Product Overview: An AI-Powered Autonomous Delivery Fleet
Vince Scalabrino

Migration From CH 1.0 to CH 2.0 and Mule 4.6 & Java 17 Upgrade.pptx
Migration From CH 1.0 to CH 2.0 and  Mule 4.6 & Java 17 Upgrade.pptxMigration From CH 1.0 to CH 2.0 and  Mule 4.6 & Java 17 Upgrade.pptx
Migration From CH 1.0 to CH 2.0 and Mule 4.6 & Java 17 Upgrade.pptx
ervikas4

🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
campbellclarkson

Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdfBaha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Paul Brebner

What is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdfWhat is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdf
kalichargn70th171

Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...
Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...
Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...
Ortus Solutions, Corp

Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data PlatformAlluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio, Inc.


Recently uploaded (20)

Optimizing Your E-commerce with WooCommerce.pptx
Optimizing Your E-commerce with WooCommerce.pptxOptimizing Your E-commerce with WooCommerce.pptx
Optimizing Your E-commerce with WooCommerce.pptx

Boost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management AppsBoost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management Apps

一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理

Enhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom KittEnhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom Kitt

Hyperledger Besu 빨리 따라하기 (Private Networks)
Hyperledger Besu 빨리 따라하기 (Private Networks)Hyperledger Besu 빨리 따라하기 (Private Networks)
Hyperledger Besu 빨리 따라하기 (Private Networks)

Beginner's Guide to Observability@Devoxx PL 2024
Beginner's  Guide to Observability@Devoxx PL 2024Beginner's  Guide to Observability@Devoxx PL 2024
Beginner's Guide to Observability@Devoxx PL 2024

Ensuring Efficiency and Speed with Practical Solutions for Clinical Operations
Ensuring Efficiency and Speed with Practical Solutions for Clinical OperationsEnsuring Efficiency and Speed with Practical Solutions for Clinical Operations
Ensuring Efficiency and Speed with Practical Solutions for Clinical Operations

Streamlining End-to-End Testing Automation
Streamlining End-to-End Testing AutomationStreamlining End-to-End Testing Automation
Streamlining End-to-End Testing Automation

How GenAI Can Improve Supplier Performance Management.pdf
How GenAI Can Improve Supplier Performance Management.pdfHow GenAI Can Improve Supplier Performance Management.pdf
How GenAI Can Improve Supplier Performance Management.pdf

A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...
A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...
A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...

Hands-on with Apache Druid: Installation & Data Ingestion Steps
Hands-on with Apache Druid: Installation & Data Ingestion StepsHands-on with Apache Druid: Installation & Data Ingestion Steps
Hands-on with Apache Druid: Installation & Data Ingestion Steps

The Role of DevOps in Digital Transformation.pdf
The Role of DevOps in Digital Transformation.pdfThe Role of DevOps in Digital Transformation.pdf
The Role of DevOps in Digital Transformation.pdf

Stork Product Overview: An AI-Powered Autonomous Delivery Fleet
Stork Product Overview: An AI-Powered Autonomous Delivery FleetStork Product Overview: An AI-Powered Autonomous Delivery Fleet
Stork Product Overview: An AI-Powered Autonomous Delivery Fleet

Migration From CH 1.0 to CH 2.0 and Mule 4.6 & Java 17 Upgrade.pptx
Migration From CH 1.0 to CH 2.0 and  Mule 4.6 & Java 17 Upgrade.pptxMigration From CH 1.0 to CH 2.0 and  Mule 4.6 & Java 17 Upgrade.pptx
Migration From CH 1.0 to CH 2.0 and Mule 4.6 & Java 17 Upgrade.pptx

🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻

Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdfBaha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...

What is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdfWhat is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdf

Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...
Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...
Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...

Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data PlatformAlluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform


How Firebird transactions work

  • 1. 1 1 Firebird Conference 2014, Prague © IBSurgeon How Firebird transactions work Dmitry Kuzmenko www.IBSurgeon.com
  • 2. 2 2 Firebird Conference 2014, Prague © IBSurgeon Thank you!
  • 3. 3 3 Firebird Conference 2014, Prague © IBSurgeon • Tools and consulting • Platinum Sponsor of Firebird Foundation • Founded in 2002: 12 years of Firebird and InterBase recoveries and consulting • Based in Moscow, Russia
  • 4. 4 4 Firebird Conference 2014, Prague © IBSurgeon Agenda What is transaction? Why we need it? How we will present about transactions Records and versions Transactions and record versions Transaction Inventory Record visibility in transactions Transaction Markers and their evaluation Some conclusions
  • 5. 5 5 Firebird Conference 2014, Prague © IBSurgeon What is transaction? • Transaction as a general concept of any dynamic system • “Classic” example • begin • -- move money from account1 to account2 • Decrease account1 • Increase account2 • end – commit/rollback • Transaction Managers
  • 6. 6 6 Firebird Conference 2014, Prague © IBSurgeon Database transaction definition • a unit of work performed against a database, and treated in a coherent and reliable way independent of other transactions. • A database transaction, by definition, must be Atomic, Consistent, Isolated and Durable
  • 7. 7 7 Firebird Conference 2014, Prague © IBSurgeon In ideal world Insert into T1(i1) values (100); SELECT i1 FROM T1 Insert into T1(i1) values (200); only serial operations
  • 8. 8 8 Firebird Conference 2014, Prague © IBSurgeon
  • 9. 9 9 Firebird Conference 2014, Prague © IBSurgeon
  • 10. 10 10 Firebird Conference 2014, Prague © IBSurgeon In real world Tx11 Tx14 INSERT T1 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12 commit UPDATE T1 nowait commit Tx20 UPDATE T1 rollback UPDATE T1
  • 11. 11 11 Firebird Conference 2014, Prague © IBSurgeon The ultimate purpose of transaction: • Concurrent execution of operations should lead to the exactly the same result as sequental execution of operations. In simple words: each transaction should run as the only transaction. For each [snapshot] transaction Firebird engine should maintain a stable view of the database.
  • 12. 12 12 Firebird Conference 2014, Prague © IBSurgeon
  • 13. 13 13 Firebird Conference 2014, Prague © IBSurgeon How Firebird does implement stable view for each transactions?
  • 14. 14 14 Firebird Conference 2014, Prague © IBSurgeon How we will present about transactions Start End Tx 11 Transaction’s number t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
  • 15. 15 15 Firebird Conference 2014, Prague © IBSurgeon How we will present about transactions Tx 11 commit Tx 12 rollback Transaction’s result Transaction’s result t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
  • 16. 16 16 Firebird Conference 2014, Prague © IBSurgeon How we will present about transactions Tx 11 commit snapshot Transaction’s parameters t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
  • 17. 17 17 Firebird Conference 2014, Prague © IBSurgeon How we will present about transactions Tx 11 commit Insert into T1(i1) values (100); snapshot Operation in the frames of transaction t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
  • 18. 18 18 Firebird Conference 2014, Prague © IBSurgeon How we will present about transactions Result of operation Tx 11 commit Insert into T1(i1) values (100); i1 100 SELECT i1 FROM T1 snapshot t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
  • 19. 19 19 Firebird Conference 2014, Prague © IBSurgeon Now let's start... Basics your [probably] know: - Everything in the database is done within transaction - Each transaction get it’s own incremented number 1, 2, 3, … etc - Firebird is a multi-version engine (each record in Firebird can have versions)
  • 20. 20 20 Firebird Conference 2014, Prague © IBSurgeon Record versions is a key thing for understanding transactions' work in Firebird.
  • 21. 21 21 Firebird Conference 2014, Prague © IBSurgeon How record versions appear Tx10 commit Insert into T1(i1) values (100); t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
  • 22. 22 22 Firebird Conference 2014, Prague © IBSurgeon How record versions appear Tx10 commit Insert into T1(i1) values (100); Tx50 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12 commit SELECT i1 FROM T1 i1 100
  • 23. 23 23 Firebird Conference 2014, Prague © IBSurgeon How record versions appear Tx10 commit Insert into T1(i1) values (100); Tx50 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12 commit SELECT i1 FROM T1 i1 100 Tx60 commit UPDATE T1 SET i1=200 new version!
  • 24. 24 24 Firebird Conference 2014, Prague © IBSurgeon How record versions appear Tx10 commit Insert into T1(i1) values (100); Tx50 i1 200 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12 commit SELECT i1 FROM T1 i1 100 SELECT i1 FROM T1 Tx60 commit UPDATE T1 SET i1=200 SELECT i1 FROM T1 i1 100
  • 25. 25 25 Firebird Conference 2014, Prague © IBSurgeon How it works?
  • 26. 26 26 Firebird Conference 2014, Prague © IBSurgeon Each record version has transaction # N on page Transaction number Datafield1, datafield2 1 50 100
  • 27. 27 27 Firebird Conference 2014, Prague © IBSurgeon TR50 read N Tx Data 1 10 100 ...
  • 28. 28 28 Firebird Conference 2014, Prague © IBSurgeon TR50 N Tx Data write TR60 1 10 100 ... read
  • 29. 29 29 Firebird Conference 2014, Prague © IBSurgeon TR50 N Tx Data TR60 1 10 100 60 200 ... read write
  • 30. 30 30 Firebird Conference 2014, Prague © IBSurgeon TR50 TR60 read N Tx Data 1 10 100 60 200 ... read write
  • 31. 31 31 Firebird Conference 2014, Prague © IBSurgeon Some intermediate conclusions 1. No “locks” are placed on the record 2. There can be a lot of committed versions for one record 3. Versions may be needed or not. If not, they can be considered as “garbage”. 4. Only one non-committed version can exist for the record (2 active transactions can’t update the same record)
  • 32. 32 32 Firebird Conference 2014, Prague © IBSurgeon How server knows about transactions states? Is transaction Active or not? •TIP – Transaction Inventory Pages • Linear list of transaction states, from 1 to last transaction number • Stored in the database • Limitation — 2 billions of transactions
  • 33. 33 33 Firebird Conference 2014, Prague © IBSurgeon Transaction states • Each transaction is represented in Transactions Inventory by it’s state • 00 – Active • 01 – Committed • 10 – Rolled back • 11 – Limbo (distributed 2-phase transactions) TIP contents Tx № Tx state … 10 committed 11 committed 12 committed 13 rolled back 14 committed 15 committed 16 committed 17 rolled back 18 active 19 committed 20 active
  • 34. 34 34 Firebird Conference 2014, Prague © IBSurgeon Tx10 commit Insert into T1(i1) values (100); Tx50 i1 200 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12 commit SELECT i1 FROM T1 i1 100 SELECT i1 FROM T1 Tx60 commit UPDATE T1 SET i1=200 SELECT i1 FROM T1 i1 100 TIP Tx State 10 Commited Tx State 10 Commited 50 Active 60 Active Tx State 10 Commited 50 Commited 60 Commited
  • 35. 35 35 Firebird Conference 2014, Prague © IBSurgeon Transaction isolation levels
  • 36. 36 36 Firebird Conference 2014, Prague © IBSurgeon IIssoollaattiioonn lleevveellss iinn FFiirreebbiirrdd Isolation levels in Firebird READ COMMITED SNAPSHOT SNAPSHOT WITH TABLE STABILITY
  • 37. 37 37 Firebird Conference 2014, Prague © IBSurgeon Snapshot Tx 51 rollback Insert into T1(i1) values (200); Tx 52 commit Insert into T1(i1) values (100); Tx 10 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12 commit SELECT FROM T1 SELECT FROM T1 snapshot i1
  • 38. 38 38 Firebird Conference 2014, Prague © IBSurgeon Read Commited Tx 15 commit Insert into T1(i1) values (100); Tx 10 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12 commit SELECT i1 FROM T1 SELECT i1 FROM T1 read commited i1 100 i1
  • 39. 39 39 Firebird Conference 2014, Prague © IBSurgeon Read Commited and Snapshot Read Committed transactions “see” global TIP. That’s why they can read committed changes of other transactions t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 Snapshot copies TIP on it’s start. It does not see any changes made by other committed transactions after snapshot start t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
  • 40. 40 40 Firebird Conference 2014, Prague © IBSurgeon TIP for Read Commited Tx 15 commit Insert into T1(i1) values (100); Tx 10 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12 commit SELECT i1 FROM T1 SELECT i1 FROM T1 read commited i1 100 i1 Tx State 10 Active Tx State 10 Active 15 Active Tx State 10 Active 15 Commited
  • 41. 41 41 Firebird Conference 2014, Prague © IBSurgeon Tx 51 rollback Insert into T1(i1) values (200); Tx 52 commit Insert into T1(i1) values (100); Tx 10 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12 commit SELECT FROM T1 SELECT FROM T1 snapshot i1 Tx State 10 Active Tx State 10 Active 51 Active 52 Active Tx State 10 Active 51 Rollback 52 Commited Tx State 10 Active TIP for snapshot
  • 42. 42 42 Firebird Conference 2014, Prague © IBSurgeon Each transaction can see: • Own created records and versions • Insert, Update, Delete • If it is Read Committed, it can see every changes that was made by committed transactions, because it looks into global TIP • If it is Snapshot, it can see own changes and record versions commited to the moment of its start, because it looks into it’s own copy of TIP
  • 43. 43 43 Firebird Conference 2014, Prague © IBSurgeon Record versions visibility
  • 44. 44 44 Firebird Conference 2014, Prague © IBSurgeon How we will present about records Each record can have versions, created by different transactions Record 10 Tx 10 100 Tx 20 200 Tx 30 555
  • 45. 45 45 Firebird Conference 2014, Prague © IBSurgeon How we will present about records Record 10 Tx 10 100 Tx 20 200 Tx 30 555 Compact representation R10 Tx 10 Tx 20 Tx 30
  • 46. 46 46 Firebird Conference 2014, Prague © IBSurgeon 3 rules of record visibilty 1) For each snapshot transaction engine maintains stable view of database 2) Transaction can not see record versions created by another active transaction 3) Transaction should walk backversions chain looking for commited backversion
  • 47. 47 47 Firebird Conference 2014, Prague © IBSurgeon Ex: record versions visibility for Tx20 Snapshot isolation, copy of TIP for Tx20
  • 48. 48 48 Firebird Conference 2014, Prague © IBSurgeon • In order to figure out which record version is visible, every transaction must read TIP • TIP can contain up to 2 Billion transactions • So each transaction should read up to 2 billions of transactions! - Damn, that's why Firebird is slow! (it's a joke)
  • 49. 49 49 Firebird Conference 2014, Prague © IBSurgeon TIP (example) We need a way to separate old, not interesting transactions from currently active part of TIP ● For this purpose engine maintains Oldest Interesting Transaction marker, or OIT
  • 50. 50 50 Firebird Conference 2014, Prague © IBSurgeon TIP (example)
  • 51. 51 51 Firebird Conference 2014, Prague © IBSurgeon
  • 52. 52 52 Firebird Conference 2014, Prague © IBSurgeon Transaction markers firebird>gstat -h A.FDB Database header page information: Flags 0 Generation 6 System Change Number 0 Page size 4096 ODS version 12.0 Oldest transaction 1 Oldest active 2 Oldest snapshot 2 Next transaction 3 Sequence number 0 Next attachment ID 3
  • 53. 53 53 Firebird Conference 2014, Prague © IBSurgeon 4 markers • Transaction markers are key characterstics of TIP and transaction mechanism – Let's see what they mean and how they evaluated: • NEXT — next transaction • OAT — Oldest Active • OST — Oldest Snapshot • OIT — Oldest Interesting
  • 54. 54 54 Firebird Conference 2014, Prague © IBSurgeon NEXT • NEXT is the simplest — it's the most recent transaction • NEXT number is written on header page
  • 55. 55 55 Firebird Conference 2014, Prague © IBSurgeon OAT - Oldest Active Transaction OAT is the first transaction in TIP which state is “active” Evaluation: ● Scan TIP starting from current OAT value looking for “active” transaction ● Save found value in transaction's lock data ● Save found value as new OAT marker OAT is really an oldest active transaction
  • 56. 56 56 Firebird Conference 2014, Prague © IBSurgeon OAT evaluation example
  • 57. 57 57 Firebird Conference 2014, Prague © IBSurgeon Problems indicated by OAT ● Where to look? ● NEXT — OAT > (number of connections * number of transaction) ● What it means? ● Long running transaction which makes Firebird to think that record versions are still needed
  • 58. 58 58 Firebird Conference 2014, Prague © IBSurgeon
  • 59. 59 59 Firebird Conference 2014, Prague © IBSurgeon
  • 60. 60 60 Firebird Conference 2014, Prague © IBSurgeon
  • 61. 61 61 Firebird Conference 2014, Prague © IBSurgeon OST and Read Commited transactions
  • 62. 62 62 Firebird Conference 2014, Prague © IBSurgeon
  • 63. 63 63 Firebird Conference 2014, Prague © IBSurgeon UPDATE T1 UPDATE T1 UPDATE T1 UPDATE T1 UPDATE T1 N Tx Data 1 4 ccc 2 1 aaa 3 2 bbb 4 3 bbbb 5 6 7 ... Select * from write rdb$database t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12 The longer transaction lasts, the higher chance to create potentially useless (potential garbage) versions
  • 64. 64 64 Firebird Conference 2014, Prague © IBSurgeon Problems indicated by OST Where to look (OST-OIT) > sweep interval What it means – Autosweep does not work (if sweep interval >0) – Some records need garbage collection
  • 65. 65 65 Firebird Conference 2014, Prague © IBSurgeon Problems caused by long running transactions • Direct • Loss of performance due to more record versions: i.e., queries become slower • More indexed reads • More data page reads • 1.5mln versions ~30mb per record • Indirect • After transaction’s end its versions become garbage, and garbage collection mechanism tries to gather it • Due to long transaction OST stuck, so autosweep (if it is not disabled) tries to start at unpredictable moment (and ends without success) • GC and sweep can consume a lot of resources • Unpredictable moment can occur at high load time
  • 66. 66 66 Firebird Conference 2014, Prague © IBSurgeon Oldest Interesting Transaction
  • 67. 67 67 Firebird Conference 2014, Prague © IBSurgeon TIP size • TIP to be copied is NEXT - OIT • Size of active part of the TIP in bytes is (Next – OIT) / 4
  • 68. 68 68 Firebird Conference 2014, Prague © IBSurgeon
  • 69. 69 69 Firebird Conference 2014, Prague © IBSurgeon Problems indicated by OIT Where to look OIT- OST Problem Big size of TIP — Global, and, specifically copies of TIP for snapshots
  • 70. 70 70 Firebird Conference 2014, Prague © IBSurgeon Ideal transactions flow TxNN TxNN TxNN TxNN TxNN TxNN TxNN TxNN Short transactions does not stuck OIT or OAT or OST, and avoid problems related with it. Oldest transaction X-1 Oldest active X Oldest snapshot X Next transaction X+1 t0 t1 t3 t4 t5 t6 t7 t8 t9 t10 t11 t12
  • 71. 71 71 Firebird Conference 2014, Prague © IBSurgeon Summary • Make write (for INSERT/UPDATE/DELETE) transactions as short as possible • Use Read Commited Read-Only transactions for SELECTs
  • 72. 72 72 Firebird Conference 2014, Prague © IBSurgeon Thank you! • Questions? support@ib-aid.com
