This document provides an overview and agenda for a presentation on integrating Drupal and SharePoint. The presentation includes a primer on SharePoint components and terminology, use cases for Drupal integration, concepts for the SharePoint module, a demo, current status and further work. The SharePoint module allows consuming and publishing SharePoint content from Drupal using REST, web services or the client object model.

1. Open Source: topics

2. Drupal & Sharepoint: anintegration storybyStefaanPonnet, FuseboxSpeaker

3. Publishing Sharepoint contenton your Drupal siteStefaan Ponnet

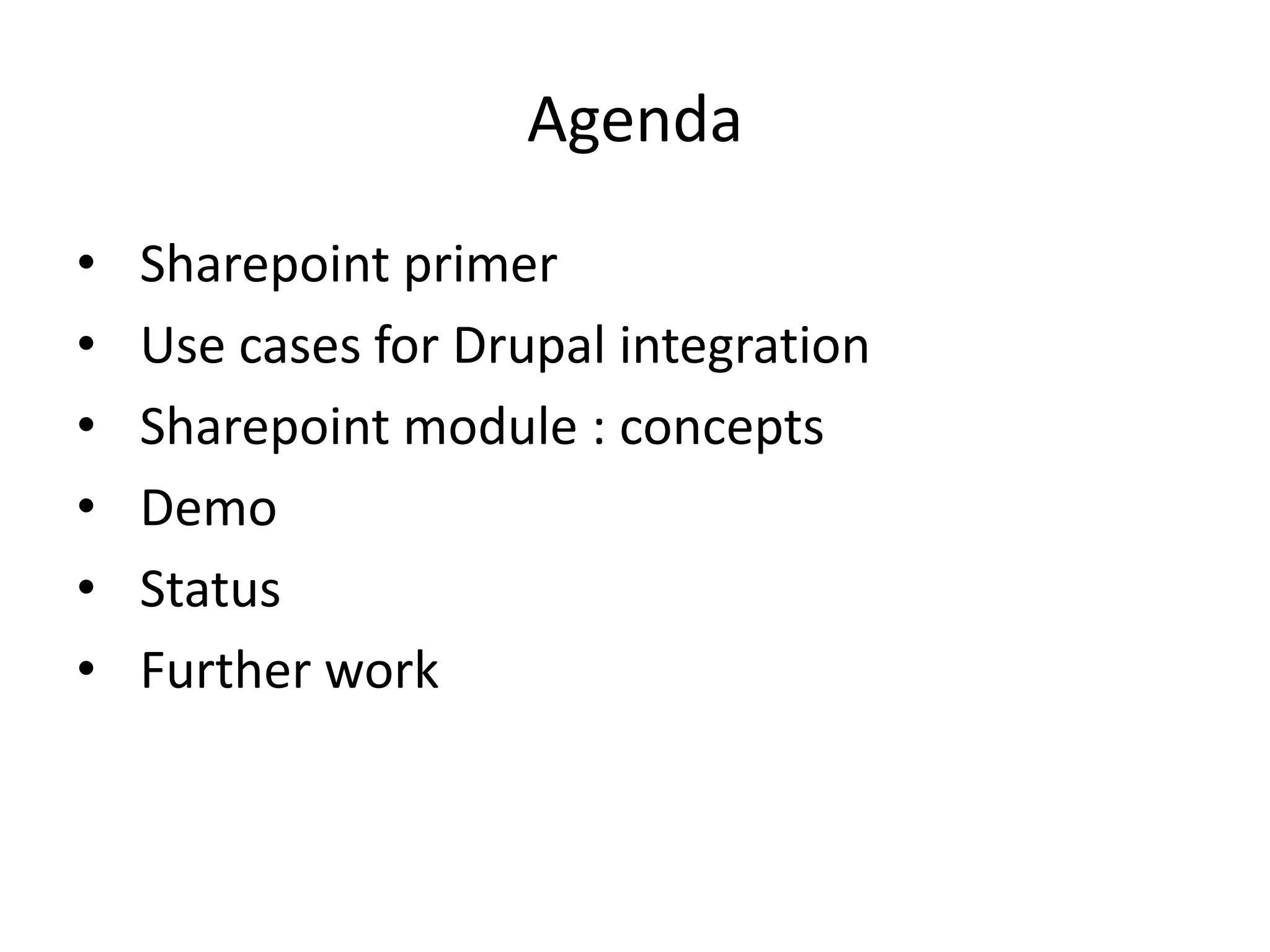

4. Sharepoint primer

5. Use cases forDrupalintegration

6. Sharepoint module : concepts

7. Demo

8. Status

9. FurtherworkAgenda

10. Quick overview of SharepointcomponentsSharepoint primer

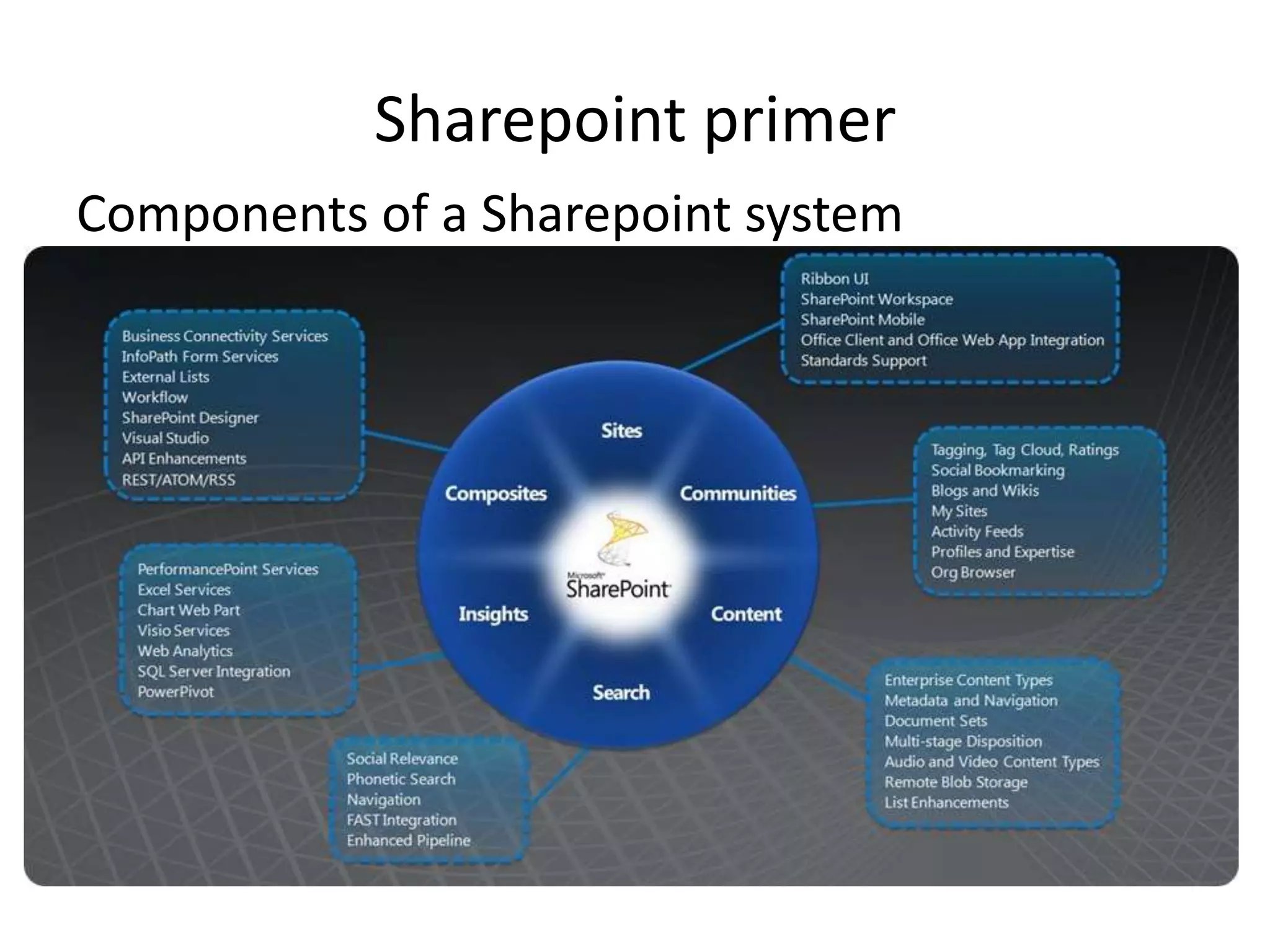

11. Sharepoint primerComponents of a Sharepoint system

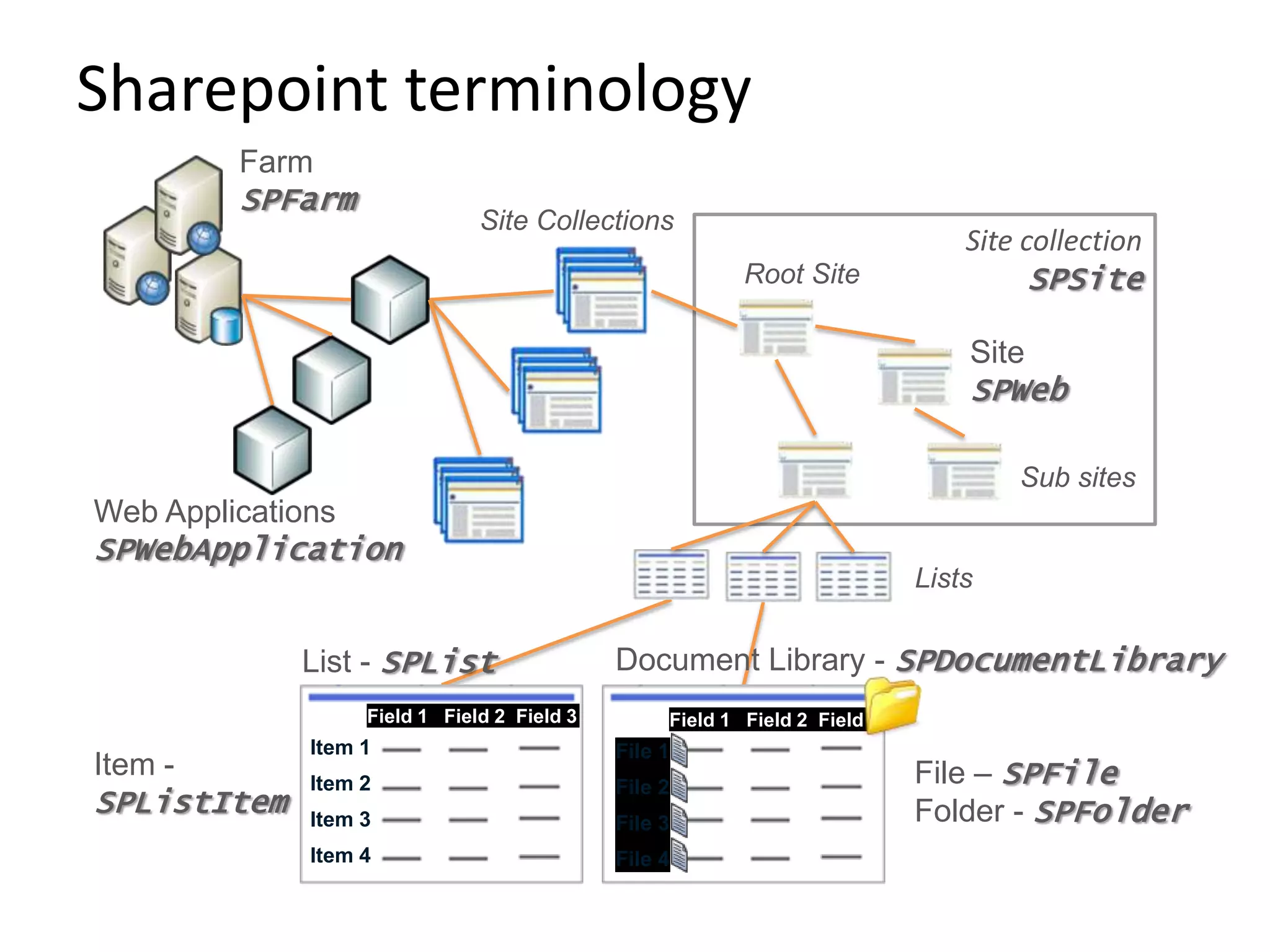

12. Sharepoint terminologyFarmSPFarmSite CollectionsSite collectionSPSiteRoot SiteSite SPWebSub sitesWeb ApplicationsSPWebApplicationListsDocument Library - SPDocumentLibraryList - SPListField 1 Field 2 Field 3Field 1 Field 2 Field 3Item 1Item 2Item 3Item 4Item -SPListItemFile 1File 2File 3File 4File – SPFileFolder - SPFolder

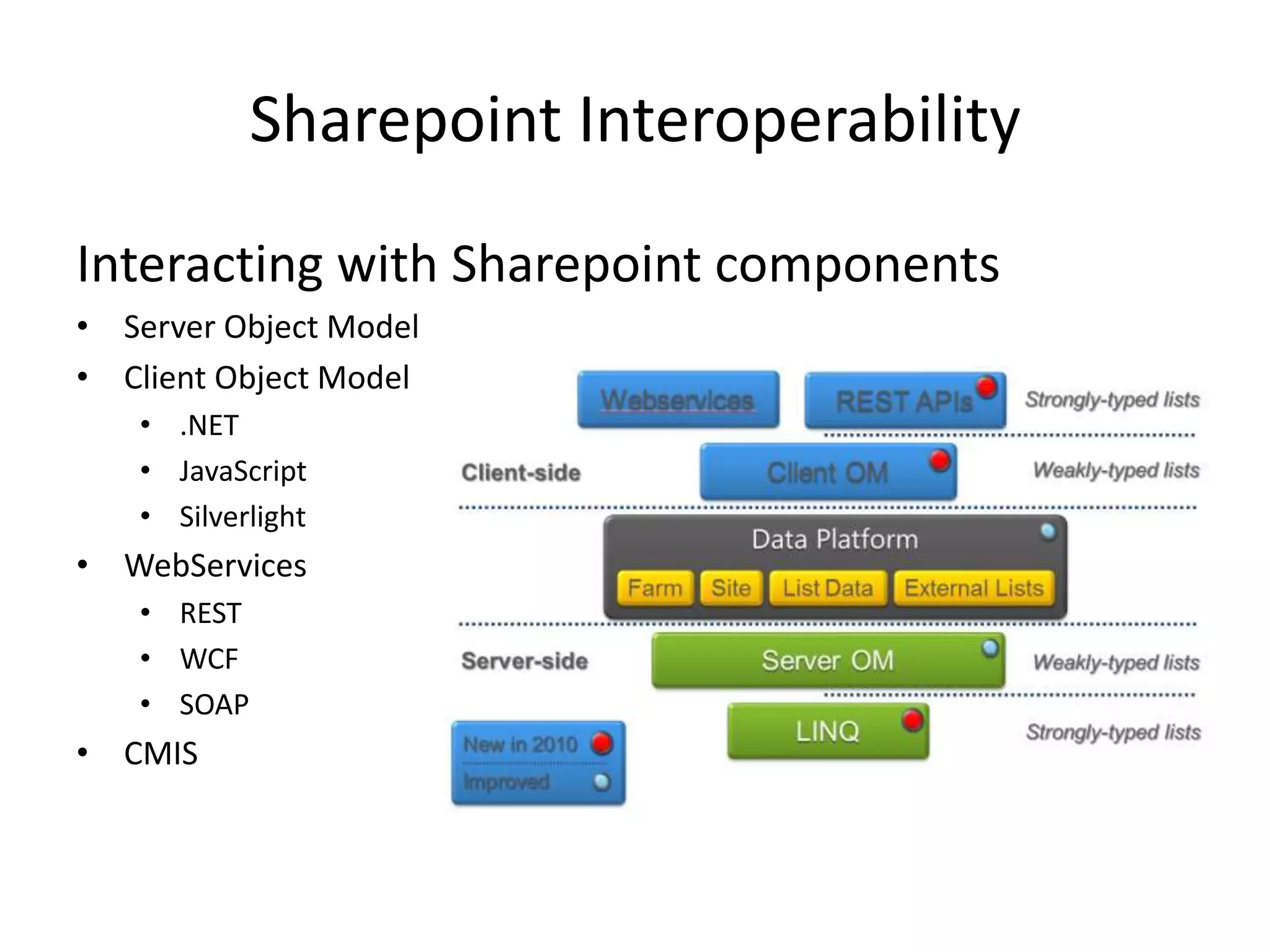

13. Interacting with Sharepoint componentsServer Object Model

14. Client Object Model

15. .NET

16. JavaScript

17. Silverlight

18. WebServices

19. REST

20. WCF

21. SOAP

22. CMISSharepoint Interoperability

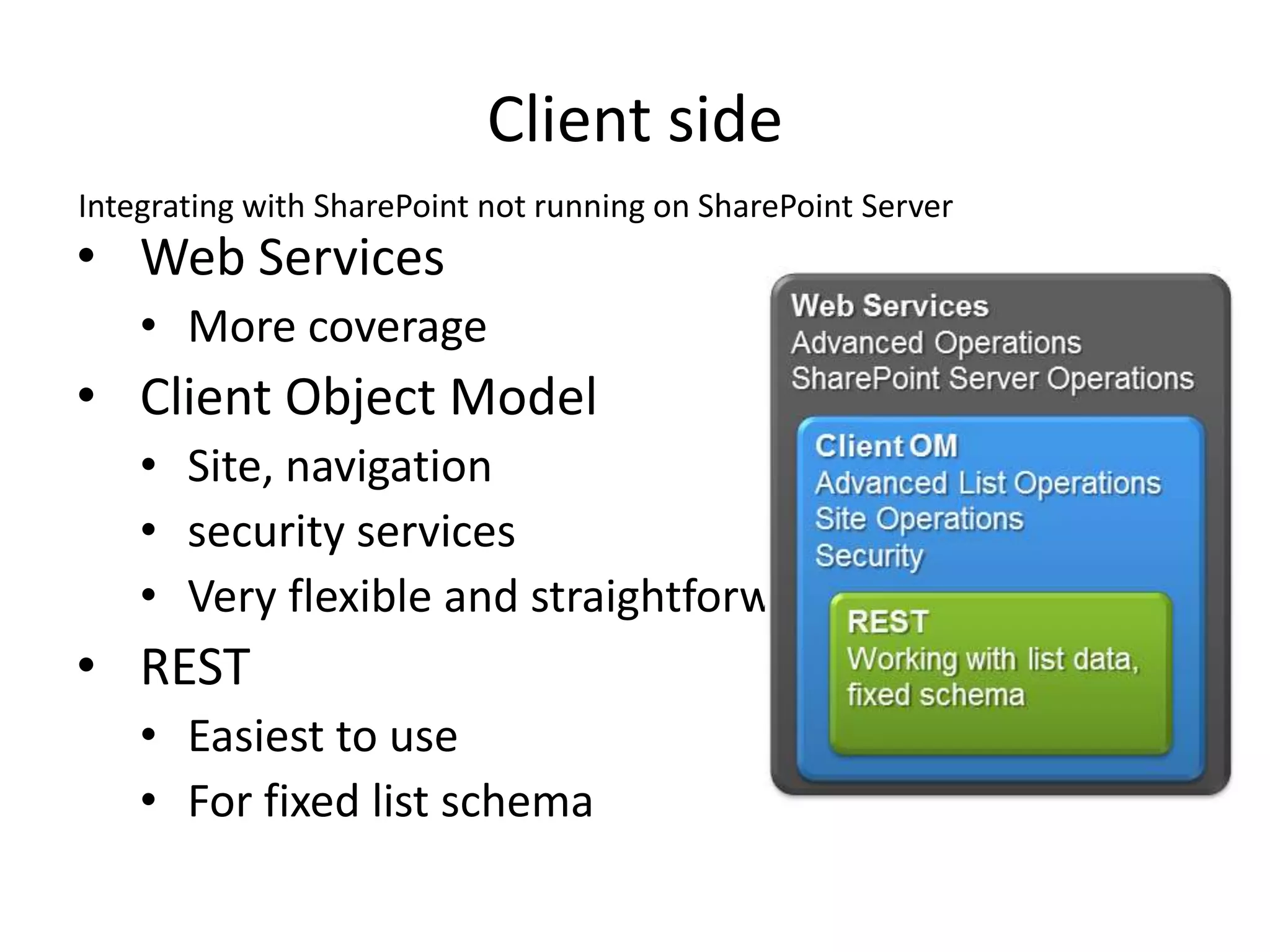

23. Web Services

24. More coverage

25. Client Object Model

26. Site, navigation

27. security services

28. Very flexible and straightforward

29. REST

30. Easiest to use

31. For fixed list schemaClientsideIntegrating with SharePoint not running on SharePoint Server

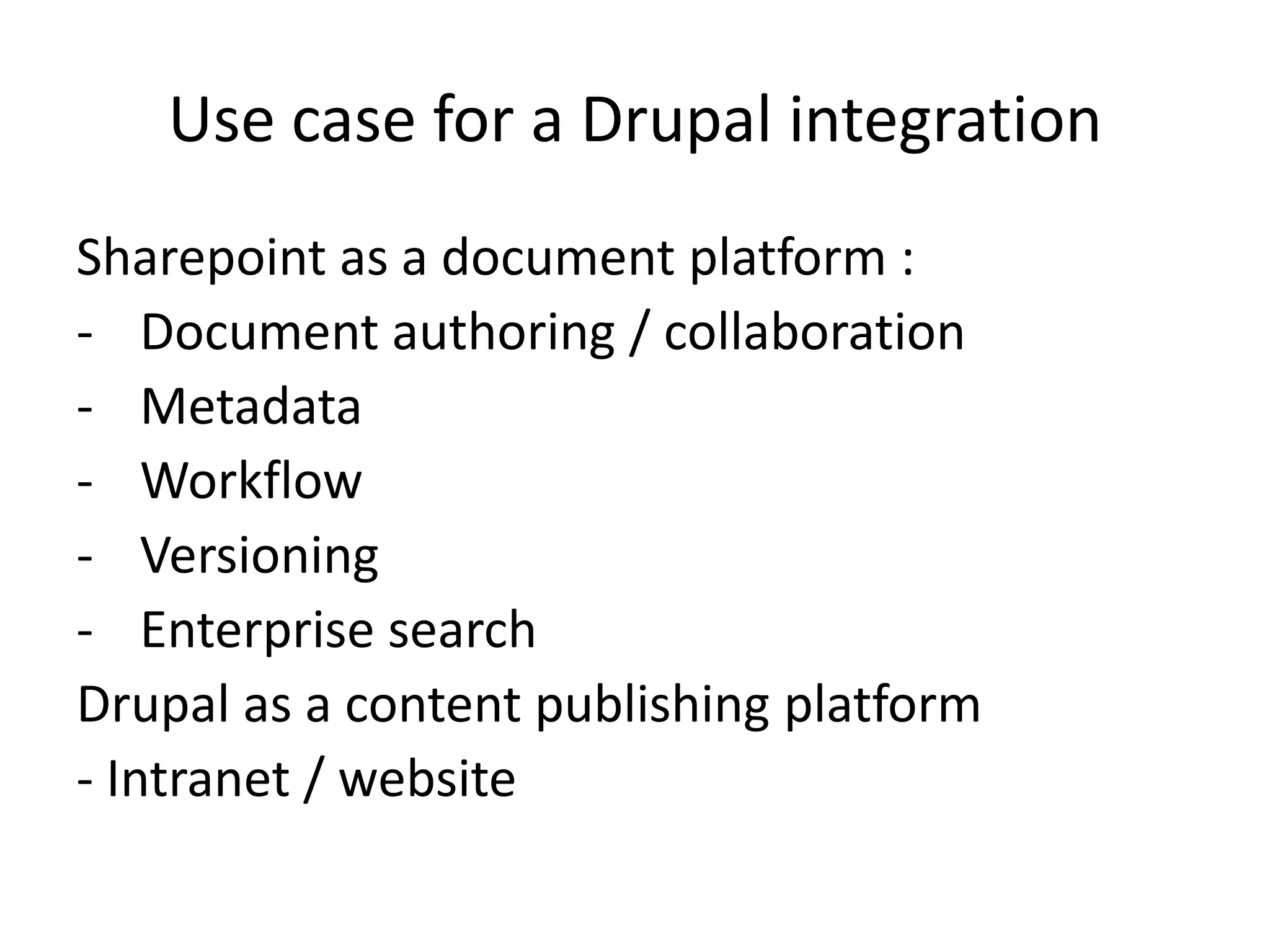

32. Sharepoint as a document platform :Document authoring / collaboration

33. Metadata

34. Workflow

35. Versioning

36. Enterprise searchDrupal as a content publishing platform- Intranet / websiteUse case for a Drupal integration

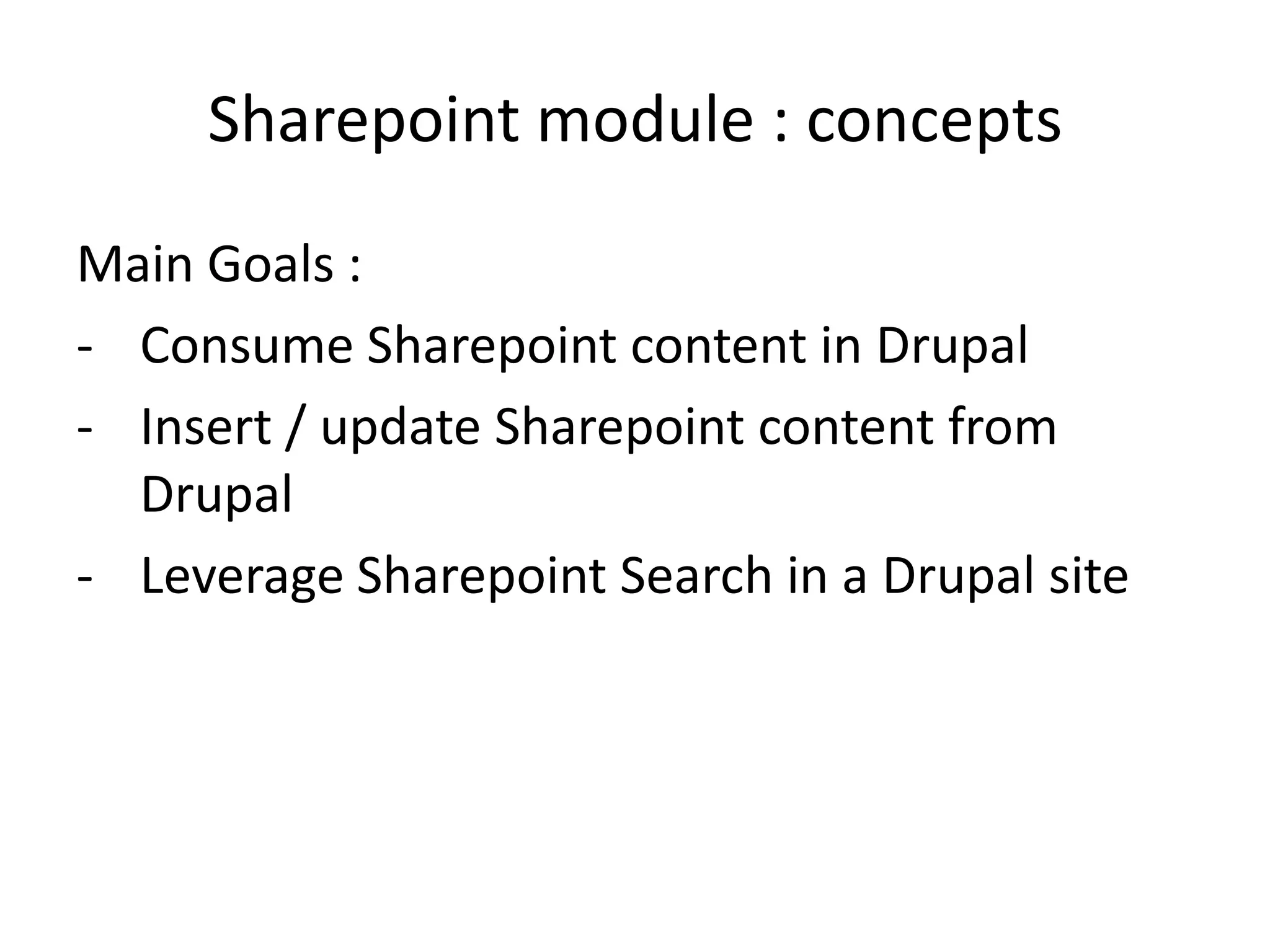

37. Main Goals :Consume Sharepoint content in Drupal

38. Insert / update Sharepoint content from Drupal

39. Leverage Sharepoint Search in a Drupal siteSharepoint module : concepts

40. RESTful interfaces:Item == resource

41. Uniform interface

42. Low barrier

43. Interoperability

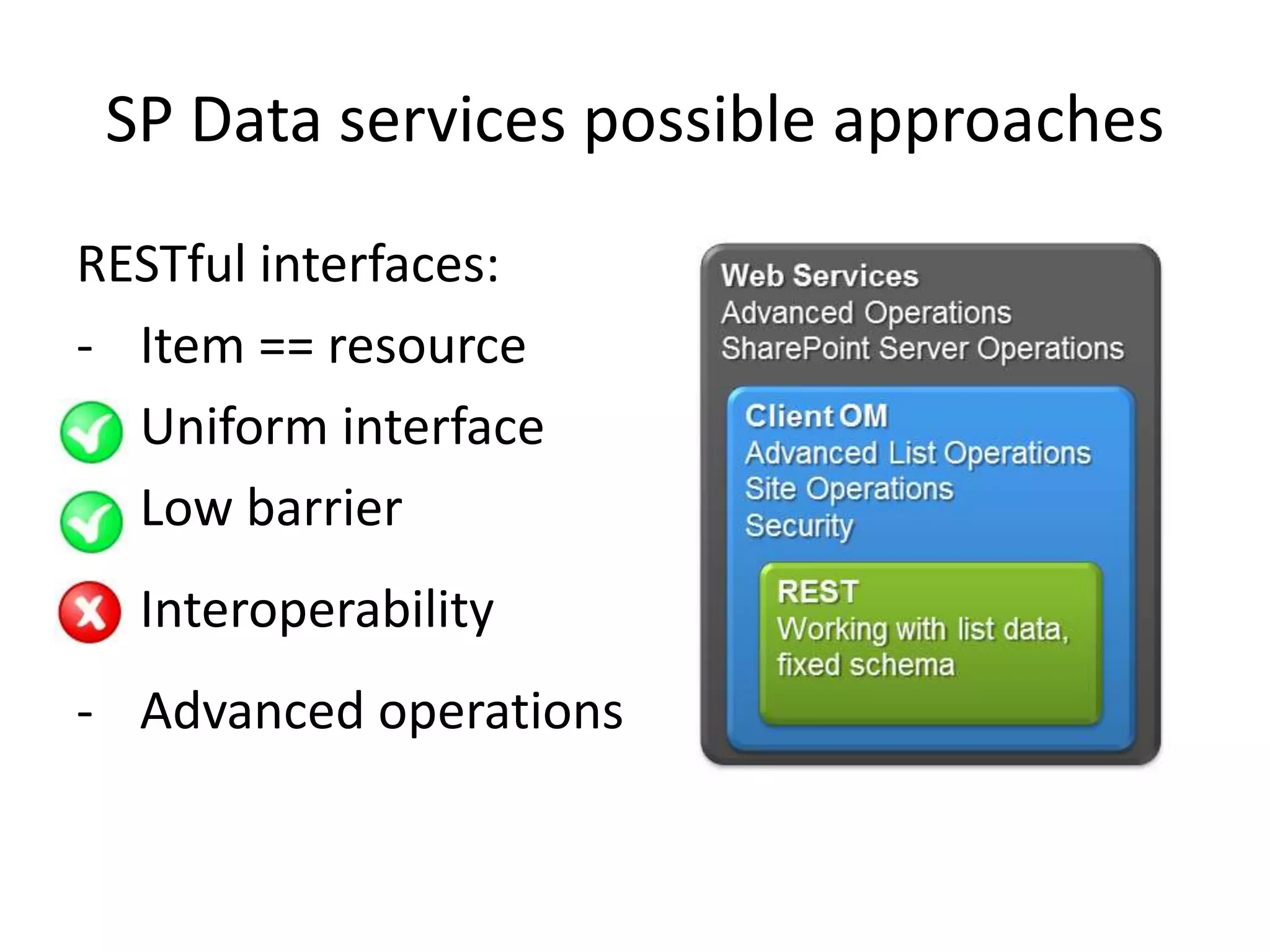

44. Advanced operationsSP Data services possible approaches

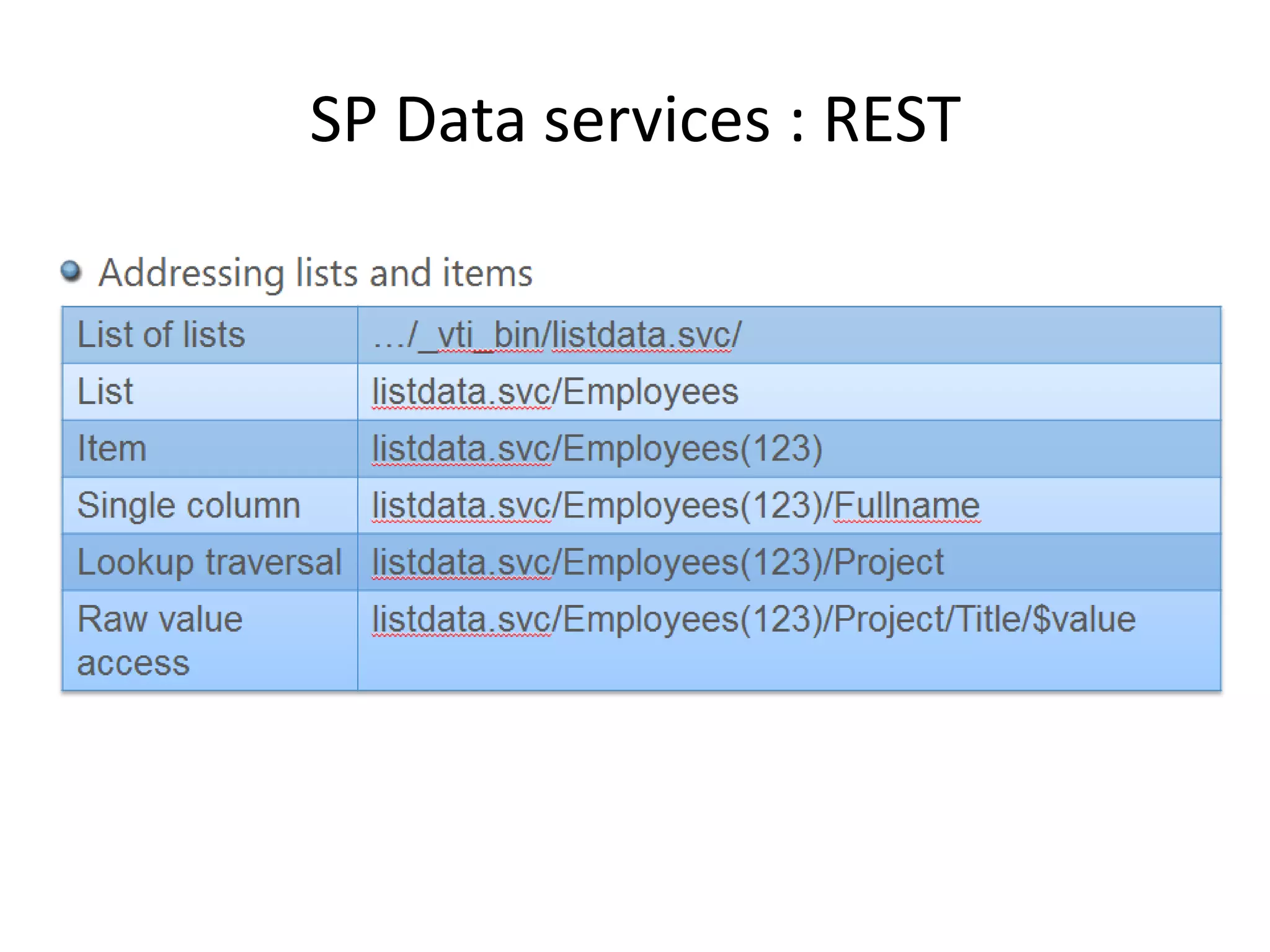

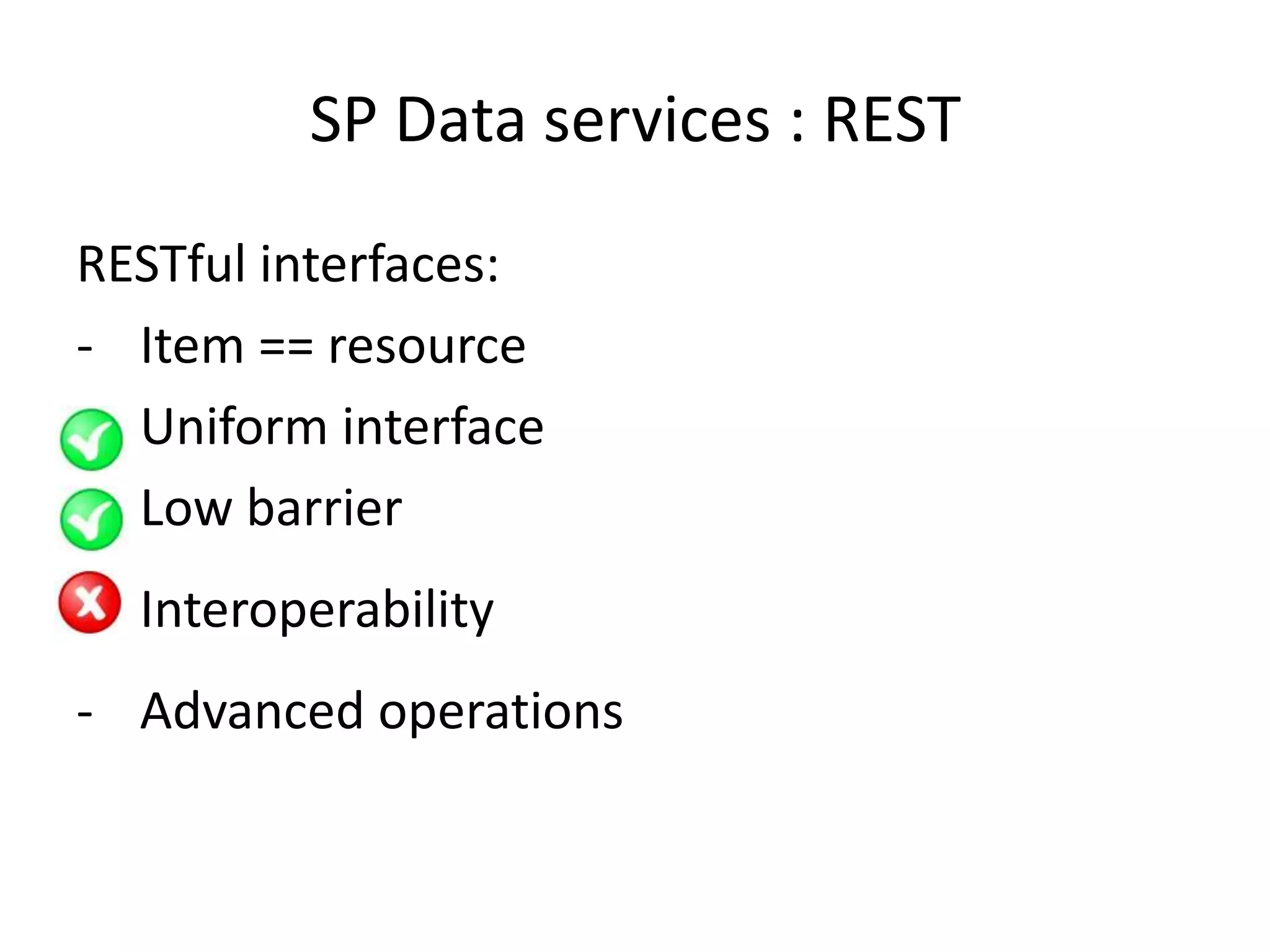

45. SP Data services : REST

46. RESTful interfaces:Item == resource

47. Uniform interface

48. Low barrier

49. Interoperability

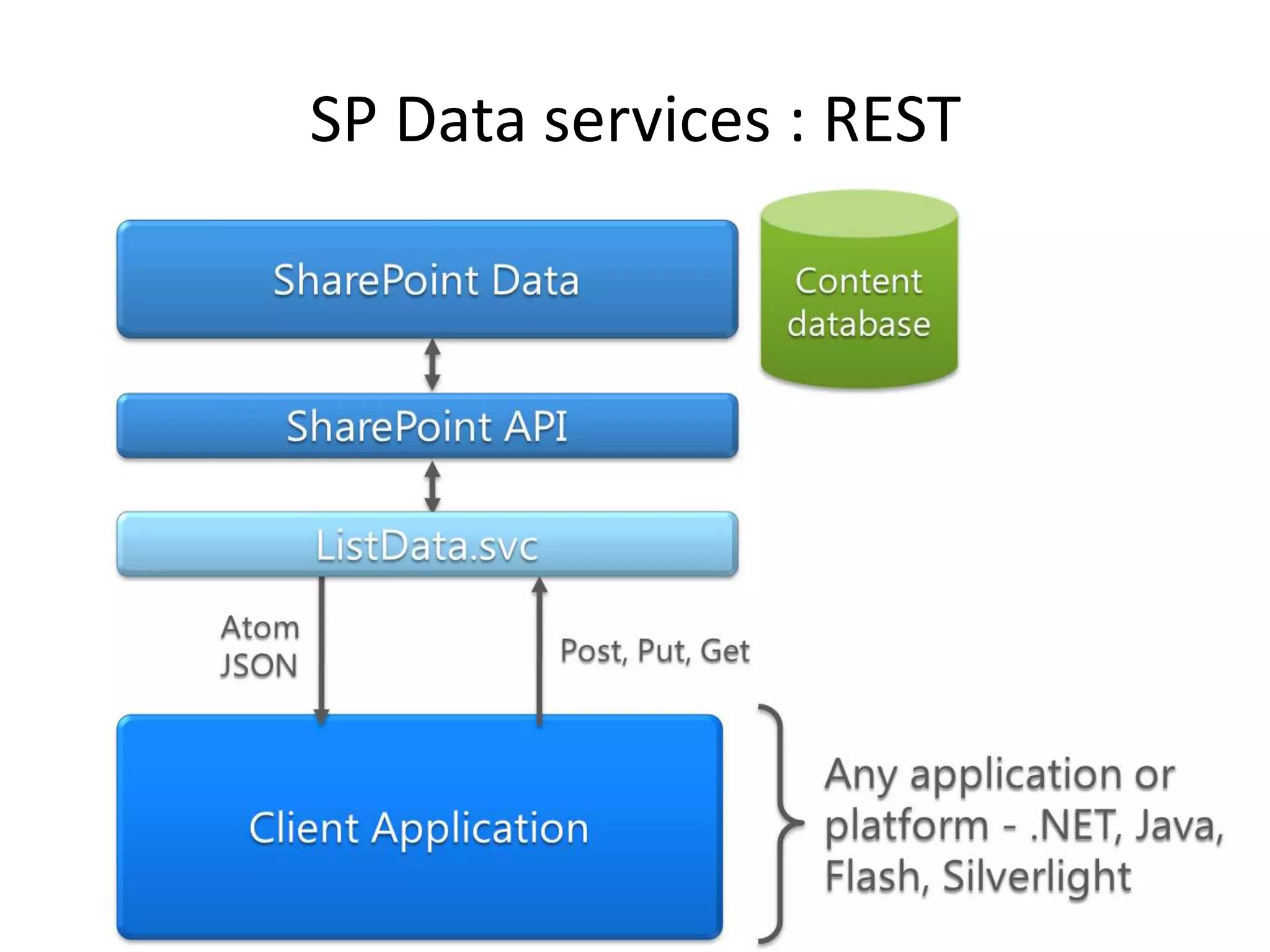

50. Advanced operationsSP Data services : REST

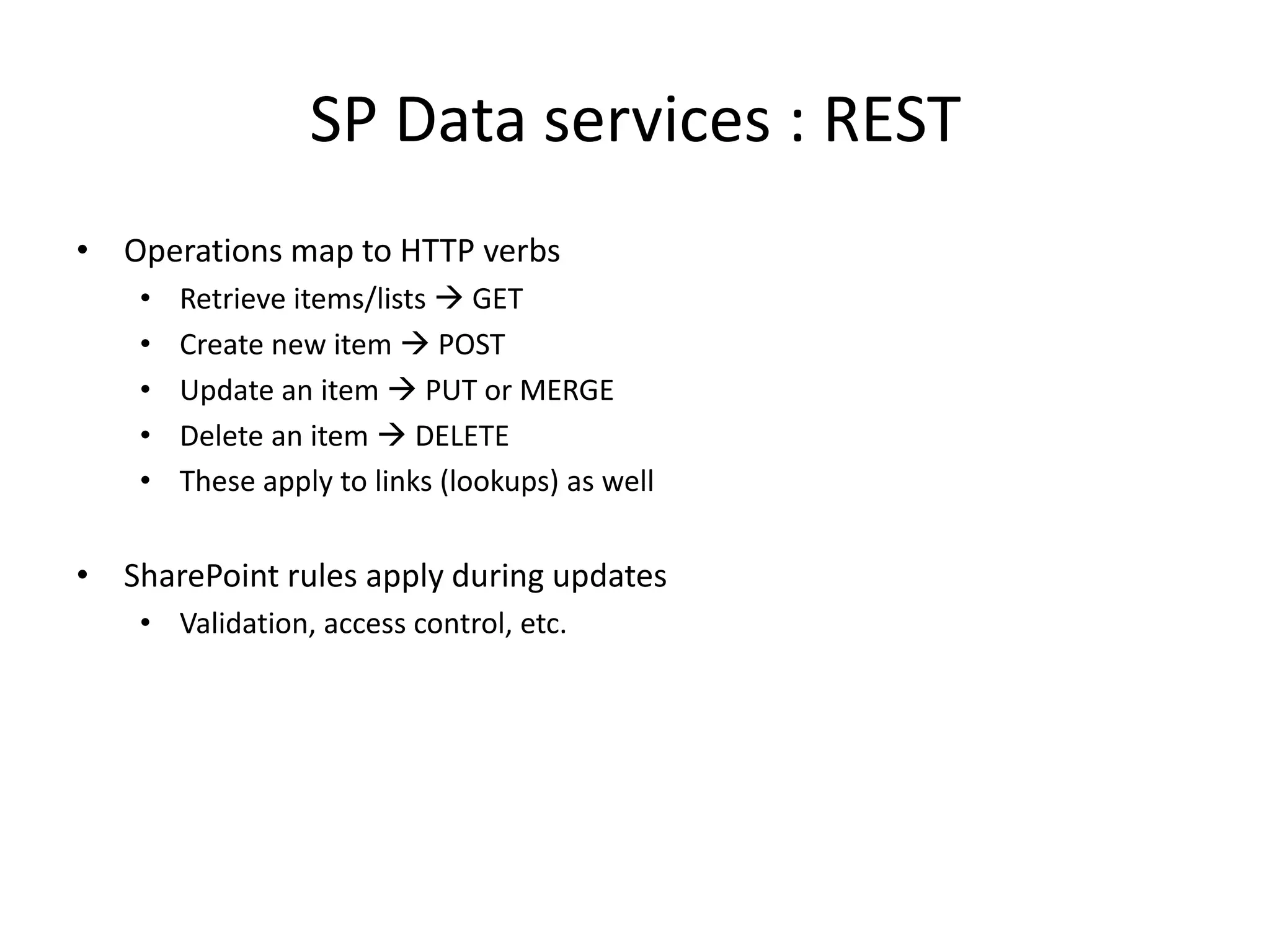

51. SP Data services : RESTOperations map to HTTP verbs

52. Retrieve items/lists  GET

53. Create new item  POST

54. Update an item  PUT or MERGE

55. Delete an item  DELETE

56. These apply to links (lookups) as well

57. SharePoint rules apply during updates

58. Validation, access control, etc.SP Data services : REST Might be worth exploring !

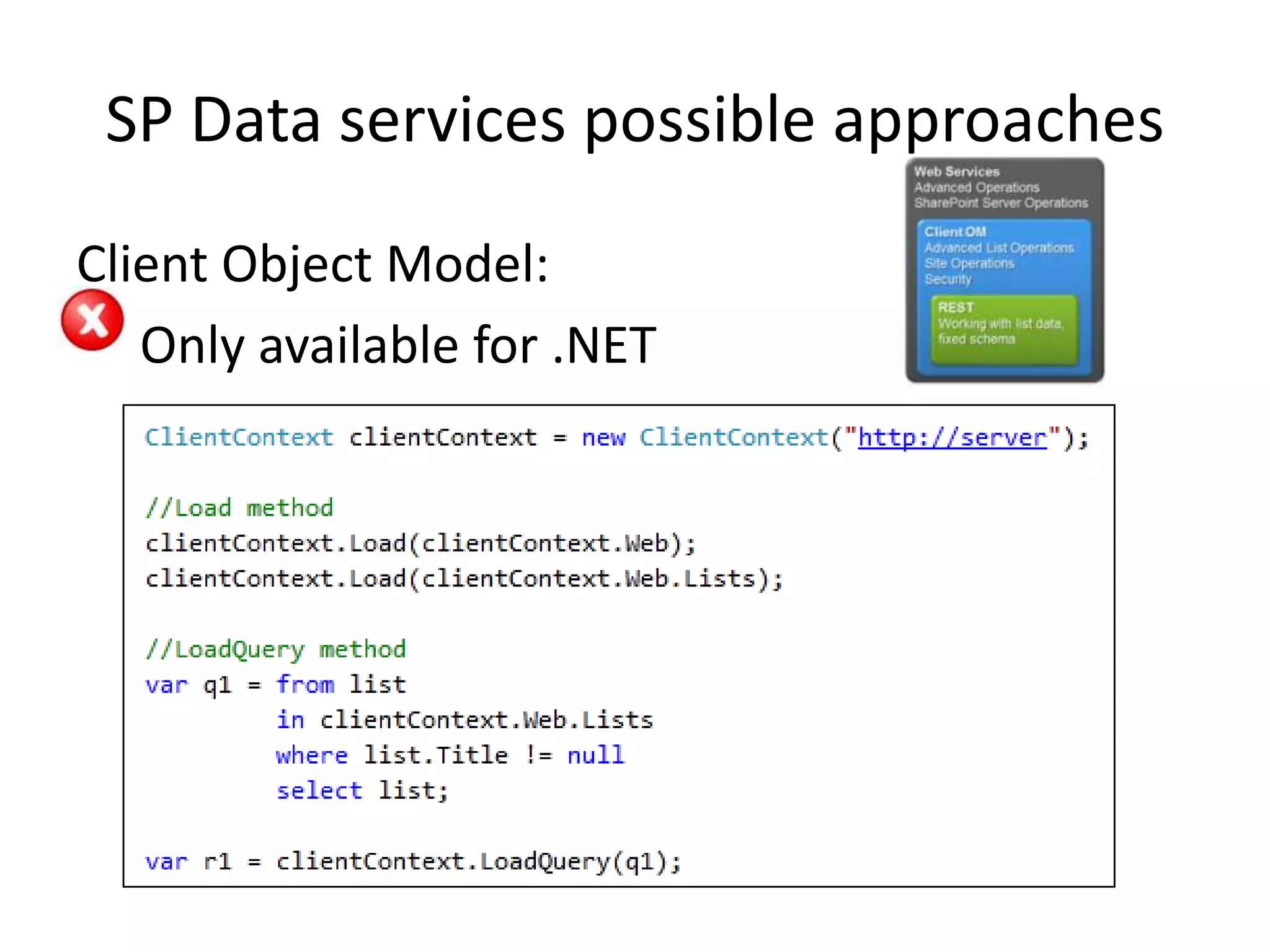

59. Client Object Model:Only available for .NETSP Data services possible approaches

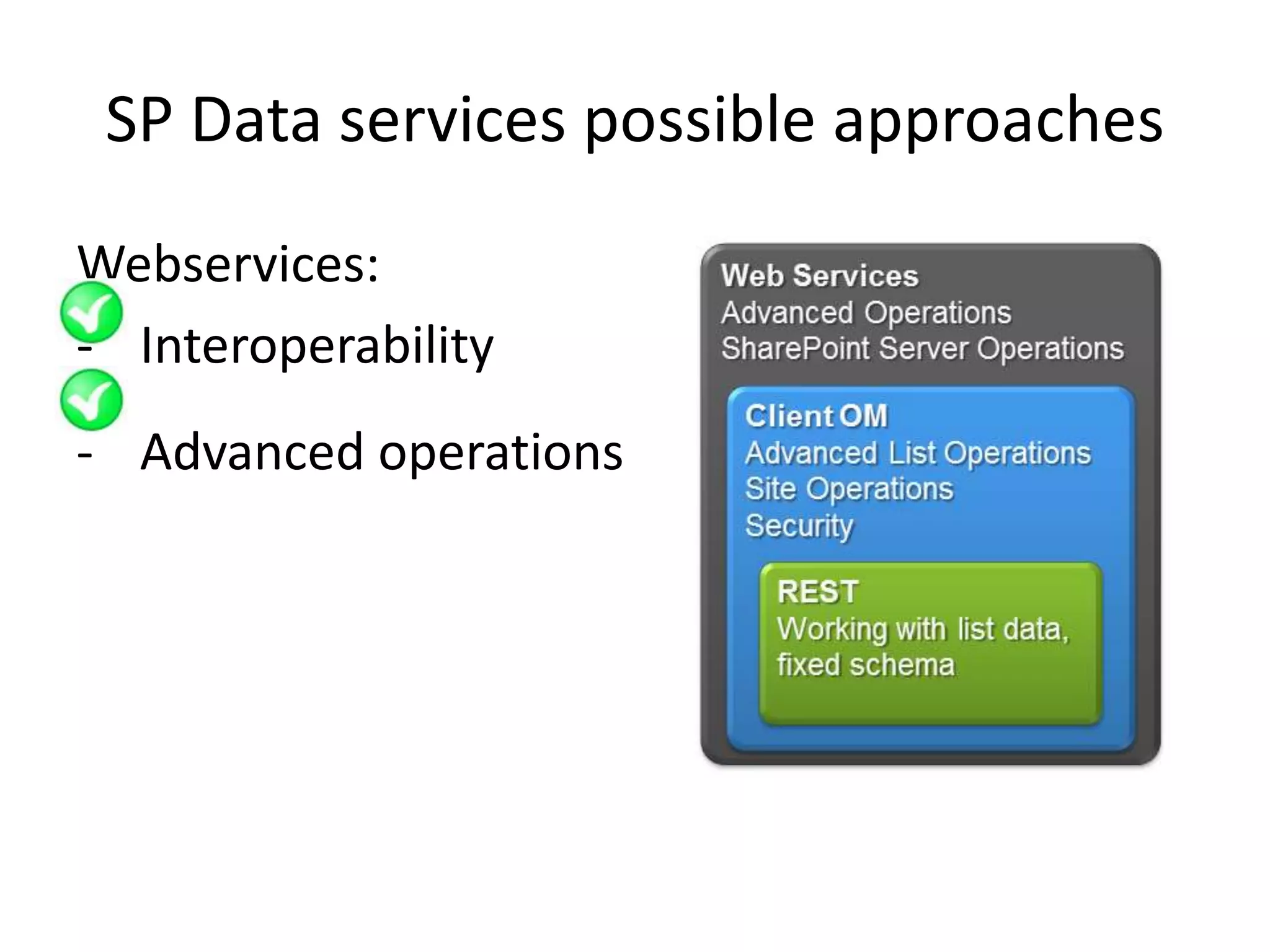

60. Webservices:Interoperability

61. Advanced operationsSP Data services possible approaches

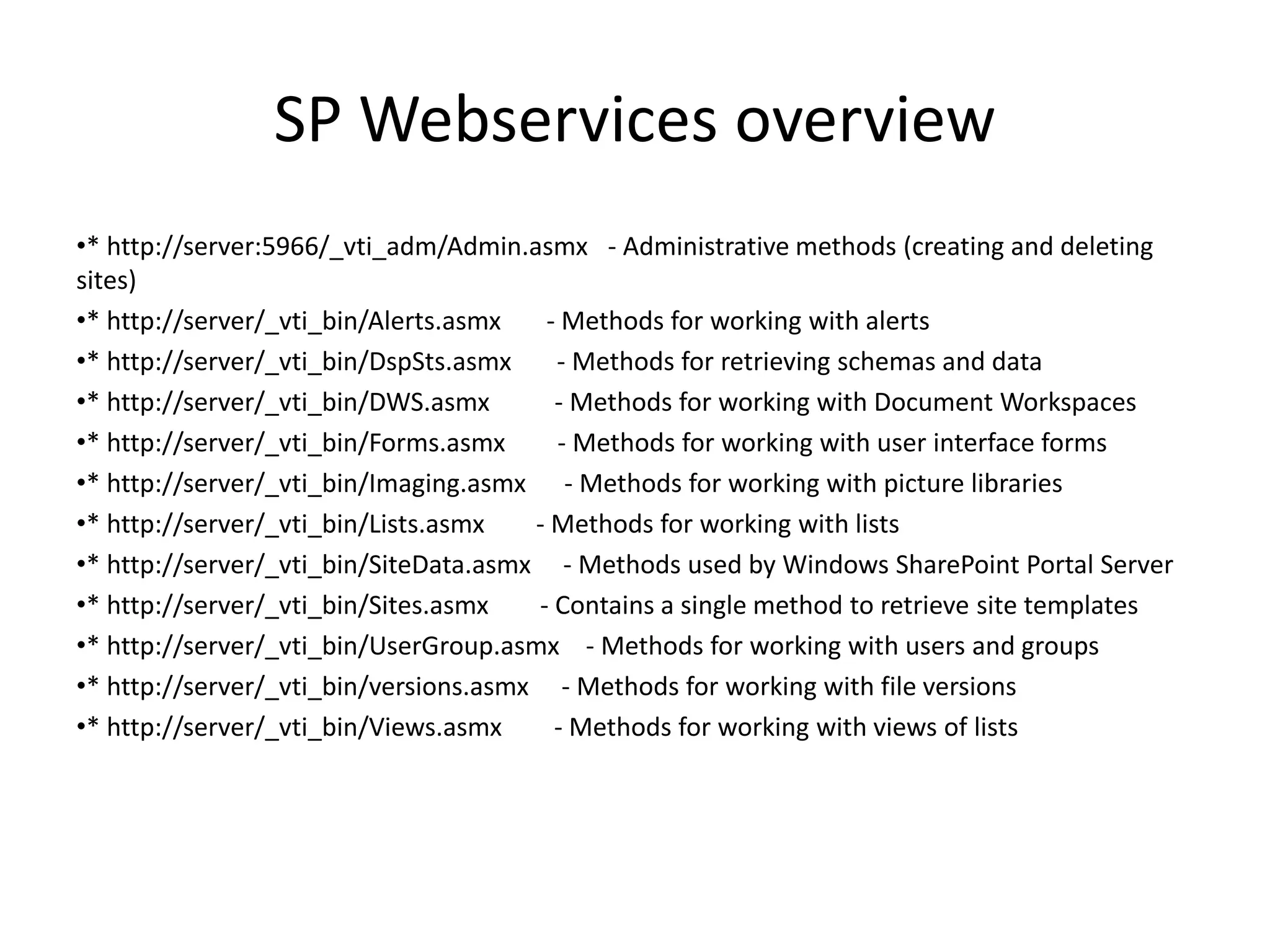

62. * http://server:5966/_vti_adm/Admin.asmx - Administrative methods (creating and deleting sites)* http://server/_vti_bin/Alerts.asmx - Methods for working with alerts* http://server/_vti_bin/DspSts.asmx - Methods for retrieving schemas and data* http://server/_vti_bin/DWS.asmx - Methods for working with Document Workspaces* http://server/_vti_bin/Forms.asmx - Methods for working with user interface forms* http://server/_vti_bin/Imaging.asmx - Methods for working with picture libraries* http://server/_vti_bin/Lists.asmx - Methods for working with lists* http://server/_vti_bin/SiteData.asmx - Methods used by Windows SharePoint Portal Server* http://server/_vti_bin/Sites.asmx - Contains a single method to retrieve site templates* http://server/_vti_bin/UserGroup.asmx - Methods for working with users and groups* http://server/_vti_bin/versions.asmx - Methods for working with file versions* http://server/_vti_bin/Views.asmx - Methods for working with views of listsSP Webservices overview

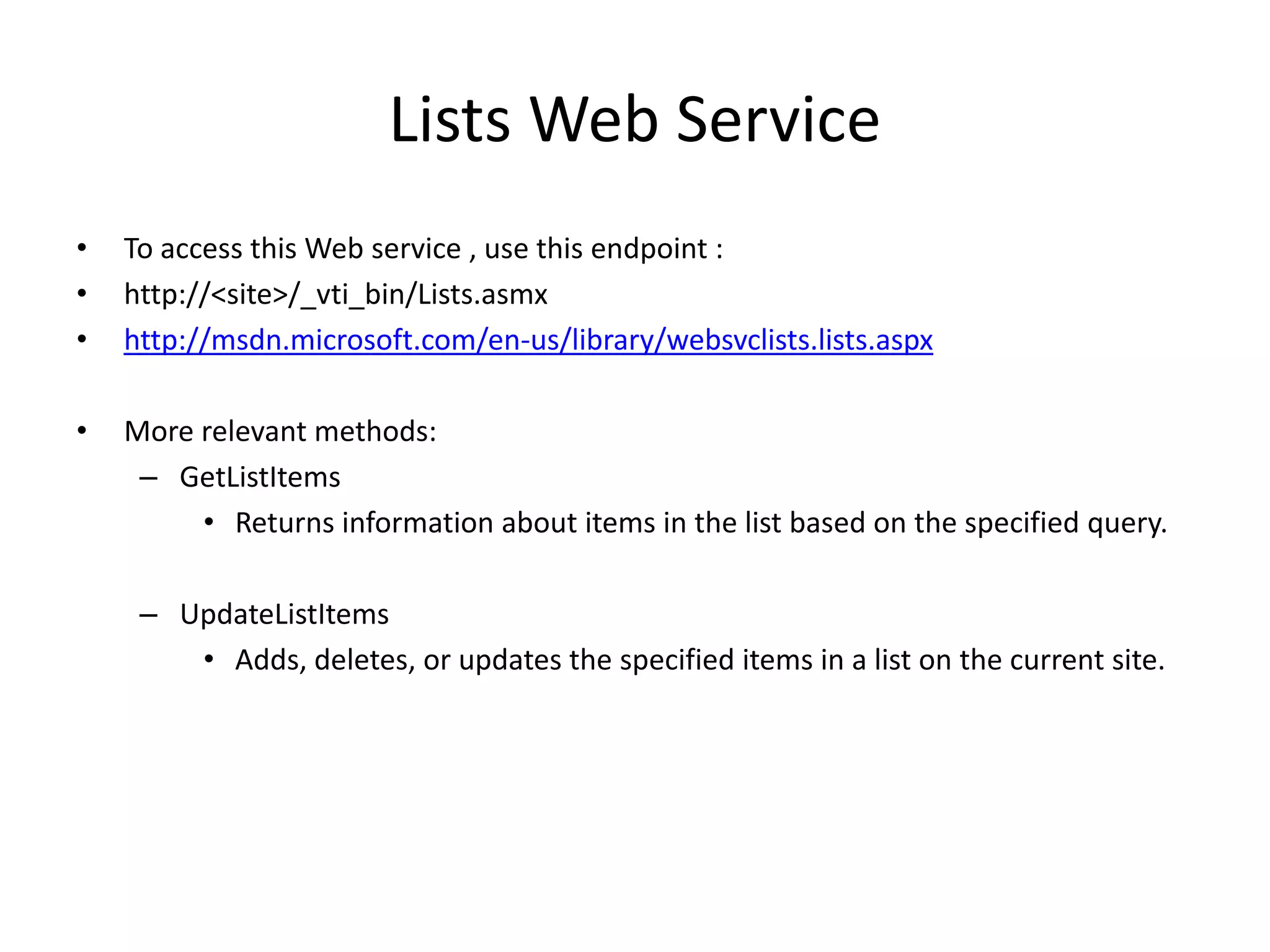

63. To access this Web service , use this endpoint :http://<site>/_vti_bin/Lists.asmx http://msdn.microsoft.com/en-us/library/websvclists.lists.aspxMore relevant methods:GetListItems Returns information about items in the list based on the specified query.UpdateListItemsAdds, deletes, or updates the specified items in a list on the current site.Lists Web Service

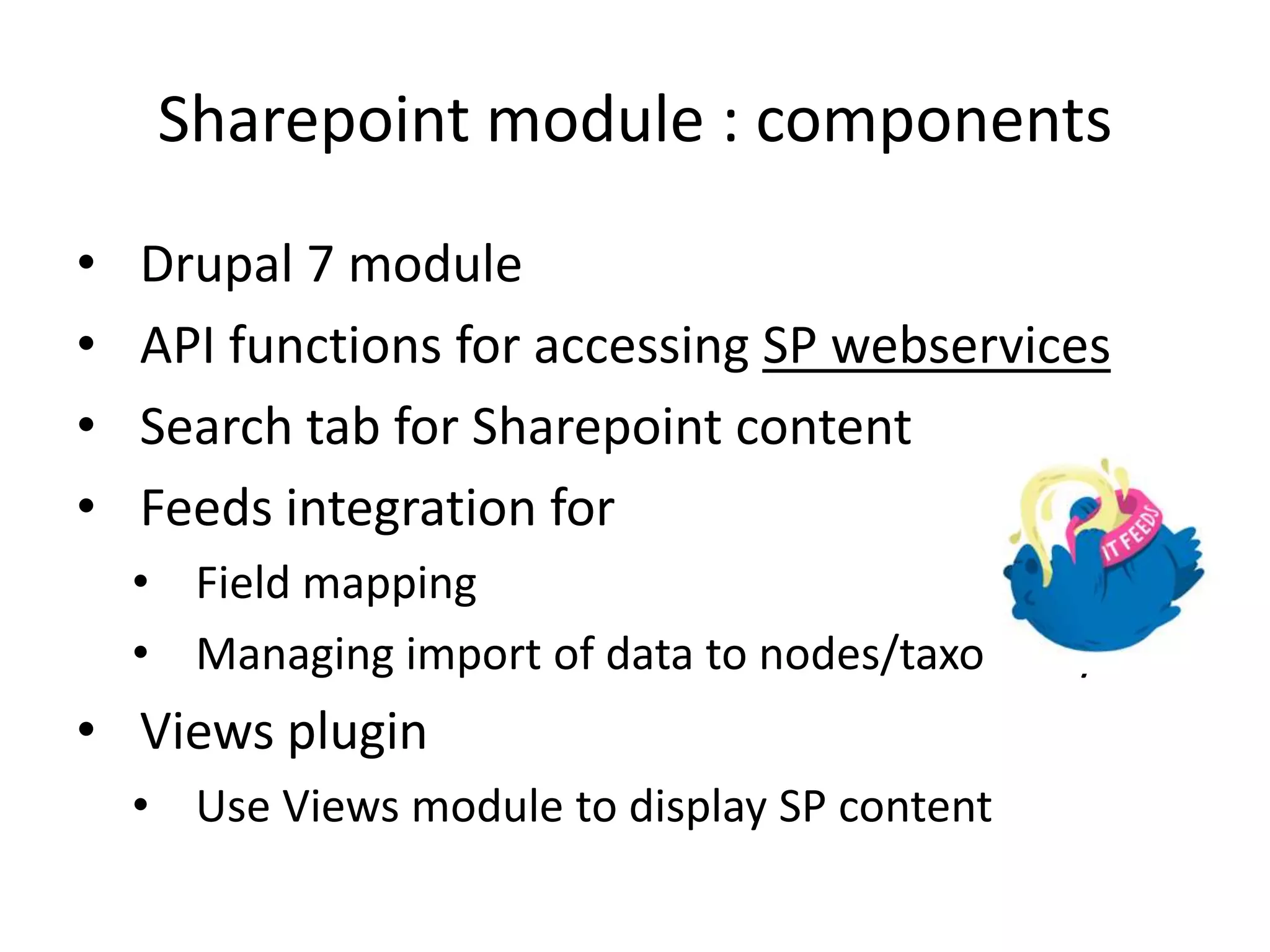

64. Drupal 7 module

65. API functions for accessing SP webservices

66. Search tab for Sharepoint content

67. Feeds integration for

68. Field mapping

69. Managing import of data to nodes/taxonomy

70. Views plugin

71. Use Views module to display SP contentSharepoint module : components

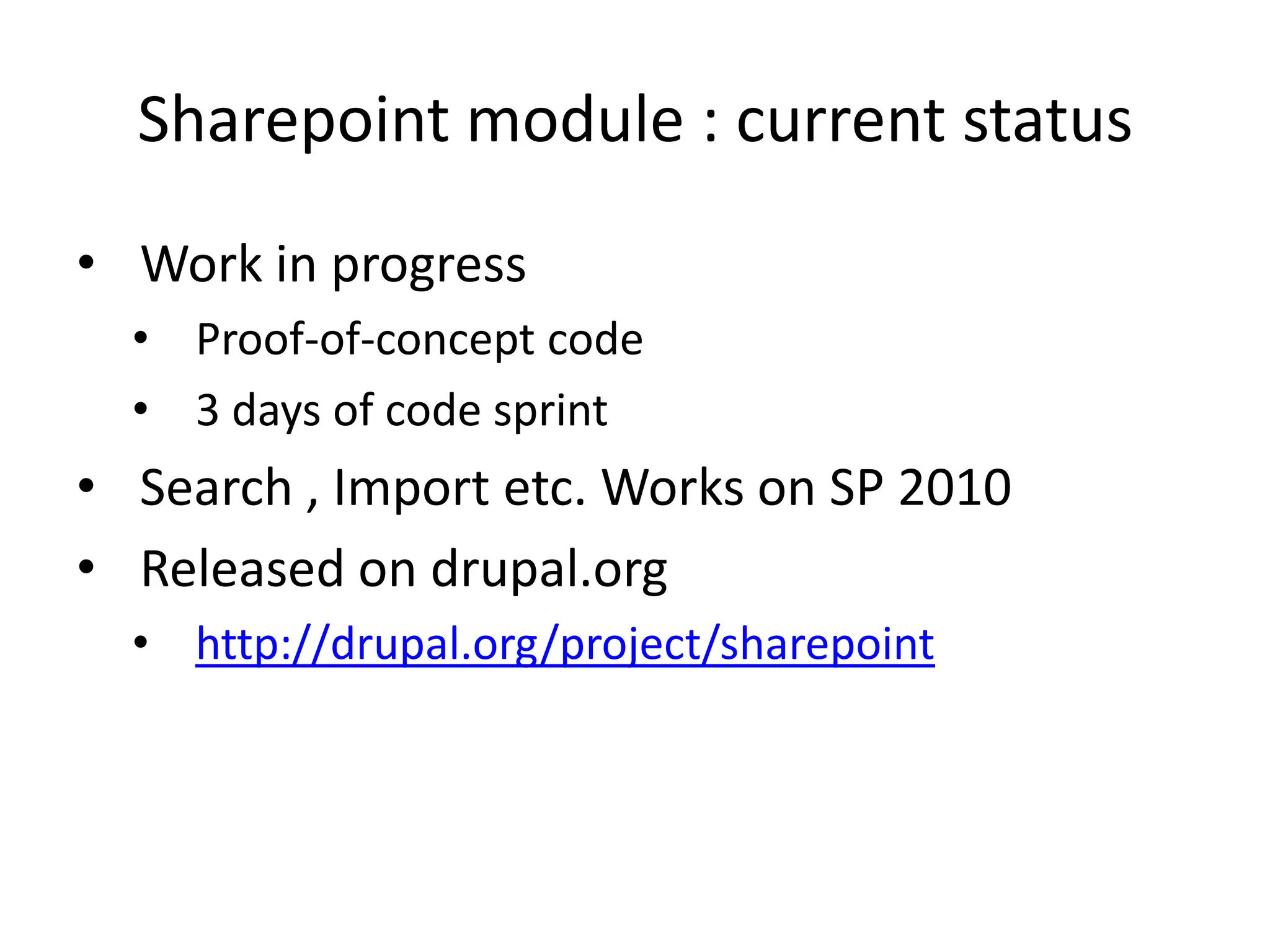

72. Work in progress

73. Proof-of-concept code

74. 3 days of code sprint

75. Search , Import etc. Works on SP 2010

76. Released on drupal.org

77. http://drupal.org/project/sharepointSharepoint module : current status

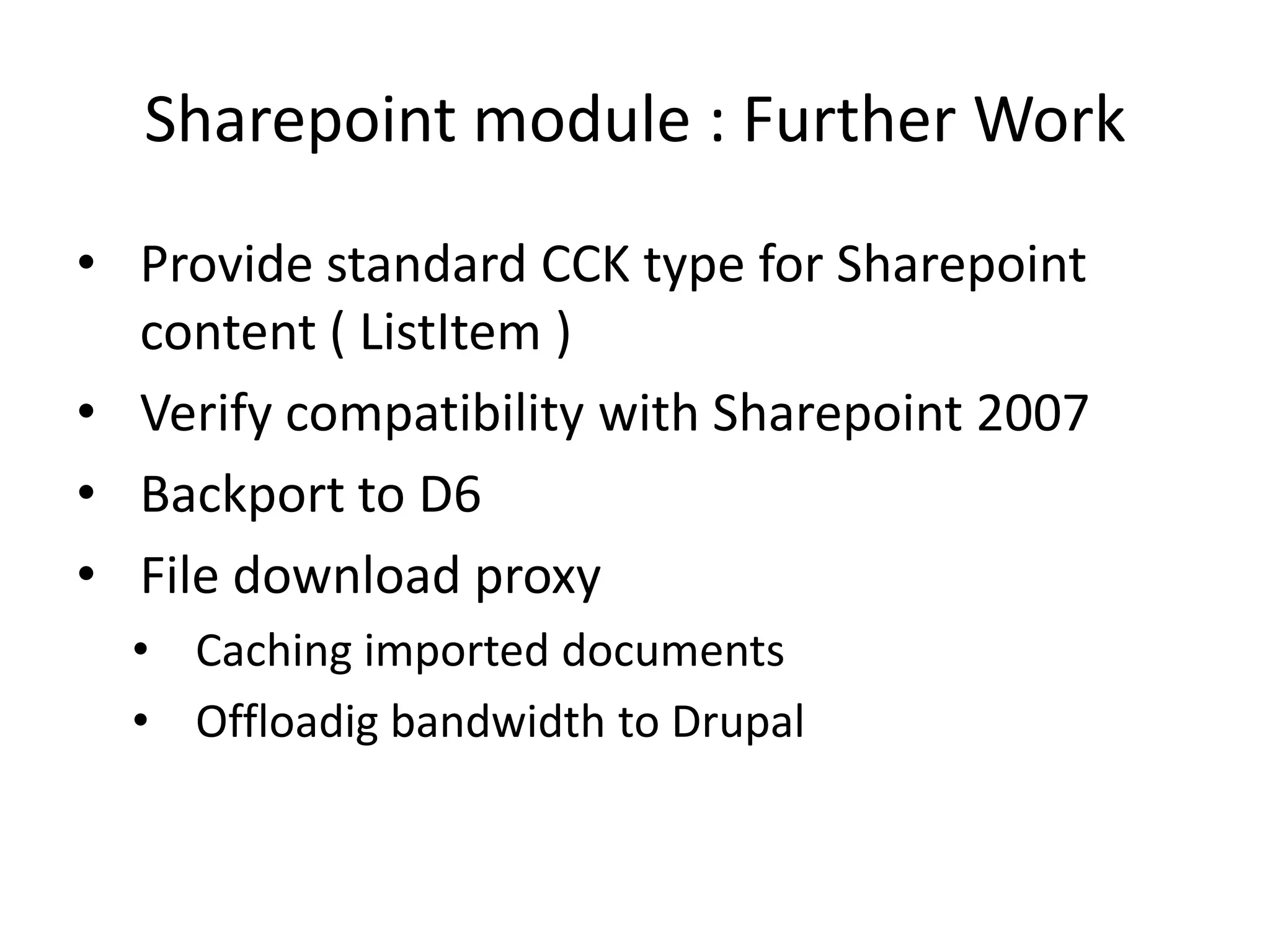

78. Provide standard CCK type for Sharepoint content ( ListItem )

79. Verify compatibility with Sharepoint 2007

80. Backport to D6

81. File download proxy

82. Caching imported documents

83. Offloadig bandwidth to DrupalSharepoint module : Further Work

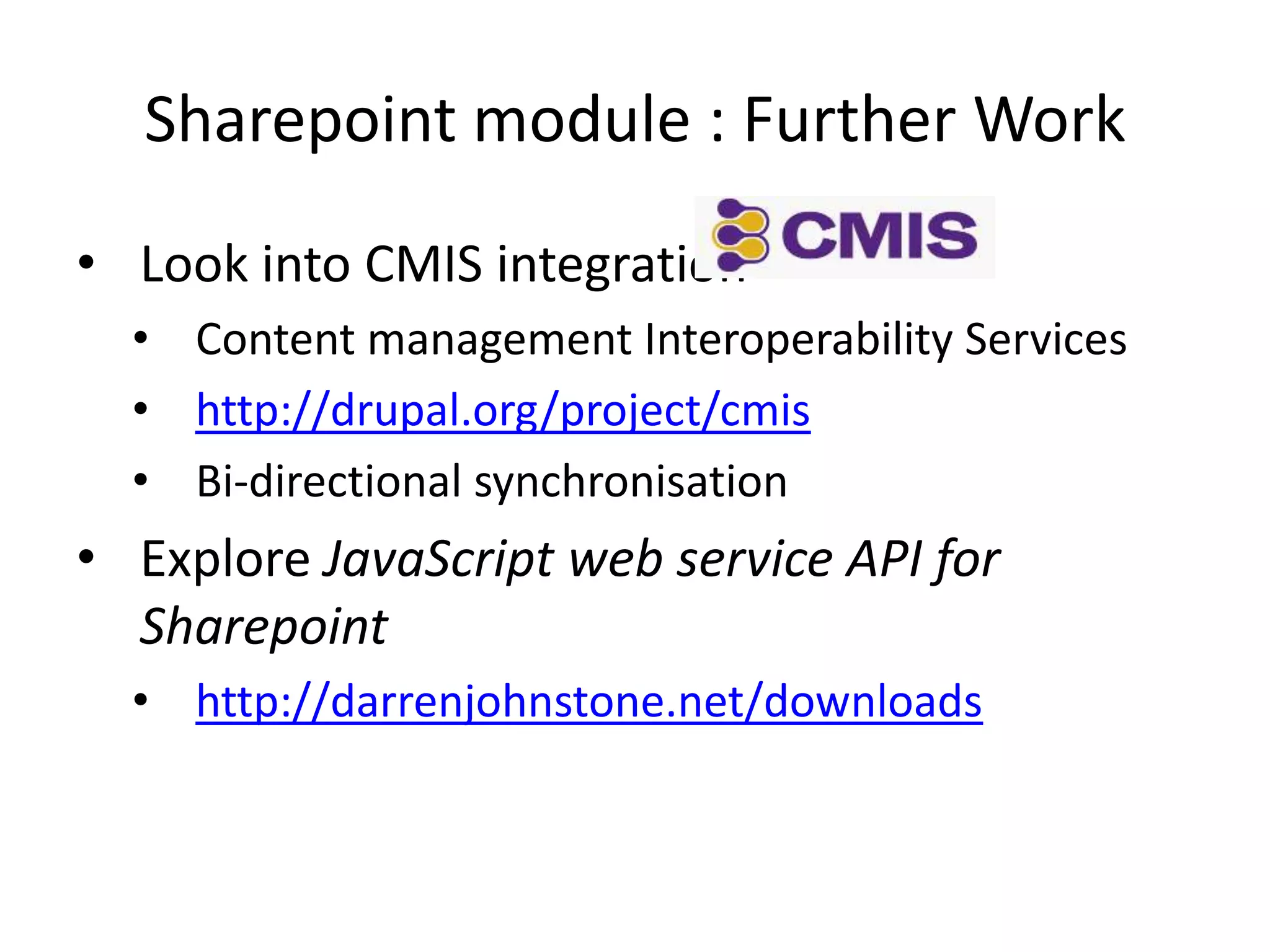

84. Look into CMIS integration

85. Content management Interoperability Services

86. http://drupal.org/project/cmis

87. Bi-directional synchronisation

88. Explore JavaScript web service API for Sharepoint

89. http://darrenjohnstone.net/downloadsSharepoint module : Further Work

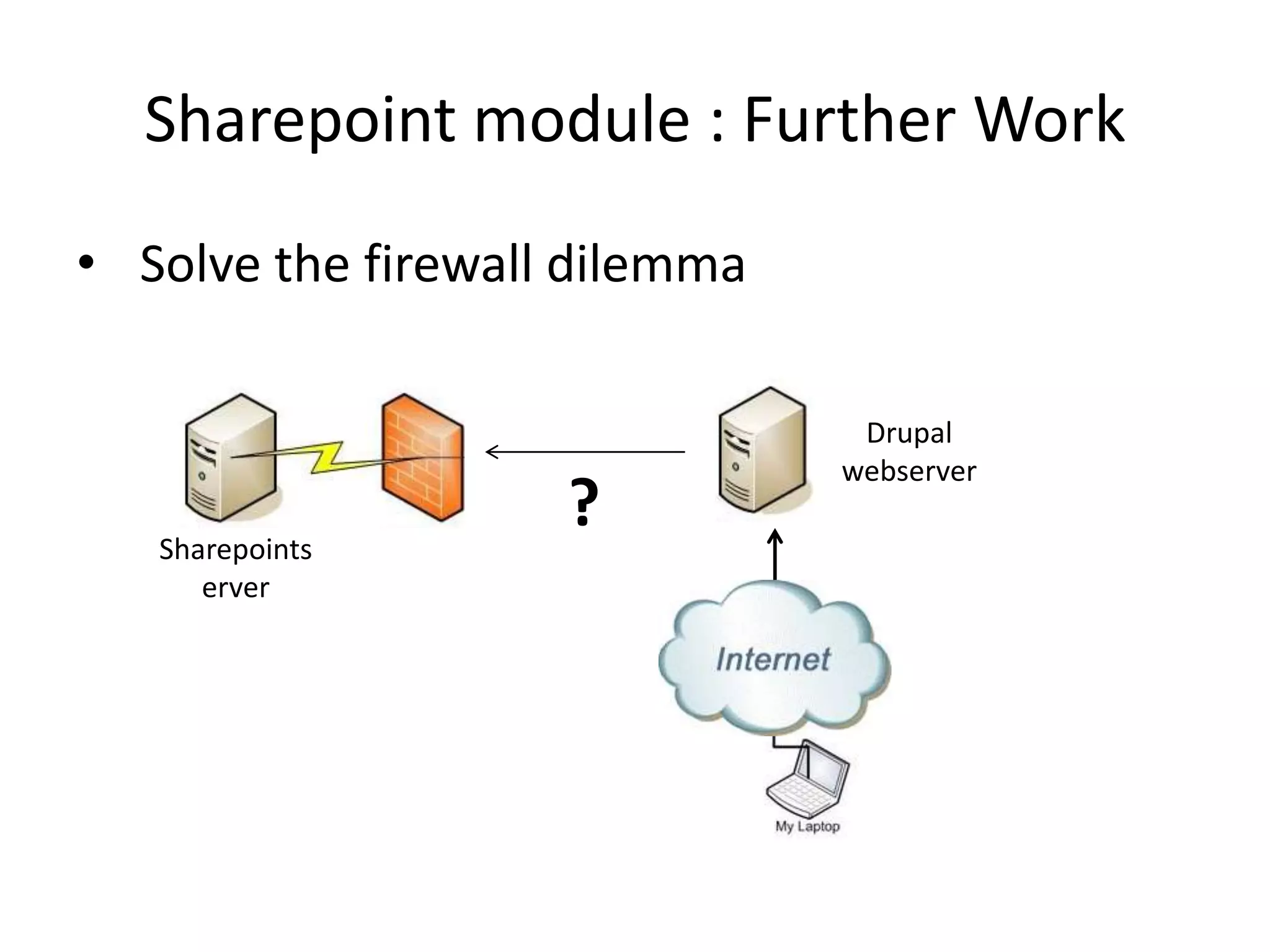

90. Solve the firewall dilemmaSharepoint module : Further WorkDrupal webserver?Sharepointserver

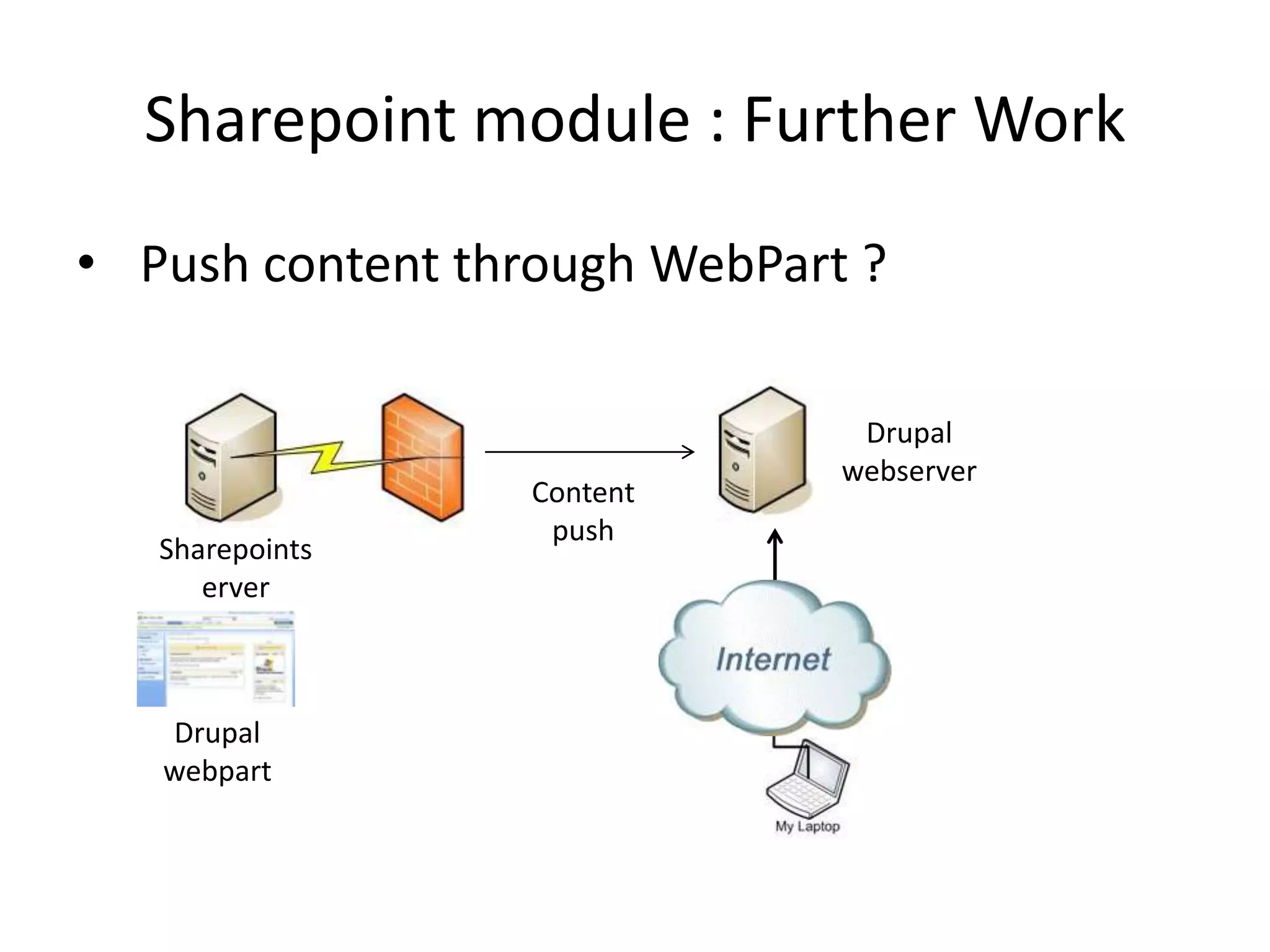

91. Push content through WebPart ?Sharepoint module : Further WorkDrupal webserverContent pushSharepointserverDrupal webpart

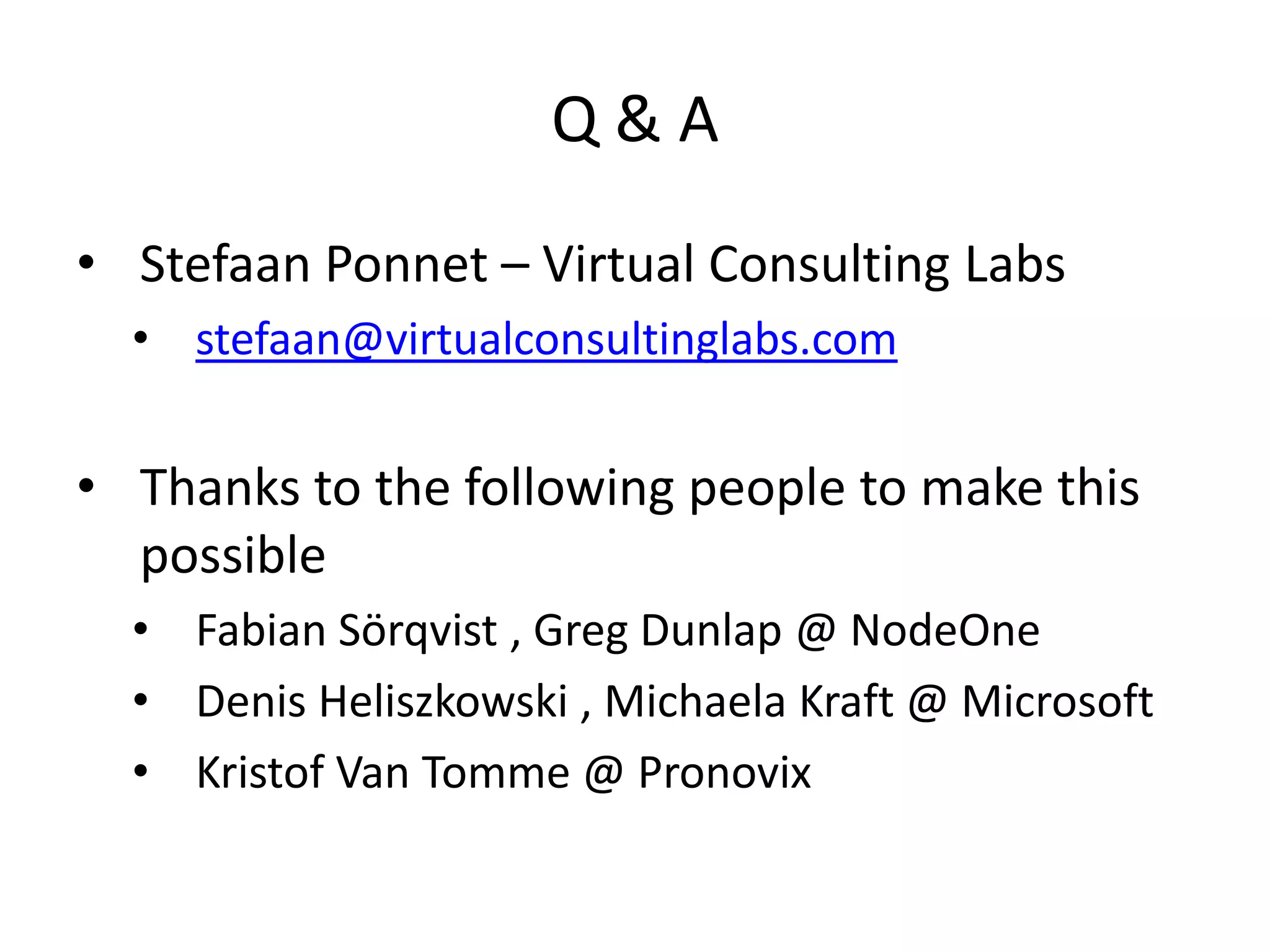

92. Stefaan Ponnet – Virtual Consulting Labs

93. stefaan@virtualconsultinglabs.com

94. Thanksto the followingpeopleto make thispossible

95. Fabian Sörqvist , Greg Dunlap @ NodeOne

96. Denis Heliszkowski , Michaela Kraft @ Microsoft

97. Kristof Van Tomme @ PronovixQ & A
