Columnstore Indexes
on SQL Server 2014
22th SQL Saturday Night
with Antonios Chatzipavlis

Jan 25, 2014
Η παρουσίαση αυτή θα καταγραφεί ώστε να είναι διαθέσιμη
για όσους θέλουν να την ξαναδούν, ή δεν είχαν την

δυνατότητα να την παρακολουθήσουν σε πραγματικό χρόνο.
Εάν κάποιος από τους παραβρισκόμενους σε αυτή έχει το
οποιοδήποτε πρόβλημα ή αντίρρηση να είναι μέρος της
καταγραφή αυτής, παρακαλείται να αποχωρήσει άμεσα.
Σε

διαφορετική

περίπτωση

η

παραμονή

εκλαμβάνεται ως αποδοχή της καταγραφής.
Η παρουσίαση αυτή διατίθεται δωρεάν,
και θα αρχίσει σε 1 λεπτό…

σε

αυτή
Αυτή την στιγμή ο παρουσιαστής μιλάει και σας ζητάει να
βεβαιώσετε ότι τον ακούτε.
Εάν αυτό δεν είναι δυνατόν παρακαλείστε να αλλάξετε το

χρώμα της κάρτας σας στο αντίστοιχο χρώμα ώστε να τον
ενημερώσετε.
Αυτό μπορεί να γίνει πατώντας την αντίστοιχη επιλογή που

βρίσκεται στο πάνω δεξί μέρος του περιβάλλοντος του live
meeting.
Σας ευχαριστούμε για την συνεργασία.
Columnstore Indexes
in SQL Server 2014
22th SQL Saturday Night
Jan 25, 2014
SP_WHO
Antonios Chatzipavlis

Solution Architect • SQL Server Evangelist • Trainer • Speaker
MCT, MCSE, MCITP, MCPD, MCSD, MCDBA, MCSA, MCTS, MCAD, MCP, OCA, ITIL-F

• 1982

I have been started with computers.

• 1988

I started my professional carrier in computers industry.

• 1996

I have been started to work with SQL Server version 6.0

• 1998

I earned my first certification at Microsoft as Microsoft Certified
Solution Developer (3rd in Greece) and started my carrier as Microsoft
Certified Trainer (MCT) with more than 20.000 hours of training until
now!

• 2010

I became for first time Microsoft MVP on SQL Server
I created the SQL School Greece (www.sqlschool.gr)

• 2012

I became MCT Regional Lead by Microsoft Learning Program.

• 2013

I was certified as MCSE : Data Platform, MCSE: Business Intelligence
GET IN TOUCH

@antoniosch
@sqlschool

SQL School Greece

www.sqlschool.gr

help@sqlschool.gr
AGENDA
• Overview
• Introduction
• Implementing and Maintaining

• Architecture
• Internals
• Compression
• Batch Mode Processing
• FAQ
Overview
Columnstore Indexes in SQL Server 2014
Approximate data volume managed by DW
41%

Less than 1TB

17%
21%

1 - 3 TB

Today

18%

In 3 years

19%

3 - 10 TB

25%
17%

More than 10 TB

34%
2%

Don't Know

6%

0%

5%

10%

15%

20%

25%

30%

Source: TDWI Report – Next Generation DW

35%

40%

45%
How does Microsoft SQL Server answer to this opportunity?
Microsoft's in-memory technologies
WHAT ARE MICROSOFT'S IN-MEMORY TECHNOLOGIES?
• These are all next-generation technologies built for extreme
speed on modern hardware systems with large memories
and many cores.
• The in-memory technologies include
• in-memory analytics engine used in PowerPivot and Analysis Services,
• and the in-memory columnstore index used in the SQL Server database.

• SQL Server 2012, SQL Server 2014, and SQL Server PDW all
use in-memory technologies to accelerate common data
warehouse queries.
SQL SERVER
SQL Server 2012 introduced two innovations targeted
for data warehousing workloads:

• Column store indexes
• Batch (vectorized) processing mode.
Introduction
Columnstore Indexes in SQL Server 2014
WHAT IS A COLUMNSTORE INDEX?
• A technology for storing, retrieving and managing data by
using a columnar data format

• Data is compressed, stored, and managed as a collection of
partial columns
• We can use a columnstore index to answer a query just like
data in any other type of index.
• The query optimizer considers the columnstore index as a
data source for accessing data just like it considers other
indexes when creating a query plan.
WHAT IS A COLUMNSTORE?

A columnstore is data that
is logically organized as a table
with rows and columns,
and physically stored in a
columnar data format. “
BENEFITS OF COLUMNSTORE INDEXES
• Are part of a new family of technologies called xVelocity

• 10x query performance
• Up to 10x query performance gains over traditional row-oriented storage,
by storing and compressing data by columns

• 7x data compression
• Up to 7x data compression over the uncompressed data size, by using
fewer reads to bring compressed data into memory and then using the
reduced data volume for the in-memory processing
WHERE TO USE THEM?

“We view the clustered columnstore
index as the standard for storing
large data warehousing fact tables,
and expect it will be used in most
data warehousing scenarios. “
Microsoft Note from MSDN

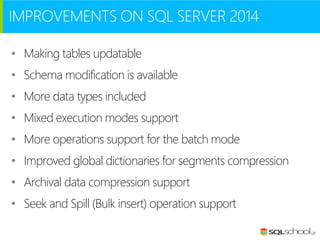

IMPROVEMENTS ON SQL SERVER 2014
• Making tables updatable
• Schema modification is available

• More data types included
• Mixed execution modes support
• More operations support for the batch mode
• Improved global dictionaries for segments compression

• Archival data compression support
• Seek and Spill (Bulk insert) operation support
Implementing
and Maintaining
Columnstore Indexes in SQL Server 2014
KEY CHARACTERISTICS
• Clustered Columnstore Indexes
• Added as new feature in SQL Server 2014

• Nonclustered Columnstore Indexes
• Added as new feature in SQL Server 2012

• Columnstore Indexes don’t need special hardware
NONCLUSTRED COLUMNSTORE INDEX
• Does not need to include all of the columns in the table.
• Requires storage to store a copy of the columns in the
index.

• Can be combined with other indexes on the table.
• Uses columnstore compression.
• The compression is not configurable.

• Does not physically store columns in a sorted order.
• Instead, it stores data to improve compression and performance
CLUSTERED COLUMNSTORE INDEX
• Available on Enterprise, Developer editions of SQL Server
2014.

• Includes all columns in the table and is the method for
storing the entire table.
• Is the only index on the table.
• It cannot be combined with any other indexes.

• Uses columnstore compression.
• The compression is not configurable.

• Does not physically store columns in a sorted order.
• Instead, it stores data to improve compression and performance.
CREATE COLUMNSTORE INDEX
CLUSTERED
table

index name

myCSIndex
Customers

NONCLUSTERED
table
columns list

CustomerID

index name

CompanyName

ContactName
UNSUPPORTED DATA TYPES
• ntext, text, image
• varchar(max), nvarchar(max)

• rowversion (and timestamp)
• sql_variant
• decimal (and numeric) with precision greater than 18 digits
• datetimeoffset, with scale greater than 2

• CLR types (hierarchyid and spatial types)
• xml
UNSUPPORTED FEATURES
• Sparse columns
• Computed columns

• Included columns
• Views or Indexed Views
• Can’t be ordered by ASC or DESC
• Replication

• Filestream
• Change tracking and Change data capture

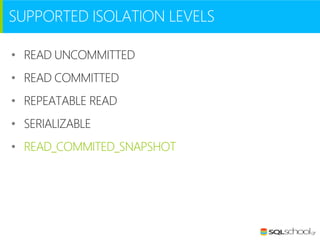

SUPPORTED ISOLATION LEVELS
• READ UNCOMMITTED
• READ COMMITTED
• REPEATABLE READ

• SERIALIZABLE
• READ_COMMITED_SNAPSHOT
USING COLUMNSTORES EFFECTIVELY
•

Put columnstore indexes on large tables only.
•
•

•

Include every column of the table in the columnstore index.
•

•

If you don't, then a query that references a column not included in the index will not benefit from the
columnstores index much or at all.

Structure your queries as star joins with grouping and aggregation as much as
possible.
•
•
•

•

Typically, you will put them on your fact tables in your data warehouse, but not the dimension tables.
If you have a large dimension table, containing more than a few million rows, then you may want to put a
columnstore index on it as well.

Avoid joining pairs of large tables.
Join a single large fact table to one or more smaller dimensions using standard inner joins.
Use a dimensional modeling approach for your data as much as possible to allow you to structure your queries
this way.

Use best practices for statistics management and query design.
•
•

This is independent of columnstore technology.
Use good statistics and avoid query design pitfalls to get the best performance.

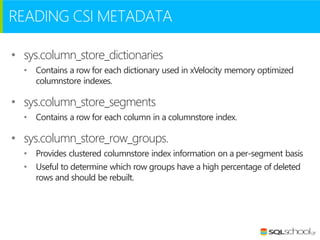

READING CSI METADATA
• sys.column_store_dictionaries
• Contains a row for each dictionary used in xVelocity memory optimized
columnstore indexes.

• sys.column_store_segments
• Contains a row for each column in a columnstore index.

• sys.column_store_row_groups.
• Provides clustered columnstore index information on a per-segment basis
• Useful to determine which row groups have a high percentage of deleted
rows and should be rebuilt.
DBCC CSINDEX
DBCC CSIndex
(
{'dbname' | db_id}
, rowsetid
, columned
, rowgroupid
, object_type
, print_option
, [ start]
, [ end]
)

•

rowsetid
•
•

•

•

segment_id from sys.column_store_segments

•
•

•

column_id from sys.column_store_segments

•

•

HoBT or PartitionID from sys.column_store_segments

1 = Segment
2 = Dictionary

•
•

Valid Values are 0, 1, 2
Under investigation

columnid

rowgroupid
object_type

print_option

• Undocumented DBCC statement
• Works on SQL Server 2012 and above

• Similar to DBCC PAGE for CS Indexes
Architecture
Columnstore Indexes in SQL Server 2014
COLUMNSTORE VS HEAP AND B-TREE
Data stored as rows

Data stored as columns

C1

…

C2

C3

C4

C5
BENEFITS OF COLUMNSTORE
• Smaller in-memory footprint.
• High compression rates improve query performance by using a smaller inmemory footprint. In turn, query performance can improve because SQL
Server can perform more query and data operations in-memory.

• Reduces total I/O
• Queries often select only a few columns from a table, which reduces total
I/O to and from the physical media.

• Reduces CPU usage
• Advanced query execution technology processes chunks of columns called
batches in a streamlined manner, which reduces CPU usage.
KEY TERMS – PART I
• Rowgroup
•
•
•
•

Is a group of rows that are compressed into
columnstore format at the same time.
Each column in the rowgroup is compressed
and stored separately onto the physical media.
Each rowgroup contains one column segment
for every column in the table.
Rowgroups define the column values that are in
each column segment.

• Column segment
•
•
•
•

Is the basic storage unit for a columnstore index.
It is a group of column values that are
compressed and physically stored together on
the physical media.
Each column is comprised of one or many
column segments.
When SQL Server compresses a rowgroup, it
compresses each column within the rowgroup
as one column segment.
KEY TERMS – PART II
• Columnstore
• Is data that is logically organized as a table with rows and columns
• Physically stored in a columnar data format.
• The columns are divided into segments and stored as compressed column
segments.

• Rowstore
• A rowstore is data that is organized as rows and columns, and then
physically stored in a row-wise data format.
• This has been the traditional way to store relational table data .
KEY TERMS – PART III
• Deltastore
• Is a rowstore table that holds rows until the number of rows is large
enough to be moved into the columnstore.
• Rows accumulate in each deltastore until the number of rows is the
maximum number of rows allowed for a rowgroup.
• For each columnstore there can be multiple deltastores.
• For a partitioned table, there are one or more deltastores for every
partition.

• They are in the traditional row-mode (B-Trees) format
• It’s expensive to query than the compressed columnar segments
• Each deltastore has 1.048.576 rows and when reached converted to
columnstore
TERMINOLOGY PICTURE

The source of this picture is Microsoft MSDN
COLUMNSTORE INDEX EXAMPLE
OrderDateKey

ProductKey

StoreKey

RegionKey

Quantity

SalesAmount

20101107

106

01

1

6

30.00

20101107

103

04

2

1

17.00

20101107

109

04

2

2

20.00

20101107

103

03

2

1

17.00

20101107

106

05

3

4

20.00

20101108

106

02

1

5

25.00

20101108

102

02

1

1

14.00

20101108

106

03

2

5

25.00

20101108

109

01

1

1

10.00

20101109

106

04

2

4

20.00

20101109

106

04

2

5

25.00

20101109

103

01

1

1

17.00
COLUMNSTORE INDEX EXAMPLE
Step 1 - Horizontally Partition (create Row Groups)
OrderDateKey

ProductKey

StoreKey

RegionKey

Quantity

SalesAmount

20101107

106

01

1

6

30.00

20101107

103

04

2

1

17.00

20101107

109

04

2

2

20.00

20101107

103

03

2

1

17.00

20101107

106

05

3

4

20.00

20101108

106

02

1

5

25.00

OrderDateKey

ProductKey

StoreKey

RegionKey

Quantity

SalesAmount

20101108

102

02

1

1

14.00

20101108

106

03

2

5

25.00

20101108

109

01

1

1

10.00

20101109

106

04

2

4

20.00

20101109

106

04

2

5

25.00

20101109

103

01

1

1

17.00

~1M rows
COLUMNSTORE INDEX EXAMPLE
Step 2 - Vertically Partition (create Segments)
OrderDateKey

ProductKey

StoreKey

RegionKey

Quantity

SalesAmount

20101107

106

01

1

6

30.00

20101107

103

04

2

1

17.00

20101107

109

04

2

2

20.00

20101107

103

03

2

1

17.00

20101107

106

05

3

4

20.00

20101108

106

02

1

5

25.00

OrderDateKey

ProductKey

StoreKey

RegionKey

Quantity

SalesAmount

20101108

102

02

1

1

14.00

20101108

106

03

2

5

25.00

20101108

109

01

1

1

10.00

20101109

106

04

2

4

20.00

20101109

106

04

2

5

25.00

20101109

103

01

1

1

17.00
COLUMNSTORE INDEX EXAMPLE
Step 3 - Compress Each Segment
OrderDateKey
20101107
20101107
20101107
20101107
20101107
20101108

ProductKey

StoreKey

RegionKey

Quantity

SalesAmount

106

01

1

6

30.00

04

2

1

2

17.00

2

103
109

04

103

03

106

05

106

20101108

ProductKey

20101108

102

20101108

106
109

20101109

106

20101109

106
103

3
1

02

OrderDateKey

20101109

2

RegionKey
StoreKey

1

02

2

03

1

01

2

04
04

2
1

1
4
5

20.00
17.00
20.00

25.00
Quantity
1

SalesAmount

5

14.00

1

25.00

4
5
1

01

10.00
20.00
25.00
17.00

Some segments will compress more than others
COLUMNSTORE INDEX EXAMPLE
Step 4 - Read the Data
ProductKey
OrderDateKey
OrderDateKey
20101107
20101107
20101107

20101107
20101107
20101108

ProductKey

StoreKey

RegionKey

Quantity

SalesAmount

106

01

1

6

30.00

04

2

1

2

17.00

2

103
109
103
106
106

OrderDateKey
20101108

ProductKey

20101108

102

20101108

106

20101109

109

20101109

106

20101109

SalesAmount

106
103

04
03
05

2
3
1

02
RegionKey
StoreKey

1

02

2

03

1

01

2

04

2

04
01

1

1
4
5

20.00
17.00
20.00
25.00

Quantity
1

SalesAmount

5

14.00

1

25.00

4
5
1

10.00
20.00
25.00
17.00
Internals
Columnstore Indexes in SQL Server 2014
HOW BASIC OPERATIONS WORKS
• Inserts
• Added to one of the currently open Delta Stores.

• Deletes
• If the deleted row is found inside of a RowGroup, then the Deleted Bitmap
information is updated with the row id of the respective row.
• If the deleted row is actually inside of a Delta Store, then the direct process
of removal is executed on the b-tree.

• Updates
• As you know an update represented as delete and insert.

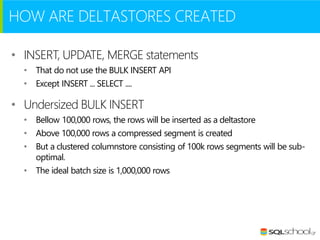

HOW ARE DELTASTORES CREATED
• INSERT, UPDATE, MERGE statements
• That do not use the BULK INSERT API
• Except INSERT ... SELECT ....

• Undersized BULK INSERT
• Bellow 100,000 rows, the rows will be inserted as a deltastore
• Above 100,000 rows a compressed segment is created
• But a clustered columnstore consisting of 100k rows segments will be suboptimal.
• The ideal batch size is 1,000,000 rows
TUPLE MOVER
• When a deltastore …
• reaches the max size of 1048576 rows
• is going to be closed
• and will become available for the Tuple Mover to compress it.

• The Tuple Mover
• create big, healthy segments
• it is not designed to be a replacement for index build
• running every 5 min

• Running on demand
• ALTER INDEX ... REORGANIZE
• ALTER INDEX ... REBUILD
C1

C1

C2

C3

C4

C5

C2

C3

C4

C5

C6

C6

tuple mover

Column
Store

Delta (row)
store

TUPLE MOVER

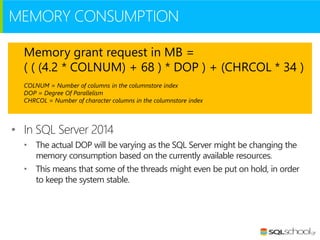

MEMORY CONSUMPTION
Memory grant request in MB =
( ( (4.2 * COLNUM) + 68 ) * DOP ) + (CHRCOL * 34 )
COLNUM = Number of columns in the columnstore index
DOP = Degree Of Parallelism
CHRCOL = Number of character columns in the columnstore index

• In SQL Server 2014
• The actual DOP will be varying as the SQL Server might be changing the
memory consumption based on the currently available resources.
• This means that some of the threads might even be put on hold, in order
to keep the system stable.
MEMORY ERRORS DURING CSI CREATION
• Errors 8657 or 8658
•
•

This errors raised when the initial memory grant fails
Consider changing the resource governor settings to allow the create index
statement to access more memory
• The default setting for resource governor limits a query in the default pool to 25% of
available memory
• Even if the server is otherwise inactive.
• This is true even if you have not enabled resource governor.
ALTER WORKLOAD GROUP [DEFAULT] WITH (REQUEST_MAX_MEMORY_GRANT_PERCENT=??)
ALTER RESOURCE GOVERNOR RECONFIGURE

• Errors 701 or 802
•
•

You may get these errors if memory runs out later during execution.
The only viable way to work around these errors in this case is
• to explicitly reduce DOP when you create the index,
• reduce query concurrency, or add more memory.
DELETE BITMAP
• Α storage which contains
information about the deleted
rows inside of the Segments.
• Memory representation is a
bitmap

• Stored on the disk as a B-Tree
• Contains ids of the deleted rows.

• Consulted on a regular basis
• In order to avoid returning the rows
which were already deleted.
STORAGE OF COLUMNSTORE INDEXES

Illustrating how a column store index is created and stored.
The set of rows is divided into row groups that are converted to column segments and dictionaries that are then stored using SQL Server blob
storage
WHAT ARE DICTIONARIES?
• Widely used in columnar storage
• Efficiently encode large data types, like strings.
• The values stores in the column segments will be just entry numbers in the
dictionary, and the actual values are stored in the dictionary.

• Very good compression for repeated values
• but yields bad results if the values are all distinct (the required storage
actually increases).
• This is what makes large columns (strings) with distinct values very poor
candidates for columnstore indexes.
• Columnstore indexes contain separate dictionaries for each column and
string columns contain two types of dictionaries:
DICTIONARIES
• Primary (global) Dictionary
• This is an global dictionary used by all
segments of a column.

• Secondary (local) Dictionary
• This is an overflow dictionary for entries that
did not fit in the primary dictionaries.
• It can be shared by several segments of a
column: the relation between dictionaries and
column segments is one-to-many.

• sys.column_store_dictionaries
• Information about the dictionaries used by a
columnstore can be found in this dmv
Compression
Columnstore Indexes in SQL Server 2014
COMPRESSION
Space Used in GB (101 million row table)
20,0

15,0

91%
savings

10,0

5,0

0,0
Table with
customary
indexing

Table with Table with no Table with no Table with
Clustered
customary
indexing
indexing columnstore columnstore
indexing
(page
index
(page
compression)
compression)

** Space Used = Table space + Index space
ARCHIVAL COMPRESSION
• New in SQL Server 2014
•

Can be applied on a table or a partition

• Gives 37% to
•
•
•
•

67%

more compression

Compression gain depending on data
Transparent process
Compressing the data blobs before storing them on disk
Archival compression is implemented as an extra compression layer that
transparency compresses the bytes being written to disk

• Uses XPress8 algorithm
•
•
•

A Microsoft internal variant of LZ77 compression (1970)
Working with multiple threads
Uses up to 64KB data streams
ARCHIVAL COMPRESSION COMPARISON
Compression ratio
Database
Name

Raw data
size(GB)

Archival compression %
No

Yes

GZIP

EDW

95.4

5.84

9.33

4.85

Sim

41.3

2.2

3.65

3.08

Telco

47.1

3.0

5.27

5.1

SQL

1.3

5.41

10.37

8.07

MS Sales

14.7

6.92

16.11

11.93

Hospitality

1.0

23.8

70.4

43.3

The above table shows the compression ratios achieved with and without archival compression for several real data sets
Batch Mode
Processing
Columnstore Indexes in SQL Server 2014
BATCH MODE PROCESSING
• Introduced for first time in SQL Server 2012
• Uses a new iterator model for processing data a-batch-at-a-time
instead of a-row-at-a-time.
•

A batch typically represents about 1000 rows of data.

•

Each column within a batch is stored as a vector in a separate area of memory,
so batch mode processing is vector-based.

•

Uses algorithms that are optimized for the multicore CPUs and increased
memory throughput that are found on modern hardware.

•

Batch mode processing spreads metadata access costs and other types of
overhead over all the rows in a batch, rather than paying the cost for each row.

•

Batch mode processing operates on compressed data when possible and
eliminates some of the exchange operators used by row mode processing.

• The result is better parallelism and faster performance.
select prod.ProductName, sum(sales.SalesAmount)
from dbo.DimProduct as prod
right outer join dbo.FactOnlineSales as sales
on sales.ProductKey = prod.ProductKey
group by prod.ProductName
order by prod.ProductName

SQL Server 2012

SQL Server 2014

This test performed by Niko Neugebauer
Demo
Columnstore Indexes
in Action
FAQ
Columnstore Indexes in SQL Server 2014
FAQ
• Are columnstore indexes available in SQL Azure?
• No, not yet.

• Does the columnstore index have a primary key?
• No. There is no notion of a primary key for a columnstore index.

• How long does it take to create a columnstore index?
• Creating a columnstore index takes on the order of 1.5 times as long as
building a B-tree on the same columns.

• Is creating a columnstore index a parallel operation?
• Creating a columnstore index is a parallel operation, subject to the
limitations on the number of CPUs available and any restrictions set on
MaxDOP.
FAQ
• My MAXDOP is greater than one but the columnstore
index was created with DOP = 1. Why it was not created
using parallelism?
• If your table has less than one million rows, SQL Server will use only one
thread to create the columnstore index.
• Creating the index in parallel requires more memory than creating the
index serially.
• If your table has more than one million rows, but SQL Server cannot get a
large enough memory grant to create the index using MAXDOP, SQL
Server will automatically decrease DOP as needed to fit into the available
memory grant.
• In some cases, DOP must be decreased to one in order to build the index
under constrained memory.
FAQ
• I tried to create a columnstore index with SQL Server
Management Studio using the Indexes->New Index menu
and it timed out after 20 minutes. How can I work around
this?
• Run a CREATE NONCLUSTERED COLUMNSTORE INDEX statement
manually in a T-SQL window instead of using the graphical interface.
• This will avoid the timeout imposed by the Management Studio graphical
user interface.

• Can I create multiple columnstore indexes?
• No. You can only create one columnstore index on a table.
• The columnstore index can contain data from all, or some, of the columns
in a table. Since the columns can be accessed independently from one
another, you will usually want all the columns in the table to be part of the
columnstore index.
FAQ
• Is a columnstore index better than a covering index that has exactly
the columns I need for a query
•
•
•

•
•
•
•
•

The answer depends on the data and the query.
Most likely the columnstore index will be compressed more than a covering row store
index.
If the query is not too selective, so that the query optimizer will choose an index scan and
not an index seek, scanning the columnstore index will be faster than scanning the row
store covering index.
In addition, depending on the nature of the query, you can get batch mode processing
when the query uses a columnstore index.
Batch mode processing can substantially speed up operations on the data in addition to
the speed up from a reduction in IO.
If there is no columnstore index used in the query plan, you will not get batch mode
processing.
On the other hand, if the query is very selective, doing a single lookup, or a few lookups, in
a row store covering index might be faster than scanning the columnstore index.
Another advantage of the columnstore index is that you can spend less time designing
indexes.
FAQ
• Is the columnstore index the same as a set of covering
indexes, one for each column?
• No. Although the data for individual columns can be accessed
independently, the columnstore index is a single object; the data from all
the columns is organized and compressed as an entity.
• While the amount of compression achieved is dependent on the
characteristics of the data, a columnstore index will most likely be much
more compressed than a set of covering indexes, resulting in less IO to
read the data into memory and the opportunity for more of the data to
reside in memory across multiple queries.
• In addition, queries using columnstore indexes can benefit from batch
mode processing, whereas a query using covering indexes for each column
would not use batch mode processing.
SUMMARY
• Overview
• Introduction
• Implementing and Maintaining

• Architecture
• Internals
• Compression
• Batch Mode Processing
• FAQ
SELECT
KNOWLEDGE
FROM
SQL SERVER
http://www.sqlschool.gr
Copyright © 2014 SQL School Greece

More Related Content

What's hot

Sql server basics
Sql server basicsSql server basics
Sql server basics
Dilfaroz Khan

MySQL Architecture and Engine
MySQL Architecture and EngineMySQL Architecture and Engine
MySQL Architecture and Engine
Abdul Manaf

SQL Server Index and Partition Strategy
SQL Server Index and Partition StrategySQL Server Index and Partition Strategy
SQL Server Index and Partition Strategy
Hamid J. Fard

Data warehouse
Data warehouseData warehouse
Data warehouse
Medma Infomatix (P) Ltd.

Data cube
Data cubeData cube
Data cube
Hitesh Mohapatra

Performance tuning in sql server
Performance tuning in sql serverPerformance tuning in sql server
Performance tuning in sql server
Antonios Chatzipavlis

NoSQL databases
NoSQL databasesNoSQL databases
NoSQL databases
Harri Kauhanen

Sql Server Basics
Sql Server BasicsSql Server Basics
Sql Server Basics
rainynovember12

Oracle Performance Tuning Fundamentals
Oracle Performance Tuning FundamentalsOracle Performance Tuning Fundamentals
Oracle Performance Tuning Fundamentals
Enkitec

01 oracle architecture
01 oracle architecture01 oracle architecture
01 oracle architecture
Smitha Padmanabhan

Data Warehouse Design and Best Practices
Data Warehouse Design and Best PracticesData Warehouse Design and Best Practices
Data Warehouse Design and Best Practices
Ivo Andreev

Data warehouse
Data warehouseData warehouse
Data warehouse
MR Z

Unit 5 composite datatypes
Unit 5  composite datatypesUnit 5  composite datatypes
Unit 5 composite datatypes
DrkhanchanaR

Date warehousing concepts
Date warehousing conceptsDate warehousing concepts
Date warehousing concepts
pcherukumalla

Mongodb vs mysql
Mongodb vs mysqlMongodb vs mysql
Mongodb vs mysql
hemal sharma

Parallel Query in AWS Aurora MySQL
Parallel Query in AWS Aurora MySQLParallel Query in AWS Aurora MySQL
Parallel Query in AWS Aurora MySQL
Mydbops

Sql Server Performance Tuning
Sql Server Performance TuningSql Server Performance Tuning
Sql Server Performance Tuning
Bala Subra

Date and time functions in mysql
Date and time functions in mysqlDate and time functions in mysql
Date and time functions in mysql
V.V.Vanniaperumal College for Women

Data Warehouse 101
Data Warehouse 101Data Warehouse 101
Data Warehouse 101
PanaEk Warawit

Webinar: When to Use MongoDB
Webinar: When to Use MongoDBWebinar: When to Use MongoDB
Webinar: When to Use MongoDB
MongoDB


What's hot (20)

Sql server basics
Sql server basicsSql server basics
Sql server basics

MySQL Architecture and Engine
MySQL Architecture and EngineMySQL Architecture and Engine
MySQL Architecture and Engine

SQL Server Index and Partition Strategy
SQL Server Index and Partition StrategySQL Server Index and Partition Strategy
SQL Server Index and Partition Strategy

Data warehouse
Data warehouseData warehouse
Data warehouse

Data cube
Data cubeData cube
Data cube

Performance tuning in sql server
Performance tuning in sql serverPerformance tuning in sql server
Performance tuning in sql server

NoSQL databases
NoSQL databasesNoSQL databases
NoSQL databases

Sql Server Basics
Sql Server BasicsSql Server Basics
Sql Server Basics

Oracle Performance Tuning Fundamentals
Oracle Performance Tuning FundamentalsOracle Performance Tuning Fundamentals
Oracle Performance Tuning Fundamentals

01 oracle architecture
01 oracle architecture01 oracle architecture
01 oracle architecture

Data Warehouse Design and Best Practices
Data Warehouse Design and Best PracticesData Warehouse Design and Best Practices
Data Warehouse Design and Best Practices

Data warehouse
Data warehouseData warehouse
Data warehouse

Unit 5 composite datatypes
Unit 5  composite datatypesUnit 5  composite datatypes
Unit 5 composite datatypes

Date warehousing concepts
Date warehousing conceptsDate warehousing concepts
Date warehousing concepts

Mongodb vs mysql
Mongodb vs mysqlMongodb vs mysql
Mongodb vs mysql

Parallel Query in AWS Aurora MySQL
Parallel Query in AWS Aurora MySQLParallel Query in AWS Aurora MySQL
Parallel Query in AWS Aurora MySQL

Sql Server Performance Tuning
Sql Server Performance TuningSql Server Performance Tuning
Sql Server Performance Tuning

Date and time functions in mysql
Date and time functions in mysqlDate and time functions in mysql
Date and time functions in mysql

Data Warehouse 101
Data Warehouse 101Data Warehouse 101
Data Warehouse 101

Webinar: When to Use MongoDB
Webinar: When to Use MongoDBWebinar: When to Use MongoDB
Webinar: When to Use MongoDB


Viewers also liked

Database index(sql server)
Database index(sql server)Database index(sql server)
Database index(sql server)
Aaron King

The 5 Hidden Performance Gems of SQL Server 2014
The 5 Hidden Performance Gems of SQL Server 2014The 5 Hidden Performance Gems of SQL Server 2014
The 5 Hidden Performance Gems of SQL Server 2014
Boris Hristov

Indexes
IndexesIndexes
Introduction to Columnstore Indexes
Introduction to Columnstore IndexesIntroduction to Columnstore Indexes
Introduction to Columnstore Indexes
Jason Strate

An introduction to column store indexes and batch mode
An introduction to column store indexes and batch modeAn introduction to column store indexes and batch mode
An introduction to column store indexes and batch mode
Chris Adkin

Index in sql server
Index in sql serverIndex in sql server
Index in sql server
Durgaprasad Yadav

SQL Saturday 329 - Novo Cardinality Estimator do SQL Server 2014
SQL Saturday 329 - Novo Cardinality Estimator do SQL Server 2014SQL Saturday 329 - Novo Cardinality Estimator do SQL Server 2014
SQL Saturday 329 - Novo Cardinality Estimator do SQL Server 2014
Vitor Fava

Before you optimize: Understanding Execution Plans
Before you optimize: Understanding Execution PlansBefore you optimize: Understanding Execution Plans
Before you optimize: Understanding Execution Plans
Timothy Corey

SQL Server 2014 New Features (Sql Server 2014 Yenilikleri)
SQL Server 2014 New Features (Sql Server 2014 Yenilikleri)SQL Server 2014 New Features (Sql Server 2014 Yenilikleri)
SQL Server 2014 New Features (Sql Server 2014 Yenilikleri)
BT Akademi

Strategies for SQL Server Index Analysis
Strategies for SQL Server Index AnalysisStrategies for SQL Server Index Analysis
Strategies for SQL Server Index Analysis
Jason Strate

Running SQL 2005? It’s time to migrate to SQL 2014!
Running SQL 2005? It’s time to migrate to SQL 2014!Running SQL 2005? It’s time to migrate to SQL 2014!
Running SQL 2005? It’s time to migrate to SQL 2014!
Dell World

Presentation interpreting execution plans for sql statements
Presentation    interpreting execution plans for sql statementsPresentation    interpreting execution plans for sql statements
Presentation interpreting execution plans for sql statements
xKinAnx

Sql Server 2014 In Memory
Sql Server 2014 In MemorySql Server 2014 In Memory
Sql Server 2014 In Memory
Ravi Okade

Clustered Columnstore - Deep Dive
Clustered Columnstore - Deep DiveClustered Columnstore - Deep Dive
Clustered Columnstore - Deep Dive
Niko Neugebauer

Sql server 2014 x velocity – updateable columnstore indexes
Sql server 2014 x velocity – updateable columnstore indexesSql server 2014 x velocity – updateable columnstore indexes
Sql server 2014 x velocity – updateable columnstore indexes
Pat Sheehan

TSQL in SQL Server 2012
TSQL in SQL Server 2012TSQL in SQL Server 2012
TSQL in SQL Server 2012
Eduardo Castro

Clustered Columnstore Introduction
Clustered Columnstore IntroductionClustered Columnstore Introduction
Clustered Columnstore Introduction
Niko Neugebauer

Database index
Database indexDatabase index
Database index
Riteshkiit

Indian movies games
Indian movies gamesIndian movies games
Indian movies games
Aditya Jadoun

Sql rally 2013 columnstore indexes
Sql rally 2013   columnstore indexesSql rally 2013   columnstore indexes
Sql rally 2013 columnstore indexes
Денис Резник


Viewers also liked (20)

Database index(sql server)
Database index(sql server)Database index(sql server)
Database index(sql server)

The 5 Hidden Performance Gems of SQL Server 2014
The 5 Hidden Performance Gems of SQL Server 2014The 5 Hidden Performance Gems of SQL Server 2014
The 5 Hidden Performance Gems of SQL Server 2014

Indexes
IndexesIndexes
Indexes

Introduction to Columnstore Indexes
Introduction to Columnstore IndexesIntroduction to Columnstore Indexes
Introduction to Columnstore Indexes

An introduction to column store indexes and batch mode
An introduction to column store indexes and batch modeAn introduction to column store indexes and batch mode
An introduction to column store indexes and batch mode

Index in sql server
Index in sql serverIndex in sql server
Index in sql server

SQL Saturday 329 - Novo Cardinality Estimator do SQL Server 2014
SQL Saturday 329 - Novo Cardinality Estimator do SQL Server 2014SQL Saturday 329 - Novo Cardinality Estimator do SQL Server 2014
SQL Saturday 329 - Novo Cardinality Estimator do SQL Server 2014

Before you optimize: Understanding Execution Plans
Before you optimize: Understanding Execution PlansBefore you optimize: Understanding Execution Plans
Before you optimize: Understanding Execution Plans

SQL Server 2014 New Features (Sql Server 2014 Yenilikleri)
SQL Server 2014 New Features (Sql Server 2014 Yenilikleri)SQL Server 2014 New Features (Sql Server 2014 Yenilikleri)
SQL Server 2014 New Features (Sql Server 2014 Yenilikleri)

Strategies for SQL Server Index Analysis
Strategies for SQL Server Index AnalysisStrategies for SQL Server Index Analysis
Strategies for SQL Server Index Analysis

Running SQL 2005? It’s time to migrate to SQL 2014!
Running SQL 2005? It’s time to migrate to SQL 2014!Running SQL 2005? It’s time to migrate to SQL 2014!
Running SQL 2005? It’s time to migrate to SQL 2014!

Presentation interpreting execution plans for sql statements
Presentation    interpreting execution plans for sql statementsPresentation    interpreting execution plans for sql statements
Presentation interpreting execution plans for sql statements

Sql Server 2014 In Memory
Sql Server 2014 In MemorySql Server 2014 In Memory
Sql Server 2014 In Memory

Clustered Columnstore - Deep Dive
Clustered Columnstore - Deep DiveClustered Columnstore - Deep Dive
Clustered Columnstore - Deep Dive

Sql server 2014 x velocity – updateable columnstore indexes
Sql server 2014 x velocity – updateable columnstore indexesSql server 2014 x velocity – updateable columnstore indexes
Sql server 2014 x velocity – updateable columnstore indexes

TSQL in SQL Server 2012
TSQL in SQL Server 2012TSQL in SQL Server 2012
TSQL in SQL Server 2012

Clustered Columnstore Introduction
Clustered Columnstore IntroductionClustered Columnstore Introduction
Clustered Columnstore Introduction

Database index
Database indexDatabase index
Database index

Indian movies games
Indian movies gamesIndian movies games
Indian movies games

Sql rally 2013 columnstore indexes
Sql rally 2013   columnstore indexesSql rally 2013   columnstore indexes
Sql rally 2013 columnstore indexes


Similar to Columnstore indexes in sql server 2014

SQL Explore 2012: P&T Part 2
SQL Explore 2012: P&T Part 2SQL Explore 2012: P&T Part 2
SQL Explore 2012: P&T Part 2
sqlserver.co.il

Modernizing your database with SQL Server 2019
Modernizing your database with SQL Server 2019Modernizing your database with SQL Server 2019
Modernizing your database with SQL Server 2019
Antonios Chatzipavlis

MySQL: Know more about open Source Database
MySQL: Know more about open Source DatabaseMySQL: Know more about open Source Database
MySQL: Know more about open Source Database
Mahesh Salaria

U-SQL - Azure Data Lake Analytics for Developers
U-SQL - Azure Data Lake Analytics for DevelopersU-SQL - Azure Data Lake Analytics for Developers
U-SQL - Azure Data Lake Analytics for Developers
Michael Rys

Building better SQL Server Databases
Building better SQL Server DatabasesBuilding better SQL Server Databases
Building better SQL Server Databases
ColdFusionConference

SQL server 2016 New Features
SQL server 2016 New FeaturesSQL server 2016 New Features
SQL server 2016 New Features
aminmesbahi

Novedades SQL Server 2014
Novedades SQL Server 2014Novedades SQL Server 2014
Novedades SQL Server 2014
netmind

Debugging made easier with extended events
Debugging made easier with extended eventsDebugging made easier with extended events
Debugging made easier with extended events
Amit Banerjee

[JSS2015] In memory and operational analytics
[JSS2015] In memory and operational analytics[JSS2015] In memory and operational analytics
[JSS2015] In memory and operational analytics
GUSS

Jss 2015 in memory and operational analytics
Jss 2015   in memory and operational analyticsJss 2015   in memory and operational analytics
Jss 2015 in memory and operational analytics
David Barbarin

Data Visualization - UC Analytics Conference 2018
Data Visualization - UC Analytics Conference 2018Data Visualization - UC Analytics Conference 2018
Data Visualization - UC Analytics Conference 2018
Russell Spangler

How SQL Server 2016 SP1 Changes the Game
How SQL Server 2016 SP1 Changes the GameHow SQL Server 2016 SP1 Changes the Game
How SQL Server 2016 SP1 Changes the Game
PARIKSHIT SAVJANI

MariaDB ColumnStore
MariaDB ColumnStoreMariaDB ColumnStore
MariaDB ColumnStore
MariaDB plc

Powering GIS Application with PostgreSQL and Postgres Plus
Powering GIS Application with PostgreSQL and Postgres Plus Powering GIS Application with PostgreSQL and Postgres Plus
Powering GIS Application with PostgreSQL and Postgres Plus
Ashnikbiz

Geek Sync I Need for Speed: In-Memory Databases in Oracle and SQL Server
Geek Sync I Need for Speed: In-Memory Databases in Oracle and SQL ServerGeek Sync I Need for Speed: In-Memory Databases in Oracle and SQL Server
Geek Sync I Need for Speed: In-Memory Databases in Oracle and SQL Server
IDERA Software

Ssn0020 ssis 2012 for beginners
Ssn0020   ssis 2012 for beginnersSsn0020   ssis 2012 for beginners
Ssn0020 ssis 2012 for beginners
Antonios Chatzipavlis

Performance dreams of sql server 2014
Performance dreams of sql server 2014Performance dreams of sql server 2014
Performance dreams of sql server 2014
Shehap Elnagar

Pass chapter meeting dec 2013 - compression a hidden gem for io heavy databas...
Pass chapter meeting dec 2013 - compression a hidden gem for io heavy databas...Pass chapter meeting dec 2013 - compression a hidden gem for io heavy databas...
Pass chapter meeting dec 2013 - compression a hidden gem for io heavy databas...
Charley Hanania

SQL Server 2008 For Developers
SQL Server 2008 For DevelopersSQL Server 2008 For Developers
SQL Server 2008 For Developers
John Sterrett

Cassandra training
Cassandra trainingCassandra training
Cassandra training
András Fehér


Similar to Columnstore indexes in sql server 2014 (20)

SQL Explore 2012: P&T Part 2
SQL Explore 2012: P&T Part 2SQL Explore 2012: P&T Part 2
SQL Explore 2012: P&T Part 2

Modernizing your database with SQL Server 2019
Modernizing your database with SQL Server 2019Modernizing your database with SQL Server 2019
Modernizing your database with SQL Server 2019

MySQL: Know more about open Source Database
MySQL: Know more about open Source DatabaseMySQL: Know more about open Source Database
MySQL: Know more about open Source Database

U-SQL - Azure Data Lake Analytics for Developers
U-SQL - Azure Data Lake Analytics for DevelopersU-SQL - Azure Data Lake Analytics for Developers
U-SQL - Azure Data Lake Analytics for Developers

Building better SQL Server Databases
Building better SQL Server DatabasesBuilding better SQL Server Databases
Building better SQL Server Databases

SQL server 2016 New Features
SQL server 2016 New FeaturesSQL server 2016 New Features
SQL server 2016 New Features

Novedades SQL Server 2014
Novedades SQL Server 2014Novedades SQL Server 2014
Novedades SQL Server 2014

Debugging made easier with extended events
Debugging made easier with extended eventsDebugging made easier with extended events
Debugging made easier with extended events

[JSS2015] In memory and operational analytics
[JSS2015] In memory and operational analytics[JSS2015] In memory and operational analytics
[JSS2015] In memory and operational analytics

Jss 2015 in memory and operational analytics
Jss 2015   in memory and operational analyticsJss 2015   in memory and operational analytics
Jss 2015 in memory and operational analytics

Data Visualization - UC Analytics Conference 2018
Data Visualization - UC Analytics Conference 2018Data Visualization - UC Analytics Conference 2018
Data Visualization - UC Analytics Conference 2018

How SQL Server 2016 SP1 Changes the Game
How SQL Server 2016 SP1 Changes the GameHow SQL Server 2016 SP1 Changes the Game
How SQL Server 2016 SP1 Changes the Game

MariaDB ColumnStore
MariaDB ColumnStoreMariaDB ColumnStore
MariaDB ColumnStore

Powering GIS Application with PostgreSQL and Postgres Plus
Powering GIS Application with PostgreSQL and Postgres Plus Powering GIS Application with PostgreSQL and Postgres Plus
Powering GIS Application with PostgreSQL and Postgres Plus

Geek Sync I Need for Speed: In-Memory Databases in Oracle and SQL Server
Geek Sync I Need for Speed: In-Memory Databases in Oracle and SQL ServerGeek Sync I Need for Speed: In-Memory Databases in Oracle and SQL Server
Geek Sync I Need for Speed: In-Memory Databases in Oracle and SQL Server

Ssn0020 ssis 2012 for beginners
Ssn0020   ssis 2012 for beginnersSsn0020   ssis 2012 for beginners
Ssn0020 ssis 2012 for beginners

Performance dreams of sql server 2014
Performance dreams of sql server 2014Performance dreams of sql server 2014
Performance dreams of sql server 2014

Pass chapter meeting dec 2013 - compression a hidden gem for io heavy databas...
Pass chapter meeting dec 2013 - compression a hidden gem for io heavy databas...Pass chapter meeting dec 2013 - compression a hidden gem for io heavy databas...
Pass chapter meeting dec 2013 - compression a hidden gem for io heavy databas...

SQL Server 2008 For Developers
SQL Server 2008 For DevelopersSQL Server 2008 For Developers
SQL Server 2008 For Developers

Cassandra training
Cassandra trainingCassandra training
Cassandra training


More from Antonios Chatzipavlis

Data virtualization using polybase
Data virtualization using polybaseData virtualization using polybase
Data virtualization using polybase
Antonios Chatzipavlis

SQL server Backup Restore Revealed
SQL server Backup Restore RevealedSQL server Backup Restore Revealed
SQL server Backup Restore Revealed
Antonios Chatzipavlis

Migrate SQL Workloads to Azure
Migrate SQL Workloads to AzureMigrate SQL Workloads to Azure
Migrate SQL Workloads to Azure
Antonios Chatzipavlis

Machine Learning in SQL Server 2019
Machine Learning in SQL Server 2019Machine Learning in SQL Server 2019
Machine Learning in SQL Server 2019
Antonios Chatzipavlis

Workload Management in SQL Server 2019
Workload Management in SQL Server 2019Workload Management in SQL Server 2019
Workload Management in SQL Server 2019
Antonios Chatzipavlis

Loading Data into Azure SQL DW (Synapse Analytics)
Loading Data into Azure SQL DW (Synapse Analytics)Loading Data into Azure SQL DW (Synapse Analytics)
Loading Data into Azure SQL DW (Synapse Analytics)
Antonios Chatzipavlis

Introduction to DAX Language
Introduction to DAX LanguageIntroduction to DAX Language
Introduction to DAX Language
Antonios Chatzipavlis

Building diagnostic queries using DMVs and DMFs
Building diagnostic queries using DMVs and DMFs Building diagnostic queries using DMVs and DMFs
Building diagnostic queries using DMVs and DMFs
Antonios Chatzipavlis

Exploring T-SQL Anti-Patterns
Exploring T-SQL Anti-Patterns Exploring T-SQL Anti-Patterns
Exploring T-SQL Anti-Patterns
Antonios Chatzipavlis

Designing a modern data warehouse in azure
Designing a modern data warehouse in azure   Designing a modern data warehouse in azure
Designing a modern data warehouse in azure
Antonios Chatzipavlis

Designing a modern data warehouse in azure
Designing a modern data warehouse in azure   Designing a modern data warehouse in azure
Designing a modern data warehouse in azure
Antonios Chatzipavlis

SQLServer Database Structures
SQLServer Database Structures SQLServer Database Structures
SQLServer Database Structures
Antonios Chatzipavlis

Sqlschool 2017 recap - 2018 plans
Sqlschool 2017 recap - 2018 plansSqlschool 2017 recap - 2018 plans
Sqlschool 2017 recap - 2018 plans
Antonios Chatzipavlis

Azure SQL Database for the SQL Server DBA - Azure Bootcamp Athens 2018
Azure SQL Database for the SQL Server DBA - Azure Bootcamp Athens 2018 Azure SQL Database for the SQL Server DBA - Azure Bootcamp Athens 2018
Azure SQL Database for the SQL Server DBA - Azure Bootcamp Athens 2018
Antonios Chatzipavlis

Microsoft SQL Family and GDPR
Microsoft SQL Family and GDPRMicrosoft SQL Family and GDPR
Microsoft SQL Family and GDPR
Antonios Chatzipavlis

Statistics and Indexes Internals
Statistics and Indexes InternalsStatistics and Indexes Internals
Statistics and Indexes Internals
Antonios Chatzipavlis

Introduction to Azure Data Lake
Introduction to Azure Data LakeIntroduction to Azure Data Lake
Introduction to Azure Data Lake
Antonios Chatzipavlis

Azure SQL Data Warehouse
Azure SQL Data Warehouse Azure SQL Data Warehouse
Azure SQL Data Warehouse
Antonios Chatzipavlis

Introduction to azure document db
Introduction to azure document dbIntroduction to azure document db
Introduction to azure document db
Antonios Chatzipavlis

Introduction to Machine Learning on Azure
Introduction to Machine Learning on AzureIntroduction to Machine Learning on Azure
Introduction to Machine Learning on Azure
Antonios Chatzipavlis


More from Antonios Chatzipavlis (20)

Data virtualization using polybase
Data virtualization using polybaseData virtualization using polybase
Data virtualization using polybase

SQL server Backup Restore Revealed
SQL server Backup Restore RevealedSQL server Backup Restore Revealed
SQL server Backup Restore Revealed

Migrate SQL Workloads to Azure
Migrate SQL Workloads to AzureMigrate SQL Workloads to Azure
Migrate SQL Workloads to Azure

Machine Learning in SQL Server 2019
Machine Learning in SQL Server 2019Machine Learning in SQL Server 2019
Machine Learning in SQL Server 2019

Workload Management in SQL Server 2019
Workload Management in SQL Server 2019Workload Management in SQL Server 2019
Workload Management in SQL Server 2019

Loading Data into Azure SQL DW (Synapse Analytics)
Loading Data into Azure SQL DW (Synapse Analytics)Loading Data into Azure SQL DW (Synapse Analytics)
Loading Data into Azure SQL DW (Synapse Analytics)

Introduction to DAX Language
Introduction to DAX LanguageIntroduction to DAX Language
Introduction to DAX Language

Building diagnostic queries using DMVs and DMFs
Building diagnostic queries using DMVs and DMFs Building diagnostic queries using DMVs and DMFs
Building diagnostic queries using DMVs and DMFs

Exploring T-SQL Anti-Patterns
Exploring T-SQL Anti-Patterns Exploring T-SQL Anti-Patterns
Exploring T-SQL Anti-Patterns

Designing a modern data warehouse in azure
Designing a modern data warehouse in azure   Designing a modern data warehouse in azure
Designing a modern data warehouse in azure

Designing a modern data warehouse in azure
Designing a modern data warehouse in azure   Designing a modern data warehouse in azure
Designing a modern data warehouse in azure

SQLServer Database Structures
SQLServer Database Structures SQLServer Database Structures
SQLServer Database Structures

Sqlschool 2017 recap - 2018 plans
Sqlschool 2017 recap - 2018 plansSqlschool 2017 recap - 2018 plans
Sqlschool 2017 recap - 2018 plans

Azure SQL Database for the SQL Server DBA - Azure Bootcamp Athens 2018
Azure SQL Database for the SQL Server DBA - Azure Bootcamp Athens 2018 Azure SQL Database for the SQL Server DBA - Azure Bootcamp Athens 2018
Azure SQL Database for the SQL Server DBA - Azure Bootcamp Athens 2018

Microsoft SQL Family and GDPR
Microsoft SQL Family and GDPRMicrosoft SQL Family and GDPR
Microsoft SQL Family and GDPR

Statistics and Indexes Internals
Statistics and Indexes InternalsStatistics and Indexes Internals
Statistics and Indexes Internals

Introduction to Azure Data Lake
Introduction to Azure Data LakeIntroduction to Azure Data Lake
Introduction to Azure Data Lake

Azure SQL Data Warehouse
Azure SQL Data Warehouse Azure SQL Data Warehouse
Azure SQL Data Warehouse

Introduction to azure document db
Introduction to azure document dbIntroduction to azure document db
Introduction to azure document db

Introduction to Machine Learning on Azure
Introduction to Machine Learning on AzureIntroduction to Machine Learning on Azure
Introduction to Machine Learning on Azure


Recently uploaded

"What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w..."What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w...
Fwdays

Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...
Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...
Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...
Pitangent Analytics & Technology Solutions Pvt. Ltd

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
DianaGray10

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

From Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMsFrom Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMs
Sease

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP
c5vrf27qcz

Must Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during MigrationMust Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during Migration
Mydbops

Session 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdfSession 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdf
UiPathCommunity

Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and BioinformaticiansBiomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Neo4j

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters
Safe Software

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)
Javier Junquera

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
Edge AI and Vision Alliance

"$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin..."$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin...
Fwdays

High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024
Vadym Kazulkin

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx
christinelarrosa

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
ScyllaDB

[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
Jason Yip

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota
Fwdays

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |
AstuteBusiness

PRODUCT LISTING OPTIMIZATION PRESENTATION.pptx
PRODUCT LISTING OPTIMIZATION PRESENTATION.pptxPRODUCT LISTING OPTIMIZATION PRESENTATION.pptx
PRODUCT LISTING OPTIMIZATION PRESENTATION.pptx
christinelarrosa


Recently uploaded (20)

"What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w..."What does it really mean for your system to be available, or how to define w...
"What does it really mean for your system to be available, or how to define w...

Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...
Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...
Crafting Excellence: A Comprehensive Guide to iOS Mobile App Development Serv...

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

From Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMsFrom Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMs

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP

Must Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during MigrationMust Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during Migration

Session 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdfSession 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdf

Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and BioinformaticiansBiomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...

"$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin..."$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin...

High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024High performance Serverless Java on AWS- GoTo Amsterdam 2024
High performance Serverless Java on AWS- GoTo Amsterdam 2024

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...
[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |

PRODUCT LISTING OPTIMIZATION PRESENTATION.pptx
PRODUCT LISTING OPTIMIZATION PRESENTATION.pptxPRODUCT LISTING OPTIMIZATION PRESENTATION.pptx
PRODUCT LISTING OPTIMIZATION PRESENTATION.pptx


Columnstore indexes in sql server 2014

  • 1. Columnstore Indexes on SQL Server 2014 22th SQL Saturday Night with Antonios Chatzipavlis Jan 25, 2014
  • 2. Η παρουσίαση αυτή θα καταγραφεί ώστε να είναι διαθέσιμη για όσους θέλουν να την ξαναδούν, ή δεν είχαν την δυνατότητα να την παρακολουθήσουν σε πραγματικό χρόνο. Εάν κάποιος από τους παραβρισκόμενους σε αυτή έχει το οποιοδήποτε πρόβλημα ή αντίρρηση να είναι μέρος της καταγραφή αυτής, παρακαλείται να αποχωρήσει άμεσα. Σε διαφορετική περίπτωση η παραμονή εκλαμβάνεται ως αποδοχή της καταγραφής. Η παρουσίαση αυτή διατίθεται δωρεάν, και θα αρχίσει σε 1 λεπτό… σε αυτή
  • 3. Αυτή την στιγμή ο παρουσιαστής μιλάει και σας ζητάει να βεβαιώσετε ότι τον ακούτε. Εάν αυτό δεν είναι δυνατόν παρακαλείστε να αλλάξετε το χρώμα της κάρτας σας στο αντίστοιχο χρώμα ώστε να τον ενημερώσετε. Αυτό μπορεί να γίνει πατώντας την αντίστοιχη επιλογή που βρίσκεται στο πάνω δεξί μέρος του περιβάλλοντος του live meeting. Σας ευχαριστούμε για την συνεργασία.
  • 4. Columnstore Indexes in SQL Server 2014 22th SQL Saturday Night Jan 25, 2014
  • 5. SP_WHO Antonios Chatzipavlis Solution Architect • SQL Server Evangelist • Trainer • Speaker MCT, MCSE, MCITP, MCPD, MCSD, MCDBA, MCSA, MCTS, MCAD, MCP, OCA, ITIL-F • 1982 I have been started with computers. • 1988 I started my professional carrier in computers industry. • 1996 I have been started to work with SQL Server version 6.0 • 1998 I earned my first certification at Microsoft as Microsoft Certified Solution Developer (3rd in Greece) and started my carrier as Microsoft Certified Trainer (MCT) with more than 20.000 hours of training until now! • 2010 I became for first time Microsoft MVP on SQL Server I created the SQL School Greece (www.sqlschool.gr) • 2012 I became MCT Regional Lead by Microsoft Learning Program. • 2013 I was certified as MCSE : Data Platform, MCSE: Business Intelligence
  • 6. GET IN TOUCH @antoniosch @sqlschool SQL School Greece www.sqlschool.gr help@sqlschool.gr
  • 7. AGENDA • Overview • Introduction • Implementing and Maintaining • Architecture • Internals • Compression • Batch Mode Processing • FAQ
  • 9. Approximate data volume managed by DW 41% Less than 1TB 17% 21% 1 - 3 TB Today 18% In 3 years 19% 3 - 10 TB 25% 17% More than 10 TB 34% 2% Don't Know 6% 0% 5% 10% 15% 20% 25% 30% Source: TDWI Report – Next Generation DW 35% 40% 45%
  • 10. How does Microsoft SQL Server answer to this opportunity?
  • 12. WHAT ARE MICROSOFT'S IN-MEMORY TECHNOLOGIES? • These are all next-generation technologies built for extreme speed on modern hardware systems with large memories and many cores. • The in-memory technologies include • in-memory analytics engine used in PowerPivot and Analysis Services, • and the in-memory columnstore index used in the SQL Server database. • SQL Server 2012, SQL Server 2014, and SQL Server PDW all use in-memory technologies to accelerate common data warehouse queries.
  • 13. SQL SERVER SQL Server 2012 introduced two innovations targeted for data warehousing workloads: • Column store indexes • Batch (vectorized) processing mode.
  • 15. WHAT IS A COLUMNSTORE INDEX? • A technology for storing, retrieving and managing data by using a columnar data format • Data is compressed, stored, and managed as a collection of partial columns • We can use a columnstore index to answer a query just like data in any other type of index. • The query optimizer considers the columnstore index as a data source for accessing data just like it considers other indexes when creating a query plan.
  • 16. WHAT IS A COLUMNSTORE? A columnstore is data that is logically organized as a table with rows and columns, and physically stored in a columnar data format. “
  • 17. BENEFITS OF COLUMNSTORE INDEXES • Are part of a new family of technologies called xVelocity • 10x query performance • Up to 10x query performance gains over traditional row-oriented storage, by storing and compressing data by columns • 7x data compression • Up to 7x data compression over the uncompressed data size, by using fewer reads to bring compressed data into memory and then using the reduced data volume for the in-memory processing
  • 18. WHERE TO USE THEM? “We view the clustered columnstore index as the standard for storing large data warehousing fact tables, and expect it will be used in most data warehousing scenarios. “ Microsoft Note from MSDN
  • 19. IMPROVEMENTS ON SQL SERVER 2014 • Making tables updatable • Schema modification is available • More data types included • Mixed execution modes support • More operations support for the batch mode • Improved global dictionaries for segments compression • Archival data compression support • Seek and Spill (Bulk insert) operation support
  • 21. KEY CHARACTERISTICS • Clustered Columnstore Indexes • Added as new feature in SQL Server 2014 • Nonclustered Columnstore Indexes • Added as new feature in SQL Server 2012 • Columnstore Indexes don’t need special hardware
  • 22. NONCLUSTRED COLUMNSTORE INDEX • Does not need to include all of the columns in the table. • Requires storage to store a copy of the columns in the index. • Can be combined with other indexes on the table. • Uses columnstore compression. • The compression is not configurable. • Does not physically store columns in a sorted order. • Instead, it stores data to improve compression and performance
  • 23. CLUSTERED COLUMNSTORE INDEX • Available on Enterprise, Developer editions of SQL Server 2014. • Includes all columns in the table and is the method for storing the entire table. • Is the only index on the table. • It cannot be combined with any other indexes. • Uses columnstore compression. • The compression is not configurable. • Does not physically store columns in a sorted order. • Instead, it stores data to improve compression and performance.
  • 24. CREATE COLUMNSTORE INDEX CLUSTERED table index name myCSIndex Customers NONCLUSTERED table columns list CustomerID index name CompanyName ContactName
  • 25. UNSUPPORTED DATA TYPES • ntext, text, image • varchar(max), nvarchar(max) • rowversion (and timestamp) • sql_variant • decimal (and numeric) with precision greater than 18 digits • datetimeoffset, with scale greater than 2 • CLR types (hierarchyid and spatial types) • xml
  • 26. UNSUPPORTED FEATURES • Sparse columns • Computed columns • Included columns • Views or Indexed Views • Can’t be ordered by ASC or DESC • Replication • Filestream • Change tracking and Change data capture
  • 27. SUPPORTED ISOLATION LEVELS • READ UNCOMMITTED • READ COMMITTED • REPEATABLE READ • SERIALIZABLE • READ_COMMITED_SNAPSHOT
  • 28. USING COLUMNSTORES EFFECTIVELY • Put columnstore indexes on large tables only. • • • Include every column of the table in the columnstore index. • • If you don't, then a query that references a column not included in the index will not benefit from the columnstores index much or at all. Structure your queries as star joins with grouping and aggregation as much as possible. • • • • Typically, you will put them on your fact tables in your data warehouse, but not the dimension tables. If you have a large dimension table, containing more than a few million rows, then you may want to put a columnstore index on it as well. Avoid joining pairs of large tables. Join a single large fact table to one or more smaller dimensions using standard inner joins. Use a dimensional modeling approach for your data as much as possible to allow you to structure your queries this way. Use best practices for statistics management and query design. • • This is independent of columnstore technology. Use good statistics and avoid query design pitfalls to get the best performance.
  • 29. READING CSI METADATA • sys.column_store_dictionaries • Contains a row for each dictionary used in xVelocity memory optimized columnstore indexes. • sys.column_store_segments • Contains a row for each column in a columnstore index. • sys.column_store_row_groups. • Provides clustered columnstore index information on a per-segment basis • Useful to determine which row groups have a high percentage of deleted rows and should be rebuilt.
  • 30. DBCC CSINDEX DBCC CSIndex ( {'dbname' | db_id} , rowsetid , columned , rowgroupid , object_type , print_option , [ start] , [ end] ) • rowsetid • • • • segment_id from sys.column_store_segments • • • column_id from sys.column_store_segments • • HoBT or PartitionID from sys.column_store_segments 1 = Segment 2 = Dictionary • • Valid Values are 0, 1, 2 Under investigation columnid rowgroupid object_type print_option • Undocumented DBCC statement • Works on SQL Server 2012 and above • Similar to DBCC PAGE for CS Indexes
  • 32. COLUMNSTORE VS HEAP AND B-TREE Data stored as rows Data stored as columns C1 … C2 C3 C4 C5
  • 33. BENEFITS OF COLUMNSTORE • Smaller in-memory footprint. • High compression rates improve query performance by using a smaller inmemory footprint. In turn, query performance can improve because SQL Server can perform more query and data operations in-memory. • Reduces total I/O • Queries often select only a few columns from a table, which reduces total I/O to and from the physical media. • Reduces CPU usage • Advanced query execution technology processes chunks of columns called batches in a streamlined manner, which reduces CPU usage.
  • 34. KEY TERMS – PART I • Rowgroup • • • • Is a group of rows that are compressed into columnstore format at the same time. Each column in the rowgroup is compressed and stored separately onto the physical media. Each rowgroup contains one column segment for every column in the table. Rowgroups define the column values that are in each column segment. • Column segment • • • • Is the basic storage unit for a columnstore index. It is a group of column values that are compressed and physically stored together on the physical media. Each column is comprised of one or many column segments. When SQL Server compresses a rowgroup, it compresses each column within the rowgroup as one column segment.
  • 35. KEY TERMS – PART II • Columnstore • Is data that is logically organized as a table with rows and columns • Physically stored in a columnar data format. • The columns are divided into segments and stored as compressed column segments. • Rowstore • A rowstore is data that is organized as rows and columns, and then physically stored in a row-wise data format. • This has been the traditional way to store relational table data .
  • 36. KEY TERMS – PART III • Deltastore • Is a rowstore table that holds rows until the number of rows is large enough to be moved into the columnstore. • Rows accumulate in each deltastore until the number of rows is the maximum number of rows allowed for a rowgroup. • For each columnstore there can be multiple deltastores. • For a partitioned table, there are one or more deltastores for every partition. • They are in the traditional row-mode (B-Trees) format • It’s expensive to query than the compressed columnar segments • Each deltastore has 1.048.576 rows and when reached converted to columnstore
  • 37. TERMINOLOGY PICTURE The source of this picture is Microsoft MSDN
  • 39. COLUMNSTORE INDEX EXAMPLE Step 1 - Horizontally Partition (create Row Groups) OrderDateKey ProductKey StoreKey RegionKey Quantity SalesAmount 20101107 106 01 1 6 30.00 20101107 103 04 2 1 17.00 20101107 109 04 2 2 20.00 20101107 103 03 2 1 17.00 20101107 106 05 3 4 20.00 20101108 106 02 1 5 25.00 OrderDateKey ProductKey StoreKey RegionKey Quantity SalesAmount 20101108 102 02 1 1 14.00 20101108 106 03 2 5 25.00 20101108 109 01 1 1 10.00 20101109 106 04 2 4 20.00 20101109 106 04 2 5 25.00 20101109 103 01 1 1 17.00 ~1M rows
  • 40. COLUMNSTORE INDEX EXAMPLE Step 2 - Vertically Partition (create Segments) OrderDateKey ProductKey StoreKey RegionKey Quantity SalesAmount 20101107 106 01 1 6 30.00 20101107 103 04 2 1 17.00 20101107 109 04 2 2 20.00 20101107 103 03 2 1 17.00 20101107 106 05 3 4 20.00 20101108 106 02 1 5 25.00 OrderDateKey ProductKey StoreKey RegionKey Quantity SalesAmount 20101108 102 02 1 1 14.00 20101108 106 03 2 5 25.00 20101108 109 01 1 1 10.00 20101109 106 04 2 4 20.00 20101109 106 04 2 5 25.00 20101109 103 01 1 1 17.00
  • 41. COLUMNSTORE INDEX EXAMPLE Step 3 - Compress Each Segment OrderDateKey 20101107 20101107 20101107 20101107 20101107 20101108 ProductKey StoreKey RegionKey Quantity SalesAmount 106 01 1 6 30.00 04 2 1 2 17.00 2 103 109 04 103 03 106 05 106 20101108 ProductKey 20101108 102 20101108 106 109 20101109 106 20101109 106 103 3 1 02 OrderDateKey 20101109 2 RegionKey StoreKey 1 02 2 03 1 01 2 04 04 2 1 1 4 5 20.00 17.00 20.00 25.00 Quantity 1 SalesAmount 5 14.00 1 25.00 4 5 1 01 10.00 20.00 25.00 17.00 Some segments will compress more than others
  • 42. COLUMNSTORE INDEX EXAMPLE Step 4 - Read the Data ProductKey OrderDateKey OrderDateKey 20101107 20101107 20101107 20101107 20101107 20101108 ProductKey StoreKey RegionKey Quantity SalesAmount 106 01 1 6 30.00 04 2 1 2 17.00 2 103 109 103 106 106 OrderDateKey 20101108 ProductKey 20101108 102 20101108 106 20101109 109 20101109 106 20101109 SalesAmount 106 103 04 03 05 2 3 1 02 RegionKey StoreKey 1 02 2 03 1 01 2 04 2 04 01 1 1 4 5 20.00 17.00 20.00 25.00 Quantity 1 SalesAmount 5 14.00 1 25.00 4 5 1 10.00 20.00 25.00 17.00
  • 44. HOW BASIC OPERATIONS WORKS • Inserts • Added to one of the currently open Delta Stores. • Deletes • If the deleted row is found inside of a RowGroup, then the Deleted Bitmap information is updated with the row id of the respective row. • If the deleted row is actually inside of a Delta Store, then the direct process of removal is executed on the b-tree. • Updates • As you know an update represented as delete and insert.
  • 45. HOW ARE DELTASTORES CREATED • INSERT, UPDATE, MERGE statements • That do not use the BULK INSERT API • Except INSERT ... SELECT .... • Undersized BULK INSERT • Bellow 100,000 rows, the rows will be inserted as a deltastore • Above 100,000 rows a compressed segment is created • But a clustered columnstore consisting of 100k rows segments will be suboptimal. • The ideal batch size is 1,000,000 rows
  • 46. TUPLE MOVER • When a deltastore … • reaches the max size of 1048576 rows • is going to be closed • and will become available for the Tuple Mover to compress it. • The Tuple Mover • create big, healthy segments • it is not designed to be a replacement for index build • running every 5 min • Running on demand • ALTER INDEX ... REORGANIZE • ALTER INDEX ... REBUILD
  • 48. MEMORY CONSUMPTION Memory grant request in MB = ( ( (4.2 * COLNUM) + 68 ) * DOP ) + (CHRCOL * 34 ) COLNUM = Number of columns in the columnstore index DOP = Degree Of Parallelism CHRCOL = Number of character columns in the columnstore index • In SQL Server 2014 • The actual DOP will be varying as the SQL Server might be changing the memory consumption based on the currently available resources. • This means that some of the threads might even be put on hold, in order to keep the system stable.
  • 49. MEMORY ERRORS DURING CSI CREATION • Errors 8657 or 8658 • • This errors raised when the initial memory grant fails Consider changing the resource governor settings to allow the create index statement to access more memory • The default setting for resource governor limits a query in the default pool to 25% of available memory • Even if the server is otherwise inactive. • This is true even if you have not enabled resource governor. ALTER WORKLOAD GROUP [DEFAULT] WITH (REQUEST_MAX_MEMORY_GRANT_PERCENT=??) ALTER RESOURCE GOVERNOR RECONFIGURE • Errors 701 or 802 • • You may get these errors if memory runs out later during execution. The only viable way to work around these errors in this case is • to explicitly reduce DOP when you create the index, • reduce query concurrency, or add more memory.
  • 50. DELETE BITMAP • Α storage which contains information about the deleted rows inside of the Segments. • Memory representation is a bitmap • Stored on the disk as a B-Tree • Contains ids of the deleted rows. • Consulted on a regular basis • In order to avoid returning the rows which were already deleted.
  • 51. STORAGE OF COLUMNSTORE INDEXES Illustrating how a column store index is created and stored. The set of rows is divided into row groups that are converted to column segments and dictionaries that are then stored using SQL Server blob storage
  • 52. WHAT ARE DICTIONARIES? • Widely used in columnar storage • Efficiently encode large data types, like strings. • The values stores in the column segments will be just entry numbers in the dictionary, and the actual values are stored in the dictionary. • Very good compression for repeated values • but yields bad results if the values are all distinct (the required storage actually increases). • This is what makes large columns (strings) with distinct values very poor candidates for columnstore indexes. • Columnstore indexes contain separate dictionaries for each column and string columns contain two types of dictionaries:
  • 53. DICTIONARIES • Primary (global) Dictionary • This is an global dictionary used by all segments of a column. • Secondary (local) Dictionary • This is an overflow dictionary for entries that did not fit in the primary dictionaries. • It can be shared by several segments of a column: the relation between dictionaries and column segments is one-to-many. • sys.column_store_dictionaries • Information about the dictionaries used by a columnstore can be found in this dmv
  • 55. COMPRESSION Space Used in GB (101 million row table) 20,0 15,0 91% savings 10,0 5,0 0,0 Table with customary indexing Table with Table with no Table with no Table with Clustered customary indexing indexing columnstore columnstore indexing (page index (page compression) compression) ** Space Used = Table space + Index space
  • 56. ARCHIVAL COMPRESSION • New in SQL Server 2014 • Can be applied on a table or a partition • Gives 37% to • • • • 67% more compression Compression gain depending on data Transparent process Compressing the data blobs before storing them on disk Archival compression is implemented as an extra compression layer that transparency compresses the bytes being written to disk • Uses XPress8 algorithm • • • A Microsoft internal variant of LZ77 compression (1970) Working with multiple threads Uses up to 64KB data streams
  • 57. ARCHIVAL COMPRESSION COMPARISON Compression ratio Database Name Raw data size(GB) Archival compression % No Yes GZIP EDW 95.4 5.84 9.33 4.85 Sim 41.3 2.2 3.65 3.08 Telco 47.1 3.0 5.27 5.1 SQL 1.3 5.41 10.37 8.07 MS Sales 14.7 6.92 16.11 11.93 Hospitality 1.0 23.8 70.4 43.3 The above table shows the compression ratios achieved with and without archival compression for several real data sets
  • 59. BATCH MODE PROCESSING • Introduced for first time in SQL Server 2012 • Uses a new iterator model for processing data a-batch-at-a-time instead of a-row-at-a-time. • A batch typically represents about 1000 rows of data. • Each column within a batch is stored as a vector in a separate area of memory, so batch mode processing is vector-based. • Uses algorithms that are optimized for the multicore CPUs and increased memory throughput that are found on modern hardware. • Batch mode processing spreads metadata access costs and other types of overhead over all the rows in a batch, rather than paying the cost for each row. • Batch mode processing operates on compressed data when possible and eliminates some of the exchange operators used by row mode processing. • The result is better parallelism and faster performance.
  • 60. select prod.ProductName, sum(sales.SalesAmount) from dbo.DimProduct as prod right outer join dbo.FactOnlineSales as sales on sales.ProductKey = prod.ProductKey group by prod.ProductName order by prod.ProductName SQL Server 2012 SQL Server 2014 This test performed by Niko Neugebauer
  • 62. FAQ Columnstore Indexes in SQL Server 2014
  • 63. FAQ • Are columnstore indexes available in SQL Azure? • No, not yet. • Does the columnstore index have a primary key? • No. There is no notion of a primary key for a columnstore index. • How long does it take to create a columnstore index? • Creating a columnstore index takes on the order of 1.5 times as long as building a B-tree on the same columns. • Is creating a columnstore index a parallel operation? • Creating a columnstore index is a parallel operation, subject to the limitations on the number of CPUs available and any restrictions set on MaxDOP.
  • 64. FAQ • My MAXDOP is greater than one but the columnstore index was created with DOP = 1. Why it was not created using parallelism? • If your table has less than one million rows, SQL Server will use only one thread to create the columnstore index. • Creating the index in parallel requires more memory than creating the index serially. • If your table has more than one million rows, but SQL Server cannot get a large enough memory grant to create the index using MAXDOP, SQL Server will automatically decrease DOP as needed to fit into the available memory grant. • In some cases, DOP must be decreased to one in order to build the index under constrained memory.
  • 65. FAQ • I tried to create a columnstore index with SQL Server Management Studio using the Indexes->New Index menu and it timed out after 20 minutes. How can I work around this? • Run a CREATE NONCLUSTERED COLUMNSTORE INDEX statement manually in a T-SQL window instead of using the graphical interface. • This will avoid the timeout imposed by the Management Studio graphical user interface. • Can I create multiple columnstore indexes? • No. You can only create one columnstore index on a table. • The columnstore index can contain data from all, or some, of the columns in a table. Since the columns can be accessed independently from one another, you will usually want all the columns in the table to be part of the columnstore index.
  • 66. FAQ • Is a columnstore index better than a covering index that has exactly the columns I need for a query • • • • • • • • The answer depends on the data and the query. Most likely the columnstore index will be compressed more than a covering row store index. If the query is not too selective, so that the query optimizer will choose an index scan and not an index seek, scanning the columnstore index will be faster than scanning the row store covering index. In addition, depending on the nature of the query, you can get batch mode processing when the query uses a columnstore index. Batch mode processing can substantially speed up operations on the data in addition to the speed up from a reduction in IO. If there is no columnstore index used in the query plan, you will not get batch mode processing. On the other hand, if the query is very selective, doing a single lookup, or a few lookups, in a row store covering index might be faster than scanning the columnstore index. Another advantage of the columnstore index is that you can spend less time designing indexes.
  • 67. FAQ • Is the columnstore index the same as a set of covering indexes, one for each column? • No. Although the data for individual columns can be accessed independently, the columnstore index is a single object; the data from all the columns is organized and compressed as an entity. • While the amount of compression achieved is dependent on the characteristics of the data, a columnstore index will most likely be much more compressed than a set of covering indexes, resulting in less IO to read the data into memory and the opportunity for more of the data to reside in memory across multiple queries. • In addition, queries using columnstore indexes can benefit from batch mode processing, whereas a query using covering indexes for each column would not use batch mode processing.
  • 68.
  • 69. SUMMARY • Overview • Introduction • Implementing and Maintaining • Architecture • Internals • Compression • Batch Mode Processing • FAQ
  • 70.
  • 71.
