Machine Learning in SQL Server 2019
The document discusses the Microsoft Learn Student Ambassadors program in Greece, with a focus on machine learning services in SQL Server 2019. It highlights various aspects of data science, including data analysis, machine learning algorithms, and operationalizing machine learning models. Additionally, it provides details on the installation, configuration, and monitoring of SQL Server machine learning services and the associated R and Python packages.
TechnologyâŚ
More Related Content
Similar to Machine Learning in SQL Server 2019
![[AI06] Running ML in SQL Serve](https://cdn.slidesharecdn.com/ss_thumbnails/ai06-170602095345-thumbnail.jpg?width=640&height=640&fit=bounds)
Machine Learning in SQL Server 2019
- 1. Summer in GreeceFestival Microsoft Learn Student Ambassadors | GreeceMicrosoft Learn Student Ambassadors | Greece Machine Learning Services in SQL Server 2019
- 2. 1988 2000 Founderv6.0 60 +2010 Antonios Chatzipavlis Data Solutions Consultant & Trainer Connect / Explore / Learn
- 3. V.102010 - 2020 Acommunity for Greek professionals who use the Microsoft Data Platform Connect / Explore / Learn WebminarsArticles Videos News EventsResources @sqlschool@antoniosch Sqlschoolgr Page Sqlschool User Group Sqlschool.gr Group SQLschoolGR channel
- 4. Machine Learning Services in SQLServer 2019

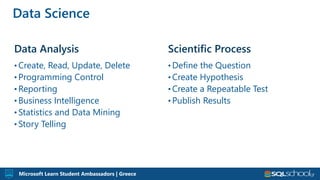

- 5. Microsoft Learn StudentAmbassadors | Greece Data Analysis Scientific Process ⢠Create, Read, Update, Delete ⢠Programming Control ⢠Reporting ⢠Business Intelligence ⢠Statistics and Data Mining ⢠Story Telling ⢠Define the Question ⢠Create Hypothesis ⢠Create a Repeatable Test ⢠Publish Results Data Science

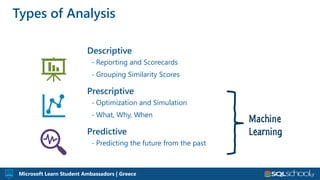

- 6. Microsoft Learn StudentAmbassadors | Greece Descriptive - Reporting and Scorecards - Grouping Similarity Scores Prescriptive - Optimization and Simulation - What, Why, When Predictive - Predicting the future from the past Types of Analysis Machine Learning

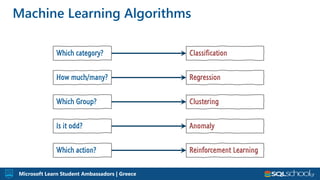

- 7. Microsoft Learn StudentAmbassadors | Greece Machine Learning Algorithms Which category? How much/many? Which Group? Is it odd? Which action? Classification Regression Clustering Anomaly Reinforcement Learning

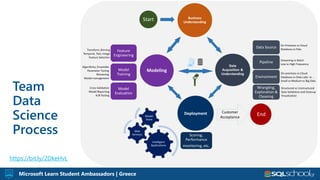

- 8. Microsoft Learn StudentAmbassadors | Greece Team Data Science Process https://bit.ly/2DkeHvL

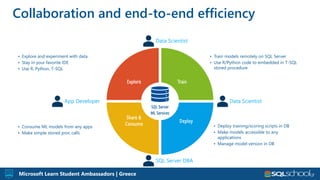

- 9. Microsoft Learn StudentAmbassadors | Greece Collaboration and end-to-end efficiency ⢠Deploy training/scoring scripts in DB ⢠Make models accessible to any applications ⢠Manage model version in DB ⢠Consume ML models from any apps ⢠Make simple stored proc calls ⢠Train models remotely on SQL Server ⢠Use R/Python code to embedded in T-SQL stored procedure ⢠Explore and experiment with data ⢠Stay in your favorite IDE ⢠Use R, Python, T-SQL Explore Train Deploy Share & Consume SQL Server ML Services App Developer Data Scientist Data Scientist SQL Server DBA
- 10. Microsoft Learn StudentAmbassadors | Greece Evolution of SQL Server ML Services
- 11. Microsoft Learn StudentAmbassadors | Greece Machine Learning outside of database Data transformations Model training Model Analytics Server Scoring Separate server or embedded logic Application Transactions Data movement Model operationalization New data Predictions
- 12. Microsoft Learn StudentAmbassadors | Greece In-Database Machine Learning Application Data transformations Model training Scoring Transactions

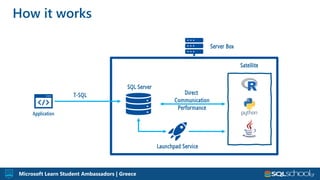

- 13. Microsoft Learn StudentAmbassadors | Greece How it works Application Server Box Satellite T-SQL SQL Server Launchpad Service Direct Communication Performance

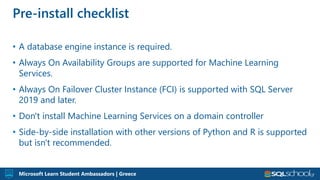

- 14. Microsoft Learn StudentAmbassadors | Greece ⢠A database engine instance is required. ⢠Always On Availability Groups are supported for Machine Learning Services. ⢠Always On Failover Cluster Instance (FCI) is supported with SQL Server 2019 and later. ⢠Don't install Machine Learning Services on a domain controller ⢠Side-by-side installation with other versions of Python and R is supported but isn't recommended. Pre-install checklist

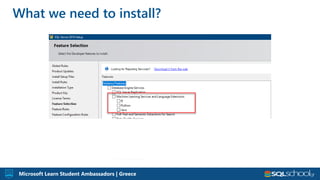

- 15. Microsoft Learn StudentAmbassadors | Greece What we need to install?

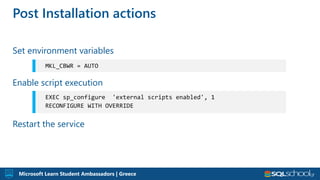

- 16. Microsoft Learn StudentAmbassadors | Greece Set environment variables Enable script execution Restart the service Post Installation actions

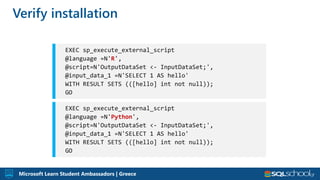

- 17. Microsoft Learn StudentAmbassadors | Greece Verify installation R Python
- 18. Microsoft Learn StudentAmbassadors | Greece ⢠Create a login for SQLRUserGroup. ⢠Make sure that SQLRUserGroup has "Allow Log on locally" permissions. ⢠Firewall configuration for SQL Server Machine Learning Services. ⢠Ensure that SQL Server TCP network protocol is enabled. ⢠Ensure that SQL Server Remote Access is enabled. ⢠Manage disk quotas to avoid external scripts running tasks that exhaust disk space Additional configuration
- 19. Get Python packageinformation
- 20. Get R packageinformation

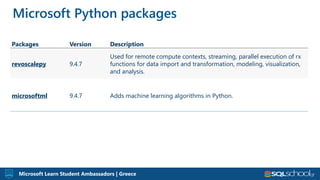

- 21. Microsoft Learn StudentAmbassadors | Greece Packages Version Description revoscalepy 9.4.7 Used for remote compute contexts, streaming, parallel execution of rx functions for data import and transformation, modeling, visualization, and analysis. microsoftml 9.4.7 Adds machine learning algorithms in Python. Microsoft Python packages
- 22. Microsoft Learn StudentAmbassadors | Greece Packages Version Description RevoScaleR 9.4.7 Used for remote compute contexts, streaming, parallel execution of rx functions for data import and transformation, modeling, visualization, and analysis. sqlrutils 1.0.0 Used for including R script in stored procedures. MicrosoftML 9.4.7 Adds machine learning algorithms in R. olapR 1.0.0 Used for writing MDX statements in R. Microsoft R packages

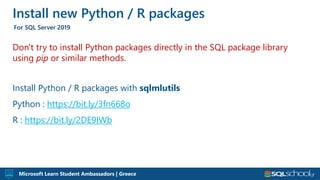

- 23. Microsoft Learn StudentAmbassadors | Greece Don't try to install Python packages directly in the SQL package library using pip or similar methods. Install Python / R packages with sqlmlutils Python : https://bit.ly/3fn668o R : https://bit.ly/2DE9IWb Install new Python / R packages For SQL Server 2019

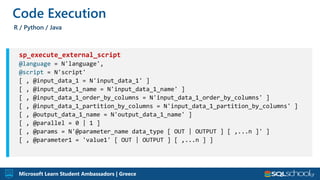

- 24. Microsoft Learn StudentAmbassadors | Greece Code Execution R / Python / Java sp_execute_external_script @language @script

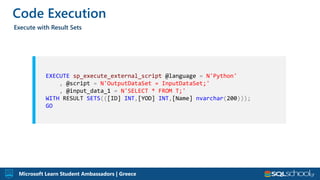

- 25. Microsoft Learn StudentAmbassadors | Greece Code Execution Execute with Result Sets EXECUTE sp_execute_external_script @language = N'Python' , @script = N'OutputDataSet = InputDataSet;' , @input_data_1 = N'SELECT * FROM T;' WITH RESULT SETS(([ID] INT,[YOD] INT,[Name] nvarchar(200))); GO

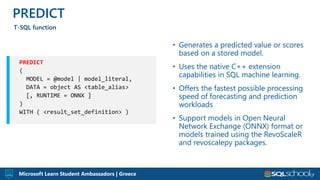

- 26. Microsoft Learn StudentAmbassadors | Greece ⢠Generates a predicted value or scores based on a stored model. ⢠Uses the native C++ extension capabilities in SQL machine learning. ⢠Offers the fastest possible processing speed of forecasting and prediction workloads ⢠Support models in Open Neural Network Exchange (ONNX) format or models trained using the RevoScaleR and revoscalepy packages. PREDICT T-SQL function PREDICT
- 27.
- 28.

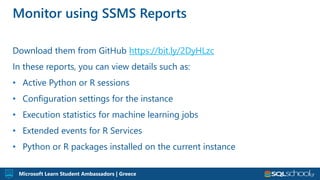

- 29. Microsoft Learn StudentAmbassadors | Greece Download them from GitHub https://bit.ly/2DyHLzc In these reports, you can view details such as: ⢠Active Python or R sessions ⢠Configuration settings for the instance ⢠Execution statistics for machine learning jobs ⢠Extended events for R Services ⢠Python or R packages installed on the current instance Monitor using SSMS Reports

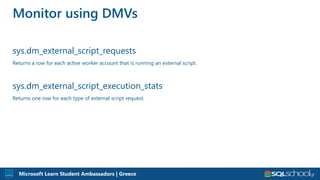

- 30. Microsoft Learn StudentAmbassadors | Greece sys.dm_external_script_requests Returns a row for each active worker account that is running an external script. sys.dm_external_script_execution_stats Returns one row for each type of external script request. Monitor using DMVs

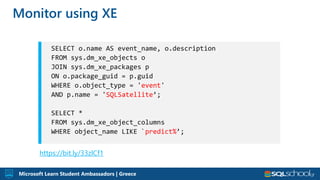

- 31. Microsoft Learn StudentAmbassadors | Greece Monitor using XE event SQLSatellite predict% https://bit.ly/33zlCf1
- 32.
- 33.
- 34. Thank you! @antoniosch -@sqlschool ./sqlschoolgr - ./groups/sqlschool ./c/SqlschoolGr SQLschool.gr Group Antonios Chatzipavlis Data Solutions Consultant & Trainer
