This presentation was prepared by Ishara Amarasekera based on the paper, A Common Database Approach for OLTP and OLAP Using an In-Memory Column Database by Hasso Plattner. This presentation contains a summary of the content provided in this research paper and was presented as a paper discussion for the course, Advanced Database Systems in Computer Science.

1. A Common Database
Approach for OLTP and OLAP
Using an In-Memory Column
Database
By Hasso Plattner
Presenter : Ishara Amarasekera

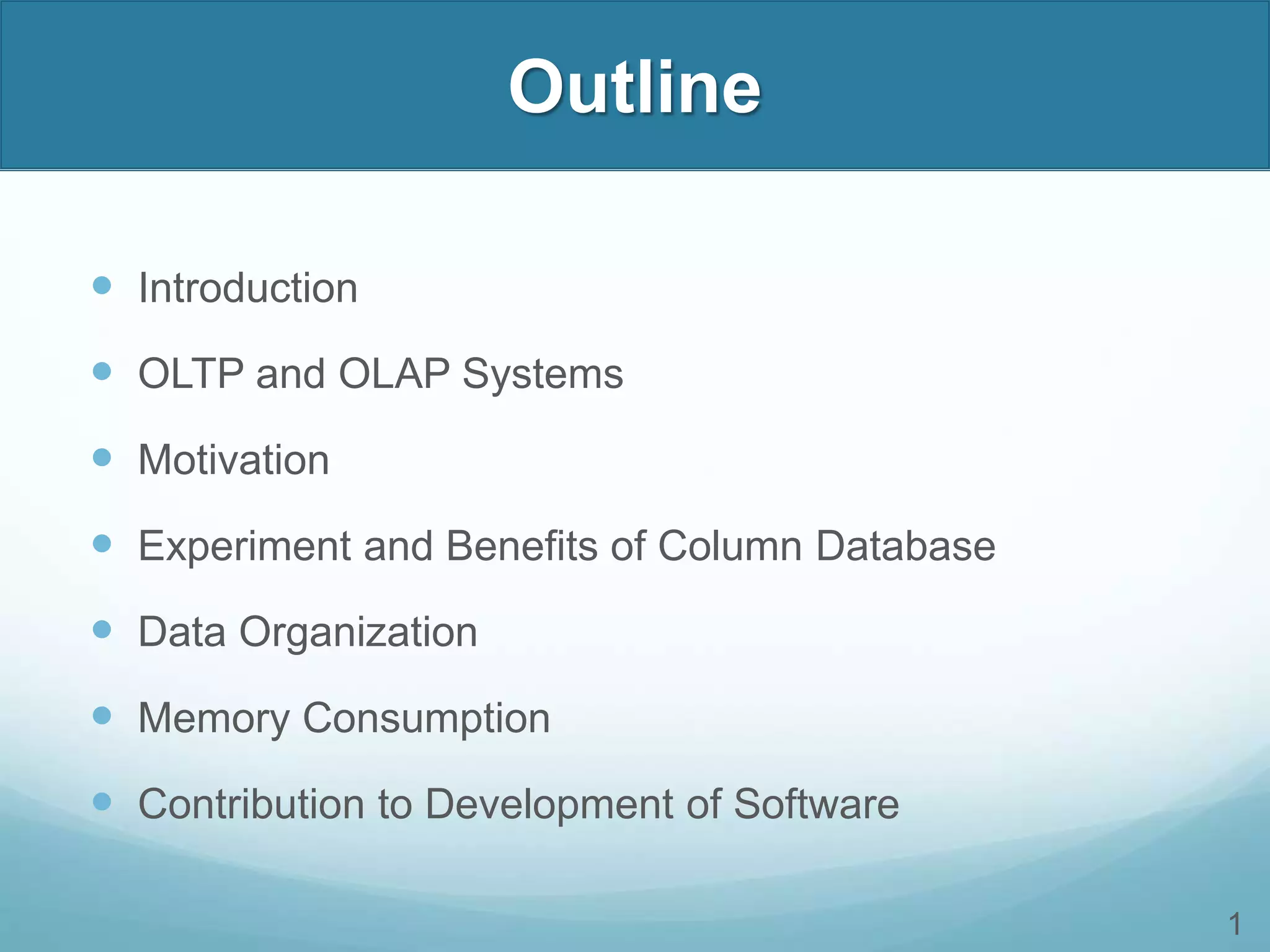

2. Outline
 Introduction
 OLTP and OLAP Systems
 Motivation
 Experiment and Benefits of Column Database
 Data Organization
 Memory Consumption
 Contribution to Development of Software
1

3. Introduction
 Relational database systems was the backbone for 20
years.
 OLTP and OLAP are based on the relational but use
different technical approaches.
2

4. OLTP
 Designed the database structures to cope with the
more complex business requirements.
 Need to focus on the transactional processing.
 Tuples are arranged in rows, which are stored in
blocks.
 The blocks reside on disk and are cached in main
memory in the database server.
 Sophisticated indexing allows fast access to single
tuples.
3

5. 4
OLTP

6. OLAP
 Designed to perform the analytical and financial
planning
 Provides more flexibility and better performance.
 OLAP schema is a list of cubes that are grouped
together so that one or more SAS OLAP Servers can
access them.
 For OLAP systems, in contrast, data is often organized
in star schemas, where a popular optimization is to
compress attributes (columns) with the help of
dictionaries.
5

7. Multi- Dimensional Cubes and Start
Schema
6

8. Motivation
 OLTP and OLAP, are based on the relational theory but
using different technical approaches.
 It is desirable to have OLTP and OLAP capabilities in
one system to make components more valuable to the
users.
 The use of column store data- bases for analytics has
become quite popular.
 Dictionary compression on the database level and
reading only those columns necessary to process a
query speed up query processing significantly in the
column store case.
7

9.  Full Table Scan for table with
 160 columns and 34 million tuples.
 1 million tuples ~ 1GB of memory.
 34 million tuples ~ 35GB of memory.
 Column Store DB equivalent table size is 8GB.
8
Experiment

10.  In real applications, the only 10% of the attributes in a
single table is used in 1 SQL statement.
 For column store at most
800MB of data has to be
accessed to calculate the
total value.
Experiment
9

11. A comparison of row and column store
database
Lowercase database
with horizontal
compression can not
compete with CVs, if
the treatment is
based on sample,
and requires access
to the columns
(columnar
operations)
10

12. Why Use Colum Store?
Enterprise Computing based on set processing not single
tuple access
11
Performance Gain

13. The Benefit of Column Store
Database
 Processing samples and not access to a particular
tuple
 Operations on tuples, using compression format
integers
 Parallel processing
 View one or more columns very well parallelized
 Restriction: recommended to use as much as possible
less than projections
13

14. Parallel Processing
 Calculations at the level of tuples automatically
parallelized and completely independent of each other
 Modern processors can handle 1MB in msec, and
parallel processing by 16 cores -more than 10Mb in
ms.
For example, take a measurement, compressed in 4b, We can scan 2.5m tuples 1
ms. At this rate we do not even need to create an index based on the primary key.
13

15. CLAIMS
Column store is suited for
UPDATE- INTENSIVE
applications
14

16. Updates in Column Store Database
 Adoption: Column Store DB suitable for UPDATE-
intensive application
 In memory greatly improves situation, because it is
working with RAM where faster, but nevertheless some
problems remain.
15

17. Update Categories
 From the history tables SAP, it was found that update is
divided into 3 categories
 Aggregate update: The attributes are accumulated
values as part of materialized views (between 1 and 5
for each accounting line item)
 Status update: Binary change of a status variable,
typically with timestamps
 Value update: The value of an attribute changes by
replacement
16

18. Aggregate Update
 Units - is the result of some analytical query (profit
quarter)
 In column database in memory turned more convenient
to compute units "on the fly", and do not store units
already established
 Do not take up too much space
 With modern facilities of this occurs quickly
17

19. A plot of the time of receipt of the total
unit the number of tuples
18

20. Status Update
 Status variables (e.g., paid, not paid) are usually one of
a number of possible values, so that problems with
their updating should not arise because the data
volume is not changed
19

21. Value Update
 Insert-Only - a good approach Because it is an average
of only 5% of tuples varies within t
20

22. Insert-Only
 Insert Only - Stores the "history" of the database.
 It is an approach where there is little or no queries type
Update, and only Insert. Thus, instead of some added,
Update new tuple with a new time stamp.
 Allows horizontal divide the table: it means that new
records stored in fast memory and older who attribute
"transaction date" is very old in the store less fast
memory (somewhere far away).
21

23. Data Organization
 To build a combined system with OLTP and OLAP, data
should be organized based on the,
Frequent sampling of the set of tuples
Fast INSERT
Maximum parallelization (read)
Low cost (in time) of reorganization (at update and
insert)
22

24. Memory Consumption
 Comparing the memory consumption of row and
column-DB winnings columnar obvious due best
compression algorithms.
 Different analyzes of real data showed that:
The database allows the speaker to compress 20
times
The progressive only 2 times the average
23

25. Contribution Development of
Software
 If we rewrite the current applications that will use a
columnar DBMS instead of line, then
Plan to reduce the amount of code to work with Data
for 30-50%
Many parts can be completely restructured, taking
into account all index nature lowercase bd
Also desirable rare use projections
24

26. Thank You
