This document summarizes common T-SQL anti-patterns that can negatively impact query performance, including using SELECT *, functions in predicates, OR operators, implicit conversions, unnecessary sorts, correlated subqueries, and dynamic SQL execution. The presentation provides explanations of why each anti-pattern hurts performance and recommendations for more optimized alternatives such as using indexes, temporary tables, parameterization, and execution plan analysis.

1. Exploring T-SQL Anti-Patterns
37th SQL Saturday Night
Mar 21, 2020

3. Please mute
your mic

4. Antonios Chatzipavlis
Data Solutions Consultant & Trainer
Since 1999
30+Years in a Field
20+
Experience with
60+
Certifications
SQLschool.gr
Founder

5. A community for Greek professionals who use the
Microsoft Data Platform
Connect / Explore / Learn
@antoniosch - @sqlschool
./sqlschoolgr - ./groups/sqlschool
yt/c/SqlschoolGr
SQLschool.gr Group
help@sqlschool.gr
Join us
Articles
SQL Saturday Nights
SQL Server in Greek
Webcasts
News
Resources

6. Connect / Explore / Learn
10
Celebrating
2010-2020
years

8. If you want to be part of PASS Summit 2020
Use the following $150 USD discount code in your
registration, which is unique to
SQL School Greece.
LGDISET1I

9. Virtual Event
March 29, 2020
Greek MVPs in Action
G. KALYVA G. GRAMMATIKOS G. MARKOU
P. APOSTOLIDIS A. CHATZIPAVLIS
Speakers

10. Presentation Content
Exploring T-SQL
Anti-Patterns
We are all writing
marvelous Queries.
Correct?

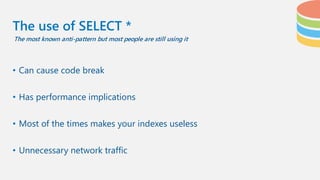

12. • Can cause code break
• Has performance implications
• Most of the times makes your indexes useless
• Unnecessary network traffic
The use of SELECT *
The most known anti-pattern but most people are still using it

14. • A predicate defines a logical condition being applied to rows in a table
• Search predicates should not use deterministic function calls because
they cause unnecessary scans
• Query Optimizer
- uses statistics, internal transformation rules and heuristics at compile-time to determine a
good-enough plan to execute a query
- depends on the estimated cost to resolve the search predicates in order to choose
whether it seeks or scans over indexes.
Functions usage in predicates
In WHERE or JOINS clauses

16. Search predicates should not use complex expressions because they
produce unnecessary scans for the same reasons just like functions.
Complex expressions usage in predicates
In WHERE or JOINS clauses

18. • How OR Operator works
- Returns rows that meet any of the conditions for every criterion specified in the WHERE clause
- Progressively increases the number of rows returned with each additional search condition
• Can use one index or different indexes for each part of the OR operator
• Always performs a Table Scan or Clustered Index Scan
- if one column referenced in the OR operator does not have an index or
- if the index is not useful
• Can use multiple indexes
Using the OR operator
One of the fundamental topics in Relational Algebra

20. • Usage of NULL is not anti pattern at any case
• In some cases due to special handling of NULL we are facing some
challenges to write performant T-SQL
NULL usage on joins
Null means Unknown

22. • The problem with LIKE operator is when we use the pattern ‘%abc%’ we
always have the usage of scans operators even if we have index on the
field.
• In this case it’s better to use the Full Text Search component.
The wrong usage of LIKE operator

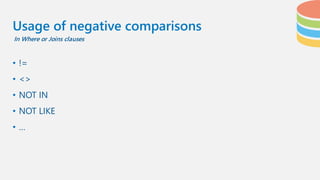

24. • !=
• <>
• NOT IN
• NOT LIKE
• …
Usage of negative comparisons
In Where or Joins clauses

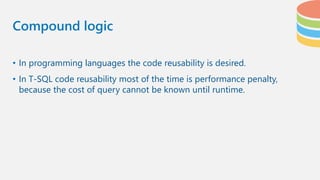

26. • In programming languages the code reusability is desired.
• In T-SQL code reusability most of the time is performance penalty,
because the cost of query cannot be known until runtime.
Compound logic

28. • This is when you mismatch
data types in a WHERE clause
or JOIN condition, and SQL
Server needs to convert one
on the fly.
• The penalties you pay here
are:
- Indexes won’t be used efficiently
- Burn CPU in the conversion process
Implicit conversions
1. user-defined data types (highest)
2. sql_variant
3. xml
4. datetimeoffset
5. datetime2
6. datetime
7. smalldatetime
8. date
9. time
10. float
11. real
12. decimal
13. money
14. smallmoney
15. bigint
16. int
17. smallint
18. tinyint
19. bit
20. ntext
21. text
22. image
23. timestamp
24. uniqueidentifier
25. nvarchar (including nvarchar(max) )
26. nchar
27. varchar (including varchar(max) )
28. char
29. varbinary (including varbinary(max) )
30. binary (lowest)

30. • UNION , UNION ALL
• SELECT DISTINCT
• SELECT TOP(1) WITH ORDER BY
Unnecessary Sort operations

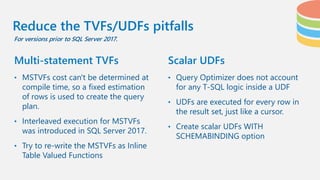

32. Multi-statement TVFs Scalar UDFs
• MSTVFs cost can't be determined at
compile time, so a fixed estimation
of rows is used to create the query
plan.
• Interleaved execution for MSTVFs
was introduced in SQL Server 2017.
• Try to re-write the MSTVFs as Inline
Table Valued Functions
• Query Optimizer does not account
for any T-SQL logic inside a UDF
• UDFs are executed for every row in
the result set, just like a cursor.
• Create scalar UDFs WITH
SCHEMABINDING option
Reduce the TVFs/UDFs pitfalls
For versions prior to SQL Server 2017.

34. • Use the SET NOCOUNT ON
- The count indicating the number of rows affected
by a T-SQL statement
- When is ON
- count won’t be returned to the application layer
- we have performance boost because SQL Server does
not send DONE_IN_POC token stream for each
statement in the code.
• Validate input parameters early in the T-
SQL code.
Optimizing stored procedures
Look at my article
The effects of SET NOCOUNT ON
http://bit.ly/2QwFAjb

36. Standard Views Indexed Views
• Avoid to create generic views
• Avoid Inheritance logic with views
• Read my article
How to not make a disaster view
https://bit.ly/33vTNCp
• SQL Server will only automatically
create statistics on an indexed view
when a NOEXPAND table hint is
used.
• Omitting this hint can lead to
execution plan warnings about
missing statistics that cannot be
resolved by creating statistics
manually.
Optimizing Views

38. • It is not uncommon to use sub-queries to express certain predicates
inline in queries
• Developers must keep in mind that joins are frequently better than
correlated sub-queries.
Correlated sub-queries

40. Table variables and temporary tables serve the same basic purpose:
To store an intermediate result set to be used by a subsequent query
Prior to SQL Server 2019
Table variables are runtime objects only and are compiled together with all other statements, before any of
the statements that populate the table variables even execute.
For this reason, the Query Optimizer uses a default estimation of one row for table variables, since the row
count is not available at compile-time.
On Temporary tables SQL Server supports automatic statistics creation, as
well as manual statistics creation and update, which the Query Optimizer
can use.
Table variables vs. Temporary tables

42. • We can use EXECUTE or sp_executesql.
• sp_executesql is the preferred method for executing dynamic T-SQL
because:
- It allows us to add parameter markers, increasing the likelihood that SQL Server will be
able to reuse the plan and avoid costly query compilations
- Of the ability to define parameter’s data type, minimizing the risk of sql injection
Executing Dynamic T-SQL statement
