1. © 2020, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Telus의 AWS활용 사례:
AWS 서버리스 기반 3GPP 코어 및 BSS 구축
조경준
솔루션즈 아키텍트
AWS

2. Agenda
Why?
통신사가 해결해야 할 문제점
How?
몇가지 이론과 컨셉
What?
우리가 이룬 것
데모
성과와 계획
Conclusion
해야할 숙제

3. © 2020, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

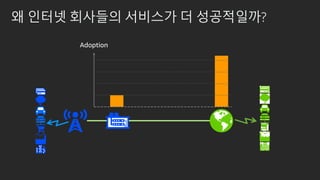

4. 왜 인터넷 회사들의 서비스가 더 성공적일까?
Adoption

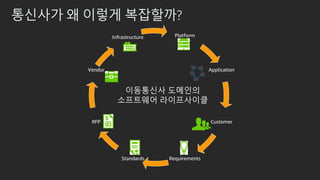

5. 통신사가 왜 이렇게 복잡할까?
Platform
Application
Customer
RequirementsStandards
RFP
Vendor
Infrastructure
이동통신사 도메인의
소프트웨어 라이프사이클

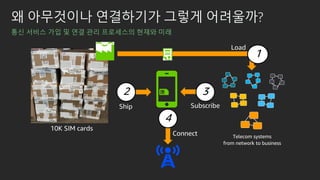

6. 왜 아무것이나 연결하기가 그렇게 어려울까?
통신 서비스 가입 및 연결 관리 프로세스의 현재와 미래
10K SIM cards
Telecom systems
from network to business
1
Load
2
Ship
3
Subscribe
4
Connect

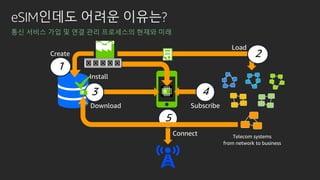

7. eSIM인데도 어려운 이유는?
통신 서비스 가입 및 연결 관리 프로세스의 현재와 미래
Telecom systems
from network to business
2
Load
5
Connect
1
Create
3
Download
4
Subscribe
Install

8. © 2020, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

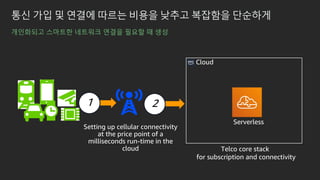

9. 통신 가입 및 연결에 따르는 비용을 낮추고 복잡함을 단순하게
개인화되고 스마트한 네트워크 연결을 필요할 때 생성
Cloud
Serverless
1 2
Telco core stack
for subscription and connectivity
Setting up cellular connectivity
at the price point of a
milliseconds run-time in the
cloud

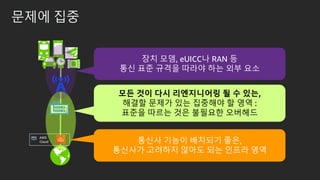

10. 문제에 집중
모든 것이 다시 리엔지니어링 될 수 있는,
해결할 문제가 있는 집중해야 할 영역 :
표준을 따르는 것은 불필요한 오버헤드
장치 모뎀, eUICC나 RAN 등
통신 표준 규격을 따라야 하는 외부 요소
통신사 기능이 배치되기 좋은,
통신사가 고려하지 않아도 되는 인프라 영역
AWS
Cloud

11. © 2020, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

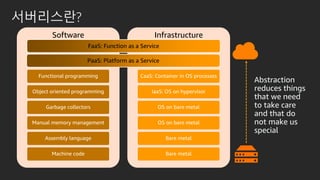

12. 서버리스란?
Software
Functional programming
Object oriented programming
Garbage collectors
Manual memory management
Assembly language
Machine code
Infrastructure
CaaS: Container in OS processes
IaaS: OS on hypervisor
OS on bare metal
OS on bare metal
Bare metal
Bare metal
Abstraction
reduces things
that we need
to take care
and that do
not make us
special
PaaS: Platform as a Service
FaaS: Function as a Service

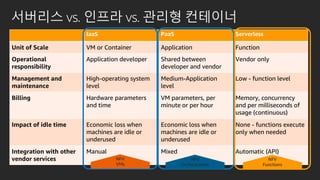

13. 서버리스 vs. 인프라 vs. 관리형 컨테이너
IaaS PaaS Serverless
Unit of Scale VM or Container Application Function
Operational
responsibility
Application developer Shared between
developer and vendor
Vendor only
Management and
maintenance
High-operating system
level
Medium-Application
level
Low - function level
Billing Hardware parameters
and time
VM parameters, per
minute or per hour
Memory, concurrency
and per milliseconds of
usage (continuous)
Impact of idle time Economic loss when
machines are idle or
underused
Economic loss when
machines are idle or
underused
None - functions execute
only when needed
Integration with other
vendor services
Manual Mixed Automatic (API)
NFV
VMs
NFV
Orchestration
NFV
Functions

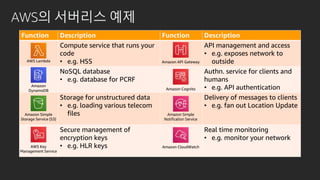

14. AWS의 서버리스 예제
Function Description Function Description
Compute service that runs your
code
• e.g. HSS
API management and access
• e.g. exposes network to
outside
NoSQL database
• e.g. database for PCRF
Authn. service for clients and
humans
• e.g. API authentication
Storage for unstructured data
• e.g. loading various telecom
files
Delivery of messages to clients
• e.g. fan out Location Update
Secure management of
encryption keys
• e.g. HLR keys
Real time monitoring
• e.g. monitor your network
AWS Lambda
Amazon
DynamoDB
Amazon API Gateway
Amazon Cognito
Amazon Simple
Notification Service
Amazon CloudWatch
Amazon Simple
Storage Service (S3)
AWS Key
Management Service

15. © 2020, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

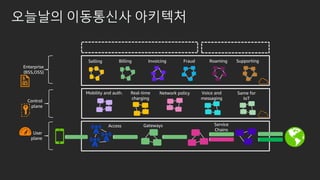

16. 오늘날의 이동통신사 아키텍처
Real-time
charging
Mobility and auth. Network policy Voice and
messaging
Same for
IoT
GatewaysAccess Service
Chains
Selling Billing Invoicing Fraud Roaming Supporting
Control
plane
Enterprise
(BSS,OSS)
User
plane

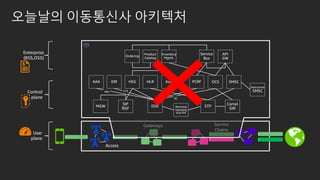

17. 오늘날의 이동통신사 아키텍처
Gateways
Access
Service
Chains
Control
plane
Enterprise
(BSS,OSS)
User
plane
MGW
SIP
BGF
DSR STP
Camel
GW
Intercarrier
SMSC
AAA EIR HSS PCRF OCSHLR AuC SMSC
Ordering
Service
Bus
API
GW
Product
Catalog
Inventory
Mgmt.
Roaming
Signaling
And IPX

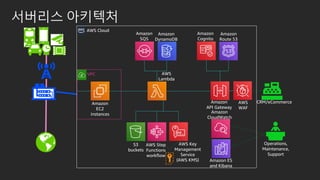

18. 서버리스 아키텍처
AWS Cloud
Amazon
EC2
instances
VPC
Amazon
DynamoDB
Amazon
SQS
Amazon
Cognito
Amazon
Route 53
AWS
Lambda
Amazon
API Gateway
Amazon
CloudWatch
Amazon ES
and Kibana
AWS Key
Management
Service
(AWS KMS)
AWS Step
Functions
workflow
S3
buckets
Operations,
Maintenance,
Support
CRM/eCommerceAWS
WAF

19. © 2020, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

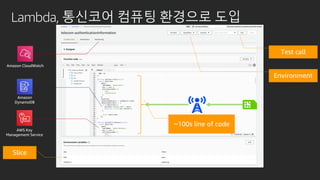

20. Lambda, 통신코어 컴퓨팅 환경으로 도입
Environment
Test call
Slice
Amazon CloudWatch
~100s line of code
Amazon
DynamoDB
AWS Key
Management Service

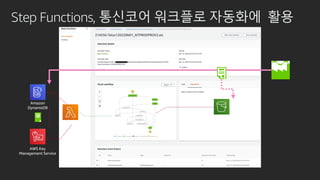

21. Step Functions, 통신코어 워크플로 자동화에 활용
AWS Lambda
Amazon
DynamoDB
AWS Key
Management Service
Amazon Simple
Storage Service (S3)

22. API GW, 통신코어와 어플리케이션 통합에 활용
Amazon Cognito
AWS Lambda

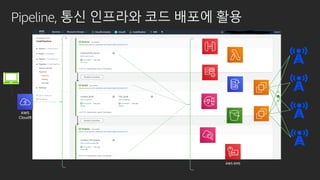

23. Pipeline, 통신 인프라와 코드 배포에 활용
AWS
Cloud9
AWS Lambda
Amazon
DynamoDB
Amazon S3
AWS KMS
Amazon
API Gateway
Amazon
Cognito
Amazon SNS
Amazon
CloudWatch
EC2 instances
EC2 instances

24. AWS CDK, 인프라와 코드를 배포하는 코드들
AWS
Lambda
Amazon
DynamoDB
Amazon S3
AWS KMS
Amazon
API Gateway
Amazon
Cognito
Amazon SNS
Amazon
CloudWatch
AWS CodeCommit
(Source Stage)
AWS CodeBuild
(Build Stage)
AWS CodeDeploy
(Deploy Stage)

25. 전체 통신코어와 BSS 상태를 한눈에 관찰하기

26. © 2020, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

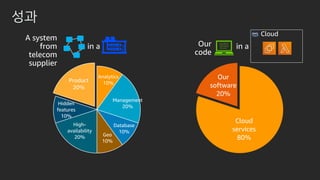

27. 성과
Analytics
10%
Management
20%
Database
10%
Geo
10%
High-
availability
20%
Hidden
features
10%
Product
20%
Cloud
services
80%
Our
software
20%
A system
from
telecom
supplier
in a Our
code
in a
Cloud

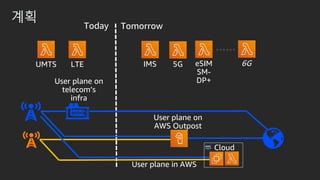

28. 계획
TomorrowToday
User plane on
telecom’s
infra
User plane on
AWS Outpost
User plane in AWS
Cloud
5GIMSLTEUMTS eSIM
SM-
DP+
6G

29. © 2020, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

30. 네트워크를 스마트하게 바꿔서 연결을 단순히
User
plane
EC2 instances
네트워크 가입 및 연결
을 극도로 단순화하고
유연하게 만들어야 함
이를 위해 통신사업자가
직접 소프트웨어를 클라
우드에 재구축해야 함

31. © 2020, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

32. 감사합니다
© 2020, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
