How SQL Server was ported to Linux? The presentation goes through some of the concepts: SQLOS, Drawbridge and Containers. It shows the role of SQLPAL as a platform abstraction layer.

1. SQL Server on Linux
Fabricio Catae
Technical Evangelist MVP Open Connection 2017

2. SQL vNext on Linux
Deep Dive

3. Agenda
SQL Operating System
Projeto MSR: Drawbridge
Docker Containers

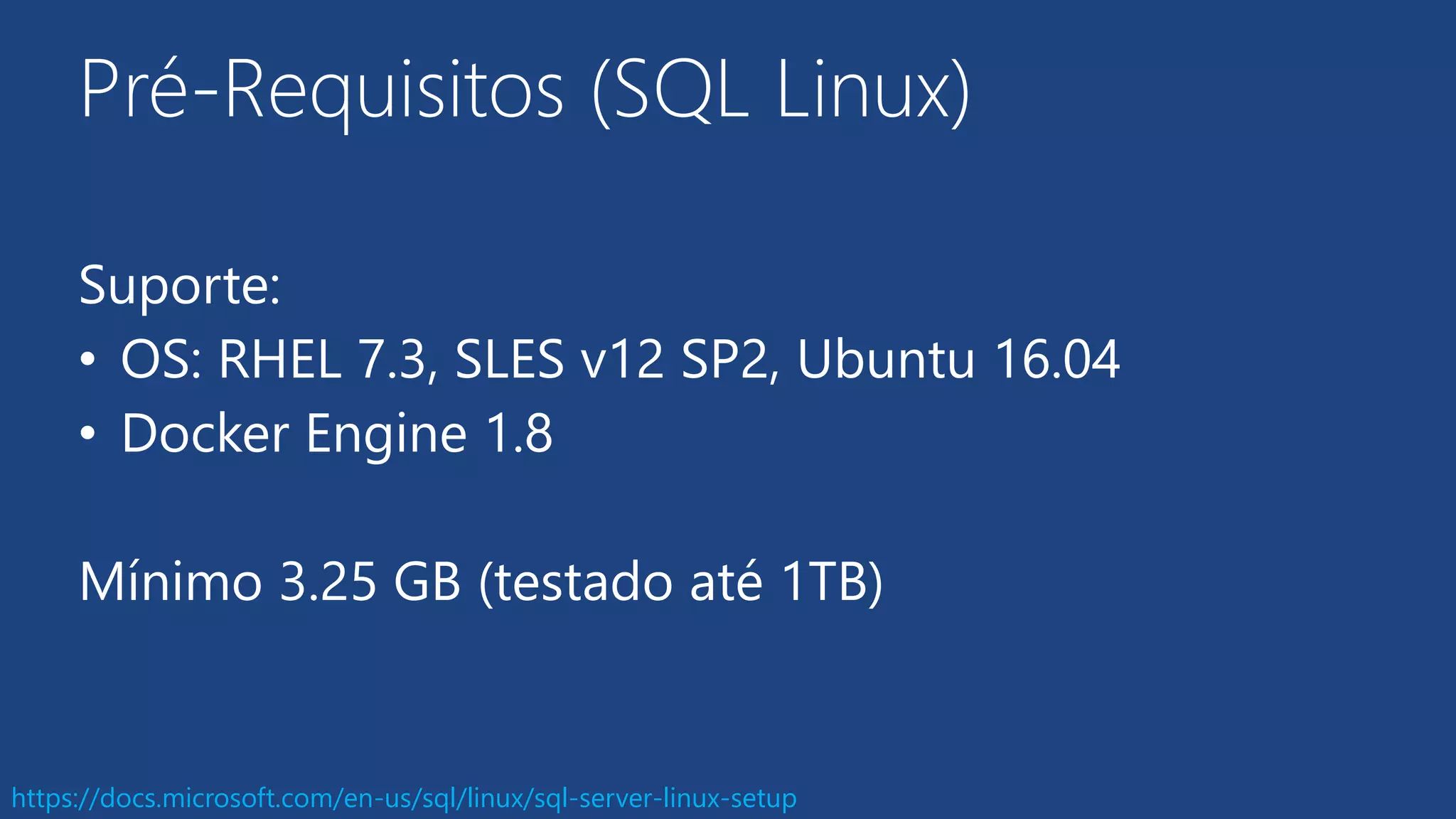

4. Pré-Requisitos (SQL Linux)
Suporte:
• OS: RHEL 7.3, SLES v12 SP2, Ubuntu 16.04
• Docker Engine 1.8
Mínimo 3.25 GB (testado até 1TB)
https://docs.microsoft.com/en-us/sql/linux/sql-server-linux-setup

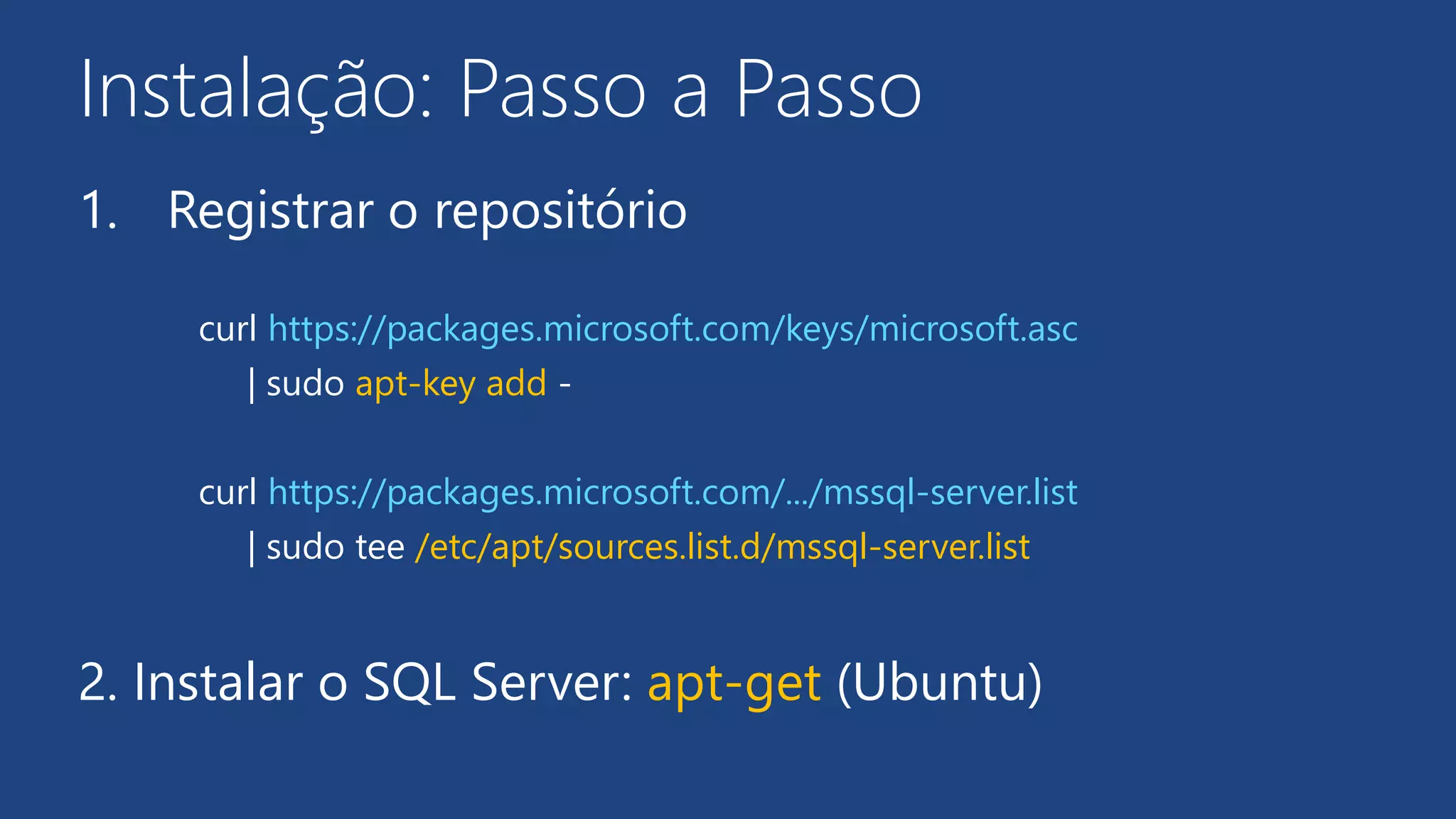

5. Instalação: Passo a Passo
1. Registrar o repositório
curl https://packages.microsoft.com/keys/microsoft.asc
| sudo apt-key add -
curl https://packages.microsoft.com/.../mssql-server.list
| sudo tee /etc/apt/sources.list.d/mssql-server.list
2. Instalar o SQL Server: apt-get (Ubuntu)

6. Demo

7. SQL OS
SQL knows better...

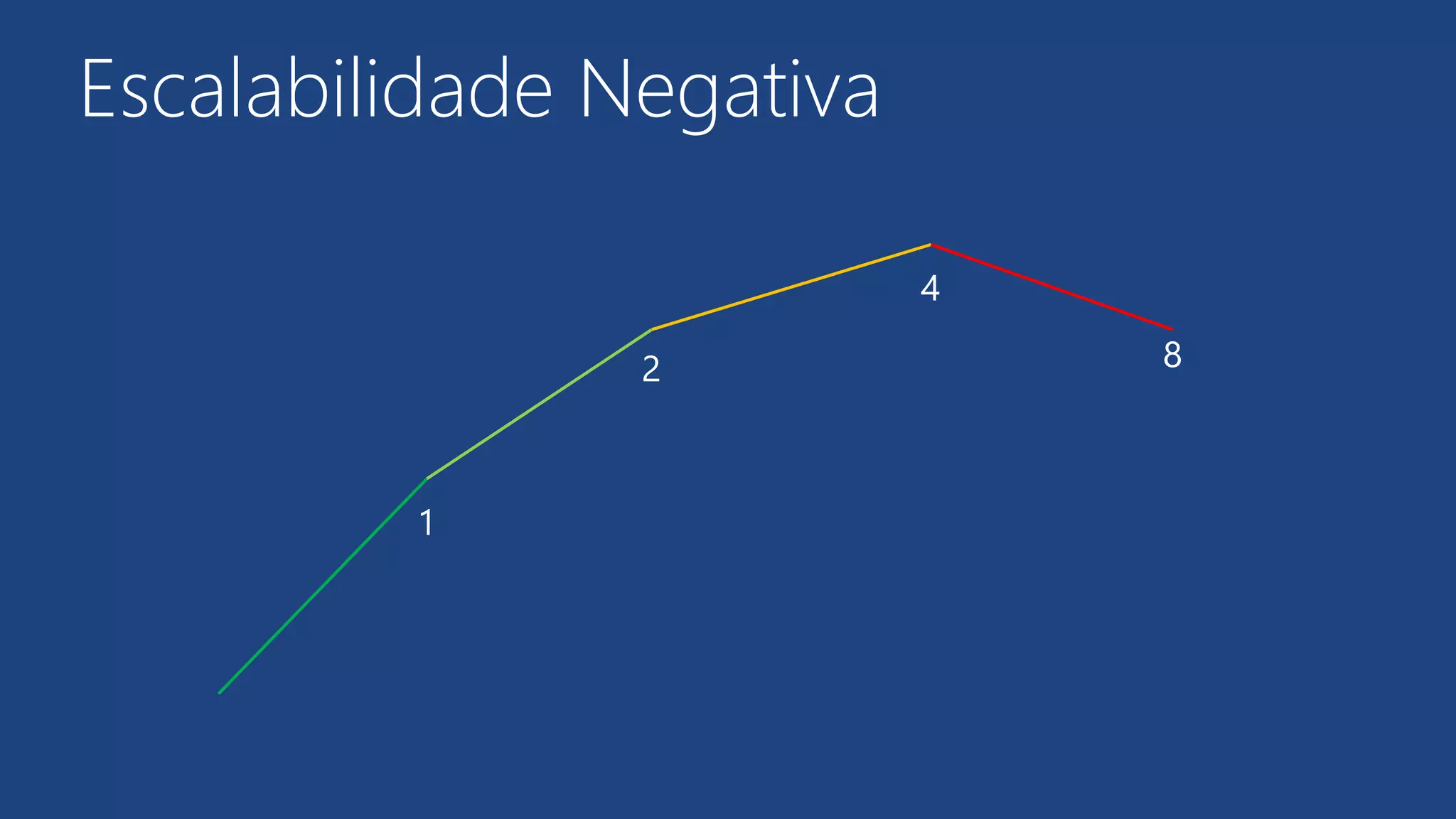

8. Escalabilidade Negativa
1
2
4
8

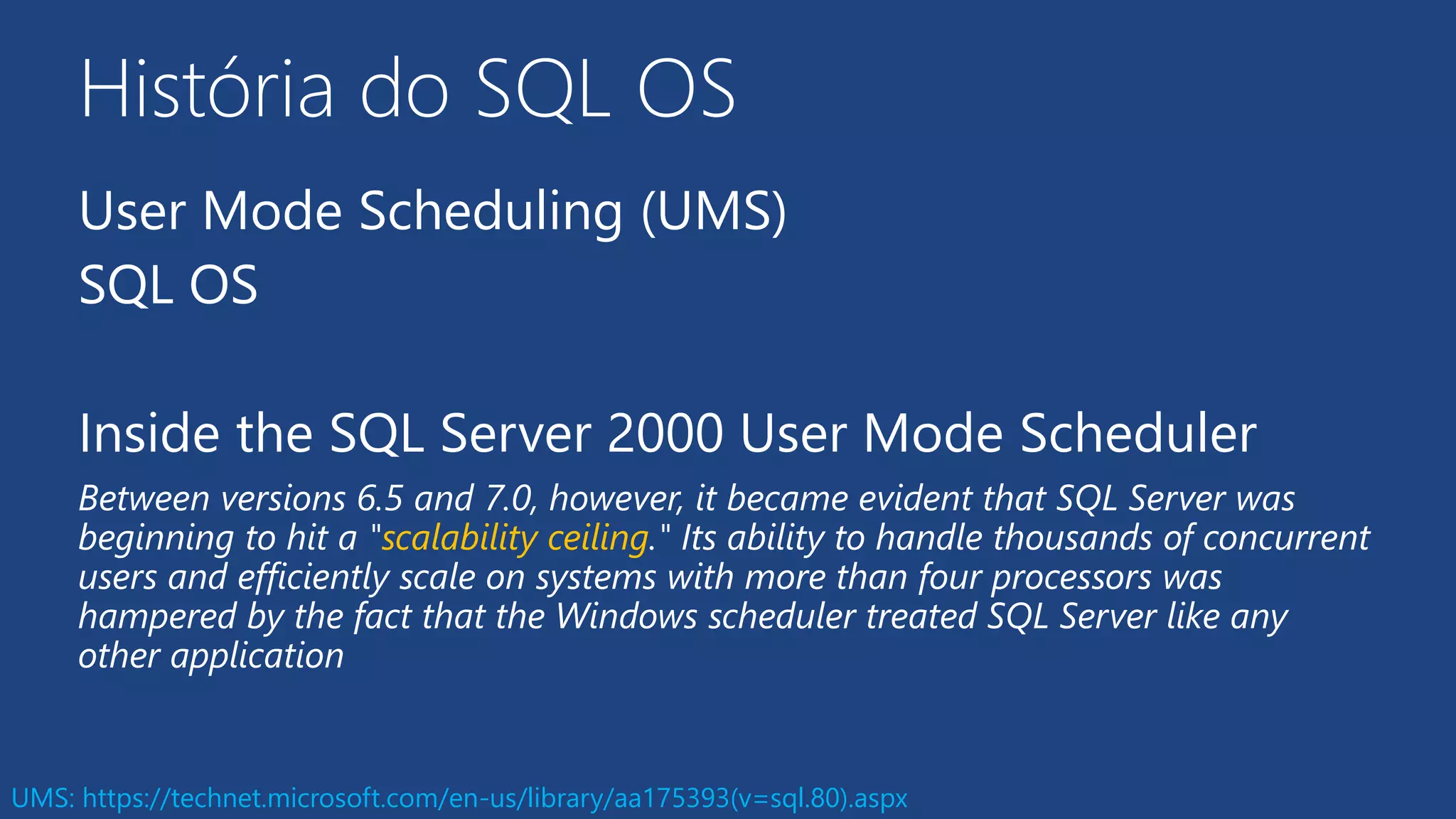

9. História do SQL OS
User Mode Scheduling (UMS)
SQL OS
Inside the SQL Server 2000 User Mode Scheduler
Between versions 6.5 and 7.0, however, it became evident that SQL Server was
beginning to hit a "scalability ceiling." Its ability to handle thousands of concurrent
users and efficiently scale on systems with more than four processors was
hampered by the fact that the Windows scheduler treated SQL Server like any
other application
UMS: https://technet.microsoft.com/en-us/library/aa175393(v=sql.80).aspx

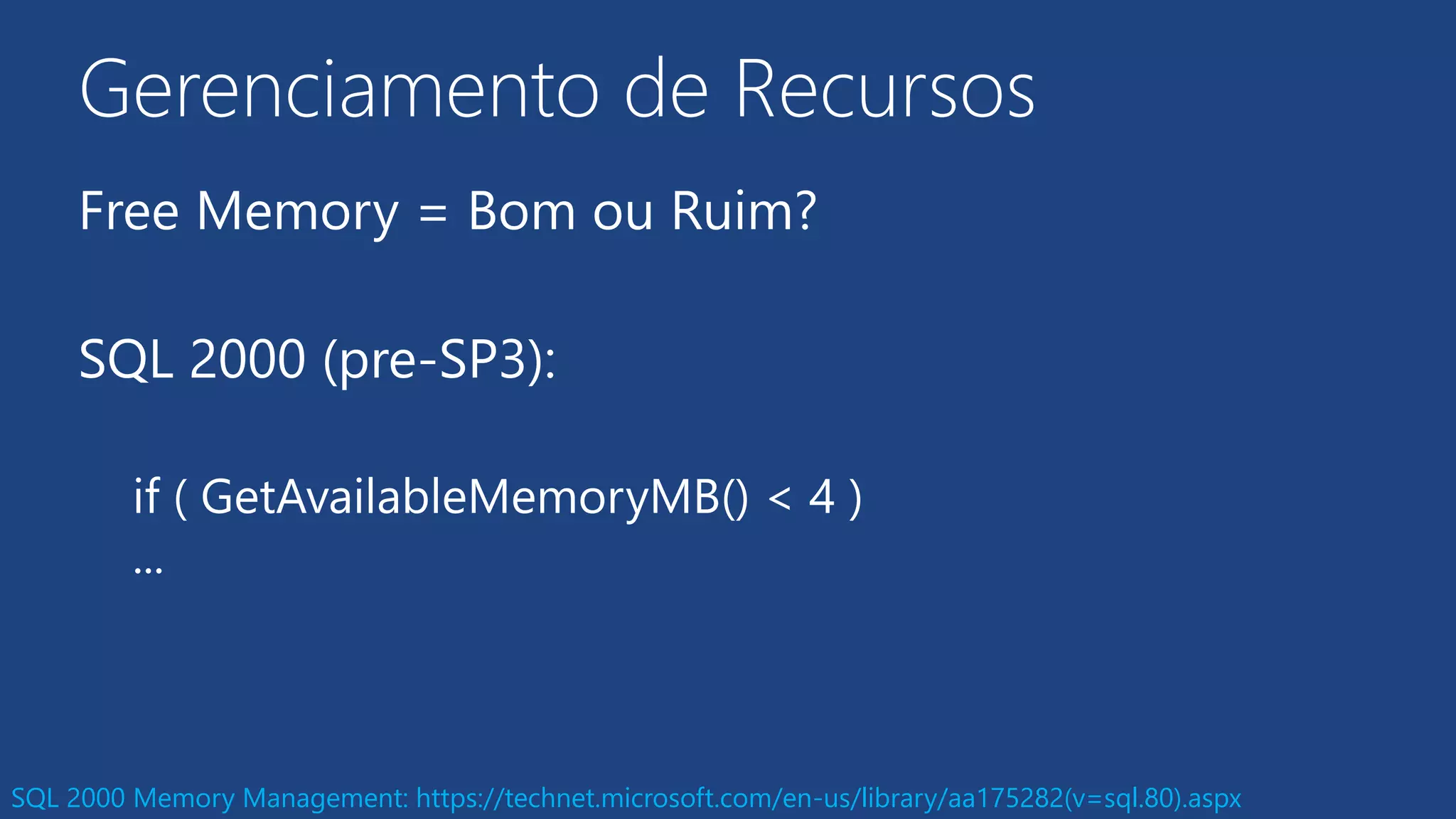

10. Gerenciamento de Recursos
Free Memory = Bom ou Ruim?
SQL 2000 (pre-SP3):
if ( GetAvailableMemoryMB() < 4 )
...
SQL 2000 Memory Management: https://technet.microsoft.com/en-us/library/aa175282(v=sql.80).aspx

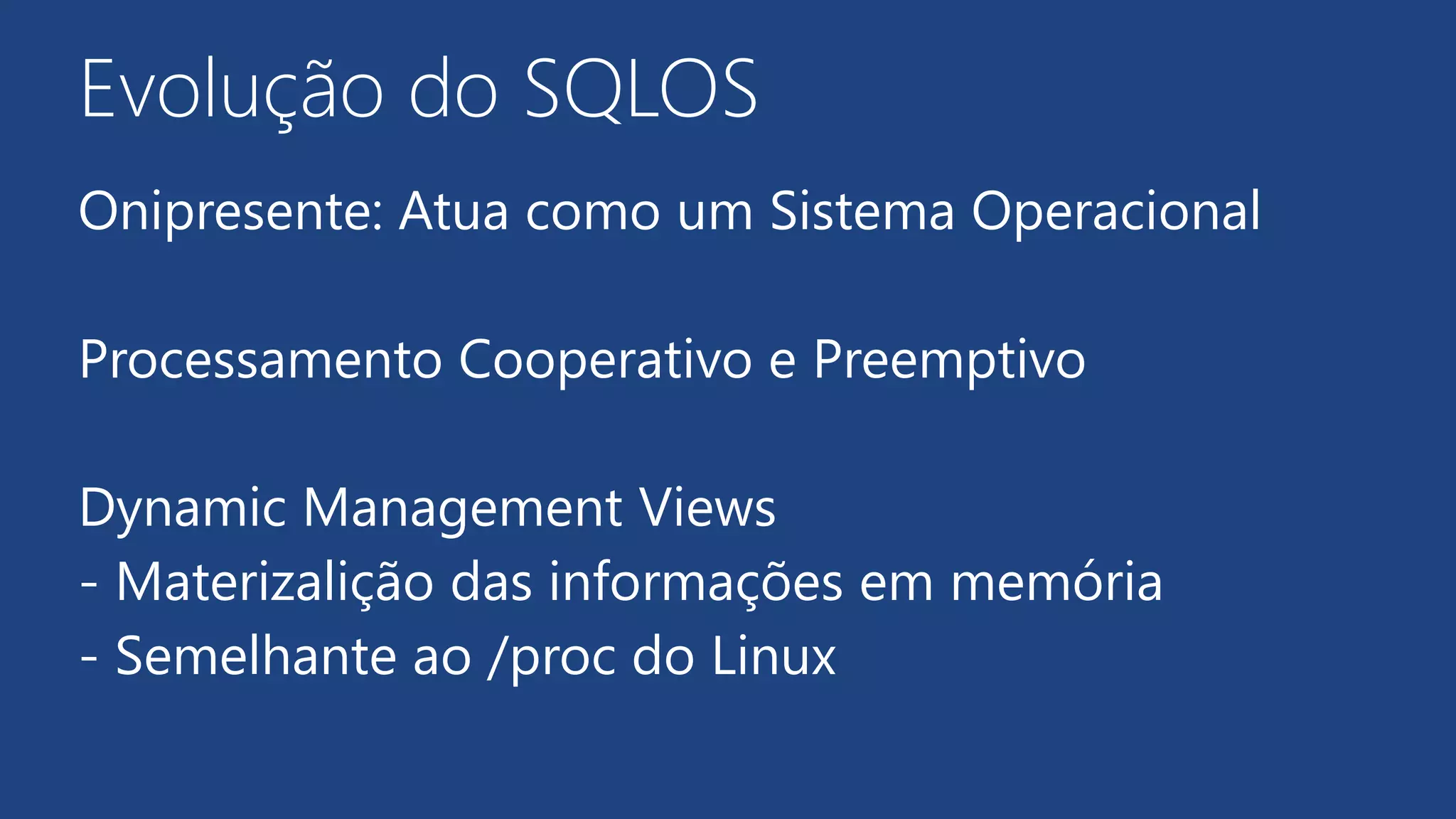

11. Evolução do SQLOS
Onipresente: Atua como um Sistema Operacional
Processamento Cooperativo e Preemptivo
Dynamic Management Views
- Materizalição das informações em memória
- Semelhante ao /proc do Linux

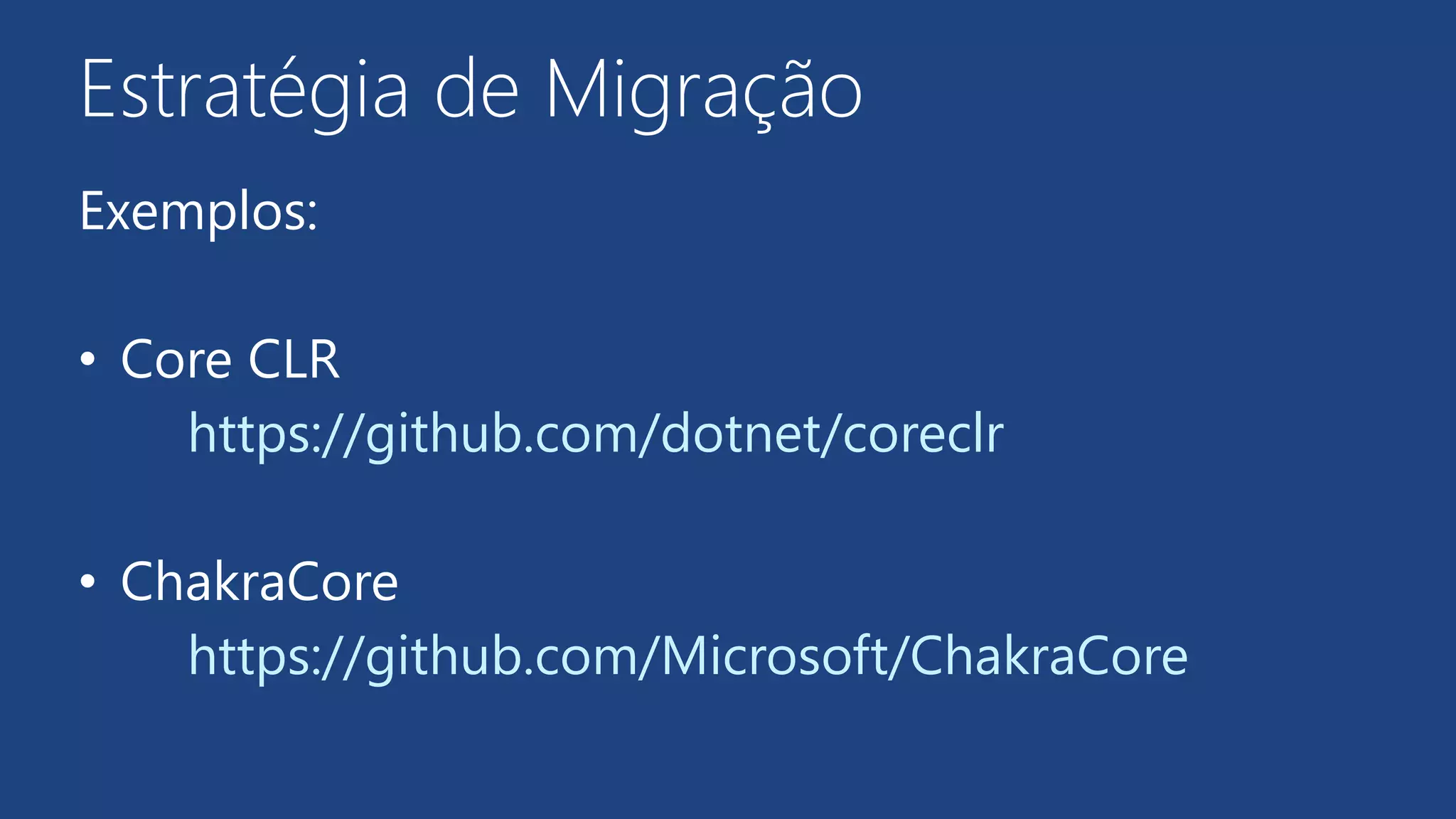

12. Estratégia de Migração
Exemplos:
• Core CLR
https://github.com/dotnet/coreclr
• ChakraCore
https://github.com/Microsoft/ChakraCore

13. Background
Se você fosse o Líder Técnico...

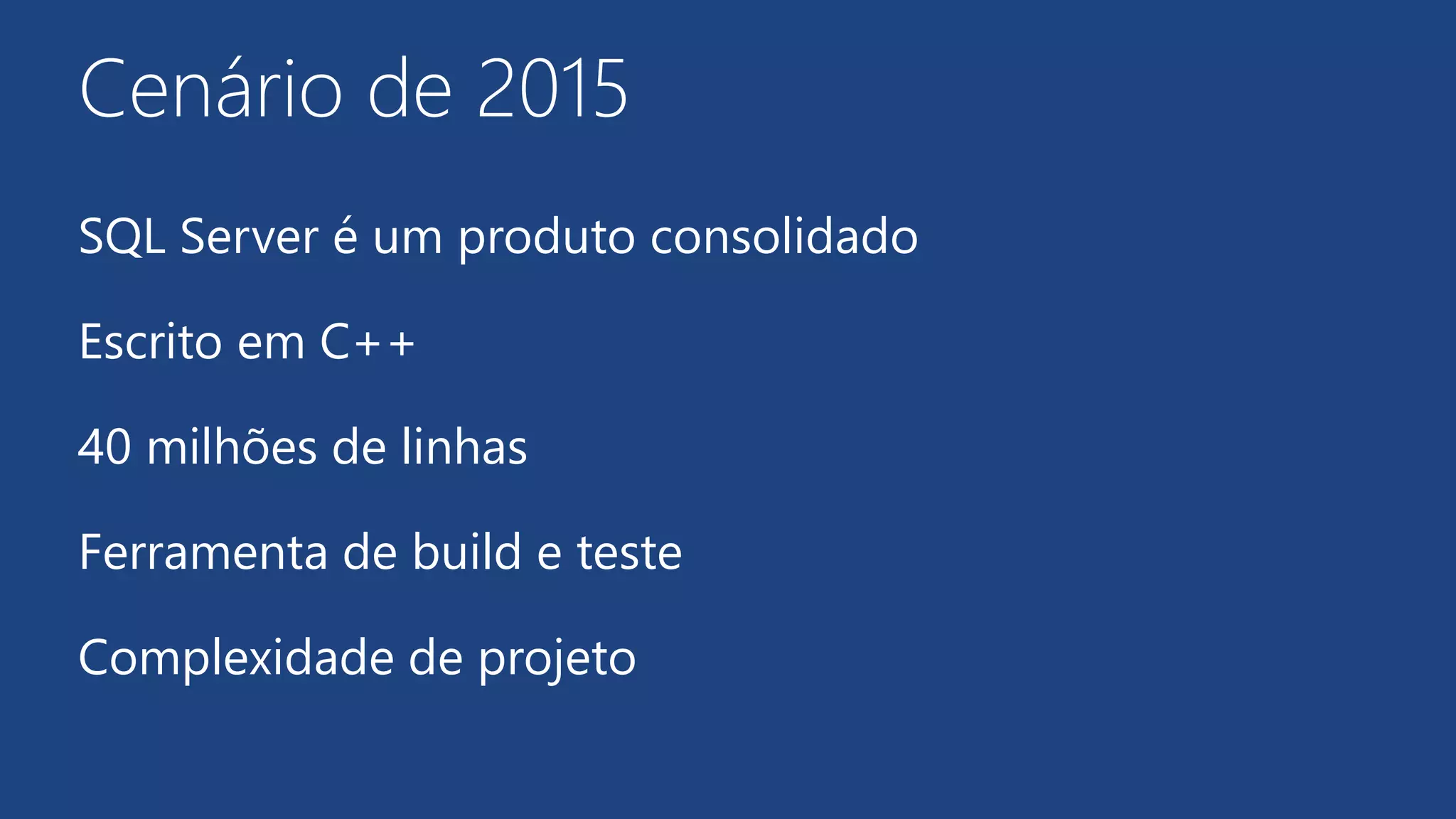

14. Cenário de 2015
SQL Server é um produto consolidado
Escrito em C++
40 milhões de linhas
Ferramenta de build e teste
Complexidade de projeto

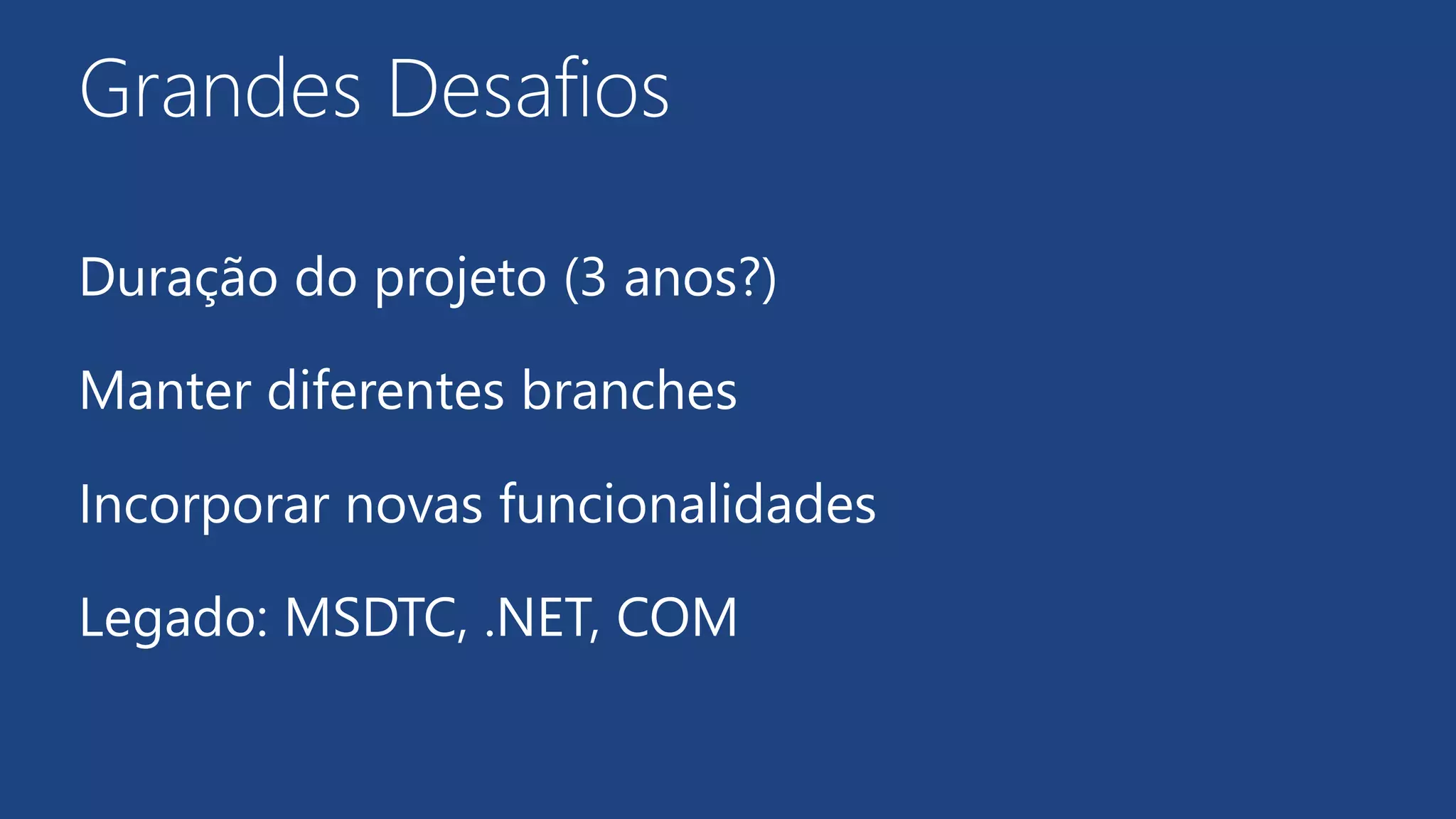

15. Grandes Desafios
Duração do projeto (3 anos?)
Manter diferentes branches
Incorporar novas funcionalidades
Legado: MSDTC, .NET, COM

16. Drawbridge
Projeto Microsoft Research

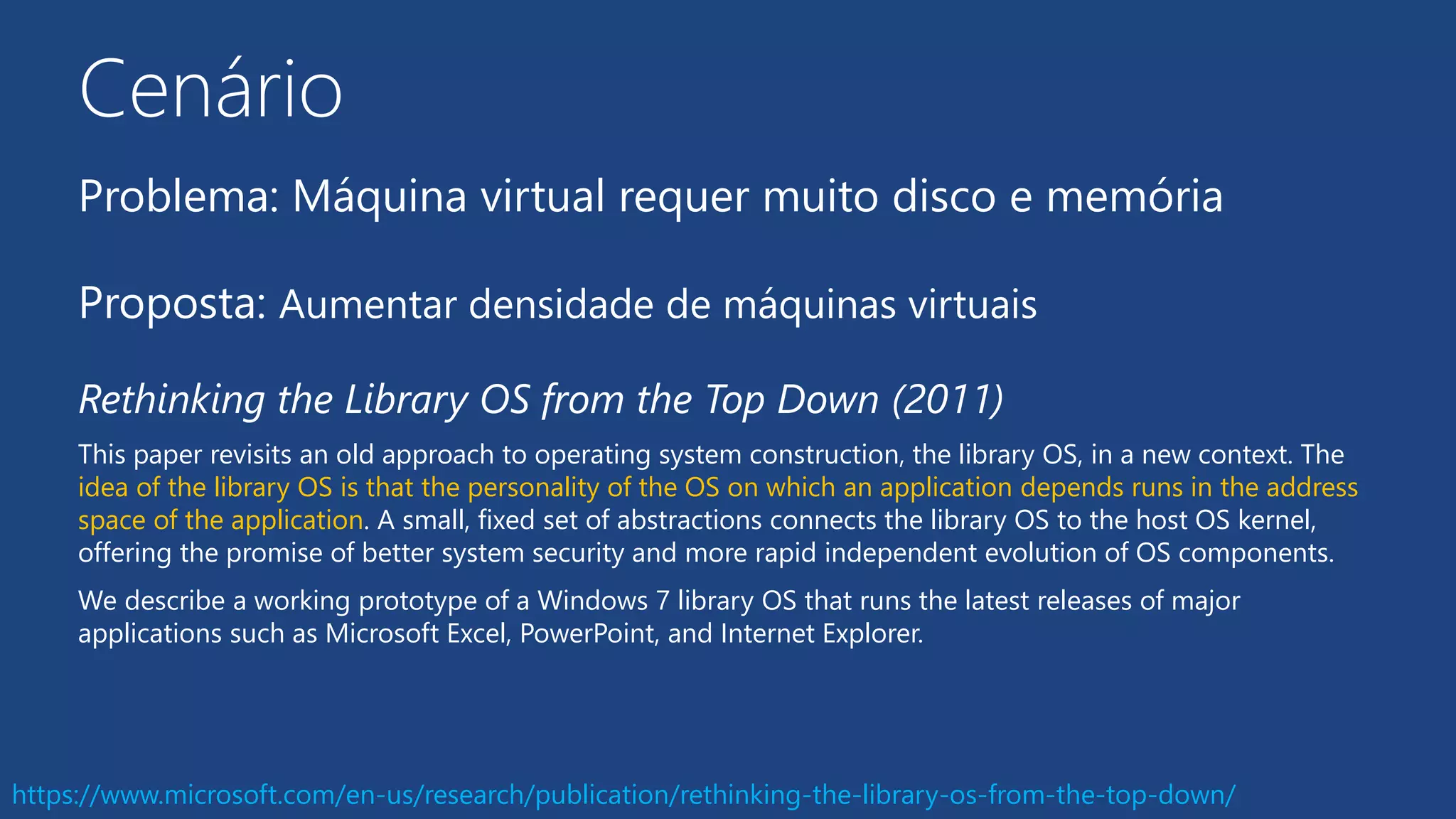

17. Cenário
Problema: Máquina virtual requer muito disco e memória
Proposta: Aumentar densidade de máquinas virtuais
Rethinking the Library OS from the Top Down (2011)
This paper revisits an old approach to operating system construction, the library OS, in a new context. The
idea of the library OS is that the personality of the OS on which an application depends runs in the address
space of the application. A small, fixed set of abstractions connects the library OS to the host OS kernel,
offering the promise of better system security and more rapid independent evolution of OS components.
We describe a working prototype of a Windows 7 library OS that runs the latest releases of major
applications such as Microsoft Excel, PowerPoint, and Internet Explorer.
https://www.microsoft.com/en-us/research/publication/rethinking-the-library-os-from-the-top-down/

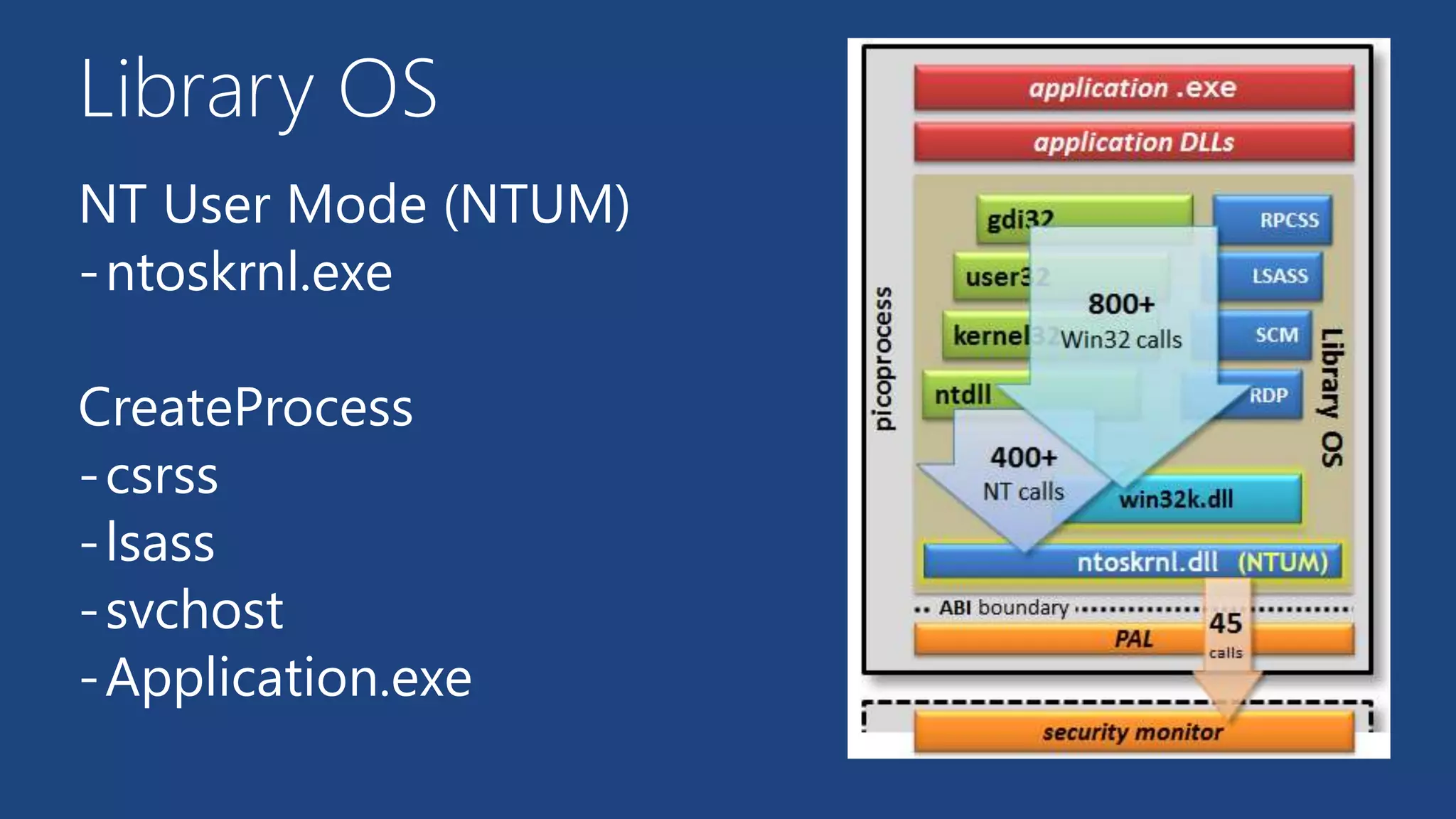

18. Library OS
NT User Mode (NTUM)
-ntoskrnl.exe
CreateProcess
-csrss
-lsass
-svchost
-Application.exe

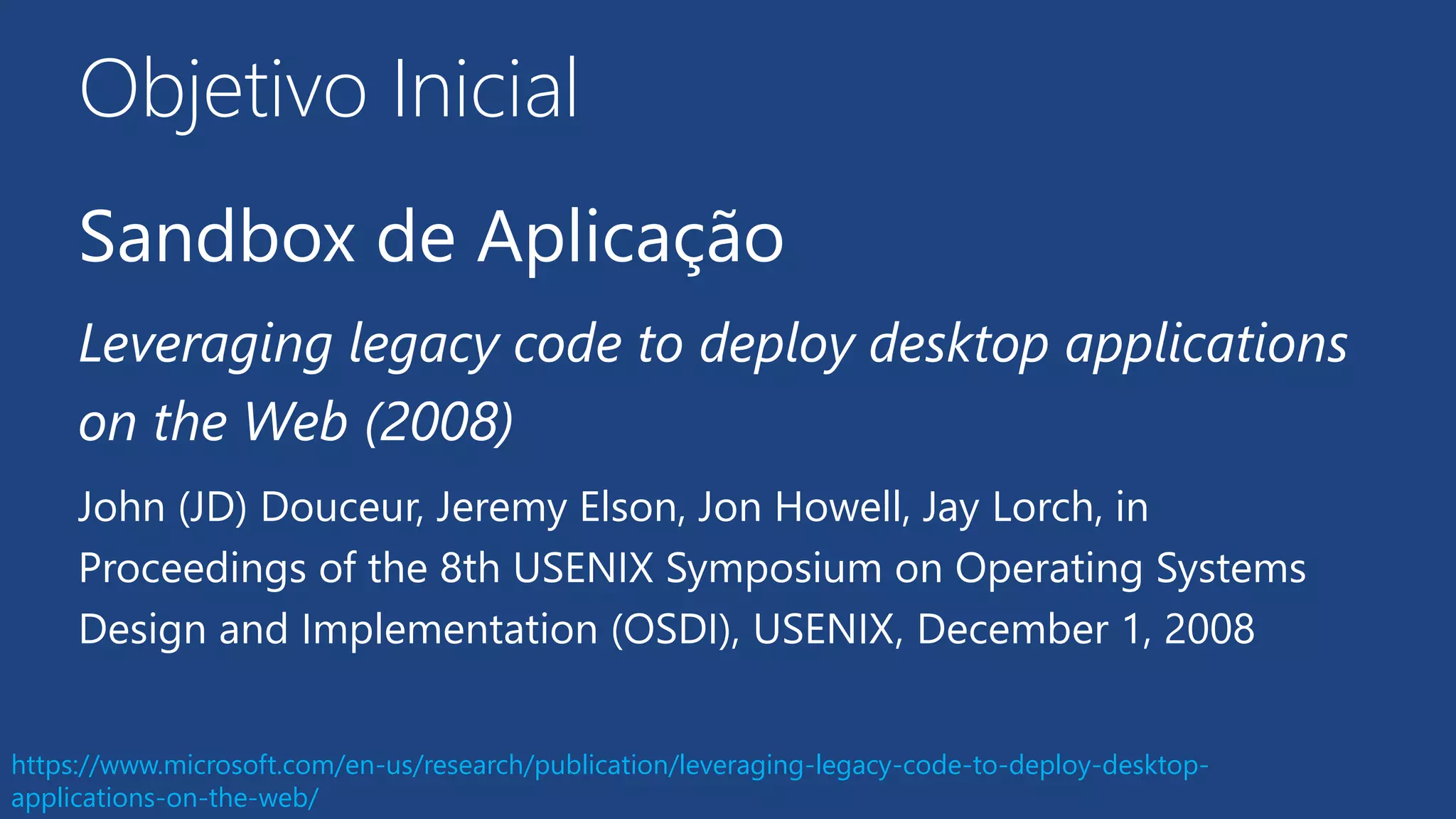

19. Objetivo Inicial
Sandbox de Aplicação
Leveraging legacy code to deploy desktop applications
on the Web (2008)
John (JD) Douceur, Jeremy Elson, Jon Howell, Jay Lorch, in
Proceedings of the 8th USENIX Symposium on Operating Systems
Design and Implementation (OSDI), USENIX, December 1, 2008
https://www.microsoft.com/en-us/research/publication/leveraging-legacy-code-to-deploy-desktop-
applications-on-the-web/

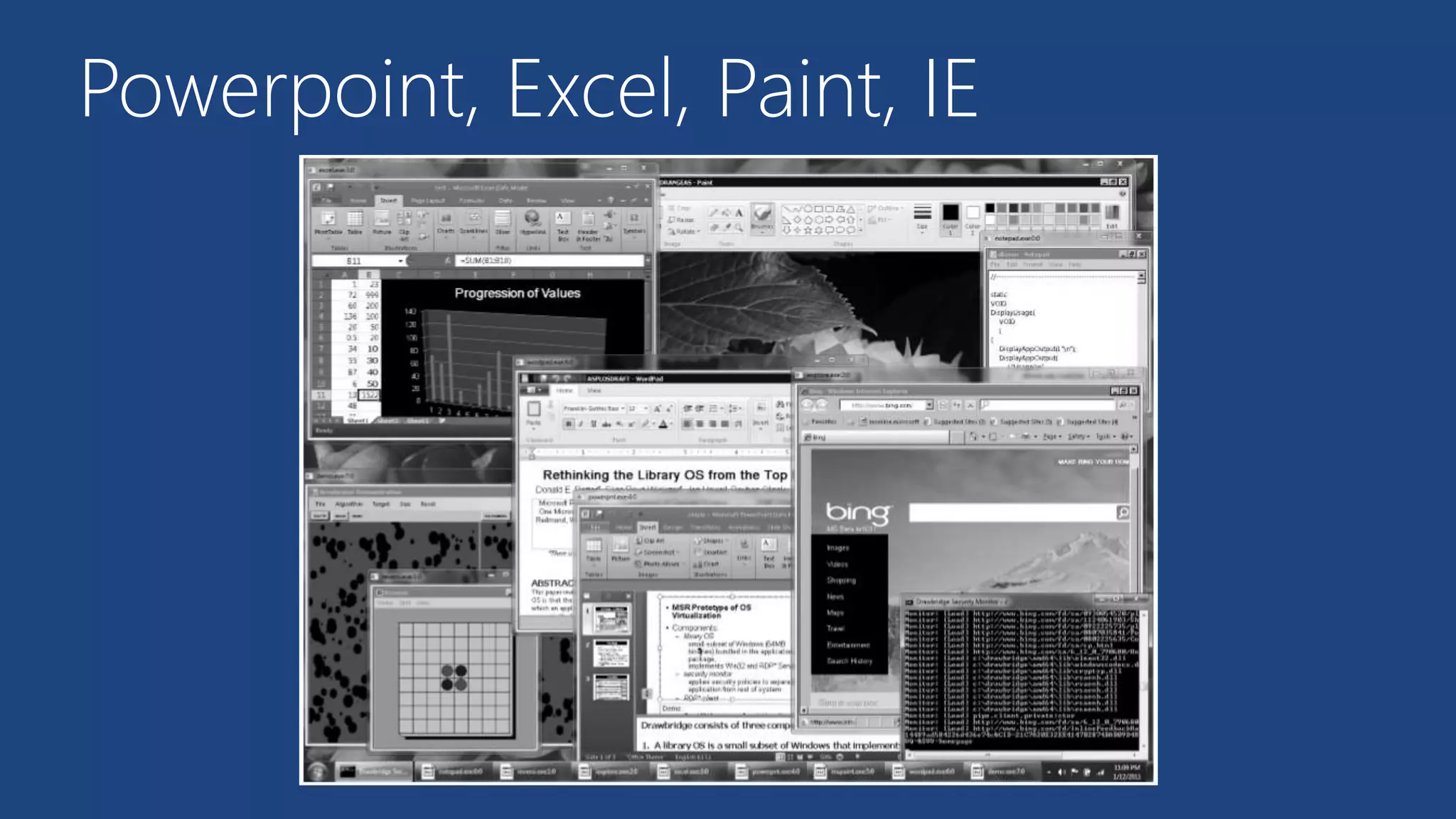

20. Powerpoint, Excel, Paint, IE

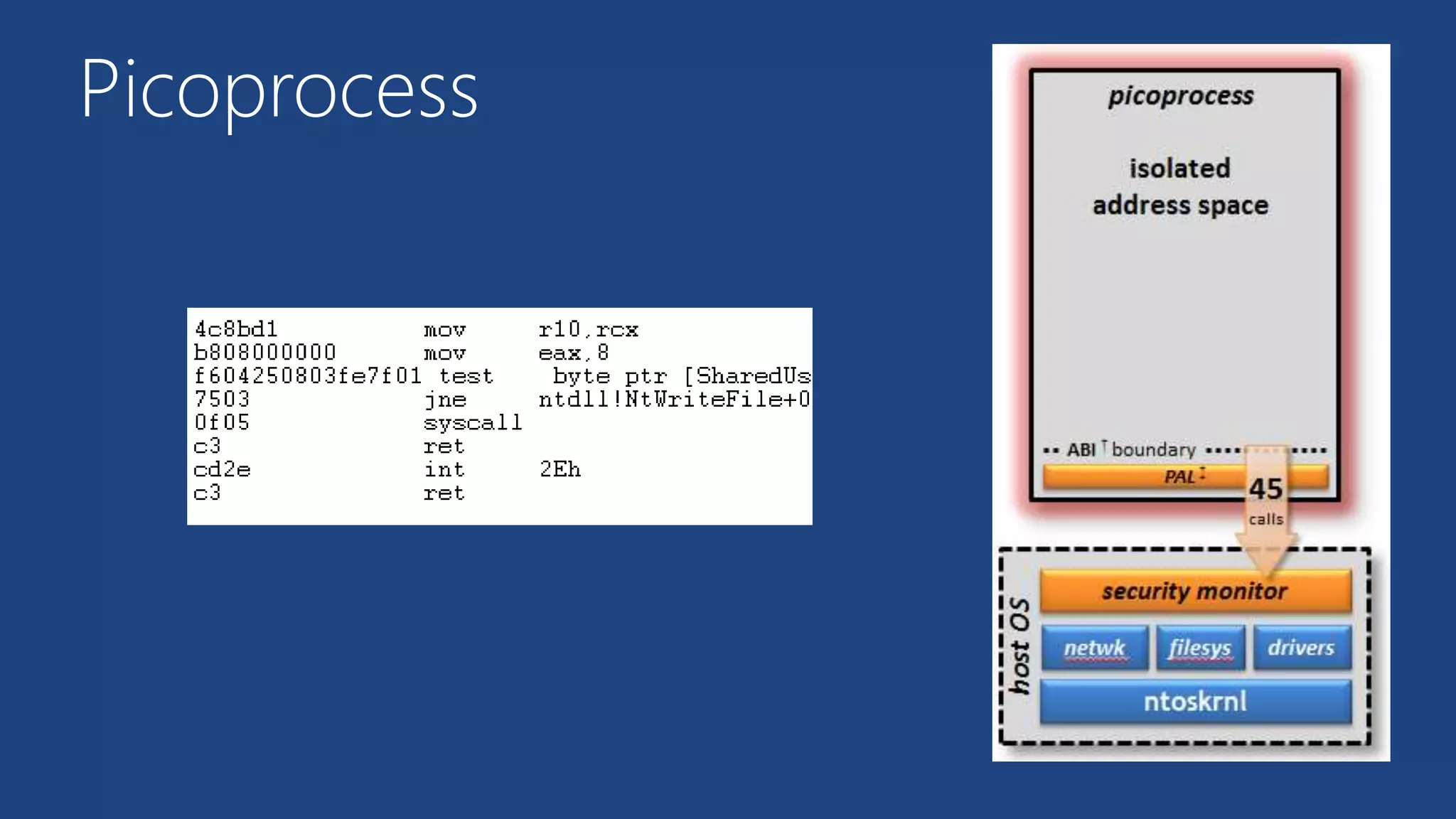

21. Picoprocess

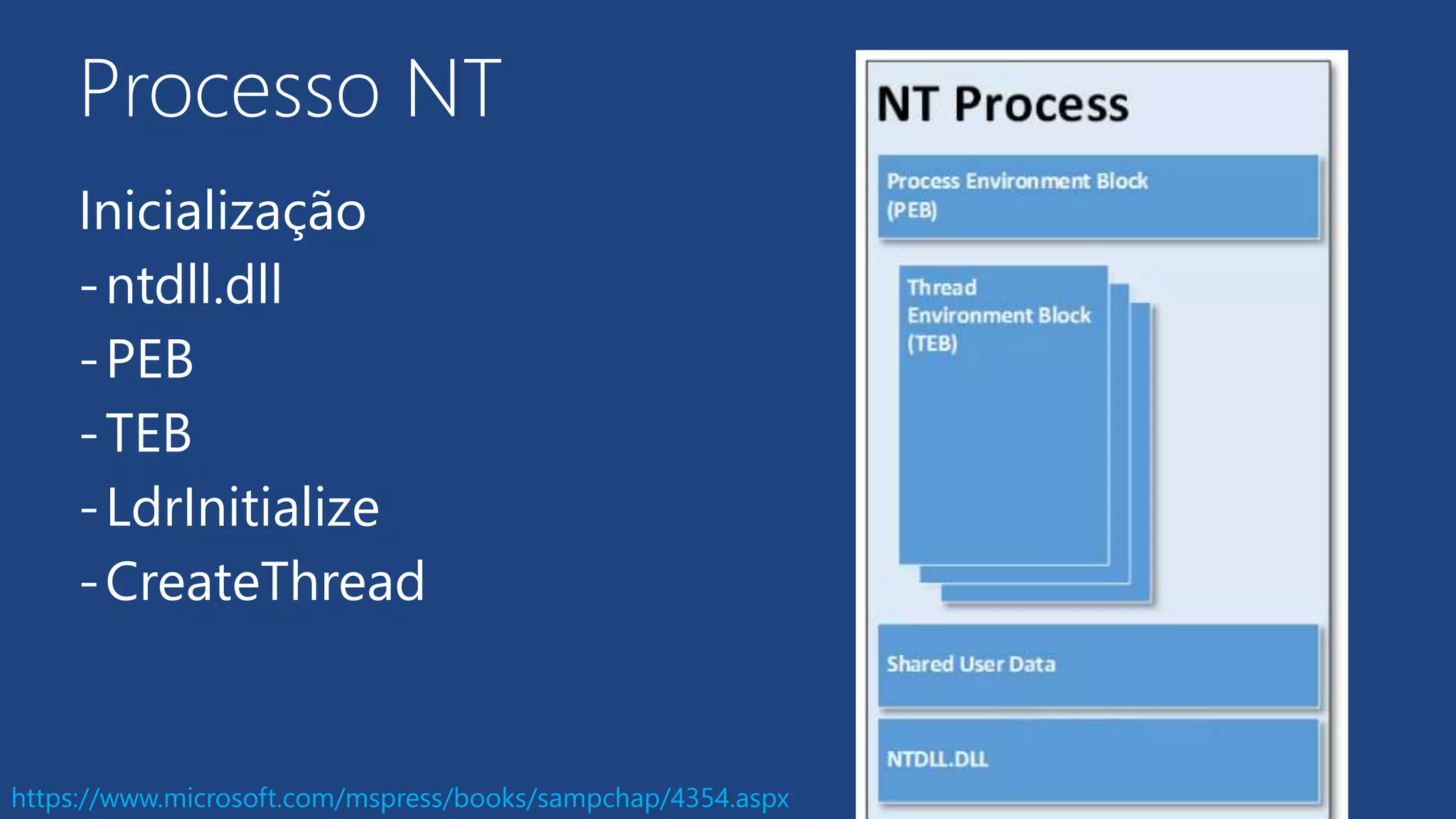

22. Processo NT
Inicialização
-ntdll.dll
-PEB
-TEB
-LdrInitialize
-CreateThread
https://www.microsoft.com/mspress/books/sampchap/4354.aspx

23. Demo

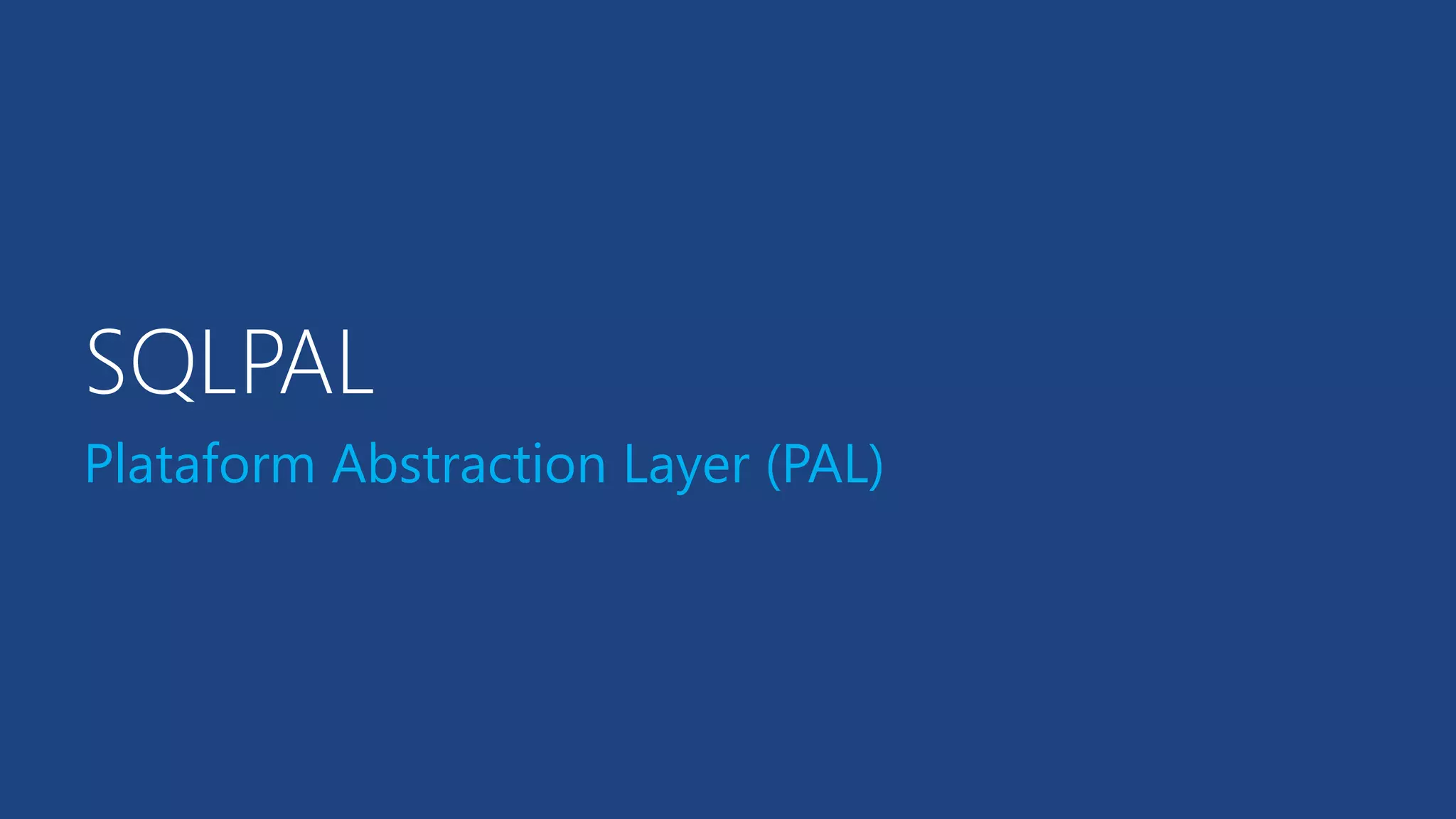

24. SQLPAL
Plataform Abstraction Layer (PAL)

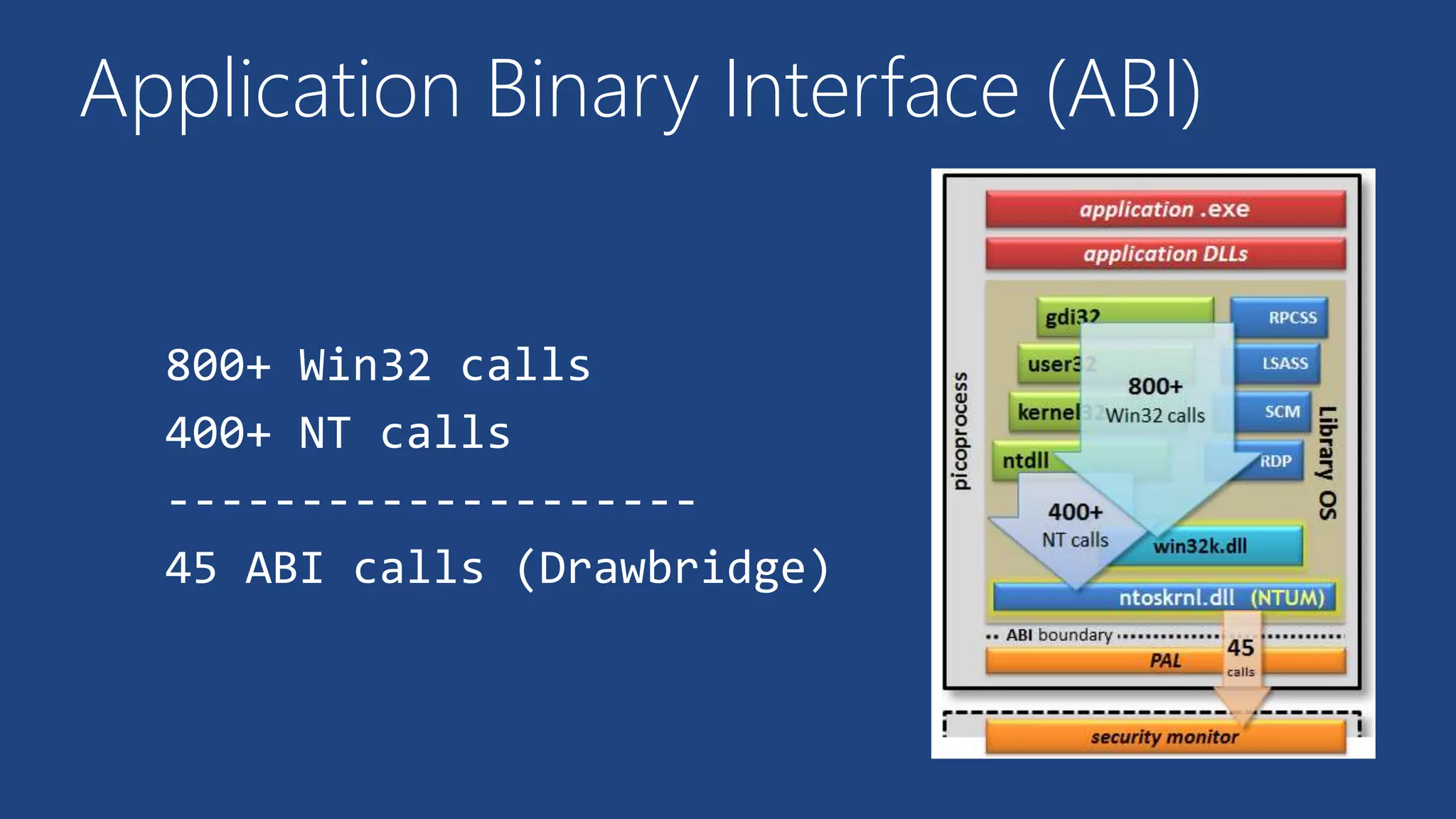

25. Application Binary Interface (ABI)
800+ Win32 calls
400+ NT calls
--------------------
45 ABI calls (Drawbridge)

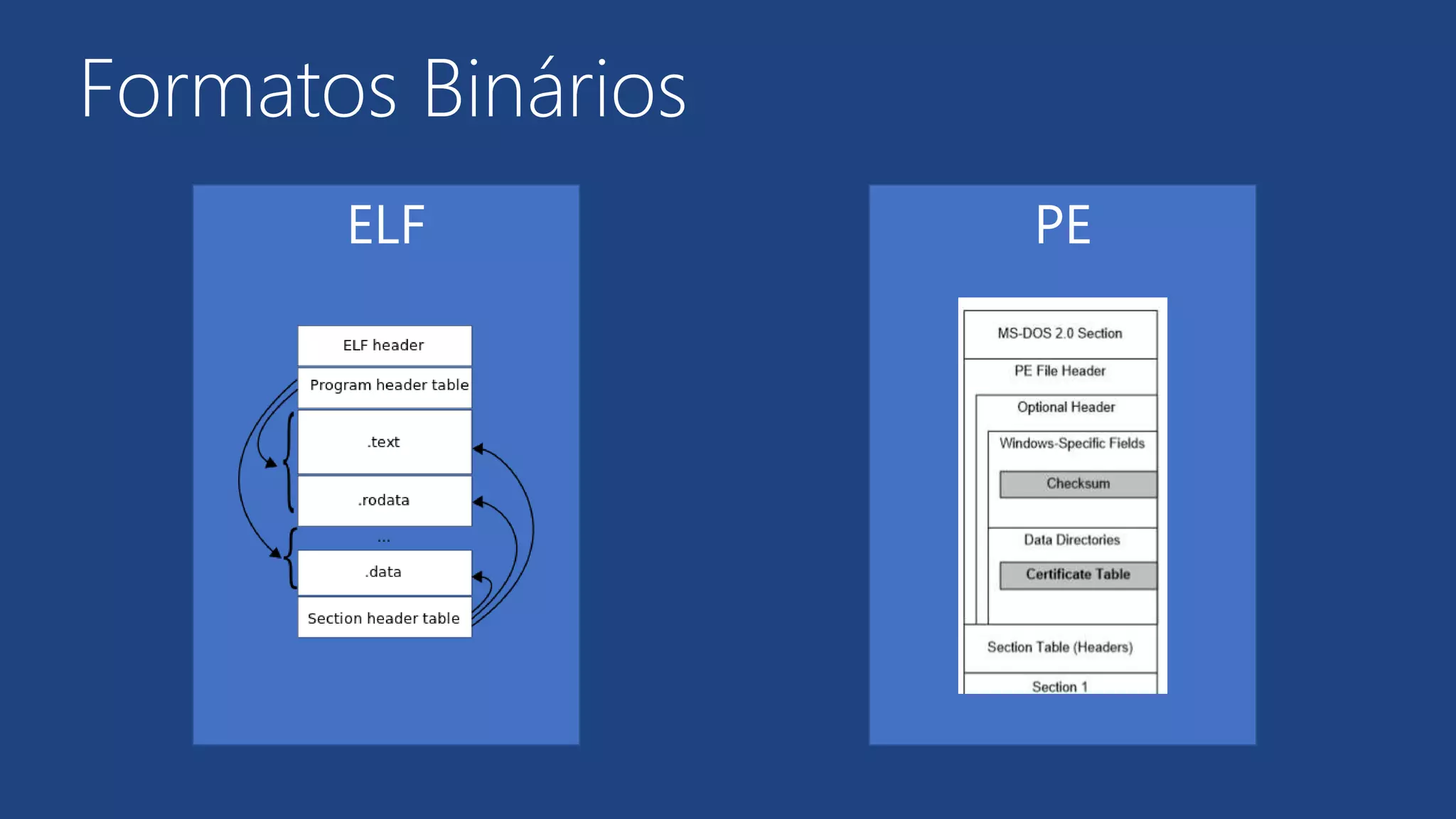

26. Formatos Binários
ELF PE

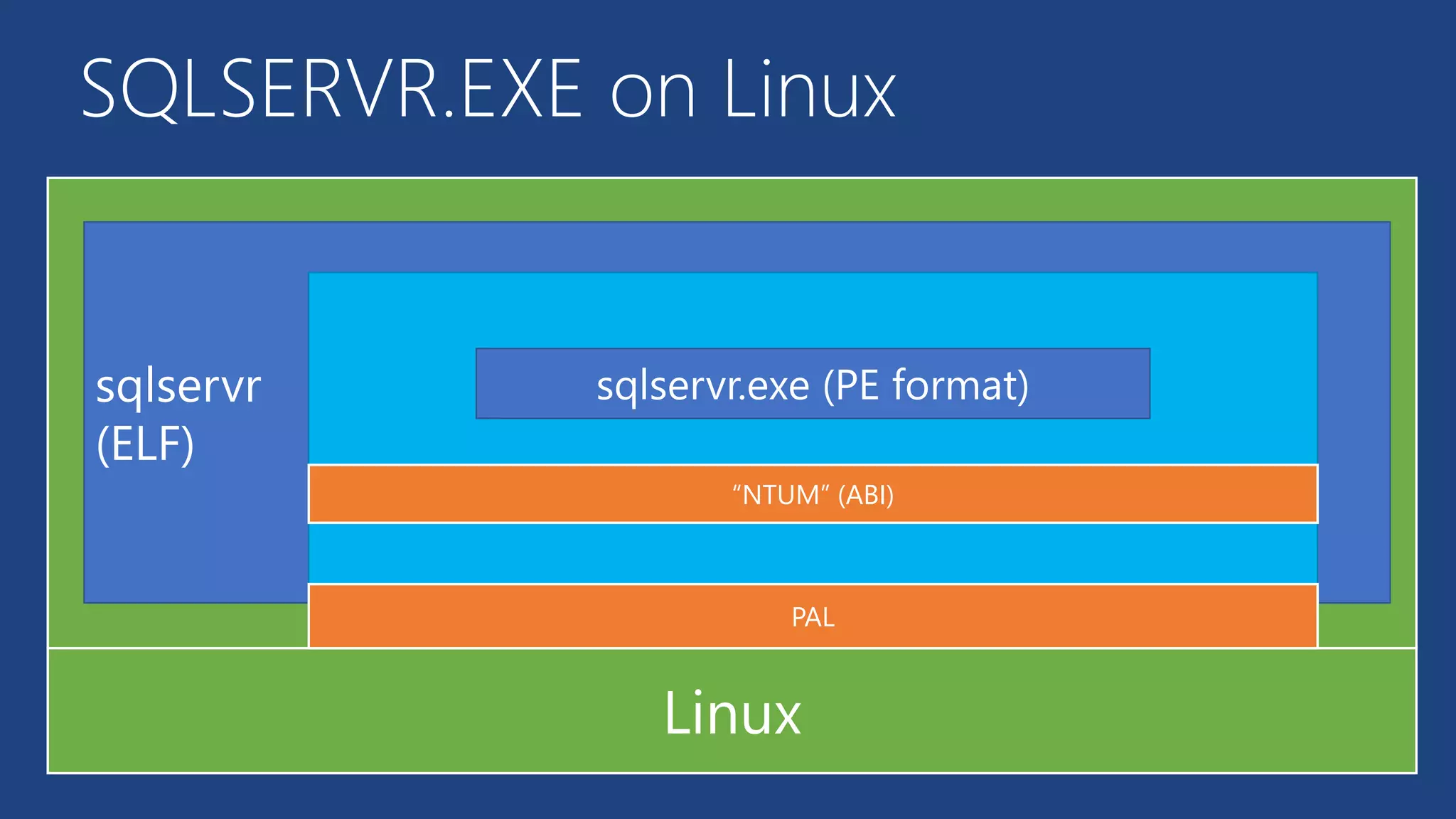

27. SQLSERVR.EXE on Linux
Binário ELF
Linux
sqlservr
(ELF)
“NTUM” (ABI)
sqlservr.exe (PE format)
PAL

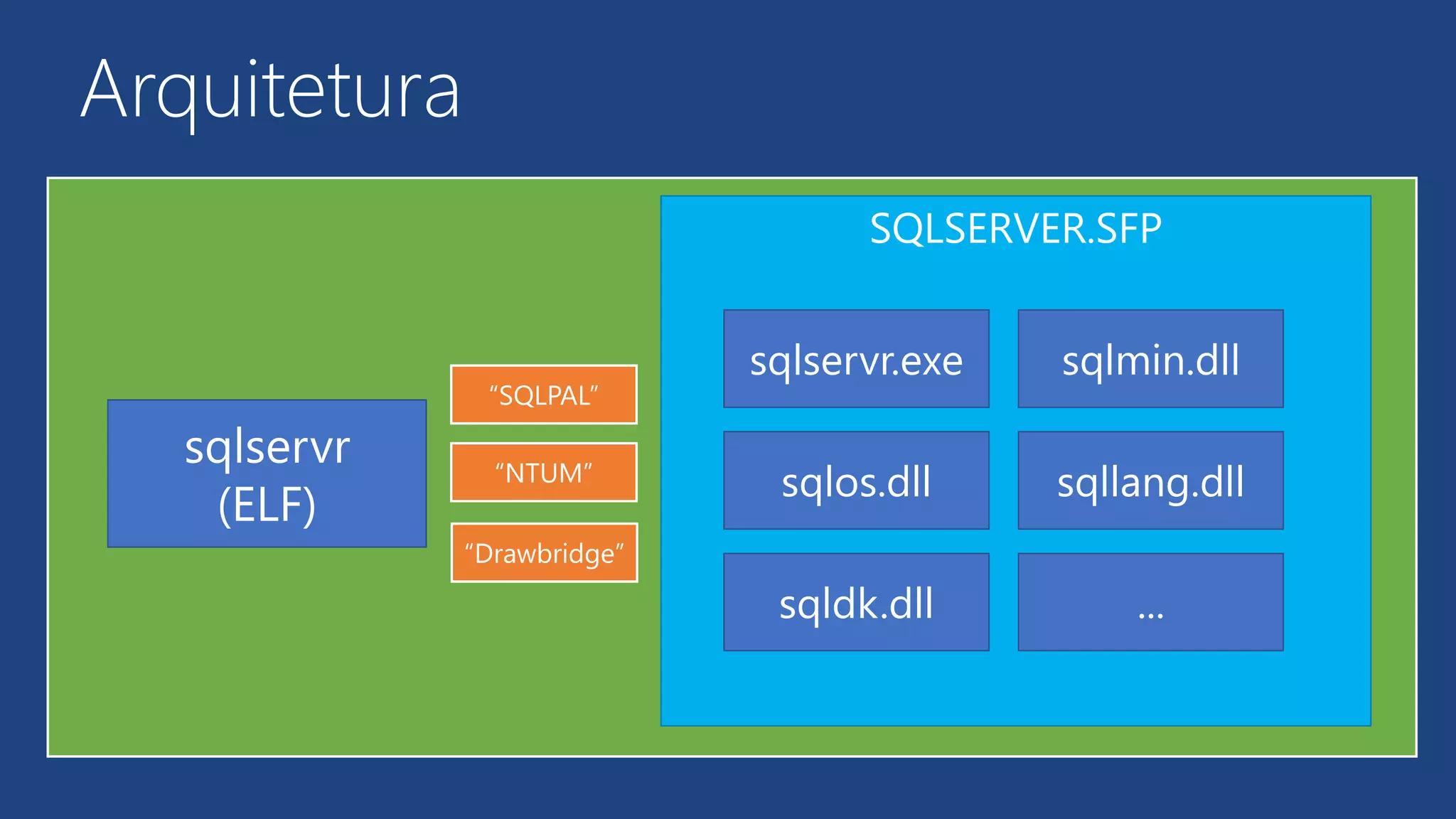

28. SQLSERVER.SFP
Arquitetura
sqlservr
(ELF)
sqlservr.exe
sqlos.dll
sqldk.dll
sqlmin.dll
sqllang.dll
...
“SQLPAL”
“NTUM”
“Drawbridge”

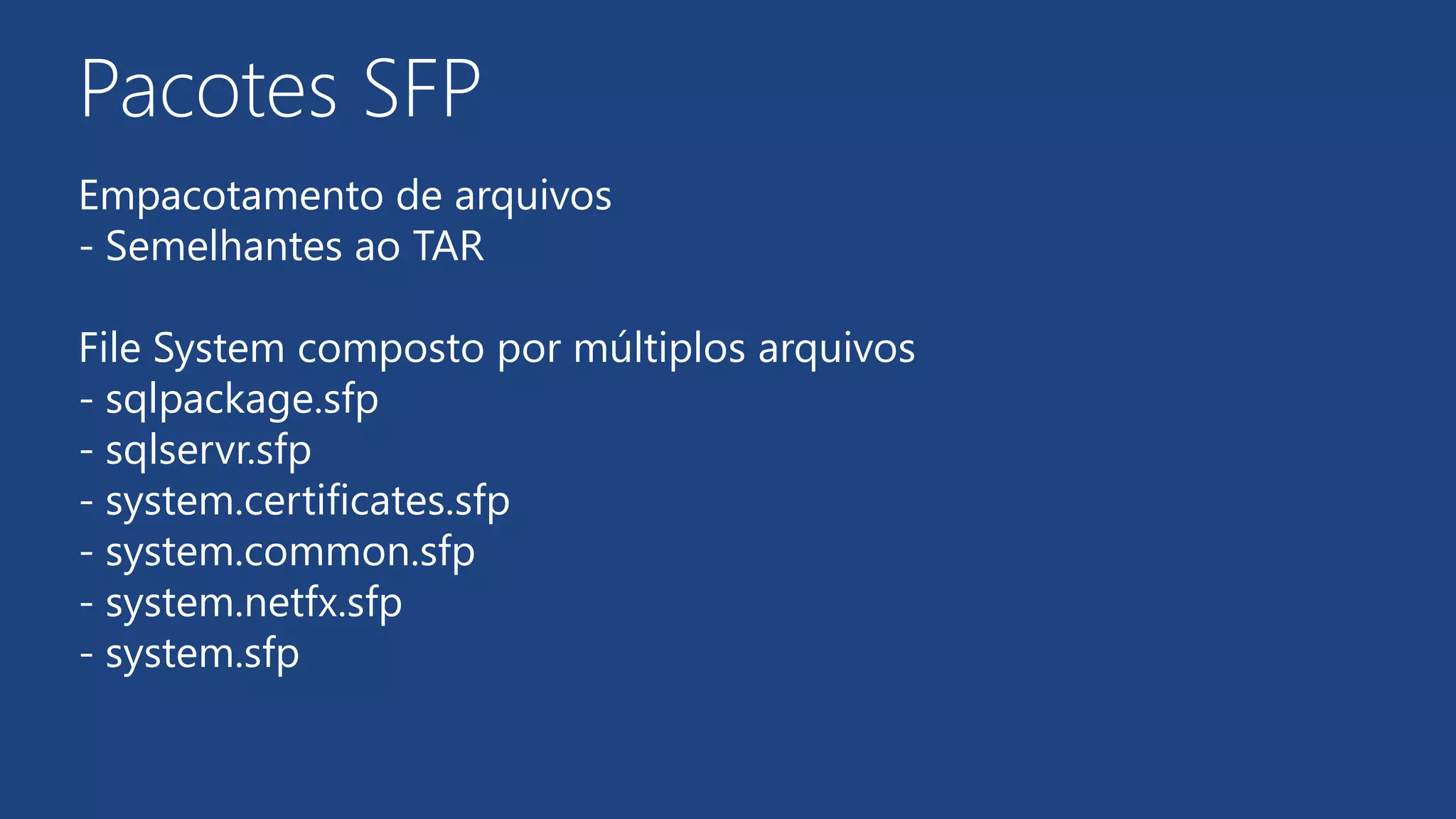

29. Pacotes SFP
Empacotamento de arquivos
- Semelhantes ao TAR
File System composto por múltiplos arquivos
- sqlpackage.sfp
- sqlservr.sfp
- system.certificates.sfp
- system.common.sfp
- system.netfx.sfp
- system.sfp

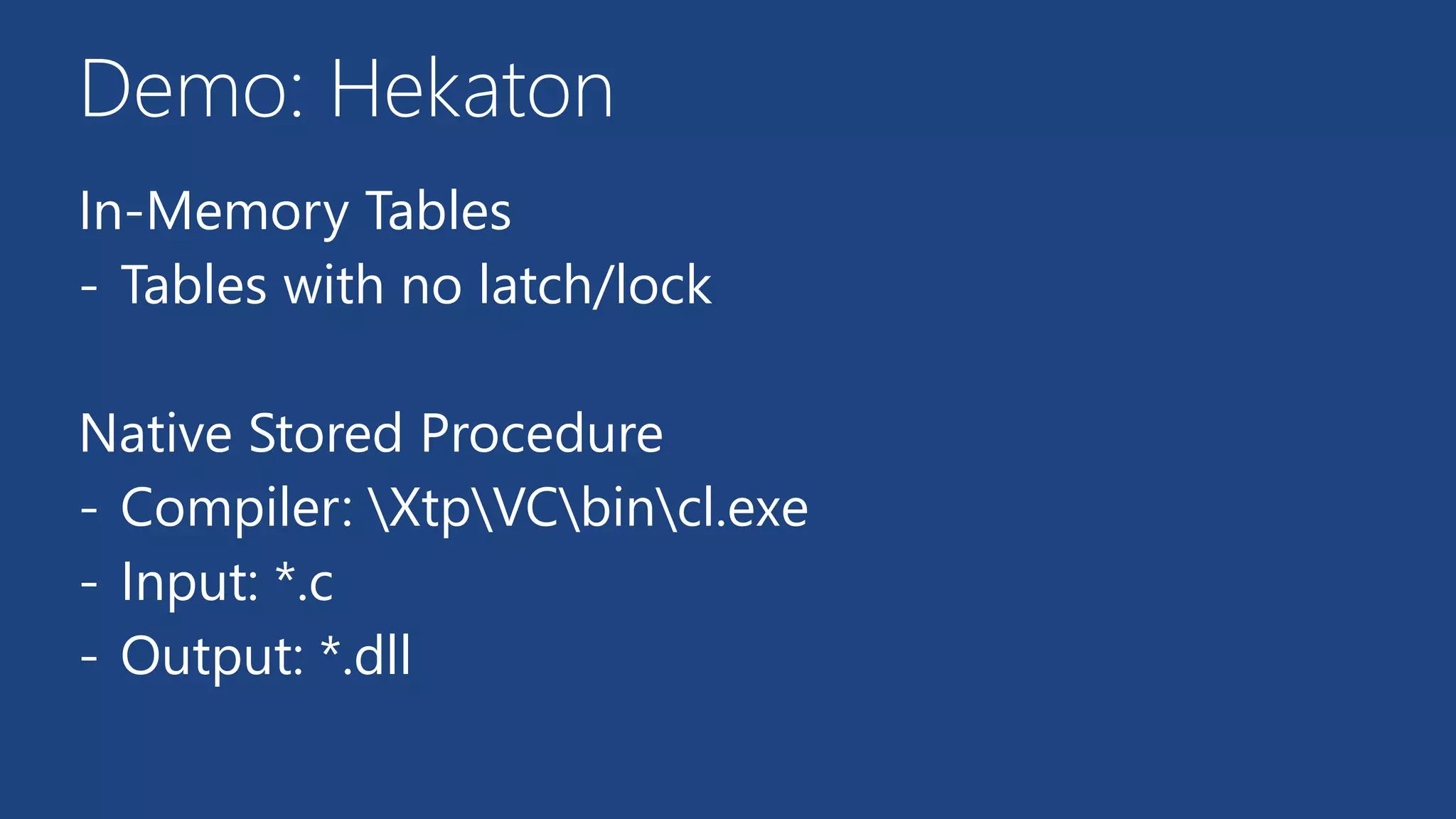

30. Demo: Hekaton
In-Memory Tables
- Tables with no latch/lock
Native Stored Procedure
- Compiler: XtpVCbincl.exe
- Input: *.c
- Output: *.dll

31. Demo

32. Docker Containers
Comparando Drawbridge e Docker

33. Containers
Sandbox (Segurança)
Densidade de containers

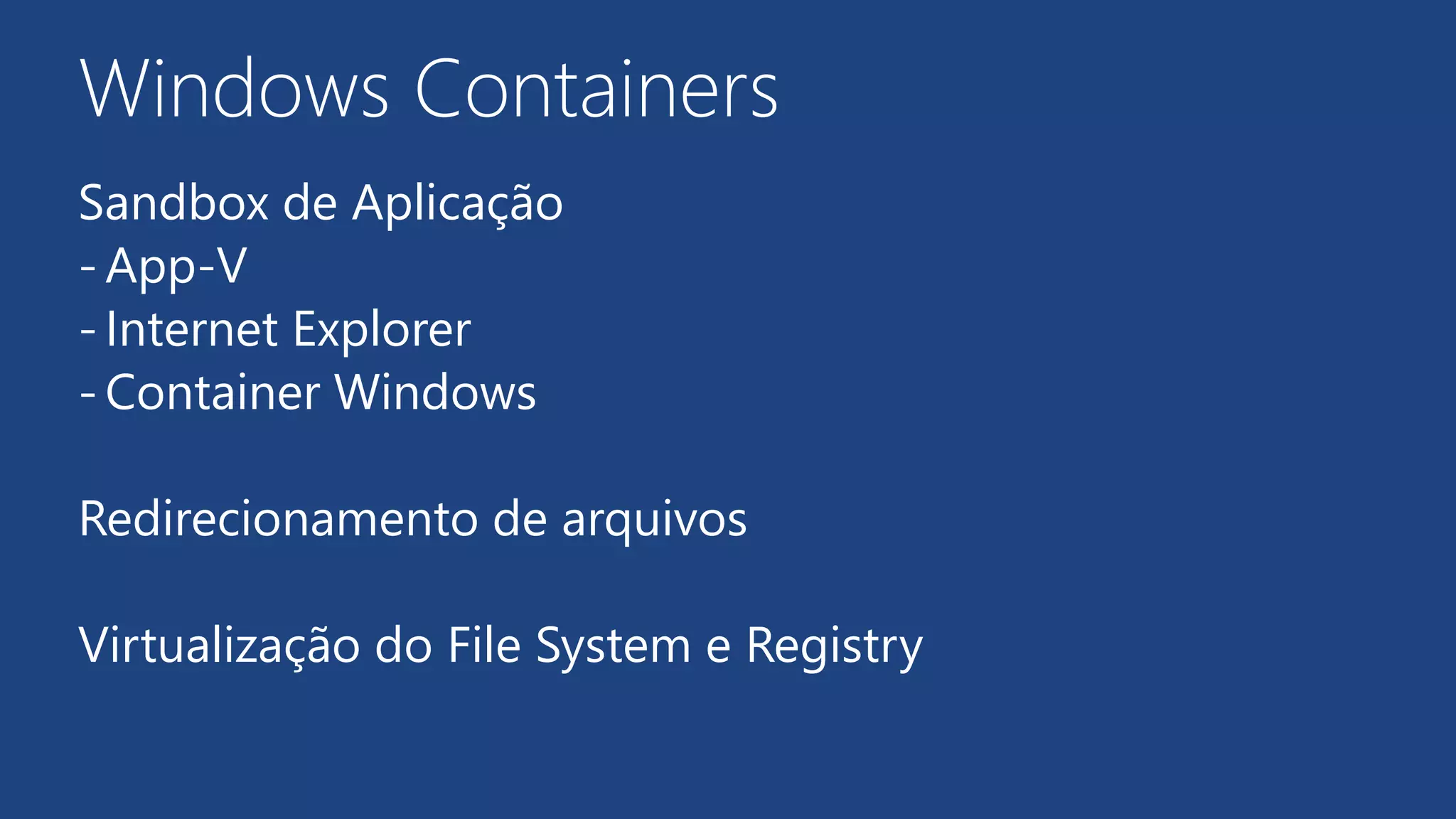

34. Windows Containers
Sandbox de Aplicação
-App-V
-Internet Explorer
-Container Windows
Redirecionamento de arquivos
Virtualização do File System e Registry

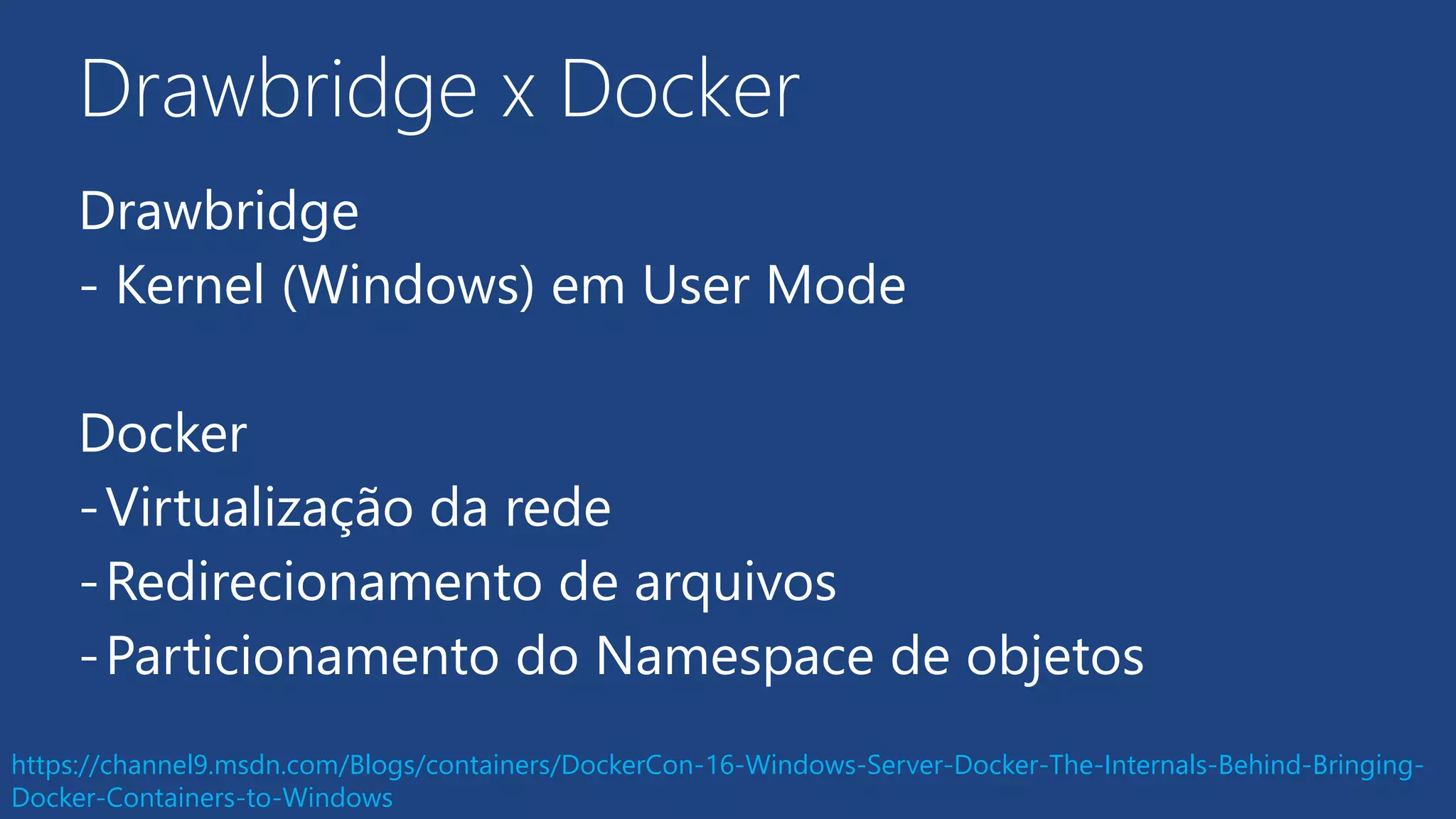

35. Drawbridge x Docker
Drawbridge
- Kernel (Windows) em User Mode
Docker
-Virtualização da rede
-Redirecionamento de arquivos
-Particionamento do Namespace de objetos
https://channel9.msdn.com/Blogs/containers/DockerCon-16-Windows-Server-Docker-The-Internals-Behind-Bringing-
Docker-Containers-to-Windows

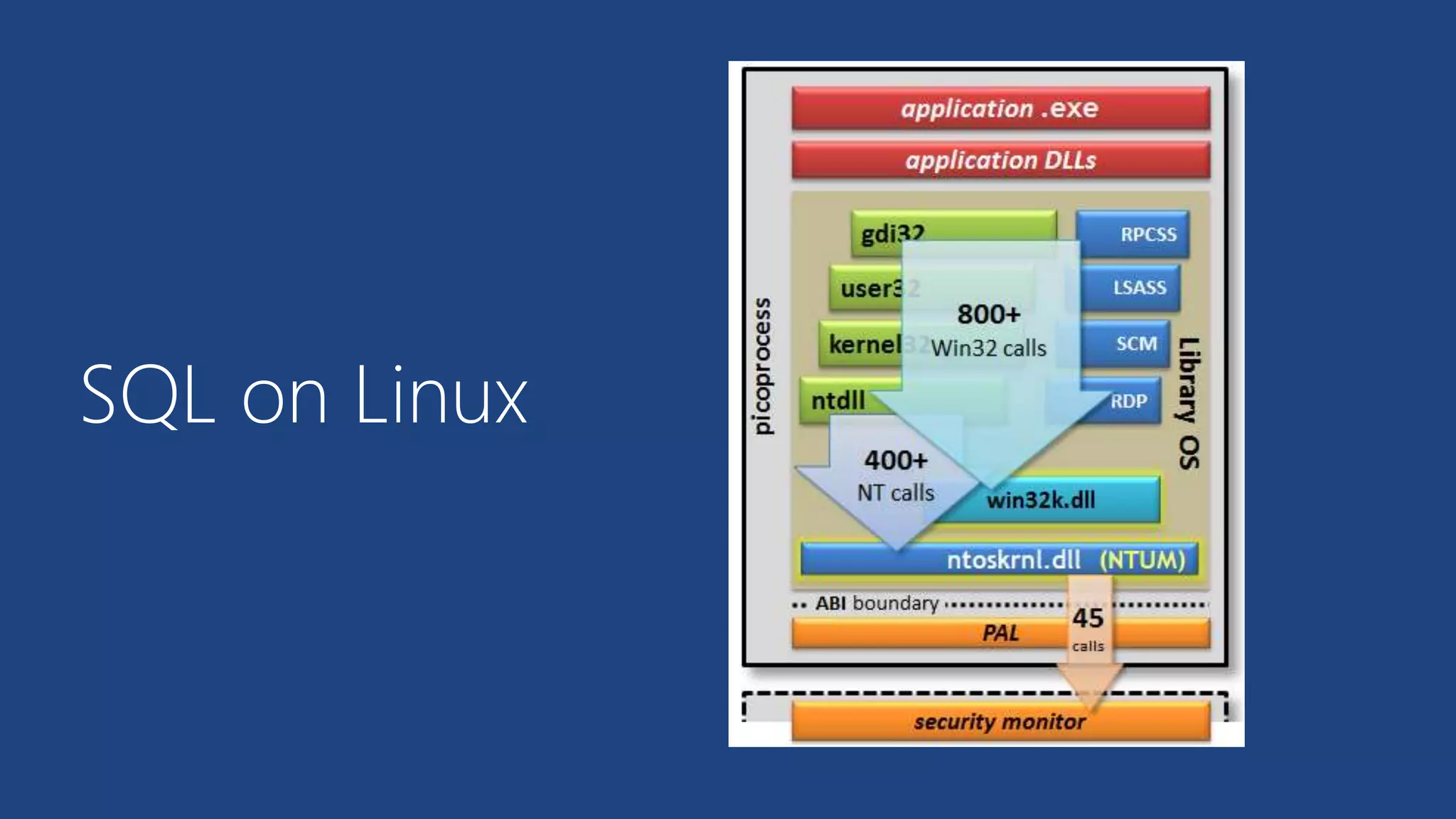

36. SQL on Linux

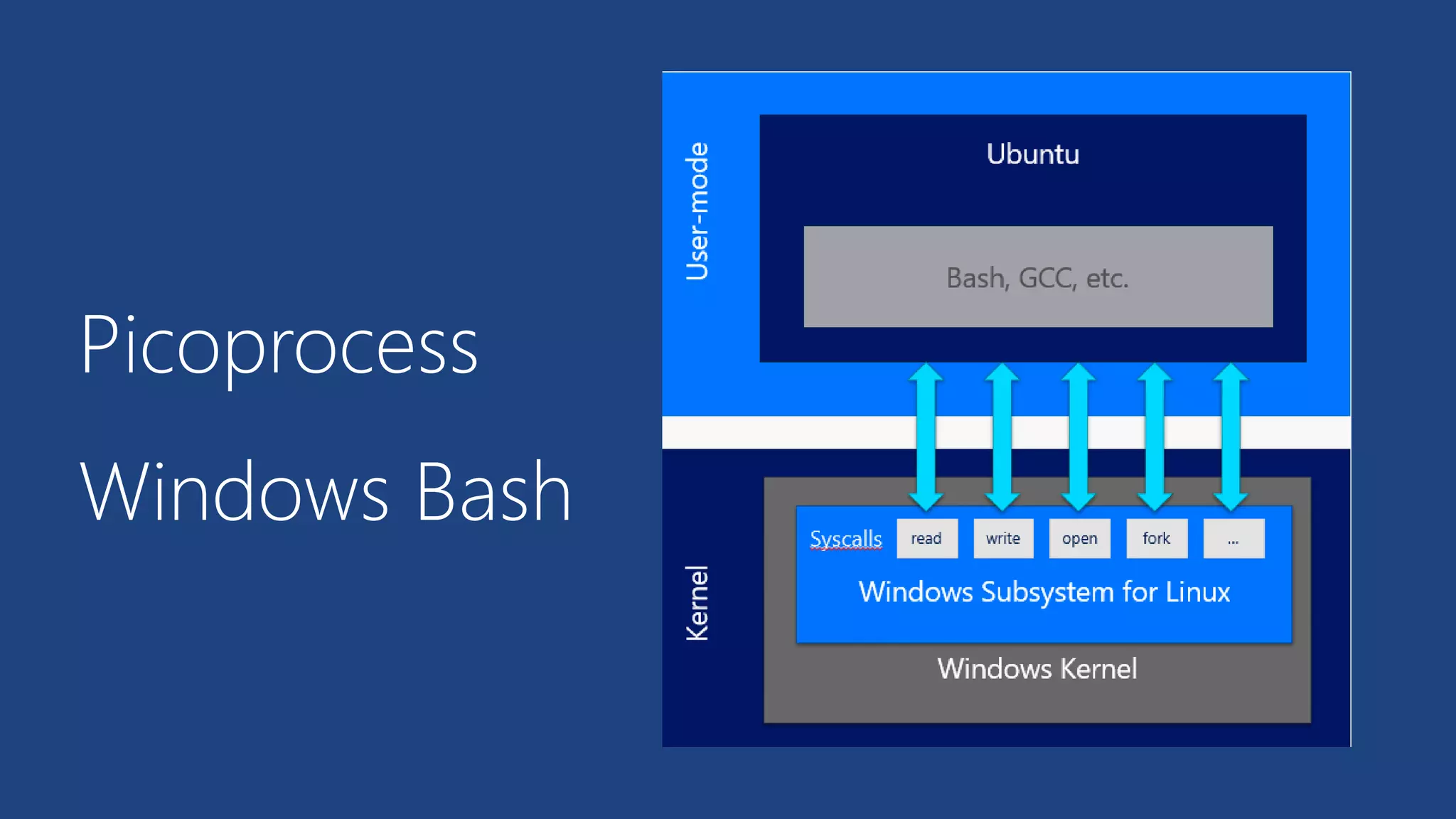

37. Picoprocess
Windows Bash

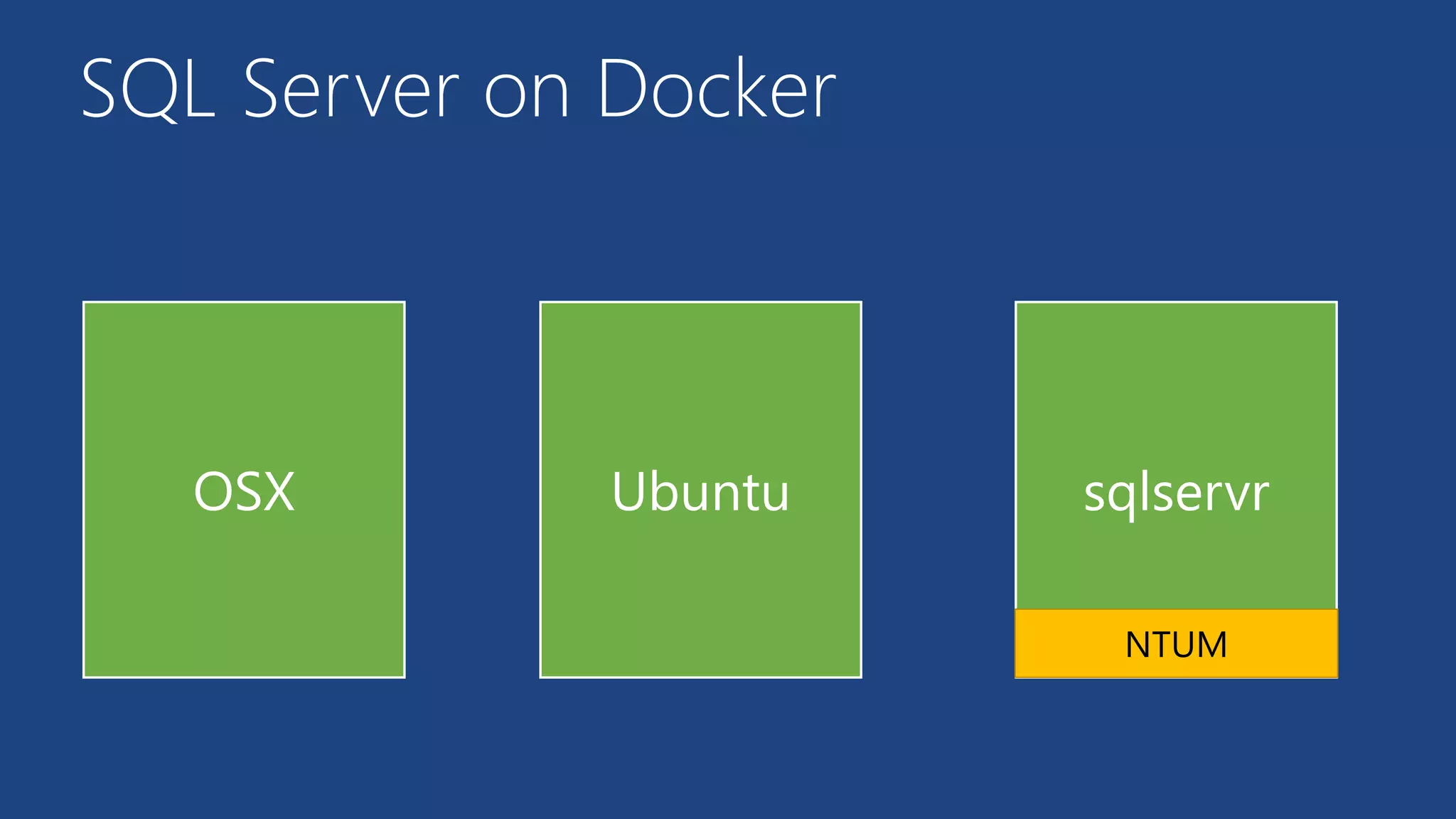

38. SQL Server on Docker
OSX Ubuntu sqlservr
NTUM

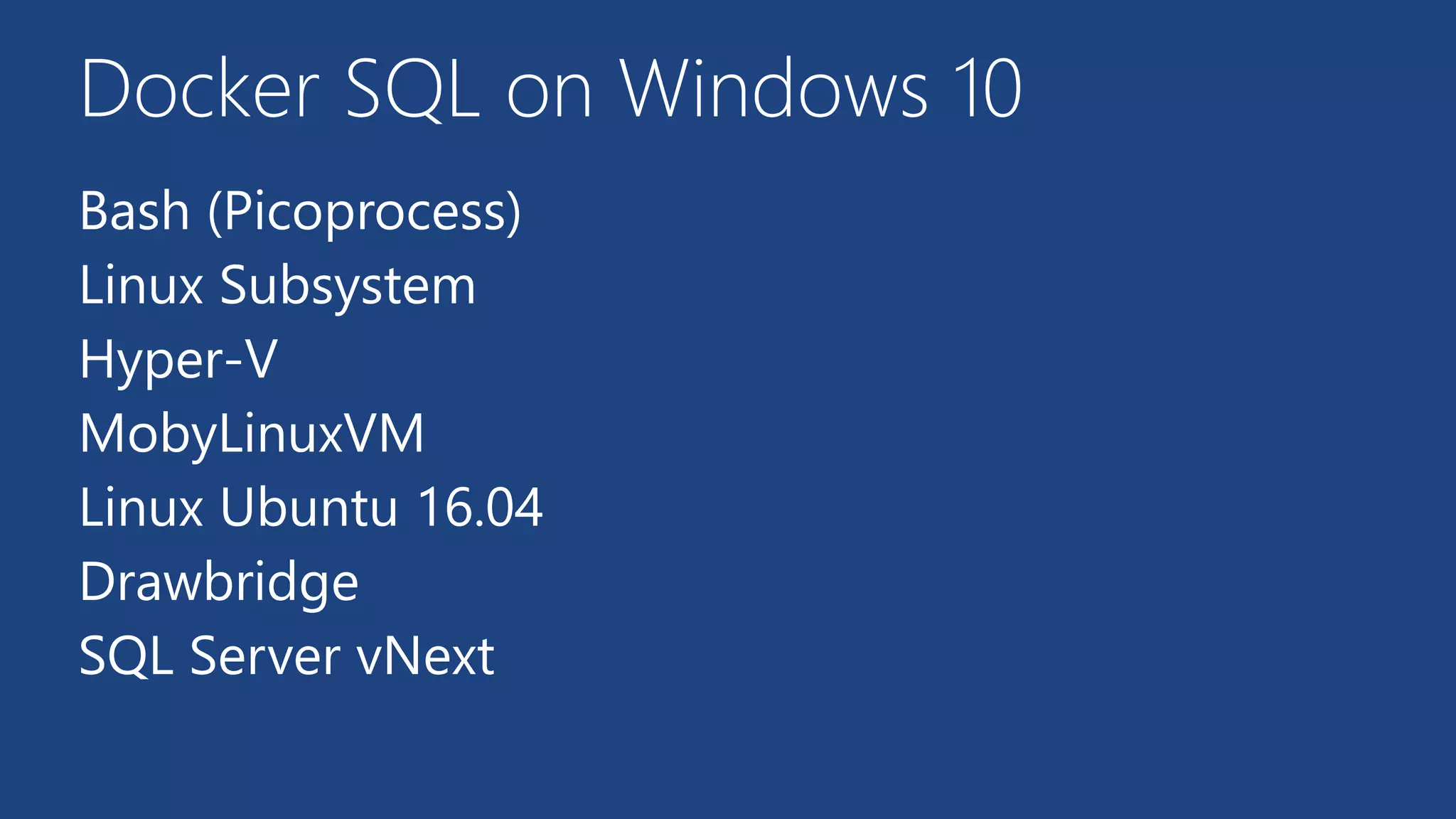

39. Docker SQL on Windows 10
Bash (Picoprocess)
Linux Subsystem
Hyper-V
MobyLinuxVM
Linux Ubuntu 16.04
Drawbridge
SQL Server vNext

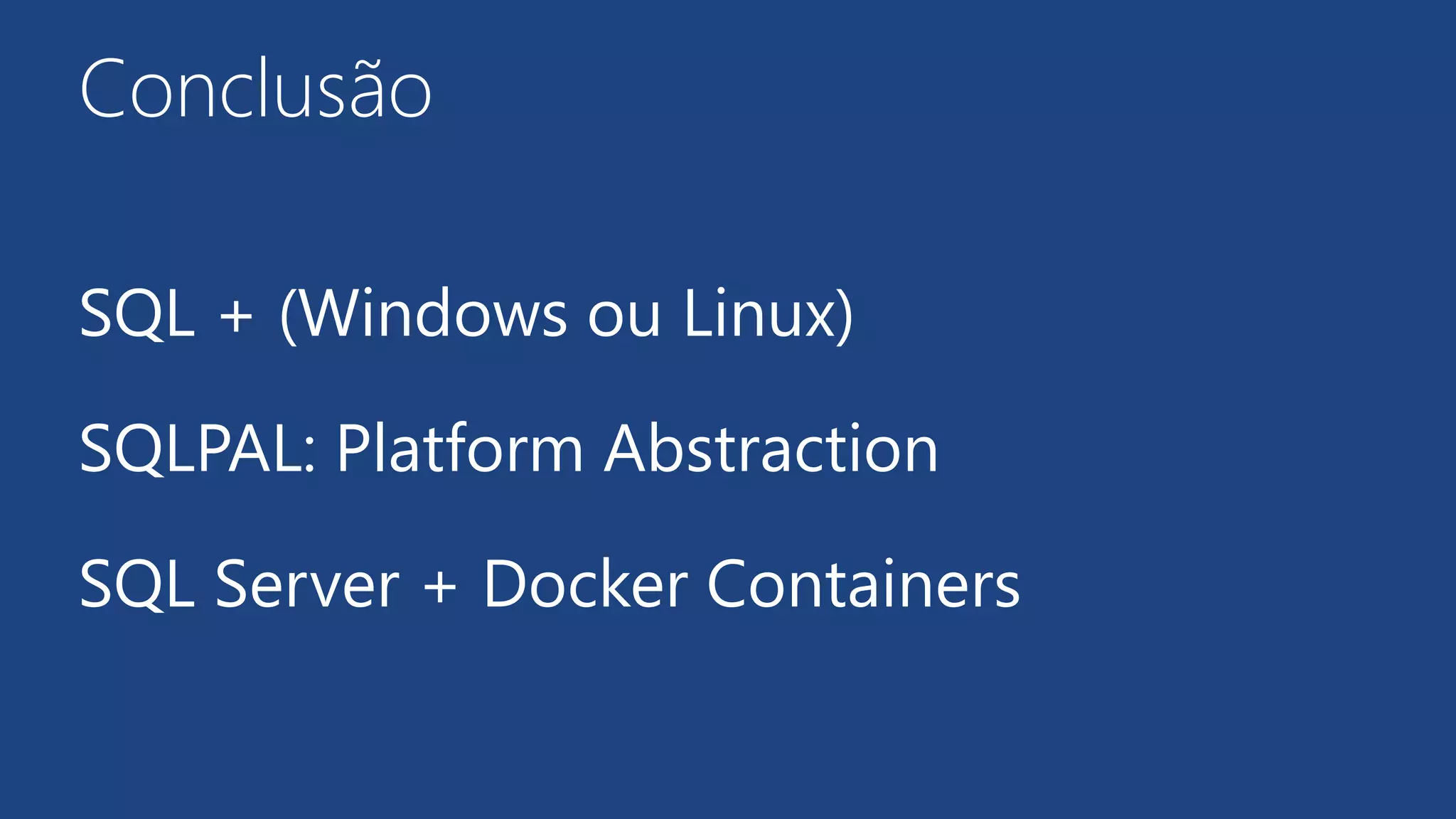

40. Conclusão
SQL + (Windows ou Linux)
SQLPAL: Platform Abstraction
SQL Server + Docker Containers
