SPARQL Querying Benchmarks ISWC2016

SPARQL Querying Benchmarks
Muhammad Saleem, Ivan Ermilov, Axel-Cyrille Ngonga
Ngomo, Ricardo Usbeck, Michael Roder
https://sites.google.com/site/sqbenchmarks/
Tutorial at ISWC 2016, Kobe, Japan, 17/10/2016
Agile Knowledge Engineering and Semantic Web (AKSW), University of Leipzig,
Germany
11/13/2016 1

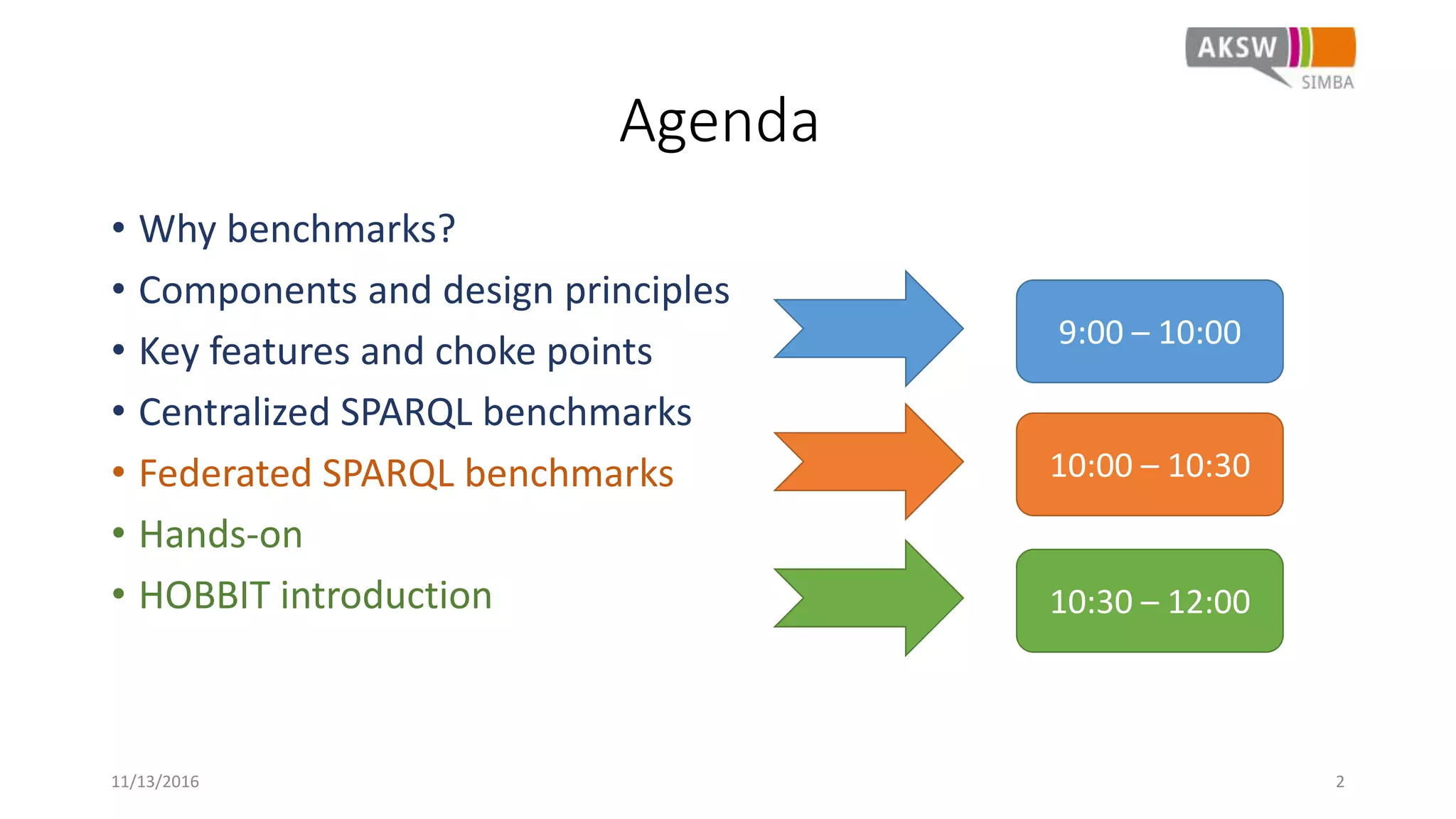

Agenda
• Why benchmarks?
• Components and design principles
• Key features and choke points
• Centralized SPARQL benchmarks
• Federated SPARQL benchmarks
• Hands-on
• HOBBIT introduction
10:00 – 10:30
9:00 – 10:00
10:30 – 12:00
11/13/2016 2

Why Benchmarks?
• What tools I can use for my use case?
• Which tool best suit my use case and why?
• Which are the relevant measures?
• Which is the behavior of the existing engines?
• What are the limitations of the existing engines?
• How to improve existing engines?
11/13/2016 3

Benchmark Categories
• Micro benchmarks
 Specialized, detailed, very focused and easy to run
 Neglect larger picture
 Difficult to generalize results
 Do not use standardized metrics
 For example, Joins evaluation benchmark
• Standard benchmarks
 Generalized, well defined
 Standard metrics
 Complicated to run
 Systems are often optimized for benchmarks
 For example, Transaction Processing Council (TPC) benchmarks
• Real-life applications
11/13/2016 4

SPARQL Querying Benchmarks
• Centralized benchmarks
• Centralized repositories
• Query span over a single dataset
• Real or synthetic
• Examples: LUBM, SP2Bench, BSBM, WatDiv, DBPSB, FEASIBLE
• Federated benchmarks
• Multiple Interlinked datasets
• Query span over multiple datasets
• Real or synthetic
• Examples: FedBench, LargeRDFBench
5

Querying Benchmark Components
• Datasets (real or synthetic)
• Queries (real or synthetic)
• Performance metrics
• Execution rules
11/13/2016 6

Design Principles [L97]
• Relevant
• Understandable
• Good metrics
• Scalable
• Coverage
• Acceptance
• Repeatable
• Verifiable
11/13/2016 7

Choke Points: Technological Challenges [BNE14]
• CP1: Aggregation Performance
• CP2: Join Performance
• CP3: Data Access Locality (materialized views)
• CP4: Expression Calculation
• CP5: Correlated Sub-queries
• CP6: Parallelism and Concurrency
11/13/2016 8

RDF Querying Benchmarks Choke Points [FK16]
• CP1: Join Ordering
• CP2: Aggregation
• CP3: OPTIONAL and nested OPTIONAL clauses
• CP4: Reasoning
• CP5: Parallel execution of UNIONS
• CP6: FILTERS
• CP7: ORDERING
• CP8: Geo-spatial predicates
• CP9: Full Text
• CP10: Duplicate elimination
• CP11: Complex FILTER conditions
11/13/2016 9

SPARQL Queries as Directed Labelled Hyper-graphs (DLH)
[SNM15]
11/13/2016 10

SELECT ?president ?party ?page
WHERE {
?president rdf:type dbpedia:President .
?president dbpedia:nationality dbpedia:United_States .
?president dbpedia:party ?party .
?x nyt:topicPage ?page .
?x owl:sameAs ?president .
}
?president
rdf:type
dbpedia:
President
11
DLH Of SPARQL Queries

WHERE {
}
?president
rdf:type
dbpedia:
President
dbpedia:
United_States
dbpedia:
nationality
12

WHERE {
}
?president
rdf:type
dbpedia:
President
dbpedia:
United_States
dbpedia:
nationality
dbpedia:
party
?party
13

WHERE {
}
?president
rdf:type
dbpedia:
President
dbpedia:
United_States
dbpedia:
nationality
?x
dbpedia:
party
?party
nyt:topic
Page
?page
14

WHERE {
}
?president
rdf:type
dbpedia:
President
dbpedia:
United_States
dbpedia:
nationality
?x
owl:
SameAS
dbpedia:
party
?party
nyt:topic
Page
?page
Star simple hybrid Tail of hyperedge
15

Key SPARQL Queries Characteristics
FEASIBLE [SNM15], WatDiv [AHO+14], LUBM [GPH05] identified:
• Query forms
 SELECT, DESCRIBE, ASK, CONSTRUCT
• Constructs
 UNION, DISTINCT, ORDER BY, REGEX, LIMIT, FILTER, OPTIONAL, GROUP BY,
Negation
• Features
 Result size, No. of BGPs, Number of triple patterns, No. of join vertices, Mean
join vertices degree, Mean triple pattern selectivity, Join selectivity, Query
runtime, Unbound predicates,
11/13/2016 16

Centralized SPARQL Querying Benchmarks
11/13/2016 17

Lehigh University Benchmark (LUBM) [GPH05]
• Synthetic RDF benchmark
• Test reasoning capabilities of triple stores
• Synthetic universities data generator
• 15 SPARQL 1.0 queries
• Query design criteria
 Input Size, Selectivity, Complexity, Logical inferencing
 Load time, Repository size, Query runtime, Query completeness and
soundness, Combined metric (runtime + completeness + soundness)
11/13/2016 18

LUBM Queries Choke Points [FK16]
# CP1 CP2 CP3 CP4 CP5 CP6 CP7 CP8 CP9 CP10 CP11
Q1
Q2 
Q3 
Q4  
Q5 
Q6 
Q7 
Q8 
Q9 
Q10 
Q11 
Q12  
Q13 
Q14
11/13/2016 19
Join Ordering
Reasoning

LUBM Queries Characteristic [SNM15]
11/13/2016 20
Queries 15
Query
Forms
SELECT 100.00%
ASK 0.00%
CONSTRUCT 0.00%
DESCRIBE 0.00%
Important
SPARQL
Constructs
UNION 0.00%
DISTINCT 0.00%
ORDER BY 0.00%
REGEX 0.00%
LIMIT 0.00%
OFFSET 0.00%
OPTIONAL 0.00%
FILTER 0.00%
GROUP BY 0.00%
Result Size
Min 3
Max 1.39E+04
Mean 4.96E+03
S.D. 1.14E+04
BGPs
Min 1
Max 1
Mean 1
S.D. 0
Triple
Patterns
Min 1
Max 6
Mean 3
S.D. 1.8126539
Join
Vertices
Min 0
Max 4
Mean 1.6
S.D. 1.4040757
Mean Join
Vertices
Degree
Min 0
Max 5
Mean 2.0222222
S.D. 1.2999796
Mean
Triple
Patterns
Selectivity
Min 0.0003212
Max 0.432
Mean 0.01
S.D. 0.0745
Query
Runtime
(ms)
Min 2
Max 3200
Mean 437.675
S.D. 320.34

SP2Bench[SHM+09]
• Synthetic RDF triple stores benchmark
• DBLP bibliographic synthetic data generator
• 12 SPARQL 1.0 queries
 SELECT, ASK SPARQL forms, Covers majority of SPARQL constructs
 Load time, Per query runtime, Arithmetic and geometric mean of overall
queries runtime, memory consumption
11/13/2016 21

SP2Bench Queries Choke Points [FK16]
Q1 
Q2 
Q3 
Q4   
Q5   
Q6    
Q7    
Q8     
Q9  
Q10
Q11
Q12   
11/13/2016 22
Join Ordering FILTERS Duplicate Elimination

SP2Bench Queries Characteristic [SNM15]
11/13/2016 23
Queries 12
Query
Forms
SELECT 91.67%
ASK 8.33%
CONSTRUCT 0.00%
DESCRIBE 0.00%
Important
SPARQL
Constructs
UNION 16.67%
DISTINCT 41.67%
ORDER BY 16.67%
REGEX 0.00%
LIMIT 8.33%
OFFSET 8.33%
OPTIONAL 25.00%
FILTER 58.33%
GROUP BY 0.00%
Result Size
Min 1
Max 4.34E+07
Mean 4.55E+06
S.D. 1.37E+07
BGPs
Min 1
Max 3
Mean 1.5
S.D. 0.67419986
Triple
Patterns
Min 1
Max 13
Mean 5.91666667
S.D. 3.82475985
Join
Vertices
Min 0
Max 10
Mean 4.25
S.D. 3.79293602
Mean Join
Vertices
Degree
Min 0
Max 9
Mean 2.41342593
S.D. 2.26080826
Mean
Triple
Patterns
Selectivity
Min 6.5597E-05
Max 0.53980613
Mean 0.22180428
S.D. 0.20831387
Query
Runtime
(ms)
Min 7
Max 7.13E+05
Mean 2.83E+05
S.D. 5.26E+05

Berlin SPARQL Benchmark (BSBM) [ BS09]
• Synthetic RDF triple stores benchmark
• E-commerce use case synthetic data generator
• 20 Queries
 12 SPARQL 1.0 queries for explore, explore and update use cases
 8 SPARQL 1.1 analytical queries for business intelligence use case
 SELECT, DESCRIBE, CONSTRUCT SPARQL forms, Covers majority of SPARQL
constructs
 Load time, Query Mixes per Hour (QMpH), Queries per Second (QpS)
11/13/2016 24

BSBM Queries Choke Points [FK16]
Q1    
Q2 
Q3   
Q4    
Q5    
Q6  
Q7   
Q8   
Q9 
Q10    
Q11 
Q12 
11/13/2016 25
Join Ordering
FILTERS
Result Ordering

BSBM Queries Characteristic [SNM15]
11/13/2016 26
Queries 20
Query
Forms
SELECT 80.00%
ASK 0.00%
CONSTRUCT 4.00%
DESCRIBE 16.00%
Important
SPARQL
Constructs
UNION 8.00%
DISTINCT 24.00%
ORDER BY 36.00%
REGEX 0.00%
LIMIT 36.00%
OFFSET 4.00%
OPTIONAL 52.00%
FILTER 52.00%
GROUP BY 0.00%
Result Size
Min 0
Max 31
Mean 8.312
S.D. 9.0308
BGPs
Min 1
Max 5
Mean 2.8
S.D. 1.7039
Triple
Patterns
Min 1
Max 15
Mean 9.32
S.D. 5.18
Join
Vertices
Min 0
Max 6
Mean 2.88
S.D. 1.8032
Mean Join
Vertices
Degree
Min 0
Max 4.5
Mean 3.05
S.D. 1.6375
Mean
Triple
Patterns
Selectivity
Min 9E-08
Max 0.0453
Mean 0.0105
S.D. 0.0142
Query
Runtime
(ms)
Min 5
Max 99
Mean 9.1
S.D. 14.564

DBpedia SPARQL Benchmark (DBSB) [MLA+14]
• Real benchmark generation framework based on
 DBpedia dataset with different sizes
 DBpedia query log mining
• Clustering log queries
 Name variables in triple patterns
 Select frequently executed queries
 Remove SPARQL keywords and prefixes
 Compute query similarity using Levenshtein string matching
 Compute query clusters using a soft graph clustering algorithm [NS09]
 Get queries templates (most frequently asked and uses more SPARQL constructs)
from clusters with > 5 queries
 Generate any number of queries from queries templates
11/13/2016 27

DBSB Queries Features
• Number of triple patterns
 Test the efficiency of join operations (CP1)
• SPARQL UNION & OPTIONAL constructs
 Handle parallel execution of Unions (CP5)
• Solution sequences & modifiers (DISTINCT)
 Efficiency of duplication elimination (CP10)
• Filter conditions and operators (FILTER, LANG, REGEX, STR)
 Efficiency of engines to execute filters as early as possible (CP6)
11/13/2016 28

DBSB Queries Features
• Queries are based on 25 templates
• Do not consider features such as number of join vertices, join vertex
degree, triple patterns selectivities or query execution times etc.
• Only consider SPARQL SELECT queries
• Not customizable for given use cases or needs of an application
11/13/2016 29

Recall: Key SPARQL Queries Characteristics
FEASIBLE [SNM15], WatDiv [AHO+14], LUBM [GPH05] identified:
• Query forms
• Constructs
Negation
• Features
runtime, Unbound predicates,
11/13/2016 30

DBSB Queries Characteristic [SNM15]
11/13/2016 31
Queries from
25 templates 125
Query
Forms
SELECT 100%
ASK 0%
CONSTRUCT 0%
DESCRIBE 0%
Important
SPARQL
Constructs
UNION 36%
DISTINCT 100%
ORDER BY 0%
REGEX 4%
LIMIT 0%
OFFSET 0%
OPTIONAL 32%
FILTER 48%
GROUP BY 0%
Result Size
Min 197
Max 4.62E+06
Mean 3.24E+05
S.D. 9.56E+05
BGPs
Min 1
Max 9
Mean 2.695652
S.D. 2.438979
Triple
Patterns
Min 1
Max 12
Mean 4.521739
S.D. 2.79398
Join
Vertices
Min 0
Max 3
Mean 1.217391
S.D. 1.126399
Mean Join
Vertices
Degree
Min 0
Max 5
Mean 1.826087
S.D. 1.435022
Mean
Triple
Patterns
Selectivity
Min 1.19E-05
Max 1
Mean 0.119288
S.D. 0.226966
Query
Runtime
(ms)
Min 11
Max 5.40E+04
Mean 1.07E+04
S.D. 1.73E+04

Waterloo SPARQL Diversity Test Suite (WatDiv) [AHO+14]
• Synthetic benchmark
 Synthetic data generator
 Synthetic query generator
• User-controlled data generator
 Entities to include
 Structuredness [DKS+11] of the dataset
 Probability of entity associations
 Cardinality of property associations
 Structural query features
 Data-driven query features
11/13/2016 32

WatDiv Query Design Criteria
• Structural features
 Number of triple patterns
 Join vertex count
 Join vertex degree
• Data-driven features
 Result size
 (Filtered) Triple Pattern (f-TP) selectivity
 BGP-Restricted f-TP selectivity
 Join-Restricted f-TP selectivity
11/13/2016 33

WatDiv Queries Generation
• Query Template Generator
 User-specified number of templates
 User specified template characteristics
• Query Generator
 Instantiates the query templates with terms (IRIs, literals etc.) from the RDF
dataset
 User-specified number of queries produced
11/13/2016 34

WatDiv Queries Characteristic [SNM15]
11/13/2016 35
Queries
templates 125
Query
Forms
SELECT 100.00%
ASK 0.00%
CONSTRUCT 0.00%
DESCRIBE 0.00%
Important
SPARQL
Constructs
UNION 0.00%
DISTINCT 0.00%
ORDER BY 0.00%
REGEX 0.00%
LIMIT 0.00%
OFFSET 0.00%
OPTIONAL 0.00%
FILTER 0.00%
GROUP BY 0.00%
Result Size
Min 0
Max 4.17E+09
Mean 3.49E+07
S.D. 3.73E+08
BGPs
Min 1
Max 1
Mean 1
S.D. 0
Triple
Patterns
Min 1
Max 12
Mean 5.328
S.D. 2.60823
Join
Vertices
Min 0
Max 5
Mean 1.776
S.D. 0.9989
Mean Join
Vertices
Degree
Min 0
Max 7
Mean 3.62427
S.D. 1.40647
Mean
Triple
Patterns
Selectivity
Min 0
Max 0.01176
Mean 0.00494
S.D. 0.00239
Query
Runtime
(ms)
Min 3
Max 8.82E+08
Mean 4.41E+08
S.D. 2.77E+07

FEASIBLE: Benchmark Generation Framework
[SNM15]
• Customizable benchmark generation framework
• Generate real benchmarks from queries log
• Can be applied to any SPARQL queries log
• Customizable for given use cases or needs of an application
11/13/2016 36

FEASIBLE Queries Selection Criteria
• Query forms
• Constructs
Negation
• Features
runtime, Unbound predicates
11/13/2016 37

FEASIBLE: Benchmark Generation Framework
• Dataset cleaning
• Feature vectors and normalization
• Selection of exemplars
• Selection of benchmark queries
38

Feature Vectors and Normalization
39
SELECT DISTINCT ?entita ?nome
WHERE
{
?entita rdf:type dbo:VideoGame .
?entita rdfs:label ?nome
FILTER regex(?nome, "konami", "i")
}
LIMIT 100
Query Type: SELECT
Results Size: 13
Basic Graph Patterns (BGPs): 1
Triple Patterns: 2
Join Vertices: 1
Mean Join Vertices Degree: 2.0
Mean triple patterns selectivity: 0.01709761619798973
UNION: No
DISTINCT: Yes
ORDER BY: No
REGEX: Yes
LIMIT: Yes
OFFSET: No
OPTIONAL: No
FILTER: Yes
GROUP BY: No
Runtime (ms): 65
13 1 2 1 2 0.017 0 1 0 1 1 0 0 1 0 65
0.11 0.53 0.67 0.14 0.08 0.017 0 1 0 1 1 0 0 1 0 0.14
Feature Vector
Normalized Feature Vector

FEASIBLE
40
Plot feature vectors in a multidimensional space
Query F1 F2
Q1 0.2 0.2
Q2 0.5 0.3
Q3 0.8 0.3
Q4 0.9 0.1
Q5 0.5 0.5
Q6 0.2 0.7
Q7 0.1 0.8
Q8 0.13 0.65
Q9 0.9 0.5
Q10 0.1 0.5
Suppose we need a benchmark of 3 queries
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

FEASIBLE
41
Calculate average point
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
Avg.
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

FEASIBLE
42
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Select point of minimum Euclidean distance to avg. point
*Red is our first exemplar

FEASIBLE
43
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Select point that is farthest to exemplars

FEASIBLE
44
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

FEASIBLE
45
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Select point that is farthest to exemplars

FEASIBLE
46
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
FEASIBLE
47
Calculate distance from Q1 to each exemplars

Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
FEASIBLE
48
Assign Q1 to the minimum distance exemplar

Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
FEASIBLE
49
Repeat the process for Q2

Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
FEASIBLE
50

Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
FEASIBLE
51

Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
FEASIBLE
52

Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
FEASIBLE
53

Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
FEASIBLE
54

FEASIBLE
55
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
Avg.
Avg.
Avg.
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Calculate Average across each cluster

FEASIBLE
56
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
Avg.
Avg.
Avg.
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Calculate distance of each point in cluster to the average

FEASIBLE
57
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
Avg.
Avg.
Avg.
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Select minimum distance query as the final benchmark
query from that cluster
Purple, i.e., Q2 is the final selected query from yellow cluster

FEASIBLE
58
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
Avg.
Avg.
Avg.
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Purple, i.e., Q3 is the final selected query from green cluster

FEASIBLE
59
Q1
Q2 Q3
Q4
Q5
Q6
Q7
Q8
Q9Q10
Avg.
Avg.
Avg.
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Purple, i.e., Q8 is the final selected query from brown cluster
Our benchmark queries are Q2, Q3, and Q8

Comparison of Composite Error
60
FEASIBLE’s composite error is 54.9% less than DBPSB

Rank-wise Ranking of Triple Stores
61
All values are in percentages
 None of the system is sole winner or loser for a particular rank
 Virtuoso mostly lies in the higher ranks, i.e., rank 1 and 2 (68.29%)
 Fuseki mostly in the middle ranks, i.e., rank 2 and 3 (65.14%)
 OWLIM-SE usually on the slower side, i.e., rank 3 and 4 (60.86 %)
 Sesame is either fast or slow. Rank 1 (31.71% of the queries) and rank 4 (23.14%)

FEASIBLE(DBpedia) Queries Characteristic
[SNM15]
11/13/2016 62
Queries 125
Query
Forms
SELECT 95.20%
ASK 0.00%
CONSTRUCT 4.00%
DESCRIBE 0.80%
Important
SPARQL
Constructs
UNION 40.80%
DISTINCT 52.80%
ORDER BY 28.80%
REGEX 14.40%
LIMIT 38.40%
OFFSET 18.40%
OPTIONAL 30.40%
FILTER 58.40%
GROUP BY 0.80%
Result Size
Min 1
Max 1.41E+06
Mean 52183
S.D. 1.97E+05
BGPs
Min 1
Max 14
Mean 3.176
S.D. 3.55841574
Triple
Patterns
Min 1
Max 18
Mean 4.88
S.D. 4.396846377
Join
Vertices
Min 0
Max 11
Mean 1.296
S.D. 2.39294662
Mean Join
Vertices
Degree
Min 0
Max 11
Mean 1.44906666
S.D. 2.13246612
Mean Triple
Patterns
Selectivity
Min 2.86693E-09
Max 1
Mean
0.14021433
7
S.D. 0.31899488
Query
Runtime
(ms)
Min 2
Max 3.22E+04
Mean 2242.6
S.D. 6961.99191

FEASIBLE(SWDF) Queries Characteristic
[SNM15]
11/13/2016 63
Queries 125
Query
Forms
SELECT 92.80%
ASK 2.40%
CONSTRUCT 3.20%
DESCRIBE 1.60%
Important
SPARQL
Constructs
UNION 32.80%
DISTINCT 50.40%
ORDER BY 25.60%
REGEX 16.00%
LIMIT 45.60%
OFFSET 20.80%
OPTIONAL 32.00%
FILTER 29.60%
GROUP BY 19.20%
Result Size
Min 1
Max 3.01E+05
Mean 9091.512
S.D. 4.70E+04
BGPs
Min 0
Max 14
Mean 2.688
S.D. 2.812460752
Triple
Patterns
Min 0
Max 14
Mean 3.232
S.D. 2.76246734
Join
Vertices
Min 0
Max 3
Mean 0.52
S.D. 0.65500554
Mean Join
Vertices
Degree
Min 0
Max 4
Mean 0.968
S.D. 1.09202386
Mean Triple
Patterns
Selectivity
Min 1.06097E-05
Max 1
Mean 0.29192835
S.D.
0.32513860
1
Query
Runtime
(ms)
Min 4
Max 4.13E+04
Mean 1308.832
S.D. 5335.44123

Others Useful Benchmarks
• Semantic Publishing Benchmark (SPB)
• UniProt [RU09][UniprotKB]
• YAGO (Yet Another Great Ontology)[SKW07]
• Barton Library [Barton]
• Linked Sensor Dataset [PHS10]
• WordNet [WordNet]
• Publishing TPC-H as RDF [TPC-H]
• Apples and Oranges [DKS+11]
11/13/2016 64

Summary of the centralized SPARQL querying benchmarks
11/13/2016 65

Summary [SNM15]
11/13/2016 66
LUBM BSBM SP2Bench WatDiv DBPSB FEASIBLE(DBpedia) DBpediaLog FEASIBLE(SWDF) SWDFLog
Queries 15 125 12 125 125 125 130466 125 64030
Basic
Query
Forms
SELECT 100.00% 80.00% 91.67% 100.00% 100% 95.20% 97.964987 92.80% 58.7084
ASK 0.00% 0.00% 8.33% 0.00% 0% 0.00% 1.93% 2.40% 0.09%
CONSTRUCT 0.00% 4.00% 0.00% 0.00% 0% 4.00% 0.09% 3.20% 0.04%
DESCRIBE 0.00% 16.00% 0.00% 0.00% 0% 0.80% 0.02% 1.60% 41.17%

11/13/2016 67
Important
SPARQL
Construct
s
UNION 0.00% 8.00% 16.67% 0.00% 36% 40.80% 7.97% 32.80% 29.32%
DISTINCT 0.00% 24.00% 41.67% 0.00% 100% 52.80% 4.16% 50.40% 34.18%
ORDER BY 0.00% 36.00% 16.67% 0.00% 0% 28.80% 0.30% 25.60% 10.67%
REGEX 0.00% 0.00% 0.00% 0.00% 4% 14.40% 0.21% 16.00% 0.03%
LIMIT 0.00% 36.00% 8.33% 0.00% 0% 38.40% 0.40% 45.60% 1.79%
OFFSET 0.00% 4.00% 8.33% 0.00% 0% 18.40% 0.03% 20.80% 0.14%
OPTIONAL 0.00% 52.00% 25.00% 0.00% 32% 30.40% 20.11% 32.00% 29.52%
FILTER 0.00% 52.00% 58.33% 0.00% 48% 58.40% 93.38% 29.60% 0.72%
GROUP BY 0.00% 0.00% 0.00% 0.00% 0% 0.80% 7.66E-06 19.20% 1.34%
Summary [SNM15]

Summary [SNM15]
11/13/2016 68
Result
Size
Min 3 0 1 0 197 1 1 1 1
Max 1.39E+04 31 4.34E+07 4.17E+09 4.62E+06 1.41E+06 1.41E+06 3.01E+05 3.01E+05
Mean 4.96E+03 8.312 4.55E+06 3.49E+07 3.24E+05 52183 404.000307 9091.512 39.5068
S.D 1.14E+04 9.0308 1.37E+07 3.73E+08 9.56E+05 1.97E+05 12932.2472 4.70E+04 2208.7
BGPs
Min 1 1 1 1 1 1 0 0 0
Max 1 5 3 1 9 14 14 14 14
Mean 1 2.8 1.5 1 2.695652 3.176 1.67629114 2.688 2.28603
S.D 0 1.7039 0.67419986 0 2.438979 3.55841574 1.66075812 2.81246075 2.94057
Triple
Patterns
Min 1 1 1 1 1 1 0 0 0
Max 6 15 13 12 12 18 18 14 14
Mean 3 9.32 5.91666667 5.328 4.521739 4.88 1.7062683 3.232 2.50928
S.D 1.812653 5.18 3.82475985 2.60823 2.79398 4.396846377 1.68639622 2.76246734 3.21393
Join
Vertices
Min 0 0 0 0 0 0 0 0 0
Max 4 6 10 5 3 11 11 3 3
Mean 1.6 2.88 4.25 1.776 1.217391 1.296 0.02279521 0.52 0.18076
S.D 1.40407 1.8032 3.79293602 0.9989 1.126399 2.392946625 0.23381101 0.65500554 0.45669

Summary [SNM15]
11/13/2016 69
Mean
Join
Vertices
Degree
Min 0 0 0 0 0 0 0 0 0
Max 5 4.5 9 7 5 11 11 4 5
Mean 2.02222 3.05 2.4134259 3.62427 1.826087 1.449066667 0.04159183 0.968 0.37006
S.D 1.29997 1.6375 2.2608082 1.40647 1.435022 2.132466121 0.33443107 1.092023868 0.87378
Mean
Triple
Patterns
Selectivi
ty
Min 0.00032 9E-08 6.559E-05 0 1.19E-05 2.86693E-09 1.261E-05 1.06097E-05 1.1E-05
Max 0.432 0.0453 0.5398061 0.01176 1 1 1 1 1
Mean 0.01 0.0105 0.2218042 0.00494 0.119288 0.140214337 0.00578652 0.29192835 0.02381
S.D 0.0745 0.0142 0.2083138 0.00239 0.226966 0.318994887 0.03669906 0.325138601 0.07857
Query
Runtime
Min 2 5 7 3 11 2 1 4 3
Max 3200 99 7.13E+05 8.82E+08 5.40E+04 3.22E+04 5.60E+04 4.13E+04 4.13E+04
Mean 437.675 9.1 2.83E+05 4.41E+08 1.07E+04 2242.6 30.4185995 1308.832 16.1632
S.D 320.34 14.564 5.26E+05 2.77E+07 1.73E+04 6961.991912 702.518249 5335.441231 249.674

Federated SPARQL Querying Benchmarks
11/13/2016 70

Federated Query
• Return the party membership and news pages about all US
presidents.
 Party memberships
 US presidents
 US presidents
 News pages
71
Computation of results require data from both sources

Federated SPARQL Query Processing
S1 S2 S3 S4
RDF RDF RDF RDF
Parsing/Rewriting
Source Selection
Federator Optimizer
Integrator
Rewrite query
and get Individual
Triple Patterns
Identify
capable/relevant
sources
Generate
optimized query
Execution Plan
Integrate sub-
queries results
Execute sub-
queries
Federation
Engine
72

SPARQL Query Federation Approaches
• SPARQL Endpoint Federation (SEF)
• Linked Data Federation (LDF)
• Hybrid of SEF+LDF
11/13/2016 73

SPLODGE [SP+12]
• Federated benchmarks generation tool
 Query form
 Join type
 Result modifiers: DISTINCT, LIMIT, OFFSET, ORDER BY
 Variable triple patterns
 Triple patterns joins
 Cross product triple patterns
 Number of sources
 Number Join vertices
 Query selectivity
• Non-conjunctive queries that make use of the SPARQL UNION, OPTIONAL
are not considered
11/13/2016 74

FedBench [FB+11]
• Based on 9 real interconnected datasets
 KEGG, DrugBank, ChEDI from life sciences
 DBpedia, GeoNames, Jamendo, SWDF, NYT, LMDB from cross domain
 Vary in structuredness and sizes
• Four sets of queries
 7 life sciences queries
 7 cross domain queries
 11 Linked Data queries
 14 queries from SP2Bench
11/13/2016 75

FedBench Queries Characteristic
11/13/2016 76
Queries 25
Query
Forms
SELECT 100.00%
ASK 0.00%
CONSTRUCT 0.00%
DESCRIBE 0.00%
Important
SPARQL
Constructs
UNION 12%
DISTINCT 0.00%
ORDER BY 0.00%
REGEX 0.00%
LIMIT 0.00%
OFFSET 0.00%
OPTIONAL 4%
FILTER 4%
GROUP BY 0.00%
Result Size
Min 1
Max 9054
Mean 529
S.D. 1764
BGPs
Min 1
Max 2
Mean 1.16
S.D. 0.37
Triple
Patterns
Min 2
Max 7
Mean 4
S.D. 1.25
Join
Vertices
Min 0
Max 5
Mean 2.52
S.D. 1.26
Mean Join
Vertices
Degree
Min 0
Max 3
Mean 2.14
S.D. 0.56
Mean
Triple
Patterns
Selectivity
Min 0.001
Max 1
Mean 0.05
S.D. 0.092
Query
Runtime
(ms)
Min 50
Max 1.2E+4
Mean 1987
S.D. 3950

LargeRDFBench
• 32 Queries
 10 simple
 10 complex
 8 large data
• 14 Interlined datasets
77
Linked
MDB
DBpedia
New
York
Times
Linked
TCGA-
M
Linked
TCGA-
E
Linked
TCGA-
A
Affymetr
ix
SW
Dog
Food
KEGG
Drug
bank
Jamend
o
ChEBI
Geo
names
basedNear owl:sameAs
x-geneid
#Links: 251.3k
country, ethnicity, race
keggCompoundId
bcr_patient_barcode
Same instance
Life Sciences Cross Domain Large Data
bcr_patient_barcode
#Links: 1.7k
#Links: 4.1k
#Links: 21.7k
#Links: 1.3k

LargeRDFBench Datasets Statistics
78

LargeRDFBench Queries Properties
• 14 Simple
 2-7 triple patterns
 Subset of SPARQL clauses
 Query execution time around 2 seconds on avg.
• 10 Complex
 8-13 triple patterns
 Use more SPARQL clauses
 Query execution time up to 10 min
• 8 Large Data
 Minimum 80459 results
 Large intermediate results
 Query execution time in hours
11/13/2016 79

LargeRDFBench Queries Characteristic
11/13/2016 80
Queries 32
Query
Forms
SELECT 100.00%
ASK 0.00%
CONSTRUCT 0.00%
DESCRIBE 0.00%
Important
SPARQL
Constructs
UNION 18.75%
DISTINCT 28.21%
ORDER BY 9.37%
REGEX 3.12%
LIMIT 12.5%
OFFSET 0.00%
OPTIONAL 25%
FILTER 31.25%
GROUP BY 0.00%
Result Size
Min 1
Max 3.0E+5
Mean 5.9E+4
S.D. 1.1E+5
BGPs
Min 1
Max 2
Mean 1.43
S.D. 0.5
Triple
Patterns
Min 2
Max 12
Mean 6.6
S.D. 2.6
Join
Vertices
Min 0
Max 6
Mean 3.43
S.D. 1.36
Mean Join
Vertices
Degree
Min 0
Max 6
Mean 2.56
S.D. 0.76
Mean
Triple
Patterns
Selectivity
Min 0.001
Max 1
Mean 0.10
S.D. 0.14
Query
Runtime
(ms)
Min 159
Max >1hr
Mean Undefined
S.D. Undefined

FedBench vs. LargeRDFBench
11/13/2016 81

Performance Metrics
• Efficient source selection in terms of
• Total triple pattern-wise sources selected
• Total number of SPARQL ASK requests used during source selection
• Source selection time
• Query execution time
• Results completeness and correctness
• Number of remote requests during query execution
• Index compression ratio (1- index size/datadump size)
• Number of intermediate results
11/13/2016 82

Future Directions
• Micro benchmarking
• Synthetic benchmarks generation
 Synthetic data that is like real data
 Synthetic queries that is like real queries
• Customizable and flexible benchmark generation
• Fits user needs
• Fits current use-case
• What are the most important choke points for SPARQL querying
benchmarks? How they are related to query performance?
11/13/2016 83

References
• [L97] Charles Levine. TPC-C: The OLTP Benchmark. In SIGMOD – Industrial
Session, 1997.
• [GPH05] Y. Guo, Z. Pan, and J. Heflin. LUBM: A Benchmark for OWL Knowledge
Base Systems. Journal Web Semantics: Science, Services and Agents on the World
Wide Web archive Volume 3 Issue 2-3, October, 2005 , Pages 158-182
• [SHM+09] M. Schmidt , T. Hornung, M. Meier, C. Pinkel, G. Lausen. SP2Bench: A
SPARQL Performance Benchmark. Semantic Web Information Management, 2009.
• [BS09] C. Bizer and A. Schultz. The Berlin SPARQL Benchmark. Int. J. Semantic
Web and Inf. Sys., 5(2), 2009.
• [BSBM] Berlin SPARQL Benchmark (BSBM) Specification - V3.1. http://wifo5-
3.informatik.unimannheim.de/bizer/berlinsparqlbenchmark/spec/index.html.
• [RU09] N. Redaschi and UniProt Consortium. UniProt in RDF: Tackling Data
Integration and Distributed Annotation with the Semantic Web. In Biocuration
Conference, 2009.
11/13/2016 84

References
• [UniProtKB] UniProtKB Queries. http://www.uniprot.org/help/query-fields.
• [SKW07]F. M. Suchanek, G. Kasneci and G. Weikum. YAGO: A Core of Semantic Knowledge
Unifying WordNet and Wikipedia, In WWW 2007.
• [Barton] The MIT Barton Library dataset. http://simile.mit.edu/rdf-test-data/
• [PHS10] H. Patni, C. Henson, and A. Sheth. Linked sensor data. 2010
• [TPC-H] The TPC-H Homepage. http://www.tpc.org/tpch/
• [WordNet] WordNet: A lexical database for English. http://wordnet.princeton.edu/
• [MLA+14] M. Morsey, J. Lehmann, S. Auer, A-C. Ngonga Ngomo. Dbpedia SPARQL Benchmark
• [SP+12] Görlitz, Olaf, Matthias Thimm, and Steffen Staab. Splodge: Systematic generation of
sparql benchmark queries for linked open data. International Semantic Web Conference. Springer
Berlin Heidelberg, 2012.
• [BNE14] P. Boncz, T. Neumann, O. Erling. TPC-H Analyzed: Hidden Messages and Lessons Learned
from an Influential Benchmark. Performance Characterization and Benchmarking. In TPCTC 2013,
Revised Selected Papers.
11/13/2016 85

References
• [NS09] A–C. Ngonga Ngomo and D. Schumacher. Borderflow: A local graph clustering algorithm
for natural language processing. In CICLing, 2009.
• [AHO+14]G. Aluc, O. Hartig, T. Ozsu, K. Daudjee. Diversifed Stress Testing of RDF Data
Management Systems. In ISWC, 2014.
• [SMN15] M. Saleem, Q. Mehmood, and A–C. Ngonga Ngomo. FEASIBLE: A Feature-Based SPARQL
Benchmark Generation Framework. ISWC 2015.
• [DKS+11] S. Duan, A. Kementsietsidis, Kavitha Srinivas and Octavian Udrea. Apples and oranges: a
comparison of RDF benchmarks and real RDF datasets. In SIGMOD, 2011.
• [FK16] I.Fundulaki, A.Kementsietsidis Assessing the performance of RDF Engines: Discussing RDF
Benchmarks, Tutorial at ESWC2016
• [FB+11] Schmidt, Michael, et al. Fedbench: A benchmark suite for federated semantic data query
processing. International Semantic Web Conference. Springer Berlin Heidelberg, 2011.
• [LB+16] M.Saleem, A.Hasnain, A–C. Ngonga Ngomo. LargeRDFBench: A Billion Triples Benchmark
for SPARQL Query Federation, Submitted to Journal of Web Semantics
11/13/2016 86

Thanks
{lastname}@informatik.uni-leipzig.de
AKSW, University of Leipzig, Germany
11/13/2016 87
This work was supported by grands from BMWi project SAKE and the EU H2020
Framework Programme provided for the project HOBBIT (GA no. 688227).

SPARQL Querying Benchmarks ISWC2016

Recommended

Recommended

More Related Content

Viewers also liked

Viewers also liked (9)

Similar to SPARQL Querying Benchmarks ISWC2016

Similar to SPARQL Querying Benchmarks ISWC2016 (20)

More from Muhammad Saleem

More from Muhammad Saleem (16)

Recently uploaded

Recently uploaded (20)

SPARQL Querying Benchmarks ISWC2016
