SOIL EROSION
 Soil erosion is the main problem of our country . It is on
the increase in recent years
Main reasons :
 Running water
 overgrazing
 faulty methods of agriculture
 Over irrigation
 Wind
 Men, plants and animals

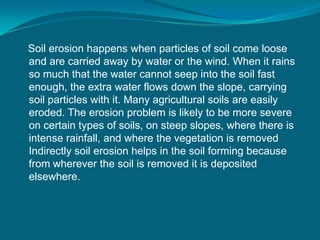

Soil erosion happens when particles of soil come loose
and are carried away by water or the wind. When it rains
so much that the water cannot seep into the soil fast
enough, the extra water flows down the slope, carrying
soil particles with it. Many agricultural soils are easily
eroded. The erosion problem is likely to be more severe
on certain types of soils, on steep slopes, where there is
intense rainfall, and where the vegetation is removed
Indirectly soil erosion helps in the soil forming because
from wherever the soil is removed it is deposited
elsewhere.

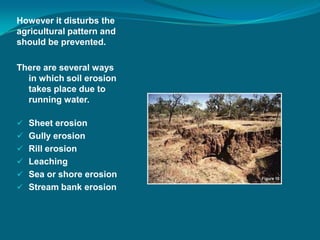

However it disturbs the
agricultural pattern and
should be prevented.
There are several ways
in which soil erosion
takes place due to
running water.
 Sheet erosion
 Gully erosion
 Rill erosion
 Leaching
 Sea or shore erosion
 Stream bank erosion

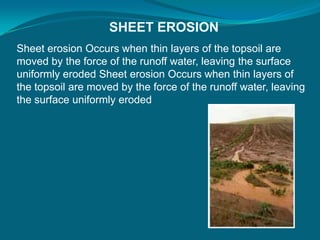

SHEET EROSION
Sheet erosion Occurs when thin layers of the topsoil are
moved by the force of the runoff water, leaving the surface
uniformly eroded Sheet erosion Occurs when thin layers of
the topsoil are moved by the force of the runoff water, leaving
the surface uniformly eroded

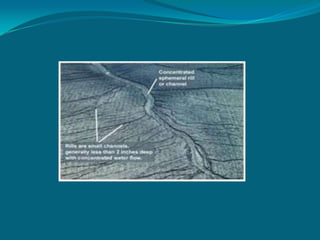

RILL EROSION
[chennel erosion]
Rill erosion Caused by runoff water when it creates small,
linear depressions in the soil surface.

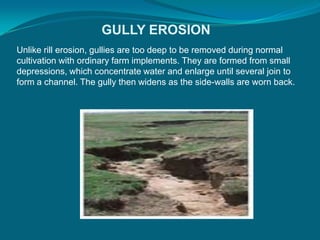

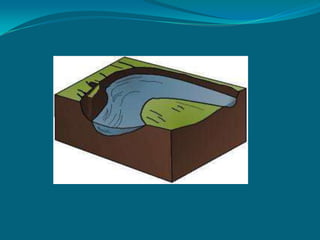

GULLY EROSION
Unlike rill erosion, gullies are too deep to be removed during normal
cultivation with ordinary farm implements. They are formed from small
depressions, which concentrate water and enlarge until several join to
form a channel. The gully then widens as the side-walls are worn back.

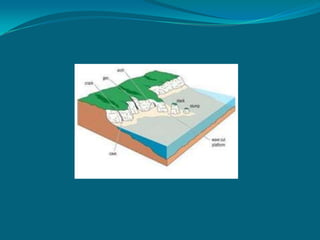

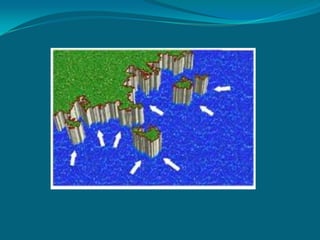

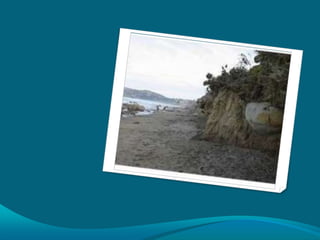

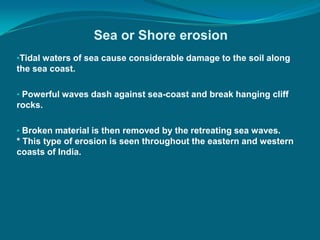

Sea or Shore erosion
•Tidal waters of sea cause considerable damage to the soil along
the sea coast.
• Powerful waves dash against sea-coast and break hanging cliff
rocks.
• Broken material is then removed by the retreating sea waves.
* This type of erosion is seen throughout the eastern and western
coasts of India.

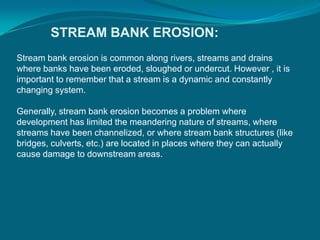

STREAM BANK EROSION:
Stream bank erosion is common along rivers, streams and drains
where banks have been eroded, sloughed or undercut. However , it is
important to remember that a stream is a dynamic and constantly
changing system.
Generally, stream bank erosion becomes a problem where
development has limited the meandering nature of streams, where
streams have been channelized, or where stream bank structures (like
bridges, culverts, etc.) are located in places where they can actually
cause damage to downstream areas.

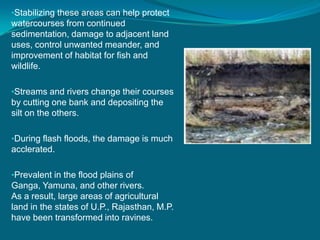

•Stabilizing these areas can help protect
watercourses from continued
sedimentation, damage to adjacent land
uses, control unwanted meander, and
improvement of habitat for fish and
wildlife.
•Streams and rivers change their courses
by cutting one bank and depositing the
silt on the others.
•During flash floods, the damage is much
acclerated.
•Prevalent in the flood plains of
Ganga, Yamuna, and other rivers.
As a result, large areas of agricultural
land in the states of U.P., Rajasthan, M.P.
have been transformed into ravines.

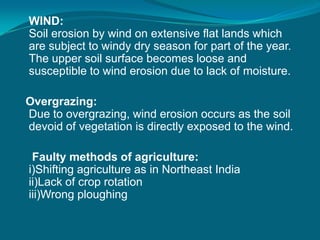

WIND:
Soil erosion by wind on extensive flat lands which
are subject to windy dry season for part of the year.
The upper soil surface becomes loose and
susceptible to wind erosion due to lack of moisture.
Overgrazing:
Due to overgrazing, wind erosion occurs as the soil
devoid of vegetation is directly exposed to the wind.
Faulty methods of agriculture:
i)Shifting agriculture as in Northeast India
ii)Lack of crop rotation
iii)Wrong ploughing
LEACHING
In agriculture, leaching may refer to the loss of water-
soluble plant nutrients from the soil, due
to rainand irrigation. Soil structure, crop planning, type
and application rates of fertilizers, and other factors are
taken into account to avoid excessive nutrient loss.
Leaching may also refer to the practice of applying a
small amount of excess irrigation where th e water has a
high salt content to avoid salts from building up in the
soil (salinity control). Where this is
practiced,drainage must also usually be employed, to
carry away the excess water.
Leaching is an environmental concern when it contributes
to groundwatercontamination. As water from rain,flooding, or other sources
seeps into the ground, it can dissolve chemicals and carry them into the
underground water supply. Of particular concern are hazardous
waste dumps andlandfills, and, in agriculture, excess fertilizer and
improperly stored animal manure.

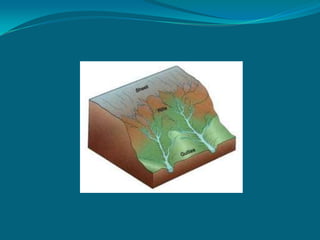

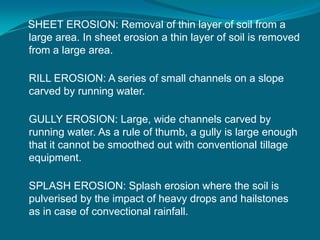

SHEET EROSION: Removal of thin layer of soil from a
large area. In sheet erosion a thin layer of soil is removed
from a large area.
RILL EROSION: A series of small channels on a slope
carved by running water.
GULLY EROSION: Large, wide channels carved by
running water. As a rule of thumb, a gully is large enough
that it cannot be smoothed out with conventional tillage
equipment.
SPLASH EROSION: Splash erosion where the soil is
pulverised by the impact of heavy drops and hailstones
as in case of convectional rainfall.

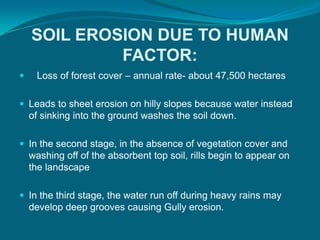

SOIL EROSION DUE TO HUMAN
FACTOR:
 Loss of forest cover – annual rate- about 47,500 hectares
 Leads to sheet erosion on hilly slopes because water instead
of sinking into the ground washes the soil down.
 In the second stage, in the absence of vegetation cover and
washing off of the absorbent top soil, rills begin to appear on
the landscape
 In the third stage, the water run off during heavy rains may
develop deep grooves causing Gully erosion.

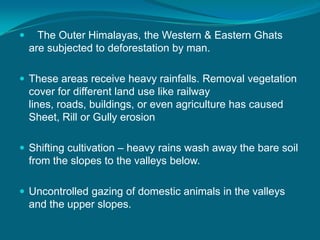

 The Outer Himalayas, the Western & Eastern Ghats
are subjected to deforestation by man.
 These areas receive heavy rainfalls. Removal vegetation
cover for different land use like railway
lines, roads, buildings, or even agriculture has caused
Sheet, Rill or Gully erosion
 Shifting cultivation – heavy rains wash away the bare soil
from the slopes to the valleys below.
 Uncontrolled gazing of domestic animals in the valleys
and the upper slopes.
WIND EROSION

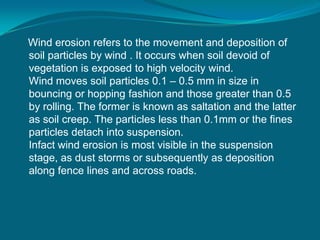

Wind erosion refers to the movement and deposition of
soil particles by wind . It occurs when soil devoid of
vegetation is exposed to high velocity wind.
Wind moves soil particles 0.1 – 0.5 mm in size in
bouncing or hopping fashion and those greater than 0.5
by rolling. The former is known as saltation and the latter
as soil creep. The particles less than 0.1mm or the fines
particles detach into suspension.
Infact wind erosion is most visible in the suspension
stage, as dust storms or subsequently as deposition
along fence lines and across roads.

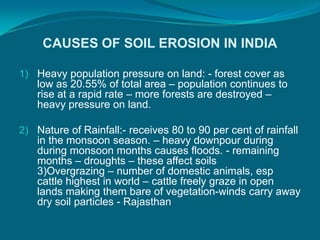

CAUSES OF SOIL EROSION IN INDIA
1) Heavy population pressure on land: - forest cover as
low as 20.55% of total area – population continues to
rise at a rapid rate – more forests are destroyed –
heavy pressure on land.
2) Nature of Rainfall:- receives 80 to 90 per cent of rainfall
in the monsoon season. – heavy downpour during
during monsoon months causes floods. - remaining
months – droughts – these affect soils
3)Overgrazing – number of domestic animals, esp
cattle highest in world – cattle freely graze in open
lands making them bare of vegetation-winds carry away
dry soil particles - Rajasthan
4) Bad farming techniques – plough fields in traditional
ways – small size of holdings, absence of
terracing, contour cultivation, crop rotation, improper
use of manure have caused erosion.
5) Topography – North –Eastern parts of India, Shiwaliks
and the hilly regions in south India are affected by soil
erosion because of steep slopes and heavy rainfall.
During heavy rainfall, soils are washed away by running
water down the slope.
6) Deforestation: destruction of forests for cultivation –
cutting of trees exposes the soil to water and wind
which leads to soil erosion.

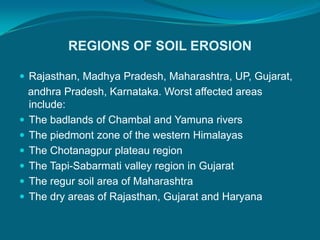

REGIONS OF SOIL EROSION
 Rajasthan, Madhya Pradesh, Maharashtra, UP, Gujarat,
andhra Pradesh, Karnataka. Worst affected areas
include:
 The badlands of Chambal and Yamuna rivers
 The piedmont zone of the western Himalayas
 The Chotanagpur plateau region
 The Tapi-Sabarmati valley region in Gujarat
 The regur soil area of Maharashtra
 The dry areas of Rajasthan, Gujarat and Haryana

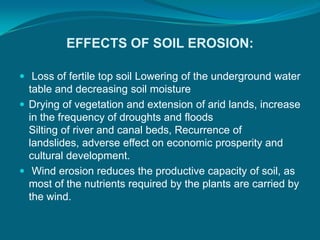

EFFECTS OF SOIL EROSION:
 Loss of fertile top soil Lowering of the underground water
table and decreasing soil moisture
 Drying of vegetation and extension of arid lands, increase
in the frequency of droughts and floods
Silting of river and canal beds, Recurrence of
landslides, adverse effect on economic prosperity and
cultural development.
 Wind erosion reduces the productive capacity of soil, as
most of the nutrients required by the plants are carried by
the wind.

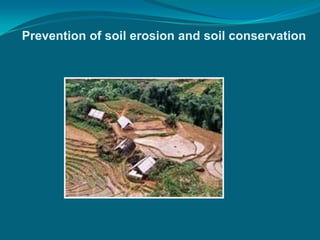

Prevention of soil erosion and soil conservation

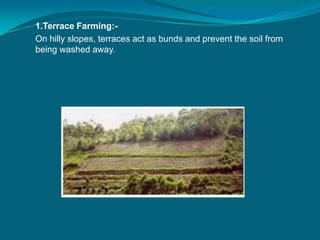

1.Terrace Farming:-
On hilly slopes, terraces act as bunds and prevent the soil from
being washed away.

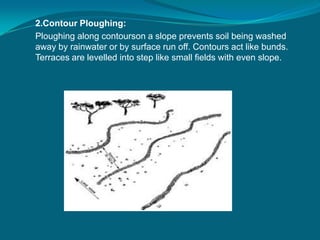

2.Contour Ploughing:
Ploughing along contourson a slope prevents soil being washed
away by rainwater or by surface run off. Contours act like bunds.
Terraces are levelled into step like small fields with even slope.

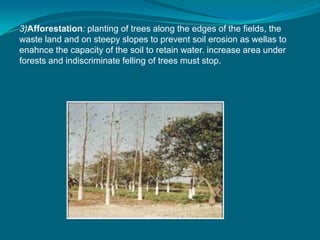

3)Afforestation: planting of trees along the edges of the fields, the
waste land and on steepy slopes to prevent soil erosion as wellas to
enahnce the capacity of the soil to retain water. increase area under
forests and indiscriminate felling of trees must stop.

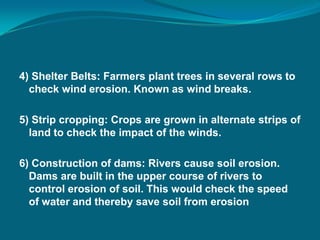

4) Shelter Belts: Farmers plant trees in several rows to
check wind erosion. Known as wind breaks.
5) Strip cropping: Crops are grown in alternate strips of
land to check the impact of the winds.
6) Construction of dams: Rivers cause soil erosion.
Dams are built in the upper course of rivers to
control erosion of soil. This would check the speed
of water and thereby save soil from erosion

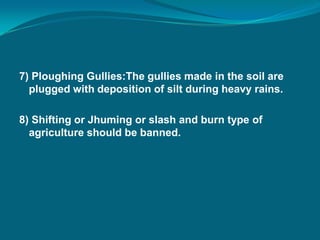

7) Ploughing Gullies:The gullies made in the soil are
plugged with deposition of silt during heavy rains.
8) Shifting or Jhuming or slash and burn type of
agriculture should be banned.
Prepared By:
Krishna Makwana

More Related Content

What's hot

Soil Erosion and Conservation
Soil Erosion and ConservationSoil Erosion and Conservation
water erosion
water erosionwater erosion
Soil conservation (IGKV RAIPUR, C.G.)
Soil conservation (IGKV RAIPUR, C.G.)Soil conservation (IGKV RAIPUR, C.G.)
Soil conservation (IGKV RAIPUR, C.G.)
Rahul Raj Tandon

Soil water conservation methods in agriculture
Soil water conservation methods in agricultureSoil water conservation methods in agriculture
Soil water conservation methods in agriculture
Vaishali Sharma

SOIL CONSERVATION
SOIL CONSERVATIONSOIL CONSERVATION
SOIL CONSERVATION
Samyak Jain

Soil and Water Conservation
Soil and Water ConservationSoil and Water Conservation
Soil and Water Conservation
Subham Dwivedi

Soil & Water Conservation
Soil & Water ConservationSoil & Water Conservation
Soil & Water ConservationReshi Unen

Soil Degradation in India: Challenges and Potential Solutions
Soil Degradation in India: Challenges and Potential SolutionsSoil Degradation in India: Challenges and Potential Solutions
Soil Degradation in India: Challenges and Potential Solutions
Lokesh Kumar

Watershed - Principles of Erosion
Watershed - Principles of ErosionWatershed - Principles of Erosion
Watershed - Principles of Erosion
Malla Reddy University

Irrigation method presentation
Irrigation method  presentationIrrigation method  presentation
Irrigation method presentation
jeetendra yadav

Biological soil conservation methods
Biological soil conservation methodsBiological soil conservation methods
Biological soil conservation methods
Lathiscumar Sivagurunathan

Runoff management and Flood Control
Runoff management and Flood ControlRunoff management and Flood Control
Runoff management and Flood Control
Prof. A.Balasubramanian

SOIL EROSION
SOIL EROSIONSOIL EROSION
SOIL EROSION
thanianu92

Methods to control soil erosion and water run off
Methods to control soil erosion and water run offMethods to control soil erosion and water run off
Methods to control soil erosion and water run off
Rajat Sharma

Desertification
DesertificationDesertification
Desertification
Mashiyat Jahin

desertification
 desertification desertification
desertification
Haleemazeb

Soil and water erosion
Soil and water erosionSoil and water erosion
Soil and water erosion
career point university

Processes involved in soil formation
Processes involved in soil formationProcesses involved in soil formation
Processes involved in soil formation
Akanksha Rai

Soil water plant relationship
Soil water  plant relationshipSoil water  plant relationship
Soil water plant relationship
MOHIT MAYOOR

Water Erosion.pptx
Water Erosion.pptxWater Erosion.pptx
Water Erosion.pptx
Ajay Singh Lodhi


What's hot (20)

Soil Erosion and Conservation
Soil Erosion and ConservationSoil Erosion and Conservation
Soil Erosion and Conservation

water erosion
water erosionwater erosion
water erosion

Soil conservation (IGKV RAIPUR, C.G.)
Soil conservation (IGKV RAIPUR, C.G.)Soil conservation (IGKV RAIPUR, C.G.)
Soil conservation (IGKV RAIPUR, C.G.)

Soil water conservation methods in agriculture
Soil water conservation methods in agricultureSoil water conservation methods in agriculture
Soil water conservation methods in agriculture

SOIL CONSERVATION
SOIL CONSERVATIONSOIL CONSERVATION
SOIL CONSERVATION

Soil and Water Conservation
Soil and Water ConservationSoil and Water Conservation
Soil and Water Conservation

Soil & Water Conservation
Soil & Water ConservationSoil & Water Conservation
Soil & Water Conservation

Soil Degradation in India: Challenges and Potential Solutions
Soil Degradation in India: Challenges and Potential SolutionsSoil Degradation in India: Challenges and Potential Solutions
Soil Degradation in India: Challenges and Potential Solutions

Watershed - Principles of Erosion
Watershed - Principles of ErosionWatershed - Principles of Erosion
Watershed - Principles of Erosion

Irrigation method presentation
Irrigation method  presentationIrrigation method  presentation
Irrigation method presentation

Biological soil conservation methods
Biological soil conservation methodsBiological soil conservation methods
Biological soil conservation methods

Runoff management and Flood Control
Runoff management and Flood ControlRunoff management and Flood Control
Runoff management and Flood Control

SOIL EROSION
SOIL EROSIONSOIL EROSION
SOIL EROSION

Methods to control soil erosion and water run off
Methods to control soil erosion and water run offMethods to control soil erosion and water run off
Methods to control soil erosion and water run off

Desertification
DesertificationDesertification
Desertification

desertification
 desertification desertification
desertification

Soil and water erosion
Soil and water erosionSoil and water erosion
Soil and water erosion

Processes involved in soil formation
Processes involved in soil formationProcesses involved in soil formation
Processes involved in soil formation

Soil water plant relationship
Soil water  plant relationshipSoil water  plant relationship
Soil water plant relationship

Water Erosion.pptx
Water Erosion.pptxWater Erosion.pptx
Water Erosion.pptx


Viewers also liked

Engineering methods to control soil erosion
Engineering methods to control soil erosionEngineering methods to control soil erosion
Engineering methods to control soil erosion
Santosh pathak

soil erosion and conservation
soil erosion and conservationsoil erosion and conservation
soil erosion and conservation
vinand

Bio engineering methods and their control for soil erosion
Bio engineering methods and their control for soil erosionBio engineering methods and their control for soil erosion
Bio engineering methods and their control for soil erosion
Santosh pathak

Soil conservation ppt
Soil conservation pptSoil conservation ppt
Soil conservation ppt
rithikkapoor7

Soil Erosion
Soil ErosionSoil Erosion
Soil Erosion
jbgruver

Soil erosion
Soil erosionSoil erosion
Soil erosion
Moocs Engine

Soil Erosion and Conservation
Soil Erosion and ConservationSoil Erosion and Conservation
Soil Erosion and Conservation
Aisling O Connor


Viewers also liked (8)

Engineering methods to control soil erosion
Engineering methods to control soil erosionEngineering methods to control soil erosion
Engineering methods to control soil erosion

soil erosion and conservation
soil erosion and conservationsoil erosion and conservation
soil erosion and conservation

Bio engineering methods and their control for soil erosion
Bio engineering methods and their control for soil erosionBio engineering methods and their control for soil erosion
Bio engineering methods and their control for soil erosion

Soil conservation ppt
Soil conservation pptSoil conservation ppt
Soil conservation ppt

Soil Erosion
Soil ErosionSoil Erosion
Soil Erosion

Soil erosion
Soil erosionSoil erosion
Soil erosion

Excavations ppt
Excavations pptExcavations ppt
Excavations ppt

Soil Erosion and Conservation
Soil Erosion and ConservationSoil Erosion and Conservation
Soil Erosion and Conservation


Similar to Soil erosion2

SOIL EROSION AND CONSERVATION Copy.pptx
SOIL EROSION AND CONSERVATION Copy.pptxSOIL EROSION AND CONSERVATION Copy.pptx
SOIL EROSION AND CONSERVATION Copy.pptx
DAMINI SAHA

Eroded soil
Eroded soilEroded soil
Eroded soil
Ravi Yadav

Land Resource (Environmental Science)
Land Resource (Environmental Science)Land Resource (Environmental Science)
Land Resource (Environmental Science)
Sandip Kumar Sahoo

Lecture 3 4ppt Land resources
Lecture 3 4ppt Land resourcesLecture 3 4ppt Land resources
Lecture 3 4ppt Land resources
Somanath Sarvade

Lithosphere
LithosphereLithosphere
Lithosphere
Neil Esgra

Environment science landresource by prof. shashank chaurasiya
Environment science   landresource by prof. shashank chaurasiyaEnvironment science   landresource by prof. shashank chaurasiya
Environment science landresource by prof. shashank chaurasiya
shashankc10

WATERSHED MANAGEMENT - PRINCIPLES OF EROSION & MANAGEMENTS
WATERSHED MANAGEMENT - PRINCIPLES OF EROSION & MANAGEMENTSWATERSHED MANAGEMENT - PRINCIPLES OF EROSION & MANAGEMENTS
WATERSHED MANAGEMENT - PRINCIPLES OF EROSION & MANAGEMENTS
GovindaRajuluBadana1

Loss of Arable soil pdf.pdf
Loss of Arable soil pdf.pdfLoss of Arable soil pdf.pdf
Loss of Arable soil pdf.pdf
divyaanjali8

GO GREEN SAVE THE NATION
GO GREEN SAVE THE NATIONGO GREEN SAVE THE NATION
GO GREEN SAVE THE NATION
MohanKrishna366

Soil Erosion Defination causes effects .pptx
Soil Erosion Defination causes effects .pptxSoil Erosion Defination causes effects .pptx
Soil Erosion Defination causes effects .pptx
NarayanRimal2

Chapter 6 Section 3 (Revised)
Chapter 6 Section 3 (Revised)Chapter 6 Section 3 (Revised)
Chapter 6 Section 3 (Revised)Mr. Motuk

Chapter 6 Section 3
Chapter 6 Section 3Chapter 6 Section 3
Chapter 6 Section 3Mr. Motuk

Chapter 6 Section 3 (Revised)
Chapter 6 Section 3 (Revised)Chapter 6 Section 3 (Revised)
Chapter 6 Section 3 (Revised)Mr. Motuk

Chapter 6 Section 3
Chapter 6 Section 3Chapter 6 Section 3
Chapter 6 Section 3Mr. Motuk

soilerosion-160320075536 (2).pdf
soilerosion-160320075536 (2).pdfsoilerosion-160320075536 (2).pdf
soilerosion-160320075536 (2).pdf
AMBIKABHANDARI5

1 Soil Water Erosion.pptx
1 Soil Water Erosion.pptx1 Soil Water Erosion.pptx
1 Soil Water Erosion.pptx
MeRITSUdayagiri1

Class viii land soil-water-natural-vegetation-and-wildlife-resources
Class viii land soil-water-natural-vegetation-and-wildlife-resourcesClass viii land soil-water-natural-vegetation-and-wildlife-resources
Class viii land soil-water-natural-vegetation-and-wildlife-resources
ssuser862a42

Naturalvegetation
NaturalvegetationNaturalvegetation
Naturalvegetation
Suman Pant


Similar to Soil erosion2 (20)

SOIL EROSION AND CONSERVATION Copy.pptx
SOIL EROSION AND CONSERVATION Copy.pptxSOIL EROSION AND CONSERVATION Copy.pptx
SOIL EROSION AND CONSERVATION Copy.pptx

Eroded soil
Eroded soilEroded soil
Eroded soil

Land Resource (Environmental Science)
Land Resource (Environmental Science)Land Resource (Environmental Science)
Land Resource (Environmental Science)

Lecture 3 4ppt Land resources
Lecture 3 4ppt Land resourcesLecture 3 4ppt Land resources
Lecture 3 4ppt Land resources

Lithosphere
LithosphereLithosphere
Lithosphere

Environment science landresource by prof. shashank chaurasiya
Environment science   landresource by prof. shashank chaurasiyaEnvironment science   landresource by prof. shashank chaurasiya
Environment science landresource by prof. shashank chaurasiya

WATERSHED MANAGEMENT - PRINCIPLES OF EROSION & MANAGEMENTS
WATERSHED MANAGEMENT - PRINCIPLES OF EROSION & MANAGEMENTSWATERSHED MANAGEMENT - PRINCIPLES OF EROSION & MANAGEMENTS
WATERSHED MANAGEMENT - PRINCIPLES OF EROSION & MANAGEMENTS

soil erosion
soil erosionsoil erosion
soil erosion

Loss of Arable soil pdf.pdf
Loss of Arable soil pdf.pdfLoss of Arable soil pdf.pdf
Loss of Arable soil pdf.pdf

Soils erosion
Soils erosionSoils erosion
Soils erosion

GO GREEN SAVE THE NATION
GO GREEN SAVE THE NATIONGO GREEN SAVE THE NATION
GO GREEN SAVE THE NATION

Soil Erosion Defination causes effects .pptx
Soil Erosion Defination causes effects .pptxSoil Erosion Defination causes effects .pptx
Soil Erosion Defination causes effects .pptx

Chapter 6 Section 3 (Revised)
Chapter 6 Section 3 (Revised)Chapter 6 Section 3 (Revised)
Chapter 6 Section 3 (Revised)

Chapter 6 Section 3
Chapter 6 Section 3Chapter 6 Section 3
Chapter 6 Section 3

Chapter 6 Section 3 (Revised)
Chapter 6 Section 3 (Revised)Chapter 6 Section 3 (Revised)
Chapter 6 Section 3 (Revised)

Chapter 6 Section 3
Chapter 6 Section 3Chapter 6 Section 3
Chapter 6 Section 3

soilerosion-160320075536 (2).pdf
soilerosion-160320075536 (2).pdfsoilerosion-160320075536 (2).pdf
soilerosion-160320075536 (2).pdf

1 Soil Water Erosion.pptx
1 Soil Water Erosion.pptx1 Soil Water Erosion.pptx
1 Soil Water Erosion.pptx

Class viii land soil-water-natural-vegetation-and-wildlife-resources
Class viii land soil-water-natural-vegetation-and-wildlife-resourcesClass viii land soil-water-natural-vegetation-and-wildlife-resources
Class viii land soil-water-natural-vegetation-and-wildlife-resources

Naturalvegetation
NaturalvegetationNaturalvegetation
Naturalvegetation


More from manishj007

Dictatorship
DictatorshipDictatorship
Dictatorship
manishj007

Fill in blanks
Fill in blanksFill in blanks
Fill in blanks
manishj007

Soils in india
Soils in indiaSoils in india
Soils in india
manishj007

Arms and the man
Arms and the manArms and the man
Arms and the manmanishj007

Arms and the man
Arms and the manArms and the man
Arms and the manmanishj007

Arms and the man
Arms and the manArms and the man
Arms and the manmanishj007


More from manishj007 (6)

Dictatorship
DictatorshipDictatorship
Dictatorship

Fill in blanks
Fill in blanksFill in blanks
Fill in blanks

Soils in india
Soils in indiaSoils in india
Soils in india

Arms and the man
Arms and the manArms and the man
Arms and the man

Arms and the man
Arms and the manArms and the man
Arms and the man

Arms and the man
Arms and the manArms and the man
Arms and the man


Recently uploaded

Additional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdfAdditional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdf
joachimlavalley1

GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...
GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...
GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...
Nguyen Thanh Tu Collection

Fish and Chips - have they had their chips
Fish and Chips - have they had their chipsFish and Chips - have they had their chips
Fish and Chips - have they had their chips
GeoBlogs

Language Across the Curriculm LAC B.Ed.
Language Across the  Curriculm LAC B.Ed.Language Across the  Curriculm LAC B.Ed.
Language Across the Curriculm LAC B.Ed.
Atul Kumar Singh

special B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdfspecial B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdf
Special education needs

Model Attribute Check Company Auto Property
Model Attribute  Check Company Auto PropertyModel Attribute  Check Company Auto Property
Model Attribute Check Company Auto Property
Celine George

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...
Sandy Millin

Introduction to Quality Improvement Essentials
Introduction to Quality Improvement EssentialsIntroduction to Quality Improvement Essentials
Introduction to Quality Improvement Essentials
Excellence Foundation for South Sudan

1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx
JosvitaDsouza2

How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...
Jisc

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdf
Tamralipta Mahavidyalaya

MARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptxMARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptx
bennyroshan06

Thesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.pptThesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.ppt
EverAndrsGuerraGuerr

The geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideasThe geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideas
GeoBlogs

Palestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptxPalestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptx
RaedMohamed3

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
siemaillard

Operation Blue Star - Saka Neela Tara
Operation Blue Star   -  Saka Neela TaraOperation Blue Star   -  Saka Neela Tara
Operation Blue Star - Saka Neela Tara
Balvir Singh

How to Split Bills in the Odoo 17 POS Module
How to Split Bills in the Odoo 17 POS ModuleHow to Split Bills in the Odoo 17 POS Module
How to Split Bills in the Odoo 17 POS Module
Celine George

Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
MysoreMuleSoftMeetup

Overview on Edible Vaccine: Pros & Cons with Mechanism
Overview on Edible Vaccine: Pros & Cons with MechanismOverview on Edible Vaccine: Pros & Cons with Mechanism
Overview on Edible Vaccine: Pros & Cons with Mechanism
DeeptiGupta154


Recently uploaded (20)

Additional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdfAdditional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdf

GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...
GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...
GIÁO ÁN DẠY THÊM (KẾ HOẠCH BÀI BUỔI 2) - TIẾNG ANH 8 GLOBAL SUCCESS (2 CỘT) N...

Fish and Chips - have they had their chips
Fish and Chips - have they had their chipsFish and Chips - have they had their chips
Fish and Chips - have they had their chips

Language Across the Curriculm LAC B.Ed.
Language Across the  Curriculm LAC B.Ed.Language Across the  Curriculm LAC B.Ed.
Language Across the Curriculm LAC B.Ed.

special B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdfspecial B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdf

Model Attribute Check Company Auto Property
Model Attribute  Check Company Auto PropertyModel Attribute  Check Company Auto Property
Model Attribute Check Company Auto Property

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...

Introduction to Quality Improvement Essentials
Introduction to Quality Improvement EssentialsIntroduction to Quality Improvement Essentials
Introduction to Quality Improvement Essentials

1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx

How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdf

MARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptxMARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptx

Thesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.pptThesis Statement for students diagnonsed withADHD.ppt
Thesis Statement for students diagnonsed withADHD.ppt

The geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideasThe geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideas

Palestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptxPalestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptx

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

Operation Blue Star - Saka Neela Tara
Operation Blue Star   -  Saka Neela TaraOperation Blue Star   -  Saka Neela Tara
Operation Blue Star - Saka Neela Tara

How to Split Bills in the Odoo 17 POS Module
How to Split Bills in the Odoo 17 POS ModuleHow to Split Bills in the Odoo 17 POS Module
How to Split Bills in the Odoo 17 POS Module

Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46

Overview on Edible Vaccine: Pros & Cons with Mechanism
Overview on Edible Vaccine: Pros & Cons with MechanismOverview on Edible Vaccine: Pros & Cons with Mechanism
Overview on Edible Vaccine: Pros & Cons with Mechanism


Soil erosion2

  • 1.
  • 2. SOIL EROSION  Soil erosion is the main problem of our country . It is on the increase in recent years Main reasons :  Running water  overgrazing  faulty methods of agriculture  Over irrigation  Wind  Men, plants and animals
  • 3. Soil erosion happens when particles of soil come loose and are carried away by water or the wind. When it rains so much that the water cannot seep into the soil fast enough, the extra water flows down the slope, carrying soil particles with it. Many agricultural soils are easily eroded. The erosion problem is likely to be more severe on certain types of soils, on steep slopes, where there is intense rainfall, and where the vegetation is removed Indirectly soil erosion helps in the soil forming because from wherever the soil is removed it is deposited elsewhere.
  • 4. However it disturbs the agricultural pattern and should be prevented. There are several ways in which soil erosion takes place due to running water.  Sheet erosion  Gully erosion  Rill erosion  Leaching  Sea or shore erosion  Stream bank erosion
  • 5. SHEET EROSION Sheet erosion Occurs when thin layers of the topsoil are moved by the force of the runoff water, leaving the surface uniformly eroded Sheet erosion Occurs when thin layers of the topsoil are moved by the force of the runoff water, leaving the surface uniformly eroded
  • 6. RILL EROSION [chennel erosion] Rill erosion Caused by runoff water when it creates small, linear depressions in the soil surface.
  • 7.
  • 8. GULLY EROSION Unlike rill erosion, gullies are too deep to be removed during normal cultivation with ordinary farm implements. They are formed from small depressions, which concentrate water and enlarge until several join to form a channel. The gully then widens as the side-walls are worn back.
  • 9.
  • 10. Sea or Shore erosion •Tidal waters of sea cause considerable damage to the soil along the sea coast. • Powerful waves dash against sea-coast and break hanging cliff rocks. • Broken material is then removed by the retreating sea waves. * This type of erosion is seen throughout the eastern and western coasts of India.
  • 11.
  • 12.
  • 13.
  • 14. STREAM BANK EROSION: Stream bank erosion is common along rivers, streams and drains where banks have been eroded, sloughed or undercut. However , it is important to remember that a stream is a dynamic and constantly changing system. Generally, stream bank erosion becomes a problem where development has limited the meandering nature of streams, where streams have been channelized, or where stream bank structures (like bridges, culverts, etc.) are located in places where they can actually cause damage to downstream areas.
  • 15.
  • 16. •Stabilizing these areas can help protect watercourses from continued sedimentation, damage to adjacent land uses, control unwanted meander, and improvement of habitat for fish and wildlife. •Streams and rivers change their courses by cutting one bank and depositing the silt on the others. •During flash floods, the damage is much acclerated. •Prevalent in the flood plains of Ganga, Yamuna, and other rivers. As a result, large areas of agricultural land in the states of U.P., Rajasthan, M.P. have been transformed into ravines.
  • 17. WIND: Soil erosion by wind on extensive flat lands which are subject to windy dry season for part of the year. The upper soil surface becomes loose and susceptible to wind erosion due to lack of moisture. Overgrazing: Due to overgrazing, wind erosion occurs as the soil devoid of vegetation is directly exposed to the wind. Faulty methods of agriculture: i)Shifting agriculture as in Northeast India ii)Lack of crop rotation iii)Wrong ploughing
  • 18. LEACHING In agriculture, leaching may refer to the loss of water- soluble plant nutrients from the soil, due to rainand irrigation. Soil structure, crop planning, type and application rates of fertilizers, and other factors are taken into account to avoid excessive nutrient loss. Leaching may also refer to the practice of applying a small amount of excess irrigation where th e water has a high salt content to avoid salts from building up in the soil (salinity control). Where this is practiced,drainage must also usually be employed, to carry away the excess water.
  • 19. Leaching is an environmental concern when it contributes to groundwatercontamination. As water from rain,flooding, or other sources seeps into the ground, it can dissolve chemicals and carry them into the underground water supply. Of particular concern are hazardous waste dumps andlandfills, and, in agriculture, excess fertilizer and improperly stored animal manure.
  • 20. SHEET EROSION: Removal of thin layer of soil from a large area. In sheet erosion a thin layer of soil is removed from a large area. RILL EROSION: A series of small channels on a slope carved by running water. GULLY EROSION: Large, wide channels carved by running water. As a rule of thumb, a gully is large enough that it cannot be smoothed out with conventional tillage equipment. SPLASH EROSION: Splash erosion where the soil is pulverised by the impact of heavy drops and hailstones as in case of convectional rainfall.
  • 21. SOIL EROSION DUE TO HUMAN FACTOR:  Loss of forest cover – annual rate- about 47,500 hectares  Leads to sheet erosion on hilly slopes because water instead of sinking into the ground washes the soil down.  In the second stage, in the absence of vegetation cover and washing off of the absorbent top soil, rills begin to appear on the landscape  In the third stage, the water run off during heavy rains may develop deep grooves causing Gully erosion.
  • 22.  The Outer Himalayas, the Western & Eastern Ghats are subjected to deforestation by man.  These areas receive heavy rainfalls. Removal vegetation cover for different land use like railway lines, roads, buildings, or even agriculture has caused Sheet, Rill or Gully erosion  Shifting cultivation – heavy rains wash away the bare soil from the slopes to the valleys below.  Uncontrolled gazing of domestic animals in the valleys and the upper slopes.
  • 24. Wind erosion refers to the movement and deposition of soil particles by wind . It occurs when soil devoid of vegetation is exposed to high velocity wind. Wind moves soil particles 0.1 – 0.5 mm in size in bouncing or hopping fashion and those greater than 0.5 by rolling. The former is known as saltation and the latter as soil creep. The particles less than 0.1mm or the fines particles detach into suspension. Infact wind erosion is most visible in the suspension stage, as dust storms or subsequently as deposition along fence lines and across roads.
  • 25. CAUSES OF SOIL EROSION IN INDIA 1) Heavy population pressure on land: - forest cover as low as 20.55% of total area – population continues to rise at a rapid rate – more forests are destroyed – heavy pressure on land. 2) Nature of Rainfall:- receives 80 to 90 per cent of rainfall in the monsoon season. – heavy downpour during during monsoon months causes floods. - remaining months – droughts – these affect soils 3)Overgrazing – number of domestic animals, esp cattle highest in world – cattle freely graze in open lands making them bare of vegetation-winds carry away dry soil particles - Rajasthan
  • 26. 4) Bad farming techniques – plough fields in traditional ways – small size of holdings, absence of terracing, contour cultivation, crop rotation, improper use of manure have caused erosion. 5) Topography – North –Eastern parts of India, Shiwaliks and the hilly regions in south India are affected by soil erosion because of steep slopes and heavy rainfall. During heavy rainfall, soils are washed away by running water down the slope. 6) Deforestation: destruction of forests for cultivation – cutting of trees exposes the soil to water and wind which leads to soil erosion.
  • 27. REGIONS OF SOIL EROSION  Rajasthan, Madhya Pradesh, Maharashtra, UP, Gujarat, andhra Pradesh, Karnataka. Worst affected areas include:  The badlands of Chambal and Yamuna rivers  The piedmont zone of the western Himalayas  The Chotanagpur plateau region  The Tapi-Sabarmati valley region in Gujarat  The regur soil area of Maharashtra  The dry areas of Rajasthan, Gujarat and Haryana
  • 28. EFFECTS OF SOIL EROSION:  Loss of fertile top soil Lowering of the underground water table and decreasing soil moisture  Drying of vegetation and extension of arid lands, increase in the frequency of droughts and floods Silting of river and canal beds, Recurrence of landslides, adverse effect on economic prosperity and cultural development.  Wind erosion reduces the productive capacity of soil, as most of the nutrients required by the plants are carried by the wind.
  • 29. Prevention of soil erosion and soil conservation
  • 30. 1.Terrace Farming:- On hilly slopes, terraces act as bunds and prevent the soil from being washed away.
  • 31. 2.Contour Ploughing: Ploughing along contourson a slope prevents soil being washed away by rainwater or by surface run off. Contours act like bunds. Terraces are levelled into step like small fields with even slope.
  • 32. 3)Afforestation: planting of trees along the edges of the fields, the waste land and on steepy slopes to prevent soil erosion as wellas to enahnce the capacity of the soil to retain water. increase area under forests and indiscriminate felling of trees must stop.
  • 33. 4) Shelter Belts: Farmers plant trees in several rows to check wind erosion. Known as wind breaks. 5) Strip cropping: Crops are grown in alternate strips of land to check the impact of the winds. 6) Construction of dams: Rivers cause soil erosion. Dams are built in the upper course of rivers to control erosion of soil. This would check the speed of water and thereby save soil from erosion
  • 34. 7) Ploughing Gullies:The gullies made in the soil are plugged with deposition of silt during heavy rains. 8) Shifting or Jhuming or slash and burn type of agriculture should be banned.
