1. Domain-Driven Software
Design
PSIA
October 23, 2018

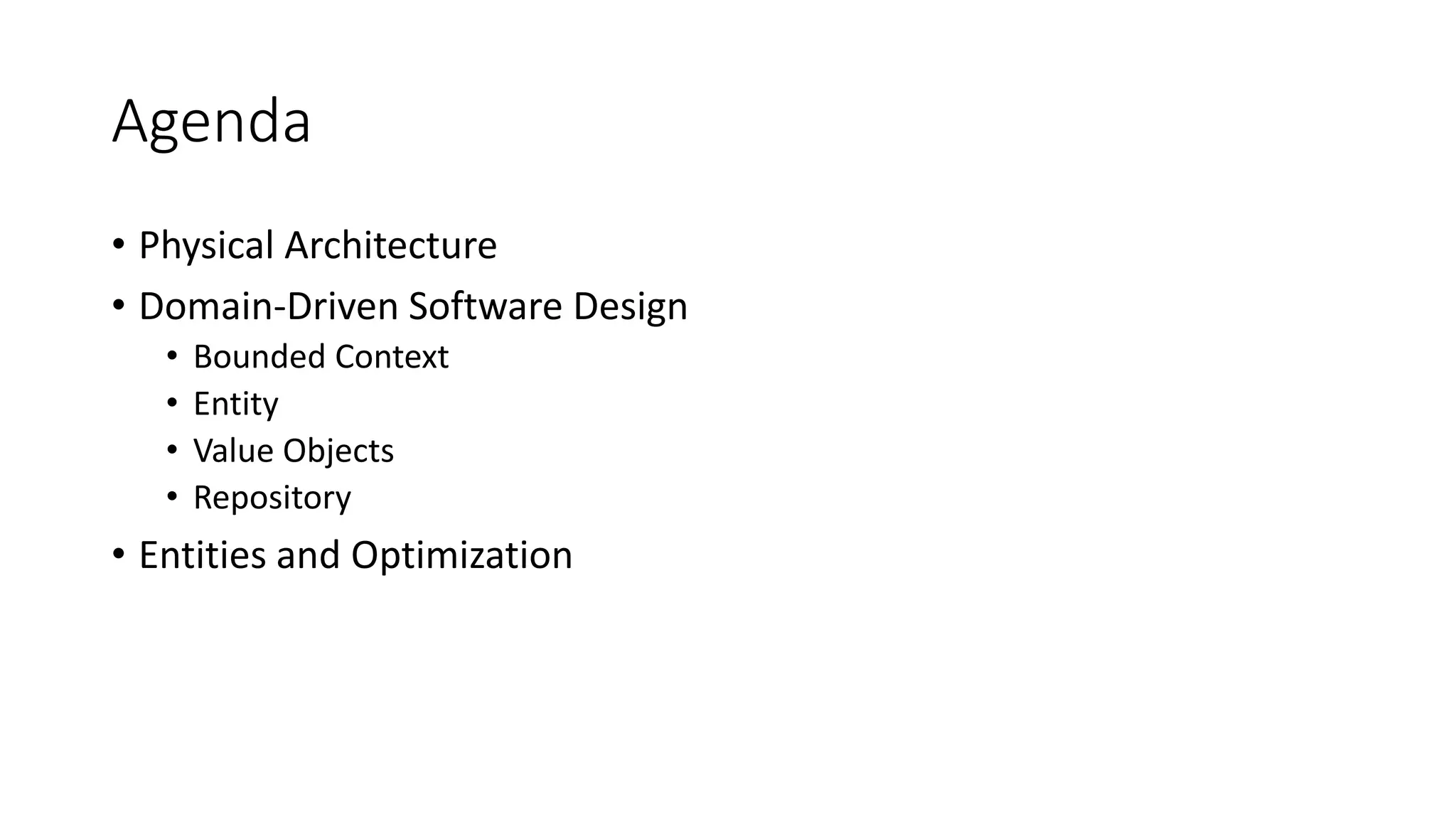

2. Agenda
• Physical Architecture
• Domain-Driven Software Design
• Bounded Context
• Entity
• Value Objects
• Repository
• Entities and Optimization

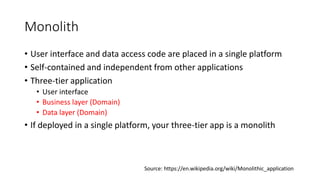

3. Monolith
• User interface and data access code are placed in a single platform
• Self-contained and independent from other applications
• Three-tier application
• User interface
• Business layer (Domain)
• Data layer (Domain)
• If deployed in a single platform, your three-tier app is a monolith
Source: https://en.wikipedia.org/wiki/Monolithic_application

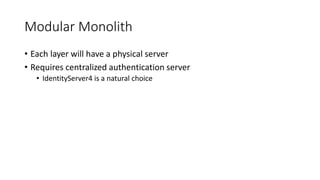

4. Modular Monolith
• Each layer will have a physical server
• Requires centralized authentication server
• IdentityServer4 is a natural choice

5. IdentityServer4
• OpenID Connect and OAuth 2.0 for ASP.NET Core 2 or up
• OpenID Connect – Simple identity layer on top of OAuth 2.0
• Oauth 2.0 – Industry standard for authorization
• Centralized login logic for web, native, mobile and services
• Single sign on/out
• Free and open source
Source: http://docs.identityserver.io/en/release/

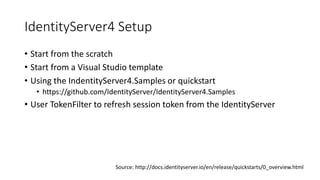

6. IdentityServer4 Setup
• Start from the scratch
• Start from a Visual Studio template
• Using the IndentityServer4.Samples or quickstart
• https://github.com/IdentityServer/IdentityServer4.Samples
• User TokenFilter to refresh session token from the IdentityServer
Source: http://docs.identityserver.io/en/release/quickstarts/0_overview.html

7. DEMO – IdentityServer4
• Walk-around the quickstart
• Using TokenFilter at the server side to refresh session’s token

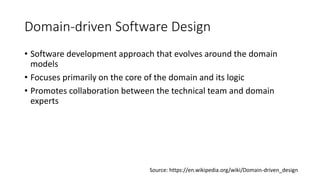

8. Domain-driven Software Design
• Software development approach that evolves around the domain
models
• Focuses primarily on the core of the domain and its logic
• Promotes collaboration between the technical team and domain
experts
Source: https://en.wikipedia.org/wiki/Domain-driven_design

9. Utility of a Model in Domain-Driven Design
• The model and the heart of the design shape each other
• Domain models can be used to communicate with the domain
experts
• Knowledge generated from collaboration with domain experts are
documented in the domain
• Models are evolving as more information are gathered
Source: Domain-Driven Design by Eric Evans

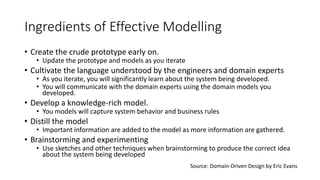

10. Ingredients of Effective Modelling
• Create the crude prototype early on.
• Update the prototype and models as you iterate
• Cultivate the language understood by the engineers and domain experts
• As you iterate, you will significantly learn about the system being developed.
• You will communicate with the domain experts using the domain models you
developed.
• Develop a knowledge-rich model.
• You models will capture system behavior and business rules
• Distill the model
• Important information are added to the model as more information are gathered.
• Brainstorming and experimenting
• Use sketches and other techniques when brainstorming to produce the correct idea
about the system being developed
Source: Domain-Driven Design by Eric Evans

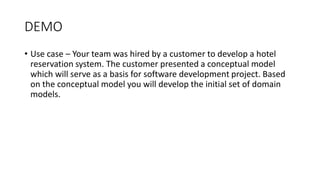

11. DEMO

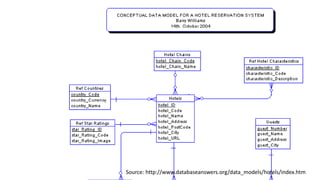

• Use case – Your team was hired by a customer to develop a hotel
reservation system. The customer presented a conceptual model
which will serve as a basis for software development project. Based
on the conceptual model you will develop the initial set of domain
models.

12. Source: http://www.databaseanswers.org/data_models/hotels/index.htm

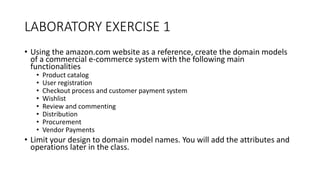

13. LABORATORY EXERCISE 1
• Using the amazon.com website as a reference, create the domain models
of a commercial e-commerce system with the following main
functionalities
• Product catalog
• User registration
• Checkout process and customer payment system
• Wishlist
• Review and commenting
• Distribution
• Procurement
• Vendor Payments
• Limit your design to domain model names. You will add the attributes and
operations later in the class.

14. Bounded context
• Hard to design large domain
• Different group of people will
have different vocabularies
• Large domain models may lead to
confusions
• Dividing large models into
bounded contexts
• Explicit interrelationship
Source: https://martinfowler.com/bliki/BoundedContext.html

15. LABORATORY EXERCISE 2
• Based on the laboratory exercise 1, identify the different bounded
contexts of the e-commerce system

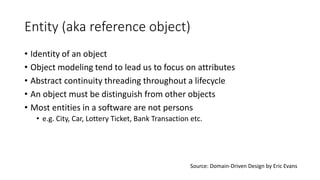

16. Entity (aka reference object)
• Identity of an object
• Object modeling tend to lead us to focus on attributes
• Abstract continuity threading throughout a lifecycle
• An object must be distinguish from other objects
• Most entities in a software are not persons
• e.g. City, Car, Lottery Ticket, Bank Transaction etc.
Source: Domain-Driven Design by Eric Evans

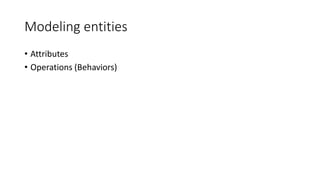

17. Modeling entities
• Attributes
• Operations (Behaviors)

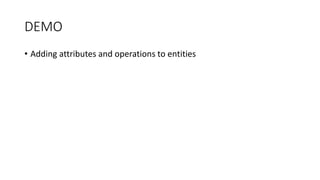

18. DEMO
• Adding attributes and operations to entities

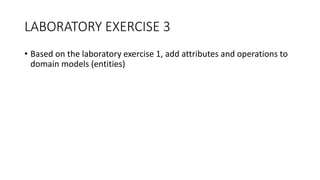

19. LABORATORY EXERCISE 3
• Based on the laboratory exercise 1, add attributes and operations to
domain models (entities)

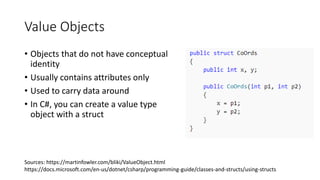

20. Value Objects
• Objects that do not have conceptual
identity
• Usually contains attributes only
• Used to carry data around
• In C#, you can create a value type
object with a struct
Sources: https://martinfowler.com/bliki/ValueObject.html
https://docs.microsoft.com/en-us/dotnet/csharp/programming-guide/classes-and-structs/using-structs

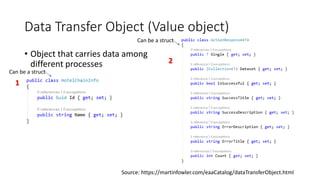

21. Data Transfer Object (Value object)
• Object that carries data among
different processes
1
2
Source: https://martinfowler.com/eaaCatalog/dataTransferObject.html
Can be a struct
Can be a struct

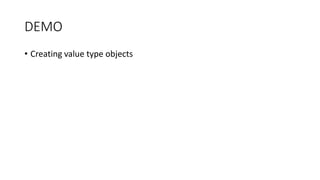

22. DEMO
• Creating value type objects

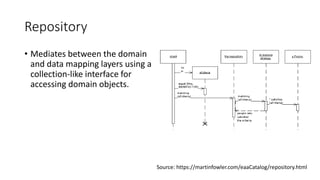

23. Repository
• Mediates between the domain
and data mapping layers using a
collection-like interface for
accessing domain objects.
Source: https://martinfowler.com/eaaCatalog/repository.html

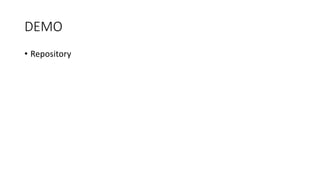

24. DEMO
• Repository

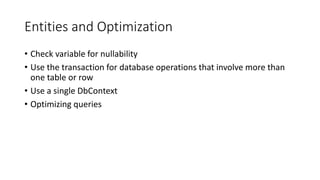

25. Entities and Optimization
• Check variable for nullability
• Use the transaction for database operations that involve more than
one table or row
• Use a single DbContext
• Optimizing queries

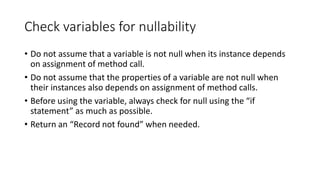

26. Check variables for nullability
• Do not assume that a variable is not null when its instance depends
on assignment of method call.
• Do not assume that the properties of a variable are not null when
their instances also depends on assignment of method calls.
• Before using the variable, always check for null using the “if
statement” as much as possible.
• Return an “Record not found” when needed.

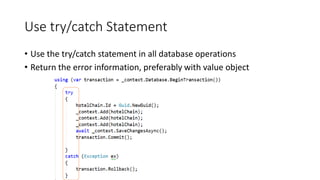

27. Use try/catch Statement
• Use the try/catch statement in all database operations
• Return the error information, preferably with value object

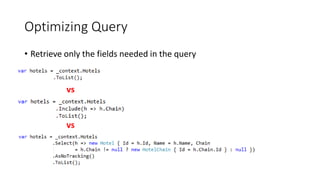

28. Optimizing Query
• Retrieve only the fields needed in the query
vs
vs

29. Optimizing Query
• Retrieve only the fields needed in the query

30. Optimizing Query
• Retrieve only the fields needed in the query

31. Optimizing Query
• Retrieve only the fields needed in the query

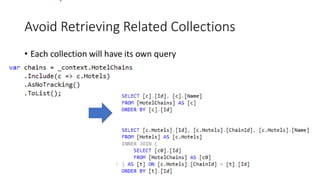

32. Avoid Retrieving Related Collections
• Each collection will have its own query

33. Use AsNoTracking() method
• Returned entities from the query will not be cached
• DbContext will not track the returned entities, thus improving the
performance

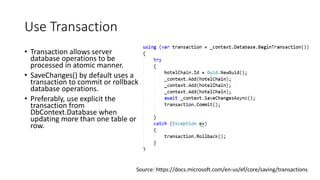

34. Use Transaction
• Transaction allows server
database operations to be
processed in atomic manner.
• SaveChanges() by default uses a
transaction to commit or rollback
database operations.
• Preferably, use explicit the
transaction from
DbContext.Database when
updating more than one table or
row.
Source: https://docs.microsoft.com/en-us/ef/core/saving/transactions

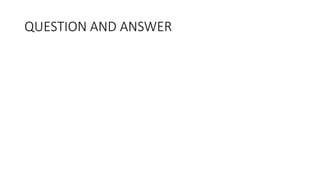

35. QUESTION AND ANSWER

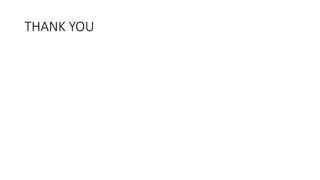

36. THANK YOU
