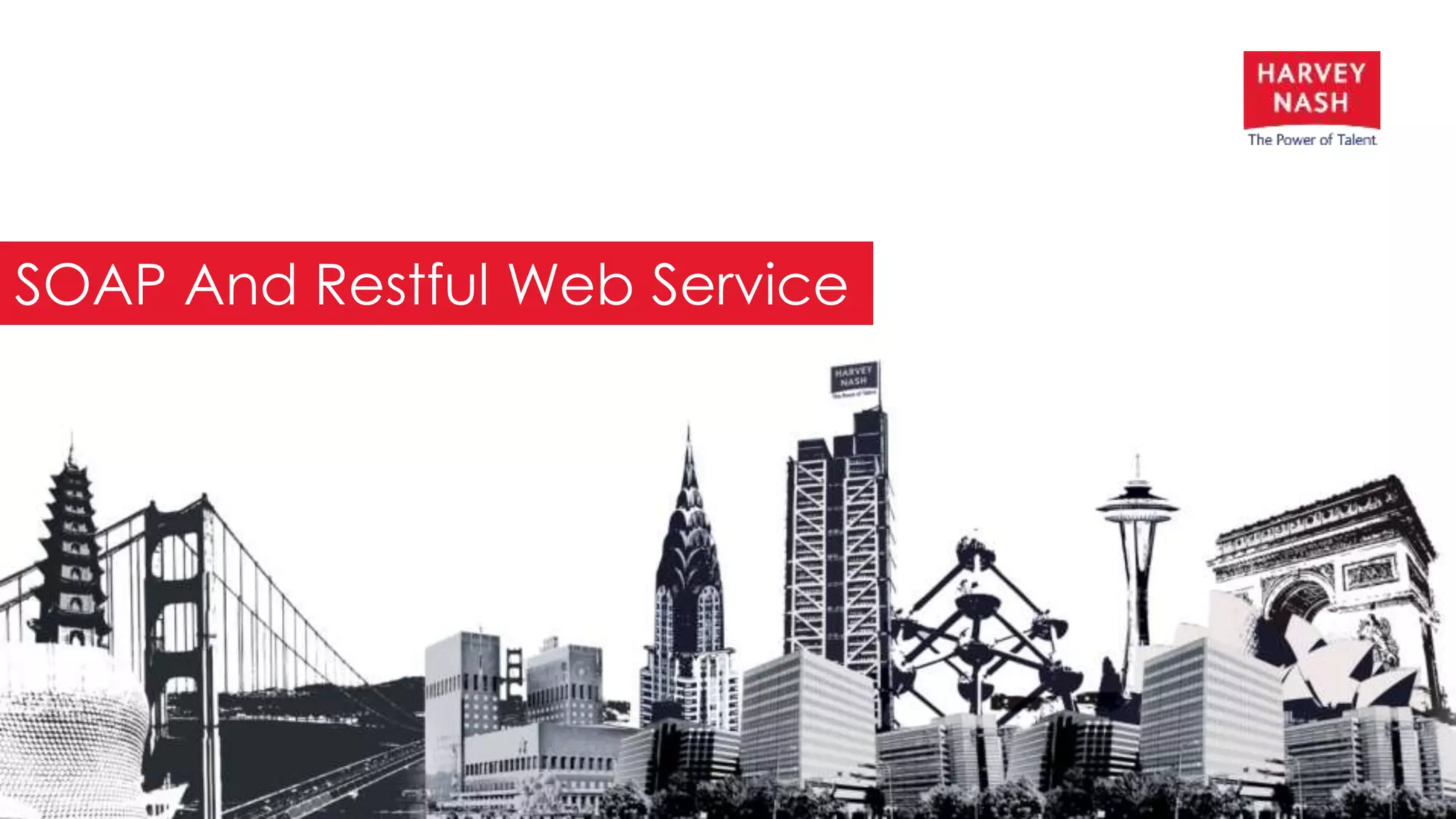

1. SOAP And Restful Web Service

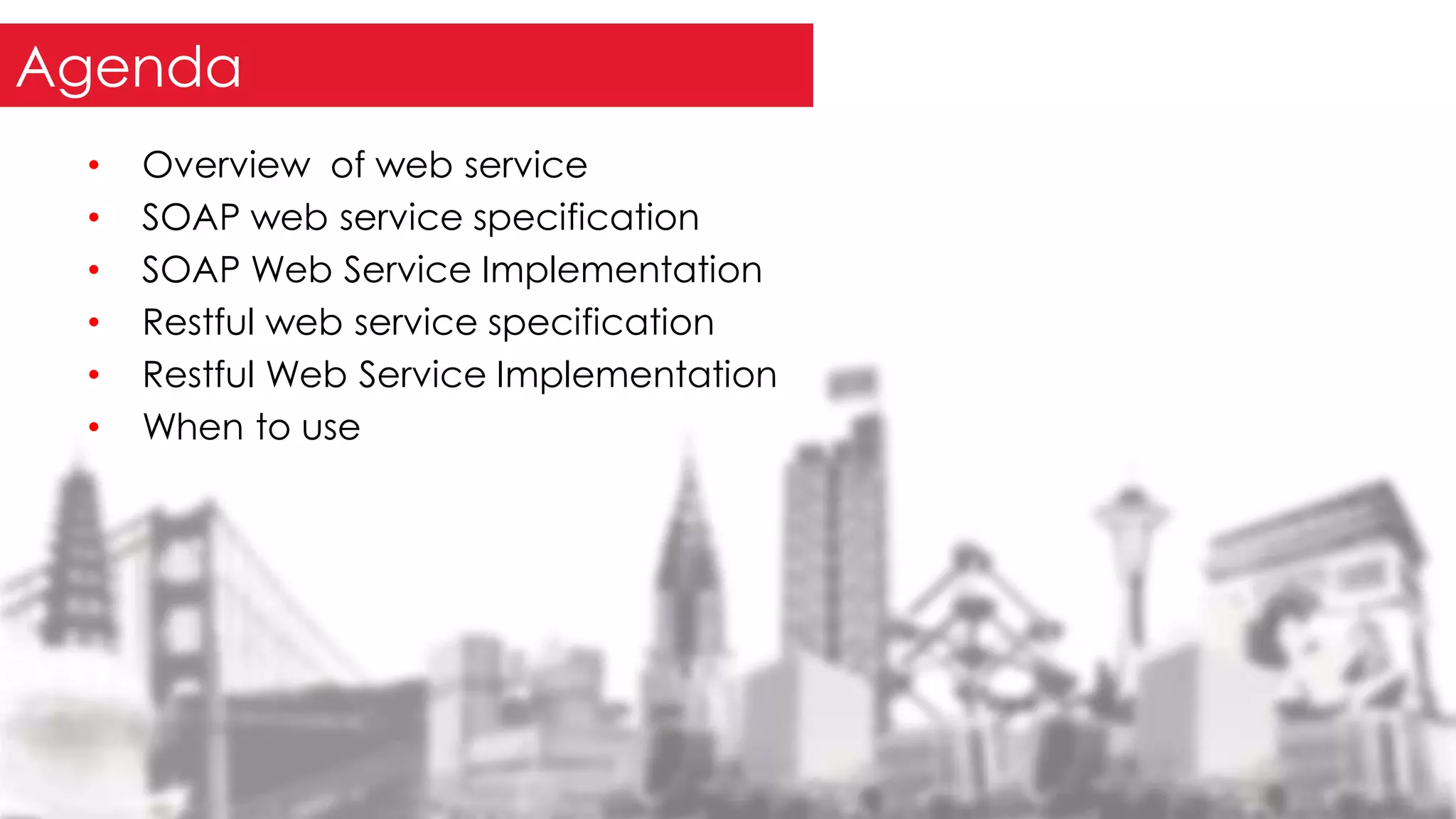

2. • Overview of web service
• SOAP web service specification
• SOAP Web Service Implementation
• Restful web service specification
• Restful Web Service Implementation
• When to use
Agenda

3. • Definition: “A Web service is a software system designed to support
interoperable machine-to-machine interaction over a network”.
• Characteristic
– Machine-to-machine interactions
– Loosely-coupling
– Interoperability
– Platform-independence
– Language-independence
– Operating system-independence
– Leverage of the existing WWW
Web service definition

4. • Addressing the key points
– How to encode/decode data need to be transferred: base64, binary..
– The format of encoded application data(wire-protocol): STOMP, RMI, SOAP…
– The protocol used to transfer data : HTTP, TCP, SMTP…
– The way used to transfer data: publish/subscribe, point-to-point, request-response…
• Advantages of web service
– Interoperability
– Standard industry
• Disadvantages of web service
– Performance: XML serializable, SOAP encoding..
– Availability
– Transaction
– Authentication
Web service definition

5. • Roles in a SOAP web service
– Service Provider: The service provider implements the service and makes it
available on the Internet.
– Service Registry: Provides a central place where developers can publish
new services or find existing ones.
– Service Consumer: consume the web service
• Protocol used
– SOAP: provides a simple and lightweight mechanism for exchanging
structured and typed information between peers in a decentralized,
distributed environment using XML.
– WSDL: defines services as collections of network endpoints.
– UDDI: provides a platform-independent way of describing and
discovering Web services and Web service providers.
– Transferring protocol: HTTP, FTP, SMTP…
SOAP Web Service

6. • Additional specification WS-*
– WS-Security: encrypting XML message, digital signature before sending over network.
– WS-Reliability: insure message is delivered correctly.
– WS-Transaction: describe an extensible coordination framework and specific
coordination types for: Short duration, ACID transactions and longer running business
transactions.
– WS-Addressing: defines a standard for incorporating message addressing information
into web services messages and provides a uniform addressing method for SOAP messages
traveling over synchronous and asynchronous transports
– WS-Policies
– WS-Notification and Eventing: describes a publish/subscribe messaging model
implemented over Web services and leverages the WS-Addressing specification.
– WS-I Basic Profile: provides interoperability guidance for core Web Services
specifications such as SOAP, WSDL, and UDDI.
SOAP Web Service

7. Technology stack
CXF
Axis2
JbossWS
Oracle Fusion
jBPM, Oracle Fusion

8. SOAP Web Service Flow

9. Web Service Description Language(WSDL)
• Describe the interface of a web service: location, method, message transferring…
• Some major parts of a WSDL document:
– Message: Messages are the data element for all input/output for a WSDL and its operations
– portType: is a set of abstract operations
• One-way: input only, the endpoint receives a message
• Request-Response: the endpoint receives a message, process and return a response
• Solicit-Response: output followed by input: The endpoint sends a message, and receives a
correlated message. This type of operation may also output an optional fault message.
• Notification: output only, send message but not wait for response.
– Binding: how a portType operation will actually be transmitted over the wire, HTTP GET, HTTP
POST, or SOAP
– Port: which specifies an address(like URI) for a binding
– Service: is used to aggregate a set of related ports

10. WSDL: some examples

11. WSDL: Message Exchanging Pattern
Request-Response pattern
Solicit Request pattern
One-Way pattern
Notification pattern
asynchrony
synchrony

12. • SOAP: XML-based mechanism for exchanging structured data
between network applications.
• SOAP consist of some major parts:
– Envelope: defines an overall framework for expressing general info.
– Header: is a generic container for control information.
– Body: represents the message payload.
– Fault: carry error and/or status information within a SOAP message.
• SOAP encode model:
– SOAP Encoding: uses a set of rules based on the XML Schema data types to encode, but
the message does not conform to a particular schema
– Literal XML: body contents conform to a specific XML Schema
• SOAP communication model:
– Document-style
– RPC-style
• The combination of encode and communication model affects considerably on
performance, interoperability….
SOAP Web Service: SOAP

13. SOAP

14. SOAP Web Service Style
Soap binding
Encoded style
Document Style(Java default) RPC Style
Encoded Document-style message that does not
include a schema (nobody uses this in
practice).
RPC-style message that formats its body according to
the rules defined in the SOAP standard (which are not
always exact and can lead to incompatibilities).
Literal
(java Default)
Document-style message that formats its
body according to a schema. This schema is
included in the WSDL. There’s also a 5th
type. It isn’t an official standard but it is used
a lot in practice. It came into being to
compensate for document/literal’s main
shortcoming of not having a standard way of
specifying the web method name:
RPC-style message that formats its body according to a
schema that reflects the rules defined in the SOAP
standard. This schema is included in the WSDL.
Literal Wrapped
(Java Default)
The same as document/literal, but wraps the
contents of the body in an element with the
same name as the web service method (just
like RPC-style messages). This is what web
services implemented in Java use by default.
Literal Bare
Communication model

15. • JAX-WS:
– Java specification for next generation of XML Web Service model.
– Support SOAP 1.1, SOAP 1.2 over HTTP
– Support WSDL 1.1 HTTP Binding
– Support WS-I Basic Profile 1.1 and 1.0
– Go with Java 5 or later version which support many new feature.
– Using JAXB for schema mapping.
– Implemented by some most popular framework:
• CXF
• Axis 2
• JAX-RPC:
– Support SOAP 1.1
– Support WS-I Basic Profile 1.0
– Go with java 1.4
– JAX-RPC has its own data mapping model
SOAP Web Service Implementation

16. • Annotation: simplifying the development effort and extensively used.
– @ServiceMode: Message or Payload.
– @WebService: mark a endpoint implementation as implementing a web service or to mark
that a service endpoint interface as defining a web service interface.
– @WebMethod: define a web service operation
– @WebEndpoint
– @WebParam
– @SOAPBinding: Document or RPC
– @Oneway: a one-way operation returns the thread of control to the calling application prior
to executing the actual business method.
– @HandlerChain: intercept the SOAP message before entering main process for
validating…by implementing SOAPHandler
– @MTOM: support attachment like binary… format
– @BindingType: binding to a specific protocol like SOAP, JMS…
JAX-WS

17. • Invoking Asynchronously web service
– Asynchronous polling use:
Service service = ...;
StockQuote quoteService = (StockQuote)service.getPort(portName);
Response<Float> response = quoteService.getPriceAsync(ticker);
while(response.isDone()) {
// do something while we wai
}
Float quote = response.get();
– Asynchronous callback use:
class MyPriceHandler implements AsyncHandler<Float> {
………….
public void handleResponse(Response<Float> response) {}
}
JAX-WS

18. • Resource injection:
@Resource
private WebServiceContext ctx;
• Data binding with JAXB 2.1
– Marshaling Java Object to XML.
– Un-marshaling XML to Java Object.
– Validate schema
• Support MTOM
– Allowing to send binary attachment such as image
– Optimizing transferring.
• Support SOAP 1.2
• Support WS-Addressing
JAX-WS

19. • REST is described by a set of architectural constraints that attempt to
minimize latency and network communications while, at the same
time, maximizing the independence and scalability of component
implementations.
• REST characteristic/constraints
– Client-Server: Separation of concerns is the principle behind the client-
server.
– Layer
– Caching: improve network efficiency
– Stateless: communication must be stateless in nature.
– Uniform unique resource: emphasis on a uniform interface between
components, and is the central feature that distinguishes the REST
architectural style from other network-based styles .
Restful Web Service

20. • Restful web service built base on the REST architecture style with some
important feature:
– The web services are completely stateless. A good test is to consider
whether the interaction can survive a restart of the server.
– A caching infrastructure can be leveraged for performance If the data that
the web service returns is not dynamically generated.
– Bandwidth is particularly important and needs to be limited. REST is
particularly useful for limited-profile devices, such as PDAs and mobile
phones.
– The service producer and service consumer have a mutual understanding
of the context and content being passed along. There is no formal way to
describe the web services interface, both parties must agree with a pre-
defined interface.
Restful Web Service

21. Restful Web Service Architecture
JSP/Ajax
AngularJS
IOS app
Android app
HTTP/HTTPs/Other
Rest Controller
Service Facade
JSON, XML, PNG.
Core Services

22. • The API suggests its own usage
– Using common and concrete terms
– Using noun, not verb: /getAllCars -> /cars
– Do not mix up singular and plural nouns
• Self-description the request-response.
• JSON when possible, XML if have to
• SSL everywhere - all the time
• Pagination, sorting the query result
• Average granularity, not just one resource = one URL
• Use sub-resources for relations
• Versioning with timestamp, a release number and in the path, not header
• Leverage the HTTP status codes and error In a payload
• Use HTTP headers for specifying serialization formats
– Content-Type defines the request format
– Accept defines a list of acceptable response formats.
• Stateless design.
Restful Web Service design guidelines

23. • JAX-RS
– A Java Specification for building Restful Web service
– A part of JEE architecture
– Current version: 2.0
– Some most popular framework implementation:
• Jersey: a JAX-RS reference implementation from Oracle.
• RESTEasy: fully certified and portable implementation of the JAX-RS by Jboss.
• Restlet
• CXF: enterprise solution with fully Spring integration.
• Non JAX-RS compliant:
– Not fully support JAX-RS, provide some non-standard APIs
• Dropwizard: Java framework for developing ops-friendly, high-performance,
RESTful web services.
• Spring MVC
How to build a Restful Web Service

24. • Annotation
– @Path: is used to define a URI matching pattern for incoming HTTP
requests to a specific resource. URI value can be a regular expression,
variables are denoted by braces { and }:
@Path("/users/{username}") -> http://example.com/users/Galileo
@Path("{database}-db")
public Object getDatabase(@PathParam("database") String db) ->
http://example.com/oracle-db
– @GET: HTTP GET method is used to retrieve a representation of a resource,
and It is both an idempotent and safe operation
• GET http://www.example.com/customers/12345
• GET http://www.example.com/customers/12345/orders
– @POST: HTTP POST to *create* new resources
• POST http://www.example.com/customers
• POST http://www.example.com/customers/12345/orders
JAX-RS

25. • Annotation
– @PUT: HTTP PUT to create/update a resource, this is an idempotent
– @DELETE: HTTP DELETE use to delete a resource
– @PathParam: retrieval based on id like GET /employee/{id}
– @QueryParam: for filtering, allows to inject individual URI query
parameter
GET /customers?start=0&size=10 ->
@GET(“/customers”) @Produces("application/xml")
public String getCustomers(@QueryParam("start") int start,
@QueryParam("size") int size)
– @FormParam: used to access application/x-www-formurlencoded
request bodies.
– @DefaultValue
– @Cookie: use to retrieve the cookie value sending by client.
JAX-RS

26. • Asynchronous
– Client asynchronous call by polling using Future or callback using
AsyncInvoker interface.
– Server side asynchronous implementation
• Bean validation
– Supports the Bean Validation to verify JAX-RS resource classes.
– Using annotation: @NotNull, @Email..
• Filter and handler
– Server filter: Request Filter and Response Filter by implementing
ContainerRequestFilter, ContainerRequestFilter.
– Client filter: Request Filter and Response Filter by implementing
ClientRequestFilter, ClientResponseFilter.
JAX-RS

27. • Content negotiation
– Client/Server can specify the expected content:
• Media: GET /library Accept: application/json
• Language: GET /stuff Accept-Language: en-us, es
• Encode:
– Using annotation:
• @Consumes: specify which MIME media types of representations a resource can
accept, or consume, sending from the client.
• @Produces: specify the MIME media types of representations a resource can
produce and send back to the client: application/json, application/xml,
text/html, image/jpeg, image/png
• Client API
• HATEOAS
JAX-RS

28. SOAP or Restful
SOAP Restful
Protocol->Standard Yes No, an architectural style
Behavior Services-> processing Resource-> represent the state
of application, data
Transport HTTP, FTP, JMS, SMTP HTTP,…
Message Format XML XML, Json, Text
State management State-full Stateless
Cache No Yes
Client/Server model
need
No Yes

29. THANK YOU
