This document outlines the objectives and architecture of SUE AGILE, a scalable and sustainable distributed architecture for developing cloud and on-premises line of business applications. The main objectives are to enable RAD development with Visual Studio and Typescript, write once deploy to many browsers/devices, and provide a client experience similar to WPF with MVVM and TDD. The architecture is based on enterprise service bus integration, message-oriented middleware, and location-transparent service containers with security, validation, and optional BPM/workflow integration.

1. livinglabs.regione.puglia.it
SUE AGILE
Architecture

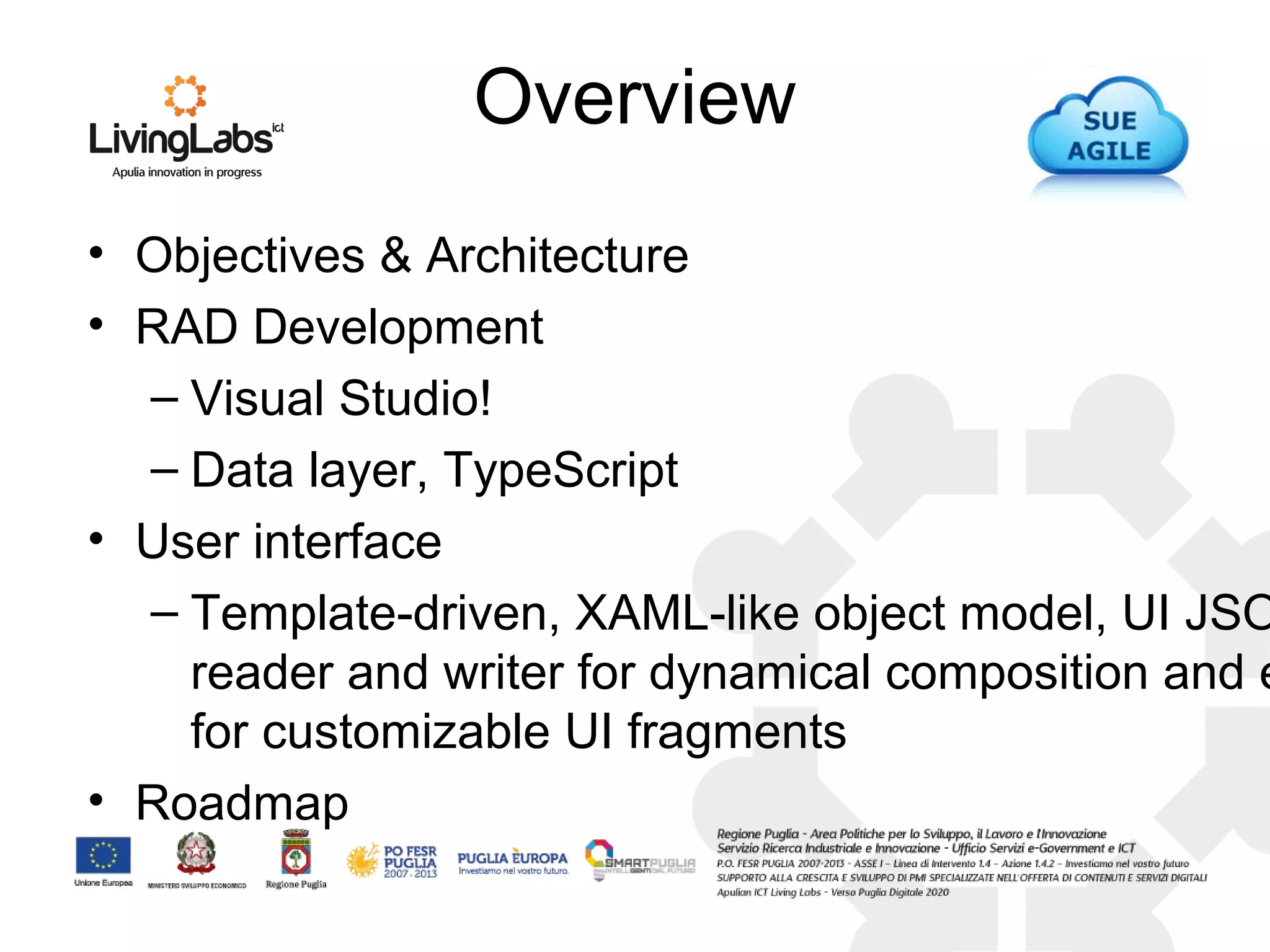

2. • Objectives & Architecture
• RAD Development
– Visual Studio!
– Data layer, TypeScript
• User interface
– Template-driven, XAML-like object model, UI JSO
reader and writer for dynamical composition and e
for customizable UI fragments
• Roadmap
Overview

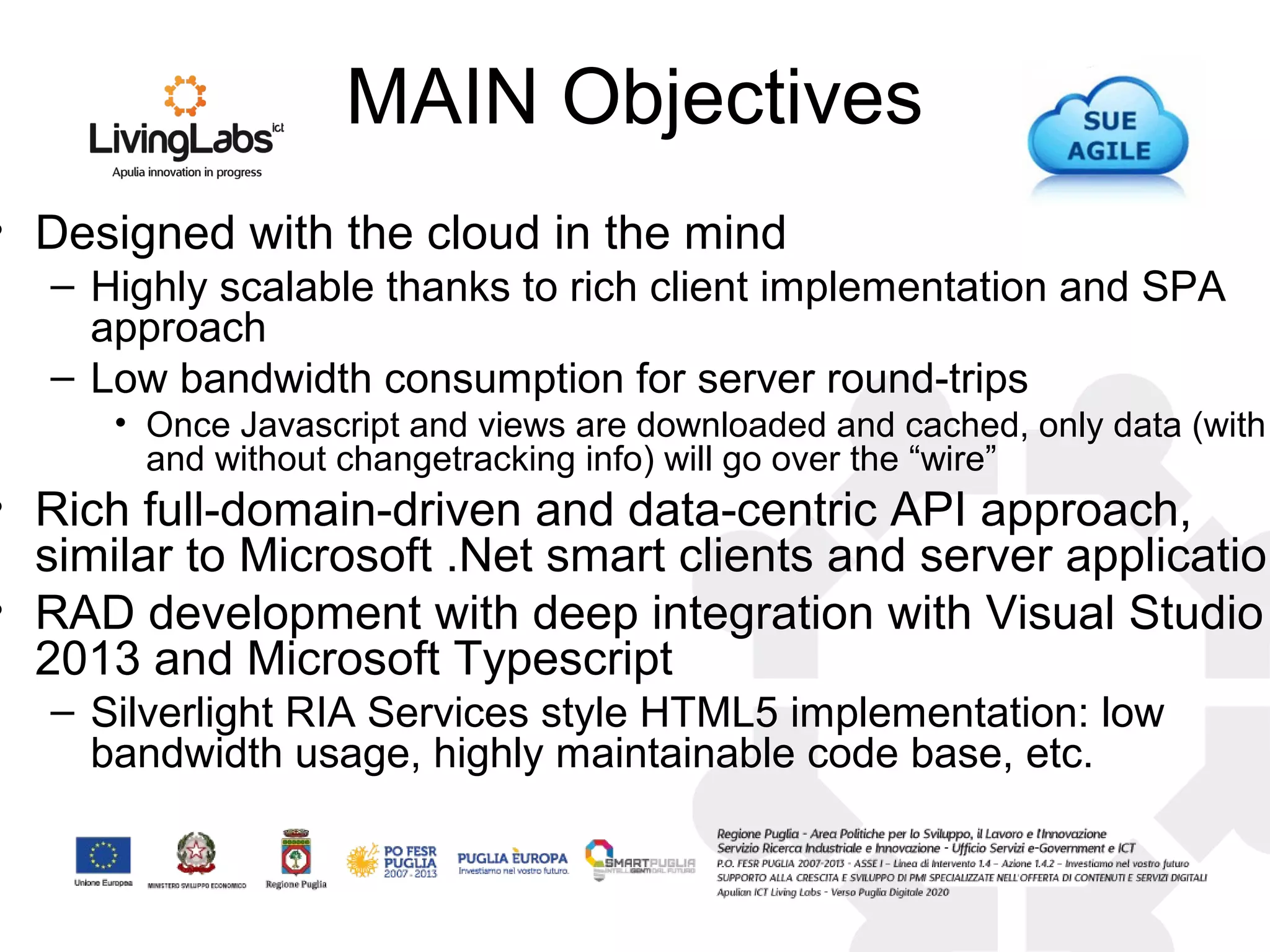

3. MAIN Objectives
• Designed with the cloud in the mind
– Highly scalable thanks to rich client implementation and SPA
approach
– Low bandwidth consumption for server round-trips
• Once Javascript and views are downloaded and cached, only data (with
and without changetracking info) will go over the “wire”
• Rich full-domain-driven and data-centric API approach,
similar to Microsoft .Net smart clients and server application
• RAD development with deep integration with Visual Studio
2013 and Microsoft Typescript
– Silverlight RIA Services style HTML5 implementation: low
bandwidth usage, highly maintainable code base, etc.

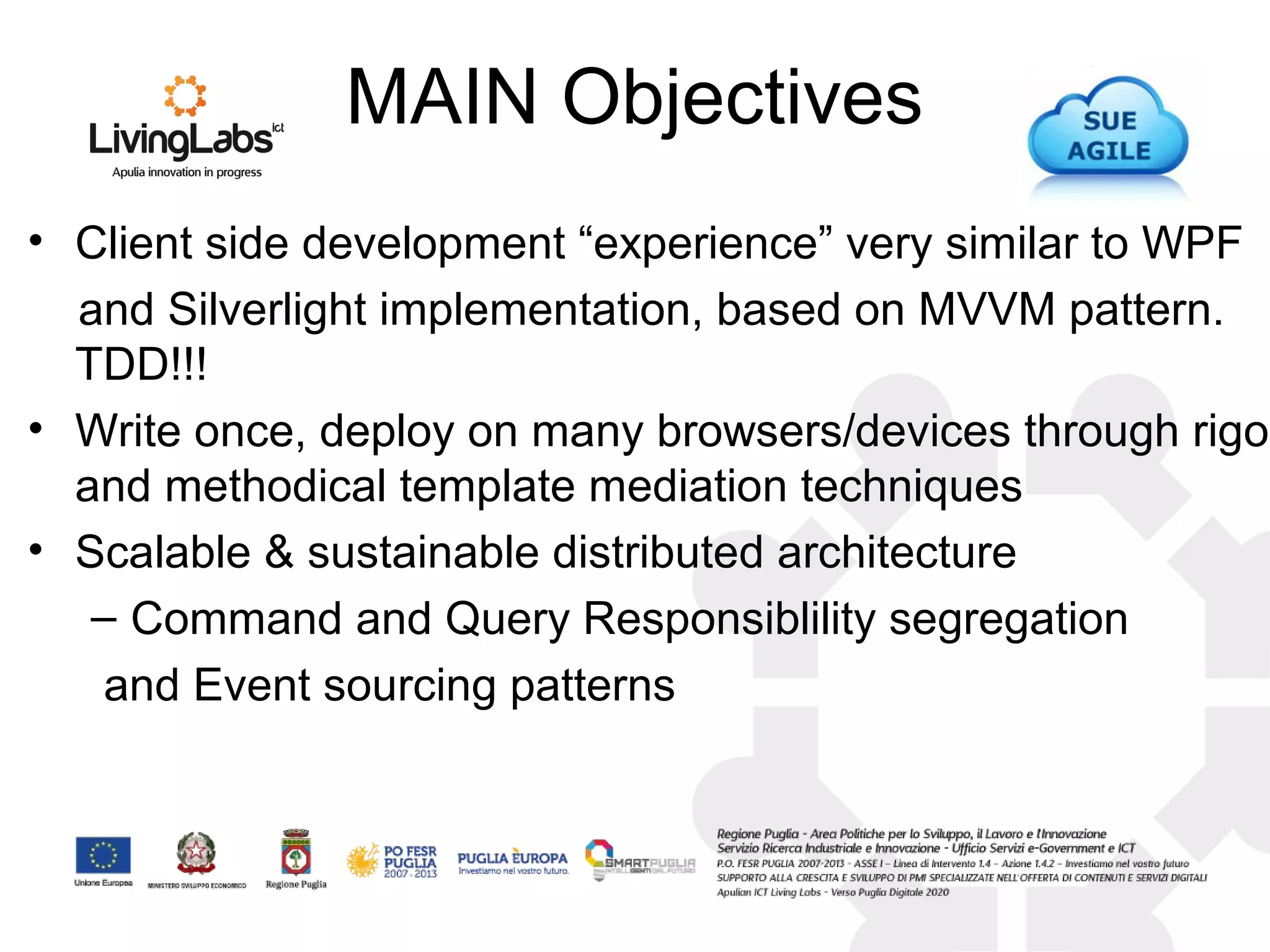

4. MAIN Objectives
• Client side development “experience” very similar to WPF
and Silverlight implementation, based on MVVM pattern.
TDD!!!
• Write once, deploy on many browsers/devices through rigor
and methodical template mediation techniques
• Scalable & sustainable distributed architecture
– Command and Query Responsiblility segregation
and Event sourcing patterns

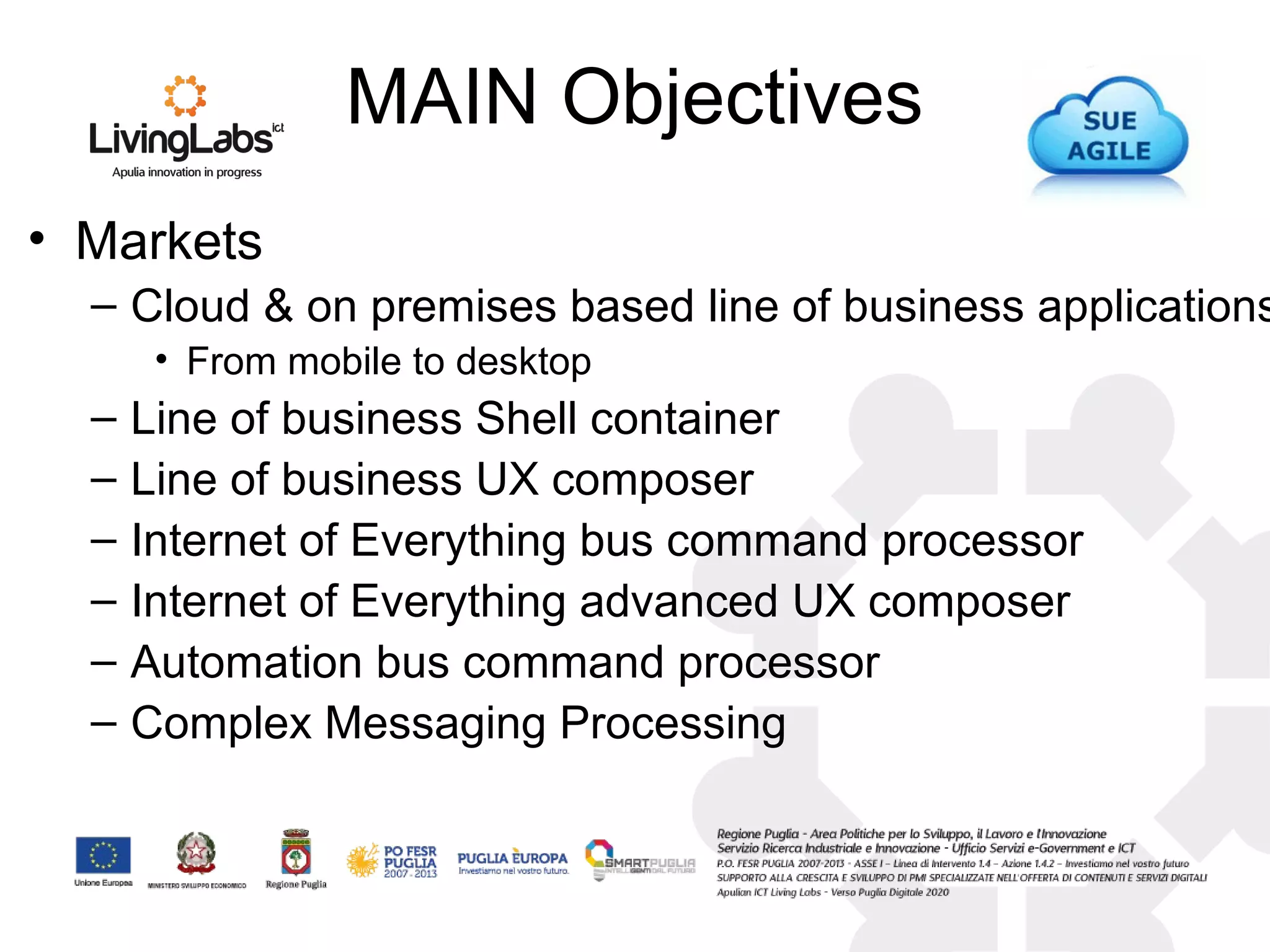

5. MAIN Objectives
• Markets
– Cloud & on premises based line of business applications
• From mobile to desktop
– Line of business Shell container
– Line of business UX composer
– Internet of Everything bus command processor
– Internet of Everything advanced UX composer
– Automation bus command processor
– Complex Messaging Processing

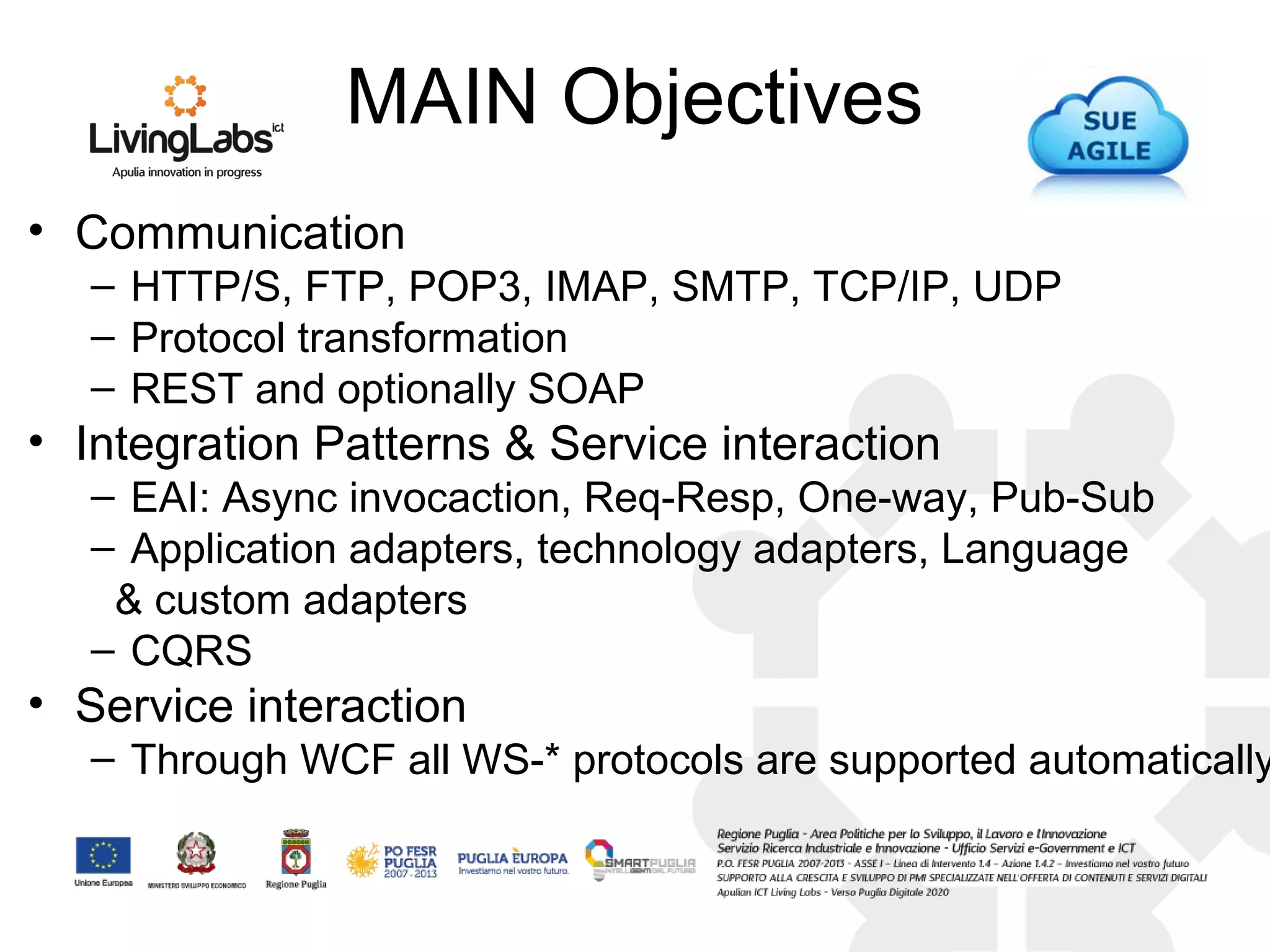

6. MAIN Objectives
• Communication
– HTTP/S, FTP, POP3, IMAP, SMTP, TCP/IP, UDP
– Protocol transformation
– REST and optionally SOAP
• Integration Patterns & Service interaction
– EAI: Async invocaction, Req-Resp, One-way, Pub-Sub
– Application adapters, technology adapters, Language
& custom adapters
– CQRS
• Service interaction
– Through WCF all WS-* protocols are supported automatically

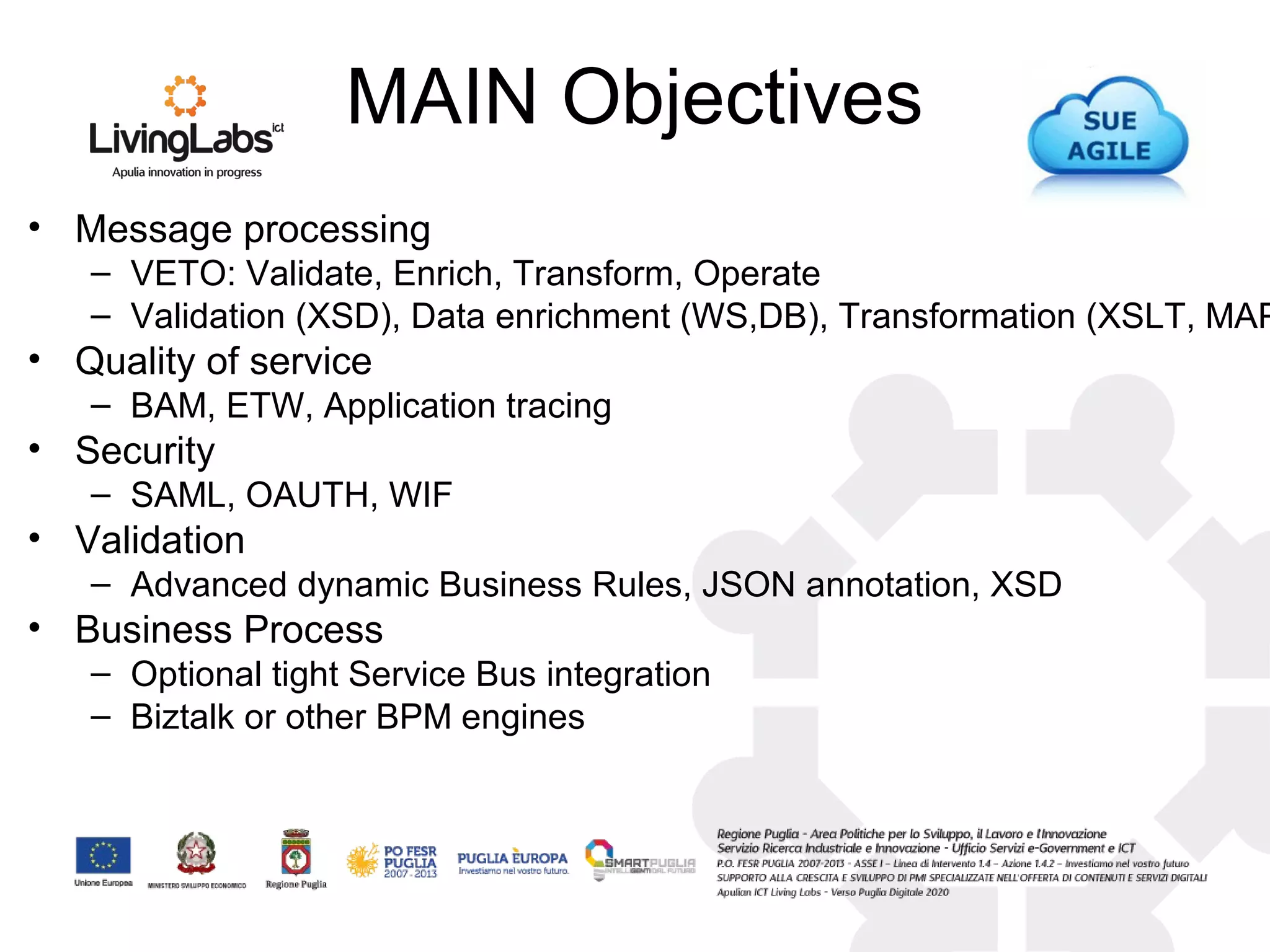

7. MAIN Objectives
• Message processing
– VETO: Validate, Enrich, Transform, Operate
– Validation (XSD), Data enrichment (WS,DB), Transformation (XSLT, MAP
• Quality of service
– BAM, ETW, Application tracing
• Security
– SAML, OAUTH, WIF
• Validation
– Advanced dynamic Business Rules, JSON annotation, XSD
• Business Process
– Optional tight Service Bus integration
– Biztalk or other BPM engines

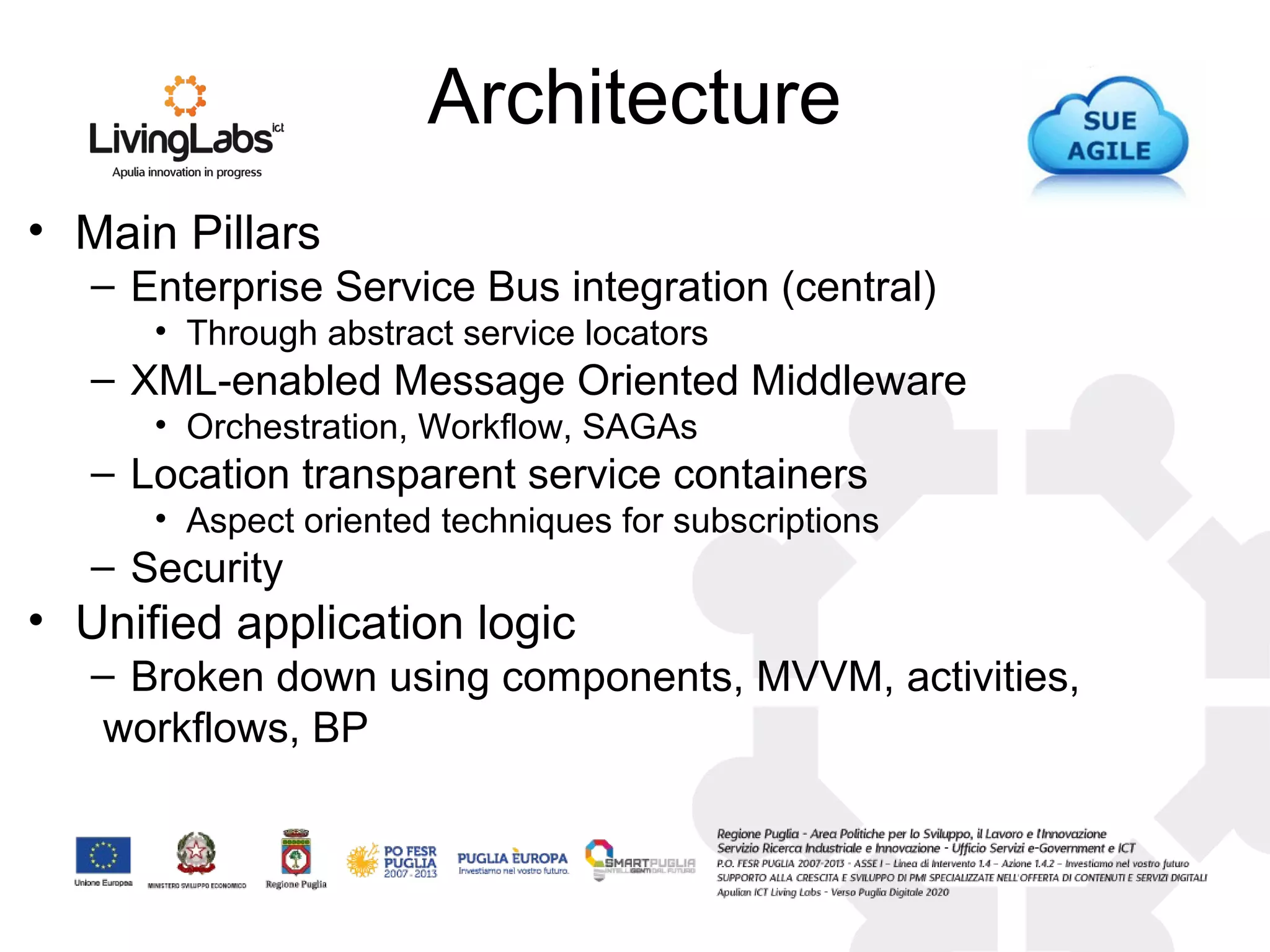

8. Architecture
• Main Pillars
– Enterprise Service Bus integration (central)
• Through abstract service locators
– XML-enabled Message Oriented Middleware
• Orchestration, Workflow, SAGAs
– Location transparent service containers
• Aspect oriented techniques for subscriptions
– Security
• Unified application logic
– Broken down using components, MVVM, activities,
workflows, BP

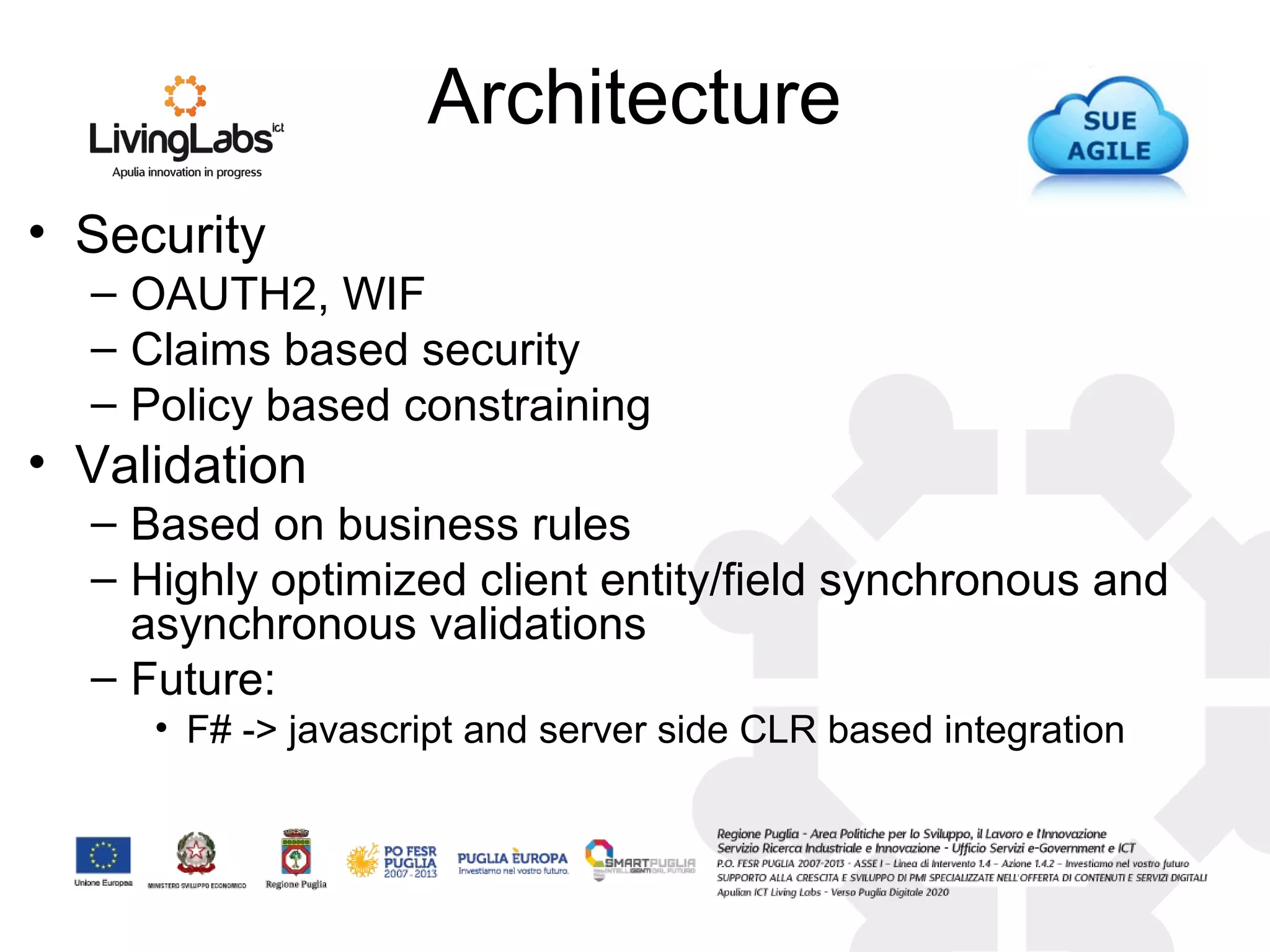

9. Architecture
• Security
– OAUTH2, WIF
– Claims based security
– Policy based constraining
• Validation
– Based on business rules
– Highly optimized client entity/field synchronous and
asynchronous validations
– Future:
• F# -> javascript and server side CLR based integration

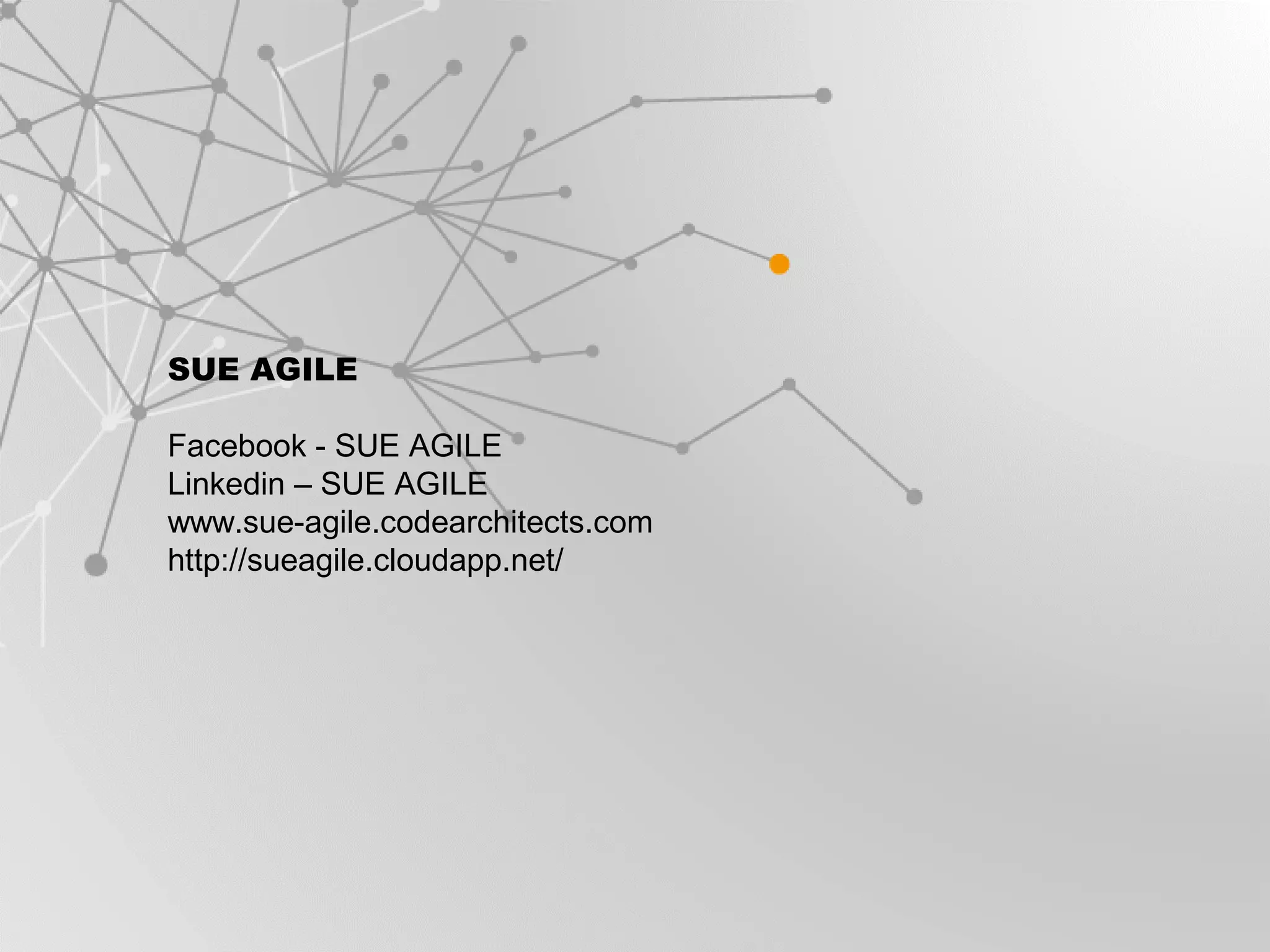

10. SUE AGILE
Facebook - SUE AGILE
Linkedin – SUE AGILE
www.sue-agile.codearchitects.com
http://sueagile.cloudapp.net/

11. Ing. Sabino Labarile
Code Architects s.r.l.
Via Jazzitiello 15 C/D Santeramo in Colle (Bari)
www.codearchitects.com
