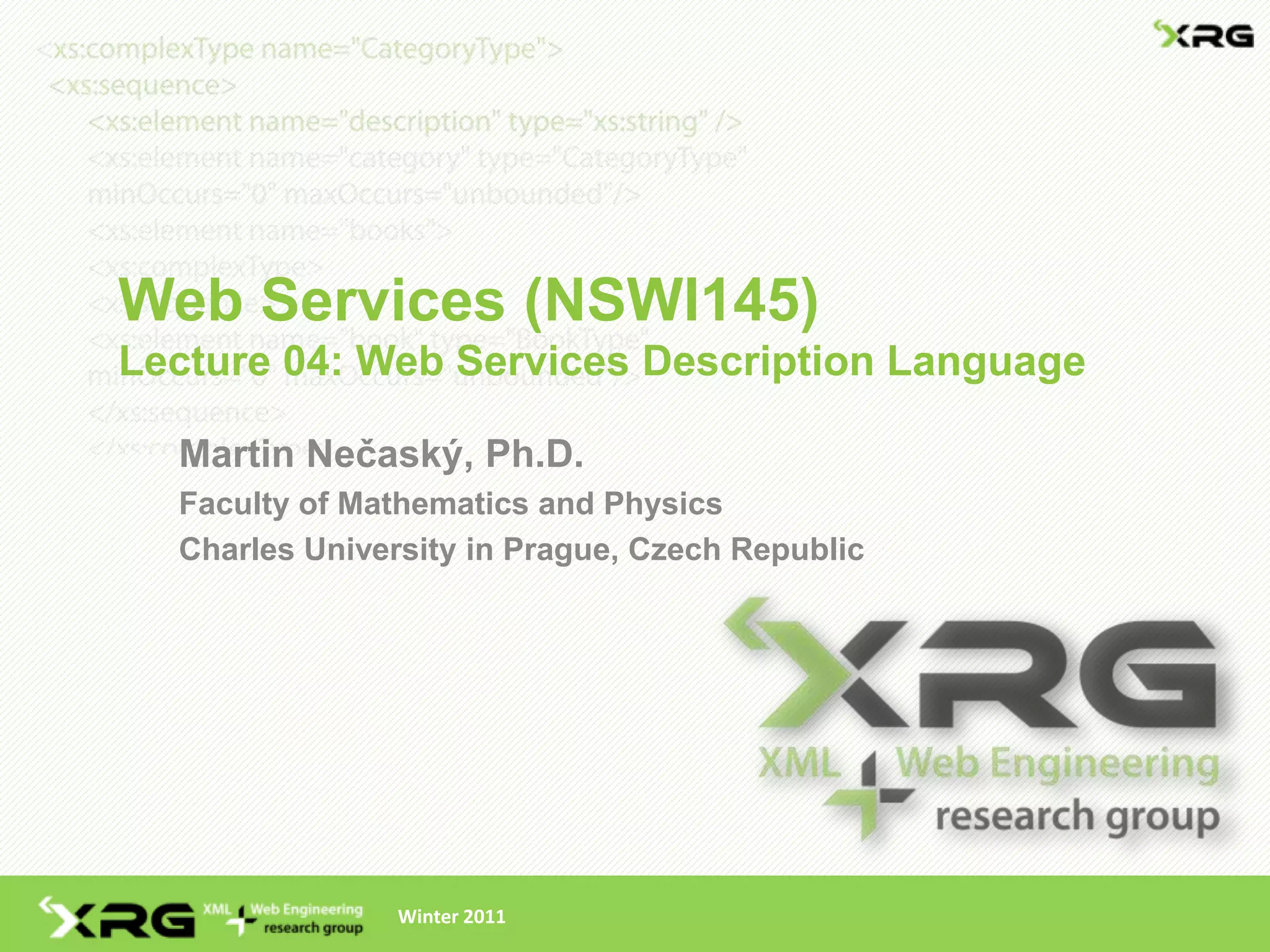

1. Web Services (NSWI145)
Lecture 04: Web Services Description Language
Martin Nečaský, Ph.D.
Faculty of Mathematics and Physics
Charles University in Prague, Czech Republic
Winter 2011

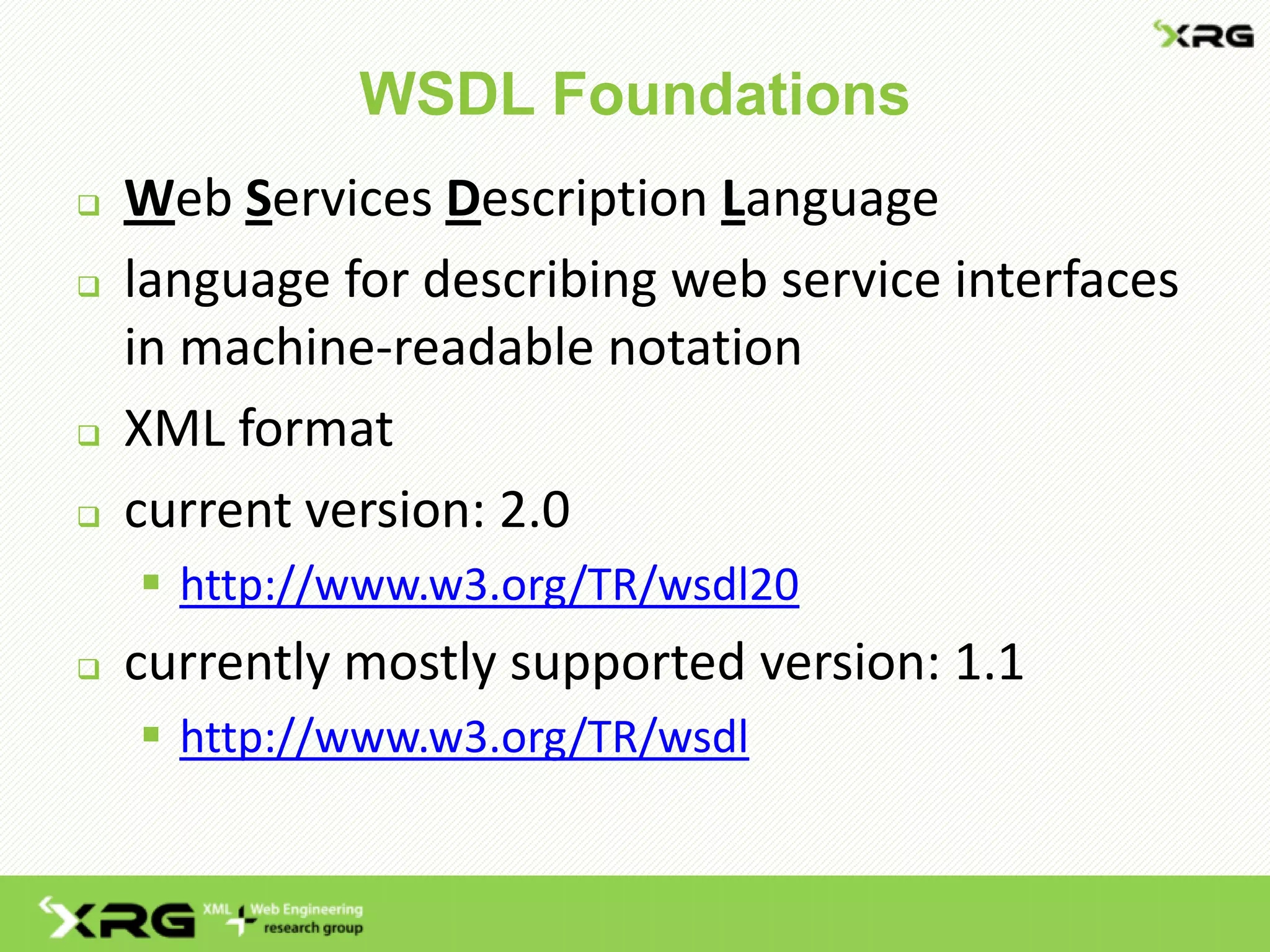

2. WSDL Foundations
 Web Services Description Language
 language for describing web service interfaces
in machine-readable notation
 XML format
 current version: 2.0
 http://www.w3.org/TR/wsdl20
 currently mostly supported version: 1.1
 http://www.w3.org/TR/wsdl

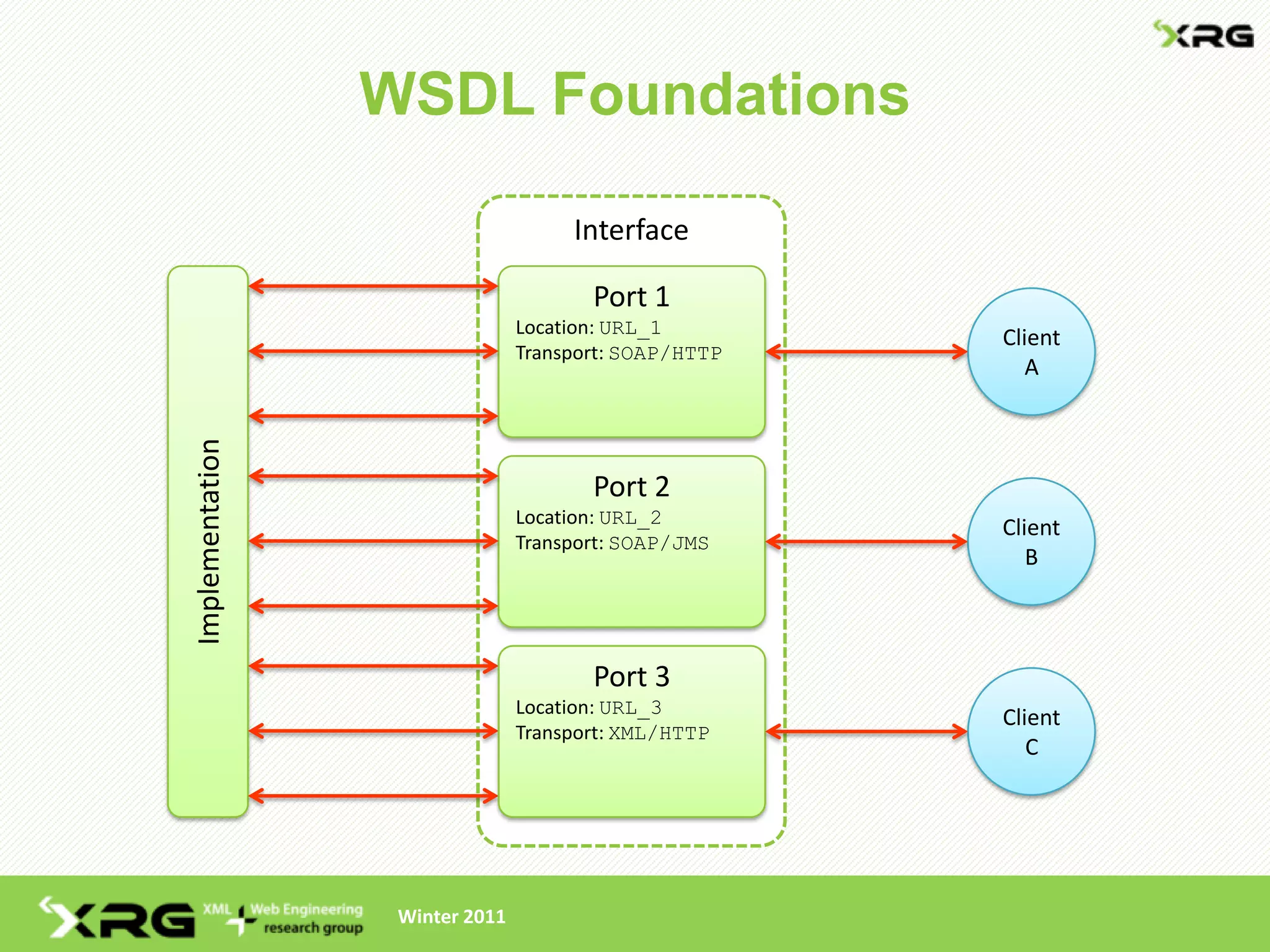

3. WSDL Foundations
Interface
Port 1
Location: URL_1
Client
Transport: SOAP/HTTP
A
Implementation
Port 2
Location: URL_2
Client
Transport: SOAP/JMS
B
Port 3
Location: URL_3
Client
Transport: XML/HTTP
C
Winter 2011

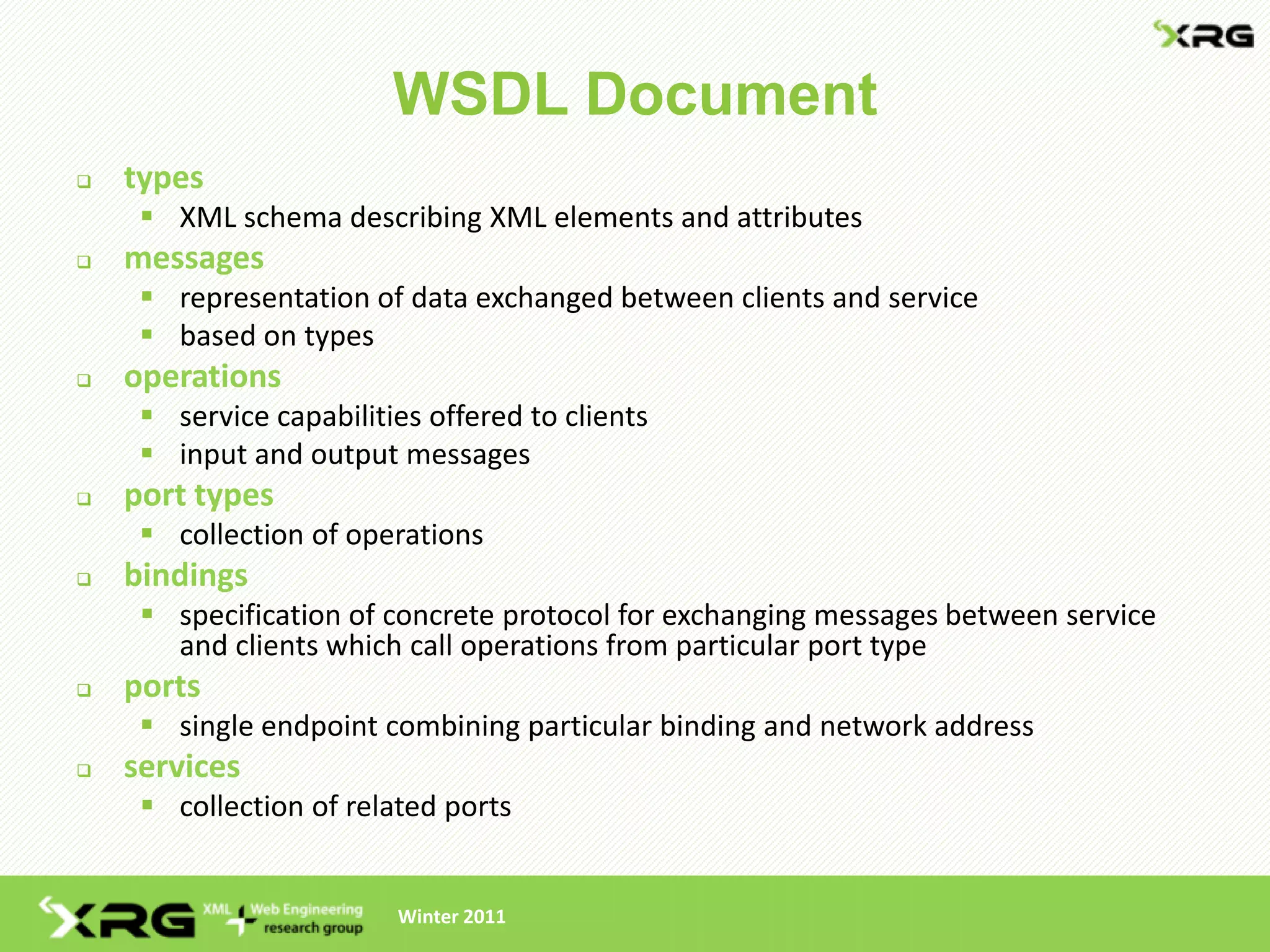

4. WSDL Document
 types
 XML schema describing XML elements and attributes
 messages
 representation of data exchanged between clients and service
 based on types
 operations
 service capabilities offered to clients
 input and output messages
 port types
 collection of operations
 bindings
 specification of concrete protocol for exchanging messages between service
and clients which call operations from particular port type
 ports
 single endpoint combining particular binding and network address
 services
 collection of related ports
Winter 2011

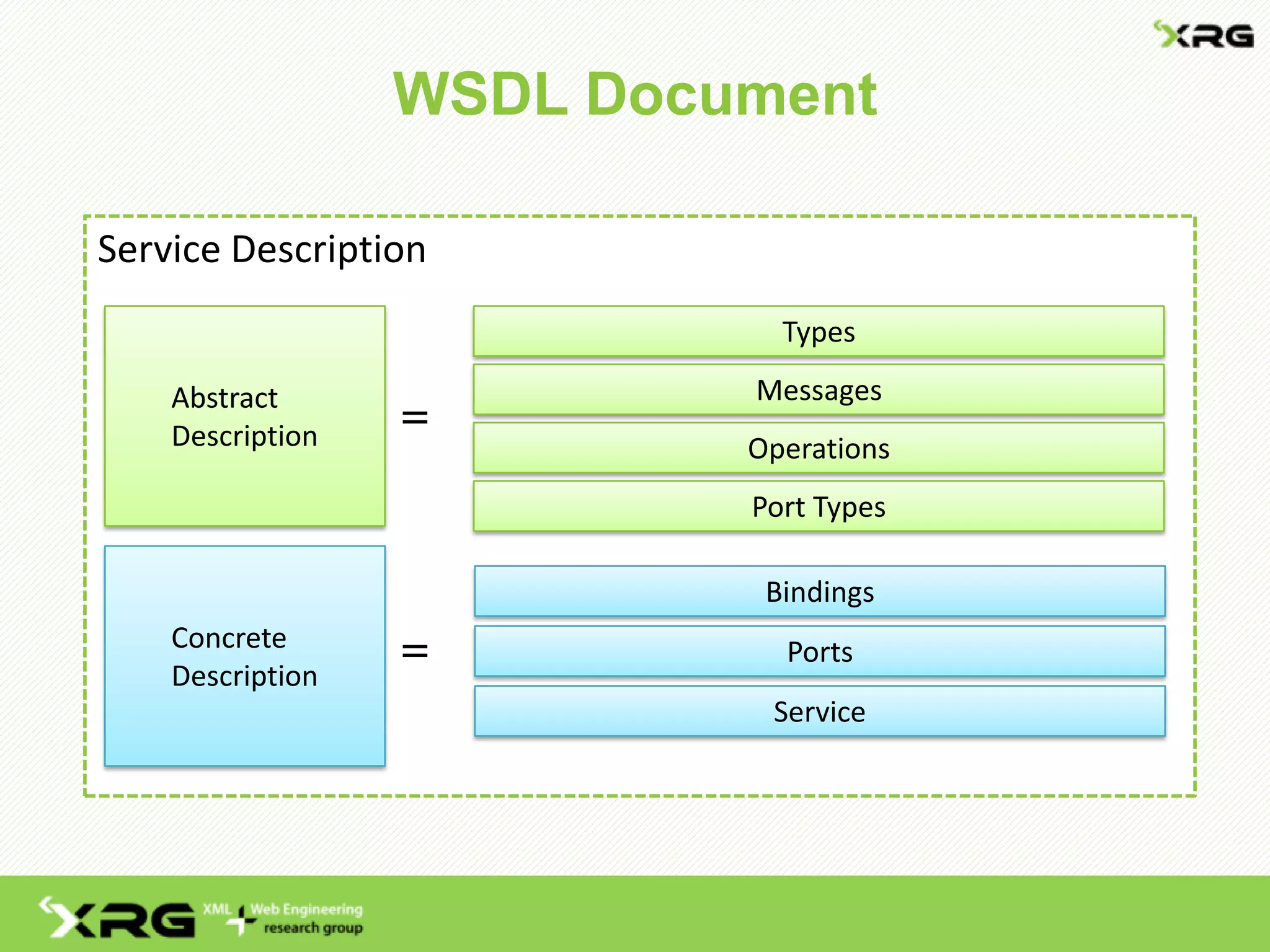

5. WSDL Document
Service Description
Types
Abstract Messages
Description =
Operations
Port Types
Bindings
Concrete
= Ports
Description
Service

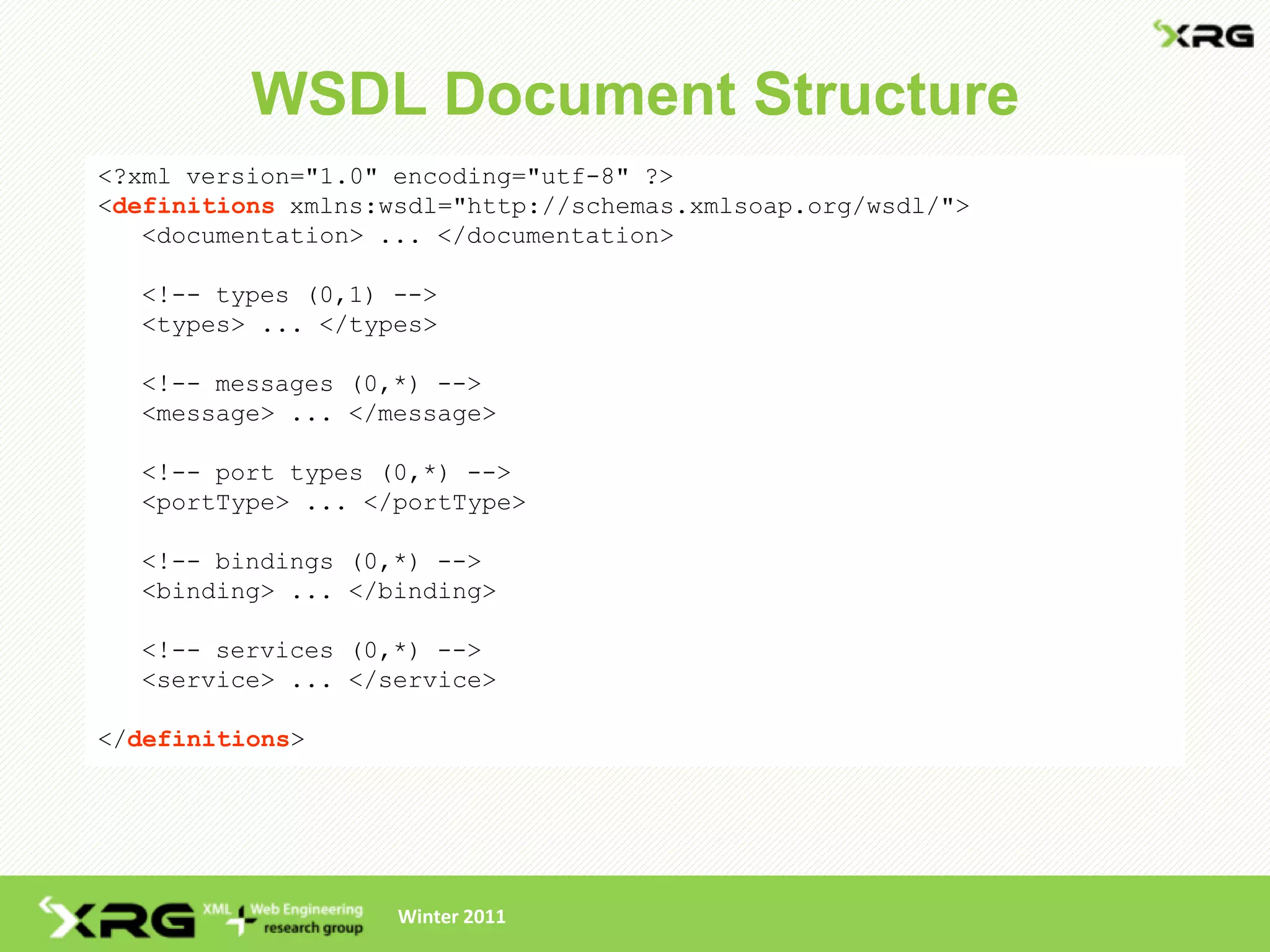

6. WSDL Document Structure
<?xml version="1.0" encoding="utf-8" ?>
<definitions xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/">
<documentation> ... </documentation>
<!-- types (0,1) -->
<types> ... </types>
<!-- messages (0,*) -->
<message> ... </message>
<!-- port types (0,*) -->
<portType> ... </portType>
<!-- bindings (0,*) -->
<binding> ... </binding>
<!-- services (0,*) -->
<service> ... </service>
</definitions>
Winter 2011

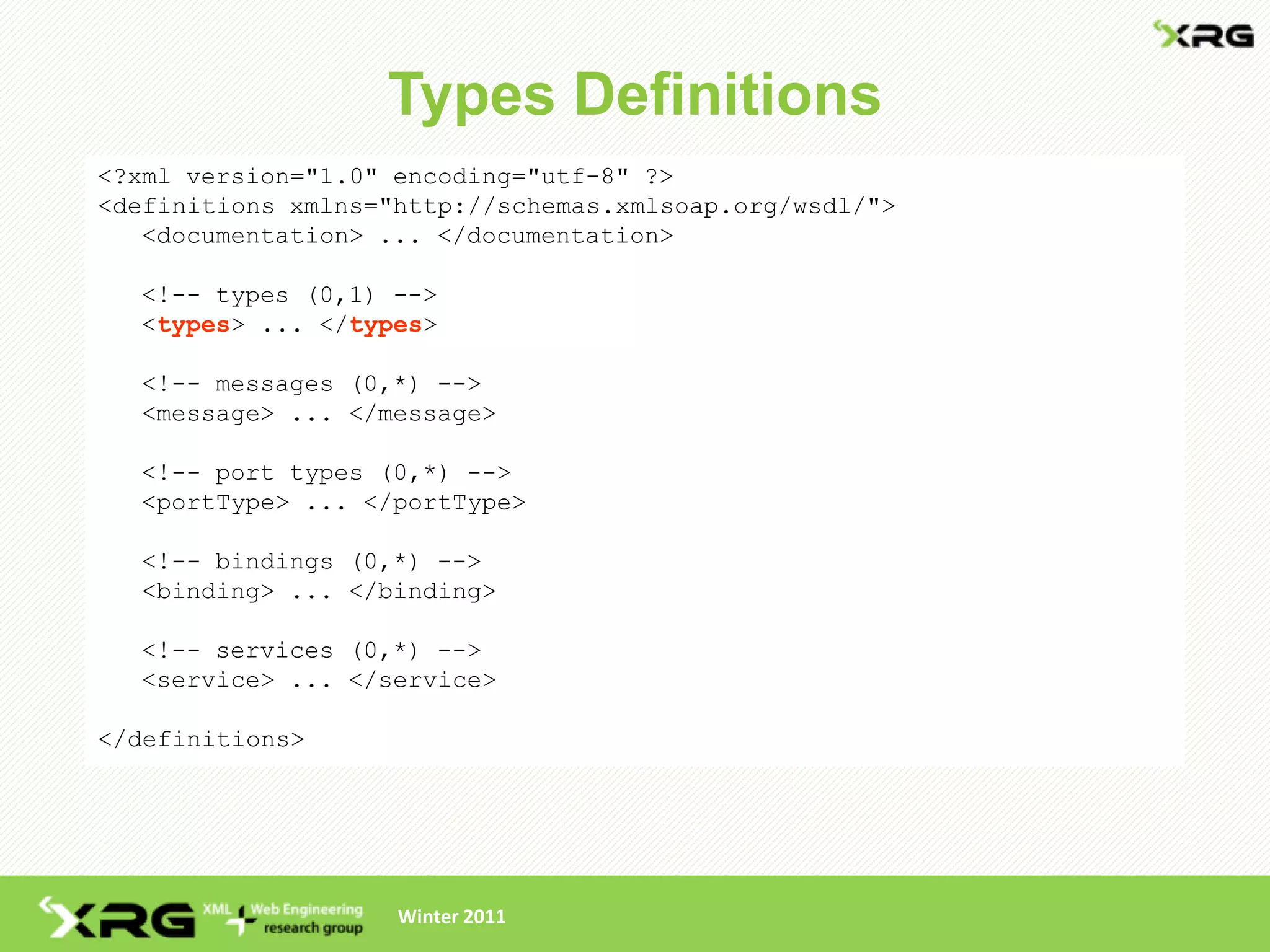

7. Types Definitions
<?xml version="1.0" encoding="utf-8" ?>
<definitions xmlns="http://schemas.xmlsoap.org/wsdl/">
<documentation> ... </documentation>
<!-- types (0,1) -->
<types> ... </types>
<!-- messages (0,*) -->
<message> ... </message>
<!-- port types (0,*) -->
<portType> ... </portType>
<!-- bindings (0,*) -->
<binding> ... </binding>
<!-- services (0,*) -->
<service> ... </service>
</definitions>
Winter 2011

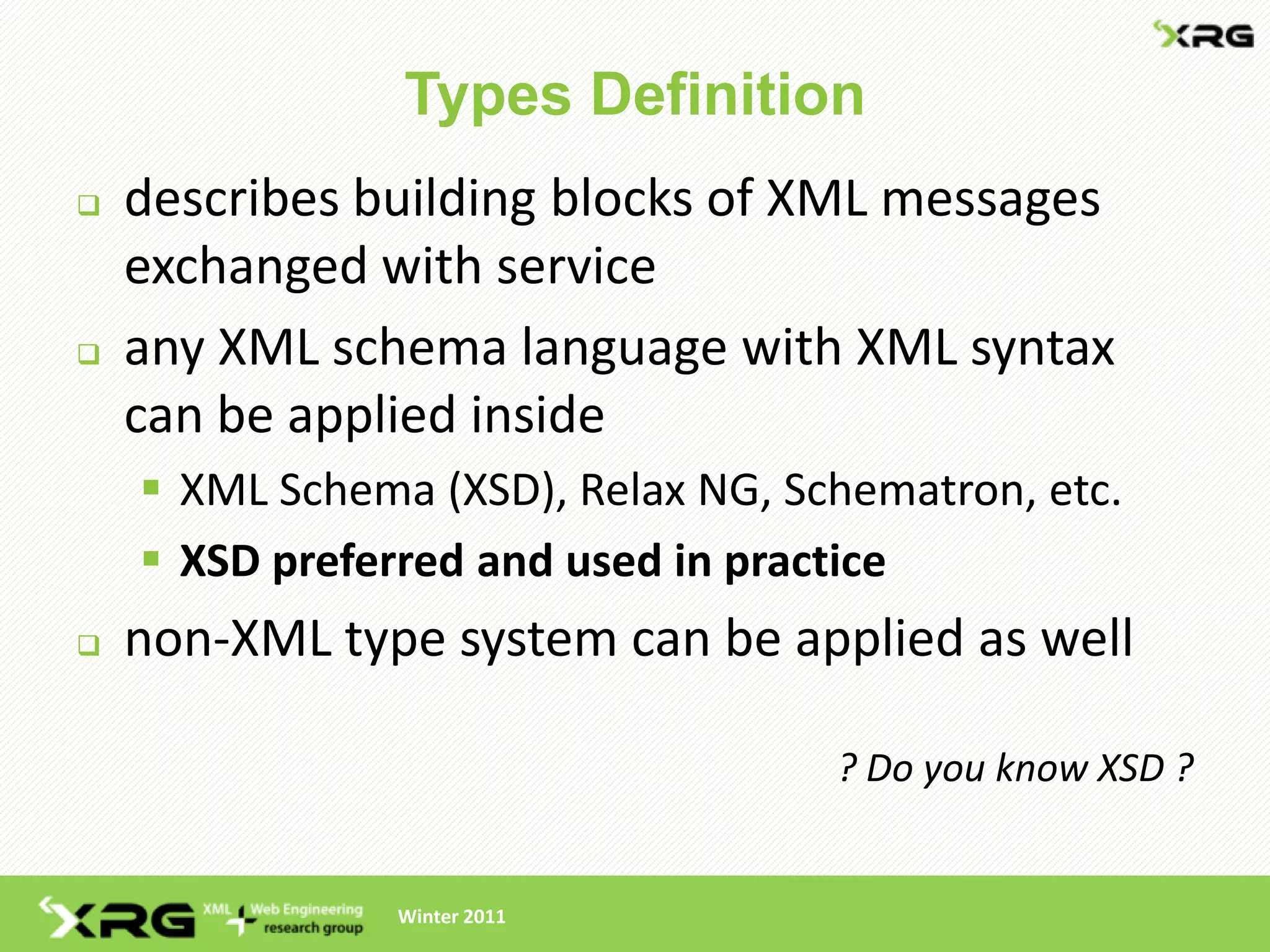

8. Types Definition
 describes building blocks of XML messages
exchanged with service
 any XML schema language with XML syntax
can be applied inside
 XML Schema (XSD), Relax NG, Schematron, etc.
 XSD preferred and used in practice
 non-XML type system can be applied as well
? Do you know XSD ?
Winter 2011

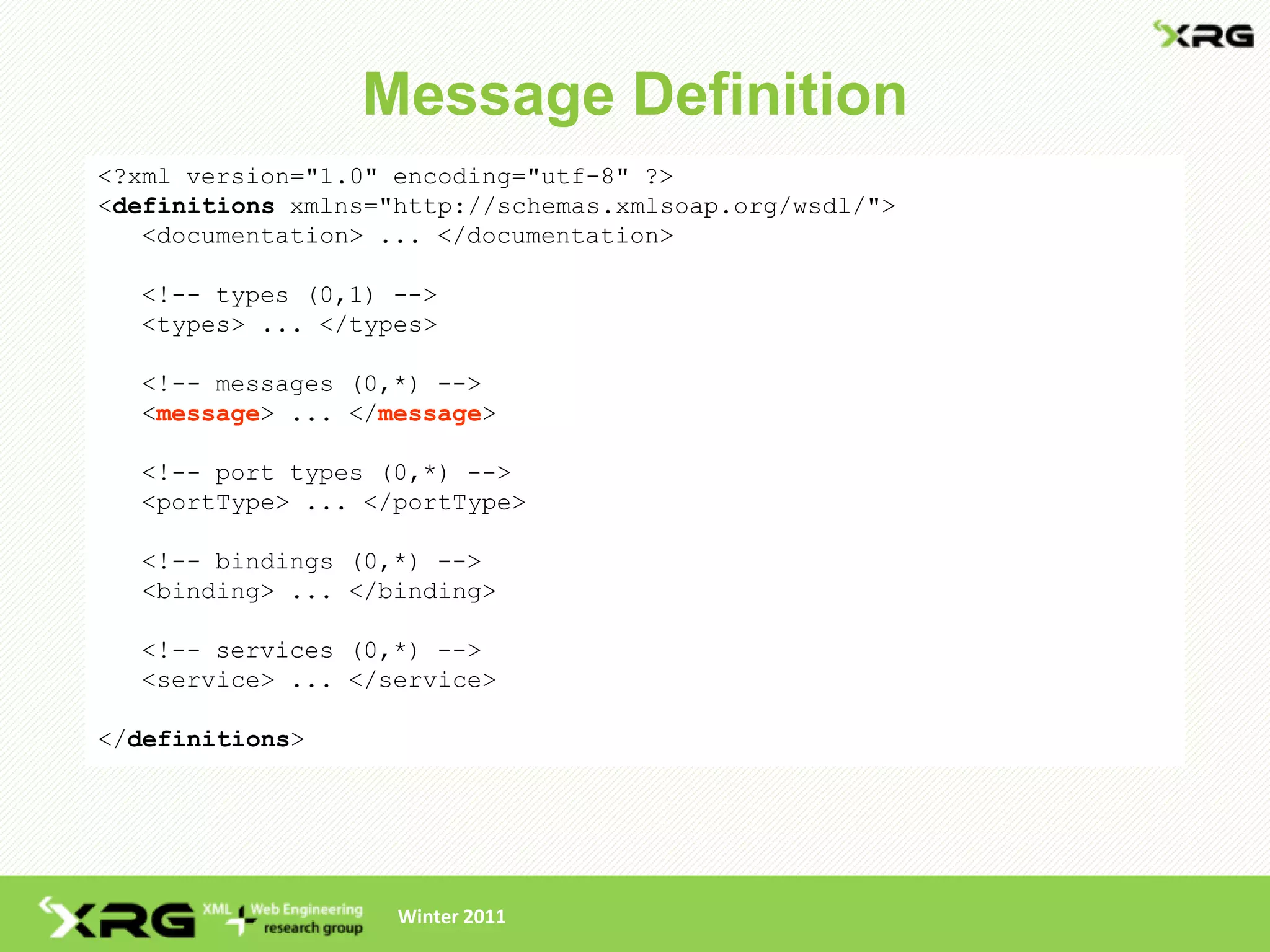

9. Message Definition
<?xml version="1.0" encoding="utf-8" ?>
<definitions xmlns="http://schemas.xmlsoap.org/wsdl/">
<documentation> ... </documentation>
<!-- types (0,1) -->
<types> ... </types>
<!-- messages (0,*) -->
<message> ... </message>
<!-- port types (0,*) -->
<portType> ... </portType>
<!-- bindings (0,*) -->
<binding> ... </binding>
<!-- services (0,*) -->
<service> ... </service>
</definitions>
Winter 2011

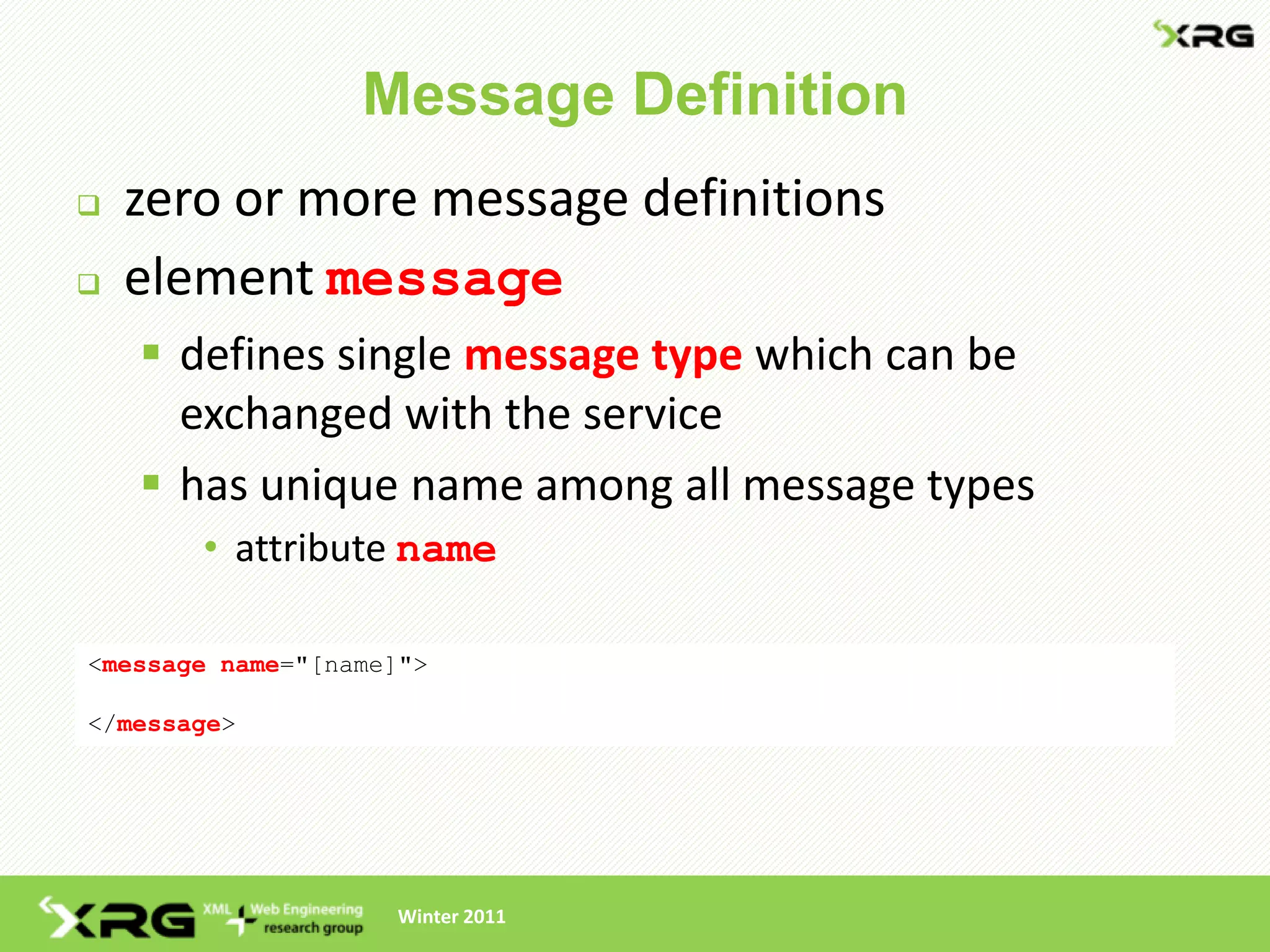

10. Message Definition
 zero or more message definitions
 element message
 defines single message type which can be
exchanged with the service
 has unique name among all message types
• attribute name
<message name="[name]">
</message>
Winter 2011

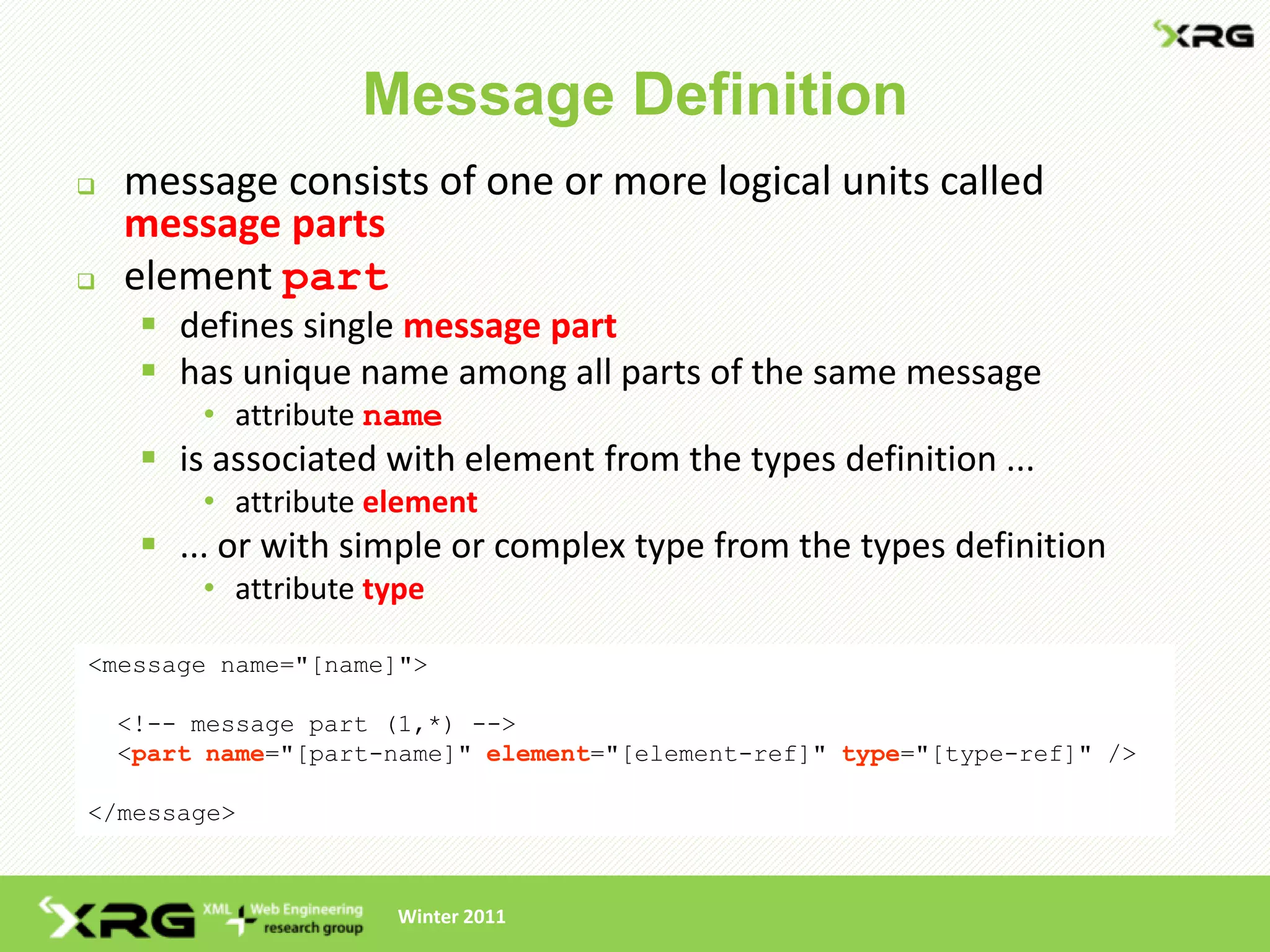

11. Message Definition
 message consists of one or more logical units called
message parts
 element part
 defines single message part
 has unique name among all parts of the same message
• attribute name
 is associated with element from the types definition ...
• attribute element
 ... or with simple or complex type from the types definition
• attribute type
<message name="[name]">
<!-- message part (1,*) -->
<part name="[part-name]" element="[element-ref]" type="[type-ref]" />
</message>
Winter 2011

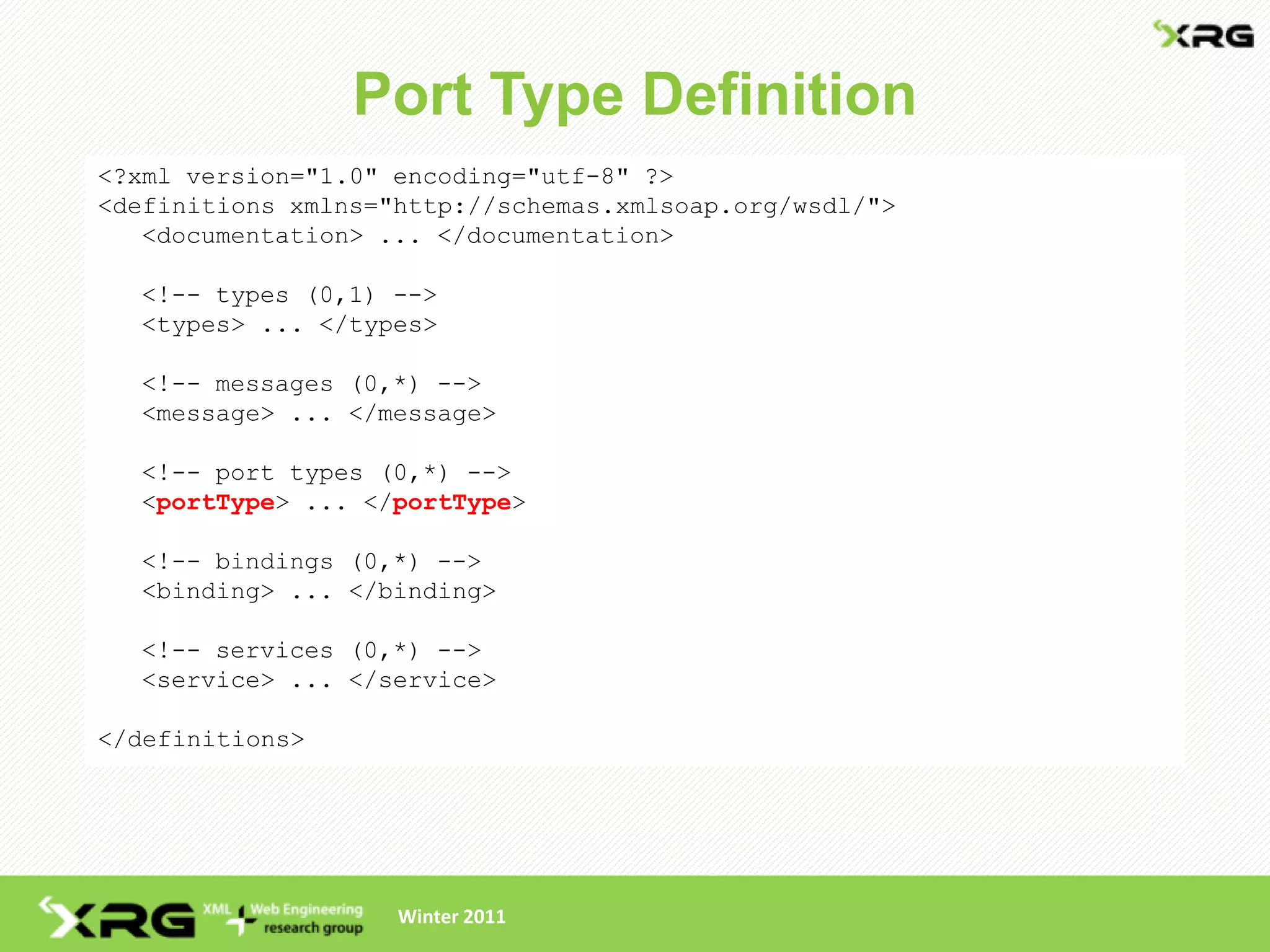

12. Port Type Definition
<?xml version="1.0" encoding="utf-8" ?>
<definitions xmlns="http://schemas.xmlsoap.org/wsdl/">
<documentation> ... </documentation>
<!-- types (0,1) -->
<types> ... </types>
<!-- messages (0,*) -->
<message> ... </message>
<!-- port types (0,*) -->
<portType> ... </portType>
<!-- bindings (0,*) -->
<binding> ... </binding>
<!-- services (0,*) -->
<service> ... </service>
</definitions>
Winter 2011

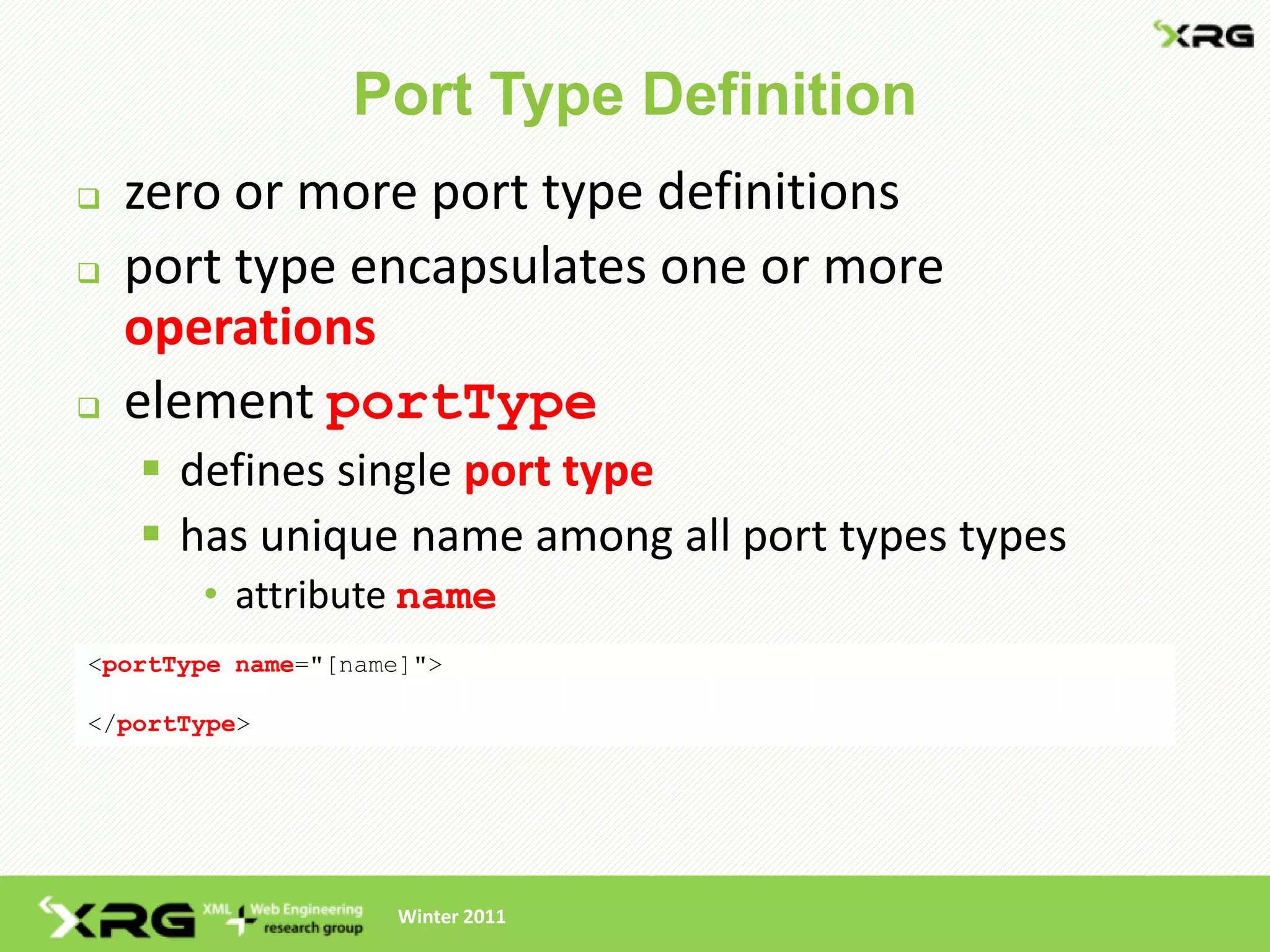

13. Port Type Definition
 zero or more port type definitions
 port type encapsulates one or more
operations
 element portType
 defines single port type
 has unique name among all port types types
• attribute name
<portType name="[name]">
</portType>
Winter 2011

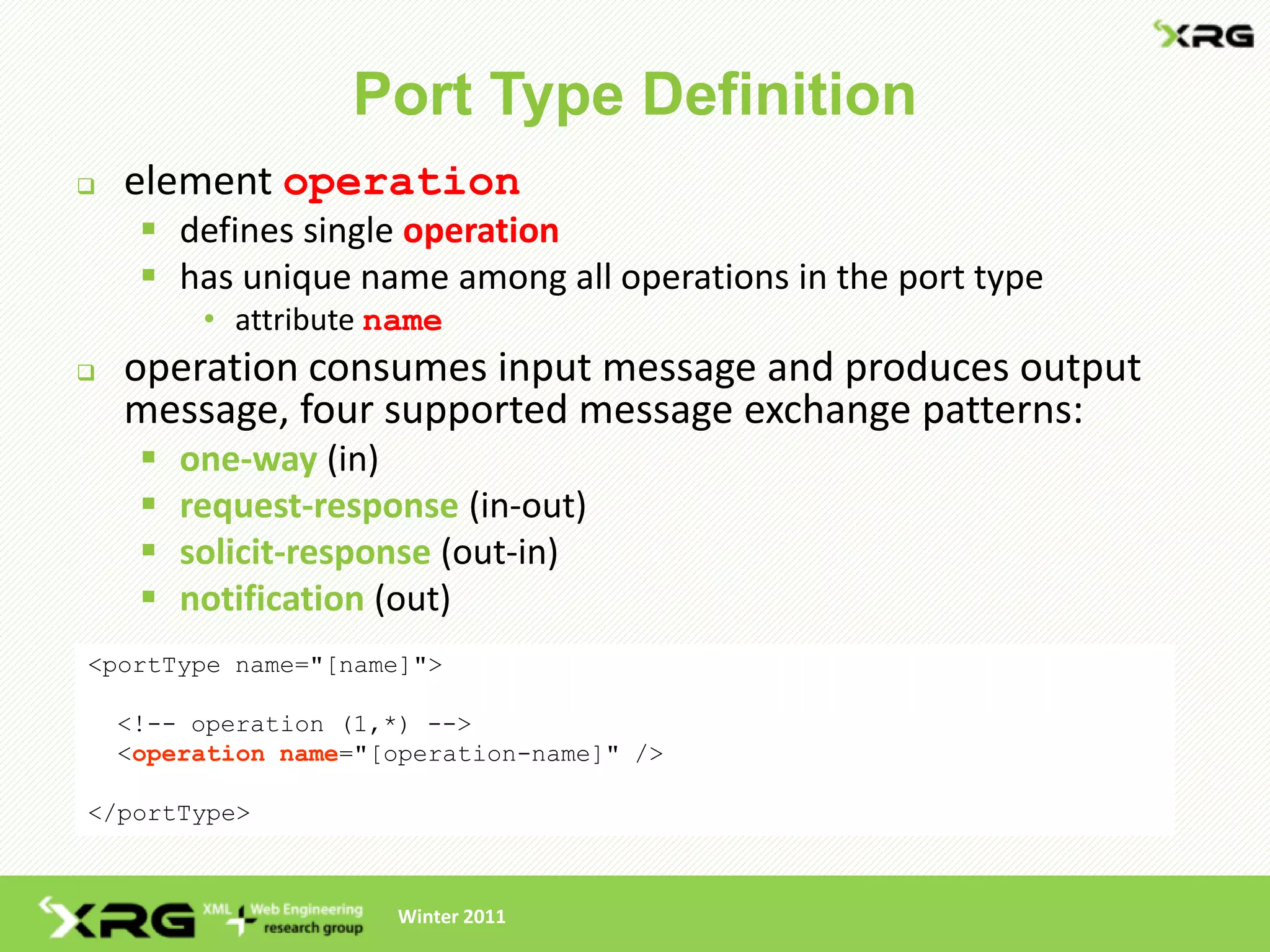

14. Port Type Definition
 element operation
 defines single operation
 has unique name among all operations in the port type
• attribute name
 operation consumes input message and produces output
message, four supported message exchange patterns:
 one-way (in)
 request-response (in-out)
 solicit-response (out-in)
 notification (out)
<portType name="[name]">
<!-- operation (1,*) -->
<operation name="[operation-name]" />
</portType>
Winter 2011

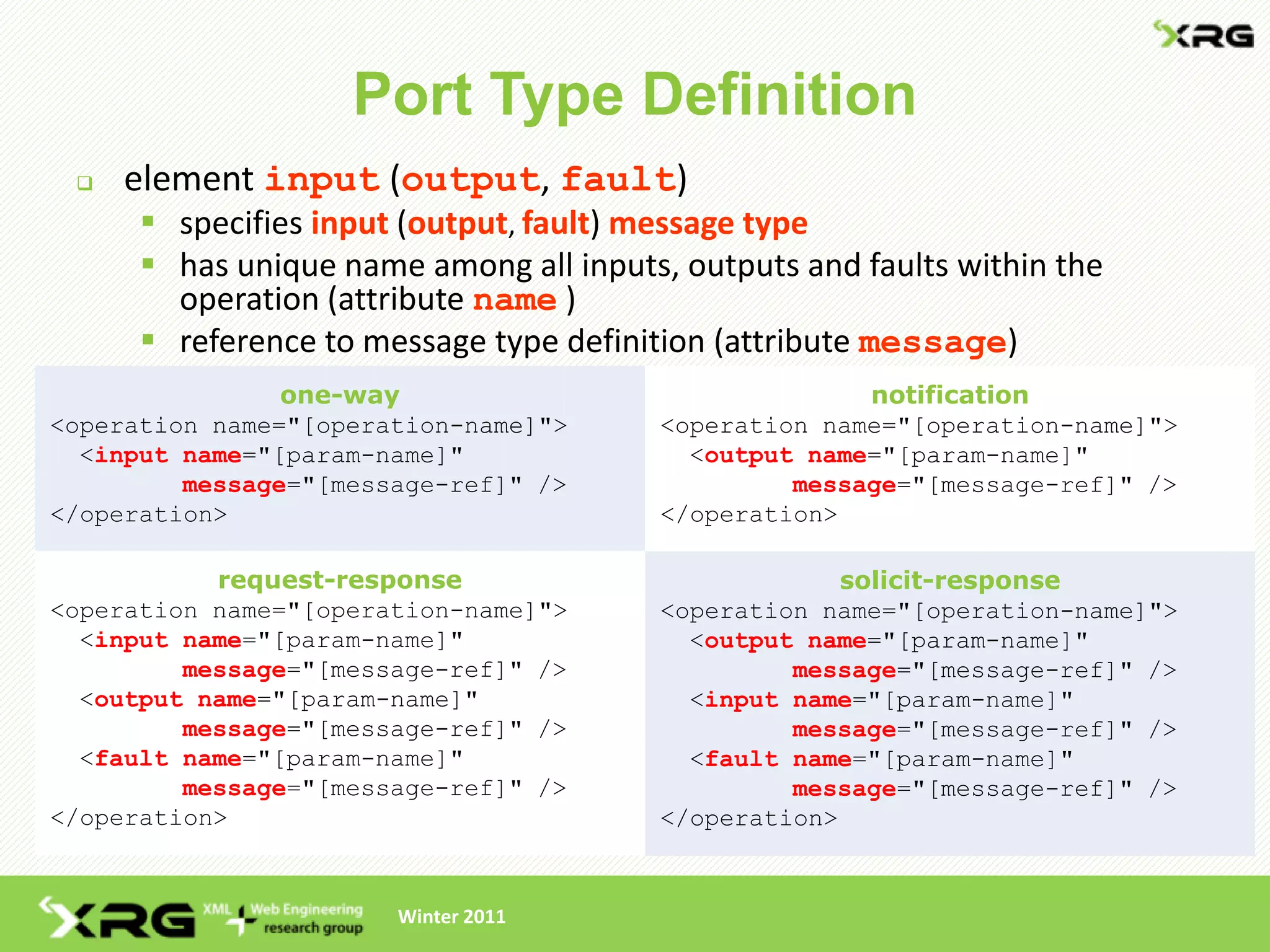

15. Port Type Definition
 element input (output, fault)
 specifies input (output, fault) message type
 has unique name among all inputs, outputs and faults within the
operation (attribute name )
 reference to message type definition (attribute message)
one-way notification
<operation name="[operation-name]"> <operation name="[operation-name]">
<input name="[param-name]" <output name="[param-name]"
message="[message-ref]" /> message="[message-ref]" />
</operation> </operation>
request-response solicit-response
<operation name="[operation-name]"> <operation name="[operation-name]">
<input name="[param-name]" <output name="[param-name]"
message="[message-ref]" /> message="[message-ref]" />
<output name="[param-name]" <input name="[param-name]"
message="[message-ref]" /> message="[message-ref]" />
<fault name="[param-name]" <fault name="[param-name]"
message="[message-ref]" /> message="[message-ref]" />
</operation> </operation>
Winter 2011

16. Binding Definition
<?xml version="1.0" encoding="utf-8" ?>
<definitions xmlns="http://schemas.xmlsoap.org/wsdl/">
<documentation> ... </documentation>
<!-- types (0,1) -->
<types> ... </types>
<!-- messages (0,*) -->
<message> ... </message>
<!-- port types (0,*) -->
<portType> ... </portType>
<!-- bindings (0,*) -->
<binding> ... </binding>
<!-- services (0,*) -->
<service> ... </service>
</definitions>
Winter 2011

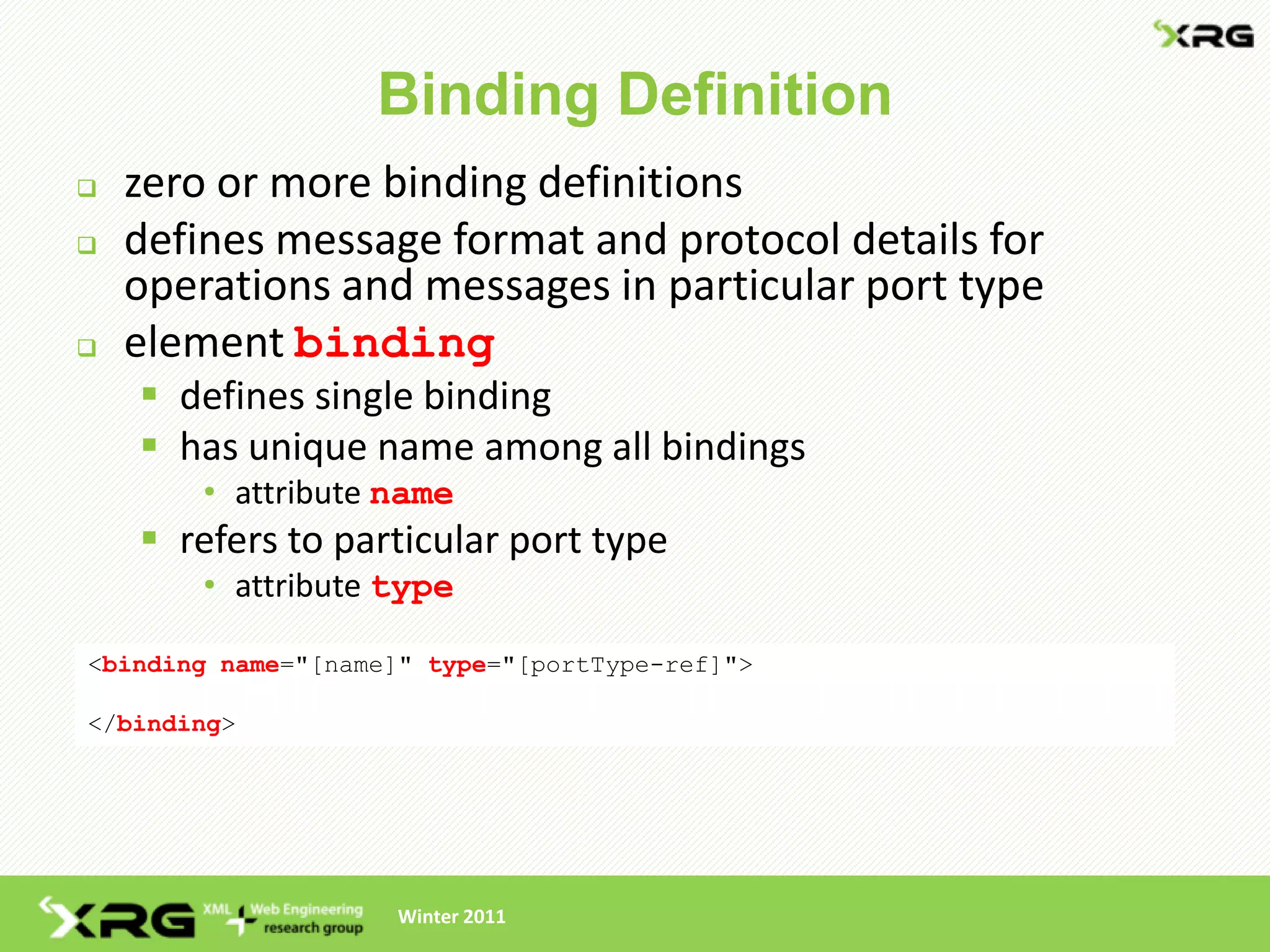

17. Binding Definition
 zero or more binding definitions
 defines message format and protocol details for
operations and messages in particular port type
 element binding
 defines single binding
 has unique name among all bindings
• attribute name
 refers to particular port type
• attribute type
<binding name="[name]" type="[portType-ref]">
</binding>
Winter 2011

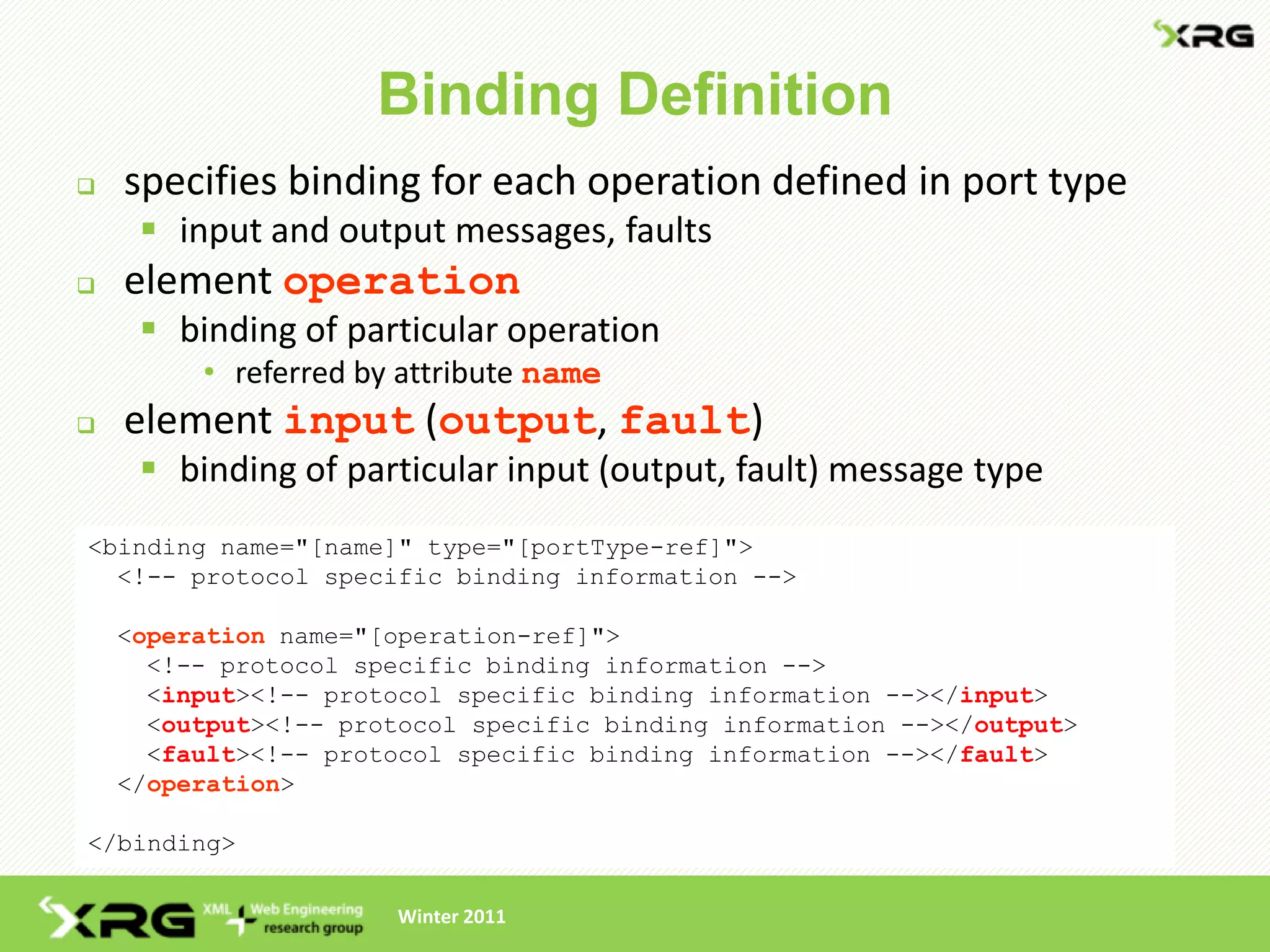

18. Binding Definition
 specifies binding for each operation defined in port type
 input and output messages, faults
 element operation
 binding of particular operation
• referred by attribute name
 element input (output, fault)
 binding of particular input (output, fault) message type
<binding name="[name]" type="[portType-ref]">
<!-- protocol specific binding information -->
<operation name="[operation-ref]">
<!-- protocol specific binding information -->
<input><!-- protocol specific binding information --></input>
<output><!-- protocol specific binding information --></output>
<fault><!-- protocol specific binding information --></fault>
</operation>
</binding>
Winter 2011

19. Service Definition

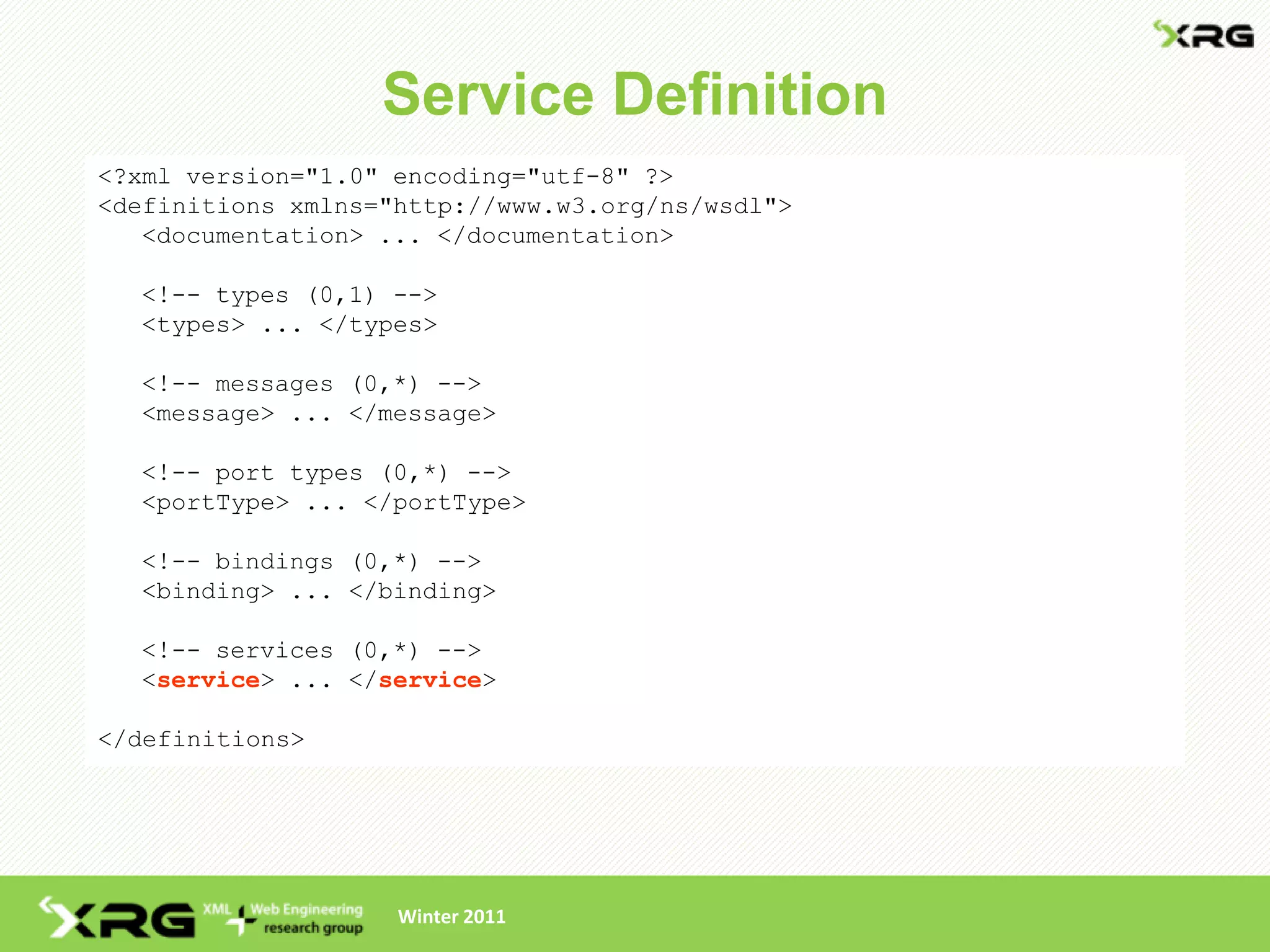

<?xml version="1.0" encoding="utf-8" ?>
<definitions xmlns="http://www.w3.org/ns/wsdl">
<documentation> ... </documentation>
<!-- types (0,1) -->
<types> ... </types>
<!-- messages (0,*) -->
<message> ... </message>
<!-- port types (0,*) -->
<portType> ... </portType>
<!-- bindings (0,*) -->
<binding> ... </binding>
<!-- services (0,*) -->
<service> ... </service>
</definitions>
Winter 2011

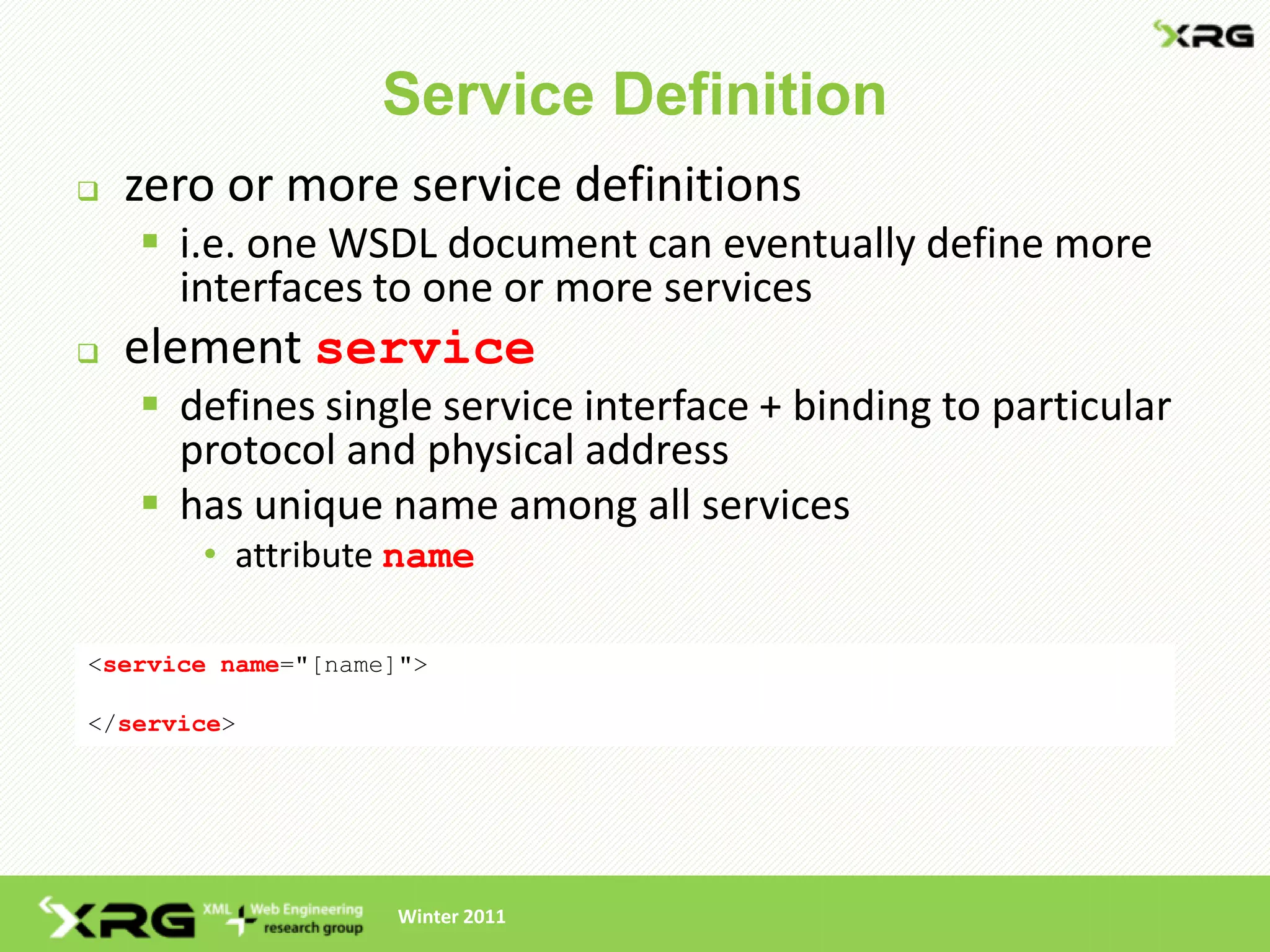

20. Service Definition
 zero or more service definitions
 i.e. one WSDL document can eventually define more
interfaces to one or more services
 element service
 defines single service interface + binding to particular
protocol and physical address
 has unique name among all services
• attribute name
<service name="[name]">
</service>
Winter 2011

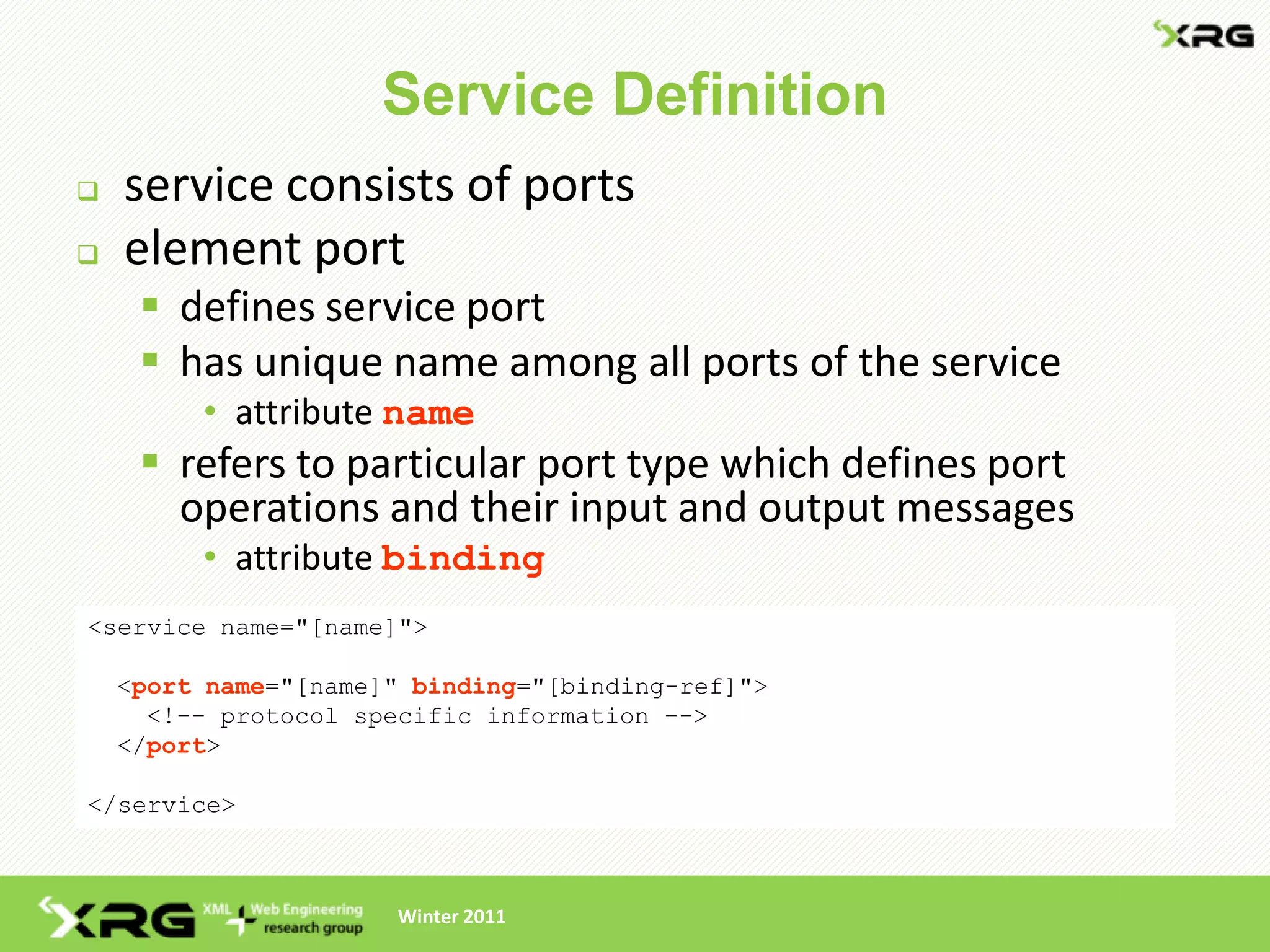

21. Service Definition
 service consists of ports
 element port
 defines service port
 has unique name among all ports of the service
• attribute name
 refers to particular port type which defines port
operations and their input and output messages
• attribute binding
<service name="[name]">
<port name="[name]" binding="[binding-ref]">
<!-- protocol specific information -->
</port>
</service>
Winter 2011

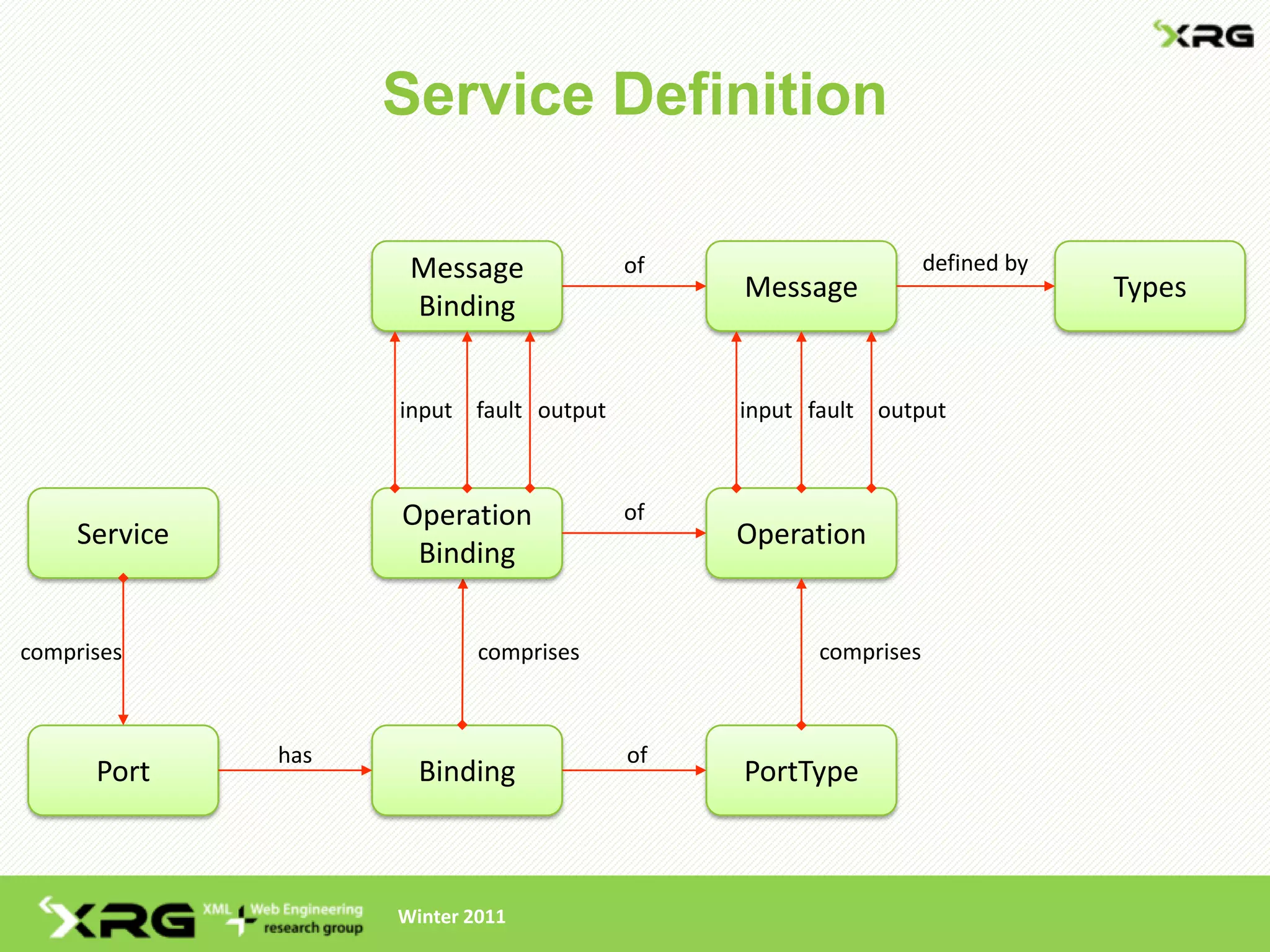

22. Service Definition
Message of defined by
Message Types
Binding
input fault output input fault output
Operation of
Service Operation
Binding
comprises comprises comprises
has of
Port Binding PortType
Winter 2011

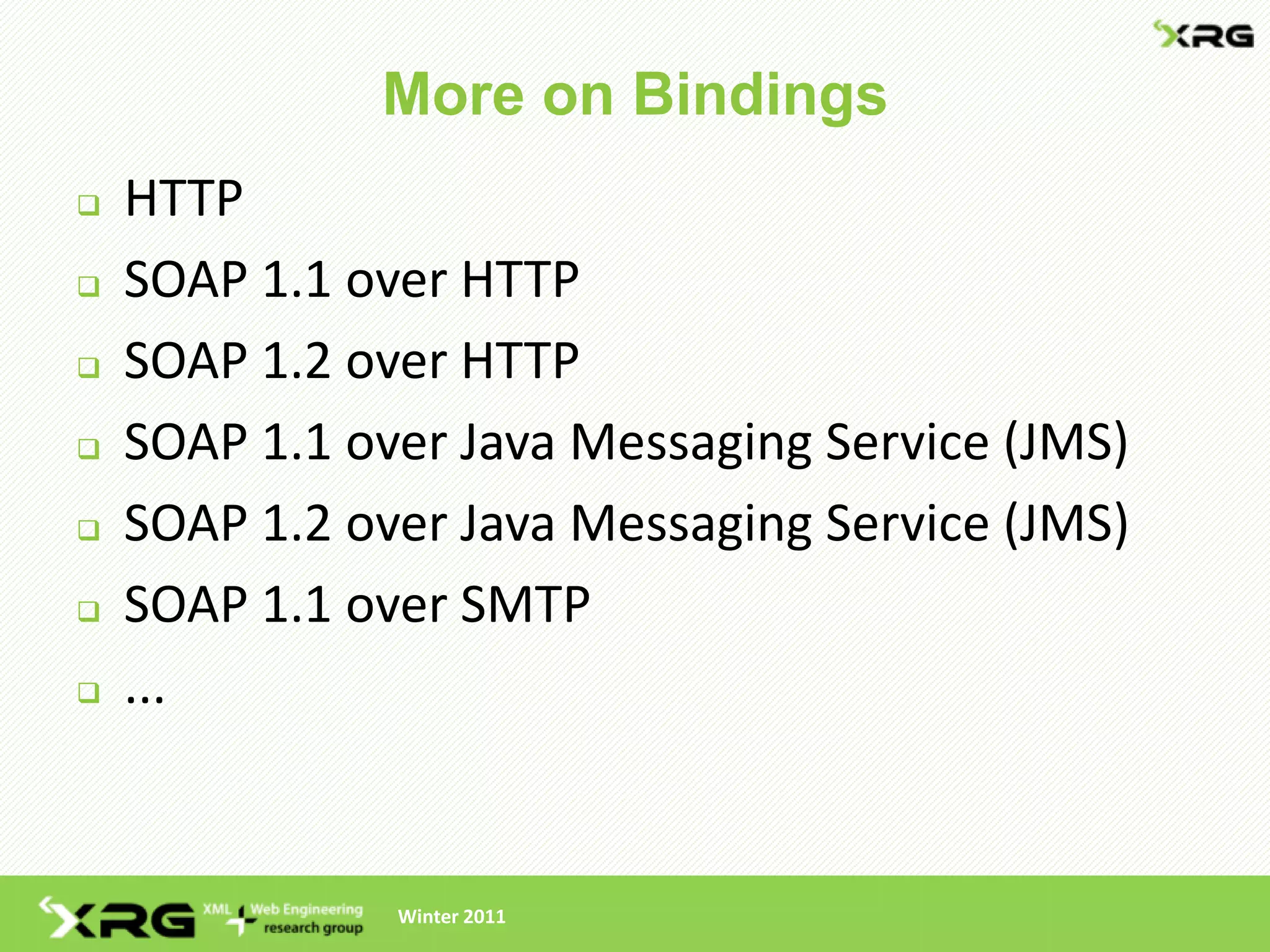

23. More on Bindings
 HTTP
 SOAP 1.1 over HTTP
 SOAP 1.2 over HTTP
 SOAP 1.1 over Java Messaging Service (JMS)
 SOAP 1.2 over Java Messaging Service (JMS)
 SOAP 1.1 over SMTP
 ...
Winter 2011

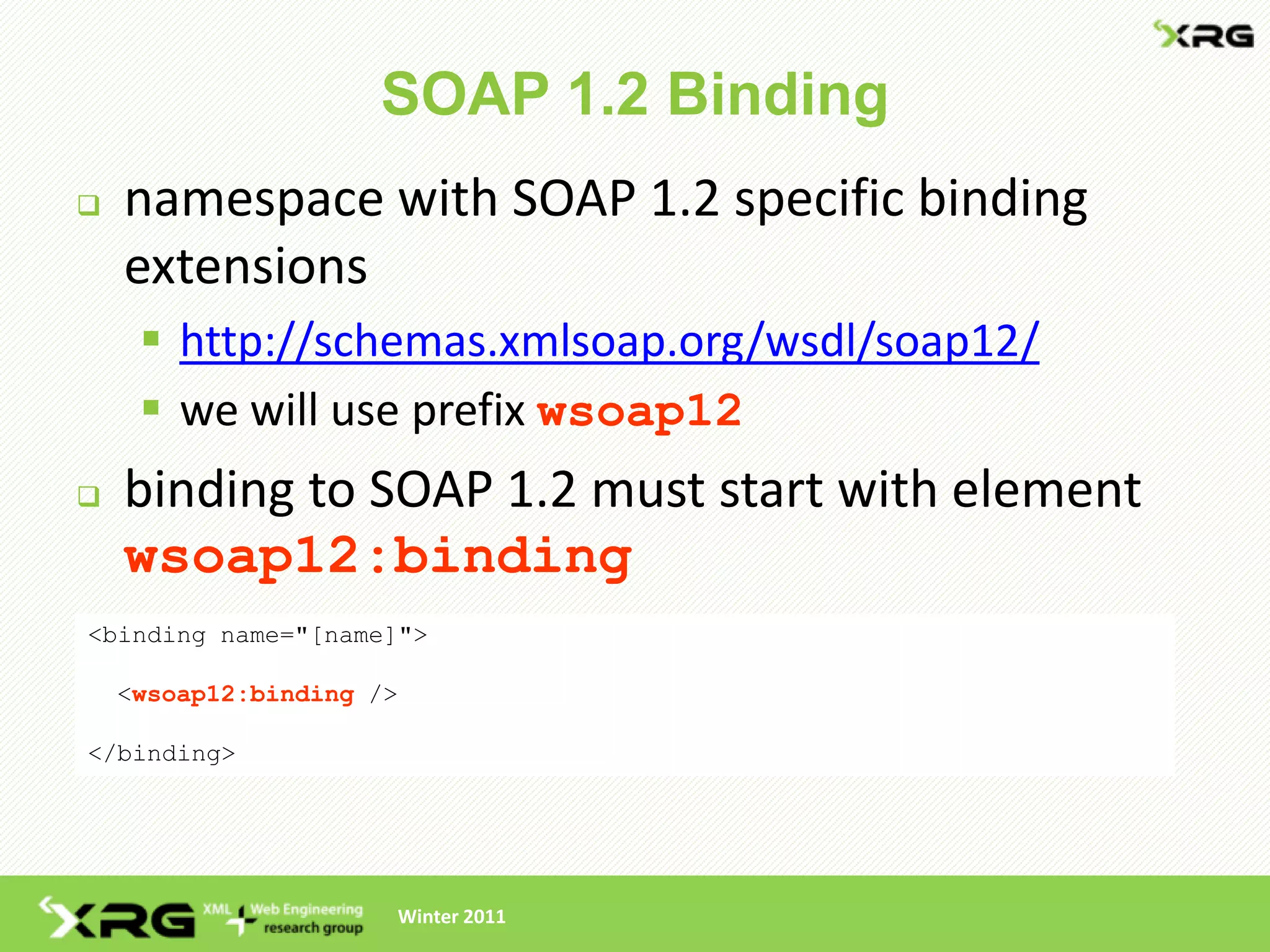

24. SOAP 1.2 Binding
 namespace with SOAP 1.2 specific binding
extensions
 http://schemas.xmlsoap.org/wsdl/soap12/
 we will use prefix wsoap12
 binding to SOAP 1.2 must start with element
wsoap12:binding
<binding name="[name]">
<wsoap12:binding />
</binding>
Winter 2011

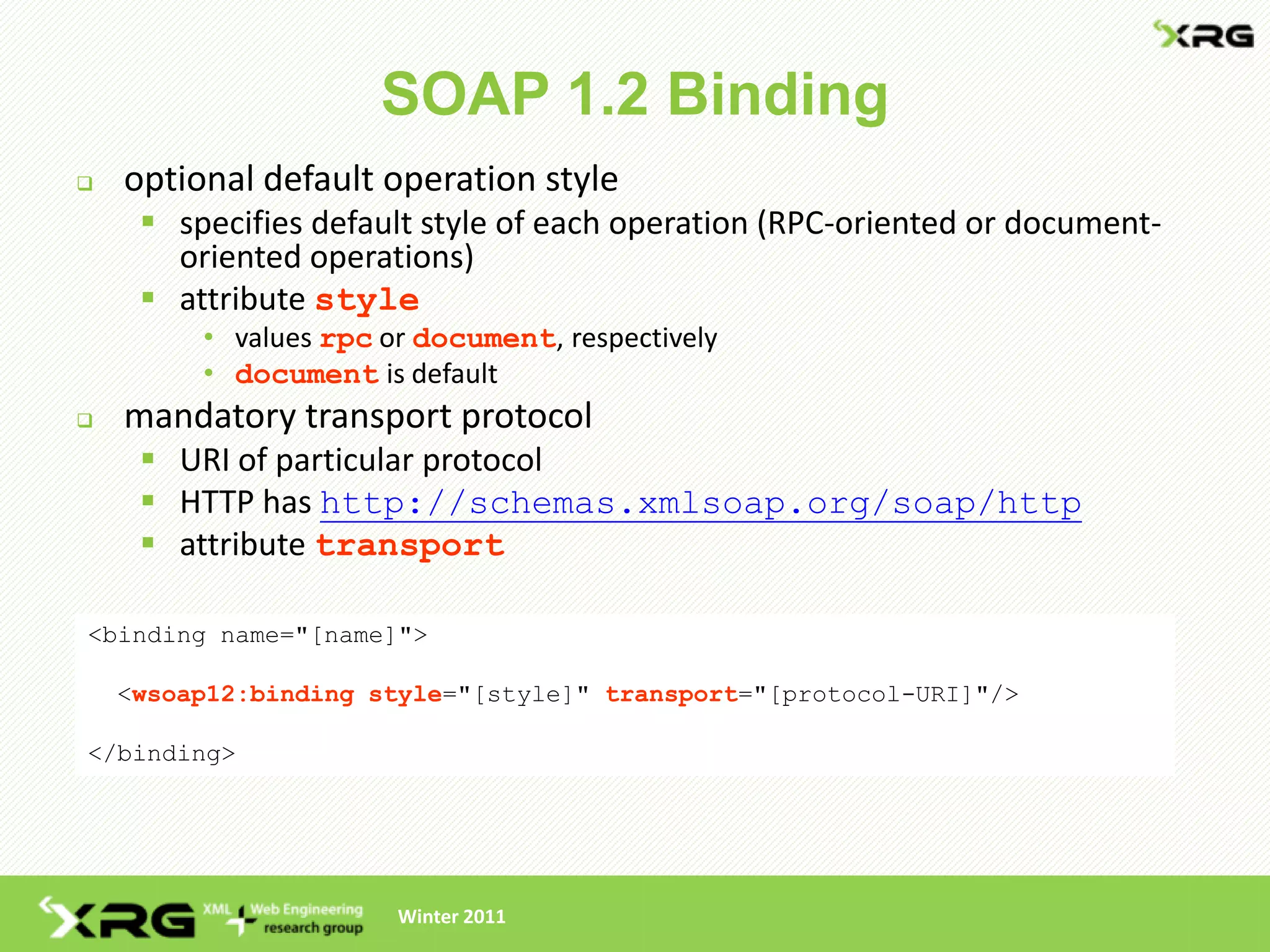

25. SOAP 1.2 Binding
 optional default operation style
 specifies default style of each operation (RPC-oriented or document-
oriented operations)
 attribute style
• values rpc or document, respectively
• document is default
 mandatory transport protocol
 URI of particular protocol
 HTTP has http://schemas.xmlsoap.org/soap/http
 attribute transport
<binding name="[name]">
<wsoap12:binding style="[style]" transport="[protocol-URI]"/>
</binding>
Winter 2011

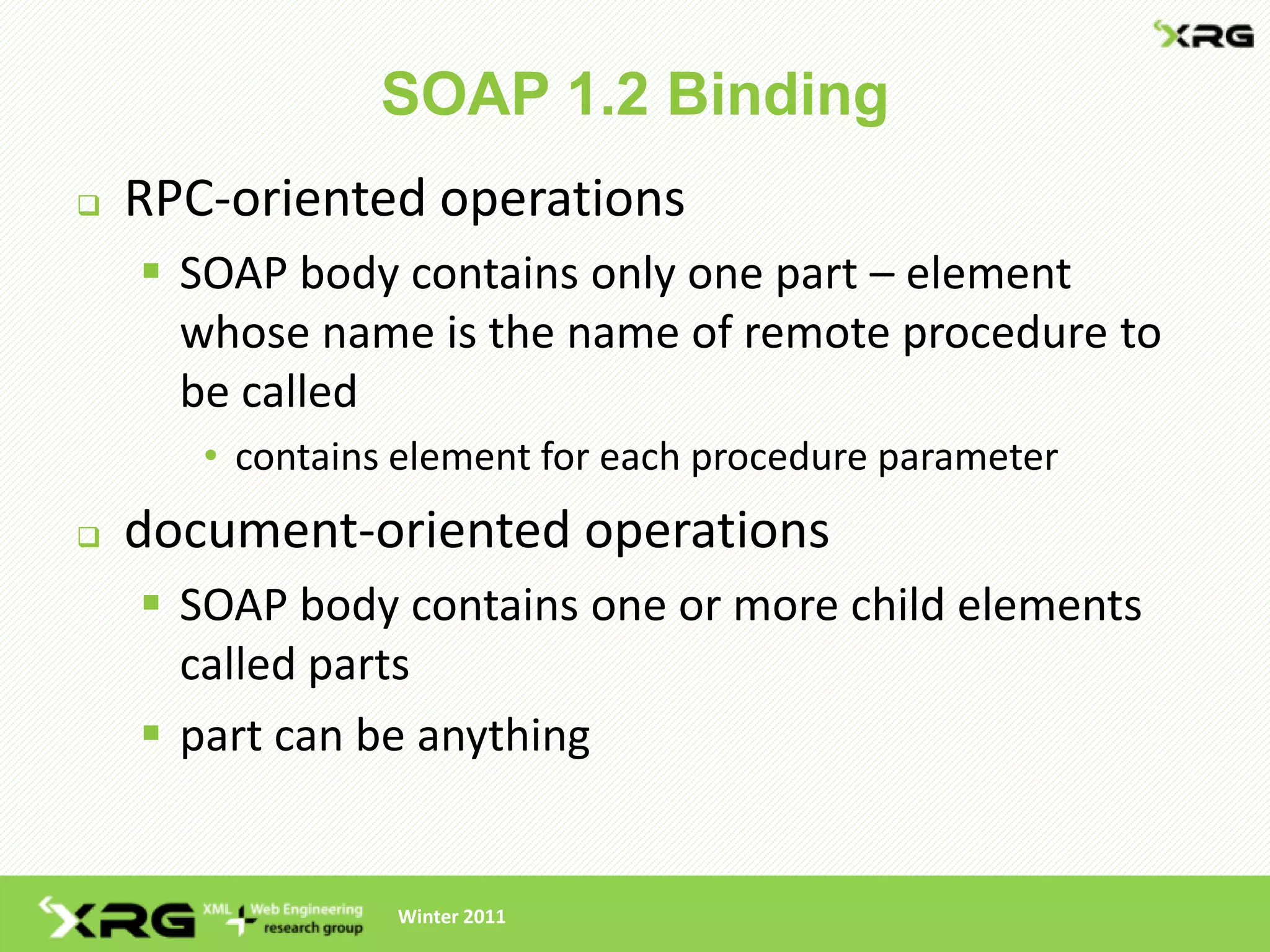

26. SOAP 1.2 Binding
 RPC-oriented operations
 SOAP body contains only one part – element
whose name is the name of remote procedure to
be called
• contains element for each procedure parameter
 document-oriented operations
 SOAP body contains one or more child elements
called parts
 part can be anything
Winter 2011

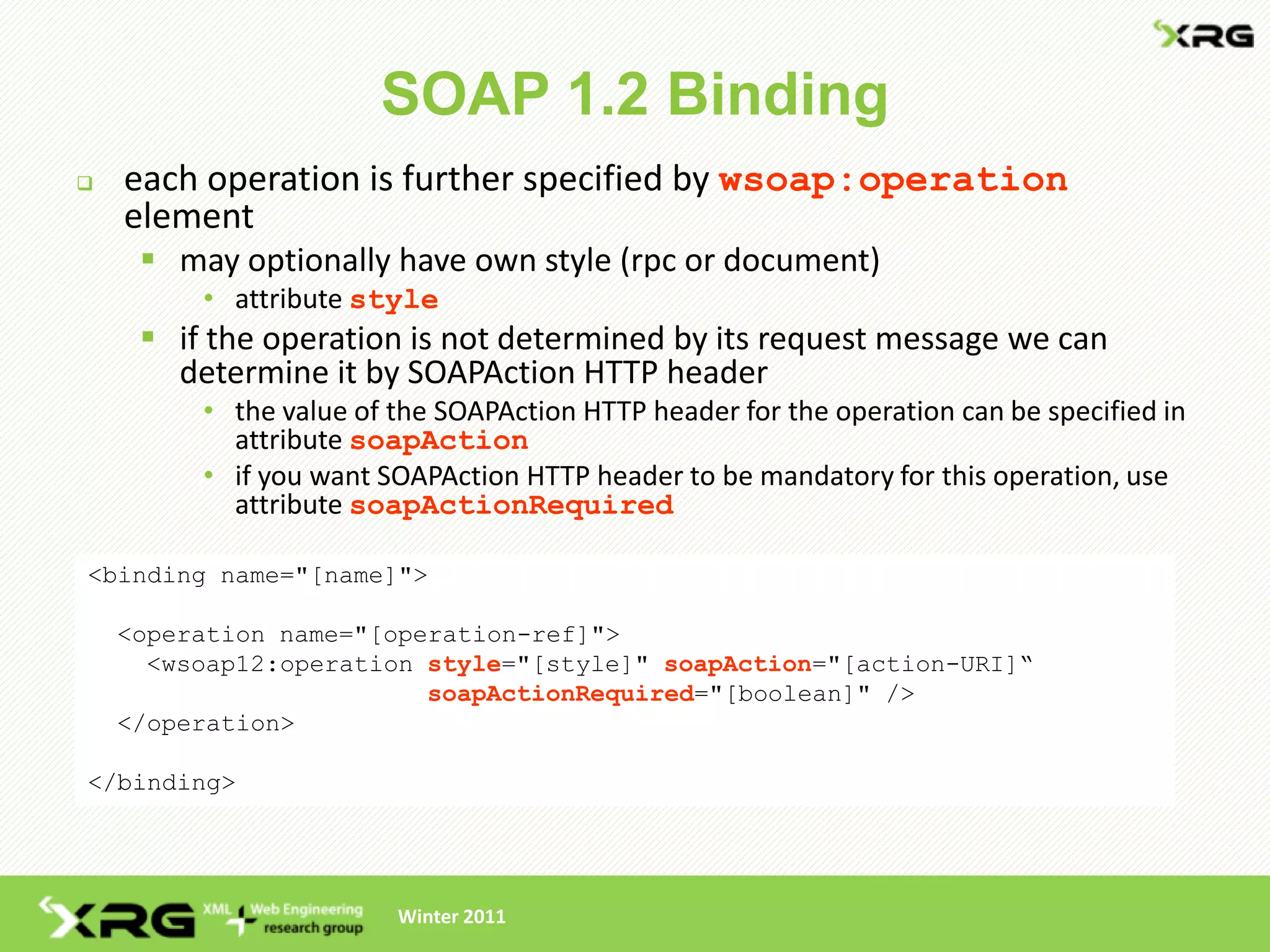

27. SOAP 1.2 Binding
 each operation is further specified by wsoap:operation
element
 may optionally have own style (rpc or document)
• attribute style
 if the operation is not determined by its request message we can
determine it by SOAPAction HTTP header
• the value of the SOAPAction HTTP header for the operation can be specified in
attribute soapAction
• if you want SOAPAction HTTP header to be mandatory for this operation, use
attribute soapActionRequired
<binding name="[name]">
<operation name="[operation-ref]">
<wsoap12:operation style="[style]" soapAction="[action-URI]“
soapActionRequired="[boolean]" />
</operation>
</binding>
Winter 2011

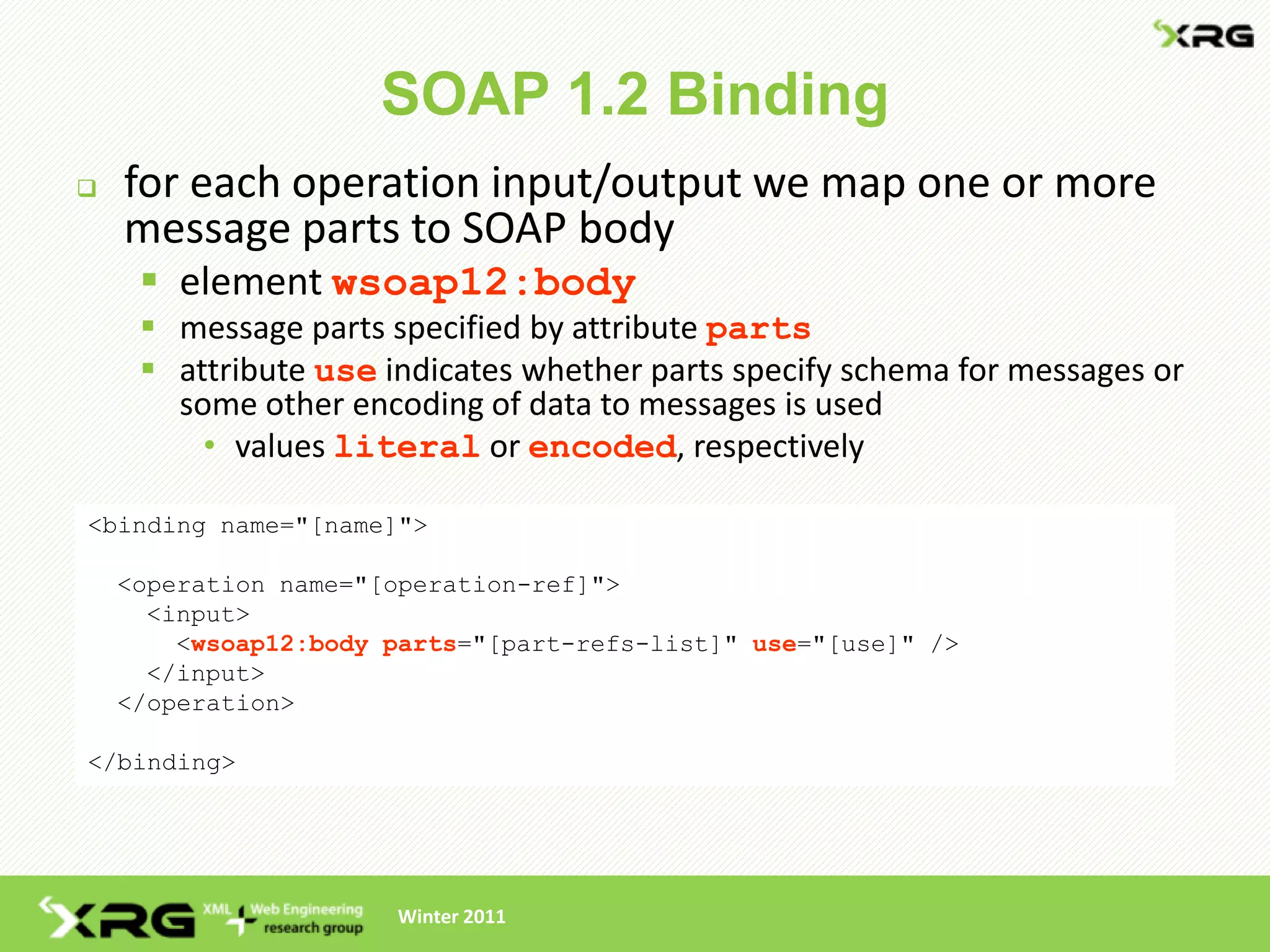

28. SOAP 1.2 Binding
 for each operation input/output we map one or more
message parts to SOAP body
 element wsoap12:body
 message parts specified by attribute parts
 attribute use indicates whether parts specify schema for messages or
some other encoding of data to messages is used
• values literal or encoded, respectively
<binding name="[name]">
<operation name="[operation-ref]">
<input>
<wsoap12:body parts="[part-refs-list]" use="[use]" />
</input>
</operation>
</binding>
Winter 2011

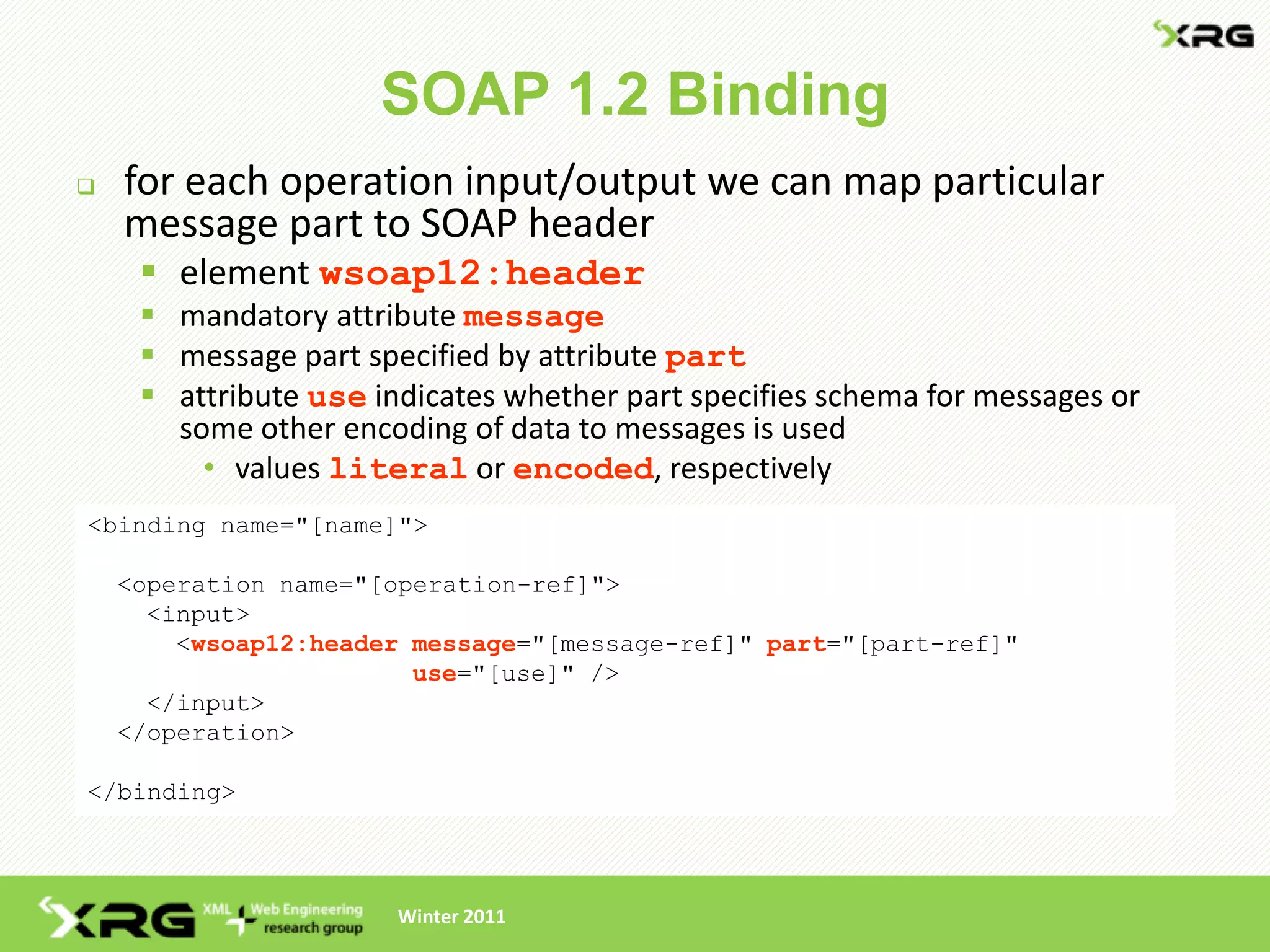

29. SOAP 1.2 Binding
 for each operation input/output we can map particular
message part to SOAP header
 element wsoap12:header
 mandatory attribute message
 message part specified by attribute part
 attribute use indicates whether part specifies schema for messages or
some other encoding of data to messages is used
• values literal or encoded, respectively
<binding name="[name]">
<operation name="[operation-ref]">
<input>
<wsoap12:header message="[message-ref]" part="[part-ref]"
use="[use]" />
</input>
</operation>
</binding>
Winter 2011

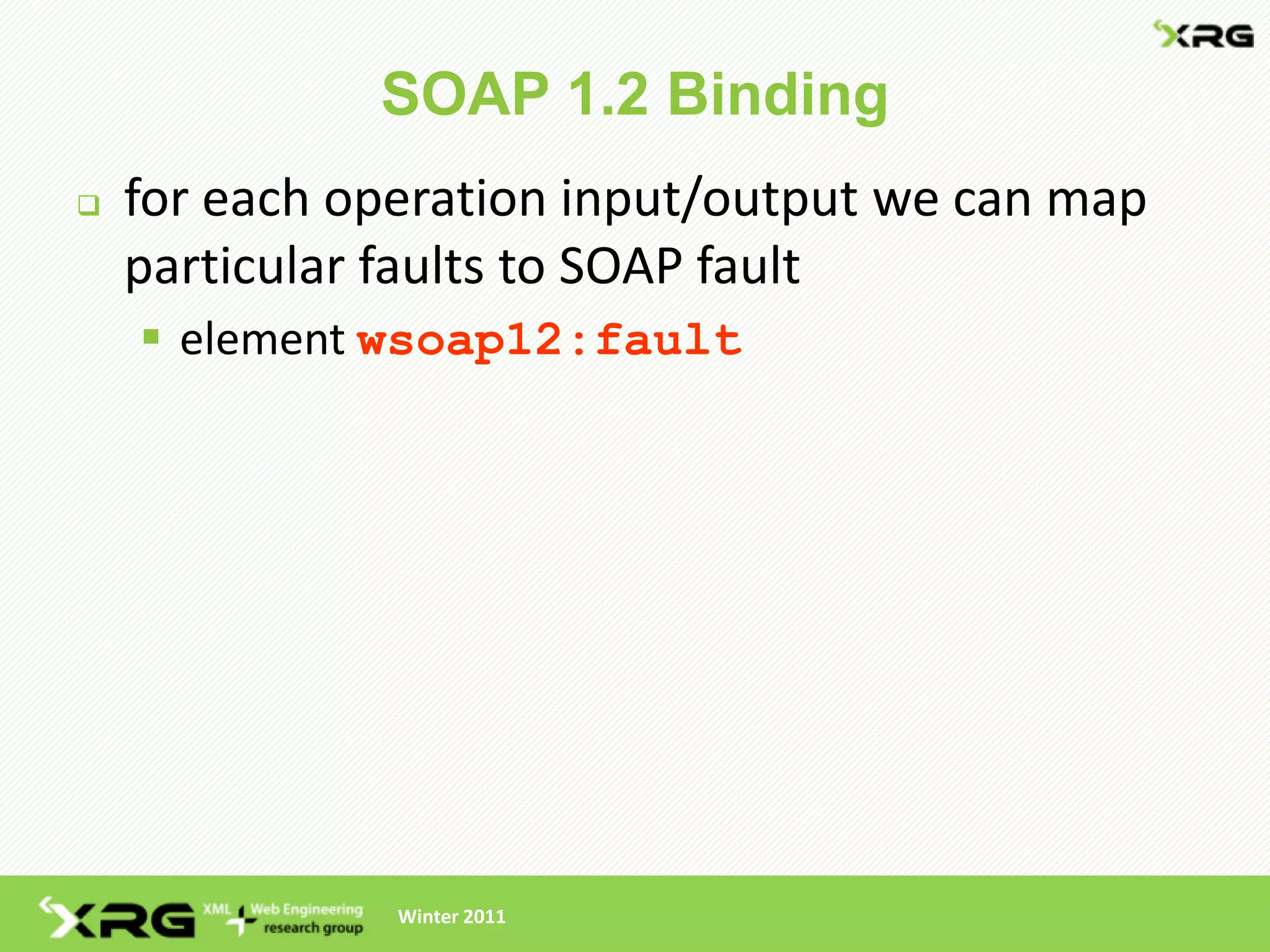

30. SOAP 1.2 Binding
 for each operation input/output we can map
particular faults to SOAP fault
 element wsoap12:fault
Winter 2011

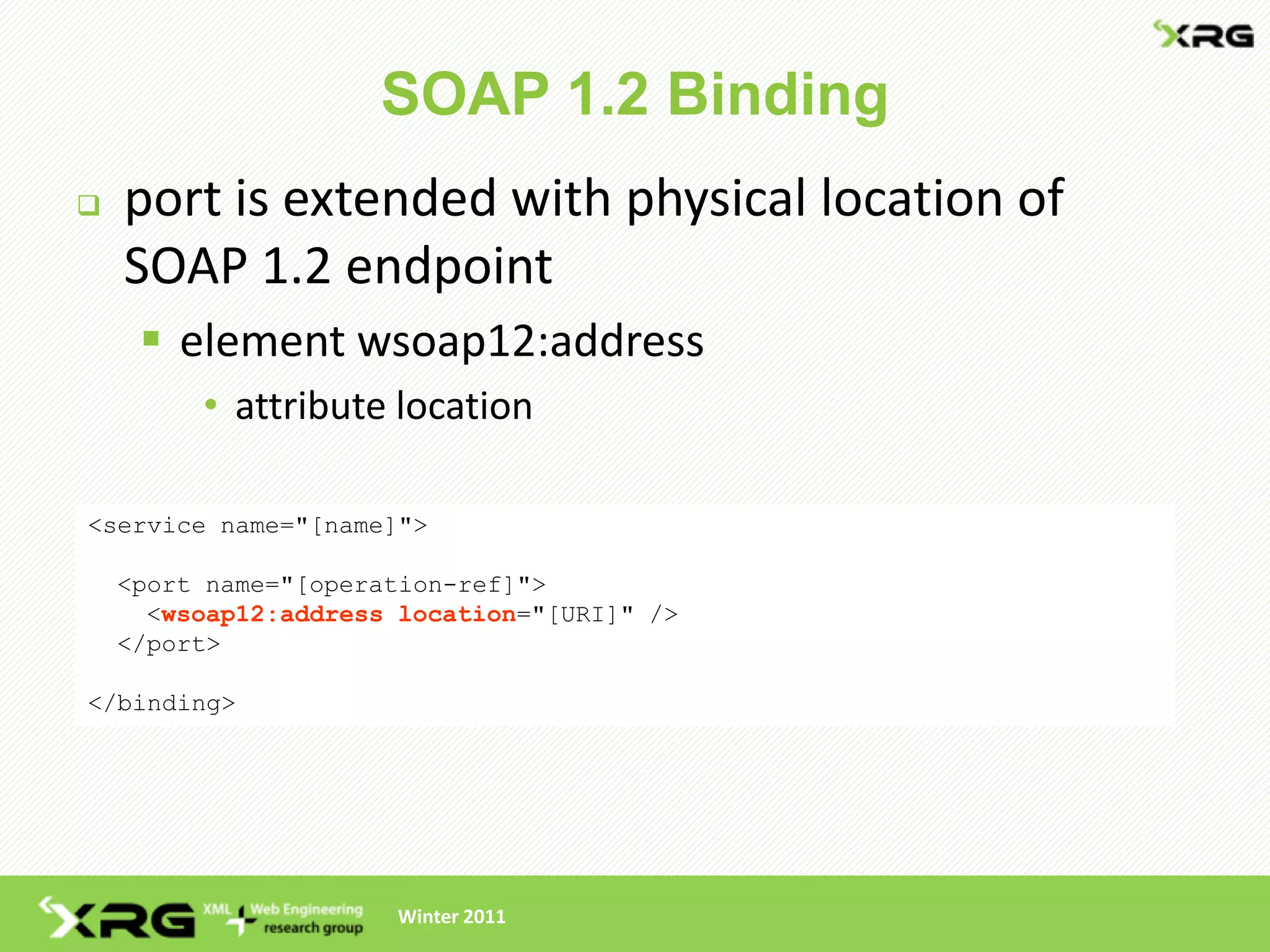

31. SOAP 1.2 Binding
 port is extended with physical location of
SOAP 1.2 endpoint
 element wsoap12:address
• attribute location
<service name="[name]">
<port name="[operation-ref]">
<wsoap12:address location="[URI]" />
</port>
</binding>
Winter 2011

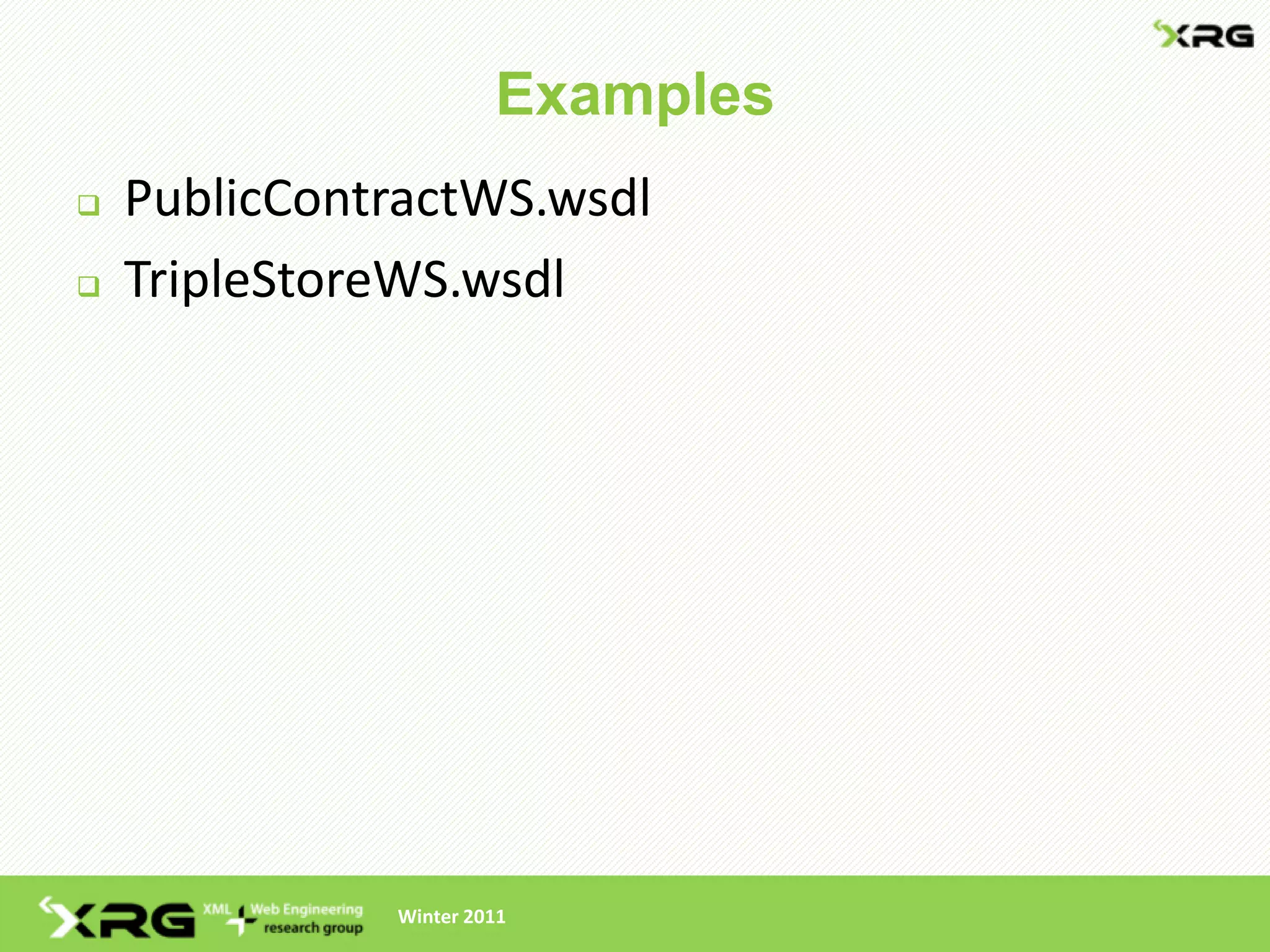

32. Examples
 PublicContractWS.wsdl
 TripleStoreWS.wsdl
Winter 2011
