1. Public Lighting
Control System
REMOTE MANAGEMENT. ENERGY SAVINGS. COSTS SAVINGS.
Canadian Manufacturers Representative
and Distributor for eTron Energy Corporation
Contact: David Katz, President
dkatz@sustainable-es.com
Mobile: 416-618-4651

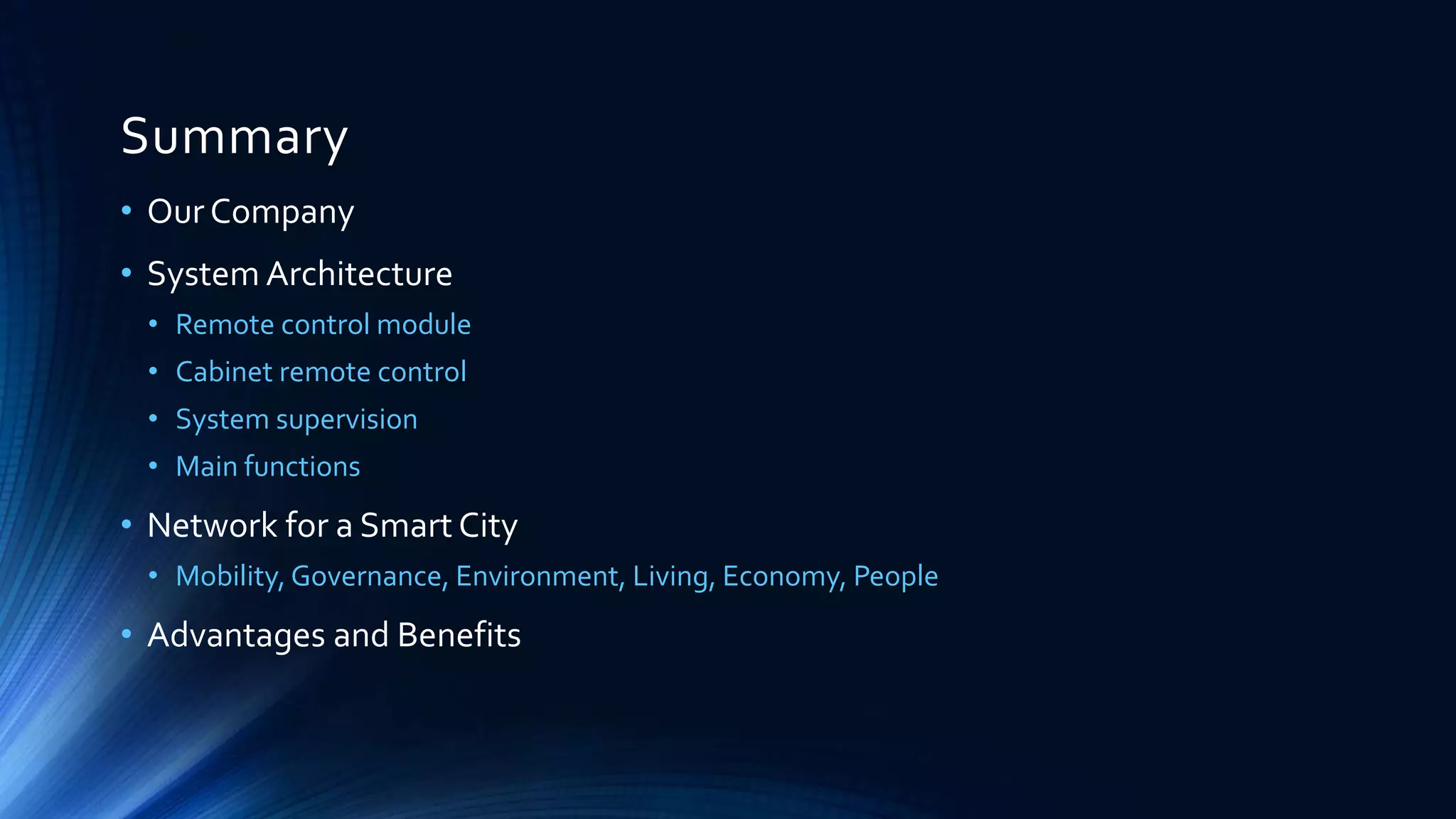

2. Summary
• Our Company
• System Architecture
• Remote control module
• Cabinet remote control
• System supervision
• Main functions
• Network for a Smart City
• Mobility, Governance, Environment, Living, Economy, People
• Advantages and Benefits

3. E-Tron Energy Corp.
 Provide intelligent systems for
the remote management of
external lighting, both public and
private, with the aim of energy
savings, respect of the
environment, safety and lighting
quality, costs optimization;
 Provide BuildingAutomation
integrated systems for building
safety, control and energy
savings;
 Support and assist our
customers and partners with our
experience and know how in
developing technological
solutions of public utility.

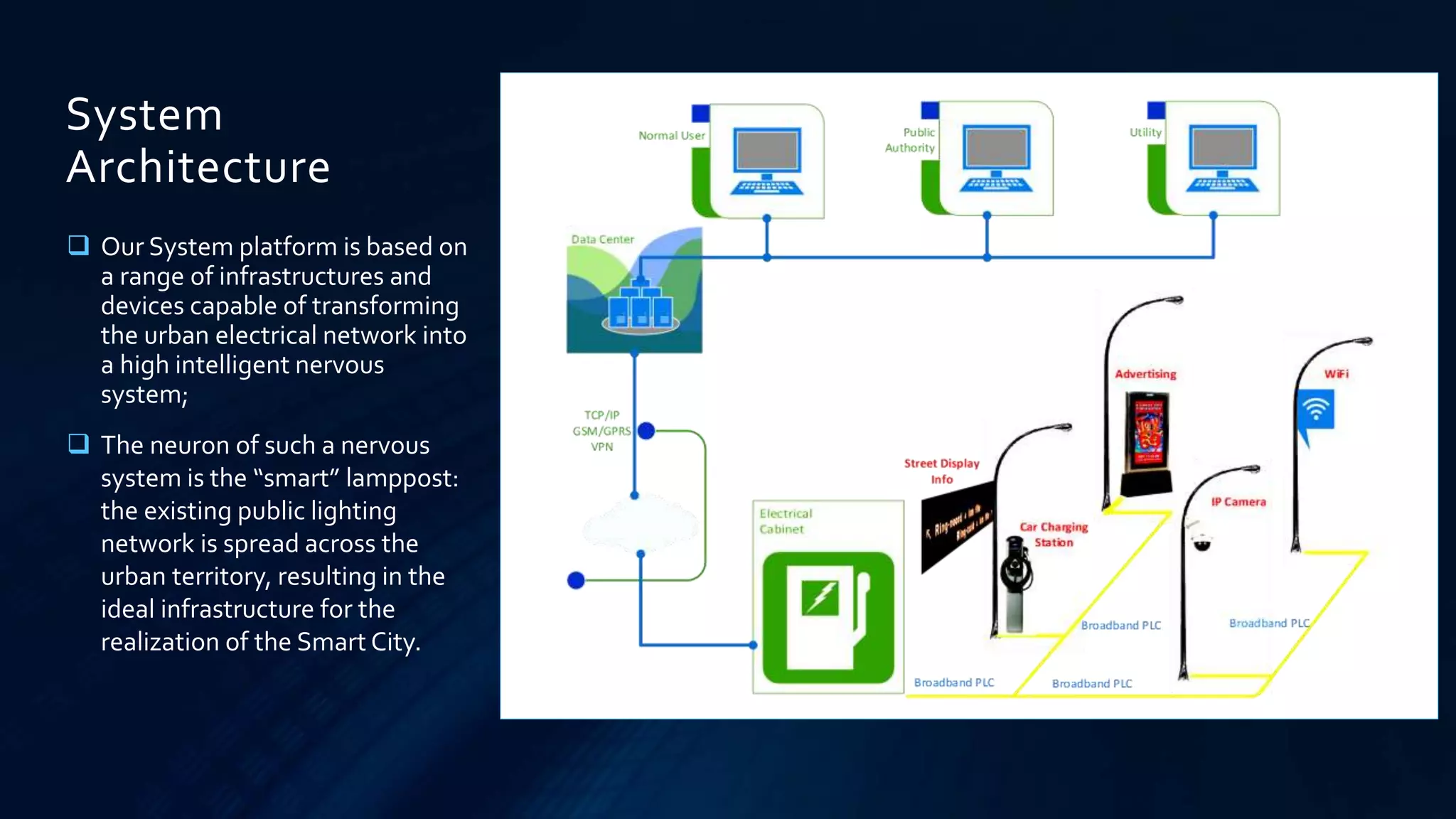

4. System
Architecture
 Our System platform is based on
a range of infrastructures and
devices capable of transforming
the urban electrical network into
a high intelligent nervous
system;
 The neuron of such a nervous
system is the “smart” lamppost:
the existing public lighting
network is spread across the
urban territory, resulting in the
ideal infrastructure for the
realization of the Smart City.

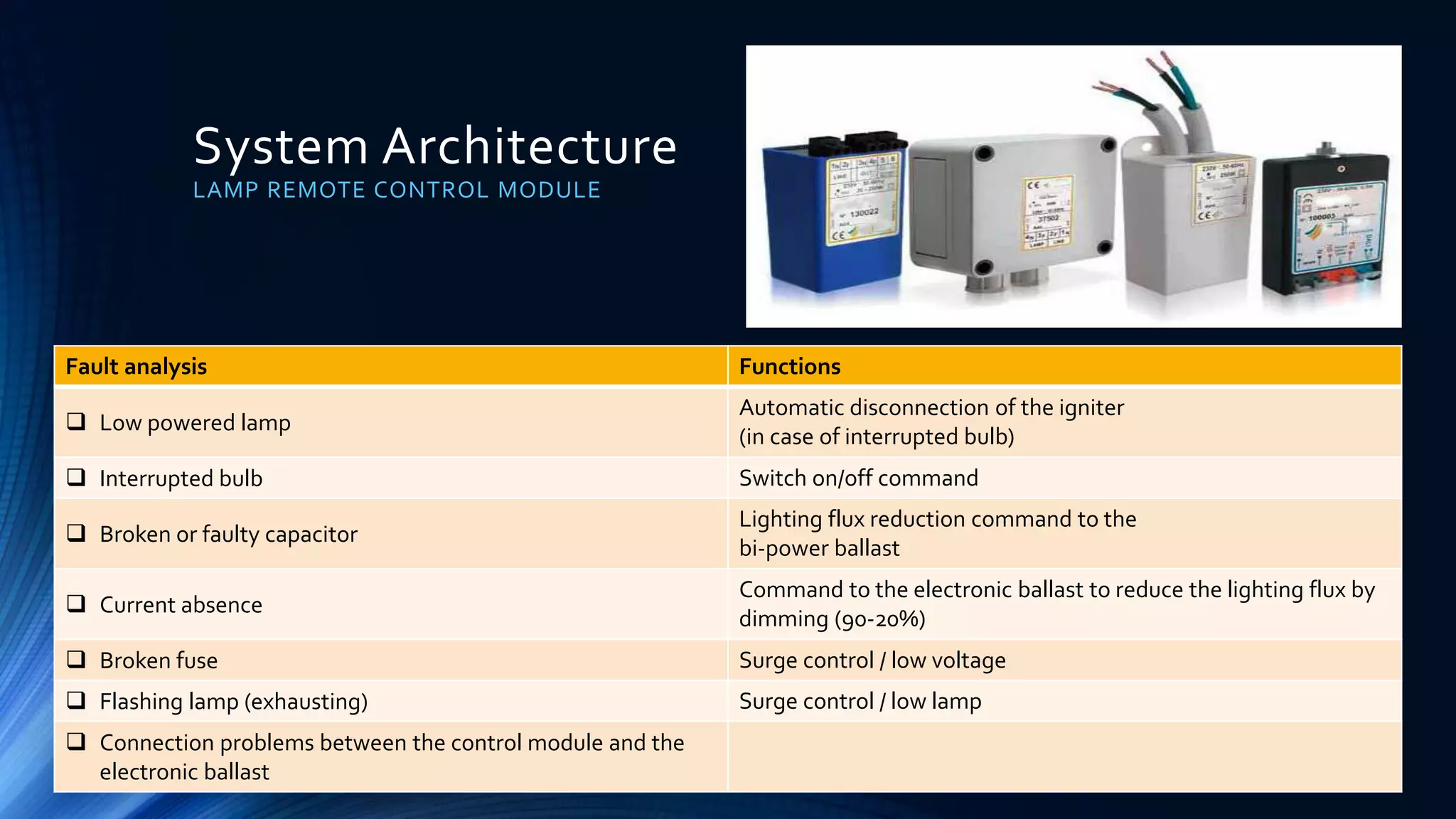

5. System Architecture
LAMP REMOTE CONTROL MODULE
Fault analysis Functions
 Low powered lamp
Automatic disconnection of the igniter
(in case of interrupted bulb)
 Interrupted bulb Switch on/off command
 Broken or faulty capacitor
Lighting flux reduction command to the
bi-power ballast
 Current absence
Command to the electronic ballast to reduce the lighting flux by
dimming (90-20%)
 Broken fuse Surge control / low voltage
 Flashing lamp (exhausting) Surge control / low lamp
 Connection problems between the control module and the
electronic ballast

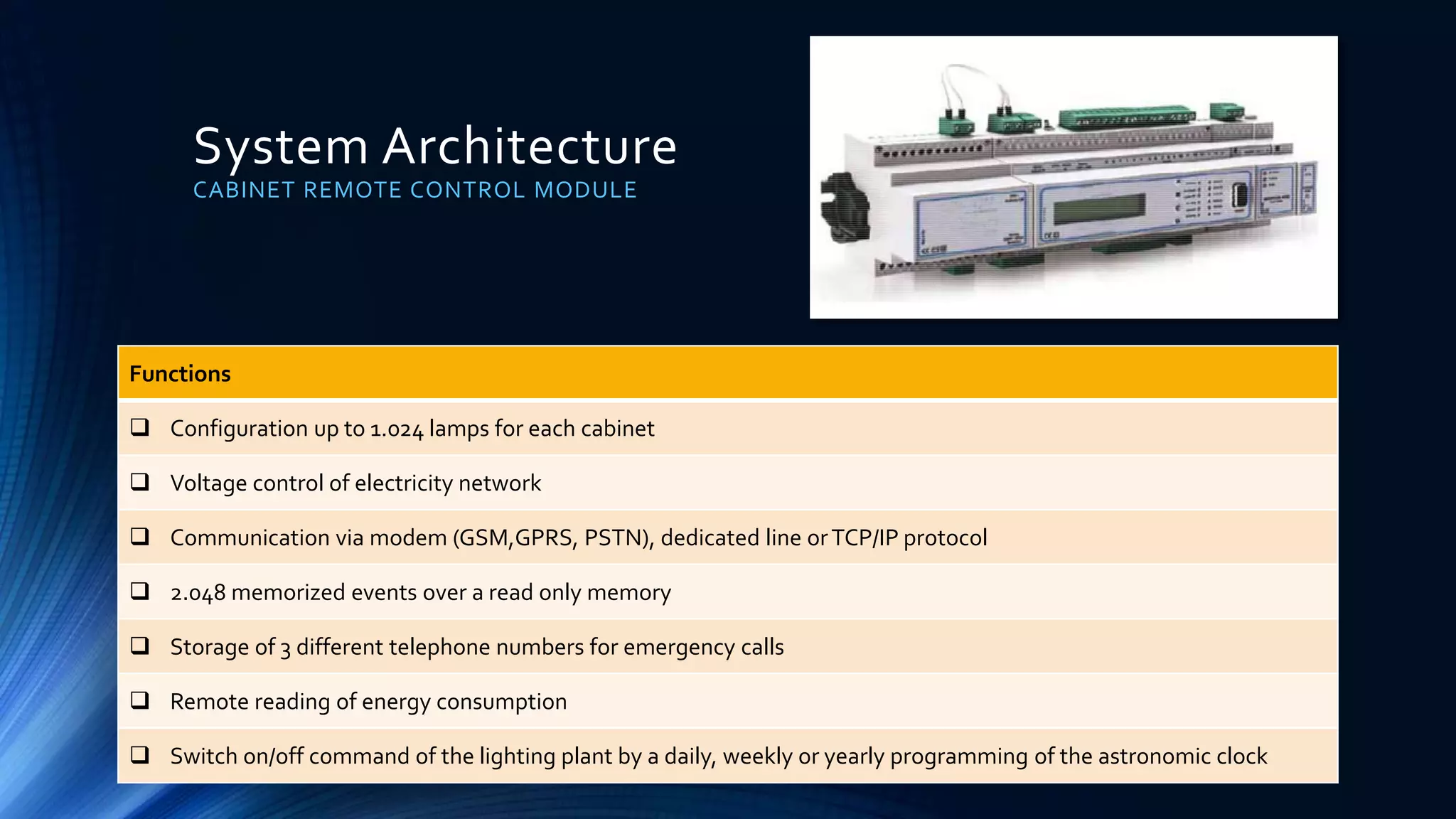

6. System Architecture
CABINET REMOTE CONTROL MODULE
Functions
 Configuration up to 1.024 lamps for each cabinet
 Voltage control of electricity network
 Communication via modem (GSM,GPRS, PSTN), dedicated line orTCP/IP protocol
 2.048 memorized events over a read only memory
 Storage of 3 different telephone numbers for emergency calls
 Remote reading of energy consumption
 Switch on/off command of the lighting plant by a daily, weekly or yearly programming of the astronomic clock

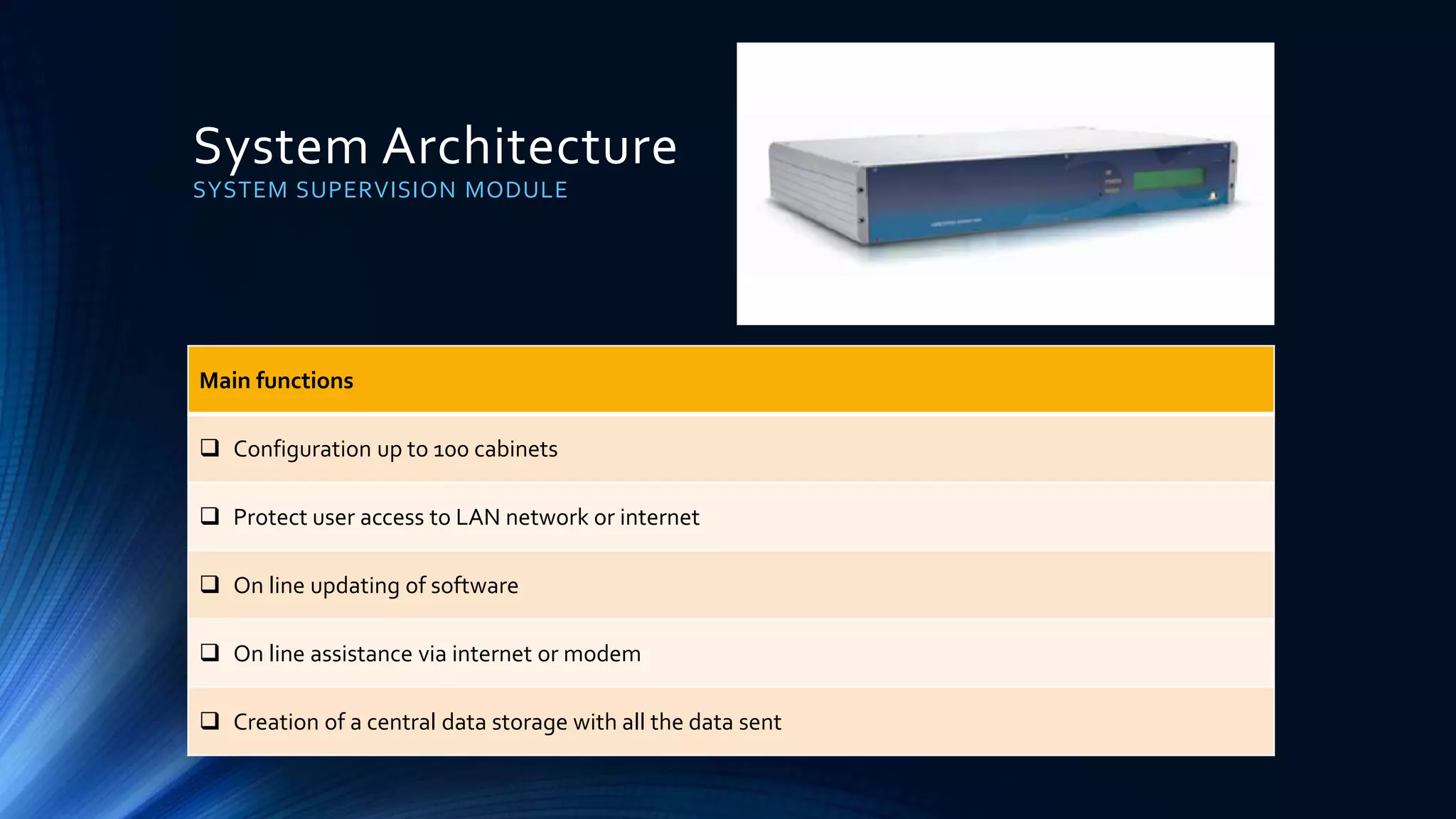

7. System Architecture
SYSTEM SUPERVISION MODULE
Main functions
 Configuration up to 100 cabinets
 Protect user access to LAN network or internet
 On line updating of software
 On line assistance via internet or modem
 Creation of a central data storage with all the data sent

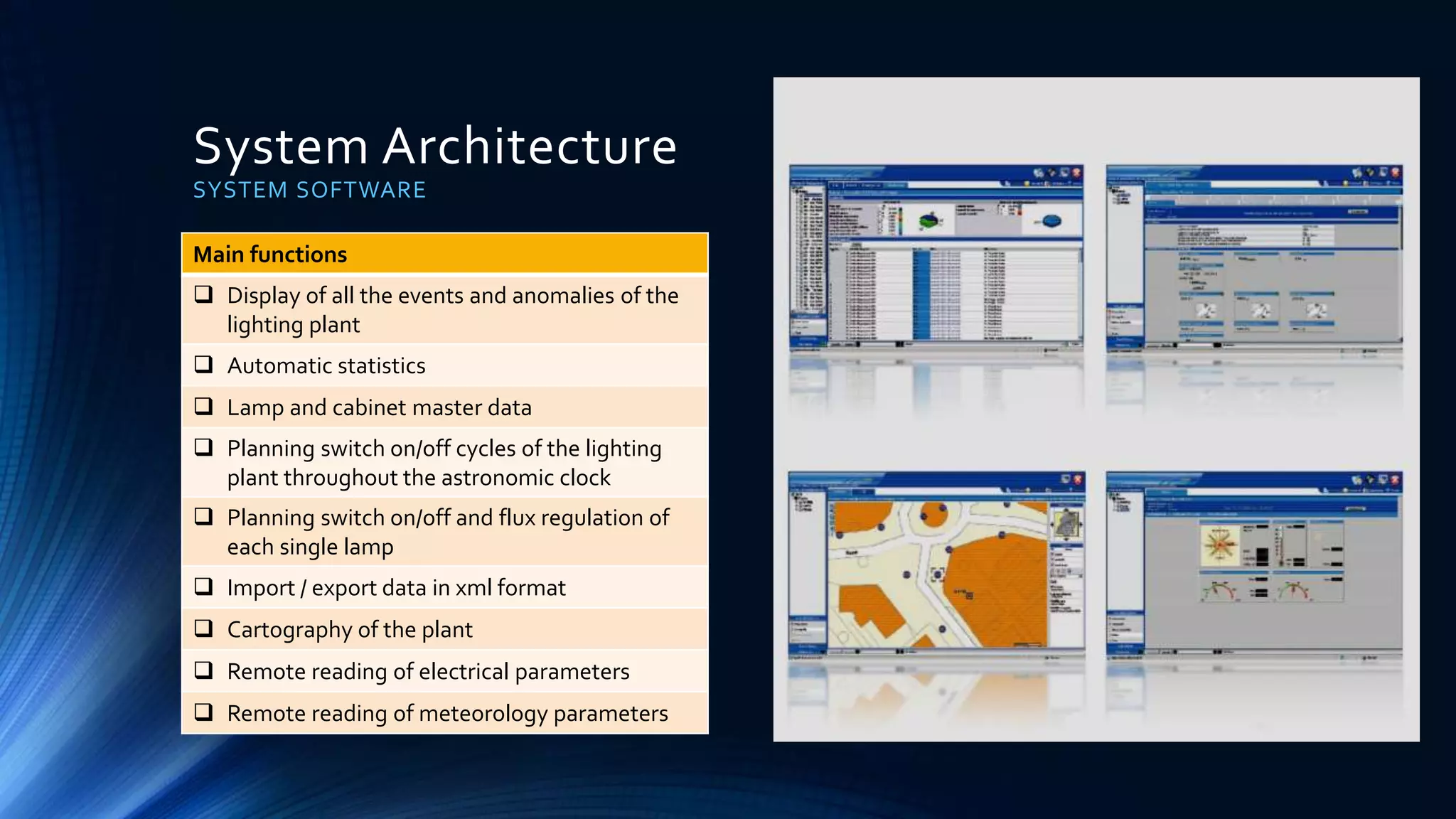

8. System Architecture
SYSTEM SOFTWARE
Main functions
 Display of all the events and anomalies of the
lighting plant
 Automatic statistics
 Lamp and cabinet master data
 Planning switch on/off cycles of the lighting
plant throughout the astronomic clock
 Planning switch on/off and flux regulation of
each single lamp
 Import / export data in xml format
 Cartography of the plant
 Remote reading of electrical parameters
 Remote reading of meteorology parameters

9. Smart City
 We create a real platform
that can provide services to
the cities without adding
cables, simply relying on the
existing electric network for
both Data Network and
electrical Power Supply.

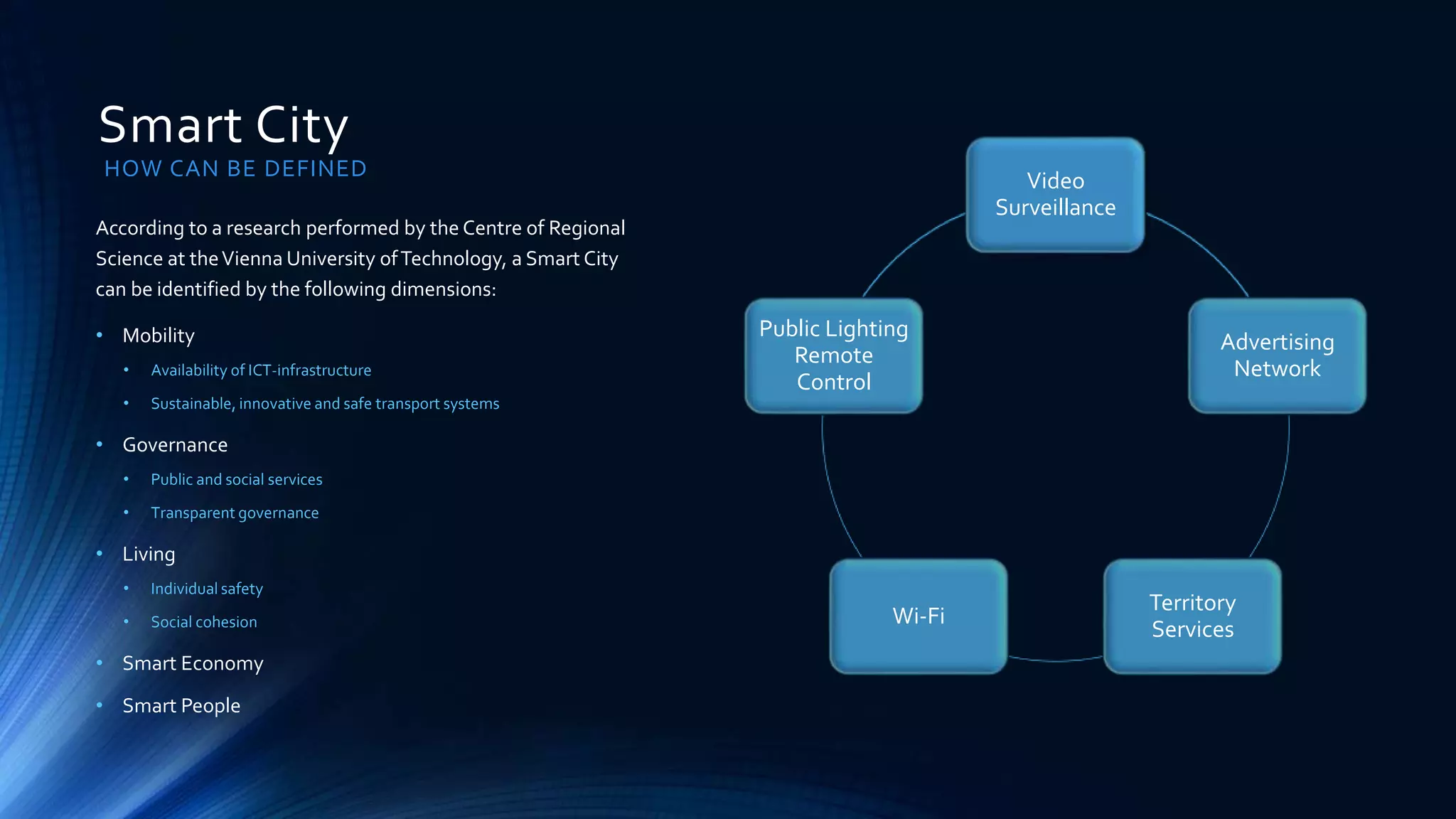

10. Smart City
HOW CAN BE DEFINED
According to a research performed by the Centre of Regional
Science at theVienna University ofTechnology, a Smart City
can be identified by the following dimensions:
• Mobility
• Availability of ICT-infrastructure
• Sustainable, innovative and safe transport systems
• Governance
• Public and social services
• Transparent governance
• Living
• Individual safety
• Social cohesion
• Smart Economy
• Smart People
Video
Surveillance
Advertising
Network
Territory
Services
Wi-Fi
Public Lighting
Remote
Control

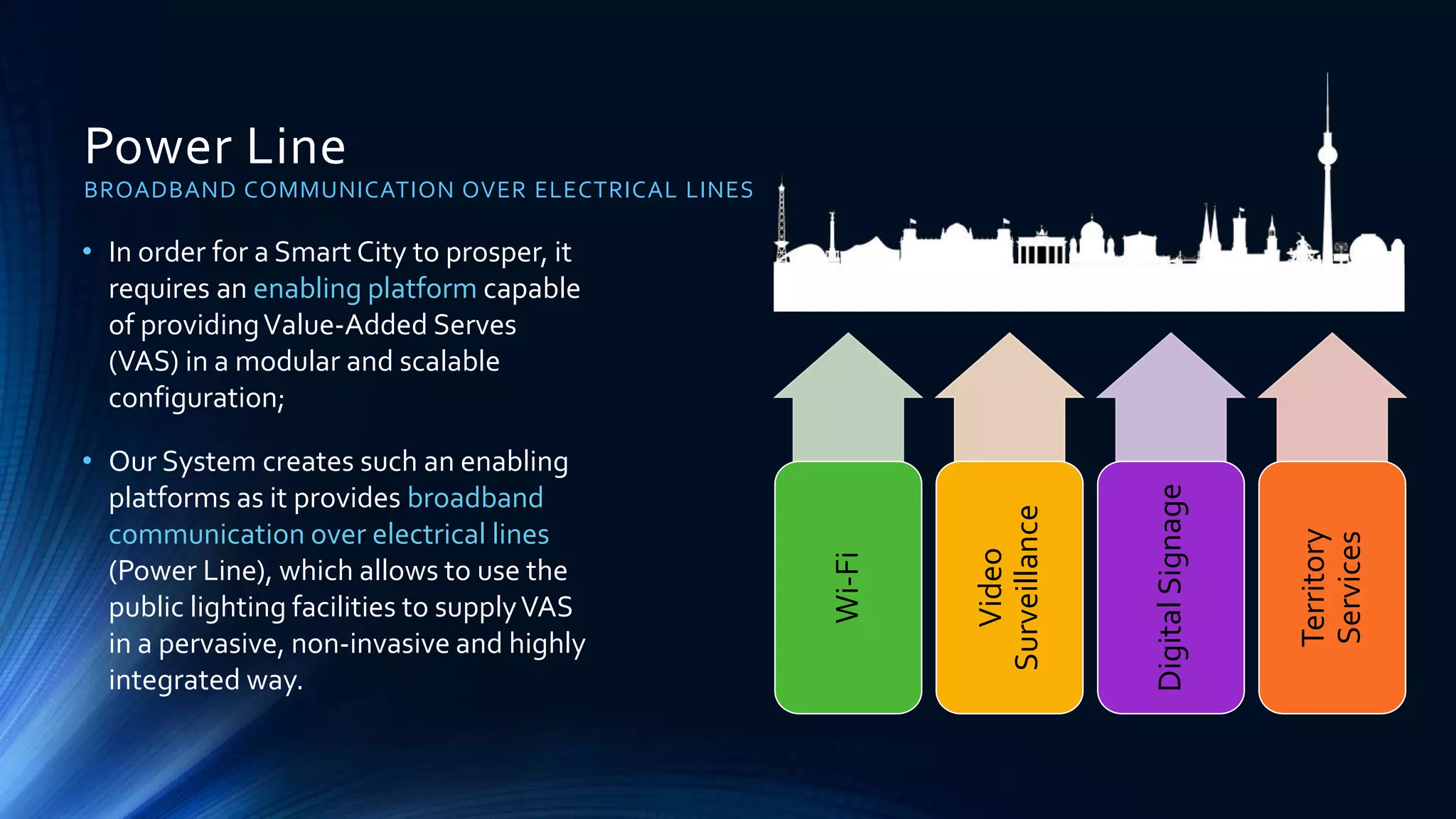

11. Power Line
BROADBAND COMMUNICATION OVER ELECTRICAL LINES
• In order for a Smart City to prosper, it
requires an enabling platform capable
of providingValue-Added Serves
(VAS) in a modular and scalable
configuration;
• Our System creates such an enabling
platforms as it provides broadband
communication over electrical lines
(Power Line), which allows to use the
public lighting facilities to supplyVAS
in a pervasive, non-invasive and highly
integrated way.
Wi-Fi
Video
Surveillance
DigitalSignage
Territory
Services

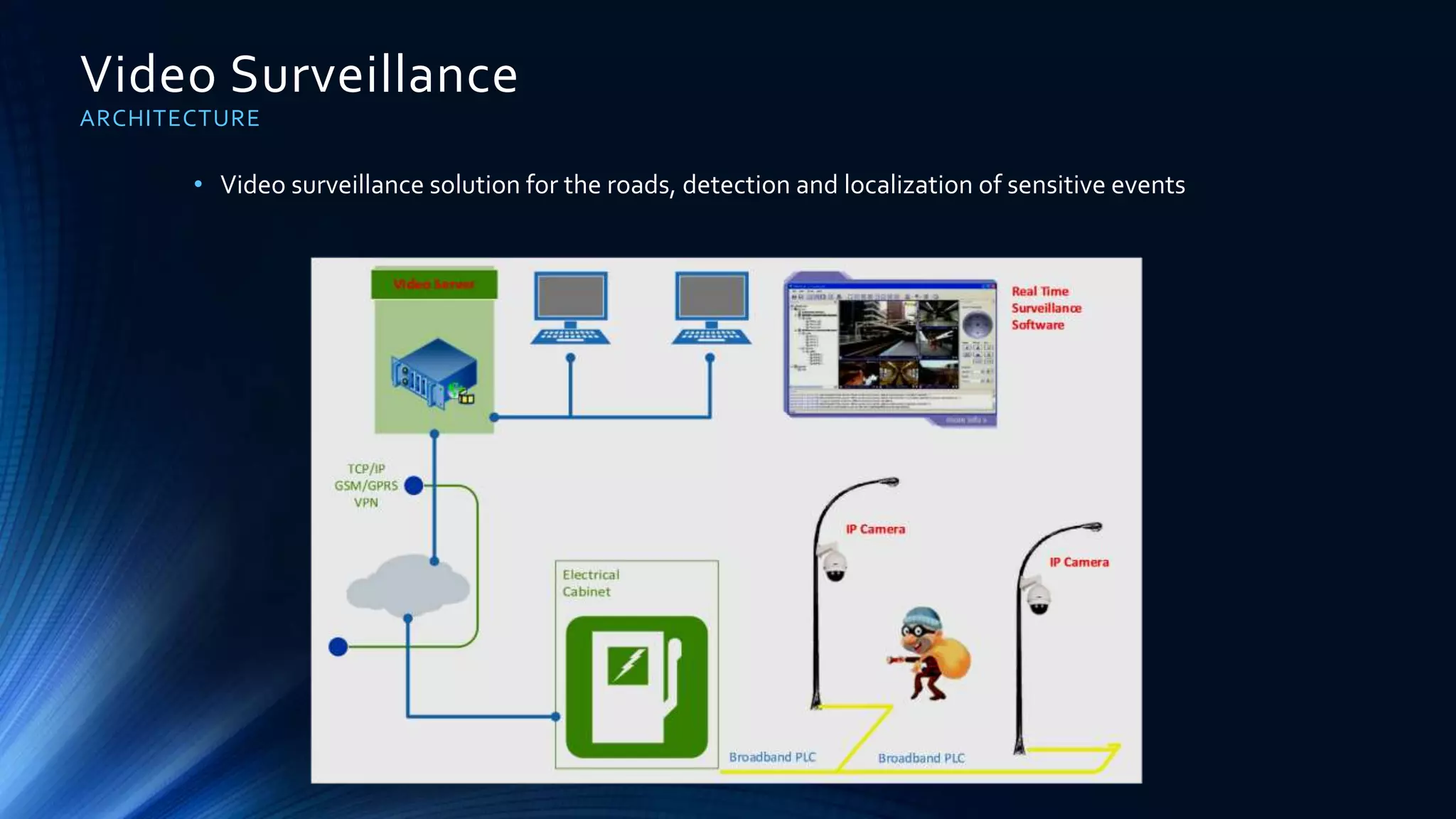

12. Video Surveillance
ARCHITECTURE
• Video surveillance solution for the roads, detection and localization of sensitive events

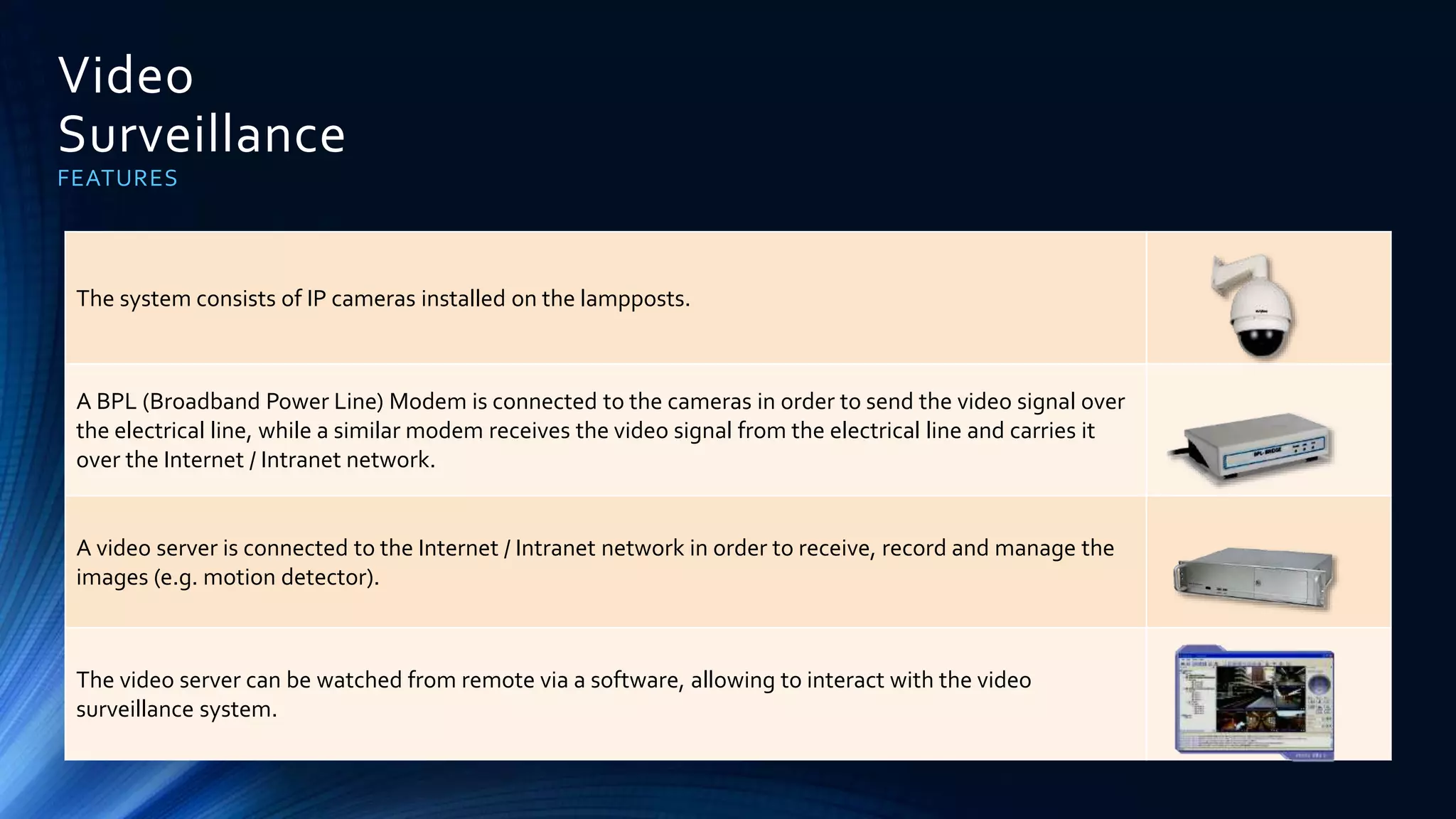

13. Video
Surveillance
FEATURES
The system consists of IP cameras installed on the lampposts.
A BPL (Broadband Power Line) Modem is connected to the cameras in order to send the video signal over
the electrical line, while a similar modem receives the video signal from the electrical line and carries it
over the Internet / Intranet network.
A video server is connected to the Internet / Intranet network in order to receive, record and manage the
images (e.g. motion detector).
The video server can be watched from remote via a software, allowing to interact with the video
surveillance system.

14. Wi-Fi
ARCHITECTURE
• Solution for the supply of Internet connection service
TCP/IP
GSM/GPRS
VPN
Wi-Fi Hot Spot
Broadband PLC Broadband PLC
Service
Provider
Wi-Fi Hot Spot

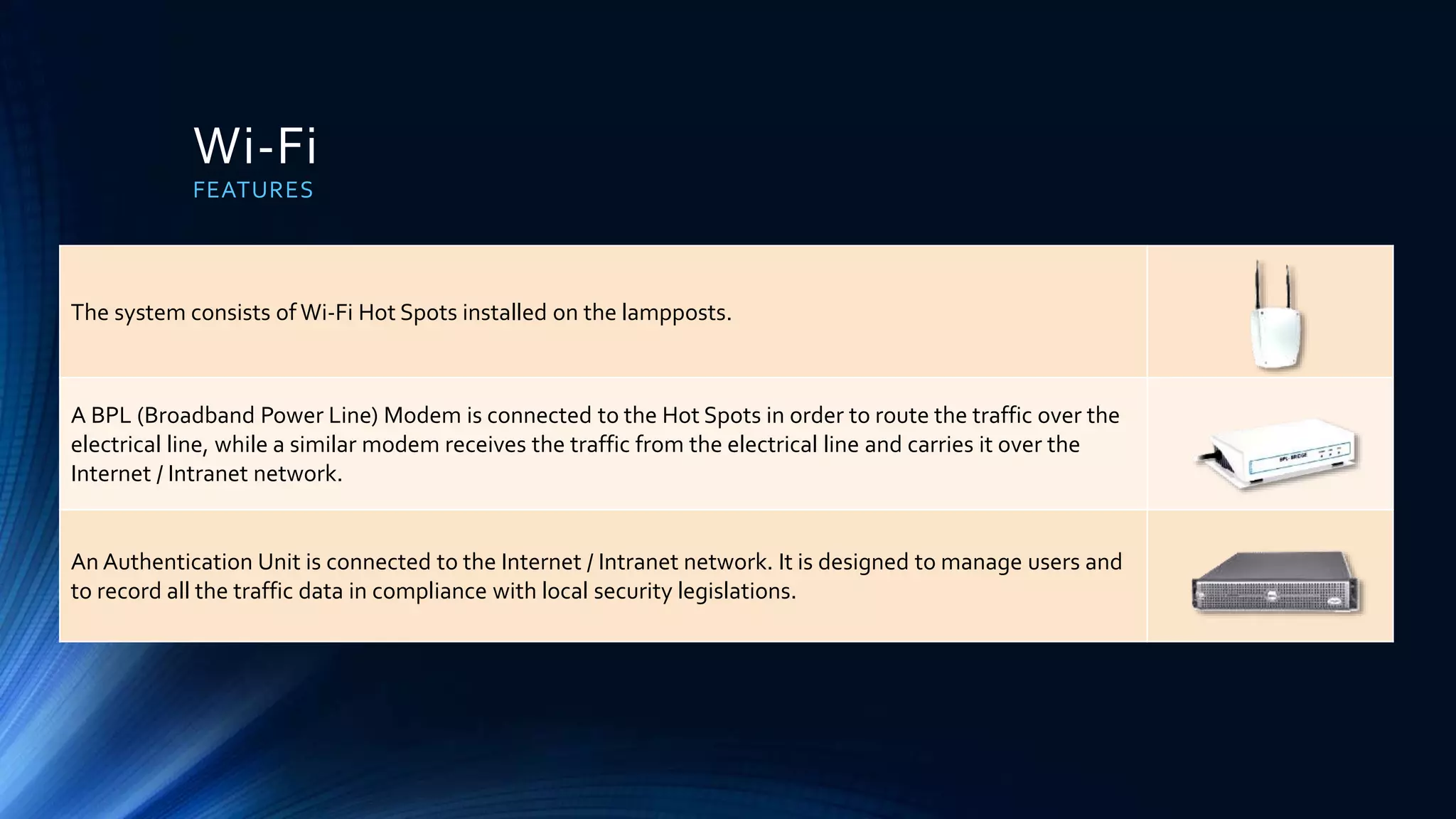

15. Wi-Fi
FEATURES
The system consists of Wi-Fi Hot Spots installed on the lampposts.
A BPL (Broadband Power Line) Modem is connected to the Hot Spots in order to route the traffic over the
electrical line, while a similar modem receives the traffic from the electrical line and carries it over the
Internet / Intranet network.
An Authentication Unit is connected to the Internet / Intranet network. It is designed to manage users and
to record all the traffic data in compliance with local security legislations.

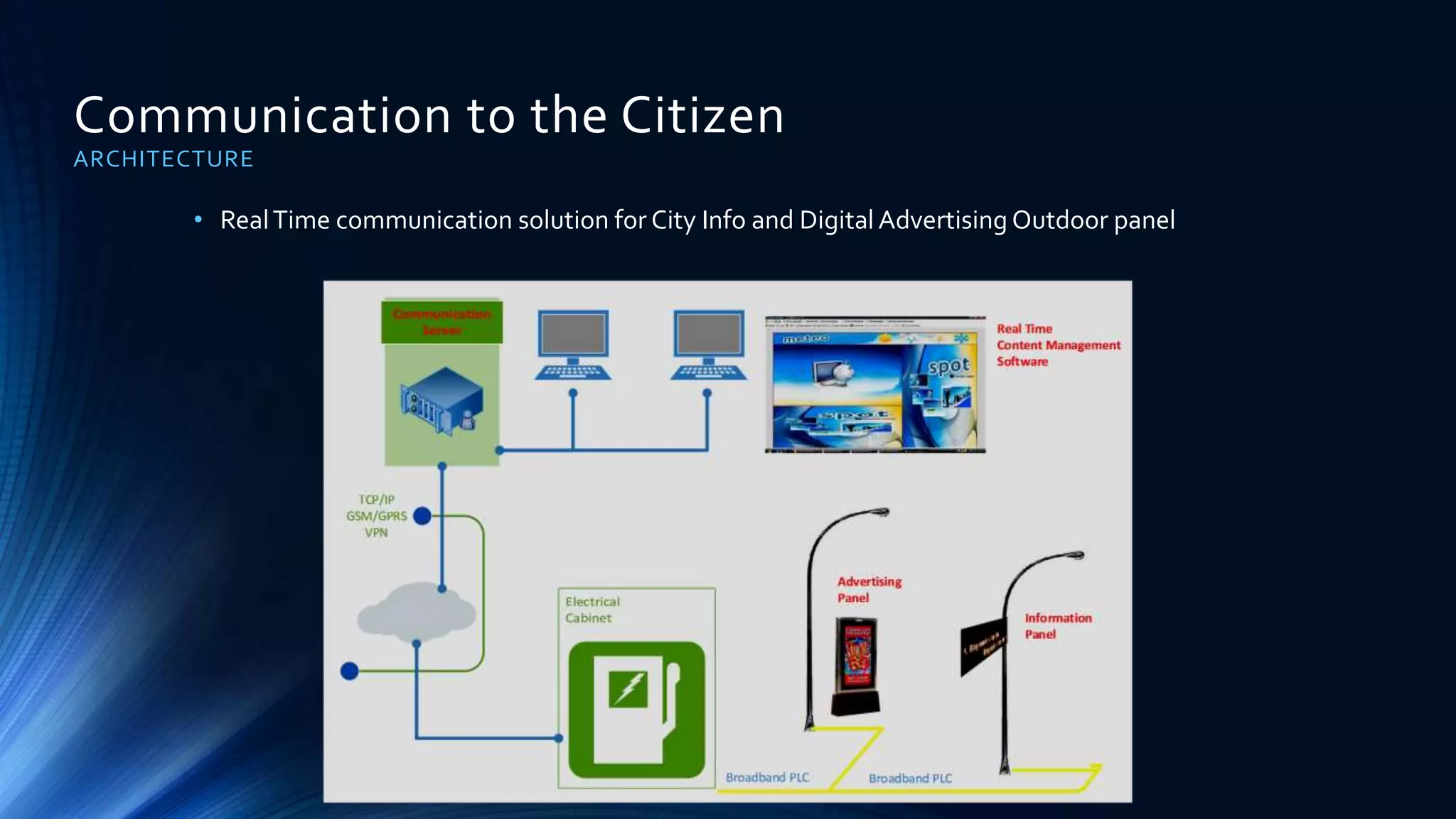

16. Communication to the Citizen
ARCHITECTURE
• RealTime communication solution for City Info and DigitalAdvertising Outdoor panel

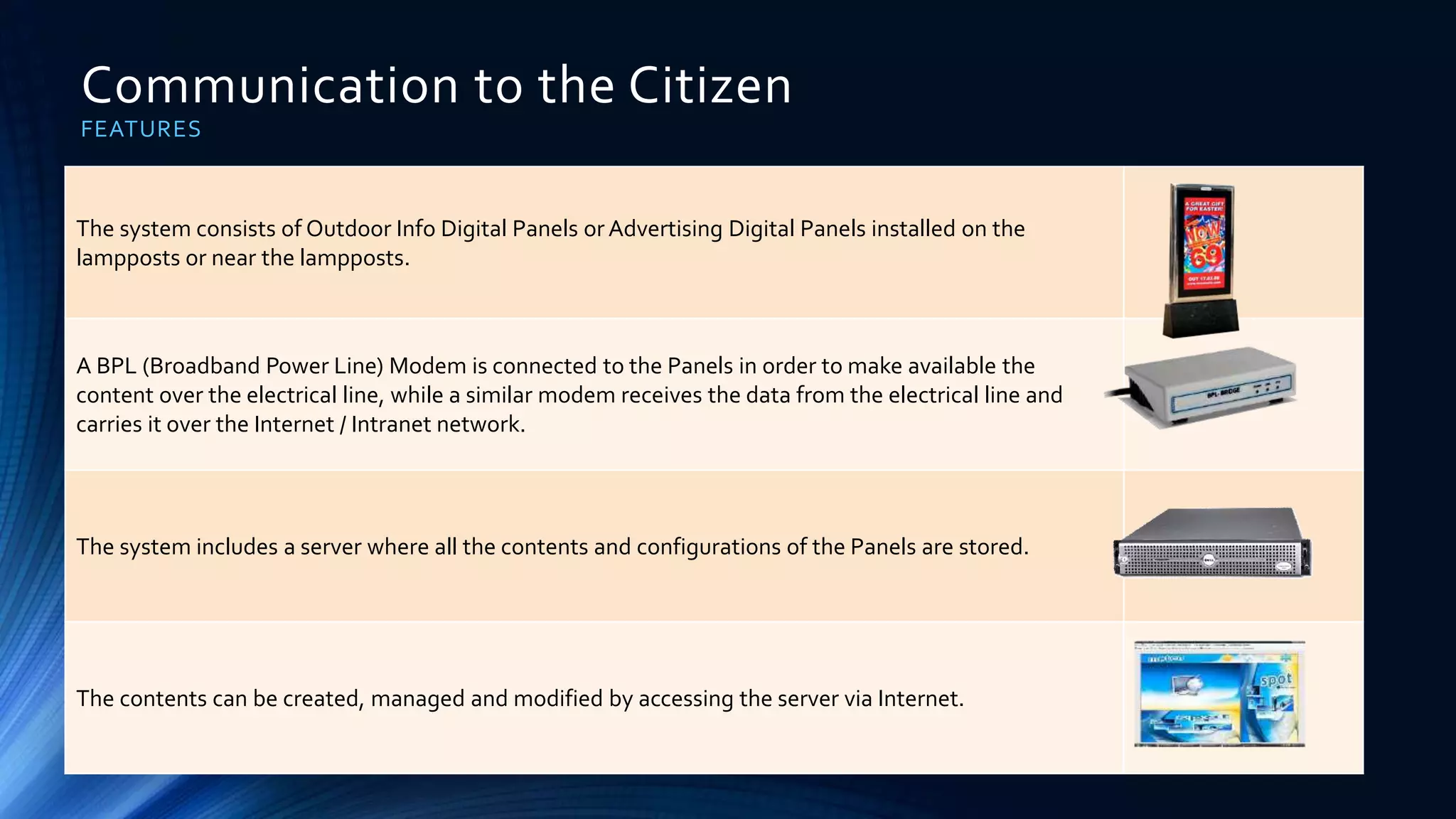

17. Communication to the Citizen
FEATURES
The system consists of Outdoor Info Digital Panels or Advertising Digital Panels installed on the
lampposts or near the lampposts.
A BPL (Broadband Power Line) Modem is connected to the Panels in order to make available the
content over the electrical line, while a similar modem receives the data from the electrical line and
carries it over the Internet / Intranet network.
The system includes a server where all the contents and configurations of the Panels are stored.
The contents can be created, managed and modified by accessing the server via Internet.

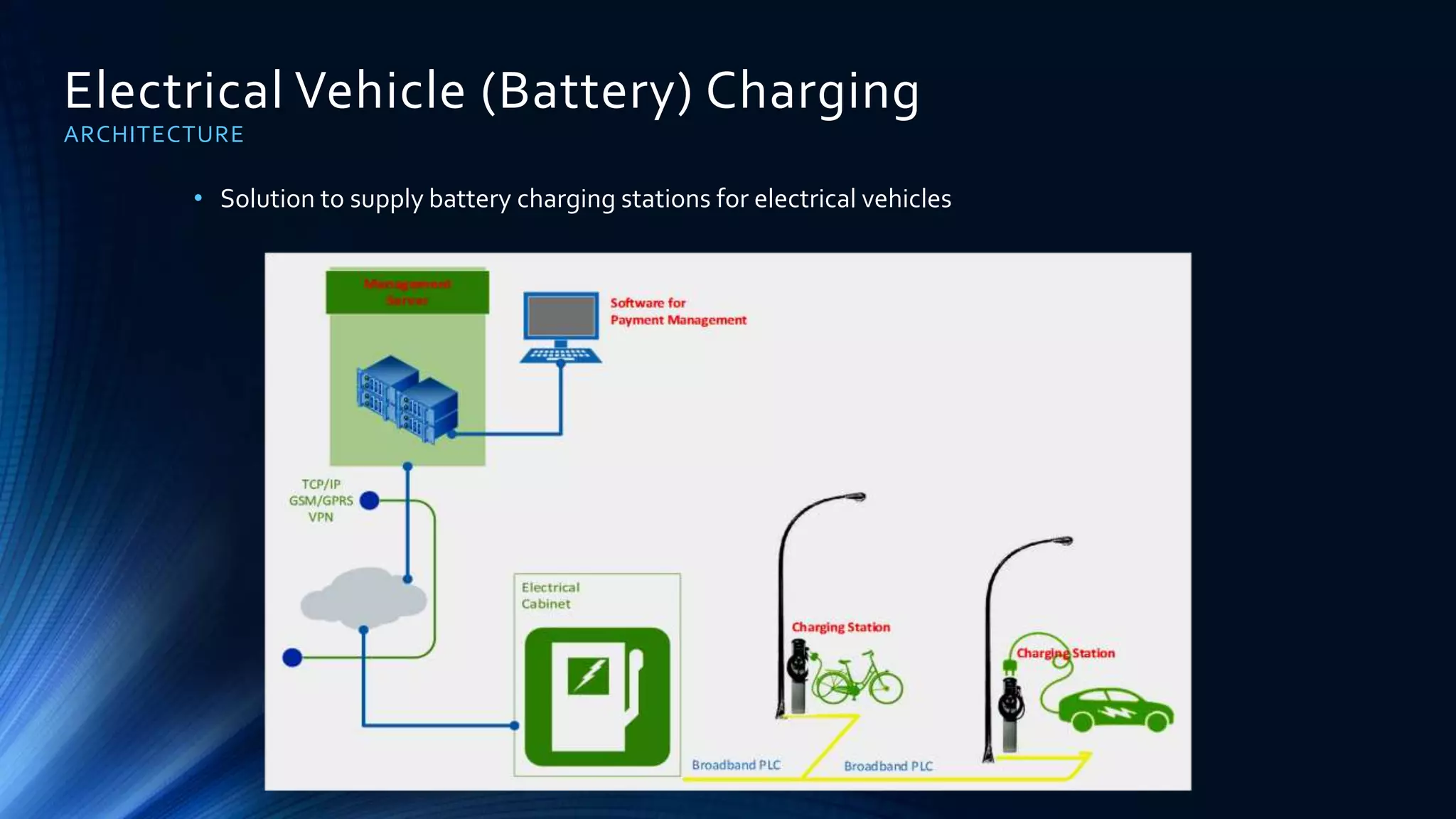

18. Electrical Vehicle (Battery) Charging
ARCHITECTURE
• Solution to supply battery charging stations for electrical vehicles

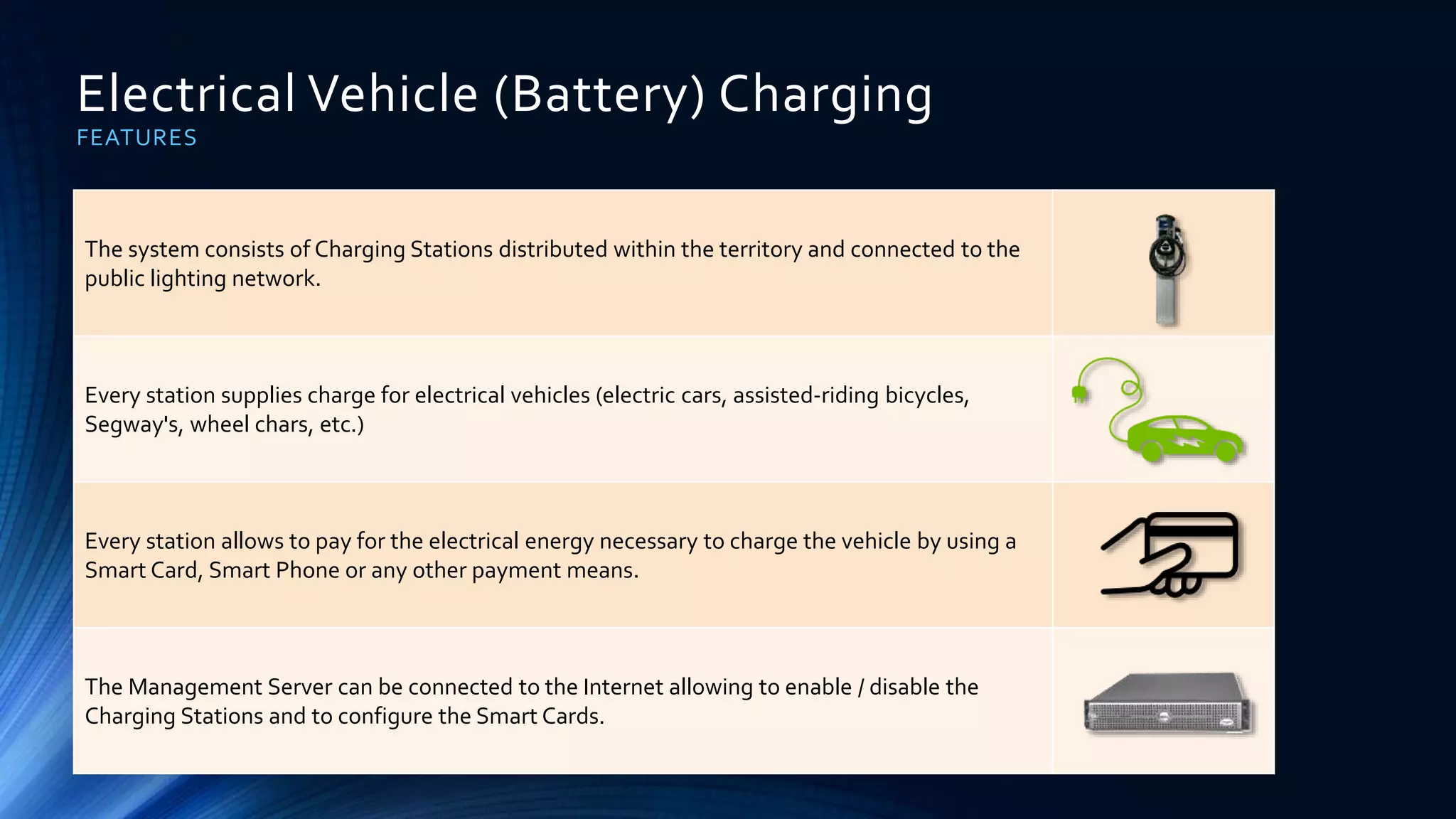

19. Electrical Vehicle (Battery) Charging
FEATURES
The system consists of Charging Stations distributed within the territory and connected to the
public lighting network.
Every station supplies charge for electrical vehicles (electric cars, assisted-riding bicycles,
Segway's, wheel chars, etc.)
Every station allows to pay for the electrical energy necessary to charge the vehicle by using a
Smart Card, Smart Phone or any other payment means.
The Management Server can be connected to the Internet allowing to enable / disable the
Charging Stations and to configure the Smart Cards.

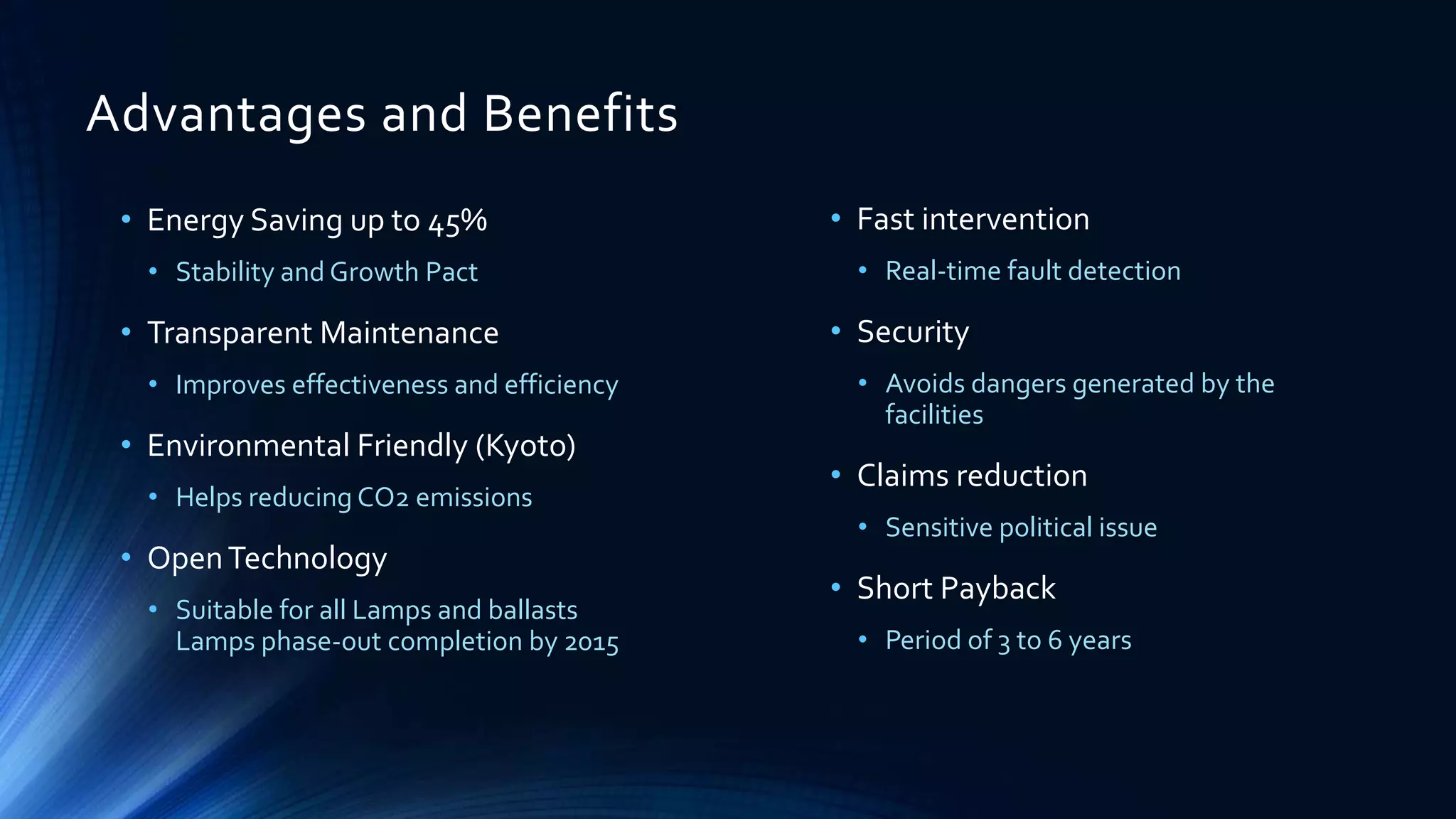

20. Advantages and Benefits
• Energy Saving up to 45%
• Stability and Growth Pact
• Transparent Maintenance
• Improves effectiveness and efficiency
• Environmental Friendly (Kyoto)
• Helps reducing CO2 emissions
• OpenTechnology
• Suitable for all Lamps and ballasts
Lamps phase-out completion by 2015
• Fast intervention
• Real-time fault detection
• Security
• Avoids dangers generated by the
facilities
• Claims reduction
• Sensitive political issue
• Short Payback
• Period of 3 to 6 years

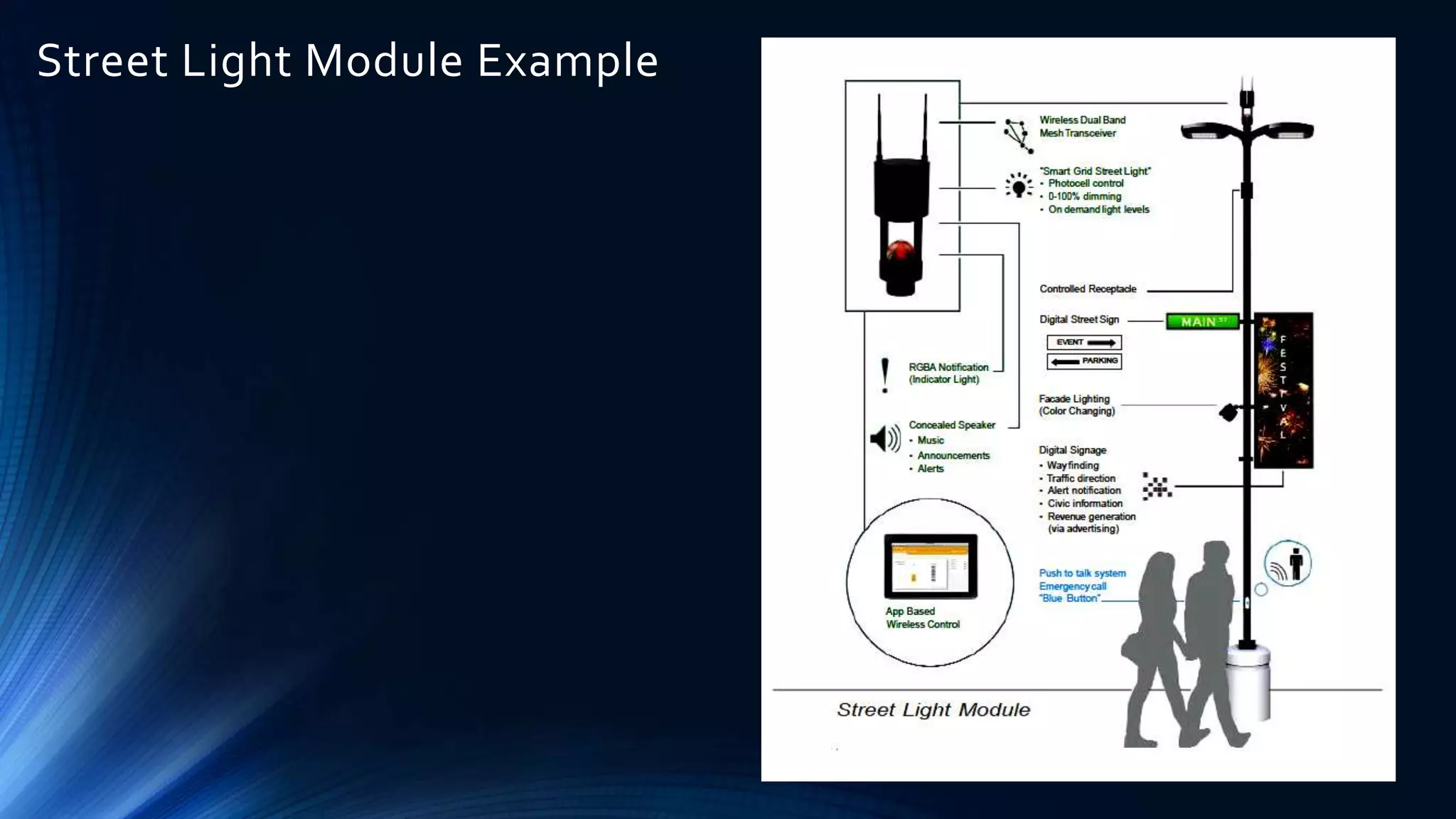

21. Street Light Module Example

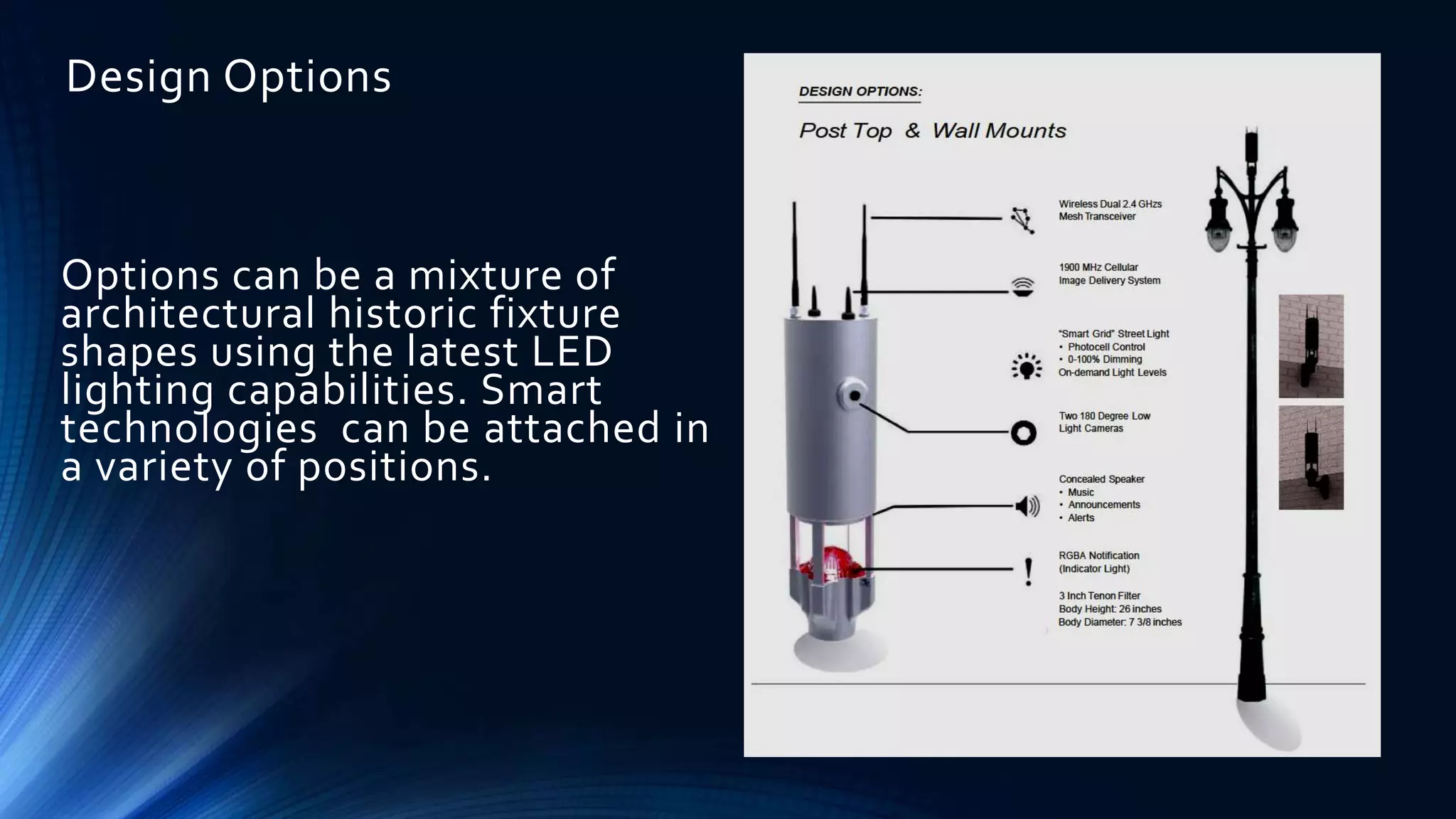

22. Design Options
Options can be a mixture of
architectural historic fixture
shapes using the latest LED
lighting capabilities. Smart
technologies can be attached in
a variety of positions.

23. Design Options
Options can now include renewable
energy and storage to power the
latest LED lighting fixtures and the
Smart technologies under a variety
of situations.
