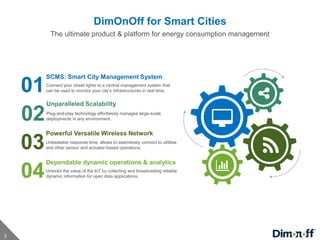

DimOnOff for Smart Cities
The ultimate product & platform for energy consumption management
SCMS: Smart City Management System
Connect your street lights to a central management system that
can be used to monitor your city’s infrastructures in real time.01
Unparalleled Scalability
Plug-and-play technology effortlessly manages large-scale
deployments in any environment.02
Powerful Versatile Wireless Network
Unbeatable response time, allows to seamlessly connect to utilities
and other sensor and actuator-based operations.03
Dependable dynamic operations & analytics
Unlocks the value of the IoT by collecting and broadcasting reliable
dynamic information for open data applications.04

3. 3
SCMS : Smart City Management System
A simple and highly efficient system to radically reduce & control
Street Lighting energy consumption and maintenance costs
Scheduling
User-interface allows automating
unlimited lighting schedules for individual
fixtures.
Dimming
Program in any desired sequence, to dim,
turn on or off at any given time.
Metering
Measure and control energy consumption, for
each individual fixture, anywhere in the city.
Monitoring
Secure real-time monitoring from anywhere,
on any browser, PCs, Smartphones or
tablets.
Reporting
Report any anomaly in network operations,
send alarms automatically indicating
individual faulty assets or outages to a
maintenance list to schedule repairs.

4. 4

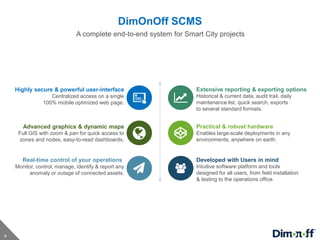

DimOnOff SCMS
Highly secure & powerful user-interface
Centralized access on a single
100% mobile optimized web page.
Advanced graphics & dynamic maps
Full GIS with zoom & pan for quick access to
zones and nodes, easy-to-read dashboards.
Real-time control of your operations
Monitor, control, manage, identify & report any
anomaly or outage of connected assets.
Extensive reporting & exporting options
Historical & current data, audit trail, daily
maintenance list, quick search, exports
to several standard formats.
Practical & robust hardware
Enables large-scale deployments in any
environments, anywhere on earth.
Developed with Users in mind
Intuitive software platform and tools
designed for all users, from field installation
& testing to the operations office.
A complete end-to-end system for Smart City projects

5. 5

6. 6
A Proven Solution
MISSISSAUGA, ON CANADA
Deployment of the Largest Municipal
Street light Management System
for Dimming & Metering

7. 7

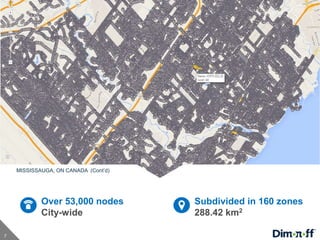

Over 53,000 nodes
City-wide
Subdivided in 160 zones
288.42 km2
MISSISSAUGA, ON CANADA (Cont’d)

8. 8

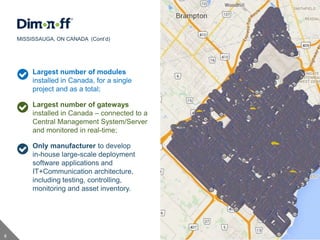

Largest number of modules
installed in Canada, for a single
project and as a total;
Largest number of gateways
installed in Canada – connected to a
Central Management System/Server
and monitored in real-time;
Only manufacturer to develop
in-house large-scale deployment
software applications and
IT+Communication architecture,
including testing, controlling,
monitoring and asset inventory.
MISSISSAUGA, ON CANADA (Cont’d)

9. 9

10. 10

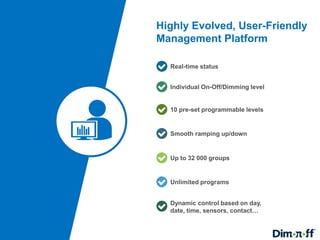

Highly Evolved, User-Friendly
Management Platform
Individual On-Off/Dimming level
Real-time status
10 pre-set programmable levels
Smooth ramping up/down
Up to 32 000 groups
Unlimited programs
Dynamic control based on day,
date, time, sensors, contact…

11. 11

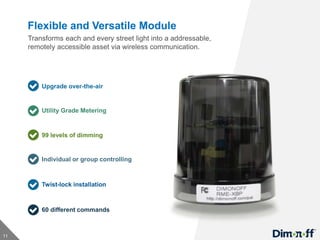

Flexible and Versatile Module
Utility Grade Metering
Upgrade over-the-air
99 levels of dimming
Individual or group controlling
Twist-lock installation
60 different commands
Transforms each and every street light into a addressable,
remotely accessible asset via wireless communication.

12. 12

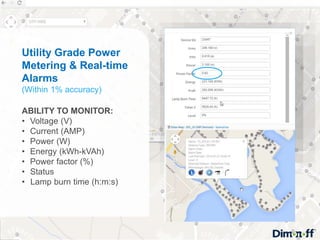

Utility Grade Power
Metering & Real-time
Alarms
(Within 1% accuracy)
ABILITY TO MONITOR:
• Voltage (V)
• Current (AMP)
• Power (W)
• Energy (kWh-kVAh)
• Power factor (%)
• Status
• Lamp burn time (h:m:s)

13. 13

14. 14
Easy-to deploy
wireless network
Compatible with industry
standard protocols
Interfaces seamlessly with existing
technologies.
Plug-and-play technology
Adapts to ANY size projects and
environments.
Unbeatable response time
Polling takes less than 3 seconds.
Service-oriented architecture
with an open API
Directly available to our clients’
developers and network of Partners.
Multiple radio options
Compatible with AMI and other RF
communication infrastructure.

15. 15
Once Deployed, DimOnOff SCMS Network becomes a
Wireless Communications Backbone for Smart Cities.
• Operating as a canopy above the
city, DimOnOff SCMS enables
operations managers to connect to
smart devices across every region
of a city, in order to monitor the
urban infrastructure in real-time.
• Powerful wireless network that
interfaces with industry standard
protocols, enabling various
sensors & controllers to seamlessly
communicate together and back to
the Central Management System.

16. 16
Internet of Things adapted to City Lights
• Access every single fixture, optimizing time and lights levels
• 2-way communications, including statuses and metering
• Enhance AMI mesh network
Cloud or Specific location
LAN /
WAN
AMI Gatekeeper
COMPLETELY WIRELESS
Remote access
Advanced scheduling
Data logger
And much more…
Gateway
Other
HPS
LED
Local sensor /
actuator
Sensors
Water Gas Electric

17. 17

18. 18

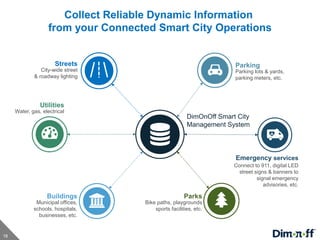

Collect Reliable Dynamic Information
from your Connected Smart City Operations
City-wide street
& roadway lighting
Streets
Parking lots & yards,
parking meters, etc.
Parking
Municipal offices,
schools, hospitals,
businesses, etc.
Buildings
Connect to 911, digital LED
street signs & banners to
signal emergency
advisories, etc.
Emergency services
Water, gas, electrical
Utilities
Bike paths, playgrounds
sports facilities, etc.
Parks
DimOnOff Smart City
Management System

19. 19

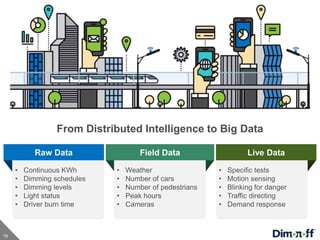

From Distributed Intelligence to Big Data
Raw Data Live DataField Data
• Continuous KWh
• Dimming schedules
• Dimming levels
• Light status
• Driver burn time
• Weather
• Number of cars
• Number of pedestrians
• Peak hours
• Cameras
• Specific tests
• Motion sensing
• Blinking for danger
• Traffic directing
• Demand response

20. 20
A System Beyond Lighting Applications
DimOnOff’s Controller
Ground fault detection, pole tilt
detection, service door status,
granular voltage, instant outage.
Monitor
Sewer level, river level, air pollution,
open parking, water/gas supply,
irrigation, traffic flow,
low voltage analog signal.
Sensor as a Broadcaster
Any type of fixture, including decorative and
Solar powered LED (low voltage controller)
street lights, park lights, parking lights,
demand response, any electrical device.
Monitoring and Controlling
Photocell, timer, astro clock,
switch motion, dry contact.
Lights Program Broadcaster
Live monitoring of sensor statuses and
sending a broadcast (alarm, program,
enabling a third party device)
when a level is reached.
Live monitoring
Cameras, Telco microcells, signage,
Christmas lighting, no-parking signs,
WiFi antennas.
Metered Power

21. 21
