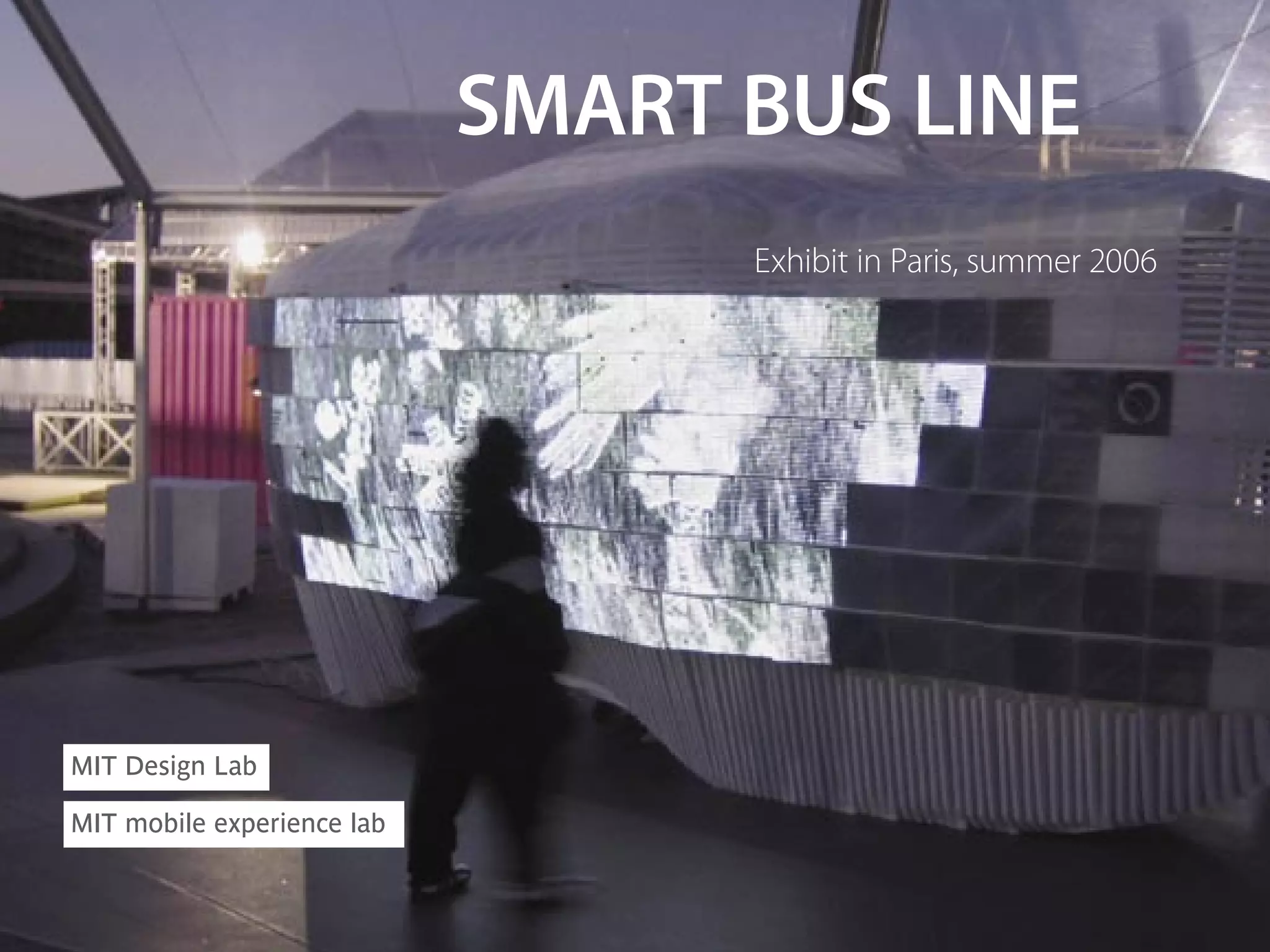

SMART BUS LINE
                                  Exhibit in Paris, summer 2006




MIT Design Lab

MIT mobile experience lab
A project of the
MIT mobile experience lab at
MIT Design Laboratory.
In collaboration with RATP.
THE SELF-ORGANIZED LANDMARK   The self-organizing bus stop serves as an electronic concierge and
                              digital gateway to the offerings of both its own neighborhood
                              and the transportation system at large. Through appropriate use of
                              digital technology, we can turn bus stops into sensual,
                              engaging, memorable landmarks that have varied and distinctive
                              character, and that respond vividly to the unique features of
                              their contexts and communities in multiple ways, at multiple scales,
                              and in multiple time frames.
Introduction


          The horse-drawn omnibus was introduced to Paris in the 19th cen-
          tury, and the fuel-powered bus in 1906. Today, smart urban
          mobility systems – making use of advanced sensing, computing,
          and networking technologies – promise a similarly profound
          revolution in transportation.

CONCEPT   The bus was one of the most successful inventions in the history of
          transportation, and it has served cities effectively for a century.
          Nowadays, we face new design challenges, and new technologies
          can help to meet them.

          This exhibit, a concept station – the result of two-year collaboration
          between MIT and RATP on Smart mobility – explores their
          emerging potential: the bus stop, a self-organizing landmark.
In 1662, Blaise Pascal initiated the world’s first public transportation
system – consisting of “five-penny” horse-drawn carriages. He
also invented a calculator. Smart urban mobility systems belong to
this rich genealogy, and draw these two themes of Pascal’s
imagination together in a new way.
Rethinking the bus system


Urban mobility systems traditionally combine high-speed, high-
volume, point-to-point transportation with more flexible but
slower and lower-volume modalities – walking, bicycling, taking
a taxi, and driving.

Ubiquitous access to information through mobile wireless devices
shifts the balance toward individual mobility. It allows high-
volume transportation to become more flexible and responsive,
and consequently, the traditional distinction between collective and
individual transportation blurs.
Transportation systems can become more responsive to changing
demands, users can make better transportation decisions, and
vehicles can provide important new services.

The Smart Mobility project demonstrates the application of these
concepts to the Paris bus system. Further details can be found
online at http://mobile.mit.edu/bus_stop
Landmark interactive bus stops


The bus stops of smart urban mobility systems function as power-
ful urban landmarks, particularly in areas of the city that need
strengthening of identity and focus.
They can take advantage of twenty-first century digital display tech
nology, in the same way that Guimard took advantage of the
industrial technology of his time in his designs for Metro stations.

Electronic, networked bus stops can serve as entry and orientation
points for transportation systems and neighborhoods,
supporting bus line agents – neighborhood concierges – who provide
guidance and advice, both in person and online.
The transportation system can broaden its role from that of a pro-
vider of physical mobility to that of a comprehensive source of
efficient access to the varied and far-flung resources and attractions
of the city.

This exhibit features a working prototype of a landmark interactive
bus stop constructed from inexpensive materials. It does not
have a standardized form, but takes advantage of new design and
fabrication technology to adapt to different contexts and needs.
The double sided bus stop, interacting and engaging


Facing the city, the exterior of the prototype bus stop has a
smart skin that senses and responds to the presence of
pedestrians – thus creating a playful, engaging art work. It can
be programmed with a wide range of continu-ally changing
content as appropriate to particular localities and seasons.
This particular prototype employs LEDs embedded in silicone
tiles and video sensing for the smart skin.

Facing the waiting passengers, the interior provides displays
and interaction screens for way-finding and schedule
information, news, local businesses and points of interest, and
local community networking services.
Reconfiguring buses


By embedding electronic intelligence, buses can become more
flexible, so that they wiggle themselves through the streets
in more agile fashion. They can provide effective service to areas
with narrow streets, winding roads, and complex topography.
Use of flexible, versatile buses help to better manage interchanges
among different transportation modes, thus making travel
more efficient and less confusing; the “snake” bus can penetrate
more areas of the city, and the “worm” bus can go underground.
Below street level, in addition, the “worm” bus can enter efficient
multimodal interchanges where pedestrians can access multiple
transportation systems – private cars, shared cars, bicycles,
and other public transportation systems. And versatile buses can
combine passenger transport and cargo transportation during
off peak hours, especially during the night. Furthermore, the
“stadium” bus can provide both a window on the city and a place
for bicycle storage.

Through use of networking, display, and interaction technologies,
buses can now provide many additional services, extending
their role far beyond transportation. They can become mobile
network nodes, so that passengers are connected for guidance,
entertainment, mobile work, and tourism. Both interior and
exterior surfaces can carry information displays. Buses can
increasingly become work, entertainment, and social spaces on
wheels, while their exteriors serve as dynamically programmed
urban information displays.
The bus stop is conceived of as one, continuously modulated
ARCHITECTURE
               surface that responds to local conditions and functional
               requirements by gradually varying shapes, curvatures, and
               densities. The structure is composed of non-repetitive,
               CAD/CAM-cut ribs that vary in shape and density as required
               by structural and other roles. Parametric design allows us
               to create bus stops whose shapes are physically adapt to the
               surroundings, while maintaining a common underlying identity.
MANUFACTURING
The bus stop form was parametrically modeled, and organized to
support CAD/CAM fabrication. This meant that bus stops
did not need to be standardized and repetitive – expressing a
typically modernist one-size-fits-all design philosophy – but
could potentially be mass-customized to fit particular urban contexts
and opportunities and patterns of transportation demand.
Programmable LEDs in architecture have taken the form of urban
            scale screens that simply obliterate traditional architectural
            effects. We overcame this limitation by using flexible modular
            tiles consisting of coarsely spaced LEDs embedded in cast
            silicone, which allows them to conform to the parametric struc-
            ture of the bus stop.




LED TILES
In this translucent medium, pixels can flare not only in intensity but
also in size, while the outer surface texture creates specular
gloss and self-shading effects as well. In addition to providing water-
proofing, the calibrated translucency allows an interplay of
natural and artificial light.




PROGRAMMABLE SURFACE
The outside of the bus stop, facing the city, mirrors the internal
          urban garden. The skin playfully interacts with people and
          engages them by reacting to their behavior. Sensors and cameras
          also monitor external environmental activities such as traffic,
          air and acoustic pollution, and these elements are synthesized with
          the flow of digital communication to determine the urban
          garden’s wellbeing.




SENSORS
The bus stop is designed to be a self-organizing landmark, capable
            of blending chameleon-like into the neighborhood it is placed in.




TWO FACES
Reflecting local information, communication, and everyday activity,
its façade elegantly changes over time to gain the markings of a
member of the community.
The interior of the bus stop, used primarily by passengers, contains
INSIDE
         two screens dedicated to separate purposes. The first screen
         houses a location-centric communication and content platform.
         The second screen gives access to transportation information.
The bus stop is also an open platform, allowing local artists to create
OUTSIDE
          new interactions for the outside. The artist may chose to insert
          elements into the garden, or if they wish, to replace the entire vista
          with some fantastic landscape from their imagination.
The second screen is a mean for use by the transportation agency
              to communicate information about services, products, service
              disruptions, and so on. On this screen, passengers can plan their trip
              and download it to their mobile devices. If needed, they can
              also start a videoconference with a live transportation agent for help.




INFORMATION
All content on this screen is user generated, including entries for
               local services, businesses, events, and classifieds. The interface
               concept used for this screen is the urban garden, with the trees
               serving as interface elements. Each tree represents a topic, and
               each leaf a message. The goal of the system is to foster interaction
               and communication between the users of the bus stop, and to
               allow them to shape the digital form of the bus stop with their own
               actions. The exterior, a direct reflection of this interface, thus
               reflects the richness, flow, and intensity of communication.




URBAN GARDEN
On this screen, passengers can plan their trip and download it
                     to their mobile devices. If needed, they can also start a videocon-
                     ference with a live transportation agent for help.




MOBILE INTERACTION
The prototype bus stop was part of the exhibtion „Le Bus, cent ans
             de mouvement“ in Paris, October 7-14 2006, curated by RATP.




EXHIBITION
MIT DESIGN LABORATORY                         Contact
          MIT mobile experience lab                     Federico Casalegno
          http://mobile.mit.edu                         MIT Design Laboratory
                                                        MIT mobile experience lab
          Direction
          William J. Mitchell,                          238 Main Street, E48-319
          Federico Casalegno (Motorola/MIT)             02142 Cambridge, MA, USA
                                                        federico@media.mit.edu
          Team
          David Bouchard, Marcel Botha, Mirja Leinss,   In collaboration with RATP
CREDITS   Miguel Menchu, David Raul Poblano,            http://www.ratp.fr
          Orkan Telhan, Sajid Sadi

          Thanks to
          Sergio Araya, Onur Yuce Gun, Aaron Tang,
          Eric Weber, Caitlin Winner, Cynthia Wilkes
          and the MIT Media Lab Smart Cities group.
http://mobile.mit.edu/bus_stop
The MIT mobile experience lab takes a multidisciplinary
approach at understanding people’s experience using
wireless communication technologies, while exploring how
mobile media impact societies, communities and spaces.
http://mobile.mit.edu

More Related Content

What's hot

BUS TERMINAL LIBRARY STUDY
BUS TERMINAL LIBRARY STUDYBUS TERMINAL LIBRARY STUDY
BUS TERMINAL LIBRARY STUDYSumit Ranjan

AN INTEGRATED APPROACH TO REDUCE INTRA CITY TRAFFIC AT COIMBATORE | J4RV4I1002
AN INTEGRATED APPROACH TO REDUCE INTRA CITY TRAFFIC AT COIMBATORE | J4RV4I1002AN INTEGRATED APPROACH TO REDUCE INTRA CITY TRAFFIC AT COIMBATORE | J4RV4I1002
AN INTEGRATED APPROACH TO REDUCE INTRA CITY TRAFFIC AT COIMBATORE | J4RV4I1002Journal For Research

Planning principles of Bus Terminals and Logistics Parks
Planning principles of Bus Terminals and Logistics ParksPlanning principles of Bus Terminals and Logistics Parks
Planning principles of Bus Terminals and Logistics ParksYajush Sonar

Inter state bus terminal - Litrature study
Inter state bus terminal - Litrature studyInter state bus terminal - Litrature study
Inter state bus terminal - Litrature studyAkshey Sharma

European Bus Operators' Forum - Yo Kaminagai
European Bus Operators' Forum - Yo KaminagaiEuropean Bus Operators' Forum - Yo Kaminagai
European Bus Operators' Forum - Yo KaminagaiRussell Publishing

Chennai mofussil bus terminal
Chennai mofussil bus terminalChennai mofussil bus terminal
Chennai mofussil bus terminalShivang Madaan

Roundabouts on the road to sustainability
Roundabouts on the road to sustainabilityRoundabouts on the road to sustainability
Roundabouts on the road to sustainabilityJill Berberich

NIP_Embarq, Mobility Solutions
NIP_Embarq, Mobility SolutionsNIP_Embarq, Mobility Solutions
NIP_Embarq, Mobility SolutionsSensing Local

Bus Karo: Bus Depot Design Guideline
Bus Karo: Bus Depot Design Guideline Bus Karo: Bus Depot Design Guideline
Bus Karo: Bus Depot Design Guideline WRI India

BUS DEPOT DESIGN PRESENTATION
BUS DEPOT DESIGN PRESENTATIONBUS DEPOT DESIGN PRESENTATION
BUS DEPOT DESIGN PRESENTATIONShankar Sarkar

Data Collection-Standards- Bus Terminal- Multi-Modal Hub
Data Collection-Standards- Bus Terminal- Multi-Modal HubData Collection-Standards- Bus Terminal- Multi-Modal Hub
Data Collection-Standards- Bus Terminal- Multi-Modal Hubhrudai11


What's hot (20)

BUS TERMINAL LIBRARY STUDY
BUS TERMINAL LIBRARY STUDYBUS TERMINAL LIBRARY STUDY
BUS TERMINAL LIBRARY STUDY

AN INTEGRATED APPROACH TO REDUCE INTRA CITY TRAFFIC AT COIMBATORE | J4RV4I1002
AN INTEGRATED APPROACH TO REDUCE INTRA CITY TRAFFIC AT COIMBATORE | J4RV4I1002AN INTEGRATED APPROACH TO REDUCE INTRA CITY TRAFFIC AT COIMBATORE | J4RV4I1002
AN INTEGRATED APPROACH TO REDUCE INTRA CITY TRAFFIC AT COIMBATORE | J4RV4I1002

Shanghai Long Distance Bus Station
Shanghai Long Distance Bus StationShanghai Long Distance Bus Station
Shanghai Long Distance Bus Station

Planning principles of Bus Terminals and Logistics Parks
Planning principles of Bus Terminals and Logistics ParksPlanning principles of Bus Terminals and Logistics Parks
Planning principles of Bus Terminals and Logistics Parks

Inter state bus terminal - Litrature study
Inter state bus terminal - Litrature studyInter state bus terminal - Litrature study
Inter state bus terminal - Litrature study

European Bus Operators' Forum - Yo Kaminagai
European Bus Operators' Forum - Yo KaminagaiEuropean Bus Operators' Forum - Yo Kaminagai
European Bus Operators' Forum - Yo Kaminagai

Isbt kashmere gate 2
Isbt kashmere gate 2Isbt kashmere gate 2
Isbt kashmere gate 2

2016 TOD brochure
2016 TOD brochure2016 TOD brochure
2016 TOD brochure

Transit hub
Transit hub Transit hub
Transit hub

Cherkasy07042011
Cherkasy07042011Cherkasy07042011
Cherkasy07042011

03 public transport
03 public transport03 public transport
03 public transport

Chennai mofussil bus terminal
Chennai mofussil bus terminalChennai mofussil bus terminal
Chennai mofussil bus terminal

Roundabouts on the road to sustainability
Roundabouts on the road to sustainabilityRoundabouts on the road to sustainability
Roundabouts on the road to sustainability

Bus terminal
Bus terminal Bus terminal
Bus terminal

Best Practices in BRT Presentation
Best Practices in BRT PresentationBest Practices in BRT Presentation
Best Practices in BRT Presentation

NIP_Embarq, Mobility Solutions
NIP_Embarq, Mobility SolutionsNIP_Embarq, Mobility Solutions
NIP_Embarq, Mobility Solutions

Bus Karo: Bus Depot Design Guideline
Bus Karo: Bus Depot Design Guideline Bus Karo: Bus Depot Design Guideline
Bus Karo: Bus Depot Design Guideline

BUS DEPOT DESIGN PRESENTATION
BUS DEPOT DESIGN PRESENTATIONBUS DEPOT DESIGN PRESENTATION
BUS DEPOT DESIGN PRESENTATION

Data Collection-Standards- Bus Terminal- Multi-Modal Hub
Data Collection-Standards- Bus Terminal- Multi-Modal HubData Collection-Standards- Bus Terminal- Multi-Modal Hub
Data Collection-Standards- Bus Terminal- Multi-Modal Hub

Ad bus terminal chennai
Ad bus terminal chennaiAd bus terminal chennai
Ad bus terminal chennai


Viewers also liked

Bus stop standards_manual_draft_final_sept18-2013
Bus stop standards_manual_draft_final_sept18-2013Bus stop standards_manual_draft_final_sept18-2013
Bus stop standards_manual_draft_final_sept18-2013COTA BUS

15 unusual and creative bus stops
15 unusual and creative bus stops15 unusual and creative bus stops
15 unusual and creative bus stopsAinslie Gracen

2010 Ncce Pd 2 0 Final
2010 Ncce Pd 2 0 Final2010 Ncce Pd 2 0 Final
2010 Ncce Pd 2 0 FinalJason Neiffer

Community College Bookstore Project NMC
Community College Bookstore Project NMCCommunity College Bookstore Project NMC
Community College Bookstore Project NMCnmc1119

Heograpiya ng Asya
Heograpiya ng AsyaHeograpiya ng Asya
Heograpiya ng AsyaNeri Diaz

Marketing Your Library's Physical Space
Marketing Your Library's Physical SpaceMarketing Your Library's Physical Space
Marketing Your Library's Physical SpaceIndiana State Library

The Project Of School Bookstore 1
The Project Of School Bookstore 1The Project Of School Bookstore 1
The Project Of School Bookstore 1ghdaa

IzabelaKelly_TLBookstore1
IzabelaKelly_TLBookstore1IzabelaKelly_TLBookstore1
IzabelaKelly_TLBookstore1Izabela Kelly

Poldma Tus Sample Power Point
Poldma Tus Sample Power PointPoldma Tus Sample Power Point
Poldma Tus Sample Power PointFairchild Books

Prof. Federico Casalegno - connected urban-development
Prof. Federico Casalegno -  connected urban-developmentProf. Federico Casalegno -  connected urban-development
Prof. Federico Casalegno - connected urban-developmentIDM Südtirol - Alto Adige

RAK Public Transport Conceptional
RAK Public Transport ConceptionalRAK Public Transport Conceptional
RAK Public Transport ConceptionalSebastian Behr

Csi it2020 presentation by accenture team combined
Csi it2020 presentation by accenture team combinedCsi it2020 presentation by accenture team combined
Csi it2020 presentation by accenture team combinedTechXpla

Microsoft Smart Buildings White Paper
Microsoft Smart Buildings White PaperMicrosoft Smart Buildings White Paper
Microsoft Smart Buildings White PaperMicrosoft India

EkoLum : Smart Street Lighting Software
EkoLum : Smart Street Lighting SoftwareEkoLum : Smart Street Lighting Software
EkoLum : Smart Street Lighting SoftwareJosep Pocalles

Building automation standards and integration
Building automation standards and integrationBuilding automation standards and integration
Building automation standards and integrationAbdullah Albazzour


Viewers also liked (20)

Bus stop standards_manual_draft_final_sept18-2013
Bus stop standards_manual_draft_final_sept18-2013Bus stop standards_manual_draft_final_sept18-2013
Bus stop standards_manual_draft_final_sept18-2013

15 unusual and creative bus stops
15 unusual and creative bus stops15 unusual and creative bus stops
15 unusual and creative bus stops

The bus stop
The bus stopThe bus stop
The bus stop

2010 Ncce Pd 2 0 Final
2010 Ncce Pd 2 0 Final2010 Ncce Pd 2 0 Final
2010 Ncce Pd 2 0 Final

Community College Bookstore Project NMC
Community College Bookstore Project NMCCommunity College Bookstore Project NMC
Community College Bookstore Project NMC

Heograpiya ng Asya
Heograpiya ng AsyaHeograpiya ng Asya
Heograpiya ng Asya

Bookstore-Project
Bookstore-ProjectBookstore-Project
Bookstore-Project

Marketing Your Library's Physical Space
Marketing Your Library's Physical SpaceMarketing Your Library's Physical Space
Marketing Your Library's Physical Space

The Project Of School Bookstore 1
The Project Of School Bookstore 1The Project Of School Bookstore 1
The Project Of School Bookstore 1

IzabelaKelly_TLBookstore1
IzabelaKelly_TLBookstore1IzabelaKelly_TLBookstore1
IzabelaKelly_TLBookstore1

Poldma Tus Sample Power Point
Poldma Tus Sample Power PointPoldma Tus Sample Power Point
Poldma Tus Sample Power Point

Prof. Federico Casalegno - connected urban-development
Prof. Federico Casalegno -  connected urban-developmentProf. Federico Casalegno -  connected urban-development
Prof. Federico Casalegno - connected urban-development

Smart Cities & Mobility
Smart Cities & MobilitySmart Cities & Mobility
Smart Cities & Mobility

RAK Public Transport Conceptional
RAK Public Transport ConceptionalRAK Public Transport Conceptional
RAK Public Transport Conceptional

Smart City Convergence of Technologies
Smart City Convergence of TechnologiesSmart City Convergence of Technologies
Smart City Convergence of Technologies

Ackee Smart Lighting [EN]
Ackee Smart Lighting [EN]Ackee Smart Lighting [EN]
Ackee Smart Lighting [EN]

Csi it2020 presentation by accenture team combined
Csi it2020 presentation by accenture team combinedCsi it2020 presentation by accenture team combined
Csi it2020 presentation by accenture team combined

Microsoft Smart Buildings White Paper
Microsoft Smart Buildings White PaperMicrosoft Smart Buildings White Paper
Microsoft Smart Buildings White Paper

EkoLum : Smart Street Lighting Software
EkoLum : Smart Street Lighting SoftwareEkoLum : Smart Street Lighting Software
EkoLum : Smart Street Lighting Software

Building automation standards and integration
Building automation standards and integrationBuilding automation standards and integration
Building automation standards and integration


Similar to Bus Stop

Webinar: Smart Cities
Webinar: Smart CitiesWebinar: Smart Cities
Webinar: Smart CitiesIEBSchool

Autonomous shuttles: unrestricted mobility
Autonomous shuttles: unrestricted mobilityAutonomous shuttles: unrestricted mobility
Autonomous shuttles: unrestricted mobilityKeolis

How do I envision the City of the Future?
How do I envision the City of the Future?How do I envision the City of the Future?
How do I envision the City of the Future?Claire Beaudron

Express Yourself Question L
Express Yourself Question LExpress Yourself Question L
Express Yourself Question LClelia Cervetto

Autonomous Shuttles-as-a-Service (ASaaS): Challenges, Opportunities, and Soci...
Autonomous Shuttles-as-a-Service (ASaaS): Challenges, Opportunities, and Soci...Autonomous Shuttles-as-a-Service (ASaaS): Challenges, Opportunities, and Soci...
Autonomous Shuttles-as-a-Service (ASaaS): Challenges, Opportunities, and Soci...antbucc

Fewthingsaboutsmartcity
FewthingsaboutsmartcityFewthingsaboutsmartcity
Fewthingsaboutsmartcitydasiyjun

DESIGN CHARTER FOR INNOVATIVE ELECTRIC BUSES - Yo Kaminagai (RATP) at Interna...
DESIGN CHARTER FOR INNOVATIVE ELECTRIC BUSES - Yo Kaminagai (RATP) at Interna...DESIGN CHARTER FOR INNOVATIVE ELECTRIC BUSES - Yo Kaminagai (RATP) at Interna...
DESIGN CHARTER FOR INNOVATIVE ELECTRIC BUSES - Yo Kaminagai (RATP) at Interna...International Design Center Berlin

Business case 1: Soft mobility in Rennes Metropole
Business case 1: Soft mobility in Rennes Metropole Business case 1: Soft mobility in Rennes Metropole
Business case 1: Soft mobility in Rennes Metropole FogGuru MSCA Project

Smart Cities and Open Governments (IT In Transit #33)
Smart Cities and Open Governments (IT In Transit #33)Smart Cities and Open Governments (IT In Transit #33)
Smart Cities and Open Governments (IT In Transit #33)Miqui Mel

Free and Sustainable Mobility in the Connected City
Free and Sustainable Mobility in the Connected CityFree and Sustainable Mobility in the Connected City
Free and Sustainable Mobility in the Connected CityFing

IE application: smartcities
IE application:  smartcitiesIE application:  smartcities
IE application: smartcitiesjonasbeu

Deputy Lord Mayor Declan Clausen - Smart Cities Expo World Forum - September ...
Deputy Lord Mayor Declan Clausen - Smart Cities Expo World Forum - September ...Deputy Lord Mayor Declan Clausen - Smart Cities Expo World Forum - September ...
Deputy Lord Mayor Declan Clausen - Smart Cities Expo World Forum - September ...DeclanClausen

Appsa Red, Prioridad para el peatón en Antalya, Turquía, CEUPA, Centro de Coo...
Appsa Red, Prioridad para el peatón en Antalya, Turquía, CEUPA, Centro de Coo...Appsa Red, Prioridad para el peatón en Antalya, Turquía, CEUPA, Centro de Coo...
Appsa Red, Prioridad para el peatón en Antalya, Turquía, CEUPA, Centro de Coo...Gloria Conde Rodríguez

Smart cities research_brief_19_mobile_apps_for_bus_users_in_edinburgh
Smart cities research_brief_19_mobile_apps_for_bus_users_in_edinburghSmart cities research_brief_19_mobile_apps_for_bus_users_in_edinburgh
Smart cities research_brief_19_mobile_apps_for_bus_users_in_edinburghSmart Cities Project


Similar to Bus Stop (20)

Brochure
BrochureBrochure
Brochure

Webinar: Smart Cities
Webinar: Smart CitiesWebinar: Smart Cities
Webinar: Smart Cities

Autonomous shuttles: unrestricted mobility
Autonomous shuttles: unrestricted mobilityAutonomous shuttles: unrestricted mobility
Autonomous shuttles: unrestricted mobility

City of Barcelona
City of BarcelonaCity of Barcelona
City of Barcelona

Urban Screens
Urban ScreensUrban Screens
Urban Screens

How do I envision the City of the Future?
How do I envision the City of the Future?How do I envision the City of the Future?
How do I envision the City of the Future?

Express Yourself Question L
Express Yourself Question LExpress Yourself Question L
Express Yourself Question L

Autonomous Shuttles-as-a-Service (ASaaS): Challenges, Opportunities, and Soci...
Autonomous Shuttles-as-a-Service (ASaaS): Challenges, Opportunities, and Soci...Autonomous Shuttles-as-a-Service (ASaaS): Challenges, Opportunities, and Soci...
Autonomous Shuttles-as-a-Service (ASaaS): Challenges, Opportunities, and Soci...

publi-5350.pdf
publi-5350.pdfpubli-5350.pdf
publi-5350.pdf

Fewthingsaboutsmartcity
FewthingsaboutsmartcityFewthingsaboutsmartcity
Fewthingsaboutsmartcity

DESIGN CHARTER FOR INNOVATIVE ELECTRIC BUSES - Yo Kaminagai (RATP) at Interna...
DESIGN CHARTER FOR INNOVATIVE ELECTRIC BUSES - Yo Kaminagai (RATP) at Interna...DESIGN CHARTER FOR INNOVATIVE ELECTRIC BUSES - Yo Kaminagai (RATP) at Interna...
DESIGN CHARTER FOR INNOVATIVE ELECTRIC BUSES - Yo Kaminagai (RATP) at Interna...

Business case 1: Soft mobility in Rennes Metropole
Business case 1: Soft mobility in Rennes Metropole Business case 1: Soft mobility in Rennes Metropole
Business case 1: Soft mobility in Rennes Metropole

Smart Cities and Open Governments (IT In Transit #33)
Smart Cities and Open Governments (IT In Transit #33)Smart Cities and Open Governments (IT In Transit #33)
Smart Cities and Open Governments (IT In Transit #33)

Free and Sustainable Mobility in the Connected City
Free and Sustainable Mobility in the Connected CityFree and Sustainable Mobility in the Connected City
Free and Sustainable Mobility in the Connected City

IE application: smartcities
IE application:  smartcitiesIE application:  smartcities
IE application: smartcities

GAFFTA-Cities catalog
GAFFTA-Cities catalogGAFFTA-Cities catalog
GAFFTA-Cities catalog

AICPS Climathon
AICPS ClimathonAICPS Climathon
AICPS Climathon

Deputy Lord Mayor Declan Clausen - Smart Cities Expo World Forum - September ...
Deputy Lord Mayor Declan Clausen - Smart Cities Expo World Forum - September ...Deputy Lord Mayor Declan Clausen - Smart Cities Expo World Forum - September ...
Deputy Lord Mayor Declan Clausen - Smart Cities Expo World Forum - September ...

Appsa Red, Prioridad para el peatón en Antalya, Turquía, CEUPA, Centro de Coo...
Appsa Red, Prioridad para el peatón en Antalya, Turquía, CEUPA, Centro de Coo...Appsa Red, Prioridad para el peatón en Antalya, Turquía, CEUPA, Centro de Coo...
Appsa Red, Prioridad para el peatón en Antalya, Turquía, CEUPA, Centro de Coo...

Smart cities research_brief_19_mobile_apps_for_bus_users_in_edinburgh
Smart cities research_brief_19_mobile_apps_for_bus_users_in_edinburghSmart cities research_brief_19_mobile_apps_for_bus_users_in_edinburgh
Smart cities research_brief_19_mobile_apps_for_bus_users_in_edinburgh


Recently uploaded

Kenya Coconut Production Presentation by Dr. Lalith Perera
Kenya Coconut Production Presentation by Dr. Lalith PereraKenya Coconut Production Presentation by Dr. Lalith Perera
Kenya Coconut Production Presentation by Dr. Lalith Pereraictsugar

Pitch Deck Teardown: Geodesic.Life's $500k Pre-seed deck
Pitch Deck Teardown: Geodesic.Life's $500k Pre-seed deckPitch Deck Teardown: Geodesic.Life's $500k Pre-seed deck
Pitch Deck Teardown: Geodesic.Life's $500k Pre-seed deckHajeJanKamps

The-Ethical-issues-ghhhhhhhhjof-Byjus.pptx
The-Ethical-issues-ghhhhhhhhjof-Byjus.pptxThe-Ethical-issues-ghhhhhhhhjof-Byjus.pptx
The-Ethical-issues-ghhhhhhhhjof-Byjus.pptxmbikashkanyari

Appkodes Tinder Clone Script with Customisable Solutions.pptx
Appkodes Tinder Clone Script with Customisable Solutions.pptxAppkodes Tinder Clone Script with Customisable Solutions.pptx
Appkodes Tinder Clone Script with Customisable Solutions.pptxappkodes

TriStar Gold Corporate Presentation - April 2024
TriStar Gold Corporate Presentation - April 2024TriStar Gold Corporate Presentation - April 2024
TriStar Gold Corporate Presentation - April 2024Adnet Communications

8447779800, Low rate Call girls in Saket Delhi NCR
8447779800, Low rate Call girls in Saket Delhi NCR8447779800, Low rate Call girls in Saket Delhi NCR
8447779800, Low rate Call girls in Saket Delhi NCRashishs7044

8447779800, Low rate Call girls in Kotla Mubarakpur Delhi NCR
8447779800, Low rate Call girls in Kotla Mubarakpur Delhi NCR8447779800, Low rate Call girls in Kotla Mubarakpur Delhi NCR
8447779800, Low rate Call girls in Kotla Mubarakpur Delhi NCRashishs7044

Investment in The Coconut Industry by Nancy Cheruiyot
Investment in The Coconut Industry by Nancy CheruiyotInvestment in The Coconut Industry by Nancy Cheruiyot
Investment in The Coconut Industry by Nancy Cheruiyotictsugar

Cybersecurity Awareness Training Presentation v2024.03
Cybersecurity Awareness Training Presentation v2024.03Cybersecurity Awareness Training Presentation v2024.03
Cybersecurity Awareness Training Presentation v2024.03DallasHaselhorst

MAHA Global and IPR: Do Actions Speak Louder Than Words?
MAHA Global and IPR: Do Actions Speak Louder Than Words?MAHA Global and IPR: Do Actions Speak Louder Than Words?
MAHA Global and IPR: Do Actions Speak Louder Than Words?Olivia Kresic

Independent Call Girls Andheri Nightlaila 9967584737
Independent Call Girls Andheri Nightlaila 9967584737Independent Call Girls Andheri Nightlaila 9967584737
Independent Call Girls Andheri Nightlaila 9967584737Riya Pathan

8447779800, Low rate Call girls in Uttam Nagar Delhi NCR
8447779800, Low rate Call girls in Uttam Nagar Delhi NCR8447779800, Low rate Call girls in Uttam Nagar Delhi NCR
8447779800, Low rate Call girls in Uttam Nagar Delhi NCRashishs7044

PB Project 1: Exploring Your Personal Brand
PB Project 1: Exploring Your Personal BrandPB Project 1: Exploring Your Personal Brand
PB Project 1: Exploring Your Personal BrandSharisaBethune

(Best) ENJOY Call Girls in Faridabad Ex | 8377087607
(Best) ENJOY Call Girls in Faridabad Ex | 8377087607(Best) ENJOY Call Girls in Faridabad Ex | 8377087607
(Best) ENJOY Call Girls in Faridabad Ex | 8377087607dollysharma2066

Chapter 9 PPT 4th edition.pdf internal audit
Chapter 9 PPT 4th edition.pdf internal auditChapter 9 PPT 4th edition.pdf internal audit
Chapter 9 PPT 4th edition.pdf internal auditNhtLNguyn9

Traction part 2 - EOS Model JAX Bridges.
Traction part 2 - EOS Model JAX Bridges.Traction part 2 - EOS Model JAX Bridges.
Traction part 2 - EOS Model JAX Bridges.Anamaria Contreras

Call Girls Contact Number Andheri 9920874524
Call Girls Contact Number Andheri 9920874524Call Girls Contact Number Andheri 9920874524
Call Girls Contact Number Andheri 9920874524najka9823


Recently uploaded (20)

Kenya Coconut Production Presentation by Dr. Lalith Perera
Kenya Coconut Production Presentation by Dr. Lalith PereraKenya Coconut Production Presentation by Dr. Lalith Perera
Kenya Coconut Production Presentation by Dr. Lalith Perera

Pitch Deck Teardown: Geodesic.Life's $500k Pre-seed deck
Pitch Deck Teardown: Geodesic.Life's $500k Pre-seed deckPitch Deck Teardown: Geodesic.Life's $500k Pre-seed deck
Pitch Deck Teardown: Geodesic.Life's $500k Pre-seed deck

The-Ethical-issues-ghhhhhhhhjof-Byjus.pptx
The-Ethical-issues-ghhhhhhhhjof-Byjus.pptxThe-Ethical-issues-ghhhhhhhhjof-Byjus.pptx
The-Ethical-issues-ghhhhhhhhjof-Byjus.pptx

Appkodes Tinder Clone Script with Customisable Solutions.pptx
Appkodes Tinder Clone Script with Customisable Solutions.pptxAppkodes Tinder Clone Script with Customisable Solutions.pptx
Appkodes Tinder Clone Script with Customisable Solutions.pptx

Japan IT Week 2024 Brochure by 47Billion (English)
Japan IT Week 2024 Brochure by 47Billion (English)Japan IT Week 2024 Brochure by 47Billion (English)
Japan IT Week 2024 Brochure by 47Billion (English)

TriStar Gold Corporate Presentation - April 2024
TriStar Gold Corporate Presentation - April 2024TriStar Gold Corporate Presentation - April 2024
TriStar Gold Corporate Presentation - April 2024

Call Us ➥9319373153▻Call Girls In North Goa
Call Us ➥9319373153▻Call Girls In North GoaCall Us ➥9319373153▻Call Girls In North Goa
Call Us ➥9319373153▻Call Girls In North Goa

8447779800, Low rate Call girls in Saket Delhi NCR
8447779800, Low rate Call girls in Saket Delhi NCR8447779800, Low rate Call girls in Saket Delhi NCR
8447779800, Low rate Call girls in Saket Delhi NCR

8447779800, Low rate Call girls in Kotla Mubarakpur Delhi NCR
8447779800, Low rate Call girls in Kotla Mubarakpur Delhi NCR8447779800, Low rate Call girls in Kotla Mubarakpur Delhi NCR
8447779800, Low rate Call girls in Kotla Mubarakpur Delhi NCR

Investment in The Coconut Industry by Nancy Cheruiyot
Investment in The Coconut Industry by Nancy CheruiyotInvestment in The Coconut Industry by Nancy Cheruiyot
Investment in The Coconut Industry by Nancy Cheruiyot

Cybersecurity Awareness Training Presentation v2024.03
Cybersecurity Awareness Training Presentation v2024.03Cybersecurity Awareness Training Presentation v2024.03
Cybersecurity Awareness Training Presentation v2024.03

MAHA Global and IPR: Do Actions Speak Louder Than Words?
MAHA Global and IPR: Do Actions Speak Louder Than Words?MAHA Global and IPR: Do Actions Speak Louder Than Words?
MAHA Global and IPR: Do Actions Speak Louder Than Words?

Independent Call Girls Andheri Nightlaila 9967584737
Independent Call Girls Andheri Nightlaila 9967584737Independent Call Girls Andheri Nightlaila 9967584737
Independent Call Girls Andheri Nightlaila 9967584737

8447779800, Low rate Call girls in Uttam Nagar Delhi NCR
8447779800, Low rate Call girls in Uttam Nagar Delhi NCR8447779800, Low rate Call girls in Uttam Nagar Delhi NCR
8447779800, Low rate Call girls in Uttam Nagar Delhi NCR

PB Project 1: Exploring Your Personal Brand
PB Project 1: Exploring Your Personal BrandPB Project 1: Exploring Your Personal Brand
PB Project 1: Exploring Your Personal Brand

(Best) ENJOY Call Girls in Faridabad Ex | 8377087607
(Best) ENJOY Call Girls in Faridabad Ex | 8377087607(Best) ENJOY Call Girls in Faridabad Ex | 8377087607
(Best) ENJOY Call Girls in Faridabad Ex | 8377087607

Chapter 9 PPT 4th edition.pdf internal audit
Chapter 9 PPT 4th edition.pdf internal auditChapter 9 PPT 4th edition.pdf internal audit
Chapter 9 PPT 4th edition.pdf internal audit

Traction part 2 - EOS Model JAX Bridges.
Traction part 2 - EOS Model JAX Bridges.Traction part 2 - EOS Model JAX Bridges.
Traction part 2 - EOS Model JAX Bridges.

No-1 Call Girls In Goa 93193 VIP 73153 Escort service In North Goa Panaji, Ca...
No-1 Call Girls In Goa 93193 VIP 73153 Escort service In North Goa Panaji, Ca...No-1 Call Girls In Goa 93193 VIP 73153 Escort service In North Goa Panaji, Ca...
No-1 Call Girls In Goa 93193 VIP 73153 Escort service In North Goa Panaji, Ca...

Call Girls Contact Number Andheri 9920874524
Call Girls Contact Number Andheri 9920874524Call Girls Contact Number Andheri 9920874524
Call Girls Contact Number Andheri 9920874524


Bus Stop

  • 1. SMART BUS LINE Exhibit in Paris, summer 2006 MIT Design Lab MIT mobile experience lab
  • 2. A project of the MIT mobile experience lab at MIT Design Laboratory. In collaboration with RATP.
  • 3. THE SELF-ORGANIZED LANDMARK The self-organizing bus stop serves as an electronic concierge and digital gateway to the offerings of both its own neighborhood and the transportation system at large. Through appropriate use of digital technology, we can turn bus stops into sensual, engaging, memorable landmarks that have varied and distinctive character, and that respond vividly to the unique features of their contexts and communities in multiple ways, at multiple scales, and in multiple time frames.
  • 4. Introduction The horse-drawn omnibus was introduced to Paris in the 19th cen- tury, and the fuel-powered bus in 1906. Today, smart urban mobility systems – making use of advanced sensing, computing, and networking technologies – promise a similarly profound revolution in transportation. CONCEPT The bus was one of the most successful inventions in the history of transportation, and it has served cities effectively for a century. Nowadays, we face new design challenges, and new technologies can help to meet them. This exhibit, a concept station – the result of two-year collaboration between MIT and RATP on Smart mobility – explores their emerging potential: the bus stop, a self-organizing landmark.
  • 5. In 1662, Blaise Pascal initiated the world’s first public transportation system – consisting of “five-penny” horse-drawn carriages. He also invented a calculator. Smart urban mobility systems belong to this rich genealogy, and draw these two themes of Pascal’s imagination together in a new way.
  • 6. Rethinking the bus system Urban mobility systems traditionally combine high-speed, high- volume, point-to-point transportation with more flexible but slower and lower-volume modalities – walking, bicycling, taking a taxi, and driving. Ubiquitous access to information through mobile wireless devices shifts the balance toward individual mobility. It allows high- volume transportation to become more flexible and responsive, and consequently, the traditional distinction between collective and individual transportation blurs. Transportation systems can become more responsive to changing demands, users can make better transportation decisions, and vehicles can provide important new services. The Smart Mobility project demonstrates the application of these concepts to the Paris bus system. Further details can be found online at http://mobile.mit.edu/bus_stop
  • 7. Landmark interactive bus stops The bus stops of smart urban mobility systems function as power- ful urban landmarks, particularly in areas of the city that need strengthening of identity and focus. They can take advantage of twenty-first century digital display tech nology, in the same way that Guimard took advantage of the industrial technology of his time in his designs for Metro stations. Electronic, networked bus stops can serve as entry and orientation points for transportation systems and neighborhoods, supporting bus line agents – neighborhood concierges – who provide guidance and advice, both in person and online. The transportation system can broaden its role from that of a pro- vider of physical mobility to that of a comprehensive source of efficient access to the varied and far-flung resources and attractions of the city. This exhibit features a working prototype of a landmark interactive bus stop constructed from inexpensive materials. It does not have a standardized form, but takes advantage of new design and fabrication technology to adapt to different contexts and needs.
  • 8. The double sided bus stop, interacting and engaging Facing the city, the exterior of the prototype bus stop has a smart skin that senses and responds to the presence of pedestrians – thus creating a playful, engaging art work. It can be programmed with a wide range of continu-ally changing content as appropriate to particular localities and seasons. This particular prototype employs LEDs embedded in silicone tiles and video sensing for the smart skin. Facing the waiting passengers, the interior provides displays and interaction screens for way-finding and schedule information, news, local businesses and points of interest, and local community networking services.
  • 9. Reconfiguring buses By embedding electronic intelligence, buses can become more flexible, so that they wiggle themselves through the streets in more agile fashion. They can provide effective service to areas with narrow streets, winding roads, and complex topography. Use of flexible, versatile buses help to better manage interchanges among different transportation modes, thus making travel more efficient and less confusing; the “snake” bus can penetrate more areas of the city, and the “worm” bus can go underground. Below street level, in addition, the “worm” bus can enter efficient multimodal interchanges where pedestrians can access multiple transportation systems – private cars, shared cars, bicycles, and other public transportation systems. And versatile buses can combine passenger transport and cargo transportation during off peak hours, especially during the night. Furthermore, the “stadium” bus can provide both a window on the city and a place for bicycle storage. Through use of networking, display, and interaction technologies, buses can now provide many additional services, extending their role far beyond transportation. They can become mobile network nodes, so that passengers are connected for guidance, entertainment, mobile work, and tourism. Both interior and exterior surfaces can carry information displays. Buses can increasingly become work, entertainment, and social spaces on wheels, while their exteriors serve as dynamically programmed urban information displays.
  • 10. The bus stop is conceived of as one, continuously modulated ARCHITECTURE surface that responds to local conditions and functional requirements by gradually varying shapes, curvatures, and densities. The structure is composed of non-repetitive, CAD/CAM-cut ribs that vary in shape and density as required by structural and other roles. Parametric design allows us to create bus stops whose shapes are physically adapt to the surroundings, while maintaining a common underlying identity.
  • 11.
  • 13. The bus stop form was parametrically modeled, and organized to support CAD/CAM fabrication. This meant that bus stops did not need to be standardized and repetitive – expressing a typically modernist one-size-fits-all design philosophy – but could potentially be mass-customized to fit particular urban contexts and opportunities and patterns of transportation demand.
  • 14. Programmable LEDs in architecture have taken the form of urban scale screens that simply obliterate traditional architectural effects. We overcame this limitation by using flexible modular tiles consisting of coarsely spaced LEDs embedded in cast silicone, which allows them to conform to the parametric struc- ture of the bus stop. LED TILES
  • 15.
  • 16. In this translucent medium, pixels can flare not only in intensity but also in size, while the outer surface texture creates specular gloss and self-shading effects as well. In addition to providing water- proofing, the calibrated translucency allows an interplay of natural and artificial light. PROGRAMMABLE SURFACE
  • 17.
  • 18. The outside of the bus stop, facing the city, mirrors the internal urban garden. The skin playfully interacts with people and engages them by reacting to their behavior. Sensors and cameras also monitor external environmental activities such as traffic, air and acoustic pollution, and these elements are synthesized with the flow of digital communication to determine the urban garden’s wellbeing. SENSORS
  • 19.
  • 20. The bus stop is designed to be a self-organizing landmark, capable of blending chameleon-like into the neighborhood it is placed in. TWO FACES
  • 21. Reflecting local information, communication, and everyday activity, its façade elegantly changes over time to gain the markings of a member of the community.
  • 22. The interior of the bus stop, used primarily by passengers, contains INSIDE two screens dedicated to separate purposes. The first screen houses a location-centric communication and content platform. The second screen gives access to transportation information.
  • 23.
  • 24. The bus stop is also an open platform, allowing local artists to create OUTSIDE new interactions for the outside. The artist may chose to insert elements into the garden, or if they wish, to replace the entire vista with some fantastic landscape from their imagination.
  • 25.
  • 26. The second screen is a mean for use by the transportation agency to communicate information about services, products, service disruptions, and so on. On this screen, passengers can plan their trip and download it to their mobile devices. If needed, they can also start a videoconference with a live transportation agent for help. INFORMATION
  • 27.
  • 28. All content on this screen is user generated, including entries for local services, businesses, events, and classifieds. The interface concept used for this screen is the urban garden, with the trees serving as interface elements. Each tree represents a topic, and each leaf a message. The goal of the system is to foster interaction and communication between the users of the bus stop, and to allow them to shape the digital form of the bus stop with their own actions. The exterior, a direct reflection of this interface, thus reflects the richness, flow, and intensity of communication. URBAN GARDEN
  • 29.
  • 30. On this screen, passengers can plan their trip and download it to their mobile devices. If needed, they can also start a videocon- ference with a live transportation agent for help. MOBILE INTERACTION
  • 31.
  • 32. The prototype bus stop was part of the exhibtion „Le Bus, cent ans de mouvement“ in Paris, October 7-14 2006, curated by RATP. EXHIBITION
  • 33.
  • 34. MIT DESIGN LABORATORY Contact MIT mobile experience lab Federico Casalegno http://mobile.mit.edu MIT Design Laboratory MIT mobile experience lab Direction William J. Mitchell, 238 Main Street, E48-319 Federico Casalegno (Motorola/MIT) 02142 Cambridge, MA, USA federico@media.mit.edu Team David Bouchard, Marcel Botha, Mirja Leinss, In collaboration with RATP CREDITS Miguel Menchu, David Raul Poblano, http://www.ratp.fr Orkan Telhan, Sajid Sadi Thanks to Sergio Araya, Onur Yuce Gun, Aaron Tang, Eric Weber, Caitlin Winner, Cynthia Wilkes and the MIT Media Lab Smart Cities group.
  • 36. The MIT mobile experience lab takes a multidisciplinary approach at understanding people’s experience using wireless communication technologies, while exploring how mobile media impact societies, communities and spaces. http://mobile.mit.edu
