1. Small wins In a small
time with Apache Solr

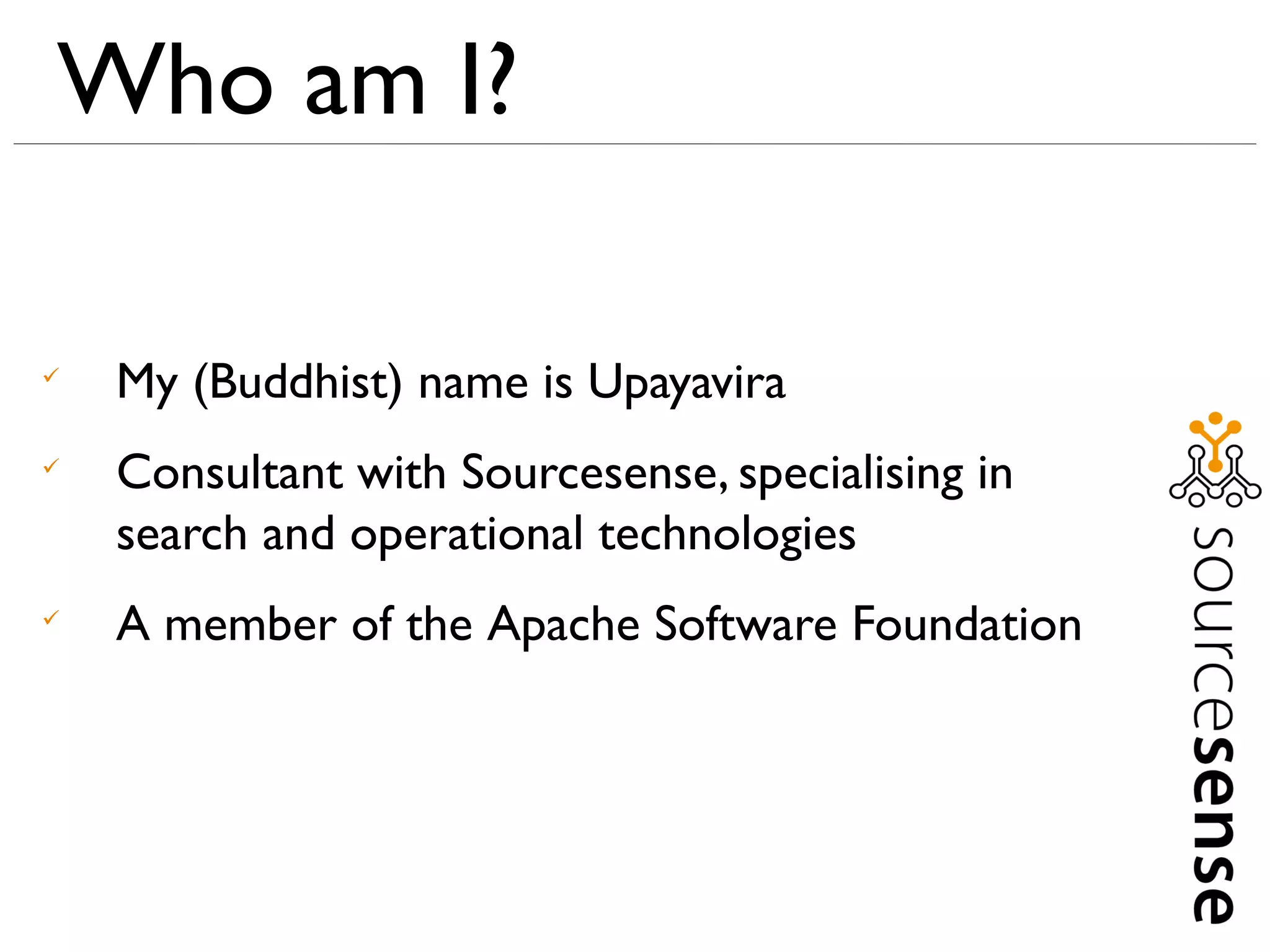

2. Who am I?

My (Buddhist) name is Upayavira

Consultant with Sourcesense, specialising in
search and operational technologies

A member of the Apache Software Foundation

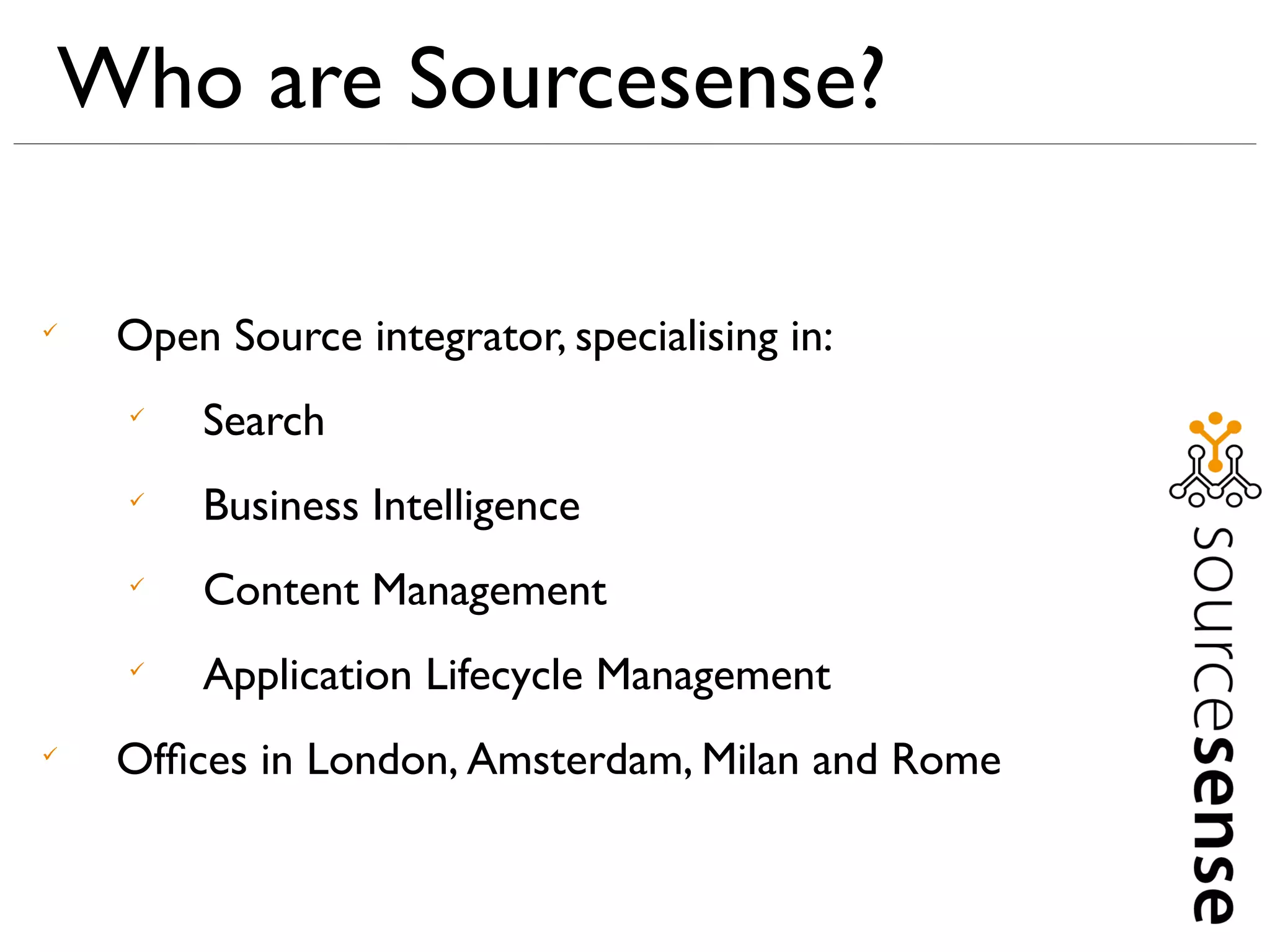

3. Who are Sourcesense?

Open Source integrator, specialising in:

Search

Business Intelligence

Content Management

Application Lifecycle Management

Offices in London, Amsterdam, Milan and Rome

4. Committers and Contributors

Search:

Lucene/Solr – contributor

Hibernate Search – committer

Lucene Infinispan integration – lead developer

Apache UIMA – committer

CMS:

Apache Chemistry – contributor

Apache Jackrabbit – contributor

JBoss GateIn Portal – committer

OpenSSO-Alfresco - contributor

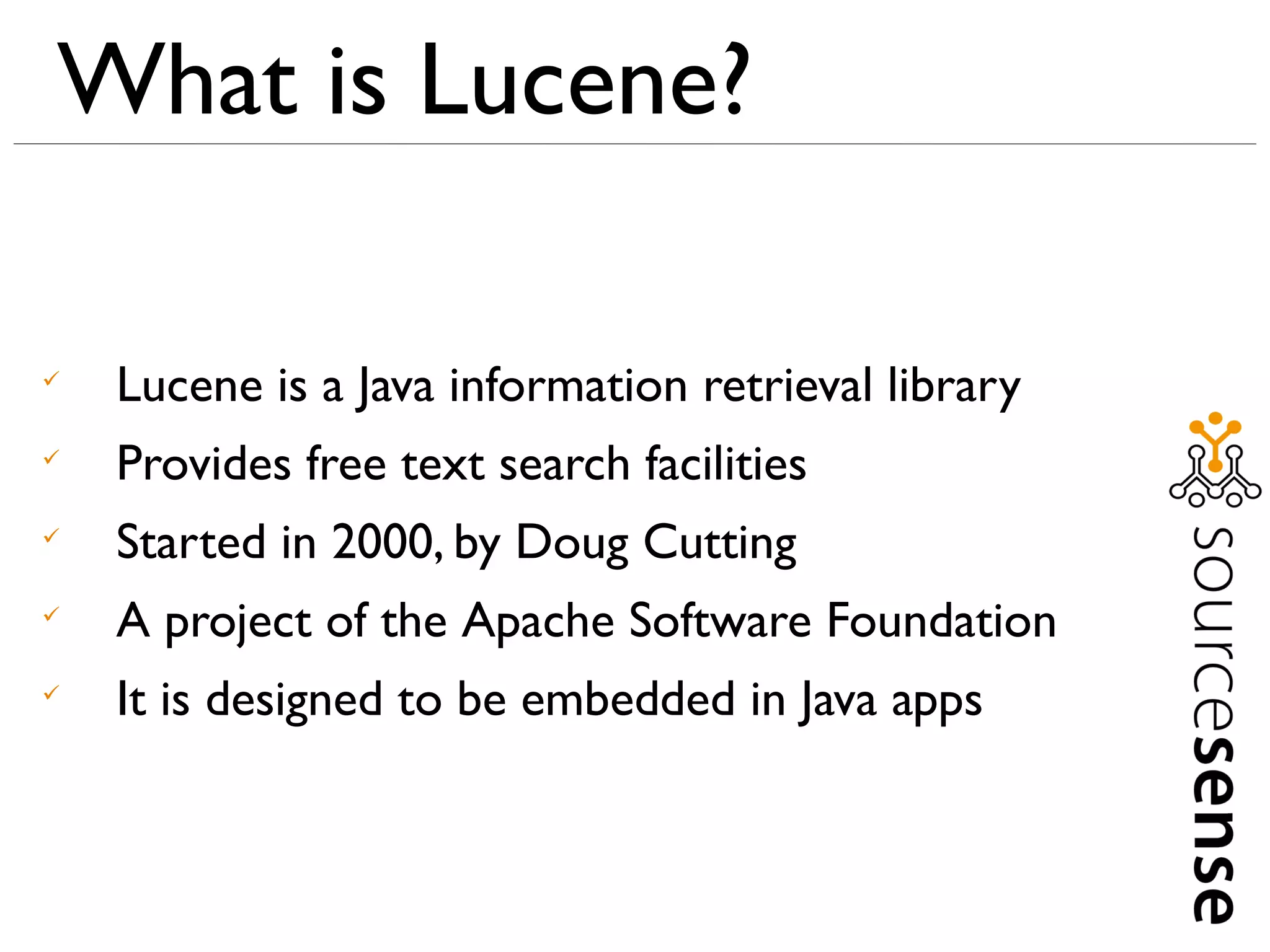

5. What is Lucene?

Lucene is a Java information retrieval library

Provides free text search facilities

Started in 2000, by Doug Cutting

A project of the Apache Software Foundation

It is designed to be embedded in Java apps

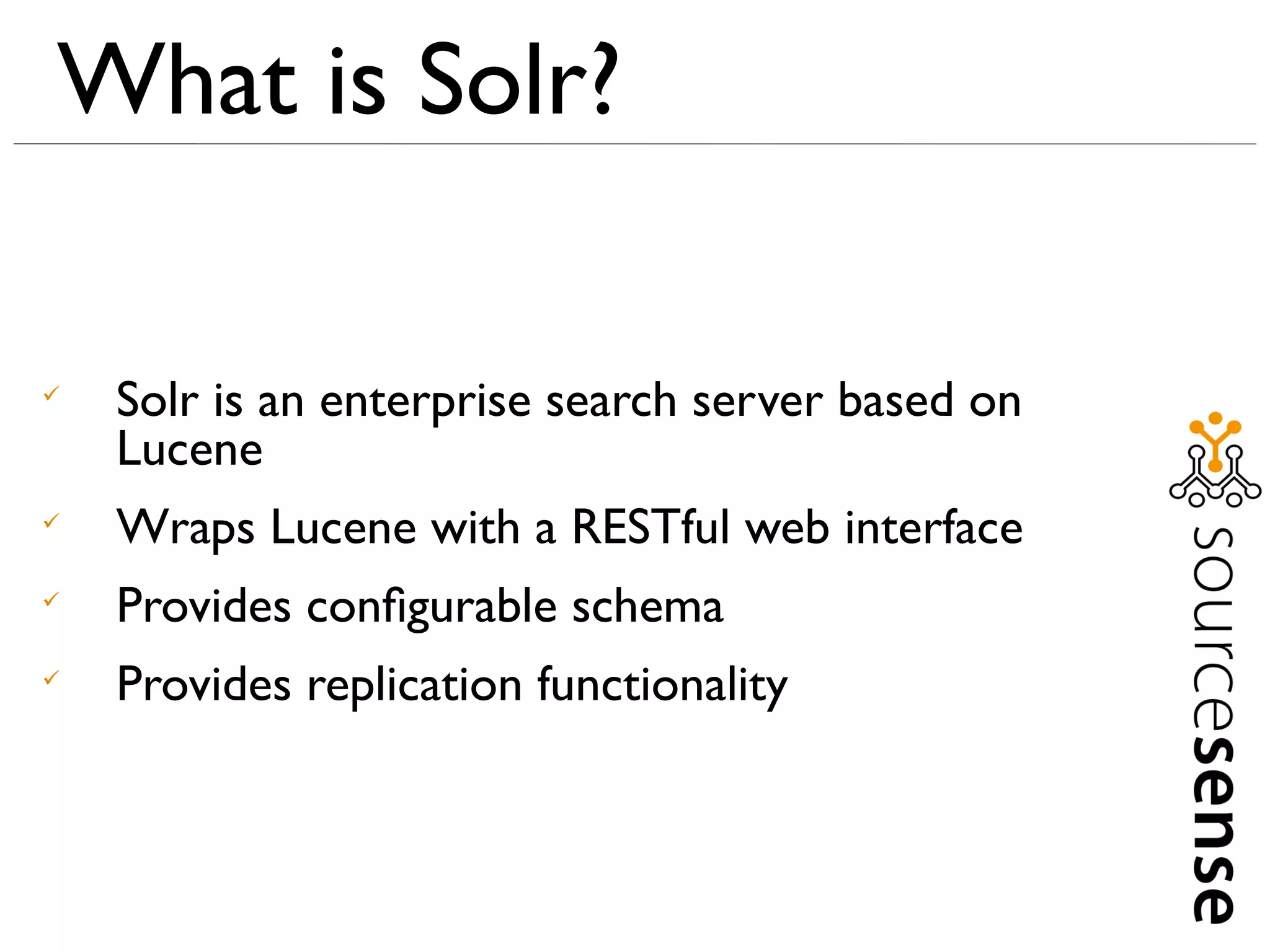

6. What is Solr?

Solr is an enterprise search server based on
Lucene

Wraps Lucene with a RESTful web interface

Provides configurable schema

Provides replication functionality

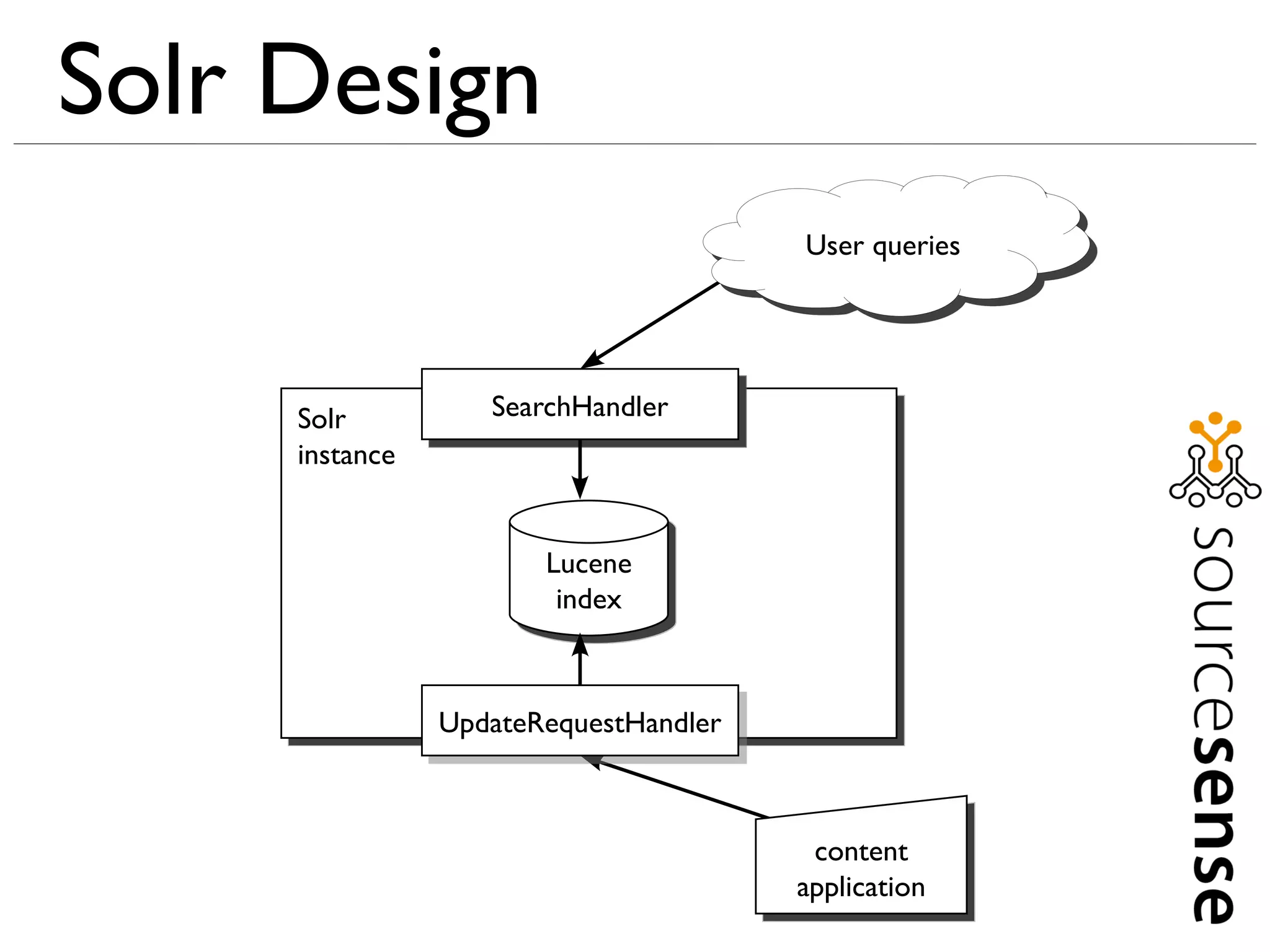

7. Solr Design
User queries
Solr SearchHandler
instance
Lucene
index
UpdateRequestHandler
content
application

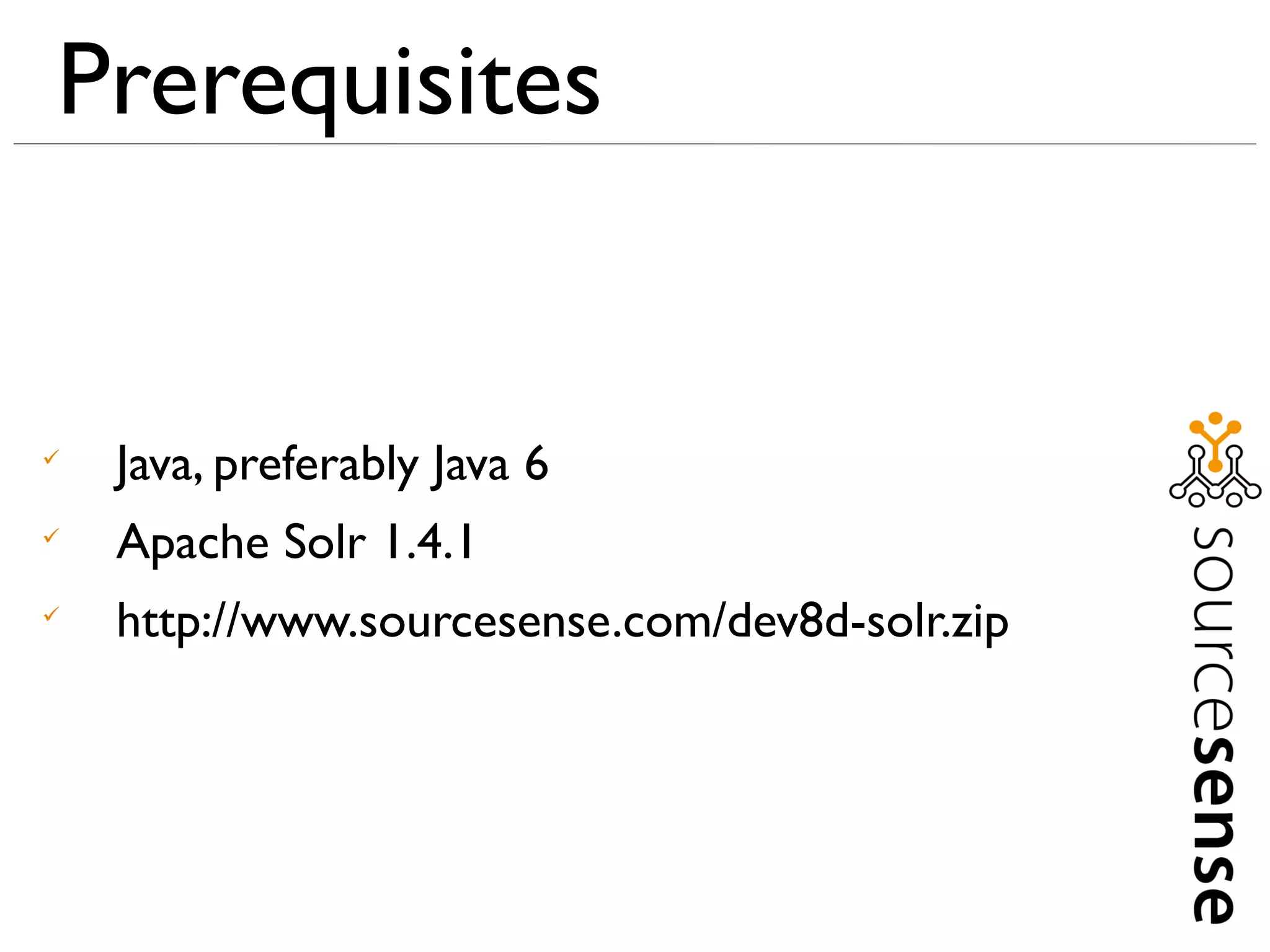

8. Prerequisites

Java, preferably Java 6

Apache Solr 1.4.1

http://www.sourcesense.com/dev8d-solr.zip

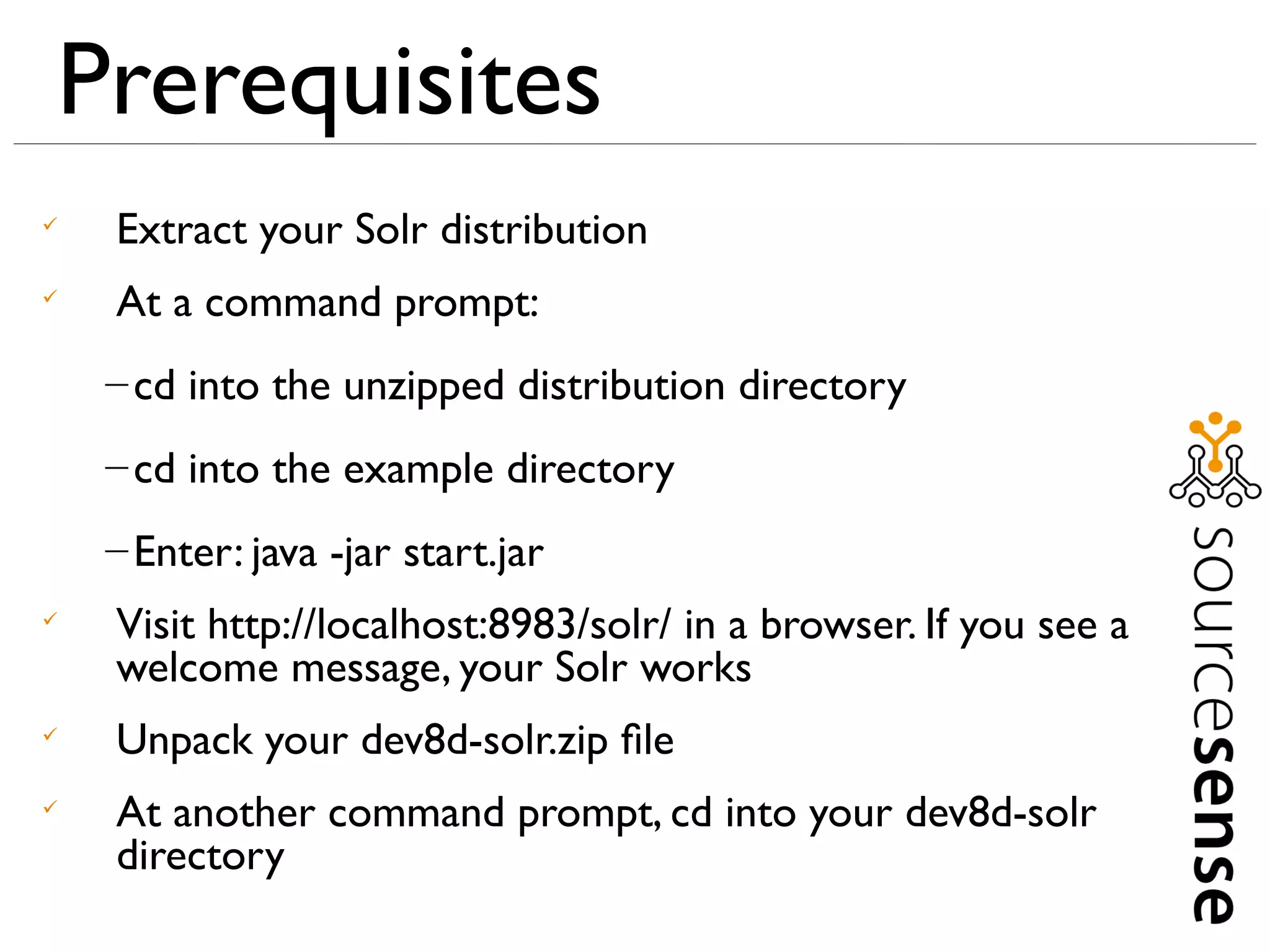

9. Prerequisites

Extract your Solr distribution

At a command prompt:
– cd into the unzipped distribution directory
– cd into the example directory
– Enter: java -jar start.jar

Visit http://localhost:8983/solr/ in a browser. If you see a
welcome message, your Solr works

Unpack your dev8d-solr.zip file

At another command prompt, cd into your dev8d-solr
directory

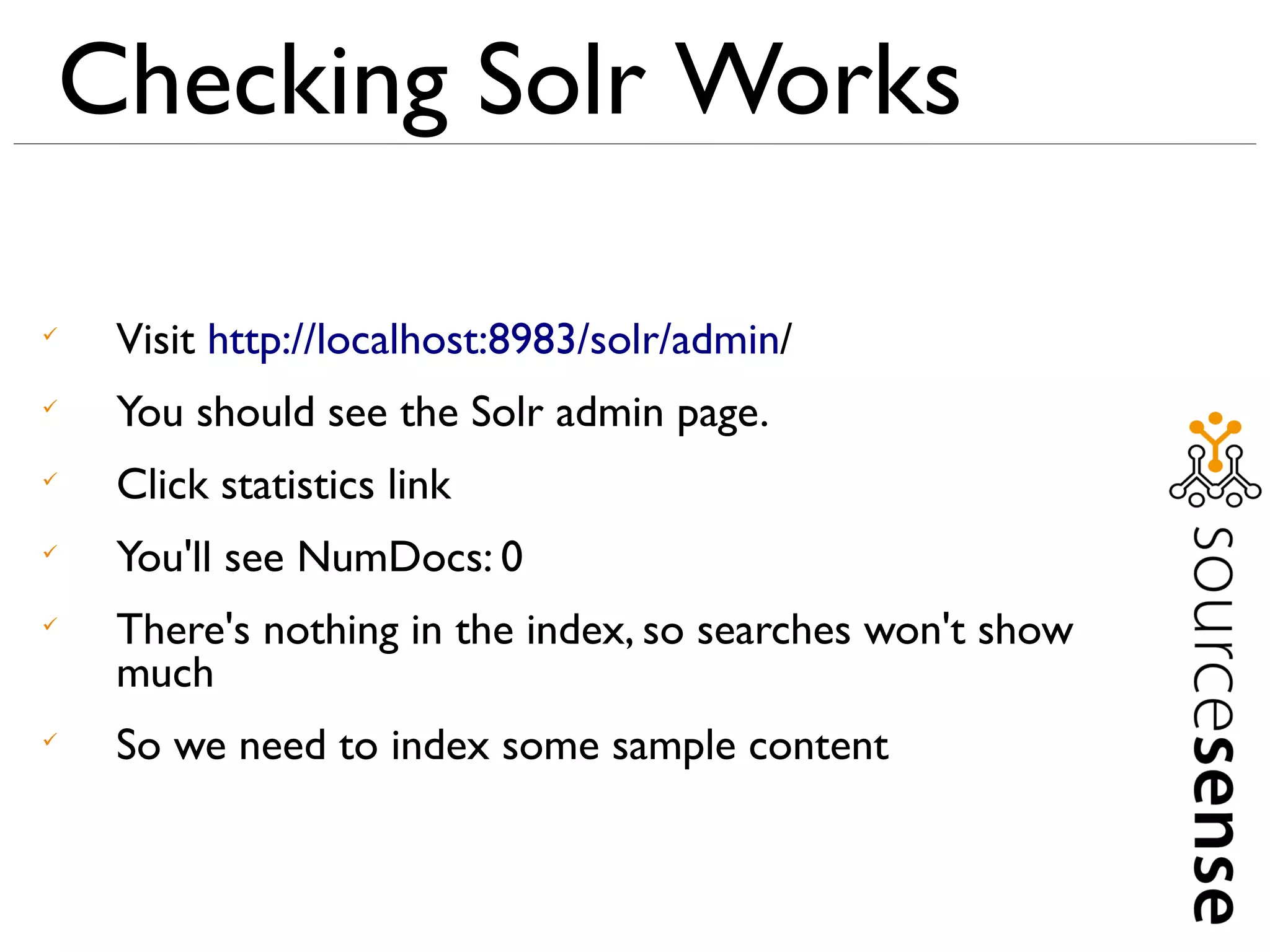

10. Checking Solr Works

Visit http://localhost:8983/solr/admin/

You should see the Solr admin page.

Click statistics link

You'll see NumDocs: 0

There's nothing in the index, so searches won't show
much

So we need to index some sample content

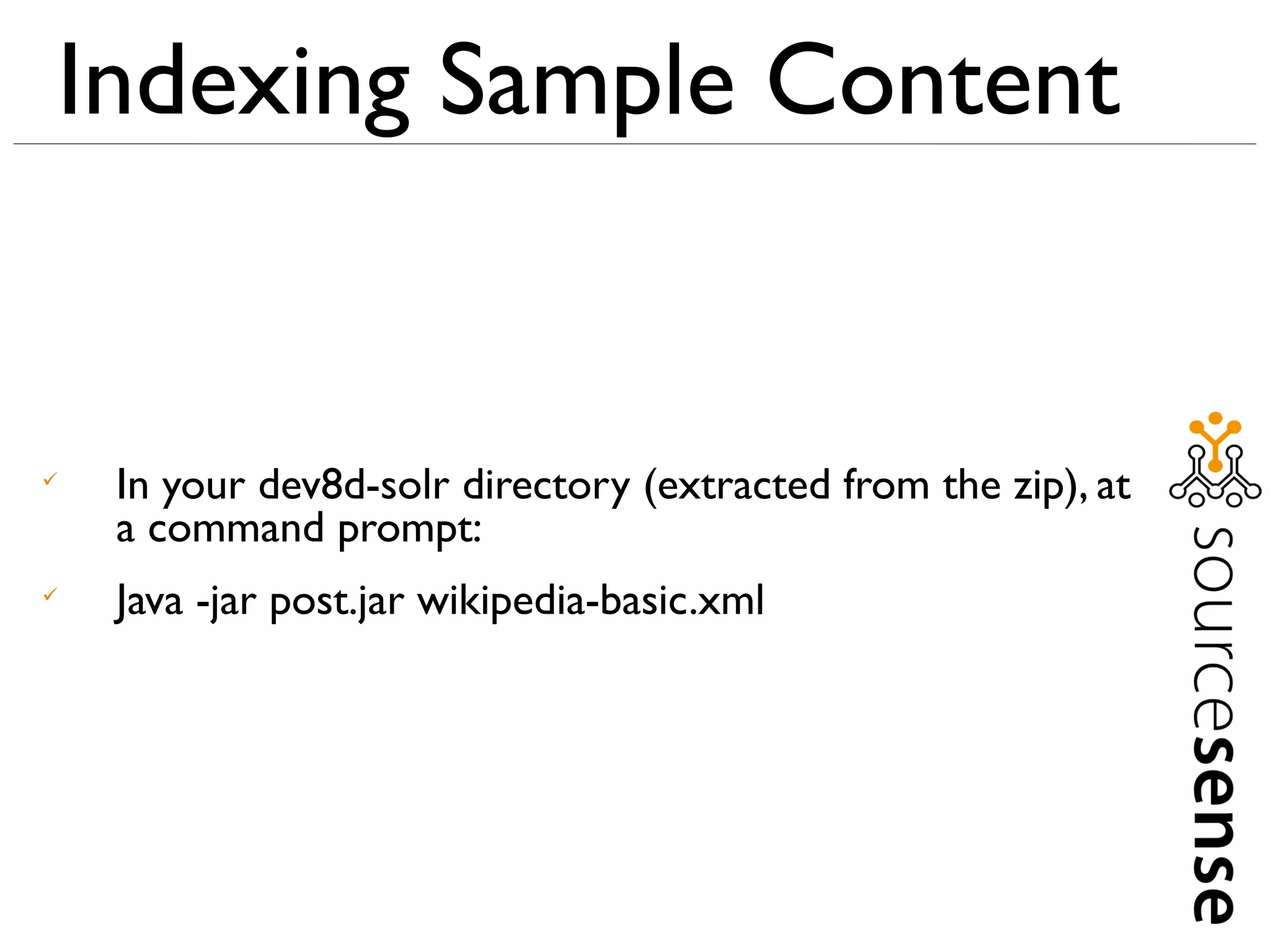

11. Indexing Sample Content

In your dev8d-solr directory (extracted from the zip), at
a command prompt:

Java -jar post.jar wikipedia-basic.xml

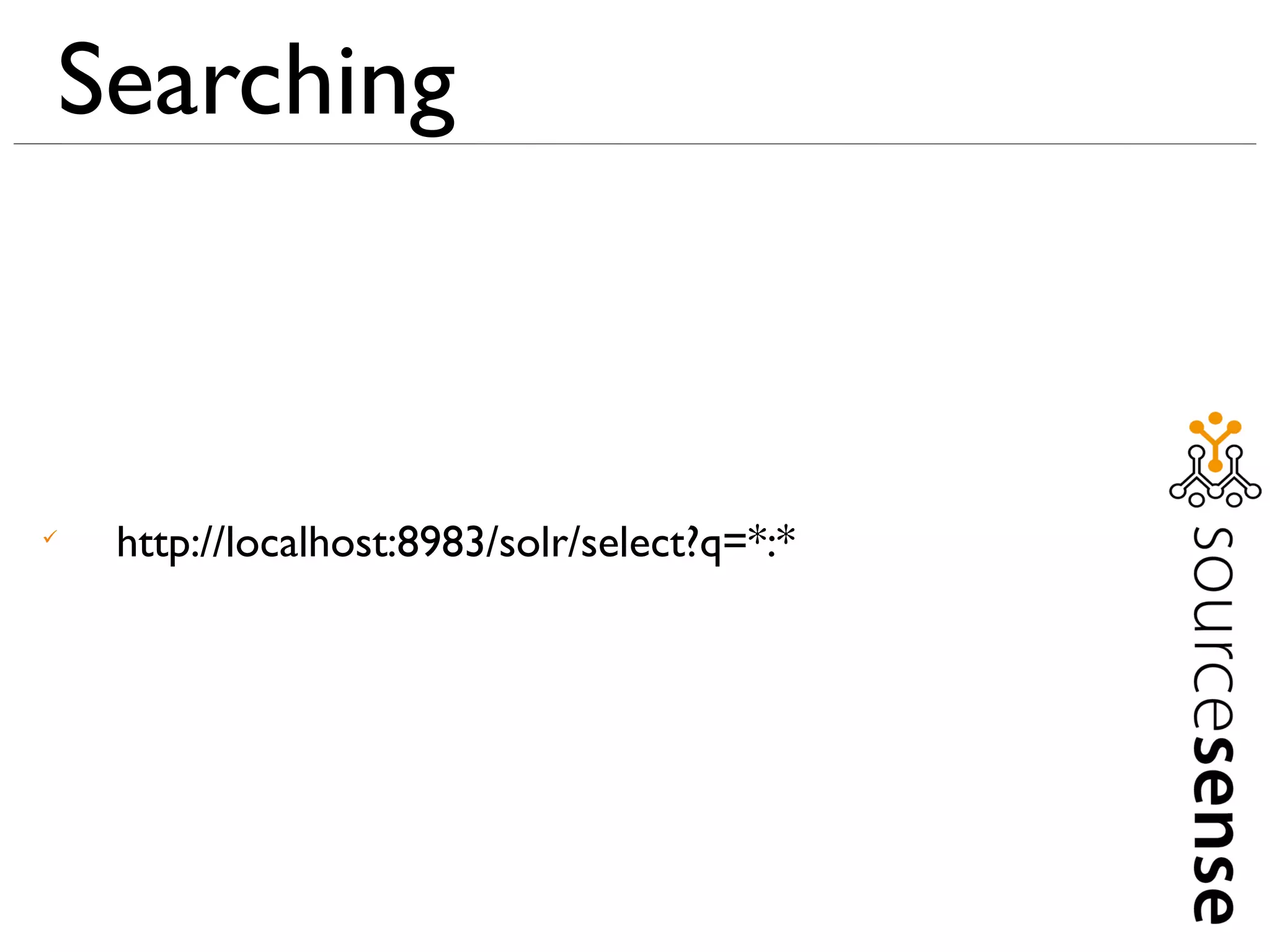

12. Searching

http://localhost:8983/solr/select?q=*:*

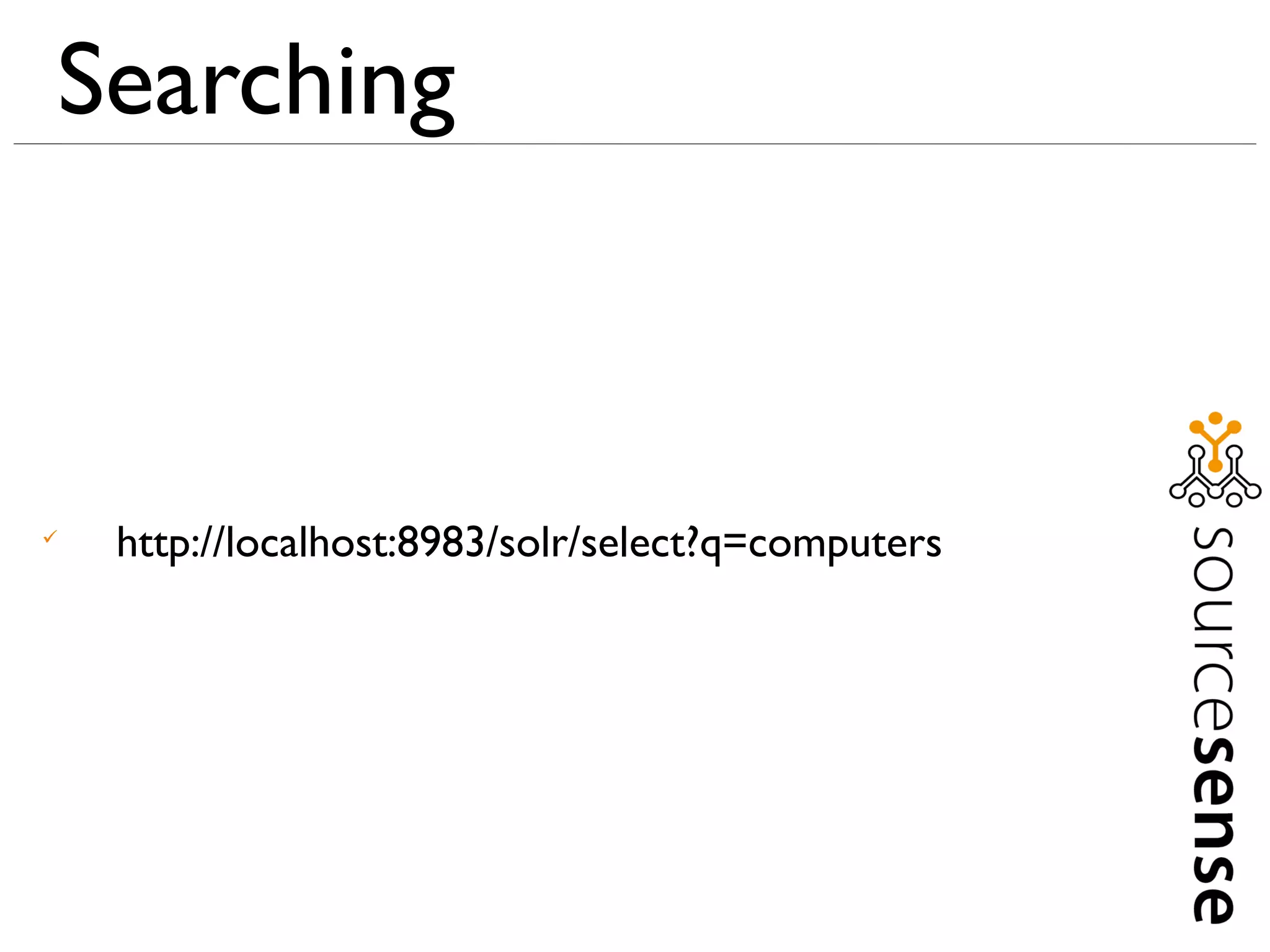

13. Searching

http://localhost:8983/solr/select?q=computers

14. Searching

http://localhost:8983/solr/select?q=computer systems

15. Searching

http://localhost:8983/solr/select?q=computers OR systems

16. Searching

http://localhost:8983/solr/select?q=computers AND systems

17. Searching

http://localhost:8983/solr/select?q="computer systems"

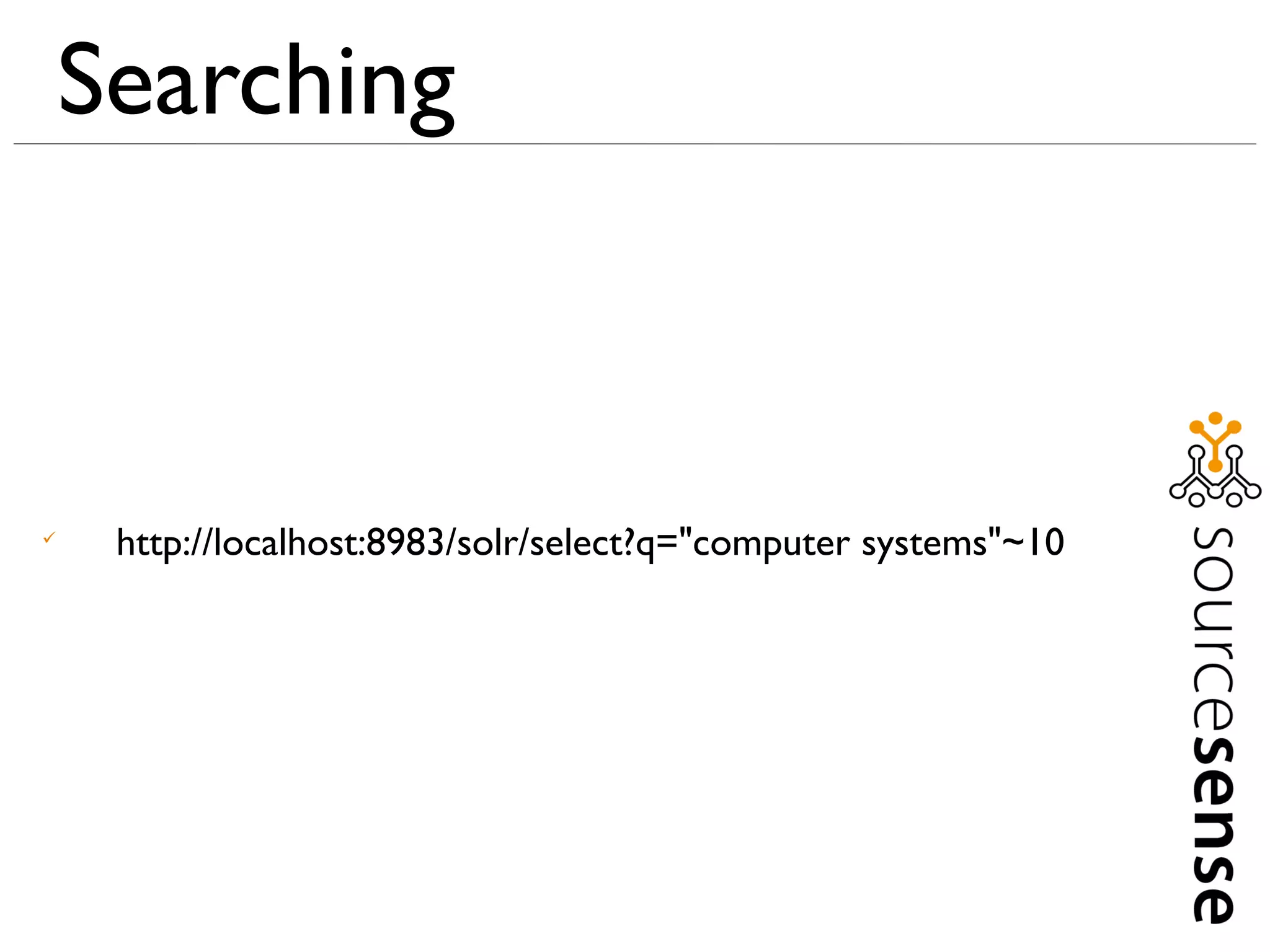

18. Searching

http://localhost:8983/solr/select?q="computer systems"~10

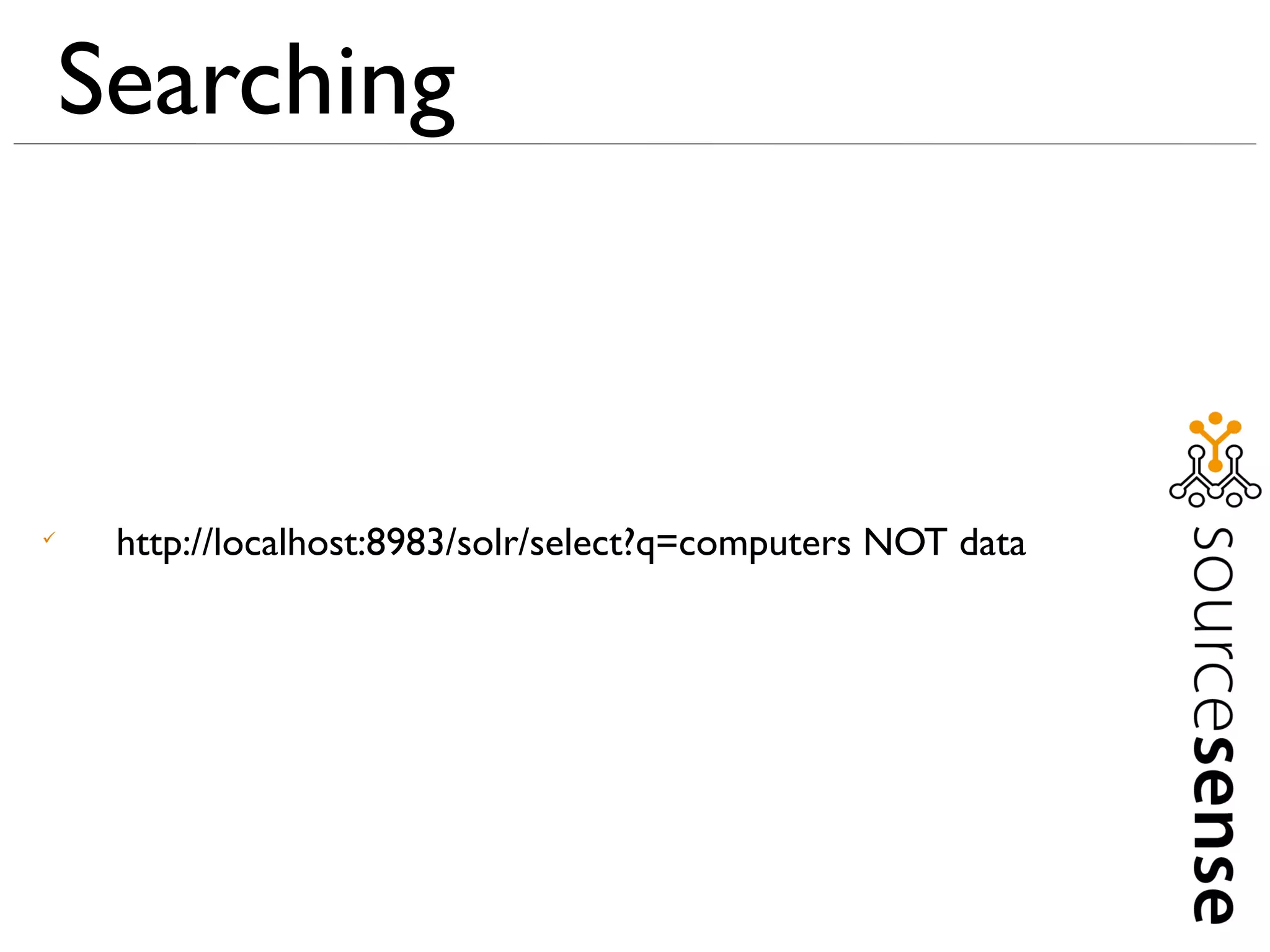

19. Searching

http://localhost:8983/solr/select?q=computers NOT data

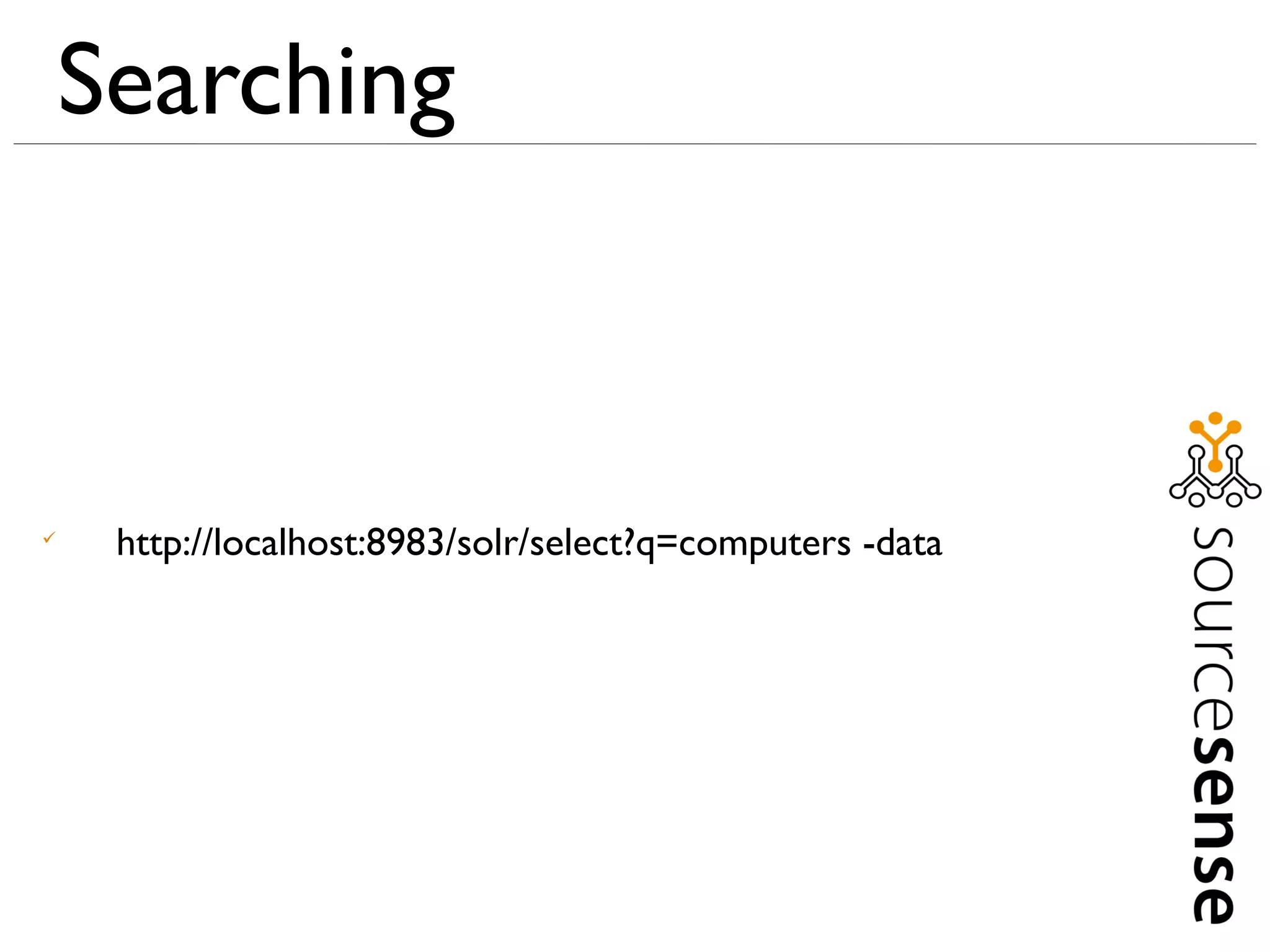

20. Searching

http://localhost:8983/solr/select?q=computers -data

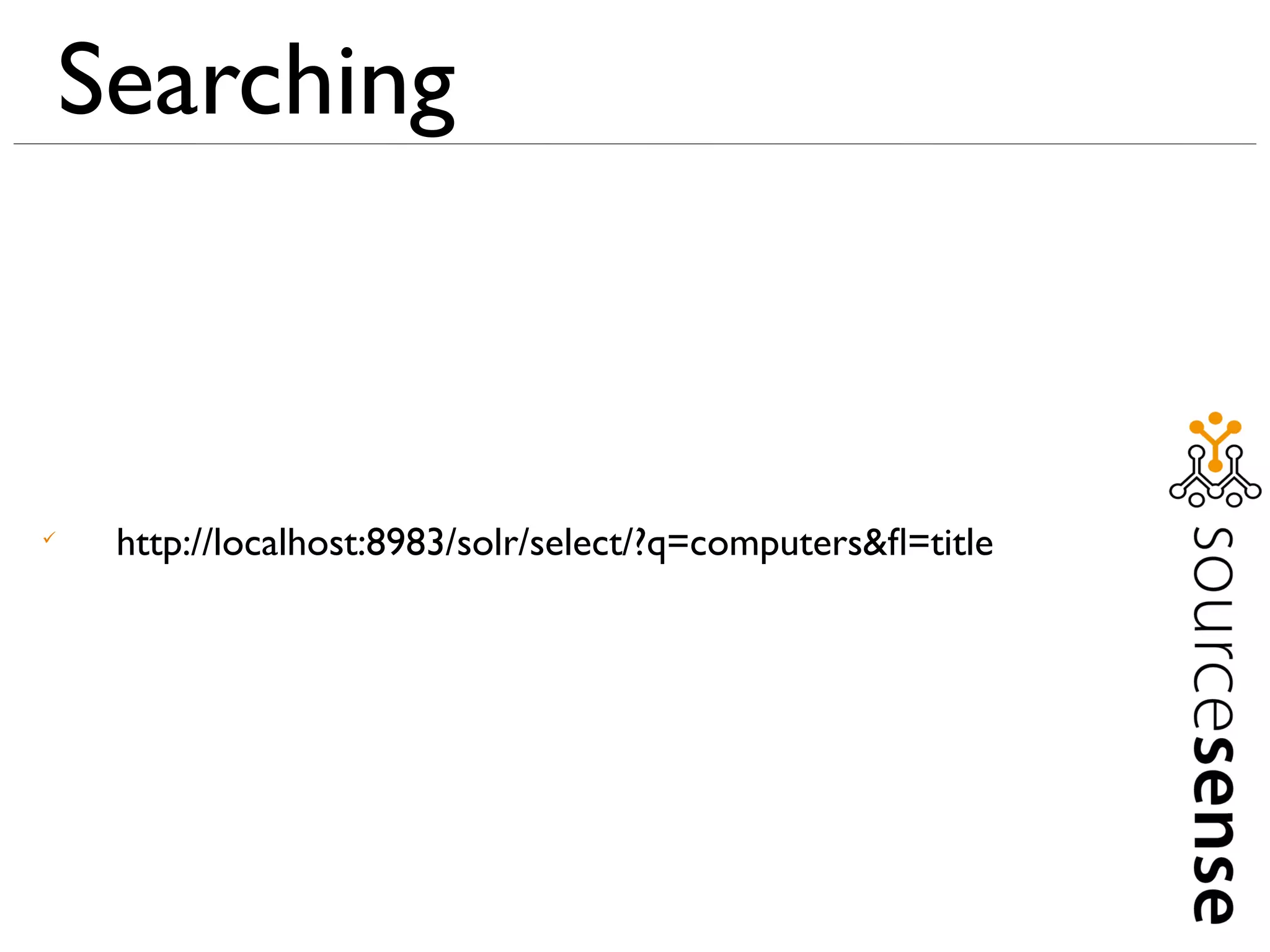

21. Searching

http://localhost:8983/solr/select/?q=computers&fl=title

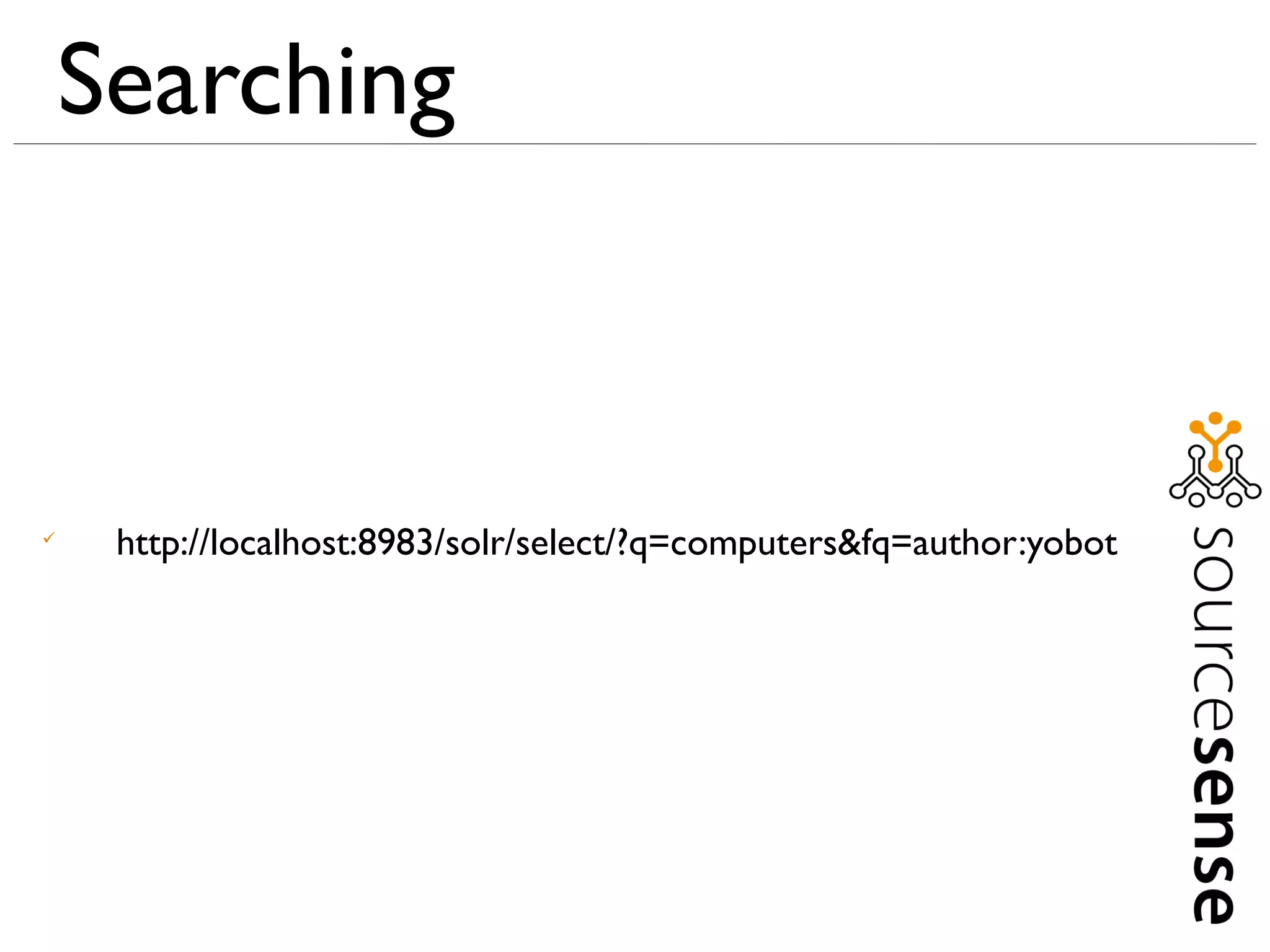

22. Searching

http://localhost:8983/solr/select/?q=computers&fq=author:yobot

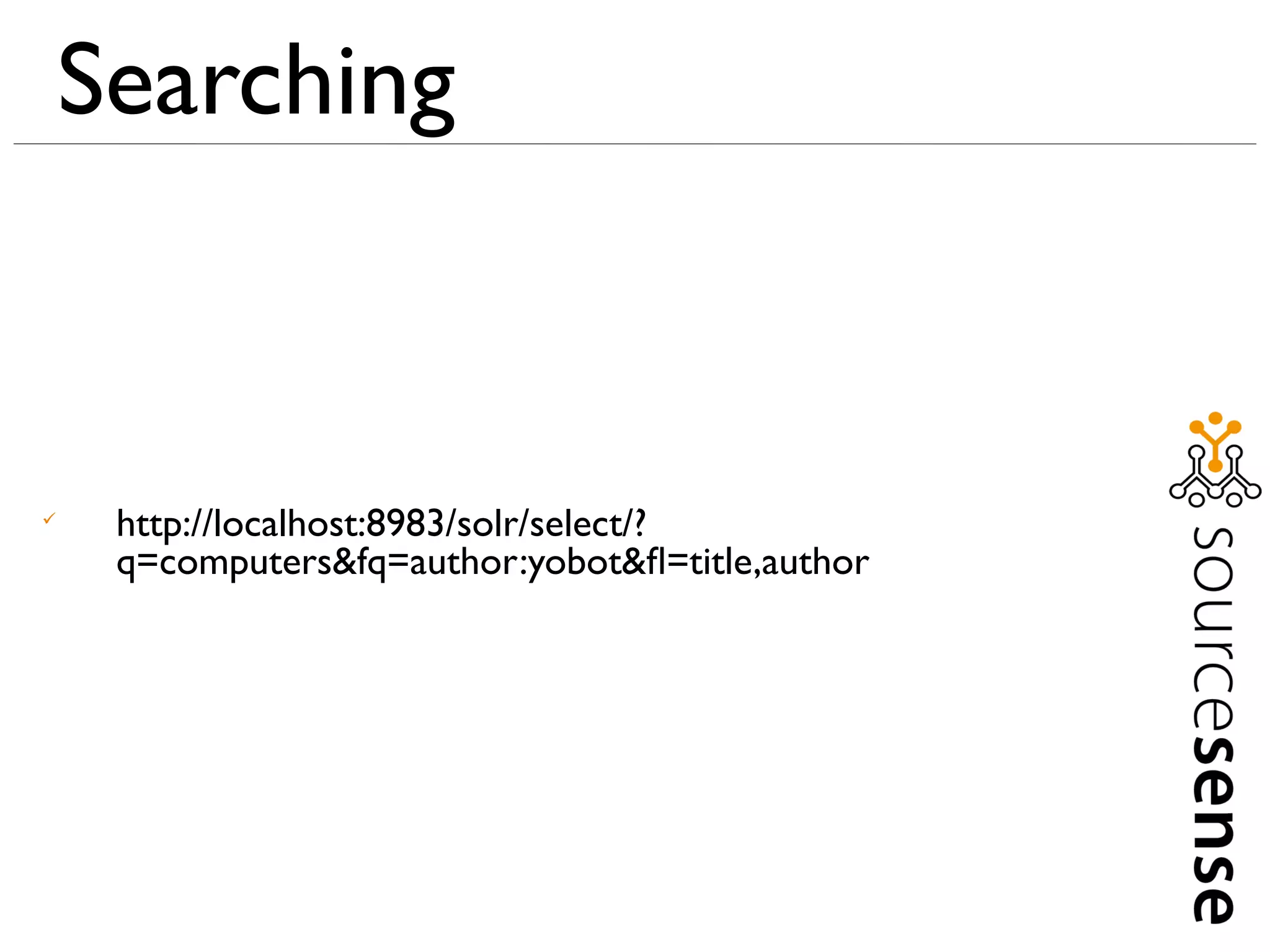

23. Searching

http://localhost:8983/solr/select/?
q=computers&fq=author:yobot&fl=title,author

24. Searching

http://localhost:8983/solr/select/?
q=computers&rows=10&start=10&fl=title

25. Searching

http://localhost:8983/solr/select/?q=title:system&fl=title

26. Searching


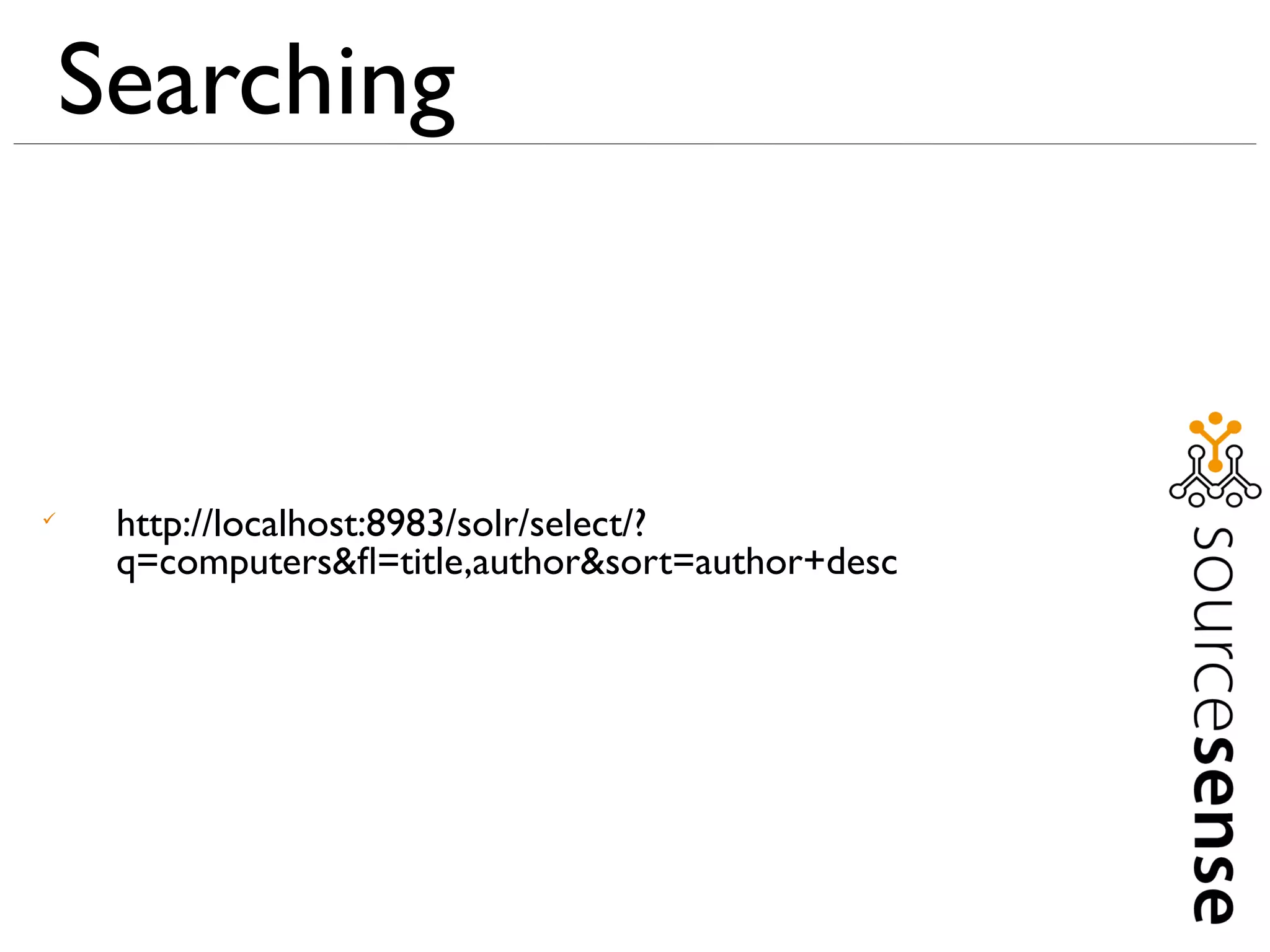

http://localhost:8983/solr/select/?

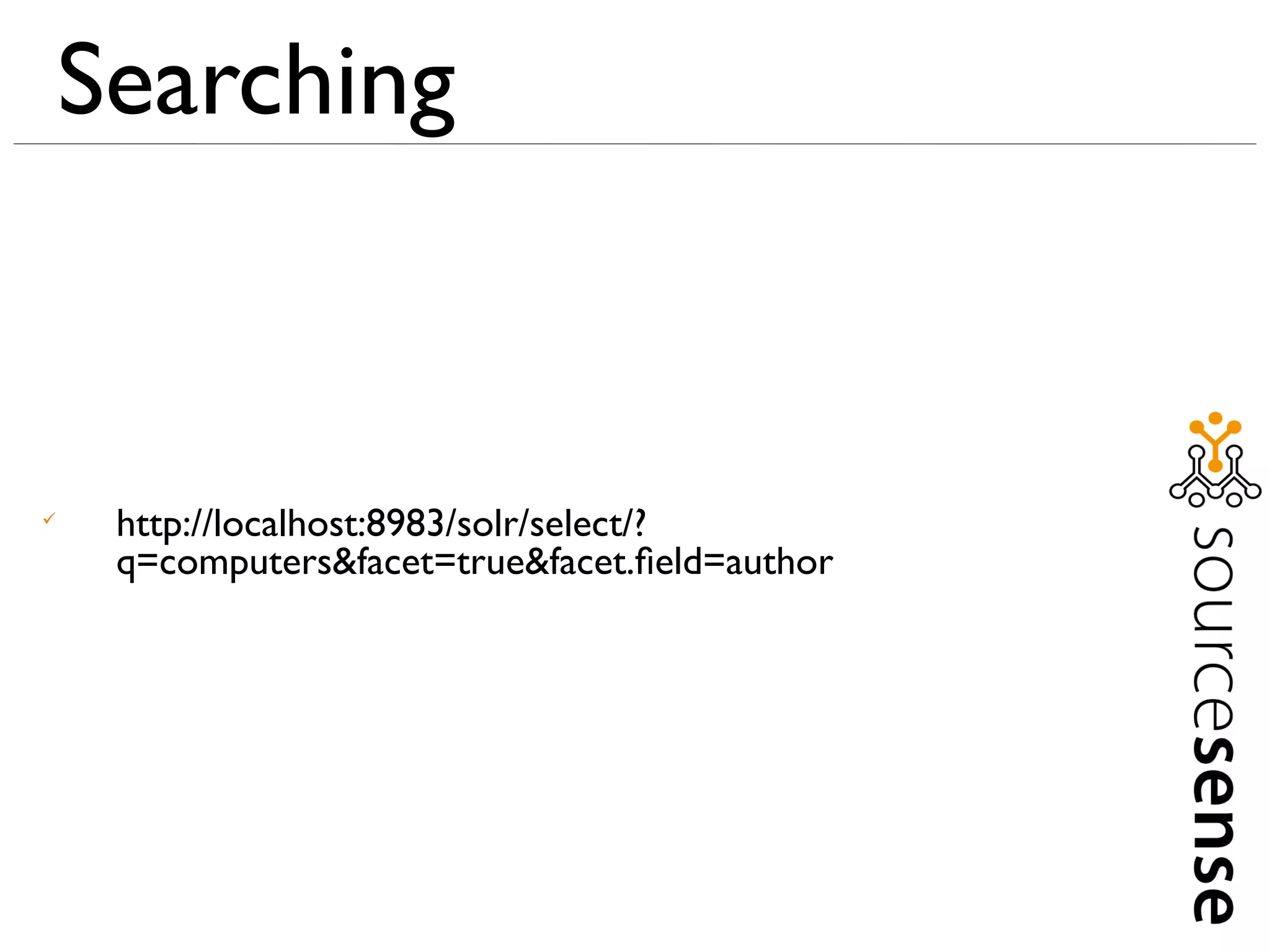

q=computers&fl=title,author&sort=author+desc

27. Searching

http://localhost:8983/solr/select/?
q=computers&facet=true&facet.field=author

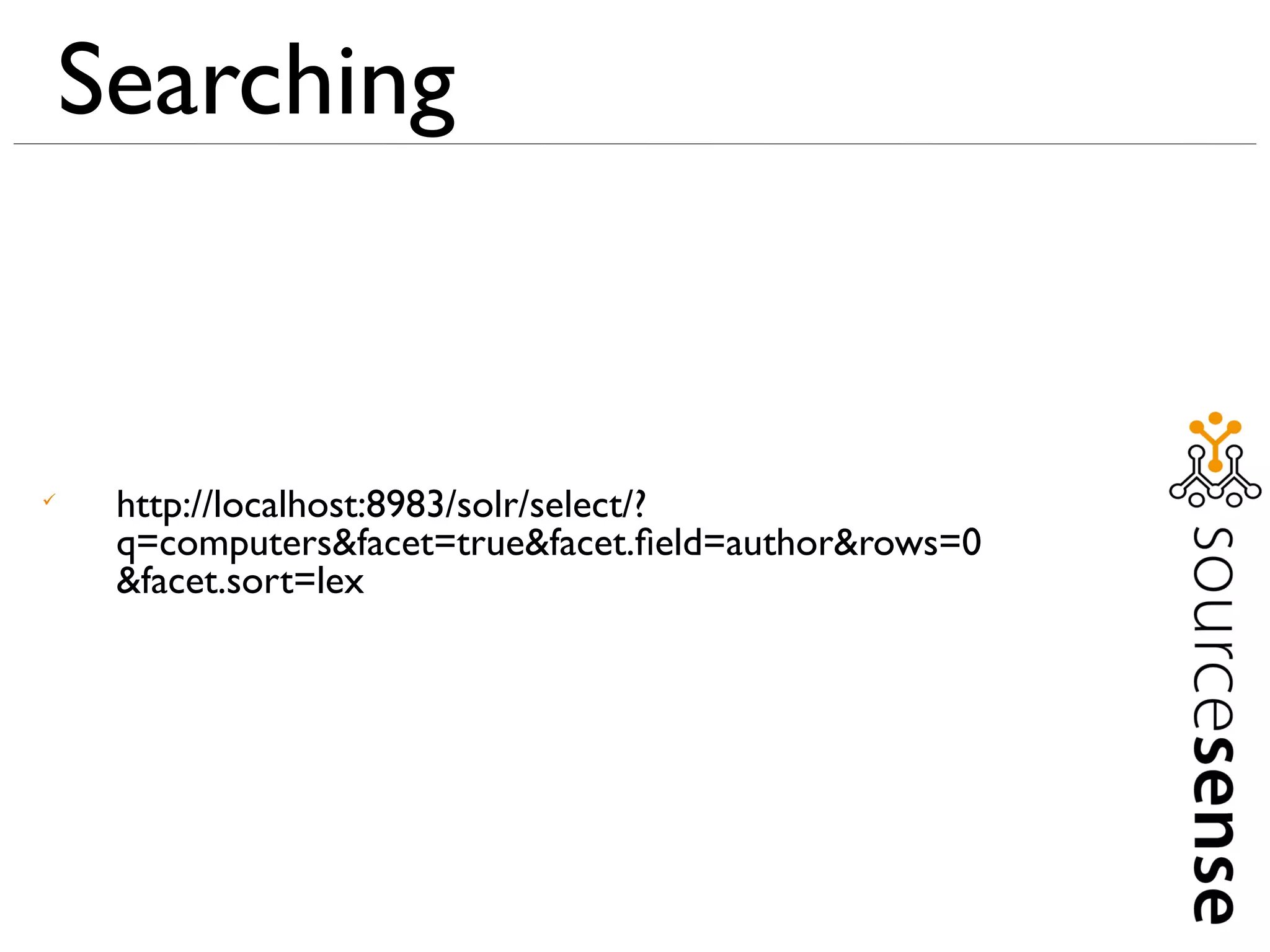

28. Searching

http://localhost:8983/solr/select/?
q=computers&facet=true&facet.field=author&rows=0
&facet.sort=lex

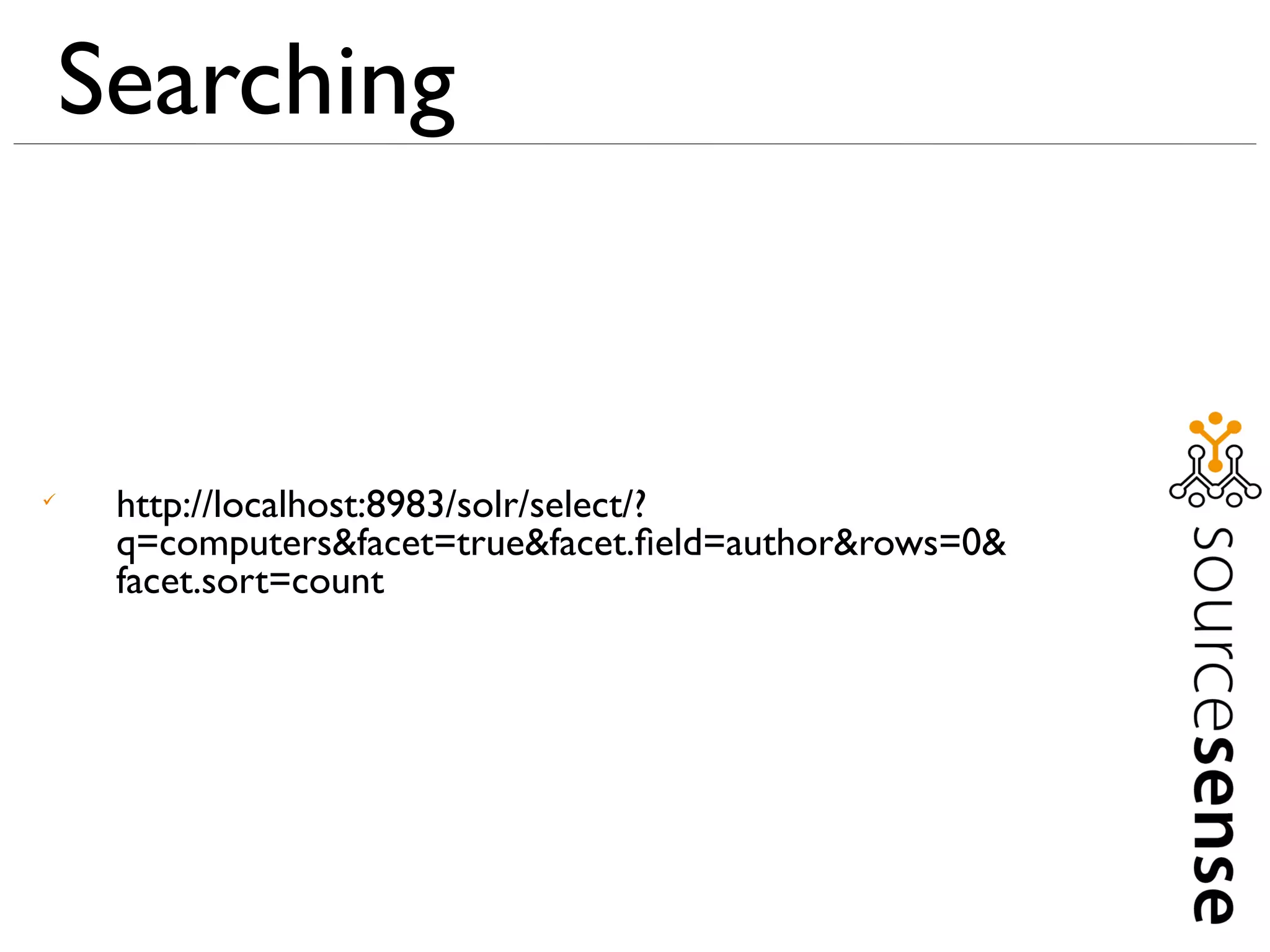

29. Searching

http://localhost:8983/solr/select/?
q=computers&facet=true&facet.field=author&rows=0&
facet.sort=count

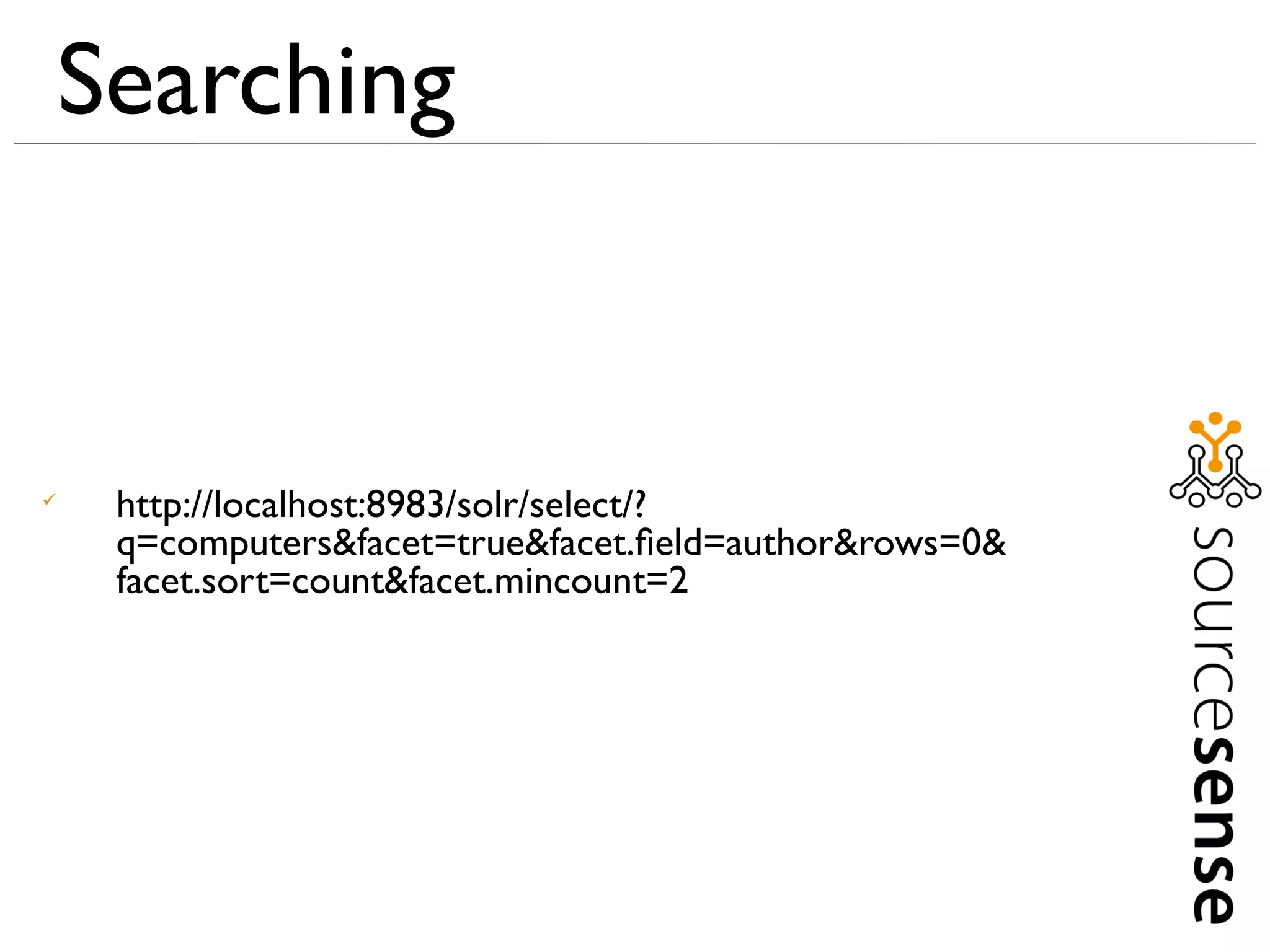

30. Searching

http://localhost:8983/solr/select/?
q=computers&facet=true&facet.field=author&rows=0&
facet.sort=count&facet.mincount=2

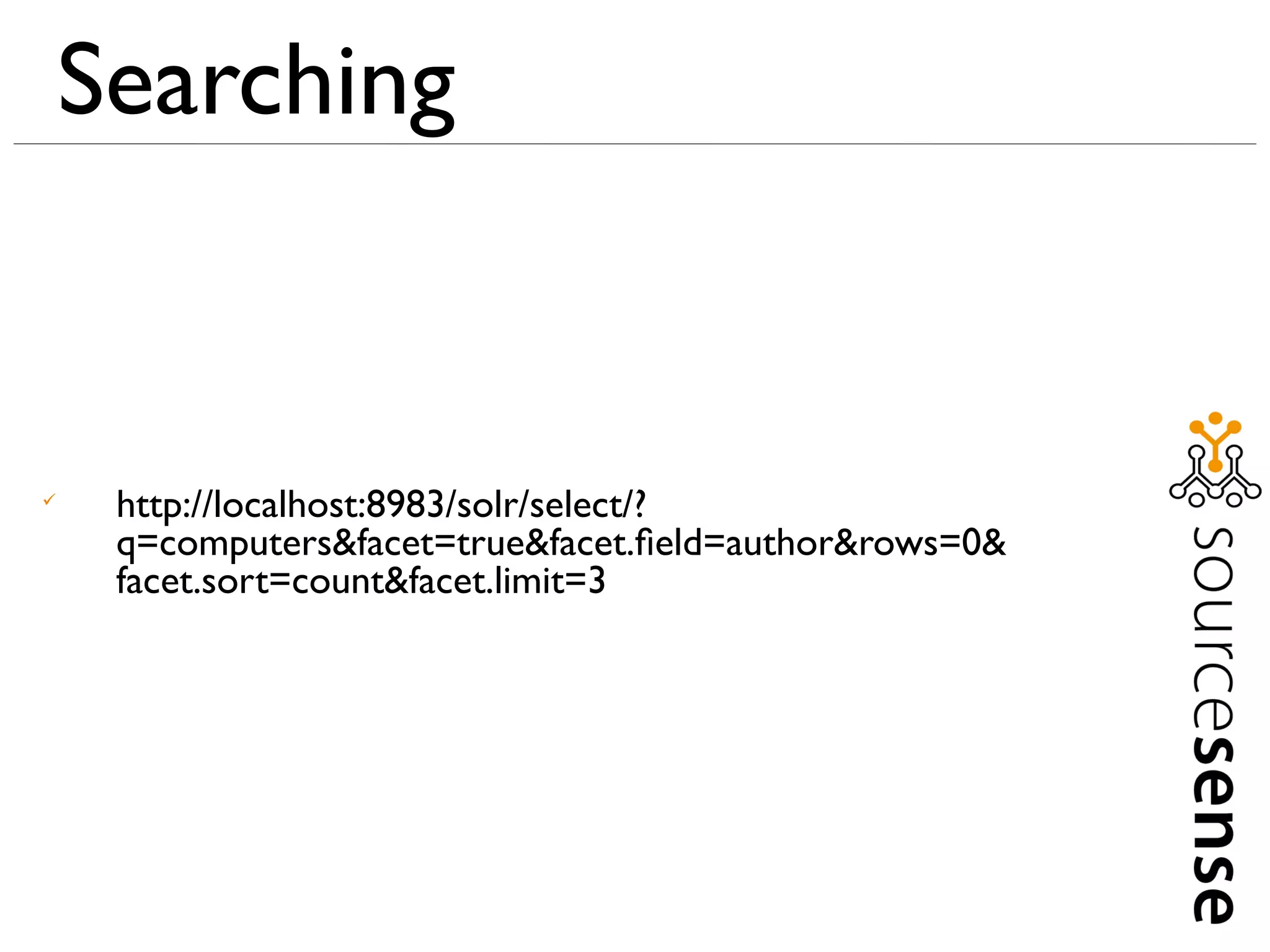

31. Searching

http://localhost:8983/solr/select/?
q=computers&facet=true&facet.field=author&rows=0&
facet.sort=count&facet.limit=3

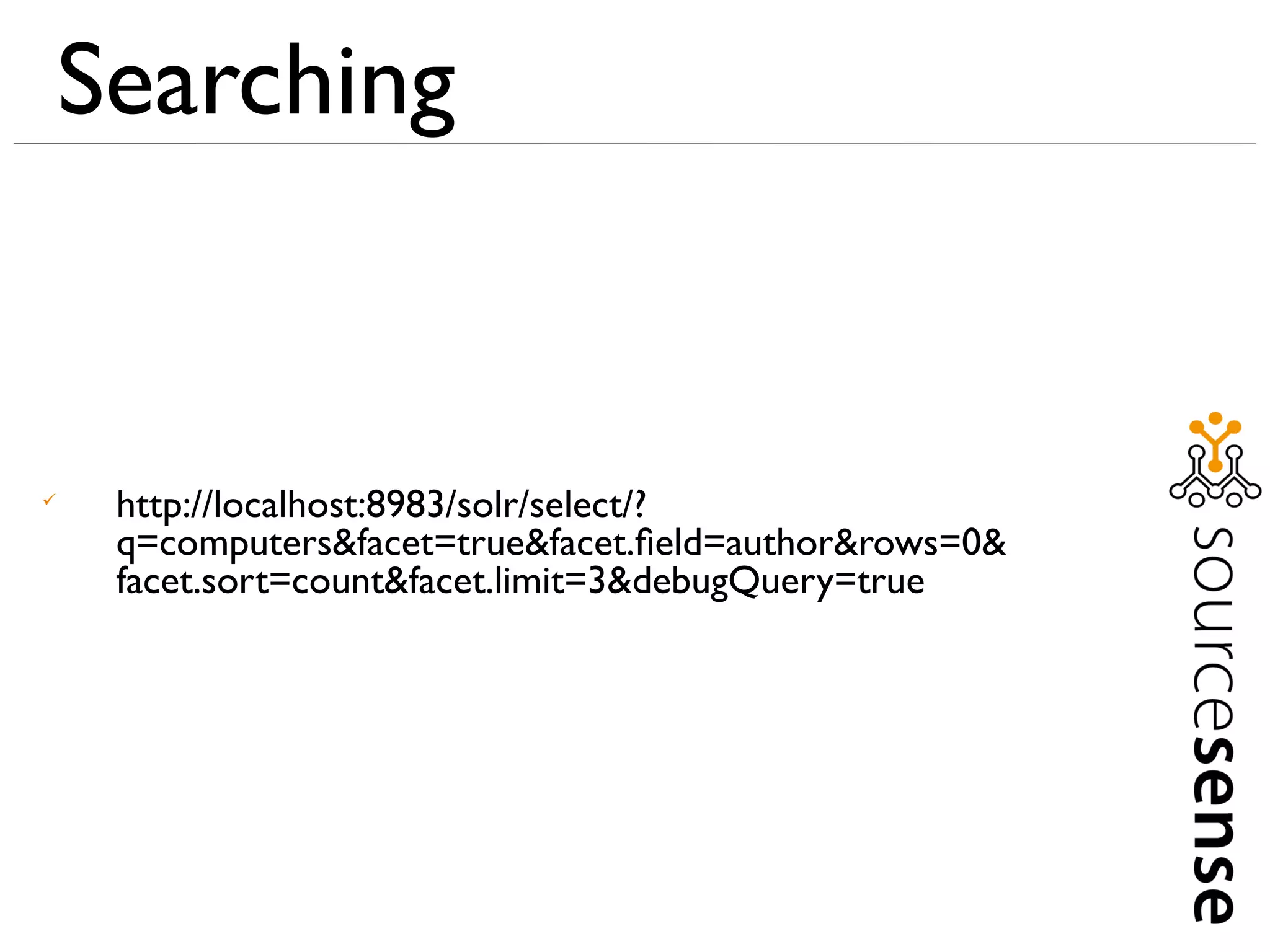

32. Searching

http://localhost:8983/solr/select/?
q=computers&facet=true&facet.field=author&rows=0&
facet.sort=count&facet.limit=3&debugQuery=true

33. Searching

http://localhost:8983/solr/select?q=computer&wt=json

34. Searching

http://localhost:8983/solr/select?q=computer&wt=javabin

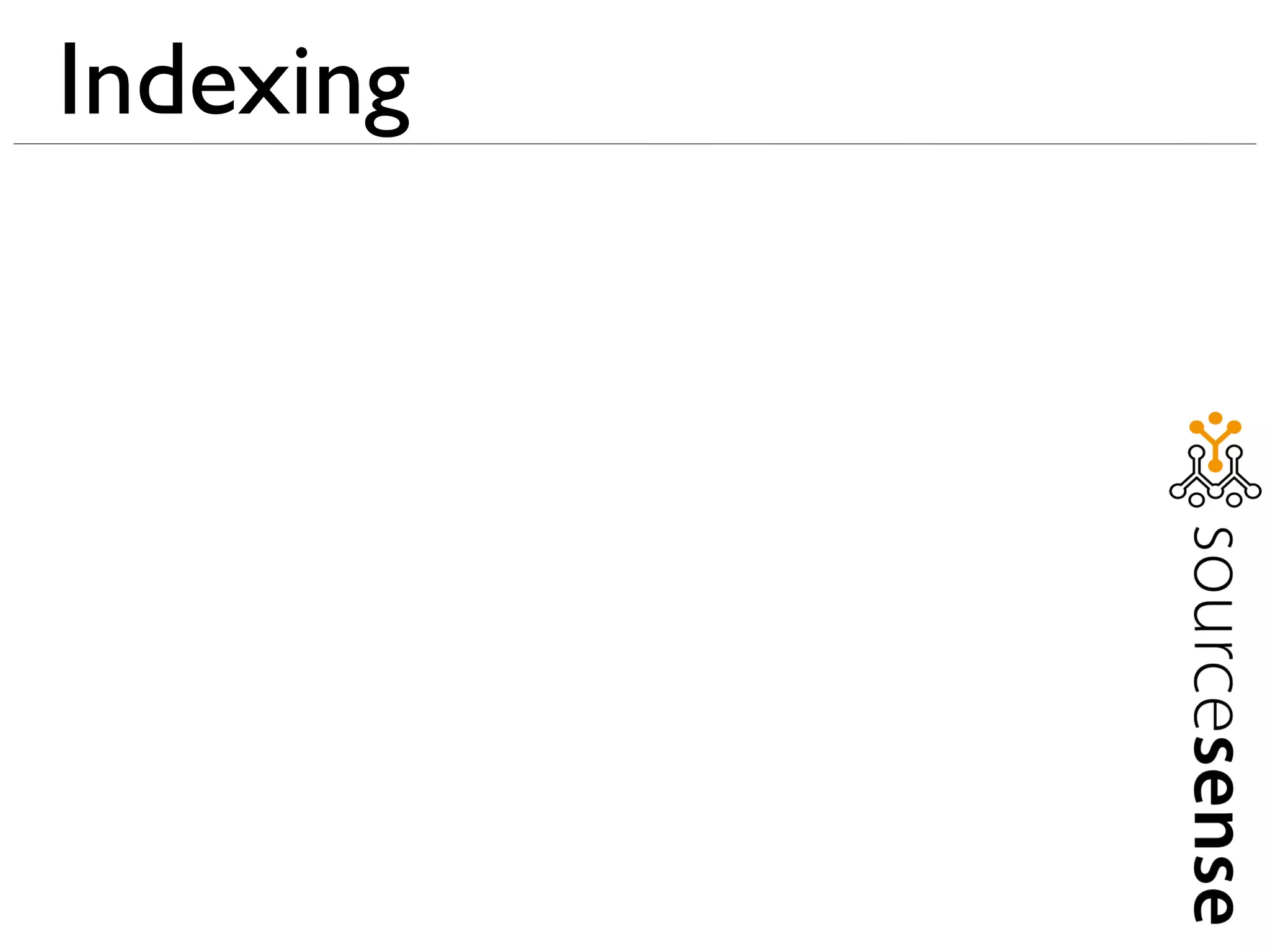

35. Indexing

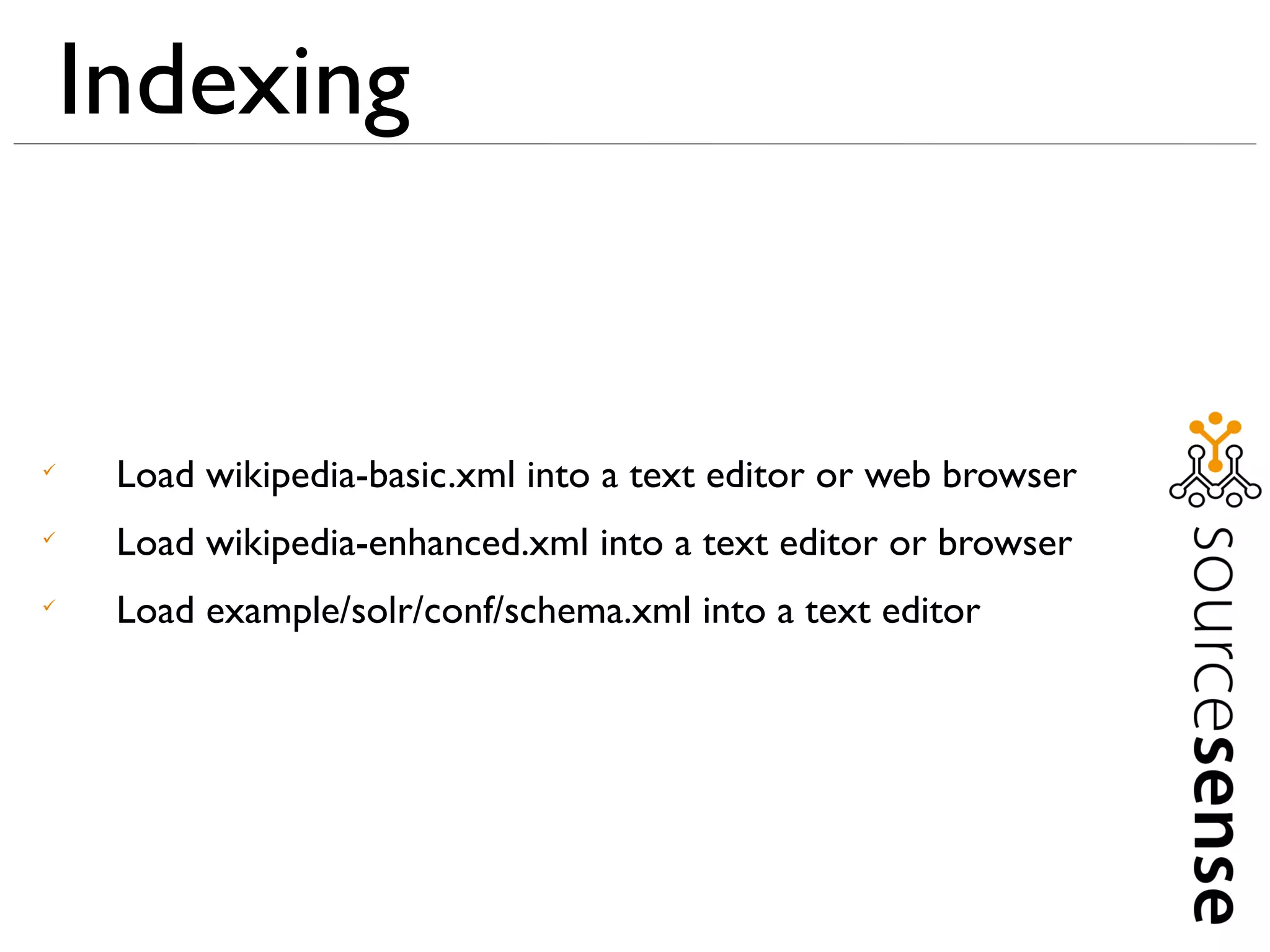

36. Indexing

Load wikipedia-basic.xml into a text editor or web browser

Load wikipedia-enhanced.xml into a text editor or browser

Load example/solr/conf/schema.xml into a text editor

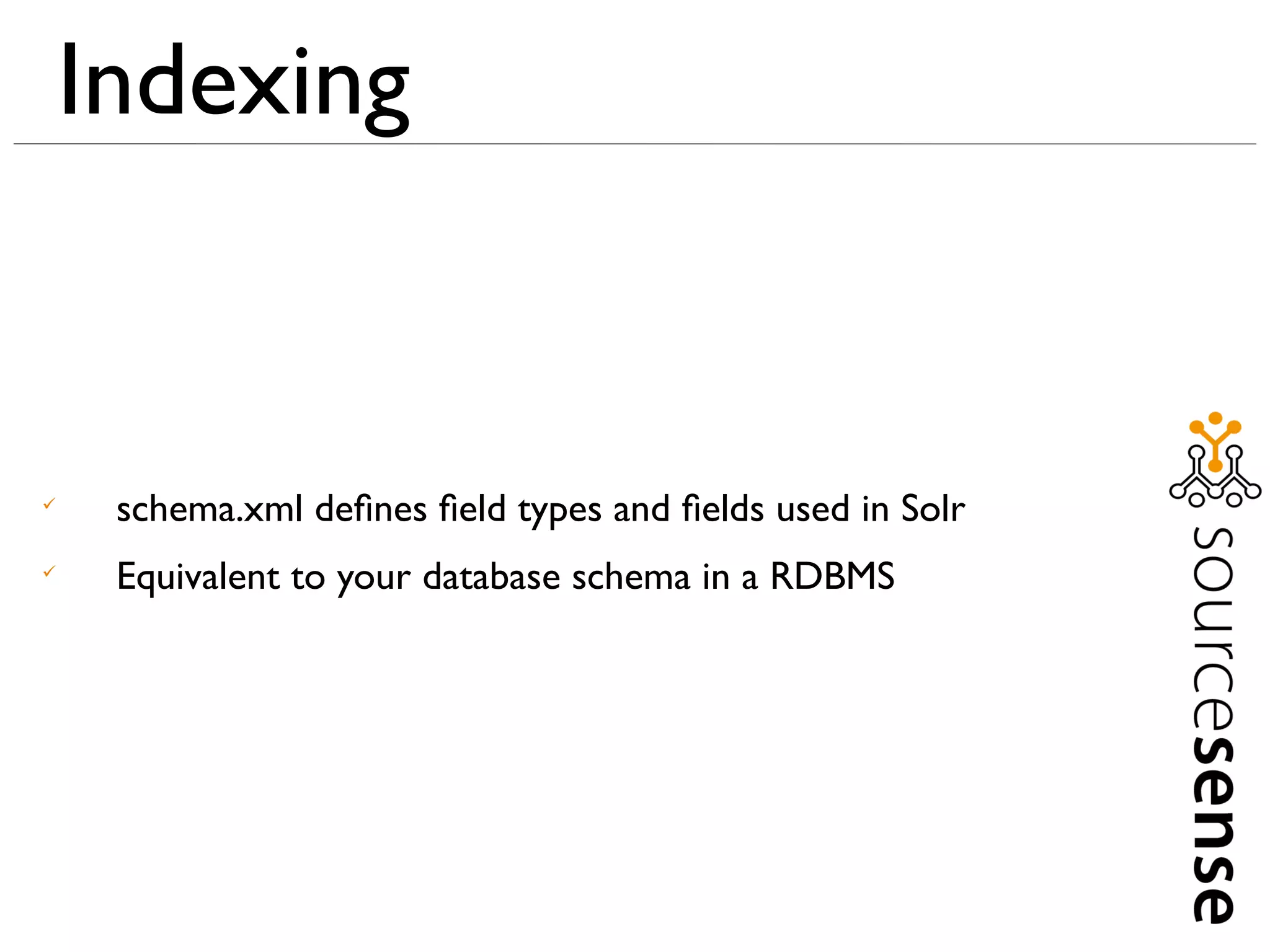

37. Indexing

schema.xml defines field types and fields used in Solr

Equivalent to your database schema in a RDBMS

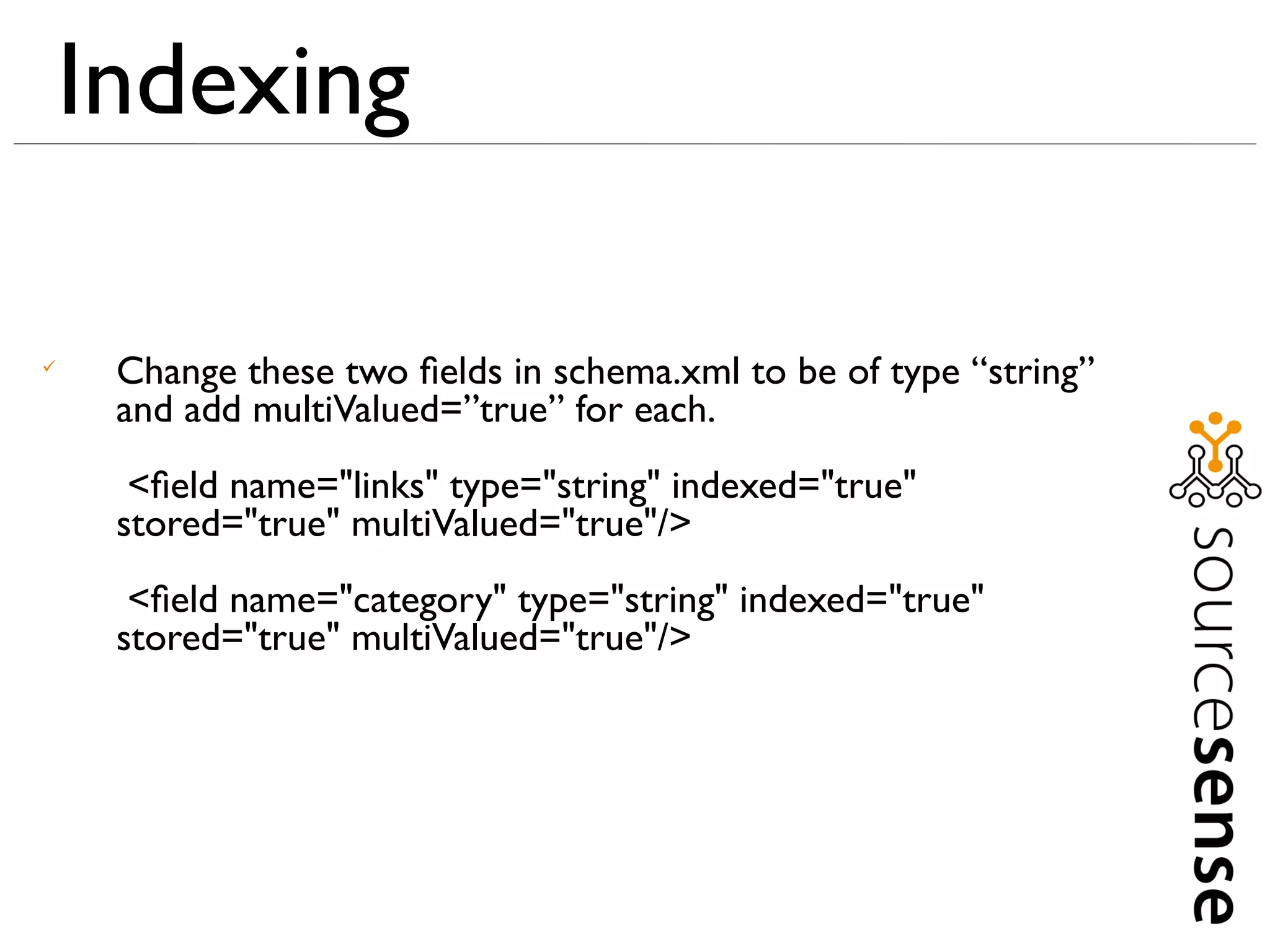

38. Indexing

Change these two fields in schema.xml to be of type “string”
and add multiValued=”true” for each.
<field name="links" type="string" indexed="true"
stored="true" multiValued="true"/>
<field name="category" type="string" indexed="true"
stored="true" multiValued="true"/>

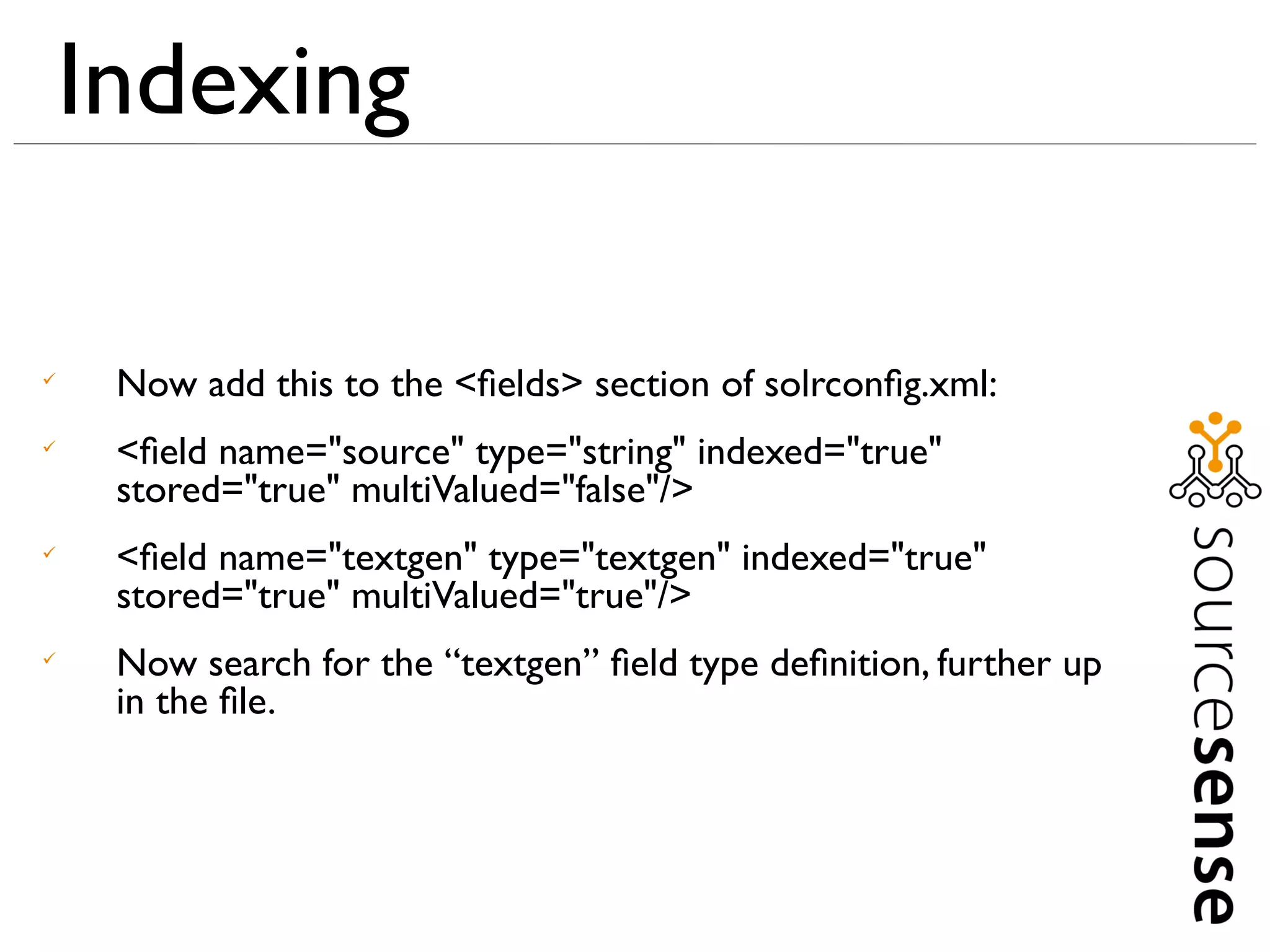

39. Indexing

Now add this to the <fields> section of solrconfig.xml:

<field name="source" type="string" indexed="true"
stored="true" multiValued="false"/>

<field name="textgen" type="textgen" indexed="true"
stored="true" multiValued="true"/>

Now search for the “textgen” field type definition, further up
in the file.

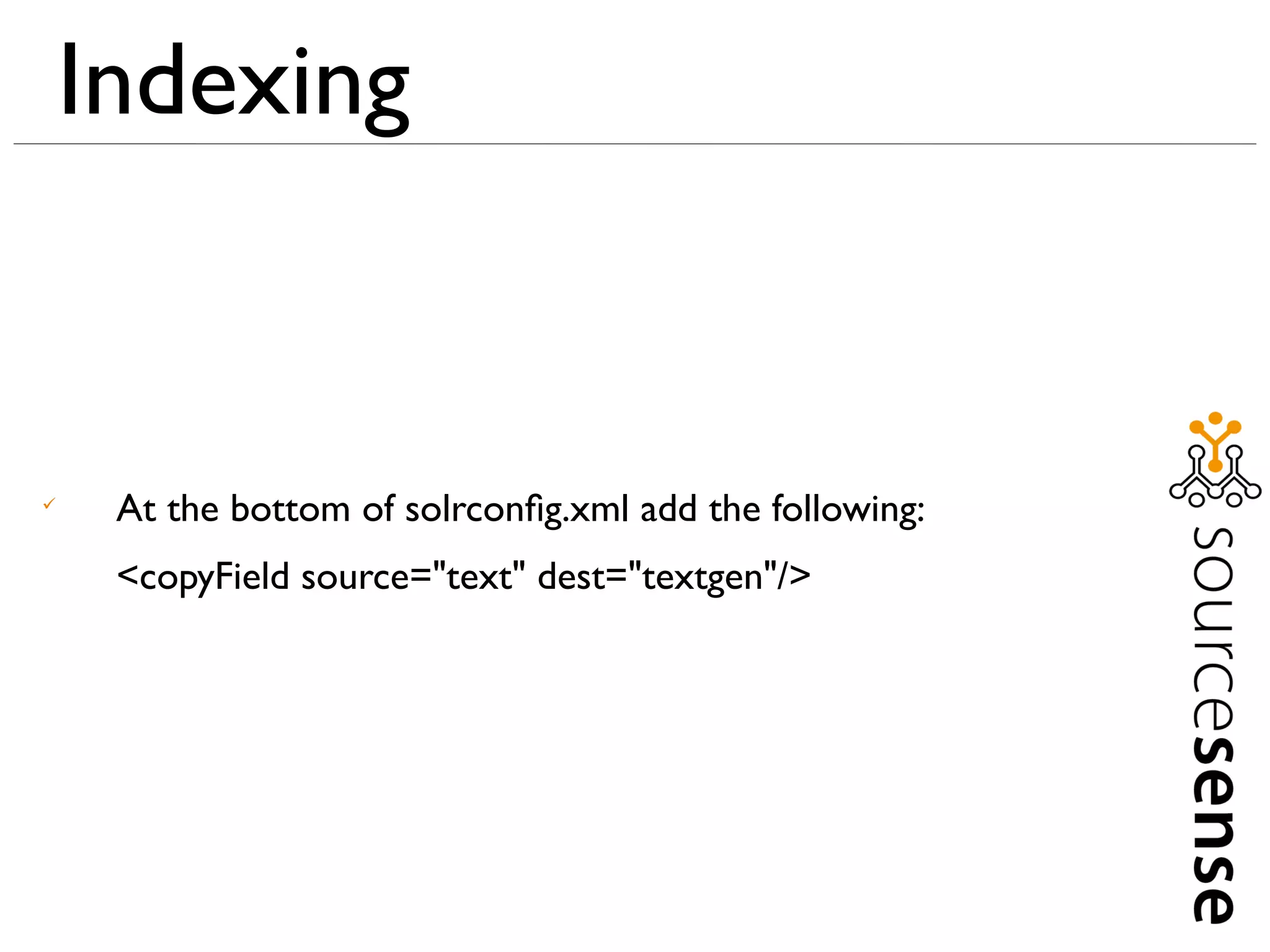

40. Indexing

At the bottom of solrconfig.xml add the following:
<copyField source="text" dest="textgen"/>

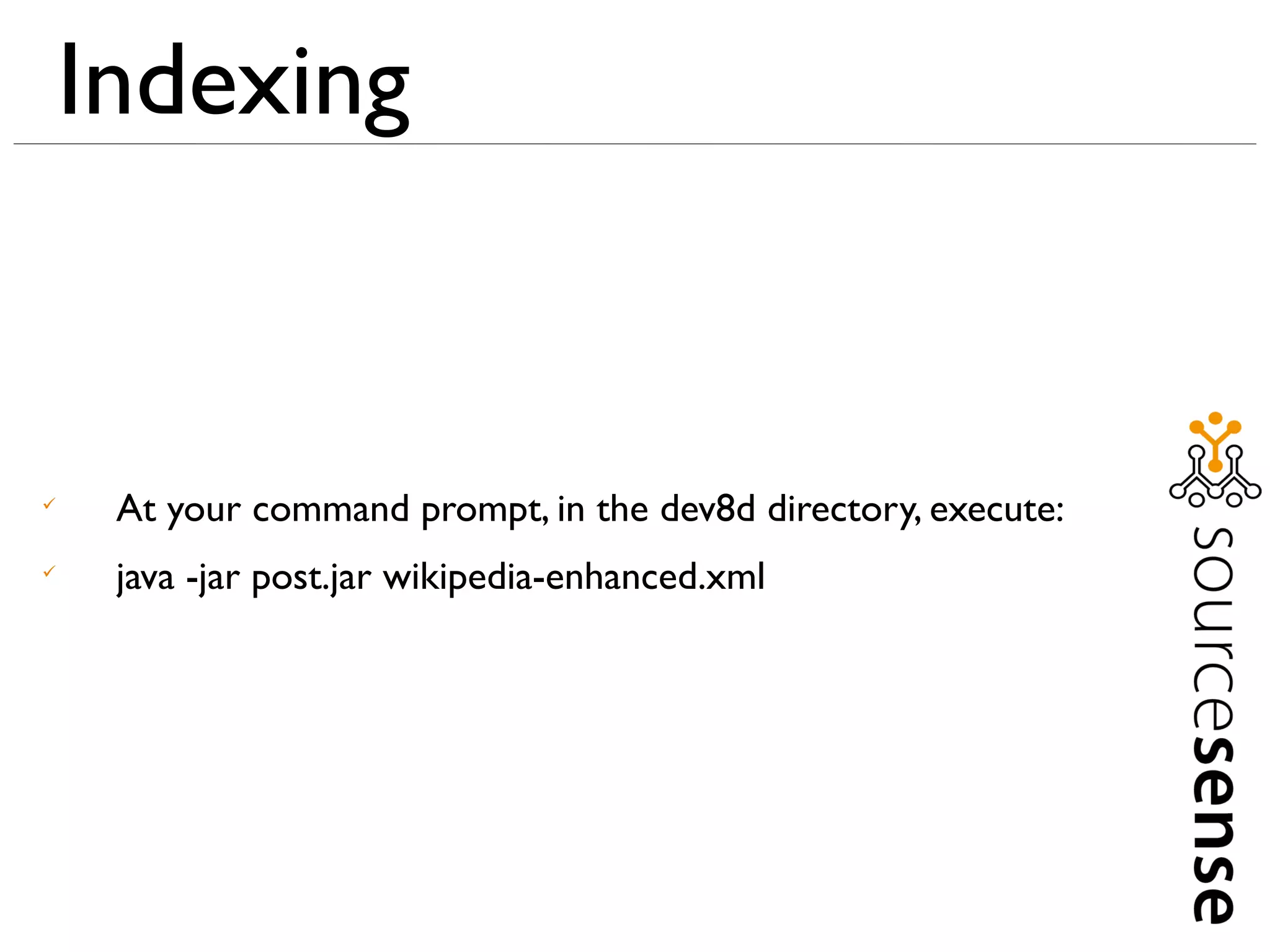

41. Indexing

At your command prompt, in the dev8d directory, execute:

java -jar post.jar wikipedia-enhanced.xml

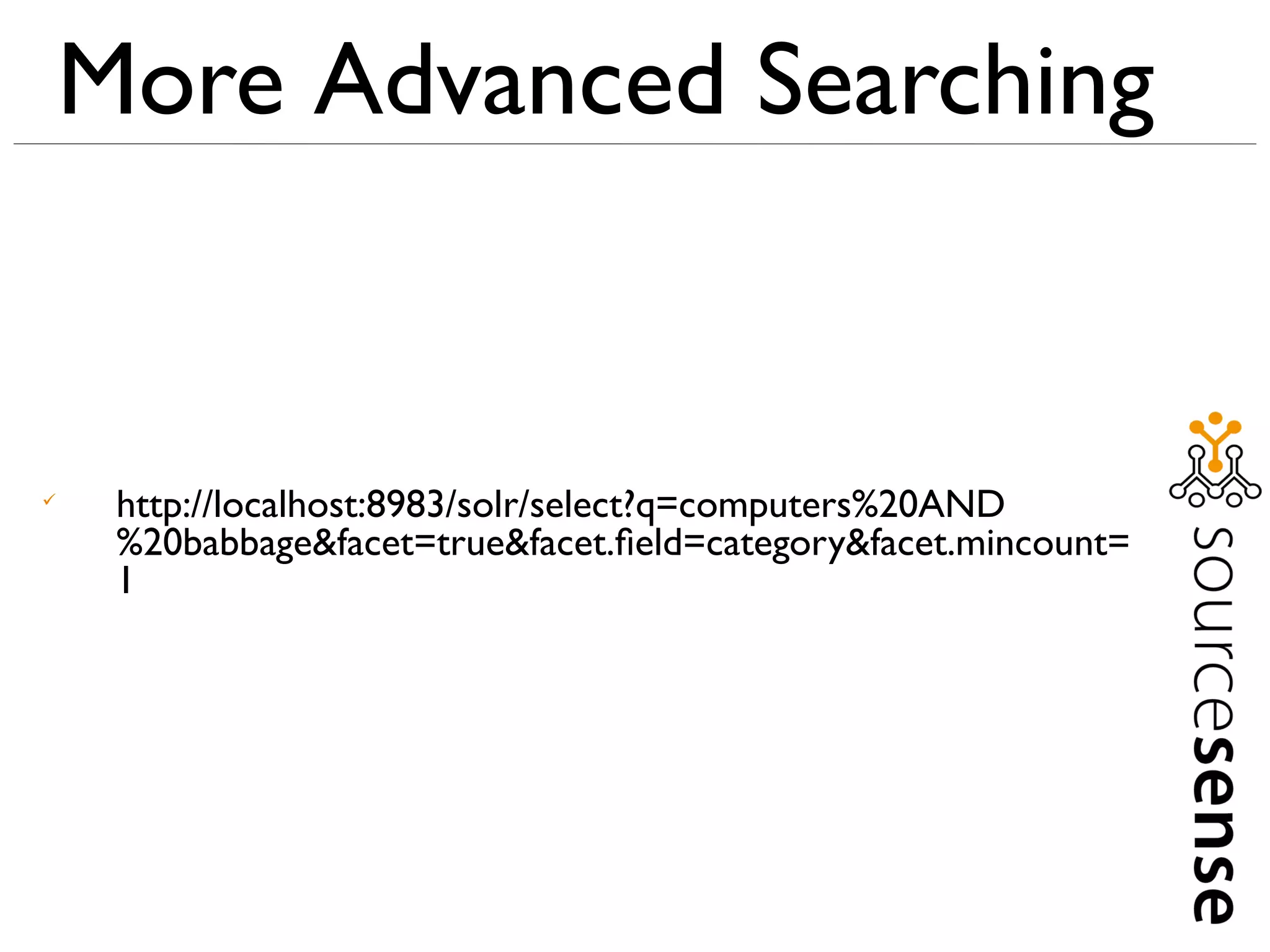

42. More Advanced Searching

http://localhost:8983/solr/select?q=computers%20AND
%20babbage&facet=true&facet.field=category&facet.mincount=
1

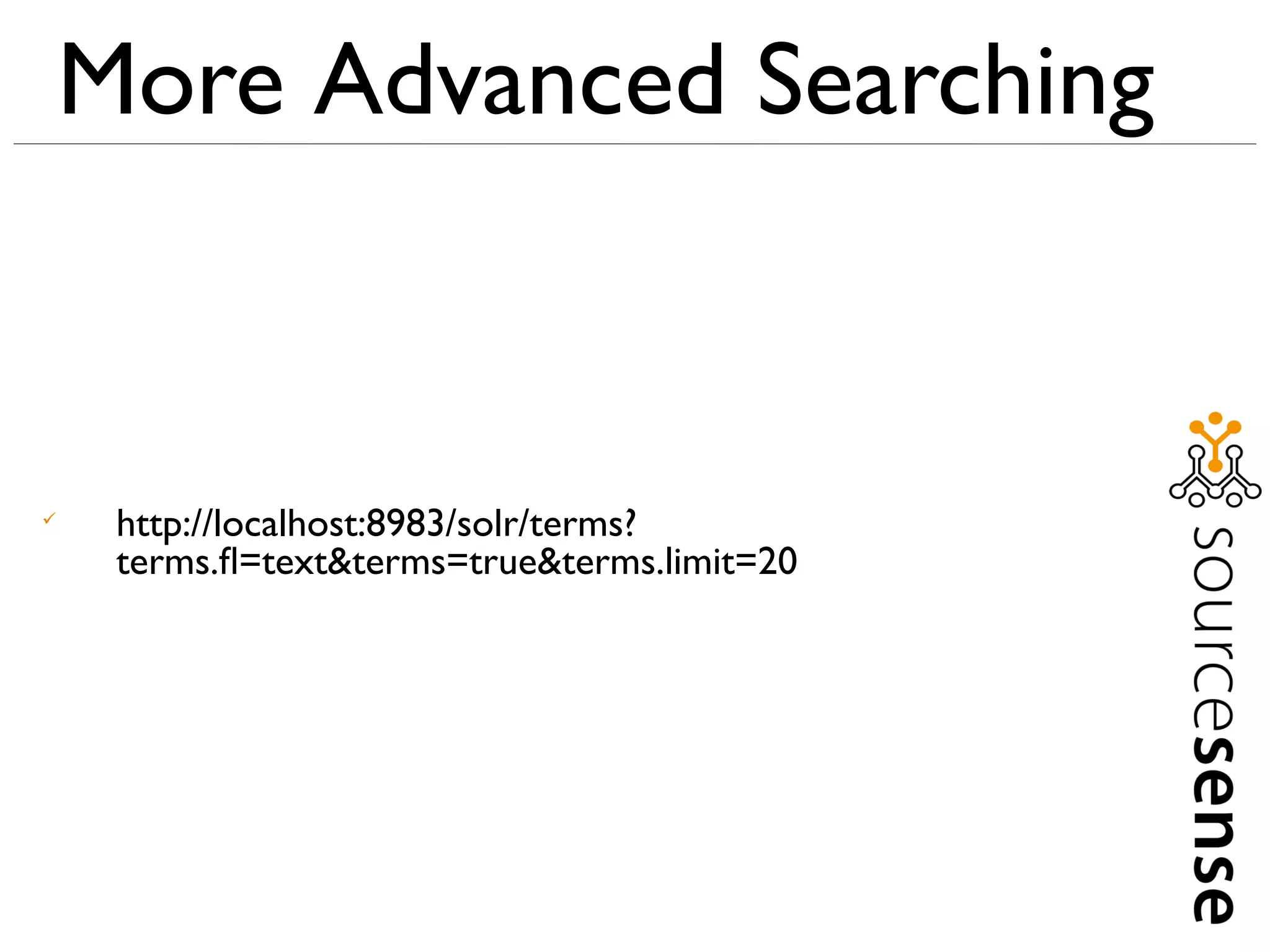

43. More Advanced Searching

http://localhost:8983/solr/terms?
terms.fl=text&terms=true&terms.limit=20

44. More Advanced Searching

http://localhost:8983/solr/terms?
terms.fl=textgen&terms=true&terms.limit=20

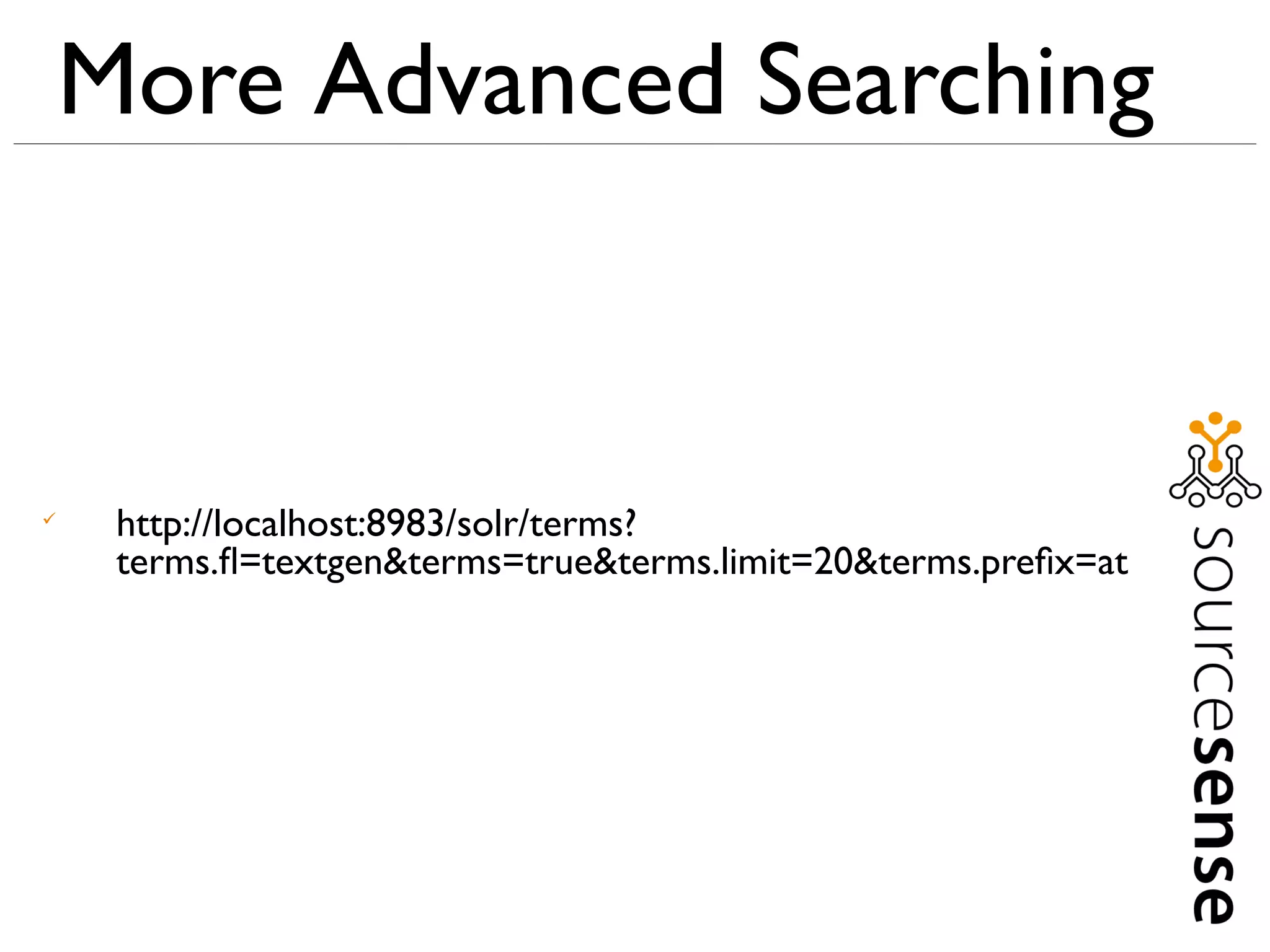

45. More Advanced Searching

http://localhost:8983/solr/terms?
terms.fl=textgen&terms=true&terms.limit=20&terms.prefix=at

46. thank you
upayavira@sourcesense.com

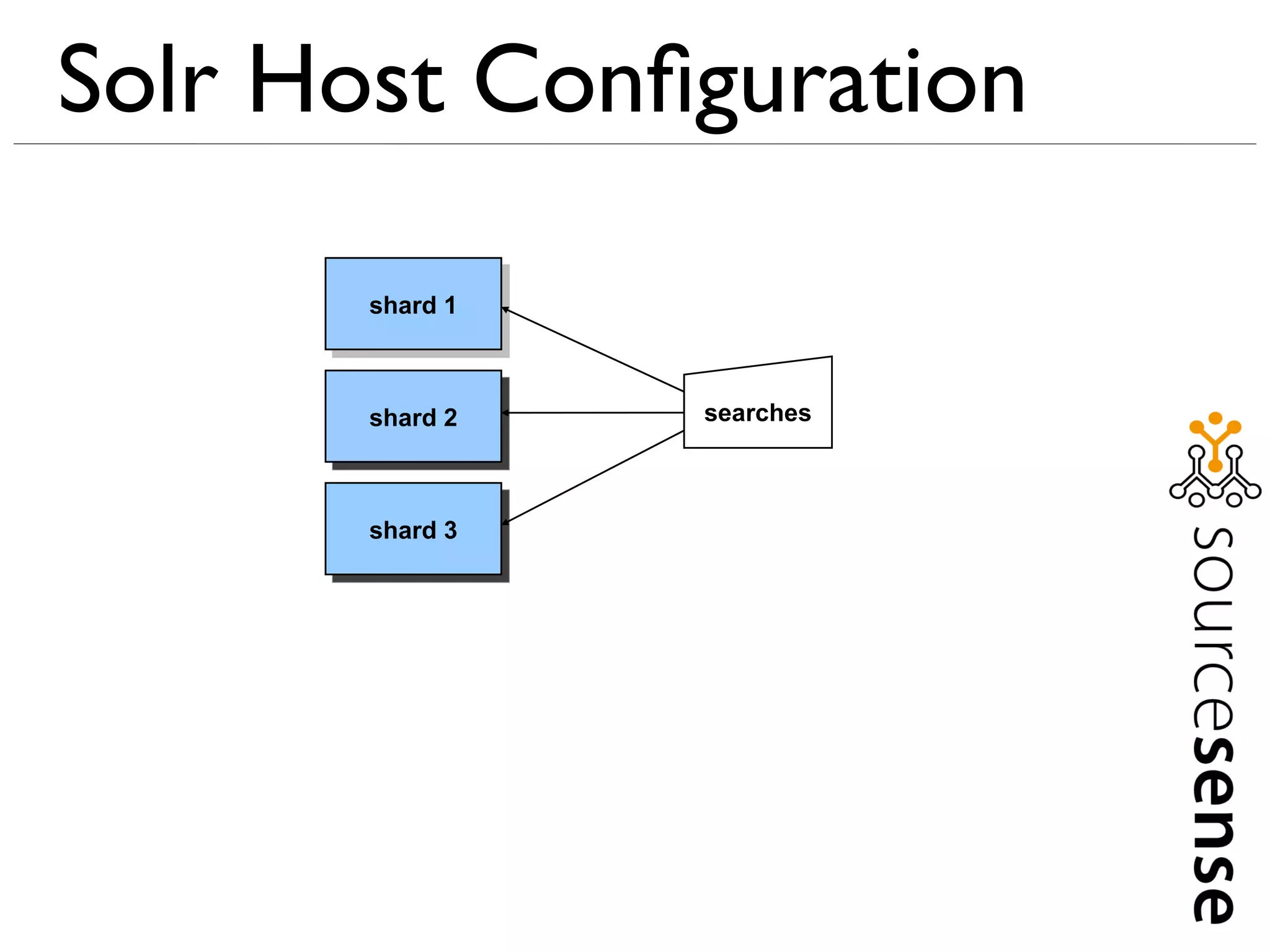

47. Solr Host Configuration
shard 1
shard 2 searches
shard 3

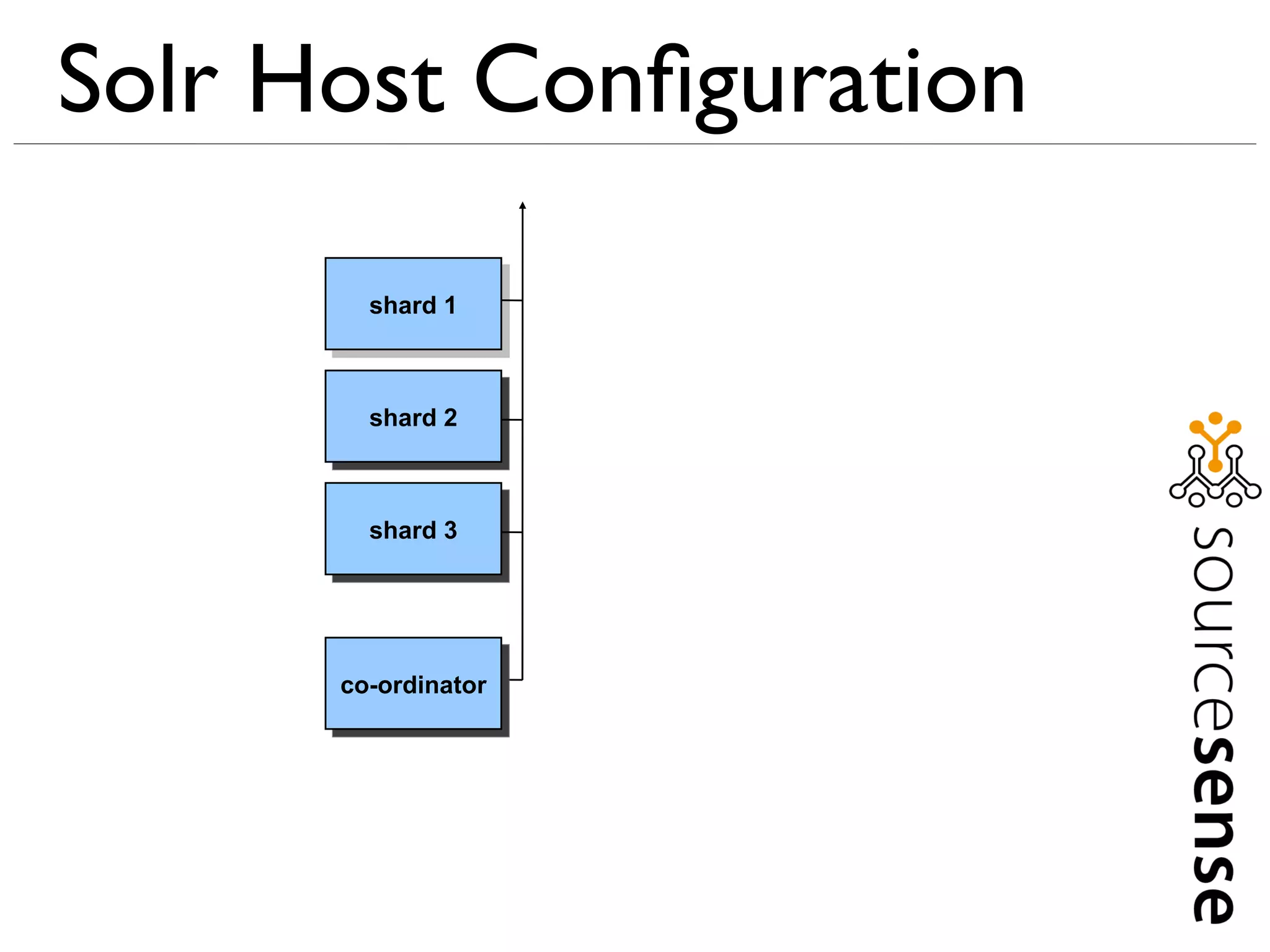

48. Solr Host Configuration
shard 1
shard 2
shard 3
co-ordinator

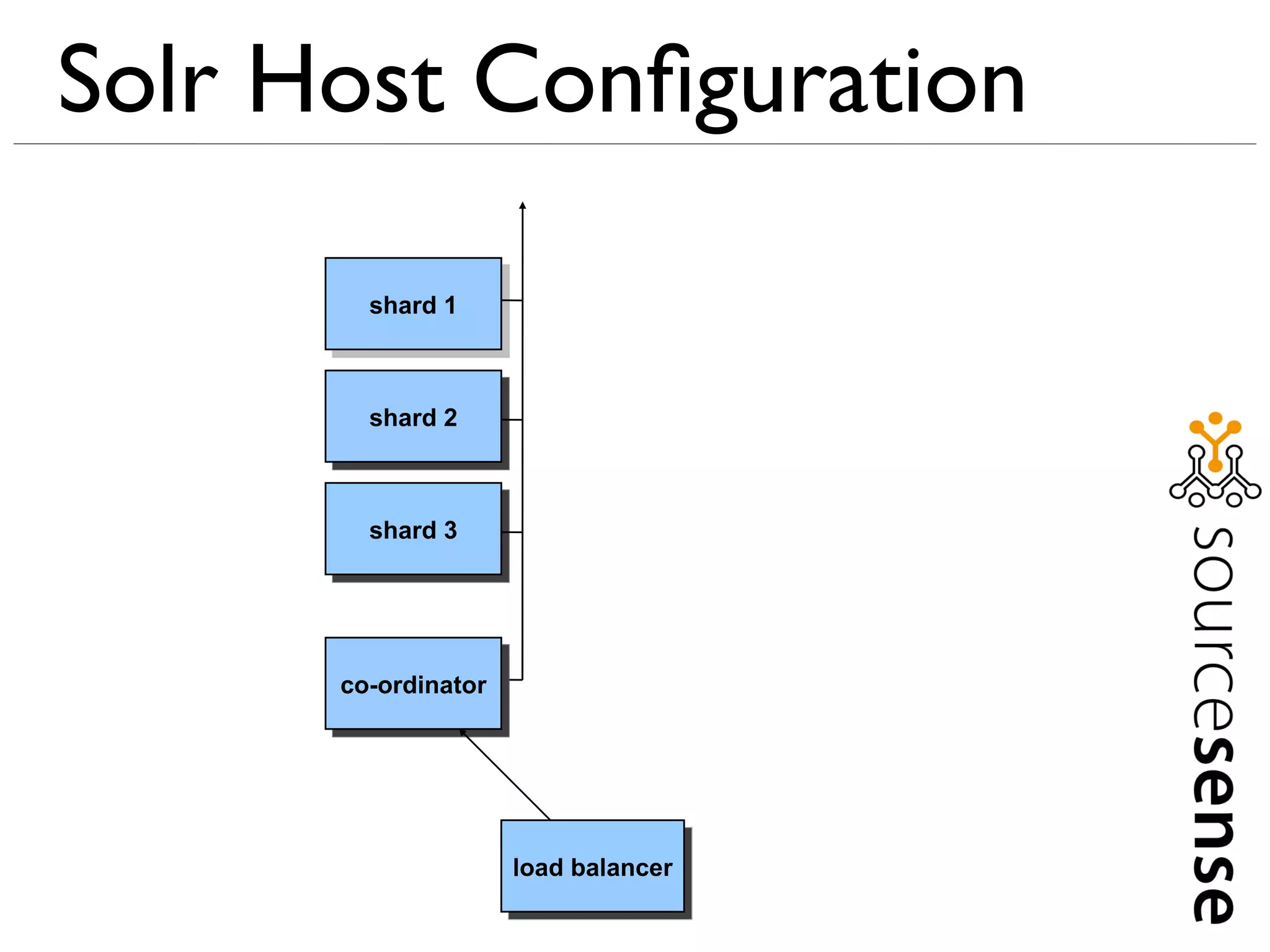

49. Solr Host Configuration
shard 1
shard 2
shard 3
co-ordinator
load balancer

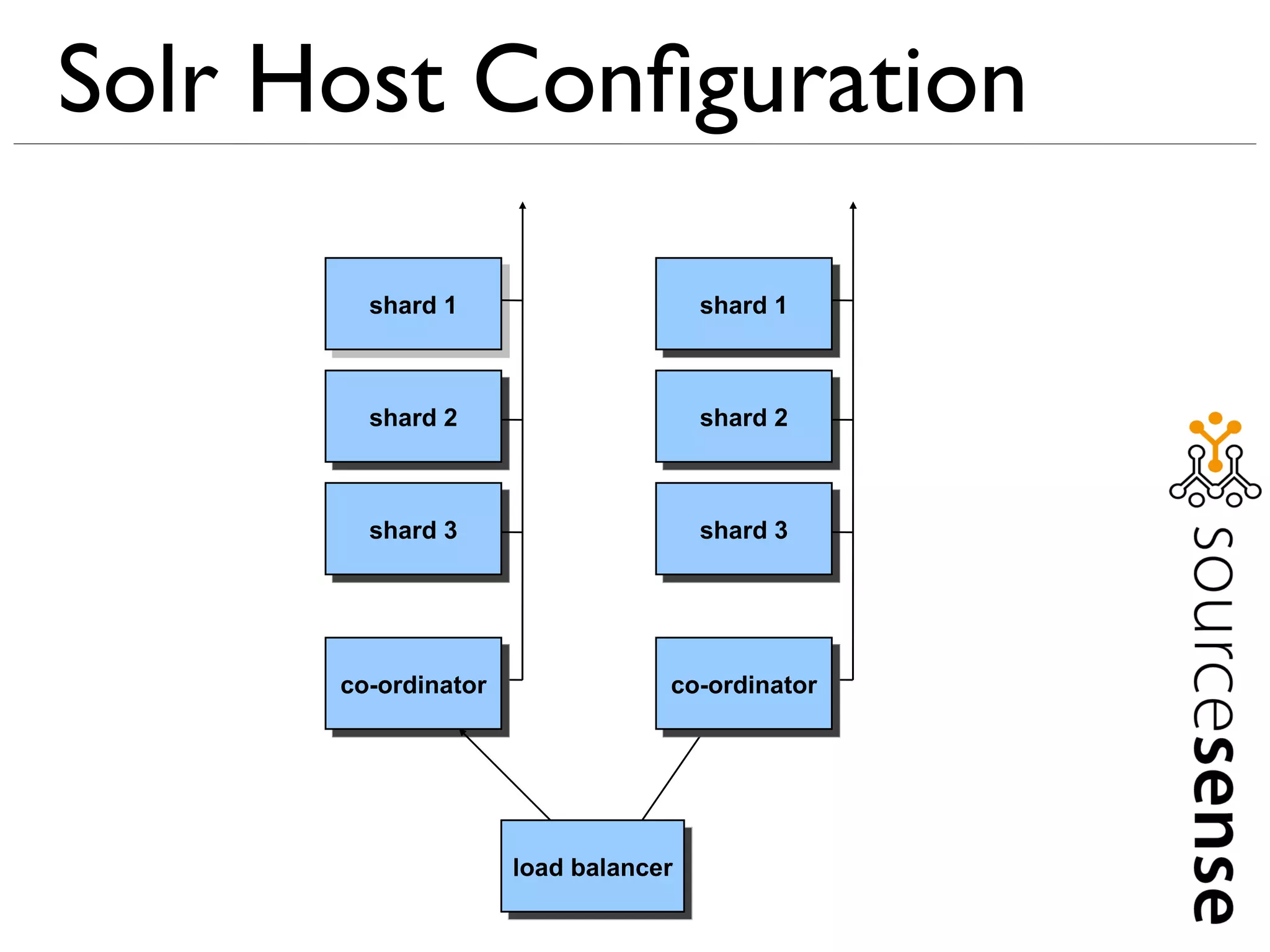

50. Solr Host Configuration
shard 1 shard 1
shard 2 shard 2
shard 3 shard 3
co-ordinator co-ordinator
load balancer

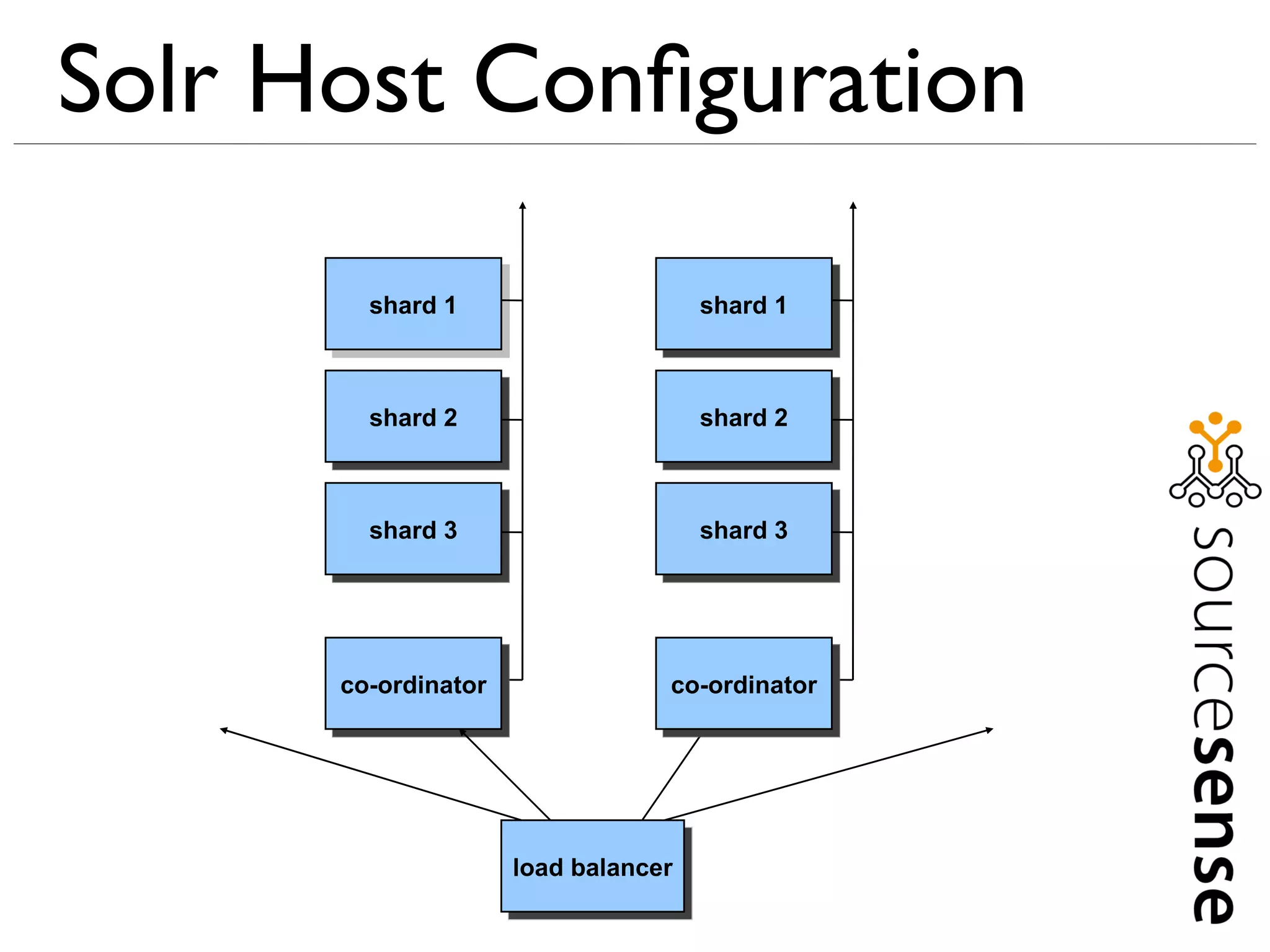

51. Solr Host Configuration
shard 1 shard 1
shard 2 shard 2
shard 3 shard 3
co-ordinator co-ordinator
load balancer
