Sitemap in Microsoft Dynamics CRM 2011/2013

1. SITEMAP
Microsoft Dynamics CRM -2011/2013

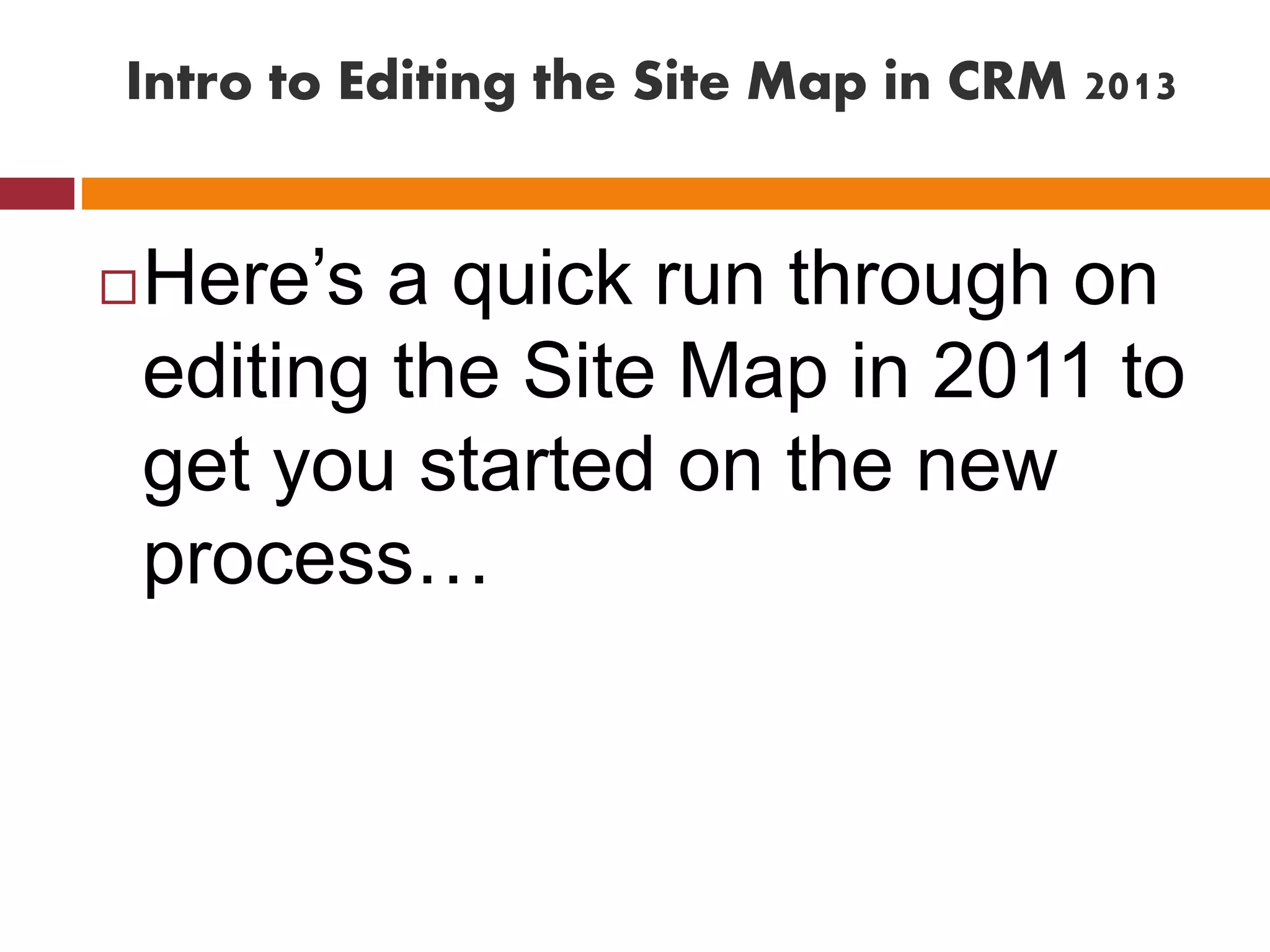

2. Intro to Editing the Site Map in CRM 2013
Here’s a quick run through on
editing the Site Map in 2011 to
get you started on the new
process…

3. Go to Setting Click on Solutions

4. Create a new Solution called Sitemap

5. Save and Goto Add Existing Select Sitemap

6. Click on Export Solution Button

7. Click on Publish All Customizations

8. Click On Next Button

9. Click On Next Button

10. In Package Type Click on Unmanaged Solution

11. Click On Next Button

12. Select Target Solution to 6.1 or 6.0 version

13. And Export the Sitemap Solution

14. Open sitemap Solution click On
Customization.xml With Notepad or Visual
Studio 2010

15. See the Code of Customization .xml code

16. Paste the following new Area definition above the
Workplace Area and then Save your changes
XML to copy:
<Area Id=“HealthGroup" ShowGroups="true"
Icon="/_imgs/workplace_24x24.gif" Title =“HealthGroup ">
<Group Id="MyWorkGT" Title ="End User">
<SubArea Id="nav_dashboardsGT"
ResourceId="Homepage_Dashboards"
Icon="/_imgs/area/18_home.gif"
DescriptionResourceId="Dashboards_Description"
Url="/workplace/home_dashboards.aspx"
GetStartedPanePath="Dashboards_Web_User_Visor.html"
GetStartedPanePathAdmin="Dashboards_Web_Admin_Visor.html"
GetStartedPanePathOutlook="Dashboards_Outlook_User_Visor.html"
GetStartedPanePathAdminOutlook="Dashboards_Outlook_Admin_Visor.
html" />

17. <SubArea Id="nav_activitiesGT" Entity="activitypointer"
DescriptionResourceId="Activities_SubArea_Description"
Url="/_root/homepage.aspx?etc=4200"
GetStartedPanePath="Activities_Web_User_Visor.html"
GetStartedPanePathAdmin="Activities_Web_Admin_Vis
or.html"
GetStartedPanePathOutlook="Activities_Outlook_User_
Visor.html"
GetStartedPanePathAdminOutlook="Activities_Outlook_
Admin_Visor.html" />
Activities Xml Code

18. Account Xml Code
<SubArea Id="nav_acctsGT" Entity="account"
DescriptionResourceId="Account_SubArea_Description"
GetStartedPanePath="Accounts_Web_User_Visor.html"
GetStartedPanePathAdmin="Accounts_Web_Admin_Vis
or.html"
GetStartedPanePathOutlook="Accounts_Outlook_User_
Visor.html"
GetStartedPanePathAdminOutlook="Accounts_Outlook_
Admin_Visor.html" />

19. Contact Xml Code
<SubArea Id="nav_contsGT" Entity="contact"
DescriptionResourceId="Contact_SubArea_Descri
ption"
GetStartedPanePath="Contacts_Web_User_Visor.
html"
GetStartedPanePathAdmin="Contacts_Web_Admi
n_Visor.html"
GetStartedPanePathOutlook="Contacts_Outlook_
User_Visor.html"
GetStartedPanePathAdminOutlook="Contacts_Out
look_Admin_Visor.html" />
</Group>

20. Customization Xml Code
<Group Id="CustomizationsGT"
ResourceId="Homepage_SystemCustomization"
DescriptionResourceId="Homepage_SystemCustomizatio
n" Title ="System Config">
<SubArea Id="nav_syscustGT"
ResourceId="Menu_Label_Customizations"
DescriptionResourceId="Customization_SubArea_Descript
ion" Icon="/_imgs/area/18_syscust.gif"
Url="/tools/systemcustomization/systemcustomization.aspx
" AvailableOffline="false" />

21. Solution Xml Code
<SubArea Id="nav_solutionGT" Entity="solution"
ResourceId="Web.Tools.Solution.map_xml.aspx_1"
AvailableOffline="false"
GetStartedPanePath="Solutions_Web_Admin_Visor.h
tml"
GetStartedPanePathAdmin="Solutions_Web_Admin_
Visor.html"
GetStartedPanePathOutlook="Solutions_Outlook_Ad
min_Visor.html"
GetStartedPanePathAdminOutlook="Solutions_Outlo
ok_Admin_Visor"
DescriptionResourceId="Web.Tools.Solution.map_xm
l.aspx_2"
Url="/tools/Solution/home_solution.aspx?etc=7100">
<Privilege Entity="solution" Privilege="Read" />
</SubArea>

22. <SubArea Id="nav_workflow" Entity="workflow"
DescriptionResourceId="Workflow_SubArea_Description"
AvailableOffline="false"
GetStartedPanePath="Workflows_Web_User_Visor.html"
GetStartedPanePathAdmin="Workflows_Web_Admin_Vis
or.html"
GetStartedPanePathOutlook="Workflows_Outlook_User_
Visor.html"
GetStartedPanePathAdminOutlook="Workflows_Outlook_
Admin_Visor.html" />
</Group>
</Area>
Workflows Xml Code

24. Location:

25. Copy the Code and Paste Here

26. Select the 3 unzipped solution files and
zip them up. I like to follow the naming
convention and version numbering that
CRM used at export. Here’s an easy
way to do this:
Select the 3 files
Right-click
From the WinZip menu select: “Add to
SiteMap_1_0_0_0.zip”

28. WARNING: Make sure the structure of your zip file matches the format
CRM exports solutions in – i.e. no additional folder layers

29. Import the Solution, Publish, refresh your browser

30. Done!. You should now have a
new Menu area labelled “Gareth’s
Menu”

31. After Importing the Solution Publish the Sitemap and
Refresh the Crm Portal

33. K . Naveen Kumar
Microsoft Dynamics CRM Techno Functional
Consultant
