Execution control tools capture simulation execution context in a similar way to how version control tools capture varying aspects of data context. The Cloud of Reproducible Records (CoRR) is a platform and command line client for recording execution context as a set of records. It captures details like version control, python dependencies, input/output files, parameters, CPU/memory usage, and commentary. CoRR-cli is a relatively mature codebase that launches computations as subprocesses and continuously updates local records that can then be synced to the CoRR API. Future work includes hosting a live platform, improving searchability, standardizing metadata, and expanding CoRR-cli's metadata capture capabilities.

1. fasteners
psutils
$ corrcli watcher start
Launch watcher with ID: 6ea96596ac29
$ python my_script.py params.json 6ea96596ac29
$ corrcli jobs list
label status time stamp pid
0 27f427d2 finished 16-06-26 21:03:46 27800
$ corrcli sync
Daniel Wheelera
and Faïçal Yannick P. Congoa,b
a
Material Science and Engineering Division, Material Measurement Laboratory, NIST,
b
LIMOS, Blaise Pascal University, France
Email: daniel.wheeler@nist.gov

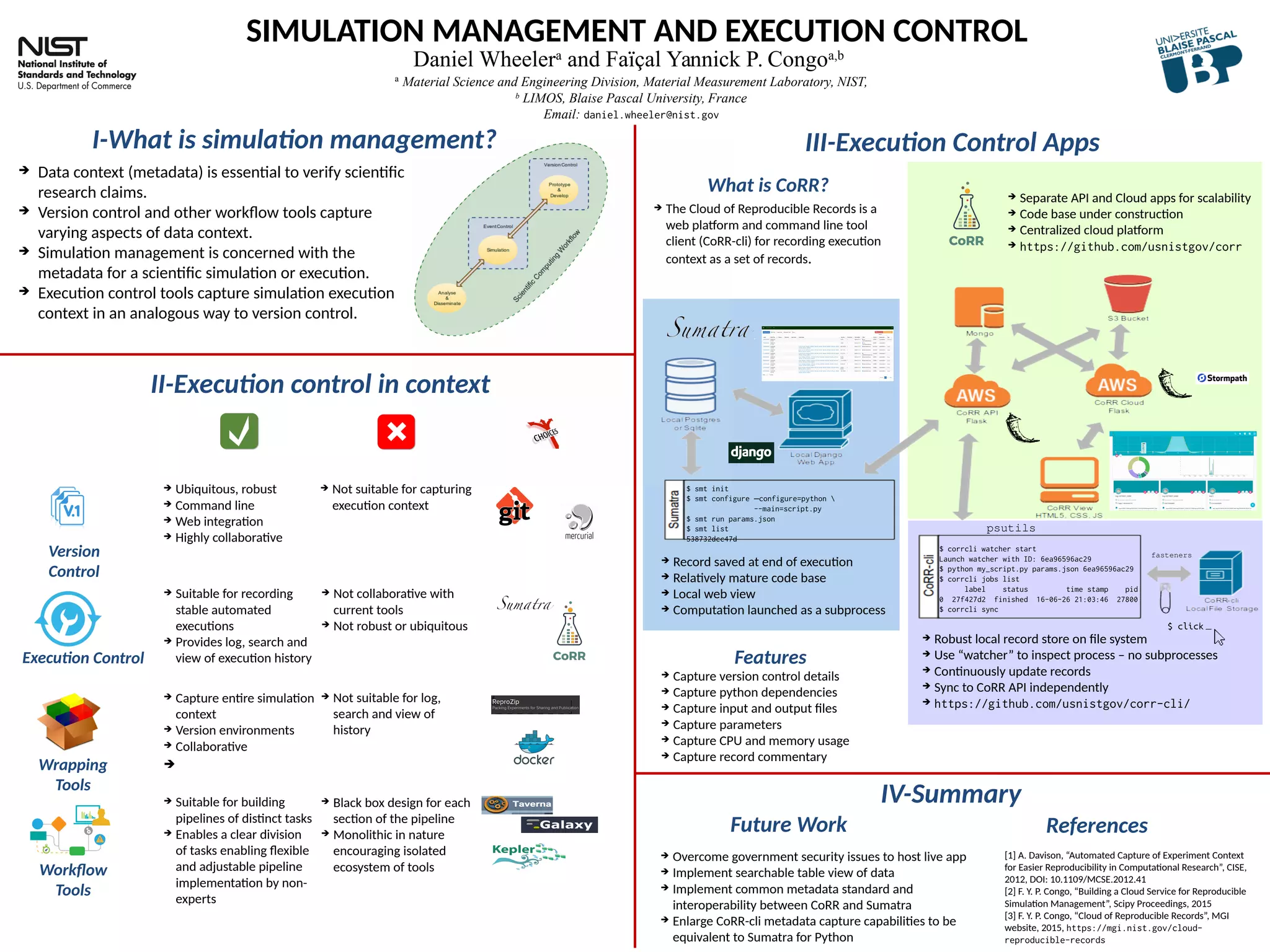

SIMULATION MANAGEMENT AND EXECUTION CONTROL
I-What is simulation management?
 Data context (metadata) is essential to verify scientific
research claims.
 Version control and other workflow tools capture
varying aspects of data context.
 Simulation management is concerned with the
metadata for a scientific simulation or execution.
 Execution control tools capture simulation execution
context in an analogous way to version control.
References
[1] A. Davison, “Automated Capture of Experiment Context
for Easier Reproducibility in Computational Research”, CISE,
2012, DOI: 10.1109/MCSE.2012.41
[2] F. Y. P. Congo, “Building a Cloud Service for Reproducible
Simulation Management”, Scipy Proceedings, 2015
[3] F. Y. P. Congo, “Cloud of Reproducible Records”, MGI
website, 2015, https://mgi.nist.gov/cloud-
reproducible-records
Workfow
Tools
Wrapping
Tools
II-Execution control in context
Execution Control
Version
Control
 Ubiquitous, robust
 Command line
 Web integration
 Highly collaborative
 Not suitable for capturing
execution context
 Suitable for recording
stable automated
executions
 Provides log, search and
view of execution history
 Capture entire simulation
context
 Version environments
 Collaborative

 Not collaborative with
current tools
 Not robust or ubiquitous
 Not suitable for log,
search and view of
history
 Suitable for building
pipelines of distinct tasks
 Enables a clear division
of tasks enabling flexible
and adjustable pipeline
implementation by non-
experts
 Black box design for each
section of the pipeline
 Monolithic in nature
encouraging isolated
ecosystem of tools
IV-Summary
III-Execution Control Apps
$ smt init
$ smt configure configure=python –
--main=script.py
$ smt run params.json
$ smt list
538732dcc47d
 Record saved at end of execution
 Relatively mature code base
 Local web view
 Computation launched as a subprocess
 Robust local record store on file system
 Use “watcher” to inspect process – no subprocesses
 Continuously update records
 Sync to CoRR API independently
 https://github.com/usnistgov/corr-cli/
 Separate API and Cloud apps for scalability
 Code base under construction
 Centralized cloud platform
 https://github.com/usnistgov/corr
 Capture version control details
 Capture python dependencies
 Capture input and output files
 Capture parameters
 Capture CPU and memory usage
 Capture record commentary
Features
What is CoRR?
 The Cloud of Reproducible Records is a
web platform and command line tool
client (CoRR-cli) for recording execution
context as a set of records.
Future Work
 Overcome government security issues to host live app
 Implement searchable table view of data
 Implement common metadata standard and
interoperability between CoRR and Sumatra
 Enlarge CoRR-cli metadata capture capabilities to be
equivalent to Sumatra for Python
