Wes McKinney discussed the evolution of data science tools and infrastructure over the past 10 years and a vision for the next 10 years. He argued that current data science languages like Python, R, and Julia operate in "silos" with separate implementations for data storage, processing, and analytics. However, new projects like Apache Arrow aim to break down these silos by establishing shared standards for in-memory data formats and interchange that can unite the implementations across languages. Arrow provides a portable data frame format, zero-copy interchange capabilities, and potential for high performance data access and flexible computation engines. This would allow data science work to be more portable across programming languages while improving performance.

1. Wes McKinney @wesmckinn

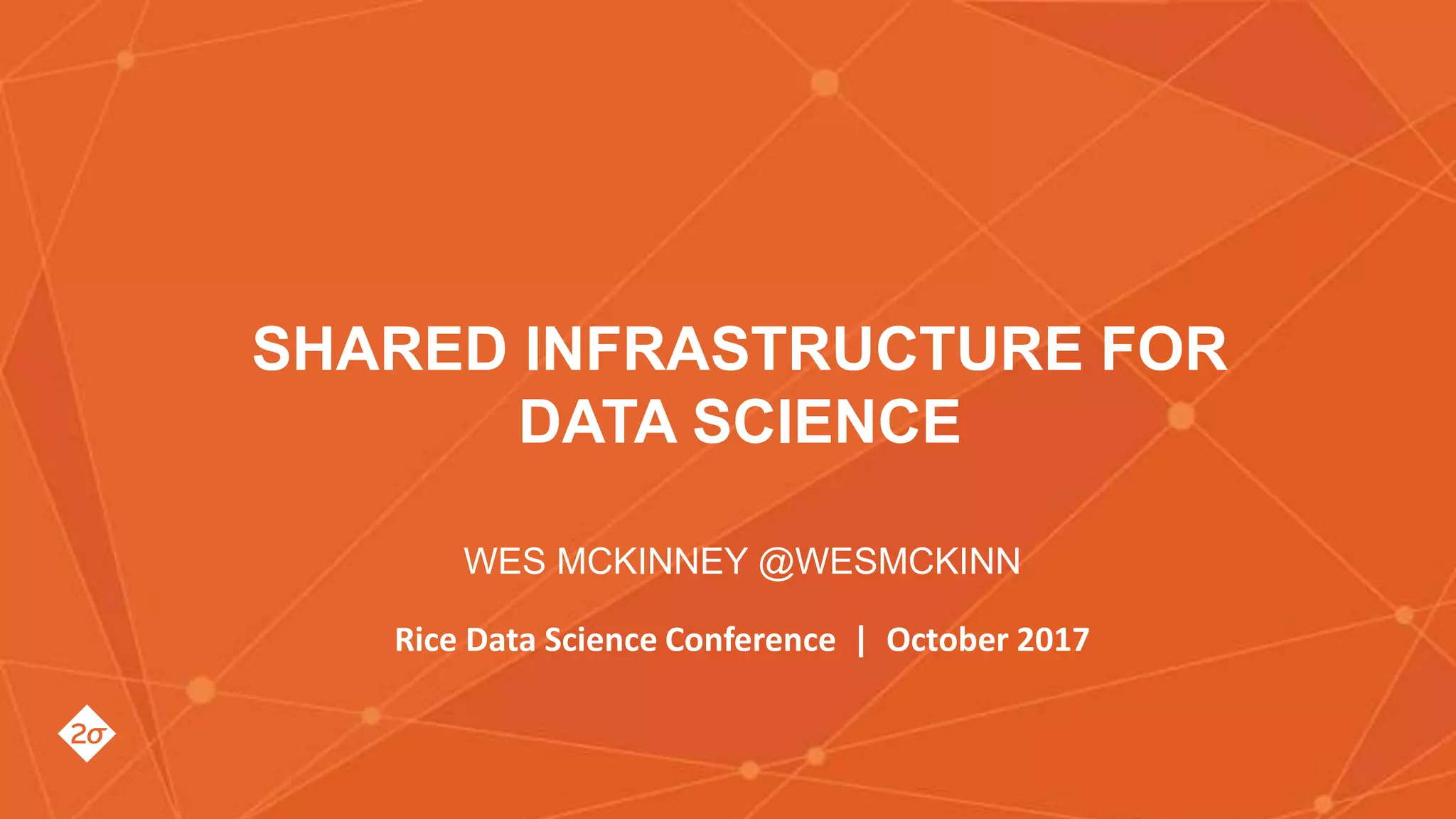

SHARED INFRASTRUCTURE FOR
DATA SCIENCE
WES MCKINNEY @WESMCKINN
Rice Data Science Conference | October 2017

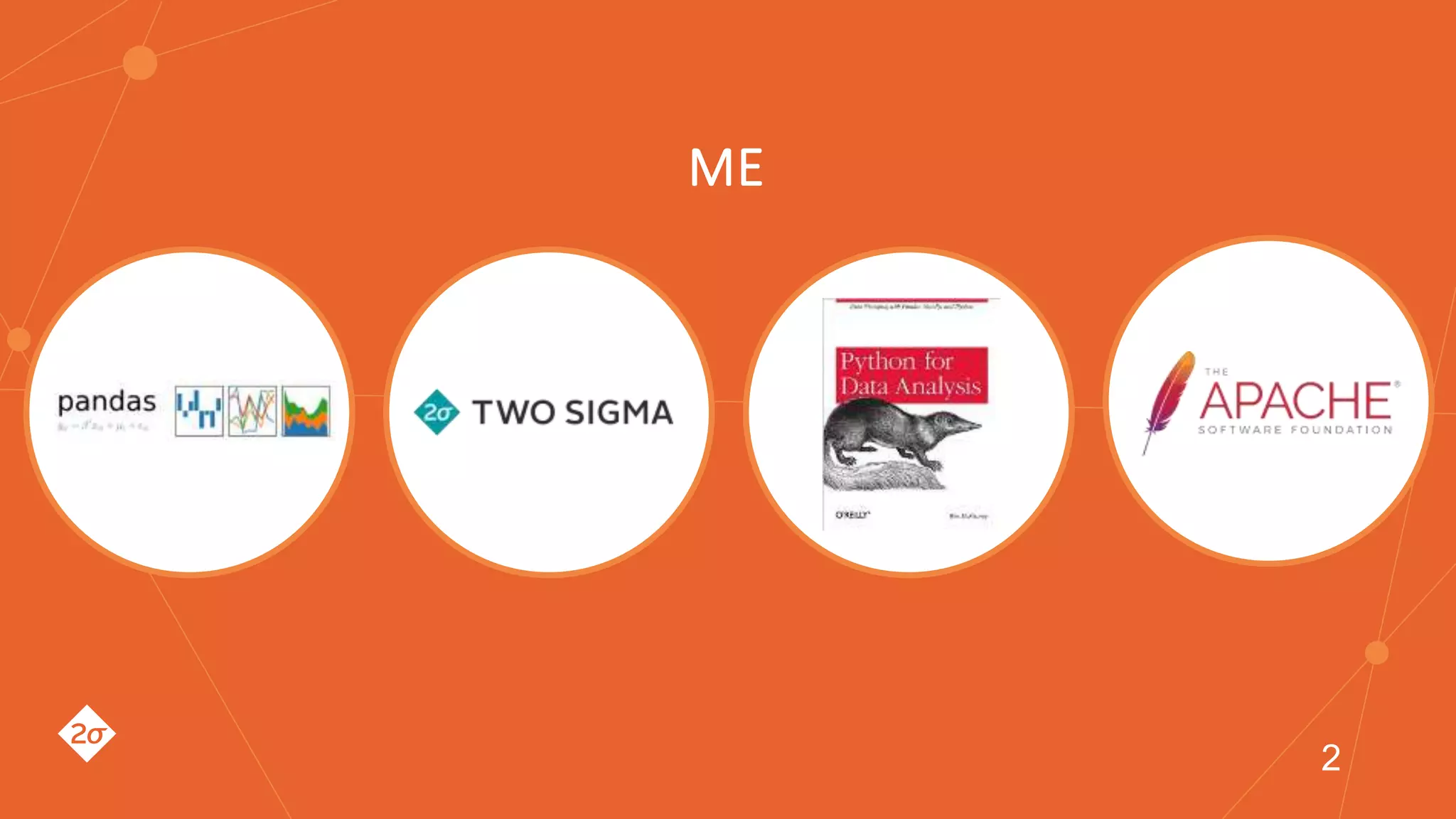

2. ME
2

3. I M P O R TA N T L E G A L I N F O R M AT I O N
• The information presented here is offered for informational purposes only and should not be used for any other purpose
(including, without limitation, the making of investment decisions). Examples provided herein are for illustrative purposes
only and are not necessarily based on actual data. Nothing herein constitutes: an offer to sell or the solicitation of any
offer to buy any security or other interest; tax advice; or investment advice. This presentation shall remain the property of
Two Sigma Investments, LP (“Two Sigma”) and Two Sigma reserves the right to require the return of this presentation at
any time.
• Some of the images, logos or other material used herein may be protected by copyright and/or trademark. If so, such
copyrights and/or trademarks are most likely owned by the entity that created the material and are used purely for
identification and comment as fair use under international copyright and/or trademark laws. Use of such image, copyright
or trademark does not imply any association with such organization (or endorsement of such organization) by Two Sigma,
nor vice versa.
• Copyright © 2017 TWO SIGMA INVESTMENTS, LP. All rights reserved
Wes McKinney @wesmckinn 3

4. THINKING ON THE LAST 10 YEARS
4
2007 2017

5. CLOSED SOURCE OPEN SOURCE
5

6. Shared front-ends
for data science

7. THE NEXT 10 YEARS AND BEYOND
7
2017 2027 …

8. THE AI ARMS RACE
Wes McKinney @wesmckinn 8

9. CHANGING HARDWARE LANDSCAPE
DISK
PROCESSIN
G
MEMORY
9

10. T
DATA SCIENCE “LANGUAGE “SILOS”
FRONT-END
PYTHON R JVM JULIA …
10

11. WHAT’S IN A
SILO?
STORAGE /
DATA ACCESS
DATA
STRUCTURES /
IN-MEMORY
FORMATS
GENERAL
COMPUTE
ENGINE(S)
ADVANCED
ANALYTICS
11

12. WHAT’S IN A
SILO?
STORAGE /
DATA ACCESS
DATA
STRUCTURES /
IN-MEMORY
FORMATS
GENERAL
COMPUTE
ENGINE(S)
ADVANCED
ANALYTICS
pandas NumPy
pandas
NumPy
pandas
scikit-learn
12

13. RENOVATING PANDAS
Wes McKinney @wesmckinn 13

14. 27

15. T
MAKING THE SILOS “SMALLER”
FRONT-END
PYTHON R JVM JULIA
?
…
14

16. PROGRAMMING LANGUAGES
AS USER INTERFACES
15

17. GRAPHIC: Iceberg under sea (only top
part visible to naked eye)

18. T
df <- read_csv(…)
df % group_by(…) % summarise(…)
df = read_csv(…)
df.groupby(…).aggregate(…)
PYTHON
R
SAME ANALYSIS, DIFFERENT
IMPLEMENTATION
17

19. T
A SHARED RUNTIME FOR DATA SCIENCE
FRONT-END
PYTHON R JVM JULIA
SHARED DATA SCIENCE RUNTIME
…
18

20. FROM IDEA TO ACTION
19

21. T
PART 1: STANDARD IN-MEMORY FORMAT
R
PYTHON
JVM
PORTABLE DATA
FRAME
Non-Portable Data Frames
20…

22. T
PART 2: ZERO COPY INTERCHANGE
RPYTHON JVM
SHARED MEMORY + STANDARD MEMORY FORMATS
…
21

23. T
PART 3: HIGH PERFORMANCE DATA
ACCESS
BINARY
COLUMNAR
CSV
SQL
PORTABLE
DATA FRAME
Storage Formats/ Databases
… 22

24. T
PART 4: FLEXIBLE COMPUTATION ENGINE
• Zero-overhead User-defined Functions
• Portable Operator “Graphs”
• “Embeddable” in Larger Systems
23

25. APACHE ARROW
Language-agnostic Data Frame Format
Zero-Copy Interchange
24

26. 24
Without Arrow With Arrow
Simple, fast data interchange

27. 24
• Cache-efficient columnar memory: optimized for CPU affinity and
SIMD / parallel processing, O(1) random value access
• Zero-copy messaging / IPC: Language-agnostic metadata,
batch/file-based and streaming binary formats
• Complex schema support: Flat and nested data types
• Main implementations in C++ and Java: with integration tests
• Bindings / implementations for C, Python, Ruby, Javascript in
various stages of development
Big picture Arrow goals

28. T
BUILDING THE ARROW FORMAT
• “Superset” of representations supported by
R, pandas, SQL engines
• Optimized for CPU cache affinity
• ASF Governance: Open + Transparent
Community Project
25

29. FEATHER: MINIMALIST ARROW ON DISK

30. Some Arrow OSS Users
Feather Format
Ray Project
27

31. FROM ARROW TO PANDAS2
28

32. Logical Operator Graphs
27
(a + b).log()
Log Add
a
b

33. Terminology
27
• Kernel functions: atomic units of
computation
• Operator nodes: input/output types,
operator parallelism properties

34. Parallel Execution of Operator Graphs
27
a b
ADD LOG
tmp out

35. Some Optimization strategies
27
• Multicore scheduling
• Elimination of temporaries
• Operator fusion / pipelinng

36. A
28
Arrow-optimized data connectors
Arrow in-memory format
Logical Data Frame Expression Graphs
Parallel Dataflow Execution Engine
Python user API, DataFrame semantics,
User-defined functions
pandas2
Apache Arrow

37. BUILDING THE FUTURE
28

39. Wes McKinney @wesmckinn
THANK YOU
WES MCKINNEY @WESMCKINN
Apache Arrow: http://arrow.apache.org
