The document discusses the different object models for working with SharePoint including the Server Object Model, Client Object Models (CSOM), REST Web Services, and SharePoint Web Services. It provides examples of using the Server Object Model to retrieve site and list information and handle events. It also covers the .NET, Silverlight, and JavaScript Client Object Models, how to load and retrieve resources in each, and includes code samples for each.

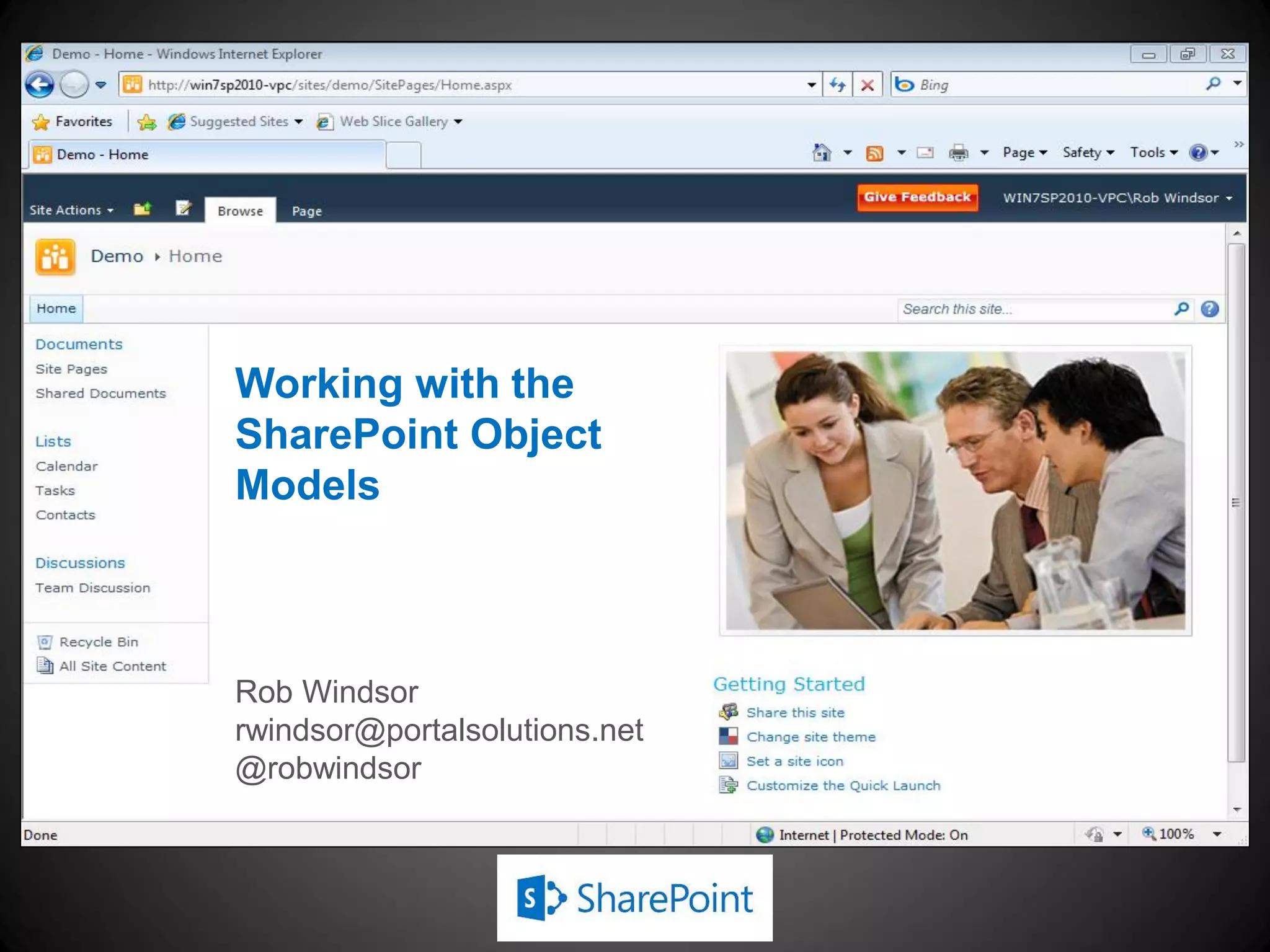

1. Working with the
SharePoint Object
Models
Rob Windsor
rwindsor@portalsolutions.net
@robwindsor

2. SharePoint Developer APIs
• Server Object Model
 Used by client apps running on SP server
• Client Object Models (CSOM)
 Remote API
 Three entry points: .NET Managed, Silverlight, JavaScript
 Façade layer on top of WCF service
 Uses batching model to access resources
• REST Web Services (API)
 SP 2010: CRUD on list data only
 SP 2013: API expanded to be more like CSOM
• SharePoint Web Services
 “Legacy” SOAP-based web services

3. Server Object Model
• Can be used when “in the context” of SharePoint
 Code-behind, event handlers, timer jobs
 ASP.NET applications running in same app. pool
 Client applications that run on SharePoint servers
• API implemented in Microsoft.SharePoint.dll
• Core types map to main SharePoint components
 SPSite, SPWeb, SPList, SPDocumentLibrary,
SPListItem
 SPContext gives access to current context

4. Server Object Model
• The SharePoint version of “Hello, World”
 Show the root site of a collection and it’s lists
using (var site = new SPSite("http://localhost/sites/demo/"))
{
var web = site.RootWeb;
ListBox1.Items.Add(web.Title);
foreach (SPList list in web.Lists)
{
ListBox1.Items.Add("t" + list.Title);
}
}

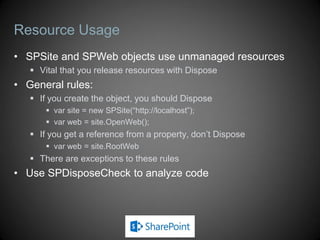

5. Resource Usage
• SPSite and SPWeb objects use unmanaged resources
 Vital that you release resources with Dispose
• General rules:
 If you create the object, you should Dispose
 var site = new SPSite(“http://localhost”);
 var web = site.OpenWeb();
 If you get a reference from a property, don’t Dispose
 var web = site.RootWeb
 There are exceptions to these rules
• Use SPDisposeCheck to analyze code

6. DEMO
Hello World with Server OM

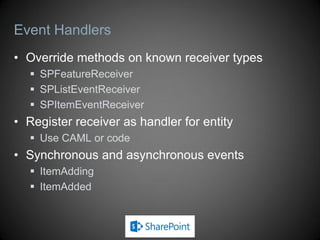

7. Event Handlers
• Override methods on known receiver types
 SPFeatureReceiver
 SPListEventReceiver
 SPItemEventReceiver
• Register receiver as handler for entity
 Use CAML or code
• Synchronous and asynchronous events
 ItemAdding
 ItemAdded

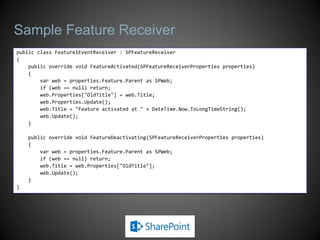

8. Sample Feature Receiver
public class Feature1EventReceiver : SPFeatureReceiver
{
public override void FeatureActivated(SPFeatureReceiverProperties properties)
{
var web = properties.Feature.Parent as SPWeb;
if (web == null) return;
web.Properties["OldTitle"] = web.Title;
web.Properties.Update();
web.Title = "Feature activated at " + DateTime.Now.ToLongTimeString();
web.Update();
}
public override void FeatureDeactivating(SPFeatureReceiverProperties properties)
{
var web = properties.Feature.Parent as SPWeb;
if (web == null) return;
web.Title = web.Properties["OldTitle"];
web.Update();
}
}

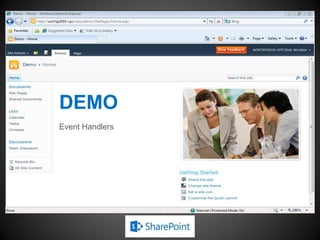

9. DEMO
Event Handlers

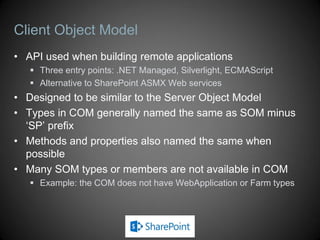

10. Client Object Model
• API used when building remote applications
 Three entry points: .NET Managed, Silverlight, ECMAScript
 Alternative to SharePoint ASMX Web services
• Designed to be similar to the Server Object Model
• Types in COM generally named the same as SOM minus
‘SP’ prefix
• Methods and properties also named the same when
possible
• Many SOM types or members are not available in COM
 Example: the COM does not have WebApplication or Farm types

11. Retrieving Resources using Load
• Retrieve object data in next batch
• Object properties loaded in-place
• Some properties not retrieved automatically
 Example: child collection properties
• Can explicitly indicate properties to retrieve
var siteUrl = "http://localhost/sites/demo";
var context = new ClientContext(siteUrl);
var web = context.Web;
context.Load(web, w => w.Title, w => w.Description);
context.ExecuteQuery();
Console.WriteLine(web.Title);

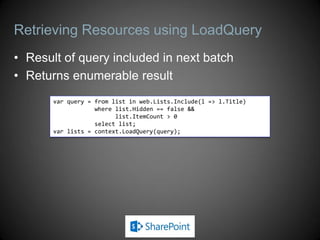

12. Retrieving Resources using LoadQuery
• Result of query included in next batch
• Returns enumerable result
var query = from list in web.Lists.Include(l => l.Title)
where list.Hidden == false &&
list.ItemCount > 0
select list;
var lists = context.LoadQuery(query);

13. Managed Client Object Model
<System Root>ISAPI
• Microsoft.SharePoint.Client
 281kb
• Microsoft.SharePoint.Client.Runtime
 145kb
To Compare:
 Microsoft.SharePoint.dll – 15.3MB

14. DEMO
Managed Client OM

15. Silverlight Client Object Model
• Very similar to the .NET managed implementation
• Silverlight controls can be hosted inside or outside
SharePoint
 Affects how ClientContext is accessed
 In SharePoint Web Parts, site pages, and application pages
 Use ClientContext.Current
 In pages external to the SharePoint Web application
 Create new ClientContext
• Service calls must be made asynchronously
 ExecuteQueryAsync(succeededCallback, failedCallback)

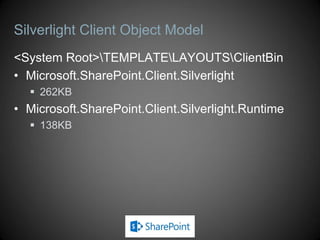

16. Silverlight Client Object Model
<System Root>TEMPLATELAYOUTSClientBin
• Microsoft.SharePoint.Client.Silverlight
 262KB
• Microsoft.SharePoint.Client.Silverlight.Runtime
 138KB

17. Silverlight Client Object Model
private Web web;
private ClientContext context;
void MainPage_Loaded(object sender, RoutedEventArgs e) {
context = ClientContent.Current;
if (context == null)
context = new ClientContext("http://localhost/sites/demo");
web = context.Web;
context.Load(web);
context.ExecuteQueryAsync(Succeeded, Failed);
}
void Succeeded(object sender, ClientRequestSucceededEventArgs e) {
Label1.Text = web.Title;
}
void Failed(object sender, ClientRequestFailedEventArgs e) {
// handle error
}

18. JavaScript Client Object Model
• Similar to using .NET Managed/Silverlight implementations
 Different platform and different language so slightly different API
• Can only be used on pages running in the context of
SharePoint
• Referenced using a SharePoint:ScriptLink control
 Use ScriptMode=“Debug” to use debug version of library
• To get intellisense, also add <script> tag
 Wrap in #if compiler directive so script isn’t loaded twice
• API uses conventions common in JavaScript libraries
 Camel-cased member names
 Properties implemented via get and set methods

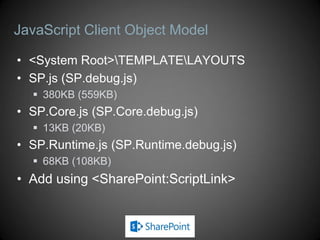

19. JavaScript Client Object Model
• <System Root>TEMPLATELAYOUTS
• SP.js (SP.debug.js)
 380KB (559KB)
• SP.Core.js (SP.Core.debug.js)
 13KB (20KB)
• SP.Runtime.js (SP.Runtime.debug.js)
 68KB (108KB)
• Add using <SharePoint:ScriptLink>

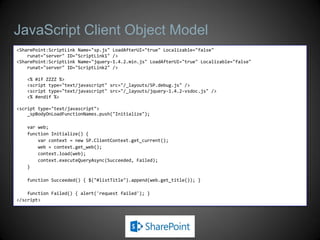

20. JavaScript Client Object Model
<SharePoint:ScriptLink Name="sp.js" LoadAfterUI="true" Localizable="false"
runat="server" ID="ScriptLink1" />
<SharePoint:ScriptLink Name="jquery-1.4.2.min.js" LoadAfterUI="true" Localizable="false"
runat="server" ID="ScriptLink2" />
<% #if ZZZZ %>
<script type="text/javascript" src="/_layouts/SP.debug.js" />
<script type="text/javascript" src="/_layouts/jquery-1.4.2-vsdoc.js" />
<% #endif %>
<script type="text/javascript">
_spBodyOnLoadFunctionNames.push("Initialize");
var web;
function Initialize() {
var context = new SP.ClientContext.get_current();
web = context.get_web();
context.load(web);
context.executeQueryAsync(Succeeded, Failed);
}
function Succeeded() { $("#listTitle").append(web.get_title()); }
function Failed() { alert('request failed'); }
</script>

21. DEMO
JavaScript Client OM
