SEMANTIC
HTML5 101
or “Bye bye divitis”

Pascal Rettig
On Twitter @cykod

Wednesday, May 25, 2011

Born in 1989 by Tim Berner’s Lee

HTML IS IN TO ITee EA
’S RLY 20’S
Born in 1989 by Tim Berner’s L


LI FE CRniSgI”S
QUAR3TERing to ﬁnd “Mea n I
FACINlGr A ML5 & Web .0 is try
fo HT
The big goa

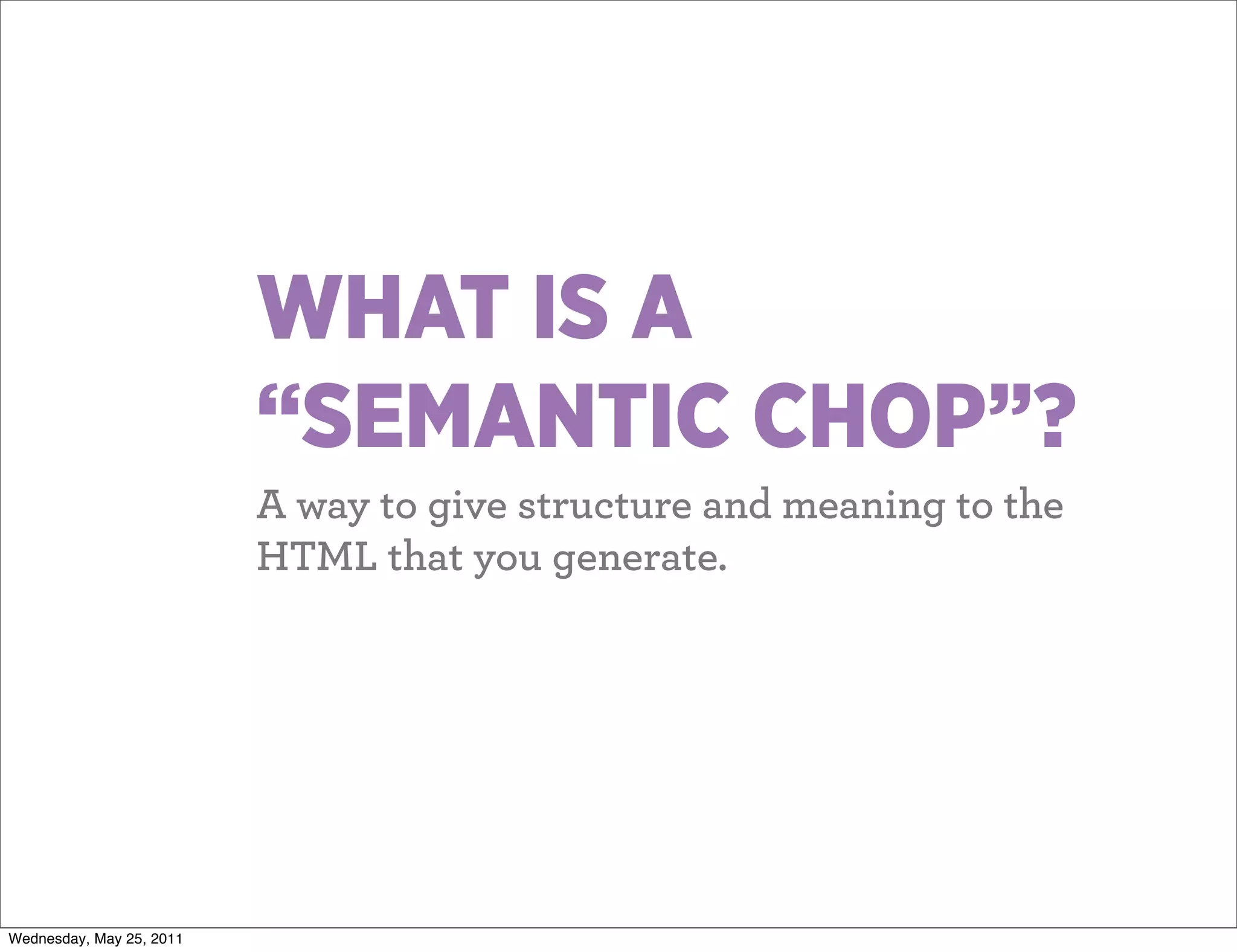

WHAT IS A
“SEMANTIC CHOP”?
A way to give structure and meaning to the
HTML that you generate.

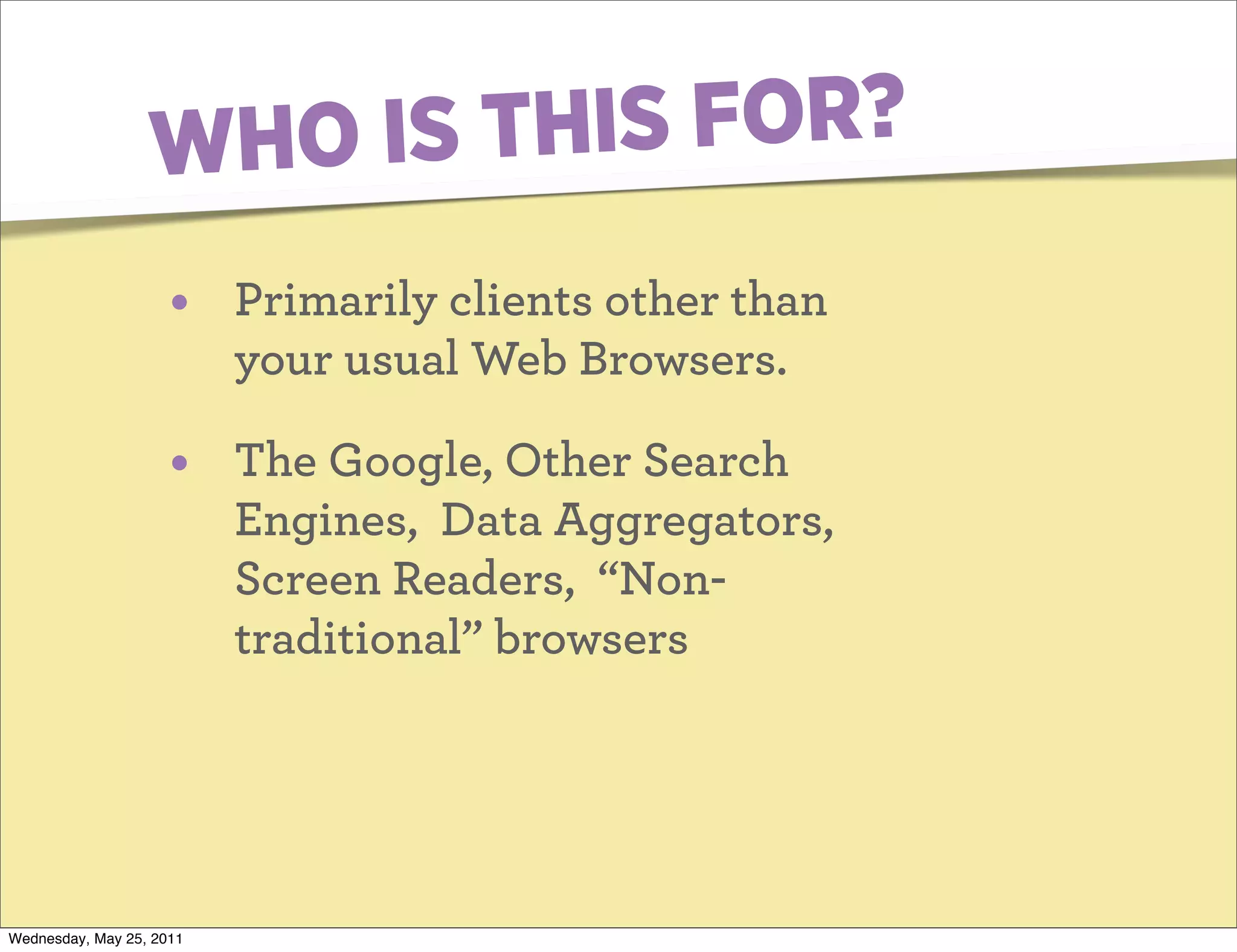

W HO IS TH IS FOR?
• Primarily clients other than
your usual Web Browsers.

• The Google, Other Search
Engines, Data Aggregators,
Screen Readers, “Non-
traditional” browsers

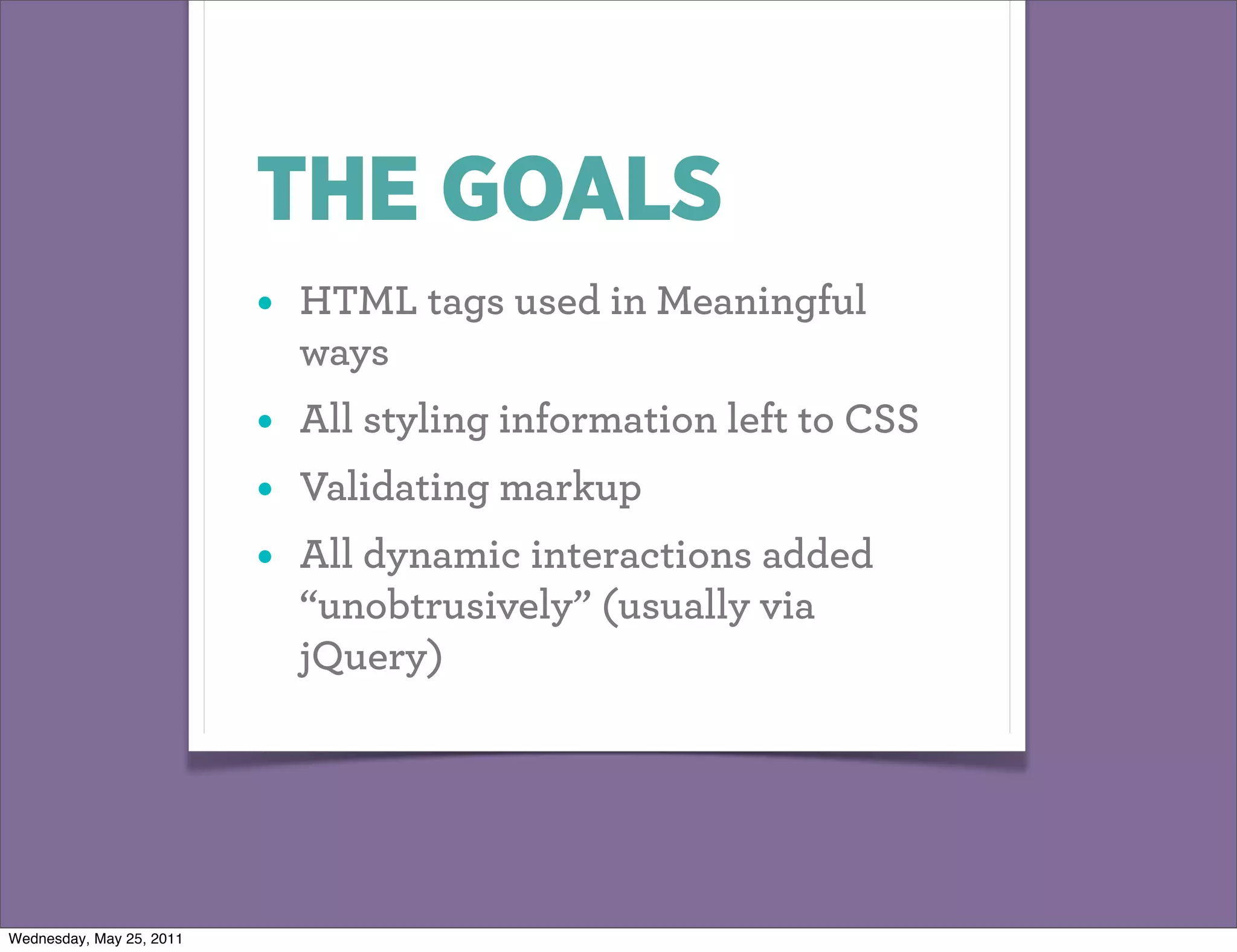

THE GOALS
• HTML tags used in Meaningful
ways
• All styling information left to CSS
• Validating markup
• All dynamic interactions added
“unobtrusively” (usually via
jQuery)

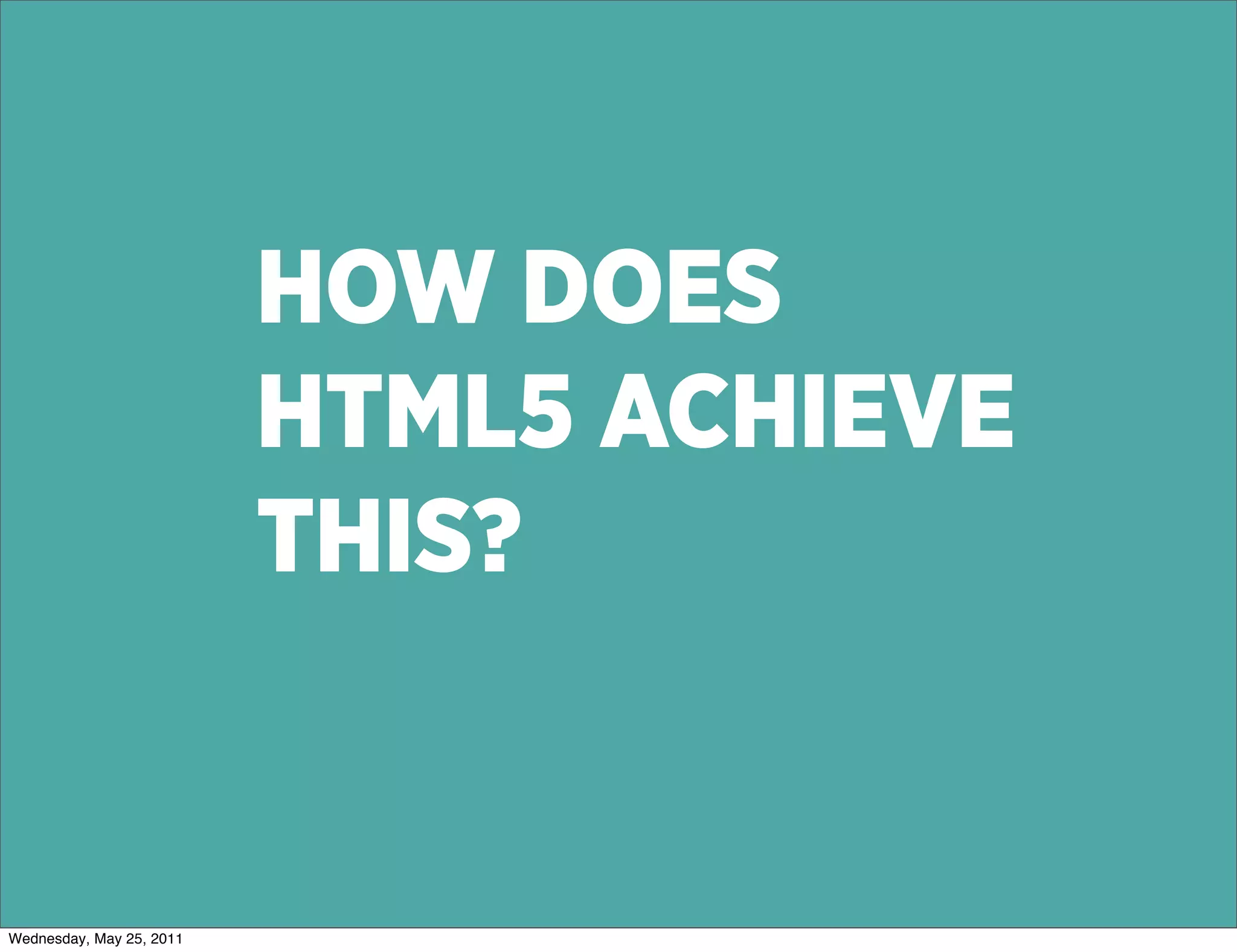

HOW DOES
HTML5 ACHIEVE
THIS?

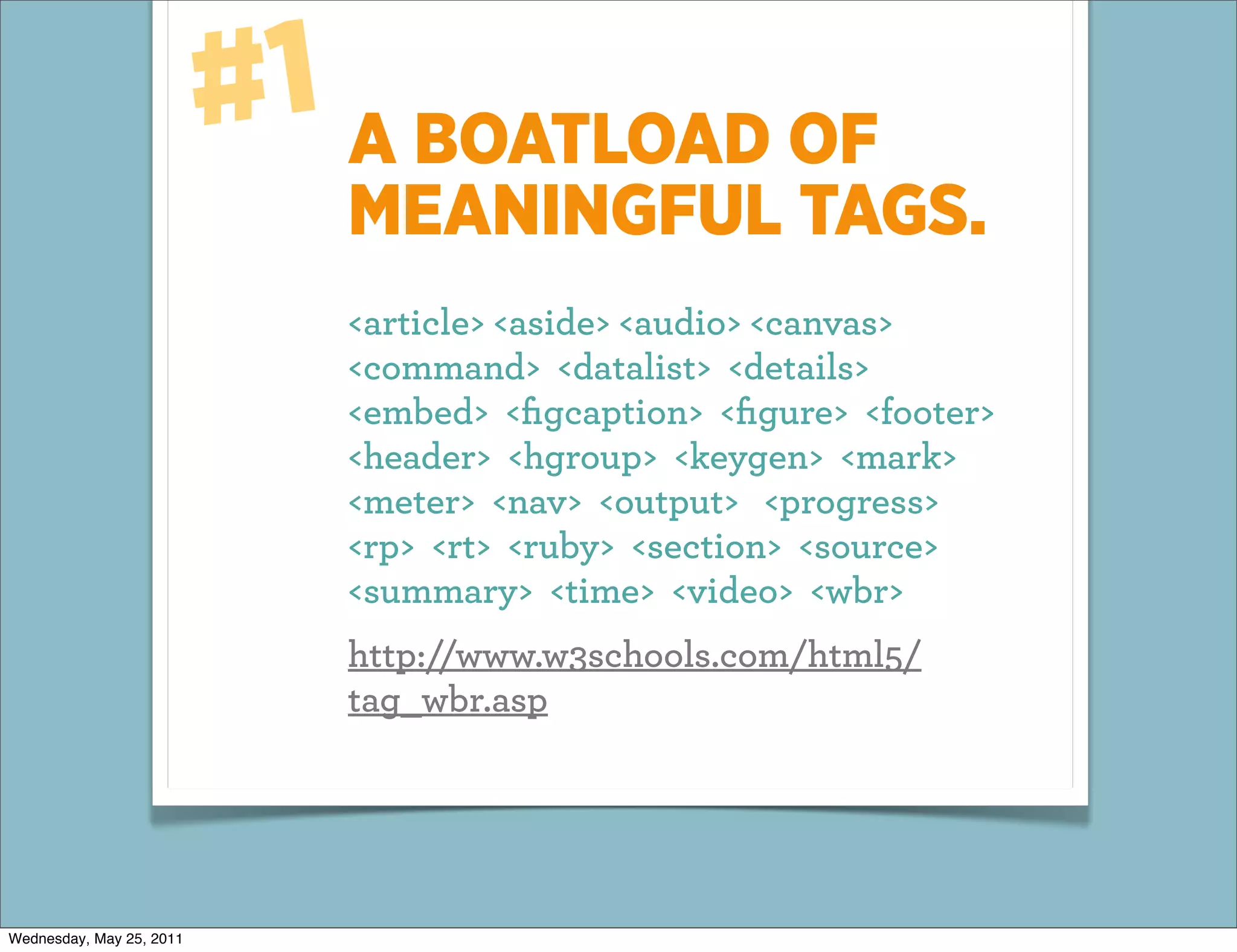

#1 A BOATLOAD OF
MEANINGFUL TAGS.
<article> <aside> <audio> <canvas>
<command> <datalist> <details>
<embed> <ﬁgcaption> <ﬁgure> <footer>
<header> <hgroup> <keygen> <mark>
<meter> <nav> <output> <progress>
<rp> <rt> <ruby> <section> <source>
<summary> <time> <video> <wbr>
http://www.w3schools.com/html5/
tag_wbr.asp

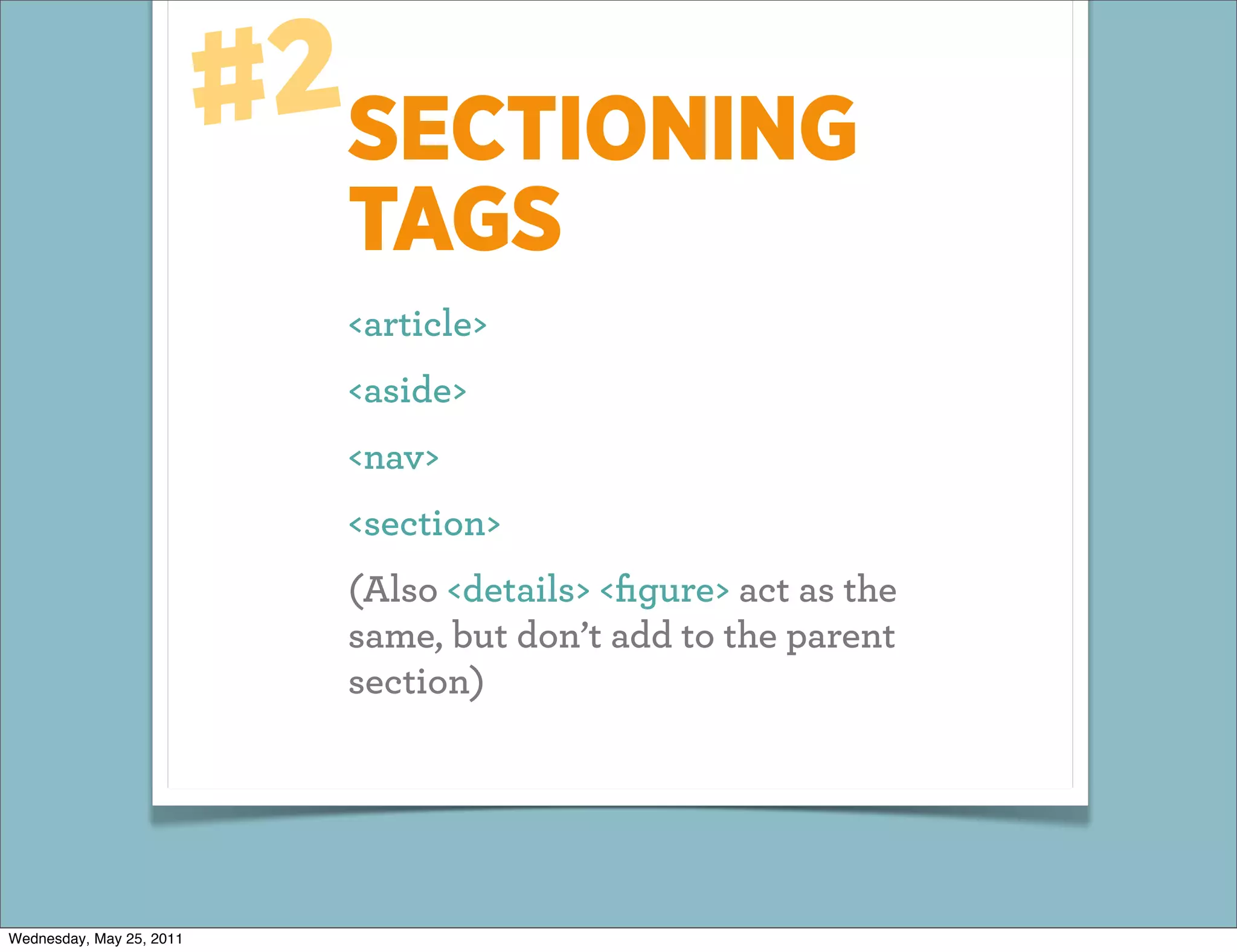

#2SECTIONING
TAGS
<article>
<aside>
<nav>
<section>
(Also <details> <ﬁgure> act as the
same, but don’t add to the parent
section)

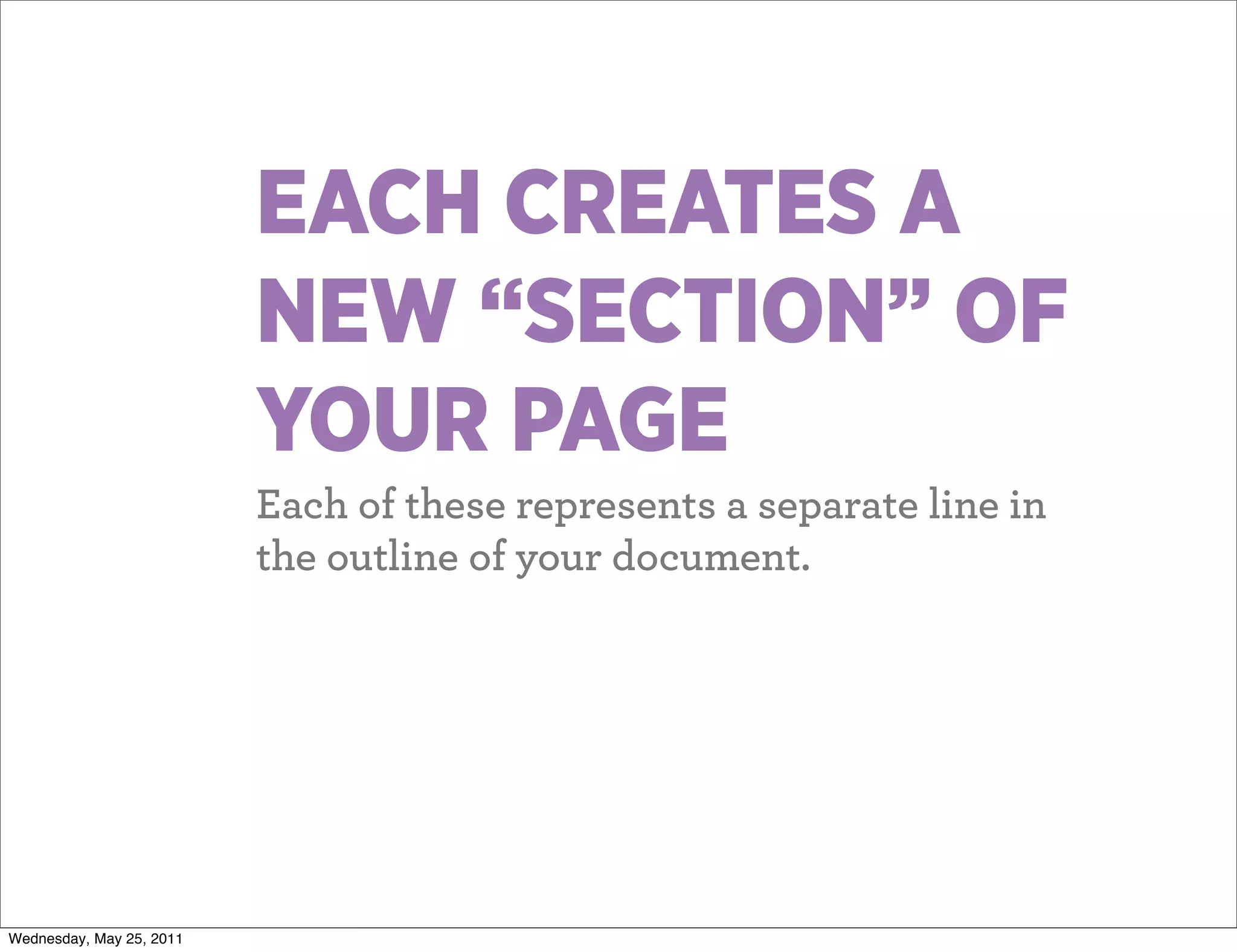

EACH CREATES A
NEW “SECTION” OF
YOUR PAGE
Each of these represents a separate line in
the outline of your document.

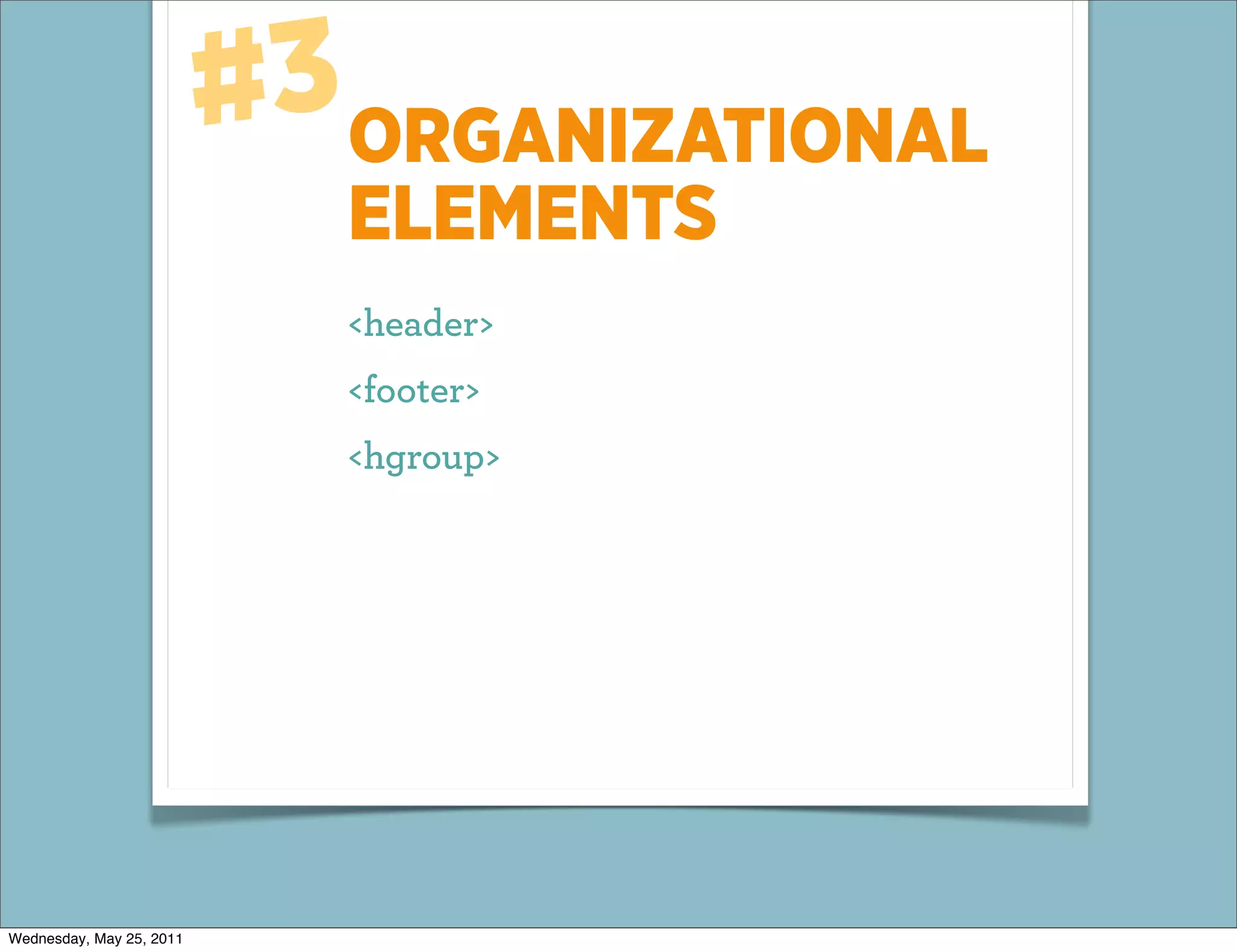

#3ORGANIZATIONAL
ELEMENTS
<header>
<footer>
<hgroup>

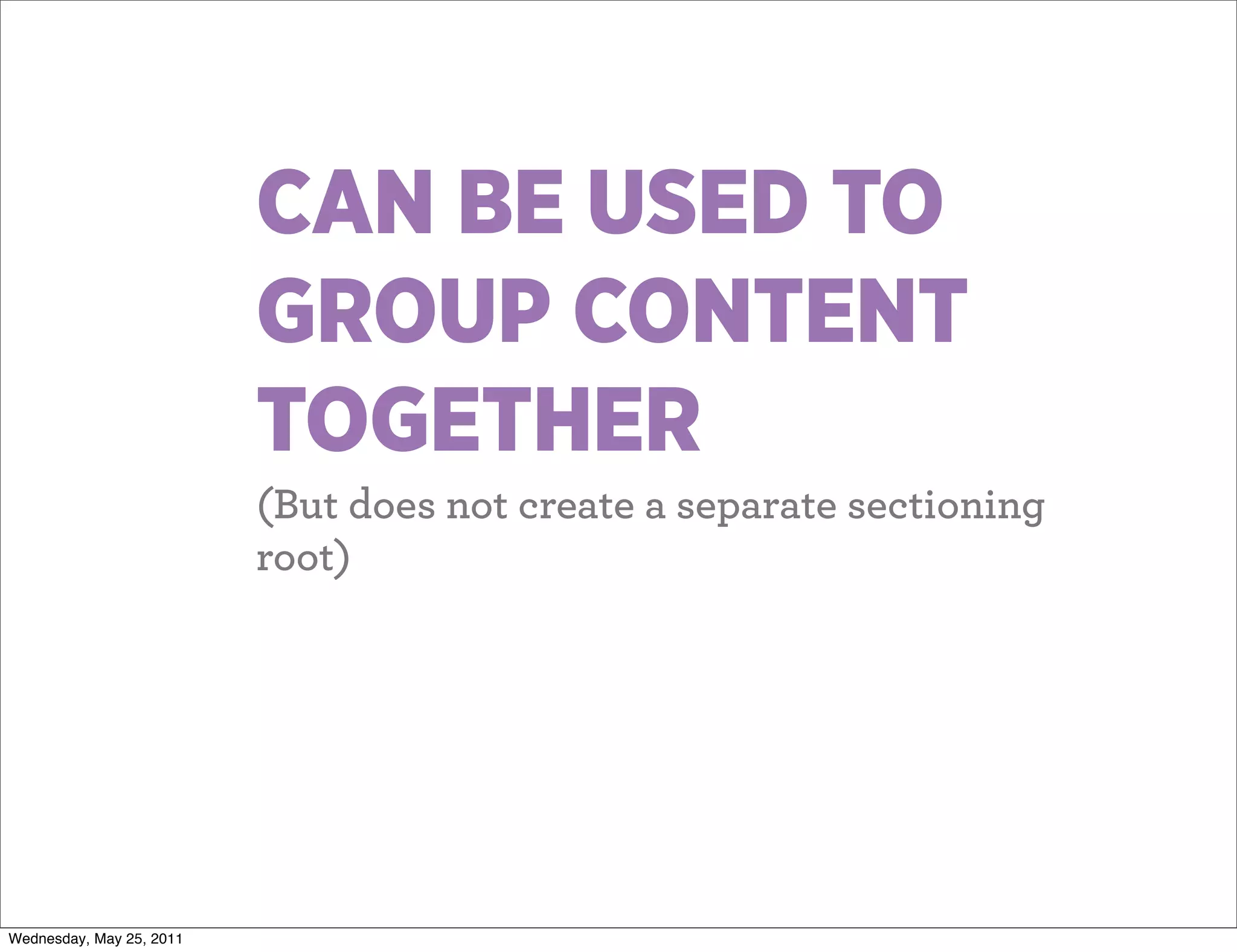

CAN BE USED TO
GROUP CONTENT
TOGETHER
(But does not create a separate sectioning
root)

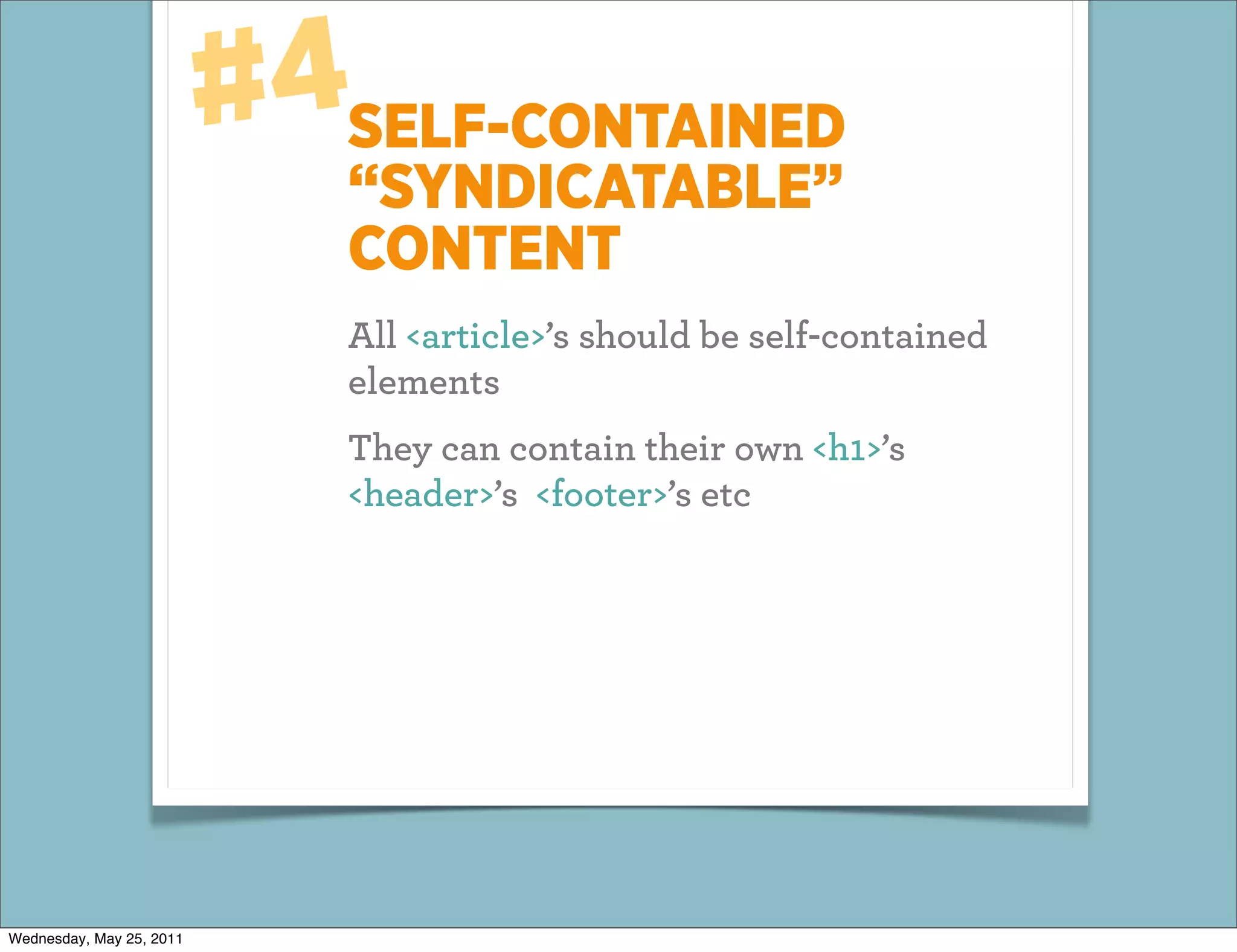

#4SELF-CONTAINED
“SYNDICATABLE”
CONTENT
All <article>’s should be self-contained
elements
They can contain their own <h1>’s
<header>’s <footer>’s etc

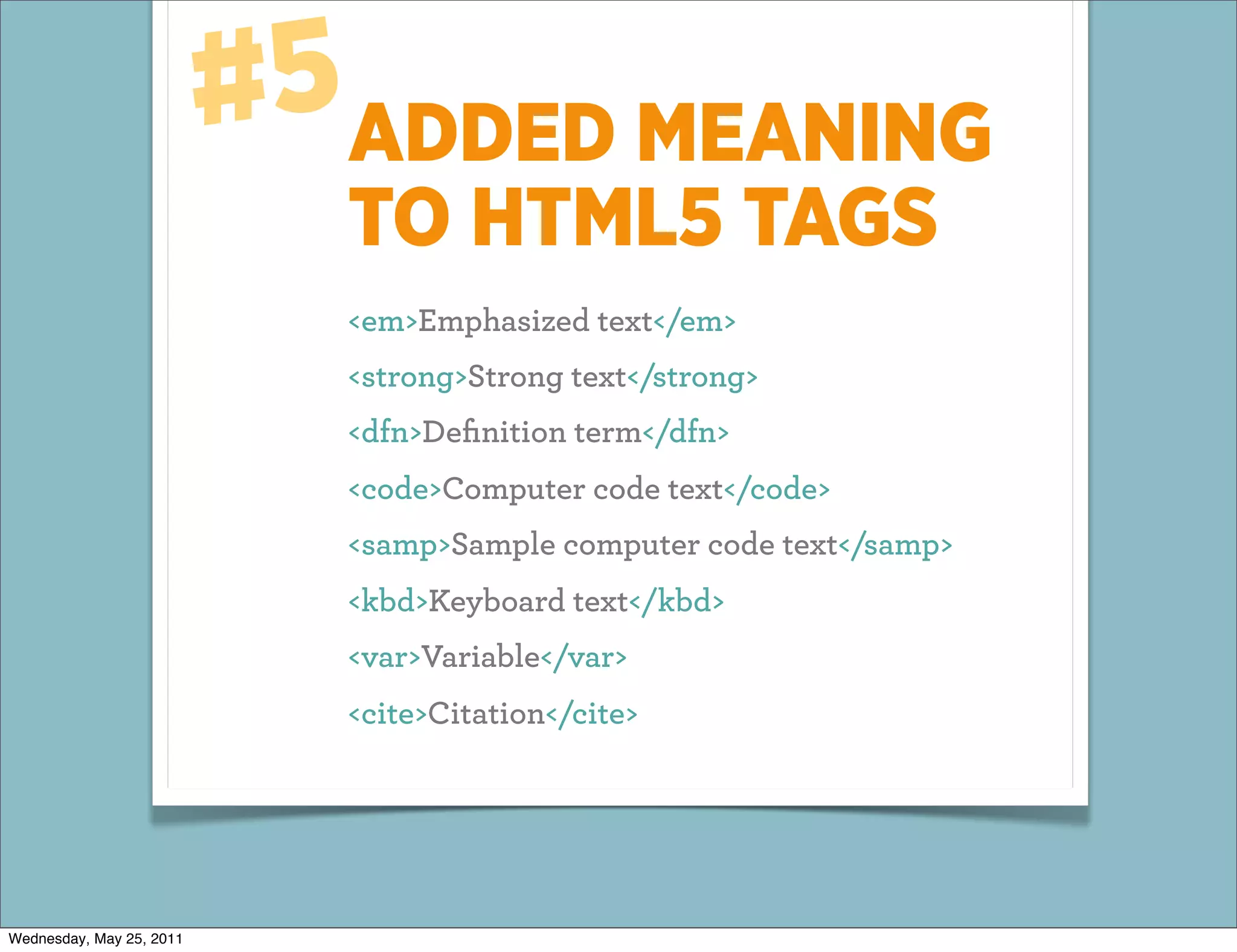

#5ADDED MEANING
TO HTML5 TAGS
<em>Emphasized text</em>
<strong>Strong text</strong>
<dfn>Deﬁnition term</dfn>
<code>Computer code text</code>
<samp>Sample computer code text</samp>
<kbd>Keyboard text</kbd>
<var>Variable</var>
<cite>Citation</cite>

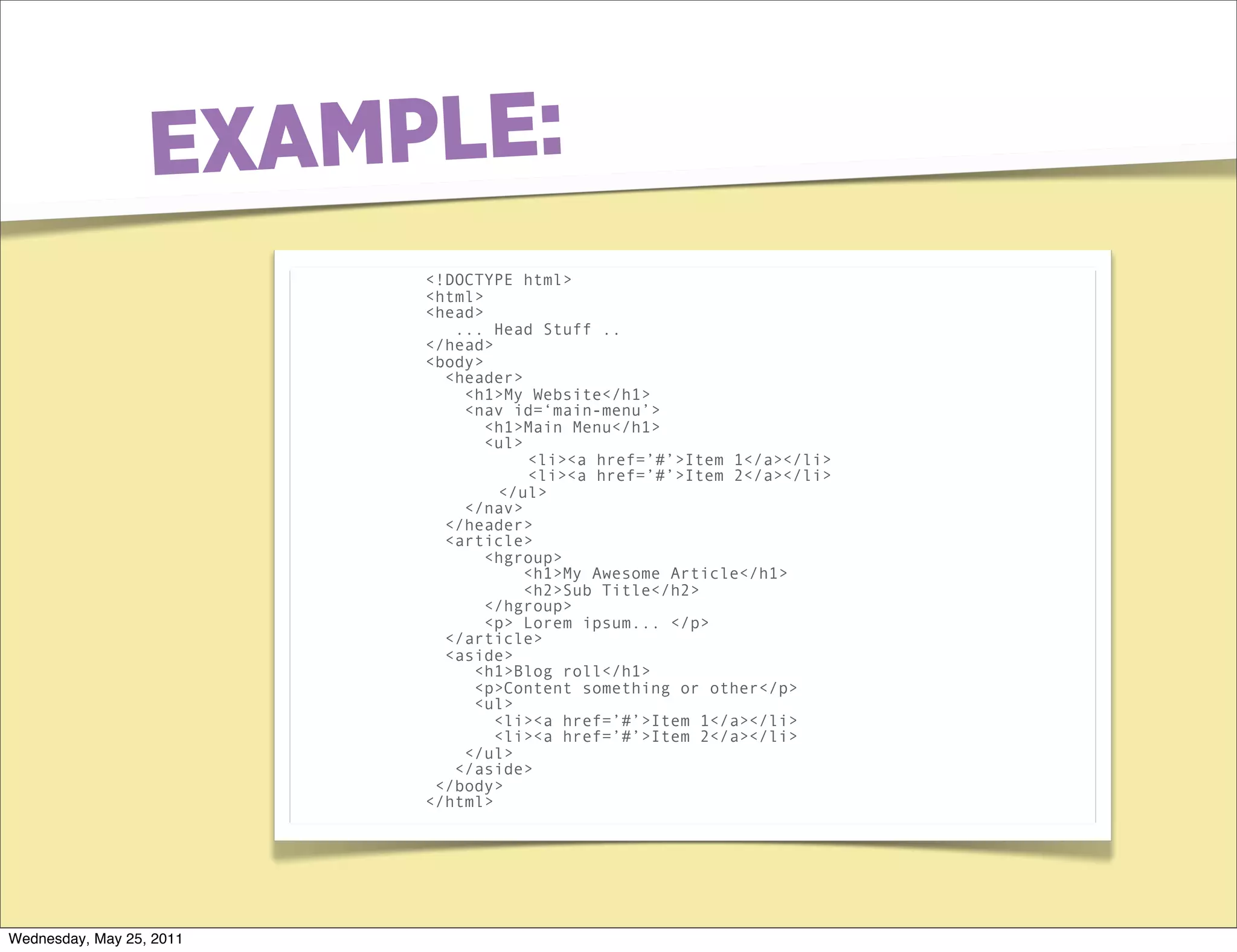

E XAMPLE:
<!DOCTYPE html>
<html>
<head>
... Head Stuff ..
</head>
<body>
<header>
<h1>My Website</h1>
<nav id=‘main-menu’>
<h1>Main Menu</h1>
<ul>
<li><a href=’#’>Item 1</a></li>
</ul>
</nav>
</header>
<article>
<hgroup>
<h1>My Awesome Article</h1>
<h2>Sub Title</h2>
</hgroup>
<p> Lorem ipsum... </p>
</article>
<aside>
<h1>Blog roll</h1>
<p>Content something or other</p>
<ul>
</ul>
</aside>
</body>
</html>

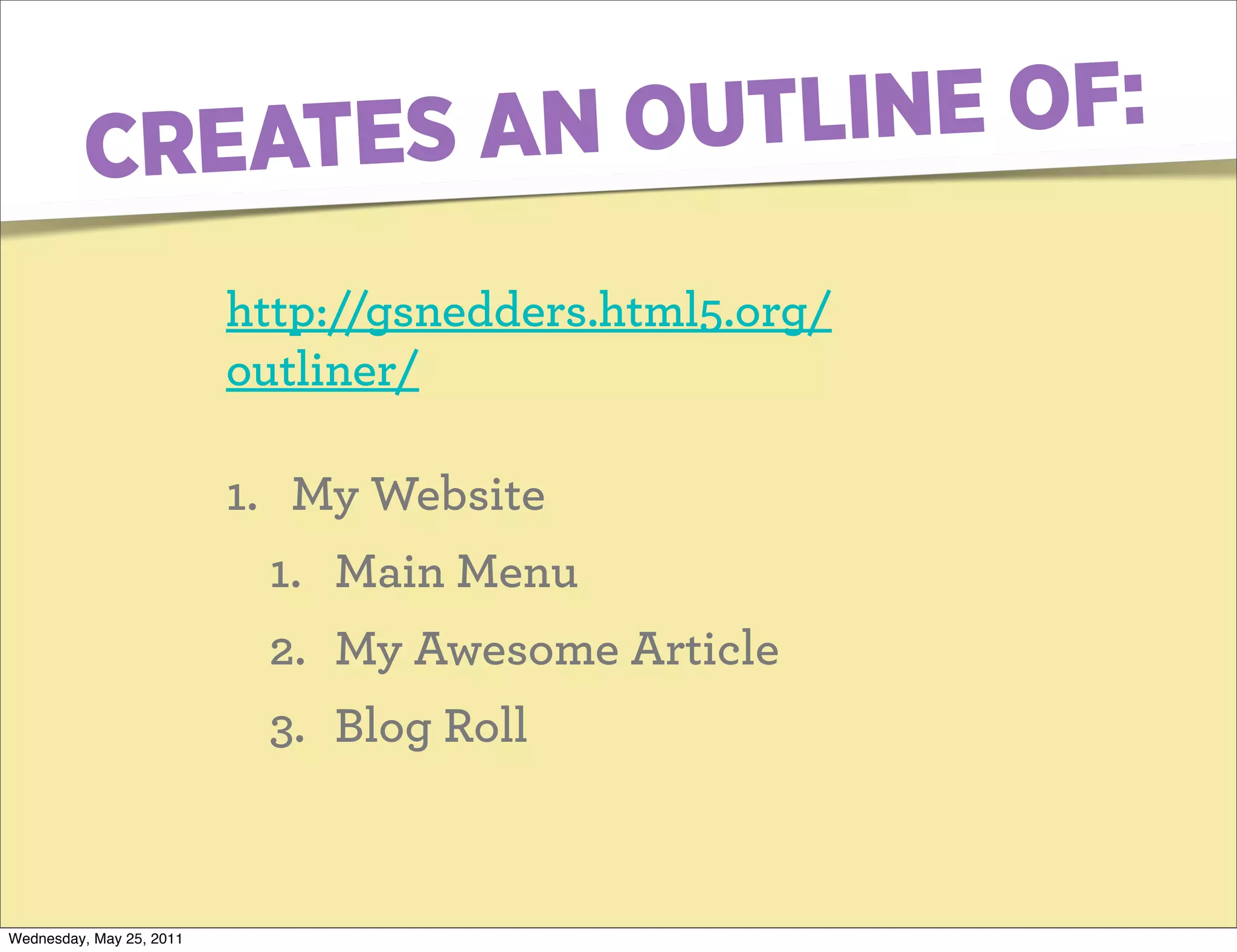

CREATES AN OUTL INE OF:

http://gsnedders.html5.org/
outliner/

1. My Website
1. Main Menu
2. My Awesome Article
3. Blog Roll

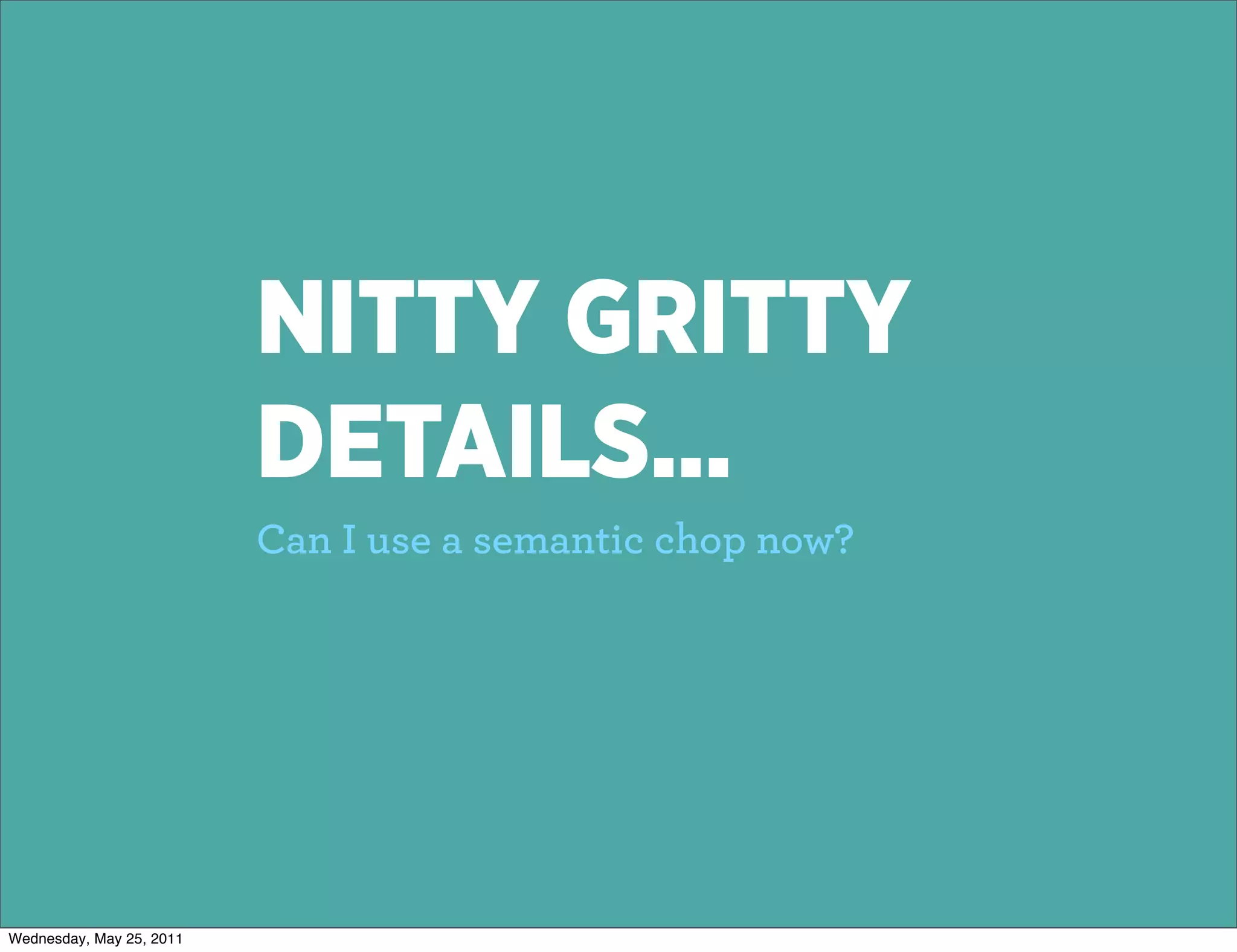

NITTY GRITTY
DETAILS...
Can I use a semantic chop now?

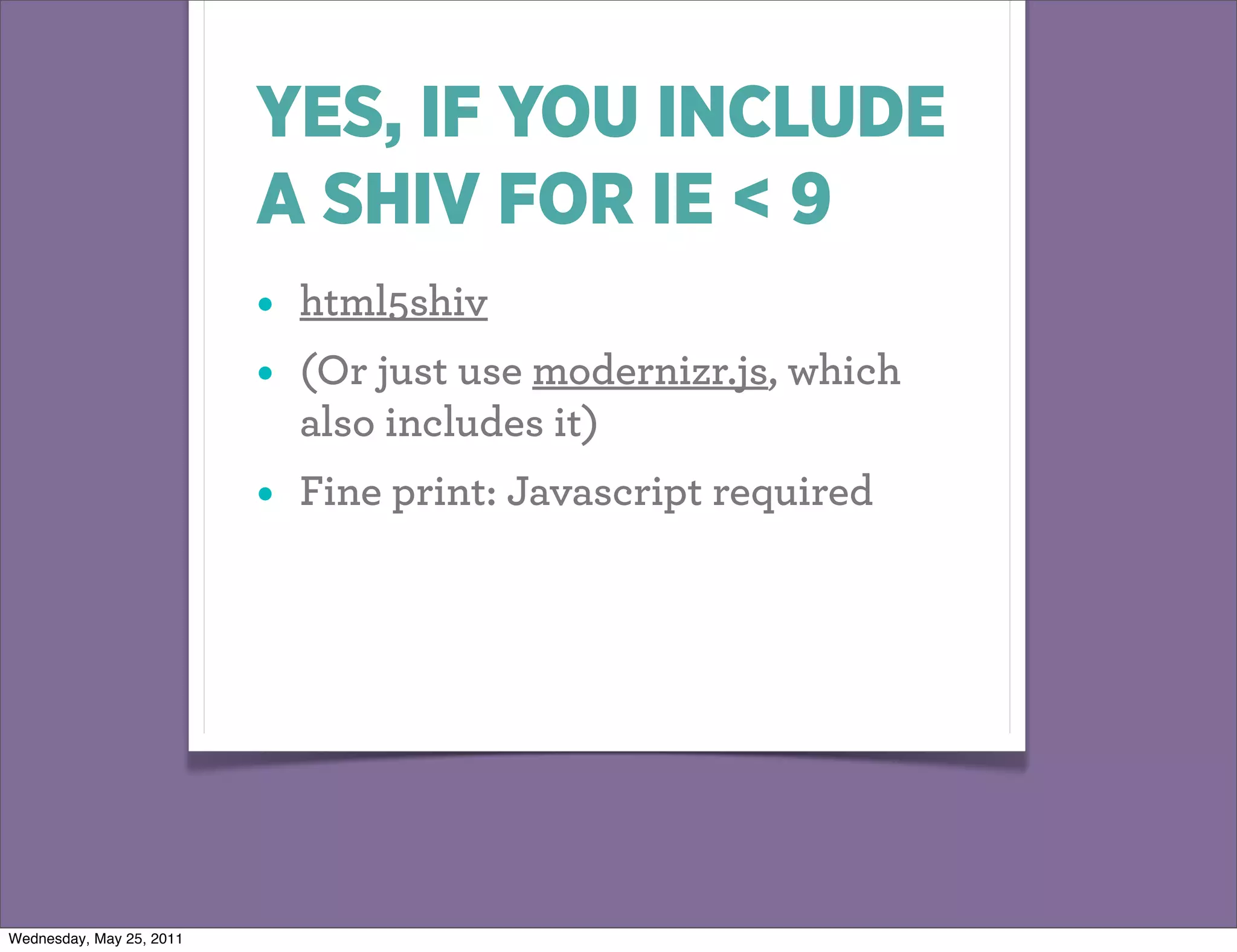

YES, IF YOU INCLUDE
A SHIV FOR IE < 9
• html5shiv
• (Or just use modernizr.js, which
also includes it)
• Fine print: Javascript required

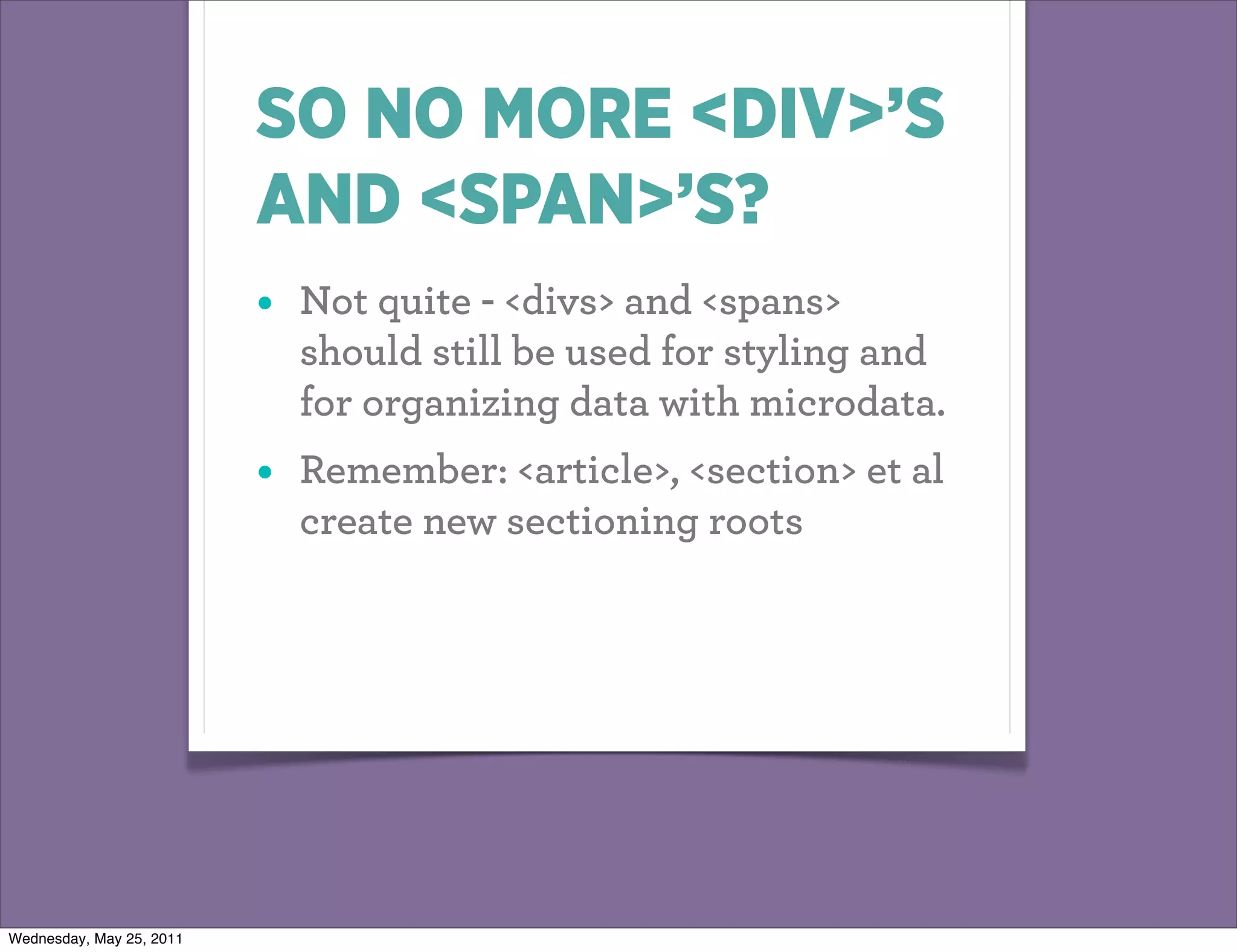

SO NO MORE <DIV>’S
AND <SPAN>’S?
• Not quite - <divs> and <spans>
should still be used for styling and
for organizing data with microdata.
• Remember: <article>, <section> et al
create new sectioning roots


PART 2:
ADDITIONAL
MEANING

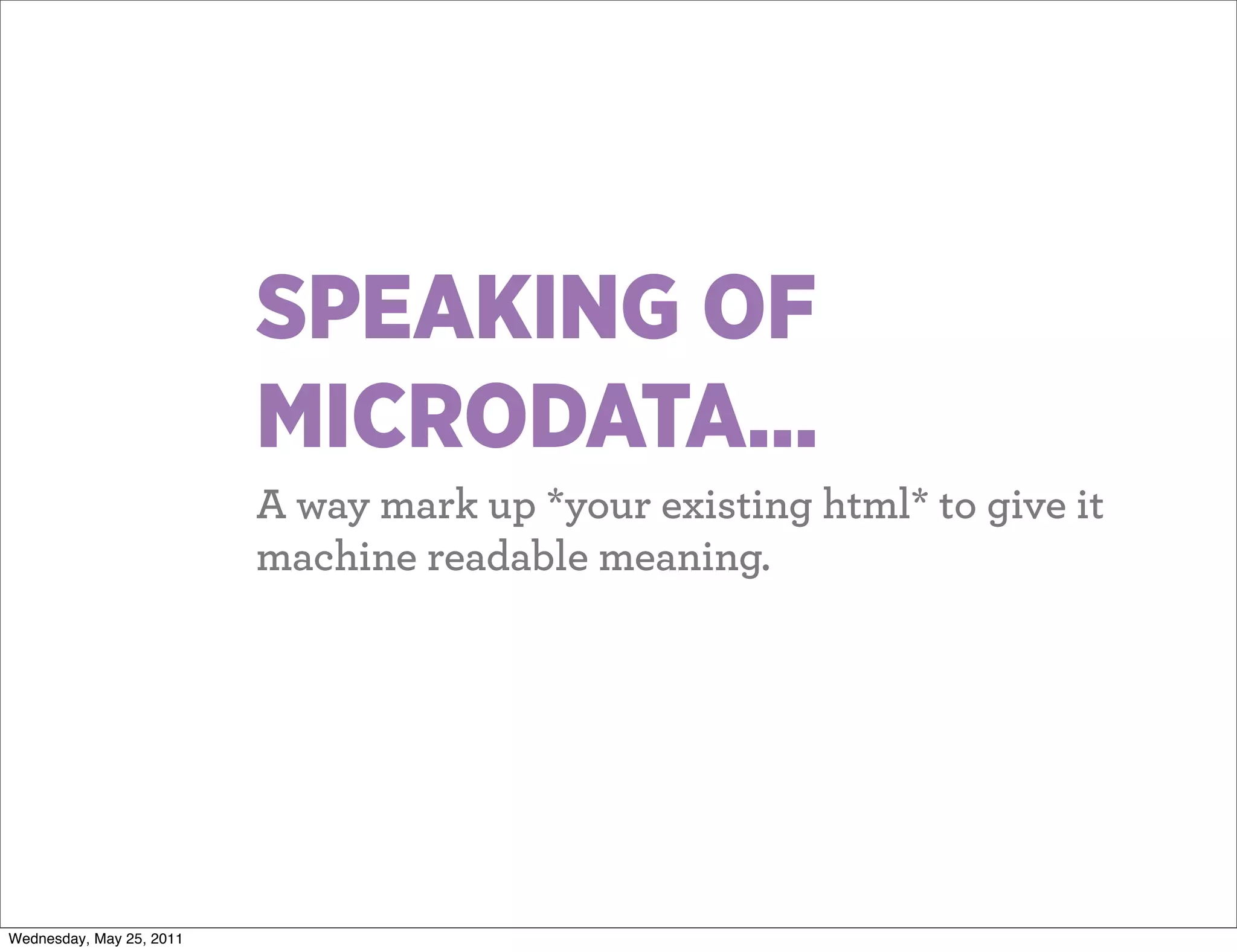

SPEAKING OF
MICRODATA...
A way mark up *your existing html* to give it
machine readable meaning.

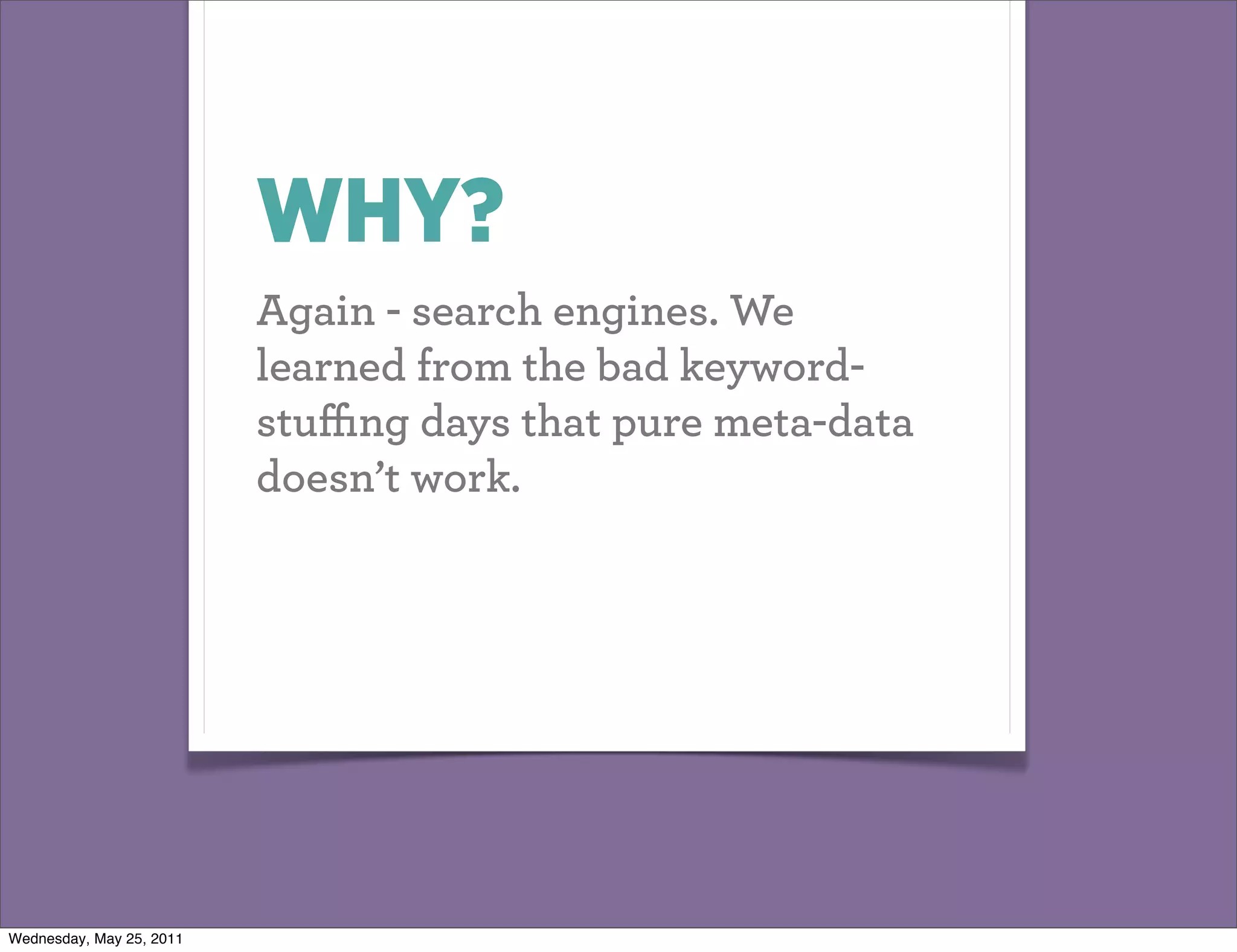

WHY?
Again - search engines. We
learned from the bad keyword-
stuﬃng days that pure meta-data
doesn’t work.

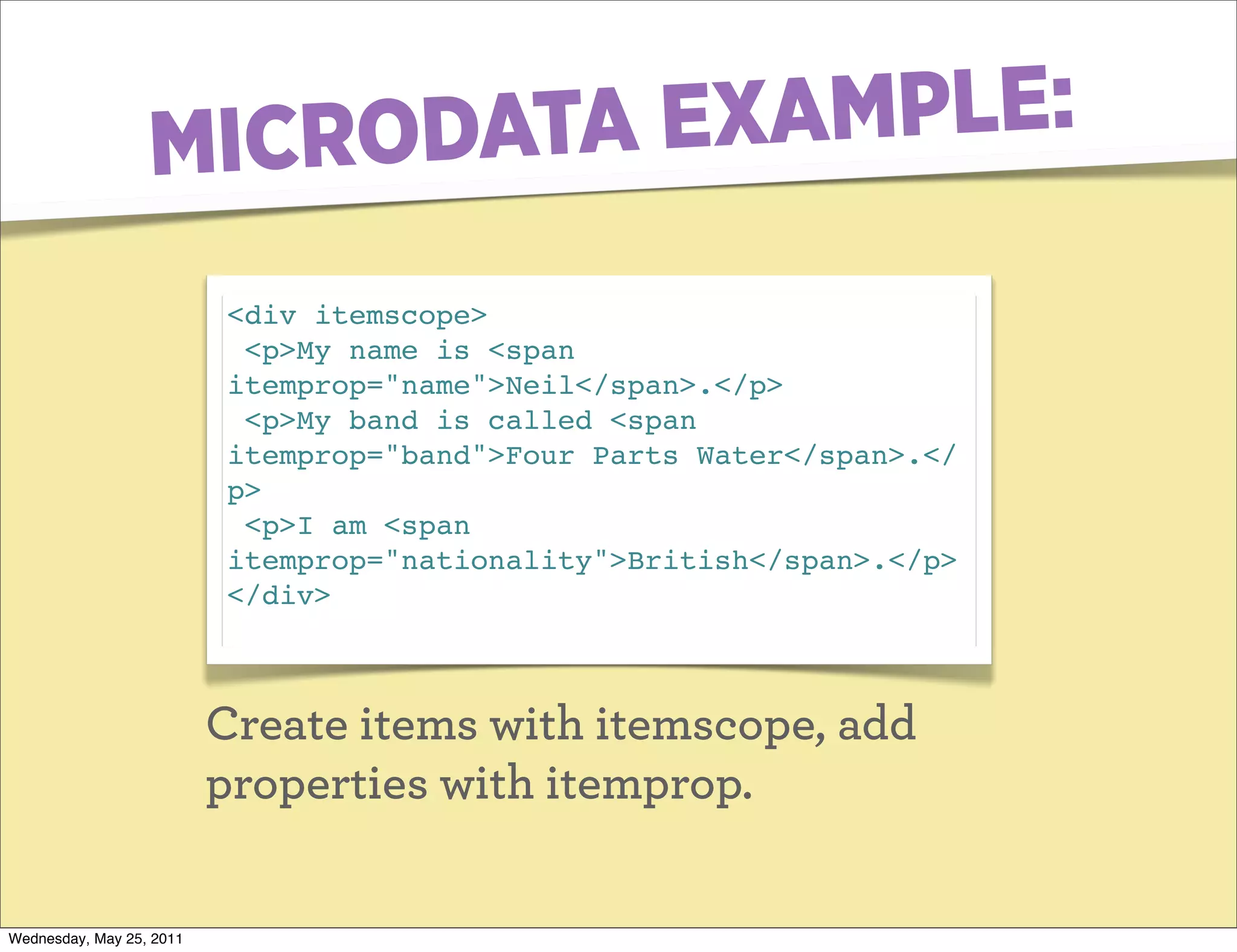

MICRO DATA EXAMPLE:
<div itemscope>
<p>My name is <span
itemprop="name">Neil</span>.</p>
<p>My band is called <span
itemprop="band">Four Parts Water</span>.</
p>
<p>I am <span
itemprop="nationality">British</span>.</p>
</div>

Create items with itemscope, add
properties with itemprop.

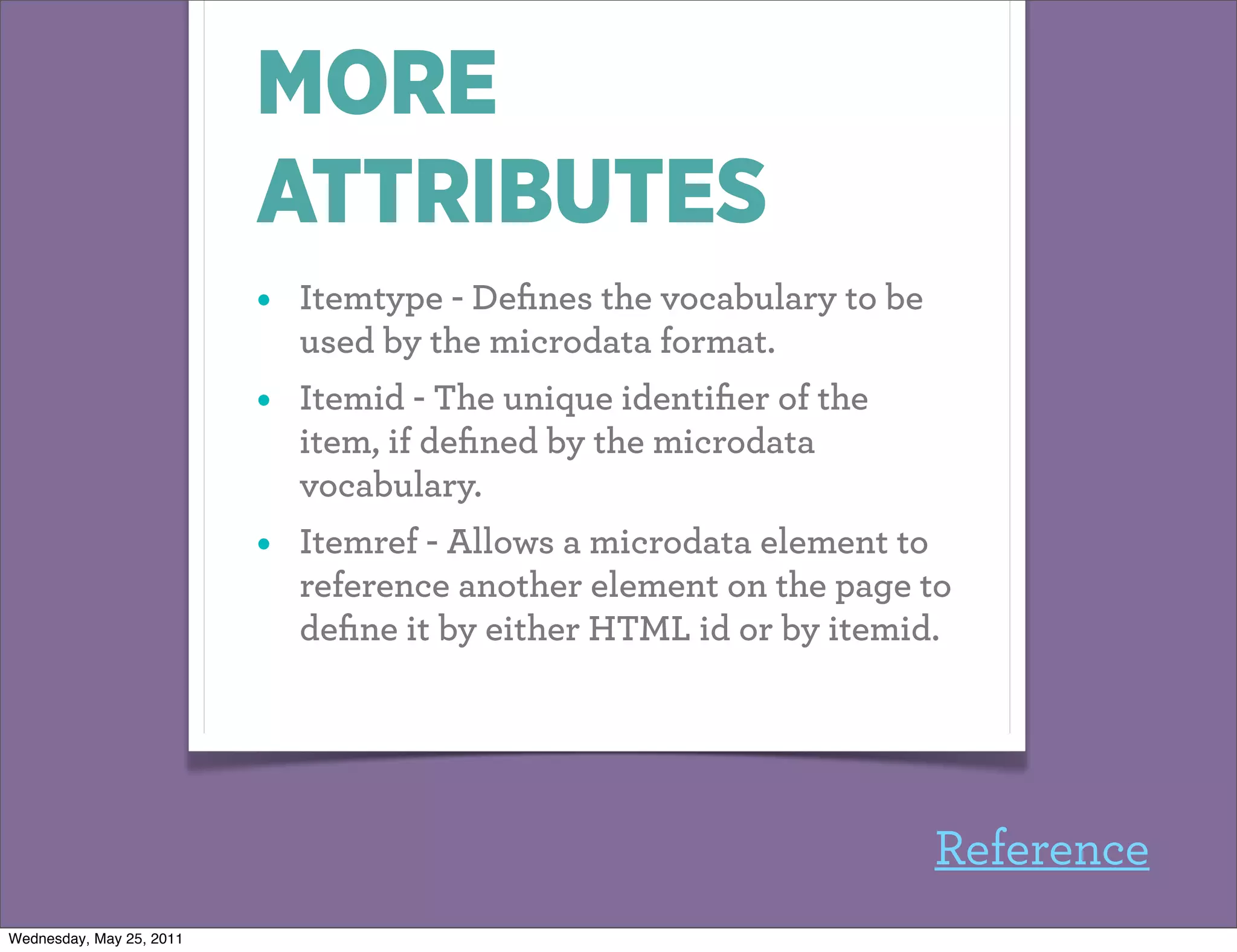

MORE
ATTRIBUTES
• Itemtype - Defines the vocabulary to be
used by the microdata format.
• Itemid - The unique identifier of the
item, if defined by the microdata
vocabulary.
• Itemref - Allows a microdata element to
reference another element on the page to
define it by either HTML id or by itemid.

Reference

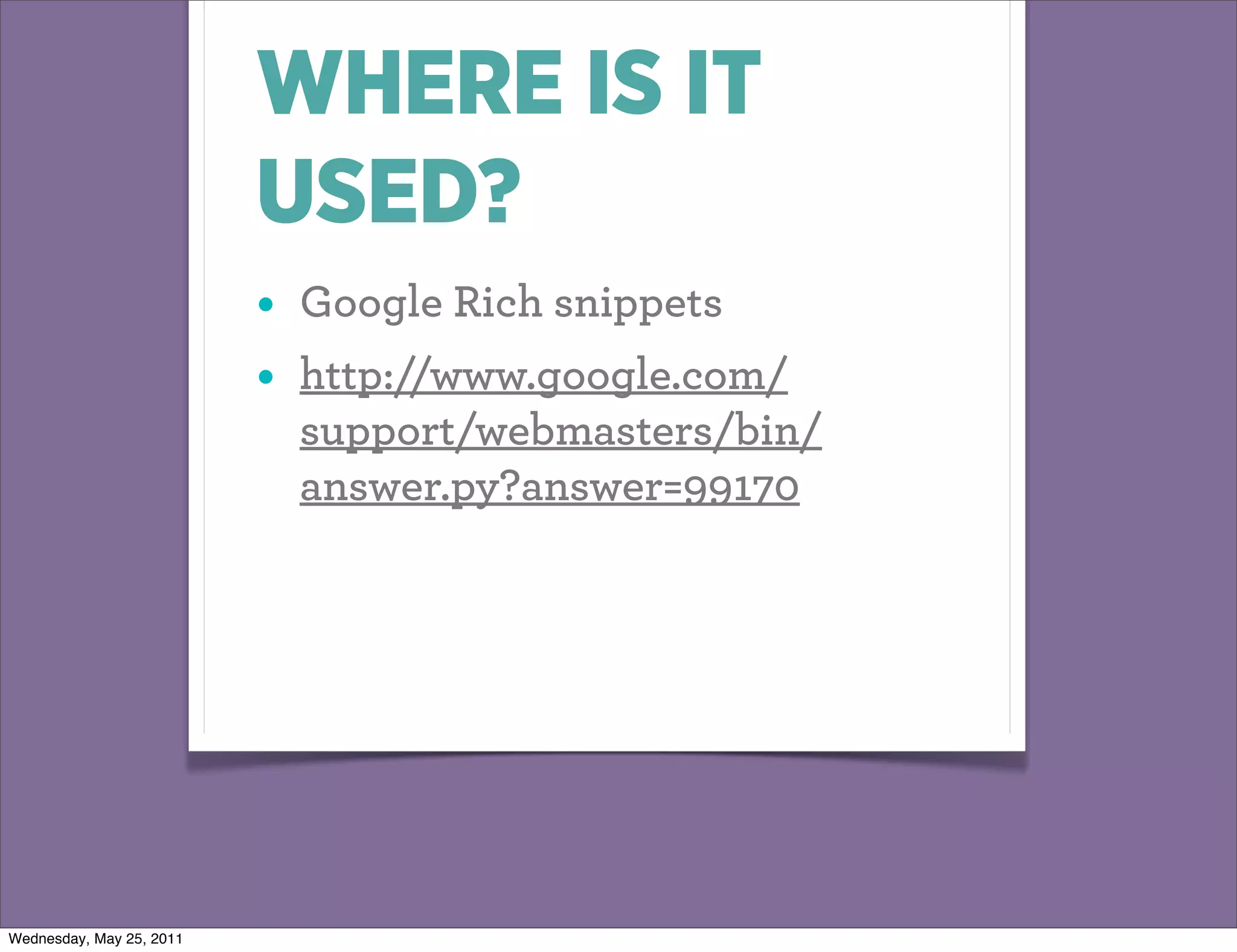

WHERE IS IT
USED?
• Google Rich snippets
• http://www.google.com/
support/webmasters/bin/
answer.py?answer=99170

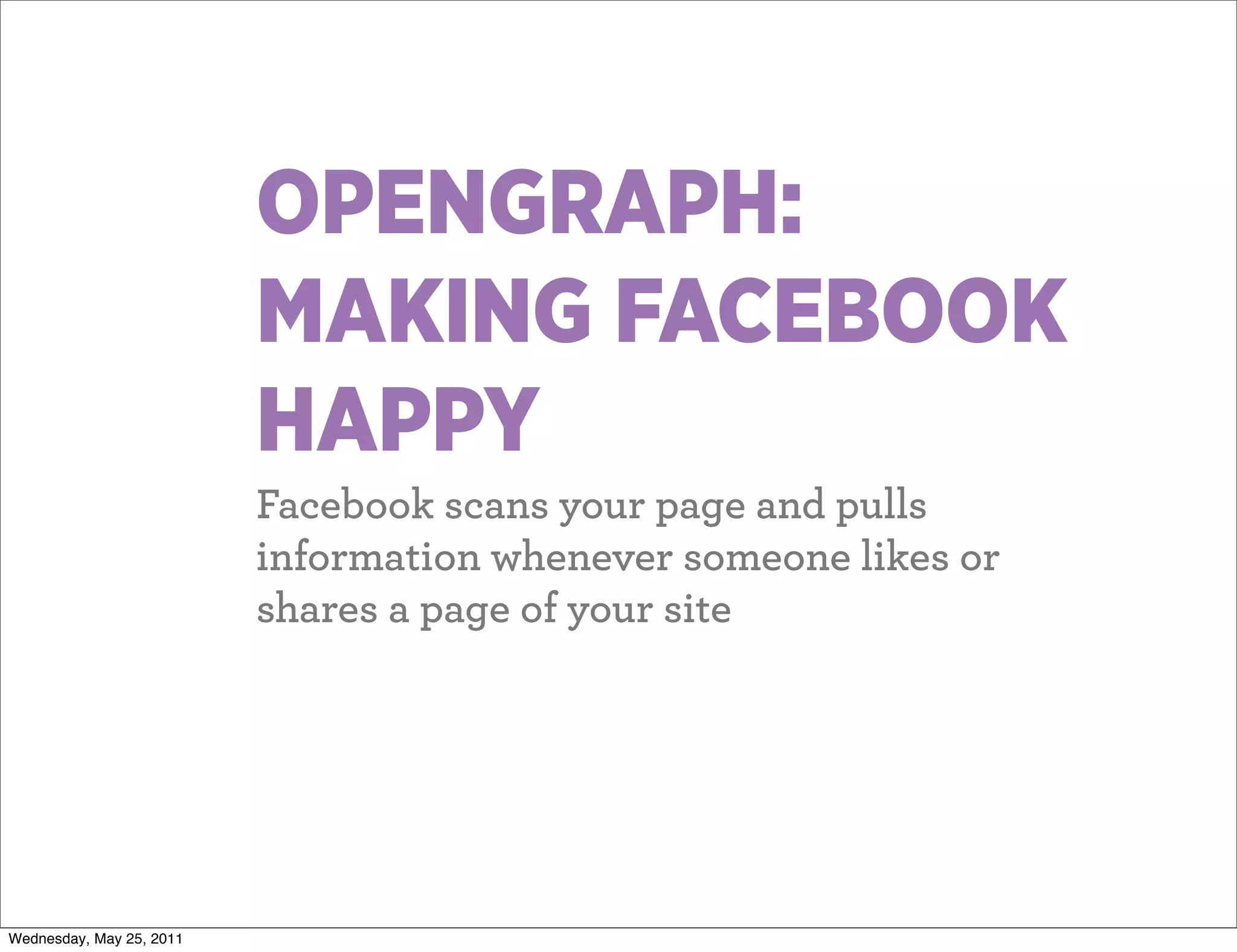

OPENGRAPH:
MAKING FACEBOOK
HAPPY
Facebook scans your page and pulls
information whenever someone likes or
shares a page of your site

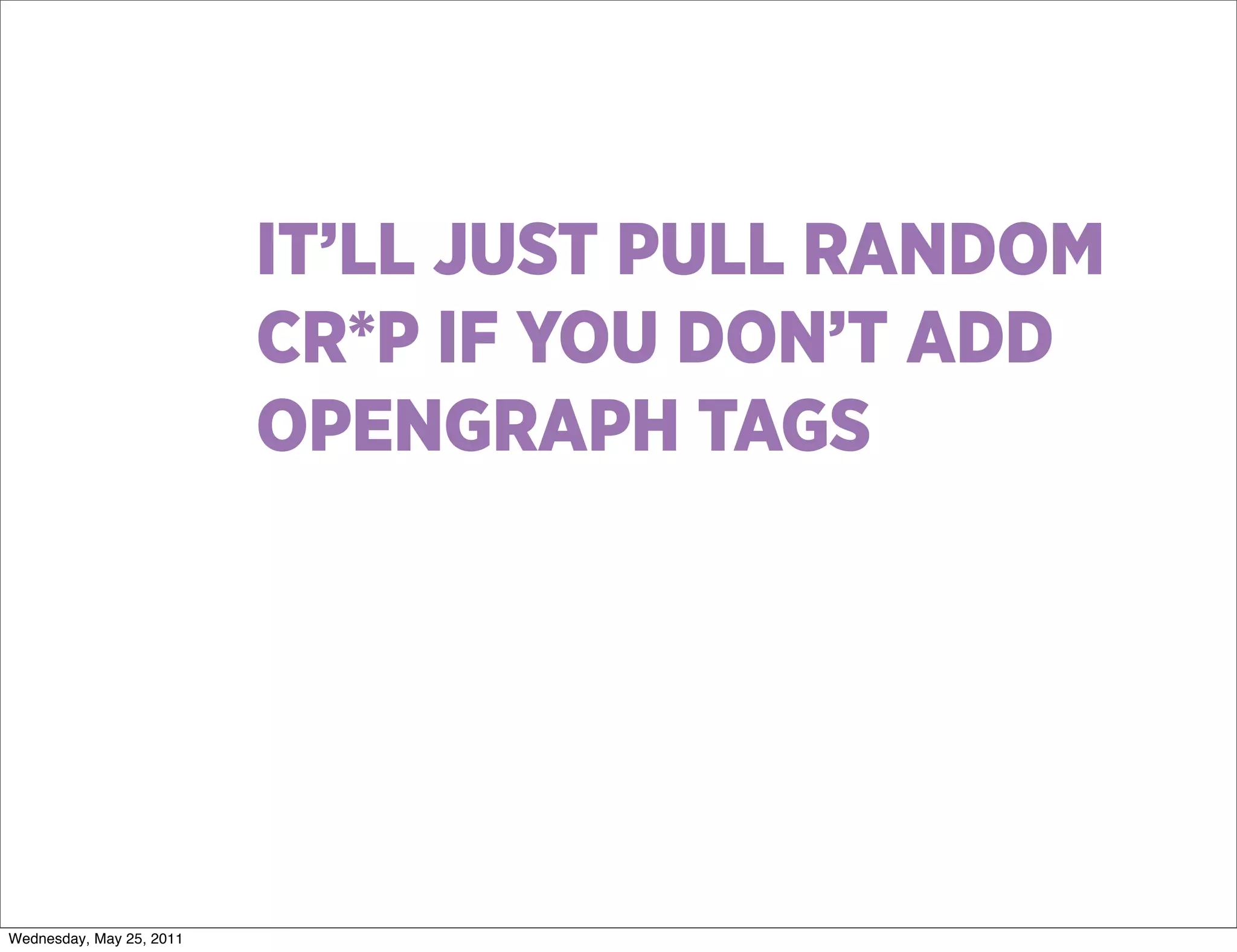

IT’LL JUST PULL RANDOM
CR*P IF YOU DON’T ADD
OPENGRAPH TAGS

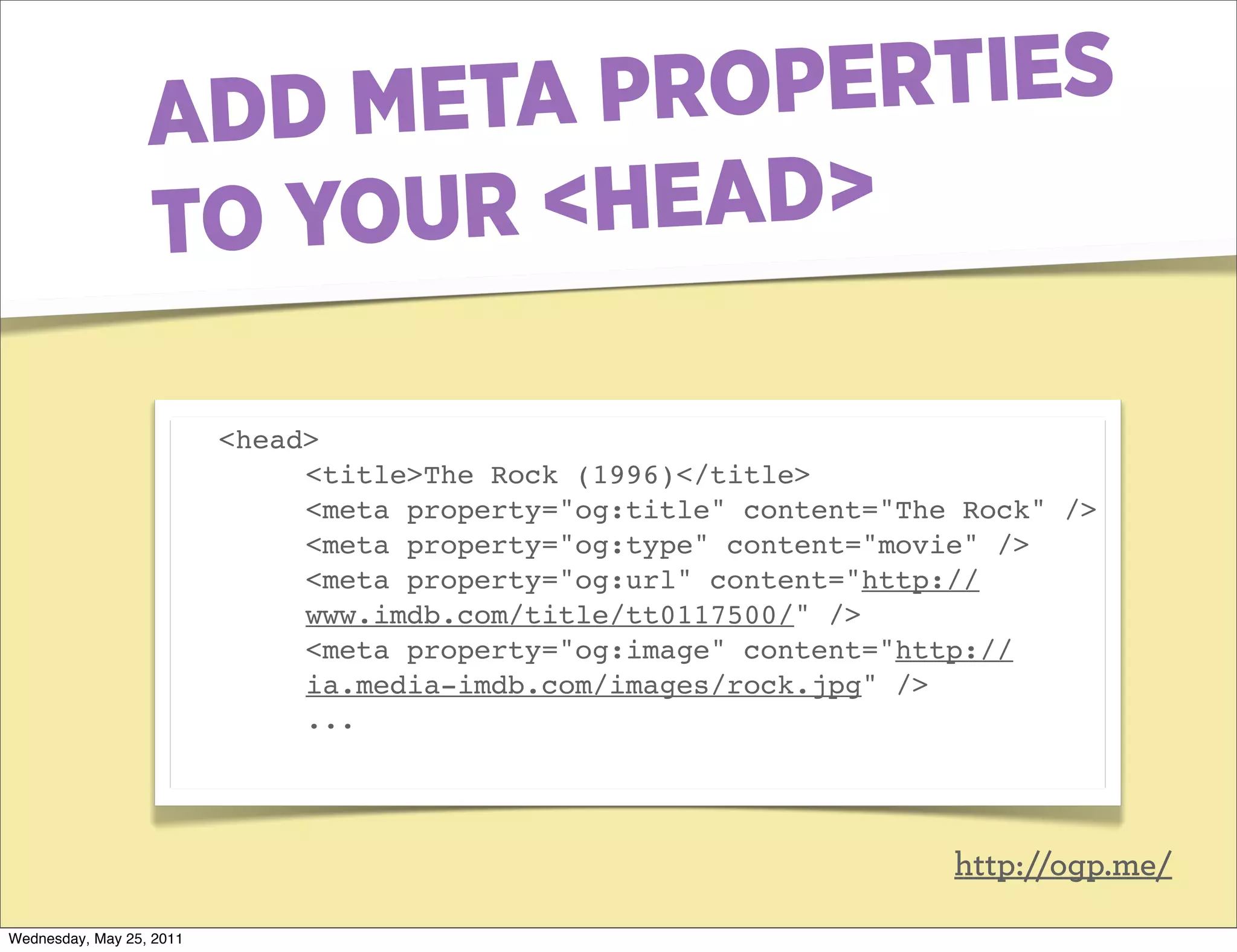

ADD META PR OPERTIES
TO YOUR <HEAD>

<head>
<title>The Rock (1996)</title>
<meta property="og:title" content="The Rock" />
<meta property="og:type" content="movie" />
<meta property="og:url" content="http://
www.imdb.com/title/tt0117500/" />
<meta property="og:image" content="http://
ia.media-imdb.com/images/rock.jpg" />
...

http://ogp.me/

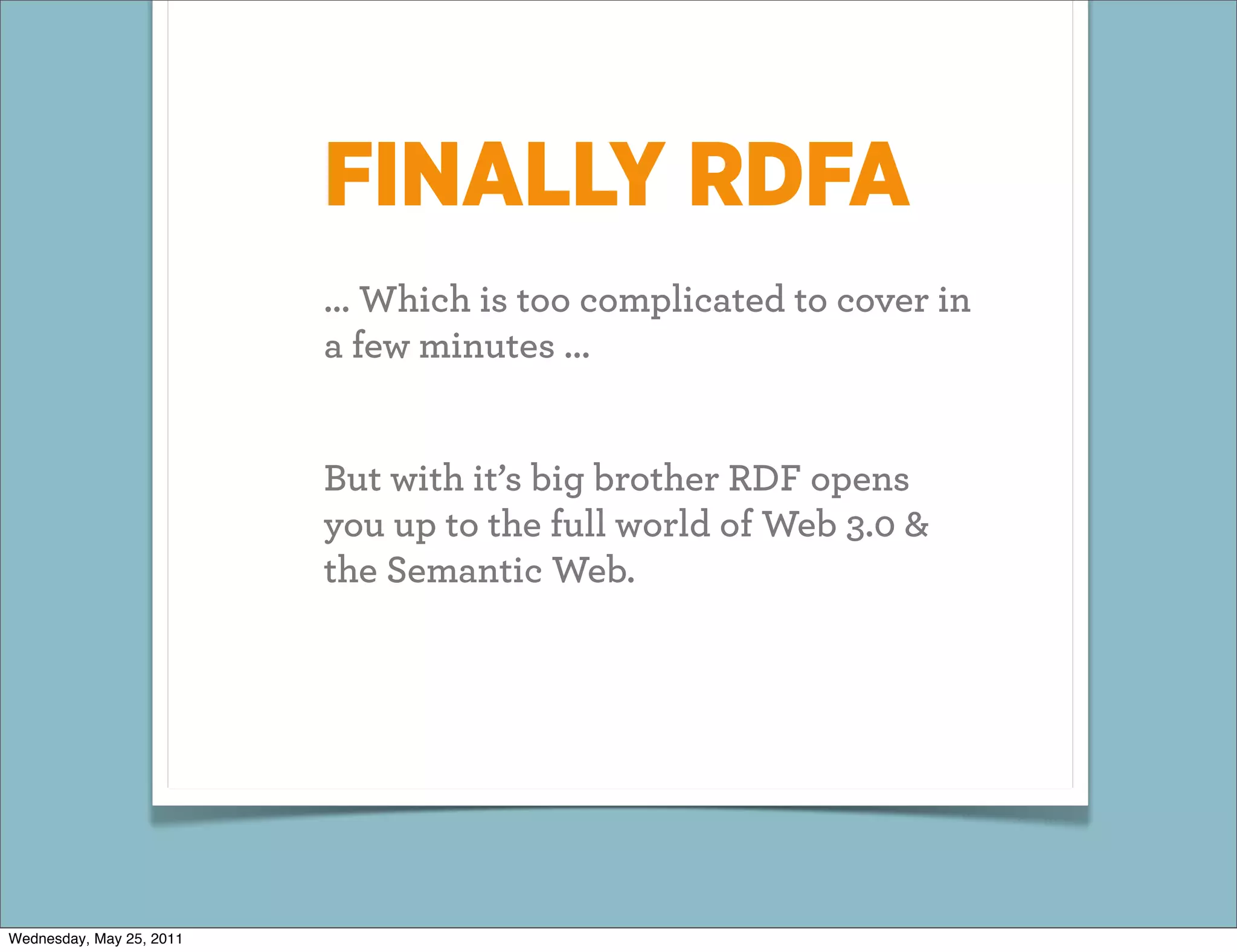

FINALLY RDFA


FINALLY RDFA
... Which is too complicated to cover in
a few minutes ...

But with it’s big brother RDF opens
you up to the full world of Web 3.0 &
the Semantic Web.

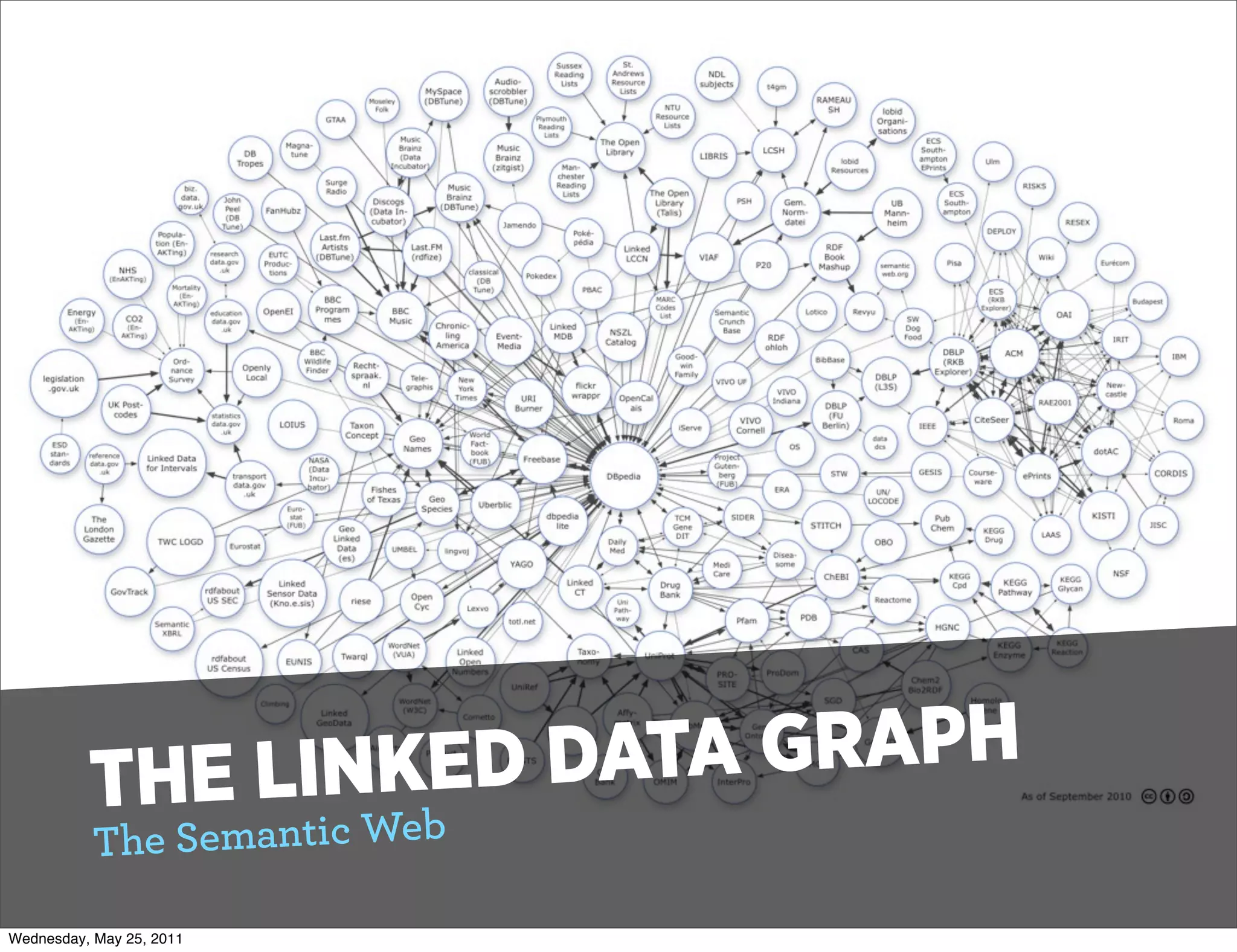

THE L INKED DATA GRAPH
T he Semantic Web


THANKS!
QUESTIONS?

Pascal Rettig
cykod.com
Twitter @cykod
