A Primer on HTML 5 - By Nick Armstrong

HTML 5
A Primer by The Digital Gunslingers

Intro To HTML5

Tuesday, April 20, 2010

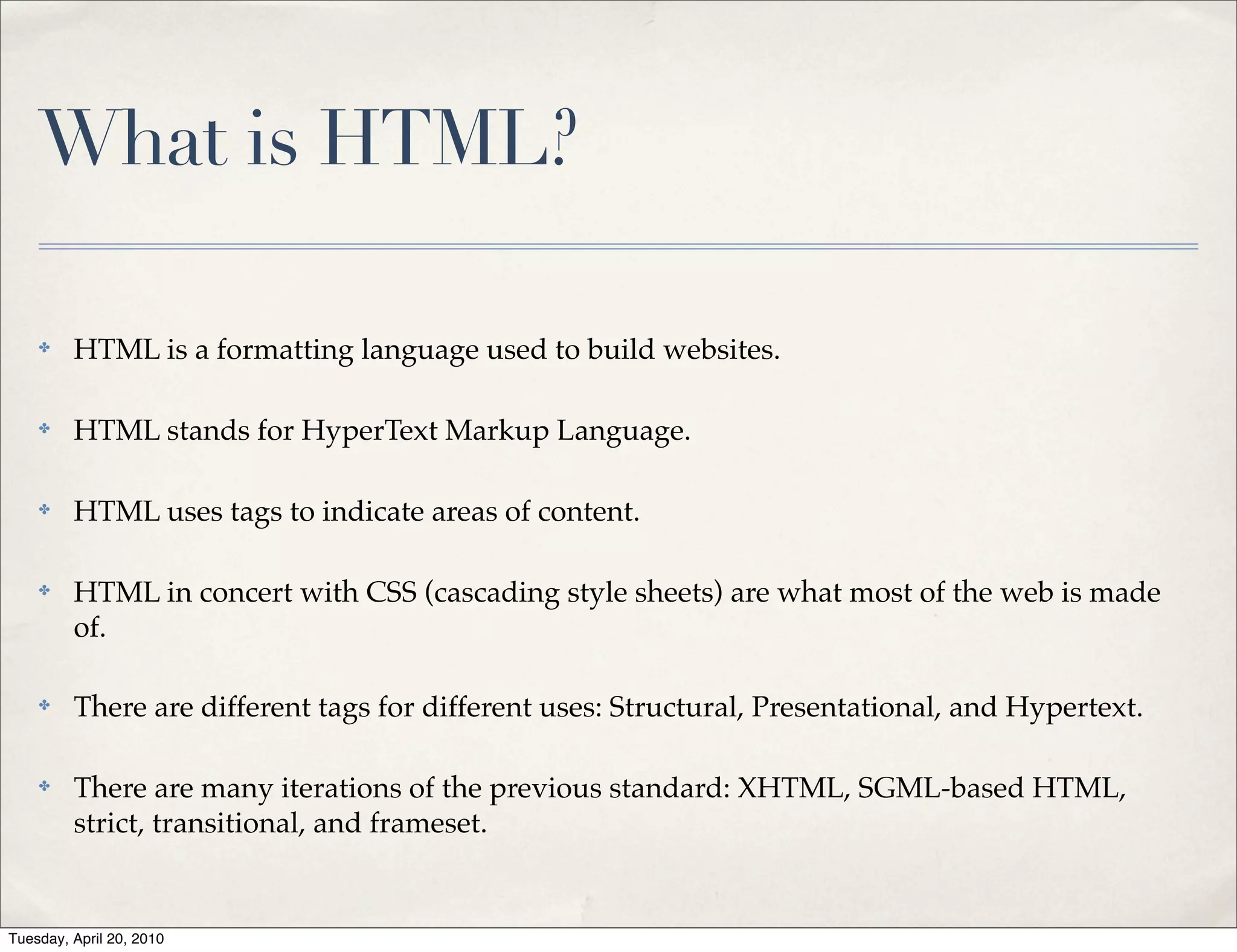

What is HTML?

✤ HTML is a formatting language used to build websites.

✤ HTML stands for HyperText Markup Language.

✤ HTML uses tags to indicate areas of content.

✤ HTML in concert with CSS (cascading style sheets) are what most of the web is made
of.

✤ There are different tags for different uses: Structural, Presentational, and Hypertext.

✤ There are many iterations of the previous standard: XHTML, SGML-based HTML,
strict, transitional, and frameset.


Source: http://www.ﬂickr.com/photos/daniello/422213306/

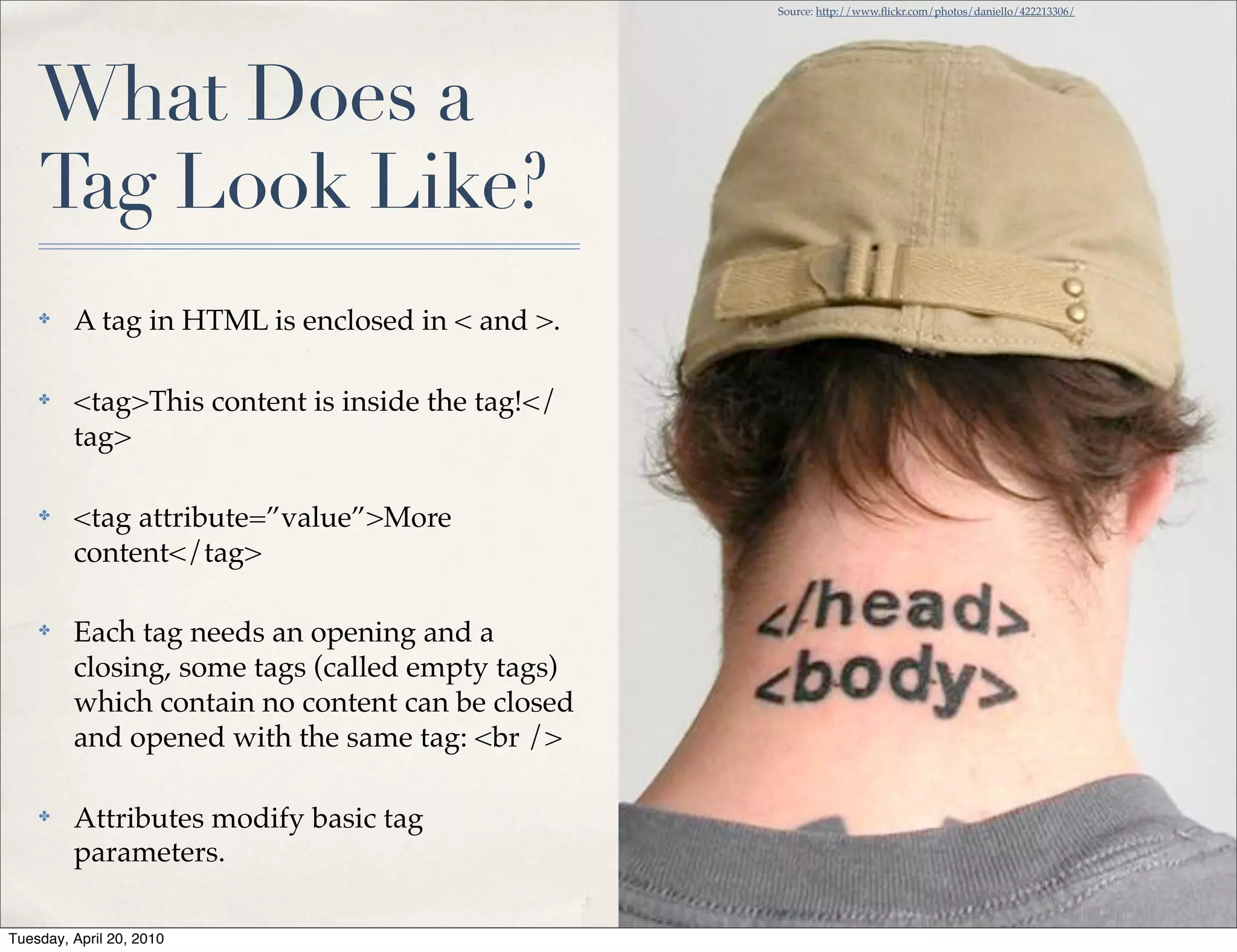

What Does a
Tag Look Like?
✤ A tag in HTML is enclosed in < and >.

✤ <tag>This content is inside the tag!</
tag>

✤ <tag attribute=”value”>More
content</tag>

✤ Each tag needs an opening and a
closing, some tags (called empty tags)
which contain no content can be closed
and opened with the same tag: <br />

✤ Attributes modify basic tag
parameters.

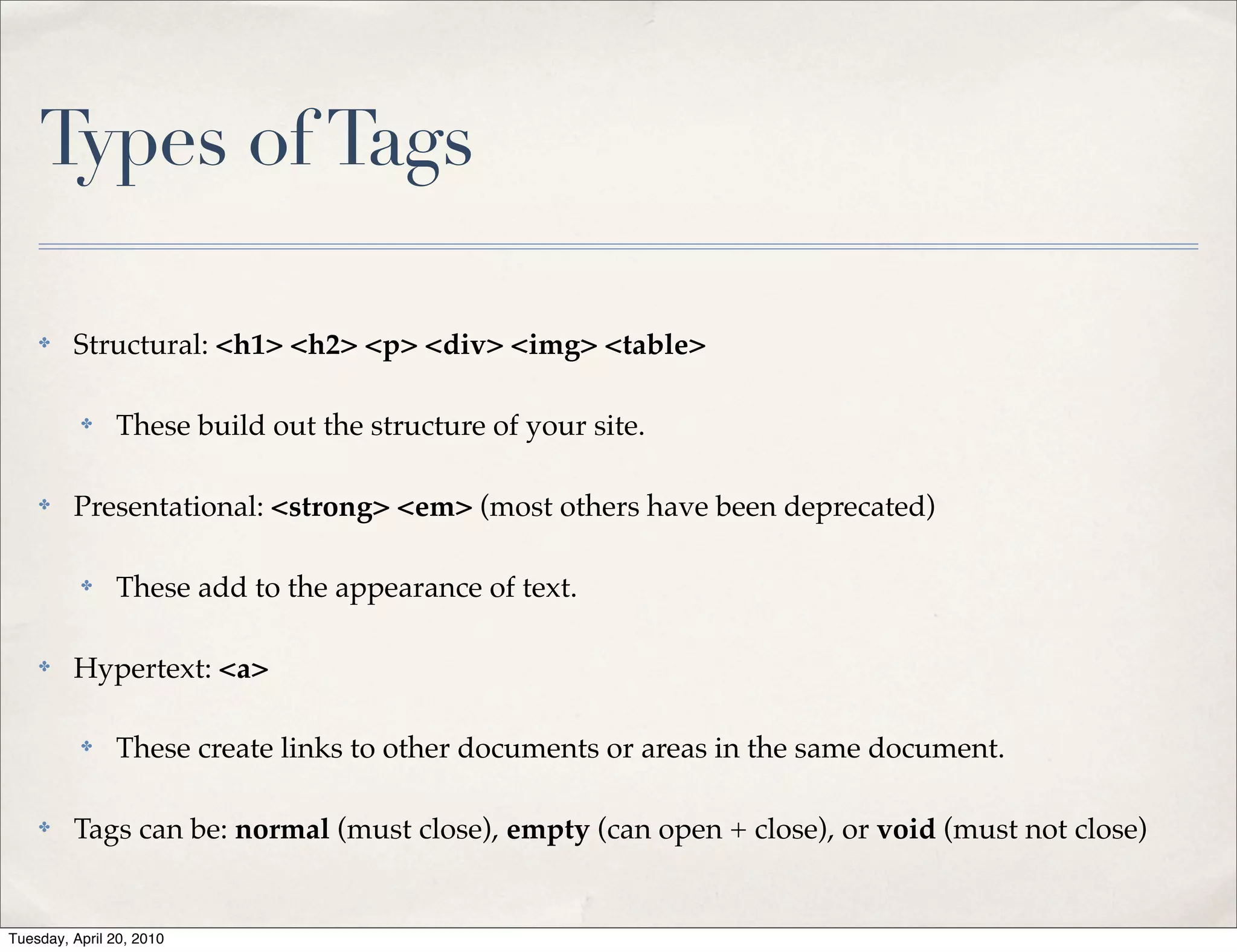

Types of Tags

✤ Structural: <h1> <h2> <p> <div> <img> <table>

✤ These build out the structure of your site.

✤ Presentational: <strong> <em> (most others have been deprecated)

✤ These add to the appearance of text.

✤ Hypertext: <a>

✤ These create links to other documents or areas in the same document.

✤ Tags can be: normal (must close), empty (can open + close), or void (must not close)

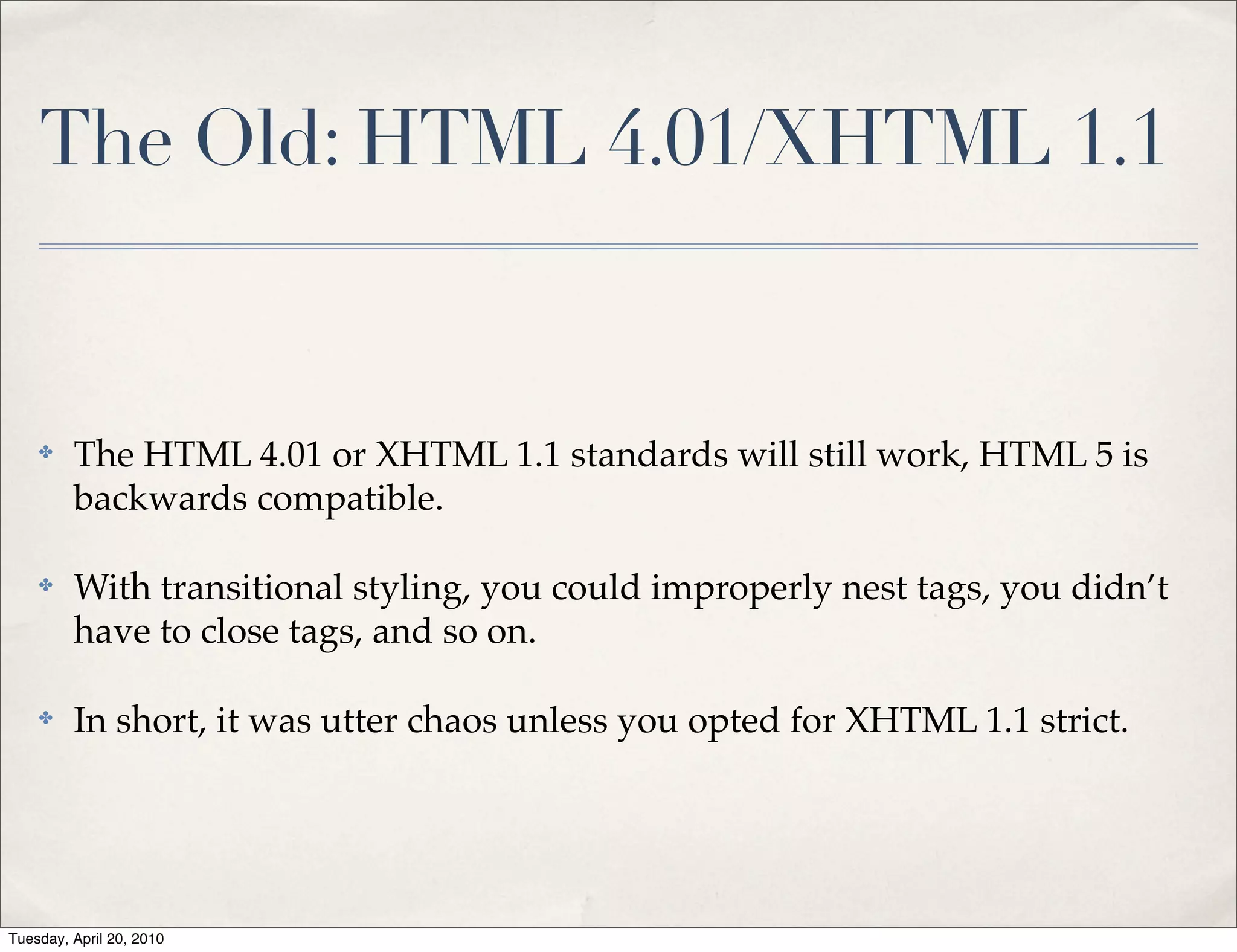

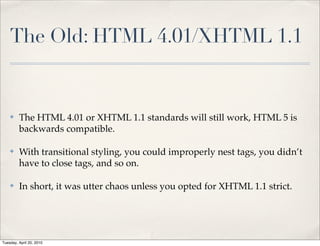

The Old: HTML 4.01/XHTML 1.1

✤ The HTML 4.01 or XHTML 1.1 standards will still work, HTML 5 is
backwards compatible.

✤ With transitional styling, you could improperly nest tags, you didn’t
have to close tags, and so on.

✤ In short, it was utter chaos unless you opted for XHTML 1.1 strict.

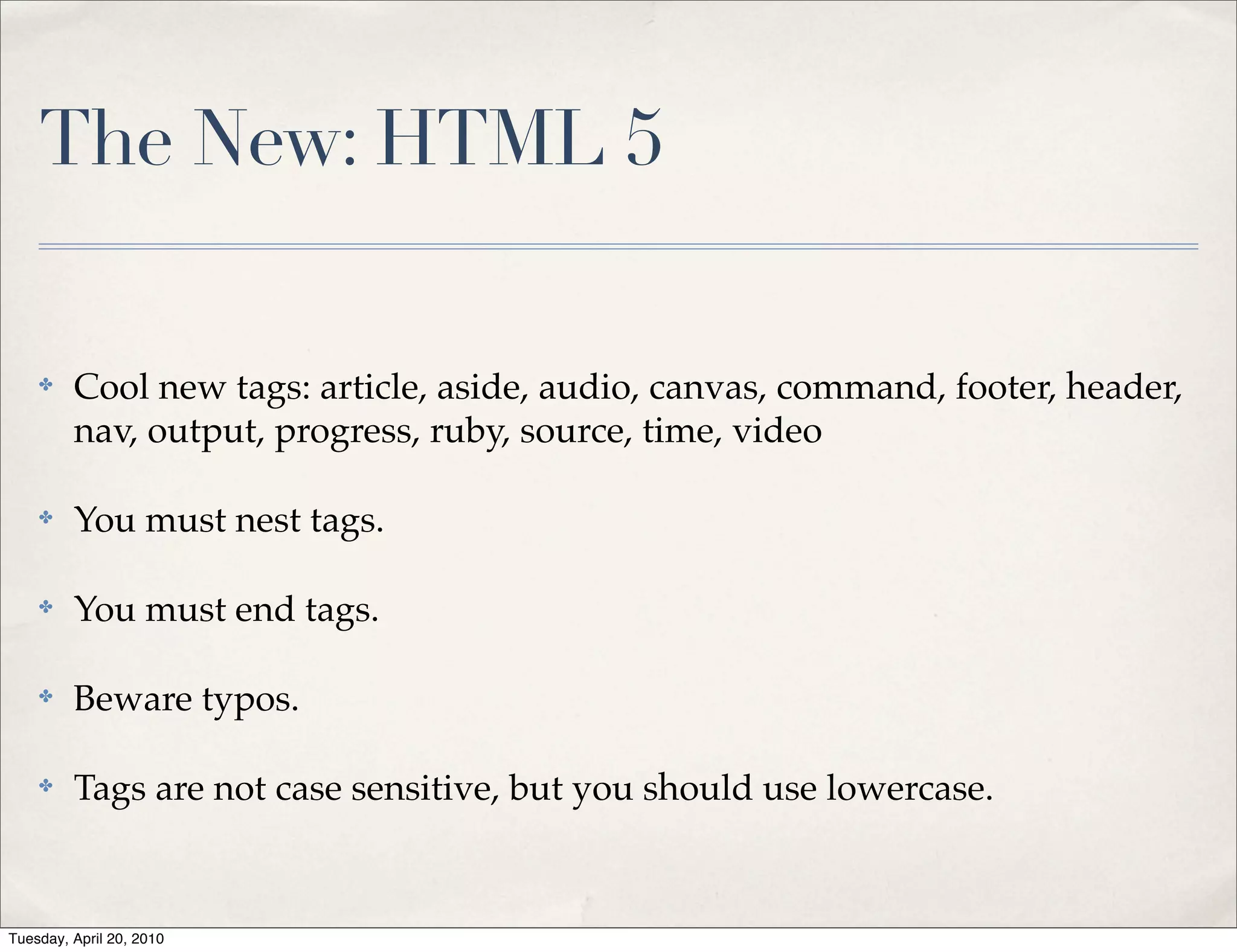

The New: HTML 5

✤ Cool new tags: article, aside, audio, canvas, command, footer, header,
nav, output, progress, ruby, source, time, video

✤ You must nest tags.

✤ You must end tags.

✤ Beware typos.

✤ Tags are not case sensitive, but you should use lowercase.

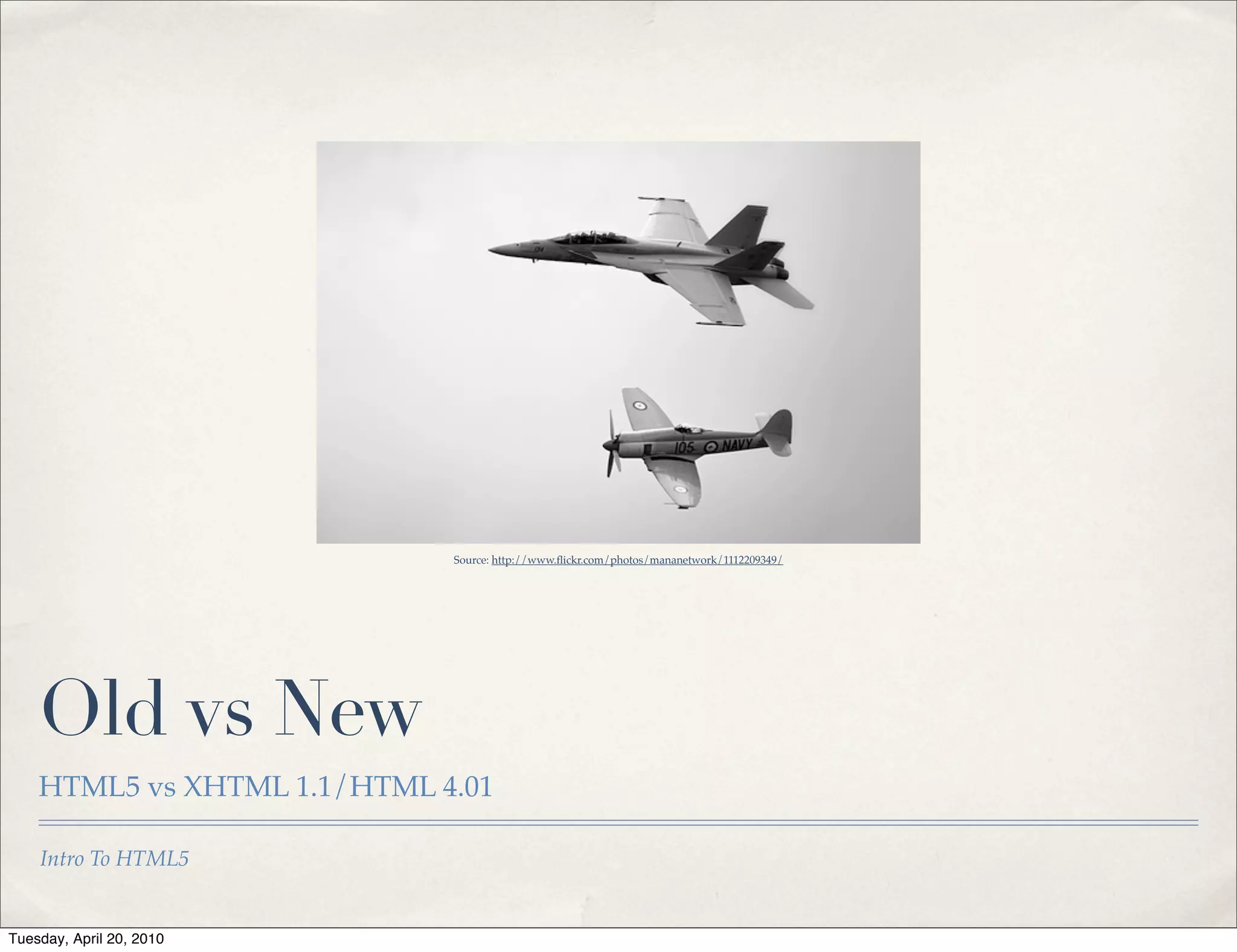

Source: http://www.ﬂickr.com/photos/mananetwork/1112209349/

Old vs New
HTML5 vs XHTML 1.1/HTML 4.01

Intro To HTML5

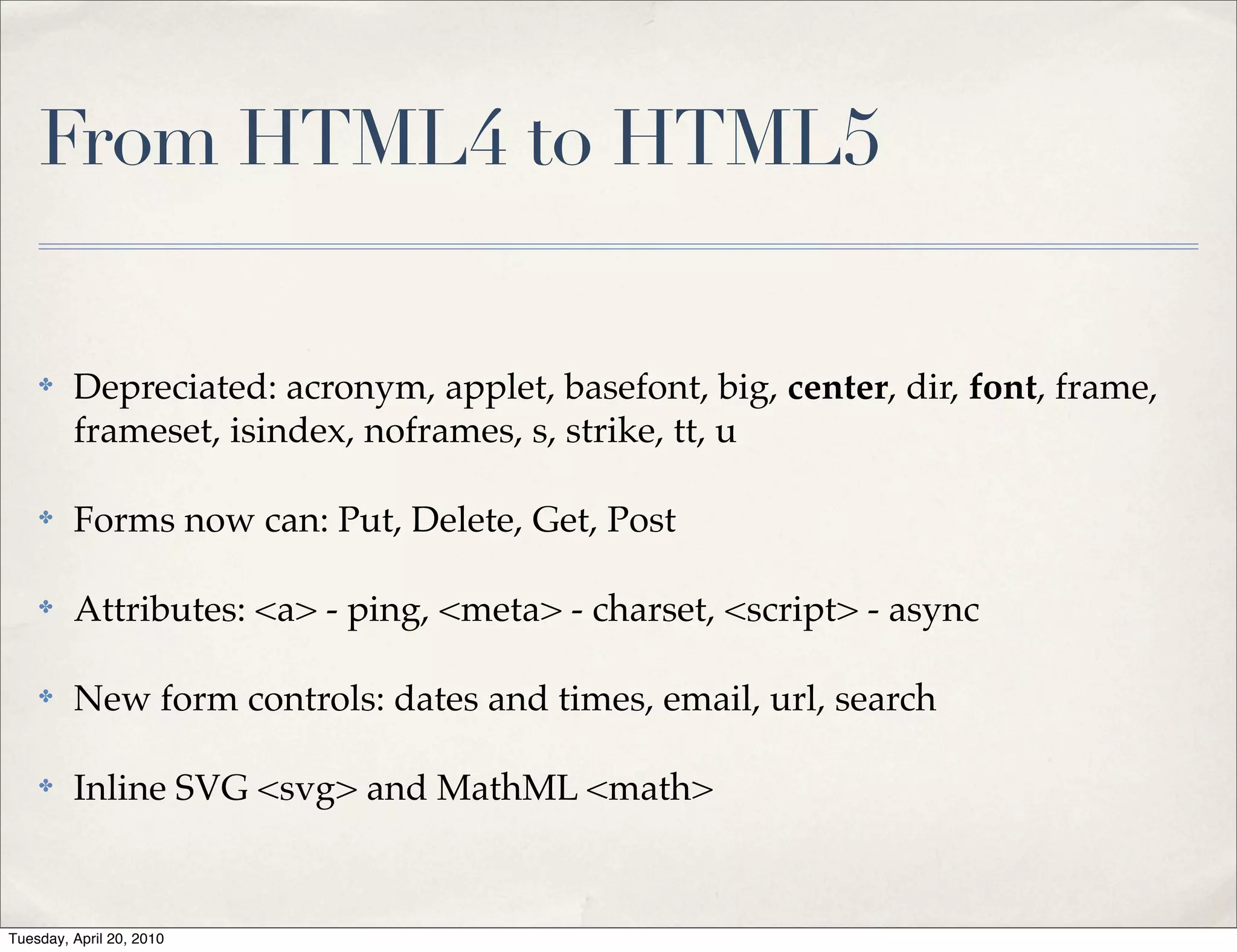

From HTML4 to HTML5

✤ Depreciated: acronym, applet, basefont, big, center, dir, font, frame,
frameset, isindex, noframes, s, strike, tt, u

✤ Forms now can: Put, Delete, Get, Post

✤ Attributes: <a> - ping, <meta> - charset, <script> - async

✤ New form controls: dates and times, email, url, search

✤ Inline SVG <svg> and MathML <math>

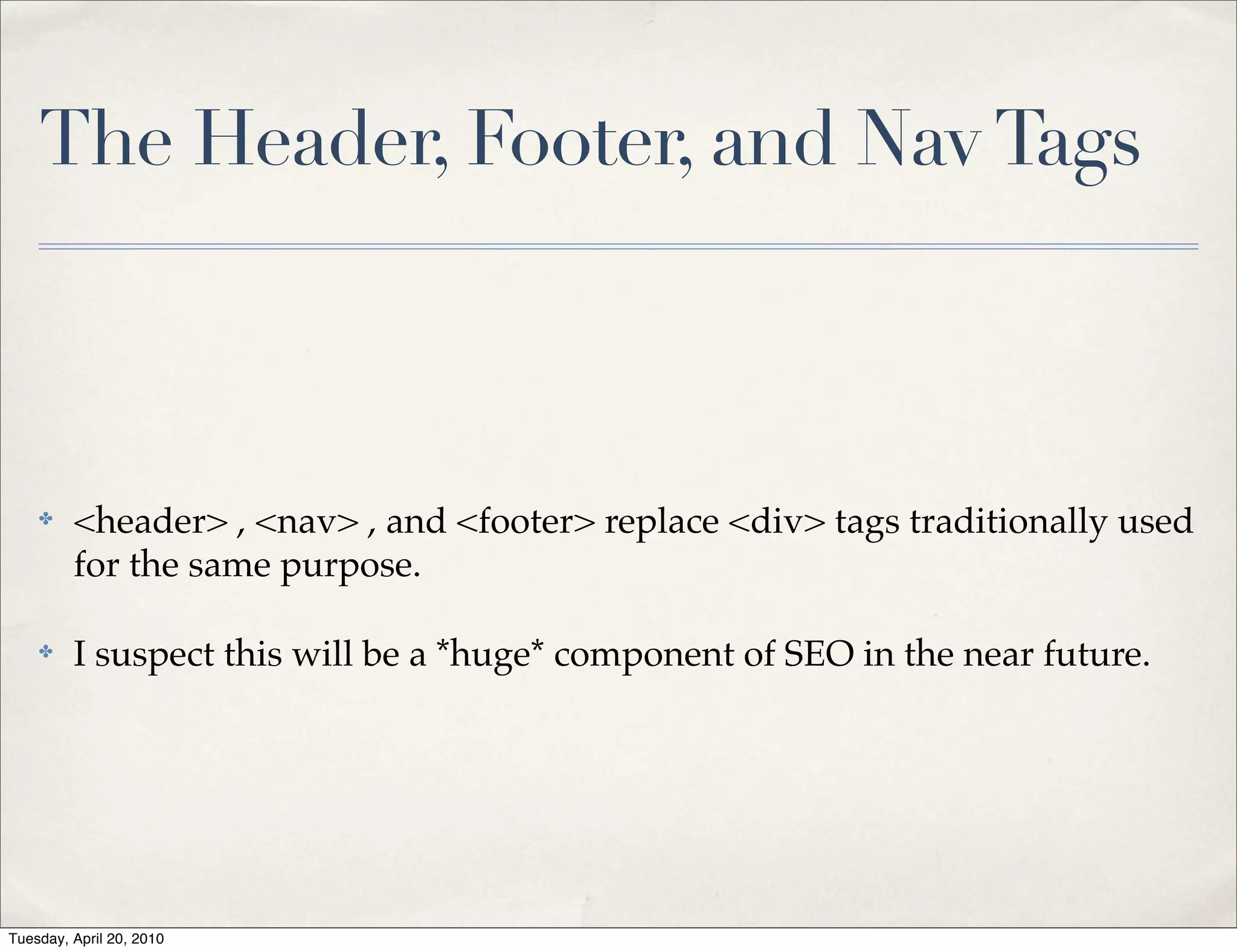

The Header, Footer, and Nav Tags

✤ <header> , <nav> , and <footer> replace <div> tags traditionally used
for the same purpose.

✤ I suspect this will be a *huge* component of SEO in the near future.

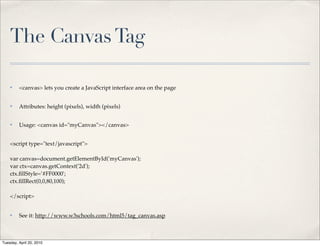

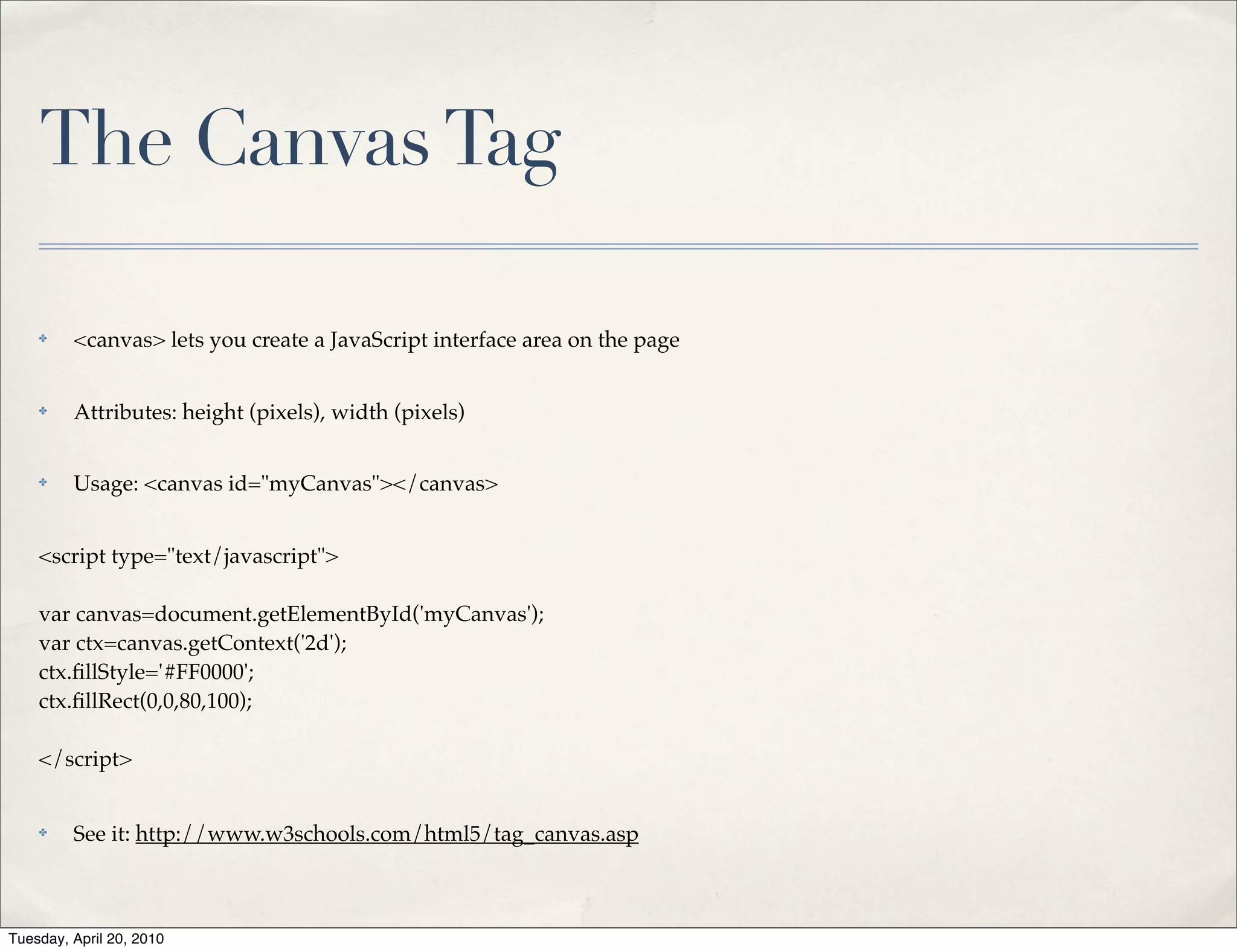

The Canvas Tag

✤ <canvas> lets you create a JavaScript interface area on the page

✤ Attributes: height (pixels), width (pixels)

✤ Usage: <canvas id="myCanvas"></canvas>

<script type="text/javascript">

var canvas=document.getElementById('myCanvas');
var ctx=canvas.getContext('2d');
ctx.ﬁllStyle='#FF0000';
ctx.ﬁllRect(0,0,80,100);

</script>

✤ See it: http://www.w3schools.com/html5/tag_canvas.asp

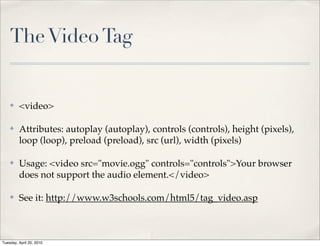

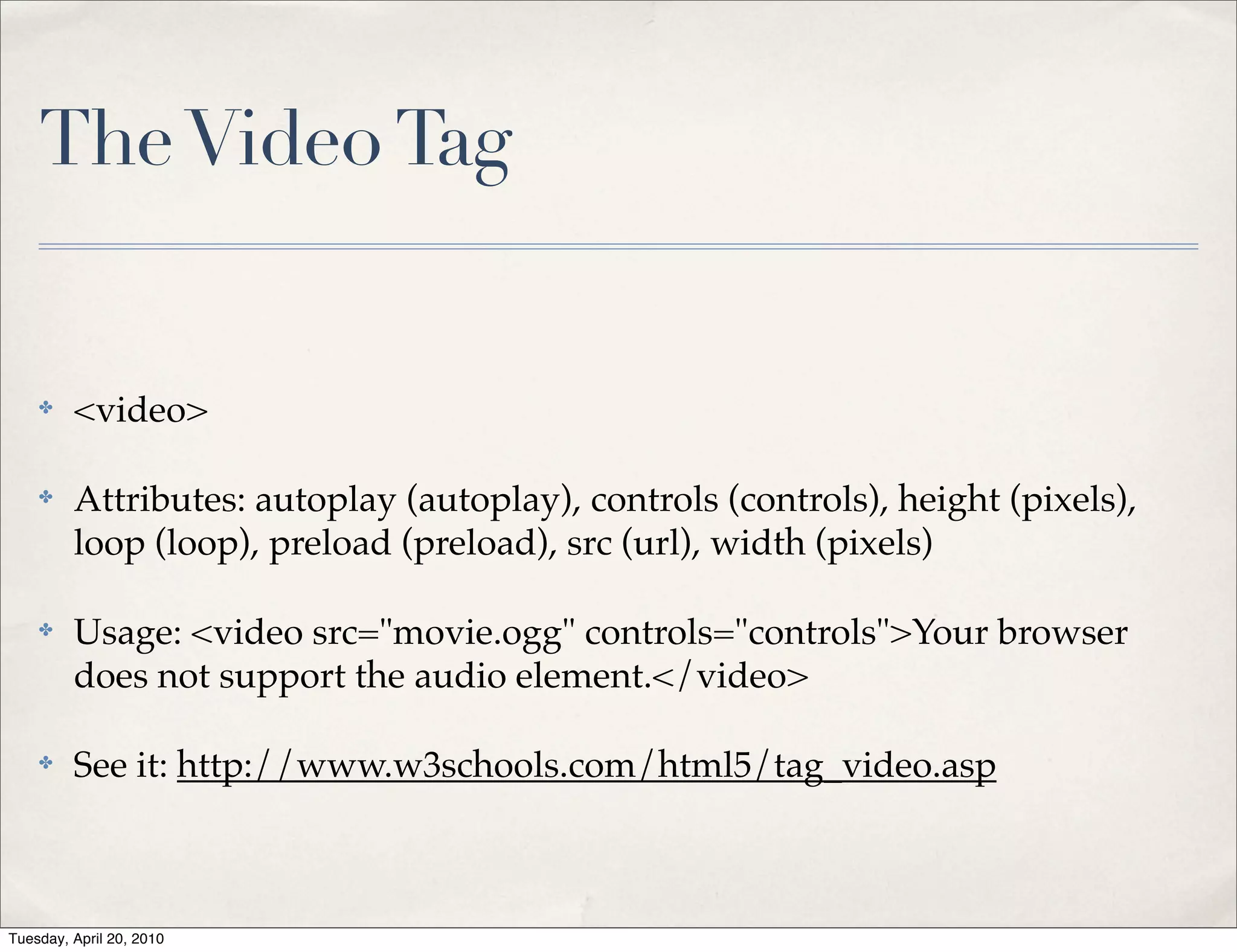

The Video Tag

✤ <video>

✤ Attributes: autoplay (autoplay), controls (controls), height (pixels),
loop (loop), preload (preload), src (url), width (pixels)

✤ Usage: <video src="movie.ogg" controls="controls">Your browser
does not support the audio element.</video>

✤ See it: http://www.w3schools.com/html5/tag_video.asp

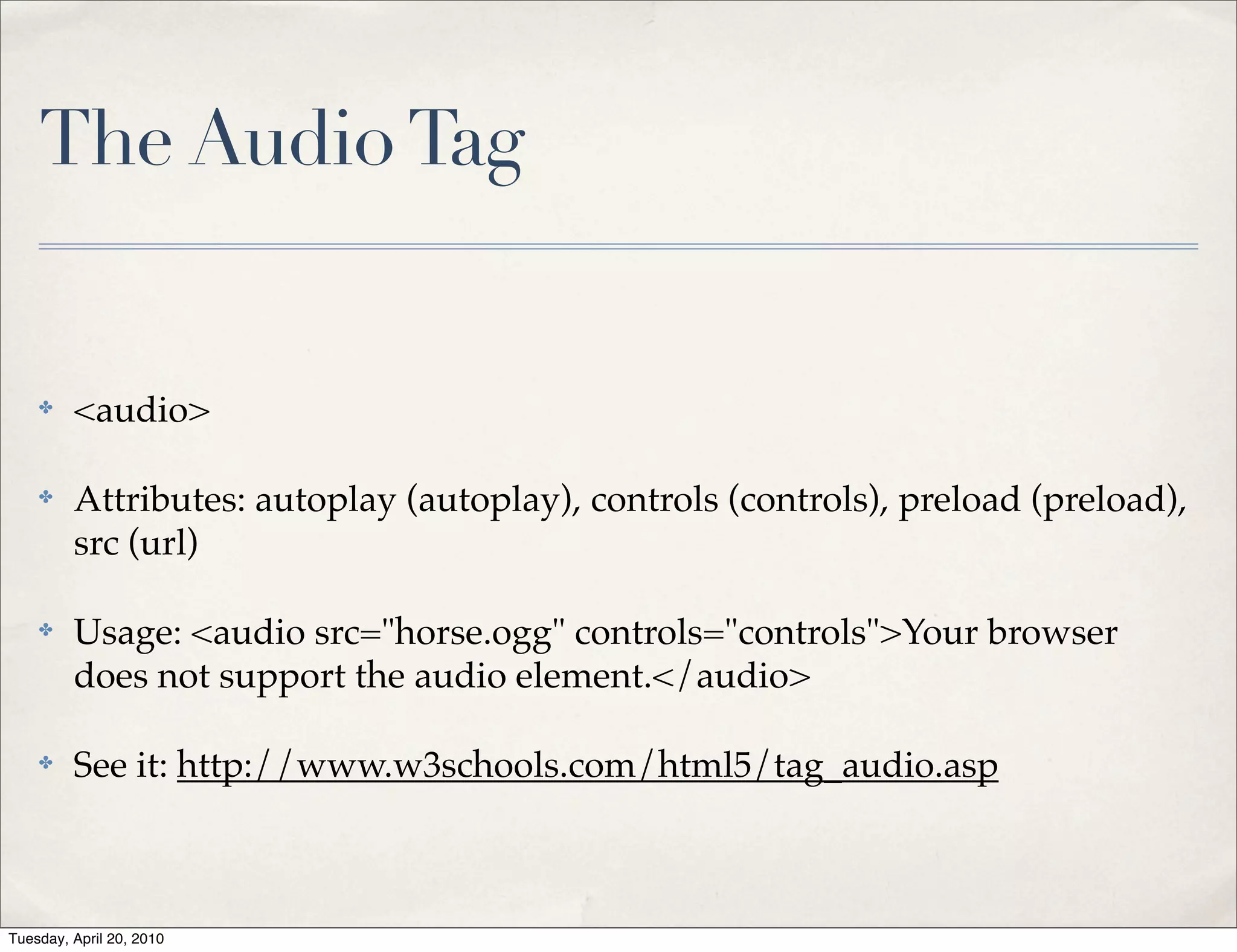

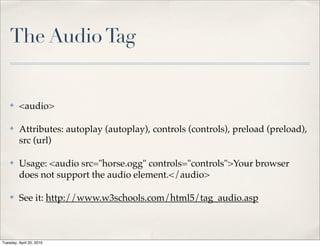

The Audio Tag

✤ <audio>

✤ Attributes: autoplay (autoplay), controls (controls), preload (preload),
src (url)

✤ Usage: <audio src="horse.ogg" controls="controls">Your browser
does not support the audio element.</audio>

✤ See it: http://www.w3schools.com/html5/tag_audio.asp

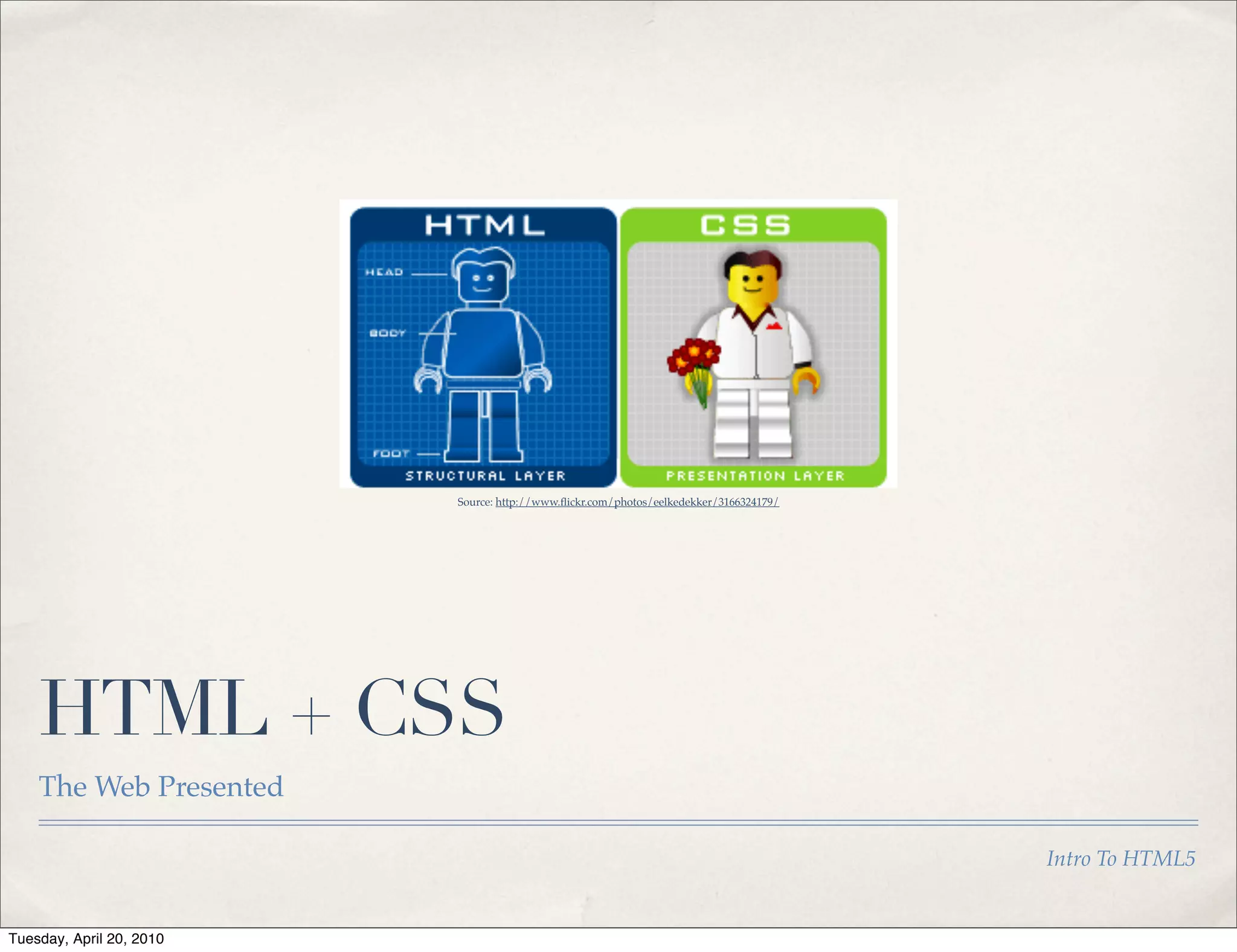

Source: http://www.ﬂickr.com/photos/eelkedekker/3166324179/

HTML + CSS
The Web Presented

Intro To HTML5

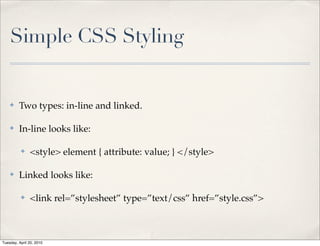

Simple CSS Styling

✤ Two types: in-line and linked.

✤ In-line looks like:

✤ <style> element { attribute: value; } </style>

✤ Linked looks like:

✤ <link rel=”stylesheet” type=”text/css” href=”style.css”>

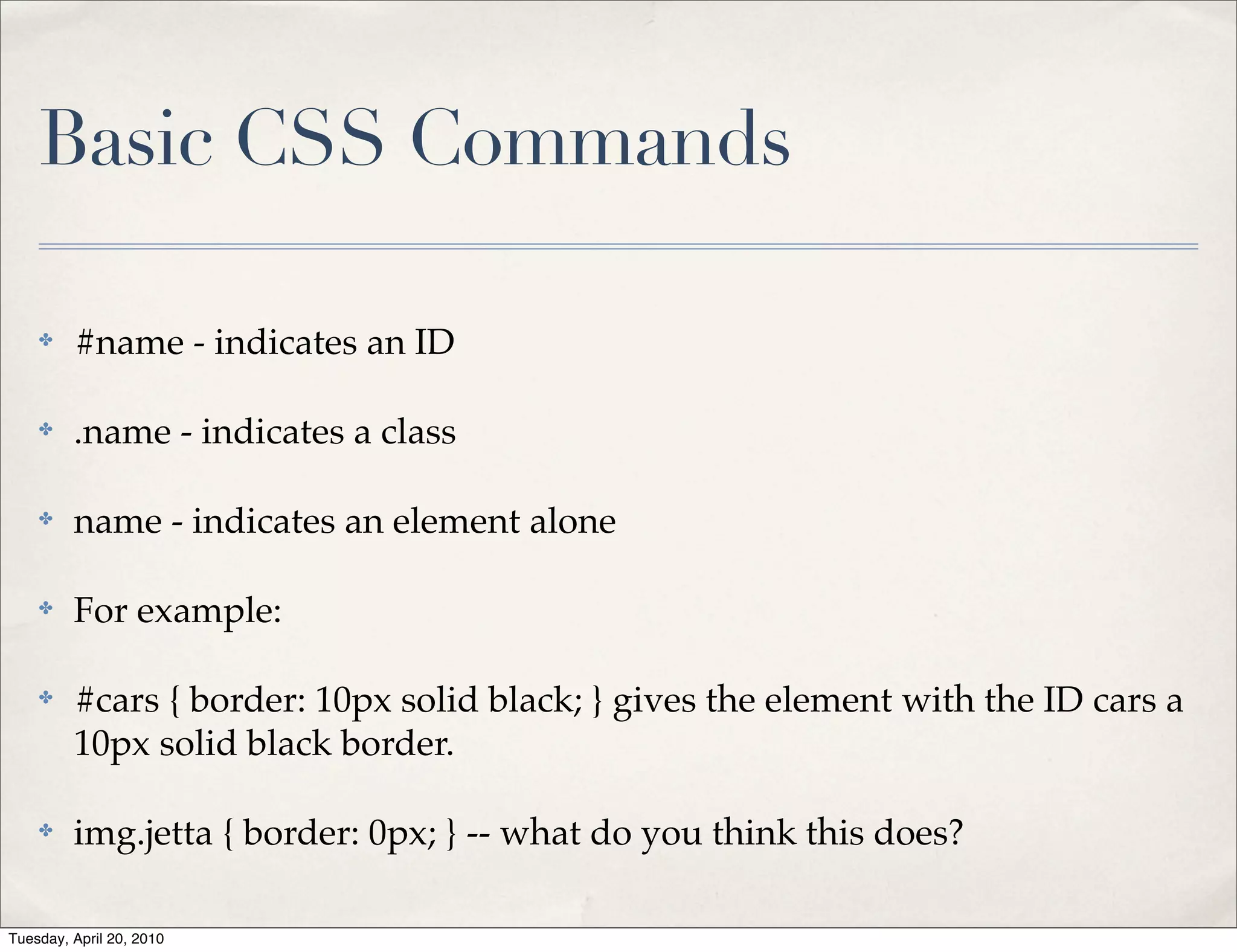

Basic CSS Commands

✤ #name - indicates an ID

✤ .name - indicates a class

✤ name - indicates an element alone

✤ For example:

✤ #cars { border: 10px solid black; } gives the element with the ID cars a
10px solid black border.

✤ img.jetta { border: 0px; } -- what do you think this does?

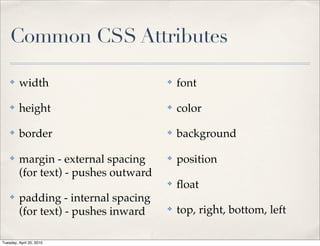

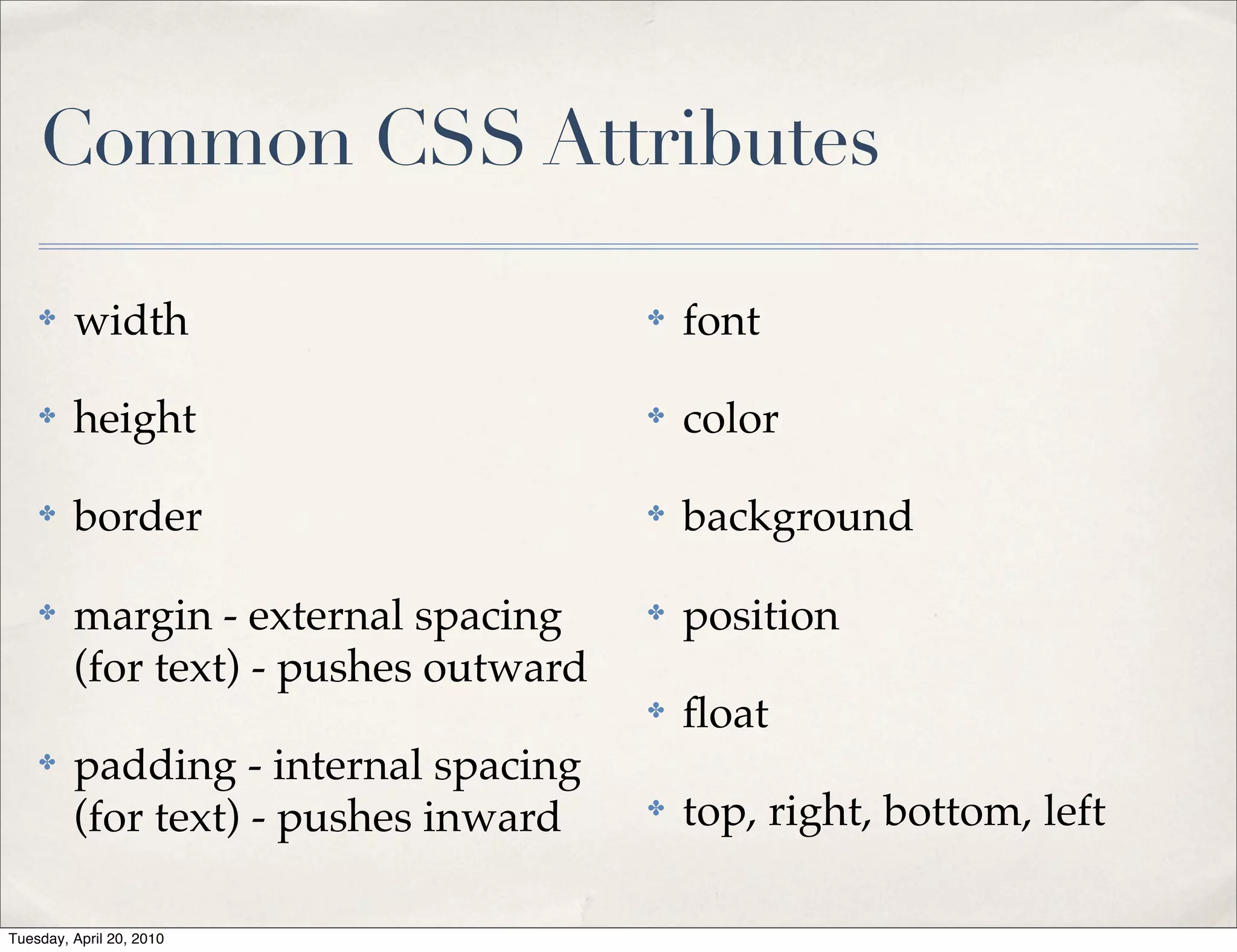

Common CSS Attributes

✤ width ✤ font

✤ height ✤ color

✤ border ✤ background

✤ margin - external spacing ✤ position
(for text) - pushes outward
✤ ﬂoat
✤ padding - internal spacing
(for text) - pushes inward ✤ top, right, bottom, left

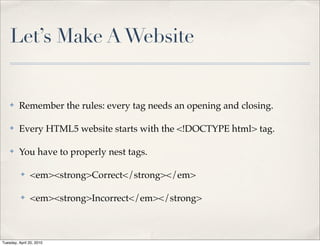

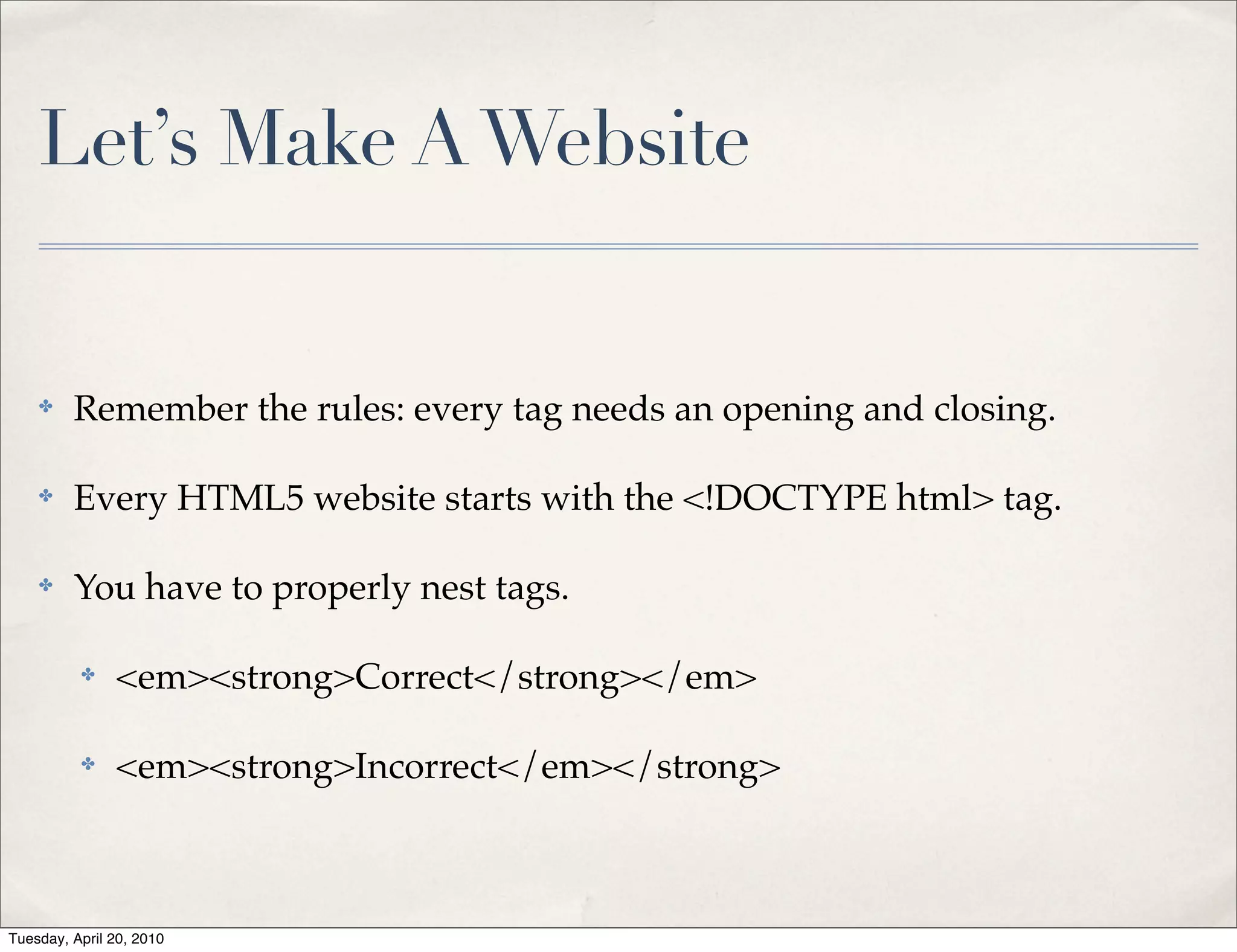

Let’s Make A Website

✤ Remember the rules: every tag needs an opening and closing.

✤ Every HTML5 website starts with the <!DOCTYPE html> tag.

✤ You have to properly nest tags.

✤ <em><strong>Correct</strong></em>

✤ <em><strong>Incorrect</em></strong>

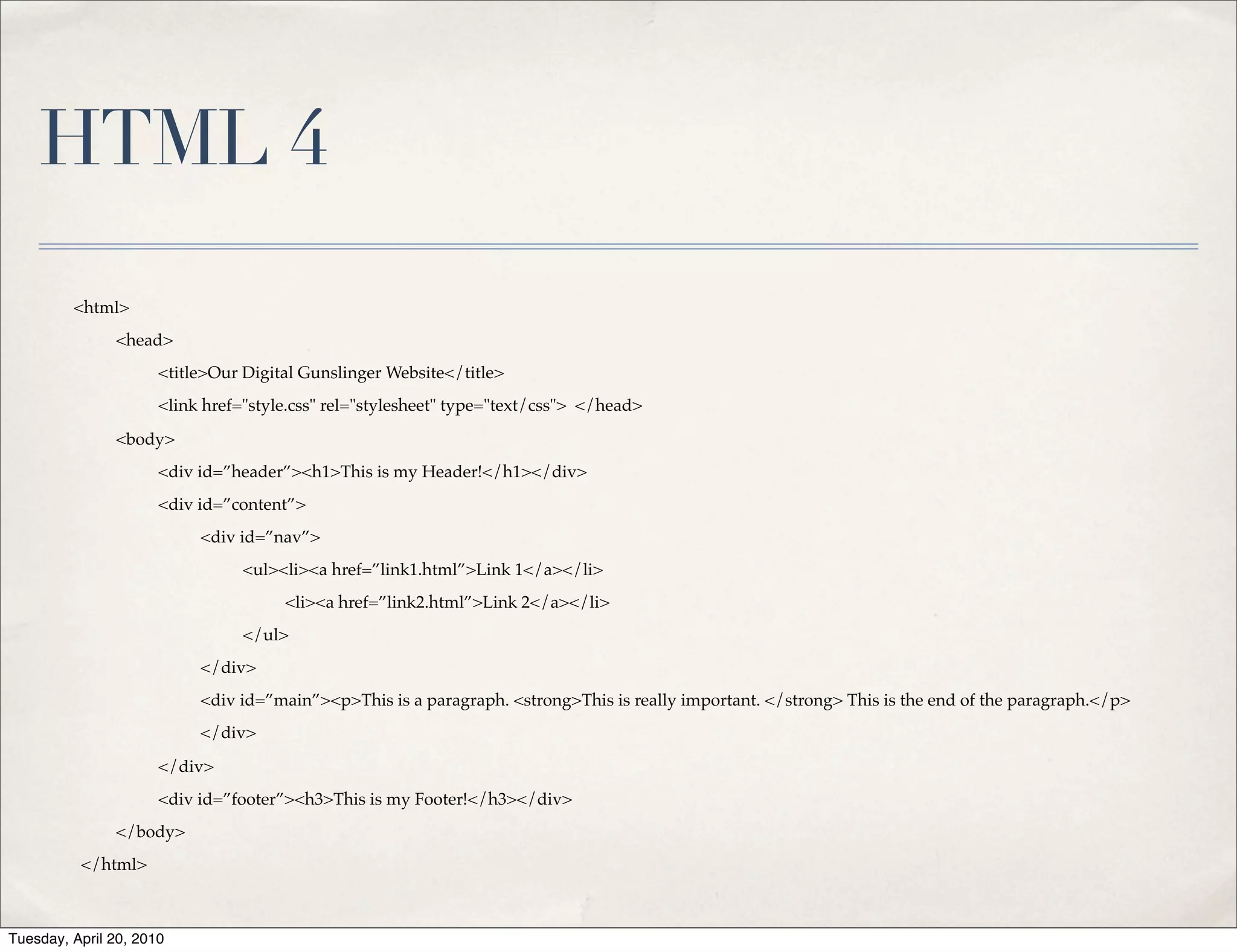

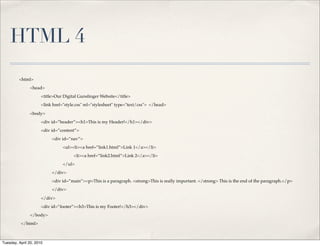

HTML 4
<html>
<head>
<title>Our Digital Gunslinger Website</title>
<link href="style.css" rel="stylesheet" type="text/css"> </head>

<body>
<div id=”header”><h1>This is my Header!</h1></div>
<div id=”content”>
<div id=”nav”>
<ul><li><a href=”link1.html”>Link 1</a></li>
<li><a href=”link2.html”>Link 2</a></li>
</ul>
</div>
<div id=”main”><p>This is a paragraph. <strong>This is really important. </strong> This is the end of the paragraph.</p>
</div>

</div>
<div id=”footer”><h3>This is my Footer!</h3></div>
</body>
</html>

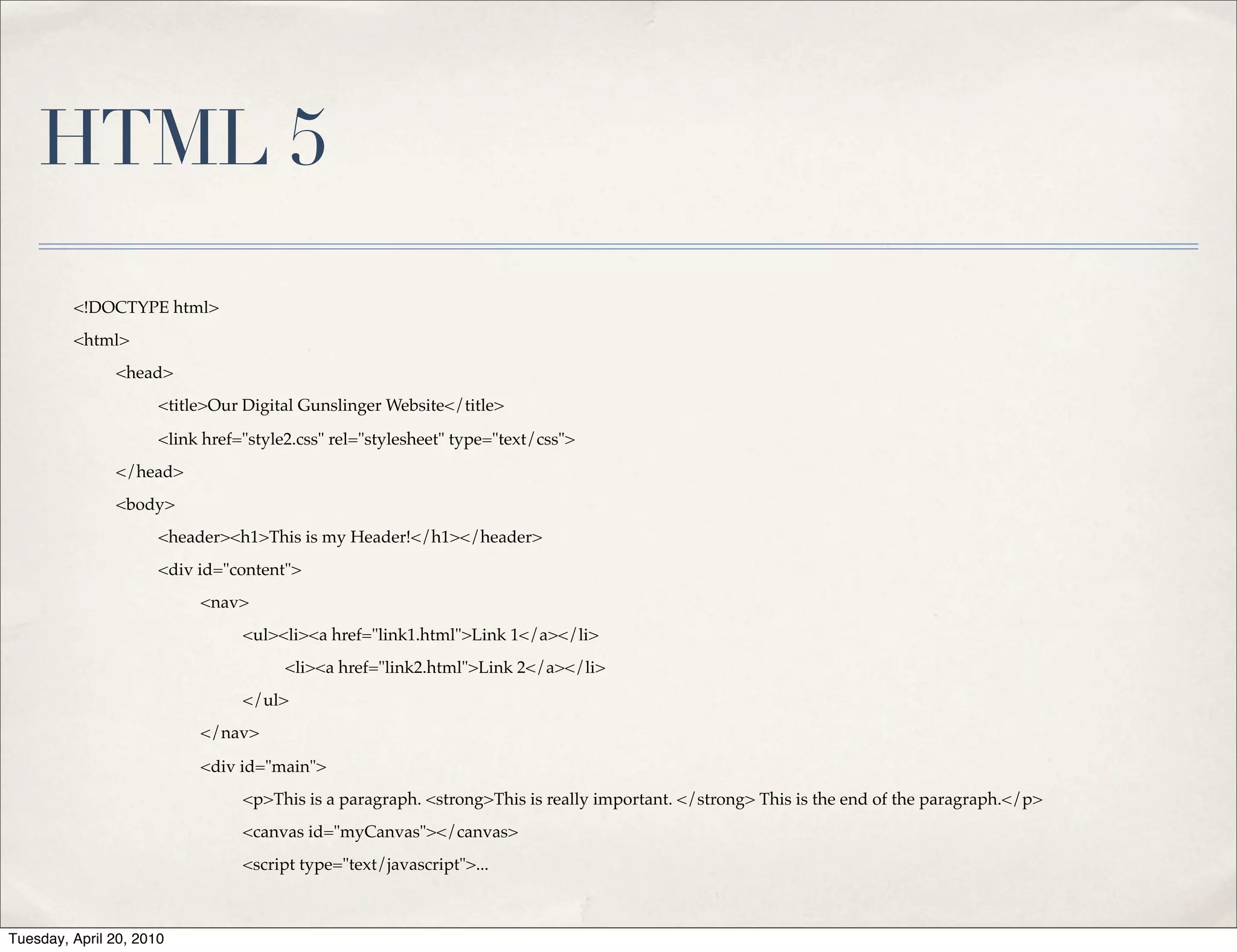

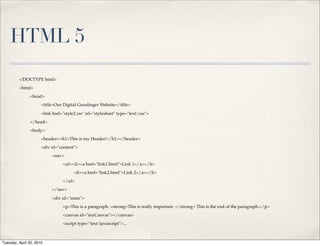

HTML 5
<!DOCTYPE html>
<html>
<head>
<title>Our Digital Gunslinger Website</title>

<link href="style2.css" rel="stylesheet" type="text/css">
</head>
<body>
<header><h1>This is my Header!</h1></header>
<div id="content">
<nav>
<ul><li><a href="link1.html">Link 1</a></li>
<li><a href="link2.html">Link 2</a></li>
</ul>
</nav>

<div id="main">
<p>This is a paragraph. <strong>This is really important. </strong> This is the end of the paragraph.</p>
<canvas id="myCanvas"></canvas>
<script type="text/javascript">...

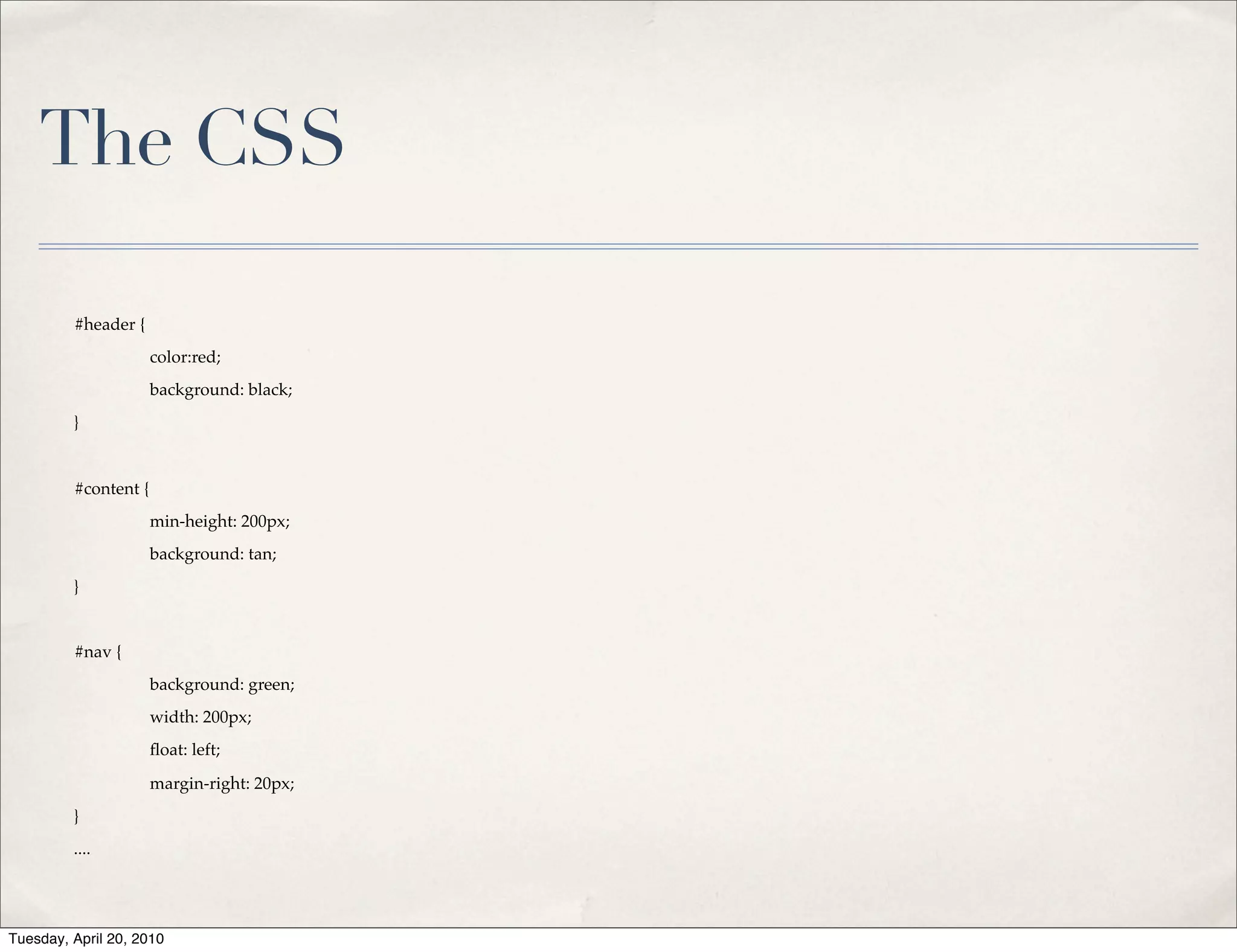

The CSS

#header {
! color:red;
! background: black;
}

#content {
! min-height: 200px;
! background: tan;
}

#nav {
! background: green;
! width: 200px;
! ﬂoat: left;

! margin-right: 20px;
}
....

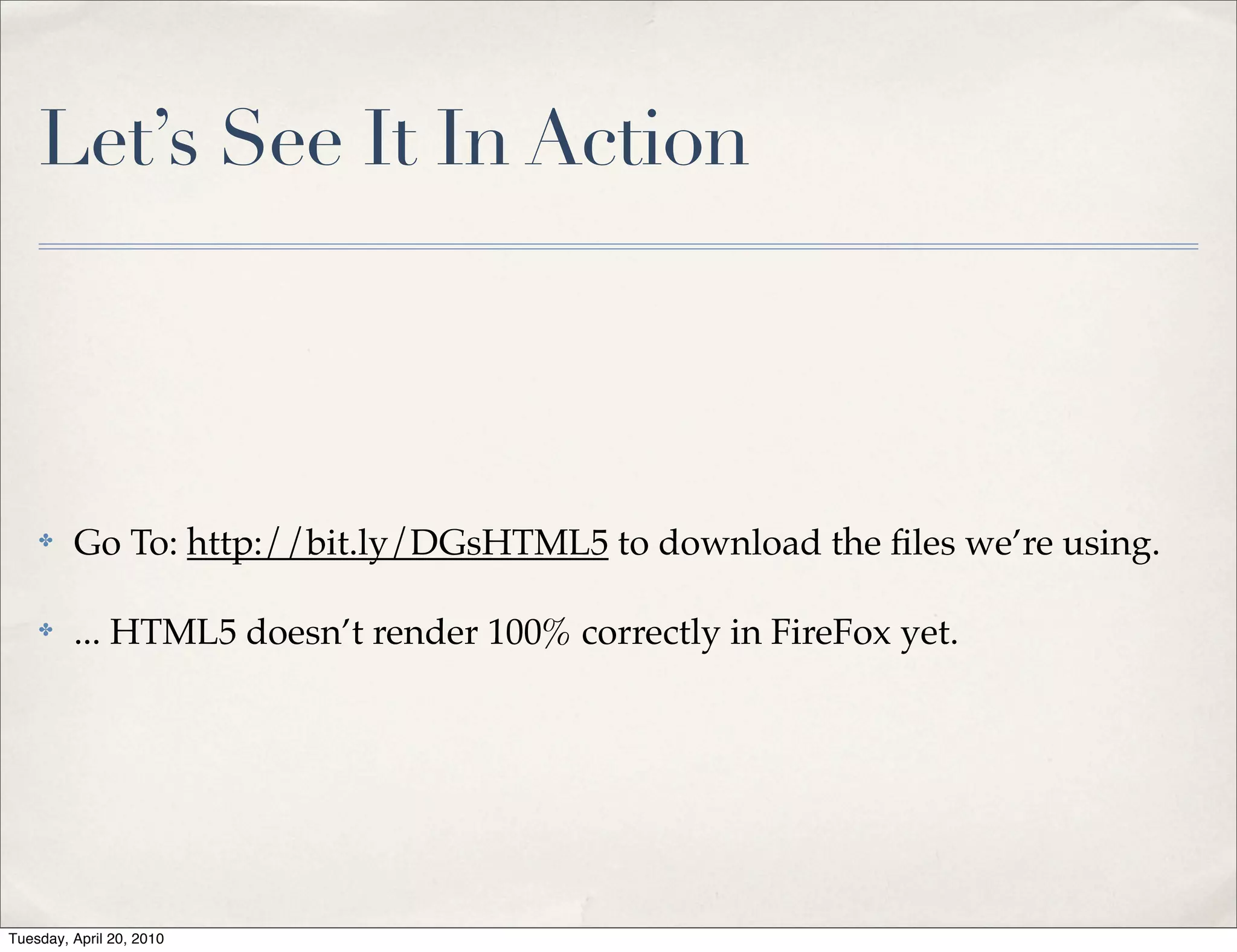

Let’s See It In Action

✤ Go To: http://bit.ly/DGsHTML5 to download the ﬁles we’re using.

✤ ... HTML5 doesn’t render 100% correctly in FireFox yet.

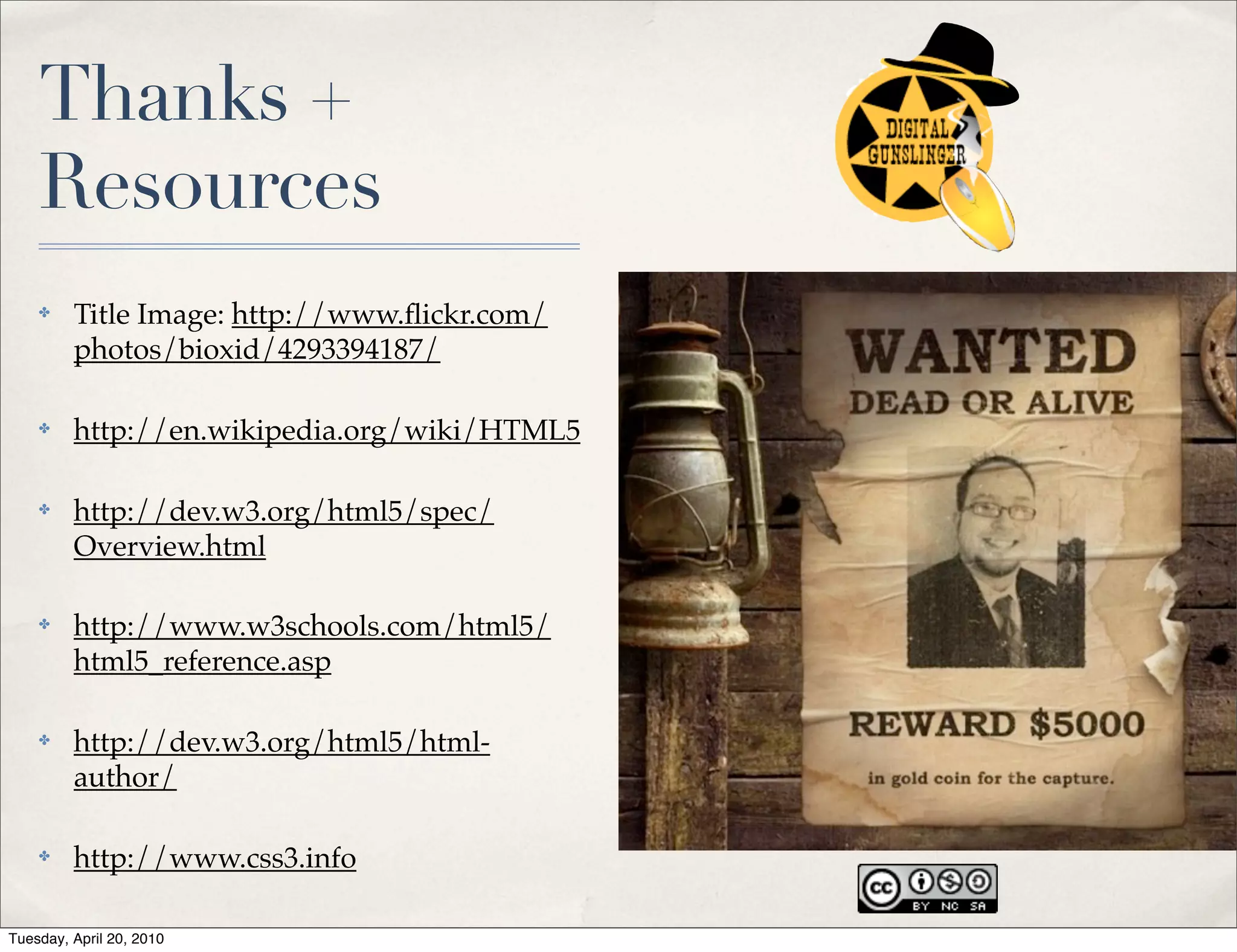

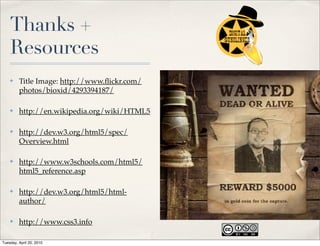

Thanks +
Resources
✤ Title Image: http://www.ﬂickr.com/
photos/bioxid/4293394187/

✤ http://en.wikipedia.org/wiki/HTML5

✤ http://dev.w3.org/html5/spec/
Overview.html

✤ http://www.w3schools.com/html5/
html5_reference.asp

✤ http://dev.w3.org/html5/html-
author/

✤ http://www.css3.info
