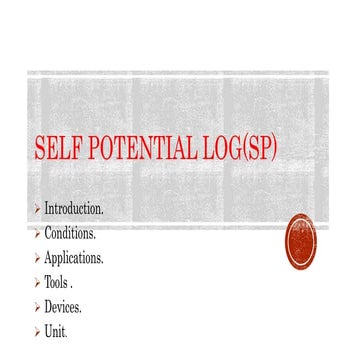

Self Potential [SP] log
Caliber log
Porosity Logs
Density log
Sonic log
Neutron log
Electrical Logs
Resistivity Log
For contact : omerupto3@gmail.com
It covers seismic method, gravity method, electromagnetic method, magnetic method and radiometric method. all these methods help in mineral exploration
Ambiguity in Geophysics,Gravity,Magnetic,EM,MT
Error reduction by Available applications
Geosoft,Euler,Anaylitical,Equpotential,Spectral, Principal Components
The Lectures describes the Electrical method of Geophysical Prospecting in brief. SP surveying and Occurrence of Self potential and its application is discussed in brief.
Finding the Spontaneous/Self Potential of the SurfaceIRJESJOURNAL
Abstract:- Measuring the spontaneous/self potential of the ground at different points in a line to now the subsurface structure.This helps us to show the high potential and low potential points of the ground,actually these are the elevation and steep areas of the subsurface structure.basically,these points together forms in the shape of the countor map of the area which shows the characteristics of the subsurface. This experiment is carried out by the voltmeter.
This Power point presentation was prepared to describe in detail about the two main voltammetry techniques of electrochemistry which is polarography and voltammetry. In these slides, I discussed the working, instrumentation, various electrodes, advantages, disadvantages..etc. Hope you understand the topic.
Critical analysis of Hydraulic stimulation of geothermal reservoirs: fluid fl...Umer Bhatti
Critical analysis of Hydraulic stimulation, geothermal reservoirs, fluid flow, electric potential and microseismicity, the Soultz-Sous-Forets Hot Dry Rock Site
Glover P.W.J, Petrophysics Msc Courses Notes. The Potential Spontaneous. The spontaneous potential log (SP) measures the natural or spontaneous potential difference
(sometimes called self-potential) that exists between the borehole and the surface in the absence of any
artificially applied current
Stanley A Meyer Legacy Back up Secret Docs Save all Protect Spread print and give to schools NEVER STOP!!!!!!! Join Support here https://www.patreon.com/securesupplies/shop
Stanley A Meyer Legacy Back up Secret Docs Save all Protect Spread print and give to schools NEVER STOP!!!!!!! Join Support here https://www.patreon.com/securesupplies/shop
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Event Management System Vb Net Project Report.pdfKamal Acharya
In present era, the scopes of information technology growing with a very fast .We do not see any are untouched from this industry. The scope of information technology has become wider includes: Business and industry. Household Business, Communication, Education, Entertainment, Science, Medicine, Engineering, Distance Learning, Weather Forecasting. Carrier Searching and so on.
My project named “Event Management System” is software that store and maintained all events coordinated in college. It also helpful to print related reports. My project will help to record the events coordinated by faculties with their Name, Event subject, date & details in an efficient & effective ways.
In my system we have to make a system by which a user can record all events coordinated by a particular faculty. In our proposed system some more featured are added which differs it from the existing system such as security.
Quality defects in TMT Bars, Possible causes and Potential Solutions.PrashantGoswami42
Maintaining high-quality standards in the production of TMT bars is crucial for ensuring structural integrity in construction. Addressing common defects through careful monitoring, standardized processes, and advanced technology can significantly improve the quality of TMT bars. Continuous training and adherence to quality control measures will also play a pivotal role in minimizing these defects.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Vaccine management system project report documentation..pdfKamal Acharya
The Division of Vaccine and Immunization is facing increasing difficulty monitoring vaccines and other commodities distribution once they have been distributed from the national stores. With the introduction of new vaccines, more challenges have been anticipated with this additions posing serious threat to the already over strained vaccine supply chain system in Kenya.
Automobile Management System Project Report.pdfKamal Acharya
The proposed project is developed to manage the automobile in the automobile dealer company. The main module in this project is login, automobile management, customer management, sales, complaints and reports. The first module is the login. The automobile showroom owner should login to the project for usage. The username and password are verified and if it is correct, next form opens. If the username and password are not correct, it shows the error message.
When a customer search for a automobile, if the automobile is available, they will be taken to a page that shows the details of the automobile including automobile name, automobile ID, quantity, price etc. “Automobile Management System” is useful for maintaining automobiles, customers effectively and hence helps for establishing good relation between customer and automobile organization. It contains various customized modules for effectively maintaining automobiles and stock information accurately and safely.
When the automobile is sold to the customer, stock will be reduced automatically. When a new purchase is made, stock will be increased automatically. While selecting automobiles for sale, the proposed software will automatically check for total number of available stock of that particular item, if the total stock of that particular item is less than 5, software will notify the user to purchase the particular item.
Also when the user tries to sale items which are not in stock, the system will prompt the user that the stock is not enough. Customers of this system can search for a automobile; can purchase a automobile easily by selecting fast. On the other hand the stock of automobiles can be maintained perfectly by the automobile shop manager overcoming the drawbacks of existing system.
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
Self Potential Method (Electrical Survey)
1. Date : June 06, 2020 (Saturday) Time :- 11: 00 A.M. (GMT + 5:45)
APPLIED GEOPHYSICS
ENGINEERING GEOLOGY
Presenter :
Sudhan Kumar Subedi
Self Potential Method
(ELECTRICAL SURVEY)
Topic :
All interested can freely join……..
2.
3.
4. Self (Spontaneous) Potential Method
June 06, 2020
Self Potential (SP) Method
Background

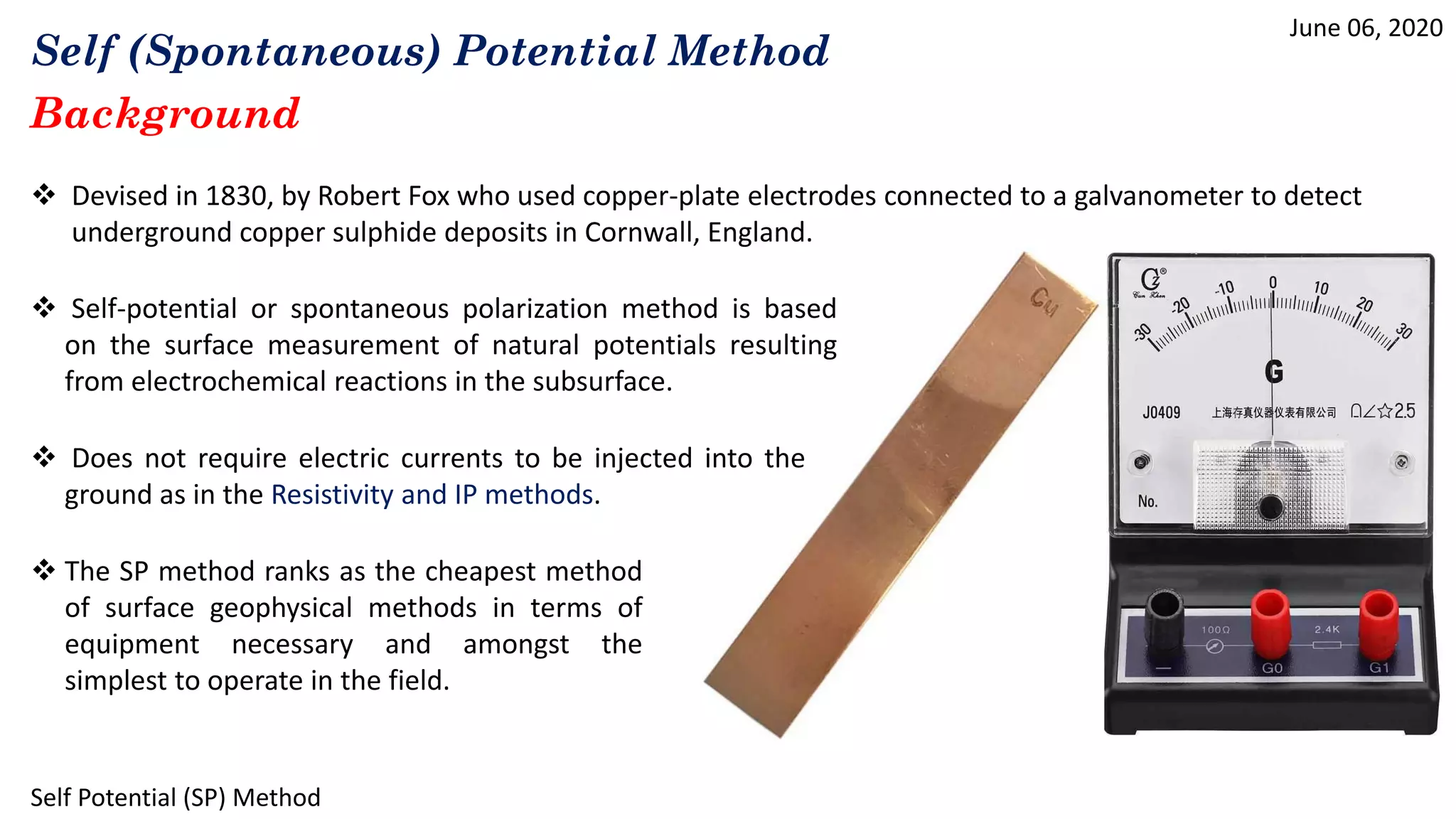

Devised in 1830, by Robert Fox who used copper-plate electrodes connected to a galvanometer to detect
underground copper sulphide deposits in Cornwall, England.
Self-potential or spontaneous polarization method is based
on the surface measurement of natural potentials resulting
from electrochemical reactions in the subsurface.
Does not require electric currents to be injected into the
ground as in the Resistivity and IP methods.
The SP method ranks as the cheapest method
of surface geophysical methods in terms of
equipment necessary and amongst the
simplest to operate in the field.
5. June 06, 2020
Self Potential (SP) Method

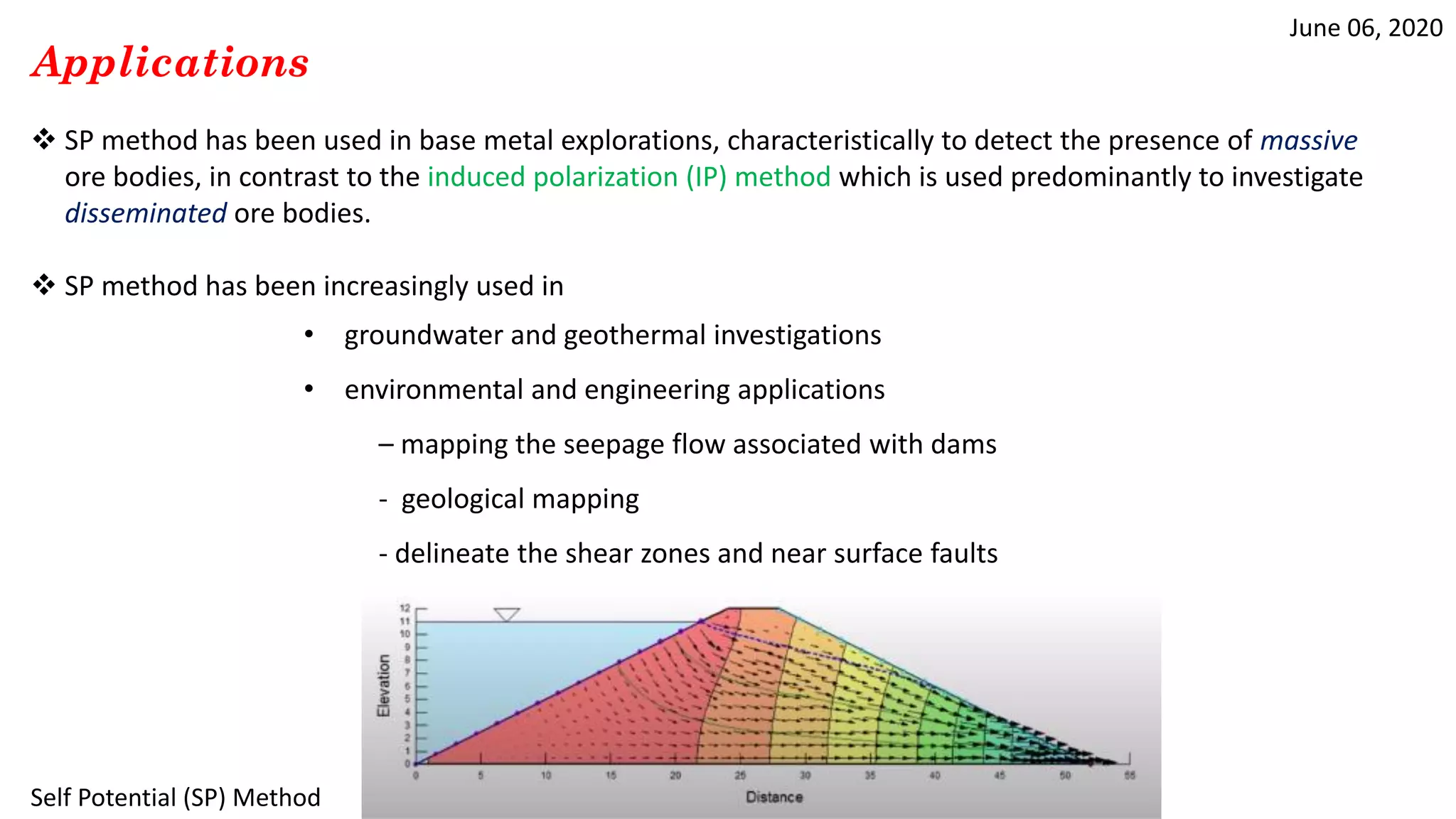

Applications
SP method has been used in base metal explorations, characteristically to detect the presence of massive
ore bodies, in contrast to the induced polarization (IP) method which is used predominantly to investigate
disseminated ore bodies.
SP method has been increasingly used in
• groundwater and geothermal investigations
• environmental and engineering applications
– mapping the seepage flow associated with dams
- geological mapping
- delineate the shear zones and near surface faults
6. June 06, 2020
Self Potential (SP) Method

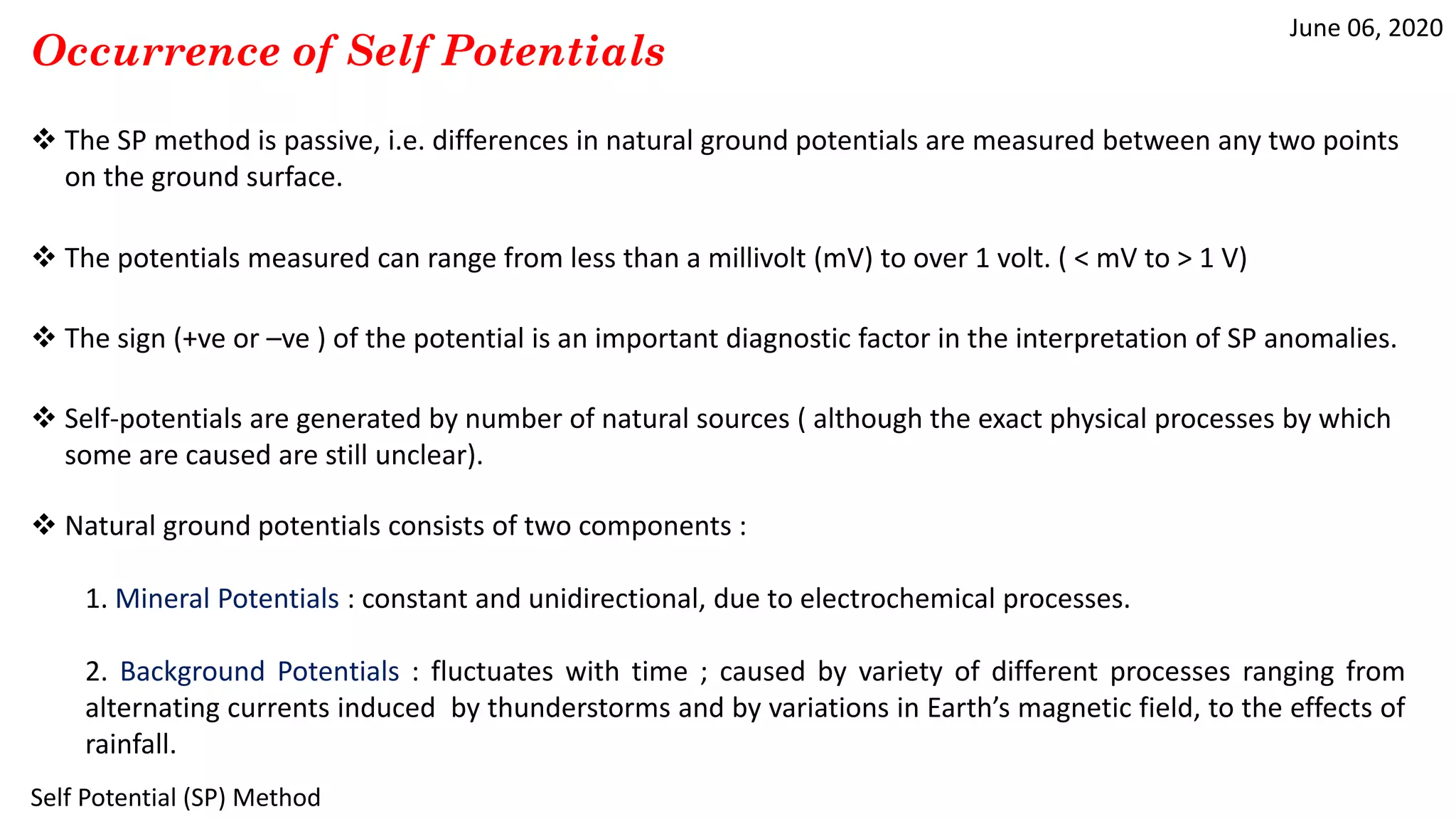

Occurrence of Self Potentials
The SP method is passive, i.e. differences in natural ground potentials are measured between any two points
on the ground surface.
The potentials measured can range from less than a millivolt (mV) to over 1 volt. ( < mV to > 1 V)
The sign (+ve or –ve ) of the potential is an important diagnostic factor in the interpretation of SP anomalies.
Self-potentials are generated by number of natural sources ( although the exact physical processes by which
some are caused are still unclear).
Natural ground potentials consists of two components :
1. Mineral Potentials : constant and unidirectional, due to electrochemical processes.
2. Background Potentials : fluctuates with time ; caused by variety of different processes ranging from
alternating currents induced by thunderstorms and by variations in Earth’s magnetic field, to the effects of
rainfall.
7. June 06, 2020
Self Potential (SP) Method

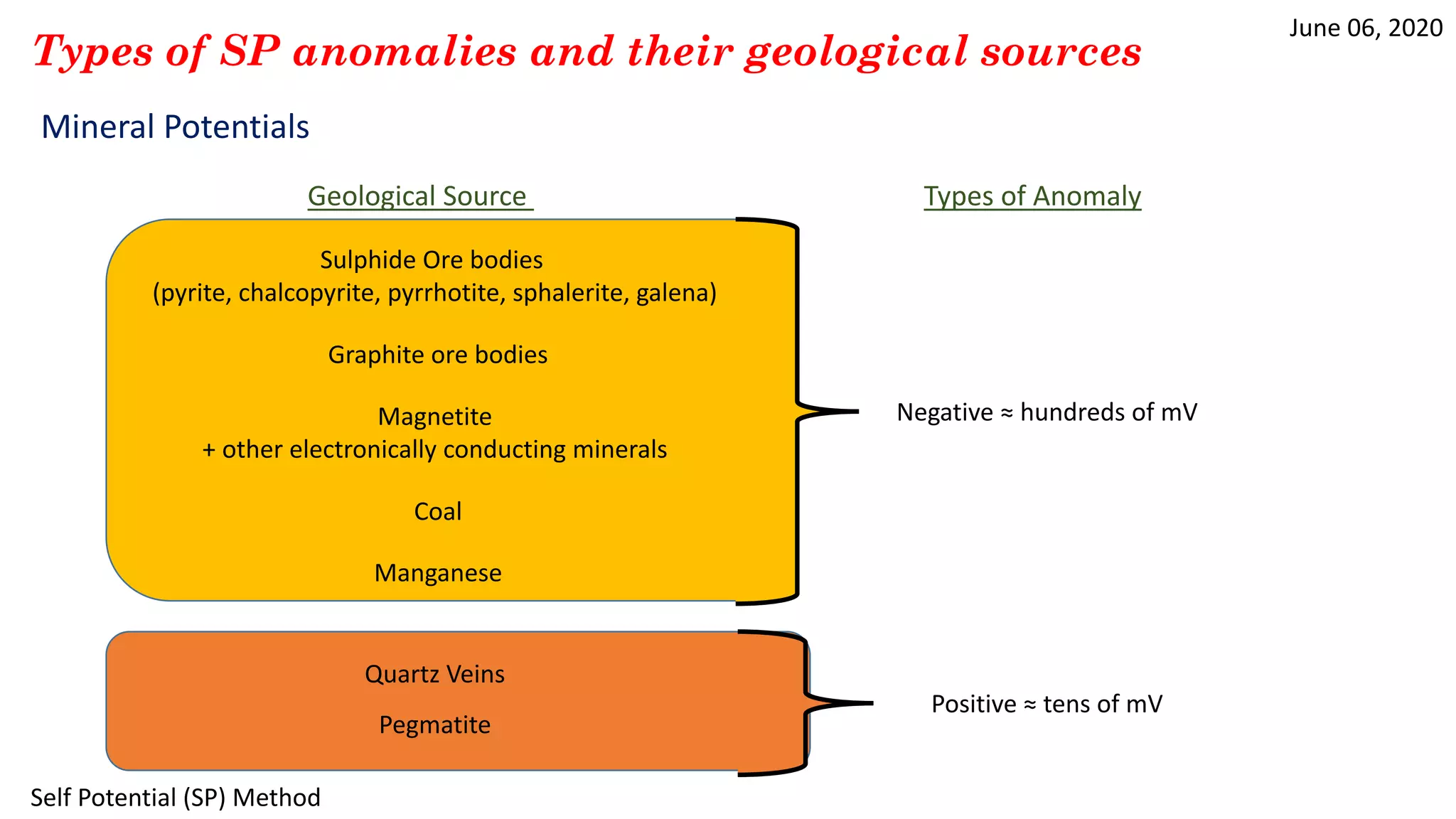

Types of SP anomalies and their geological sources
Mineral Potentials
Geological Source Types of Anomaly
Sulphide Ore bodies
(pyrite, chalcopyrite, pyrrhotite, sphalerite, galena)
Graphite ore bodies
Magnetite
+ other electronically conducting minerals
Coal
Manganese
Negative ≈ hundreds of mV
Quartz Veins
Pegmatite
Positive ≈ tens of mV
8. June 06, 2020
Self Potential (SP) Method
Types of SP anomalies and their geological sources

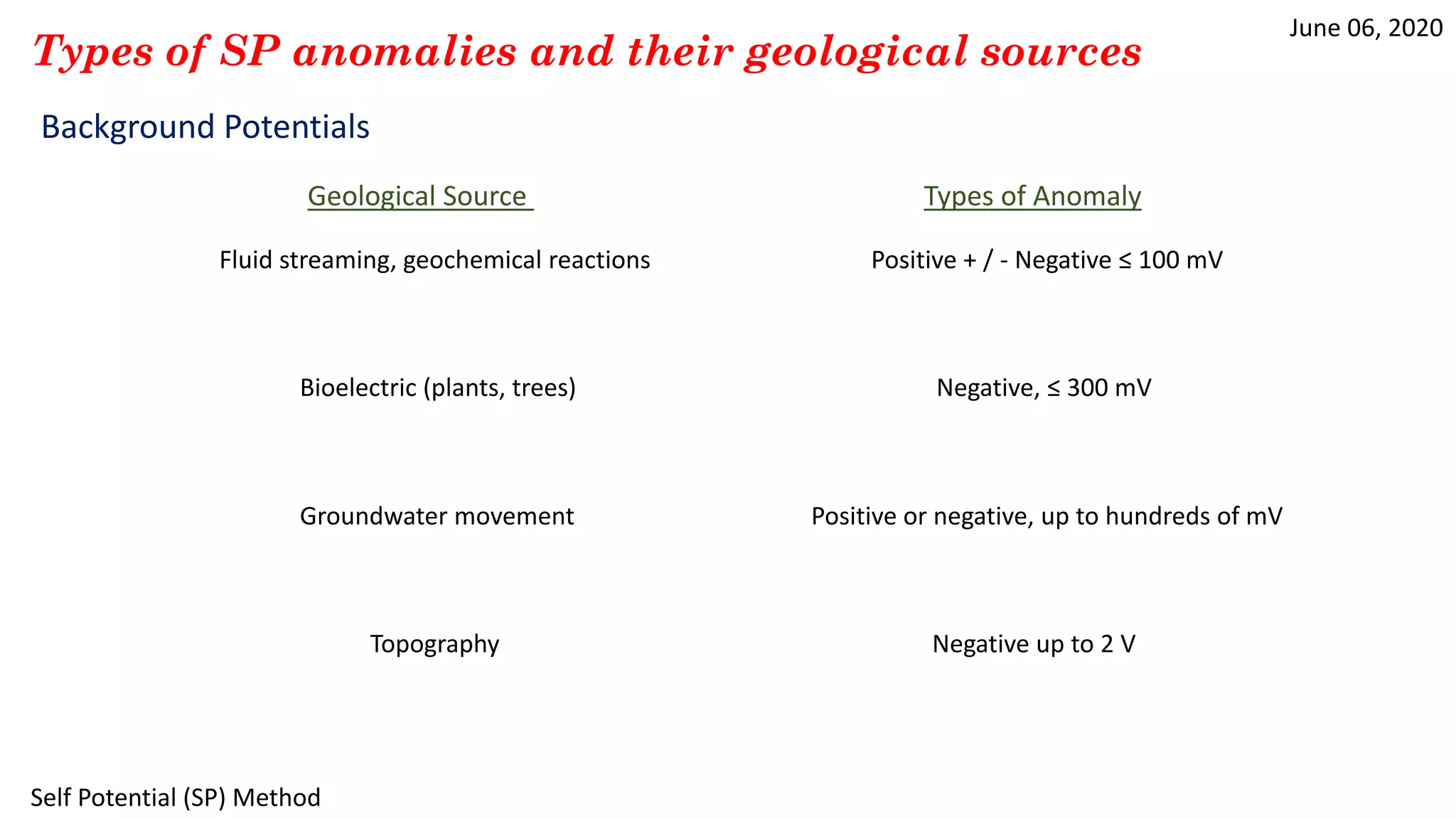

Background Potentials
Geological Source Types of Anomaly
Fluid streaming, geochemical reactions
Bioelectric (plants, trees)
Groundwater movement
Topography
Negative, ≤ 300 mV
Positive + / - Negative ≤ 100 mV
Positive or negative, up to hundreds of mV
Negative up to 2 V
9. June 06, 2020
Self Potential (SP) Method

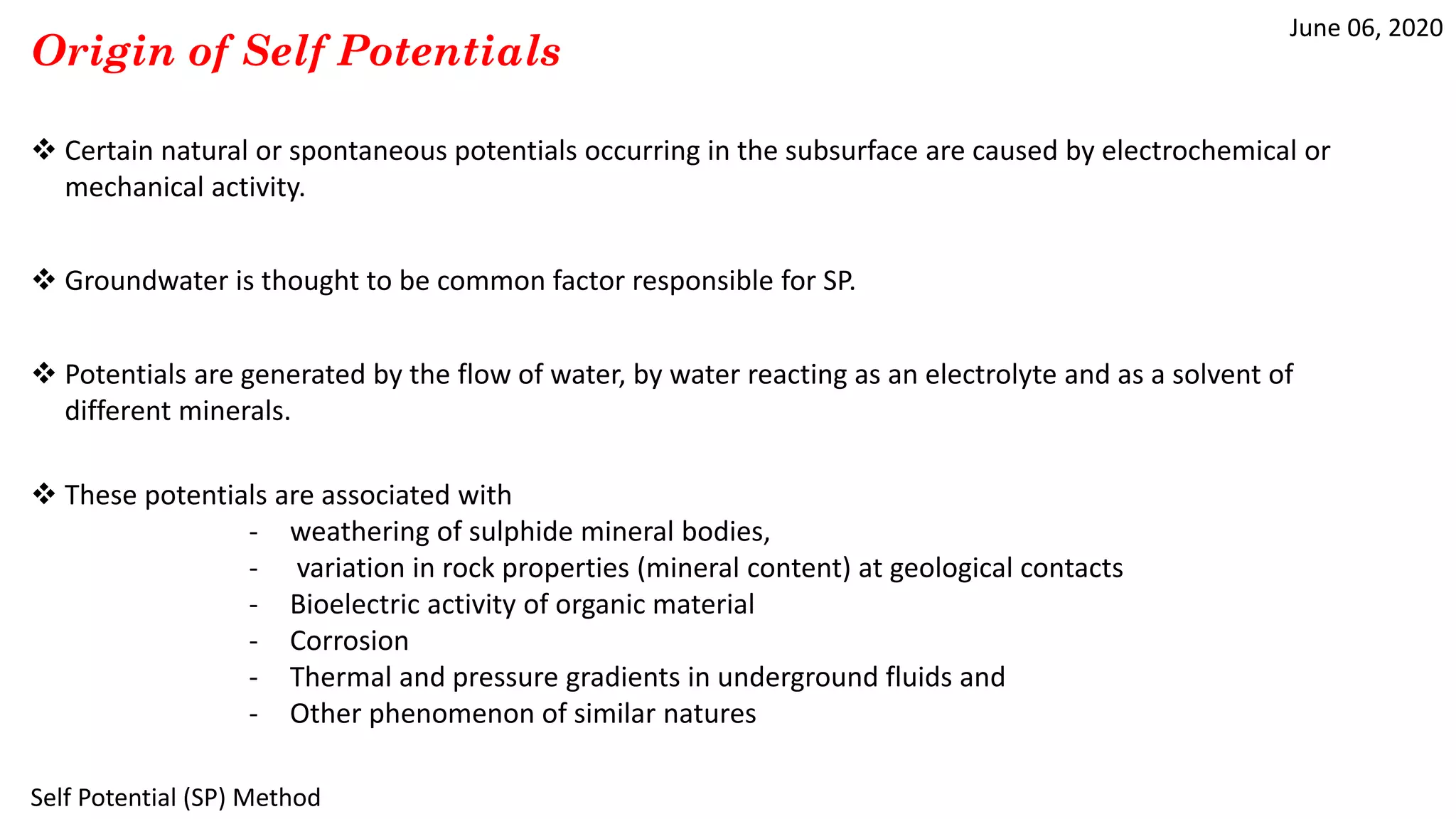

Origin of Self Potentials
Certain natural or spontaneous potentials occurring in the subsurface are caused by electrochemical or
mechanical activity.
Groundwater is thought to be common factor responsible for SP.
Potentials are generated by the flow of water, by water reacting as an electrolyte and as a solvent of
different minerals.
These potentials are associated with
- weathering of sulphide mineral bodies,
- variation in rock properties (mineral content) at geological contacts
- Bioelectric activity of organic material
- Corrosion
- Thermal and pressure gradients in underground fluids and
- Other phenomenon of similar natures
10. June 06, 2020
Self Potential (SP) Method

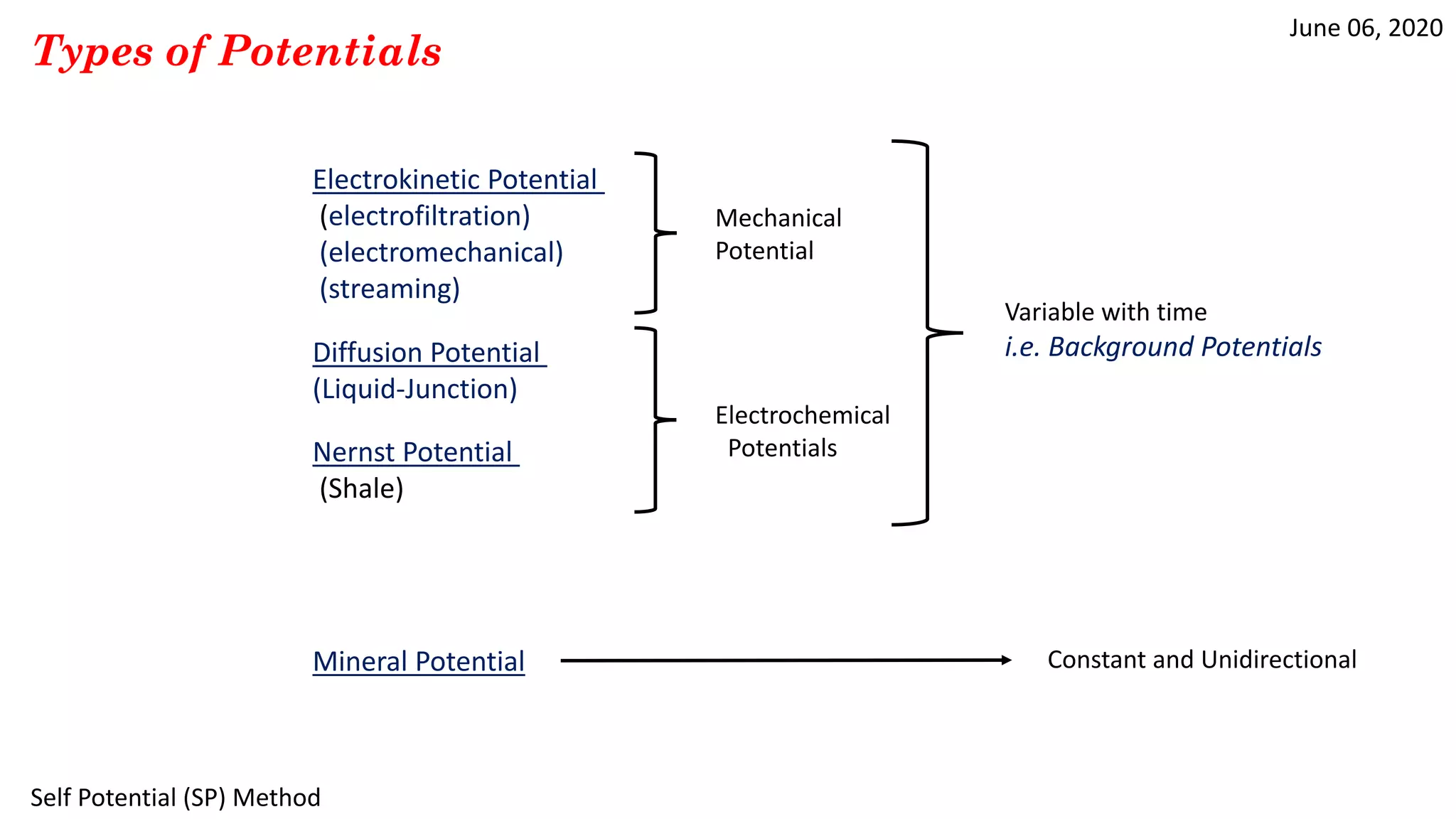

Types of Potentials

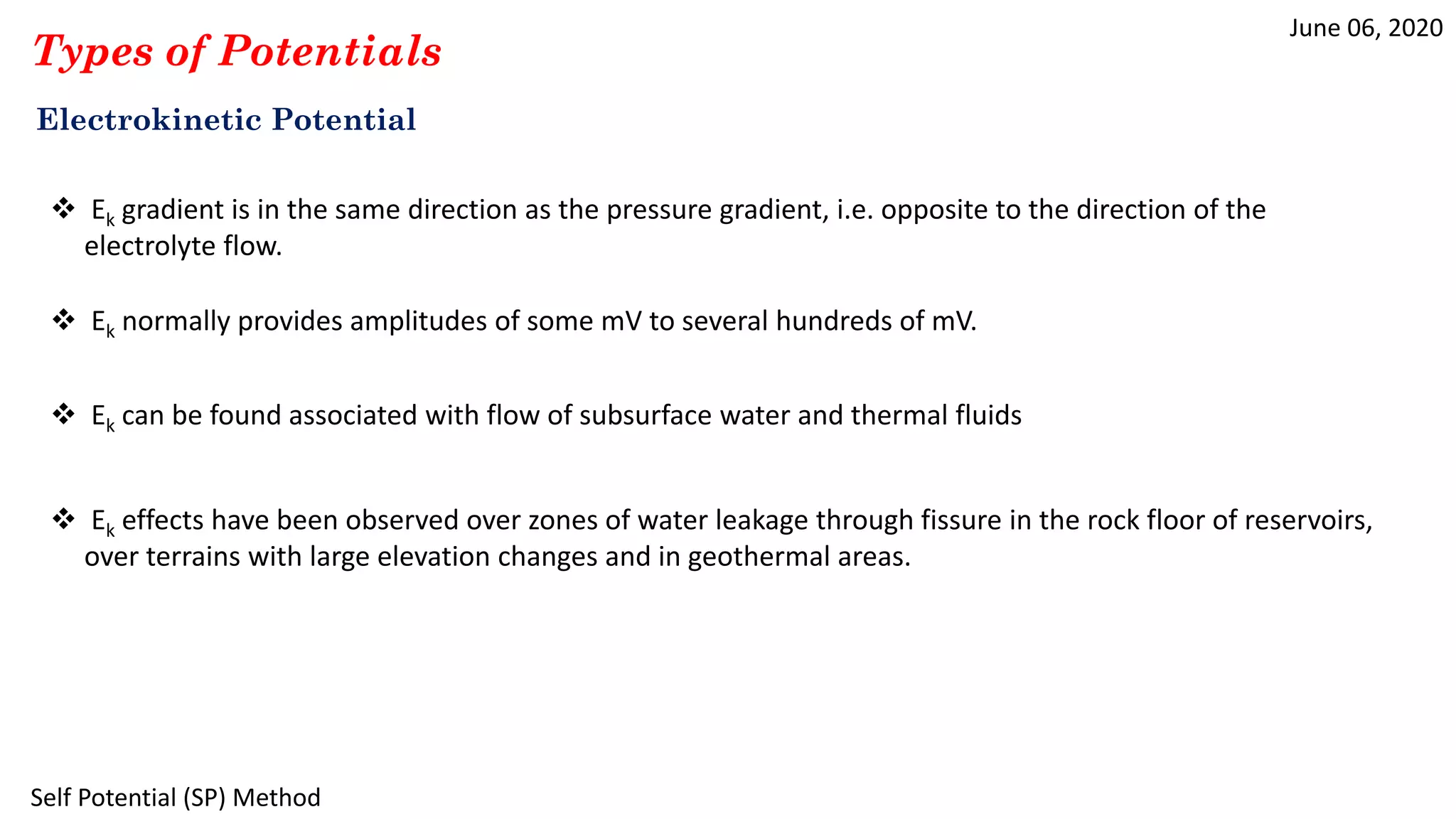

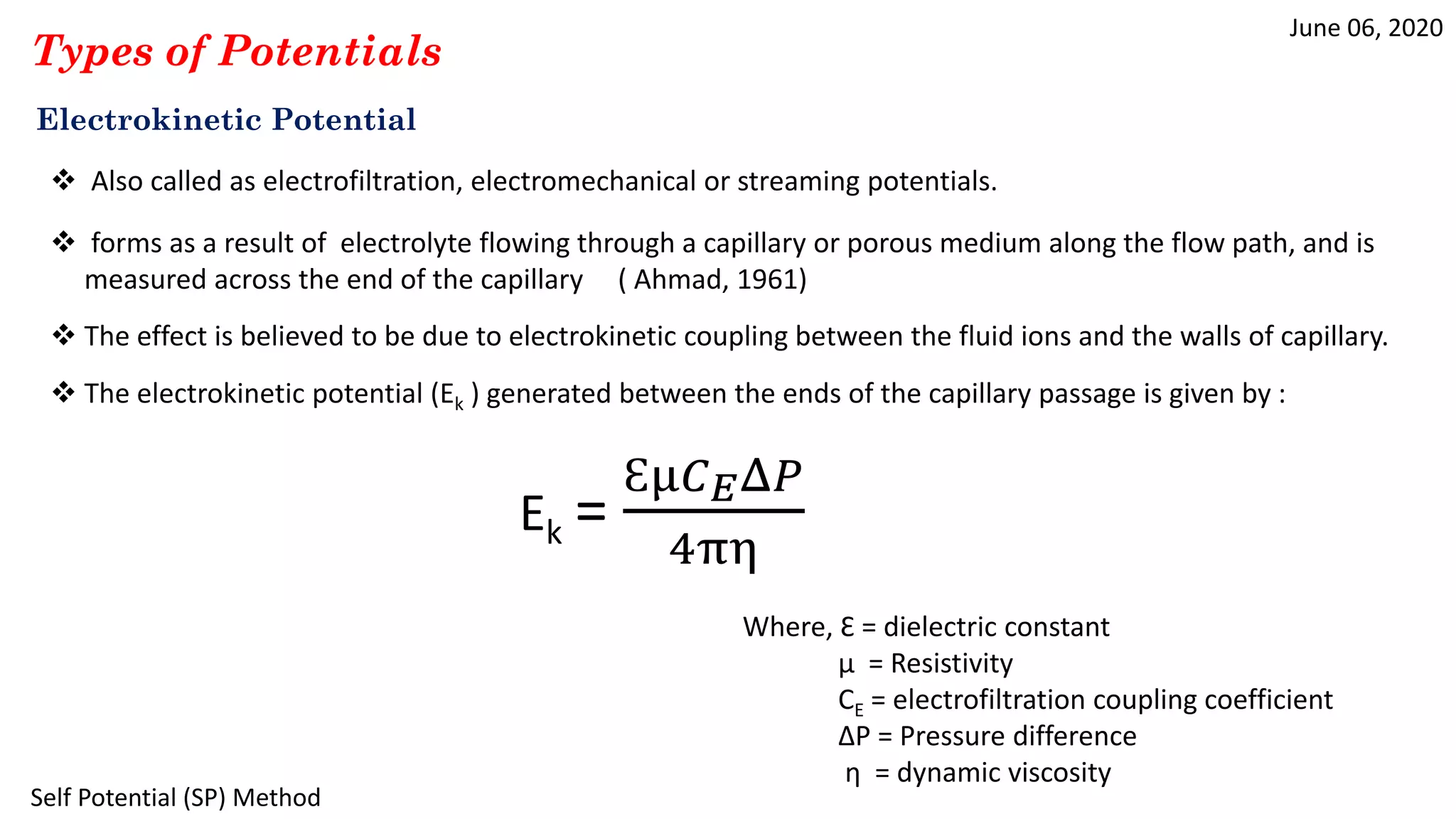

Electrokinetic Potential
(electrofiltration)
(electromechanical)
(streaming)

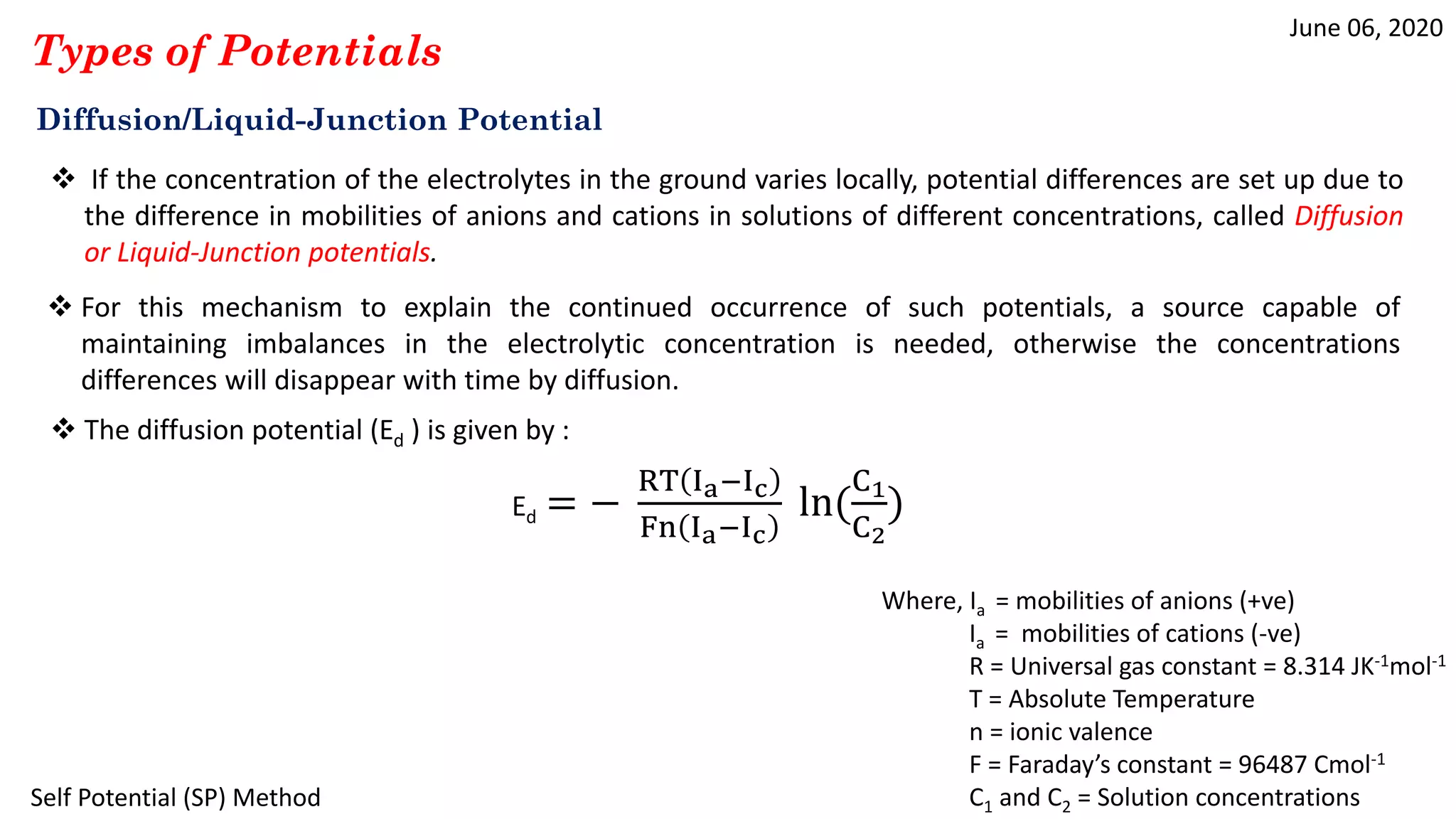

Diffusion Potential
(Liquid-Junction)
Nernst Potential
(Shale)
Electrochemical
Potentials
Mechanical
Potential
Variable with time
i.e. Background Potentials
Mineral Potential Constant and Unidirectional
11. June 06, 2020
Self Potential (SP) Method
Types of Potentials
Electrokinetic Potential
Also called as electrofiltration, electromechanical or streaming potentials.
forms as a result of electrolyte flowing through a capillary or porous medium along the flow path, and is
measured across the end of the capillary ( Ahmad, 1961)
The effect is believed to be due to electrokinetic coupling between the fluid ions and the walls of capillary.
The electrokinetic potential (Ek ) generated between the ends of the capillary passage is given by :
Ek =
Ɛµ𝐶 𝐸Δ𝑃
4πη
Where, Ɛ = dielectric constant
µ = Resistivity
CE = electrofiltration coupling coefficient
ΔP = Pressure difference
η = dynamic viscosity
12. June 06, 2020
Self Potential (SP) Method
Types of Potentials
Electrokinetic Potential
Ek gradient is in the same direction as the pressure gradient, i.e. opposite to the direction of the
electrolyte flow.
Ek normally provides amplitudes of some mV to several hundreds of mV.
Ek can be found associated with flow of subsurface water and thermal fluids
Ek effects have been observed over zones of water leakage through fissure in the rock floor of reservoirs,
over terrains with large elevation changes and in geothermal areas.
13. June 06, 2020
Self Potential (SP) Method
Types of Potentials
Diffusion/Liquid-Junction Potential
If the concentration of the electrolytes in the ground varies locally, potential differences are set up due to
the difference in mobilities of anions and cations in solutions of different concentrations, called Diffusion
or Liquid-Junction potentials.
For this mechanism to explain the continued occurrence of such potentials, a source capable of
maintaining imbalances in the electrolytic concentration is needed, otherwise the concentrations
differences will disappear with time by diffusion.
The diffusion potential (Ed ) is given by :
Ed = −
RT Ia−Ic
Fn Ia−Ic
ln(
C1
C2
)
Where, Ia = mobilities of anions (+ve)
Ia = mobilities of cations (-ve)
R = Universal gas constant = 8.314 JK-1mol-1
T = Absolute Temperature
n = ionic valence
F = Faraday’s constant = 96487 Cmol-1
C1 and C2 = Solution concentrations
14. June 06, 2020
Self Potential (SP) Method
Types of Potentials

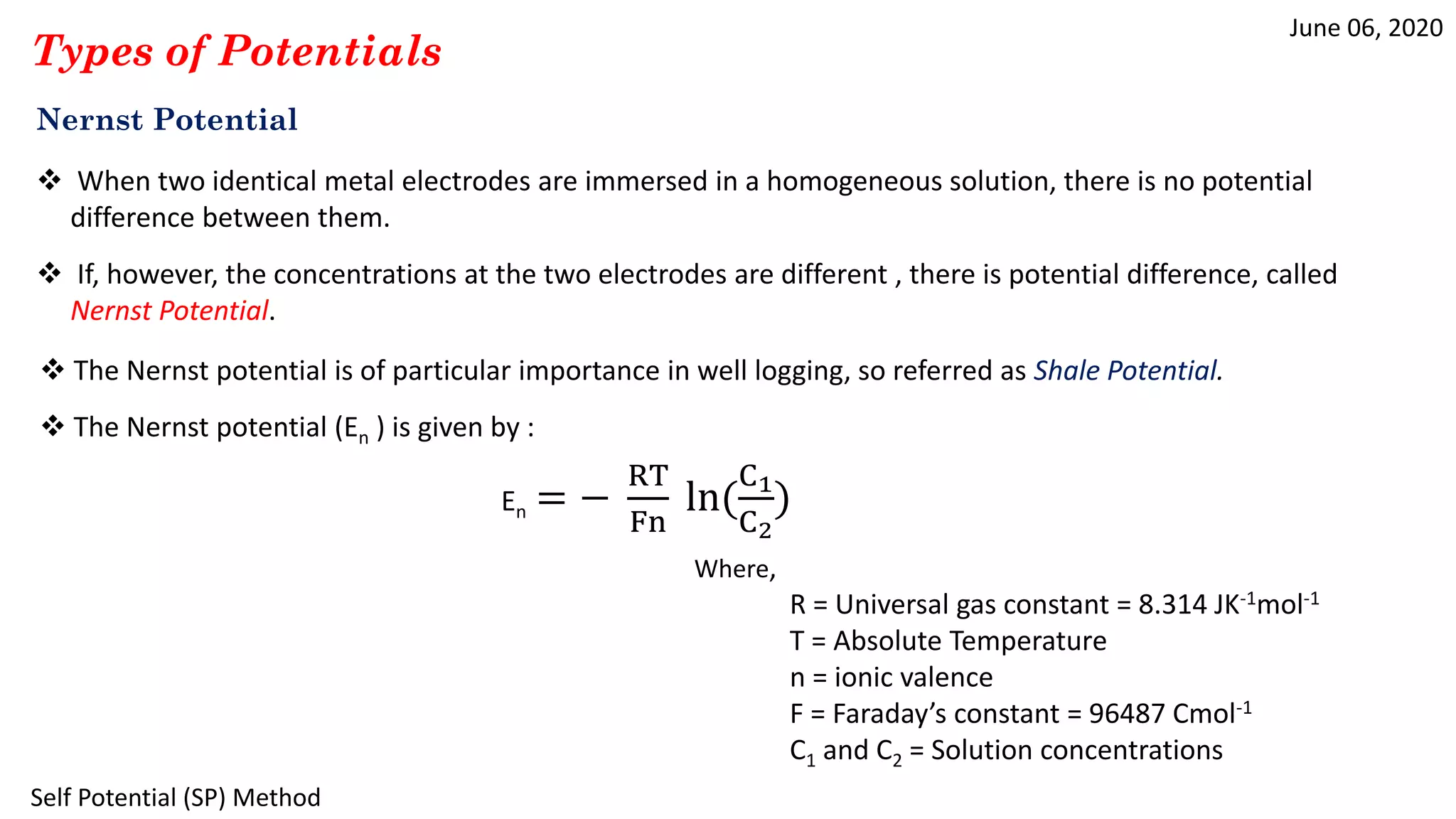

Nernst Potential
When two identical metal electrodes are immersed in a homogeneous solution, there is no potential
difference between them.
If, however, the concentrations at the two electrodes are different , there is potential difference, called
Nernst Potential.
The Nernst potential (En ) is given by :
En = −
RT
Fn
ln(
C1
C2
)
Where,
R = Universal gas constant = 8.314 JK-1mol-1
T = Absolute Temperature
n = ionic valence
F = Faraday’s constant = 96487 Cmol-1
C1 and C2 = Solution concentrations
The Nernst potential is of particular importance in well logging, so referred as Shale Potential.
15. June 06, 2020
Self Potential (SP) Method
Types of Potentials

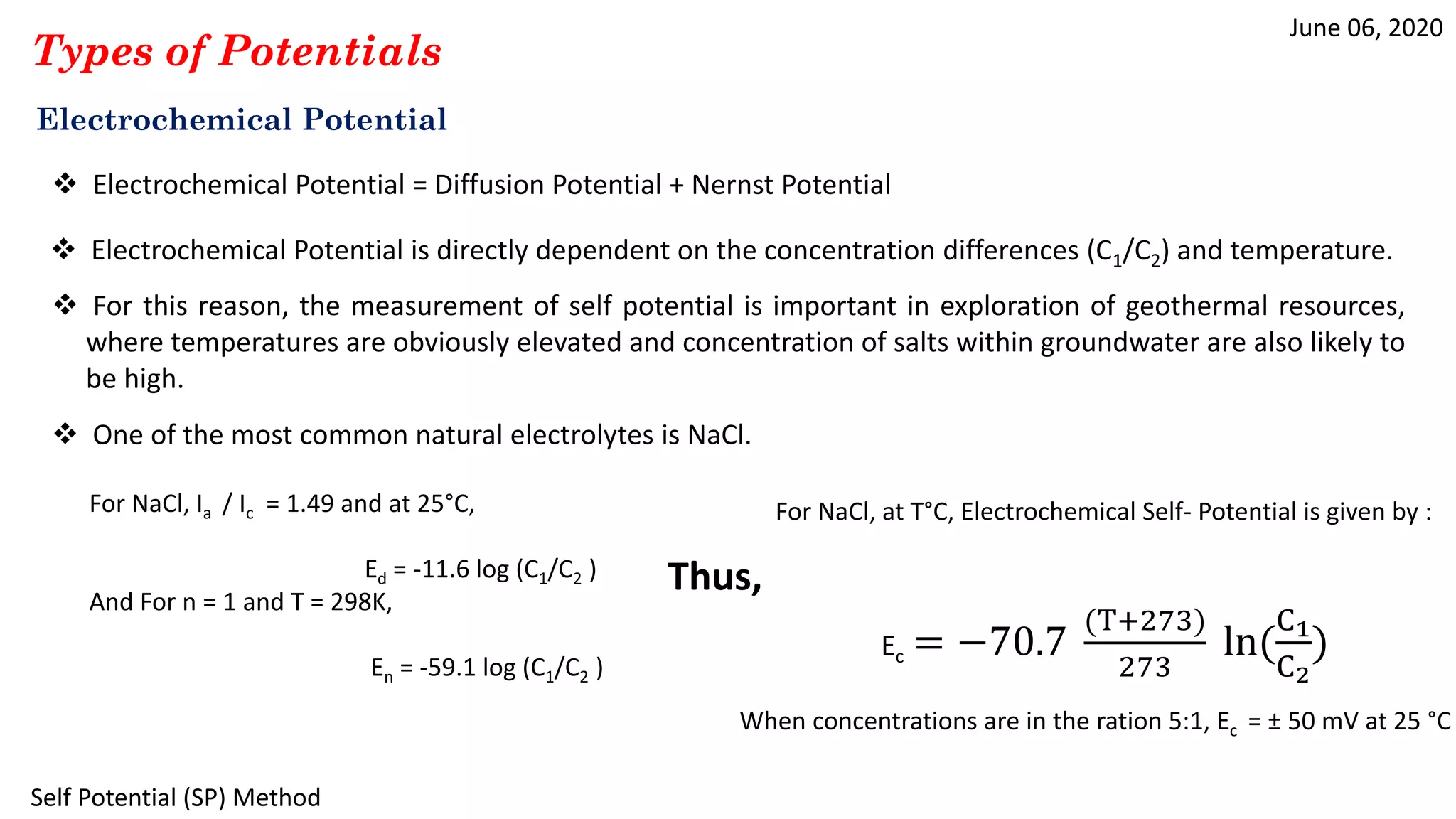

Electrochemical Potential
Electrochemical Potential = Diffusion Potential + Nernst Potential
Electrochemical Potential is directly dependent on the concentration differences (C1/C2) and temperature.
One of the most common natural electrolytes is NaCl.
For this reason, the measurement of self potential is important in exploration of geothermal resources,
where temperatures are obviously elevated and concentration of salts within groundwater are also likely to
be high.
For NaCl, Ia / Ic = 1.49 and at 25°C,
Ed = -11.6 log (C1/C2 )
And For n = 1 and T = 298K,
En = -59.1 log (C1/C2 )
Thus,
For NaCl, at T°C, Electrochemical Self- Potential is given by :
Ec = −70.7
(T+273)
273
ln(
C1
C2
)
When concentrations are in the ration 5:1, Ec = ± 50 mV at 25 °C
16. June 06, 2020
Self Potential (SP) Method
Types of Potentials

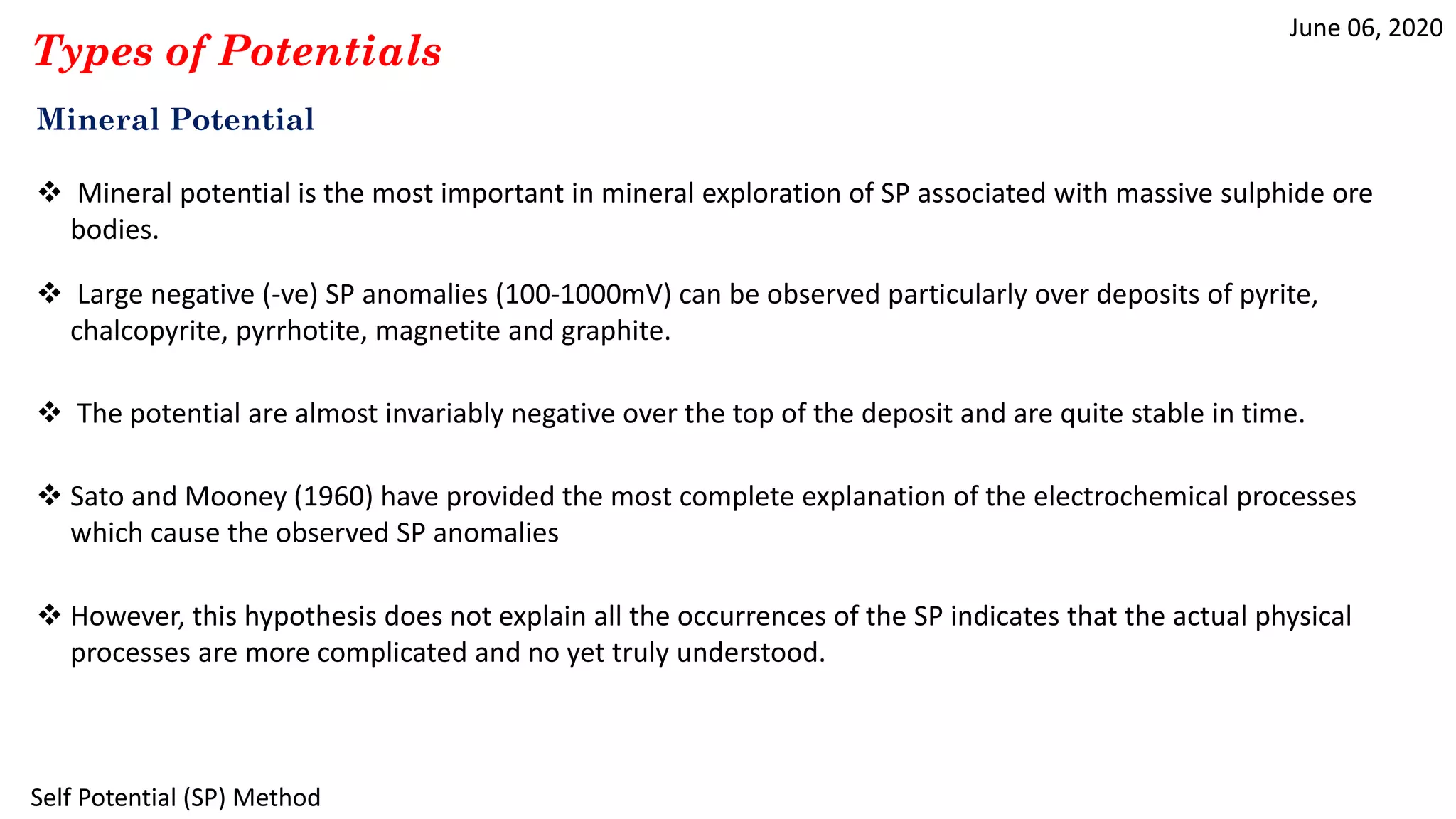

Mineral Potential
Mineral potential is the most important in mineral exploration of SP associated with massive sulphide ore
bodies.
Large negative (-ve) SP anomalies (100-1000mV) can be observed particularly over deposits of pyrite,
chalcopyrite, pyrrhotite, magnetite and graphite.
The potential are almost invariably negative over the top of the deposit and are quite stable in time.
Sato and Mooney (1960) have provided the most complete explanation of the electrochemical processes
which cause the observed SP anomalies
However, this hypothesis does not explain all the occurrences of the SP indicates that the actual physical
processes are more complicated and no yet truly understood.
17. June 06, 2020
Self Potential (SP) Method
Types of Potentials
Mineral Potential

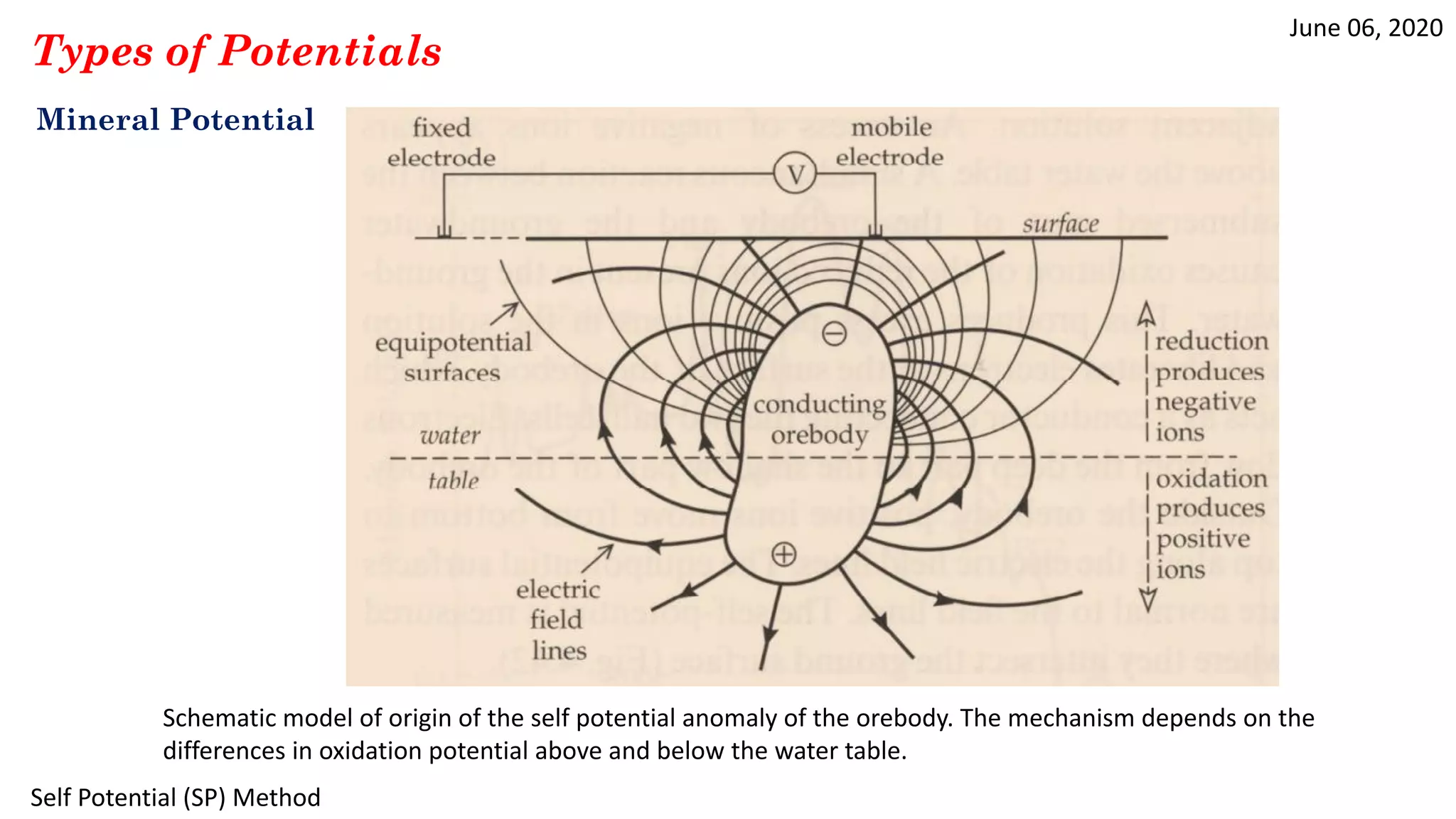

Schematic model of origin of the self potential anomaly of the orebody. The mechanism depends on the
differences in oxidation potential above and below the water table.
18. June 06, 2020
Self Potential (SP) Method
Types of Potentials
Mineral Potential

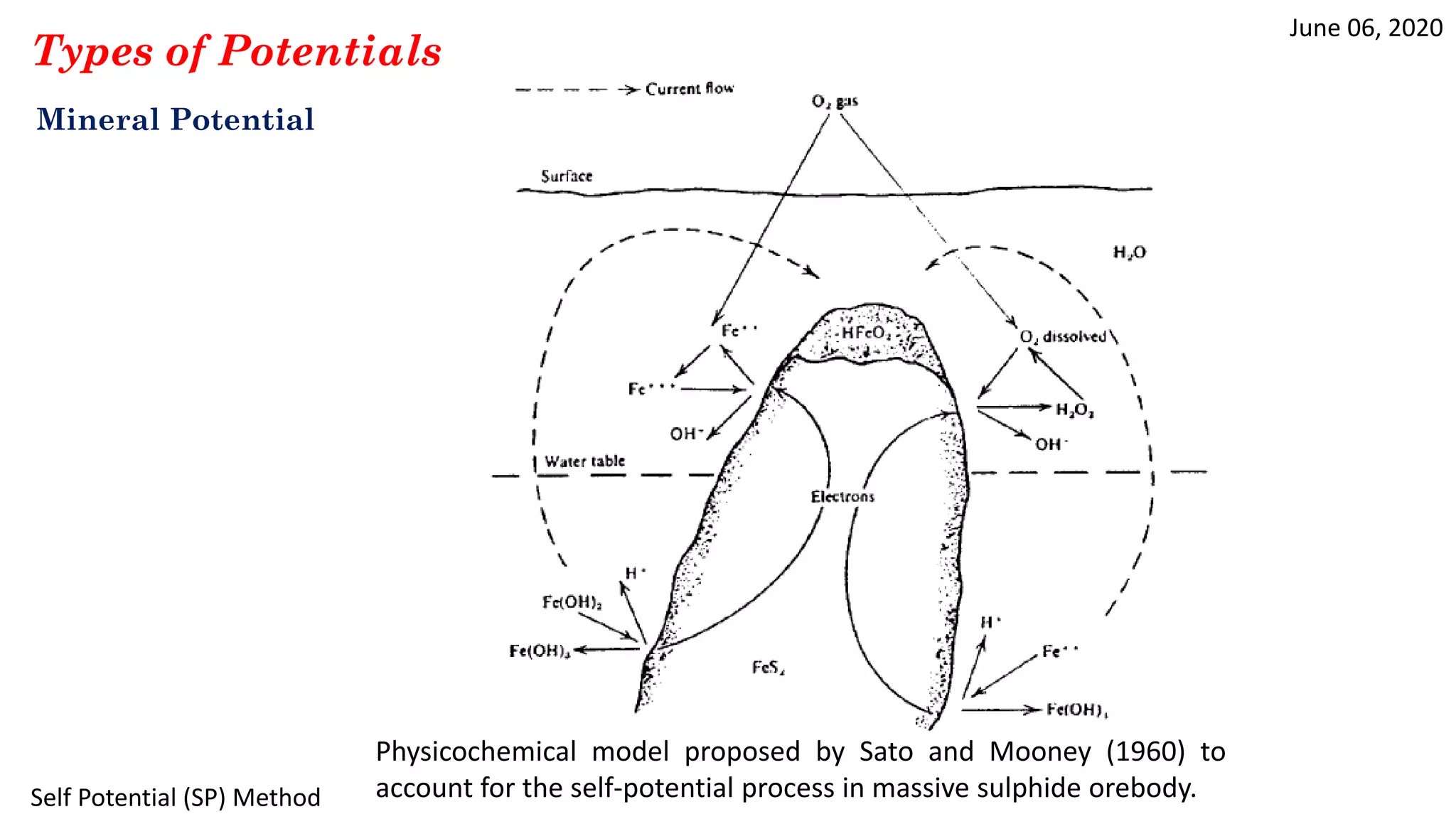

Physicochemical model proposed by Sato and Mooney (1960) to
account for the self-potential process in massive sulphide orebody.
19. June 06, 2020
Self Potential (SP) Method

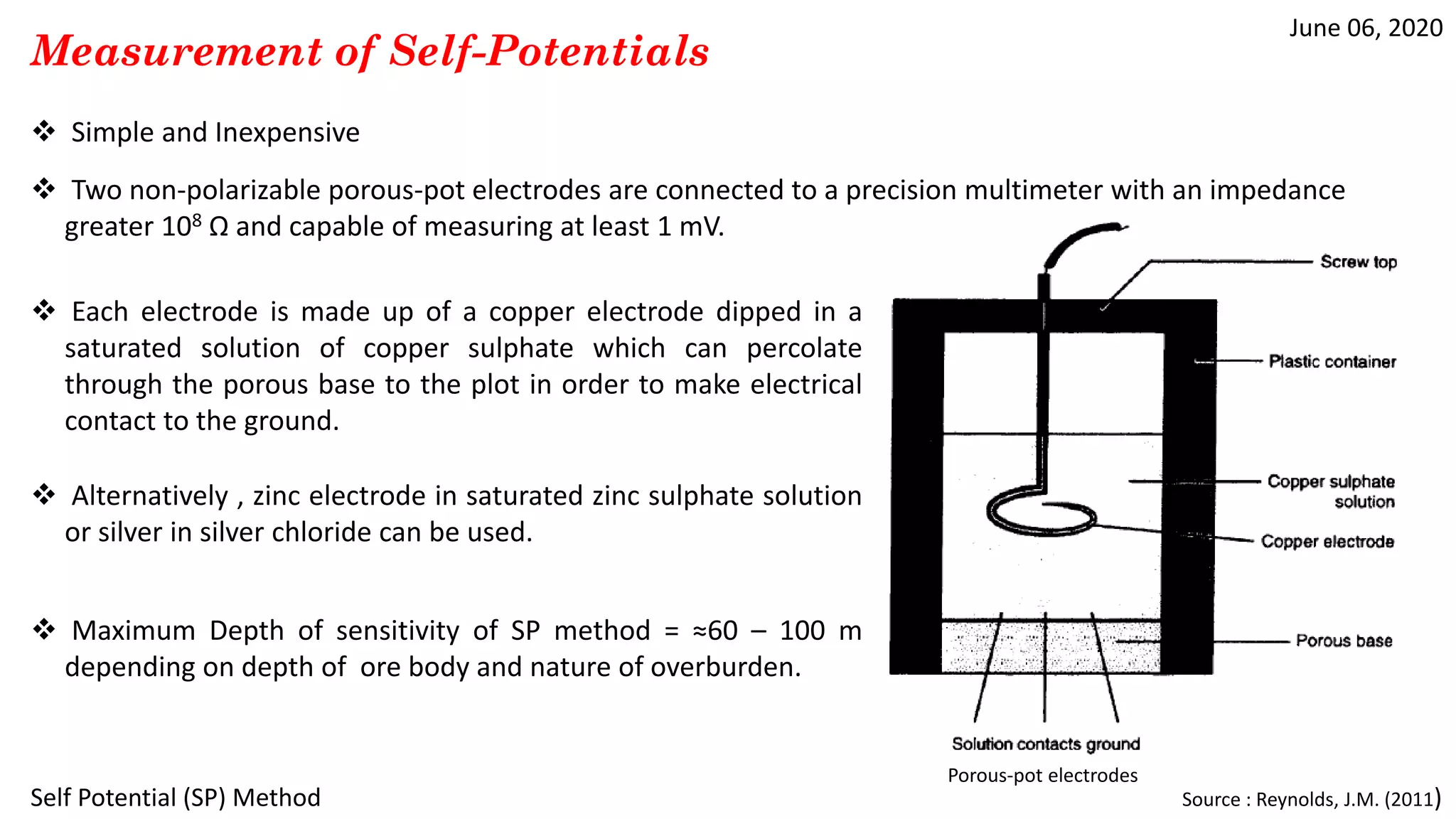

Measurement of Self-Potentials
Simple and Inexpensive
Two non-polarizable porous-pot electrodes are connected to a precision multimeter with an impedance
greater 108 Ω and capable of measuring at least 1 mV.
Each electrode is made up of a copper electrode dipped in a
saturated solution of copper sulphate which can percolate
through the porous base to the plot in order to make electrical
contact to the ground.
Alternatively , zinc electrode in saturated zinc sulphate solution
or silver in silver chloride can be used.
Source : Reynolds, J.M. (2011)
Maximum Depth of sensitivity of SP method = ≈60 – 100 m
depending on depth of ore body and nature of overburden.
Porous-pot electrodes
20. June 06, 2020
Self Potential (SP) Method
Measurement of Self-Potentials
Field Methods

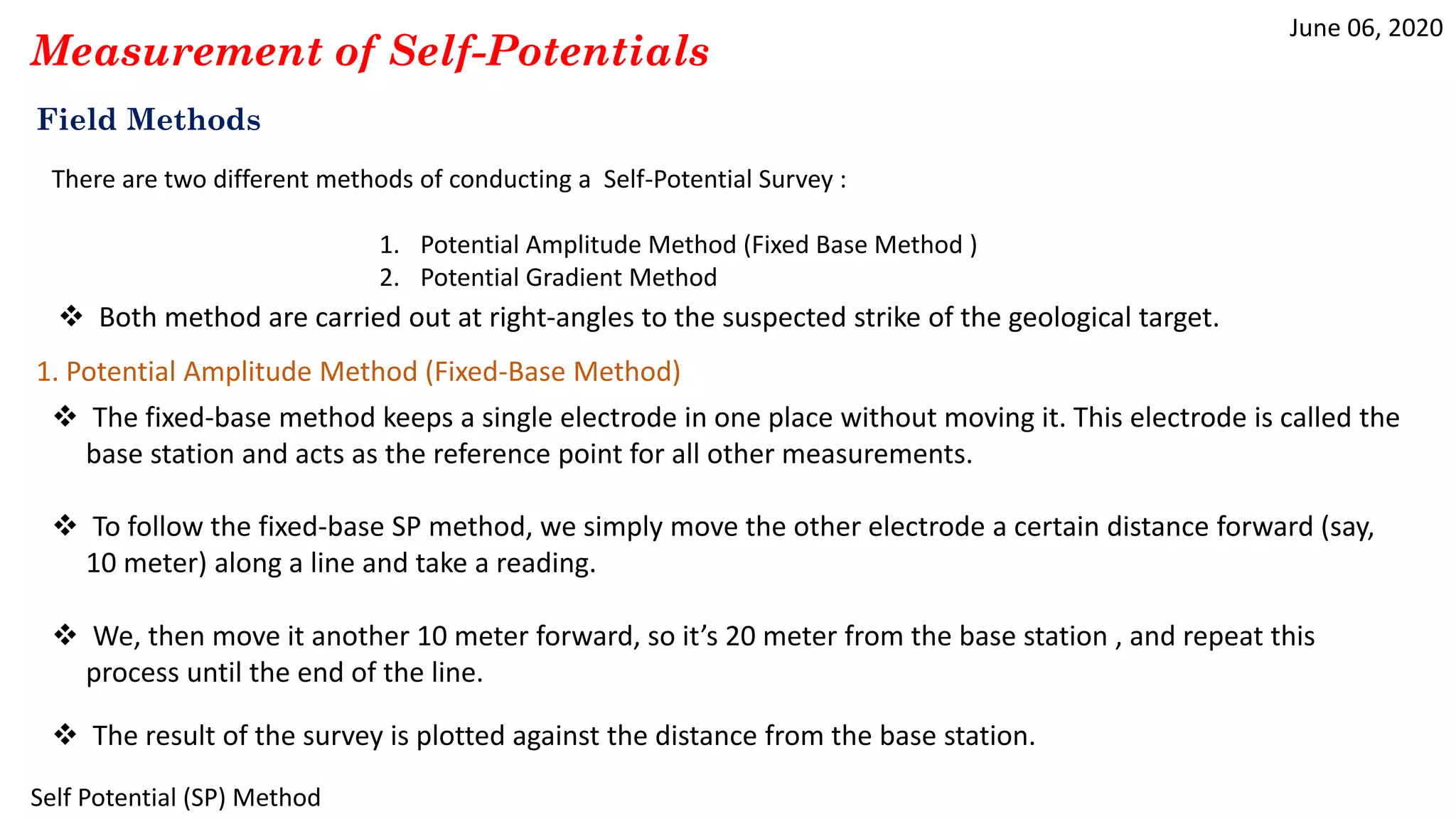

There are two different methods of conducting a Self-Potential Survey :
1. Potential Amplitude Method (Fixed Base Method )
2. Potential Gradient Method
1. Potential Amplitude Method (Fixed-Base Method)
The fixed-base method keeps a single electrode in one place without moving it. This electrode is called the
base station and acts as the reference point for all other measurements.
To follow the fixed-base SP method, we simply move the other electrode a certain distance forward (say,
10 meter) along a line and take a reading.
We, then move it another 10 meter forward, so it’s 20 meter from the base station , and repeat this
process until the end of the line.
The result of the survey is plotted against the distance from the base station.
Both method are carried out at right-angles to the suspected strike of the geological target.
21. June 06, 2020
Self Potential (SP) Method
Field Methods
Measurement of Self-Potentials
1. Potential Amplitude Method (Fixed-Base Method)
The fixed-base method does a good job
detecting small anomalies and is more
accurate than the gradient method.
But, the disadvantage is that we need a really long wire.
If we our measurement line is 1000 m , then we need a 1000 m wire to the base station.
This is cumbersome and heavy, and we have to be careful to ensure that the insulation of the wire doesn’t
get damaged or that it is pulled too hard and broken.
Strong negative anomalies indicate mineralization.
22. June 06, 2020
Self Potential (SP) Method
Field Methods
Measurement of Self-Potentials

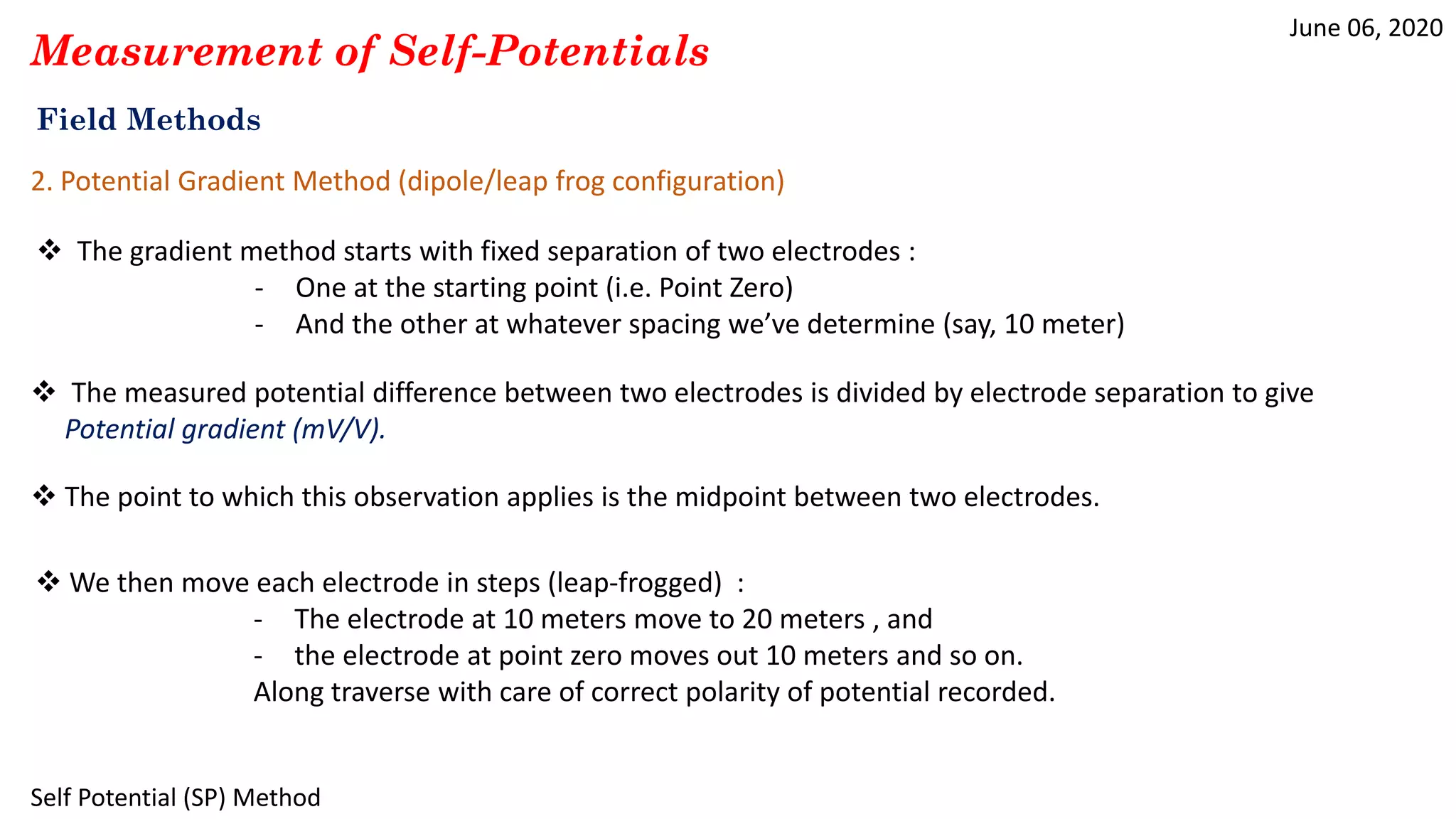

2. Potential Gradient Method (dipole/leap frog configuration)
The gradient method starts with fixed separation of two electrodes :
- One at the starting point (i.e. Point Zero)
- And the other at whatever spacing we’ve determine (say, 10 meter)
The measured potential difference between two electrodes is divided by electrode separation to give
Potential gradient (mV/V).
We then move each electrode in steps (leap-frogged) :
- The electrode at 10 meters move to 20 meters , and
- the electrode at point zero moves out 10 meters and so on.
Along traverse with care of correct polarity of potential recorded.
The point to which this observation applies is the midpoint between two electrodes.
23. June 06, 2020
Self Potential (SP) Method
Field Methods
Measurement of Self-Potentials

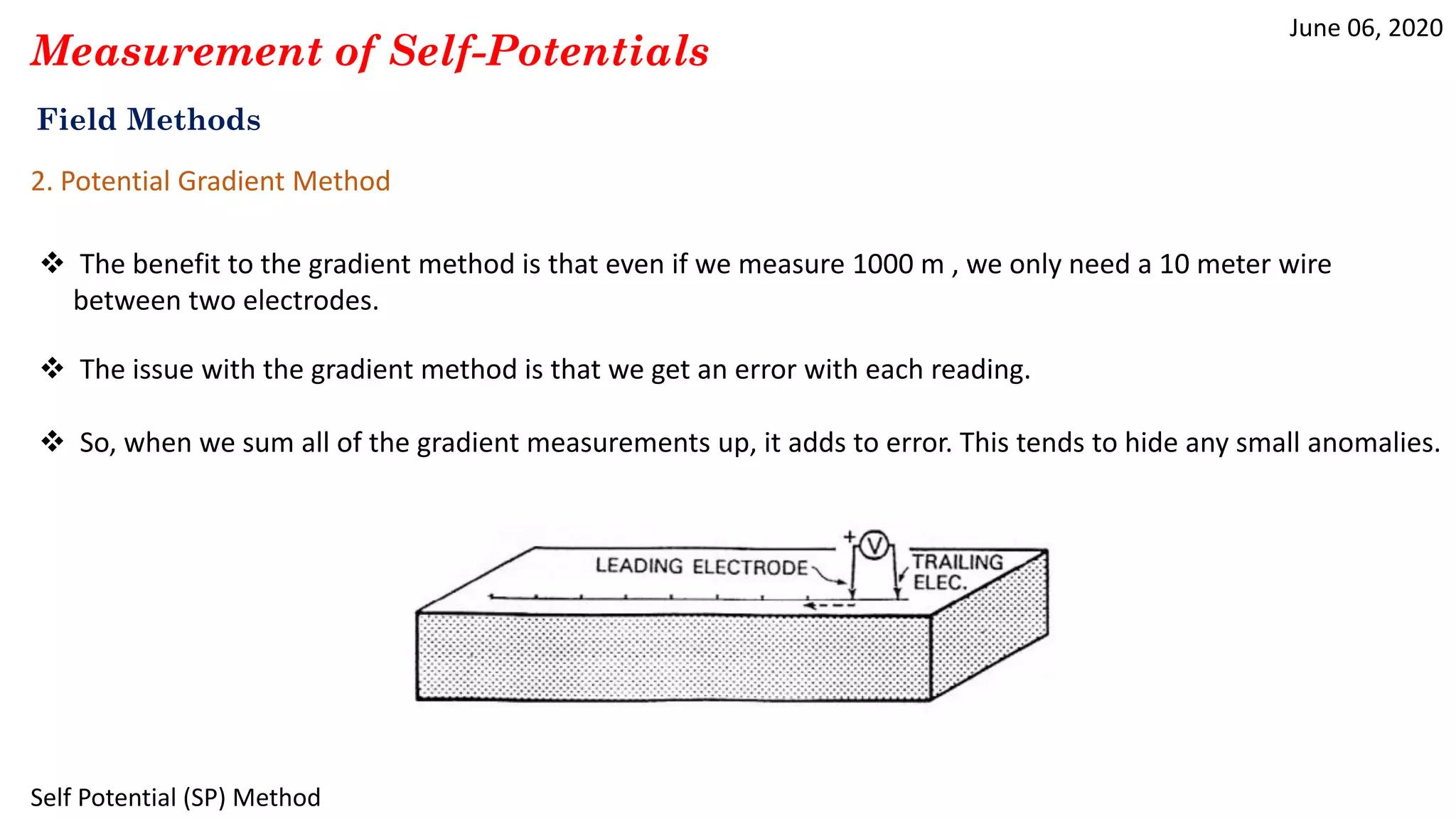

2. Potential Gradient Method
The benefit to the gradient method is that even if we measure 1000 m , we only need a 10 meter wire
between two electrodes.
The issue with the gradient method is that we get an error with each reading.
So, when we sum all of the gradient measurements up, it adds to error. This tends to hide any small anomalies.
24. June 06, 2020
Self Potential (SP) Method
Interpretation of Self-Potential Data

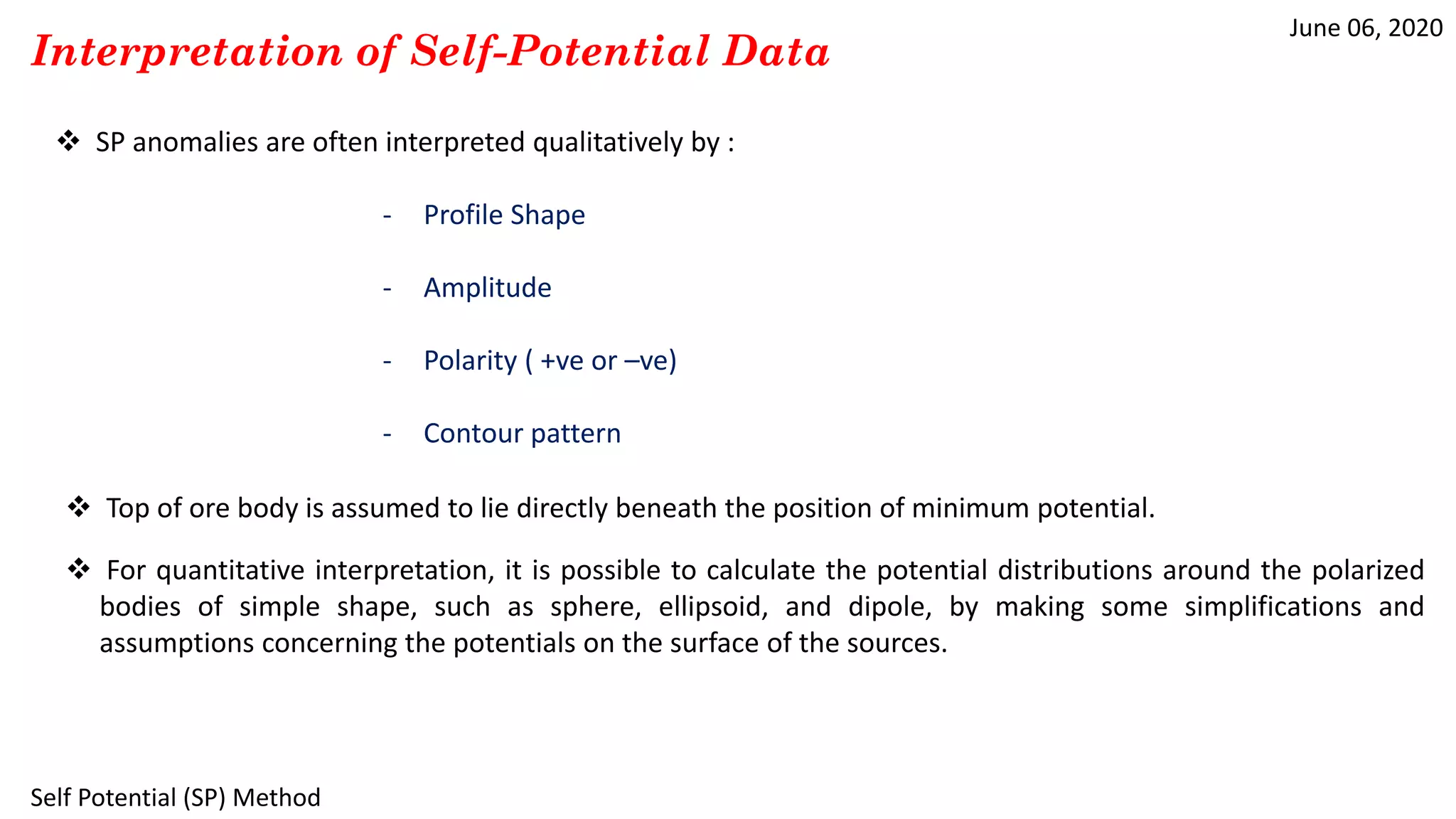

SP anomalies are often interpreted qualitatively by :
- Profile Shape
- Amplitude
- Polarity ( +ve or –ve)
- Contour pattern
Top of ore body is assumed to lie directly beneath the position of minimum potential.
For quantitative interpretation, it is possible to calculate the potential distributions around the polarized
bodies of simple shape, such as sphere, ellipsoid, and dipole, by making some simplifications and
assumptions concerning the potentials on the surface of the sources.
25. June 06, 2020
Self Potential (SP) Method
Interpretation of Self-Potential Data
Source : Telford et. al, (1990)

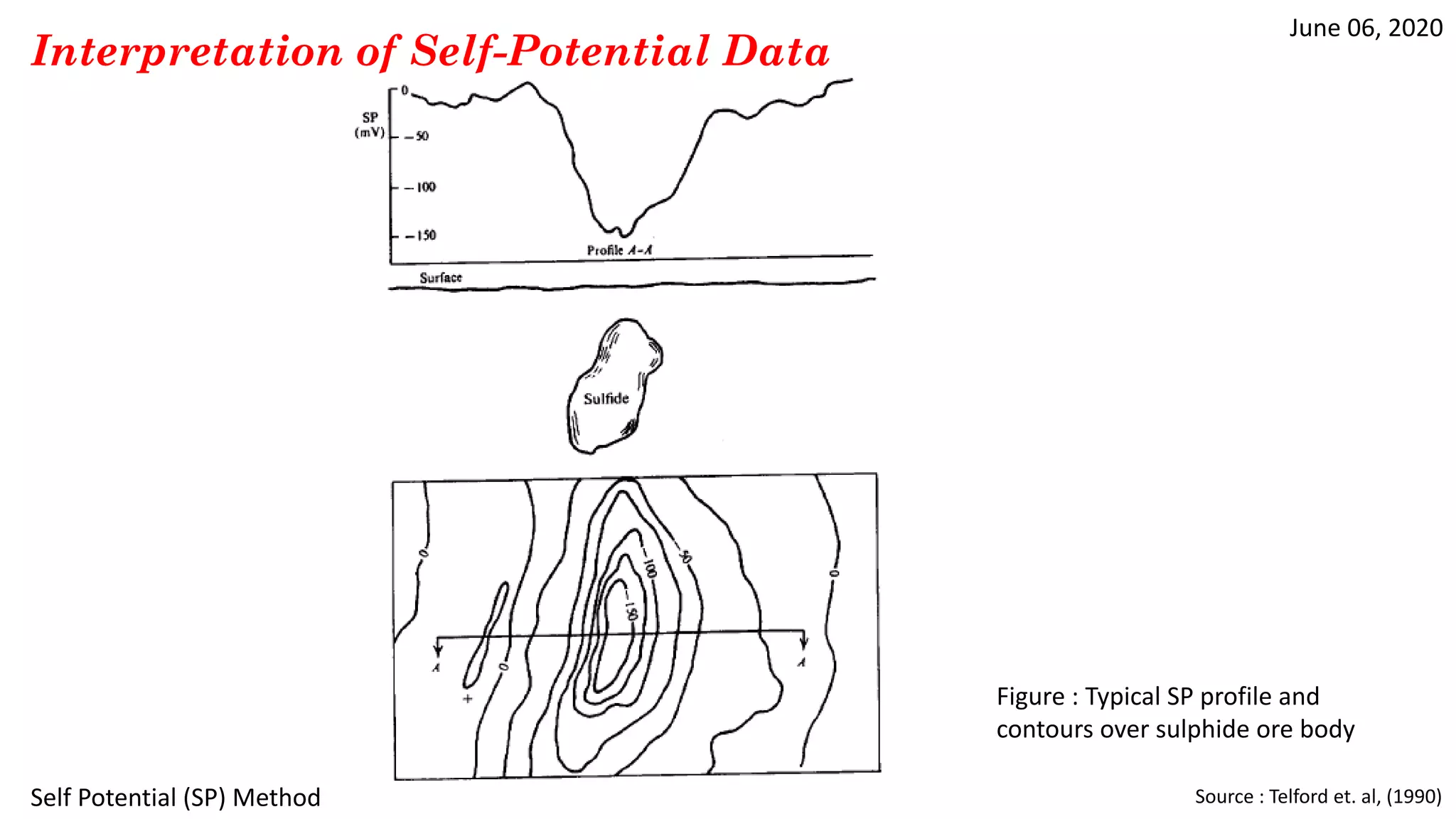

Figure : Typical SP profile and
contours over sulphide ore body
26. June 06, 2020
Self Potential (SP) Method
Interpretation of Self-Potential Data

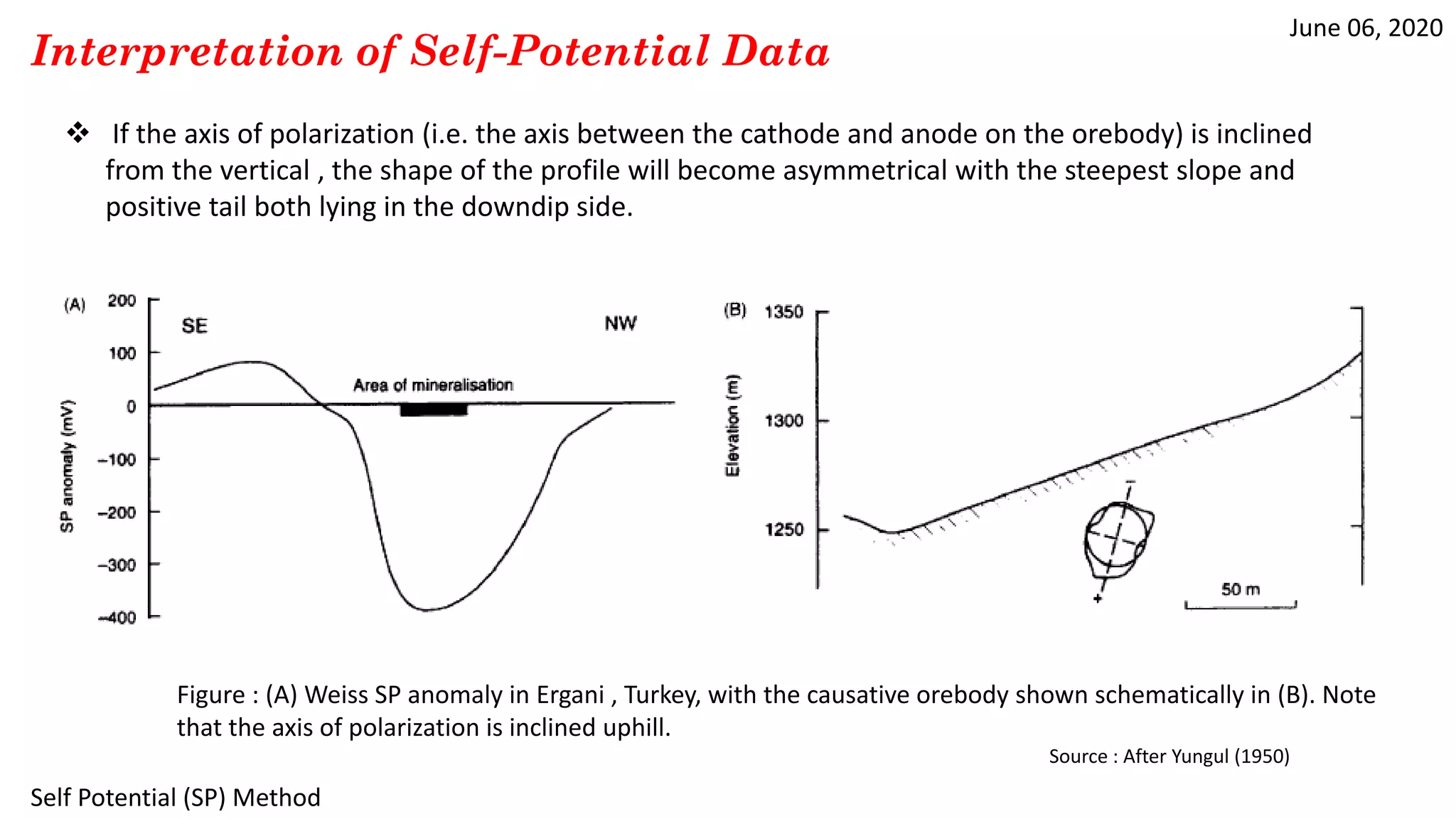

Figure : (A) Weiss SP anomaly in Ergani , Turkey, with the causative orebody shown schematically in (B). Note
that the axis of polarization is inclined uphill.
Source : After Yungul (1950)
If the axis of polarization (i.e. the axis between the cathode and anode on the orebody) is inclined
from the vertical , the shape of the profile will become asymmetrical with the steepest slope and
positive tail both lying in the downdip side.
27. June 06, 2020
Self Potential (SP) Method
Interpretation of Self-Potential Data

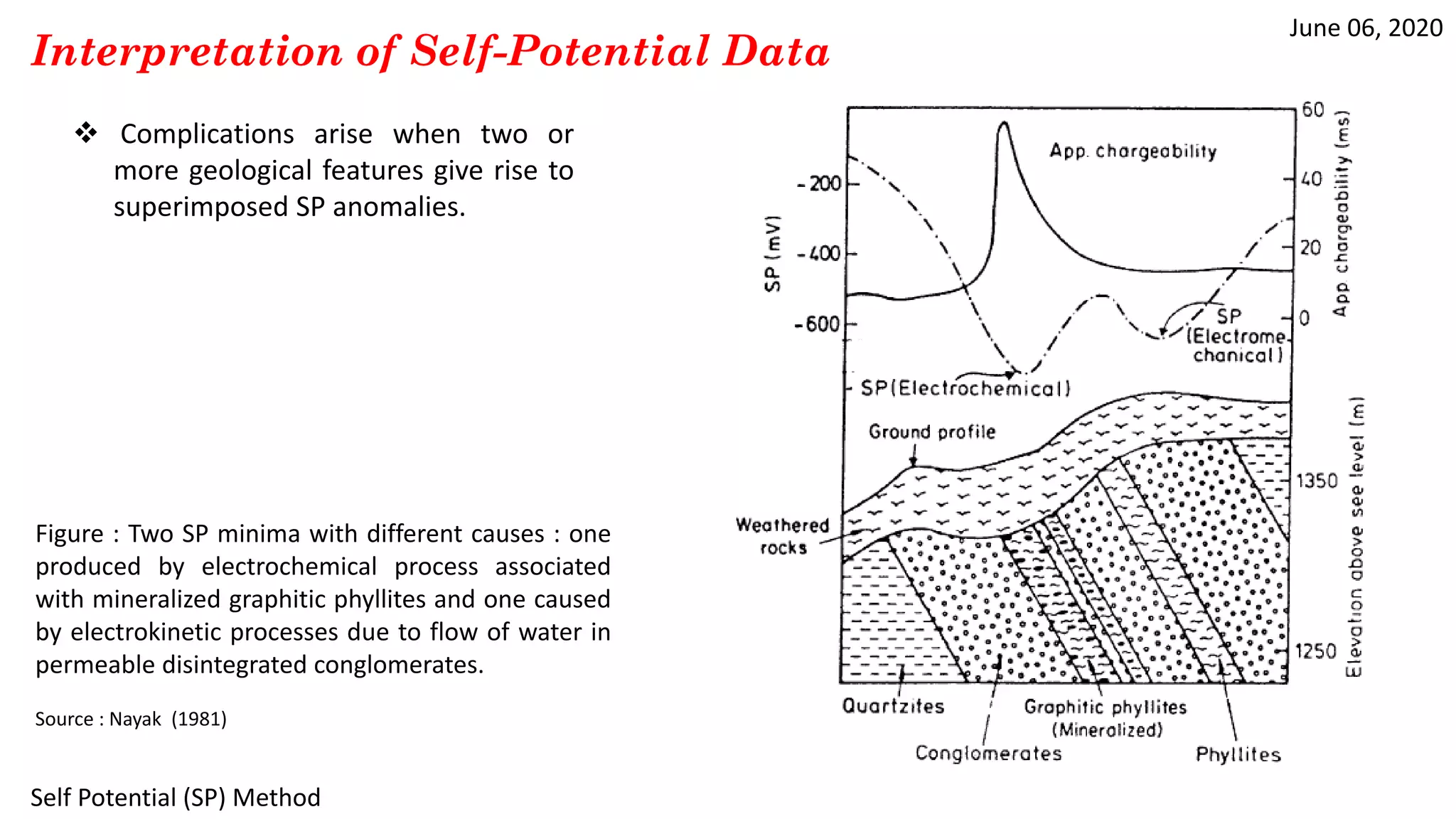

Figure : Two SP minima with different causes : one
produced by electrochemical process associated
with mineralized graphitic phyllites and one caused
by electrokinetic processes due to flow of water in
permeable disintegrated conglomerates.
Source : Nayak (1981)
Complications arise when two or
more geological features give rise to
superimposed SP anomalies.
28. June 06, 2020
Self Potential (SP) Method
Interpretation of Self-Potential Data
However, if similar sized bodies are present but with different dips, the resultant anomaly can be used to
resolve between them.

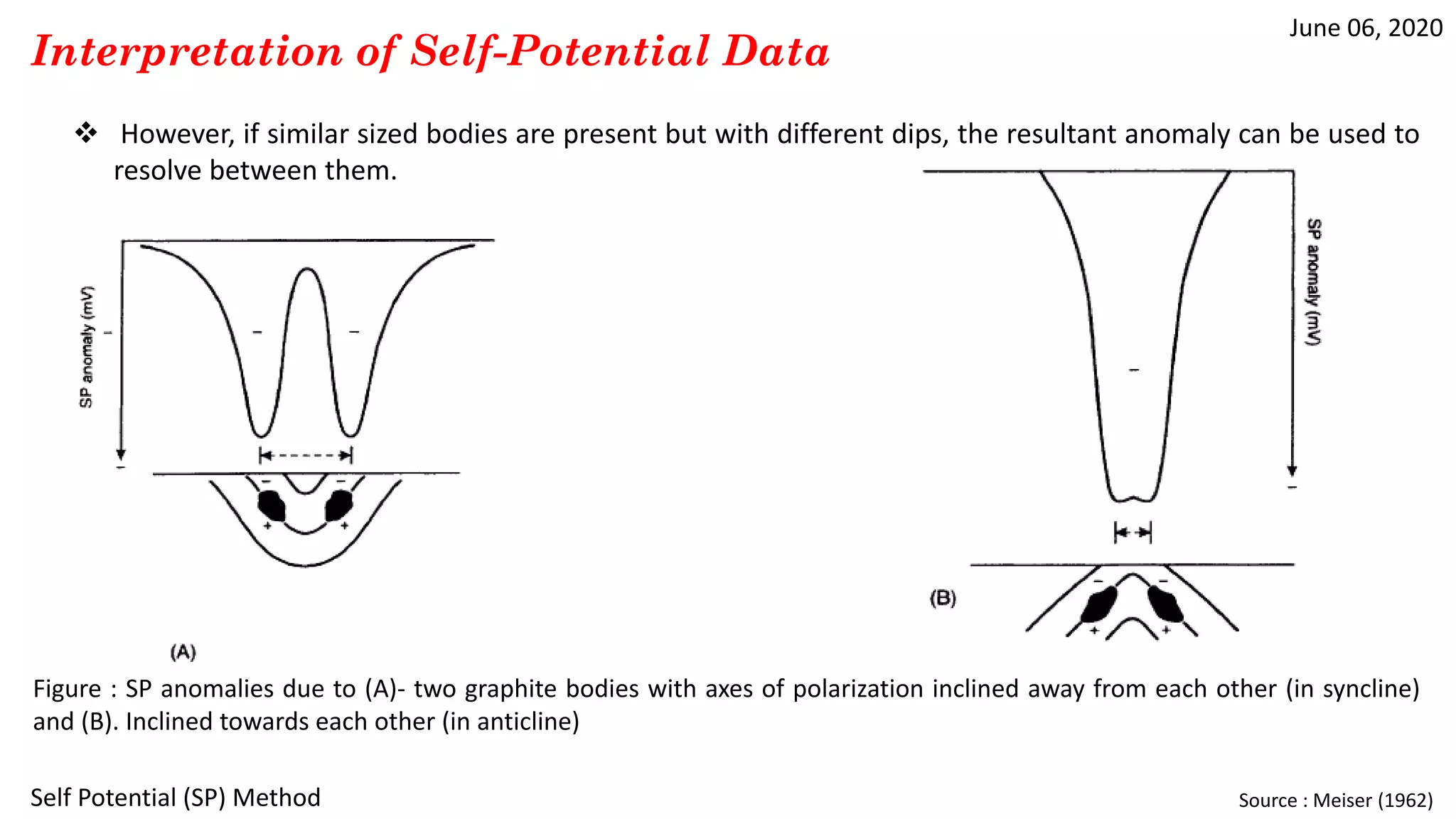

Figure : SP anomalies due to (A)- two graphite bodies with axes of polarization inclined away from each other (in syncline)
and (B). Inclined towards each other (in anticline)
Source : Meiser (1962)
29. June 06, 2020
Self Potential (SP) Method
Interpretation of Self-Potential Data
Source : Meiser (1962)
Observed Profile

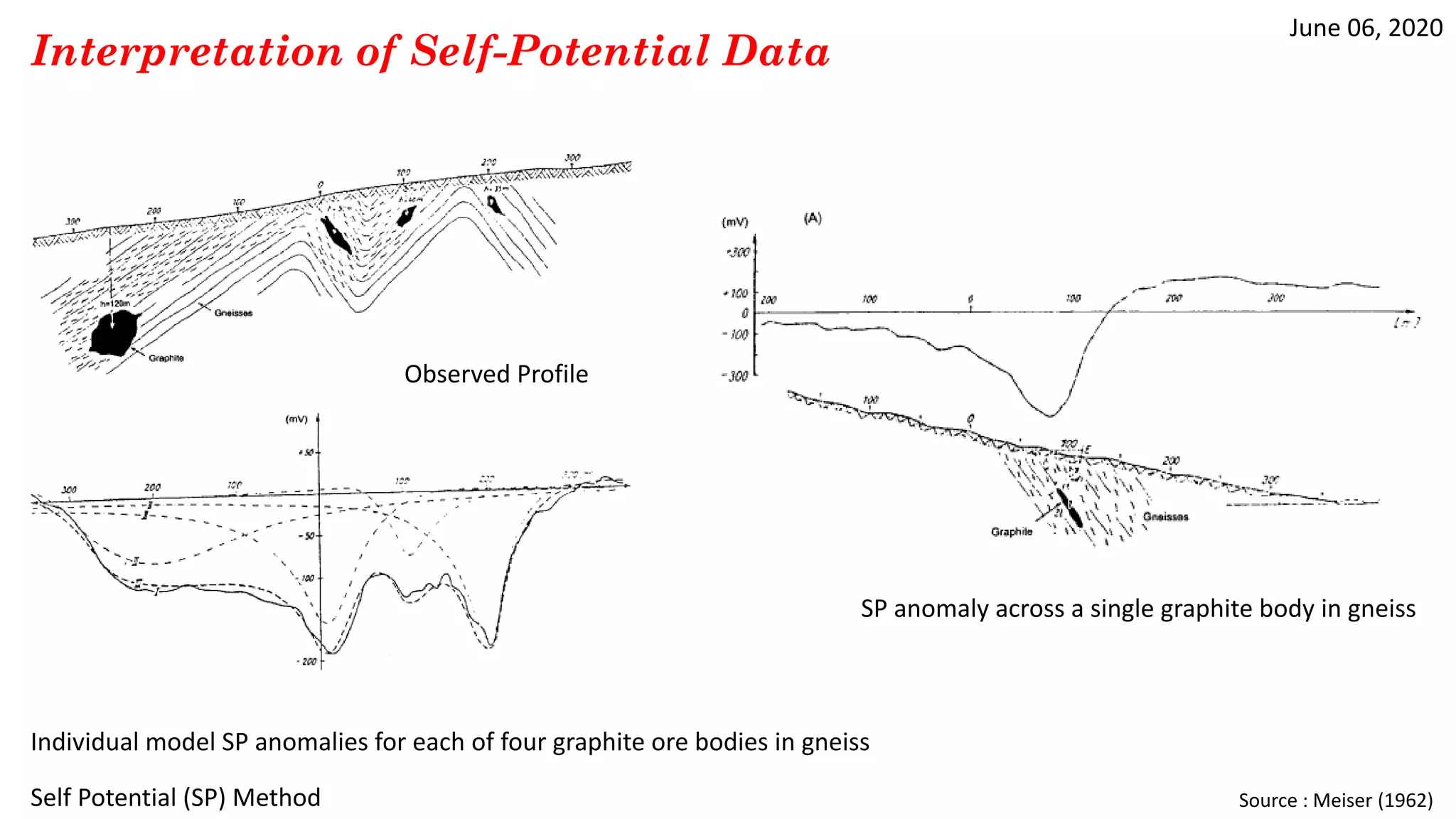

SP anomaly across a single graphite body in gneiss
Individual model SP anomalies for each of four graphite ore bodies in gneiss
30. June 06, 2020
Self Potential (SP) Method
Interpretation of Self-Potential Data

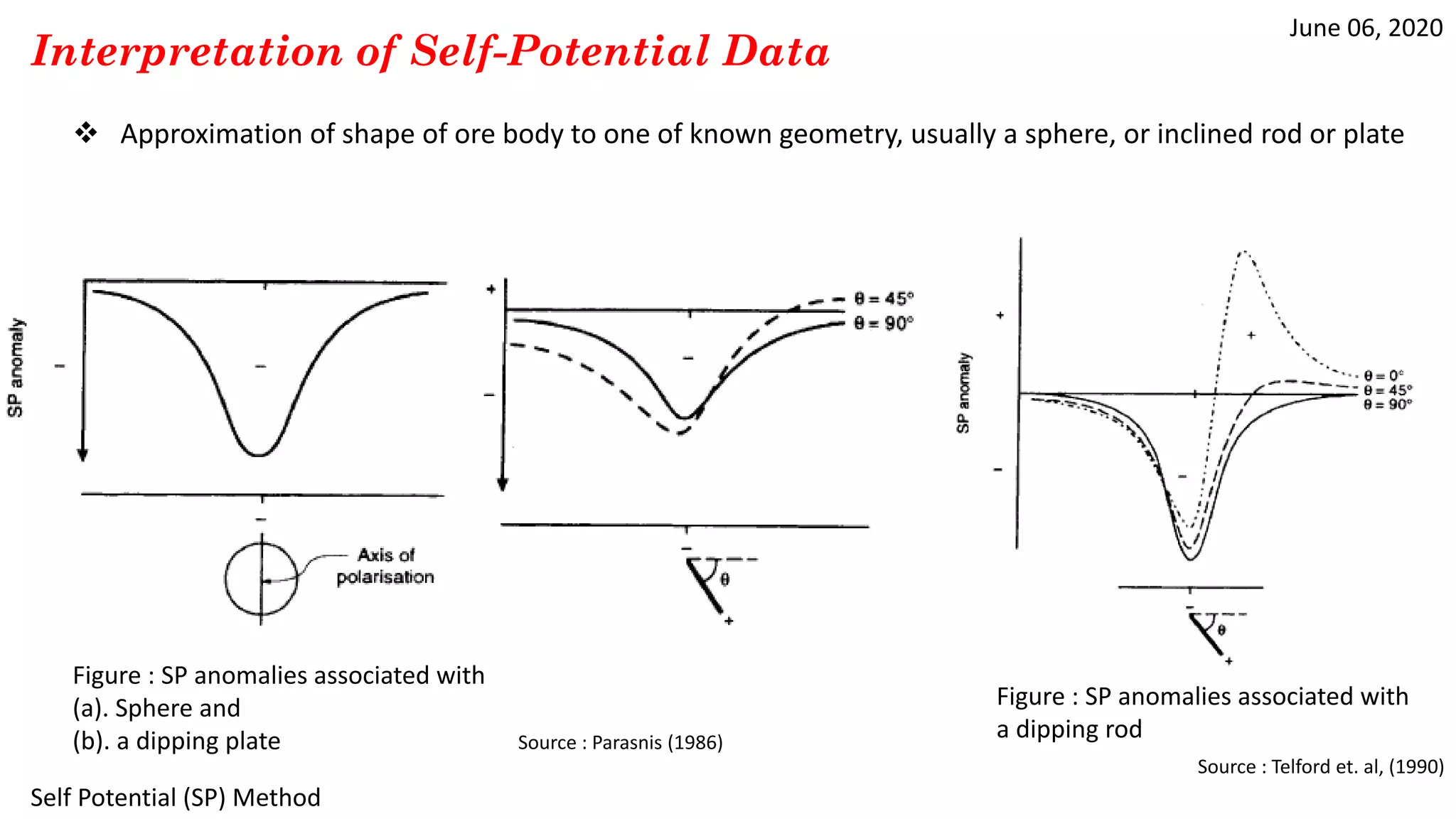

Approximation of shape of ore body to one of known geometry, usually a sphere, or inclined rod or plate
Source : Telford et. al, (1990)
Figure : SP anomalies associated with
(a). Sphere and
(b). a dipping plate Source : Parasnis (1986)
Figure : SP anomalies associated with
a dipping rod
31. June 06, 2020
Self Potential (SP) Method
Interpretation of Self-Potential Data
Source : Parasnis, (1996)

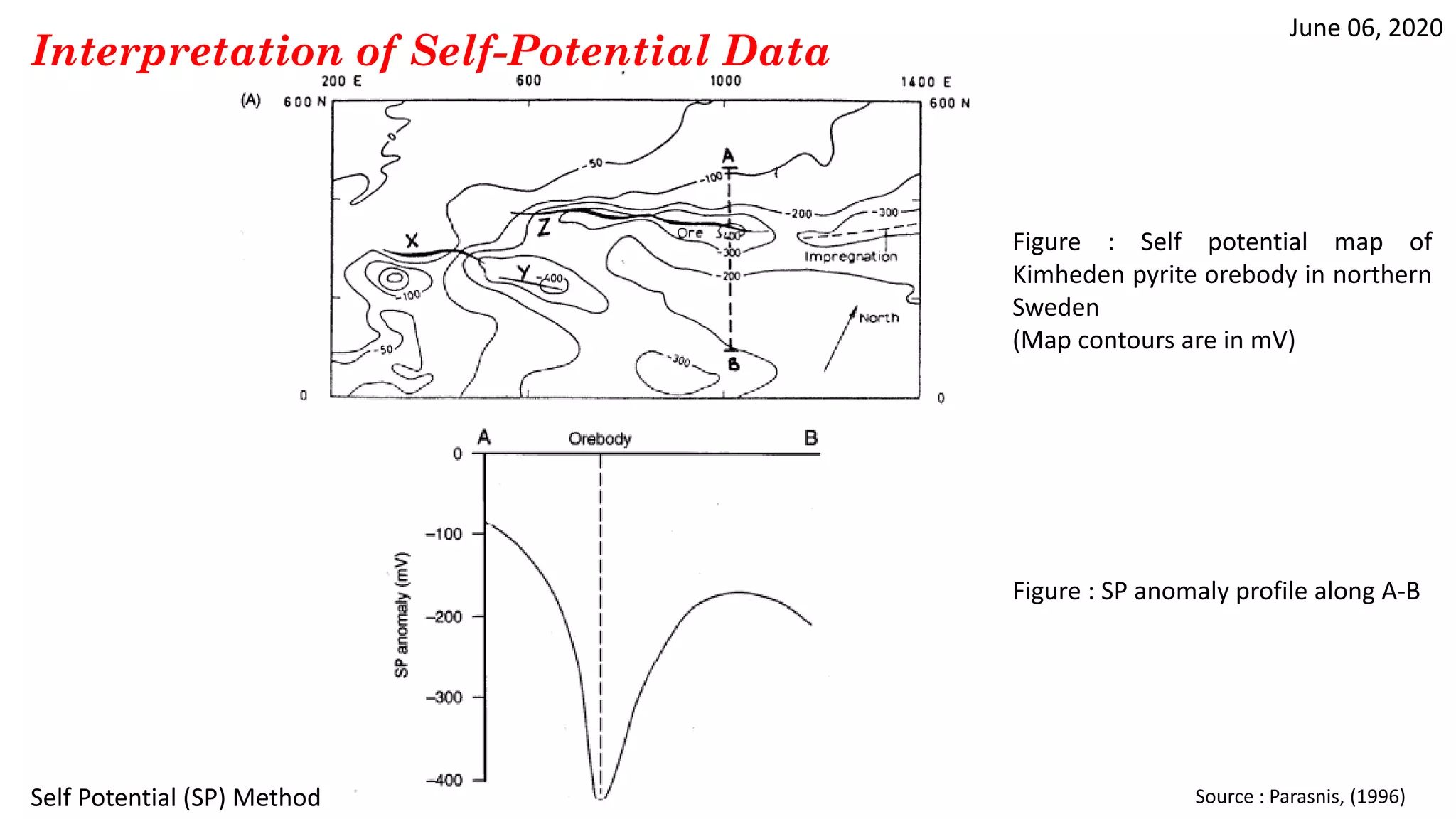

Figure : Self potential map of
Kimheden pyrite orebody in northern
Sweden
(Map contours are in mV)
Figure : SP anomaly profile along A-B
32. June 06, 2020
Self Potential (SP) Method
Interpretation of Self-Potential Data
Source : Coleman, (1991)

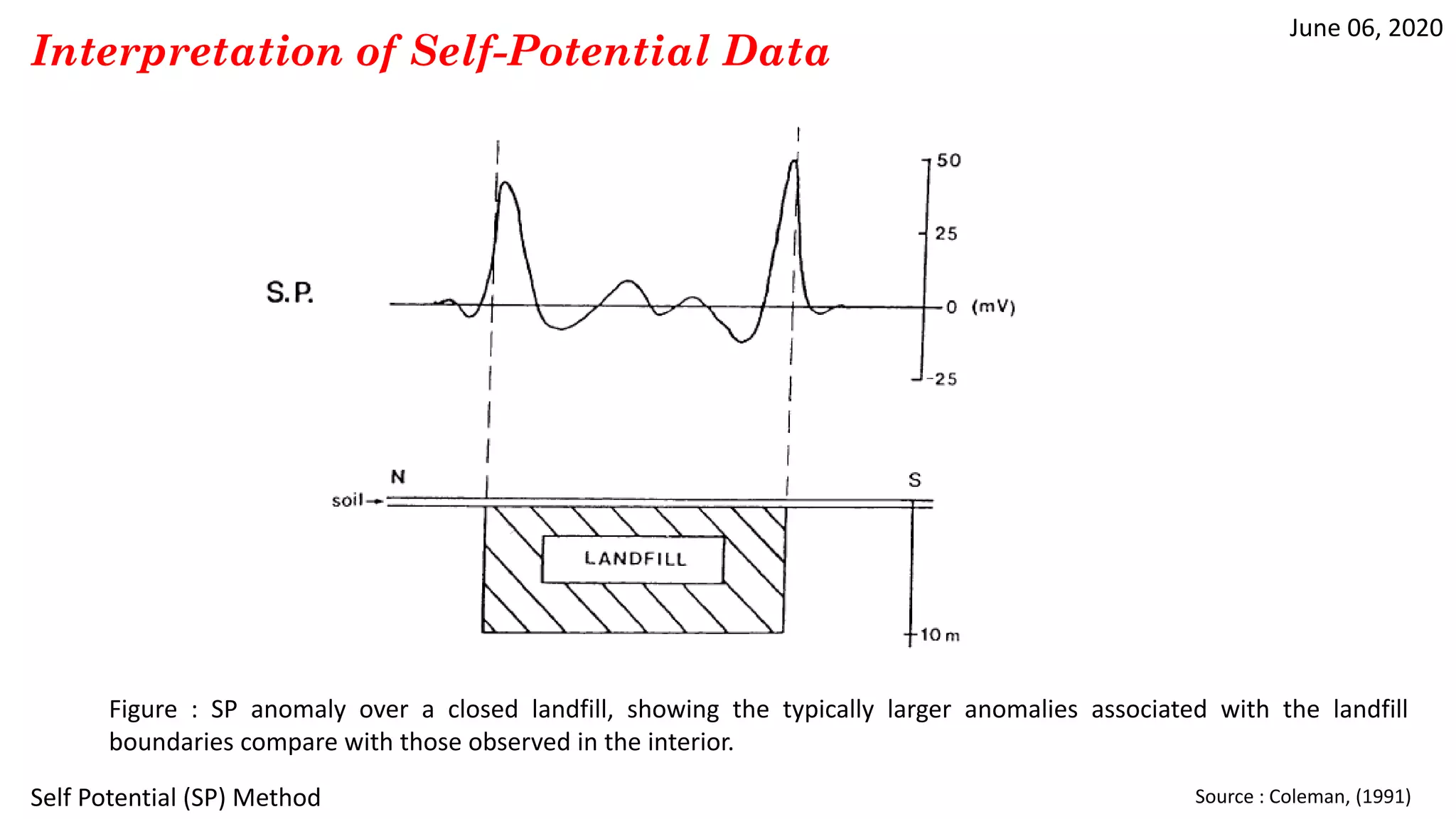

Figure : SP anomaly over a closed landfill, showing the typically larger anomalies associated with the landfill
boundaries compare with those observed in the interior.
33. June 06, 2020
Self Potential (SP) Method
Interpretation of Self-Potential Data
Source : Semenov, (1980)

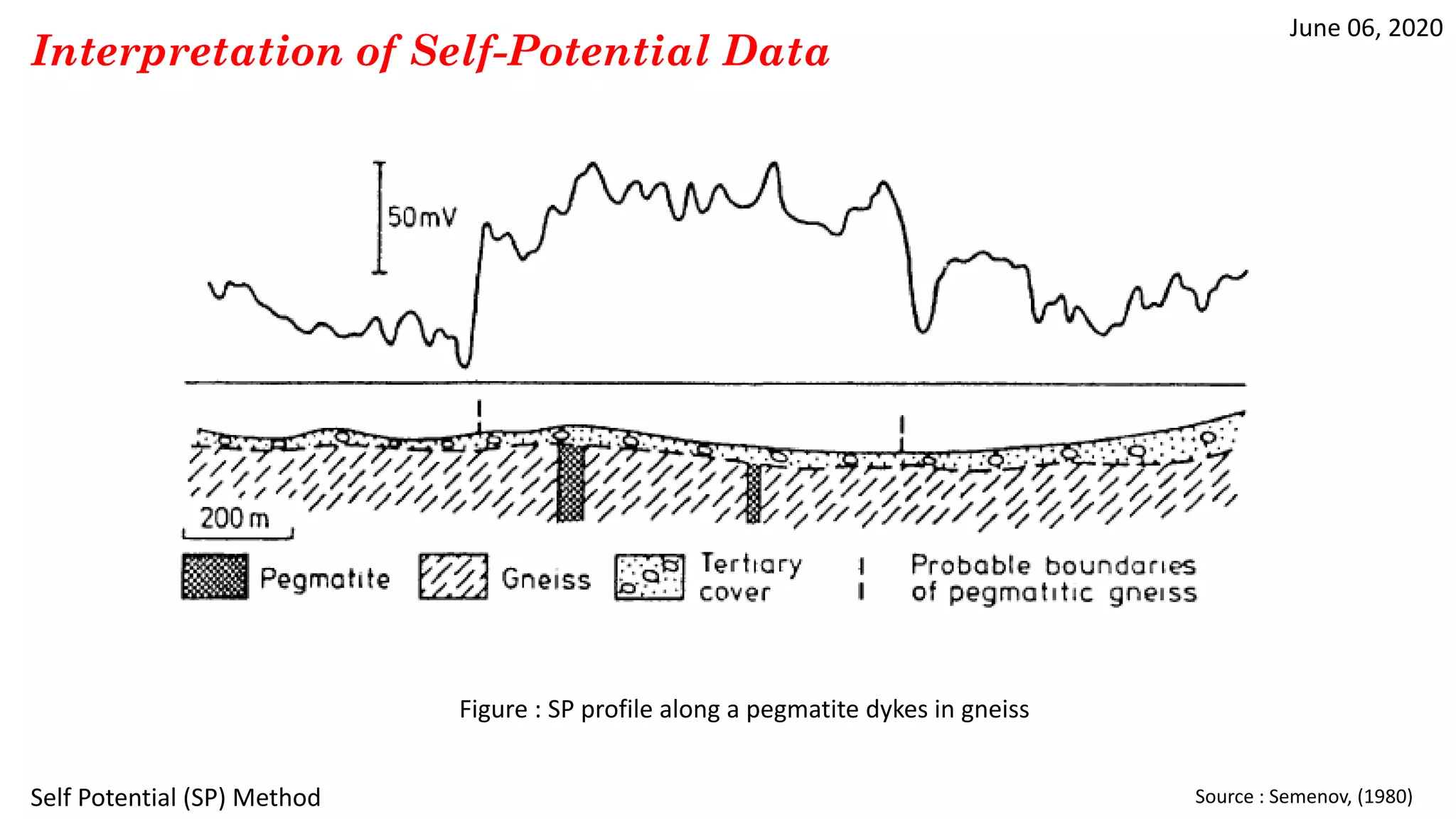

Figure : SP profile along a pegmatite dykes in gneiss
