1. Welcome!!
Siraj Munir – CS@DSU12/21/2016 1

2. CS206 Operating System
Siraj Munir – CS@DSU12/21/2016 2

3. Tip of The Day
discourager.ignore();
(Courtesy: Syed Hammad Ahmed – CS@DSU)
12/21/2016 3

4. Recap:
• Contiguous Memory
• Fragmentation
Siraj Munir – CS@DSU
12/21/2016 4

5. Segmentation
12/21/2016 5

6. Segmentation:
Memory-management scheme that supports user view of memory
(Programmar’s View).
A program is a collection of segments. A segment is a logical unit such as:
• main program
• procedure
• function
• method
• object
• local variables, global variables
• common block
• stack
• symbol table
• arrays
Siraj Munir – CS@DSU
12/21/2016 6

7. User’s View of a Program:
Siraj Munir – CS@DSU
12/21/2016 7

8. Logical View of Segmentation
Siraj Munir – CS@DSU
1
2
3
4
1
4
2
3
user space physical memory space
12/21/2016 8

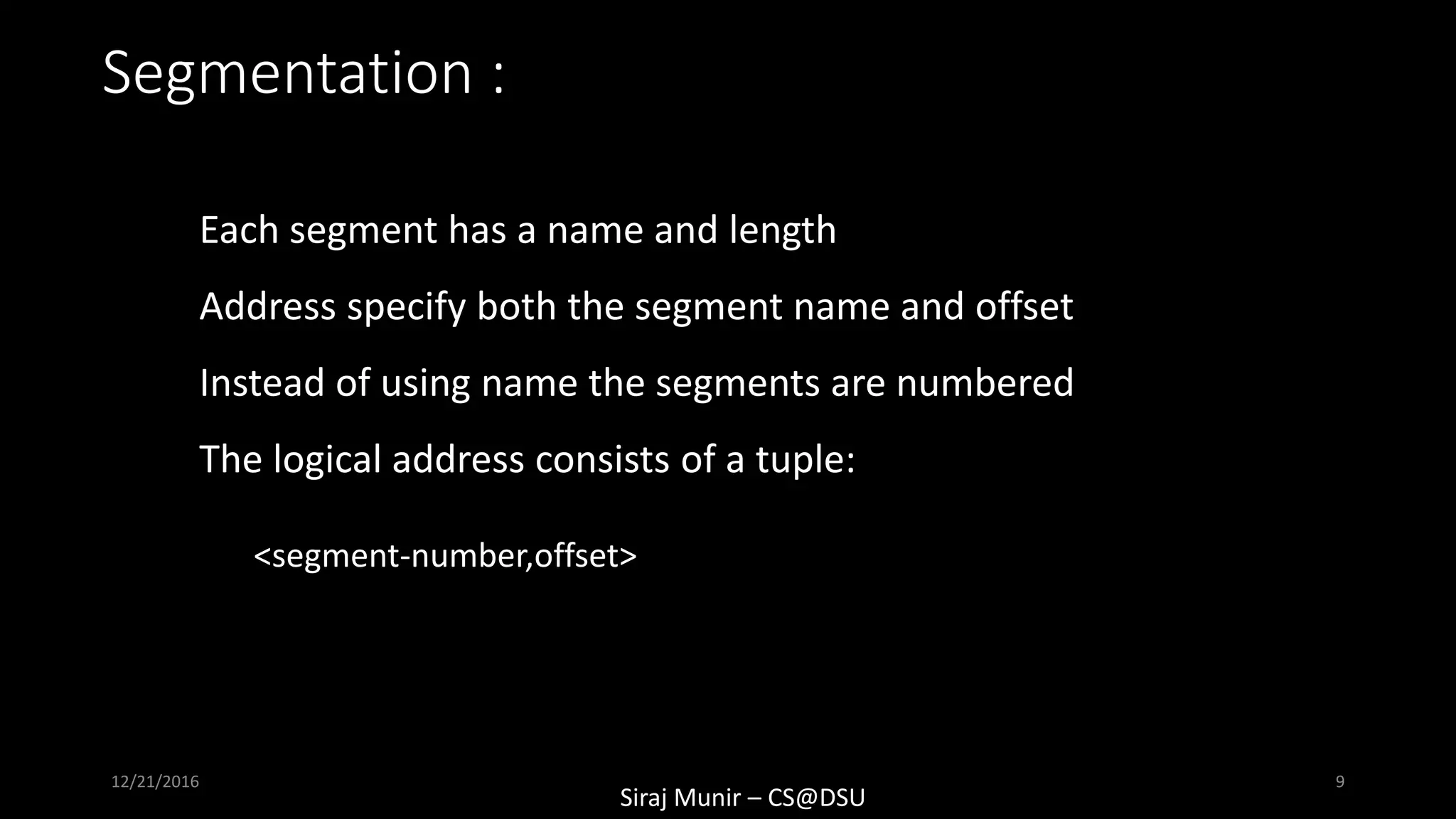

9. Segmentation :
Each segment has a name and length
Address specify both the segment name and offset
Instead of using name the segments are numbered
The logical address consists of a tuple:
<segment-number,offset>
Siraj Munir – CS@DSU
12/21/2016 9

10. Segmentation Architecture:
Logical address consists of a two tuple:
<segment-number, offset>,
Segment table – maps two-dimensional physical addresses; each table entry has:
base – contains the starting physical address where the segments reside in memory
limit – specifies the length of the segment
Segment-table base register (STBR) points to the segment table’s location in memory
Segment-table length register (STLR) indicates number of segments used by a program;
segment number s is legal if s < STLR
Siraj Munir – CS@DSU
12/21/2016 10

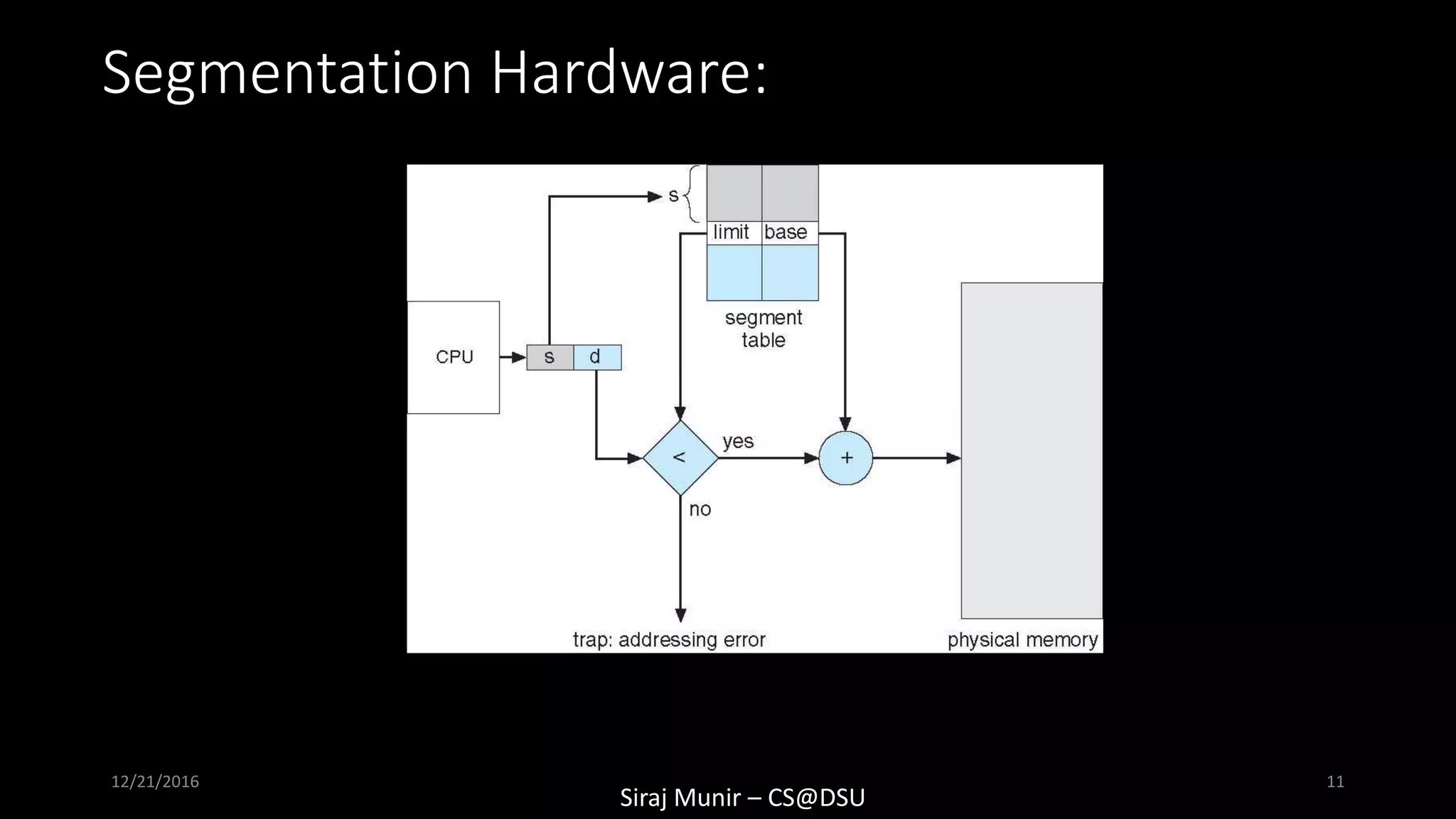

11. Segmentation Hardware:
Siraj Munir – CS@DSU
12/21/2016 11

12. Segmentation Hardware:
Logical address generated by CPU consists of two parts
Segment no. ‘s’:-used as a index into segment table
Offset ‘d’:- must be between ‘0’ and segment limit
A trap is generated if offset exceeds the segment limit
(Correct offset + segment base = address in physical memory)
Segment table is an array of base-limit register pair
Siraj Munir – CS@DSU
12/21/2016 12

13. Siraj Munir – CS@DSU
Questions??
12/21/2016 13

14. Siraj Munir – CS@DSU
Reference:
https://www.youtube.com/watch?v=HWwNTWY1rxo
http://www.slideshare.net/rajmohan50/paging-and-segmentation-in-operating-system
https://classroom.udacity.com/courses/ud923/lessons/301489
8657/concepts/30515485910923#
https://en.wikibooks.org/wiki/Operating_System_Design/Segmentation
12/21/2016 14

15. Siraj Munir – CS@DSU
Thankyou!
12/21/2016 15
