Introduction of Memory Management operating system

1. Vadodara Institute of Engineering
Active Learning Assignment
Sub :- Operating Systems ( 2140702 )
Topic:- Introduction of Memory Management
Presented by:-
Kashyap Patel 15CE046
Krishna Patel 15CE047
Maitree Patel 15CE048
Computer Engineering - 1

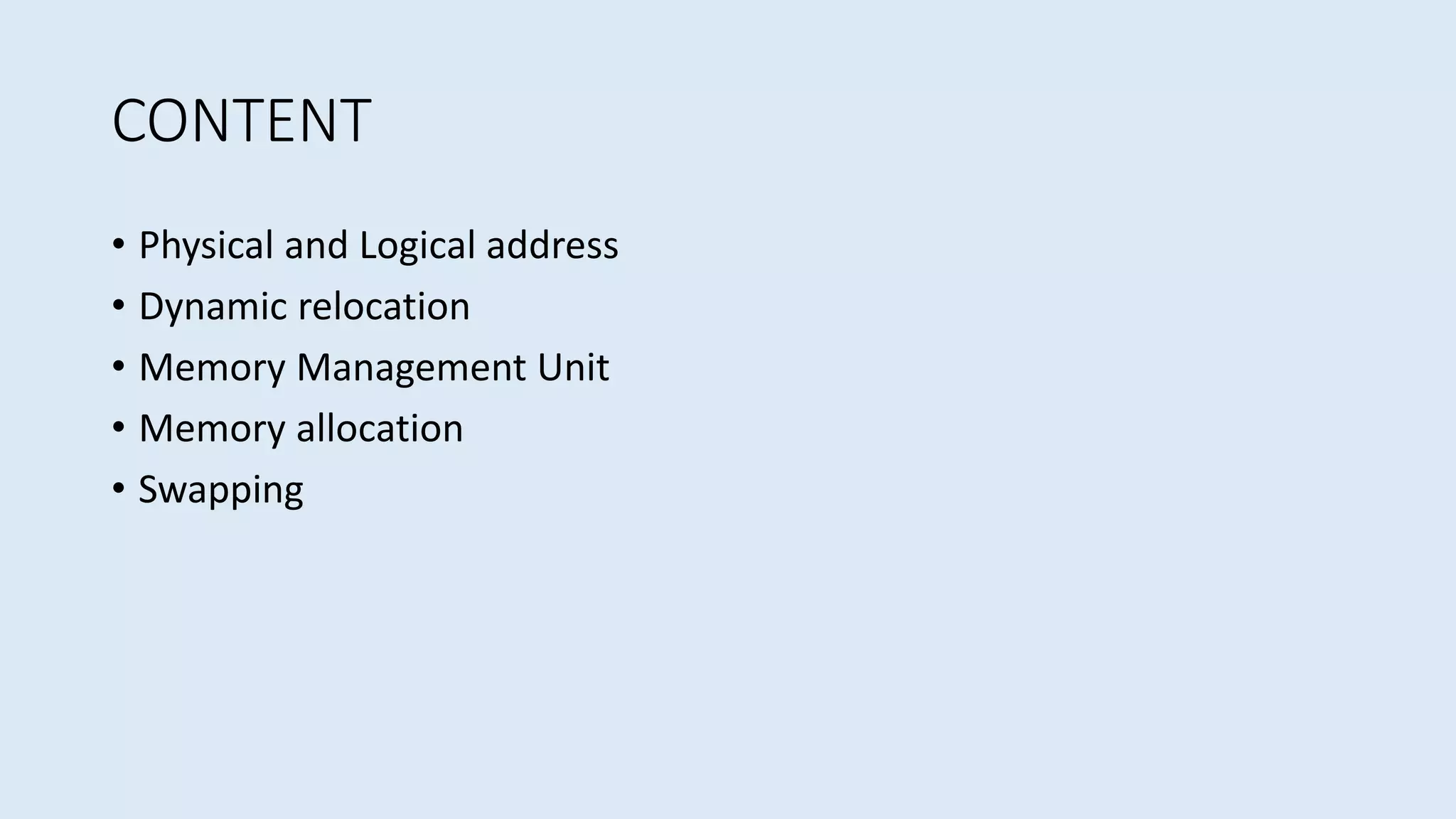

2. CONTENT
• Physical and Logical address
• Dynamic relocation
• Memory Management Unit
• Memory allocation
• Swapping

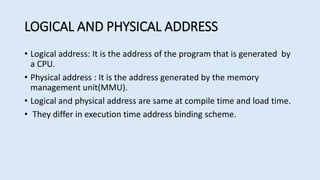

3. LOGICAL AND PHYSICAL ADDRESS
• Logical address: It is the address of the program that is generated by
a CPU.
• Physical address : It is the address generated by the memory
management unit(MMU).
• Logical and physical address are same at compile time and load time.
• They differ in execution time address binding scheme.

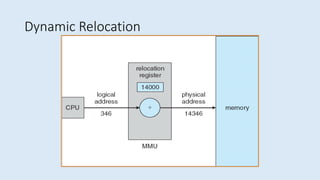

4. Dynamic Relocation

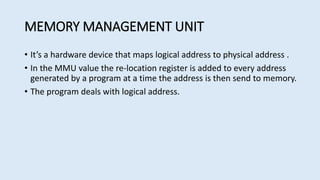

5. MEMORY MANAGEMENT UNIT
• It’s a hardware device that maps logical address to physical address .
• In the MMU value the re-location register is added to every address
generated by a program at a time the address is then send to memory.
• The program deals with logical address.

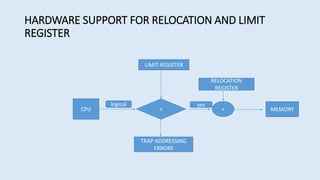

6. HARDWARE SUPPORT FOR RELOCATION AND LIMIT
REGISTER
CPU < + MEMORY
LIMIT REGISTER
TRAP ADDRESSING
ERRORS
RELOCATION
REGISTER
yeslogical

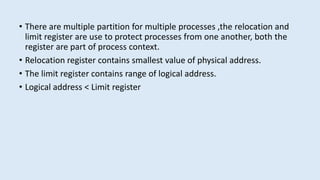

7. • There are multiple partition for multiple processes ,the relocation and
limit register are use to protect processes from one another, both the
register are part of process context.
• Relocation register contains smallest value of physical address.
• The limit register contains range of logical address.
• Logical address < Limit register

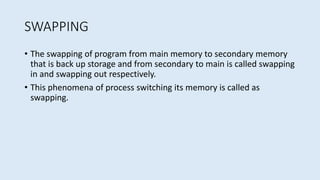

8. SWAPPING
• The swapping of program from main memory to secondary memory
that is back up storage and from secondary to main is called swapping
in and swapping out respectively.
• This phenomena of process switching its memory is called as
swapping.

9. MEMORY ALLOCATION
• Memory allocation
Contiguous Non-contiguous
1 Static 1 Paging
2 Dynamic 2 Segmentation

10. • There are mainly two types of memory management.
1 Contiguous
2 Non-contiguous
1 CONTIGUOUS
• That divided into two parts,
Static : static that is having fix partition in main memory which are their
from the system generation time.
Dynamic: it’s without partition and the process gets loaded dynamicaly
into the memory and find space for itself.

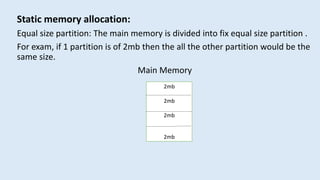

11. Static memory allocation:
Equal size partition: The main memory is divided into fix equal size partition .
For exam, if 1 partition is of 2mb then the all the other partition would be the
same size.
Main Memory
2mb
2mb
2mb
2mb

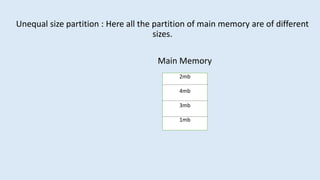

12. Unequal size partition : Here all the partition of main memory are of different
sizes.
Main Memory
2mb
4mb
3mb
1mb

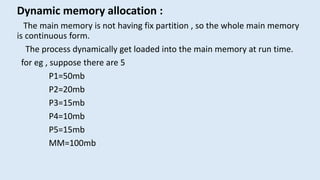

13. Dynamic memory allocation :
The main memory is not having fix partition , so the whole main memory
is continuous form.
The process dynamically get loaded into the main memory at run time.
for eg , suppose there are 5
P1=50mb
P2=20mb
P3=15mb
P4=10mb
P5=15mb
MM=100mb

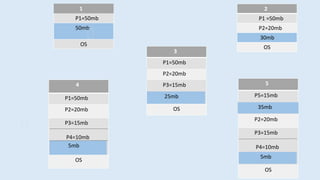

14. 1
P1=50mb
50mb
OS
2
P1 =50mb
P2=20mb
30mb
OS
3
P1=50mb
P2=20mb
P3=15mb
OS
25mb
4
P1=50mb
P2=20mb
P3=15mb
P4=10mb
OS
5mb
5
P5=15mb
P2=20mb
P3=15mb
P4=10mb
OS
35mb
5mb

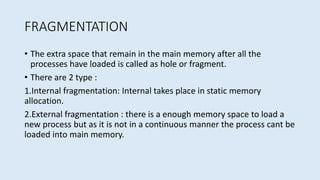

15. FRAGMENTATION
• The extra space that remain in the main memory after all the
processes have loaded is called as hole or fragment.
• There are 2 type :
1.Internal fragmentation: Internal takes place in static memory
allocation.
2.External fragmentation : there is a enough memory space to load a
new process but as it is not in a continuous manner the process cant be
loaded into main memory.

16. CONCLUSION
• Memory management is a complex field of computer science and
there are many techniques being developed to make it more efficient.
MMU allocate memory to process when needed and deallocate when
processes are done.
