Segment Routing Advanced Use Cases - Cisco Live 2016 USA

The document discusses segment routing and its use for inter-domain connectivity at scale. Segment routing allows source routing by encoding a path as an ordered list of segments in packet headers. It can be used to interconnect massive-scale datacenters and networks with hundreds of thousands of nodes. Segment routing scales through the use of globally unique prefix segments, redistribution of routing information only from the core to edges, and segment routing path computation elements. The path computation elements use segment routing native algorithms to optimize paths while maintaining equal-cost multipath routing.

Embed presentation

Download as PDF, PPTX
Segment Routing: Technology Update and Advanced Use-Cases Steve Braaten, Solutions Architect BRKRST-3122

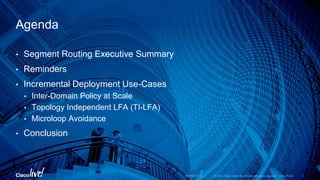

• Segment Routing Executive Summary • Reminders • Incremental Deployment Use-Cases • Inter-Domain Policy at Scale • Topology Independent LFA (TI-LFA) • Microloop Avoidance • Conclusion Agenda
Segment Routing Executive Summary
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Segment Routing • Source Routing • the source chooses a path and encodes it in the packet header as an ordered list of segments • the rest of the network executes the encoded instructions • Segment: an identifier for any type of instruction • forwarding or service • Forwarding Plane: • MPLS: an ordered list of segments is represented as a stack of labels • IPv6: an ordered list of segments is encoded in a routing extension header • Multi-Vendor solution BRKRST-3122 5
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Deployed ! • First deployments in 2015 – just 15 months after FCS !!! • Strong start in 2016 with many new deployments BRKRST-3122 6
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public IETF • Strong commitment for standardization and multi-vendor support • SPRING Working-Group (started Nov 2013) • All key documents are WG-status • Over 25 drafts maintained by SR team • Over 50% are WG status • Over 75% have a Cisco implementation • Several interop reports are available • First RFC document - RFC 7855 (May 2016) www.segment-routing.net tools.ietf.org/wg/spring/ BRKRST-3122 7
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Foundation for modern IP/MPLS networking • Simplicity • Set of few, well-chosen building blocks • Solution to unsolved problems • End-to-end policy, local and/or centralized PCE, 50msec protection, microloop avoidance, and more… • Scale • Granular traffic engineering with minimal network state • Seamless Deployment • SR/LDP interworking, SR/RSVP-TE interworking, ship-in-the-night co-existence • Decoupled data and control planes • Low-cost 1 BRKRST-3122 8
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Session Assumptions • Thorough understanding of SR tutorial • http://www.segment-routing.net/home/tutorial • You should know • SRGB • IGP Prefix and Adj SID’s • Anycast SID • SR/LDP interworking • BGP Prefix SID and the MSDC use-case • Use-Cases in this presentation described for SR/MPLS • Same concept applies to SRv6 (native IPv6 SR extension header, no MPLS) BRKRST-3122 9

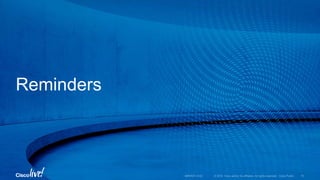

Reminders
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Prefix segment • Shortest-path to the prefix • Equal Cost MultiPath (ECMP)-aware • Global Segment • Label = 16000 + Index • Advertised as index • Distributed by ISIS/OSPF/BGP 1 2 3 4 5 16004 16004 16004 16004 16004 16004 16004 1.1.1.4/32 All nodes use default SRGB 16,000 – 23,999 BRKRST-3122 11
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Adjacency segment • Forward on the IGP adjacency • Local Segment • Advertised as label value • Distributed by ISIS/OSPF • But only local adjacency SID’s are installed in FIB! 1 2 3 4 5 24024 24025 Adj to 5 Adj to 4 All nodes use default SRGB 16,000 – 23,999 BRKRST-3122 12
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public SR operations illustration • Steer traffic on any path through the network • Path is specified by list of segments in packet header, a stack of labels • No path is signaled • No per-flow state is created • IS-IS, OSPF, BGP all supported Node Z 56056 1 3 5 7 2 4 6 8 101 Payload to Z 16101 56056 16005 Payload to Z 16101 56056 16005 Payload to Z 16101 56056 Payload to Z 16101 Payload to Z 16101 Payload to Z Goal: Go to Z but avoid node 7 BRKRST-3122 13

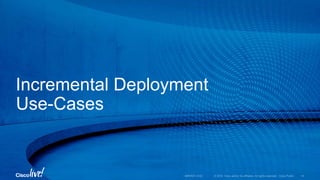

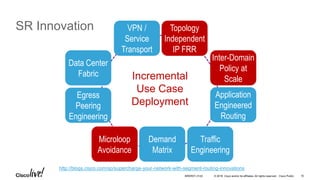

Incremental Deployment Use-Cases
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public SR Innovation VPN / Service Transport Topology Independent IP FRR Traffic Engineering Egress Peering Engineering Data Center Fabric Microloop Avoidance Demand Matrix Application Engineered Routing Inter-Domain Policy at ScaleIncremental Use Case Deployment http://blogs.cisco.com/sp/supercharge-your-network-with-segment-routing-innovations BRKRST-3122 15
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public SR Innovation Topology Independent IP FRR Traffic Engineering Egress Peering Engineering Data Center Fabric Microloop Avoidance Demand Matrix Application Engineered Routing Inter-Domain Policy at ScaleIncremental Use Case Deployment VPN / Service Transport http://blogs.cisco.com/sp/supercharge-your-network-with-segment-routing-innovations BRKRST-3122 16
Inter-Domain Policy at Scale draft-filsfils-spring-large-scale-interconnect
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Use-Case Description • Segment Routing use-case aiming to scale the network to support hundreds of thousands of network nodes, and tens of millions of physical underlay endpoints • Applicable to the interconnection of massive-scale DC's and/or large aggregation networks • Principles are equally applicable to a network of any size vPE1 ToR Spine LSR LSR vPE2ToRSpineLSR DC A1 METRO A METRO BWAN DC B2 Datacenter Datacenter Metro Metro Core BRKRST-3122 18
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public SRGB and SID allocation • Homogenous end-to-end SRGB for simplicity • Globally Unique Prefix SIDs for devices WAN and Metro domains • Locally Unique Prefix SIDs for Datacenters vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 20k-24k 20k-24k 17k-18k 18k-19k 16k-17k 16k-24k BRKRST-3122 19
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public IGP/SR within WAN and Metro Domains • Each domain runs ISIS/OSPF SR • Incremental deployment and seamless interworking with LDP DCI1 17001 LSR 17002 LSR 16003 DCI2 18001 LSR 18002 METRO A METRO BWAN IGP / SR 2 IGP / SR 3IGP / SR 1 BRKRST-3122 20
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Segment Routing in the Datacenter • Datacenter fabric runs BGP SR • Example: 20006 is the BGP Prefix SID to DCI6 • ECMP-aware • Simple (no LDP/RSVP) • Policy-driven vPE1 20001 ToR2 20002 Spine4 20004 Leaf3 20003 DCI6 20006 vPE11 20011 ToR12 20012 Spine14 20014 Leaf13 20013 Leaf15 20015 DCI16 20016 AS2 AS11 AS3 AS4 AS5 AS6AS1 Leaf5 20005 BRKRST-3122 21

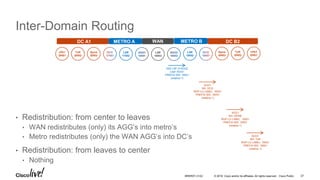

Inter-Domain Policy at Scale SR connectivity across domains
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Intra-Domain Routing – DC A1 and DC B2 • BGP SR in the DC • Often eBGP would be used but iBGP can also be used (see tutorial) • Smart AS (ClusterID) allocation in eBGP (iBGP) provides automated path filtering (see tutorial) vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 vPE1/32 NH: vPE1 BGP-LU LABEL: POP PREFIX-SID: 20001 (relative 4001) vPE1/32 NH: TOR BGP-LU LABEL: 20001 PREFIX-SID: 20001 (relative 4001) vPE1/32 NH: SPINE BGP-LU LABEL: 20001 PREFIX-SID: 20001 (relative 4001) DCI2/32 NH: DCI2 BGP-LU LABEL: POP PREFIX-SID: 18001 (relative 2001) DCI2/32 NH: SPINE BGP-LU LABEL: 18001 PREFIX-SID: 18001 (relative 2001) DCI2/32 NH: TOR BGP-LU LABEL: 18001 PREFIX-SID: 18001 (relative 2001) BRKRST-3122 23
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Intra-Domain Routing – Metro A and Metro B • In a metro, BGP/SR or ISIS-OSPF/SR are likely, both illustrated here • Example: Metro A: BGP/SR • Example: Metro B: ISIS/SR vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 DCI1/32 NH: DCI1 BGP-LU LABEL: POP PREFIX-SID: 17001 (relative 1001) DCI1/32 NH: LSR BGP-LU LABEL: 17001 PREFIX-SID: 17001 (relative 1001) ISIS LSP of AGG2 Leaf: Agg2 PREFIX-SID: 16002 (relative 2) BRKRST-3122 24
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Intra-Domain Routing – WAN • ISIS / OSPF SR in WAN • During a migration, benefit from SR seamless interworking with LDP and ship-in- the-night with RSVP vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 ISIS LSP of AGG1 Leaf: Agg1 PREFIX-SID: 16001 (relative 1) BRKRST-3122 25
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Inter-Domain Routing • WAN aggs are re-distributed down to Metro and DC • Nothing is redistributed up !!! • How does vPE1 reaches vPE2? vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 WAN Aggs WAN AggsWAN AggsWAN Aggs BRKRST-3122 26
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Inter-Domain Routing • Redistribution: from center to leaves • WAN redistributes (only) its AGG’s into metro’s • Metro redistributes (only) the WAN AGG’s into DC’s • Redistribution: from leaves to center • Nothing vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 ISIS LSP of AGG2 Leaf: AGG1 PREFIX-SID: 16001 (relative 1) AGG1 NH: DCI2 BGP-LU LABEL: 16001 PREFIX-SID: 16001 (relative 1) AGG1 NH: SPINE BGP-LU LABEL: 16001 PREFIX-SID: 16001 (relative 1) AGG1 NH: ToR BGP-LU LABEL: 16001 PREFIX-SID: 16001 (relative 1) BRKRST-3122 27
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Inter-Domain Routing (Cont’d) vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 ISIS LSP of AGG1 Leaf: AGG2 PREFIX-SID: 16002 (relative 2) AGG2 NH: DCI1 BGP-LU LABEL: 16002 PREFIX-SID: 16002 (relative 2) AGG2 NH: SPINE BGP-LU LABEL: 16002 PREFIX-SID: 16002 (relative 2) AGG2 NH: TOR BGP-LU LABEL: 16002 PREFIX-SID: 16002 (relative 2) BRKRST-3122 28

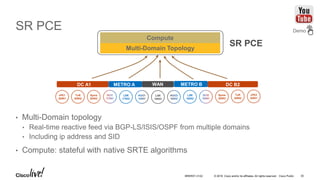

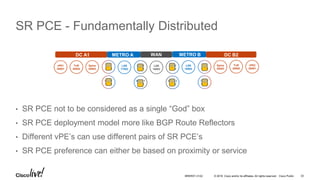

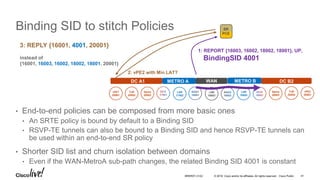

Inter-Domain Policy at Scale SR PCE
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public SR PCE • Multi-Domain topology • Real-time reactive feed via BGP-LS/ISIS/OSPF from multiple domains • Including ip address and SID • Compute: stateful with native SRTE algorithms vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 Multi-Domain Topology SR PCE Compute Demo BRKRST-3122 30
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Circuit Optimization vs SR Optimization 2 4 1 5 3 6 7 8 9 Classic TE is circuit-based CSPF => non-ECMP path SID List: {4, 5, 7, 3} Poor ECMP, big SR list, ATM optimized 2 4 1 5 3 6 7 8 9 SR-native TE algorithms needed Recognized Innovation - Sigcomm 2015 SID List: {7, 3} ECMP, Small SR list, IP-optimized BRKRST-3122 31
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Four SR-native TE algorithms developed • Metric optimization with inclusion/exclusion constraint and bound • Metric: IGP metric, TE metric, extended TE-latency metric • Inclusion/exclusion: IP address, SRLG, TE affinity, Link Loss • Margin: any solution within the margin of the optimum is accepted • Favor more ECMP or shorter SID list instead of insignificant optimization increment • Also available on the router-based SRTE functionality • Disjointness • (A to Z) or ((A, B) to (Y, Z)) • With minimized latency diff, ECMP and shorter SID list • (A to Z) also available on the router-based SRTE functionality • Tactical BW optimization • Multi-Constrained • Sigcomm 2015 [url] • Furthermore … TI-LFA and Microloop avoidance algorithms BRKRST-3122 32
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public SR PCE - Fundamentally Distributed • SR PCE not to be considered as a single “God” box • SR PCE deployment model more like BGP Route Reflectors • Different vPE’s can use different pairs of SR PCE’s • SR PCE preference can either be based on proximity or service vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE SR PCE SR PCE SR PCESR PCE SR PCE SR PCE SR PCE BRKRST-3122 33

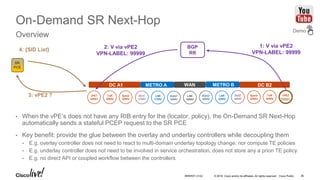

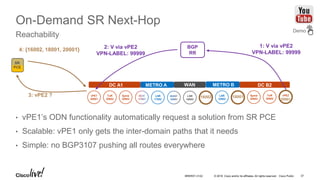

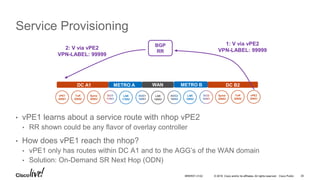

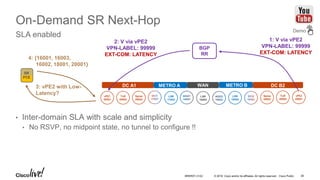

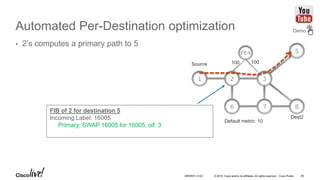

Inter-Domain Policy at Scale On-Demand SR Next Hop (ODN)
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Service Provisioning • vPE1 learns about a service route with nhop vPE2 • RR shown could be any flavor of overlay controller • How does vPE1 reach the nhop? • vPE1 only has routes within DC A1 and to the AGG’s of the WAN domain • Solution: On-Demand SR Next Hop (ODN) vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 BGP RR 2: V via vPE2 VPN-LABEL: 99999 1: V via vPE2 VPN-LABEL: 99999 BRKRST-3122 35
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public On-Demand SR Next-Hop Overview • When the vPE’s does not have any RIB entry for the (locator, policy), the On-Demand SR Next-Hop automatically sends a stateful PCEP request to the SR PCE • Key benefit: provide the glue between the overlay and underlay controllers while decoupling them • E.g. overlay controller does not need to react to multi-domain underlay topology change, nor compute TE policies • E.g. underlay controller does not need to be involved in service orchestration, does not store any a priori TE policy • E.g. no direct API or coupled workflow between the controllers vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 3: vPE2 ? 4: {SID List} Demo BGP RR 2: V via vPE2 VPN-LABEL: 99999 1: V via vPE2 VPN-LABEL: 99999 BRKRST-3122 36
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public On-Demand SR Next-Hop Reachability • vPE1’s ODN functionality automatically request a solution from SR PCE • Scalable: vPE1 only gets the inter-domain paths that it needs • Simple: no BGP3107 pushing all routes everywhere vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 16002 vPE2 20001 ToR 20002 Spine 20003 18001LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 3: vPE2 ? 4: {16002, 18001, 20001} 2: V via vPE2 VPN-LABEL: 99999 1: V via vPE2 VPN-LABEL: 99999 Demo BGP RR BRKRST-3122 37
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public On-Demand SR Next-Hop SLA enabled • Inter-domain SLA with scale and simplicity • No RSVP, no midpoint state, no tunnel to configure !! vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 3: vPE2 with Low- Latency? 4: {16001, 16003, 16002, 18001, 20001} 2: V via vPE2 VPN-LABEL: 99999 EXT-COM: LATENCY 1: V via vPE2 VPN-LABEL: 99999 EXT-COM: LATENCY Demo BGP RR BRKRST-3122 38
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Anycast SID’s for pairs of border nodes • Anycast SID’s provide for better ECMP and High Availability vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 17901 16901 16902 18901 16902 1890117901 16901 16902 1890117901 16901 BRKRST-3122 39
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public On-Demand SR Next-Hop Reachability with Anycast SID • Better load-balancing: ECMP across border routers • Better availability: sub-50msec upon remote aggregation router failure • Better control plane scalability: no PCE re-computation, no PCEP update, no FIB update vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 3: vPE2 ? 4: {16902, 18901, 20001} 16902 18901 vPE2 20001 2: V via vPE2 VPN-LABEL: 99999 1: V via vPE2 VPN-LABEL: 99999 16902 1890117901 16901 16902 1890117901 16901 BGP RR BRKRST-3122 40
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Binding SID to stitch Policies • End-to-end policies can be composed from more basic ones • An SRTE policy is bound by default to a Binding SID • RSVP-TE tunnels can also be bound to a Binding SID and hence RSVP-TE tunnels can be used within an end-to-end SR policy • Shorter SID list and churn isolation between domains • Even if the WAN-MetroA sub-path changes, the related Binding SID 4001 is constant vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 2: vPE2 with Min LAT? 1: REPORT {16003, 16002, 18002, 18001}, UP, BindingSID 4001 3: REPLY {16001, 4001, 20001} instead of {16001, 16003, 16002, 18002, 18001, 20001} BRKRST-3122 41
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Seamless Transition • Best-effort reachability could be provided by BGP3107 • ODN and SRTE / PCE provides interdomain reachability with SLA requirements • Eventually, migration of more/all services over SR PCE vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 3: vPE2 with Low Latency? 4: {16001, 16002, 18001, 20001} BGP RR vPE2/32 via DCI2 PREFIX-SID: 20001 DCI2/32 via AGG2 PREFIX-SID: 18001 2: vPE2/32 via DCI2 PREFIX-SID: 20001DCI2/32 via AGG2 PREFIX-SID: 18001 1: BRKRST-3122 42

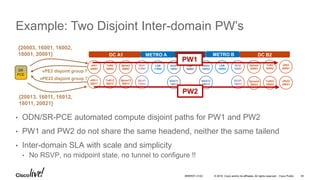

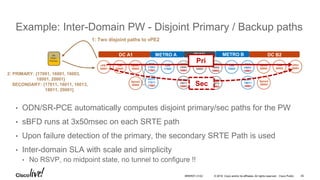

Inter-Domain Policy at Scale Inter-Domain Disjoint Services
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Example: Two Disjoint Inter-domain PW’s • ODN/SR-PCE automated compute disjoint paths for PW1 and PW2 • PW1 and PW2 do not share the same headend, neither the same tailend • Inter-domain SLA with scale and simplicity • No RSVP, no midpoint state, no tunnel to configure !! SR PCE vPE2 disjoint group 7 {20003, 16001, 16002, 18001, 20001} vPE22 disjoint group 7 vPE1 20001 ToR2 20002 Spine3 20003 LSR 17002 LSR 16003 vPE2 20001 ToR3 20002 Spine4 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 vPE11 20011 ToR12 20012 Spine13 20013 vPE22 20021 ToR23 20022 Spine24 20023 {20013, 16011, 16012, 18011, 20021} PW1 PW2 BRKRST-3122 44
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Example: Inter-Domain PW - Disjoint Primary / Backup paths • ODN/SR-PCE automatically computes disjoint primary/sec paths for the PW • sBFD runs at 3x50msec on each SRTE path • Upon failure detection of the primary, the secondary SRTE Path is used • Inter-domain SLA with scale and simplicity • No RSVP, no midpoint state, no tunnel to configure !! vPE1 20001 ToR 20002 Spine1 20003 DCI1 17001 17901 LSR 17002 AGG1 16001 16901 LSR 16003 AGG2 16002 16902 vPE2 20001 ToR 20002 Spine 20003 DCI2 18001 18901 LSR 18002 DC A1 METRO A METRO BWAN DC B2 DCI11 17011 17901 AGG11 16011 16901 AGG12 16012 16902 DCI11 18011 18901 Spine2 20004 Spine2 20004 SR PCE1 Primary 1: Two disjoint paths to vPE2 2: PRIMARY: {17001, 16001, 16003, 18001, 20001} SECONDARY: {17011, 16011, 16013, 18011, 20001} Pri Sec BRKRST-3122 45

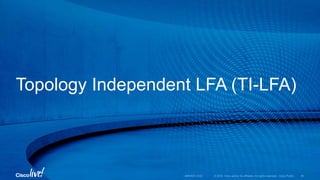

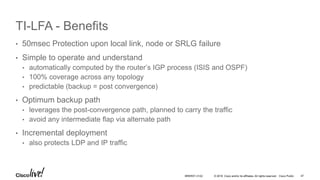

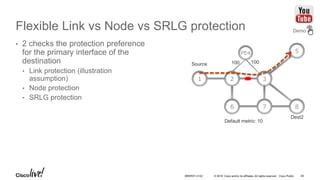

Topology Independent LFA (TI-LFA)
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public TI-LFA - Benefits • 50msec Protection upon local link, node or SRLG failure • Simple to operate and understand • automatically computed by the router’s IGP process (ISIS and OSPF) • 100% coverage across any topology • predictable (backup = post convergence) • Optimum backup path • leverages the post-convergence path, planned to carry the traffic • avoid any intermediate flap via alternate path • Incremental deployment • also protects LDP and IP traffic BRKRST-3122 47
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Automated Per-Destination optimization • 2’s computes a primary path to 5 100 100 PE4 5 2 31 6 7 8 Source Dest2 Default metric: 10 FIB of 2 for destination 5 Incoming Label: 16005 Primary: SWAP 16005 for 16005, oif: 3 Demo BRKRST-3122 48
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Flexible Link vs Node vs SRLG protection • 2 checks the protection preference for the primary interface of the destination • Link protection (illustration assumption) • Node protection • SRLG protection 100 100 PE4 5 2 31 6 7 8 Source Dest2 Default metric: 10 Demo BRKRST-3122 49
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Automated and Optimum • 2 computes the post-convergence path if the preferred failure would occur • Optimality: the operator planned and dimensioned the post-convergence path to carry the traffic in the failure case • 2 uses SR to encode the post- convergence path in a loop-free manner • 2 updates the FIB with the backup path to 5 100 100 PE4 5 2 31 6 7 8 Source Dest2 Default metric: 10 FIB of 2 for destination 5 Incoming Label: 16005 Primary: SWAP 16005 for 16005, oif: 3 Backup: SWAP 16005 for 16005, PUSH 16007, oif: 6 Demo BRKRST-3122 50
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Do we need many SID’s? No! BRKRST-3122 51

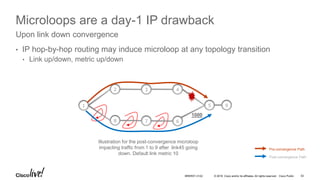

Microloop Avoidance
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Microloops are a day-1 IP drawback • IP hop-by-hop routing may induce microloop at any topology transition • Link up/down, metric up/down Upon link down convergence Illustration for the post-convergence microloop impacting traffic from 1 to 9 after link45 going down. Default link metric 10 2 3 4 5 8 7 6 1 1000 9 Pre-convergence Path Post-convergence Path BRKRST-3122 53
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public SR Microloop Avoidance • Prevent any microloop upon isolated convergence due to • link up/down event & metric increase/decrease event • 2-stage convergence • Stage 1: non-looping SID lists to implement the post-convergence path • Stage 2: post-convergence path • If multiple back-to-back convergences, fall back to native IP convergence FIB @ 1 for Destination 9 Initially: {16009} OIF 2 Stage1: {16006, 24065, 16009} Stage2: {16009} OIF 8 2 3 4 5 8 7 6 1 1000 9 Pre-convergence Path Post-convergence Path Explicit Post-convergence Path microloop avoidance segment-routing Demo BRKRST-3122 54
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Illustration – Link Down • No microloop can occur thanks to the 2-stage convergence and the use of non- looping SID lists to implement the post-convergence path in stage1 2 3 4 5 8 7 6 1 Default link metric 10 1000 Pre-convergence Path Post-convergence Path FIB @ 1 for Destination 9 Initially: OIF to 2 Stage1: {16006, 24065, 16009} Finally (stage2): OIF 8 9 FIB @ 8 for Destination 9 Initially: OIF to 1 Stage1: {16006, 24065, 16009} Finally (stage2): OIF 7 FIB @ 7 for Destination 9 Initially: OIF to 8 Stage1: {16006, 24065, 16009} Finally (stage2): OIF 6 FIB @ 6 for Destination 9 Initially: OIF to 7 Stage1: {24065, 16009} Finally (stage2): OIF 5 Illustration for the post-convergence microloop impacting traffic from 1 to 9 after link45 going down Demo BRKRST-3122 55

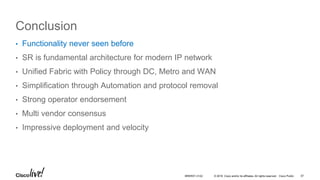

Conclusion
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Conclusion • Functionality never seen before • SR is fundamental architecture for modern IP network • Unified Fabric with Policy through DC, Metro and WAN • Simplification through Automation and protocol removal • Strong operator endorsement • Multi vendor consensus • Impressive deployment and velocity BRKRST-3122 57
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Resources • Stay Informed - Tutorials, Conferences, IETF, Open-source SW • http://www.segment-routing.net/ • Join us – Segment Routing @ LinkedIN • Get in Touch • ask-segment-routing@cisco.com • “Latest” SR Demonstrations • On-demand Next-Hop and SR PCE • TI-LFA Node protection • Microloop Avoidance • SRv6 “Spray” use-case • Segment Routing book • Pre-order available now! BRKRST-3122 58
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Complete Your Online Session Evaluation Don’t forget: Cisco Live sessions will be available for viewing on-demand after the event at CiscoLive.com/Online • Give us your feedback to be entered into a Daily Survey Drawing. A daily winner will receive a $750 Amazon gift card. • Complete your session surveys through the Cisco Live mobile app or from the Session Catalog on CiscoLive.com/us. BRKRST-3122 59
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Continue Your Education • Demos in the Cisco campus • Walk-in Self-Paced Labs • Lunch & Learn • Meet the Engineer 1:1 meetings • Related sessions… BRKRST-3122 60
© 2016 Cisco and/or its affiliates. All rights reserved. Cisco Public Segment Routing opportunities at CiscoLive! • BRKRST-2124: Introduction to Segment Routing • Presented Monday – view session materials on CiscoLive.com • LABSPG-2012: Next Generation Service Provider Network using Segment Routing & BIER • In the Walk-in Self-Paced (WISP) lab area of the hub until 5pm today! • BRKDCN-2050: Segment Routing in Datacenter using Nexus 9000 and 3000 • At 1pm today! South Pacific B, Lower Level • LTRMPL-2104: Cisco WAN Automation Engine (WAE) Network Programmability with Segment Routing BRKRST-3122 61
Thank you
Segment Routing Advanced Use Cases - Cisco Live 2016 USA

More Related Content

PDF
SRv6 Network Programming: deployment use-cases
byAPNIC

PDF
WAN SDN meet Segment Routing
byAPNIC

PPTX
Cisco Live Milan 2015 - BGP advance
byBertrand Duvivier

PDF
Segment Routing
byAPNIC

PDF
Building DataCenter networks with VXLAN BGP-EVPN
byCisco Canada

PDF
Segment Routing: A Tutorial
byAPNIC

PDF
Segment Routing Technology Deep Dive and Advanced Use Cases
byCisco Canada

PDF
MPLS L3 VPN Deployment
byAPNIC

SRv6 Network Programming: deployment use-cases
byAPNIC

WAN SDN meet Segment Routing
byAPNIC

Cisco Live Milan 2015 - BGP advance
byBertrand Duvivier

Segment Routing
byAPNIC

Building DataCenter networks with VXLAN BGP-EVPN
byCisco Canada

Segment Routing: A Tutorial
byAPNIC

Segment Routing Technology Deep Dive and Advanced Use Cases
byCisco Canada

MPLS L3 VPN Deployment
byAPNIC


What's hot

PDF
Segment Routing Lab
byCisco Canada

PDF
DDoS Mitigation using BGP Flowspec
byAPNIC

PDF
Traffic Engineering Using Segment Routing
byCisco Canada

PPT
Mpls L3_vpn
byReza Farahani

PPTX
EVPN-Presentation.pptx
byVimalMallick

PPTX
Vxlan deep dive session rev0.5 final
byKwonSun Bae

PDF
Cisco Live! :: Introduction to Segment Routing :: BRKRST-2124 | Las Vegas 2017
byBruno Teixeira

PPT
Deploying Carrier Ethernet features on ASR 9000
byVinod Kumar Balasubramanyam

PDF
EVPN Introduction
byBangladesh Network Operators Group

PDF
CISCO Virtual Private LAN Service (VPLS) Technical Deployment Overview
byAmeen Wayok

PDF
Segment Routing for Dummies
byGary Jan

PDF
Bgp tutorial for ISP
byWahyu Nasution

PPT
Juniper mpls best practice part 1
byFebrian ‎

PDF
Operationalizing EVPN in the Data Center: Part 2
byCumulus Networks

PPTX
MENOG-Segment Routing Introduction
byRasoul Mesghali, CCIE RS

PDF
Demystifying EVPN in the data center: Part 1 in 2 episode series
byCumulus Networks

PPTX
The Segment Routing Architecture (IEEE Globecom 2015)
bynagendranainar

PPTX
MPLS Layer 3 VPN
byNetProtocol Xpert

PPT
OSPF LSA Types Explained
byDuane Bodle

PPTX
BGP FlowSpec experience and future developments
byPavel Odintsov

Segment Routing Lab
byCisco Canada

DDoS Mitigation using BGP Flowspec
byAPNIC

Traffic Engineering Using Segment Routing
byCisco Canada

Mpls L3_vpn
byReza Farahani

EVPN-Presentation.pptx
byVimalMallick

Vxlan deep dive session rev0.5 final
byKwonSun Bae

Cisco Live! :: Introduction to Segment Routing :: BRKRST-2124 | Las Vegas 2017
byBruno Teixeira

Deploying Carrier Ethernet features on ASR 9000
byVinod Kumar Balasubramanyam

EVPN Introduction
byBangladesh Network Operators Group

CISCO Virtual Private LAN Service (VPLS) Technical Deployment Overview
byAmeen Wayok

Segment Routing for Dummies
byGary Jan

Bgp tutorial for ISP
byWahyu Nasution

Juniper mpls best practice part 1
byFebrian ‎

Operationalizing EVPN in the Data Center: Part 2
byCumulus Networks

MENOG-Segment Routing Introduction
byRasoul Mesghali, CCIE RS

Demystifying EVPN in the data center: Part 1 in 2 episode series
byCumulus Networks

The Segment Routing Architecture (IEEE Globecom 2015)
bynagendranainar

MPLS Layer 3 VPN
byNetProtocol Xpert

OSPF LSA Types Explained
byDuane Bodle

BGP FlowSpec experience and future developments
byPavel Odintsov


Viewers also liked

PPT
MPLS SDN 2016 - Microloop avoidance with segment routing
byStephane Litkowski

PPTX
TechWiseTV Workshop: Segment Routing for the Datacenter
byRobb Boyd

PPTX
Segment routing in ISO-XR 5.2.2
byBertrand Duvivier

PDF
Segment Routing: Prepare Your Network For New Business Models
byCisco Service Provider

PPTX
Segment Routing & Application Engeering Routing
byBertrand Duvivier

PPT
MPLS SDN NFV WORLD'17 - SDN NFV deployment update
byStephane Litkowski

PPT
MPLS SDN 2015 - SPRING interoperability testing
byStephane Litkowski

PDF
Application Engineered Routing Segment Routing and the Cisco WAN Automation ...
byCisco Service Provider

PDF
Архитектура Segment Routing
byCisco Russia

PDF
Introducing Application Engineered Routing Powered by Segment Routing
byCisco Service Provider

PDF
BGP Traffic Engineering with SDN Controller
byAPNIC

PDF
Advanced Topics and Future Directions in MPLS
byCisco Canada

PDF
SDN Traffic Engineering, A Natural Evolution
byAPNIC

PDF
Efficient Label Encoding algorithm For Segment Routing (ELEANOR)
byRabah GUEDREZ

PPTX
BGP persistence
byBertrand Duvivier

PPT
MPLS SDN 2014 - Topology independant LFA
byStephane Litkowski

PDF
Experiments with Practical On-Demand Multi-Core Packet Capture
byTokyo University of Science

PDF
Enabling SDN in old school networks with Software-Controlled Routing Protocols
byOpen Networking Summits

PDF
segment routing MPLS SDN NFV World Congress - Paris 2017
byRabah GUEDREZ

PDF
Scaling Networks with Segment Routing
byAPNIC

MPLS SDN 2016 - Microloop avoidance with segment routing
byStephane Litkowski

TechWiseTV Workshop: Segment Routing for the Datacenter
byRobb Boyd

Segment routing in ISO-XR 5.2.2
byBertrand Duvivier

Segment Routing: Prepare Your Network For New Business Models
byCisco Service Provider

Segment Routing & Application Engeering Routing
byBertrand Duvivier

MPLS SDN NFV WORLD'17 - SDN NFV deployment update
byStephane Litkowski

MPLS SDN 2015 - SPRING interoperability testing
byStephane Litkowski

Application Engineered Routing Segment Routing and the Cisco WAN Automation ...
byCisco Service Provider

Архитектура Segment Routing
byCisco Russia

Introducing Application Engineered Routing Powered by Segment Routing
byCisco Service Provider

BGP Traffic Engineering with SDN Controller
byAPNIC

Advanced Topics and Future Directions in MPLS
byCisco Canada

SDN Traffic Engineering, A Natural Evolution
byAPNIC

Efficient Label Encoding algorithm For Segment Routing (ELEANOR)
byRabah GUEDREZ

BGP persistence
byBertrand Duvivier

MPLS SDN 2014 - Topology independant LFA
byStephane Litkowski

Experiments with Practical On-Demand Multi-Core Packet Capture
byTokyo University of Science

Enabling SDN in old school networks with Software-Controlled Routing Protocols
byOpen Networking Summits

segment routing MPLS SDN NFV World Congress - Paris 2017
byRabah GUEDREZ

Scaling Networks with Segment Routing
byAPNIC


Similar to Segment Routing Advanced Use Cases - Cisco Live 2016 USA

PDF
BRKRSTkjkjkjjhghghghghghghghggg-2124.pdf
bysoeminTun7

PDF
BRKSP-2551 - Introduction to Segment Routing.pdf
byfcesargonca

PDF
Cisco Connect Montreal 2017 - Segment Routing - Technology Deep-dive and Adva...
byCisco Canada

PDF
BRKMPL-2131_Deploying VPNs over Segment Routed Networks Made Easy.pdf
byYudiDjohan

PDF
SRv6-TOI-rev3i-EXTERNAL.pdf
byYunLiu75

PDF
18-20180514_SRv6_RIPE.pdf
byYunLiu75

PDF
BRKSPG-3001.pdf
byHebaalrahmanAzletine

PDF
Application Engineered Routing: Allowing Applications to Program the Network
byCisco Canada

PDF
PLNOG 13: Jeff Tantsura: Programmable and Application aware IP/MPLS networking
byPROIDEA

PPTX
PLNOG 17 - Leonir Hoxha - Next Generation Network Architecture - Segment Routing
byPROIDEA

PDF
0010-SR-TOI-SR_intro_v10.pdf
byYunLiu75

PDF
0010-SR-TOI-SR_intro_v10.pdf
byYunLiu75

PDF
Application Engineered Routing Enables Applications and Network Infrastructur...
byCisco Service Provider

PPTX
PLNOG 18 - Leonir Hoxha - Traffic Engineering with Segment Routing
byPROIDEA

PDF
Engineering The New IP Transport
byMyNOG

PPTX
Leveraging IPv6 extension header for traffic engineering, by Eric Vyncke [APN...
byAPNIC

PDF
1 bonica tutorial_segment_routing
byhptoga

PDF
hpsr-2020-srv6-tutorial
byStefano Salsano

PDF
mVPN Profile 14: This is the Way, mVPN BGP
by6fm7gg7hxs

PDF
SEGMENT Routing
byBangladesh Network Operators Group

BRKRSTkjkjkjjhghghghghghghghggg-2124.pdf
bysoeminTun7

BRKSP-2551 - Introduction to Segment Routing.pdf
byfcesargonca

Cisco Connect Montreal 2017 - Segment Routing - Technology Deep-dive and Adva...
byCisco Canada

BRKMPL-2131_Deploying VPNs over Segment Routed Networks Made Easy.pdf
byYudiDjohan

SRv6-TOI-rev3i-EXTERNAL.pdf
byYunLiu75

18-20180514_SRv6_RIPE.pdf
byYunLiu75

BRKSPG-3001.pdf
byHebaalrahmanAzletine

Application Engineered Routing: Allowing Applications to Program the Network
byCisco Canada

PLNOG 13: Jeff Tantsura: Programmable and Application aware IP/MPLS networking
byPROIDEA

PLNOG 17 - Leonir Hoxha - Next Generation Network Architecture - Segment Routing
byPROIDEA

0010-SR-TOI-SR_intro_v10.pdf
byYunLiu75

0010-SR-TOI-SR_intro_v10.pdf
byYunLiu75

Application Engineered Routing Enables Applications and Network Infrastructur...
byCisco Service Provider

PLNOG 18 - Leonir Hoxha - Traffic Engineering with Segment Routing
byPROIDEA

Engineering The New IP Transport
byMyNOG

Leveraging IPv6 extension header for traffic engineering, by Eric Vyncke [APN...
byAPNIC

1 bonica tutorial_segment_routing
byhptoga

hpsr-2020-srv6-tutorial
byStefano Salsano

mVPN Profile 14: This is the Way, mVPN BGP
by6fm7gg7hxs

SEGMENT Routing
byBangladesh Network Operators Group


Recently uploaded

PDF
When Drones Decide for Themselves_ Inside the Rise of Machine-Led Flight.pdf
byLyra Anderson

PDF
Build Next-Gen Spatial & Sensor Workflows: Secure, Scalable Processing in Sno...
bySafe Software

PDF
Certified AI-Native Foundations Professional.pdf
byMarc Entsminger SPC6, RTE, SSM, SA, SDP

PPTX
Code Like Bro -A guide for better Coding
byMadan Panthi

PPTX
The Lex Wire Precedent: A Technical Standard for Machine-Mediated Authority ...
byJeff Howell

PDF
Dev Dives: Build and deploy agentic automations - the unified way
byUiPathCommunity

PDF
"When every team does things "right", but together it turns into chaos", Yozh...
byFwdays

PDF
Certified AI-Empowered SAFe Release Train Engineer.pdf
byMarc Entsminger SPC6, RTE, SSM, SA, SDP

PDF
Computer-Based Training (CBT) The Backbone of Modern Technical & Defence Trai...
bycomputerbasedtrainin1

PDF
Pneumatic Pressure Pump PPP01 for Calibration & Testing
bySERRAX TECHNOLOGIES LLP

PDF
JCB_3CX_SPECS (24 págs) companywrench.com .pdf
byAquilesOyarzn1

PDF
Chapter 3 Cryptography and encryption techniques.pdf
byGetnet Tigabie Askale -(GM)

PDF
ICT500 - CRITICAL AND CREATIVE THINKING FOR INFORMATION TECHNOLOGY SOLUTIONS:...
by2024432452

PDF
Bettersize | BeSEC Series Product Brochure
byBettersize Instruments

PDF
Taxonomy Alignment for SDG Tagging - ASHA Case Study
byEnterprise Knowledge

PDF
Transcript: EU regulations for the North American book supply chain - Tech Fo...
byBookNet Canada

PDF
React Mastery: Visual Mental Models to Understand React Deeply
byThomas Gaye

PDF
Afsar Ahmed - Digital Marketing Portfolio
byAfsar Ahmed

PDF
2026_01_28 - OpenMetadata Community Meeting.pdf
byOpenMetadata

PDF
Real-Time AI at Scale Masterclass: Feature Store at Scale
byScyllaDB

When Drones Decide for Themselves_ Inside the Rise of Machine-Led Flight.pdf
byLyra Anderson

Build Next-Gen Spatial & Sensor Workflows: Secure, Scalable Processing in Sno...
bySafe Software

Certified AI-Native Foundations Professional.pdf
byMarc Entsminger SPC6, RTE, SSM, SA, SDP

Code Like Bro -A guide for better Coding
byMadan Panthi

The Lex Wire Precedent: A Technical Standard for Machine-Mediated Authority ...
byJeff Howell

Dev Dives: Build and deploy agentic automations - the unified way
byUiPathCommunity

"When every team does things "right", but together it turns into chaos", Yozh...
byFwdays

Certified AI-Empowered SAFe Release Train Engineer.pdf
byMarc Entsminger SPC6, RTE, SSM, SA, SDP

Computer-Based Training (CBT) The Backbone of Modern Technical & Defence Trai...
bycomputerbasedtrainin1

Pneumatic Pressure Pump PPP01 for Calibration & Testing
bySERRAX TECHNOLOGIES LLP

JCB_3CX_SPECS (24 págs) companywrench.com .pdf
byAquilesOyarzn1

Chapter 3 Cryptography and encryption techniques.pdf
byGetnet Tigabie Askale -(GM)

ICT500 - CRITICAL AND CREATIVE THINKING FOR INFORMATION TECHNOLOGY SOLUTIONS:...
by2024432452

Bettersize | BeSEC Series Product Brochure
byBettersize Instruments

Taxonomy Alignment for SDG Tagging - ASHA Case Study
byEnterprise Knowledge

Transcript: EU regulations for the North American book supply chain - Tech Fo...
byBookNet Canada

React Mastery: Visual Mental Models to Understand React Deeply
byThomas Gaye

Afsar Ahmed - Digital Marketing Portfolio
byAfsar Ahmed

2026_01_28 - OpenMetadata Community Meeting.pdf
byOpenMetadata

Real-Time AI at Scale Masterclass: Feature Store at Scale
byScyllaDB


Segment Routing Advanced Use Cases - Cisco Live 2016 USA

  • 2.
    Segment Routing: Technology Updateand Advanced Use-Cases Steve Braaten, Solutions Architect BRKRST-3122
  • 3.
    • Segment RoutingExecutive Summary • Reminders • Incremental Deployment Use-Cases • Inter-Domain Policy at Scale • Topology Independent LFA (TI-LFA) • Microloop Avoidance • Conclusion Agenda
  • 4.
  • 5.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Segment Routing • Source Routing • the source chooses a path and encodes it in the packet header as an ordered list of segments • the rest of the network executes the encoded instructions • Segment: an identifier for any type of instruction • forwarding or service • Forwarding Plane: • MPLS: an ordered list of segments is represented as a stack of labels • IPv6: an ordered list of segments is encoded in a routing extension header • Multi-Vendor solution BRKRST-3122 5

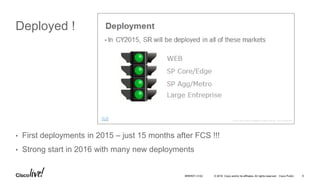

  • 6.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Deployed ! • First deployments in 2015 – just 15 months after FCS !!! • Strong start in 2016 with many new deployments BRKRST-3122 6
  • 7.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public IETF • Strong commitment for standardization and multi-vendor support • SPRING Working-Group (started Nov 2013) • All key documents are WG-status • Over 25 drafts maintained by SR team • Over 50% are WG status • Over 75% have a Cisco implementation • Several interop reports are available • First RFC document - RFC 7855 (May 2016) www.segment-routing.net tools.ietf.org/wg/spring/ BRKRST-3122 7
  • 8.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Foundation for modern IP/MPLS networking • Simplicity • Set of few, well-chosen building blocks • Solution to unsolved problems • End-to-end policy, local and/or centralized PCE, 50msec protection, microloop avoidance, and more… • Scale • Granular traffic engineering with minimal network state • Seamless Deployment • SR/LDP interworking, SR/RSVP-TE interworking, ship-in-the-night co-existence • Decoupled data and control planes • Low-cost 1 BRKRST-3122 8
  • 9.

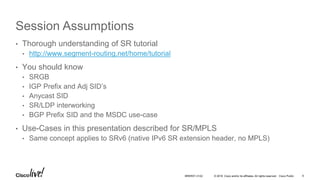

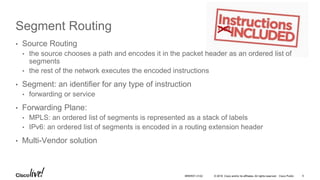

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Session Assumptions • Thorough understanding of SR tutorial • http://www.segment-routing.net/home/tutorial • You should know • SRGB • IGP Prefix and Adj SID’s • Anycast SID • SR/LDP interworking • BGP Prefix SID and the MSDC use-case • Use-Cases in this presentation described for SR/MPLS • Same concept applies to SRv6 (native IPv6 SR extension header, no MPLS) BRKRST-3122 9
  • 10.
  • 11.

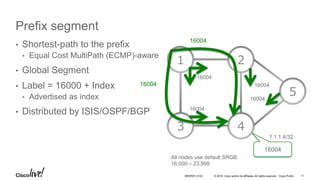

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Prefix segment • Shortest-path to the prefix • Equal Cost MultiPath (ECMP)-aware • Global Segment • Label = 16000 + Index • Advertised as index • Distributed by ISIS/OSPF/BGP 1 2 3 4 5 16004 16004 16004 16004 16004 16004 16004 1.1.1.4/32 All nodes use default SRGB 16,000 – 23,999 BRKRST-3122 11
  • 12.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Adjacency segment • Forward on the IGP adjacency • Local Segment • Advertised as label value • Distributed by ISIS/OSPF • But only local adjacency SID’s are installed in FIB! 1 2 3 4 5 24024 24025 Adj to 5 Adj to 4 All nodes use default SRGB 16,000 – 23,999 BRKRST-3122 12
  • 13.

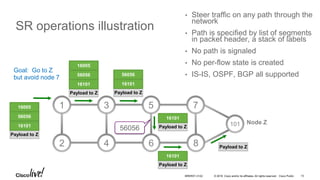

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public SR operations illustration • Steer traffic on any path through the network • Path is specified by list of segments in packet header, a stack of labels • No path is signaled • No per-flow state is created • IS-IS, OSPF, BGP all supported Node Z 56056 1 3 5 7 2 4 6 8 101 Payload to Z 16101 56056 16005 Payload to Z 16101 56056 16005 Payload to Z 16101 56056 Payload to Z 16101 Payload to Z 16101 Payload to Z Goal: Go to Z but avoid node 7 BRKRST-3122 13
  • 14.
  • 15.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public SR Innovation VPN / Service Transport Topology Independent IP FRR Traffic Engineering Egress Peering Engineering Data Center Fabric Microloop Avoidance Demand Matrix Application Engineered Routing Inter-Domain Policy at ScaleIncremental Use Case Deployment http://blogs.cisco.com/sp/supercharge-your-network-with-segment-routing-innovations BRKRST-3122 15
  • 16.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public SR Innovation Topology Independent IP FRR Traffic Engineering Egress Peering Engineering Data Center Fabric Microloop Avoidance Demand Matrix Application Engineered Routing Inter-Domain Policy at ScaleIncremental Use Case Deployment VPN / Service Transport http://blogs.cisco.com/sp/supercharge-your-network-with-segment-routing-innovations BRKRST-3122 16
  • 17.
    Inter-Domain Policy atScale draft-filsfils-spring-large-scale-interconnect
  • 18.

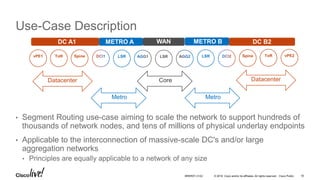

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Use-Case Description • Segment Routing use-case aiming to scale the network to support hundreds of thousands of network nodes, and tens of millions of physical underlay endpoints • Applicable to the interconnection of massive-scale DC's and/or large aggregation networks • Principles are equally applicable to a network of any size vPE1 ToR Spine LSR LSR vPE2ToRSpineLSR DC A1 METRO A METRO BWAN DC B2 Datacenter Datacenter Metro Metro Core BRKRST-3122 18

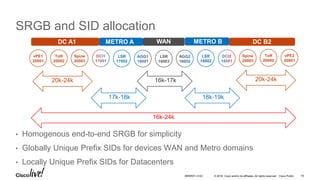

  • 19.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public SRGB and SID allocation • Homogenous end-to-end SRGB for simplicity • Globally Unique Prefix SIDs for devices WAN and Metro domains • Locally Unique Prefix SIDs for Datacenters vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 20k-24k 20k-24k 17k-18k 18k-19k 16k-17k 16k-24k BRKRST-3122 19
  • 20.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public IGP/SR within WAN and Metro Domains • Each domain runs ISIS/OSPF SR • Incremental deployment and seamless interworking with LDP DCI1 17001 LSR 17002 LSR 16003 DCI2 18001 LSR 18002 METRO A METRO BWAN IGP / SR 2 IGP / SR 3IGP / SR 1 BRKRST-3122 20
  • 21.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Segment Routing in the Datacenter • Datacenter fabric runs BGP SR • Example: 20006 is the BGP Prefix SID to DCI6 • ECMP-aware • Simple (no LDP/RSVP) • Policy-driven vPE1 20001 ToR2 20002 Spine4 20004 Leaf3 20003 DCI6 20006 vPE11 20011 ToR12 20012 Spine14 20014 Leaf13 20013 Leaf15 20015 DCI16 20016 AS2 AS11 AS3 AS4 AS5 AS6AS1 Leaf5 20005 BRKRST-3122 21
  • 22.
    Inter-Domain Policy atScale SR connectivity across domains
  • 23.

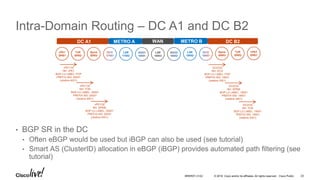

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Intra-Domain Routing – DC A1 and DC B2 • BGP SR in the DC • Often eBGP would be used but iBGP can also be used (see tutorial) • Smart AS (ClusterID) allocation in eBGP (iBGP) provides automated path filtering (see tutorial) vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 vPE1/32 NH: vPE1 BGP-LU LABEL: POP PREFIX-SID: 20001 (relative 4001) vPE1/32 NH: TOR BGP-LU LABEL: 20001 PREFIX-SID: 20001 (relative 4001) vPE1/32 NH: SPINE BGP-LU LABEL: 20001 PREFIX-SID: 20001 (relative 4001) DCI2/32 NH: DCI2 BGP-LU LABEL: POP PREFIX-SID: 18001 (relative 2001) DCI2/32 NH: SPINE BGP-LU LABEL: 18001 PREFIX-SID: 18001 (relative 2001) DCI2/32 NH: TOR BGP-LU LABEL: 18001 PREFIX-SID: 18001 (relative 2001) BRKRST-3122 23
  • 24.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Intra-Domain Routing – Metro A and Metro B • In a metro, BGP/SR or ISIS-OSPF/SR are likely, both illustrated here • Example: Metro A: BGP/SR • Example: Metro B: ISIS/SR vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 DCI1/32 NH: DCI1 BGP-LU LABEL: POP PREFIX-SID: 17001 (relative 1001) DCI1/32 NH: LSR BGP-LU LABEL: 17001 PREFIX-SID: 17001 (relative 1001) ISIS LSP of AGG2 Leaf: Agg2 PREFIX-SID: 16002 (relative 2) BRKRST-3122 24
  • 25.

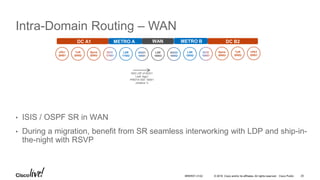

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Intra-Domain Routing – WAN • ISIS / OSPF SR in WAN • During a migration, benefit from SR seamless interworking with LDP and ship-in- the-night with RSVP vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 ISIS LSP of AGG1 Leaf: Agg1 PREFIX-SID: 16001 (relative 1) BRKRST-3122 25

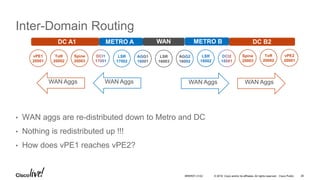

  • 26.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Inter-Domain Routing • WAN aggs are re-distributed down to Metro and DC • Nothing is redistributed up !!! • How does vPE1 reaches vPE2? vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 WAN Aggs WAN AggsWAN AggsWAN Aggs BRKRST-3122 26
  • 27.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Inter-Domain Routing • Redistribution: from center to leaves • WAN redistributes (only) its AGG’s into metro’s • Metro redistributes (only) the WAN AGG’s into DC’s • Redistribution: from leaves to center • Nothing vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 ISIS LSP of AGG2 Leaf: AGG1 PREFIX-SID: 16001 (relative 1) AGG1 NH: DCI2 BGP-LU LABEL: 16001 PREFIX-SID: 16001 (relative 1) AGG1 NH: SPINE BGP-LU LABEL: 16001 PREFIX-SID: 16001 (relative 1) AGG1 NH: ToR BGP-LU LABEL: 16001 PREFIX-SID: 16001 (relative 1) BRKRST-3122 27
  • 28.

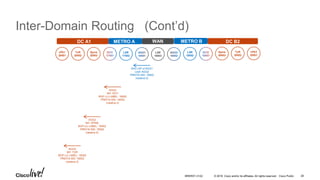

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Inter-Domain Routing (Cont’d) vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 ISIS LSP of AGG1 Leaf: AGG2 PREFIX-SID: 16002 (relative 2) AGG2 NH: DCI1 BGP-LU LABEL: 16002 PREFIX-SID: 16002 (relative 2) AGG2 NH: SPINE BGP-LU LABEL: 16002 PREFIX-SID: 16002 (relative 2) AGG2 NH: TOR BGP-LU LABEL: 16002 PREFIX-SID: 16002 (relative 2) BRKRST-3122 28
  • 29.
  • 30.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public SR PCE • Multi-Domain topology • Real-time reactive feed via BGP-LS/ISIS/OSPF from multiple domains • Including ip address and SID • Compute: stateful with native SRTE algorithms vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 Multi-Domain Topology SR PCE Compute Demo BRKRST-3122 30
  • 31.

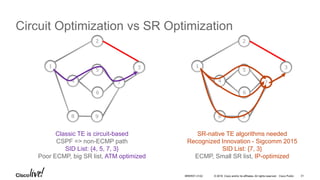

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Circuit Optimization vs SR Optimization 2 4 1 5 3 6 7 8 9 Classic TE is circuit-based CSPF => non-ECMP path SID List: {4, 5, 7, 3} Poor ECMP, big SR list, ATM optimized 2 4 1 5 3 6 7 8 9 SR-native TE algorithms needed Recognized Innovation - Sigcomm 2015 SID List: {7, 3} ECMP, Small SR list, IP-optimized BRKRST-3122 31
  • 32.

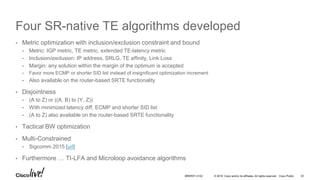

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Four SR-native TE algorithms developed • Metric optimization with inclusion/exclusion constraint and bound • Metric: IGP metric, TE metric, extended TE-latency metric • Inclusion/exclusion: IP address, SRLG, TE affinity, Link Loss • Margin: any solution within the margin of the optimum is accepted • Favor more ECMP or shorter SID list instead of insignificant optimization increment • Also available on the router-based SRTE functionality • Disjointness • (A to Z) or ((A, B) to (Y, Z)) • With minimized latency diff, ECMP and shorter SID list • (A to Z) also available on the router-based SRTE functionality • Tactical BW optimization • Multi-Constrained • Sigcomm 2015 [url] • Furthermore … TI-LFA and Microloop avoidance algorithms BRKRST-3122 32
  • 33.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public SR PCE - Fundamentally Distributed • SR PCE not to be considered as a single “God” box • SR PCE deployment model more like BGP Route Reflectors • Different vPE’s can use different pairs of SR PCE’s • SR PCE preference can either be based on proximity or service vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE SR PCE SR PCE SR PCESR PCE SR PCE SR PCE SR PCE BRKRST-3122 33
  • 34.
    Inter-Domain Policy atScale On-Demand SR Next Hop (ODN)
  • 35.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Service Provisioning • vPE1 learns about a service route with nhop vPE2 • RR shown could be any flavor of overlay controller • How does vPE1 reach the nhop? • vPE1 only has routes within DC A1 and to the AGG’s of the WAN domain • Solution: On-Demand SR Next Hop (ODN) vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 BGP RR 2: V via vPE2 VPN-LABEL: 99999 1: V via vPE2 VPN-LABEL: 99999 BRKRST-3122 35
  • 36.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public On-Demand SR Next-Hop Overview • When the vPE’s does not have any RIB entry for the (locator, policy), the On-Demand SR Next-Hop automatically sends a stateful PCEP request to the SR PCE • Key benefit: provide the glue between the overlay and underlay controllers while decoupling them • E.g. overlay controller does not need to react to multi-domain underlay topology change, nor compute TE policies • E.g. underlay controller does not need to be involved in service orchestration, does not store any a priori TE policy • E.g. no direct API or coupled workflow between the controllers vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 3: vPE2 ? 4: {SID List} Demo BGP RR 2: V via vPE2 VPN-LABEL: 99999 1: V via vPE2 VPN-LABEL: 99999 BRKRST-3122 36
  • 37.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public On-Demand SR Next-Hop Reachability • vPE1’s ODN functionality automatically request a solution from SR PCE • Scalable: vPE1 only gets the inter-domain paths that it needs • Simple: no BGP3107 pushing all routes everywhere vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 16002 vPE2 20001 ToR 20002 Spine 20003 18001LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 3: vPE2 ? 4: {16002, 18001, 20001} 2: V via vPE2 VPN-LABEL: 99999 1: V via vPE2 VPN-LABEL: 99999 Demo BGP RR BRKRST-3122 37
  • 38.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public On-Demand SR Next-Hop SLA enabled • Inter-domain SLA with scale and simplicity • No RSVP, no midpoint state, no tunnel to configure !! vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 3: vPE2 with Low- Latency? 4: {16001, 16003, 16002, 18001, 20001} 2: V via vPE2 VPN-LABEL: 99999 EXT-COM: LATENCY 1: V via vPE2 VPN-LABEL: 99999 EXT-COM: LATENCY Demo BGP RR BRKRST-3122 38
  • 39.

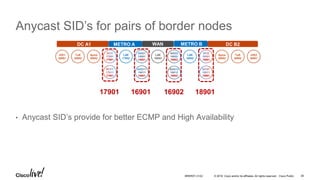

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Anycast SID’s for pairs of border nodes • Anycast SID’s provide for better ECMP and High Availability vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 17901 16901 16902 18901 16902 1890117901 16901 16902 1890117901 16901 BRKRST-3122 39
  • 40.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public On-Demand SR Next-Hop Reachability with Anycast SID • Better load-balancing: ECMP across border routers • Better availability: sub-50msec upon remote aggregation router failure • Better control plane scalability: no PCE re-computation, no PCEP update, no FIB update vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 3: vPE2 ? 4: {16902, 18901, 20001} 16902 18901 vPE2 20001 2: V via vPE2 VPN-LABEL: 99999 1: V via vPE2 VPN-LABEL: 99999 16902 1890117901 16901 16902 1890117901 16901 BGP RR BRKRST-3122 40
  • 41.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Binding SID to stitch Policies • End-to-end policies can be composed from more basic ones • An SRTE policy is bound by default to a Binding SID • RSVP-TE tunnels can also be bound to a Binding SID and hence RSVP-TE tunnels can be used within an end-to-end SR policy • Shorter SID list and churn isolation between domains • Even if the WAN-MetroA sub-path changes, the related Binding SID 4001 is constant vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 2: vPE2 with Min LAT? 1: REPORT {16003, 16002, 18002, 18001}, UP, BindingSID 4001 3: REPLY {16001, 4001, 20001} instead of {16001, 16003, 16002, 18002, 18001, 20001} BRKRST-3122 41

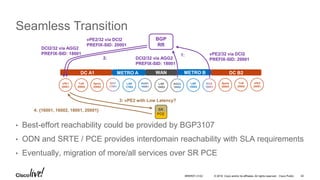

  • 42.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Seamless Transition • Best-effort reachability could be provided by BGP3107 • ODN and SRTE / PCE provides interdomain reachability with SLA requirements • Eventually, migration of more/all services over SR PCE vPE1 20001 ToR 20002 Spine 20003 LSR 17002 LSR 16003 vPE2 20001 ToR 20002 Spine 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 SR PCE 3: vPE2 with Low Latency? 4: {16001, 16002, 18001, 20001} BGP RR vPE2/32 via DCI2 PREFIX-SID: 20001 DCI2/32 via AGG2 PREFIX-SID: 18001 2: vPE2/32 via DCI2 PREFIX-SID: 20001DCI2/32 via AGG2 PREFIX-SID: 18001 1: BRKRST-3122 42
  • 43.
    Inter-Domain Policy atScale Inter-Domain Disjoint Services
  • 44.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Example: Two Disjoint Inter-domain PW’s • ODN/SR-PCE automated compute disjoint paths for PW1 and PW2 • PW1 and PW2 do not share the same headend, neither the same tailend • Inter-domain SLA with scale and simplicity • No RSVP, no midpoint state, no tunnel to configure !! SR PCE vPE2 disjoint group 7 {20003, 16001, 16002, 18001, 20001} vPE22 disjoint group 7 vPE1 20001 ToR2 20002 Spine3 20003 LSR 17002 LSR 16003 vPE2 20001 ToR3 20002 Spine4 20003 LSR 18002 DC A1 METRO A METRO BWAN DC B2 vPE11 20011 ToR12 20012 Spine13 20013 vPE22 20021 ToR23 20022 Spine24 20023 {20013, 16011, 16012, 18011, 20021} PW1 PW2 BRKRST-3122 44
  • 45.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Example: Inter-Domain PW - Disjoint Primary / Backup paths • ODN/SR-PCE automatically computes disjoint primary/sec paths for the PW • sBFD runs at 3x50msec on each SRTE path • Upon failure detection of the primary, the secondary SRTE Path is used • Inter-domain SLA with scale and simplicity • No RSVP, no midpoint state, no tunnel to configure !! vPE1 20001 ToR 20002 Spine1 20003 DCI1 17001 17901 LSR 17002 AGG1 16001 16901 LSR 16003 AGG2 16002 16902 vPE2 20001 ToR 20002 Spine 20003 DCI2 18001 18901 LSR 18002 DC A1 METRO A METRO BWAN DC B2 DCI11 17011 17901 AGG11 16011 16901 AGG12 16012 16902 DCI11 18011 18901 Spine2 20004 Spine2 20004 SR PCE1 Primary 1: Two disjoint paths to vPE2 2: PRIMARY: {17001, 16001, 16003, 18001, 20001} SECONDARY: {17011, 16011, 16013, 18011, 20001} Pri Sec BRKRST-3122 45
  • 46.
  • 47.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public TI-LFA - Benefits • 50msec Protection upon local link, node or SRLG failure • Simple to operate and understand • automatically computed by the router’s IGP process (ISIS and OSPF) • 100% coverage across any topology • predictable (backup = post convergence) • Optimum backup path • leverages the post-convergence path, planned to carry the traffic • avoid any intermediate flap via alternate path • Incremental deployment • also protects LDP and IP traffic BRKRST-3122 47
  • 48.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Automated Per-Destination optimization • 2’s computes a primary path to 5 100 100 PE4 5 2 31 6 7 8 Source Dest2 Default metric: 10 FIB of 2 for destination 5 Incoming Label: 16005 Primary: SWAP 16005 for 16005, oif: 3 Demo BRKRST-3122 48
  • 49.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Flexible Link vs Node vs SRLG protection • 2 checks the protection preference for the primary interface of the destination • Link protection (illustration assumption) • Node protection • SRLG protection 100 100 PE4 5 2 31 6 7 8 Source Dest2 Default metric: 10 Demo BRKRST-3122 49
  • 50.

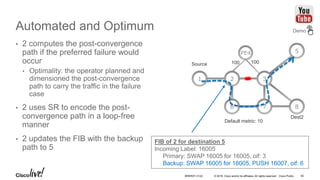

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Automated and Optimum • 2 computes the post-convergence path if the preferred failure would occur • Optimality: the operator planned and dimensioned the post-convergence path to carry the traffic in the failure case • 2 uses SR to encode the post- convergence path in a loop-free manner • 2 updates the FIB with the backup path to 5 100 100 PE4 5 2 31 6 7 8 Source Dest2 Default metric: 10 FIB of 2 for destination 5 Incoming Label: 16005 Primary: SWAP 16005 for 16005, oif: 3 Backup: SWAP 16005 for 16005, PUSH 16007, oif: 6 Demo BRKRST-3122 50
  • 51.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Do we need many SID’s? No! BRKRST-3122 51
  • 52.
  • 53.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Microloops are a day-1 IP drawback • IP hop-by-hop routing may induce microloop at any topology transition • Link up/down, metric up/down Upon link down convergence Illustration for the post-convergence microloop impacting traffic from 1 to 9 after link45 going down. Default link metric 10 2 3 4 5 8 7 6 1 1000 9 Pre-convergence Path Post-convergence Path BRKRST-3122 53
  • 54.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public SR Microloop Avoidance • Prevent any microloop upon isolated convergence due to • link up/down event & metric increase/decrease event • 2-stage convergence • Stage 1: non-looping SID lists to implement the post-convergence path • Stage 2: post-convergence path • If multiple back-to-back convergences, fall back to native IP convergence FIB @ 1 for Destination 9 Initially: {16009} OIF 2 Stage1: {16006, 24065, 16009} Stage2: {16009} OIF 8 2 3 4 5 8 7 6 1 1000 9 Pre-convergence Path Post-convergence Path Explicit Post-convergence Path microloop avoidance segment-routing Demo BRKRST-3122 54
  • 55.

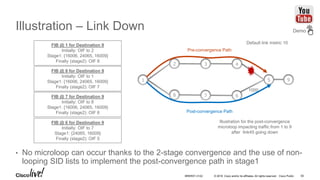

    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Illustration – Link Down • No microloop can occur thanks to the 2-stage convergence and the use of non- looping SID lists to implement the post-convergence path in stage1 2 3 4 5 8 7 6 1 Default link metric 10 1000 Pre-convergence Path Post-convergence Path FIB @ 1 for Destination 9 Initially: OIF to 2 Stage1: {16006, 24065, 16009} Finally (stage2): OIF 8 9 FIB @ 8 for Destination 9 Initially: OIF to 1 Stage1: {16006, 24065, 16009} Finally (stage2): OIF 7 FIB @ 7 for Destination 9 Initially: OIF to 8 Stage1: {16006, 24065, 16009} Finally (stage2): OIF 6 FIB @ 6 for Destination 9 Initially: OIF to 7 Stage1: {24065, 16009} Finally (stage2): OIF 5 Illustration for the post-convergence microloop impacting traffic from 1 to 9 after link45 going down Demo BRKRST-3122 55
  • 56.
  • 57.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Conclusion • Functionality never seen before • SR is fundamental architecture for modern IP network • Unified Fabric with Policy through DC, Metro and WAN • Simplification through Automation and protocol removal • Strong operator endorsement • Multi vendor consensus • Impressive deployment and velocity BRKRST-3122 57

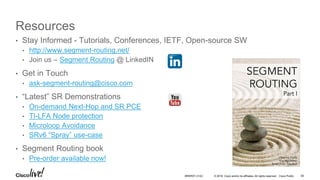

  • 58.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Resources • Stay Informed - Tutorials, Conferences, IETF, Open-source SW • http://www.segment-routing.net/ • Join us – Segment Routing @ LinkedIN • Get in Touch • ask-segment-routing@cisco.com • “Latest” SR Demonstrations • On-demand Next-Hop and SR PCE • TI-LFA Node protection • Microloop Avoidance • SRv6 “Spray” use-case • Segment Routing book • Pre-order available now! BRKRST-3122 58
  • 59.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Complete Your Online Session Evaluation Don’t forget: Cisco Live sessions will be available for viewing on-demand after the event at CiscoLive.com/Online • Give us your feedback to be entered into a Daily Survey Drawing. A daily winner will receive a $750 Amazon gift card. • Complete your session surveys through the Cisco Live mobile app or from the Session Catalog on CiscoLive.com/us. BRKRST-3122 59
  • 60.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Continue Your Education • Demos in the Cisco campus • Walk-in Self-Paced Labs • Lunch & Learn • Meet the Engineer 1:1 meetings • Related sessions… BRKRST-3122 60

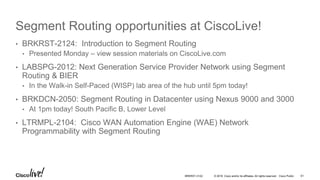

  • 61.
    © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Segment Routing opportunities at CiscoLive! • BRKRST-2124: Introduction to Segment Routing • Presented Monday – view session materials on CiscoLive.com • LABSPG-2012: Next Generation Service Provider Network using Segment Routing & BIER • In the Walk-in Self-Paced (WISP) lab area of the hub until 5pm today! • BRKDCN-2050: Segment Routing in Datacenter using Nexus 9000 and 3000 • At 1pm today! South Pacific B, Lower Level • LTRMPL-2104: Cisco WAN Automation Engine (WAE) Network Programmability with Segment Routing BRKRST-3122 61
