1. Security Testing
In Application Authentication
SECURITY TESTING IN
APPLICATION AUTHENTICATION
A Whitepaper by RapidValue Solutions
AN APPROACH TO IDENTIFY THE VULNERABILITIES IN AUTHENTICATION OF SOFTWARE APPLICATION.

2. Security Testing
In Application Authentication

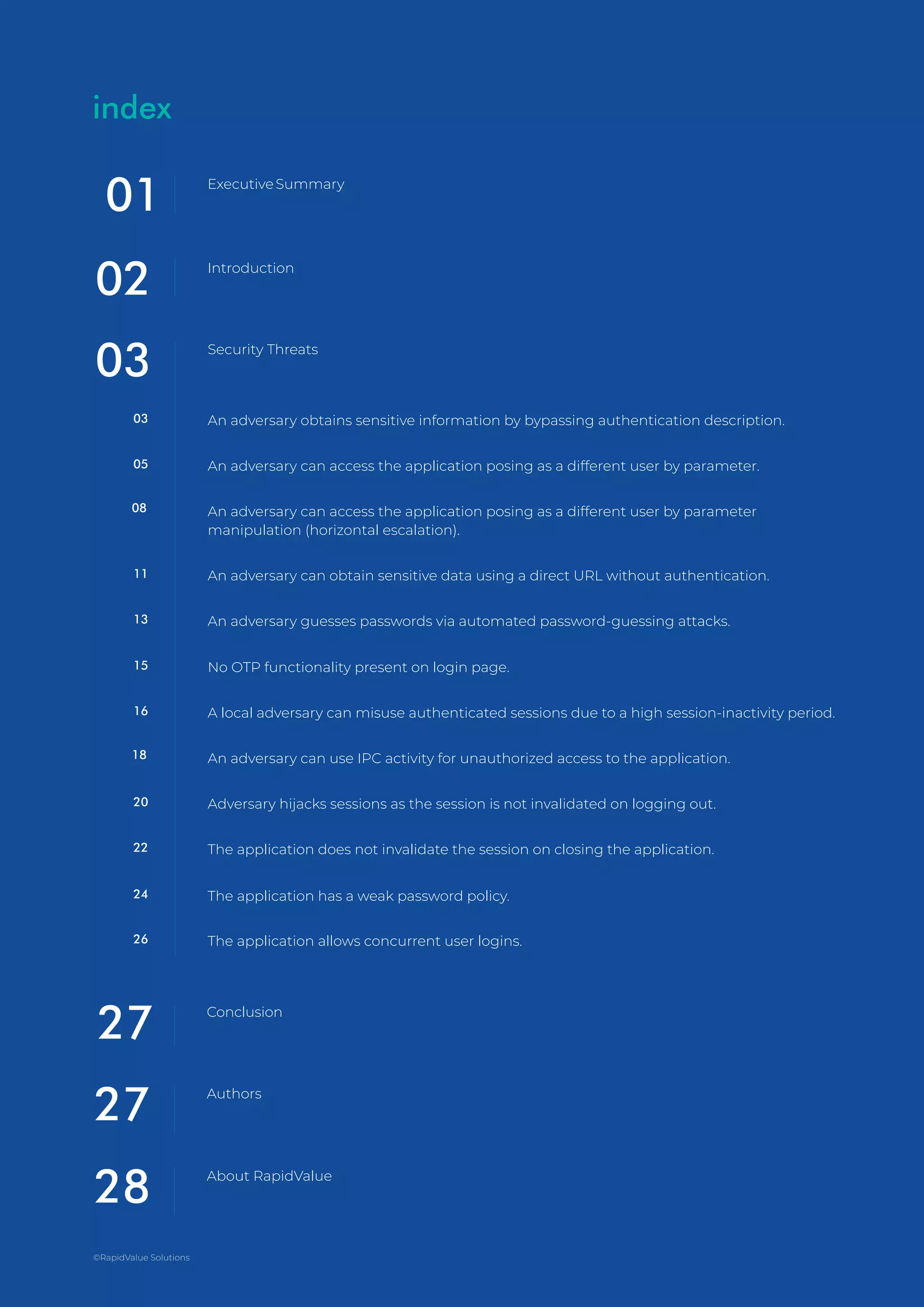

index
01 ExecutiveSummary
02 Introduction
03
03
15
05
16
08
18
11
20
13
22
24
26
Security Threats
An adversary obtains sensitive information by bypassing authentication description.
No OTP functionality present on login page.
An adversary can access the application posing as a different user by parameter.

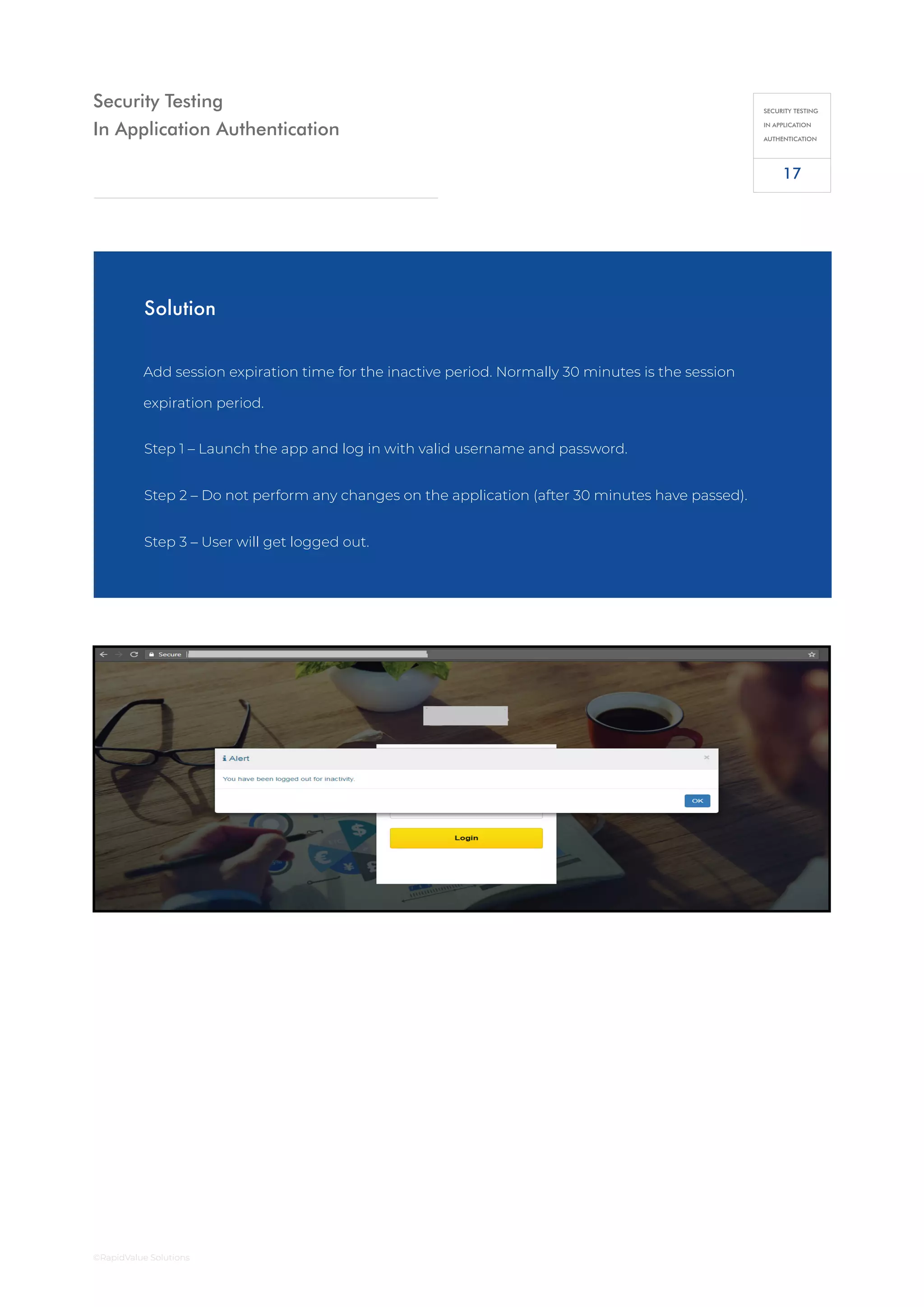

A local adversary can misuse authenticated sessions due to a high session-inactivity period.
An adversary can access the application posing as a different user by parameter
manipulation (horizontal escalation).
An adversary can use IPC activity for unauthorized access to the application.
An adversary can obtain sensitive data using a direct URL without authentication.
Adversary hijacks sessions as the session is not invalidated on logging out.
An adversary guesses passwords via automated password-guessing attacks.

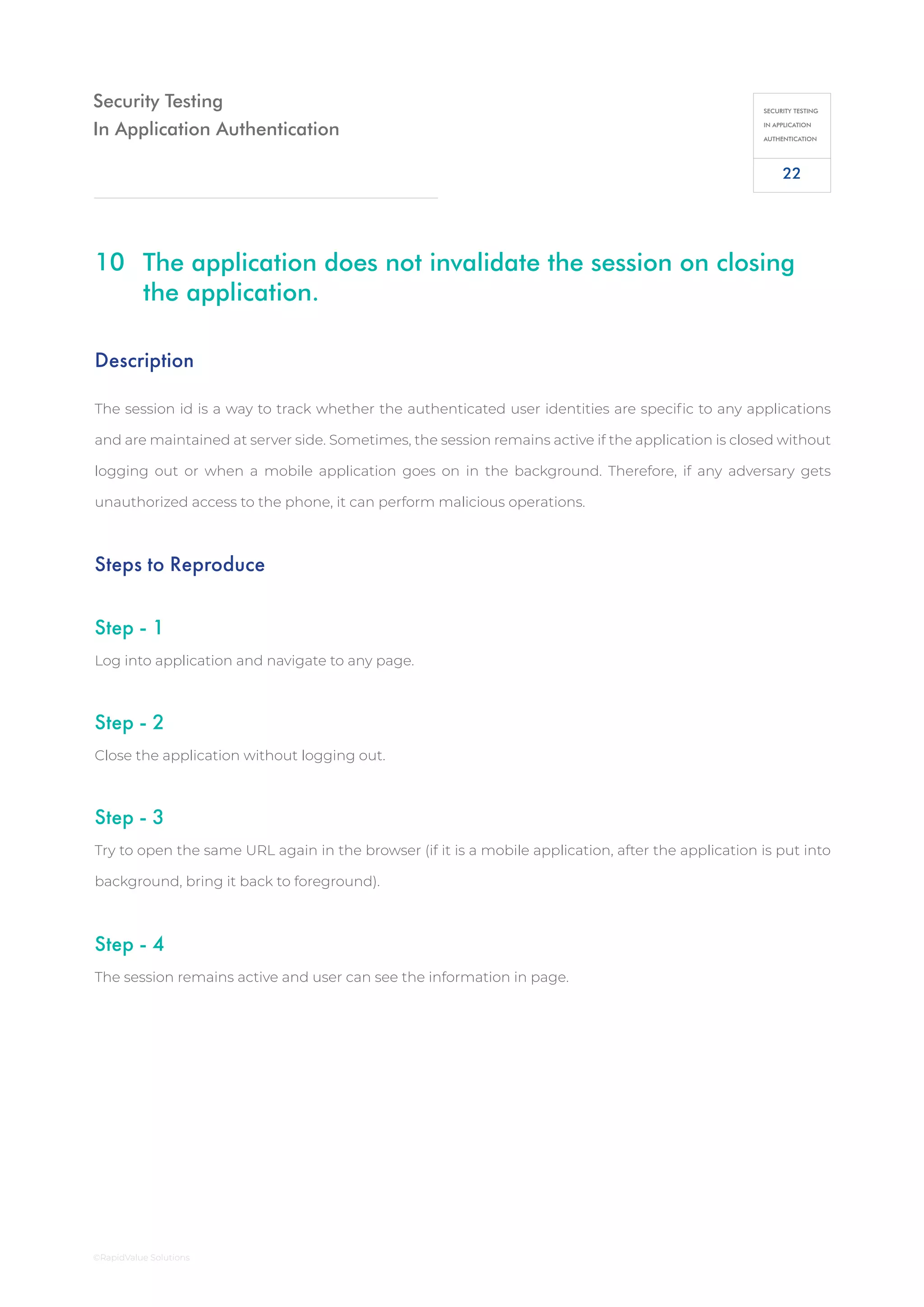

The application does not invalidate the session on closing the application.

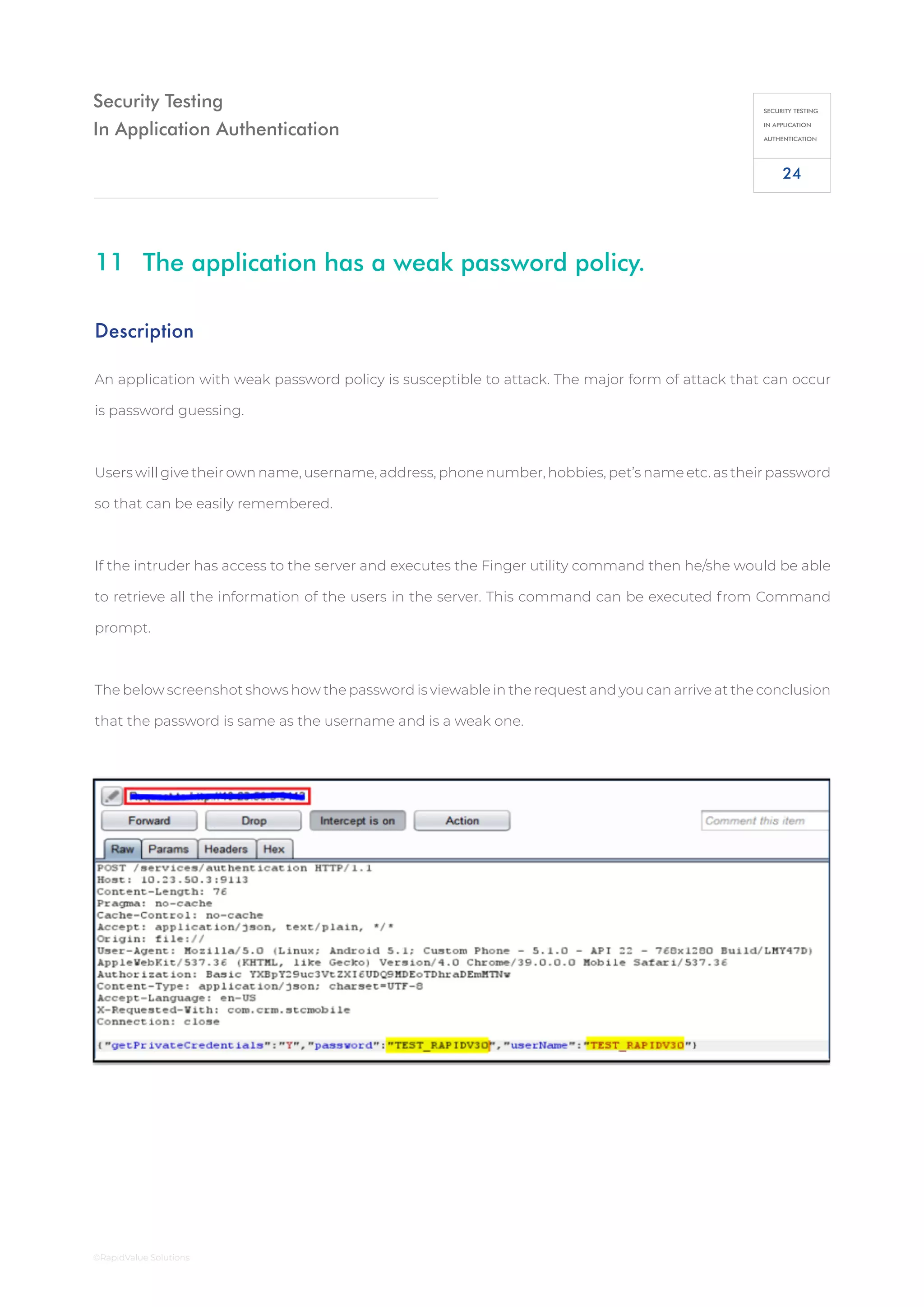

The application has a weak password policy.
The application allows concurrent user logins.

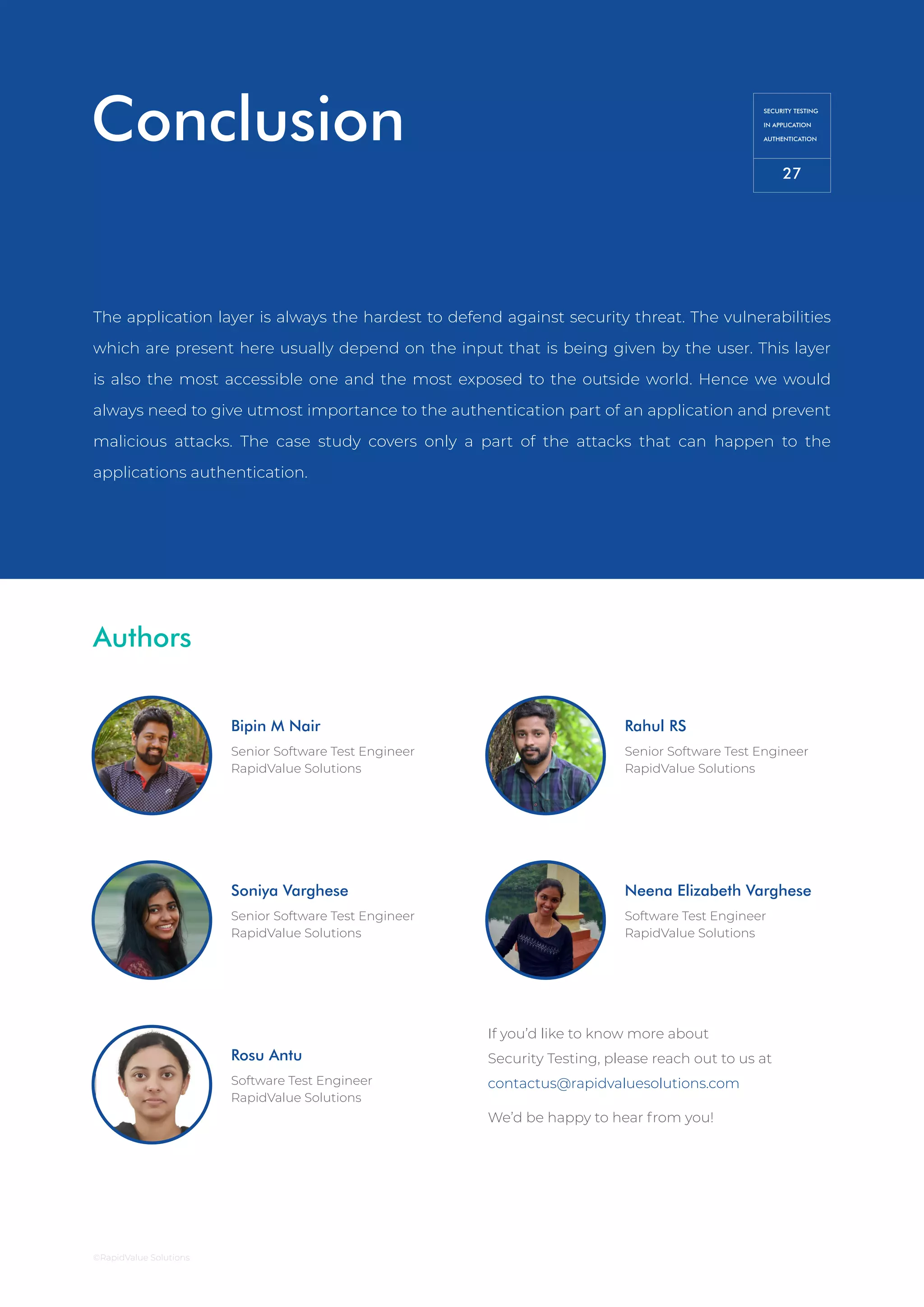

27 Conclusion
©RapidValue Solutions
27 Authors
28 About RapidValue

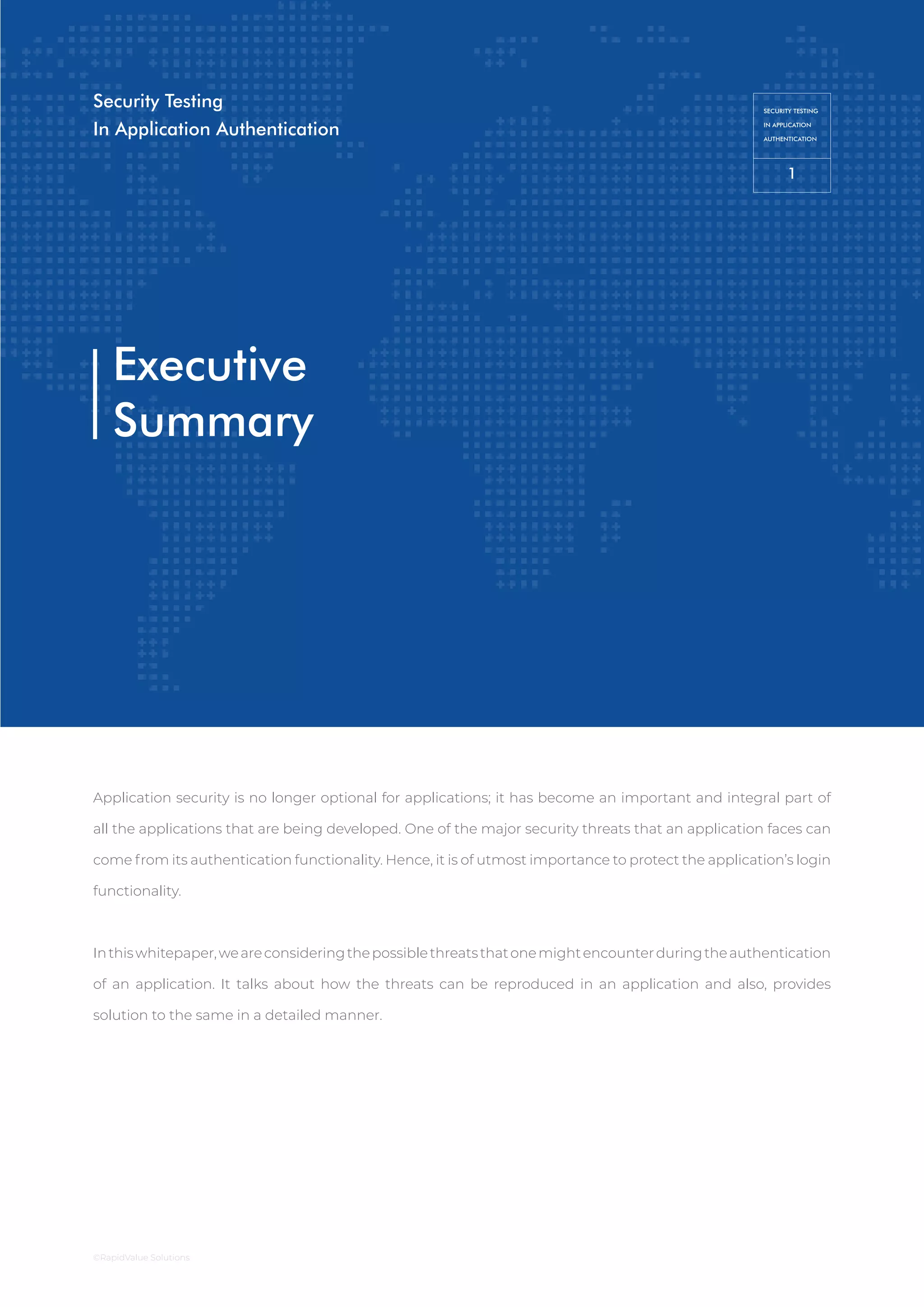

3. Executive
Summary
Application security is no longer optional for applications; it has become an important and integral part of
all the applications that are being developed. One of the major security threats that an application faces can
come from its authentication functionality. Hence, it is of utmost importance to protect the application’s login
functionality.
Inthiswhitepaper,weareconsideringthepossiblethreatsthatonemightencounterduringtheauthentication
of an application. It talks about how the threats can be reproduced in an application and also, provides
solution to the same in a detailed manner.
Security Testing
In Application Authentication
1
©RapidValue Solutions
1
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

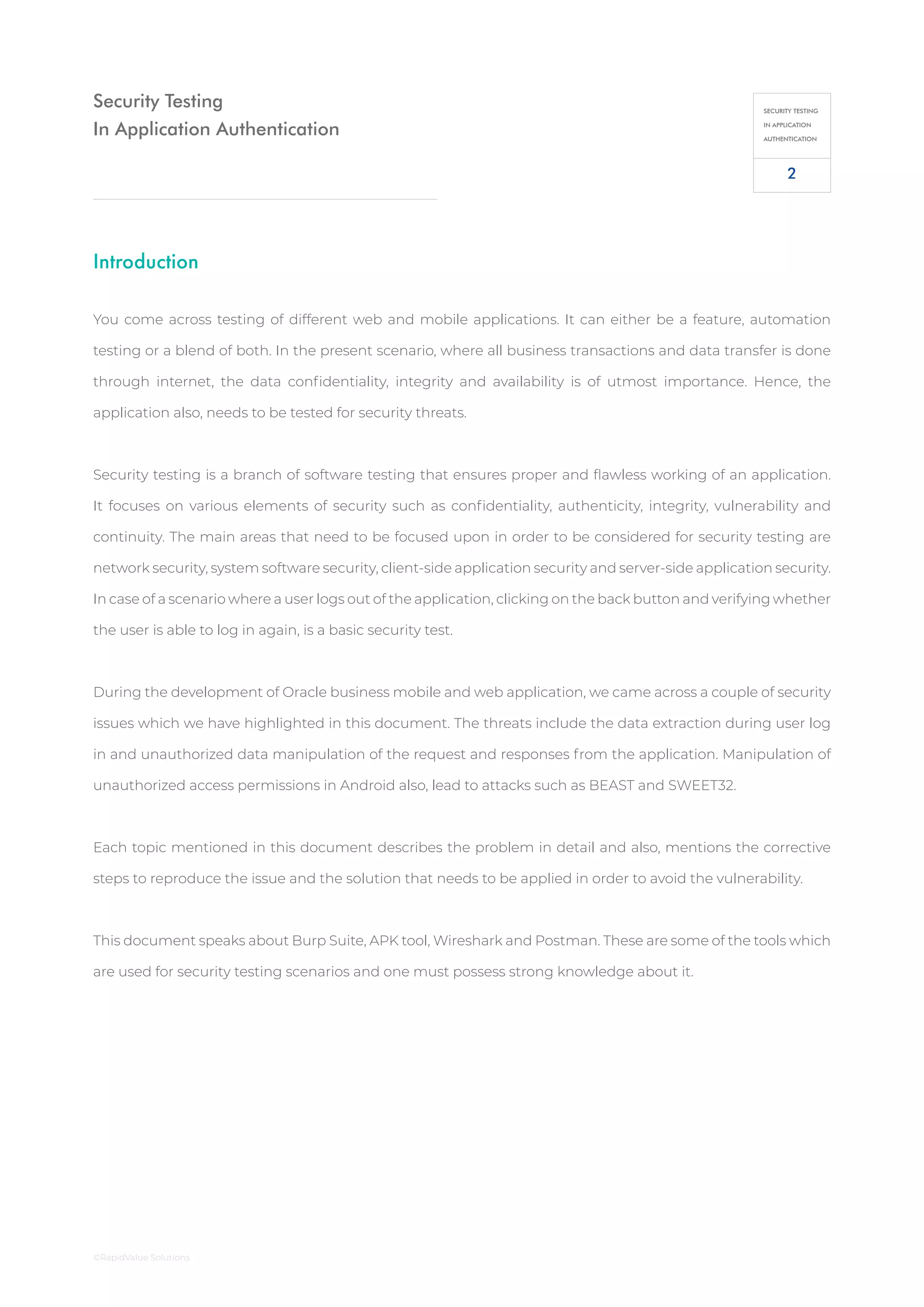

4. Security Testing
In Application Authentication
Introduction
You come across testing of different web and mobile applications. It can either be a feature, automation
testing or a blend of both. In the present scenario, where all business transactions and data transfer is done
through internet, the data confidentiality, integrity and availability is of utmost importance. Hence, the
application also, needs to be tested for security threats.
Security testing is a branch of software testing that ensures proper and flawless working of an application.
It focuses on various elements of security such as confidentiality, authenticity, integrity, vulnerability and
continuity. The main areas that need to be focused upon in order to be considered for security testing are
network security, system software security, client-side application security and server-side application security.
In case of a scenario where a user logs out of the application, clicking on the back button and verifying whether
the user is able to log in again, is a basic security test.
During the development of Oracle business mobile and web application, we came across a couple of security
issues which we have highlighted in this document. The threats include the data extraction during user log
in and unauthorized data manipulation of the request and responses from the application. Manipulation of
unauthorized access permissions in Android also, lead to attacks such as BEAST and SWEET32.
Each topic mentioned in this document describes the problem in detail and also, mentions the corrective
steps to reproduce the issue and the solution that needs to be applied in order to avoid the vulnerability.
This document speaks about Burp Suite, APK tool, Wireshark and Postman. These are some of the tools which
are used for security testing scenarios and one must possess strong knowledge about it.
2
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

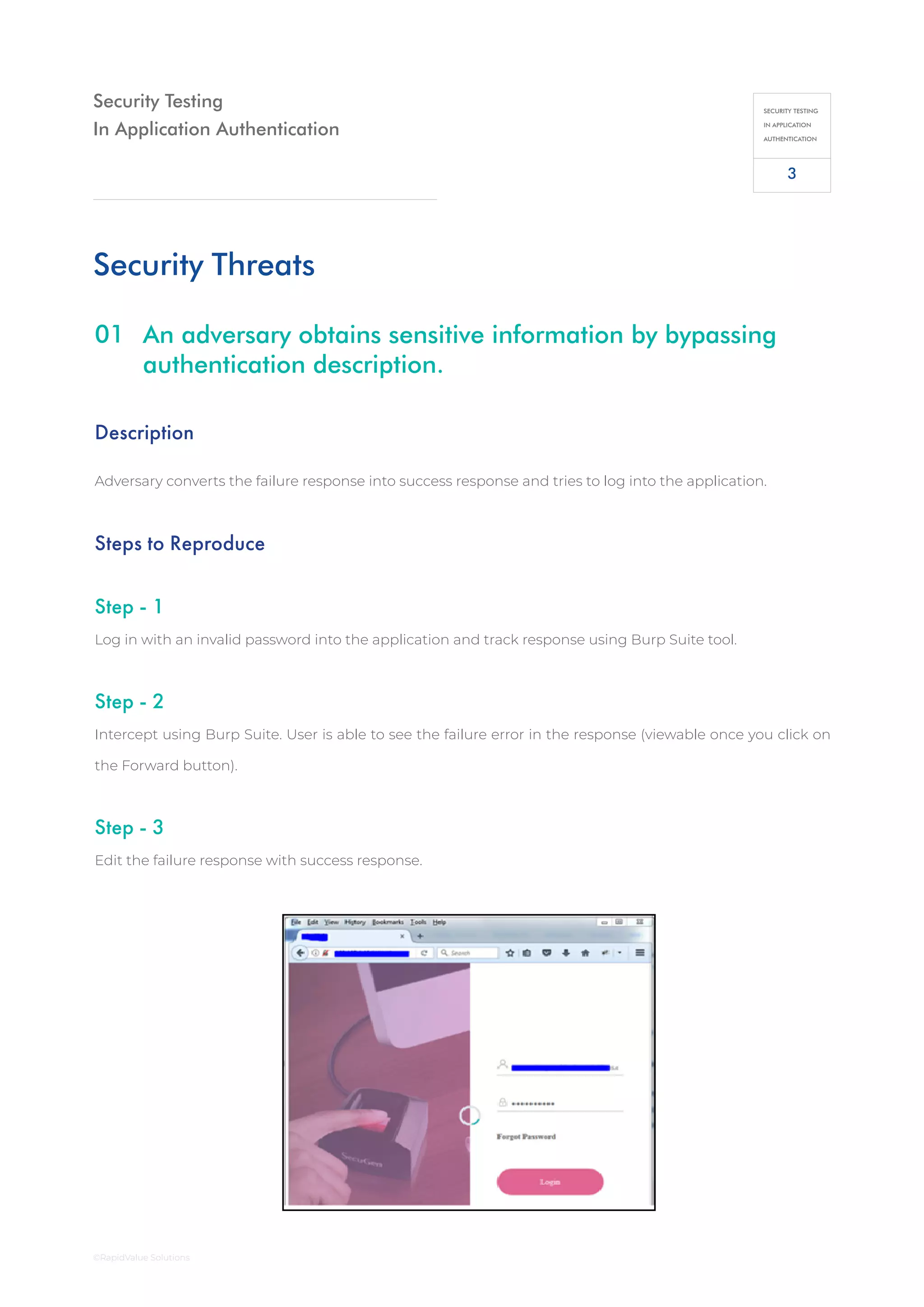

5. Security Testing
In Application Authentication
Step - 1
Log in with an invalid password into the application and track response using Burp Suite tool.
Step - 3
Edit the failure response with success response.
Step - 2
Intercept using Burp Suite. User is able to see the failure error in the response (viewable once you click on
the Forward button).
Security Threats
An adversary obtains sensitive information by bypassing
authentication description.
01
Description
Adversary converts the failure response into success response and tries to log into the application.
Steps to Reproduce
3
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

6. Security Testing
In Application Authentication

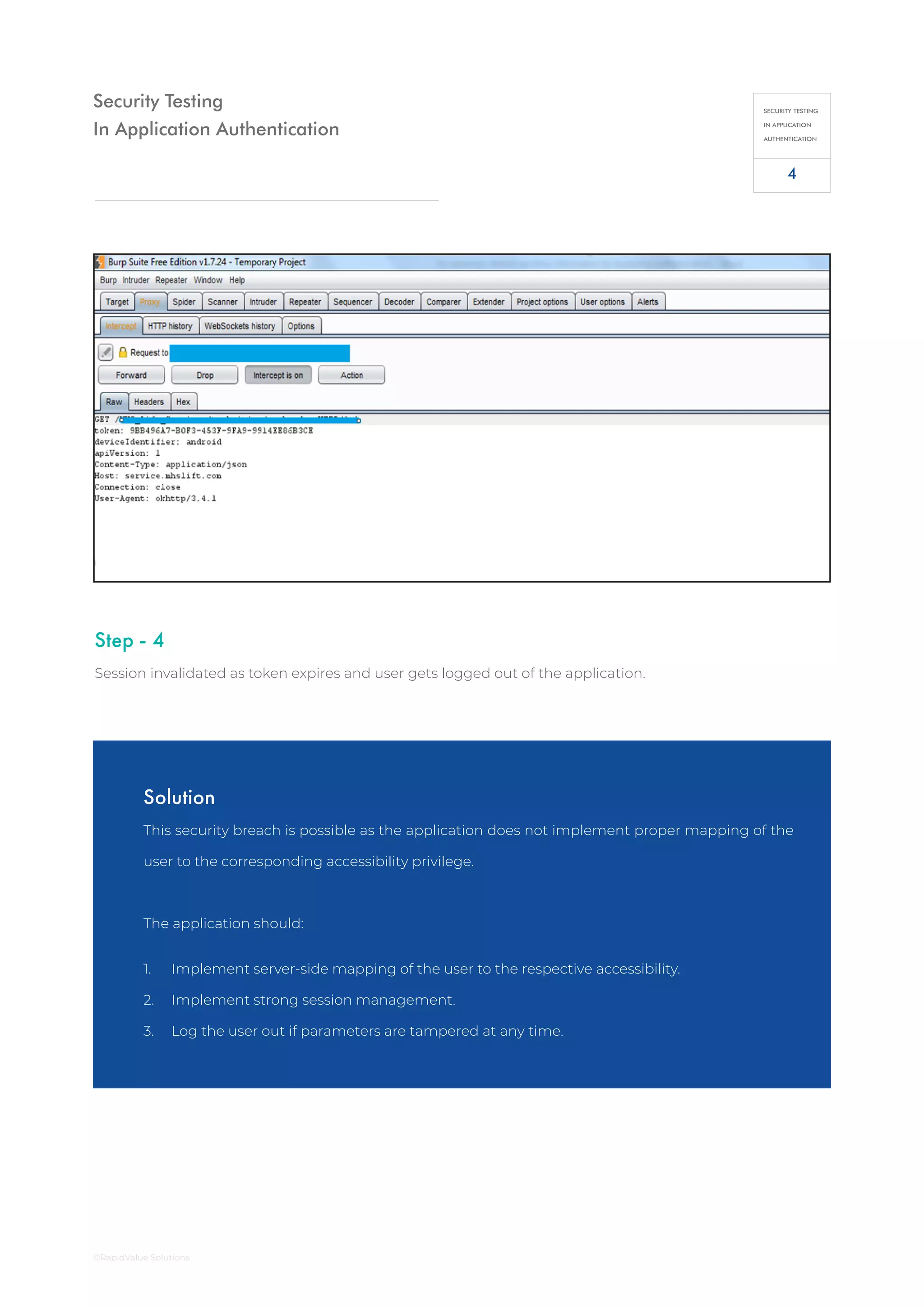

Step - 4
Session invalidated as token expires and user gets logged out of the application.
Solution
This security breach is possible as the application does not implement proper mapping of the
user to the corresponding accessibility privilege.
The application should:
1. Implement server-side mapping of the user to the respective accessibility.
2. Implement strong session management.
3. Log the user out if parameters are tampered at any time.
4
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

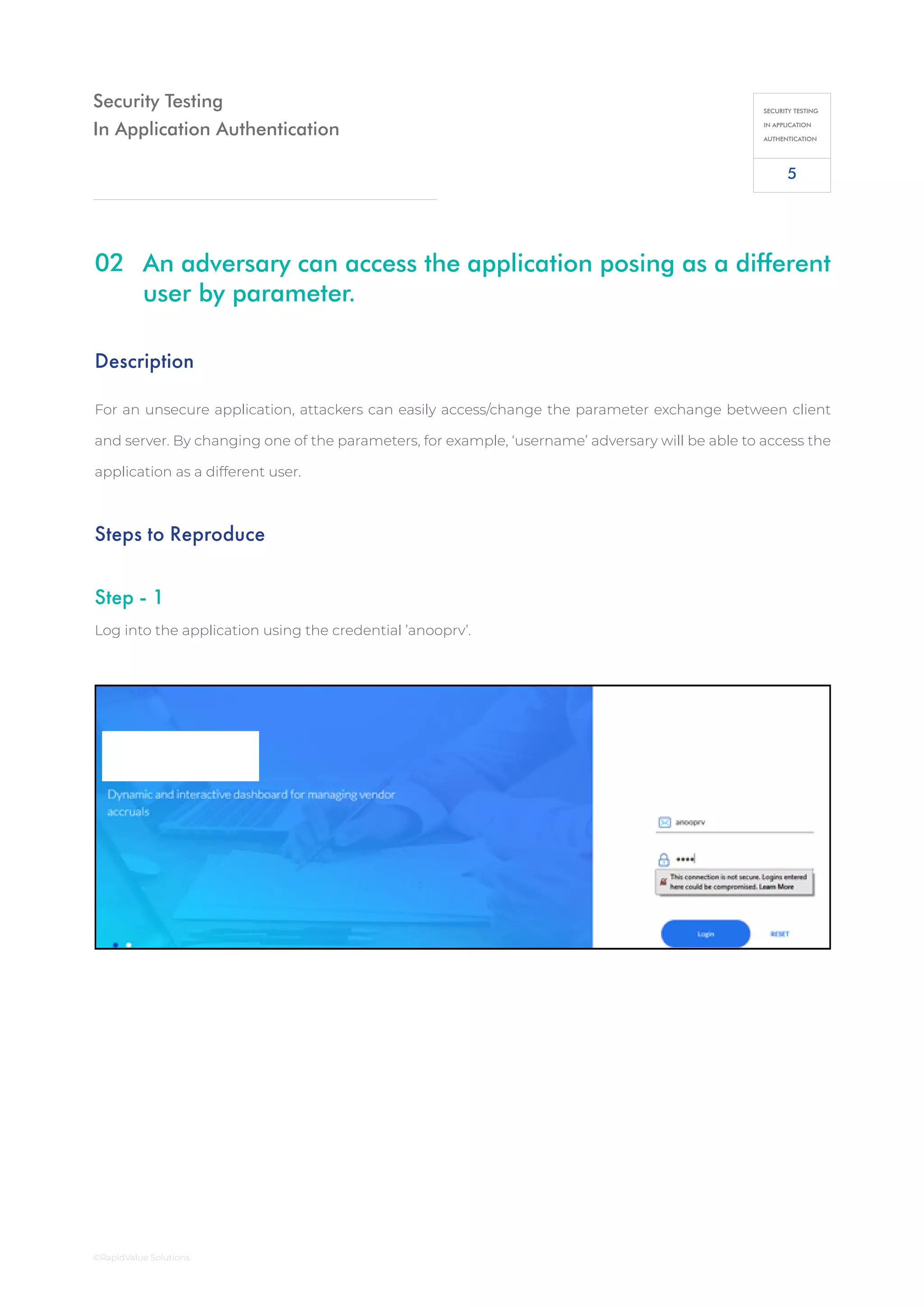

7. Security Testing
In Application Authentication
Step - 1
Log into the application using the credential ’anooprv’.
An adversary can access the application posing as a different
user by parameter.
02
Description
For an unsecure application, attackers can easily access/change the parameter exchange between client
and server. By changing one of the parameters, for example, ‘username’ adversary will be able to access the
application as a different user.
Steps to Reproduce
5
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

8. Security Testing
In Application Authentication

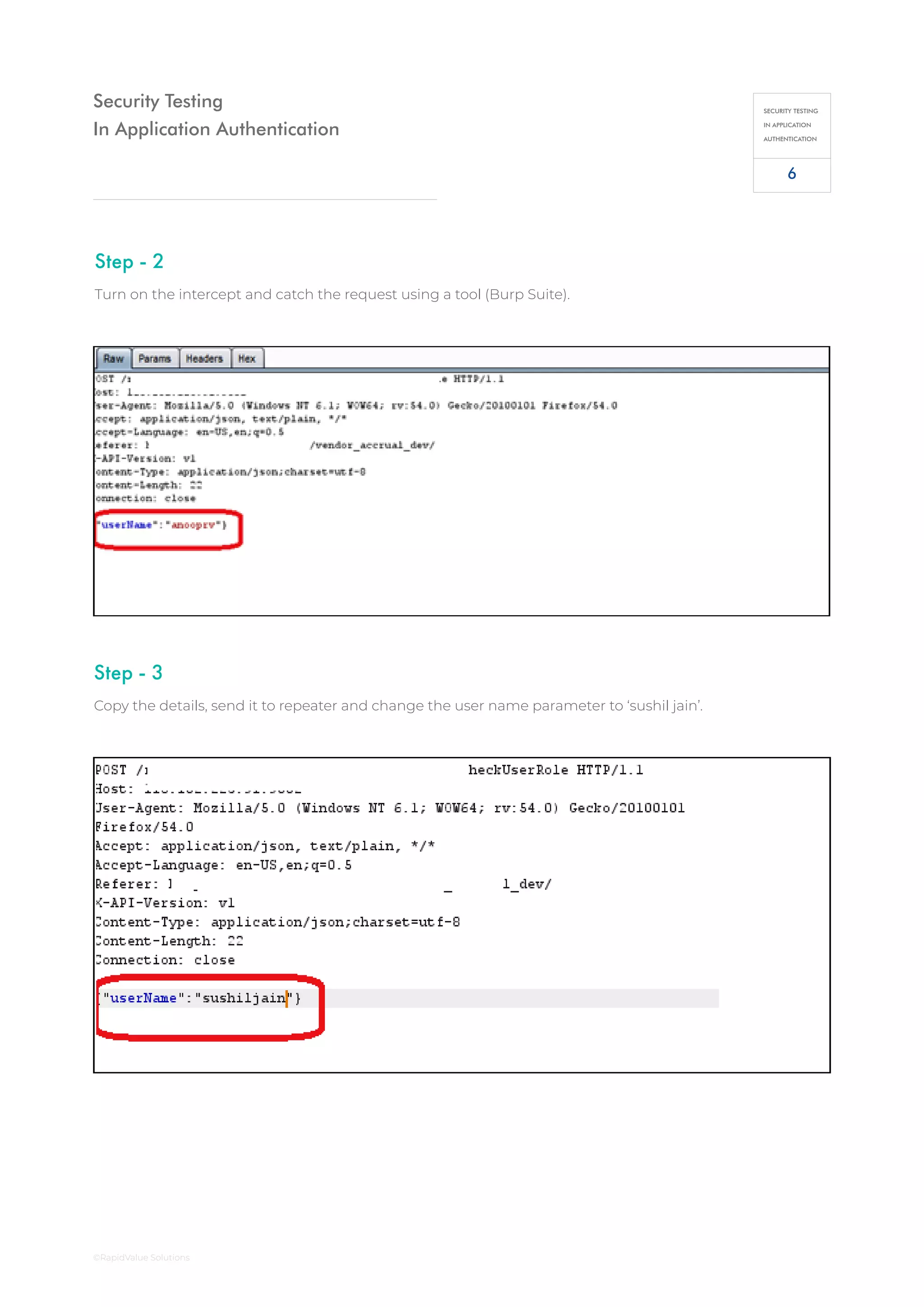

Step - 3
Copy the details, send it to repeater and change the user name parameter to ‘sushil jain’.
Step - 2
Turn on the intercept and catch the request using a tool (Burp Suite).
6
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

9. Security Testing
In Application Authentication

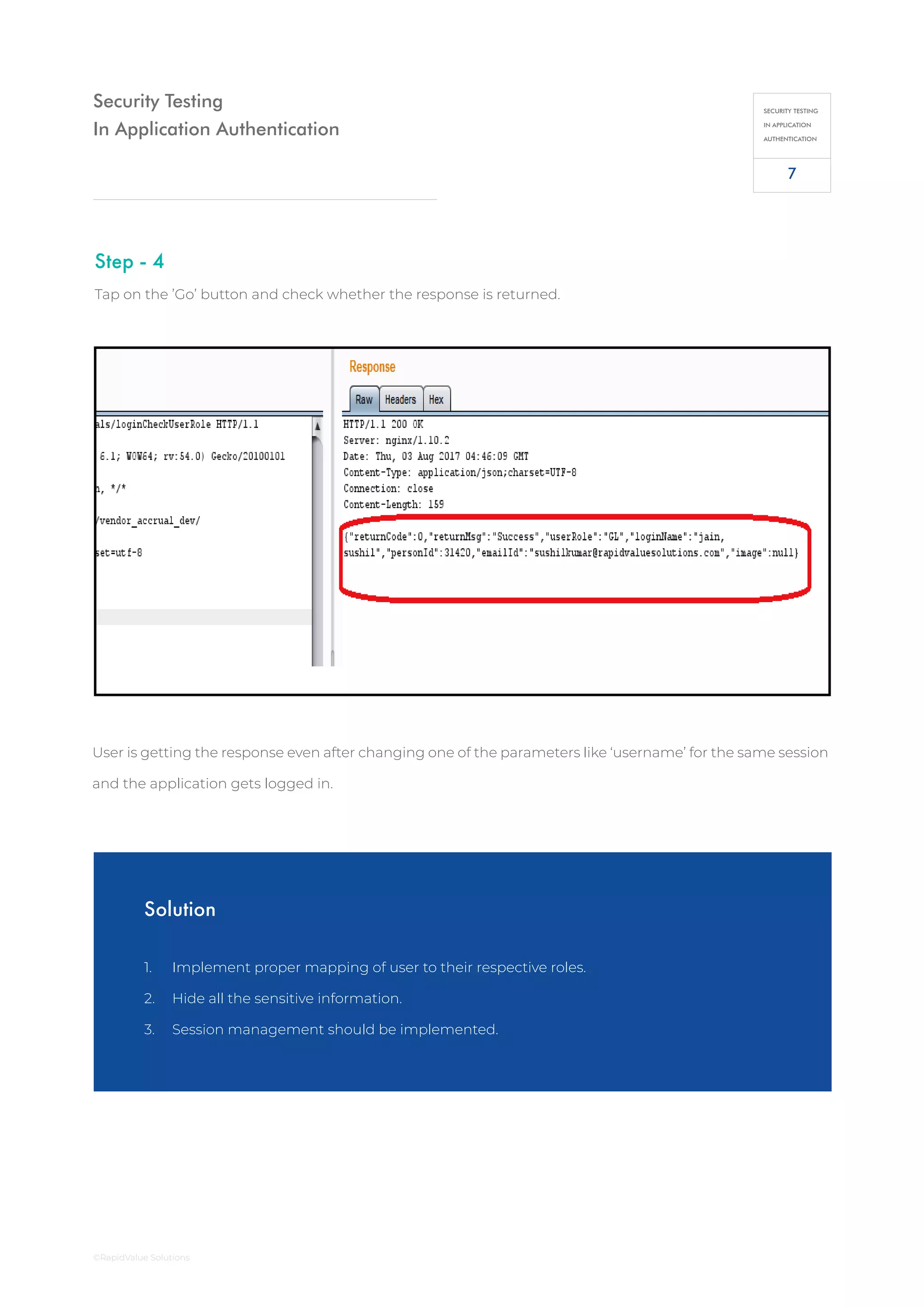

Step - 4
Tap on the ’Go’ button and check whether the response is returned.
User is getting the response even after changing one of the parameters like ‘username’ for the same session
and the application gets logged in.
Solution
1. Implement proper mapping of user to their respective roles.
2. Hide all the sensitive information.
3. Session management should be implemented.
7
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

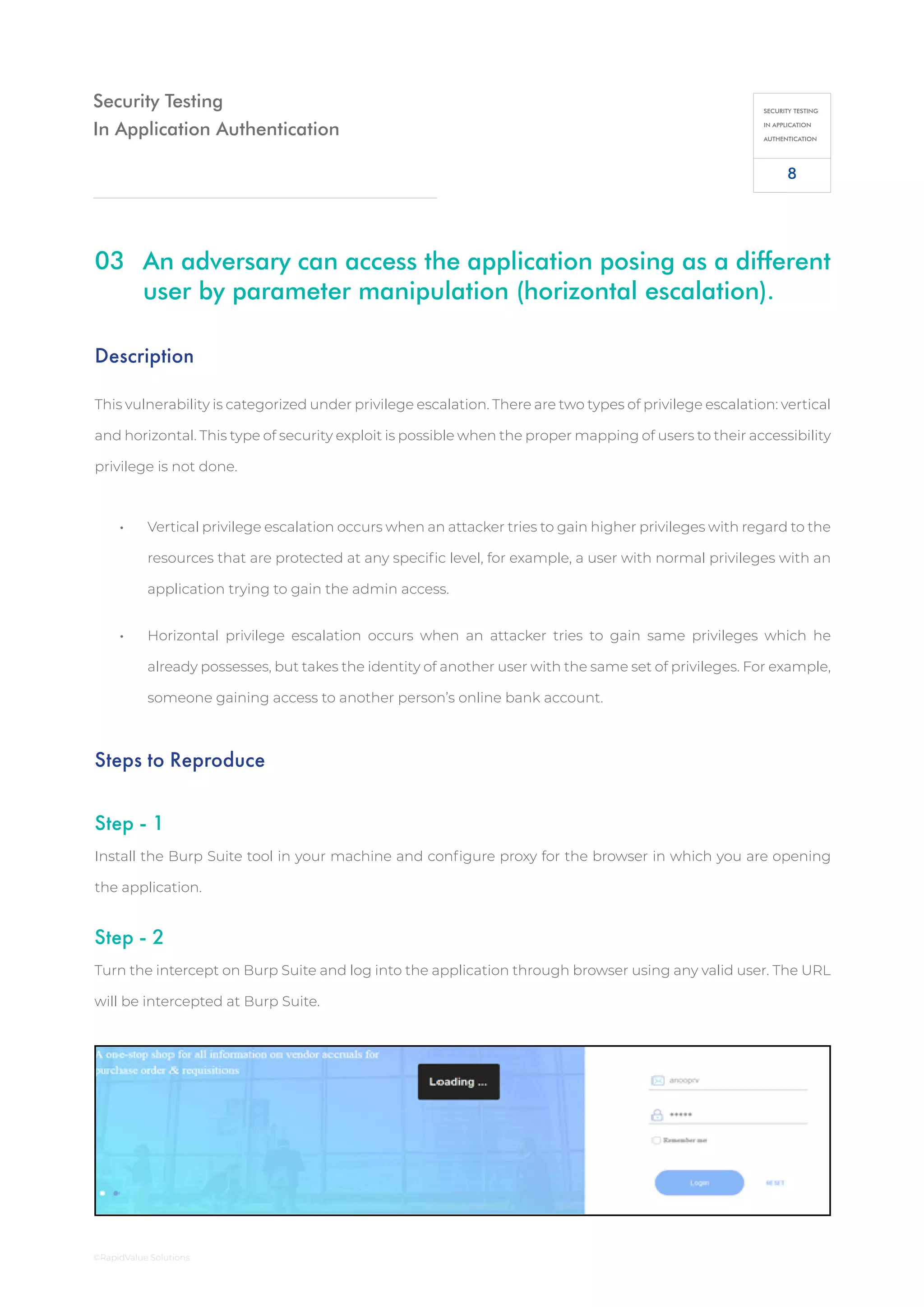

10. Security Testing
In Application Authentication
Step - 1
Install the Burp Suite tool in your machine and configure proxy for the browser in which you are opening
the application.
An adversary can access the application posing as a different
user by parameter manipulation (horizontal escalation).
03
Description
This vulnerability is categorized under privilege escalation. There are two types of privilege escalation: vertical
and horizontal. This type of security exploit is possible when the proper mapping of users to their accessibility
privilege is not done.
Steps to Reproduce
•• Vertical privilege escalation occurs when an attacker tries to gain higher privileges with regard to the
resources that are protected at any specific level, for example, a user with normal privileges with an
application trying to gain the admin access.
•• Horizontal privilege escalation occurs when an attacker tries to gain same privileges which he
already possesses, but takes the identity of another user with the same set of privileges. For example,
someone gaining access to another person’s online bank account.
Step - 2
Turn the intercept on Burp Suite and log into the application through browser using any valid user. The URL
will be intercepted at Burp Suite.
8
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

11. Security Testing
In Application Authentication

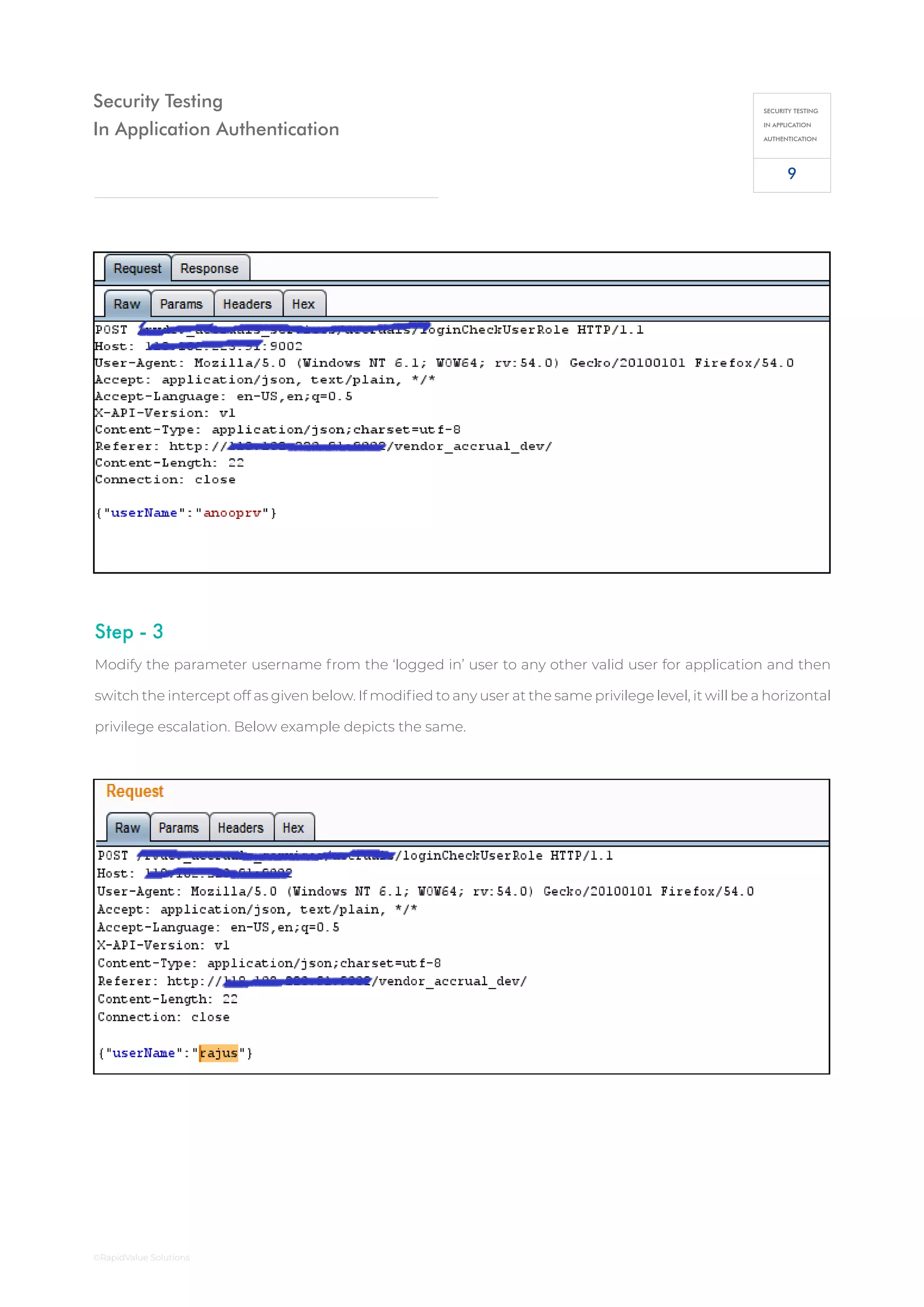

Step - 3
Modify the parameter username from the ‘logged in’ user to any other valid user for application and then
switch the intercept off as given below. If modified to any user at the same privilege level, it will be a horizontal
privilege escalation. Below example depicts the same.
9
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

12. Security Testing
In Application Authentication

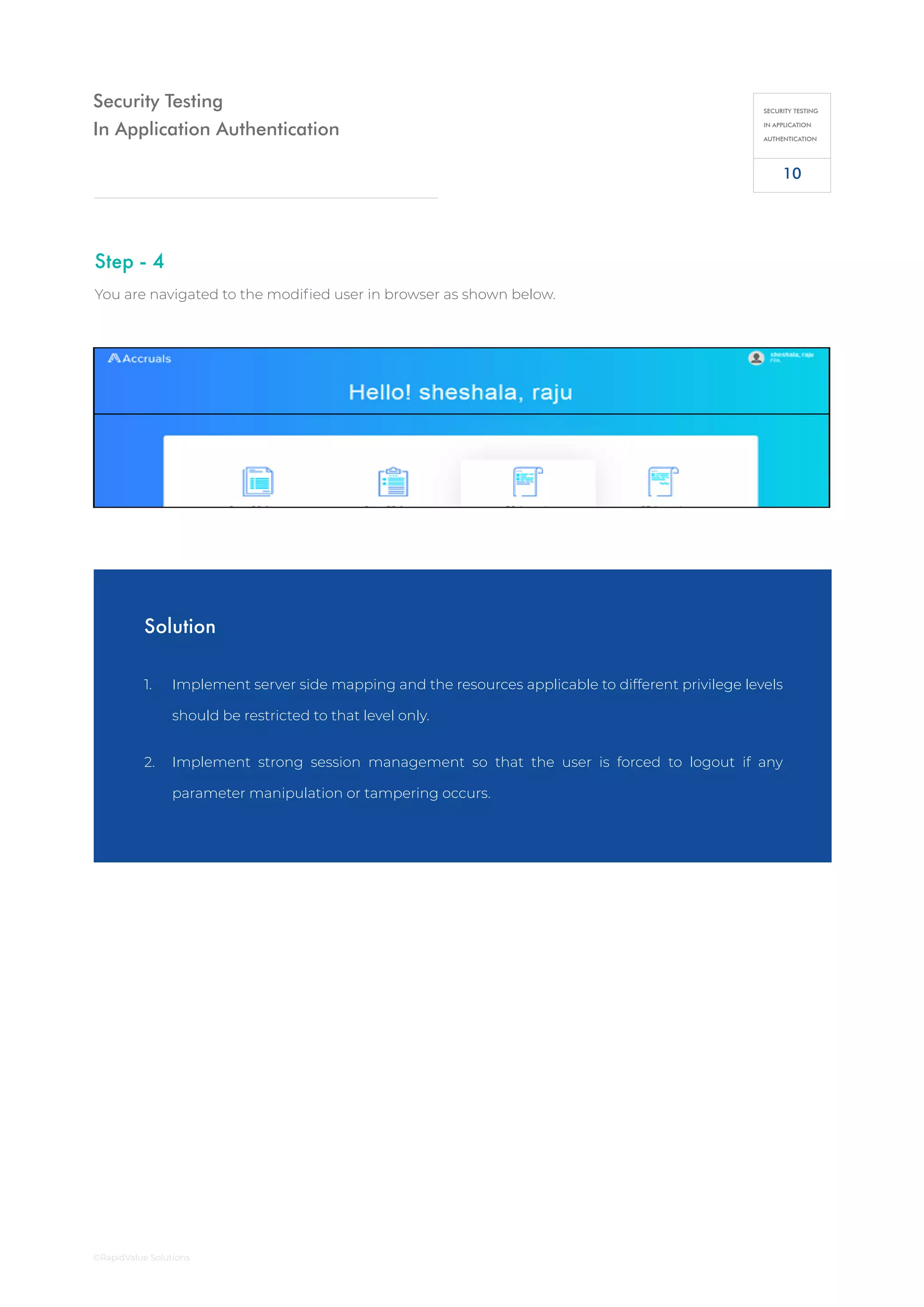

Step - 4
You are navigated to the modified user in browser as shown below.
Solution
1. Implement server side mapping and the resources applicable to different privilege levels
should be restricted to that level only.
2. Implement strong session management so that the user is forced to logout if any
parameter manipulation or tampering occurs.
10
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

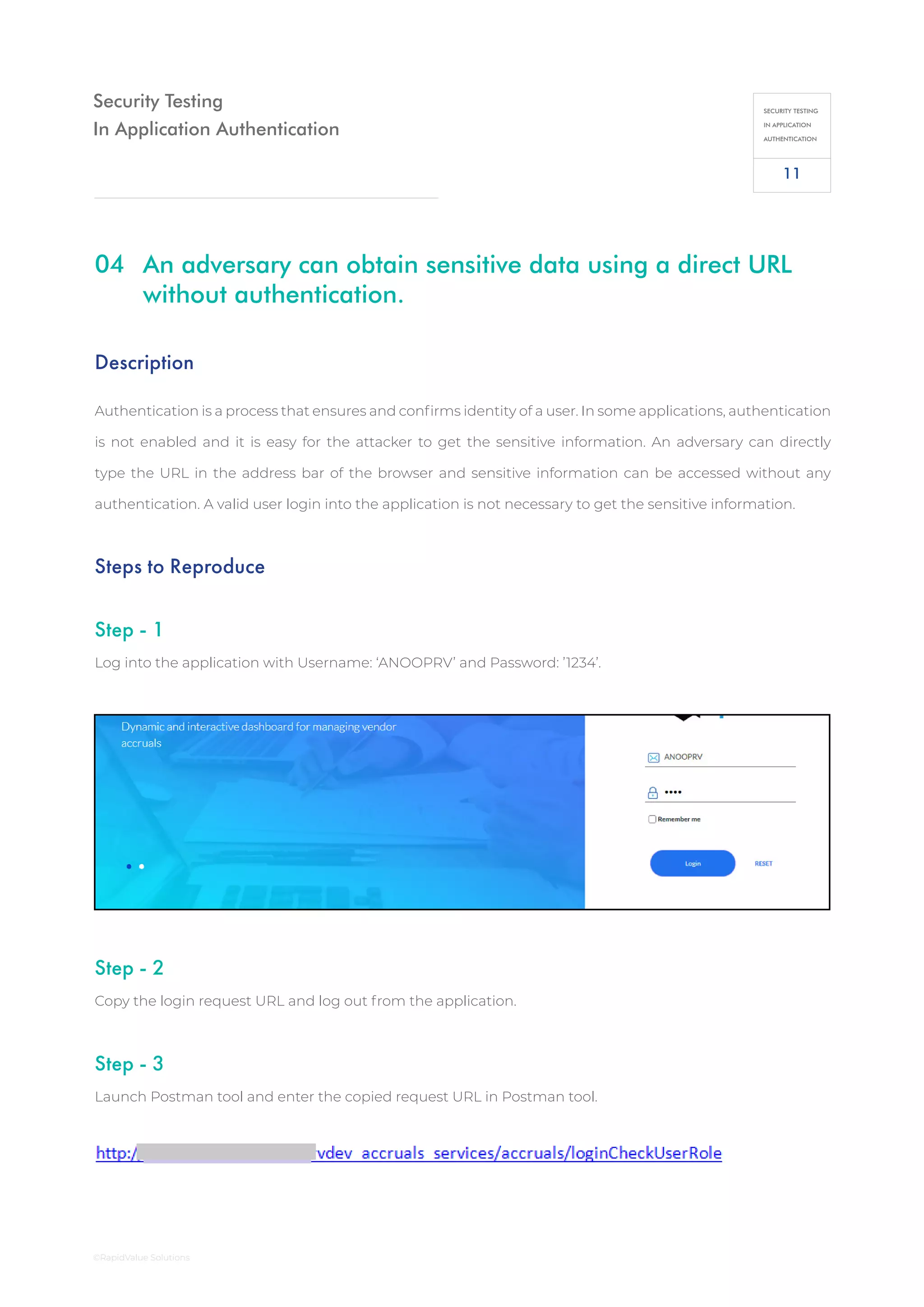

13. Security Testing
In Application Authentication
Step - 1
Log into the application with Username: ‘ANOOPRV’ and Password: ’1234’.
Step - 2
Copy the login request URL and log out from the application.
Step - 3
Launch Postman tool and enter the copied request URL in Postman tool.
An adversary can obtain sensitive data using a direct URL
without authentication.
04
Description
Authentication is a process that ensures and confirms identity of a user. In some applications, authentication
is not enabled and it is easy for the attacker to get the sensitive information. An adversary can directly
type the URL in the address bar of the browser and sensitive information can be accessed without any
authentication. A valid user login into the application is not necessary to get the sensitive information.
Steps to Reproduce
11
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

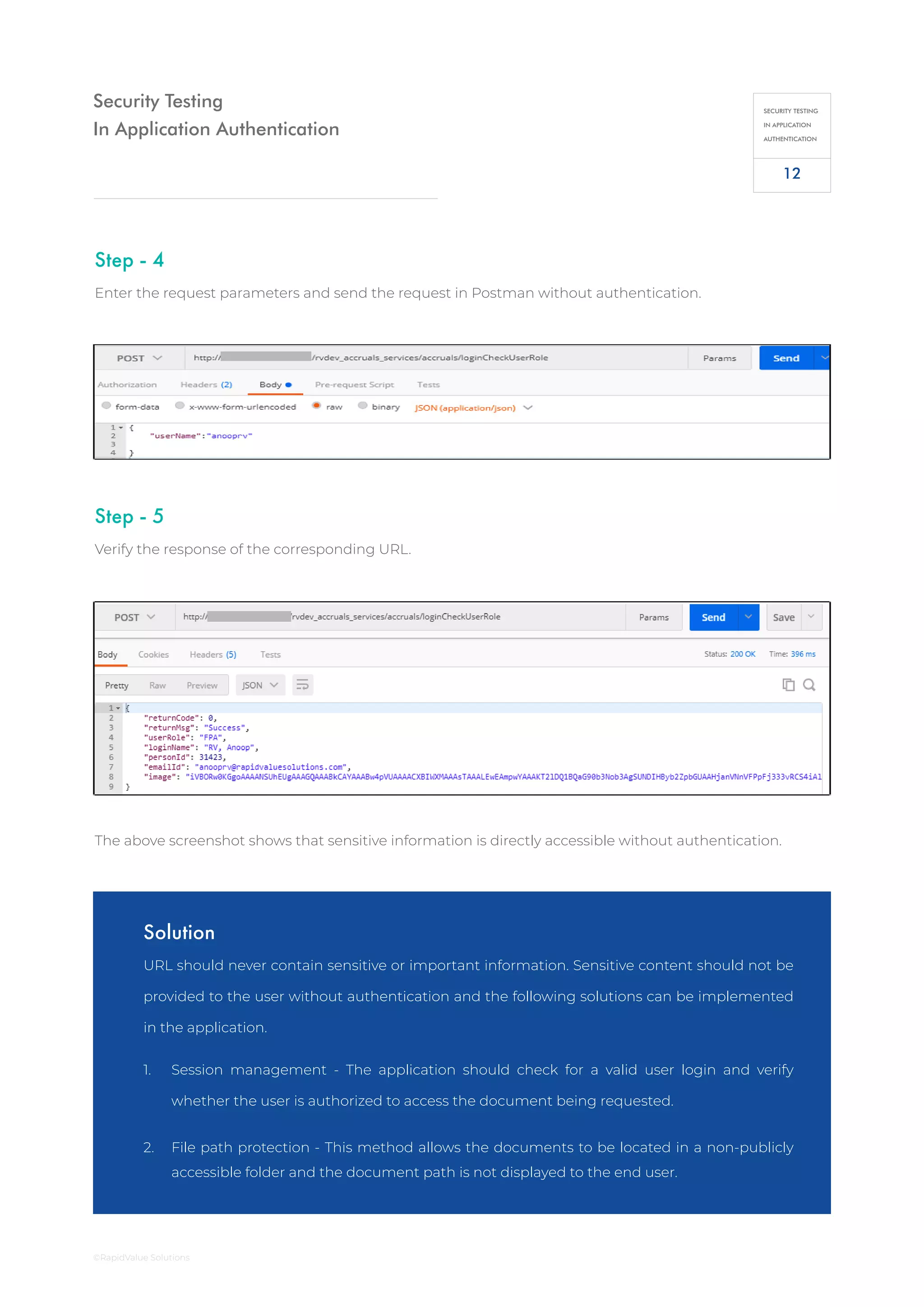

14. Security Testing
In Application Authentication
Solution
Solution
URL should never contain sensitive or important information. Sensitive content should not be
provided to the user without authentication and the following solutions can be implemented
in the application.
1. Session management - The application should check for a valid user login and verify
whether the user is authorized to access the document being requested.
2. File path protection - This method allows the documents to be located in a non-publicly
accessible folder and the document path is not displayed to the end user.
Step - 4
Enter the request parameters and send the request in Postman without authentication.
Step - 5
Verify the response of the corresponding URL.
The above screenshot shows that sensitive information is directly accessible without authentication.
12
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

15. Security Testing
In Application Authentication

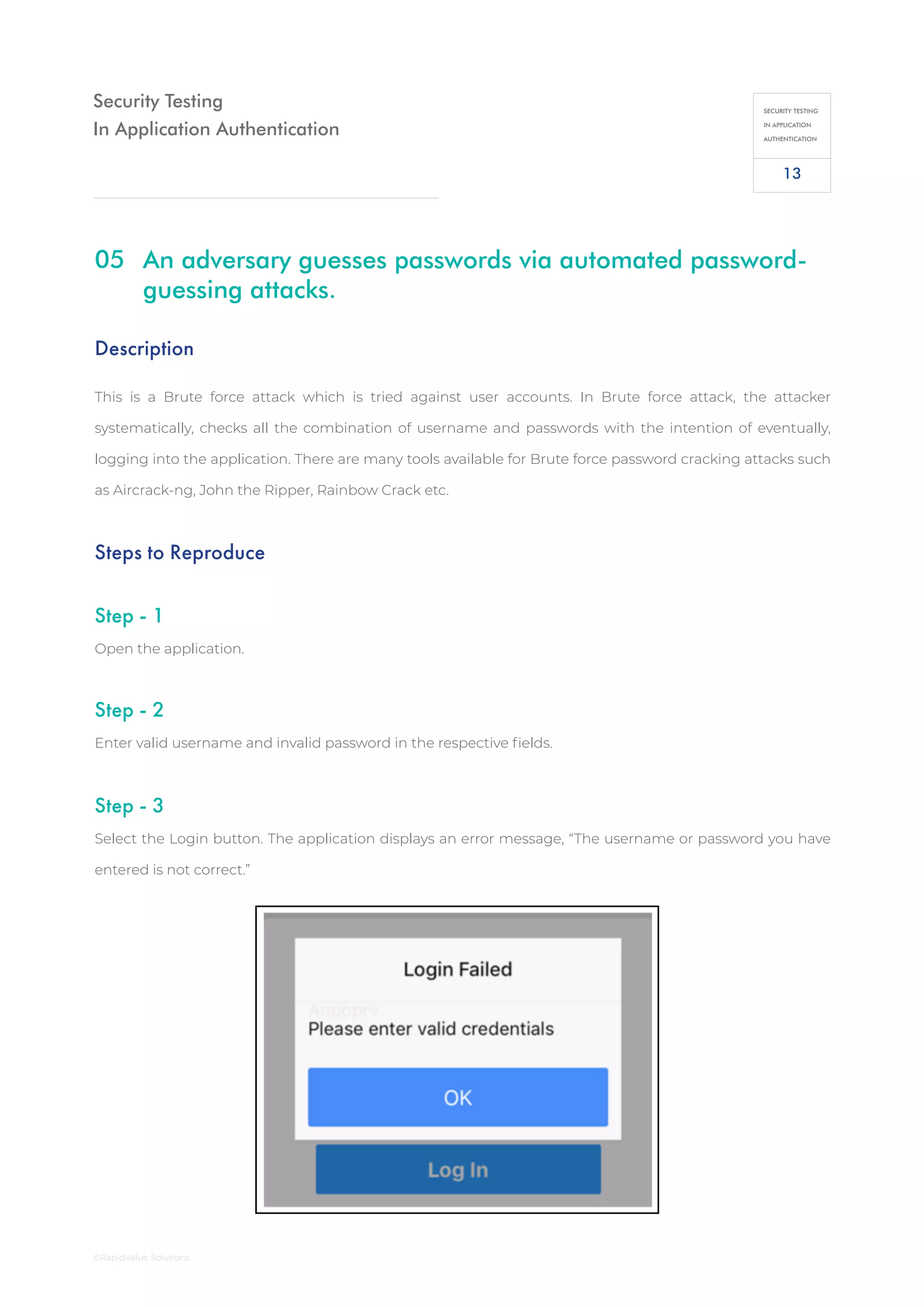

Step - 1
Open the application.
Step - 3
Select the Login button. The application displays an error message, “The username or password you have
entered is not correct.”
Step - 2
Enter valid username and invalid password in the respective fields.
An adversary guesses passwords via automated password-
guessing attacks.
05
Description
This is a Brute force attack which is tried against user accounts. In Brute force attack, the attacker
systematically, checks all the combination of username and passwords with the intention of eventually,
logging into the application. There are many tools available for Brute force password cracking attacks such
as Aircrack-ng, John the Ripper, Rainbow Crack etc.
Steps to Reproduce
13
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

16. Security Testing
In Application Authentication

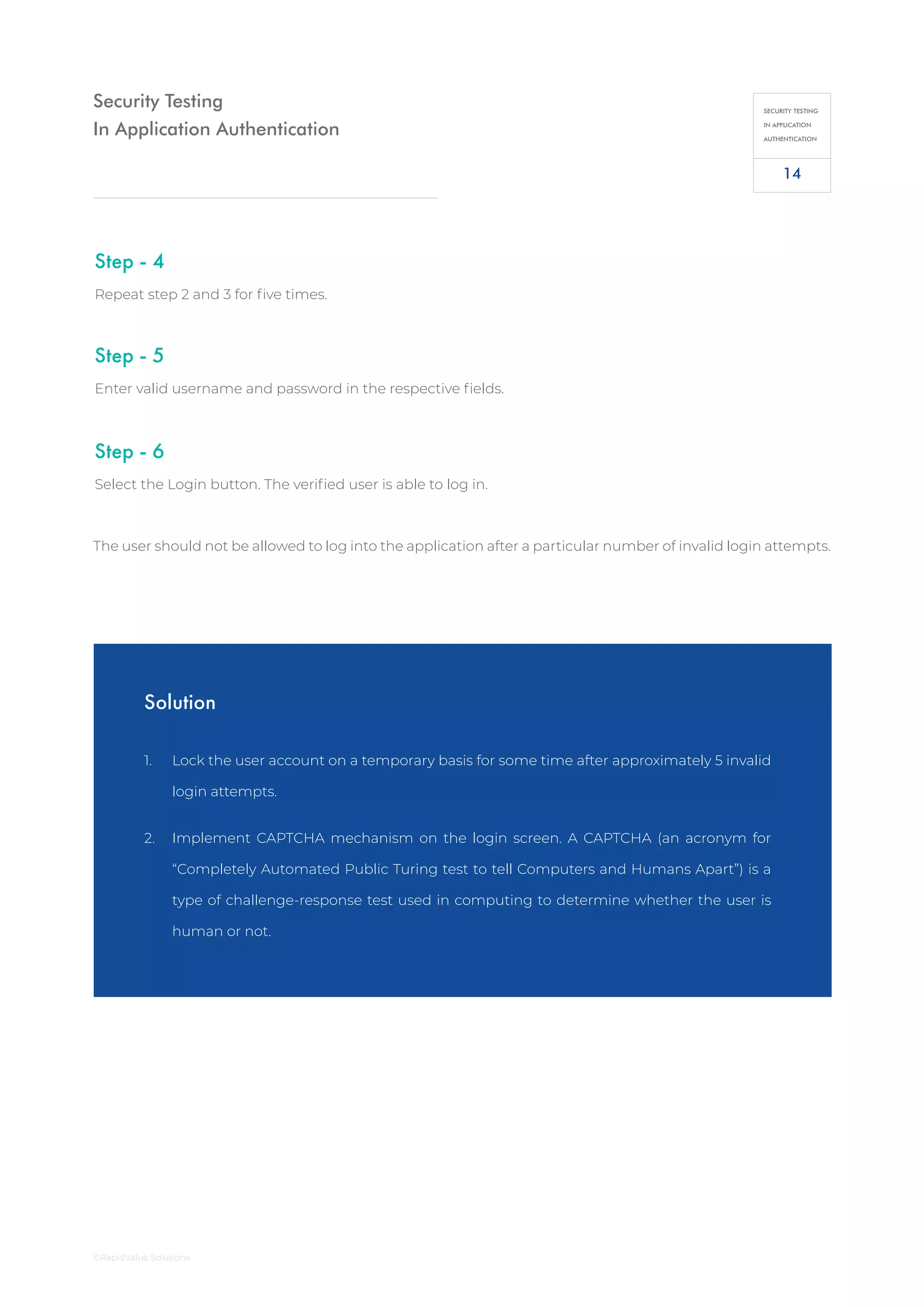

Step - 4
Repeat step 2 and 3 for five times.
Step - 6
Select the Login button. The verified user is able to log in.
Step - 5
Enter valid username and password in the respective fields.
The user should not be allowed to log into the application after a particular number of invalid login attempts.
Solution
1. Lock the user account on a temporary basis for some time after approximately 5 invalid
login attempts.
2. Implement CAPTCHA mechanism on the login screen. A CAPTCHA (an acronym for
“Completely Automated Public Turing test to tell Computers and Humans Apart”) is a
type of challenge-response test used in computing to determine whether the user is
human or not.
14
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

17. Security Testing
In Application Authentication

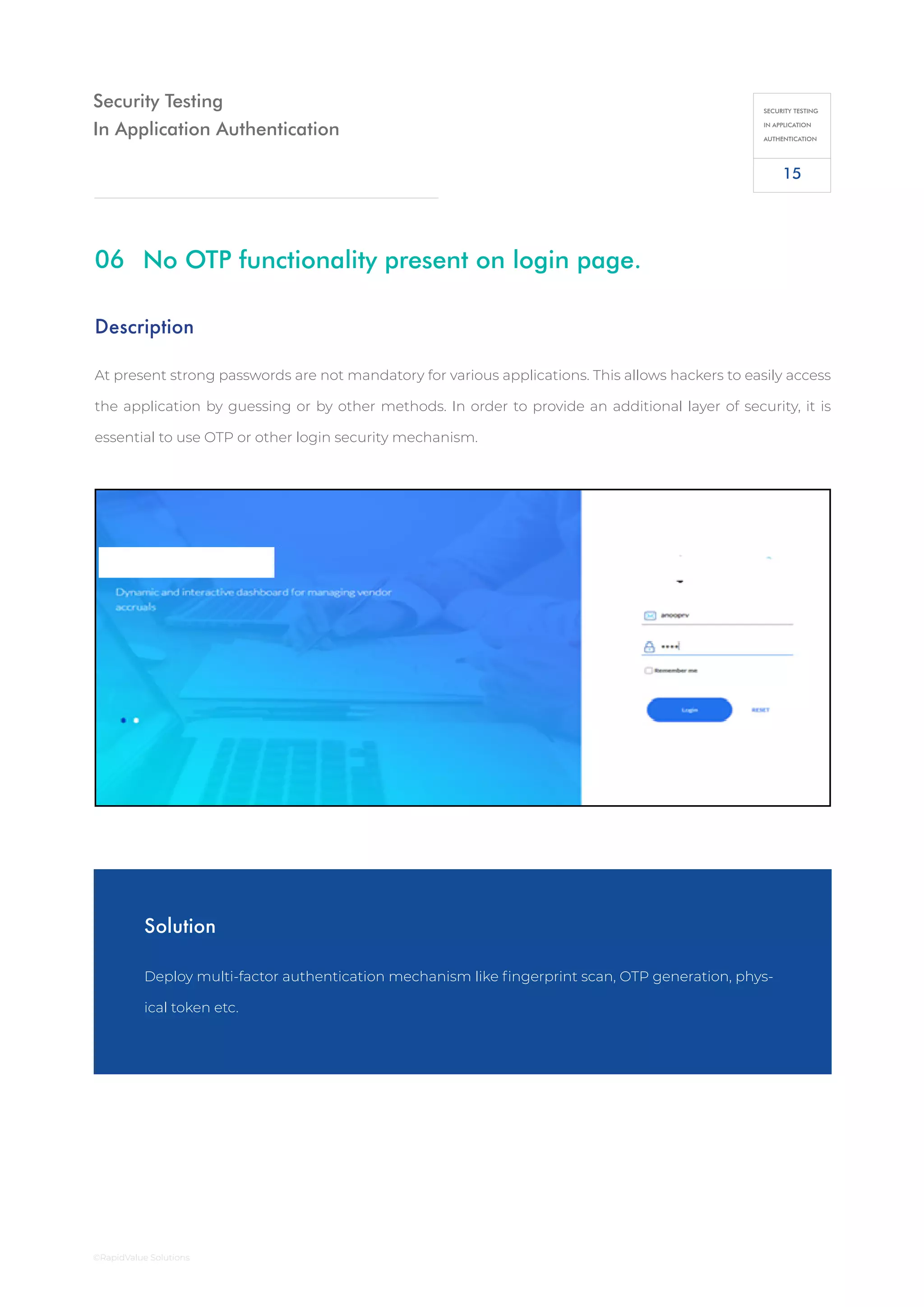

No OTP functionality present on login page.06
Description
At present strong passwords are not mandatory for various applications. This allows hackers to easily access
the application by guessing or by other methods. In order to provide an additional layer of security, it is
essential to use OTP or other login security mechanism.
Solution
Deploy multi-factor authentication mechanism like fingerprint scan, OTP generation, phys-
ical token etc.
15
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

18. Security Testing
In Application Authentication

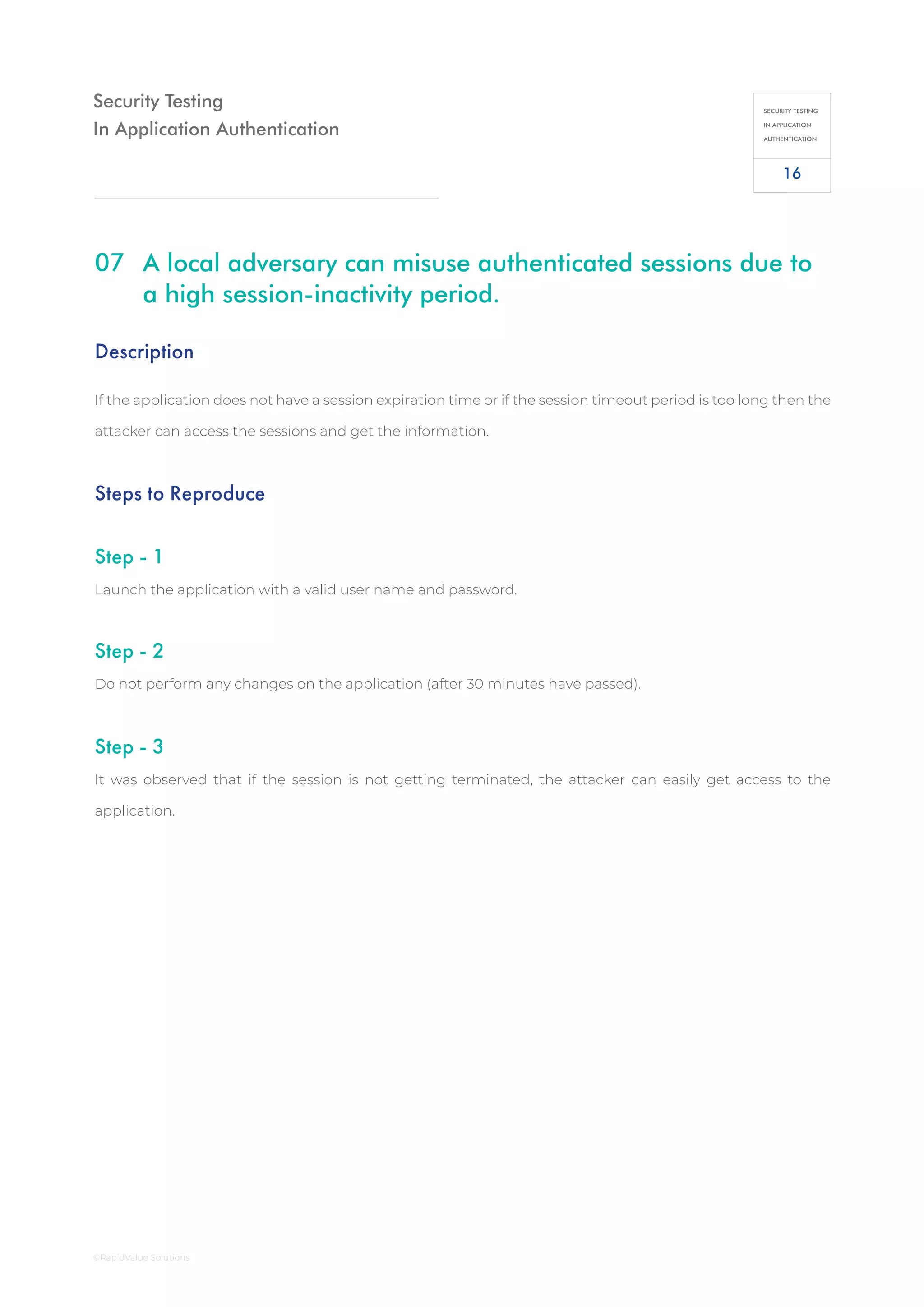

Step - 1
Launch the application with a valid user name and password.
Step - 3
It was observed that if the session is not getting terminated, the attacker can easily get access to the
application.
Step - 2
Do not perform any changes on the application (after 30 minutes have passed).
A local adversary can misuse authenticated sessions due to
a high session-inactivity period.
07
Description
If the application does not have a session expiration time or if the session timeout period is too long then the
attacker can access the sessions and get the information.
Steps to Reproduce
16
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

19. Security Testing
In Application Authentication
Solution
Step 1 – Launch the app and log in with valid username and password.
Step 2 – Do not perform any changes on the application (after 30 minutes have passed).
Step 3 – User will get logged out.
Add session expiration time for the inactive period. Normally 30 minutes is the session
expiration period.
17
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

20. Security Testing
In Application Authentication

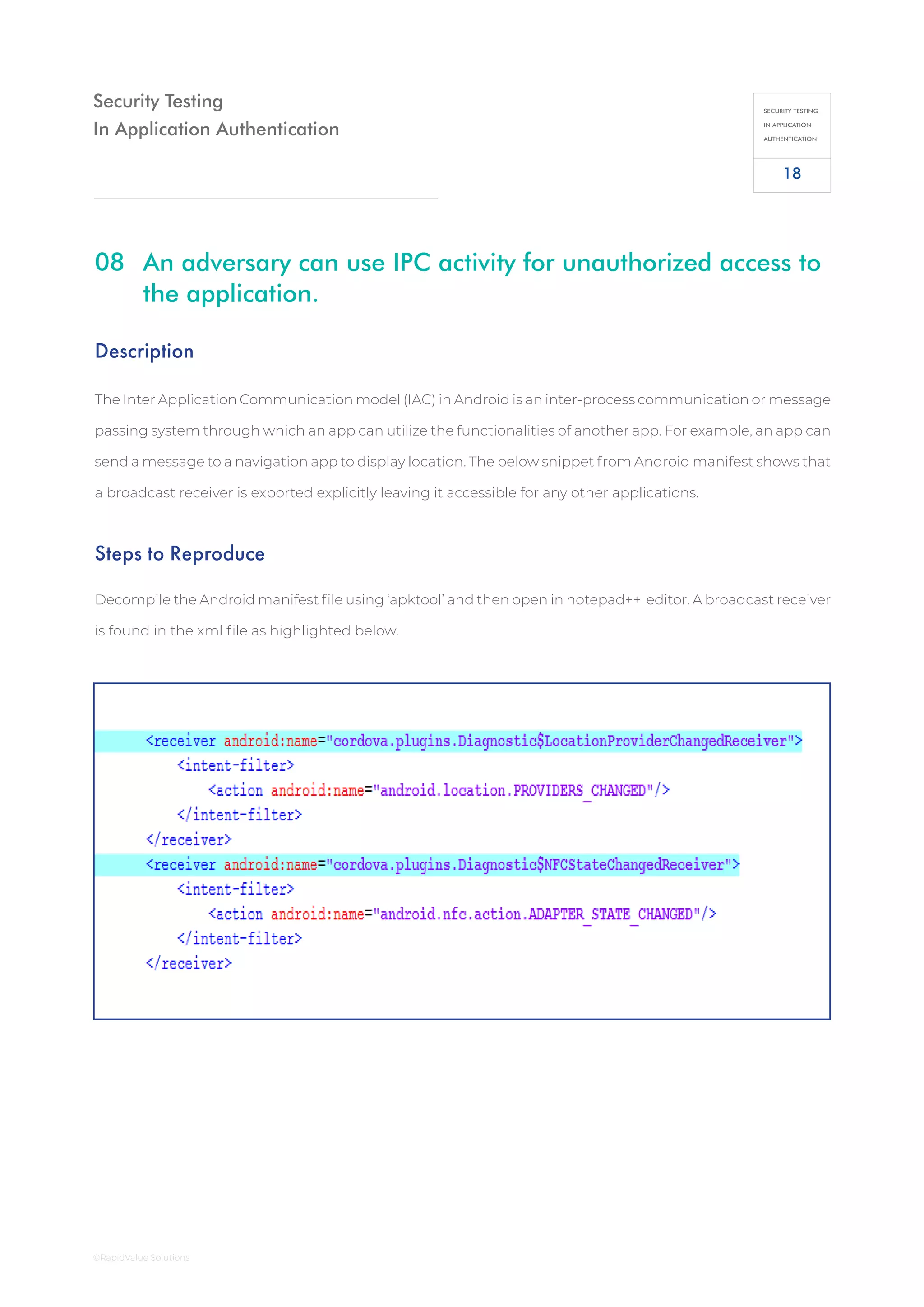

An adversary can use IPC activity for unauthorized access to
the application.
08
Description
The Inter Application Communication model (IAC) in Android is an inter-process communication or message
passing system through which an app can utilize the functionalities of another app. For example, an app can
send a message to a navigation app to display location. The below snippet from Android manifest shows that
a broadcast receiver is exported explicitly leaving it accessible for any other applications.
Decompile the Android manifest file using ‘apktool’ and then open in notepad++ editor. A broadcast receiver
is found in the xml file as highlighted below.
Steps to Reproduce
18
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

21. Security Testing
In Application Authentication

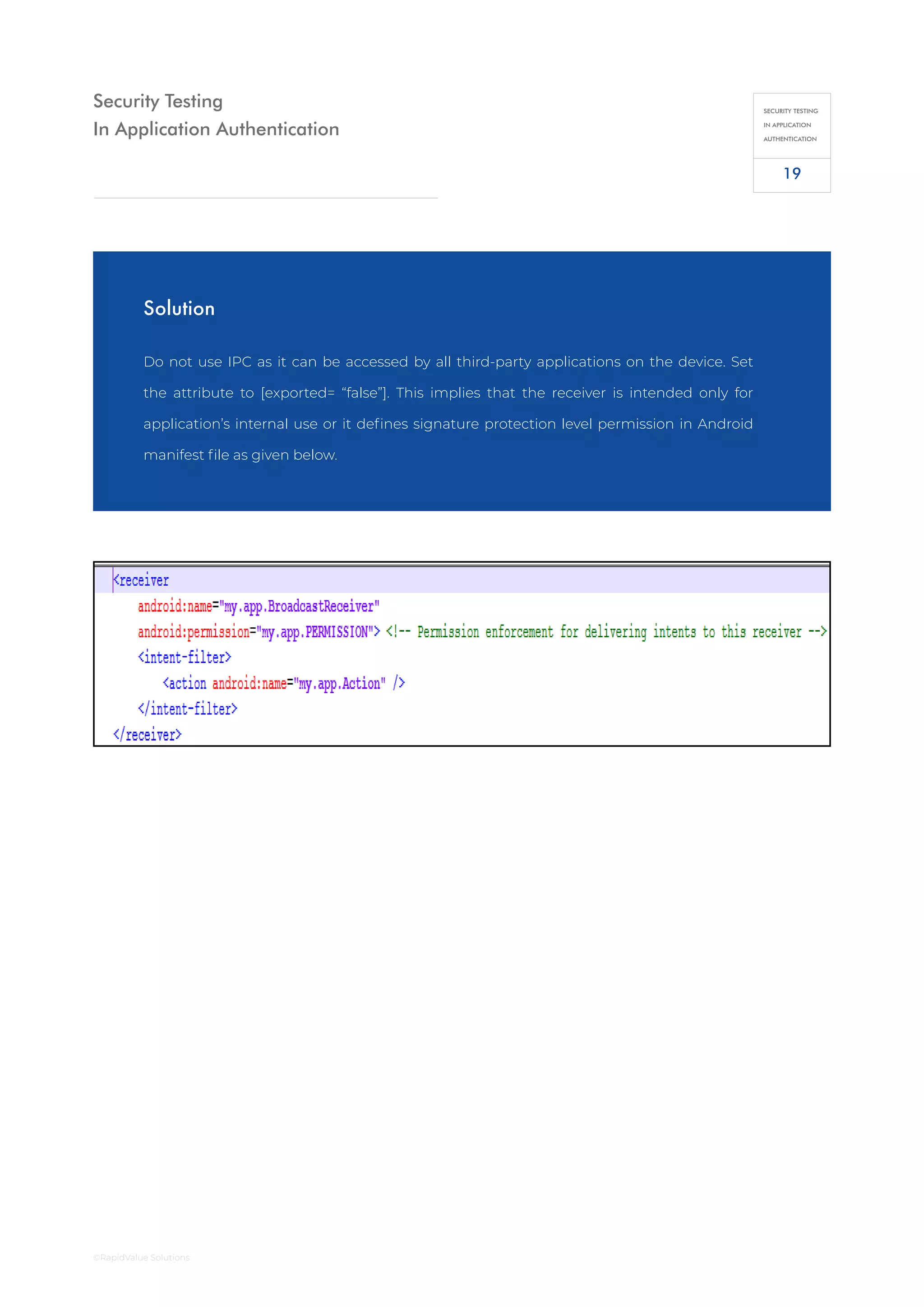

Solution
Do not use IPC as it can be accessed by all third-party applications on the device. Set
the attribute to [exported= “false”]. This implies that the receiver is intended only for
application’s internal use or it defines signature protection level permission in Android
manifest file as given below.
19
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

22. Security Testing
In Application Authentication
Step - 1
Launch and log into the application using valid credentials.
Step - 3
Send the request to repeater.
Step - 2
Access any page and capture the request using “Burp” tool.
Adversary hijack sessions as the session is not invalidated
on logging out.
09
Description
A session token is assigned to the ‘logged in’ user, while logging into the application. Using this, session token
user’s session is identified until logout. This session token should be properly invalidated when the user logs
out from the application or else any adversary can hijack the user’s session using this session token.
Steps to Reproduce
20
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

23. Security Testing
In Application Authentication

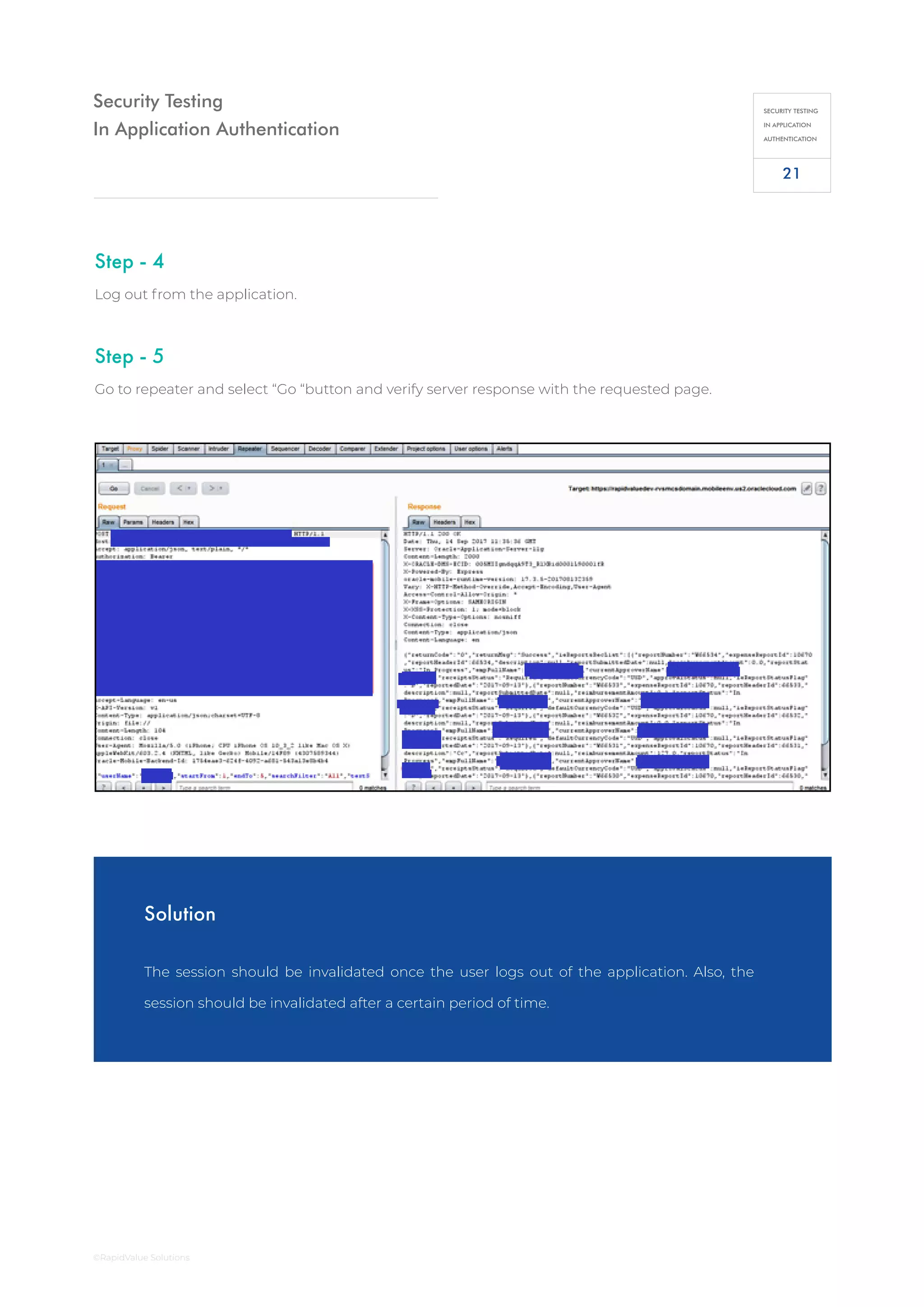

Step - 4
Log out from the application.
Step - 5
Go to repeater and select “Go “button and verify server response with the requested page.
Solution
The session should be invalidated once the user logs out of the application. Also, the
session should be invalidated after a certain period of time.
21
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

24. Security Testing
In Application Authentication
Step - 1
Log into application and navigate to any page.
Step - 3
Try to open the same URL again in the browser (if it is a mobile application, after the application is put into
background, bring it back to foreground).
Step - 2
Close the application without logging out.
Step - 4
The session remains active and user can see the information in page.
The application does not invalidate the session on closing
the application.
10
Description
The session id is a way to track whether the authenticated user identities are specific to any applications
and are maintained at server side. Sometimes, the session remains active if the application is closed without
logging out or when a mobile application goes on in the background. Therefore, if any adversary gets
unauthorized access to the phone, it can perform malicious operations.
Steps to Reproduce
22
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

25. Security Testing
In Application Authentication

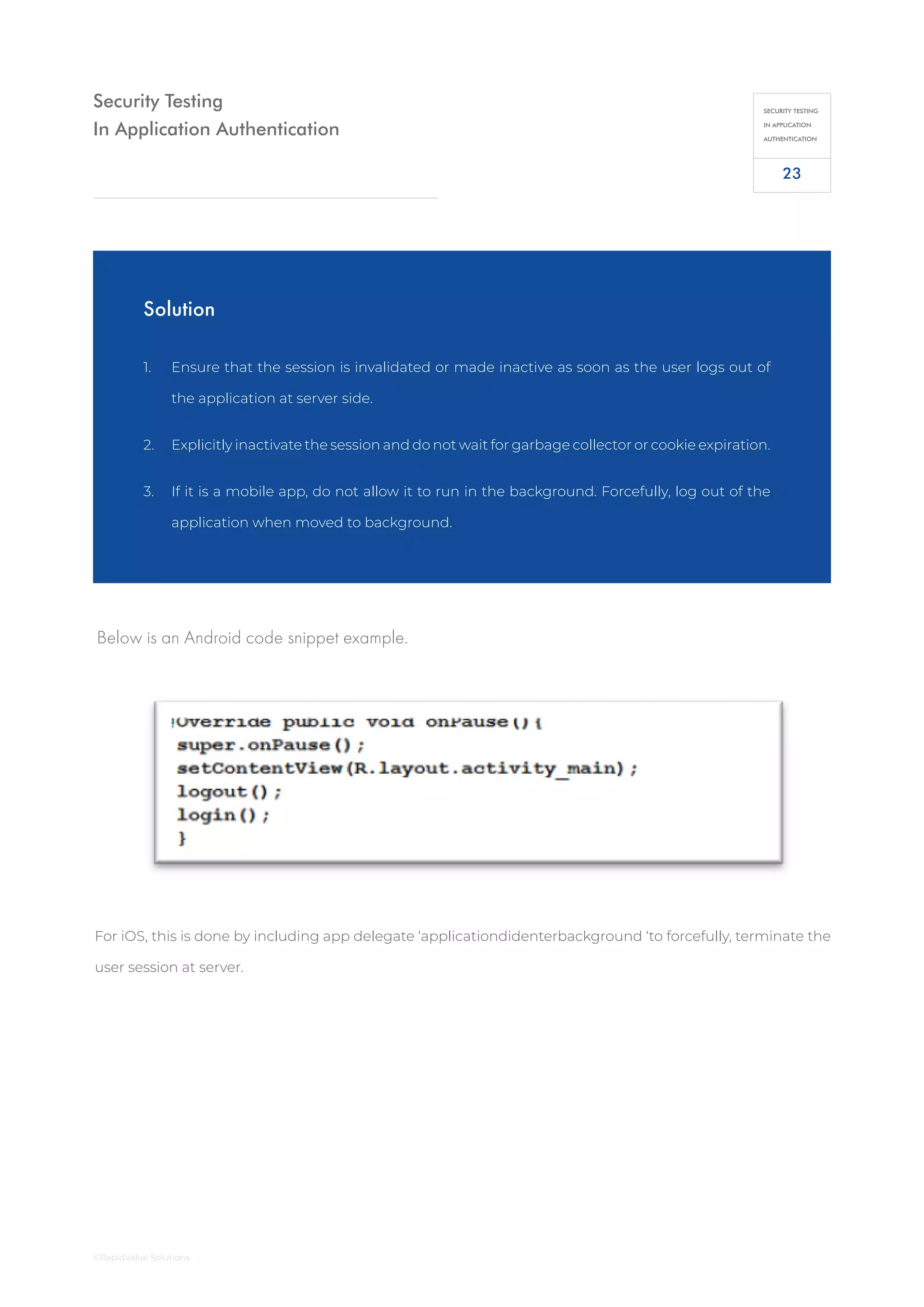

Solution
Below is an Android code snippet example.
1. Ensure that the session is invalidated or made inactive as soon as the user logs out of
the application at server side.
2. Explicitly inactivate the session and do not wait for garbage collector or cookie expiration.
3. If it is a mobile app, do not allow it to run in the background. Forcefully, log out of the
application when moved to background.
For iOS, this is done by including app delegate ‘applicationdidenterbackground ‘to forcefully, terminate the
user session at server.
23
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

26. Security Testing
In Application Authentication
The application has a weak password policy.11
Description
An application with weak password policy is susceptible to attack. The major form of attack that can occur
is password guessing.
Users will give their own name, username, address, phone number, hobbies, pet’s name etc. as their password
so that can be easily remembered.
If the intruder has access to the server and executes the Finger utility command then he/she would be able
to retrieve all the information of the users in the server. This command can be executed from Command
prompt.
The below screenshot shows how the password is viewable in the request and you can arrive at the conclusion
that the password is same as the username and is a weak one.
24
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

27. Security Testing
In Application Authentication
Solution
1. Password must have a minimum of 8 characters.
2. Password must not contain any personal information.
3. Must be different from the last passwords provided in the system. Enforce password
history logic.
4. Words must not be spelled completely.
5. Password must contain characters from the four primary categories, including,
uppercase and lowercase letters, numbers, and special characters.
Only the admin must have access to execute the Finger command in the server and by default
avoid executing the command. Implement a strong password which takes into account the
below mentioned criteria.
25
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

28. Security Testing
In Application Authentication

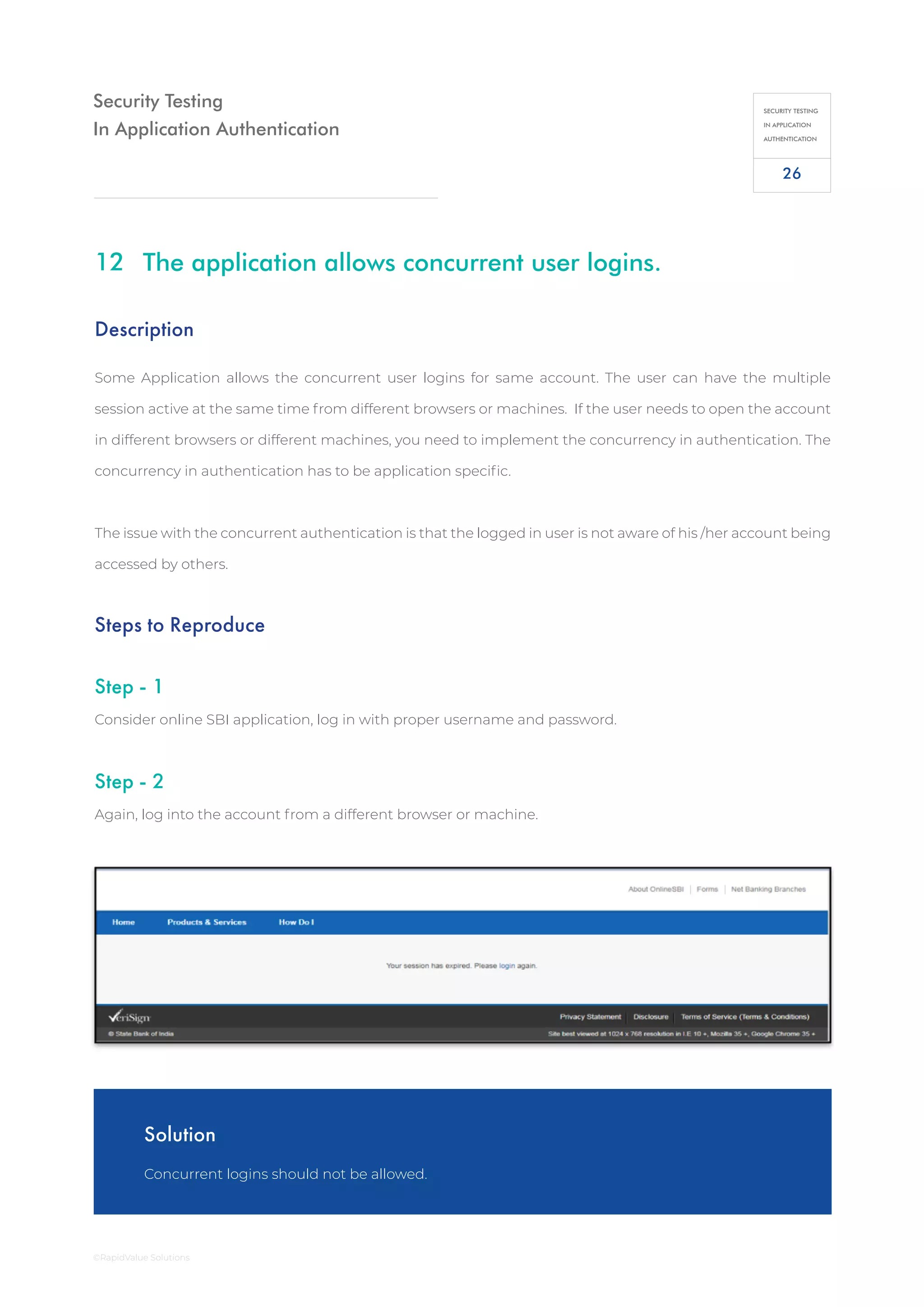

Step - 1
Consider online SBI application, log in with proper username and password.
Step - 2
Again, log into the account from a different browser or machine.
The application allows concurrent user logins.12
Description
Some Application allows the concurrent user logins for same account. The user can have the multiple
session active at the same time from different browsers or machines. If the user needs to open the account
in different browsers or different machines, you need to implement the concurrency in authentication. The
concurrency in authentication has to be application specific.
The issue with the concurrent authentication is that the logged in user is not aware of his /her account being
accessed by others.
Steps to Reproduce
Solution
Concurrent logins should not be allowed.
26
©RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION

29. Security Testing
In Application AuthenticationConclusion
The application layer is always the hardest to defend against security threat. The vulnerabilities
which are present here usually depend on the input that is being given by the user. This layer
is also the most accessible one and the most exposed to the outside world. Hence we would
always need to give utmost importance to the authentication part of an application and prevent
malicious attacks. The case study covers only a part of the attacks that can happen to the
applications authentication.
Authors
If you’d like to know more about
Security Testing, please reach out to us at
contactus@rapidvaluesolutions.com
We’d be happy to hear from you!
Bipin M Nair
Soniya Varghese
Rosu Antu
Rahul RS
Neena Elizabeth Varghese
Senior Software Test Engineer
RapidValue Solutions
Senior Software Test Engineer
RapidValue Solutions
Software Test Engineer
RapidValue Solutions
Senior Software Test Engineer
RapidValue Solutions
Software Test Engineer
RapidValue Solutions
SECURITY TESTING
IN APPLICATION
AUTHENTICATION
27
©RapidValue Solutions
27

30. Security Testing
In Application Authentication
Disclaimer:
This document contains information that is confidential and proprietary to RapidValue Solutions Inc. No part of it may be used,
circulated, quoted, or reproduced for distribution outside RapidValue. If you are not the intended recipient of this report, you are
hereby notified that the use, circulation, quoting, or reproducing of this report is strictly prohibited and may be unlawful.
A global leader in digital transformation for enterprise providing end-to-end
mobility, omni-channel, IoT and cloud solutions. Armed with a large team of
expertsinconsulting,UXdesign,applicationdevelopment,integrationandtesting,
along with experience delivering projects worldwide, in mobility and cloud, we
offer a wide range of services across industry verticals. We deliver services to
the world’s top brands, fortune 1000 companies, Multinational companies and
emerging start-ups. We have offices in the United States, the United Kingdom
and India.
www.rapidvaluesolutions.com
+1 877.643.1850
www.rapidvaluesolutions.com/blog
contactus@rapidvaluesolutions.com
©RapidValue Solutions July, 2018
